Model Whirlpool RA1010 – Common Parts & Diagrams
05 - OPTIONAL
03 - AIR FLOW AND CONTROL

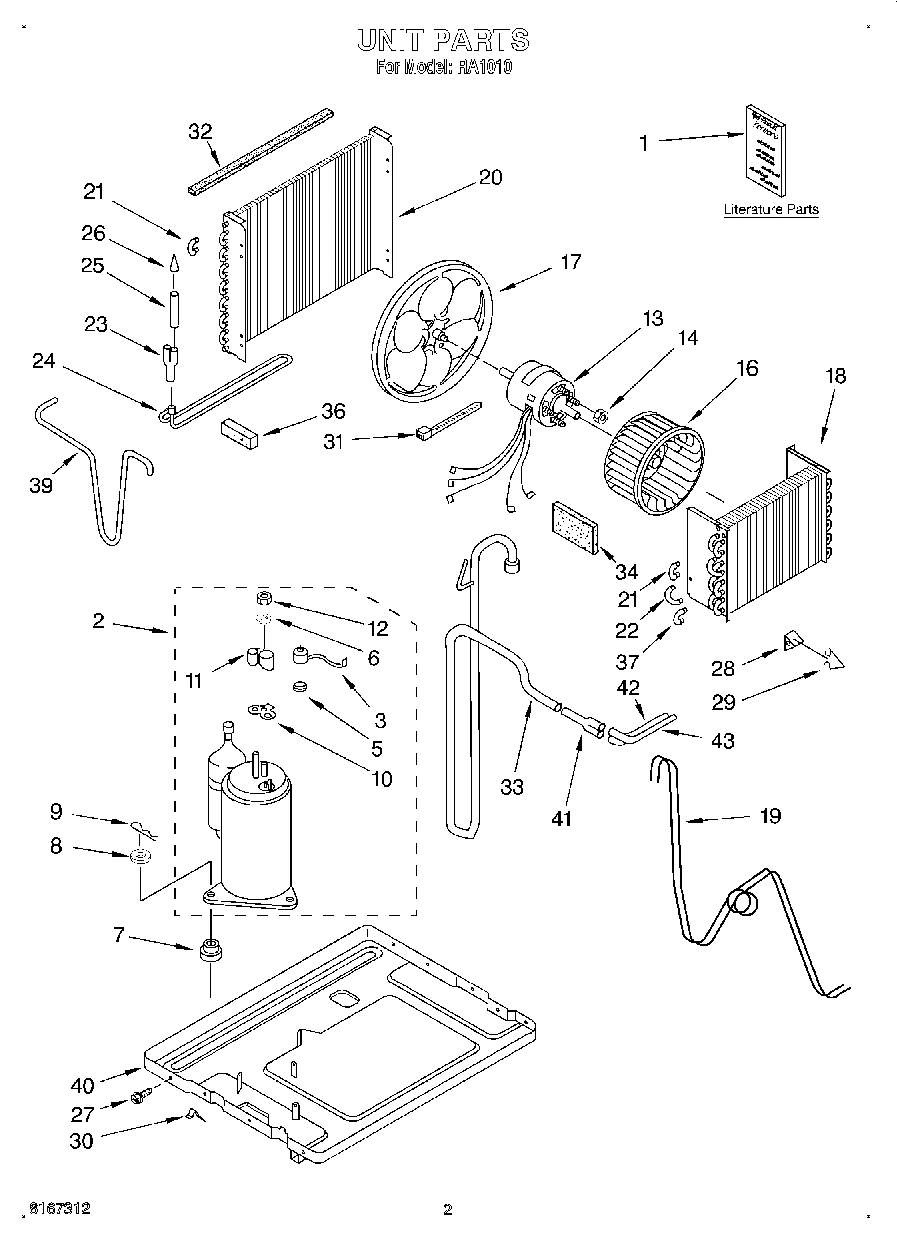

02 - UNIT, LITERATURE

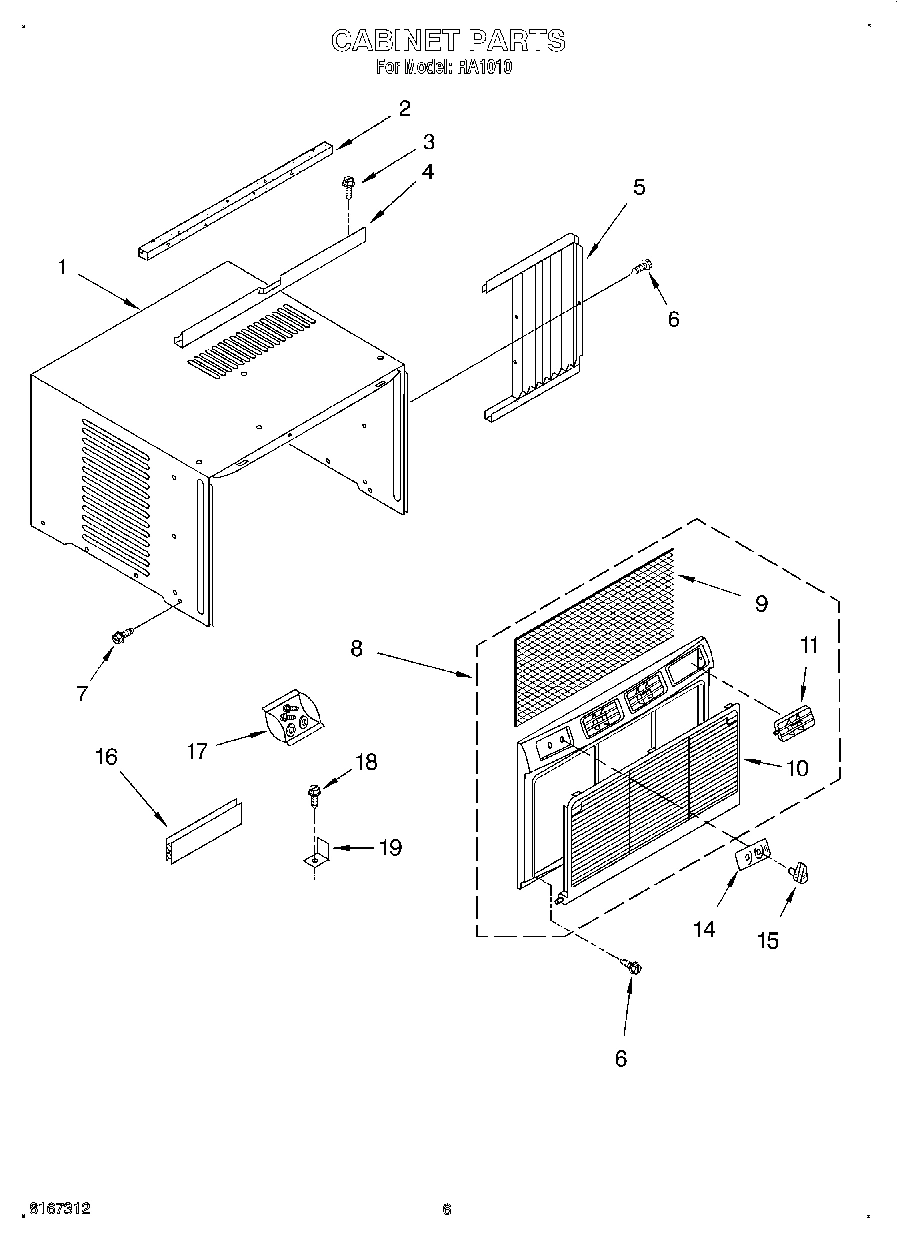

04 - CABINET
Common parts from model Whirlpool RA1010
Use & Care Guide WPL LIT8011132 Contact Us For Availability
Wiring Diagram WPL LIT8031275 Contact Us For Availability
1
Cabinet WPL 8031120 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Compressor WPL 8031315 Contact Us For Availability
2
Seal, Meeting Rail WPL 469877 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Screw 10-16 x .375 WPL 1163839 Contact Us For Availability
3
Overload WPL 951865 Contact Us For Availability
4
Channel, Top WPL 8031293 Contact Us For Availability
5
Curtain ((Right Side)) WPL 8031303 Contact Us For Availability
5
Curtain ((Left Side)) WPL 8031304 Contact Us For Availability
5
Spring, Overload WPL 950032 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Gasket, Nut WPL 950037 Contact Us For Availability
6
Screw 8-18 x .375 WPL 1161561 Contact Us For Availability
7
Hood, Air Housing WPL 8031149 Contact Us For Availability
7
Grommet WPL 950212 Contact Us For Availability
8
Washer, Nylon WPL 8011418 Contact Us For Availability
8
Front WPL 8031299 Contact Us For Availability
9
Housing, Air WPL 8031148 Contact Us For Availability
9
Clip, Compressor WPL 8011398 Contact Us For Availability
9
Filter WPL 8031125 Contact Us For Availability
10
Shroud, Evaporator WPL 8031109 Contact Us For Availability
10
Grille, Front WPL 8031298 Contact Us For Availability
11
Louver Assembly WPL 8031202 Contact Us For Availability
12
Screw, 8-18 x .437 WPL 8031309 Contact Us For Availability
13
Seal, Condenser Shroud WPL 8031312 Contact Us For Availability
13
Motor, Fan WPL 8031216 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Shroud, Condenser WPL 8031110 Contact Us For Availability
14
Escutcheon WPL 8031159 Contact Us For Availability
15
Cover, Unit WPL 8031112 Contact Us For Availability
16
Screw, 8-15 x .375 WPL 488624 Contact Us For Availability
16
Wheel, Blower WPL 8031154 Contact Us For Availability
17
Blade, Fan WPL 1156979 Contact Us For Availability
17
Box, Control WPL 8031200 Contact Us For Availability
17
Bag, Accessory WPL 476180 Contact Us For Availability
18
Seal, Unit Top WPL 8031465 Contact Us For Availability
18
Evaporator WPL 8031228 Contact Us For Availability
18
Screw, Wood 8-15 x .750 WPL 488255 Contact Us For Availability
19
Panel, Control WPL 8031311 Contact Us For Availability
19
Tube, Restrictor WPL 8031263 Contact Us For Availability
19
Bracket, Window Lock WPL 644228 Contact Us For Availability
20
Pan, Drain WPL 8031111 Contact Us For Availability
20
Condenser WPL 8031230 Contact Us For Availability
21
Door, Exhaust WPL 8011139 Contact Us For Availability
21
Bend, Return Evaporator (8) Condenser (7) WPL 8031222 Contact Us For Availability
22
Switch, Rotary WPL 8031151 Contact Us For Availability
22
Bend, Return (1) WPL 8031224 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Tube, Flow Divider WPL 947364 Contact Us For Availability
24
Thermostat WPL 8031115 Contact Us For Availability
24
Tube, Wet Loop WPL 8031238 Contact Us For Availability
25
Sleeve, Insulator WPL 475841 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 951437 Contact Us For Availability
26
Cable, Appliance WPL 8031114 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
27
Screw 8-18 x .295 WPL 1159222 Contact Us For Availability
28
Insulation, Drain Pan WPL 8031480 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
30
Clamp, Tube WPL 471088 Contact Us For Availability
33
Tube, Suction (Includes 41, 42, and 43) WPL 8031261 Contact Us For Availability
34
Insulation, Suction Tube WPL 1165440 Contact Us For Availability
37
Bend, Return (1) WPL 8031223 Contact Us For Availability
39
Tube, Discharge WPL 8031264 Contact Us For Availability
40
Base WPL 8031331 Contact Us For Availability
41
Tube, Flow Divider WPL 1159832 Contact Us For Availability
42
Tube, Outlet (Bottom) WPL 8031288 Contact Us For Availability
43
Tube, Outlet (Top) WPL 8031287 Contact Us For Availability
× ![]()
