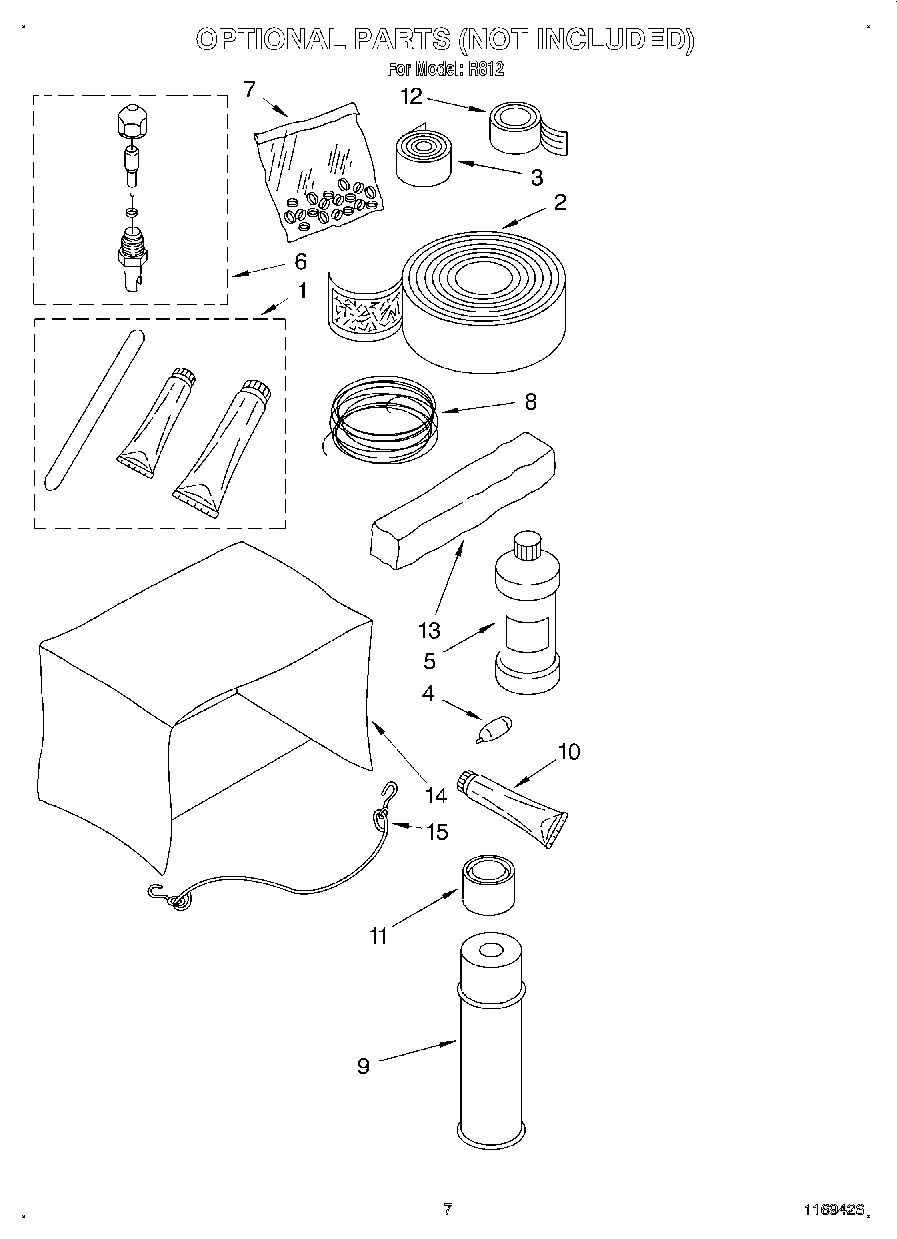

05 - OPTIONAL

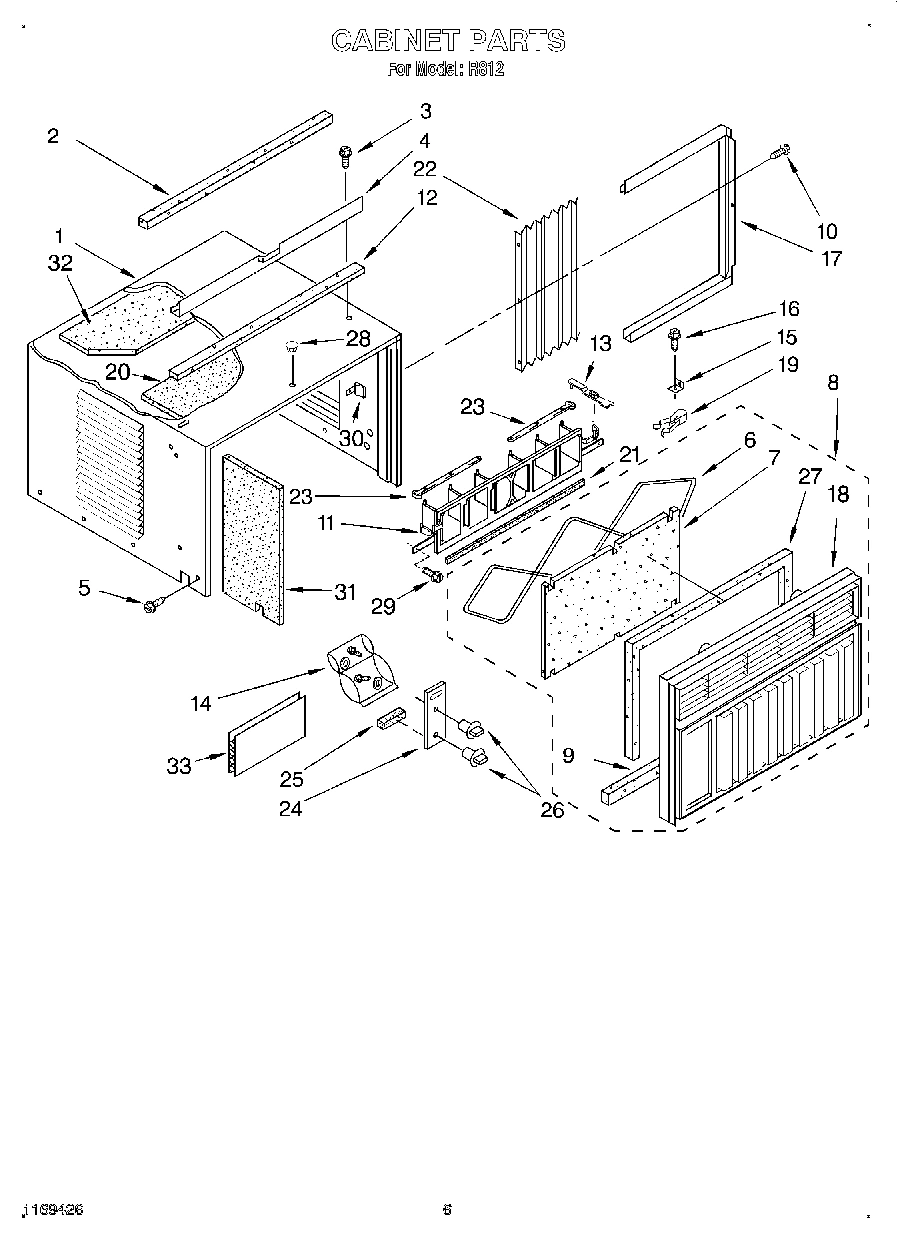

04 - CABINET
02 - UNIT
03 - AIR FLOW AND CONTROL
Common parts from model Whirlpool R812
1
Cabinet WPL 1163513 Contact Us For Availability
1
Literature Parts (Diagram, Wiring) WPL LIT1165177 Contact Us For Availability
1
Owners Manual WPL LIT1169192 Contact Us For Availability
1
Repair Parts List WPL LIT1169426 Contact Us For Availability
1
Tech Sheet WPL LIT1169630 Contact Us For Availability
1
Shroud, Condenser WPL 856037 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Gasket, Meeting Rail WPL 469877 Contact Us For Availability
2
Bend, Return Evaporator (6) Condenser (13) WPL 708532 Contact Us For Availability
2
Screw, Repair WPL 488481 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Anticipator, Temperature WPL 996773 Contact Us For Availability
4
Channel, Top WPL 1169001 Contact Us For Availability
4
Retainer, Exhaust Door WPL 858765 Contact Us For Availability
5
Actuator, Exhaust Door WPL 1167161 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Retainer, Filter WPL 646963 Contact Us For Availability
6
Tube, Restrictor WPL 1168427 Contact Us For Availability
6
Control, Tempetature WPL 1166758 Contact Us For Availability
7
Filter, Air WPL 855246 Contact Us For Availability
7
Blade, Fan (Condenser) WPL 1161594 Contact Us For Availability
8
Front, Complete WPL 1159825 Contact Us For Availability
8
Condenser WPL 1168429 Contact Us For Availability
8
Extension, Dividing Wall WPL 994561 Contact Us For Availability
9
Adhesive, Insulation (24 Oz. Spray) WPL 813684 Contact Us For Availability
9
Seal, Front WPL 852923 Contact Us For Availability
9
Tube, Suction WPL 1163931 Contact Us For Availability
9
Wire, Ground WPL 856094 Contact Us For Availability
10
Screw, No.8 x 7/16`` (6) WPL 1161561 Contact Us For Availability
10
Motor, Fan WPL 1165209 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Louver, Vertical (Includes Nos. 13, 19, 21 an WPL 1166081 Contact Us For Availability
11
Cord, Appliance WPL 1165241 Contact Us For Availability
12
Strip, Seal WPL 856989 Contact Us For Availability
12
Support, Unit WPL 1156536 Contact Us For Availability
13
Handle, Louver (2) WPL 1161636 Contact Us For Availability
13
Evaporator WPL 1156641 Contact Us For Availability
13
Capacitor, Running WPL 1162599 Contact Us For Availability
14
Bag, Accessory WPL 476180 Contact Us For Availability
14
Gasket, Nut WPL 950037 Contact Us For Availability
14
Bracket, Capacitor WPL 1167611 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Bracket, Window WPL 644228 Contact Us For Availability
15
Tube, Process WPL 1168426 Contact Us For Availability
15
Door, Exhaust WPL 644206 Contact Us For Availability
16
Screw, 8 x 3/4 WPL 488255 Contact Us For Availability
16
Arm, Exhaust Door WPL 856042 Contact Us For Availability
17
Housing, Curtain (Left Side) (Includes No.22) WPL 1164154 Contact Us For Availability
17
Housing, Curtain (Right Side) WPL 1164155 Contact Us For Availability
17
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
18
Front WPL 1159826 Contact Us For Availability
18
Base WPL 951570 Contact Us For Availability
18
Insulation (Side, Dividing Wall) WPL 1166339 Contact Us For Availability
19
Spring, Detent WPL 644006 Contact Us For Availability
19
Clip, Anticipator WPL 475577 Contact Us For Availability
20
Insul. Cab. Top. WPL 1163429 Contact Us For Availability
20
Harness, Wiring (Compressor Service) WPL 484136 Contact Us For Availability
20
Seal, Shroud (Condenser) WPL 948090 Contact Us For Availability
21
Seal, Vertical Louver (Back) WPL 855238 Contact Us For Availability
21
Switch, Rotary WPL 1165246 Contact Us For Availability
22
Curtain (2) WPL 1167762 Contact Us For Availability
22
Grommet (3) WPL 950212 Contact Us For Availability
22
Clip, Retainer WPL 644401 Contact Us For Availability
23
Link (2) WPL 855158 Contact Us For Availability
24
Plate, Escutcheon WPL 1160396 Contact Us For Availability
24
Locknut (3) WPL 858122 Contact Us For Availability
24
Dividing Wall WPL 1167154 Contact Us For Availability
25
Spacer, Escutcheon WPL 470036 Contact Us For Availability
26
Knob, Control (2) WPL 1162672 Contact Us For Availability
27
Seal, Front (Top And Sides) WPL 645883 Contact Us For Availability
27
Spring, Overload WPL 950032 Contact Us For Availability
28
Cover, Hole WPL 1157126 Contact Us For Availability
28
Shroud Assembly, Evaporator WPL 856039 Contact Us For Availability
29
Screw WPL 1159222 Contact Us For Availability
29
Insulation (Back, Dividing Wall) WPL 1166338 Contact Us For Availability
30
Clip, Vertical Louver (2) WPL 1158294 Contact Us For Availability
30
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
30
Spacer WPL 1159175 Contact Us For Availability
31
Insulation, Cab. (Right, Side) WPL 1163430 Contact Us For Availability
31
Insulation, Cab. (Left, Side) WPL 1163431 Contact Us For Availability
31
Clamp, Cable WPL 852451 Contact Us For Availability
32
Insulation WPL 1158501 Contact Us For Availability
32
Clamp, Tube WPL 855930 Contact Us For Availability
32
Insulation, Sleeve WPL 475841 Contact Us For Availability
33
Bend Return WPL 1158407 Contact Us For Availability
33
Screw, 6-32 x .175 (2) WPL 488734 Contact Us For Availability
34
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
34
Panel, Control WPL 996966 Contact Us For Availability
35
Bend, Return Evaporator (5) WPL 708531 Contact Us For Availability
35
Insulation, Control Panel (Top) WPL 1158576 Contact Us For Availability
36
Bend, Return (3-Way) WPL 1156107 Contact Us For Availability
37
Maniflod, Header WPL 1156642 Contact Us For Availability
38
Clip, Mtg. (2) WPL 949634 Contact Us For Availability
39
Tube, Discharge WPL 1156452 Contact Us For Availability
× ![]()
