Model Whirlpool R1213 – Common Parts & Diagrams

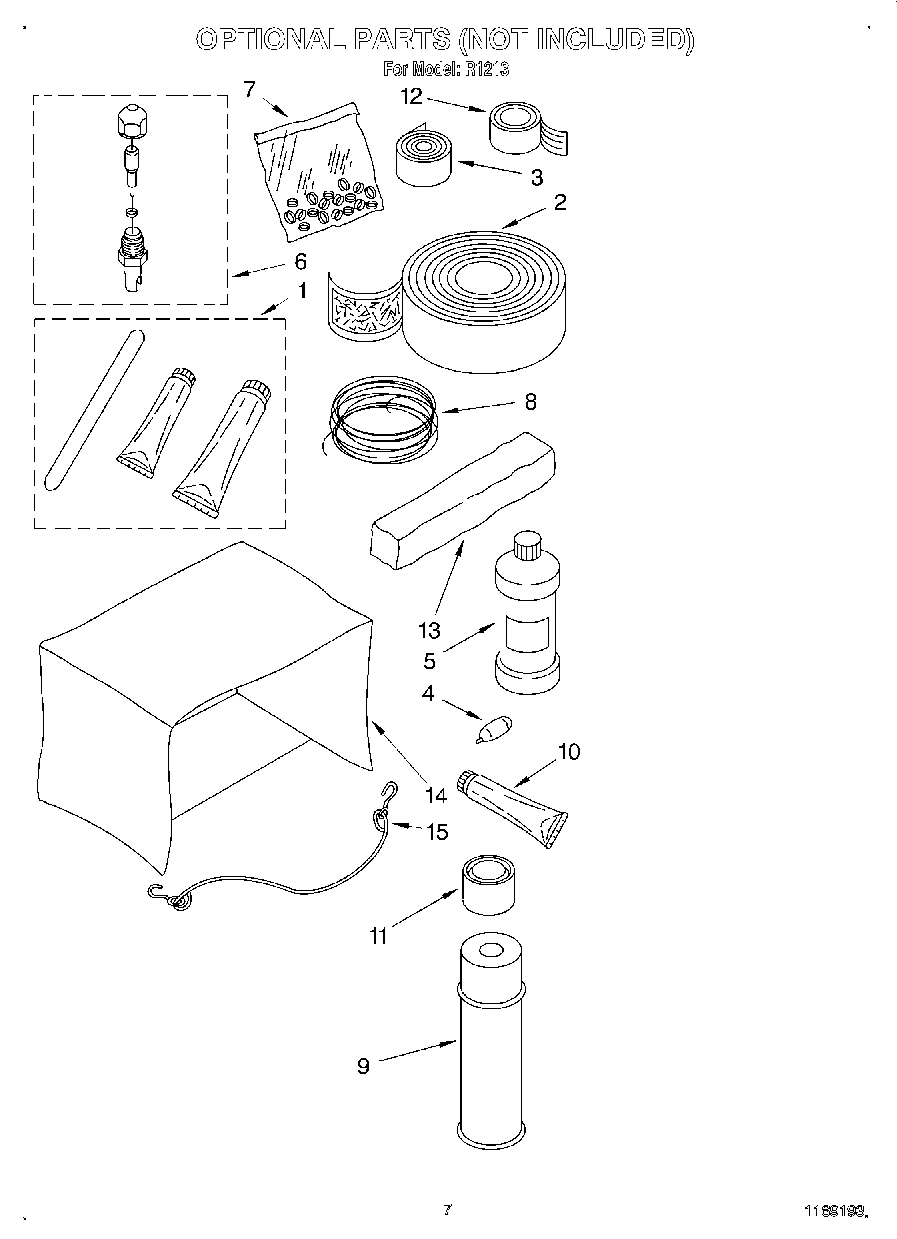

05 - OPTIONAL

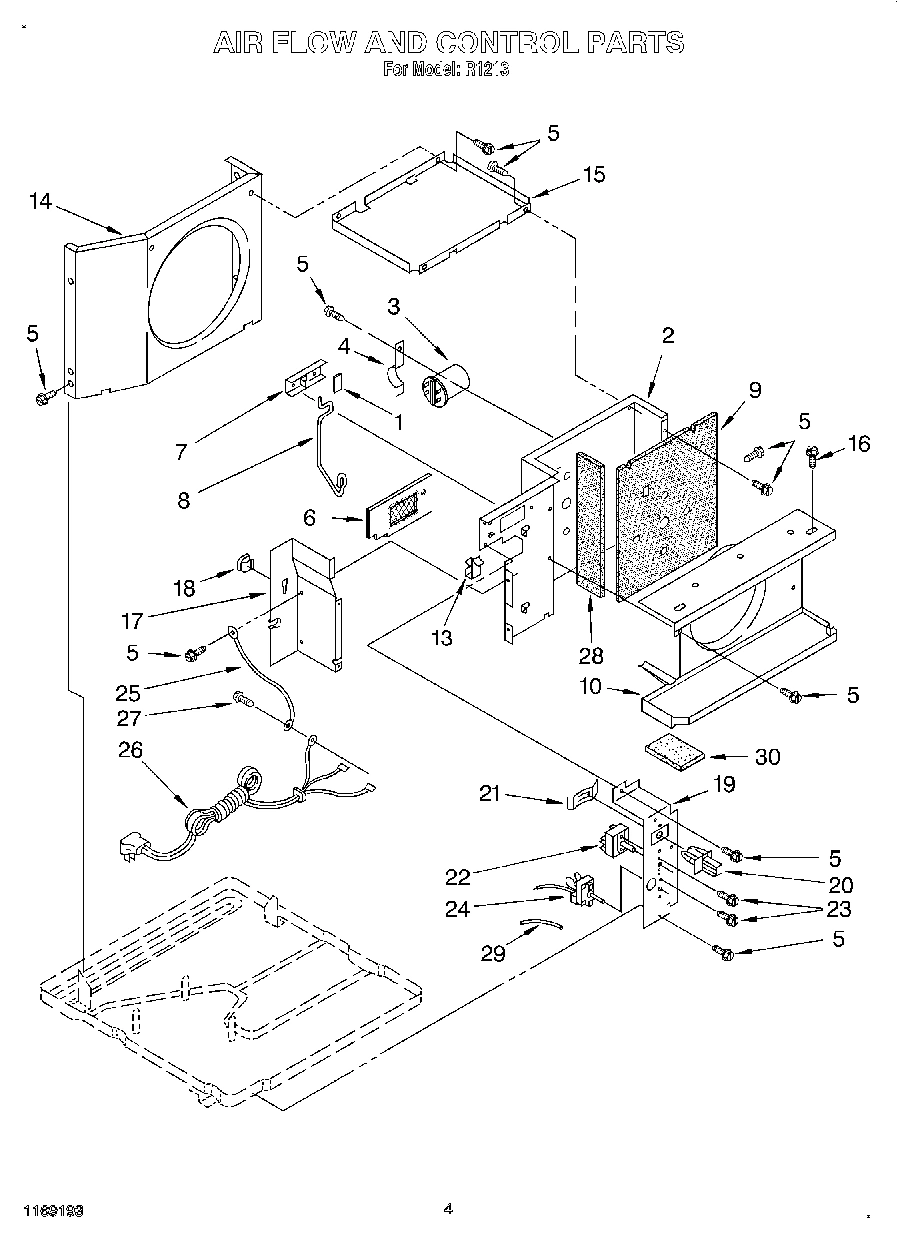

03 - AIRFLOW & CONTROL

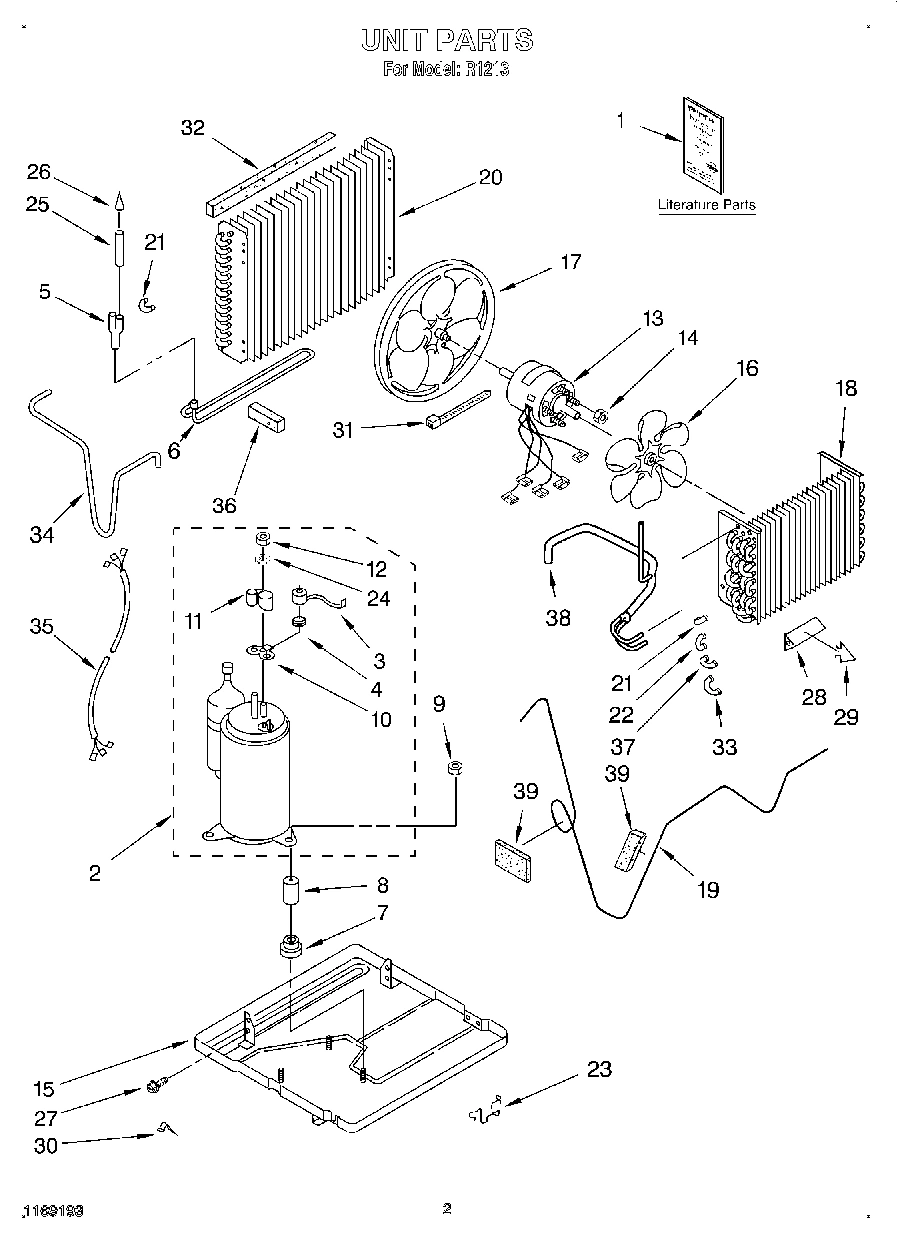

02 - UNIT, LITERATURE

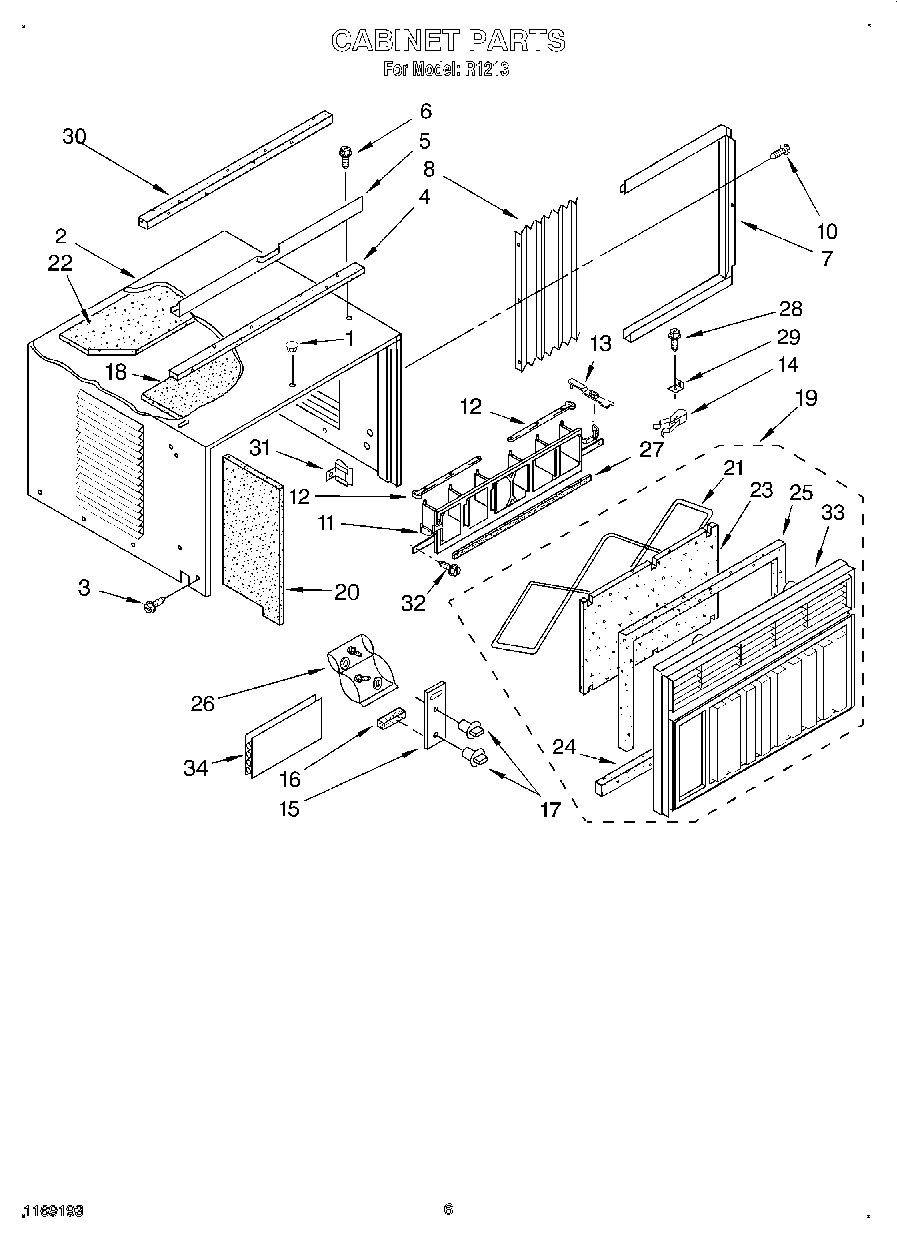

04 - CABINET
Common parts from model Whirlpool R1213
1
Spacer WPL 1159175 Contact Us For Availability
1
Literature Parts (Wiring Diagram) WPL LIT1165177 Contact Us For Availability
1
Owners Manual WPL LIT1169192 Contact Us For Availability
1
Repair Parts List WPL LIT1169193 Contact Us For Availability
1
Tech Sheet WPL LIT1169630 Contact Us For Availability
1
Plug, Hole WPL 1157126 Contact Us For Availability
2
Tape, No Drip 30` WPL 505168 Contact Us For Availability
2
Wall, Dividing WPL 1167154 Contact Us For Availability
2
Compressor WPL 1163573 Contact Us For Availability
2
Cabinet WPL 1163513 Contact Us For Availability
3
Tape, Vinyl 36` WPL 479502 Contact Us For Availability
3
Capacitor, Running WPL 1162594 Contact Us For Availability
3
Overload WPL 1155700 Contact Us For Availability
4
Bracket, Capacitor WPL 1167611 Contact Us For Availability
4
Spring, Overload WPL 950032 Contact Us For Availability
4
Strip, Seal WPL 856989 Contact Us For Availability
5
Tube, Flow Divider WPL 1162071 Contact Us For Availability
5
Channel, Top Mounting WPL 1169001 Contact Us For Availability
6
Valve, Access (5/8`` Tube O.D.) WPL 978029 Contact Us For Availability
6
Screen, Insulation Assembly WPL 1162926 Contact Us For Availability
6
Tube, Wet Loop WPL 1168421 Contact Us For Availability
7
Door, Exhaust WPL 644206 Contact Us For Availability
7
Housing, Curtain L.S. (Includes No.8) WPL 1164154 Contact Us For Availability
7
Housing, Curtain R.S.(Includes No.8) WPL 1164155 Contact Us For Availability
8
Arm, Exhaust Door WPL 856042 Contact Us For Availability
8
Sleeve, Compressor Mounting (3) WPL 950020 Contact Us For Availability
8
Curtain (2) WPL 1167762 Contact Us For Availability
9
Insulation (Back, Dividing Wall) WPL 1166338 Contact Us For Availability
9
Nut, Lock (3) WPL 858121 Contact Us For Availability
10
Shroud, Evaporator WPL 856039 Contact Us For Availability
10
Screw 3/8 SG WPL 1161561 Contact Us For Availability
11
Paint, Touch-up Starlight Gray 1/2 Pint (Lacq WPL 485426 Contact Us For Availability
11
Louver, Vertical (Includes Nos. 27, 12, 13, a WPL 1166081 Contact Us For Availability
12
Link, Vertical Louver (2) WPL 855158 Contact Us For Availability
13
Clamp, Cable WPL 852451 Contact Us For Availability
13
Motor, Fan WPL 947852 Contact Us For Availability
13
Handle, Vertical Louver (2) WPL 1161636 Contact Us For Availability
14
Cover, Winter (27 x 19 x 6 to 27``) WPL 484069 Contact Us For Availability
14
Cover, Winter (28 x 19 x 31``) WPL 484066 Contact Us For Availability
14
Cover, Winter (19``x12``x14``) WPL 484067 Contact Us For Availability
14
Shroud, Condenser WPL 856037 Contact Us For Availability
14
Spring, Detent (2) WPL 644006 Contact Us For Availability
15
Retainer, Cord (Winter Cover) WPL 813610 Contact Us For Availability
15
Support, Unit (2) WPL 1156536 Contact Us For Availability
15
Base WPL 950019 Contact Us For Availability
15
Plate, Escutcheon WPL 1160396 Contact Us For Availability
16
Blade, Fan (Evaporator) WPL 1160946 Contact Us For Availability
16
Spacer, Escutcheon Plate (2) WPL 470036 Contact Us For Availability
17
Extension, Dividing Wall WPL 994561 Contact Us For Availability
17
Blade, Fan (Condenser) WPL 1161594 Contact Us For Availability
17
Knob, Control (2) WPL 1162672 Contact Us For Availability
18
Clip, Retainer WPL 644401 Contact Us For Availability
18
Evaporator WPL 1156743 Contact Us For Availability
18
Insul. Cabinet Top WPL 1163429 Contact Us For Availability
19
Panel, Control WPL 996966 Contact Us For Availability
19
Tube, Restrictor (2) WPL 1156455 Contact Us For Availability
19
Front, Cabinet WPL 1159825 Contact Us For Availability
20
Actuator, Exhaust Door WPL 1167161 Contact Us For Availability
20
Condenser WPL 1164709 Contact Us For Availability
20
Insul. Cabinet (Right, Side) WPL 1163430 Contact Us For Availability
20
Insul. Cabinet (Left Side) WPL 1163431 Contact Us For Availability
21
Retainer, Detent Spring WPL 858765 Contact Us For Availability
21
Bend, Return Condenser (13) Evaporator (2) WPL 708532 Contact Us For Availability
21
Retainer, Filter WPL 646963 Contact Us For Availability
22
Switch, Rotary WPL 1165246 Contact Us For Availability
22
Bend, Return Evaporator (12) WPL 708531 Contact Us For Availability
22
Insul. Cabinet WPL 1158501 Contact Us For Availability
23
Screw, Machine 6-32 x .175 (4) WPL 488734 Contact Us For Availability
23
Clip, Mtg. (2) (Base to Front) WPL 949634 Contact Us For Availability
23
Filter WPL 855246 Contact Us For Availability
24
Control, Temperature WPL 1166758 Contact Us For Availability
24
Washer WPL 950037 Contact Us For Availability
24
Seal, Cabinet Front WPL 852923 Contact Us For Availability
25
Wire, Ground WPL 856094 Contact Us For Availability
25
Tube, Outlet (Includes No. 26) WPL 950825 Contact Us For Availability
25
Seal, Strip (Top & Sides) WPL 645883 Contact Us For Availability
26
Cable, Appliance WPL 1165241 Contact Us For Availability
26
Strainer, Tube WPL 49599 Contact Us For Availability
26
Bag, Accessory WPL 476180 Contact Us For Availability
27
Screw (Repair) No.10 x 3/8A WPL 488481 Contact Us For Availability
27
Seal, Vertical Louver (Back) WPL 855238 Contact Us For Availability
28
Insulation (Side, Dividing Wall) WPL 1166339 Contact Us For Availability
28
Anticipator, Temperature WPL 996773 Contact Us For Availability
28
Screw, Wood No.8 x 3/4 (1) WPL 488255 Contact Us For Availability
29
Insulator, Sleeve Temp. Control WPL 475841 Contact Us For Availability
29
Clip, Temperature Anticipator WPL 475577 Contact Us For Availability
29
Bracket, Window Lock WPL 644228 Contact Us For Availability
30
Insulation, Control Panel (Top) WPL 1158576 Contact Us For Availability
30
Clamp, Tube WPL 642684 Contact Us For Availability
30
Seal, Meeting Rail WPL 469877 Contact Us For Availability
31
Clip, Louver (2) WPL 1158294 Contact Us For Availability
32
Seal, Condenser Top WPL 948090 Contact Us For Availability
32
Screw WPL 1159222 Contact Us For Availability
33
Bend, Return (2) WPL 1158407 Contact Us For Availability
33
Front WPL 1159826 Contact Us For Availability
34
Tube, Discharge WPL 1165484 Contact Us For Availability
35
Harness, Wiring WPL 484136 Contact Us For Availability
37
Bend, Return (2) WPL 1156533 Contact Us For Availability
38
Tube, Suction WPL 1163983 Contact Us For Availability
39
Seal, Anti-Rub WPL 1162616 Contact Us For Availability
× ![]()
