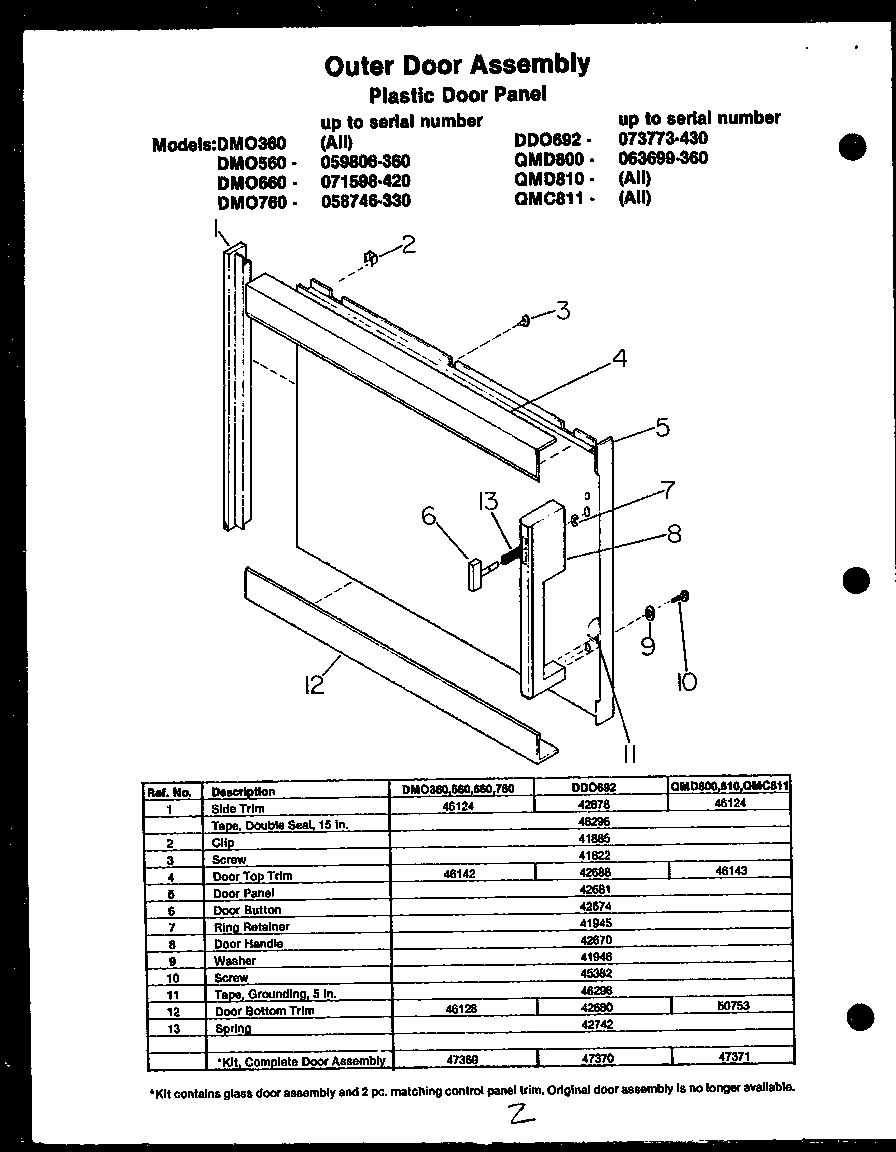

Model Whirlpool QMC811 ELECTRIC WALL OVEN/MICROWAVE COMBO – Common Parts & Diagrams

1
SIDE TRIM
SIDE TRIM WPL Y46124 Contact Us For Availability
View on Model
1
SCREW No.8ABX1/4 PH HD
SCREW No.8ABX1/4 PH HD WPL Y0041807 Contact Us For Availability
View on Model
2
CLIP
CLIP WPL 41885 Contact Us For Availability
View on Model
2
DOOR HINGE MICROWAVE
DOOR HINGE MICROWAVE WPL Y0041958 Contact Us For Availability
View on Model
4
DOOR TRIM TOP USE W/045
DOOR TRIM TOP USE W/045 WPL Y0046143 Contact Us For Availability
View on Model
4

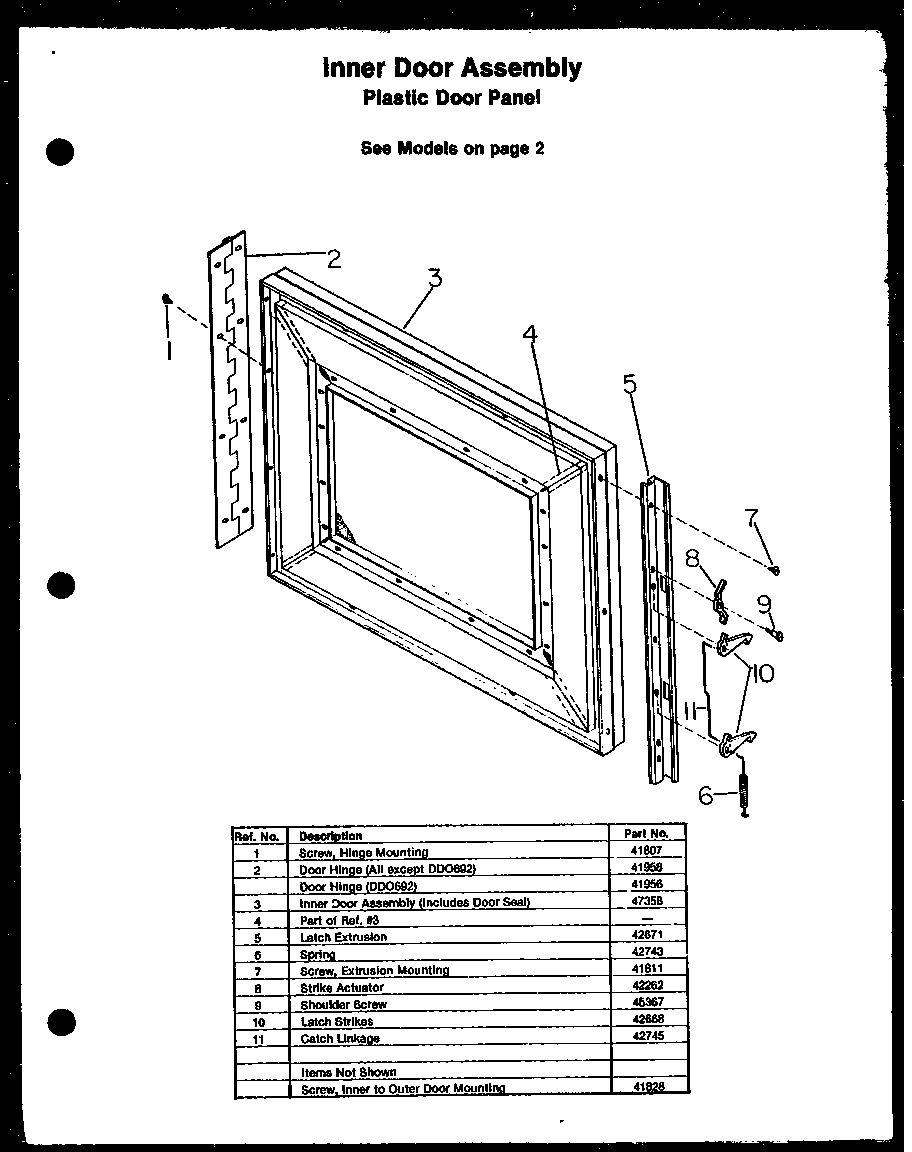

INNER DOOR ASSEMBLY WITH DOOR
INNER DOOR ASSEMBLY WITH DOOR WPL 47358 Contact Us For Availability
View on Model
5
SUB 42827
SUB 42827 WPL 42681 Contact Us For Availability
View on Model
5
SUB 47368 TUBE, ALUM.
SUB 47368 TUBE, ALUM. WPL Y0042671 Contact Us For Availability
View on Model
6
DOOR BUTTON
DOOR BUTTON WPL 0042674 Contact Us For Availability
View on Model
6
SPRING-STRIKE MICROWAVE
SPRING-STRIKE MICROWAVE WPL 0042743 Contact Us For Availability
View on Model
7
RING RETAINER
RING RETAINER WPL 0041945 Contact Us For Availability
View on Model
8
DOOR HANDLE BINATONE
DOOR HANDLE BINATONE WPL 0042670 Contact Us For Availability
View on Model
8
CODE J
CODE J WPL 42262 Contact Us For Availability
View on Model
9
NYLON WASHER.187IS
NYLON WASHER.187IS WPL 0041946 Contact Us For Availability
View on Model
9
SCREW SHOULDER SCREW
SCREW SHOULDER SCREW WPL 0045367 Contact Us For Availability
View on Model
10
SCREW
SCREW WPL 0045382 Contact Us For Availability
View on Model
10
LATCH STRIKES
LATCH STRIKES WPL 0042668 Contact Us For Availability
View on Model
11
TAPE, GROUNDING, 5 IN.
TAPE, GROUNDING, 5 IN. WPL 46296 Contact Us For Availability
View on Model
11
CATCH, LINKAGE
CATCH, LINKAGE WPL 0042745 Contact Us For Availability
View on Model
12
DOOR BOTTOM TRIM
DOOR BOTTOM TRIM WPL 50753 Contact Us For Availability
View on Model
13
SPRING DOOR MICROWAVE
SPRING DOOR MICROWAVE WPL 0042742 Contact Us For Availability
View on Model
NI
KIT,MICRO DOOR ASSY GLASS
KIT,MICRO DOOR ASSY GLASS WPL Y0047371 Contact Us For Availability
View on Model
NI
SCREW 8-18X500 MICROWAVE x
SCREW 8-18X500 MICROWAVE x WPL Y0041828 Contact Us For Availability
View on Model
