Model Primus PYU10XV Washer – Common Parts & Diagrams

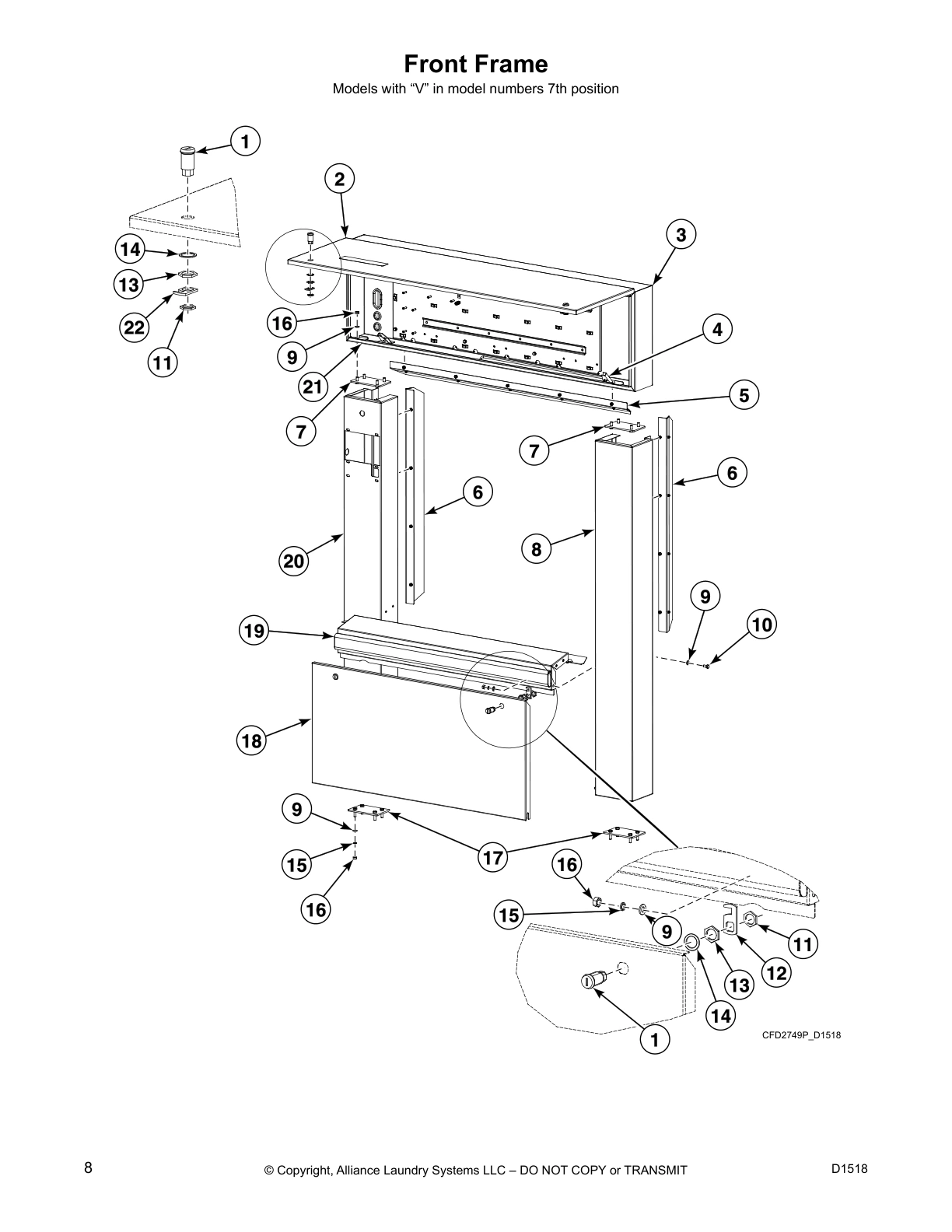

Front Frame
Front Frame

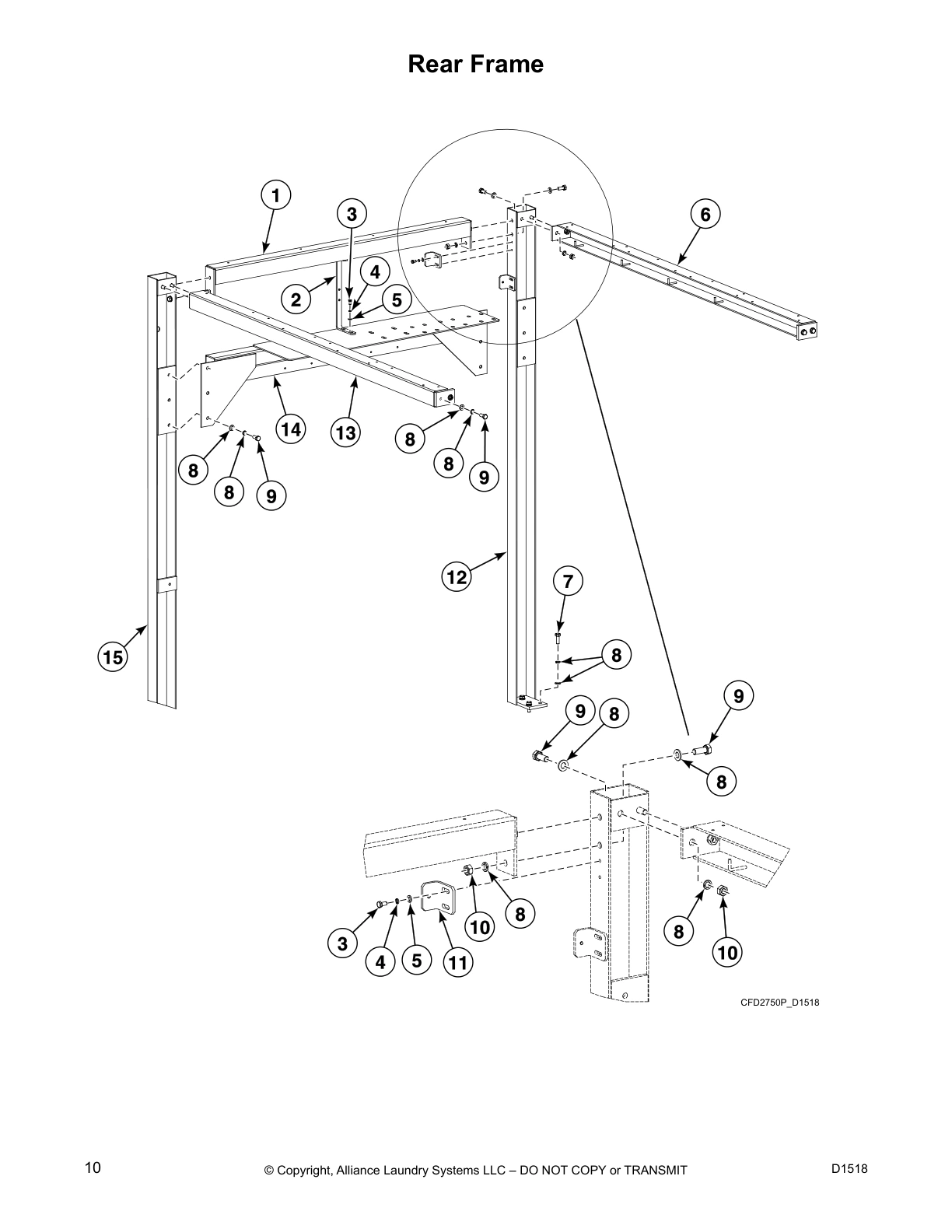

Rear Frame

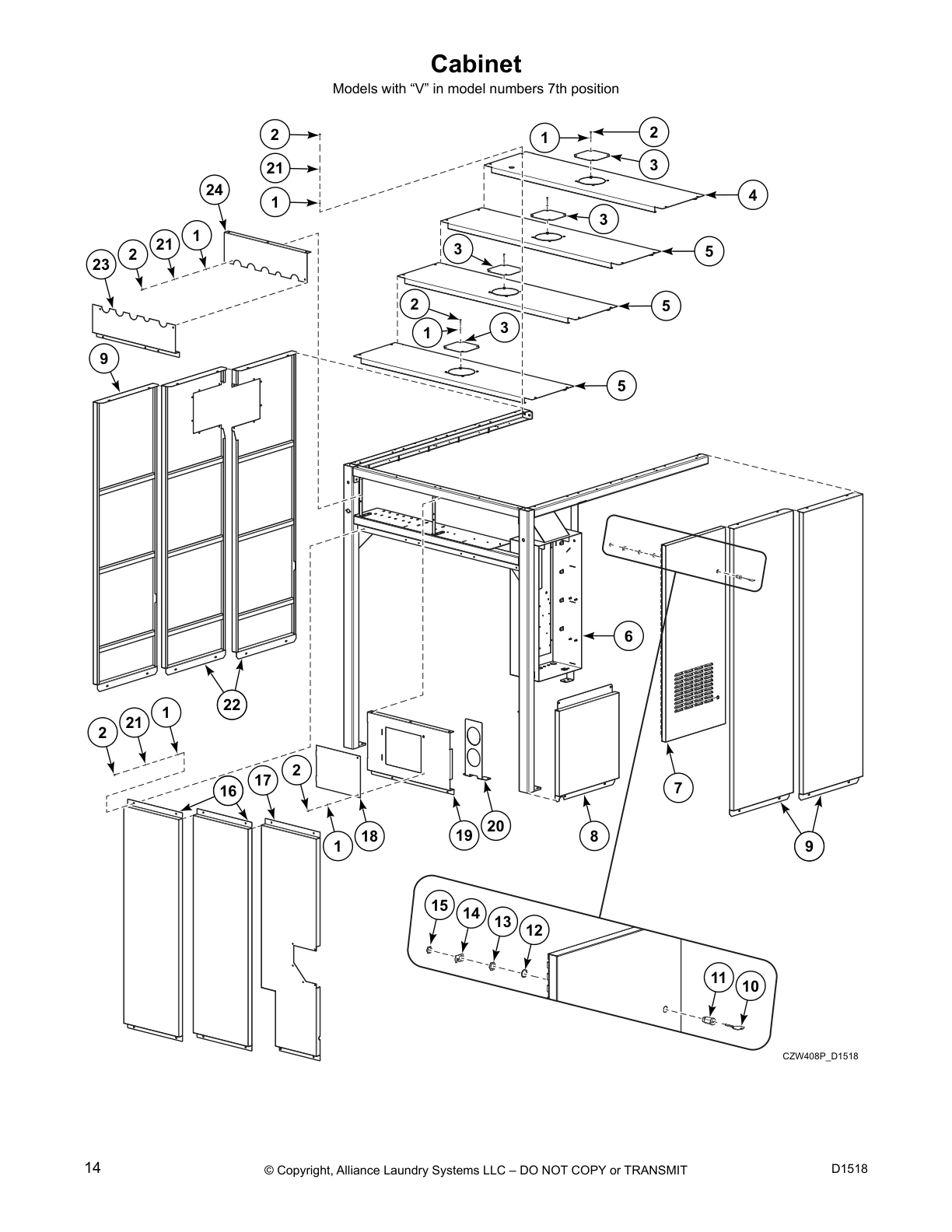

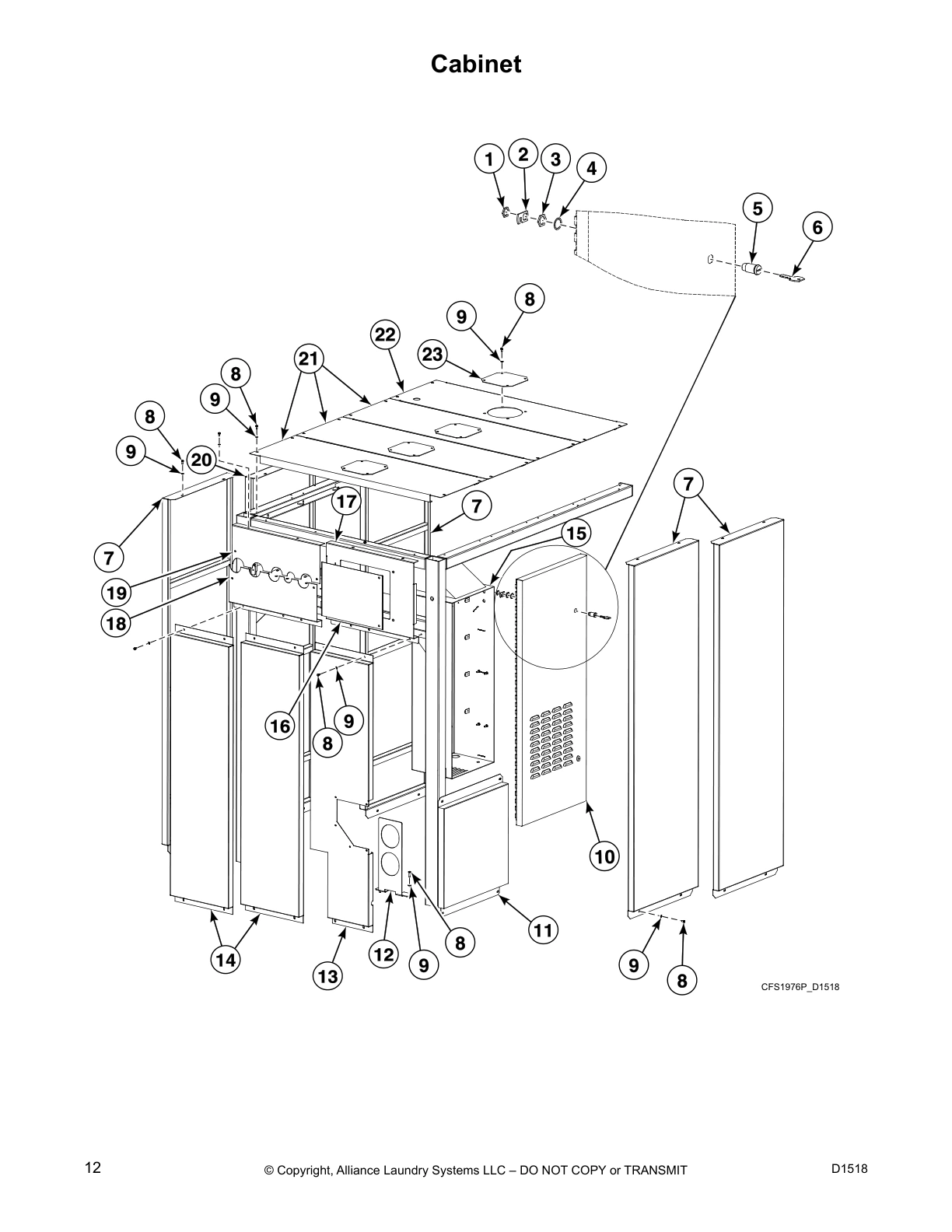

Cabinet
Cabinet

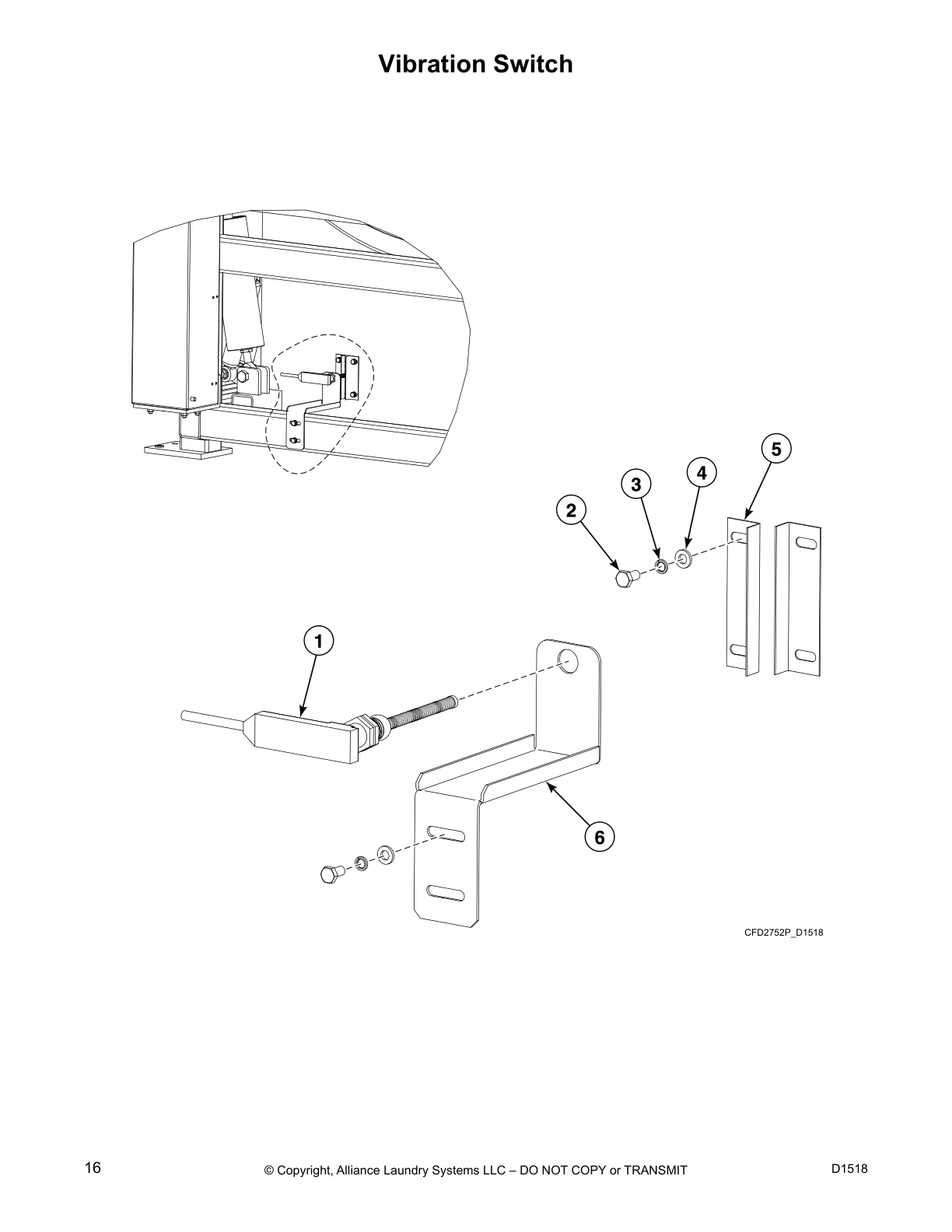

Vibration Switch

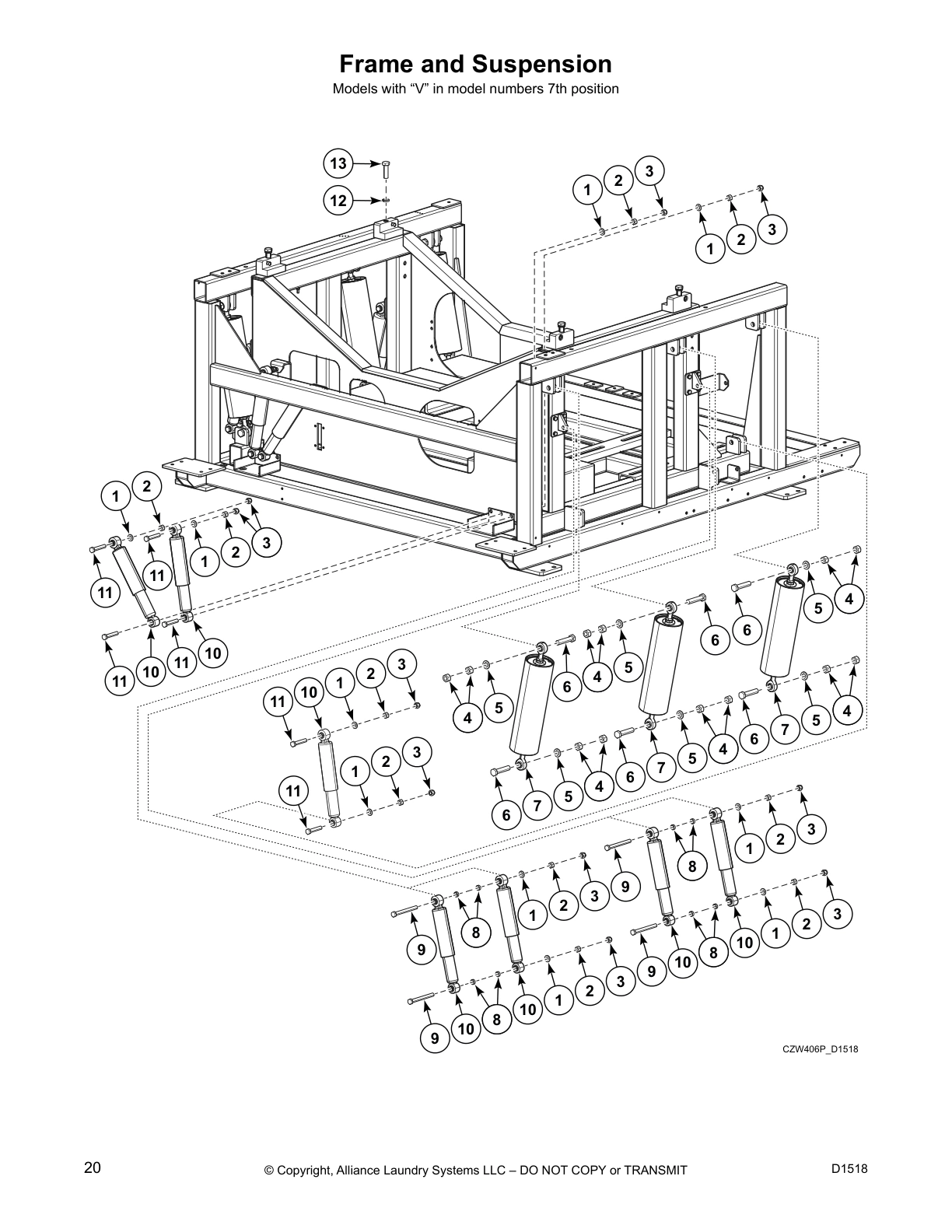

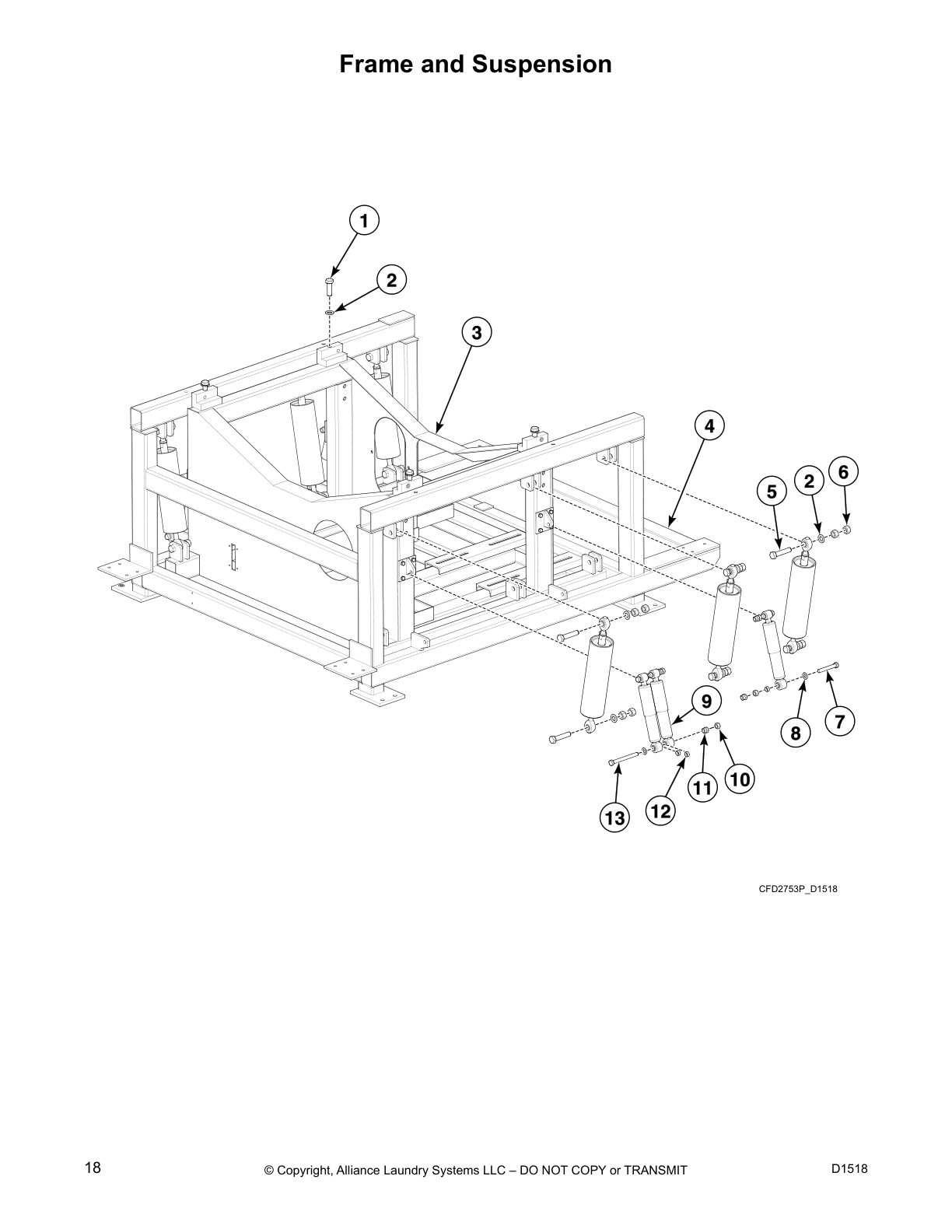

Frame and Suspension
Frame and Suspension

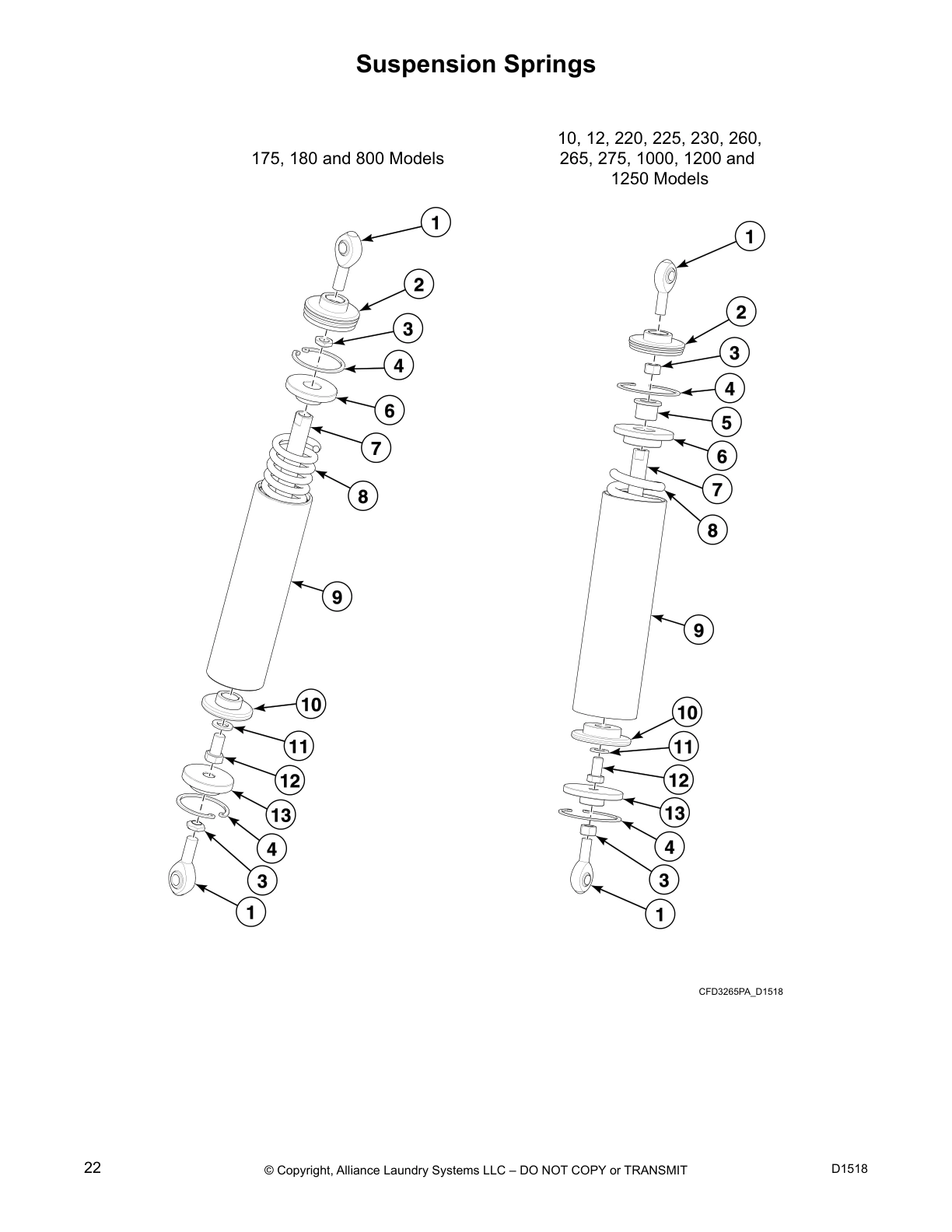

Suspension Springs

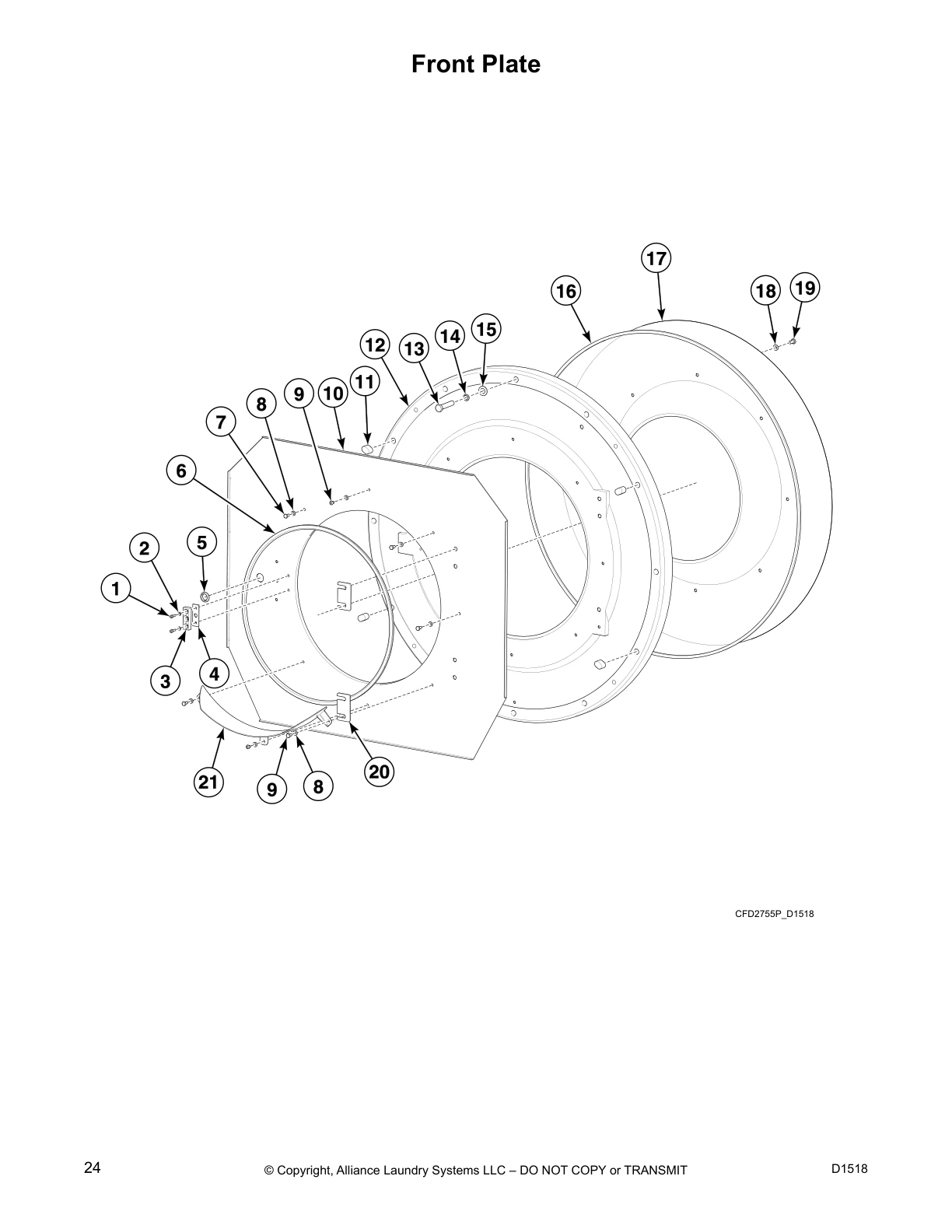

Front Plate

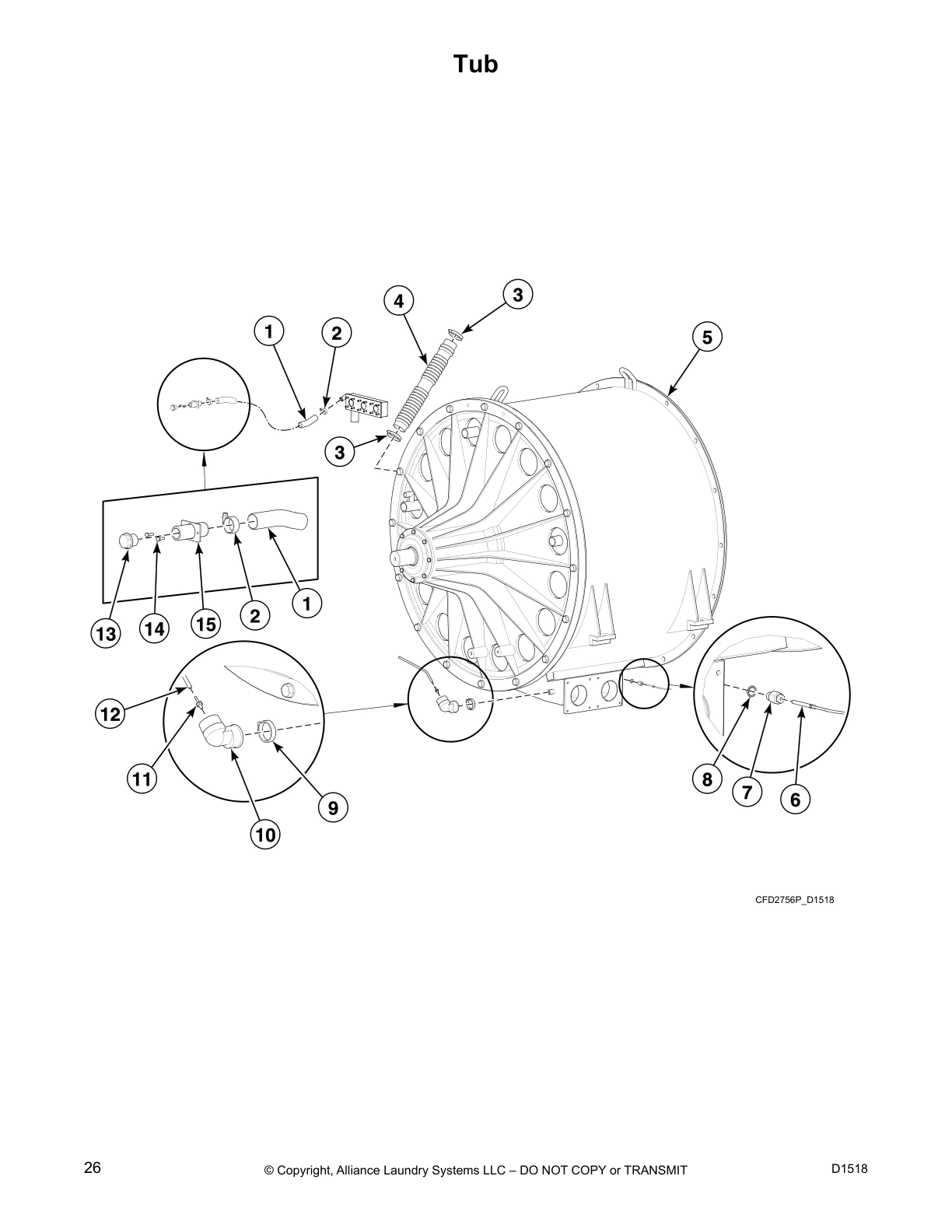

Tub

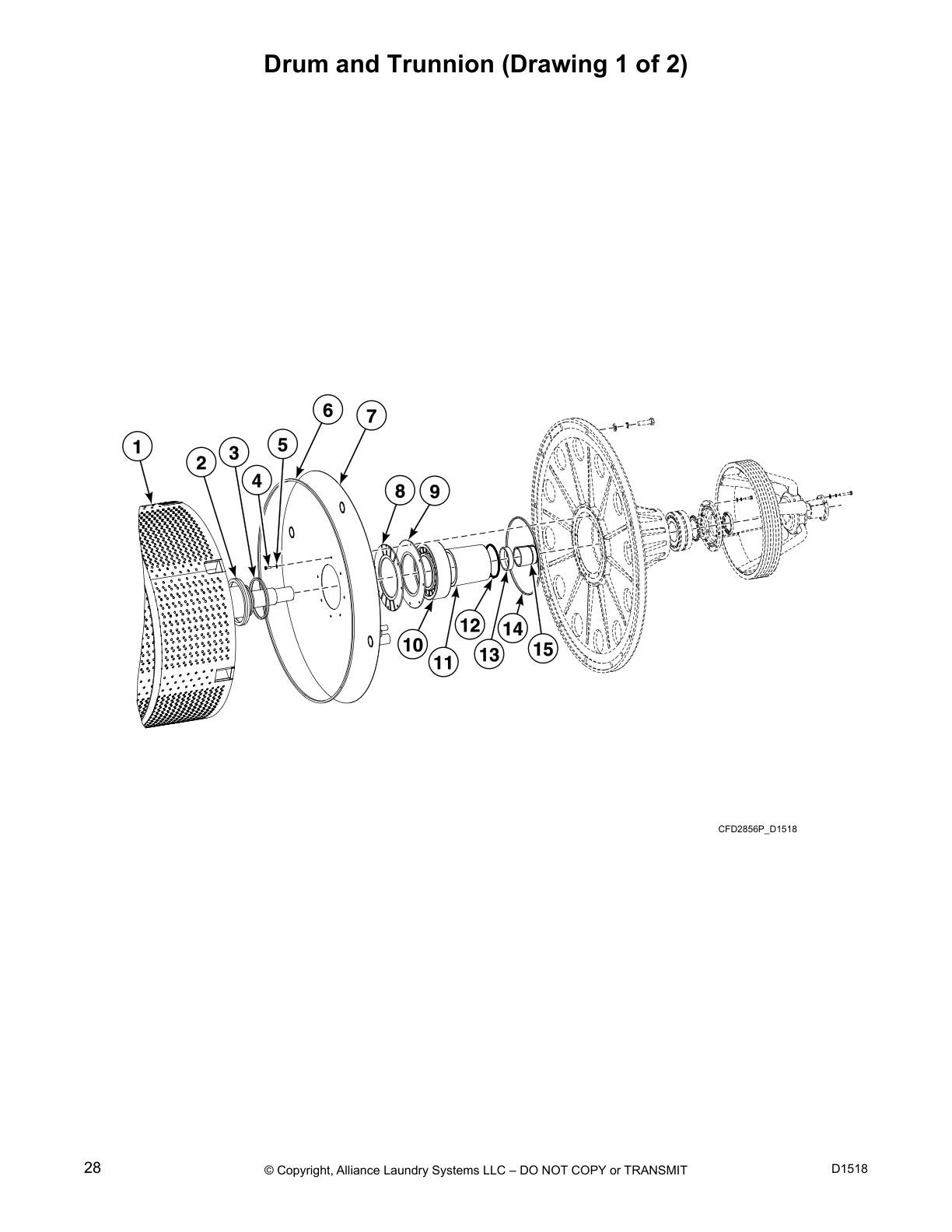

Drum and Trunnion (Drawing 1 of 2)

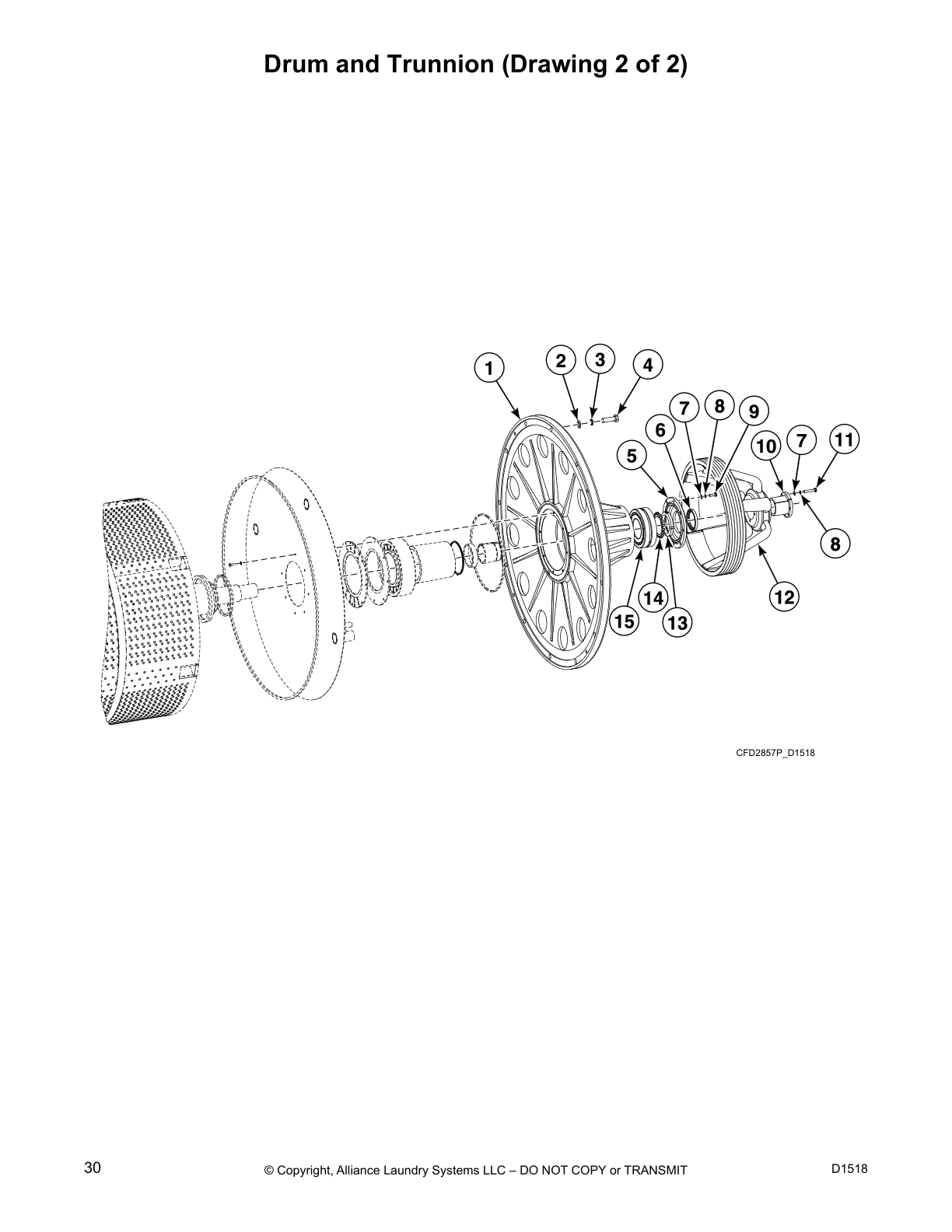

Drum and Trunnion (Drawing 2 of 2)

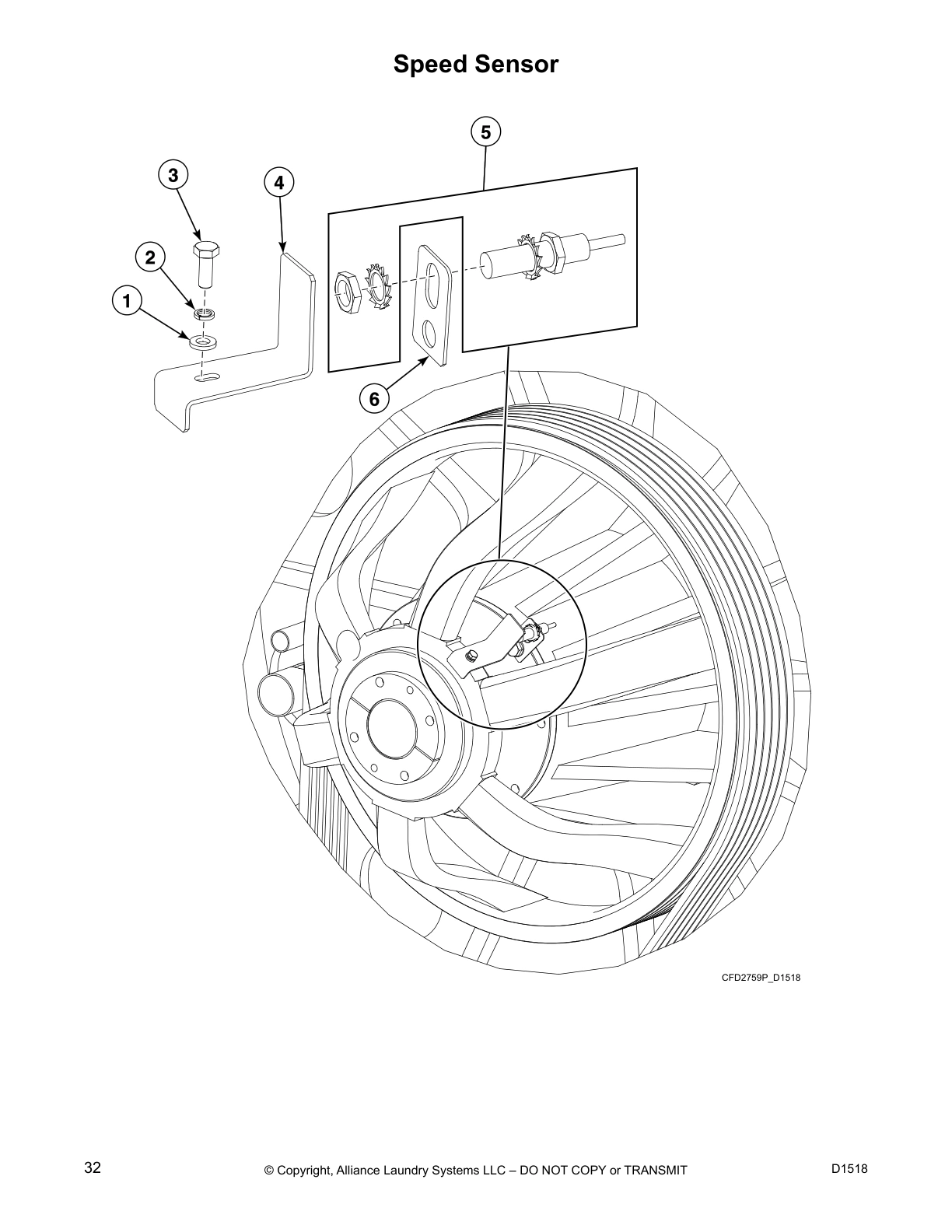

Speed Sensor

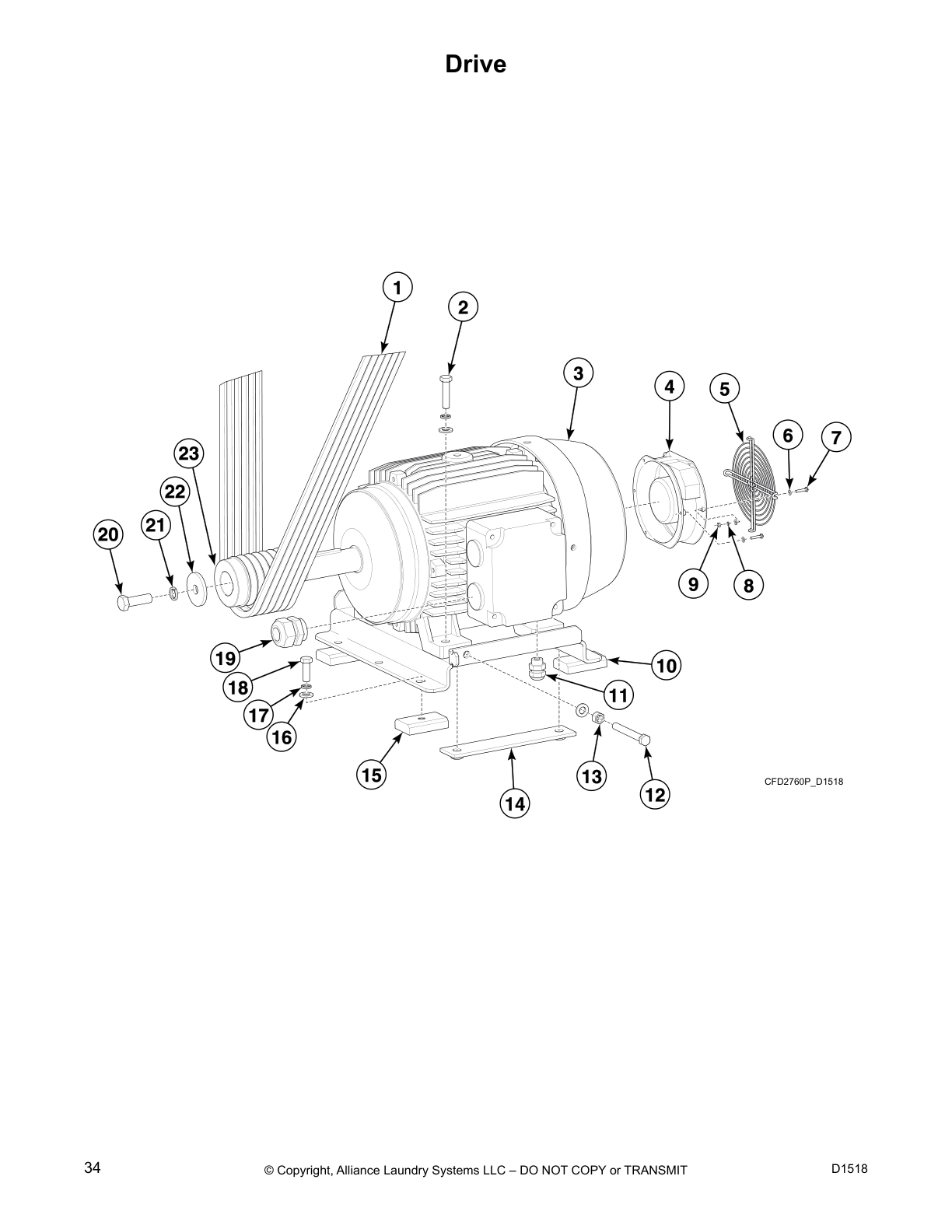

Drive

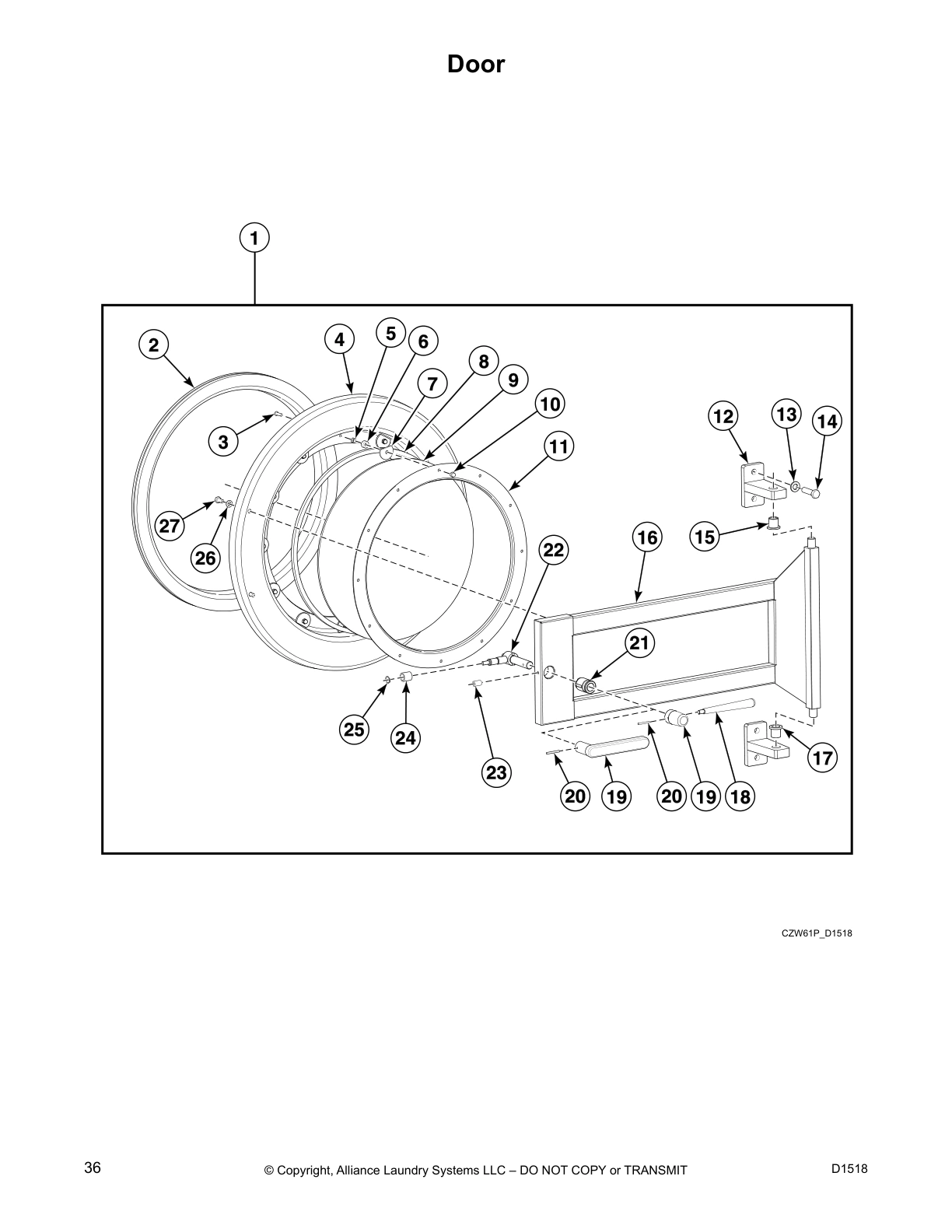

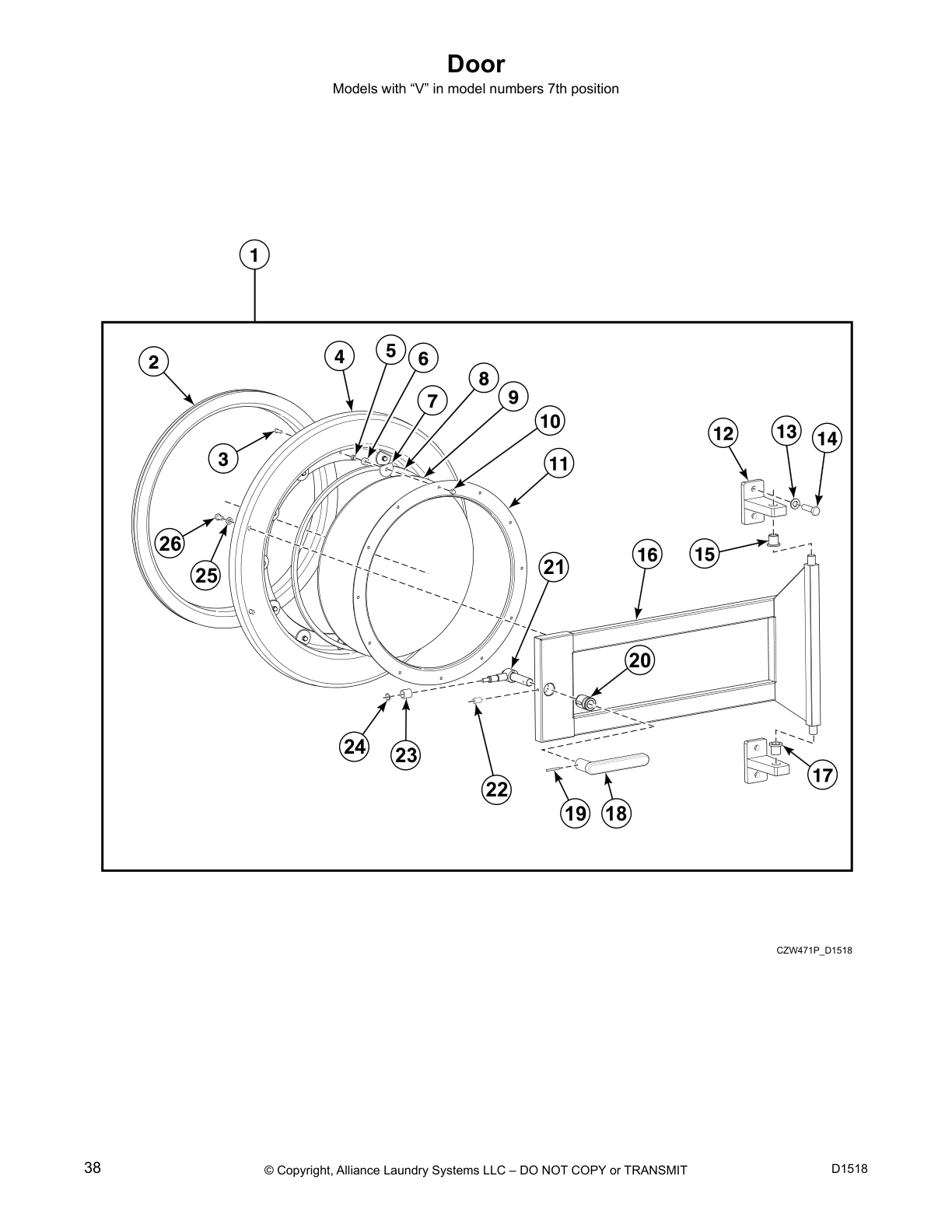

Door
Door

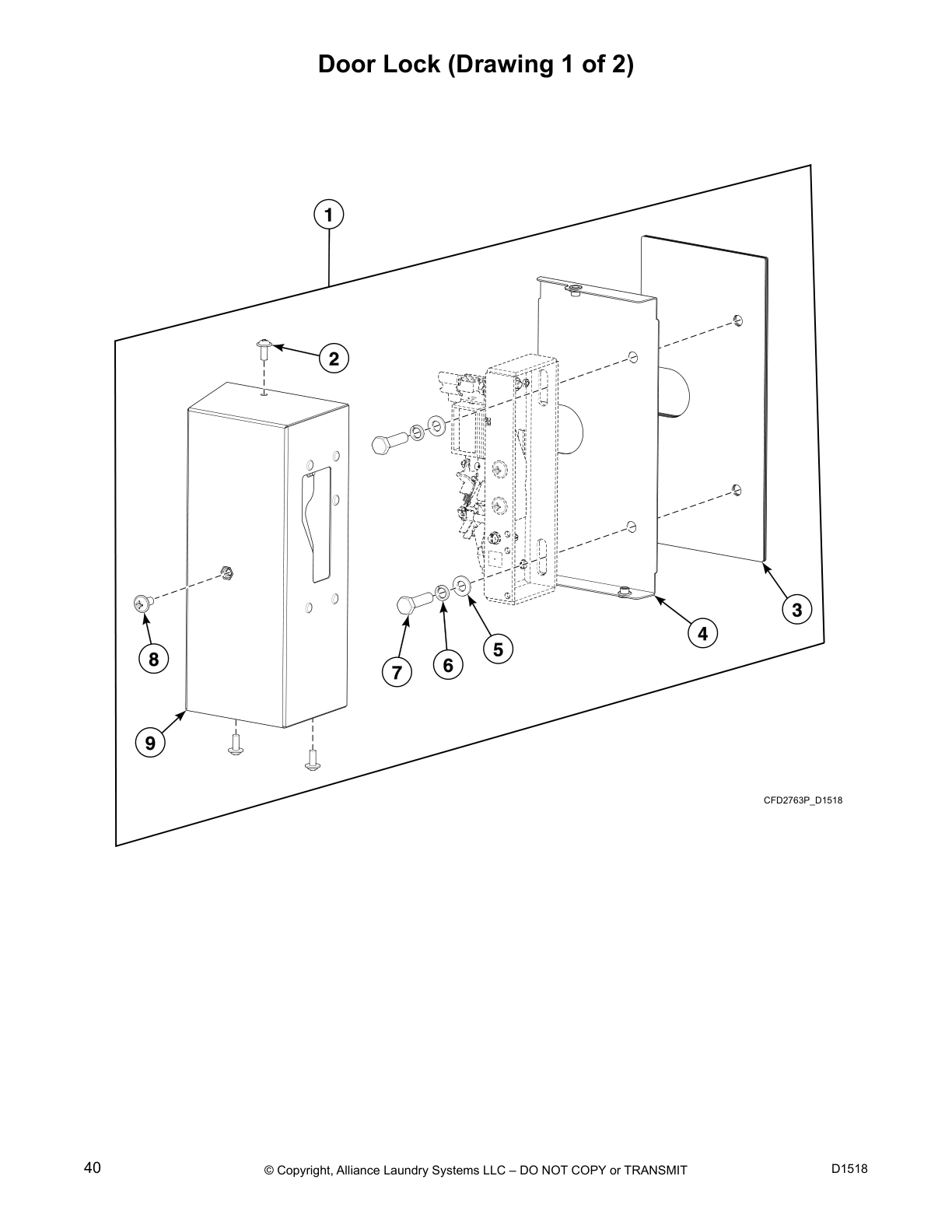

Door Lock (Drawing 1 of 2)

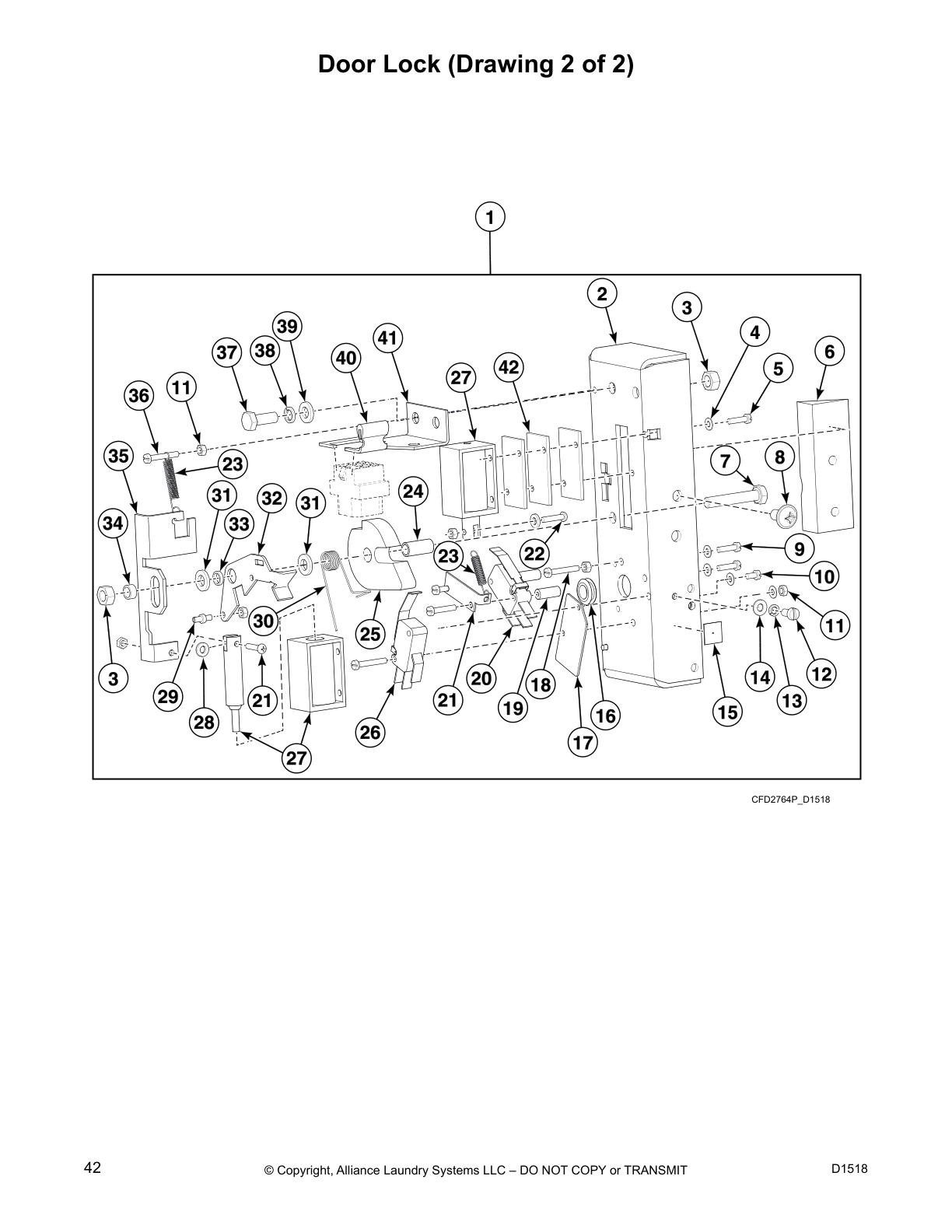

Door Lock (Drawing 2 of 2)

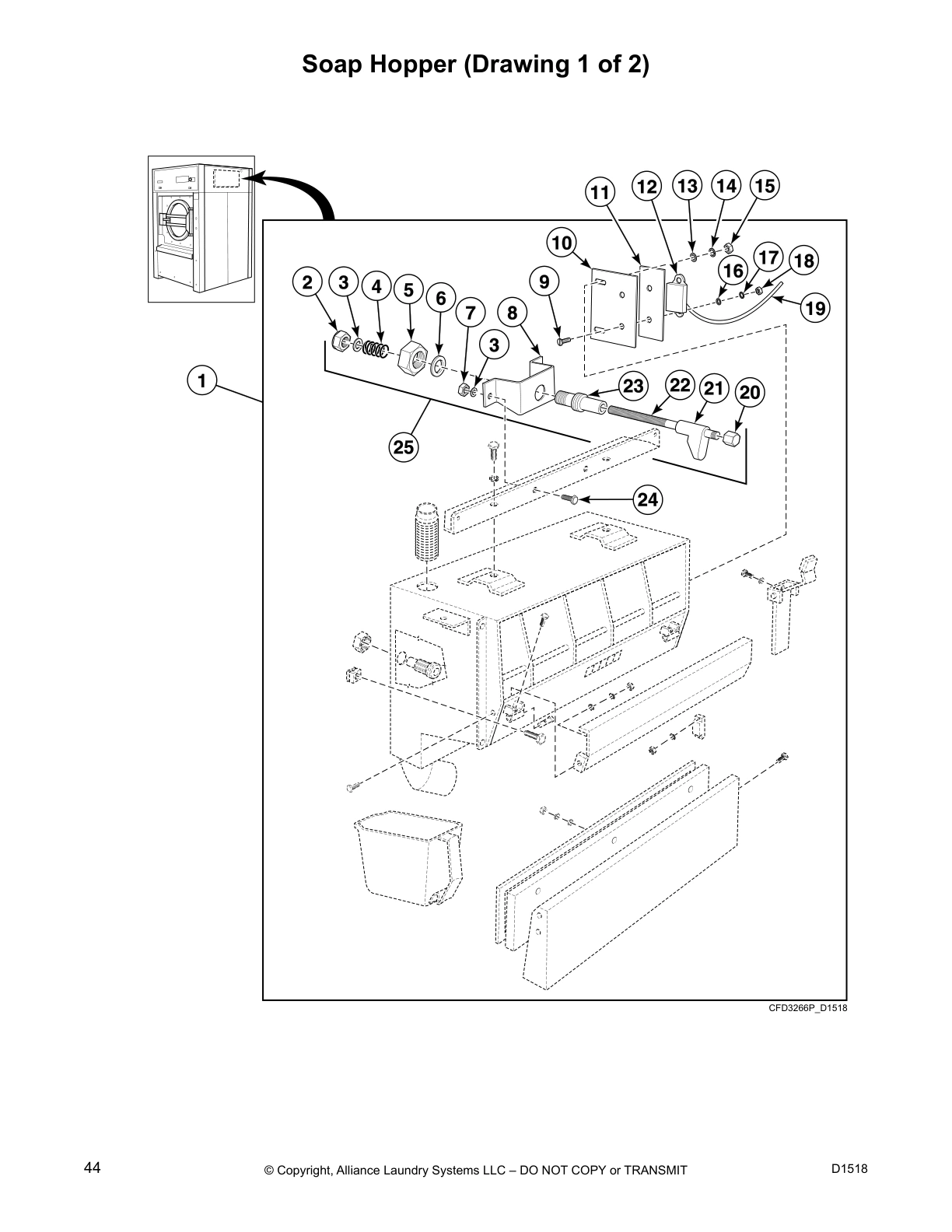

Soap Hopper (Drawing 1 of 2)

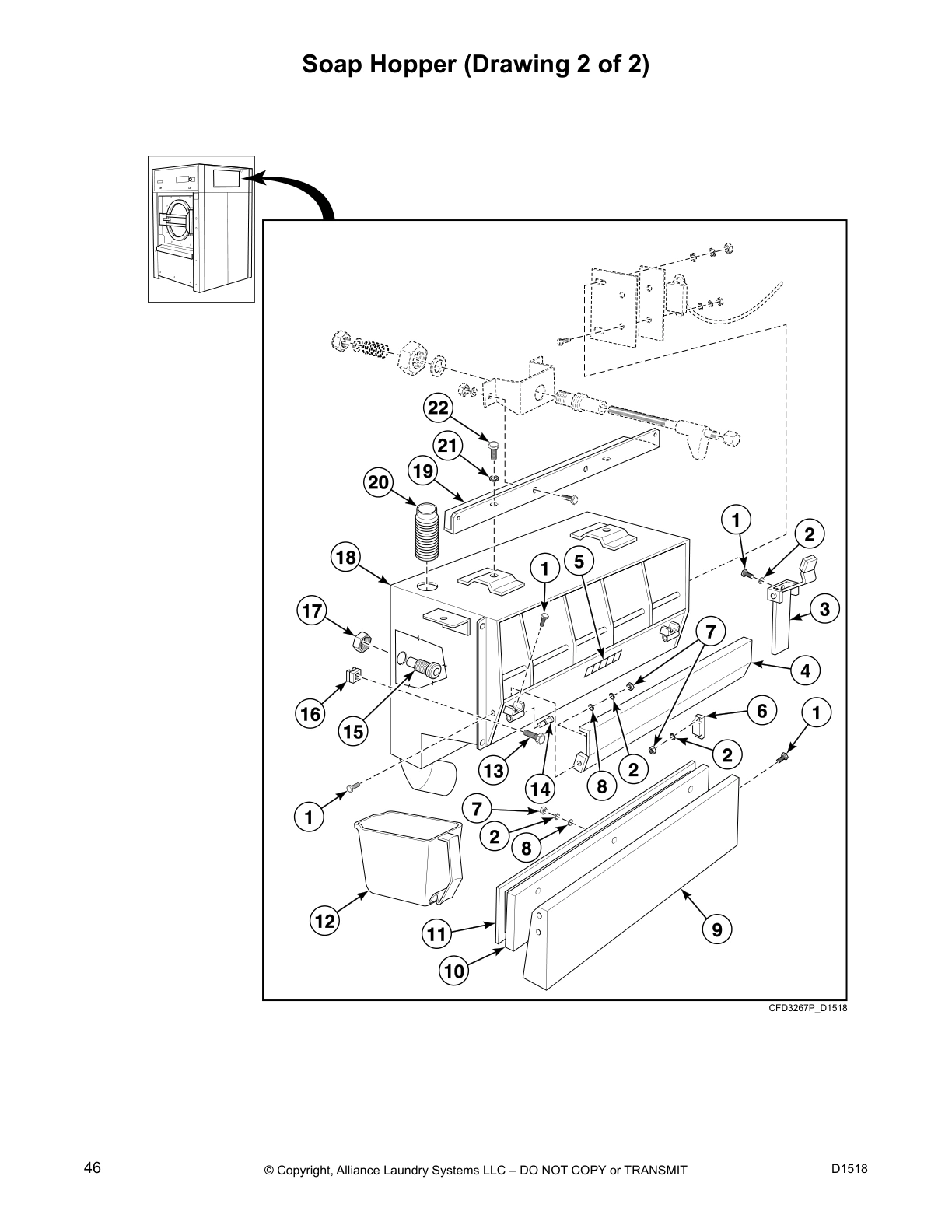

Soap Hopper (Drawing 2 of 2)

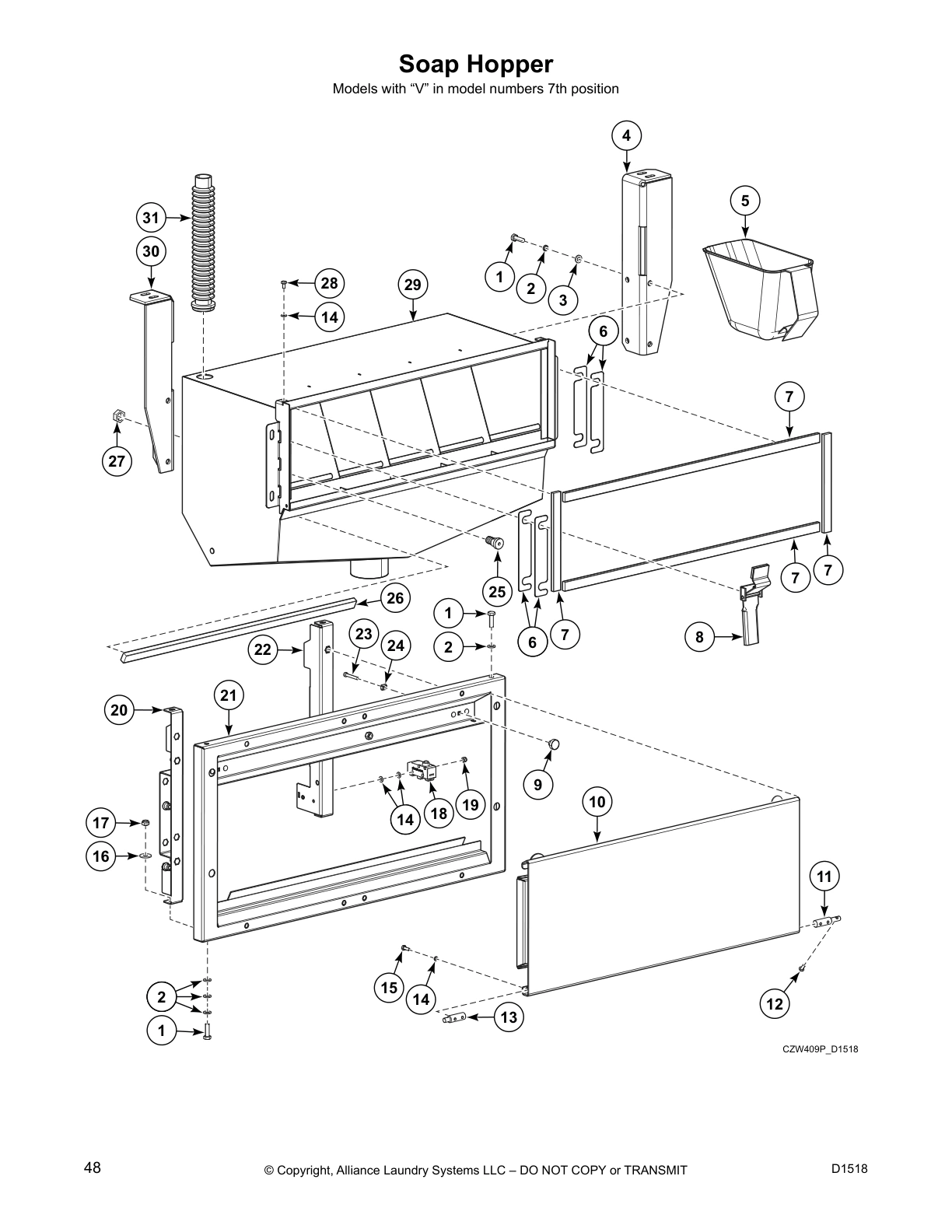

Soap Hopper

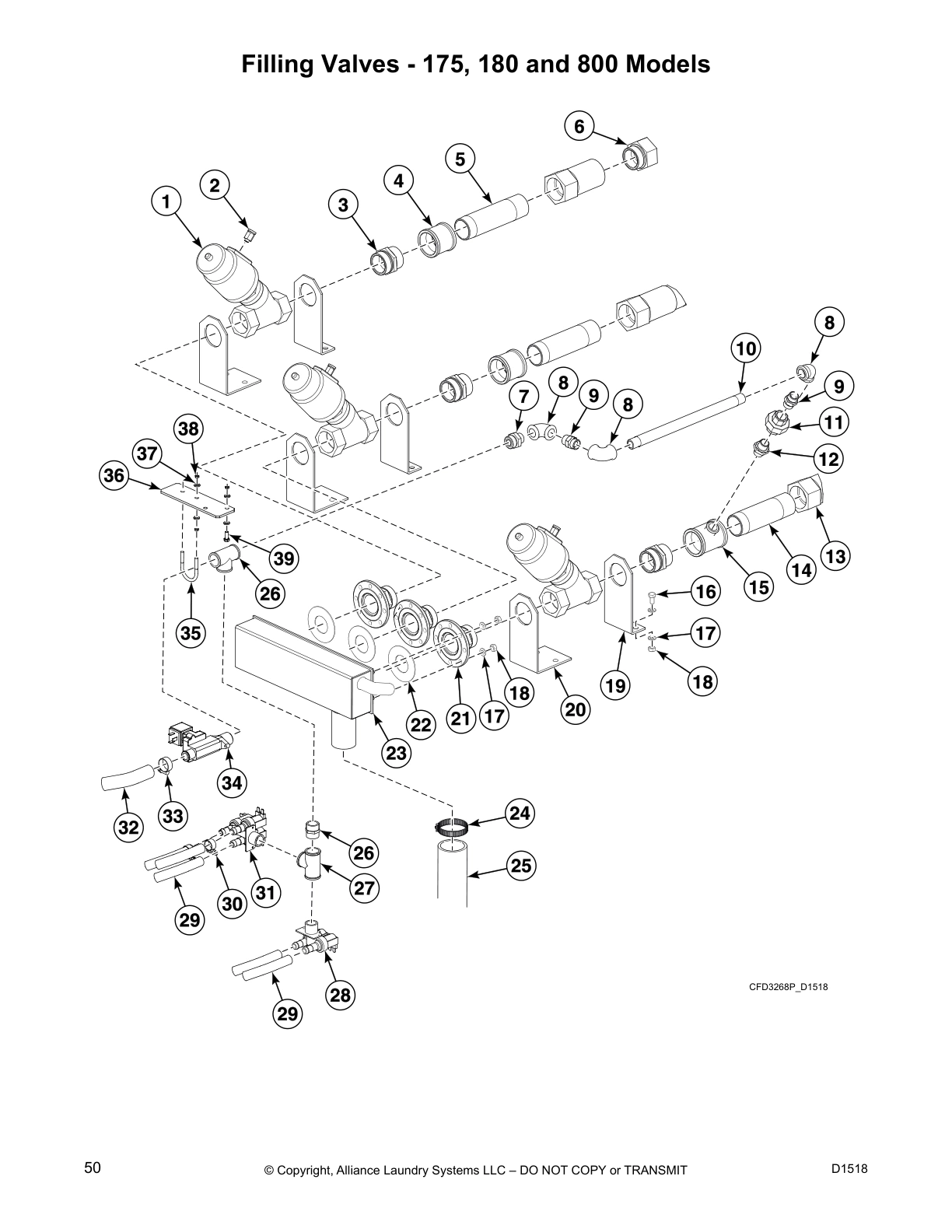

Filling Valves - 175, 180 and 800 Models

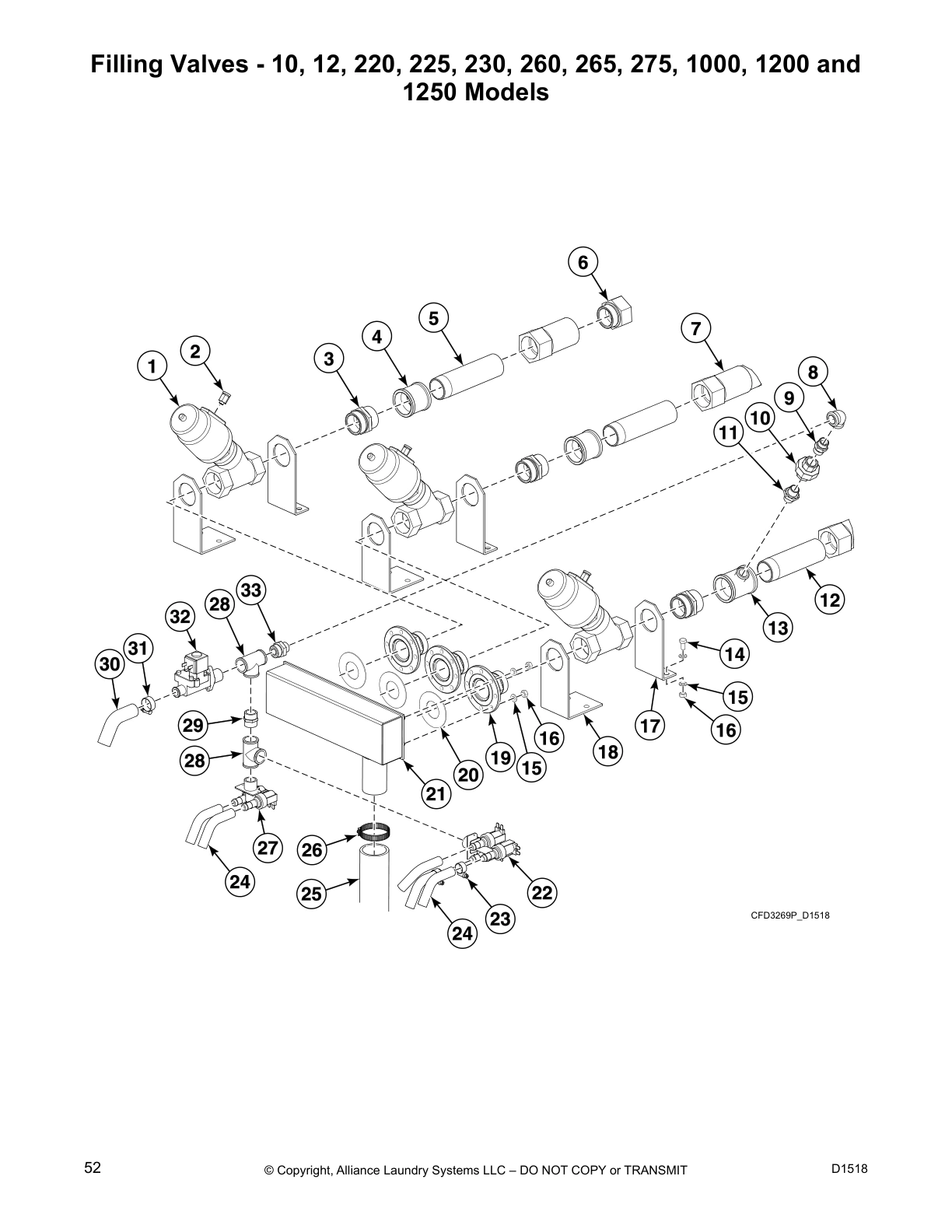

Filling Valves - 10, 12, 220, 225, 230, 260, 265, 275, 1000, 1200 and
1250 Models

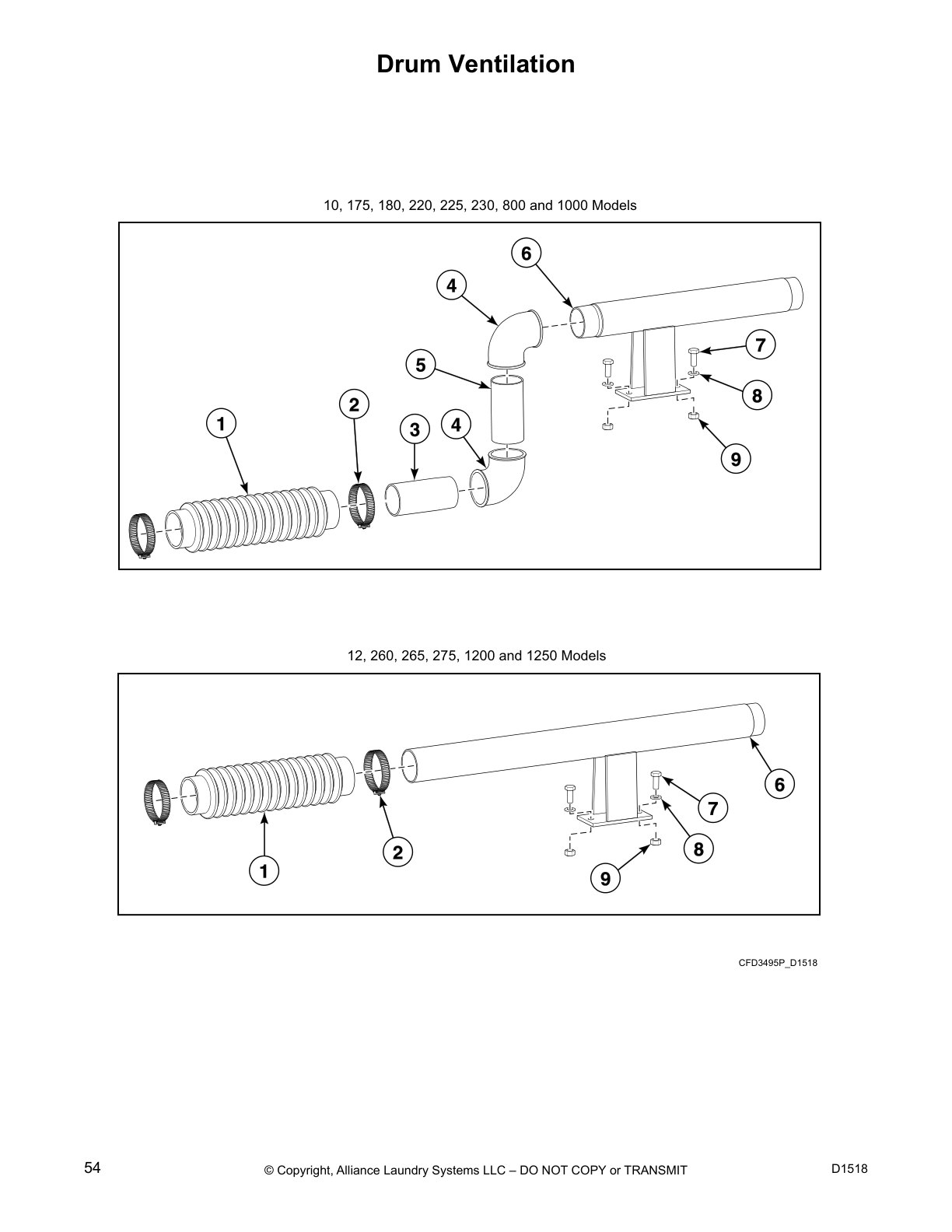

Drum Ventilation

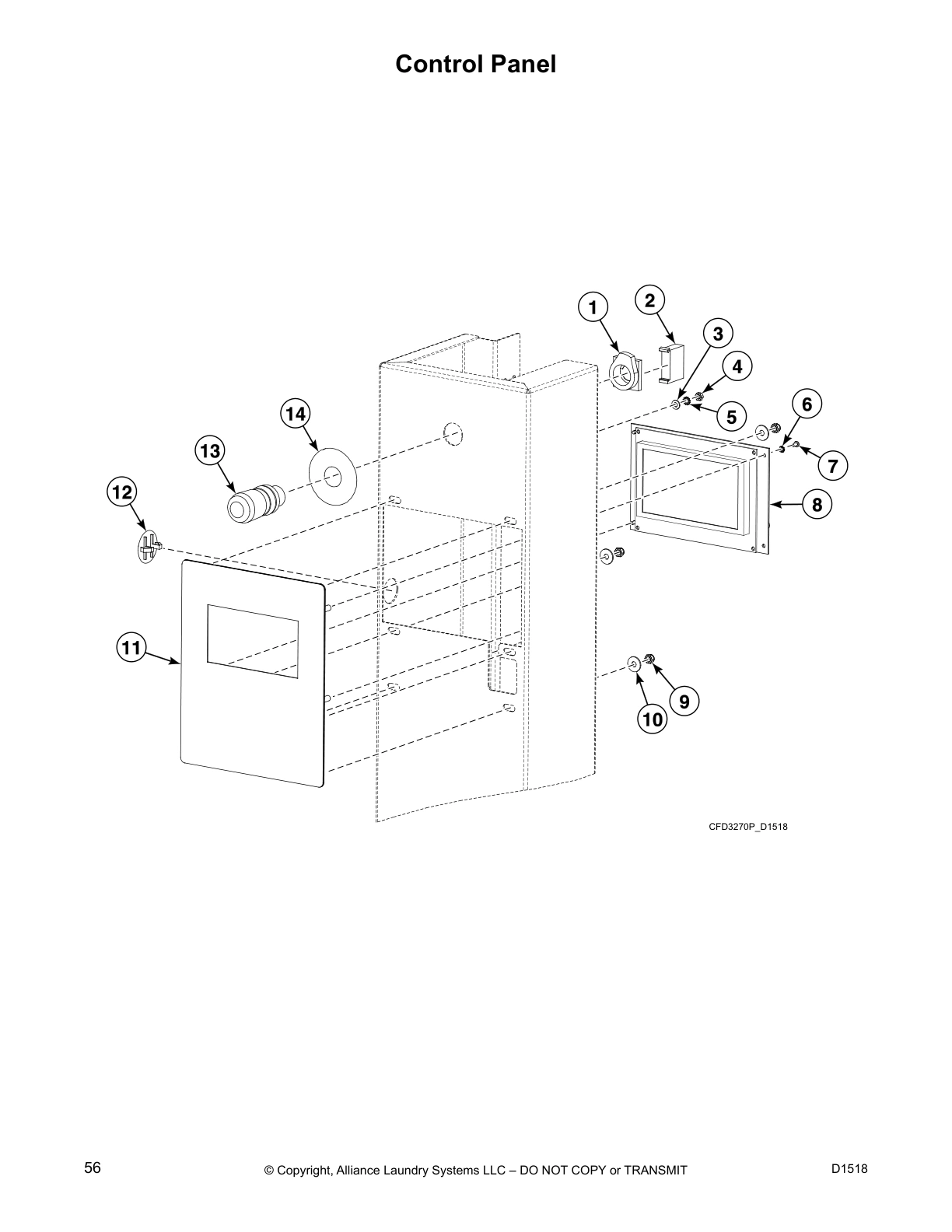

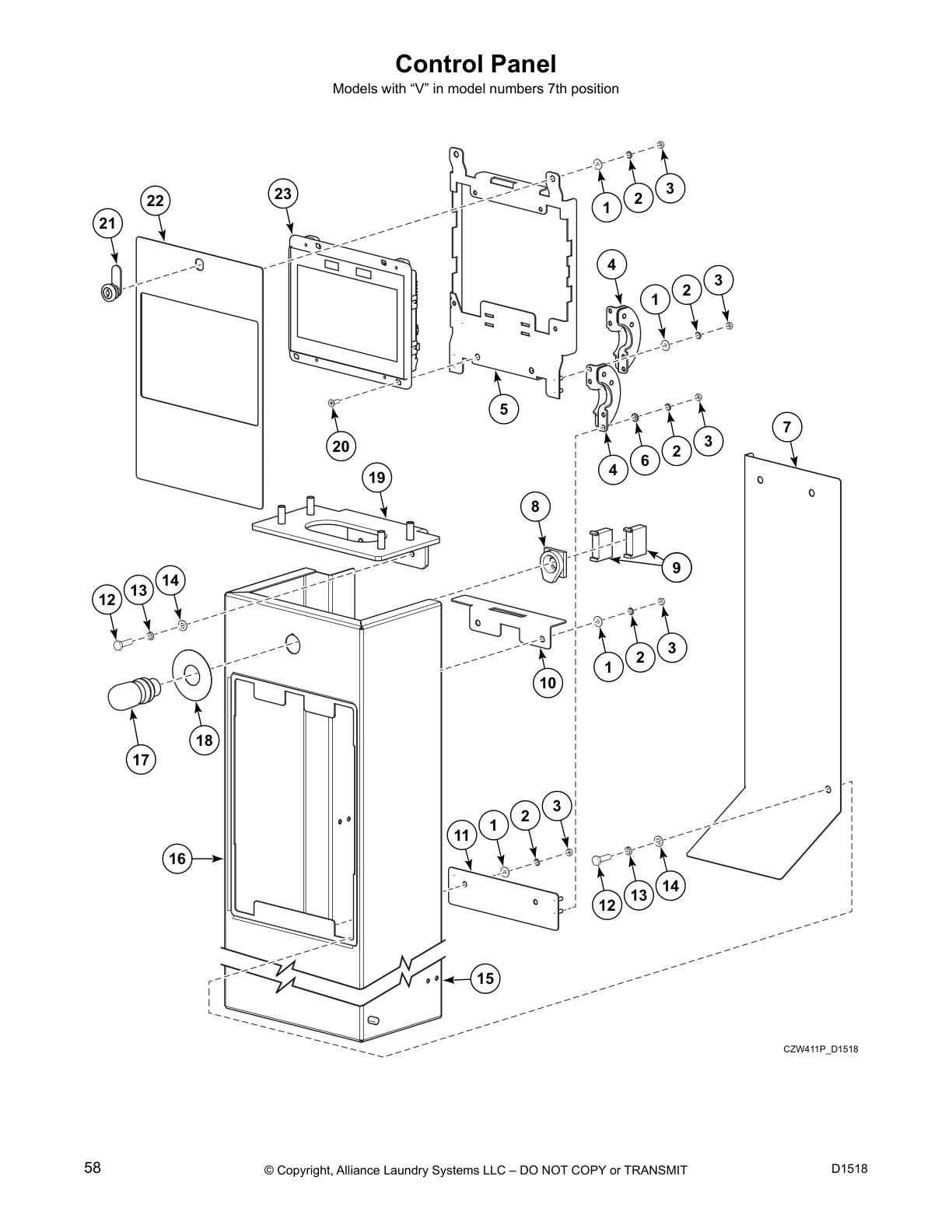

Control Panel
Control Panel

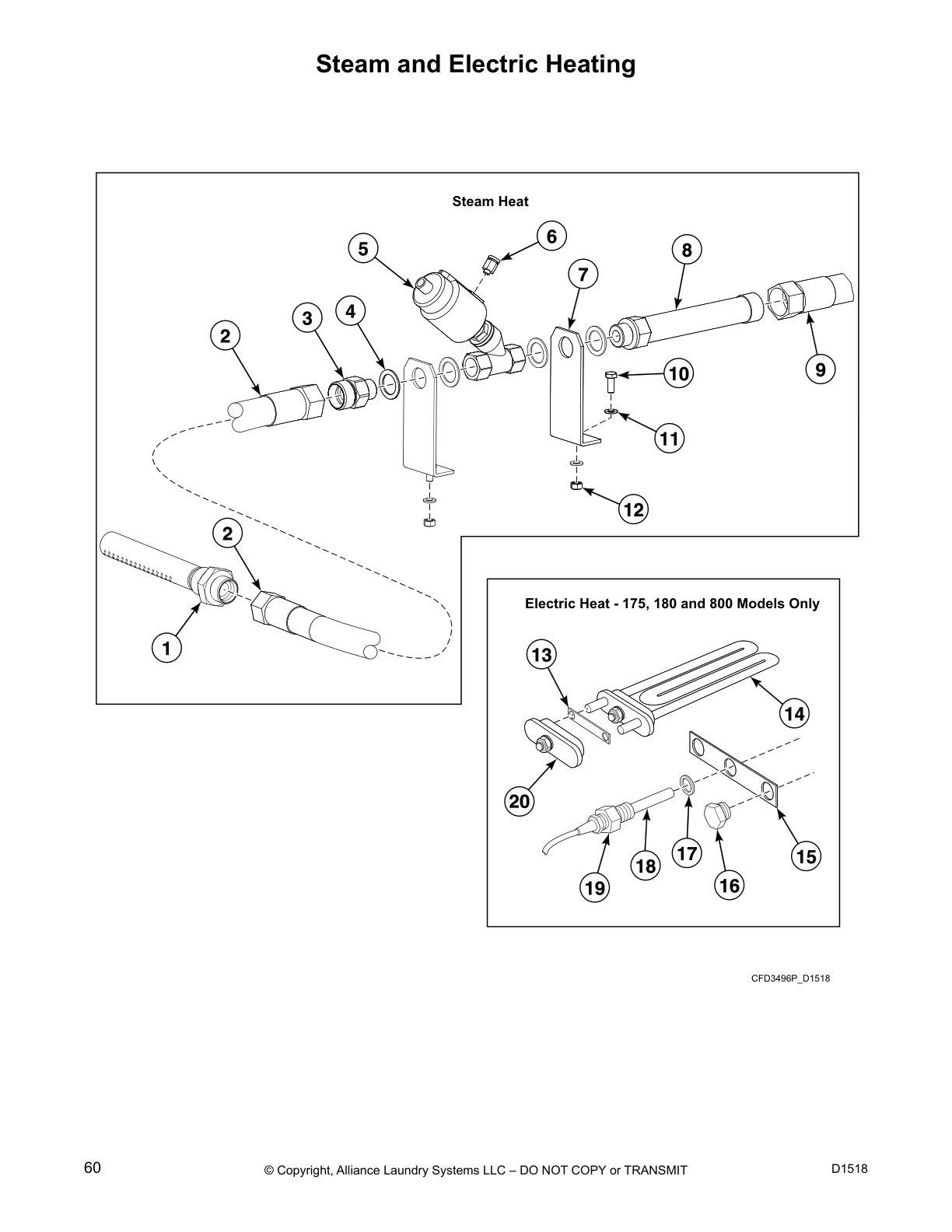

Steam and Electric Heating

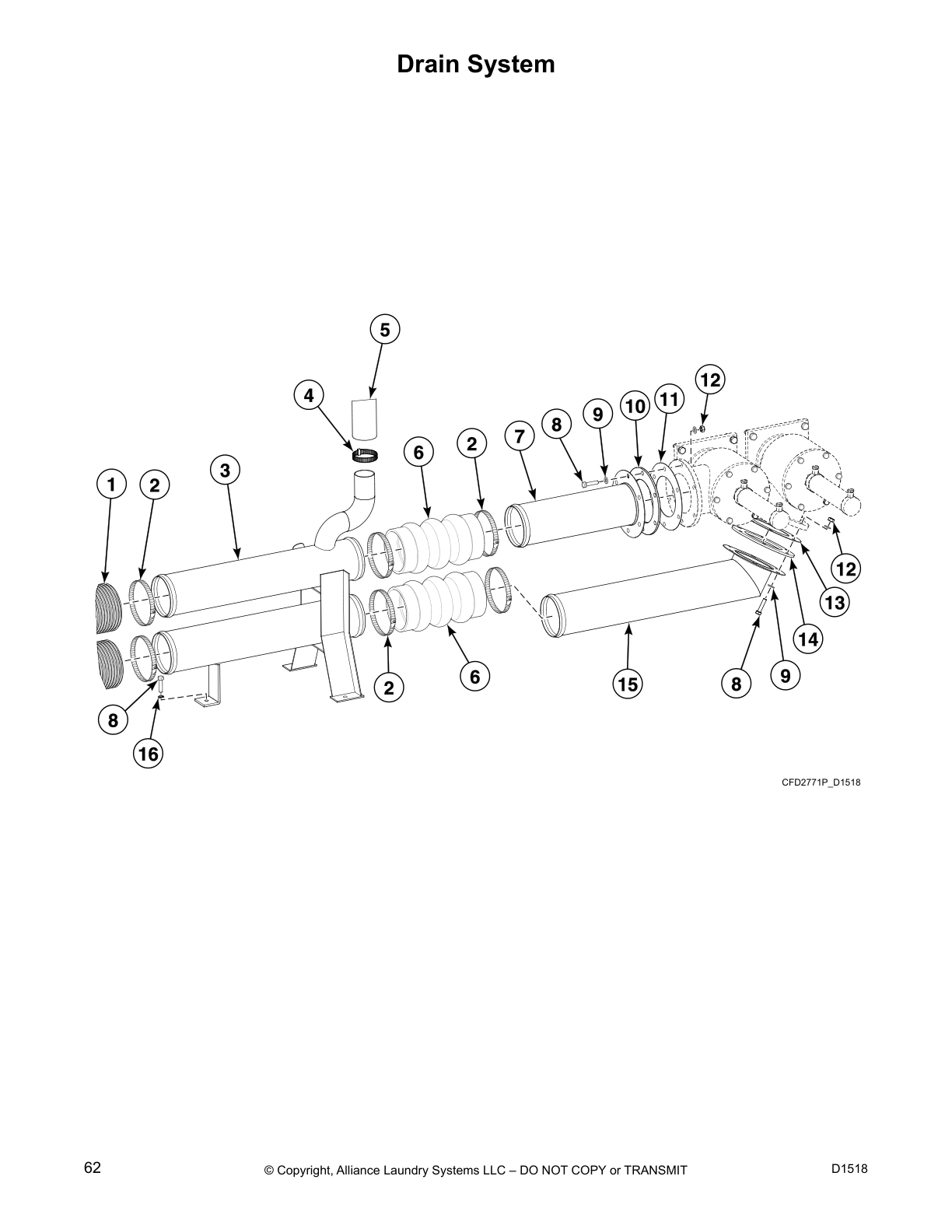

Drain System

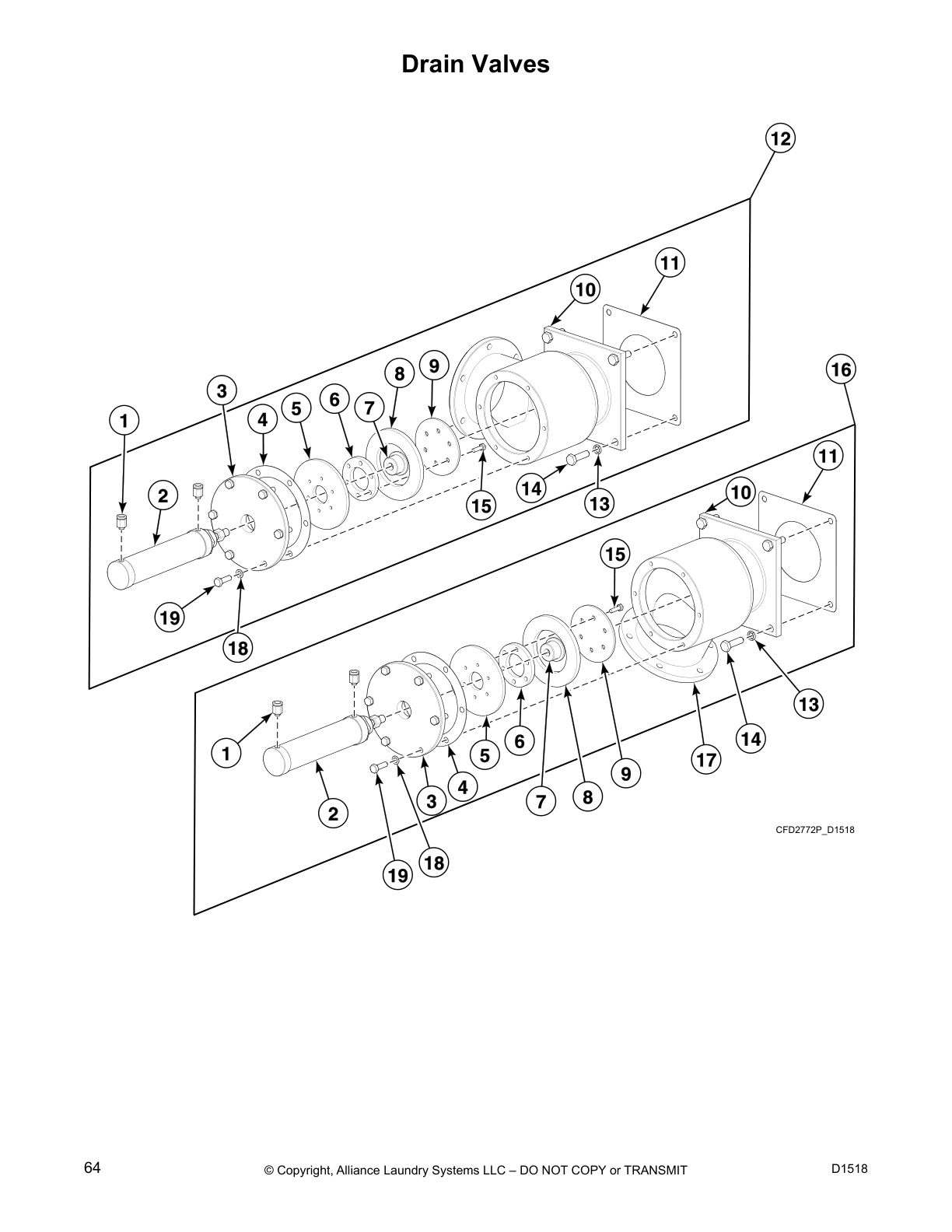

Drain Valves

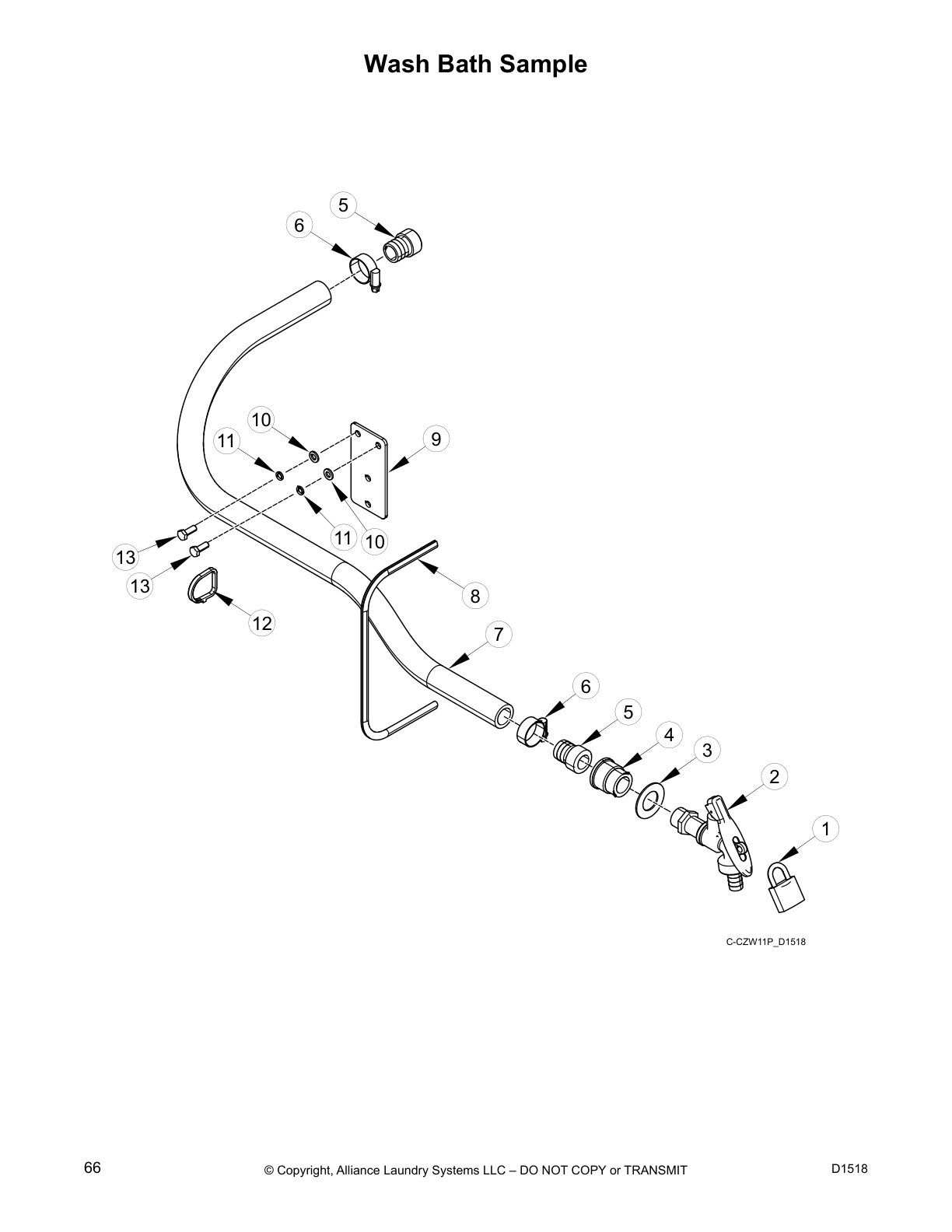

Wash Bath Sample

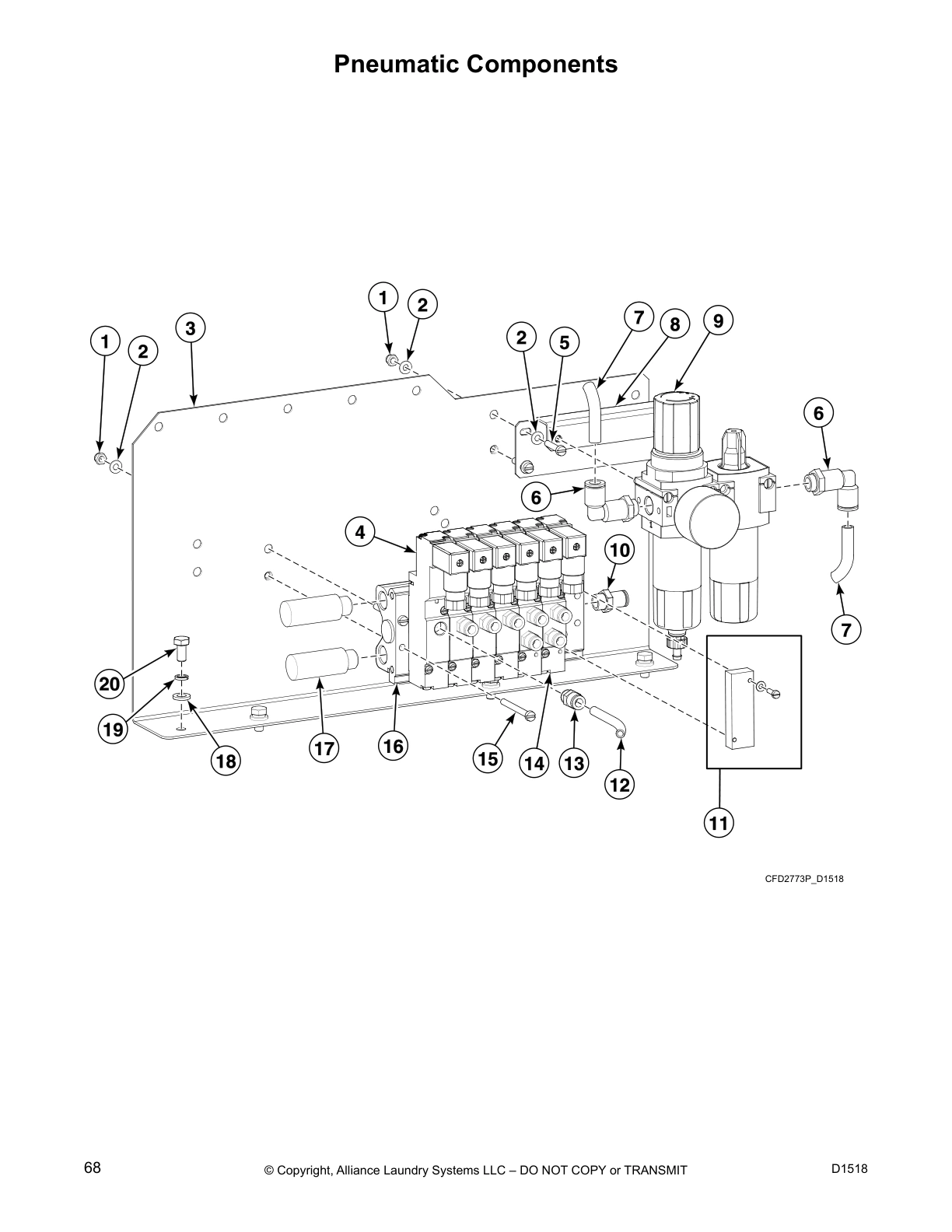

Pneumatic Components

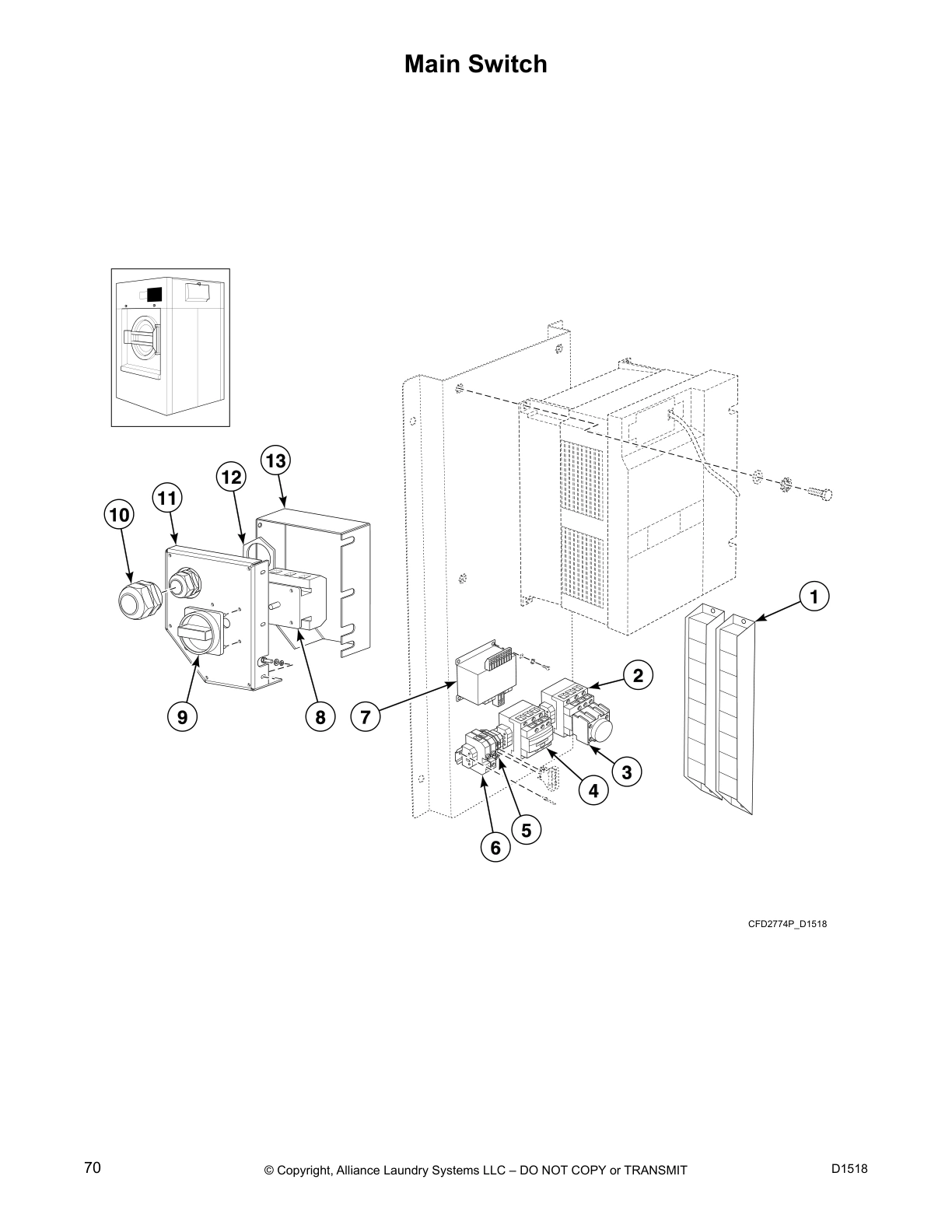

Main Switch

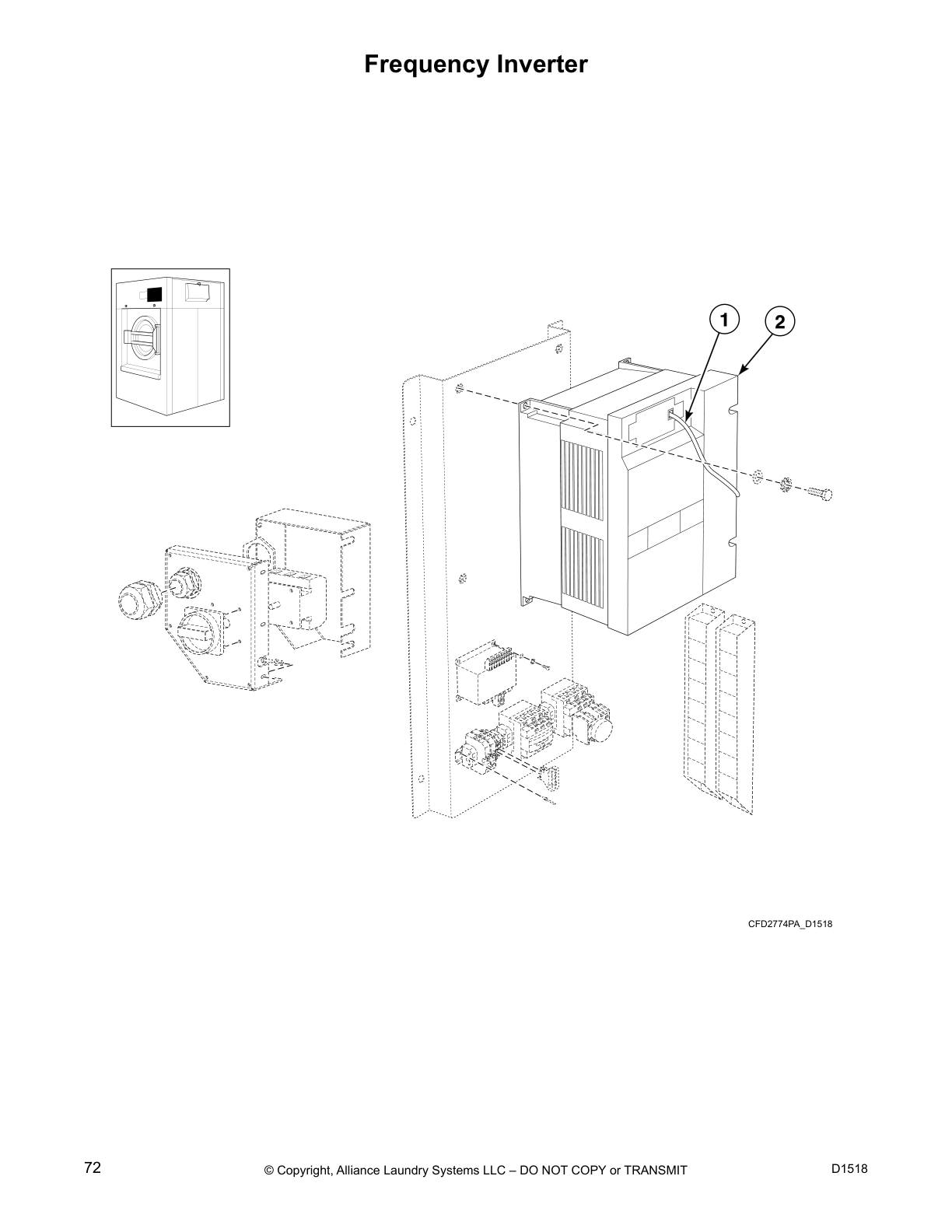

Frequency Inverter

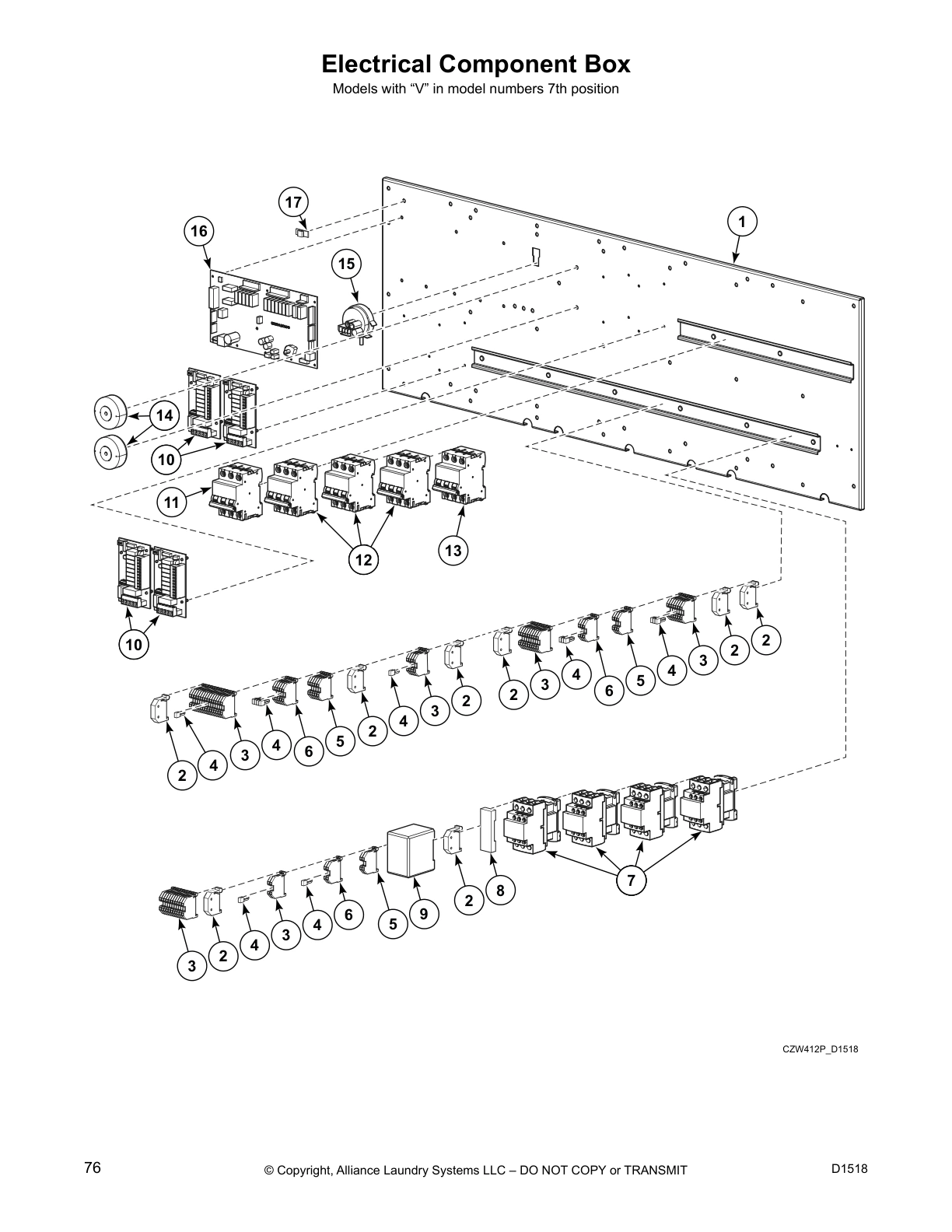

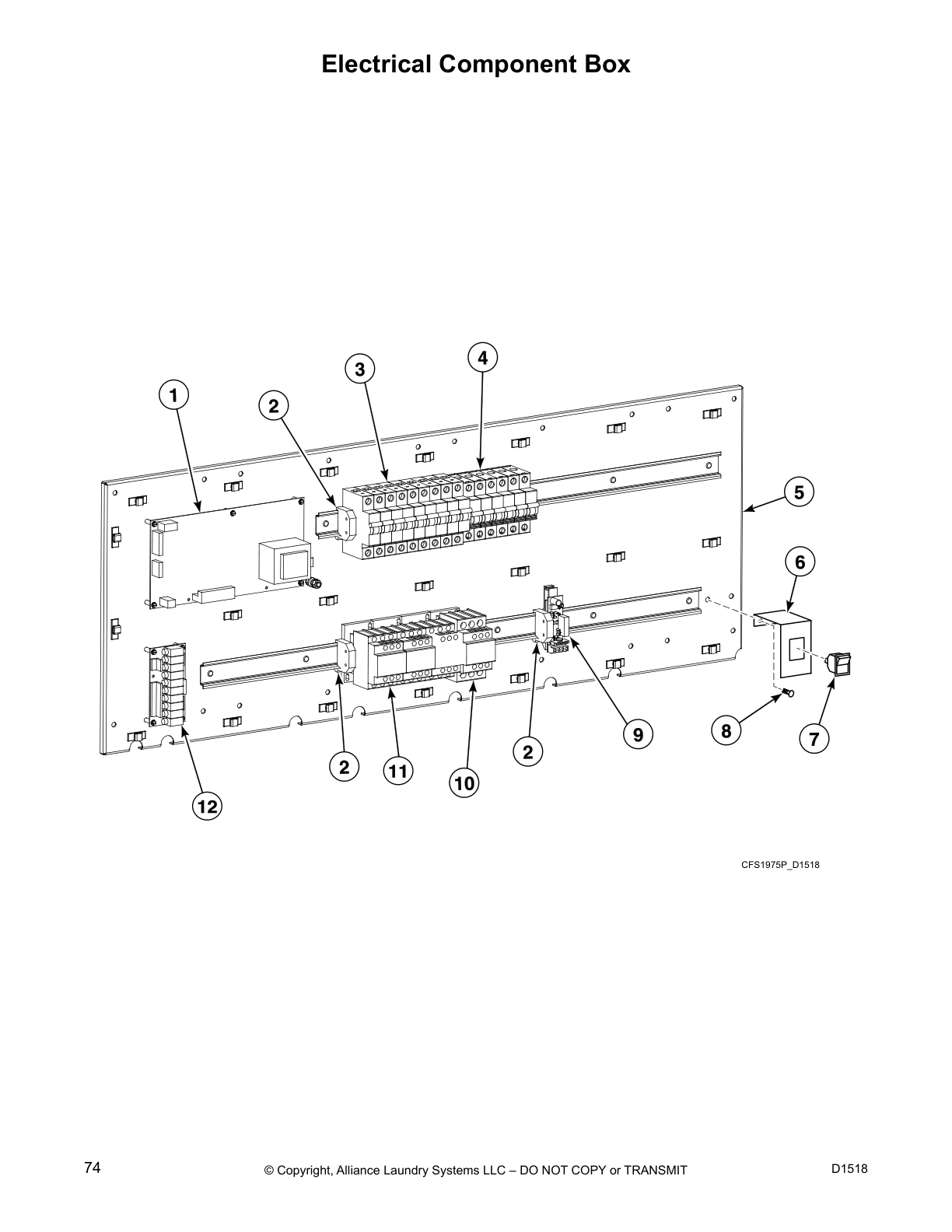

Electrical Component Box
Electrical Component Box

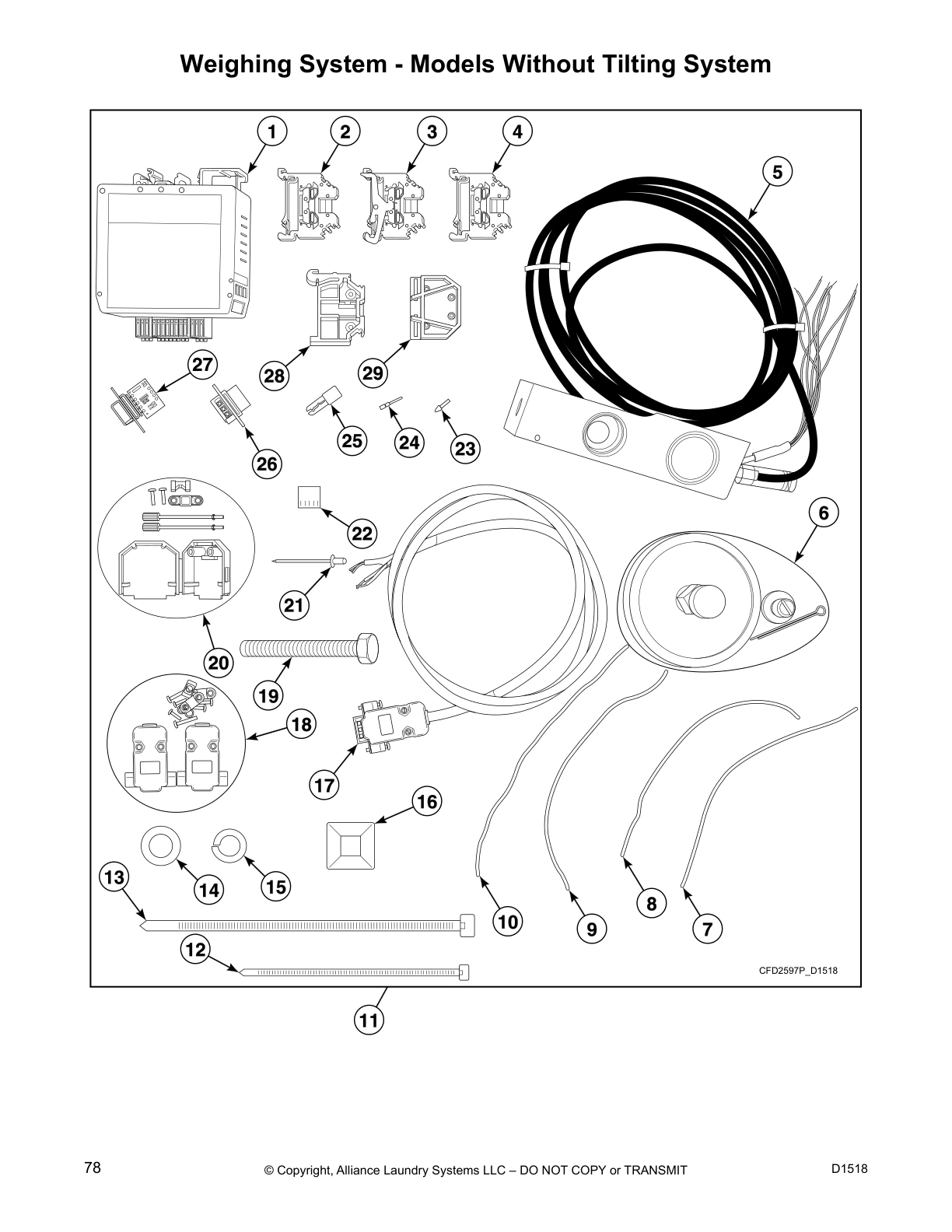

Weighing System - Models Without Tilting System

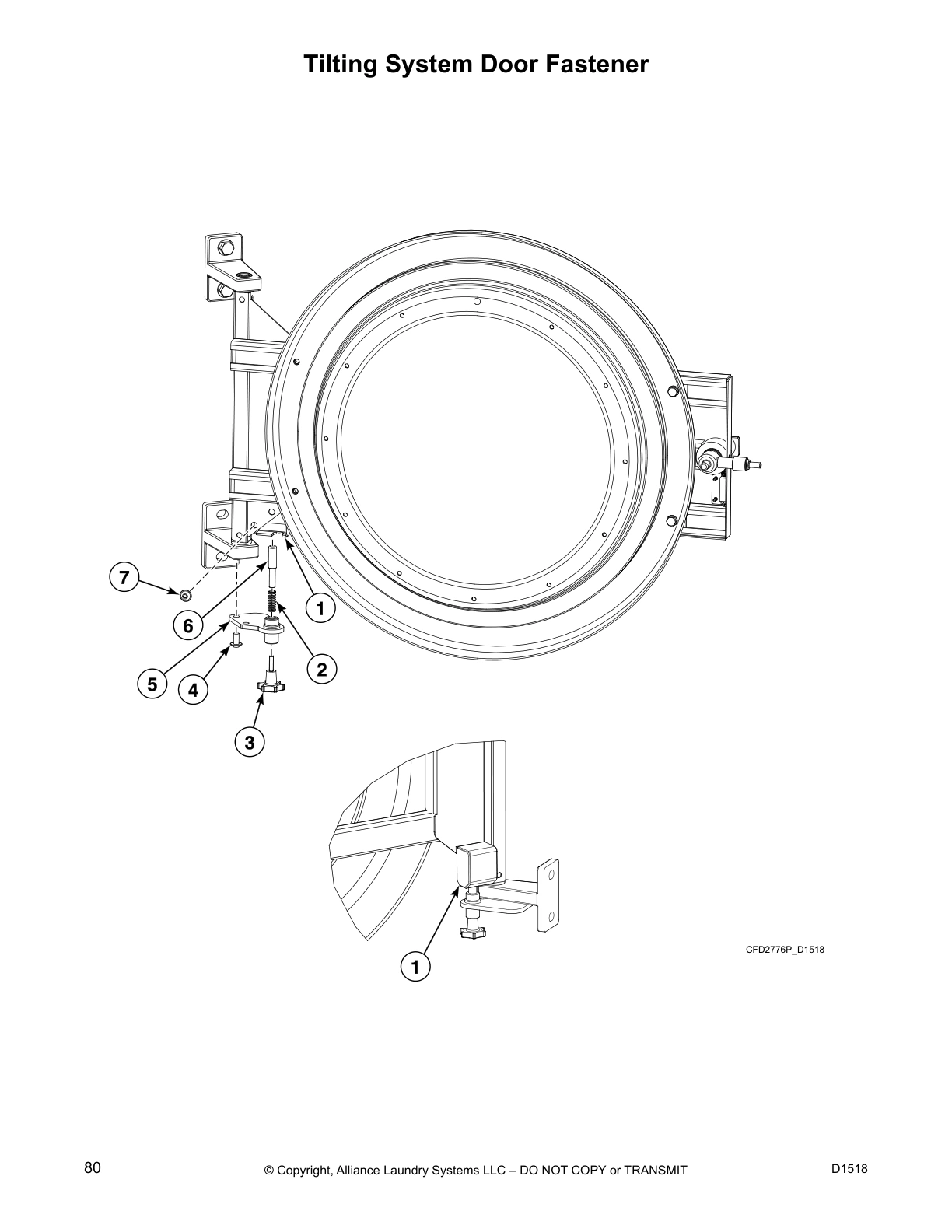

Tilting System Door Fastener

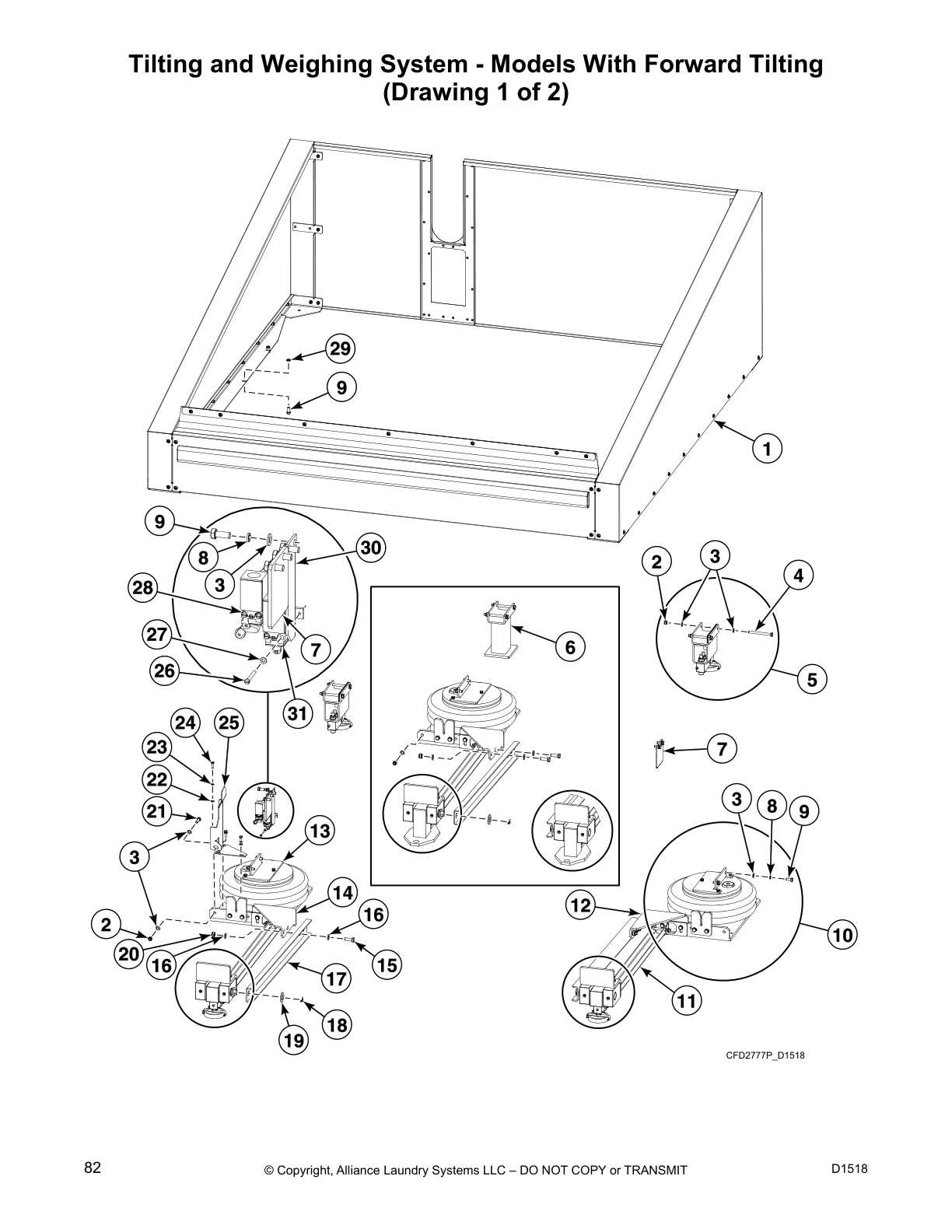

Tilting and Weighing System - Models With Forward Tilting
(Drawing 1 of 2)

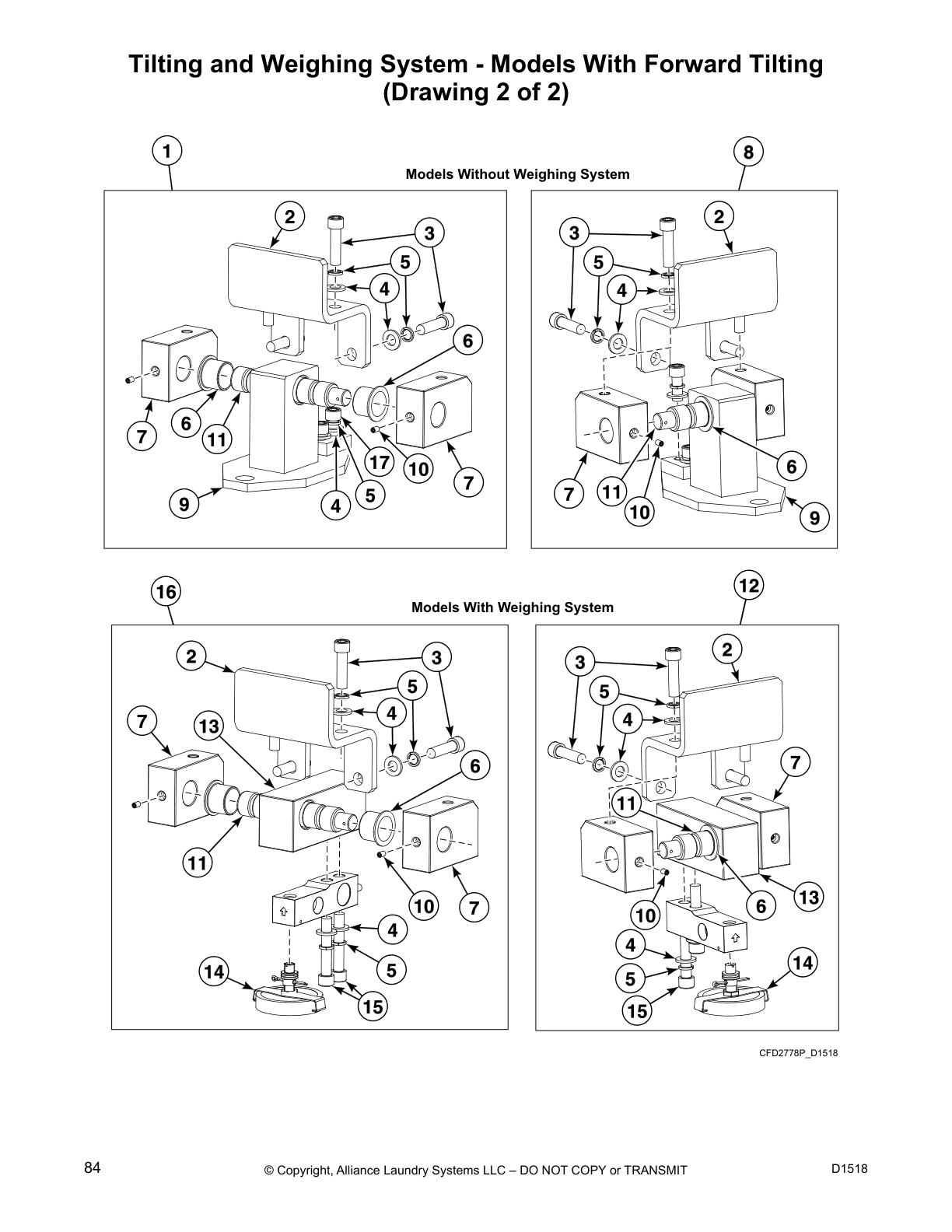

Tilting and Weighing System - Models With Forward Tilting
(Drawing 2 of 2)

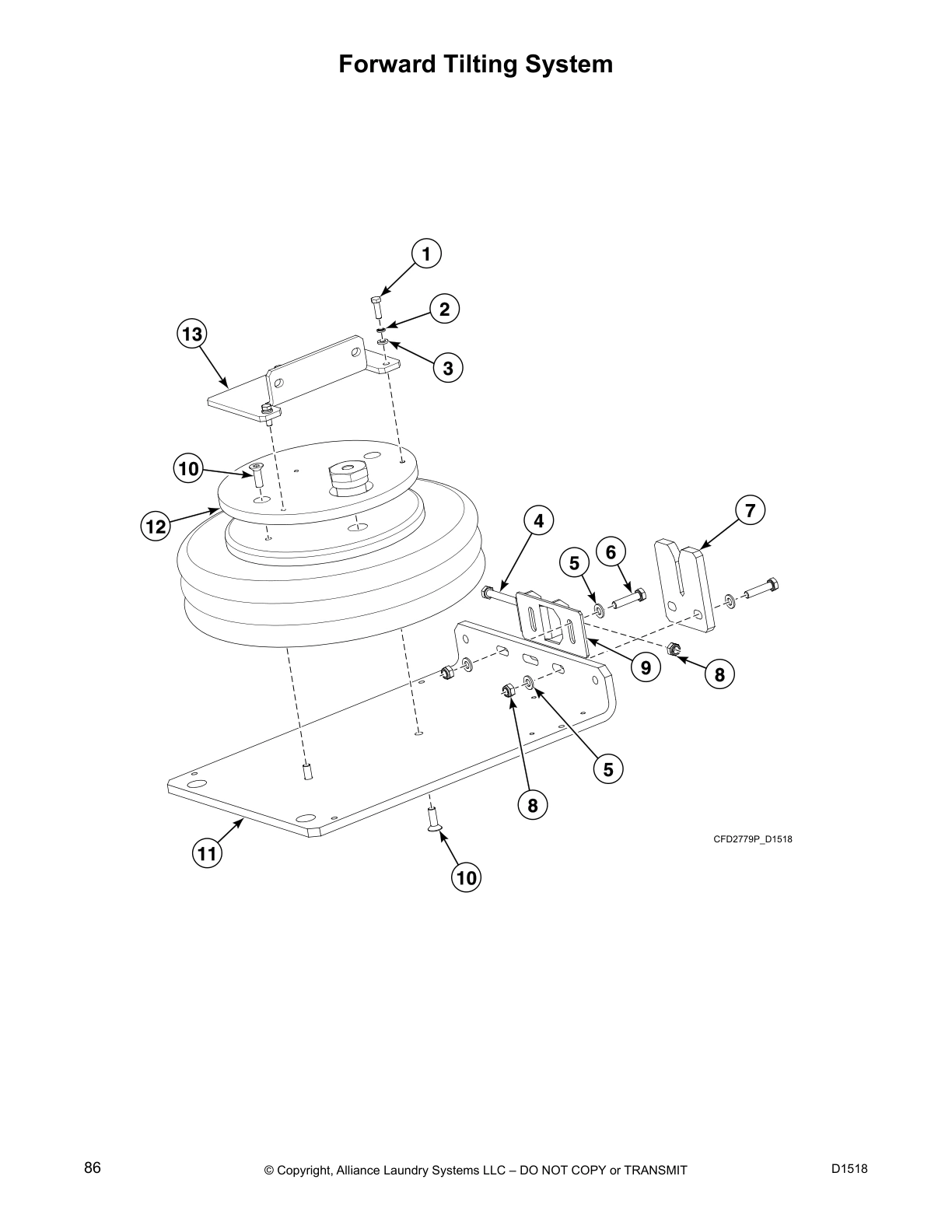

Forward Tilting System

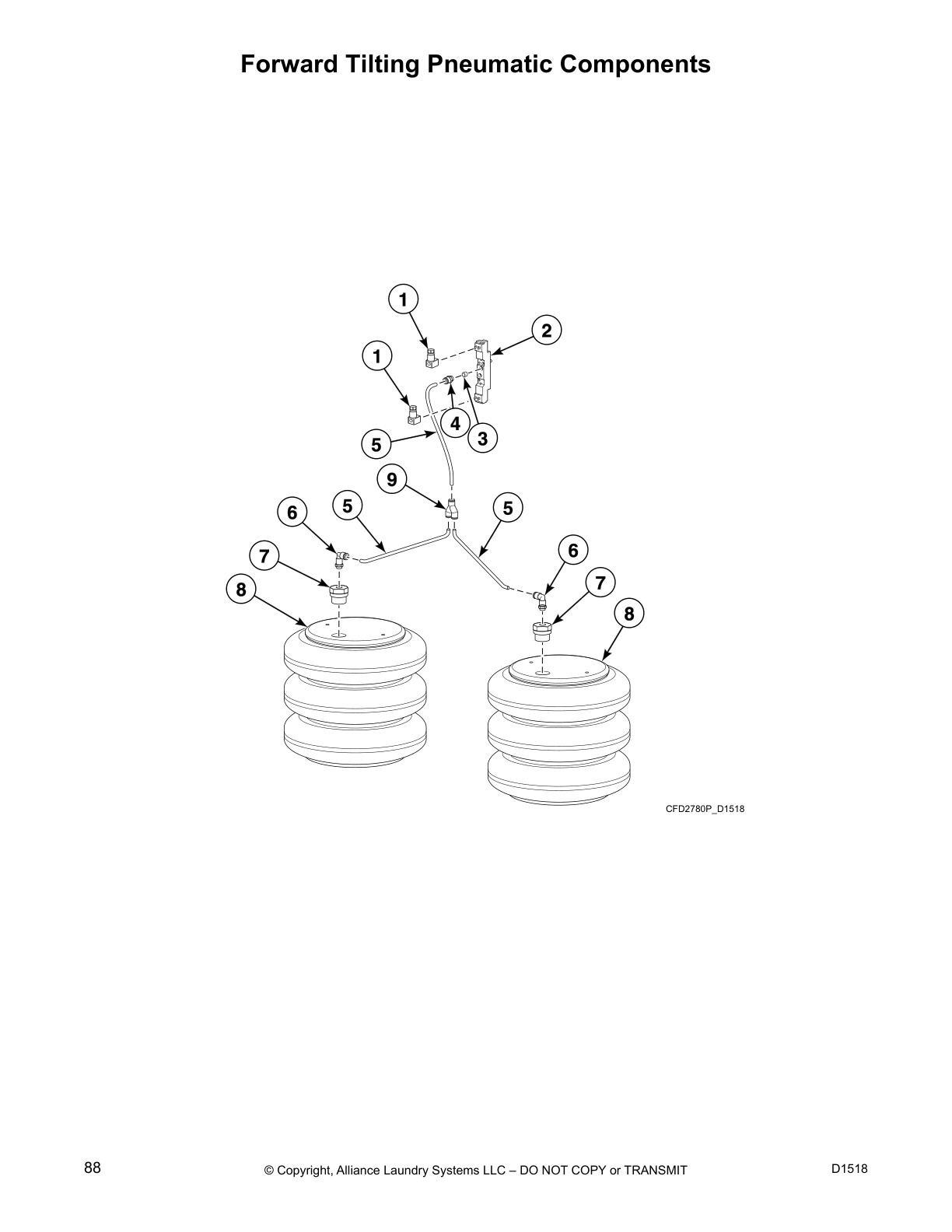

Forward Tilting Pneumatic Components

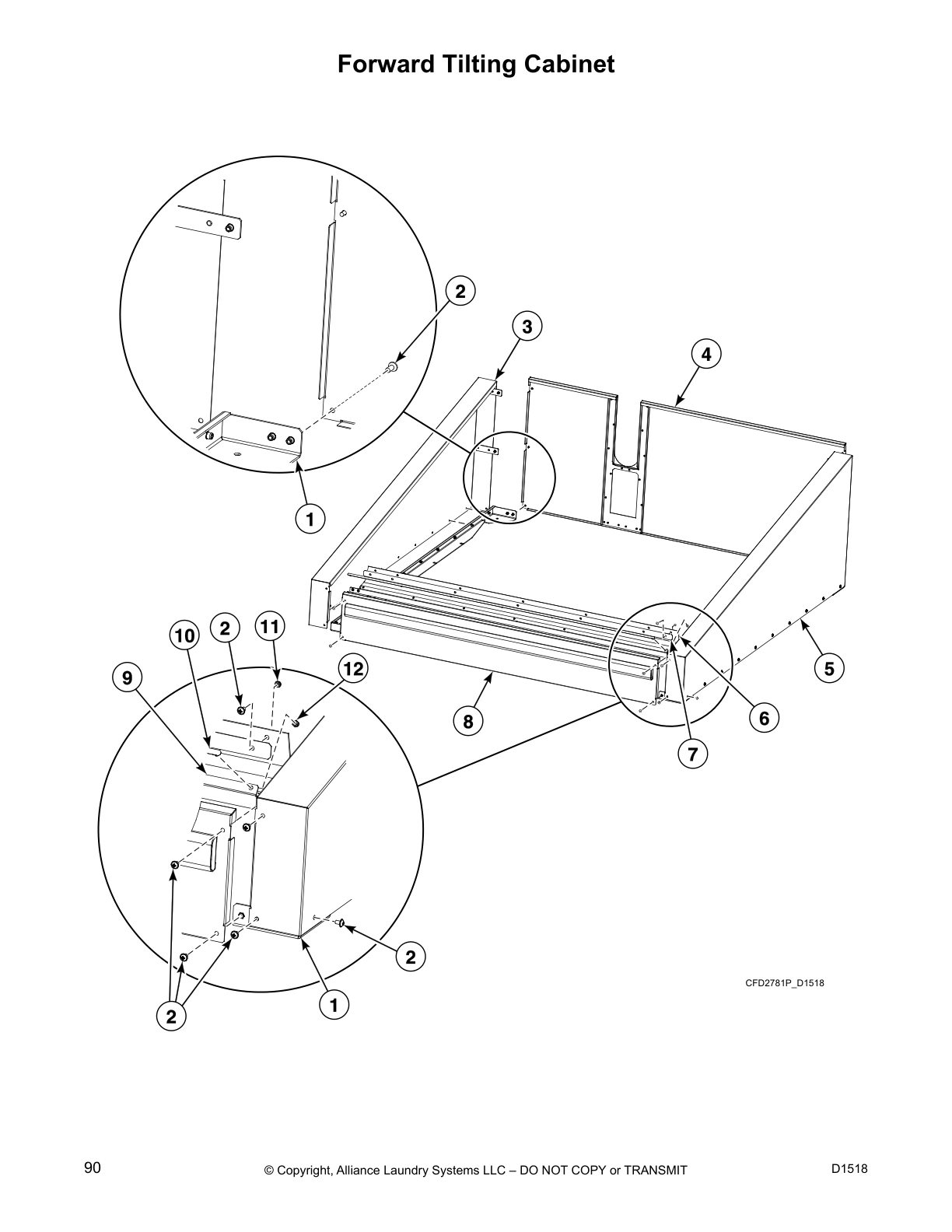

Forward Tilting Cabinet

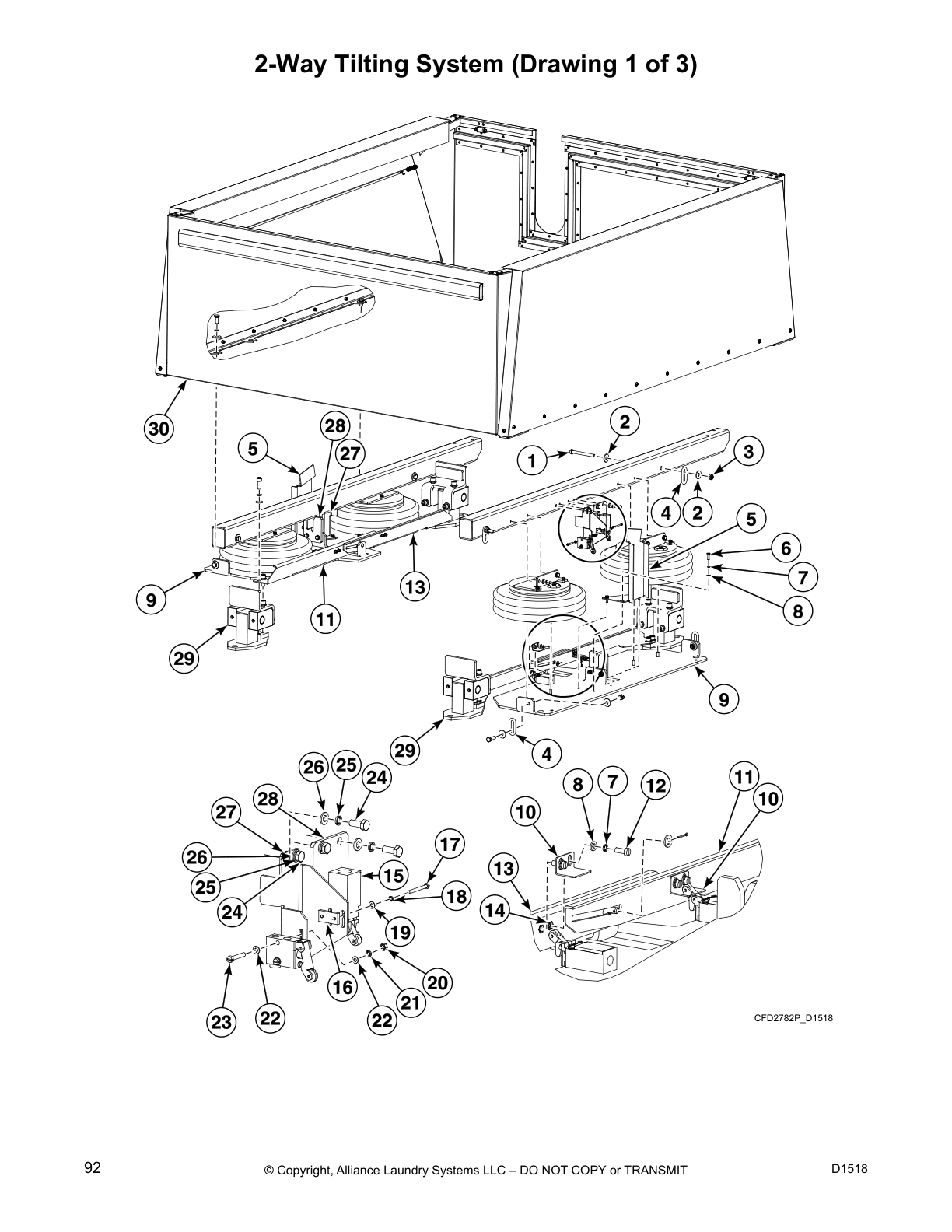

2-Way Tilting System (Drawing 1 of 3)

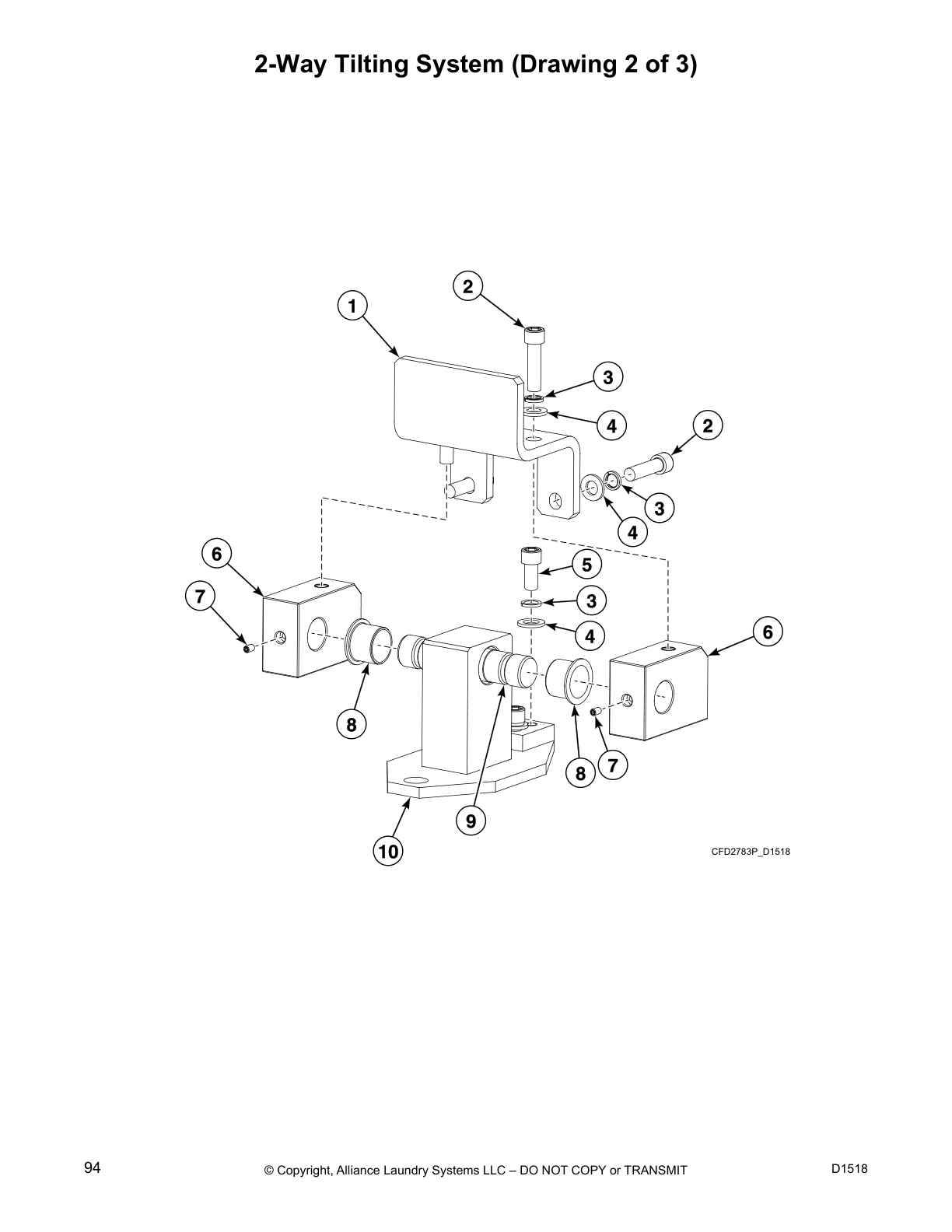

2-Way Tilting System (Drawing 2 of 3)

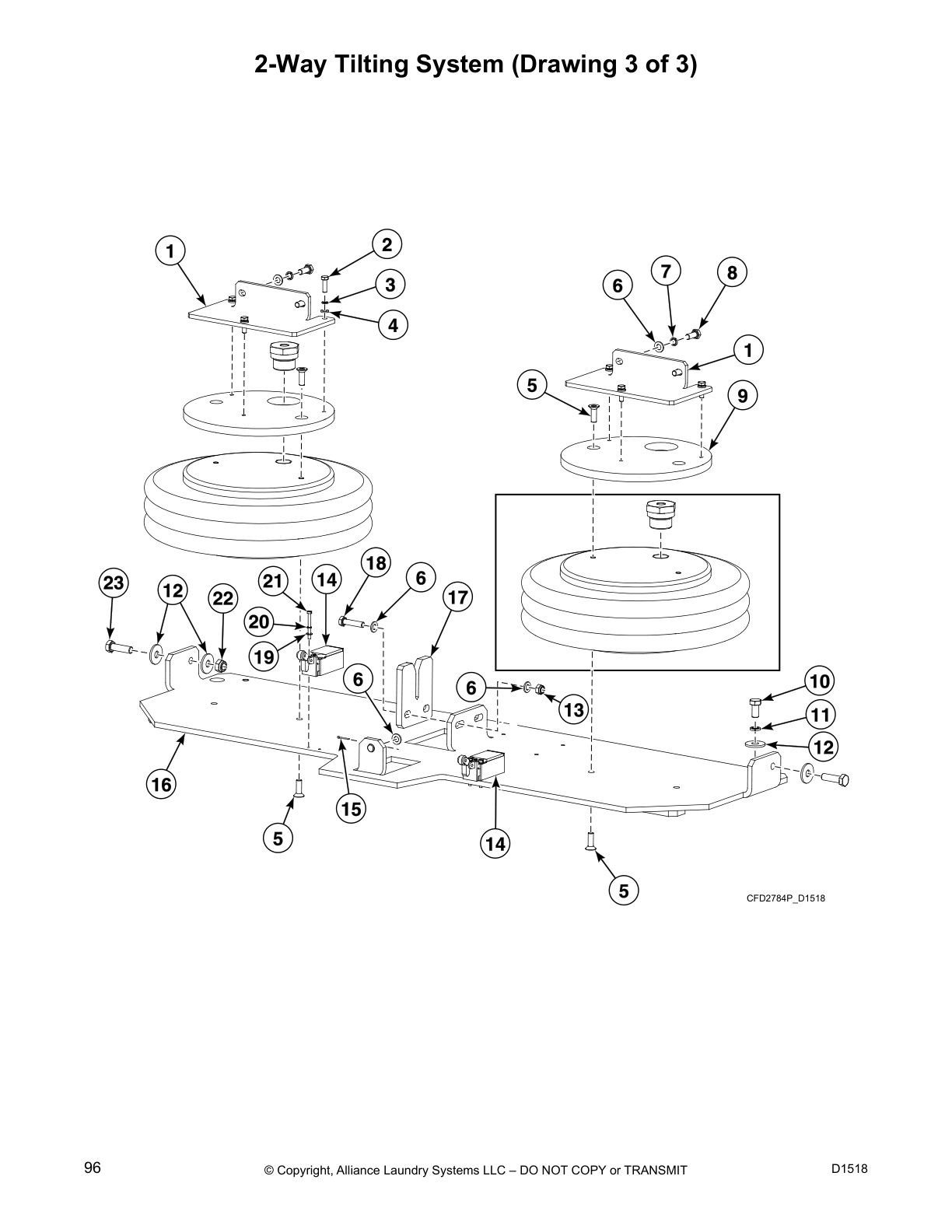

2-Way Tilting System (Drawing 3 of 3)

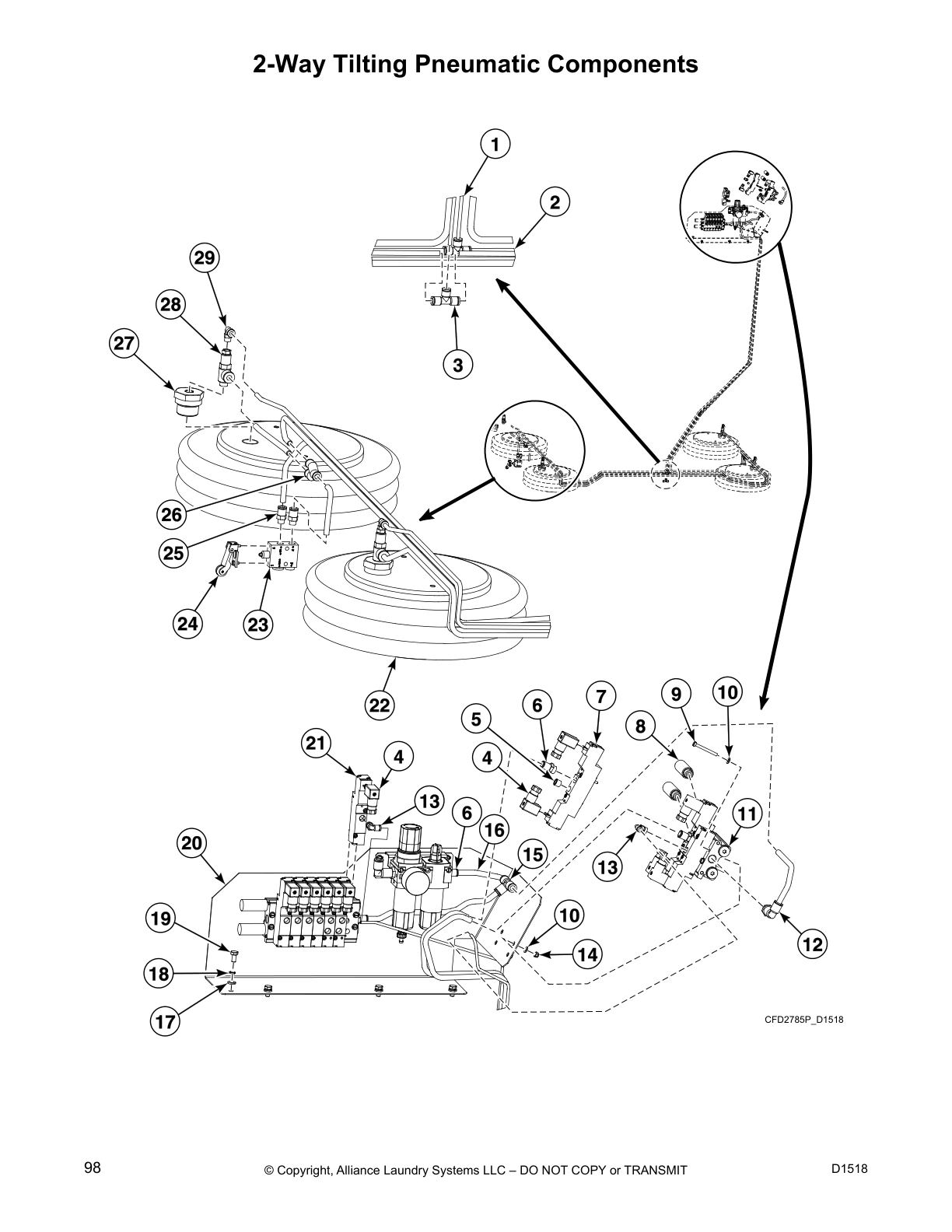

2-Way Tilting Pneumatic Components

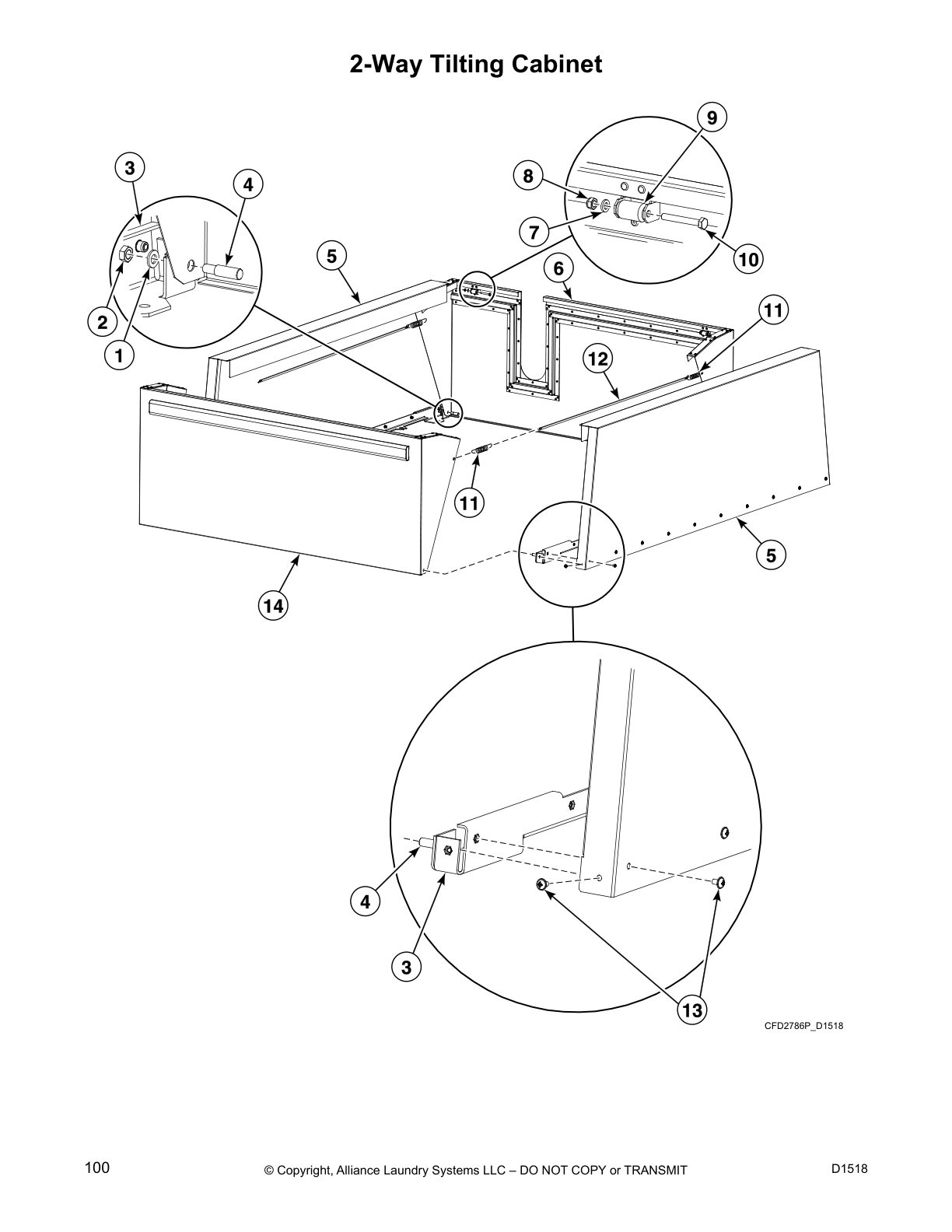

2-Way Tilting Cabinet

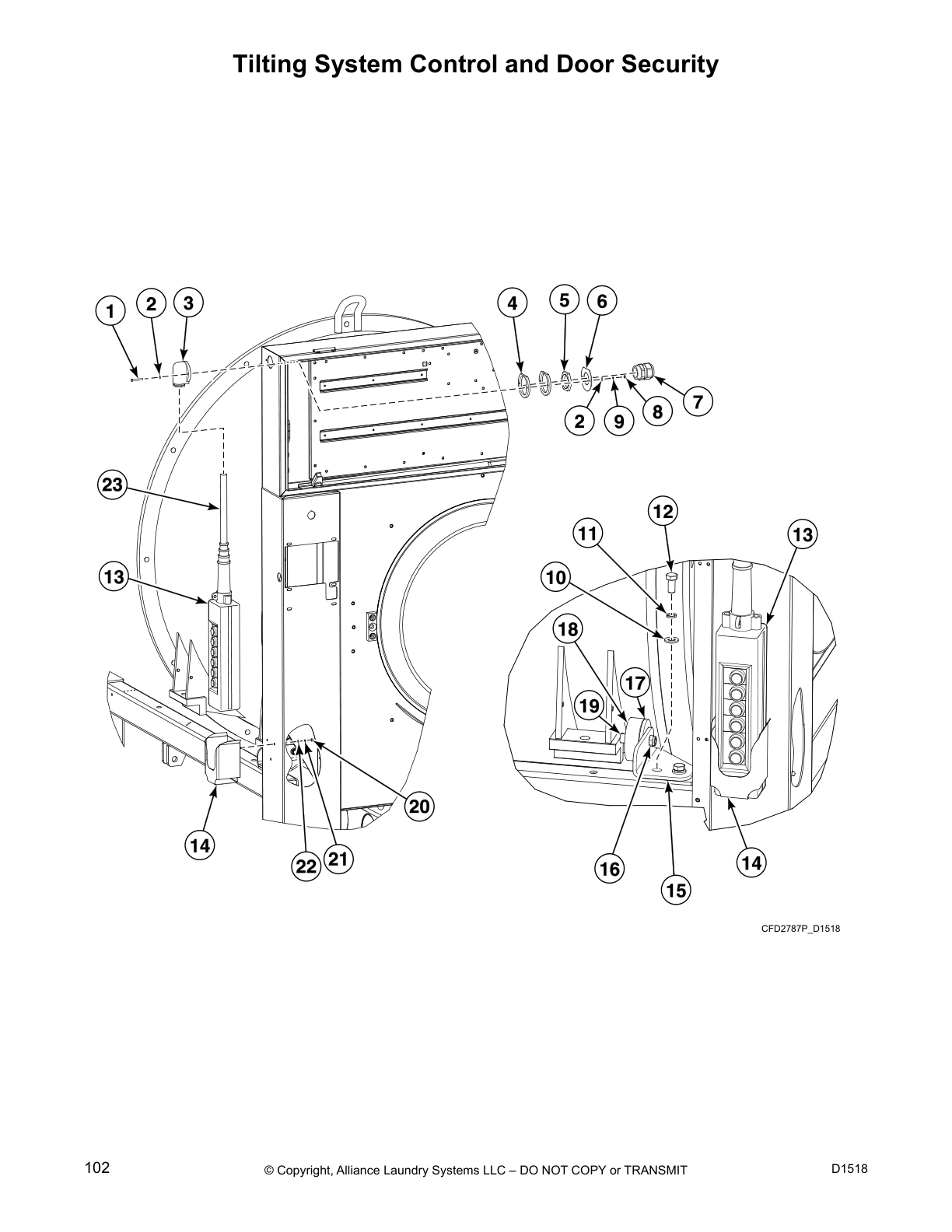

Tilting System Control and Door Security

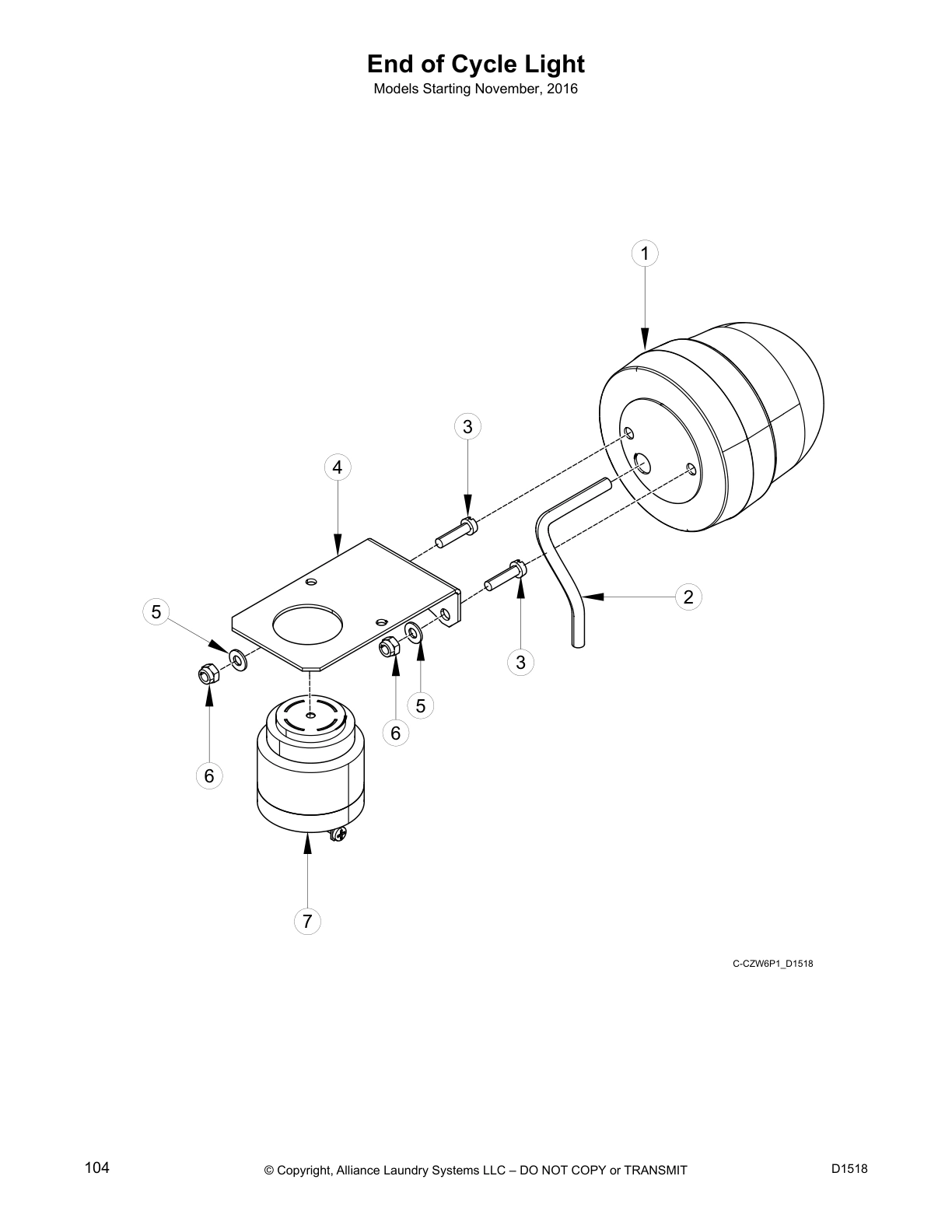

End of Cycle Light

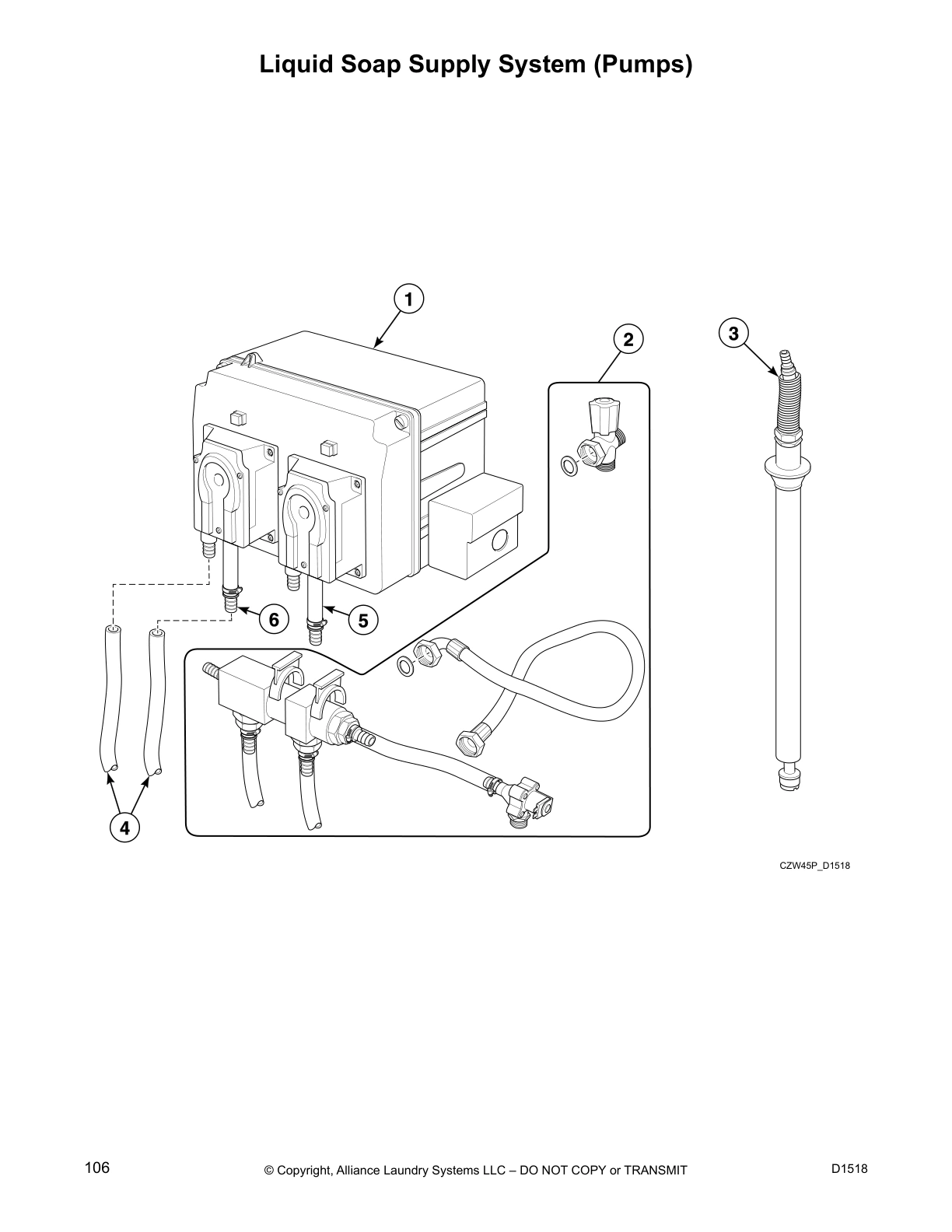

Liquid Soap Supply System (Pumps)
Common parts from model Primus PYU10XV Washer
Main Switch SPQ SP346000014010 Contact Us For Availability
Fuse SPQ SPPRI404000100 Contact Us For Availability
SPQ SPPRI401020021 SPQ SPPRI401020021 Contact Us For Availability
SPQ SP345805163032 SPQ SP345805163032 Contact Us For Availability
SPQ SP346000280101 SPQ SP346000280101 Contact Us For Availability
SPQ SP346000280301 SPQ SP346000280301 Contact Us For Availability
SPQ SP347100728801 SPQ SP347100728801 Contact Us For Availability
SPQ SP514134 SPQ SP514134 Contact Us For Availability
SPQ SPPRI540020005 SPQ SPPRI540020005 Contact Us For Availability
1
Upper Rear Beam SPQ SP220385 Contact Us For Availability
1
Vibration Switch SPQ SPPRI345000068 Contact Us For Availability
1
Step Pipe Joint Bearings SPQ SP231312019 Contact Us For Availability
1
Bolt SPQ SP238255 Contact Us For Availability
1
Bearing Housing SPQ SP230063 Contact Us For Availability
1
V-Belt SPQ SP545380 Contact Us For Availability
1
Door Lock SPQ SP553284 Contact Us For Availability
1
Pneumatic Valve SPQ SP250204035 Contact Us For Availability
1
Pipe Nipple SPQ SP210354 Contact Us For Availability
1
Hose SPQ SP802123114 Contact Us For Availability
1
Washer SPQ SP311902100004 Contact Us For Availability
1
Steam Injector SPQ SP220360 Contact Us For Availability
1
Drain Hose SPQ SP523770 Contact Us For Availability
1
Padlock SPQ SP523167 Contact Us For Availability
1
Brake Resistor SPQ SP516746 Contact Us For Availability
1
Amplifier SPQ SP516968 Contact Us For Availability
1
Finger Cover SPQ SP541296 Contact Us For Availability
1
Washer SPQ SP311125000008 Contact Us For Availability
1
Tilting System Hinge SPQ SP554986 Contact Us For Availability
1
Upper Hinge SPQ SP552716 Contact Us For Availability
1
Air Spring Support SPQ SP551176 Contact Us For Availability
1
Frame SPQ SP553705 Contact Us For Availability
1
Bolt SPQ SP505429 Contact Us For Availability
1
Hose SPQ SP510807 Contact Us For Availability
1
Screw SPQ SP506440 Contact Us For Availability
1
Pump SPQ 529746 Contact Us For Availability
2
Cover SPQ SP537854 Contact Us For Availability
2
Support SPQ SP220405 Contact Us For Availability
2
Washer SPQ SP210021 Contact Us For Availability
2
Bolt SPQ SP809522198 Contact Us For Availability
2
Door Seal SPQ SP802123115 Contact Us For Availability
2
Bolt SPQ SP503572 Contact Us For Availability
2
Coil Holder SPQ SP511241 Contact Us For Availability
2
Spring SPQ SP120102302325 Contact Us For Availability
2
Vent Hose SPQ SP311127240006 Contact Us For Availability
2
Emergency Stop Connector SPQ SP311679800004 Contact Us For Availability
2
Steam Hose SPQ SP555090 Contact Us For Availability
2
Drain Valve Cover SPQ SP254410320 Contact Us For Availability
2
Pipe Coupling SPQ SP523728 Contact Us For Availability
2
Roller Lever SPQ SP319300006001 Contact Us For Availability
2
Nut SPQ SP101420 Contact Us For Availability
2
Frequency Inverter SPQ SP557969 Contact Us For Availability
2
Frame SPQ SP310985000008 Contact Us For Availability
2
SPQ SP309933000618 SPQ SP309933000618 Contact Us For Availability
2
Bolt SPQ SP514714 Contact Us For Availability
2
Relay SPQ SP309912001030 Contact Us For Availability
2
Manifold Flush Kit SPQ 529745 Contact Us For Availability
3
SPQ SP551474 SPQ SP551474 Contact Us For Availability
3
Nut SPQ SP210030 Contact Us For Availability
3
Cable Bushing SPQ SPF02100020114 Contact Us For Availability
3
Sealing Ring SPQ SPPRI240000021 Contact Us For Availability
3
Washer SPQ SP809522199 Contact Us For Availability
3
SPQ SP530894 SPQ SP530894 Contact Us For Availability
3
Door Glass SPQ SP220323 Contact Us For Availability
3
SPQ SP311125240004 SPQ SP311125240004 Contact Us For Availability
3
SPQ SP526509 SPQ SP526509 Contact Us For Availability
3
SPQ SP220349 SPQ SP220349 Contact Us For Availability
3
Tube SPQ SP220411 Contact Us For Availability
3
Pipe Nipple SPQ SP220376 Contact Us For Availability
3
Hose SPQ SP230128 Contact Us For Availability
3
Drain Valve Cover Seal SPQ SP220494 Contact Us For Availability
3
Filter, Regulator and Lubricator SPQ SP553238 Contact Us For Availability
3
Main Switch Cover Weldment SPQ SP547366 Contact Us For Availability
3
SPQ SP346000280104 SPQ SP346000280104 Contact Us For Availability
3
Bolt SPQ SP321848000006 Contact Us For Availability
3
Rear Cover SPQ SP553707 Contact Us For Availability
3
SPQ SP554949 SPQ SP554949 Contact Us For Availability
3
Rotation Pin SPQ SP554908 Contact Us For Availability
3
Bolt SPQ SP309084000416 Contact Us For Availability
3
Suction Tube SPQ 529744 Contact Us For Availability
4
Side Protection SPQ SP236061 Contact Us For Availability
4
Retaining Ring SPQ SP210256 Contact Us For Availability
4
Front Plate Sealing SPQ SP531237 Contact Us For Availability
4
Straight Drain Pipe SPQ SP210416 Contact Us For Availability
4
Bolt SPQ SP210148 Contact Us For Availability
4
Sensor Board SPQ SP559096 Contact Us For Availability
4
SPQ SP528481 SPQ SP528481 Contact Us For Availability
4
Clip Relay SPQ SP311125000013 Contact Us For Availability
4
SPQ SP230016 SPQ SP230016 Contact Us For Availability
4
SPQ SP210387 SPQ SP210387 Contact Us For Availability
4
Elbow SPQ SP210398 Contact Us For Availability
4
SPQ 567931 SPQ 567931 Contact Us For Availability
4
Washer SPQ SP220375 Contact Us For Availability
4
Pressure Plate SPQ SP220775 Contact Us For Availability
4
Hose Clamp SPQ SP523729 Contact Us For Availability
4
SPQ SP536505 SPQ SP536505 Contact Us For Availability
4
Finger Holder SPQ SP309159324816 Contact Us For Availability
4
SPQ SP309933000890 SPQ SP309933000890 Contact Us For Availability
4
SPQ SP309933000870 SPQ SP309933000870 Contact Us For Availability
4
Protective Rim SPQ SP554993 Contact Us For Availability
4
SPQ SP554957 SPQ SP554957 Contact Us For Availability
4
Side Cover SPQ SP554859 Contact Us For Availability
4
SPQ SP510819 SPQ SP510819 Contact Us For Availability
4
Hose SPQ 529743 Contact Us For Availability
5
Vibration Switch Holder SPQ SP531268 Contact Us For Availability
5
Bolt SPQ SP210138 Contact Us For Availability
5
SPQ SP310934000012 SPQ SP310934000012 Contact Us For Availability
5
SPQ SPPRI501000071 SPQ SPPRI501000071 Contact Us For Availability
5
Rear Plate SPQ SP220184 Contact Us For Availability
5
Cover SPQ SP230065 Contact Us For Availability
5
Speed Sensor SPQ SP557701 Contact Us For Availability
5
SPQ SP528482 SPQ SP528482 Contact Us For Availability
5
Washer SPQ SP311125000004 Contact Us For Availability
5
SPQ SP309084000420 SPQ SP309084000420 Contact Us For Availability
5
Cover SPQ SP311127000012 Contact Us For Availability
5
SPQ SP309084240312 SPQ SP309084240312 Contact Us For Availability
5
SPQ SP220347 SPQ SP220347 Contact Us For Availability
5
Tube SPQ SP220412 Contact Us For Availability
5
Steam Valve SPQ SP250007143 Contact Us For Availability
5
SPQ SP802124010 SPQ SP802124010 Contact Us For Availability
5
Flange SPQ SP220496 Contact Us For Availability
5
Hose SPQ SP235134107315 Contact Us For Availability
5
Contactor SPQ SPPRI345001019 Contact Us For Availability
5
SPQ SP529101 SPQ SP529101 Contact Us For Availability
5
Latch Pin SPQ SP541293 Contact Us For Availability
5
SPQ SP551435 SPQ SP551435 Contact Us For Availability
5
SPQ SP551432 SPQ SP551432 Contact Us For Availability
5
SPQ SP510898 SPQ SP510898 Contact Us For Availability
5
Protective Rim Lath SPQ SP553709 Contact Us For Availability
5
SPQ SP554901 SPQ SP554901 Contact Us For Availability
5
Rear Cover SPQ SP554912 Contact Us For Availability
5
SPQ SP551472 SPQ SP551472 Contact Us For Availability
5
Connection SPQ 529742 Contact Us For Availability
6
SPQ SP238809 SPQ SP238809 Contact Us For Availability
6
SPQ SP540466 SPQ SP540466 Contact Us For Availability
6
SPQ SP220357 SPQ SP220357 Contact Us For Availability
6
SPQ SP802123095 SPQ SP802123095 Contact Us For Availability
6
Sealing Ring SPQ SP802123475 Contact Us For Availability
6
Profiled Sealing SPQ SPPRI240000003 Contact Us For Availability
6
Sealing Ring SPQ SP210309 Contact Us For Availability
6
Speed Sensor Holder SPQ SP559095 Contact Us For Availability
6
SPQ SP220321 SPQ SP220321 Contact Us For Availability
6
SPQ SP311127240008 SPQ SP311127240008 Contact Us For Availability
6
SPQ SPF02117001314 SPQ SPF02117001314 Contact Us For Availability
6
Nut SPQ SP514193 Contact Us For Availability
6
SPQ SP800907090 SPQ SP800907090 Contact Us For Availability
6
Washer SPQ SP220410 Contact Us For Availability
6
Sleeve SPQ SP220498 Contact Us For Availability
6
Timer SPQ SP514044 Contact Us For Availability
6
SPQ SP516956 SPQ SP516956 Contact Us For Availability
6
SPQ SP548056 SPQ SP548056 Contact Us For Availability
6
SPQ SP552150 SPQ SP552150 Contact Us For Availability
6
Sleeve SPQ SP552717 Contact Us For Availability
6
Front Cover SPQ SP553714 Contact Us For Availability
6
Roller SPQ SP550505 Contact Us For Availability
6
SPQ SP101419 SPQ SP101419 Contact Us For Availability
6
SPQ 529789 SPQ 529789 Contact Us For Availability
7
SPQ SP220409 SPQ SP220409 Contact Us For Availability
7
SPQ SP238240 SPQ SP238240 Contact Us For Availability
7
Cabinet SPQ SP311125000006 Contact Us For Availability
7
Shaft SPQ SP220156 Contact Us For Availability
7
SPQ SP526791 SPQ SP526791 Contact Us For Availability
7
Wash Bath Sample Assembly SPQ SPPRI540001019 Contact Us For Availability
7
SPQ SP309933240830 SPQ SP309933240830 Contact Us For Availability
7
Bearing Replacement Toolset SPQ SP230392 Contact Us For Availability
7
SPQ SP220322 SPQ SP220322 Contact Us For Availability
7
SPQ SP518556 SPQ SP518556 Contact Us For Availability
7
SPQ SP235110200014 SPQ SP235110200014 Contact Us For Availability
7
SPQ SP548066 SPQ SP548066 Contact Us For Availability
7
Steam Tube SPQ SP230109 Contact Us For Availability
7
SPQ SP802123123 SPQ SP802123123 Contact Us For Availability
7
Seal SPQ SP220370 Contact Us For Availability
7
Contactor SPQ SPPRI345002019 Contact Us For Availability
7
SPQ SP505444 SPQ SP505444 Contact Us For Availability
7
SPQ SP311127000008 SPQ SP311127000008 Contact Us For Availability
7
Rim Reinforcement SPQ SP553719 Contact Us For Availability
7
SPQ SP551476 SPQ SP551476 Contact Us For Availability
7
Buzzer SPQ SP516844 Contact Us For Availability
8
SPQ SP210116 SPQ SP210116 Contact Us For Availability
8
Spring SPQ SP220000030 Contact Us For Availability
8
SPQ SP220342 SPQ SP220342 Contact Us For Availability
8
SPQ SP802123026 SPQ SP802123026 Contact Us For Availability
8
Nut SPQ SP311125240008 Contact Us For Availability
8
SPQ SP309595240612 SPQ SP309595240612 Contact Us For Availability
8
SPQ SPPRI505000058 SPQ SPPRI505000058 Contact Us For Availability
8
SPQ SP310985000006 SPQ SP310985000006 Contact Us For Availability
8
SPQ 564203 SPQ 564203 Contact Us For Availability
8
SPQ SP528311 SPQ SP528311 Contact Us For Availability
8
Hose SPQ SP220500 Contact Us For Availability
8
SPQ SP800701051 SPQ SP800701051 Contact Us For Availability
8
SPQ SP548952 SPQ SP548952 Contact Us For Availability
8
Cover SPQ SPPRI345006045 Contact Us For Availability
8
SPQ SP101409 SPQ SP101409 Contact Us For Availability
8
SPQ SP341413007001 SPQ SP341413007001 Contact Us For Availability
8
SPQ SP309933000820 SPQ SP309933000820 Contact Us For Availability
8
Tilting System Pin SPQ SP552721 Contact Us For Availability
8
SPQ SP554987 SPQ SP554987 Contact Us For Availability
8
Tilting System Cabinet SPQ SP554996 Contact Us For Availability
9
SPQ SP210088 SPQ SP210088 Contact Us For Availability
9
Cylinder SPQ SP220155 Contact Us For Availability
9
SPQ SP941001031 SPQ SP941001031 Contact Us For Availability
9
SPQ SP309084000310 SPQ SP309084000310 Contact Us For Availability
9
SPQ SP310934240008 SPQ SP310934240008 Contact Us For Availability
9
SPQ SP528312 SPQ SP528312 Contact Us For Availability
9
SPQ SP548065 SPQ SP548065 Contact Us For Availability
9
SPQ SP220497 SPQ SP220497 Contact Us For Availability
9
SPQ SP548953 SPQ SP548953 Contact Us For Availability
9
SPQ SP512134 SPQ SP512134 Contact Us For Availability
9
Fuse Plug SPQ SP524655 Contact Us For Availability
9
SPQ SP341413007002 SPQ SP341413007002 Contact Us For Availability
9
SPQ SP552724 SPQ SP552724 Contact Us For Availability
9
SPQ SP551174 SPQ SP551174 Contact Us For Availability
9
SPQ SP553715 SPQ SP553715 Contact Us For Availability
9
SPQ SP554877 SPQ SP554877 Contact Us For Availability
9
Tilting System Hinge SPQ SP552748 Contact Us For Availability
9
SPQ SP500816 SPQ SP500816 Contact Us For Availability
10
Nut SPQ SP210041 Contact Us For Availability
10
Damper SPQ 221390 Contact Us For Availability
10
Spring Holder SPQ SP220157 Contact Us For Availability
10
Water Level Elbow SPQ SP220771 Contact Us For Availability
10
Bearing SPQ SP231000700 Contact Us For Availability
10
Clamping Sleeve SPQ SP220098 Contact Us For Availability
10
Motor Board SPQ SP547306 Contact Us For Availability
10
Nut SPQ SP210028 Contact Us For Availability
10
Bolt SPQ SP309913000610 Contact Us For Availability
10
Bolt SPQ SP309084000306 Contact Us For Availability
10
Soap Hopper Door SPQ 561664 Contact Us For Availability
10
Pipe Nipple SPQ SP265108131 Contact Us For Availability
10
Flange SPQ SP220492 Contact Us For Availability
10
Straight Drain Valve Body SPQ SP230120 Contact Us For Availability
10
Cable Bushing Reduction SPQ SP552258 Contact Us For Availability
10
Conductor SPQ SP505446 Contact Us For Availability
10
Lift SPQ SP552747 Contact Us For Availability
10
Washer SPQ SP311125000010 Contact Us For Availability
10
Front Foot SPQ SP554990 Contact Us For Availability
10
Complete Protective Rim Lath SPQ SP553717 Contact Us For Availability
10
Stop SPQ SP554886 Contact Us For Availability
10
Bolt SPQ SP309933001020 Contact Us For Availability
10
Bolt SPQ SP506014 Contact Us For Availability
11
Bolt SPQ SP311127000010 Contact Us For Availability
11
Side Cover SPQ SP553226 Contact Us For Availability
11
Washer SPQ SP310985000012 Contact Us For Availability
11
Washer SPQ SP210832 Contact Us For Availability
11
Bolt Cover SPQ SP802123112 Contact Us For Availability
11
Elbow Adapter SPQ SP220364 Contact Us For Availability
11
Distance Sleeve SPQ SP220338 Contact Us For Availability
11
Bolt SPQ SP506432 Contact Us For Availability
11
Bushing SPQ SP101407 Contact Us For Availability
11
Cable Bushing SPQ SP101410 Contact Us For Availability
11
Door Glass Holder SPQ SP230017 Contact Us For Availability
11
Inlet Tube SPQ SP210400 Contact Us For Availability
11
Seal SPQ SP238018 Contact Us For Availability
11
Drain Valve Sealing SPQ SP238017 Contact Us For Availability
11
Weighing System Kit SPQ SP547361 Contact Us For Availability
11
Arm SPQ SP553703 Contact Us For Availability
11
Tilting System Pin SPQ SP554981 Contact Us For Availability
11
Washer SPQ SP554857 Contact Us For Availability
11
Nut SPQ SP537560 Contact Us For Availability
11
Draw Bar SPQ SP554915 Contact Us For Availability
11
Connecting Block SPQ SP536506 Contact Us For Availability
11
Spring SPQ SP505372 Contact Us For Availability
12
Lock Hook SPQ SPPRI610001007 Contact Us For Availability
12
Washer SPQ SPPRI522000012 Contact Us For Availability
12
Bolt SPQ SP210124 Contact Us For Availability
12
Front Plate SPQ SP238678 Contact Us For Availability
12
Water Level Switch Hose SPQ SPPRI540001003 Contact Us For Availability
12
Shaft Retaining Ring SPQ SP210248 Contact Us For Availability
12
Drum Pulley SPQ SP230076 Contact Us For Availability
12
Bolt SPQ SP548070 Contact Us For Availability
12
Hinge SPQ SP220448 Contact Us For Availability
12
Washer SPQ SP309084100408 Contact Us For Availability
12
Nut SPQ SP309933000616 Contact Us For Availability
12
Bolt SPQ SP515075 Contact Us For Availability
12
T-Part SPQ SP220489 Contact Us For Availability
12
Straight Drain Valve SPQ SP238020 Contact Us For Availability
12
Pipe Nipple SPQ SP319428330800 Contact Us For Availability
12
Binding Strip SPQ SP345000160971 Contact Us For Availability
12
Bolt SPQ SP554973 Contact Us For Availability
12
Lower Hinge SPQ SP554989 Contact Us For Availability
12
Nut SPQ SP311902100010 Contact Us For Availability
12
Spring Draw Bar SPQ SP554914 Contact Us For Availability
12
Control SPQ SP309933001025 Contact Us For Availability
13
Nut SPQ SPPRI610005007 Contact Us For Availability
13
Side Beam SPQ SP220381 Contact Us For Availability
13
Cover SPQ SP220158 Contact Us For Availability
13
Washer SPQ SP210149 Contact Us For Availability
13
Plug SPQ SP510940 Contact Us For Availability
13
Sealing SPQ SP220339 Contact Us For Availability
13
Nut SPQ SP220099 Contact Us For Availability
13
Washer SPQ SP220372 Contact Us For Availability
13
Washer SPQ SP210392 Contact Us For Availability
13
Slanted Drain Pipe SPQ SP238019 Contact Us For Availability
13
Washer SPQ SP503817 Contact Us For Availability
13
Valve SPQ SP309933000620 Contact Us For Availability
13
Pipe Nipple SPQ SP319428330006 Contact Us For Availability
13
Main Switch Holder SPQ SP552882 Contact Us For Availability
13
Washer SPQ SP552712 Contact Us For Availability
13
Clamp SPQ SP552718 Contact Us For Availability
13
Position Switch SPQ SP554916 Contact Us For Availability
13
Nut SPQ SP554947 Contact Us For Availability
13
Remove Box SPQ SP510818 Contact Us For Availability
14
Hook Lock SPQ SPPRI610002007 Contact Us For Availability
14
Emergency Stop Label SPQ SP210002 Contact Us For Availability
14
Rear Beam SPQ SP220384 Contact Us For Availability
14
Rear Cover SPQ SP220399 Contact Us For Availability
14
Bolt SPQ SP309933240412 Contact Us For Availability
14
Washer SPQ SP210258 Contact Us For Availability
14
Motor Support SPQ SP547305 Contact Us For Availability
14
Bolt SPQ SP515594 Contact Us For Availability
14
Earthing Index Plate SPQ SP311125100004 Contact Us For Availability
14
T-Square SPQ SP313251000006 Contact Us For Availability
14
Drain Hose Holder SPQ SP220493 Contact Us For Availability
14
Transformer SPQ 564561 Contact Us For Availability
14
Hinge Arm SPQ SP554972 Contact Us For Availability
14
Split Pin SPQ SPPRI345000070 Contact Us For Availability
14
Upper Hinge SPQ SP552123 Contact Us For Availability
14
Nut SPQ SP550504 Contact Us For Availability
14
Console Block SPQ SP541219 Contact Us For Availability
15
Drain System Rear Cover SPQ SPPRI610006007 Contact Us For Availability
15
Split Pin SPQ SP309933001030 Contact Us For Availability
15
Rear Leg SPQ SP220382 Contact Us For Availability
15
Inverter Box SPQ SP238243 Contact Us For Availability
15
Pump Input SPQ SP541126 Contact Us For Availability
15
Bearing SPQ SP231001030 Contact Us For Availability
15
Washer SPQ SP220311 Contact Us For Availability
15
Sleeve SPQ SP220301 Contact Us For Availability
15
Cable Bushing SPQ SPPRI551000001 Contact Us For Availability
15
Nut SPQ SP309933240408 Contact Us For Availability
15
Hose Clamp SPQ SP230130 Contact Us For Availability
15
Washer SPQ SP551431 Contact Us For Availability
15
Air Spring Plate SPQ SP554921 Contact Us For Availability
15
Washer SPQ SP506053 Contact Us For Availability
15
Nut SPQ SP538550 Contact Us For Availability
16
Door weldment SPQ SP230112 Contact Us For Availability
16
Isolation Plate SPQ SP273121008002 Contact Us For Availability
16
Microswitch SPQ SP311902100006 Contact Us For Availability
16
Slanted Drain Valve SPQ SP238021 Contact Us For Availability
16
Bolt SPQ SP319300008125 Contact Us For Availability
16
Connector Box SPQ SPPRI350003050 Contact Us For Availability
16
Sleeve SPQ SP554988 Contact Us For Availability
16
Switch Holder SPQ SP529323 Contact Us For Availability
16
Stop SPQ SP554878 Contact Us For Availability
16
Stopper SPQ SP538491 Contact Us For Availability
17
Pneumatic Components Box Cov SPQ SP551469 Contact Us For Availability
17
Bolt SPQ SP230015 Contact Us For Availability
17
Sealing Ring SPQ SPPRI524000001 Contact Us For Availability
17
Bracket Sleeve SPQ SP553204 Contact Us For Availability
17
Nut SPQ SP310934000003 Contact Us For Availability
17
Column SPQ SP101154 Contact Us For Availability
17
Seal SPQ SP230108 Contact Us For Availability
17
Nut SPQ SP528310 Contact Us For Availability
17
Slanted Drain Valve Body SPQ SP230119 Contact Us For Availability
17
Cable Holder SPQ SP528313 Contact Us For Availability
17
Bolt SPQ SP341414000205 Contact Us For Availability
17
Upper Switch Guide SPQ SP554979 Contact Us For Availability
17
Flange Angle Bushing SPQ SP310985000010 Contact Us For Availability
17
Front Foot SPQ SP309912101230 Contact Us For Availability
17
SPQ SP552725 SPQ SP552725 Contact Us For Availability
18
Pneumatic Components Box SPQ SP553241 Contact Us For Availability
18
Lower Valve and Vent Cover SPQ SP220404 Contact Us For Availability
18
Air Spring SPQ SP311127000006 Contact Us For Availability
18
Distance Sheet SPQ SP220177 Contact Us For Availability
18
Motor Pulley SPQ SP309933001235 Contact Us For Availability
18
Element SPQ SP309084000320 Contact Us For Availability
18
Nozzle SPQ 564511 Contact Us For Availability
18
Header Tank SPQ SP230107 Contact Us For Availability
18
Hinge SPQ SPPRI551005248 Contact Us For Availability
18
Pneumatic Valve SPQ SP220371 Contact Us For Availability
18
Clamp SPQ SP347100306009 Contact Us For Availability
18
Position Switch SPQ SP314178032022 Contact Us For Availability
18
SPQ SP309933000835 SPQ SP309933000835 Contact Us For Availability
18
Bushing SPQ SP511930 Contact Us For Availability
19
Drain Hose Holder Cover SPQ SP553232 Contact Us For Availability
19
Upper Valve and Vent Cover SPQ SP220403 Contact Us For Availability
19
Steam Valve SPQ SP309933000612 Contact Us For Availability
19
Manger SPQ SP210087 Contact Us For Availability
19
Converter Box SPQ SP309933001250 Contact Us For Availability
19
Pin SPQ SP554970 Contact Us For Availability
19
Bolt SPQ SP311125000003 Contact Us For Availability
19
Microswitch SPQ SPF02117001424 Contact Us For Availability
19
3-Way Valve SPQ SP220490 Contact Us For Availability
19
Switch Holder SPQ SP311125000020 Contact Us For Availability
19
Relay Clamp SPQ SP511929 Contact Us For Availability
20
Cover SPQ SP551491 Contact Us For Availability
20
Centering Block SPQ SP535554 Contact Us For Availability
20
Ventilator Grate SPQ SP552885 Contact Us For Availability
20
Door Lever SPQ SPF02107002315 Contact Us For Availability
20
Spring SPQ SPF02117002224 Contact Us For Availability
20
Hose SPQ SP191005115 Contact Us For Availability
20
Connector SPQ SP516997 Contact Us For Availability
20
Chain Block SPQ SP310934240005 Contact Us For Availability
20
Reduction SPQ SP554904 Contact Us For Availability
21
Hook Lock SPQ SP238907 Contact Us For Availability
21
Top Cover SPQ SP220388 Contact Us For Availability
21
Washer SPQ SP230022 Contact Us For Availability
21
SPQ SP311127000016 SPQ SP311127000016 Contact Us For Availability
21
Retaining Ring SPQ SP555115 Contact Us For Availability
21
Tube SPQ SPF02117002614 Contact Us For Availability
21
Relay Case SPQ SP310934240004 Contact Us For Availability
21
2-Way Valve SPQ SP553221 Contact Us For Availability
21
Contact SPQ SP313250004063 Contact Us For Availability
21
SPQ SP309933000830 SPQ SP309933000830 Contact Us For Availability
21
Upper Switch Guide SPQ SP311127000005 Contact Us For Availability
22
Cover SPQ SP238247 Contact Us For Availability
22
SPQ SP511924 SPQ SP511924 Contact Us For Availability
22
Cam SPQ SP309798500314 Contact Us For Availability
22
SPQ SP311127240004 SPQ SP311127240004 Contact Us For Availability
22
Tee SPQ SPPRI340030038 Contact Us For Availability
22
Contact Pin SPQ SP516090 Contact Us For Availability
22
Non-Return Valve SPQ SP510853 Contact Us For Availability
22
Lift SPQ SP311125000005 Contact Us For Availability
23
SPQ SP547308 SPQ SP547308 Contact Us For Availability
23
Insertion Piece SPQ SP323622641243 Contact Us For Availability
23
Pin SPQ SPPRI611000007 Contact Us For Availability
23
Sealing Rubber SPQ SP506011 Contact Us For Availability
23
Reducing Nipple SPQ SPPRI240000002 Contact Us For Availability
23
Interconnection SPQ SPPRI350002018 Contact Us For Availability
23
SPQ SP309084000530 SPQ SP309084000530 Contact Us For Availability
23
SPQ SP309933001035 SPQ SP309933001035 Contact Us For Availability
23
Valve Connector SPQ SP554923 Contact Us For Availability
24
Glass Seal SPQ SP307732030014 Contact Us For Availability
24
Link SPQ SP518680 Contact Us For Availability
24
Soap Hopper Level SPQ 564204 Contact Us For Availability
24
Outer Joint SPQ SPPRI540000014 Contact Us For Availability
24
Converter SPQ SP345001662931 Contact Us For Availability
24
Plug SPQ SP554924 Contact Us For Availability
25
Ring SPQ SPF02117001214 Contact Us For Availability
25
Magnetic Holder SPQ SP235110001614 Contact Us For Availability
25
End Stop SPQ SP346000280402 Contact Us For Availability
25
SPQ SP553723 SPQ SP553723 Contact Us For Availability
25
SPQ SP504564 SPQ SP504564 Contact Us For Availability
26
Gate SPQ SPF02117002114 Contact Us For Availability
26
Cover SPQ SP520082 Contact Us For Availability
26
SPQ SP405113000008 SPQ SP405113000008 Contact Us For Availability
27
SPQ SP235110001715 SPQ SP235110001715 Contact Us For Availability
27
Plug SPQ SPPRI340020035 Contact Us For Availability
27
Load Sensor SPQ SP516964 Contact Us For Availability
27
SPQ SP548001 SPQ SP548001 Contact Us For Availability
27
SPQ SP554902 SPQ SP554902 Contact Us For Availability
28
Profiled Sealing SPQ SP555746 Contact Us For Availability
28
SPQ 561658 SPQ 561658 Contact Us For Availability
28
SPQ SPPRI426001107 SPQ SPPRI426001107 Contact Us For Availability
28
SPQ SP552715 SPQ SP552715 Contact Us For Availability
28
SPQ SP554948 SPQ SP554948 Contact Us For Availability
29
Rising Section SPQ SPF02117002514 Contact Us For Availability
29
SPQ SP311125240006 SPQ SP311125240006 Contact Us For Availability
29
SPQ SPPRI426001217 SPQ SPPRI426001217 Contact Us For Availability
29
SPQ SP537518 SPQ SP537518 Contact Us For Availability
29
SPQ SP319428330060 SPQ SP319428330060 Contact Us For Availability
30
SPQ SP315002015014 SPQ SP315002015014 Contact Us For Availability
30
SPQ SP552125 SPQ SP552125 Contact Us For Availability
31
SPQ SP311125100006 SPQ SP311125100006 Contact Us For Availability
31
SPQ 564202 SPQ 564202 Contact Us For Availability
31
SPQ SP506572 SPQ SP506572 Contact Us For Availability
32
SPQ SP515453 SPQ SP515453 Contact Us For Availability
33
SPQ SPF02117001714 SPQ SPF02117001714 Contact Us For Availability
33
SPQ SP531256 SPQ SP531256 Contact Us For Availability
34
SPQ SP533712 SPQ SP533712 Contact Us For Availability
35
SPQ SP533710 SPQ SP533710 Contact Us For Availability
36
SPQ SP309084000316 SPQ SP309084000316 Contact Us For Availability
38
SPQ SP310934000006 SPQ SP310934000006 Contact Us For Availability
42
SPQ SPF02117002414 SPQ SPF02117002414 Contact Us For Availability
NI
SPQ SP516981 SPQ SP516981 Contact Us For Availability
NI
SPQ SP534050 SPQ SP534050 Contact Us For Availability
NI
Speed Sensor Complete SPQ SP559094 Contact Us For Availability
NI
SPQ SP557233 SPQ SP557233 Contact Us For Availability
NI
SPQ SP210408 SPQ SP210408 Contact Us For Availability
NI
SPQ SP273454900001 SPQ SP273454900001 Contact Us For Availability
NI
SPQ SP230129 SPQ SP230129 Contact Us For Availability
NI
SPQ 567224 SPQ 567224 Contact Us For Availability
NI
Fuse Clip SPQ SP524654 Contact Us For Availability
NI
Fuse Case SPQ SP524653 Contact Us For Availability
NI
Main Switch Knob SPQ SP346000004010 Contact Us For Availability
NI
SPQ SPPRI404000095 SPQ SPPRI404000095 Contact Us For Availability
NI
SPQ SP345805363032 SPQ SP345805363032 Contact Us For Availability
NI
SPQ SP344000010000 SPQ SP344000010000 Contact Us For Availability
NI
SPQ SP557968 SPQ SP557968 Contact Us For Availability
NI
SPQ SP346000209101 SPQ SP346000209101 Contact Us For Availability
NI
SPQ SP346000280107 SPQ SP346000280107 Contact Us For Availability
NI
SPQ SP346000210113 SPQ SP346000210113 Contact Us For Availability
NI
SPQ SP553704 SPQ SP553704 Contact Us For Availability
NI
SPQ SP506585 SPQ SP506585 Contact Us For Availability
NI
SPQ SP347100787384 SPQ SP347100787384 Contact Us For Availability
NI
SPQ SP347100460720 SPQ SP347100460720 Contact Us For Availability
NI
SPQ SP553702 SPQ SP553702 Contact Us For Availability
NI
SPQ SP554907 SPQ SP554907 Contact Us For Availability
NI
SPQ SP514135 SPQ SP514135 Contact Us For Availability
NI
SPQ SP510816 SPQ SP510816 Contact Us For Availability
NI
SPQ SP506586 SPQ SP506586 Contact Us For Availability
NI
SPQ 529787 SPQ 529787 Contact Us For Availability
NI
SPQ 529747 SPQ 529747 Contact Us For Availability
NI
SPQ 547808 SPQ 547808 Contact Us For Availability
× ![]()
