Model Primus PYC180V Washer – Common Parts & Diagrams

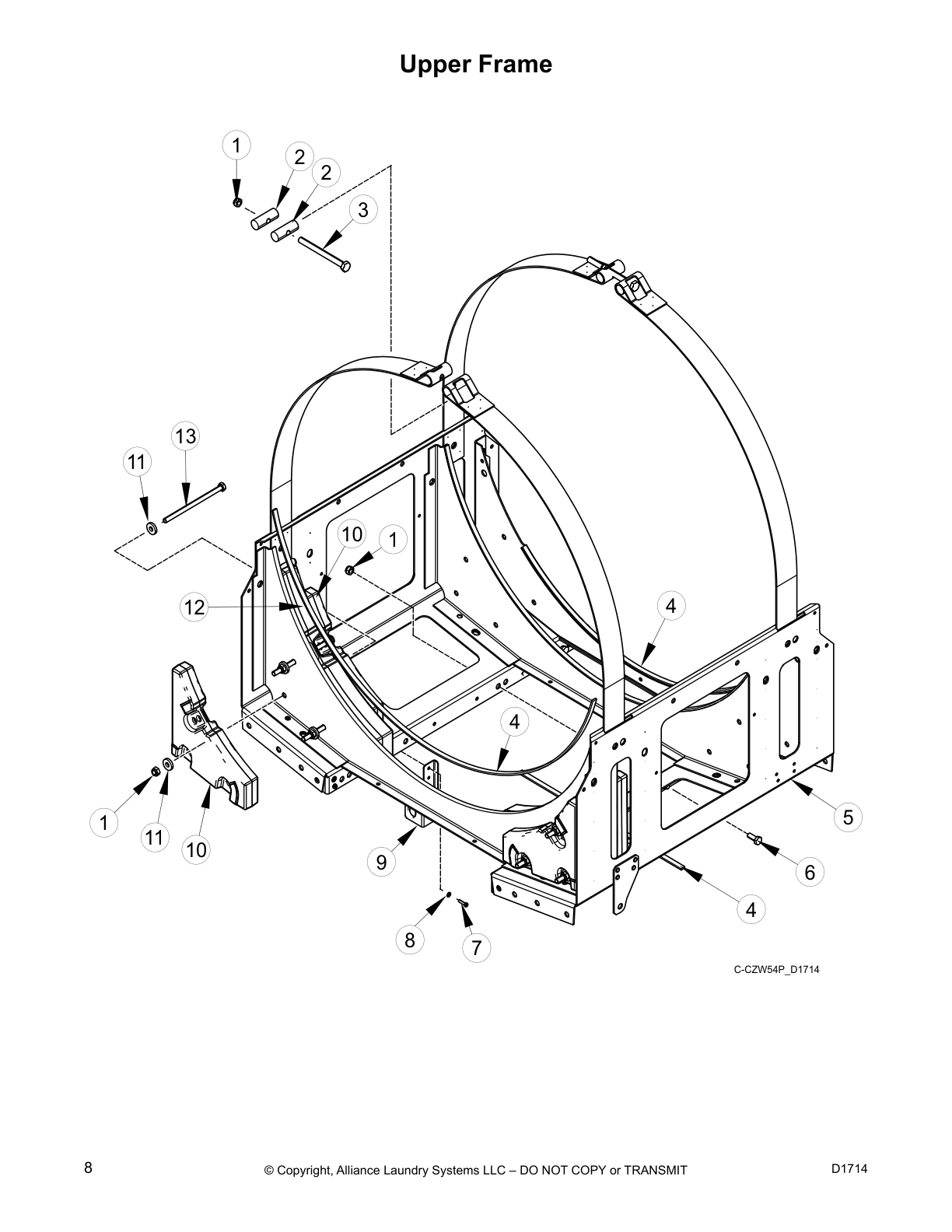

Upper Frame

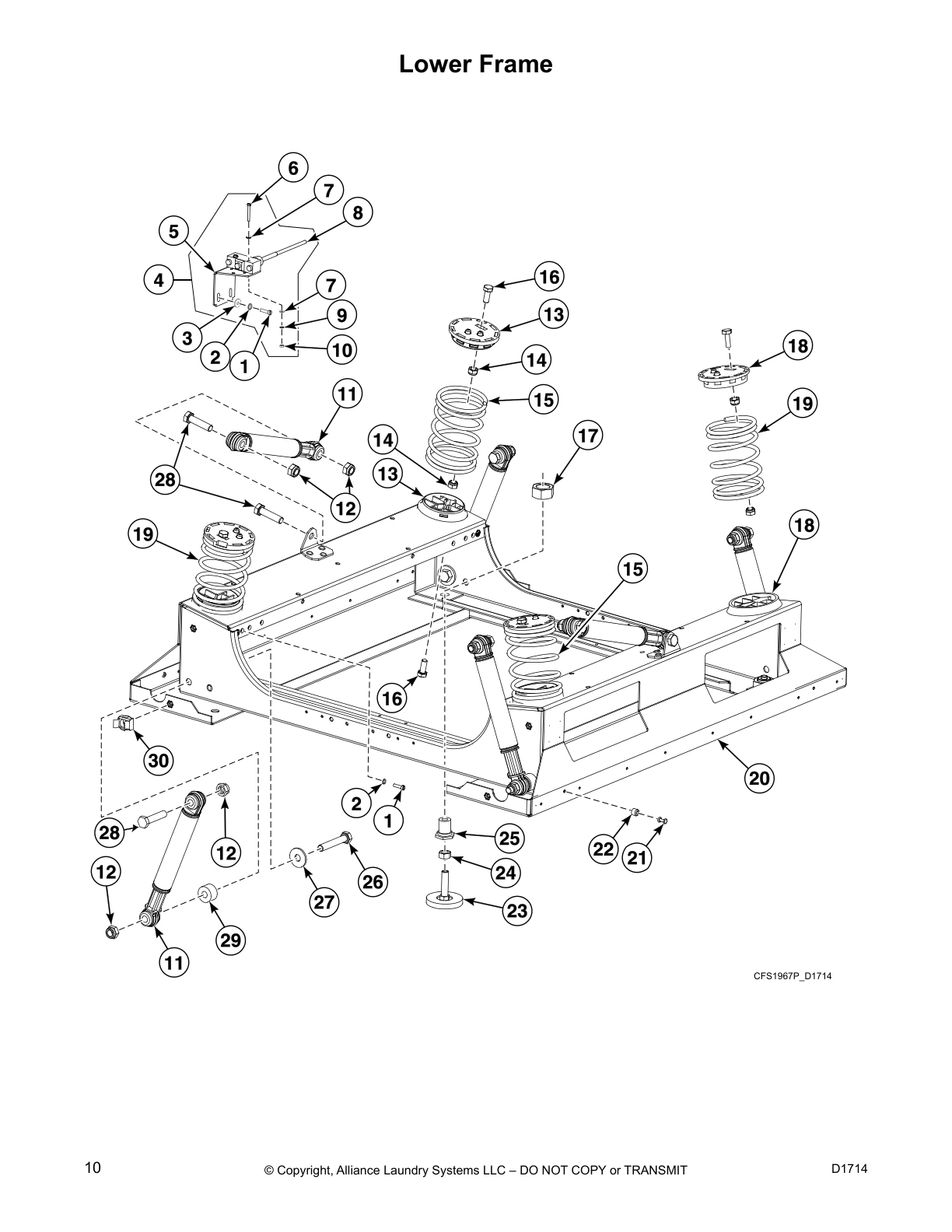

Lower Frame

Stabilizing Springs - H180, HY, IY, J, NY, SY and UY Models

Stabilizing Springs - AF, FX, HX, L, M, PY and SW Models

Stabilizing Springs - AF, IY, JY and NY Models

Stabilizing Springs - FX and PY Models

Cabinet - HY, NY, SY and UY Models (Drawing 1 of 2)

Cabinet - HY, NY, SY and UY Models (Drawing 2 of 2)

Cabinet - H180, IY and J Models (Drawing 1 of 2)

Cabinet - H180, IY and J Models (Drawing 2 of 2)

Cabinet - AF, FX, HX, L, M, PY and SW Models (Drawing 1 of 2)

Cabinet - AF, FX, HX, L, M, PY and SW Models (Drawing 2 of 2)

Cabinet - AF, IY, JY and NY Models (Drawing 1 of 3)

Cabinet - AF, IY, JY and NY Models (Drawing 2 of 3)

Cabinet - FX and PY Models (Drawing 1 of 2)

Cabinet - FX and PY Models (Drawing 2 of 2)

Control Panel - HY, NY, SY and UY Models

Control Panel - CE and Watermark NY and SY Vended Models (Drawing 1 of 3)

Control Panel - CE and Watermark NY and SY Vended Models (Drawing 2 of 3)

Control Panel - CE and Watermark NY and SY Vended Models (Drawing 3 of 3)

Control Panel - H180, IY and J Models

Control Panel - AF, FX, HX, L, M, PY and SW Models (Drawing 1 of 2)

Coin Meter - AF, FX, L, M and PY Models (Drawing 1 of 4)

Coin Meter - AF, FX, L, M and PY Models (Drawing 2 of 4)

Coin Meter - AF, FX, L, M and PY Models (Drawing 3 of 4)

Control Panel OPL - AF, IY and NY Models

Control Panel Vended - AF, IY and NY Models

Control Panel for Central Payment System - AF, IY and NY Models

Control Panel OPL - AF, IY, JY and NY Models

Control Panel Vended - AF, IY, JY and NY Models

Control Panel for Central Payment System - AF, IY, JY and NY Models

Control Panel OPL - FX and PY Models

Control Panel Vended - FX and PY Models

Control Panel fofr Central Payment System - FX and PY Models

Control Panel for Central Payment System - FX and PY Models

Coin Meter Box

Coin Meter Box - AF, IY and NY Models

Door (Drawing 1 of 3)

Door (Drawing 2 of 3)

Door (Drawing 3 of 3)

Door - AF, IY, JY and NY Models

Door - FX and PY Models

Door Lock - Models with Serial No. Through 180FX017986SF

Door Lock - Models with Serial No. Starting 180FX017987SF

Water Inlet System (Drawing 1 of 2)

Water Inlet System (Drawing 2 of 2)

Water Inlet System - Optional (Drawing 1 of 2)

Water Inlet System - Optional (Drawing 2 of 2)

Two Water Inlet System

Three Water Inlet System

Two Water Inlet System - Optional

Three Water Inlet System - Optional

Two Water Inlet System without Soap Hopper

Three Water Inlet System without Soap Hopper

Cabinet Reinforcement without Soap Hopper

Drain System

Drain System - J Models with V in 7th Position

Rear Panel (Drawing 1 of 3)

Rear Panel (Drawing 2 of 3)

Rear Panel (Drawing 3 of 3)

Rear Panel - 230-400V with Neutral - AF, IY and NY Models with G, H, J or K in 13th Position except Models with V in 7th Position (Drawing 1 of 2)

Rear Panel - 230-400V with Neutral - AF, IY and NY Models with G, H, J or K in 13th Position except Models with V in 7th Position (Drawing 2 of 2)

Rear Panel - 400-440V Models (Drawing 1 of 2)

Rear Panel - 400-440V Models (Drawing 2 of 2)

Rear Panel - 230-400V CE Models with Neutral (Drawing 1 of 2)

Rear Panel 230-400V CE Models with Neutral (Drawing 2 of 2)

Rear Panel - CE Models 400-440V (Drawing 1 of 2)

Rear Panel - CE Models 400-440V (Drawing 2 of 2)

Rear Panel 230-400V Models with Neutral - FX and PY Models with V in 7th Position (Drawing 1 of 2)

Rear Panel 230-400V Models with Neutral - FX and PY Models with V in 7th Position (Drawing 2 of 2)

Rear Panel - 400V / 440V-480V Models (Drawing 1 of 2)

Rear Panel - 400V / 440V-480V Models (Drawing 2 of 2)

Steam Heating - All Models Except Models with V in 7th Position

Steam Heating - Models with V in 7th Position

Washing Drum and Tub - All Models Except Models with V in 7th Position

Washing Drum and Tub - Models with V in 7th Position (Drawing 1 of 2)

Washing Drum and Tub - Models with V in 7th Position (Drawing 2 of 2)

Soft Wash - With Built-In Recirculation Pump

Drive

Bearing Housing

Weighing System

Liquid Soap Supply System - Pumps

Base Frame with Built-In Filter

Filter Tank

Common parts from model Primus PYC180V Washer
