Model GE PWS06DSPCSS – Common Parts & Diagrams

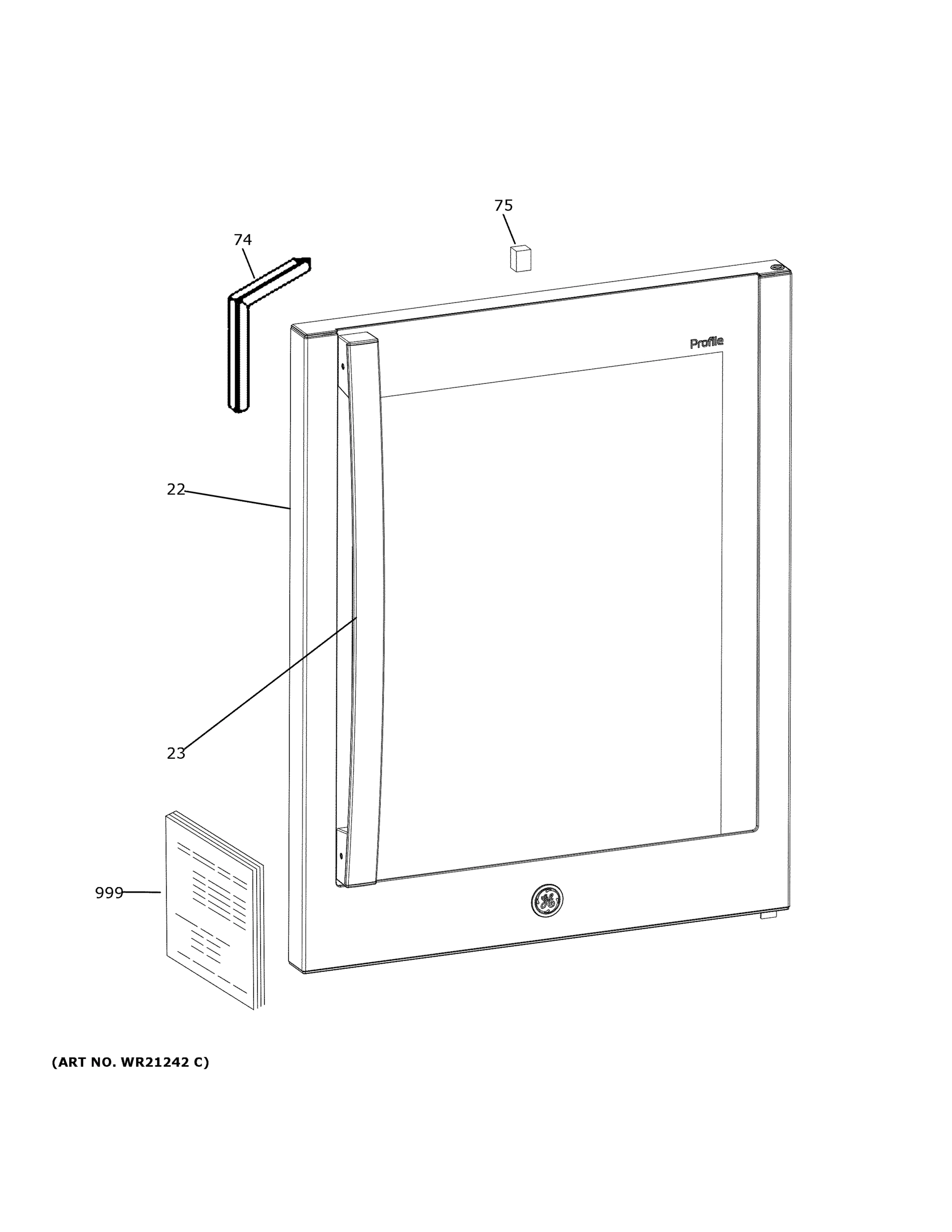

DOOR

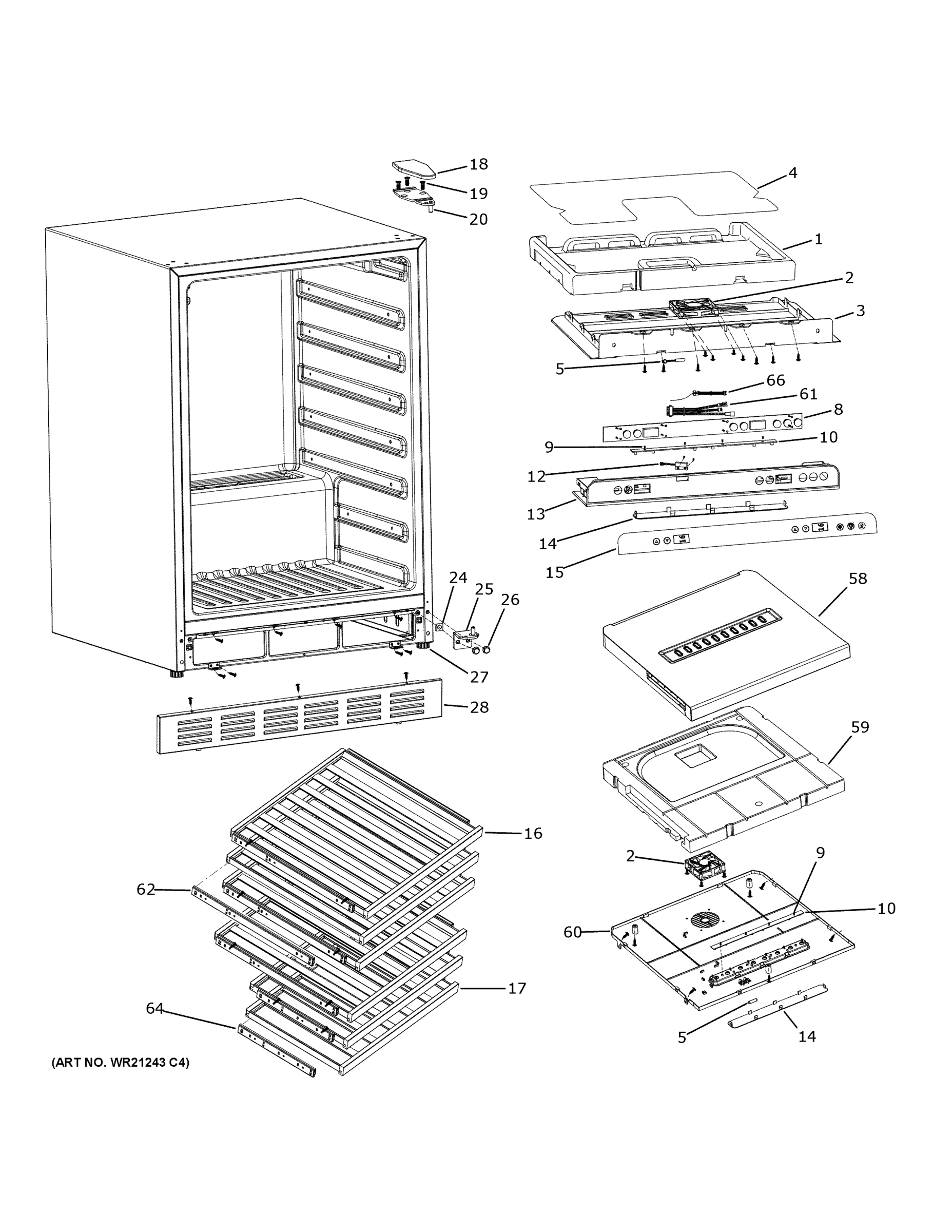

CABINET & SHELVES

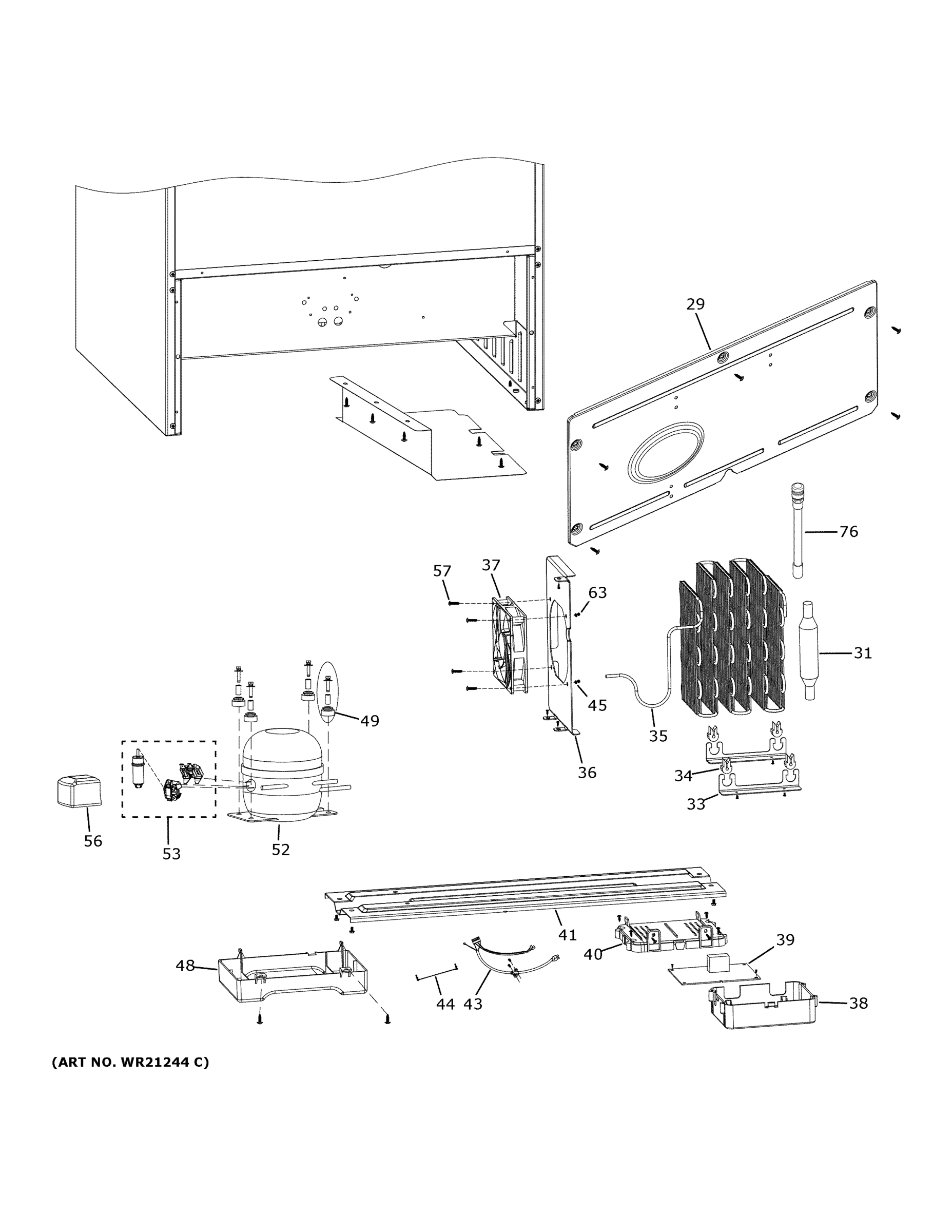

MACHINE COMPARTMENT

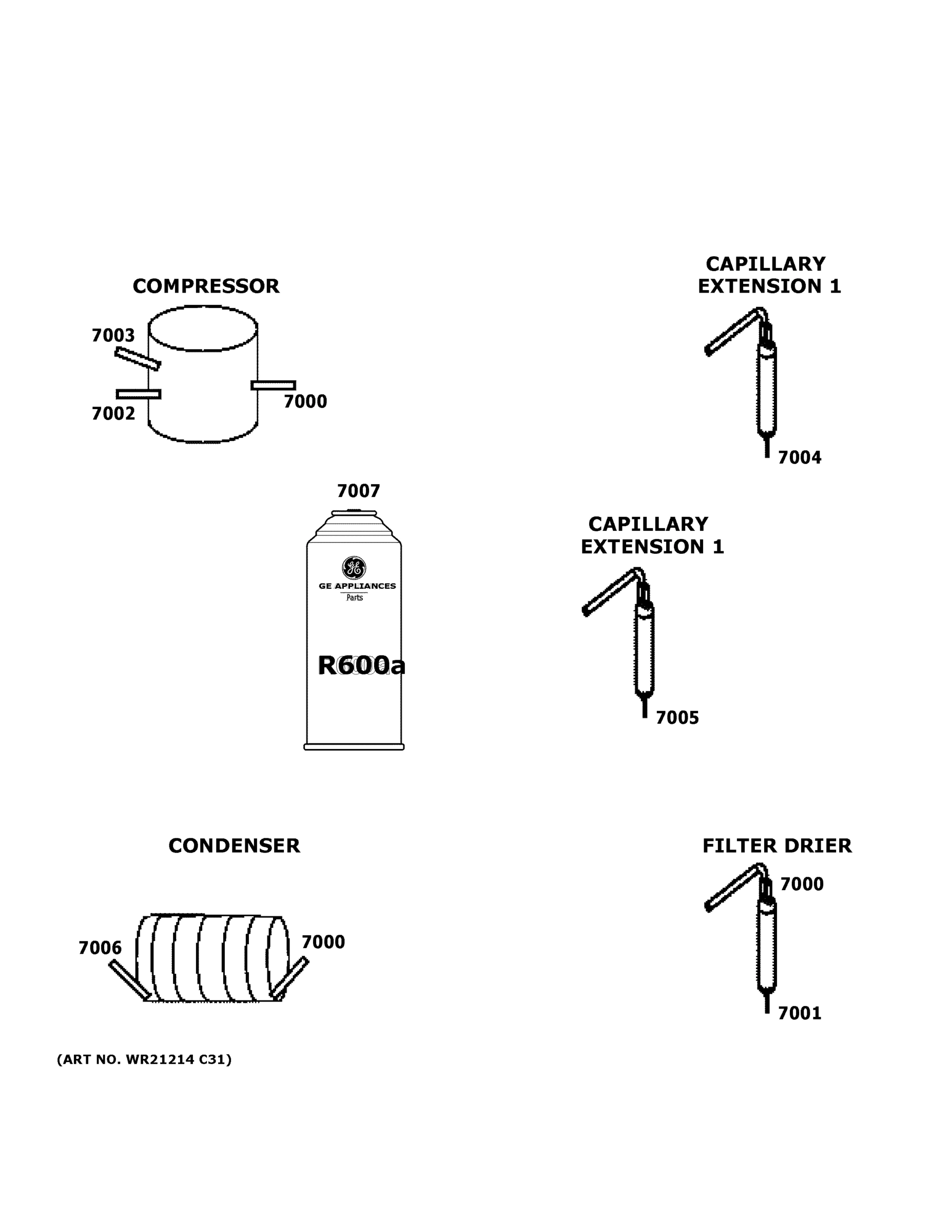

LOKRING CONNECTORS
Common parts from model GE PWS06DSPCSS
1
AIR DUCT GEN WR14X42147 Contact Us For Availability
4
ALUMINUM SHIELD GEN WR14X42148 Contact Us For Availability
8
UI PC BOARD GEN WR55X35437 Contact Us For Availability
10
LED LIGHT GEN WR55X35416 Contact Us For Availability
13
UI HOUSING GEN WR02X35418 Contact Us For Availability
14
LED LIGHT COVER GEN WR13X35419 Contact Us For Availability
16
SHELF - FULL DEPTH GEN WR71X35439 Contact Us For Availability
17
SHELF - HALF DEPTH GEN WR71X35441 Contact Us For Availability
19
SCREW GEN WR01X36027 Contact Us For Availability
20
TOP HINGE GEN WR13X36149 Contact Us For Availability
27
LEVELING LEG GEN WR01X35438 Contact Us For Availability
31
DRIER FILTER GEN WR87X35444 Contact Us For Availability
34
RUBBER GROMMET GEN WR01X35406 Contact Us For Availability
36
CONDENSER FAN BRACKET GEN WR01X35412 Contact Us For Availability
38
MAIN BOARD HOUSING GEN WR13X35442 Contact Us For Availability
40
MAIN BOARD COVER GEN WR13X35445 Contact Us For Availability
41
COMPRESSOR BASE PLATE GEN WR02X35415 Contact Us For Availability
45
NUT GEN WR01X36146 Contact Us For Availability
49
COMPRESSOR MOUNTING ASM GEN WR01X35429 Contact Us For Availability
57
CONDENSER FAN SCREW GEN WR01X35435 Contact Us For Availability
59
MULLION AIR DUCT EPS GEN WR14X35448 Contact Us For Availability
61
MULLION WIRE HARNESS GEN WR55X35450 Contact Us For Availability
63
LOCK WASHER GEN WR01X36145 Contact Us For Availability
64
HALF LENGTH SLIDE ASM GEN WR71X35452 Contact Us For Availability
999
PM MINI MANUAL AND WIRING GEN 311000525 Contact Us For Availability
999
PM OWNERS MANUAL GEN 491000514 Contact Us For Availability
× ![]()
