Model LG PW800A – Common Parts & Diagrams

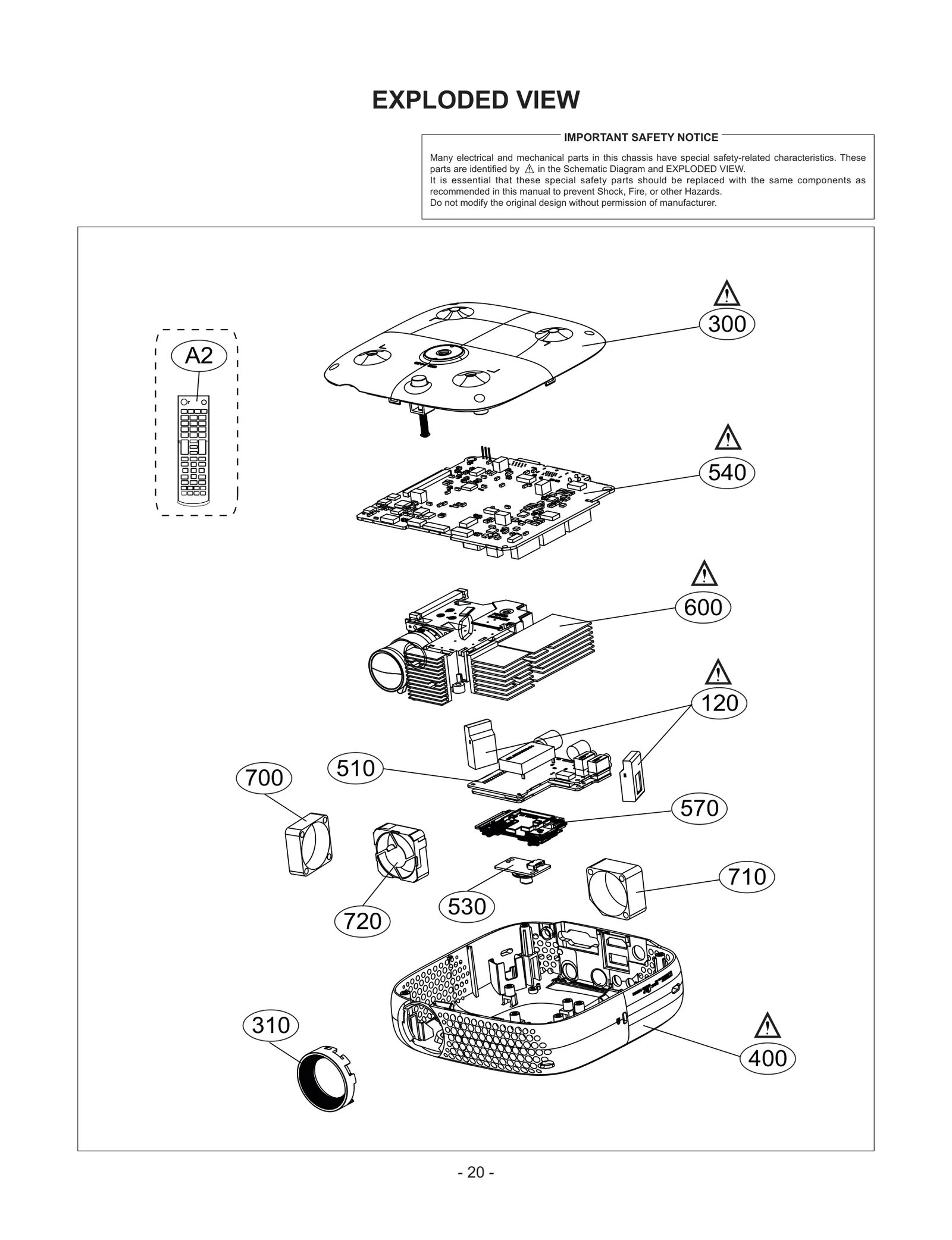

Diagram 0
Diagram 1
Common parts from model LG PW800A
120
Speaker,Full Range LGE EAB62689401 Contact Us For Availability
300
Case Assembly LGE ABQ75023207 Contact Us For Availability
310
Cover Assembly LGE ACQ87696901 Contact Us For Availability
400
Cover Assembly LGE ACQ87696809 Contact Us For Availability
510
Chassis Assembly LGE EBT63740001 Contact Us For Availability
530
PCB Assembly,Sub LGE EBR80302901 Contact Us For Availability
540
Chassis Assembly LGE EBT64075301 Contact Us For Availability
570
Module,Wifi Module LGE EAT61813901 Contact Us For Availability
600
Chassis Assembly LGE EBT63593501 Contact Us For Availability
601
Screw,Taptite LGE FAB30005001 Contact Us For Availability
700
Bracket Assembly LGE ABA75048402 Contact Us For Availability
701
Gasket LGE MDS62005712 Contact Us For Availability
710
Bracket Assembly LGE ABA75048404 Contact Us For Availability
711
Gasket LGE MDS62005713 Contact Us For Availability
720
Bracket Assembly LGE ABA75048405 Contact Us For Availability
A1
Title LGE SAC30666093 Contact Us For Availability
A2
Remote Controller LGE MKJ50025131 Contact Us For Availability
A3
Power Cord,Detach LGE EAD63785902 Contact Us For Availability
A4
Adapters LGE EAY62990903 Contact Us For Availability
A8
Cable,Assembly LGE EAD61273123 Contact Us For Availability
S1
Cable,FFC LGE EAD61670713 Contact Us For Availability
S2
Harness,Single LGE EAD62705703 Contact Us For Availability
S3
Wire,Flat LGE EAD62206802 Contact Us For Availability
S4
Harness,Single LGE EAD63051202 Contact Us For Availability
S5
Harness,Single LGE EAD52821203 Contact Us For Availability
S7
Harness,Single LGE EAD58345815 Contact Us For Availability
× ![]()
