Model Whirlpool PVWN600JT0 PERSONAL VALET – Common Parts & Diagrams

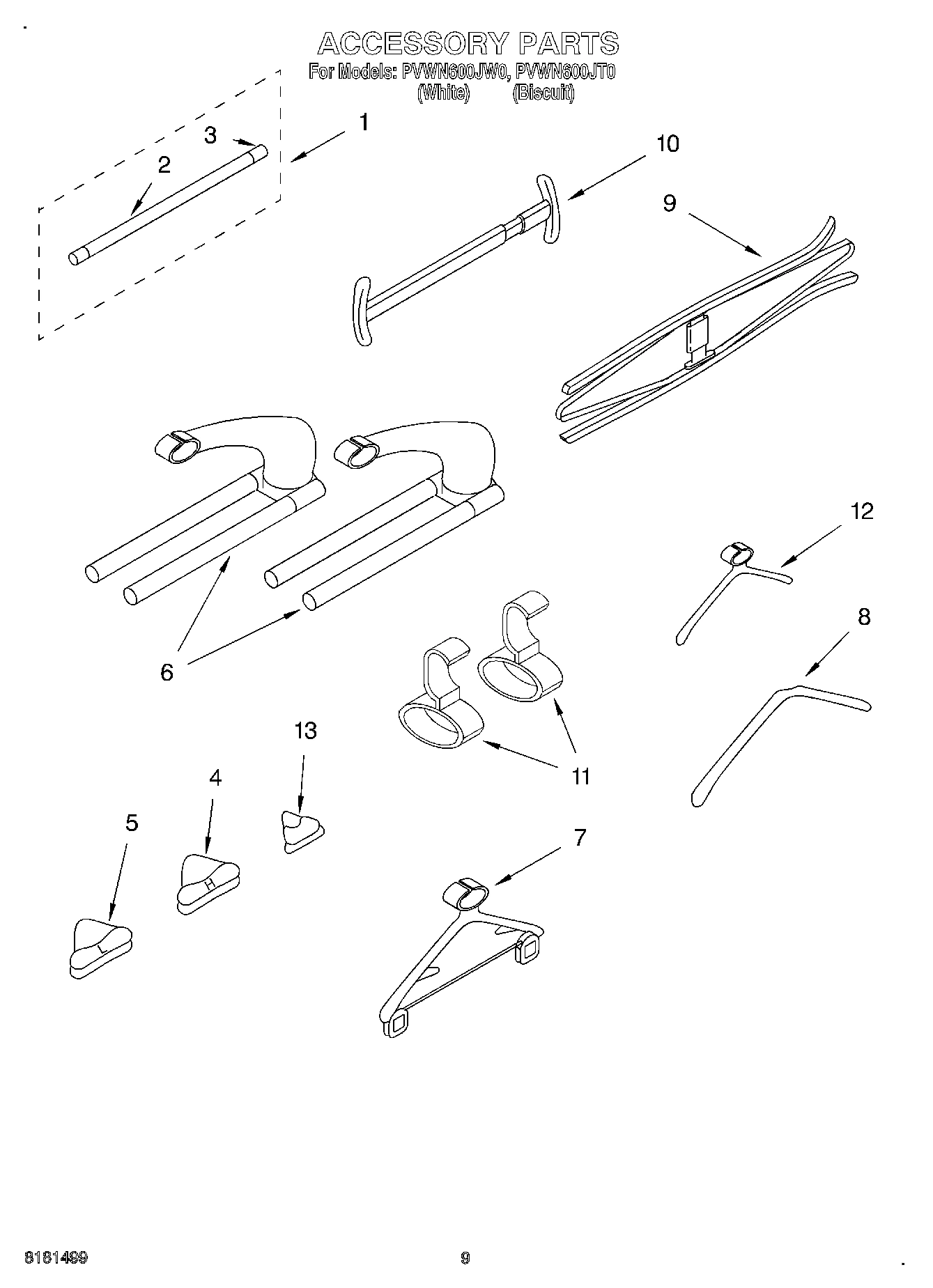

05 - ACCESSORY, OPTIONAL

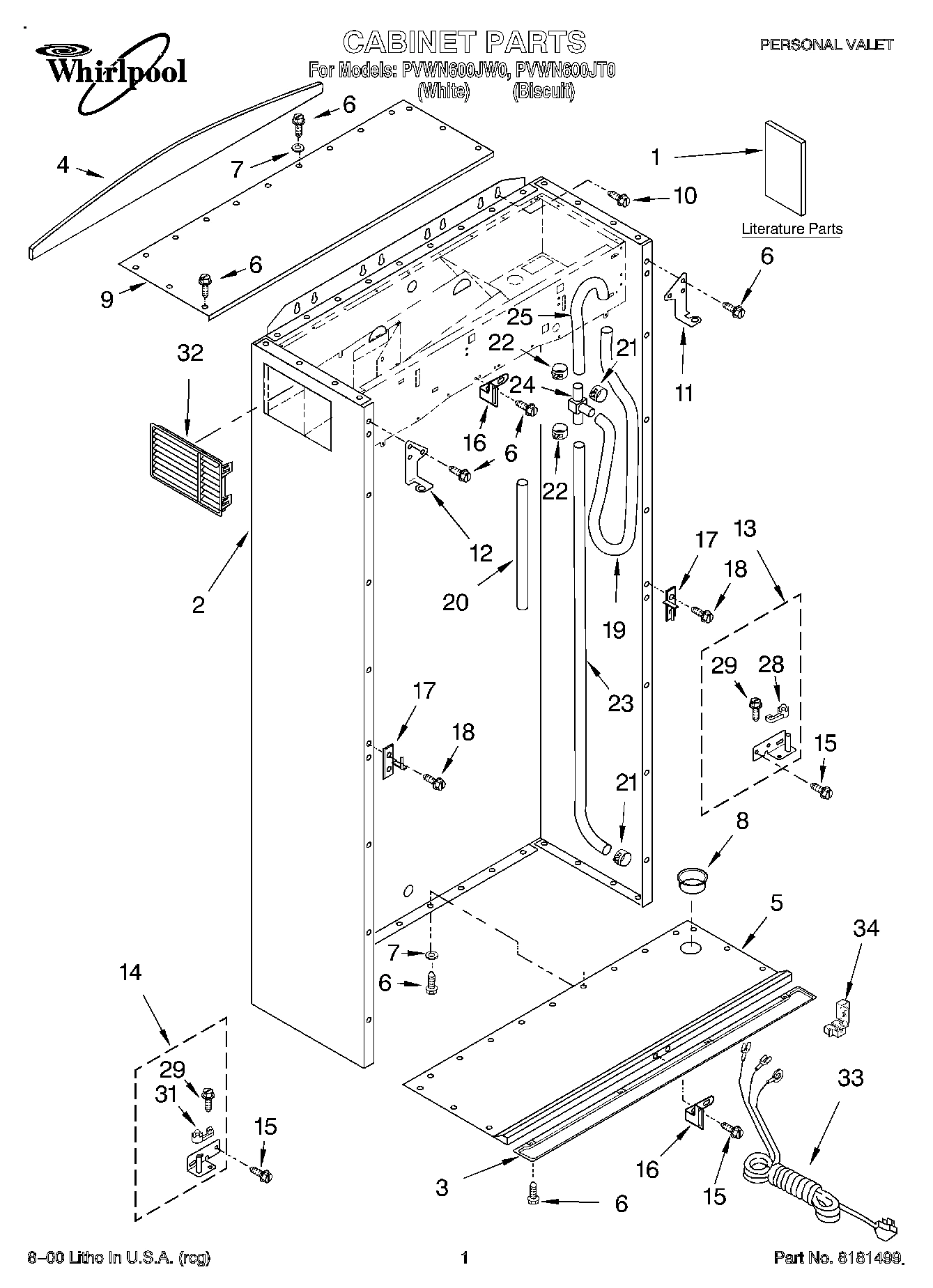

01 - CABINET, LITERATURE

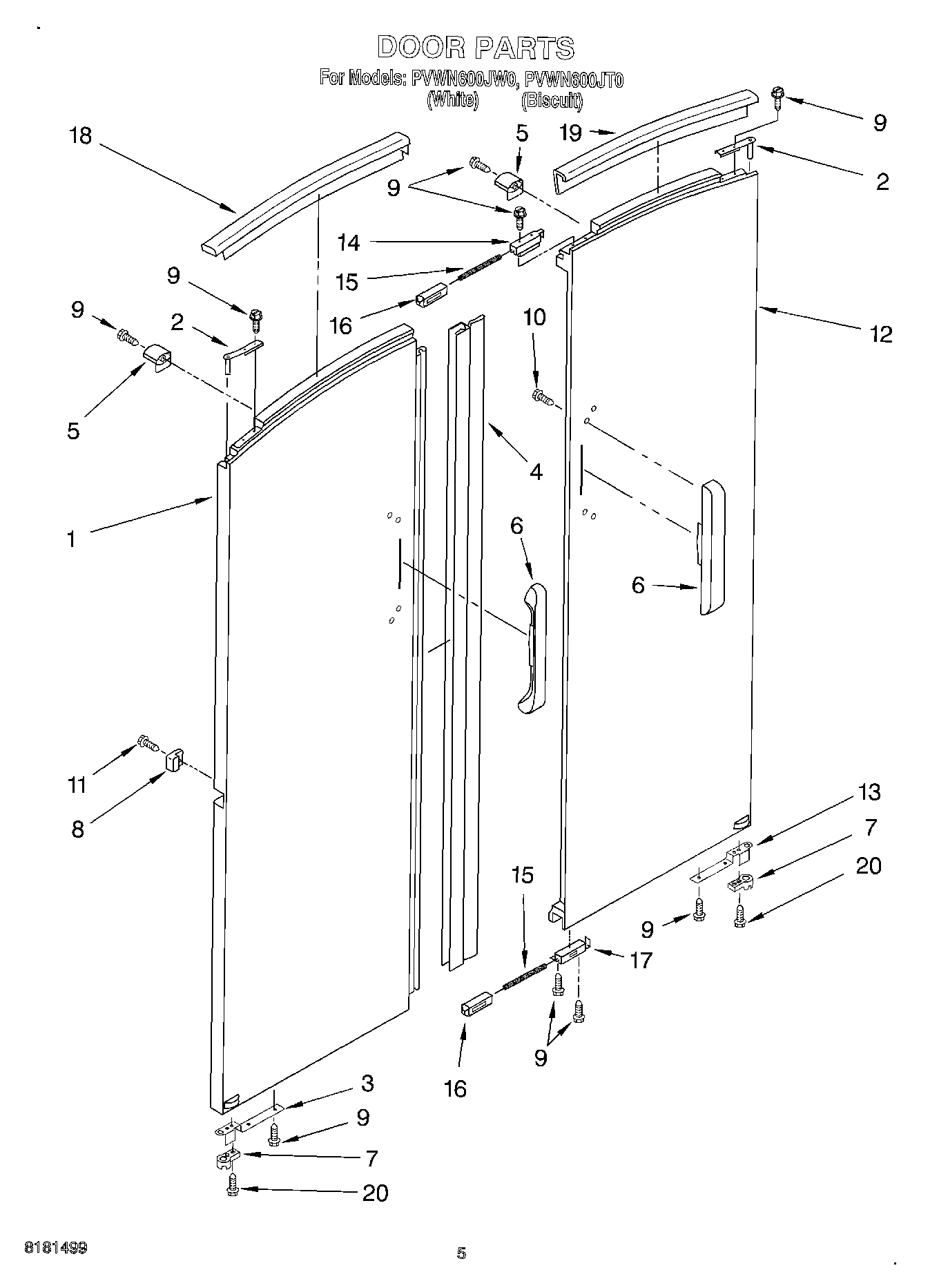

03 - DOOR

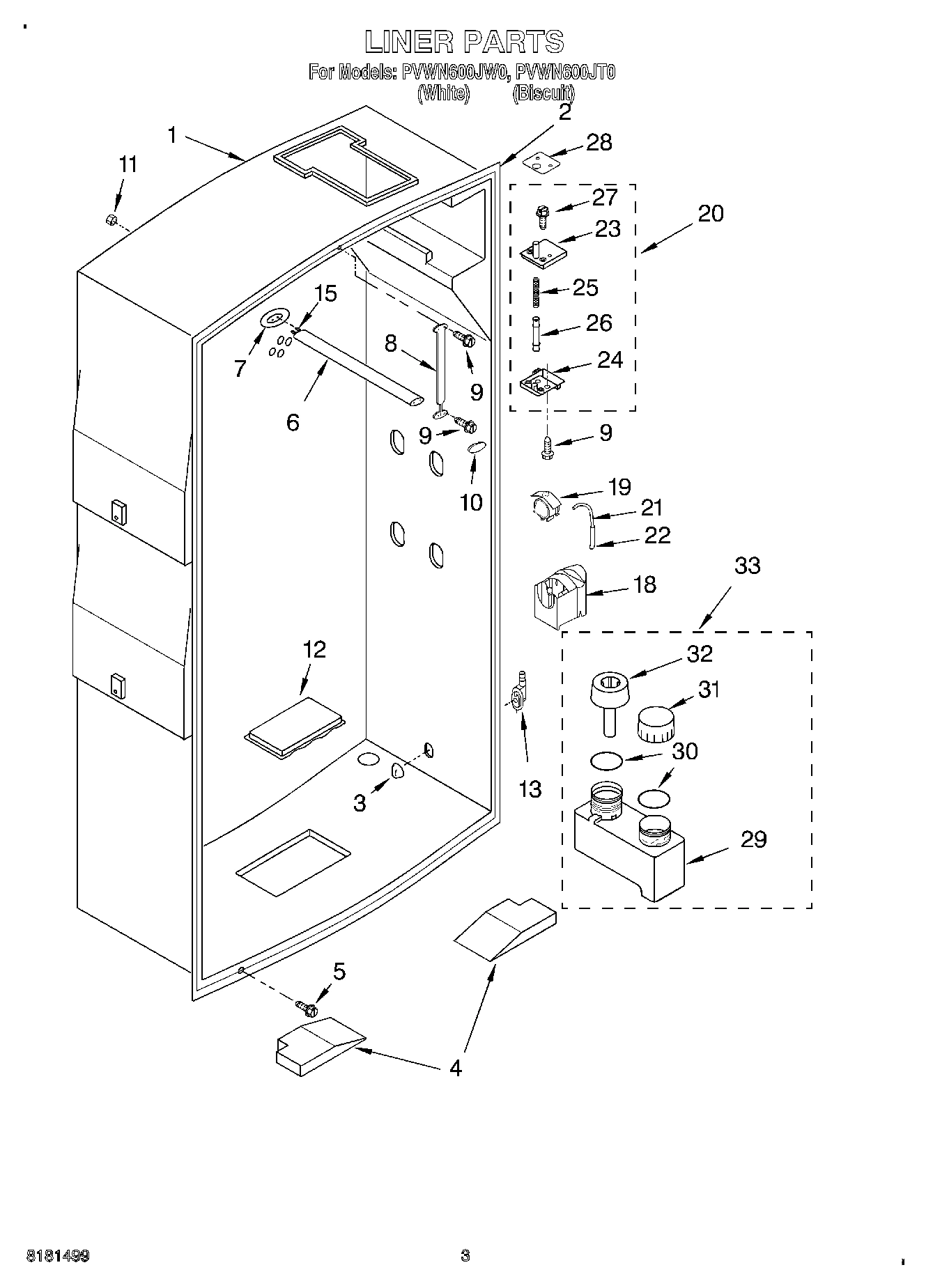

02 - LINER

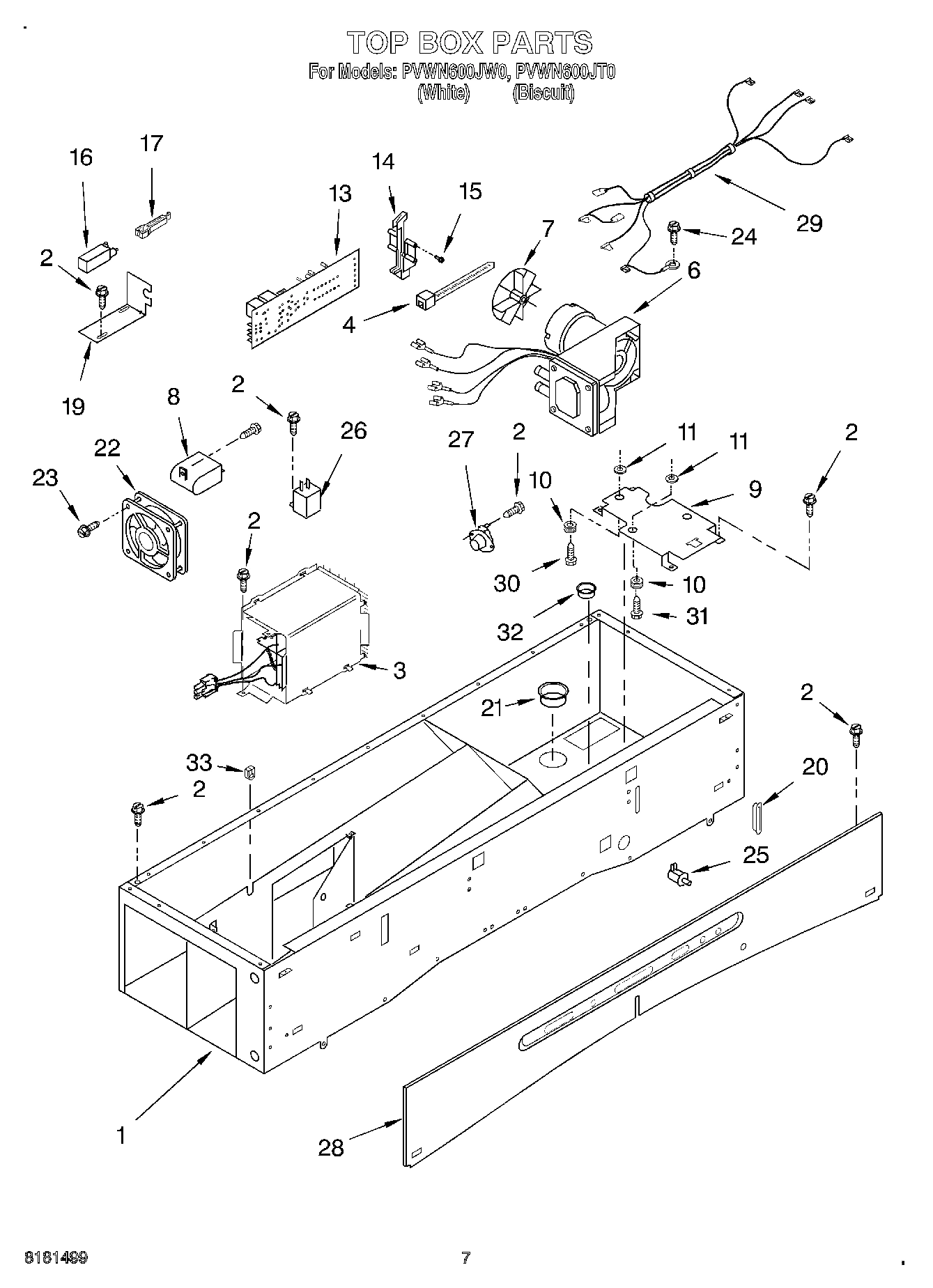

04 - TOP BOX
Common parts from model Whirlpool PVWN600JT0 PERSONAL VALET
1
Literature Parts (Tech Sheet) WPL LIT8181496 Contact Us For Availability
1
Literature Parts (Installation Instructions) WPL LIT8181497 Contact Us For Availability
1
Literature Parts (Use & Care Guide) WPL LIT8181500 Contact Us For Availability
1
Left Door Assembly (Biscuit) WPL 8181509 Contact Us For Availability
1
Left Door Assembly (White) WPL 8181589 Contact Us For Availability
1
Liner WPL 8181518 Contact Us For Availability
1
Top Box WPL 8181528 Contact Us For Availability
2
Cabinet (Not A Serviceable Part) WPL ARI119607A Contact Us For Availability
2
Screw WPL 8181505 Contact Us For Availability
2
Hinge, Top (2) WPL 8181590 Contact Us For Availability
2
Gasket WPL 8181519 Contact Us For Availability
3
Drip Tray WPL 8181541 Contact Us For Availability
3
Hinge, Bottom Left WPL 8181591 Contact Us For Availability
3
Circulation Nozzle WPL 8181584 Contact Us For Availability
3
Heater Assembly WPL 8181529 Contact Us For Availability
4
Cover, Bracket WPL 8181502 Contact Us For Availability
4
Door Gasket WPL 8181592 Contact Us For Availability
4
Support, Bottom WPL 8181521 Contact Us For Availability
4
Wire Tie WPL 8181615 Contact Us For Availability
5
Cabinet, Bottom (White) WPL 8181504 Contact Us For Availability
5
Cabinet, Bottom (Biscuit) WPL 8181531 Contact Us For Availability
5
Garment Hook WPL 8181593 Contact Us For Availability
6
Handle (2) (Biscuit) WPL 8181520 Contact Us For Availability
6
Handle (2) (White) WPL 8181594 Contact Us For Availability
6
Hangar Bar WPL 8181522 Contact Us For Availability
6
Compressor (Includes Foam Baffle) WPL 8181532 Contact Us For Availability
7
Garment Hanger WPL 8181623 Contact Us For Availability
7
Washer WPL 8181506 Contact Us For Availability
7
Door Cam WPL 8181595 Contact Us For Availability
7
Base, Hangar Bar WPL 8181523 Contact Us For Availability
7
Fan Blade (Includes Clip) WPL 8181533 Contact Us For Availability
8
Extender, Hanger WPL 8181624 Contact Us For Availability
8
Grommet, Power Cord WPL 8181507 Contact Us For Availability
8
Bushing, Center Hinge WPL 8181596 Contact Us For Availability
8
Support, Hangar Bar WPL 8181524 Contact Us For Availability
9
Stretcher, Sleeve WPL 8181625 Contact Us For Availability
9
Top, Cabinet (Biscuit) WPL 8181503 Contact Us For Availability
9
Top, Cabinet (White) WPL 8181508 Contact Us For Availability
9
Screw WPL 8181517 Contact Us For Availability
9
Screw WPL 8181597 Contact Us For Availability
9
Compressor Mount WPL 8181611 Contact Us For Availability
10
Body Shaper WPL 8181626 Contact Us For Availability
10
Hex Screw, No.10 WPL 8181501 Contact Us For Availability
10
Screw WPL 8181598 Contact Us For Availability
10
End Cap, Hangar Bar WPL 8181525 Contact Us For Availability
10
Isolator WPL 8181612 Contact Us For Availability
11
Closet Adapter WPL 8181627 Contact Us For Availability
11
Hinge, Top Right WPL 8181510 Contact Us For Availability
11
Nut (2) WPL 8181526 Contact Us For Availability
12
Childrens Hanger WPL 8181628 Contact Us For Availability
12
Hinge, Top Left WPL 8181511 Contact Us For Availability
12
Right Door Assembly (Biscuit) WPL 8181530 Contact Us For Availability
12
Right Door Assembly (White) WPL 8181600 Contact Us For Availability
12
Grill, Sump WPL 8181527 Contact Us For Availability
13
PAINT, BULK (1 QT.) (WHITE (UNCUT)) WPL 799344 Contact Us For Availability
13
PAINT, BULK (1 QT.) (BISCUIT (UNCUT)) WPL 4392900 Contact Us For Availability
13
Versa-Pak WPL 8171479 Contact Us For Availability
13
Performa-Pak WPL 8171480 Contact Us For Availability
13
Combo-Pak WPL 8171481 Contact Us For Availability
13
Presiva-Crisp WPL 8171634 Contact Us For Availability
13
Presiva-Soft WPL 8171635 Contact Us For Availability
13
Storage Drawer WPL 8171709 Contact Us For Availability
13
Placket Clip Assembly WPL 8181629 Contact Us For Availability
13
Hinge Assembly, Bottom Right WPL 8181512 Contact Us For Availability
13
Hinge, Bottom Right WPL 8181601 Contact Us For Availability
13
Circulation Nozzle, Base WPL 8181585 Contact Us For Availability
13
Control Board WPL 8181544 Contact Us For Availability
14
Hinge Assembly, Bottom Left WPL 8181513 Contact Us For Availability
14
Housing, Upper Latch WPL 8181602 Contact Us For Availability
14
Clip, Control Board (2) WPL 8181545 Contact Us For Availability
15
Screw WPL 8181515 Contact Us For Availability
15
Spring WPL 8181603 Contact Us For Availability
15
Threaded Studs WPL 8181610 Contact Us For Availability
15
Screw WPL 8181546 Contact Us For Availability
16
Strike Plate (2) WPL 8181514 Contact Us For Availability
16
Plunger WPL 8181604 Contact Us For Availability
16
Wax Motor WPL 8181547 Contact Us For Availability
17
Hinge, Center (2) WPL 8181516 Contact Us For Availability
17
Housing, Lower Latch WPL 8181605 Contact Us For Availability
17
Link, Wax Motor WPL 8181548 Contact Us For Availability
18
Top Cap, Left Door WPL 8181606 Contact Us For Availability
18
Cover WPL 8181567 Contact Us For Availability
19
Hose, Compressor To Tee Fitting WPL 8181535 Contact Us For Availability
19
Top Cap, Right Door WPL 8181607 Contact Us For Availability
19
Fluid Nozzle WPL 8181568 Contact Us For Availability
19
Mount, Wax Motor WPL 8181550 Contact Us For Availability
20
Hose, Compressor Inlet WPL 8181536 Contact Us For Availability
20
Screw, 8-32 x 3/8 WPL 8181586 Contact Us For Availability
20
Airdock Assembly WPL 8181569 Contact Us For Availability
20
Grommet WPL 8181551 Contact Us For Availability
21
Siphon Tube WPL 8181570 Contact Us For Availability
21
Grommet (2 Inches) WPL 8181552 Contact Us For Availability
22
Fluid Filter WPL 8181571 Contact Us For Availability
22
Fan Motor WPL 8181553 Contact Us For Availability
23
Hose, To Circulation Nozzle WPL 8181539 Contact Us For Availability
23
Base, Airdock WPL 8181572 Contact Us For Availability
23
Screw WPL 8181554 Contact Us For Availability
24
Tee Fitting WPL 8181540 Contact Us For Availability
24
Airdock WPL 8181573 Contact Us For Availability
24
Ground Screw WPL 8181556 Contact Us For Availability
25
Hose, Tee Fitting To Airdock WPL 8181549 Contact Us For Availability
25
Spring WPL 8181574 Contact Us For Availability
25
Interlock Switch WPL 8181560 Contact Us For Availability
26
Air Fitting WPL 8181575 Contact Us For Availability
26
Buzzer WPL 8181561 Contact Us For Availability
27
Screw WPL 8181576 Contact Us For Availability
27
Thermistor WPL 8181562 Contact Us For Availability
28
Cam, Right Hinge WPL 8181578 Contact Us For Availability
28
Gasket WPL 8181577 Contact Us For Availability
28
Control Panel WPL 8181587 Contact Us For Availability
29
Cartridge WPL 8181616 Contact Us For Availability
29
Wire Harness WPL 8181559 Contact Us For Availability
30
O-Ring WPL 8181580 Contact Us For Availability
30
Screw WPL 8181542 Contact Us For Availability
31
Cam, Left Hinge WPL 8181609 Contact Us For Availability
31
Fill Cap WPL 8181581 Contact Us For Availability
31
Screw (2) WPL 8181543 Contact Us For Availability
32
Grille (White) WPL 8181564 Contact Us For Availability
32
Grille (Biscuit) WPL 8181565 Contact Us For Availability
32
Cartridge Insert WPL 8181582 Contact Us For Availability
32
Tubing, Grommet WPL 8181555 Contact Us For Availability
33
Power Cord WPL 8181557 Contact Us For Availability
33
Cartridge Assembly WPL 8181579 Contact Us For Availability
33
Grommet, Wire WPL 8181563 Contact Us For Availability
34
Strain Relief WPL 8181558 Contact Us For Availability
× ![]()
