Model GE PVS06BSPCSS – Common Parts & Diagrams
DOOR
CABINET & SHELVES

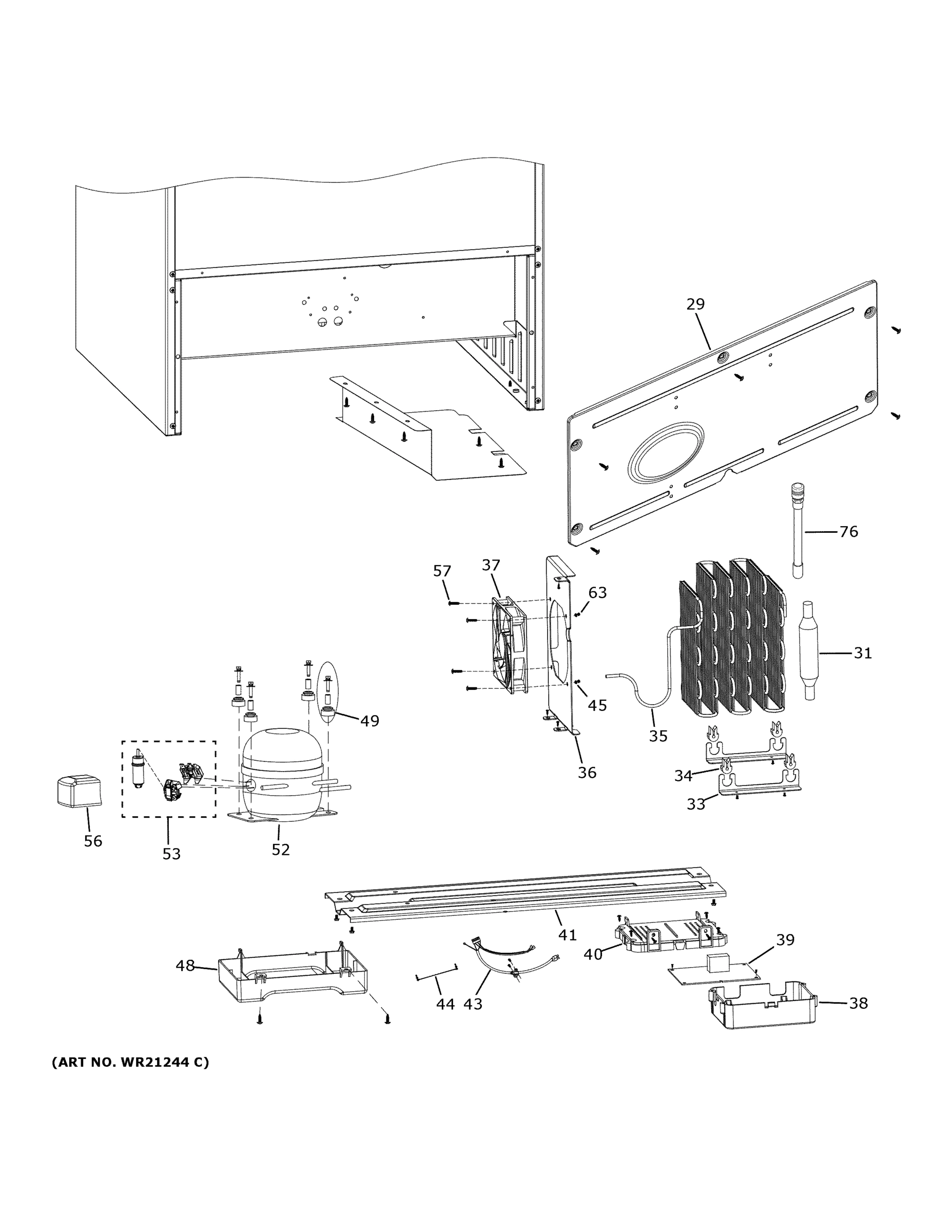

MACHINE COMPARTMENT

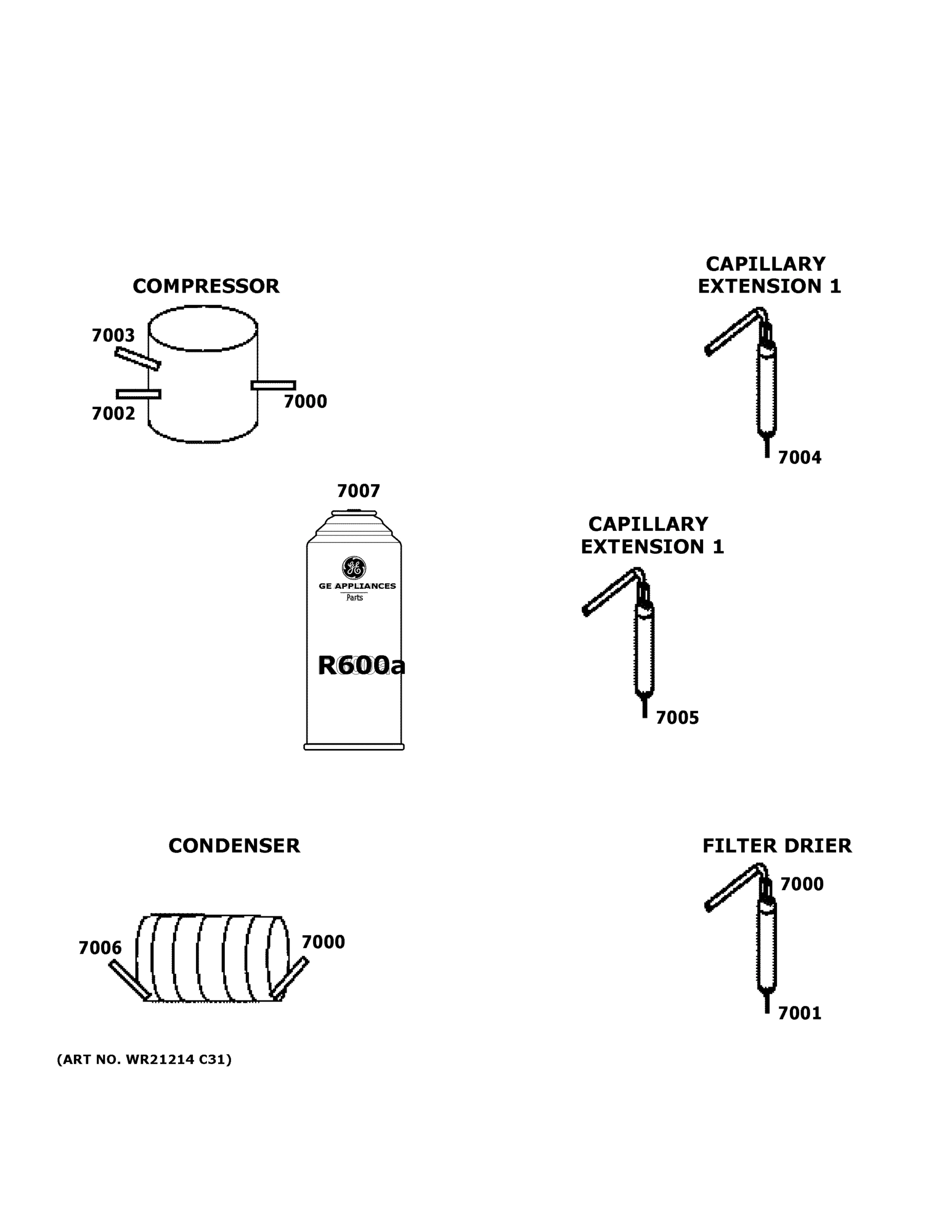

LOKRING CONNECTORS
Common parts from model GE PVS06BSPCSS
1
AIR DUCT GEN WR14X42147 Contact Us For Availability
3
AIR DUCT COVER GEN WR02X35409 Contact Us For Availability
4
ALUMINUM SHIELD GEN WR14X42148 Contact Us For Availability
8
UI PC BOARD GEN WR55X35413 Contact Us For Availability
10
LED LIGHT GEN WR55X36147 Contact Us For Availability
12
LIGHT REED SWITCH GEN WR02X35417 Contact Us For Availability
13
UI HOUSING GEN WR02X35418 Contact Us For Availability
14
LED LIGHT COVER GEN WR13X35419 Contact Us For Availability
15
UI OVERLAY GEN WR55X35420 Contact Us For Availability
16
GLASS REFRIGERATOR SHELF GEN WR78X37785 Contact Us For Availability
18
TOP HINGE COVER GEN WR13X35422 Contact Us For Availability
19
SCREW GEN WR01X36027 Contact Us For Availability
20
TOP HINGE GEN WR13X36149 Contact Us For Availability
24
BOTTOM HINGE SHIM GEN WR01X35433 Contact Us For Availability
25
BOTTOM HINGE GEN WR13X36148 Contact Us For Availability
26
SCREW GEN WR01X35436 Contact Us For Availability
27
LEVELING LEG GEN WR01X35438 Contact Us For Availability
28
STAINLESS STEEL TOE KICK GEN WR74X35440 Contact Us For Availability
29
MACHINE COVER GEN WR13X35443 Contact Us For Availability
31
DRIER FILTER GEN WR87X35444 Contact Us For Availability
33
CONDENSER MOUNTING BRACKET GEN WR01X35446 Contact Us For Availability
34
RUBBER GROMMET GEN WR01X35406 Contact Us For Availability
35
CONDENSER GEN WR87X35408 Contact Us For Availability
36
CONDENSER FAN BRACKET GEN WR01X35412 Contact Us For Availability
38
MAIN BOARD HOUSING GEN WR13X35442 Contact Us For Availability
40
MAIN BOARD COVER GEN WR13X35445 Contact Us For Availability
41
COMPRESSOR BASE PLATE GEN WR02X35415 Contact Us For Availability
43
POWER CORD GEN WR55X36028 Contact Us For Availability
44
GROUNDING WIRE GEN WR23X36029 Contact Us For Availability
45
LOCK WASHER GEN WR01X36145 Contact Us For Availability
48
DRAIN PAN GEN WR14X35428 Contact Us For Availability
49
COMPRESSOR MOUNTING ASM GEN WR01X35429 Contact Us For Availability
52
COMPRESSOR GEN WR87X42269 Contact Us For Availability
57
CONDENSER FAN SCREW GEN WR01X35435 Contact Us For Availability
60
RISER SUPPORT BAR GEN WR71X35421 Contact Us For Availability
63
NUT GEN WR01X36146 Contact Us For Availability
77
TOE KICK SCREW - STAINLESS STEEL GEN WR01X43739 Contact Us For Availability
999
PM MINI MANUAL AND WIRING GEN 311000528 Contact Us For Availability
999
PM OWNERS MANUAL GEN 491000514 Contact Us For Availability
× ![]()
