Model GE PTWN8050M0WW – Common Parts & Diagrams

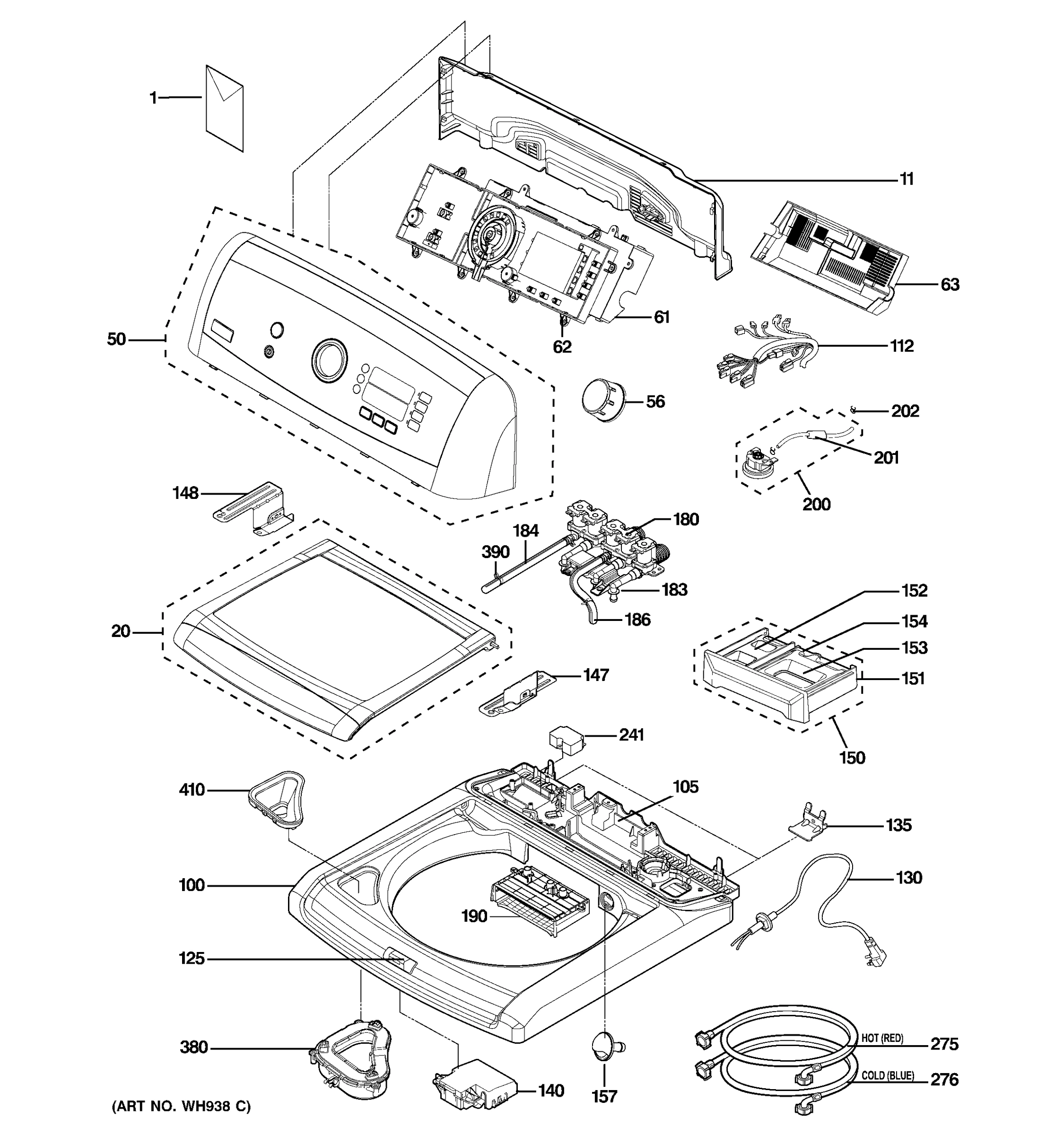

CONTROLS & TOP PANEL

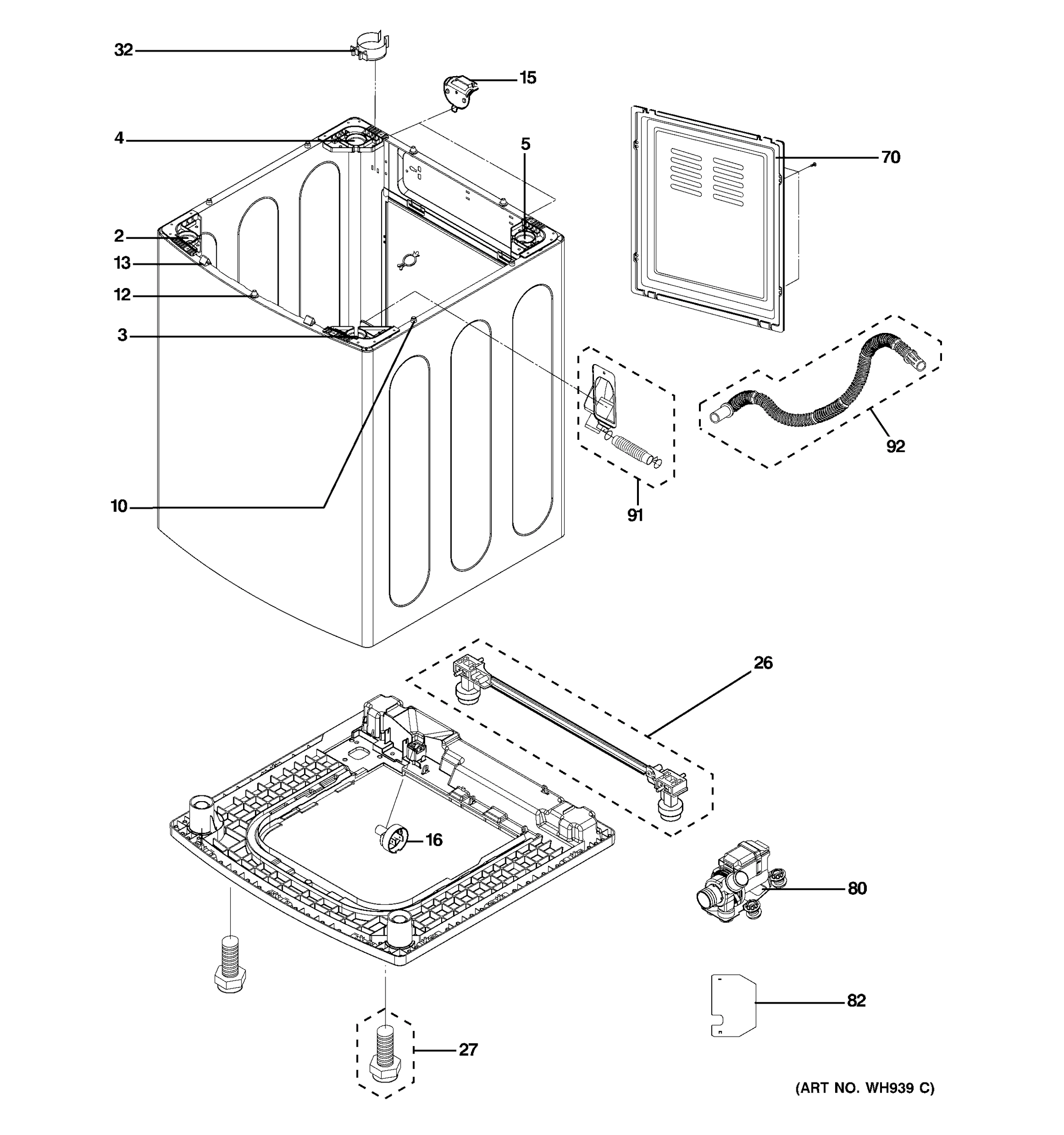

CABINET

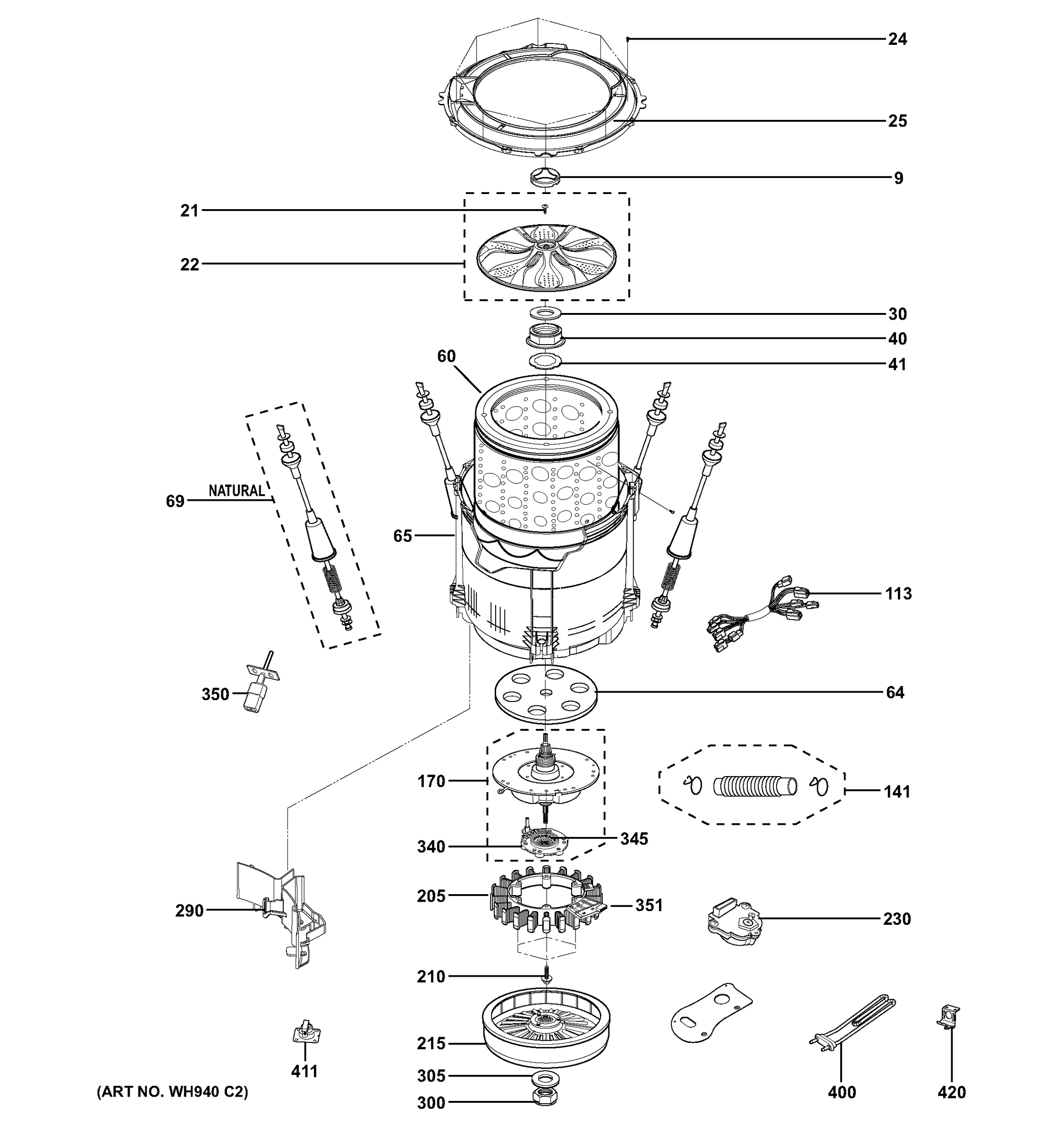

TUB & MOTOR
Common parts from model GE PTWN8050M0WW
2
HANGER ASM PIVOT LF GEN WH16X10136 Contact Us For Availability
3
HANGER ASM PIVOT RF GEN WH16X10137 Contact Us For Availability
4
HANGER ASM PIVOT LR GEN WH16X10134 Contact Us For Availability
5
HANGER ASM PIVOT RR GEN WH16X10135 Contact Us For Availability
9
CAP PULSATOR GEN WH43X10049 Contact Us For Availability
10
PLUG BUTTON SIDE GEN WH02X10340 Contact Us For Availability
12
PLUG BUTTON MIDDLE GEN WH02X10338 Contact Us For Availability
13
PLUG BUTTON END GEN WH02X10339 Contact Us For Availability
15
BRACKET-TOP CABINET REAR GEN WH16X10140 Contact Us For Availability
16
SENSOR - OVERFLOW GEN WH12X10504 Contact Us For Availability
21
SCREW, INFUSOR GEN WH01X10587 Contact Us For Availability
24
SCREW TAPPING, TRUSS HD GEN WH02X10143 Contact Us For Availability
25
COVER ASM - TUB GEN WH44X10244 Contact Us For Availability
26
LEG ASM - REAR GEN WH02X10144 Contact Us For Availability
27
LEG ASM W/CAP GEN WH02X10145 Contact Us For Availability
30
WASHER,COMMON" GEN WH02X10346 Contact Us For Availability
32
CLAMP GEN WH01X10204 Contact Us For Availability
40
NUT, BASKET GEN WH02X10345 Contact Us For Availability
41
WASHER GEN WH02X10146 Contact Us For Availability
60
BALANCE ASM GEN WH45X10098 Contact Us For Availability
61
INVERTER BOARD GEN WH12X10506 Contact Us For Availability
62
DISPLAY LOGIC BOARD GEN WH12X10507 Contact Us For Availability
64
HUB, INNER TUB GEN WH45X10103 Contact Us For Availability
65
INNER BASKET GEN WH45X10102 Contact Us For Availability
69
SUSPENSION ASM GEN WH17X10021 Contact Us For Availability
70
COVER, LOWER REAR GEN WH44X10267 Contact Us For Availability
80
DRAIN PUMP ASM GEN WH23X10039 Contact Us For Availability
82
COVER PROTECT GEN WH44X10266 Contact Us For Availability
91
CONNECTOR - HOSE ASM GEN WH41X10081 Contact Us For Availability
92
DRAIN HOSE ASM GEN WH41X10082 Contact Us For Availability
113
LOWER HARNESS GEN WH19X10080 Contact Us For Availability
140
DOOR SWITCH ASM GEN WH12X10505 Contact Us For Availability
170
MECH HOUSING ASM GEN WH37X10005 Contact Us For Availability
180
WATER VALVE ASM GEN WH13X10049 Contact Us For Availability
186
INLET HOSE-WATER VALVE H GEN WH41X10268 Contact Us For Availability
190
HOUSING ASM, DETERGENT GEN WH37X10006 Contact Us For Availability
200
PRESSURE SWITCH ASM GEN WH12X10502 Contact Us For Availability
205
STATOR GEN WH39X10010 Contact Us For Availability
210
BOLT GEN WH02X10149 Contact Us For Availability
215
ROTOR ASM GEN WH39X10009 Contact Us For Availability
230
CLUTCH MOTOR GEN WH20X10080 Contact Us For Availability
290
GUIDE, WATER GEN WH41X10090 Contact Us For Availability
300
NUT GEN WH01X10209 Contact Us For Availability
305
WASHER GEN WH02X10150 Contact Us For Availability
340
COUPLING ASM GEN WH01X10531 Contact Us For Availability
345
COUPLING ASM GEN WH01X10530 Contact Us For Availability
350
THERMISTOR ASM GEN WH12X10249 Contact Us For Availability
351
HALL SENSOR GEN WH12X10503 Contact Us For Availability
380
BOX- BLEACH GEN WH47X10020 Contact Us For Availability
390
CLAMP GEN WH01X10212 Contact Us For Availability
400
HEATER ASM GEN WH12X10474 Contact Us For Availability
410
BLEACH CAP GEN WH01X10588 Contact Us For Availability
411
THERMOSTAT, HEATER GEN WH12X10501 Contact Us For Availability
420
BRACKET, HEATER GEN WH16X10070 Contact Us For Availability
× ![]()
