Model GE PTDS850GM0WW Dryer Gas – Common Parts & Diagrams

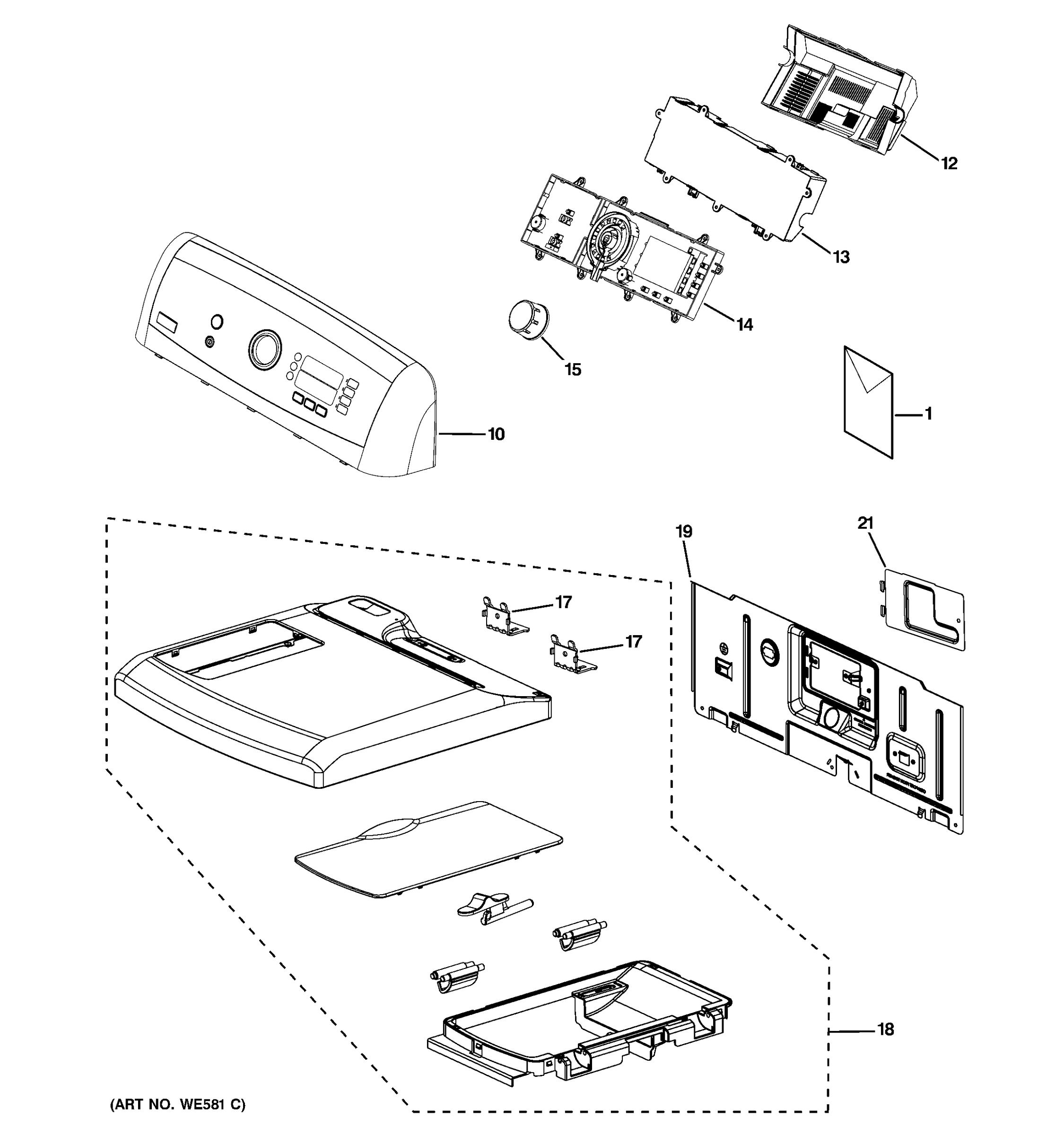

CONTROLS & TOP PANEL
STEAM GENERATOR

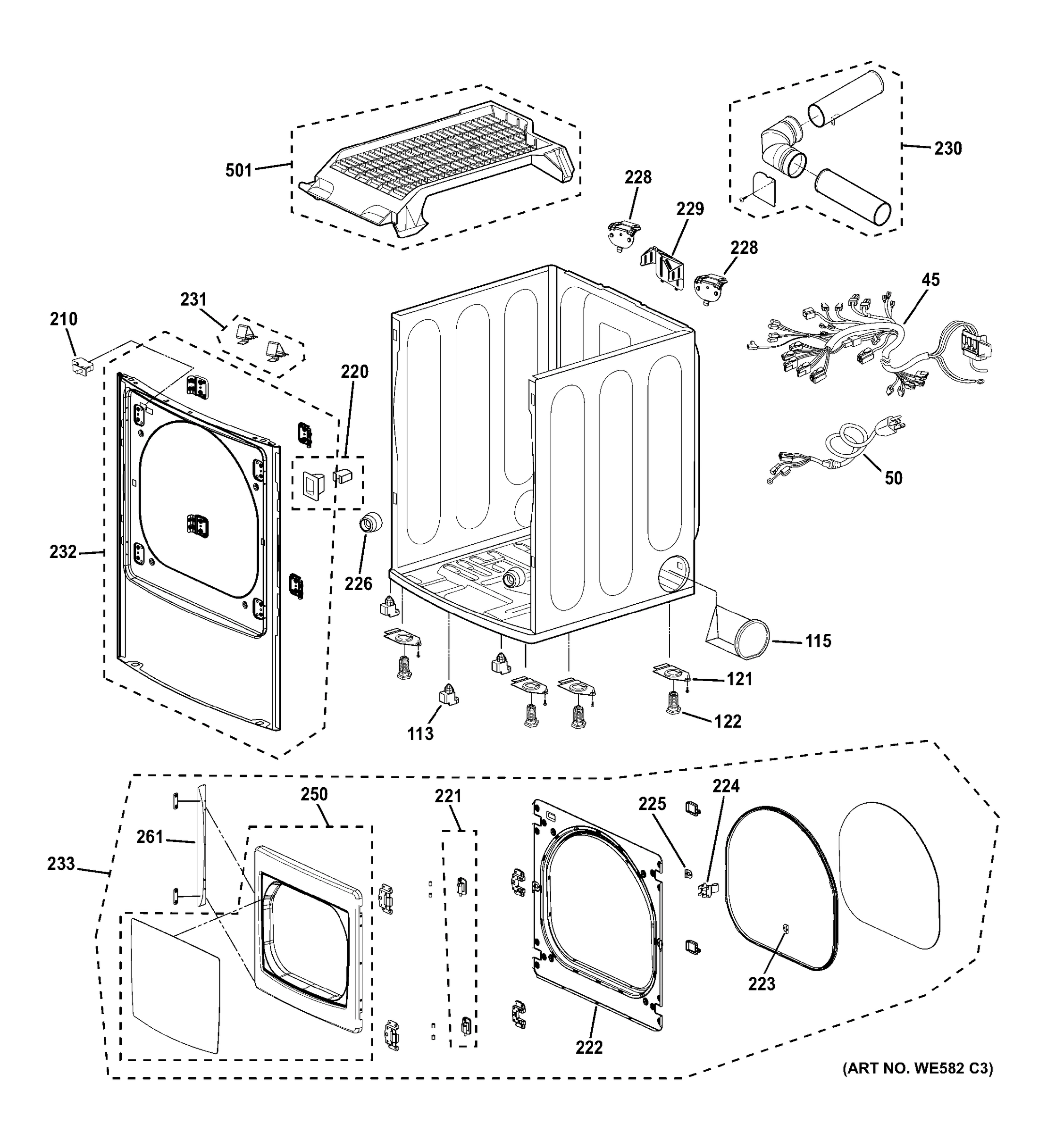

CABINET, FRONT PANEL & DOOR

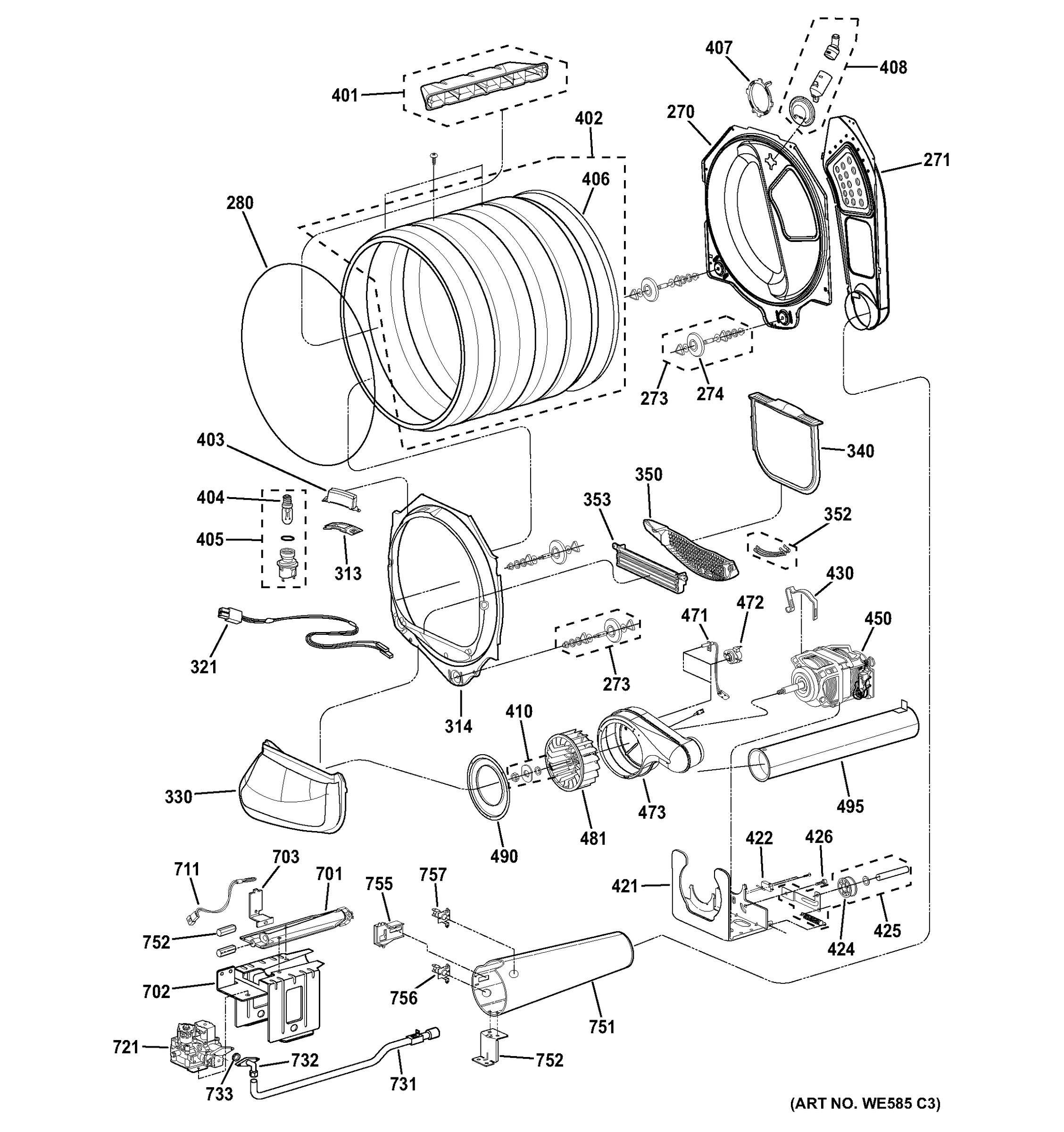

DRUM, BLOWER & MOTOR ASSEMBLY
Common parts from model GE PTDS850GM0WW Dryer Gas
115
CAP - CABINET VENT GEN WE01X10295 Contact Us For Availability
121
BRACKET, BASE GEN WE01X10183 Contact Us For Availability
122
LEG GEN WE02X10092 Contact Us For Availability
210
SWITCH ASM, DOOR GEN WE04X10110 Contact Us For Availability
220
LATCH ASSEMBLY GEN WE01X10184 Contact Us For Availability
221
HINGE - DOOR GEN WE01X10288 Contact Us For Availability
222
REAR DOOR FRAME GEN WE20X10109 Contact Us For Availability
223
LATCH BODY GEN WE01X10187 Contact Us For Availability
224
LATCH HOOK GEN WE01X10188 Contact Us For Availability
225
LATCH BODY GEN WE01X10186 Contact Us For Availability
226
PLUG BUTTON SIDE GEN WH02X10340 Contact Us For Availability
228
PLATE - LOWER SUPPORT GEN WE20X10111 Contact Us For Availability
229
SAFETY COVER - HOSE GEN WE01X10283 Contact Us For Availability
231
PLUG BUTTON END GEN WH02X10339 Contact Us For Availability
232
FRONT CABINET ASM GEN WE20X10112 Contact Us For Availability
233
DOOR ASM GEN WE10X10026 Contact Us For Availability
250
FRONT DOOR FRAME ASM GEN WE20X10113 Contact Us For Availability
270
DRUM BACK GEN WE21X10017 Contact Us For Availability
271
REAR DUCT ASM GEN WE14X10092 Contact Us For Availability
274
ROLLER ASM GEN WE03X10011 Contact Us For Availability
313
COVER - LAMP GEN WE01X10192 Contact Us For Availability
314
DRUM FRONT GEN WE14X10070 Contact Us For Availability
321
HARNESS - SENSOR GEN WE04X10159 Contact Us For Availability
330
DUCT ASSEMBLY GEN WE14X10058 Contact Us For Availability
340
LINT FILTER ASM GEN WE18X10019 Contact Us For Availability
350
COVER,GUIDE GEN WE14X10089 Contact Us For Availability
352
SENSOR ASSY GEN WE01X10194 Contact Us For Availability
353
GUIDE,FILTER GEN WE14X10091 Contact Us For Availability
401
DRUM VANE GEN WE14X10090 Contact Us For Availability
402
DRUM ASM GEN WE21X10018 Contact Us For Availability
403
COVER - LAMP GEN WE01X10284 Contact Us For Availability
404
LAMP GEN WE04X10131 Contact Us For Availability
405
LAMP ASM GEN WE04X10160 Contact Us For Availability
406
SEAL GEN WE09X10015 Contact Us For Availability
407
HOLDER - STEAM NOZZLE GEN WE01X10289 Contact Us For Availability
408
NOZZLE ASSEMBLY,STEAM GEN WE14X10095 Contact Us For Availability
410
NUT AND LOCK WASHER GEN WE02X10091 Contact Us For Availability
421
BRACKET MOTOR GEN WE13X10030 Contact Us For Availability
422
SWITCH - MICRO GEN WE04X10113 Contact Us For Availability
424
PULLEY, IDLE GEN WE12X10012 Contact Us For Availability
425
PULLEY IDLER GEN WE12X10013 Contact Us For Availability
426
SCREW GEN WE02X10062 Contact Us For Availability
430
CLAMP GEN WE01X10197 Contact Us For Availability
450
MOTOR & PULLEY ASM GEN WE17X10011 Contact Us For Availability
471
THERMISTOR ASSEMBLY GEN WE04X10114 Contact Us For Availability
472
THERMOSTAT ASSEMBLY GEN WE04X10115 Contact Us For Availability
473
BLOWER HOUSING GEN WE14X10079 Contact Us For Availability
481
BLOWER WHEEL GEN WE16X10004 Contact Us For Availability
490
GUIDE ASSEMBLY GEN WE14X10061 Contact Us For Availability
495
OUTLET DUCT ASM GEN WE14X10093 Contact Us For Availability
501
RACK GEN WE01X10281 Contact Us For Availability
701
BURNER ASM GEN WE11X10014 Contact Us For Availability
702
GUIDE BURNER GEN WE11X10015 Contact Us For Availability
703
BRACKET, BASE GEN WE01X10199 Contact Us For Availability
721
VALVE ASM - GAS GEN WE01X10243 Contact Us For Availability
732
CONNECTOR - PIPE GEN WE01X10203 Contact Us For Availability
733
SEAL GEN WE01X10204 Contact Us For Availability
751
FUNNEL GEN WE14X10063 Contact Us For Availability
752
SUPPORTER,HOLDER GEN WE01X10205 Contact Us For Availability
755
SENSOR ASSEMBLY GEN WE04X10117 Contact Us For Availability
756
THERMOSTAT ASSEMBLY GEN WE04X10118 Contact Us For Availability
757
THERMOSTAT ASM GEN WE04X10142 Contact Us For Availability
× ![]()
