Model Alliance PT030E Dryer – Common Parts & Diagrams

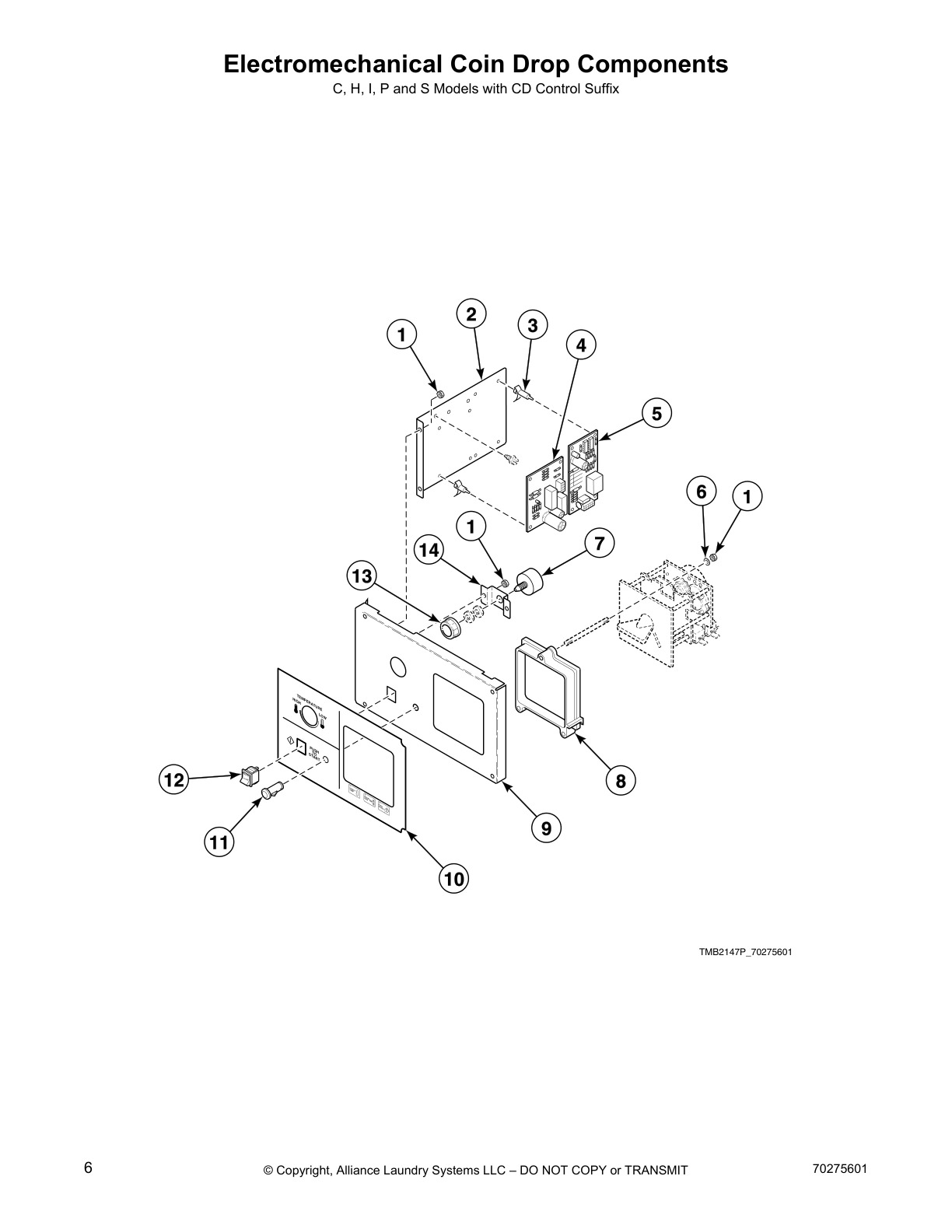

Electromechanical Coin Drop Components

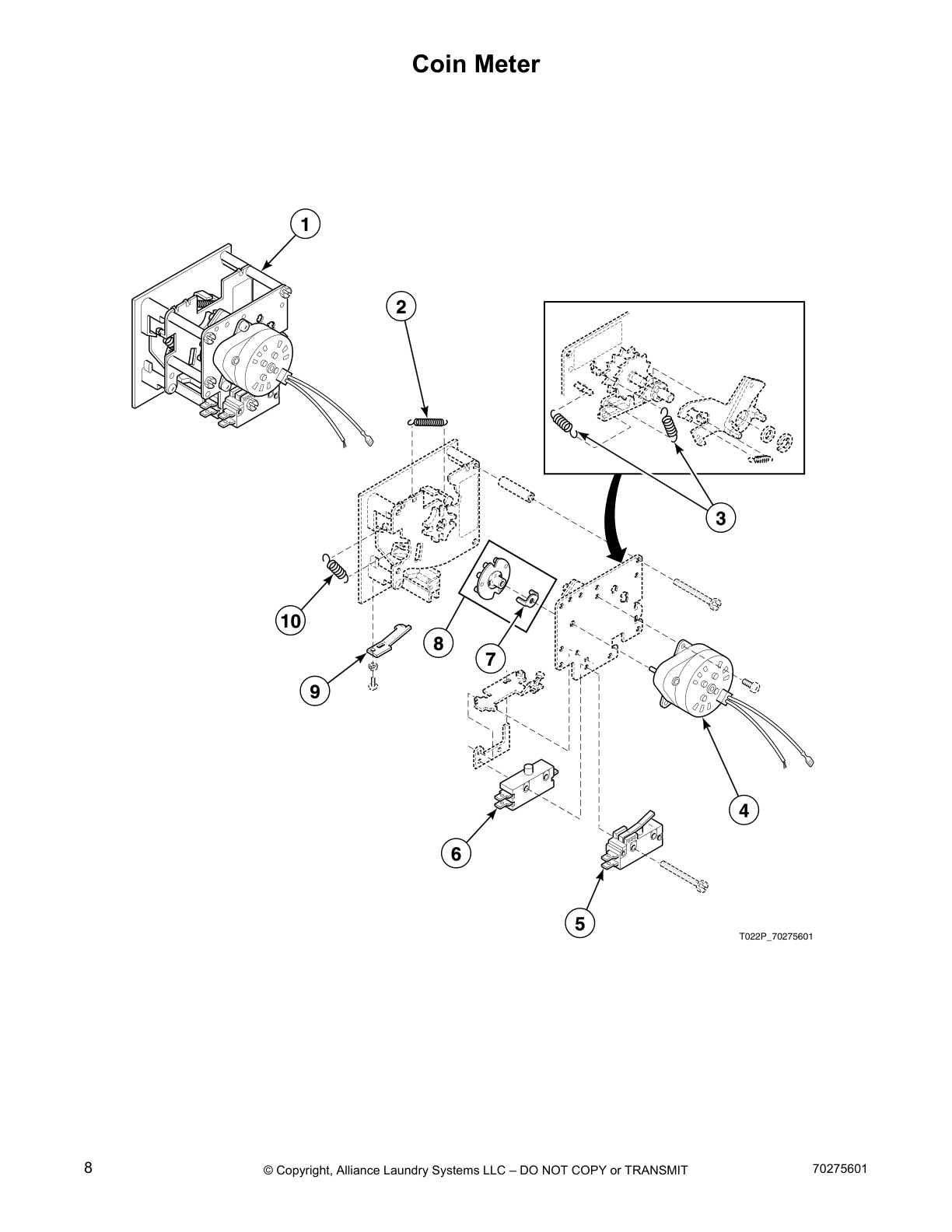

Coin Meter

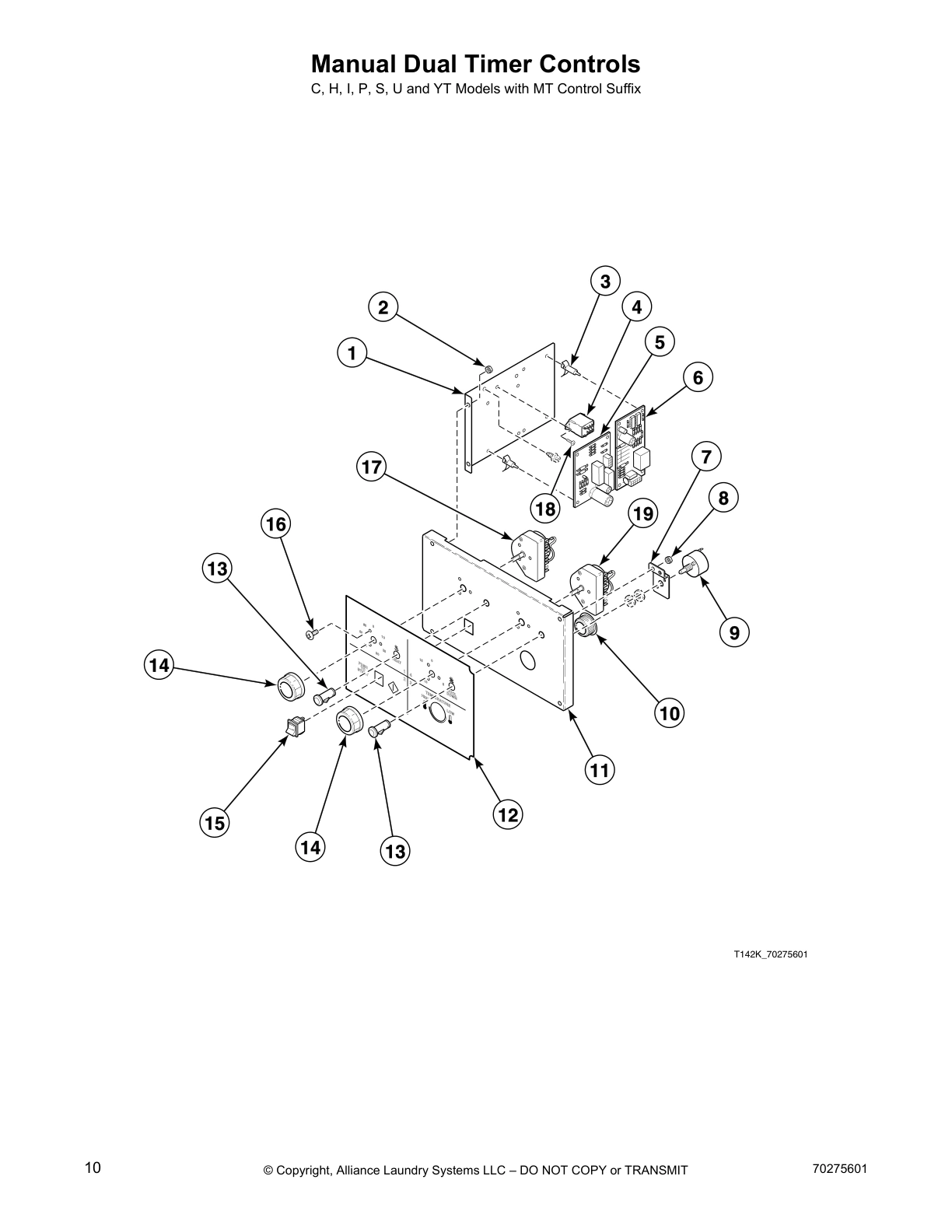

Manual Dual Timer Controls

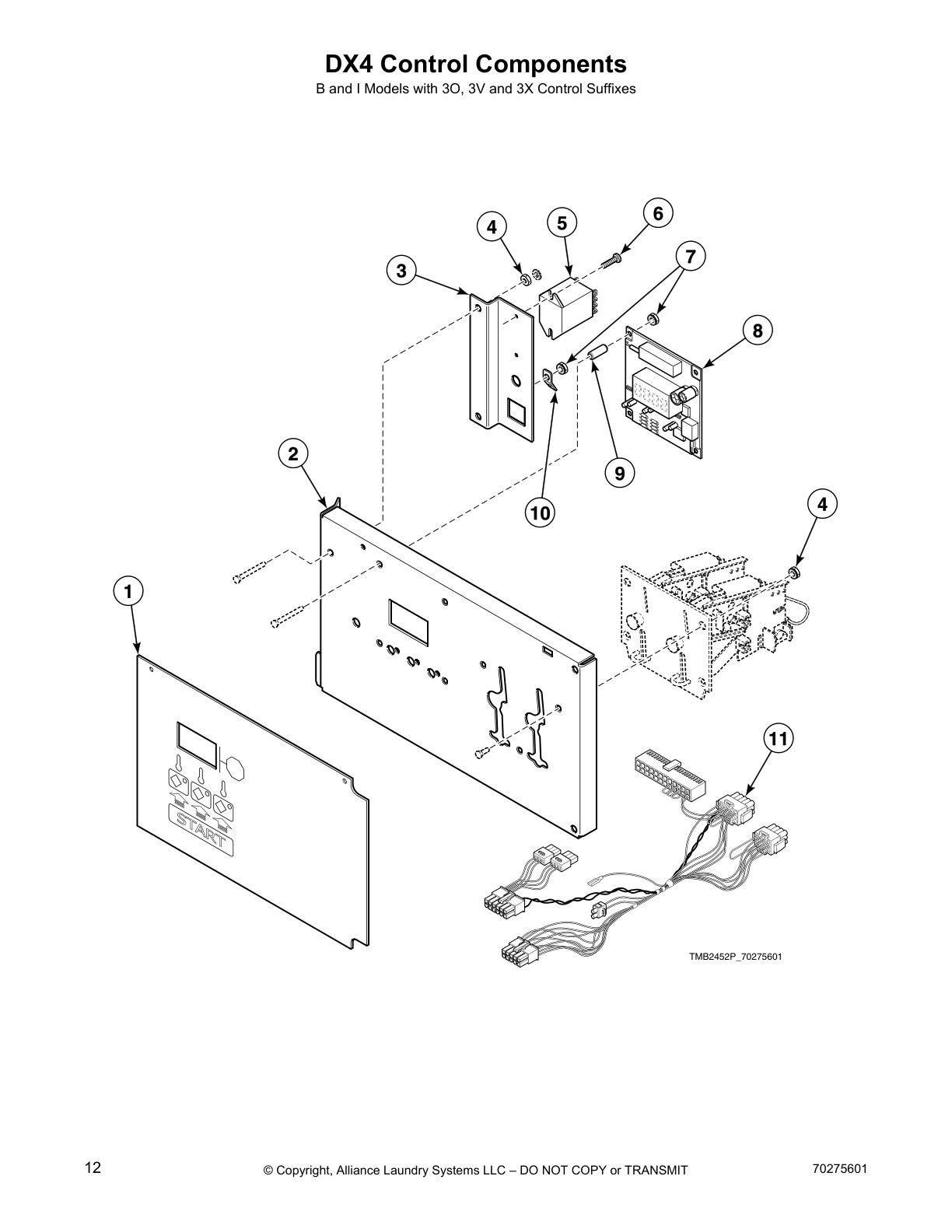

DX4 Control Components

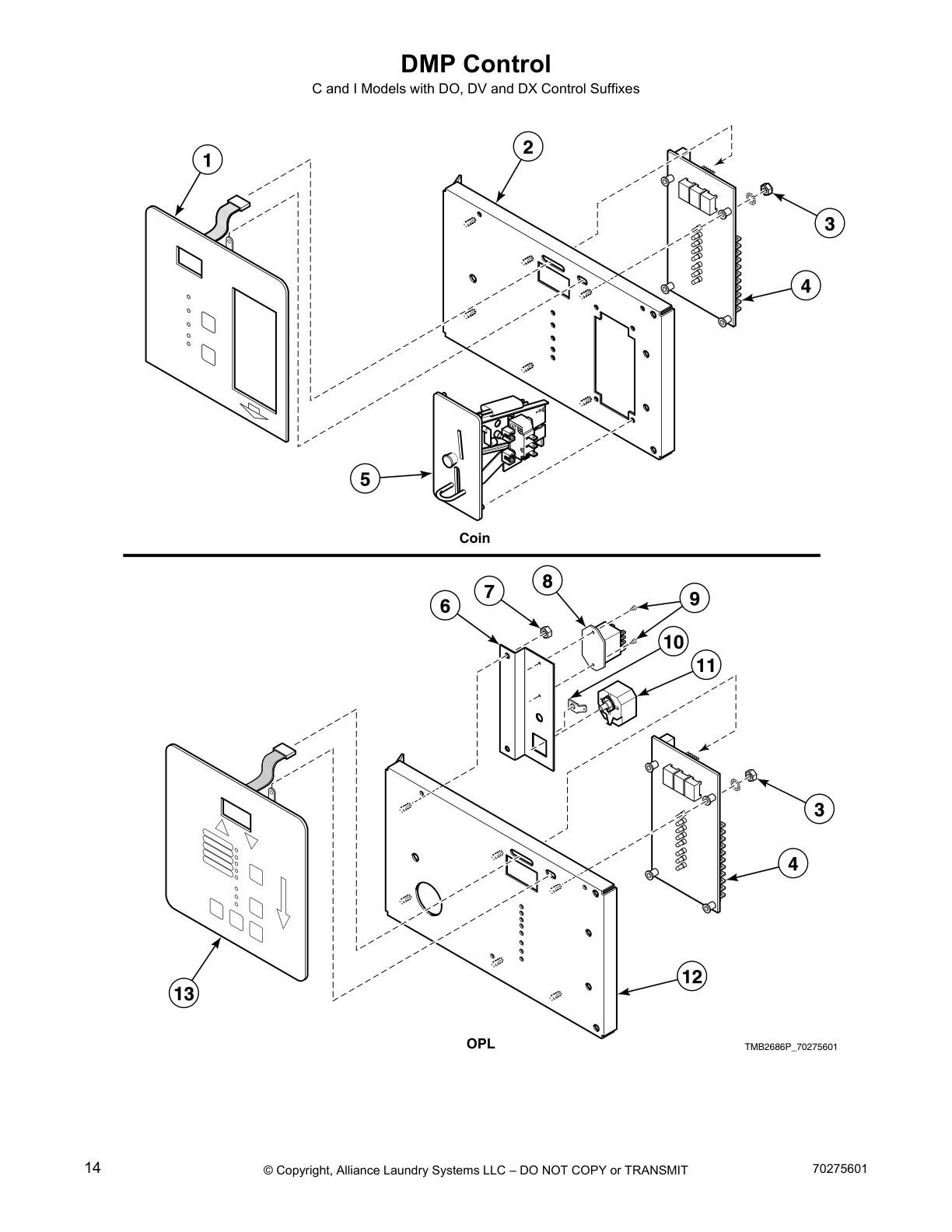

DMP Control

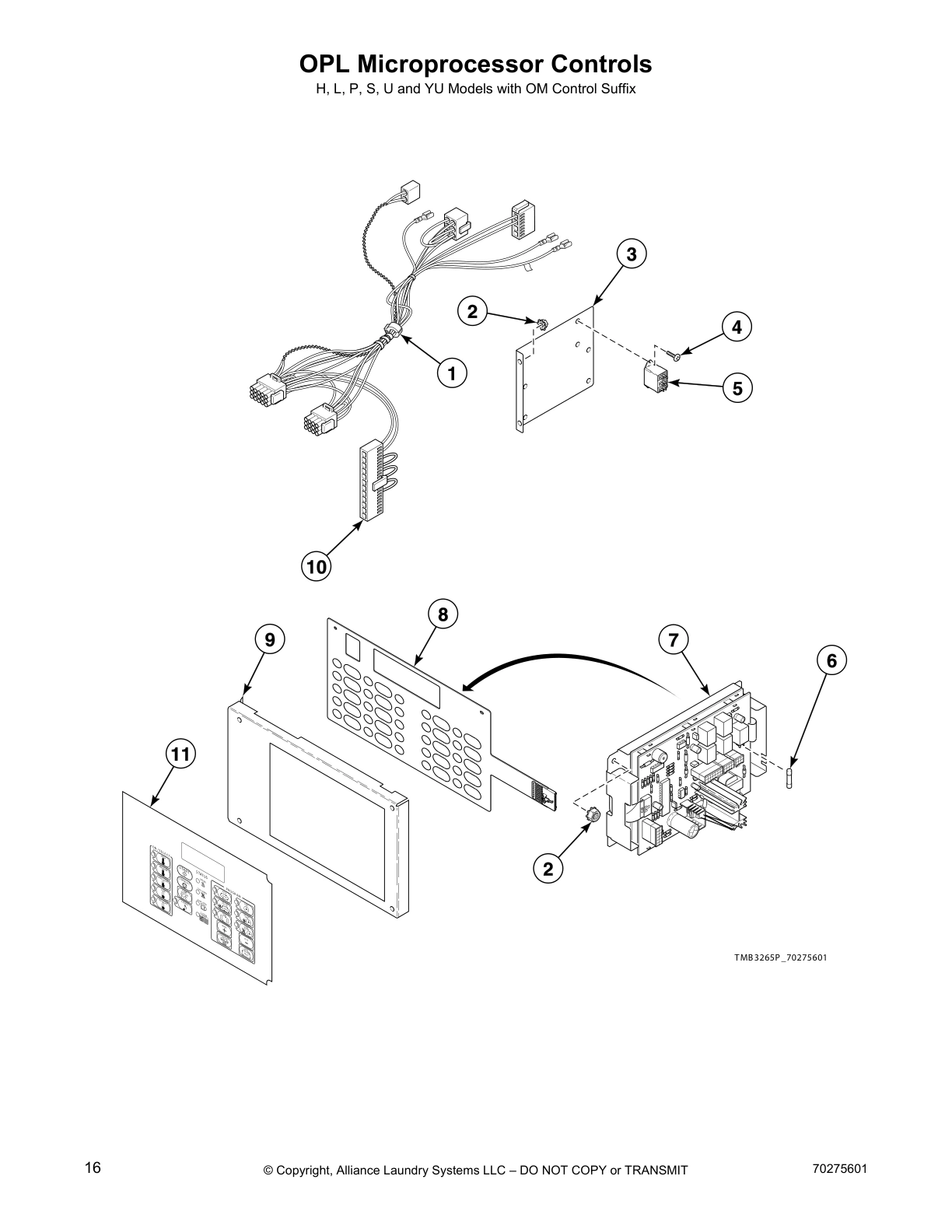

OPL Microprocessor Controls

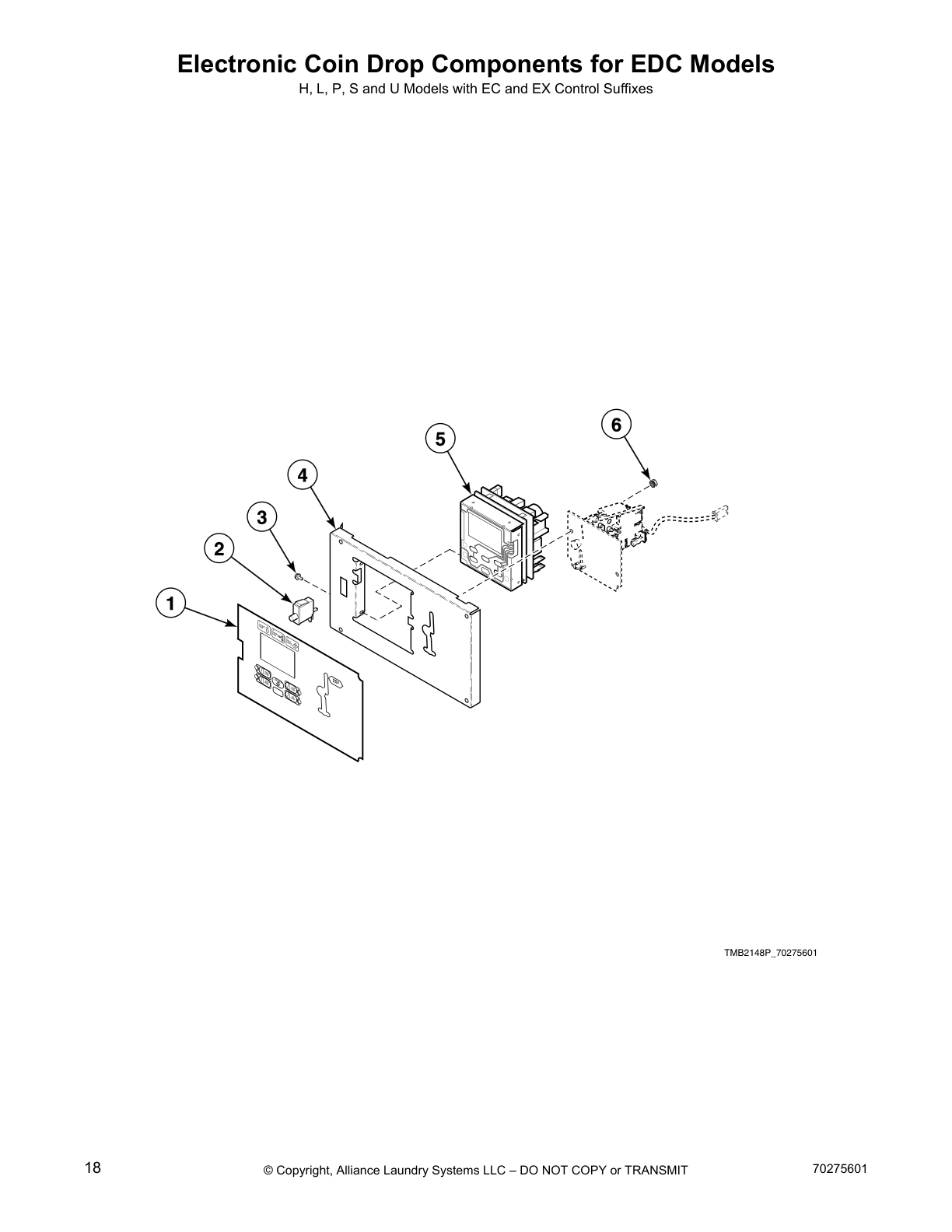

Electronic Coin Drop Components for EDC Models

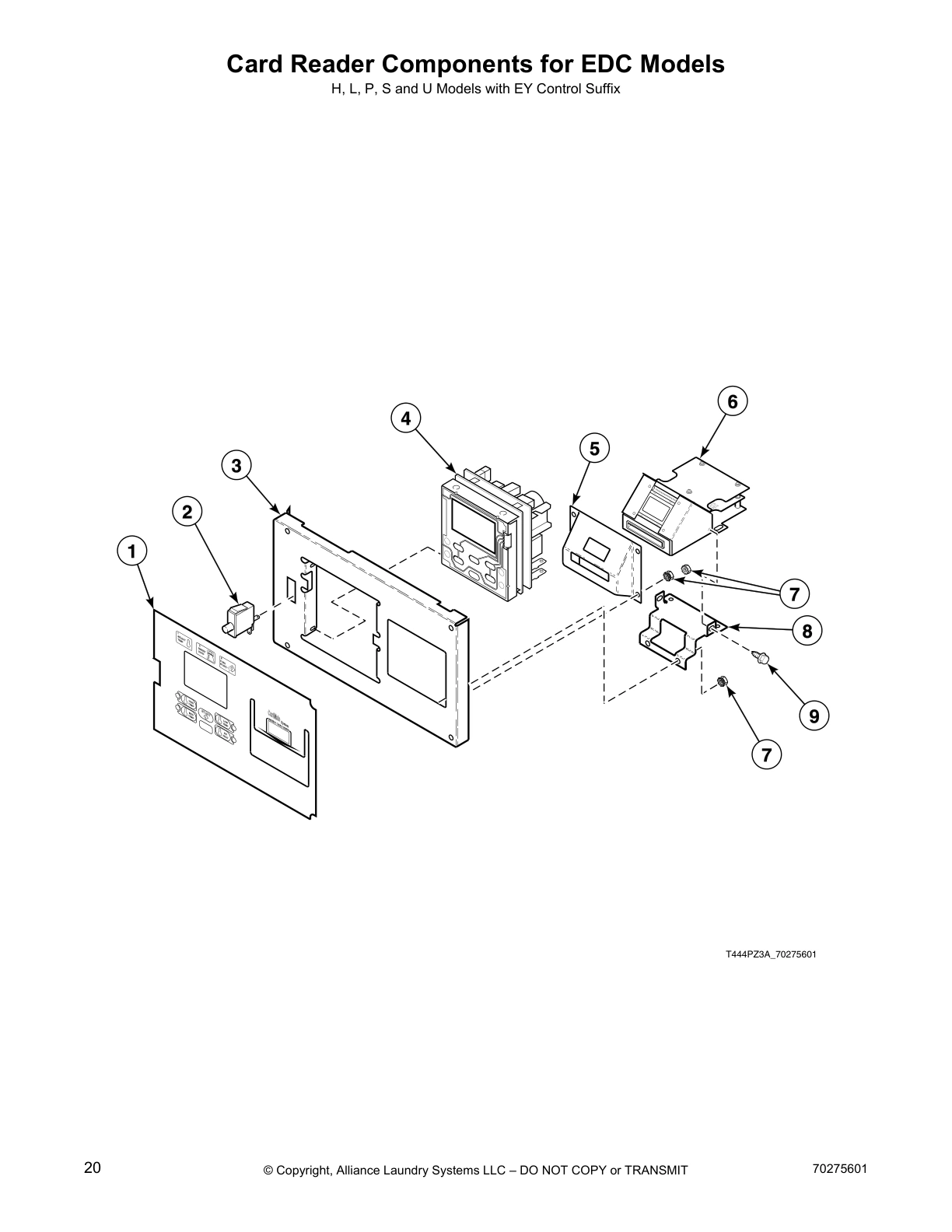

Card Reader Components for EDC Models

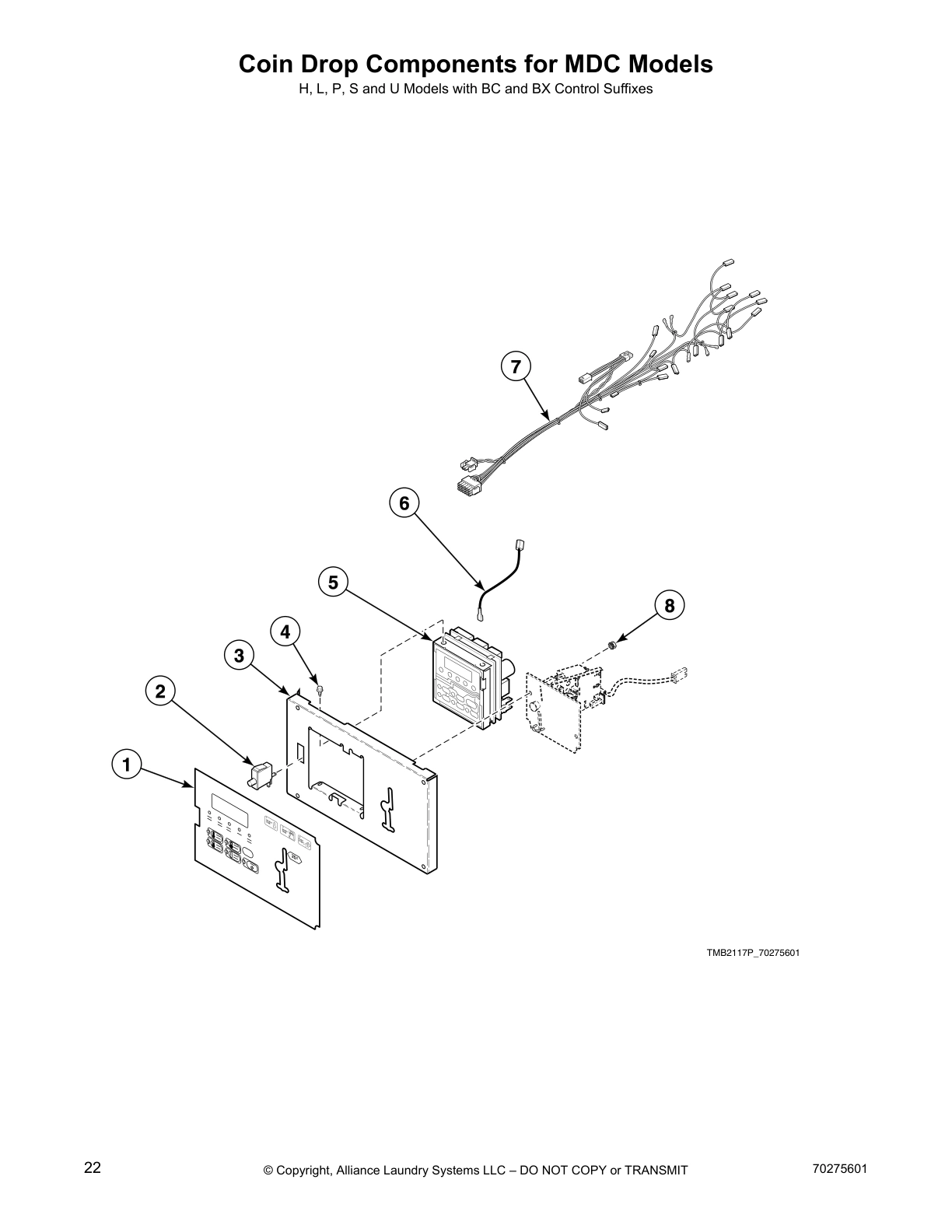

Coin Drop Components for MDC Models

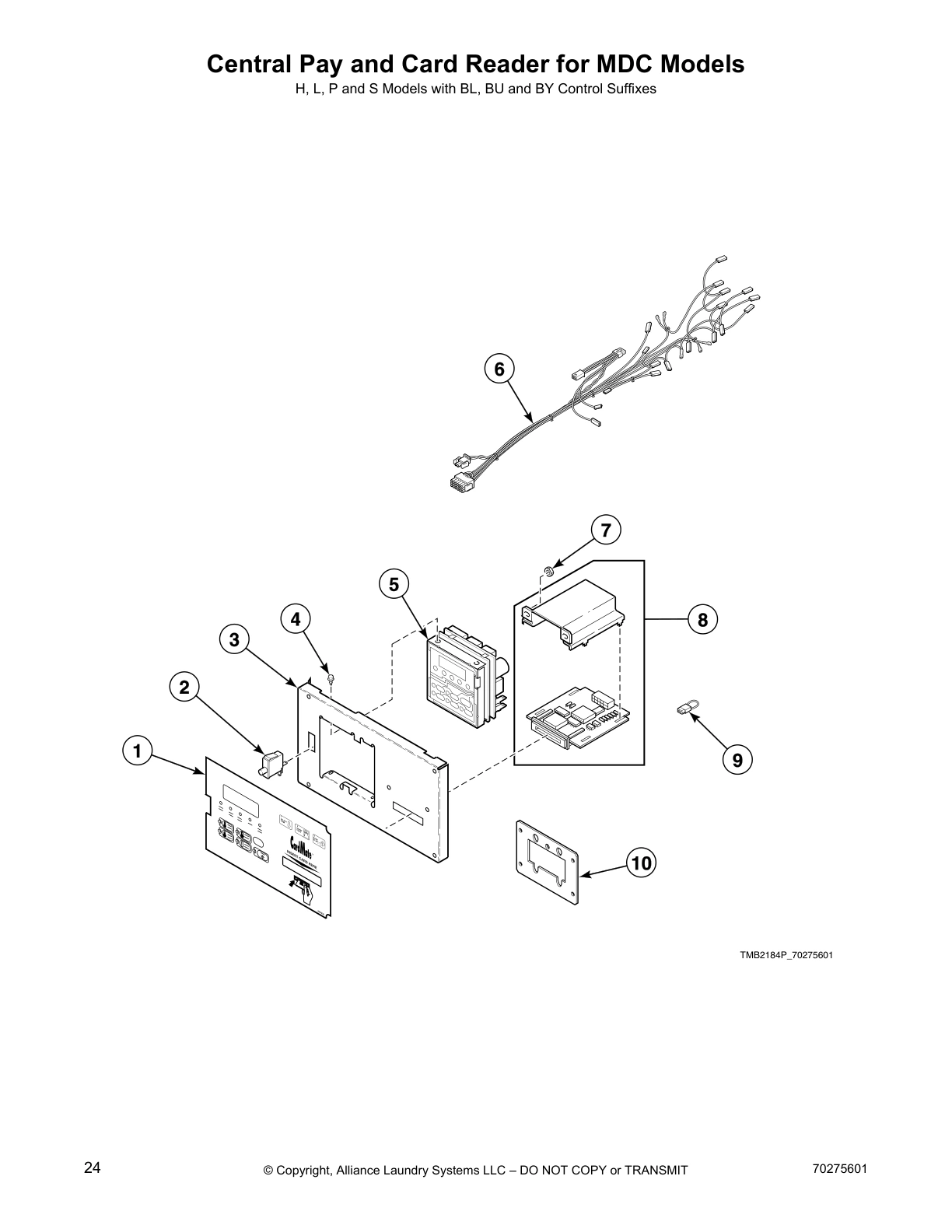

Central Pay and Card Reader for MDC Models

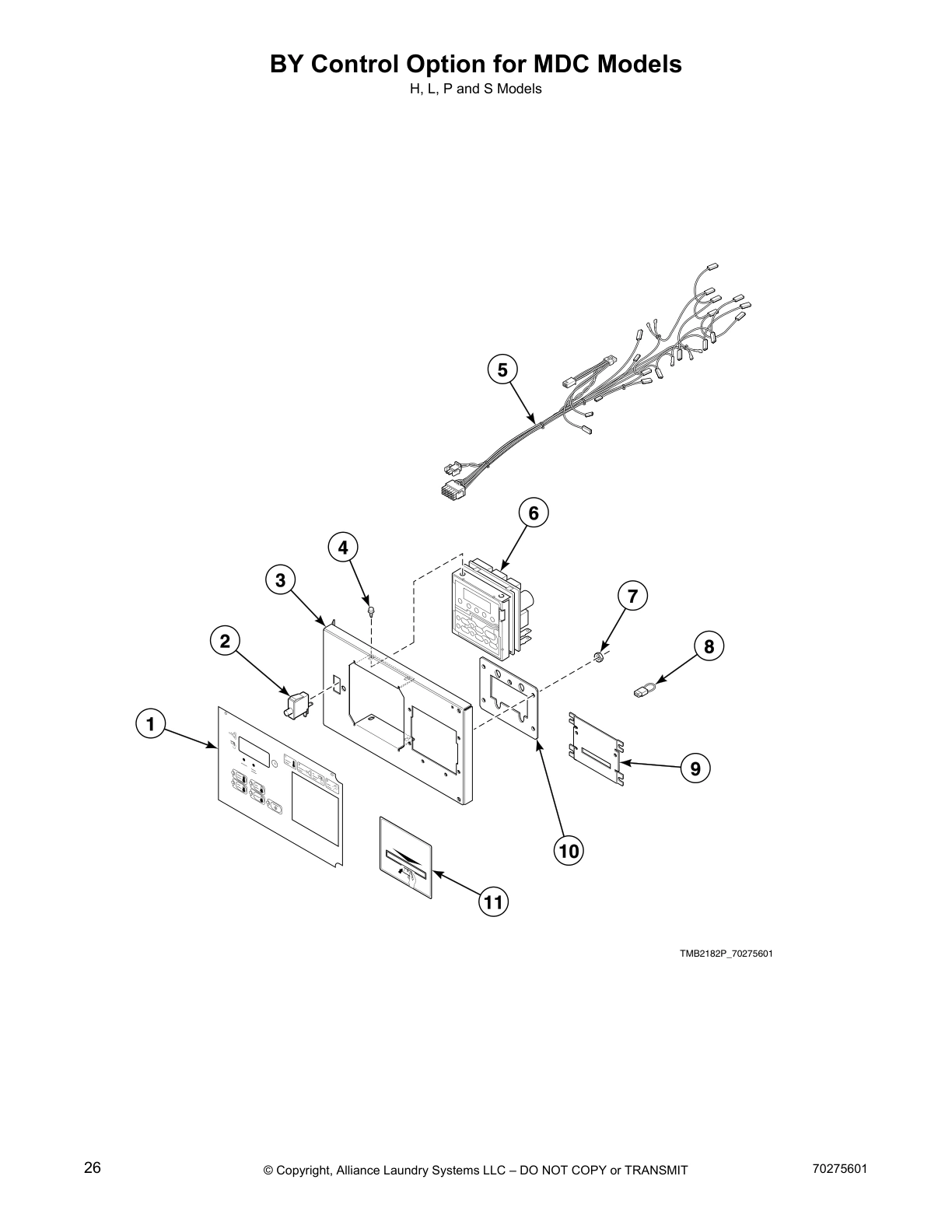

BY Control Option for MDC Models

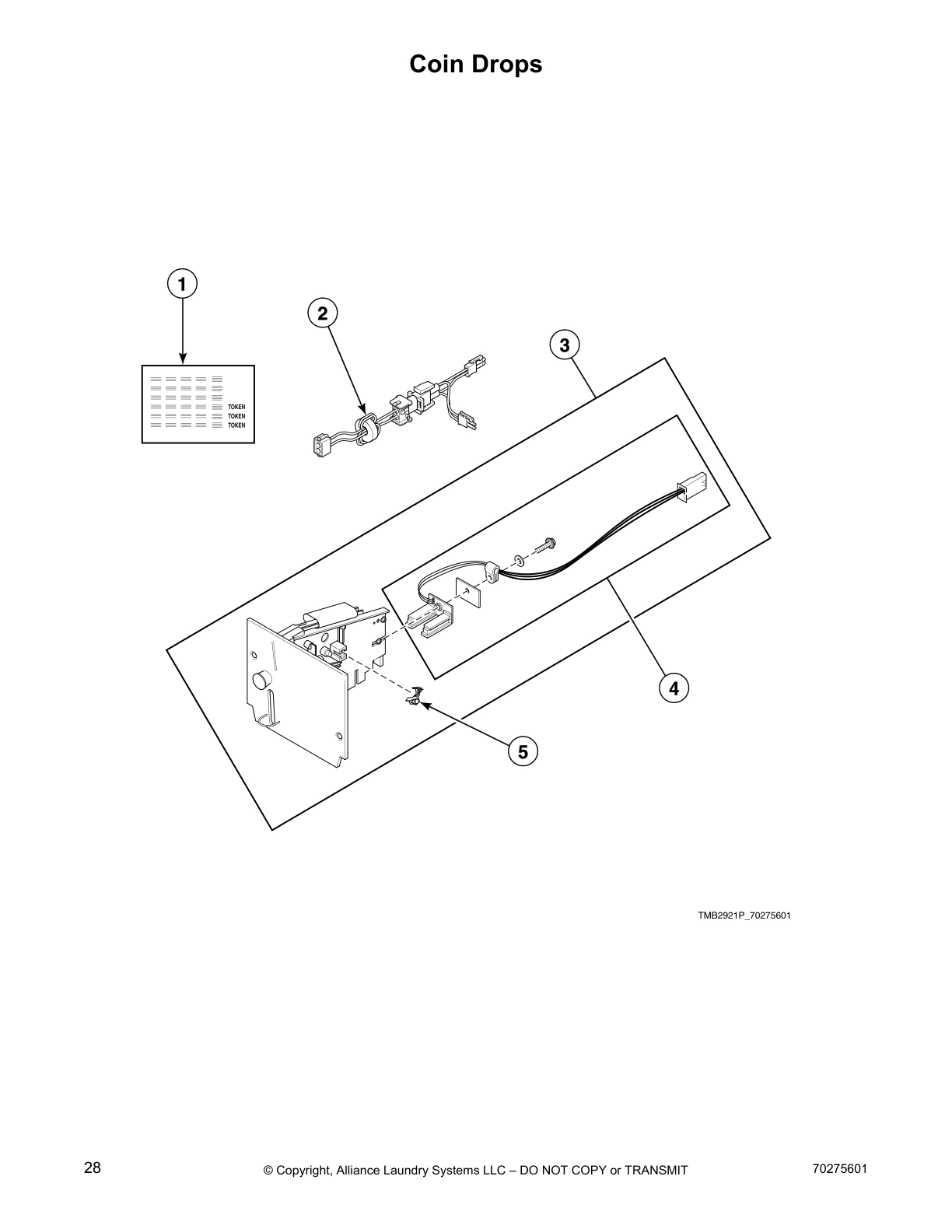

Coin Drops

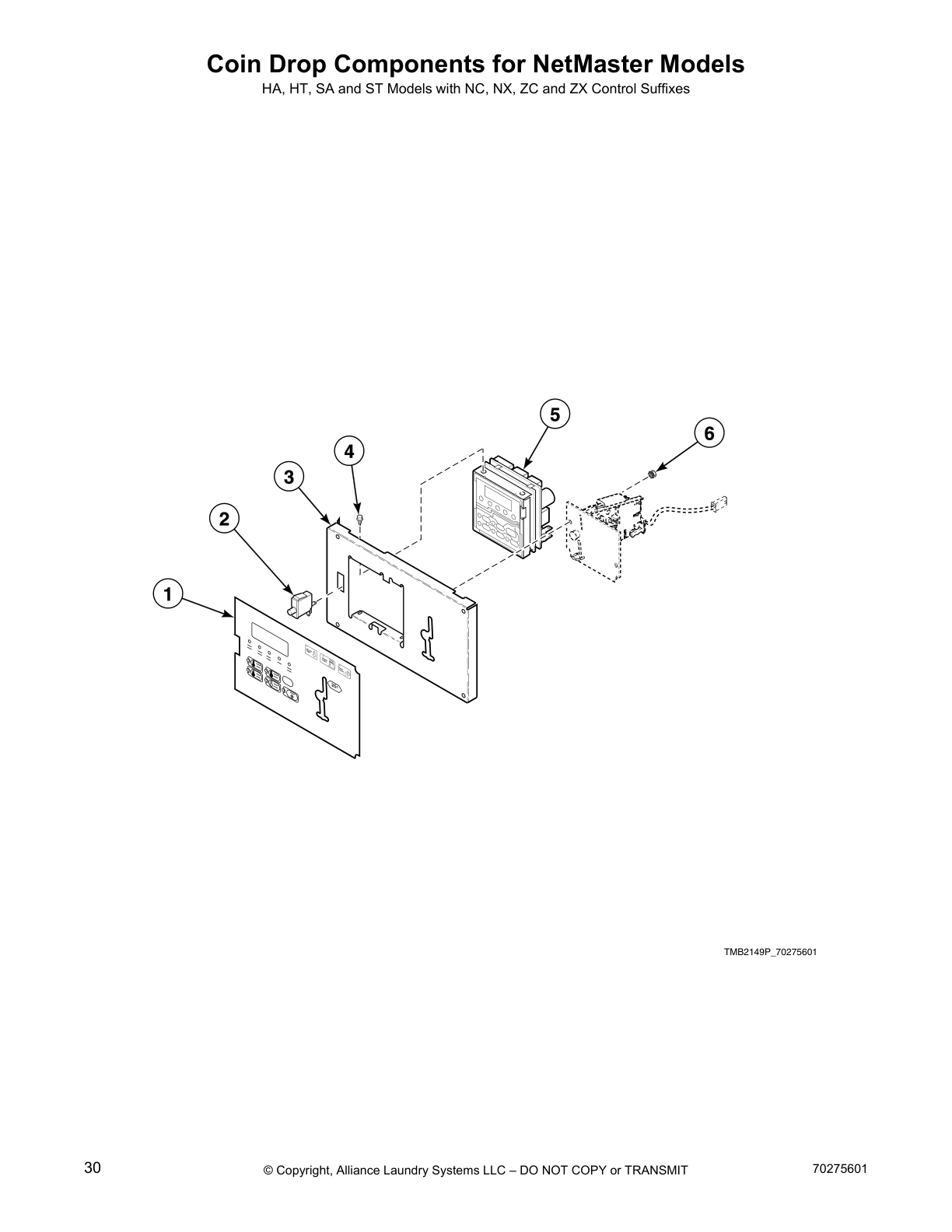

Coin Drop Components for NetMaster Models

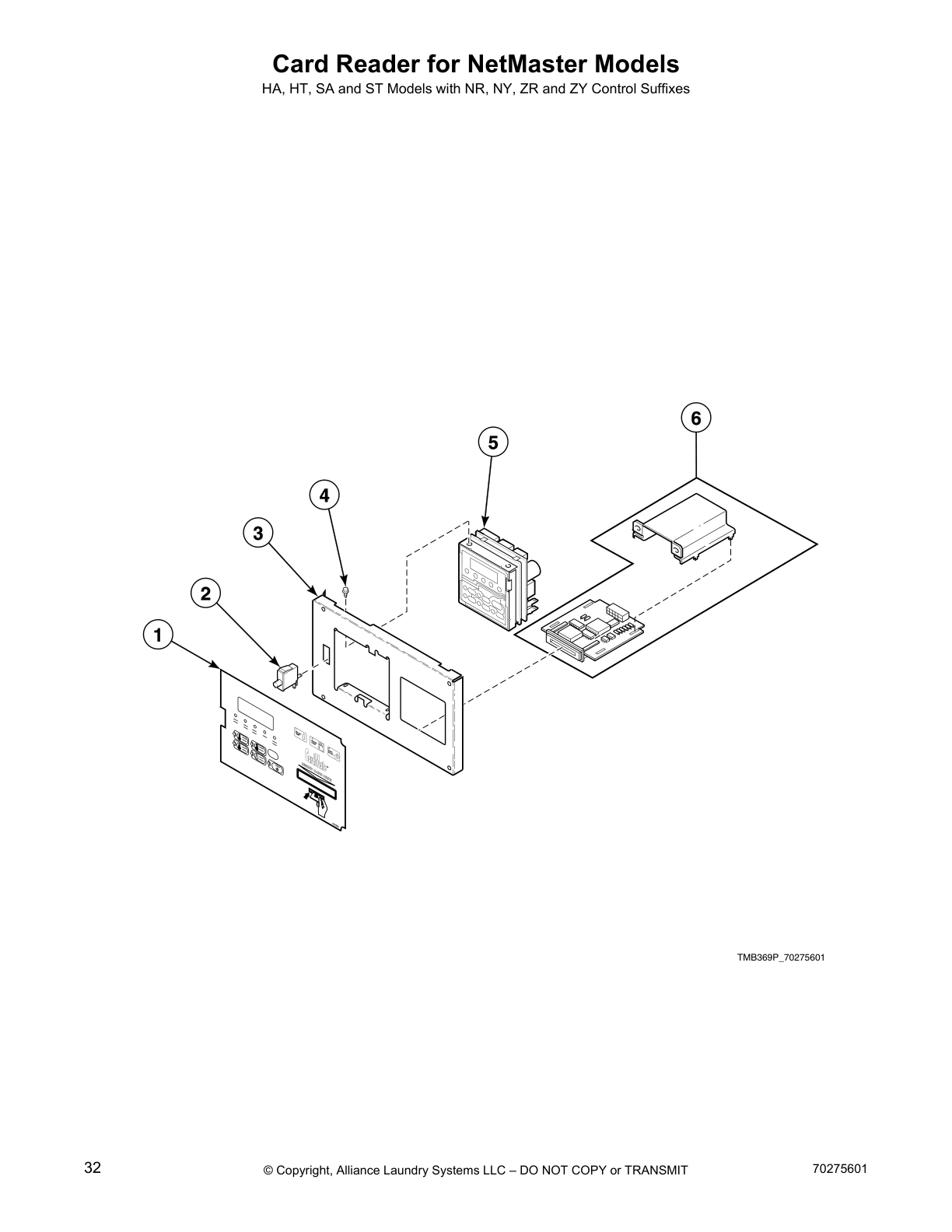

Card Reader for NetMaster Models

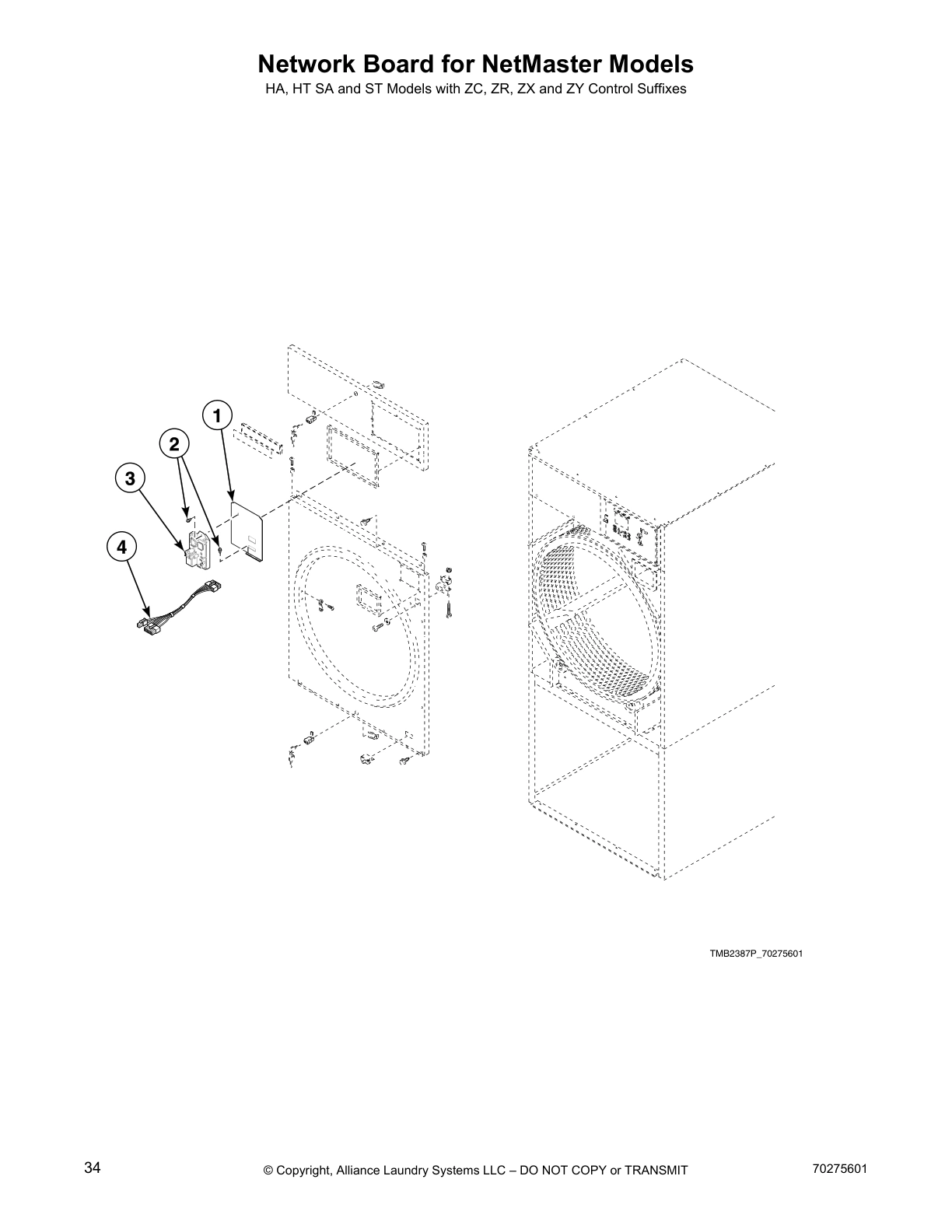

Network Board for NetMaster Models

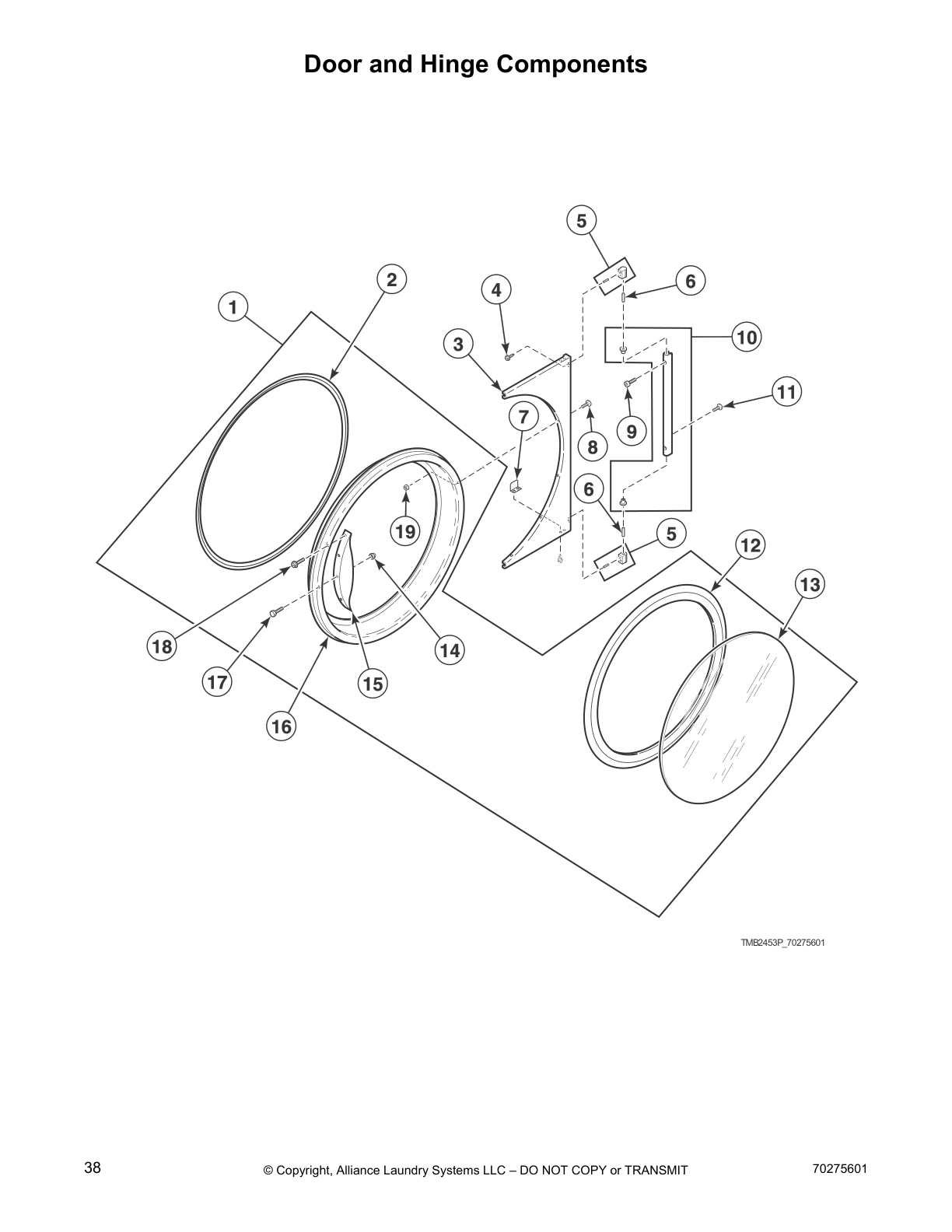

Door and Hinge Components

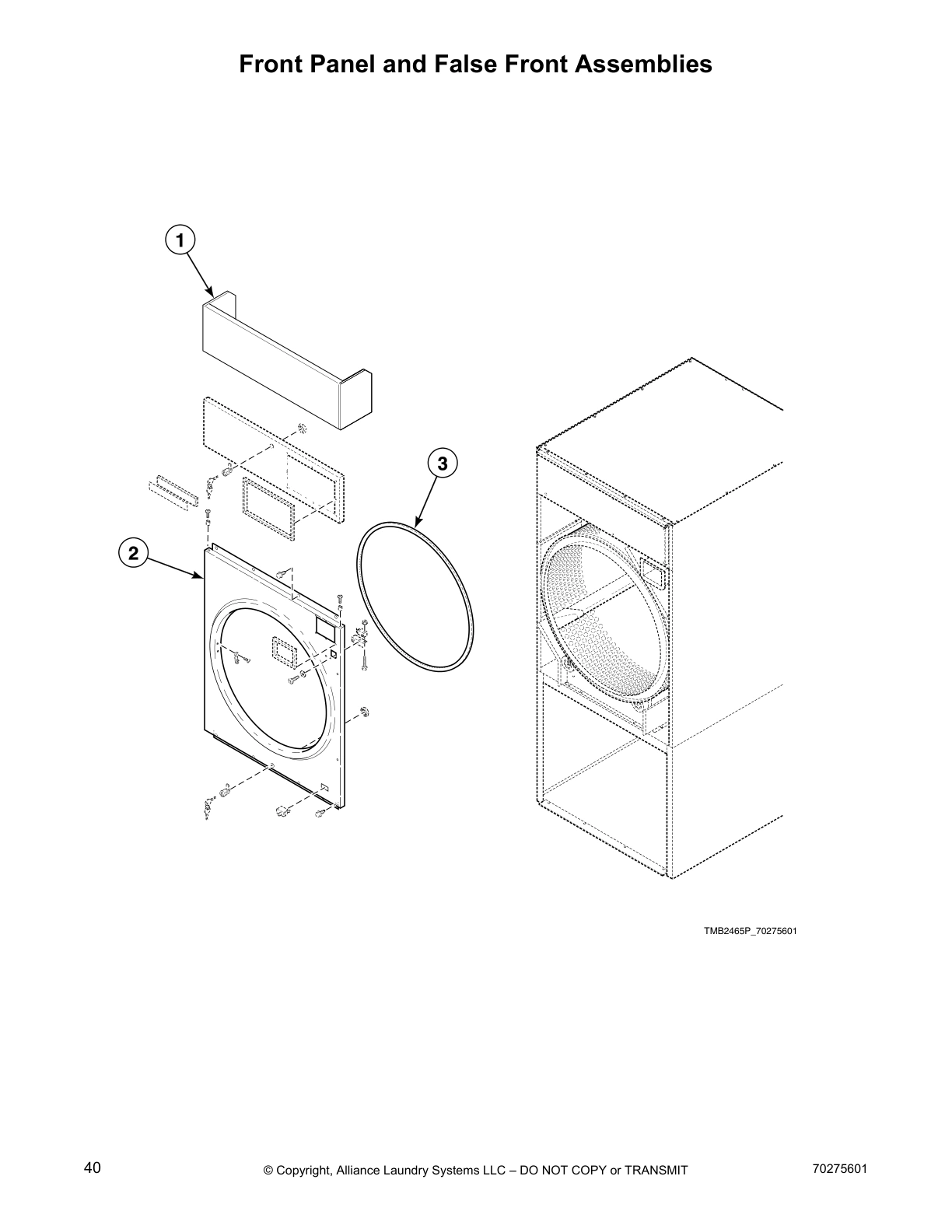

Front Panel and False Front Assemblies

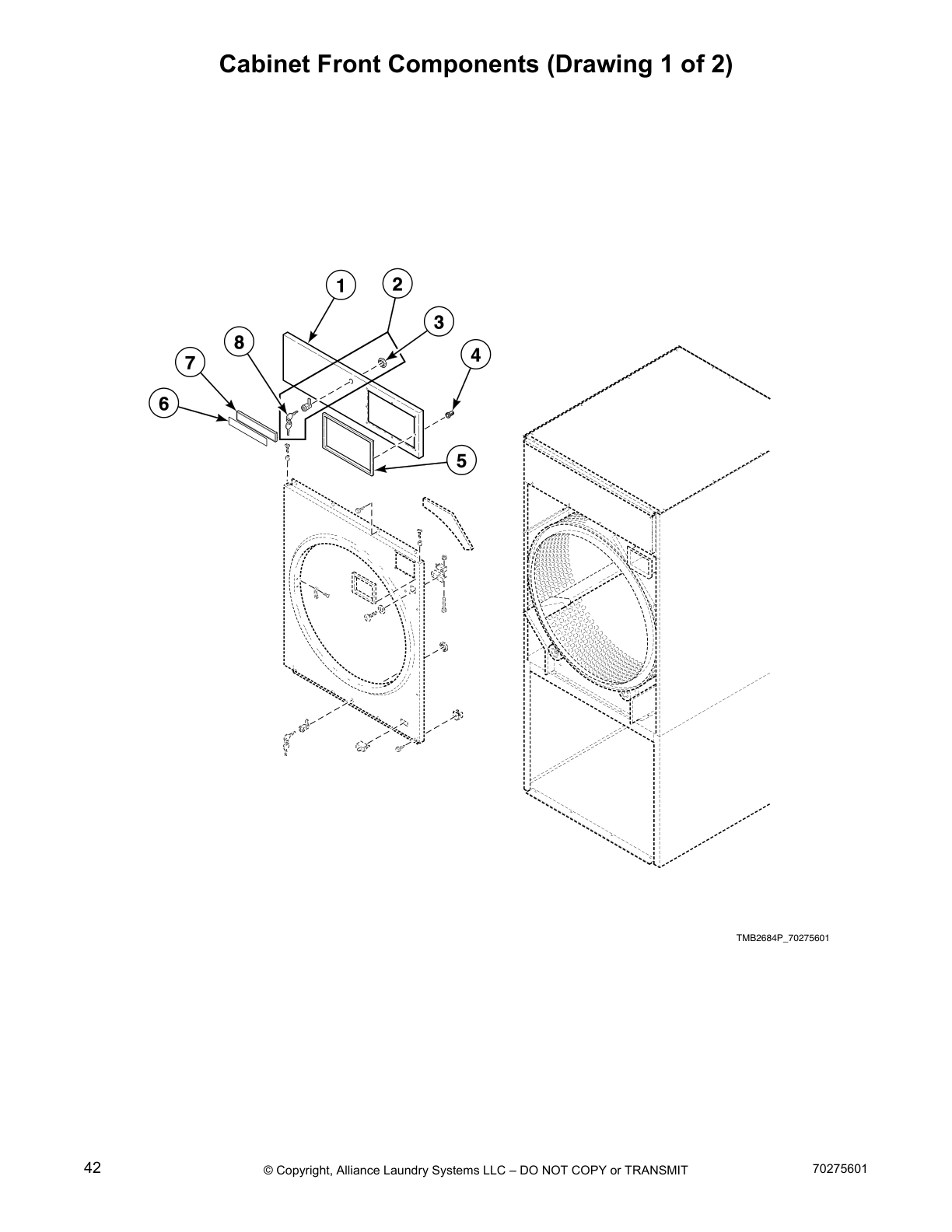

Cabinet Front Components (Drawing 1 of 2)

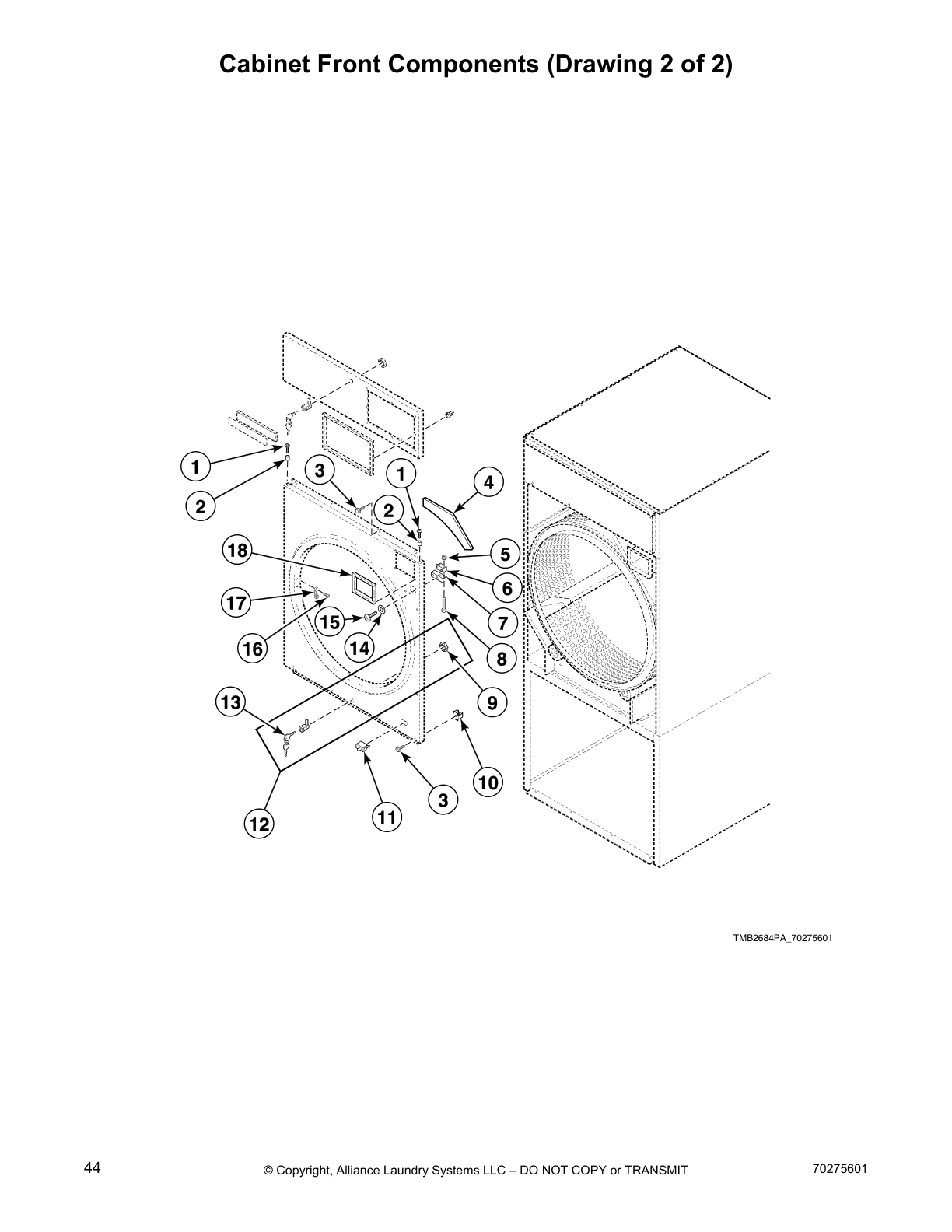

Cabinet Front Components (Drawing 2 of 2)

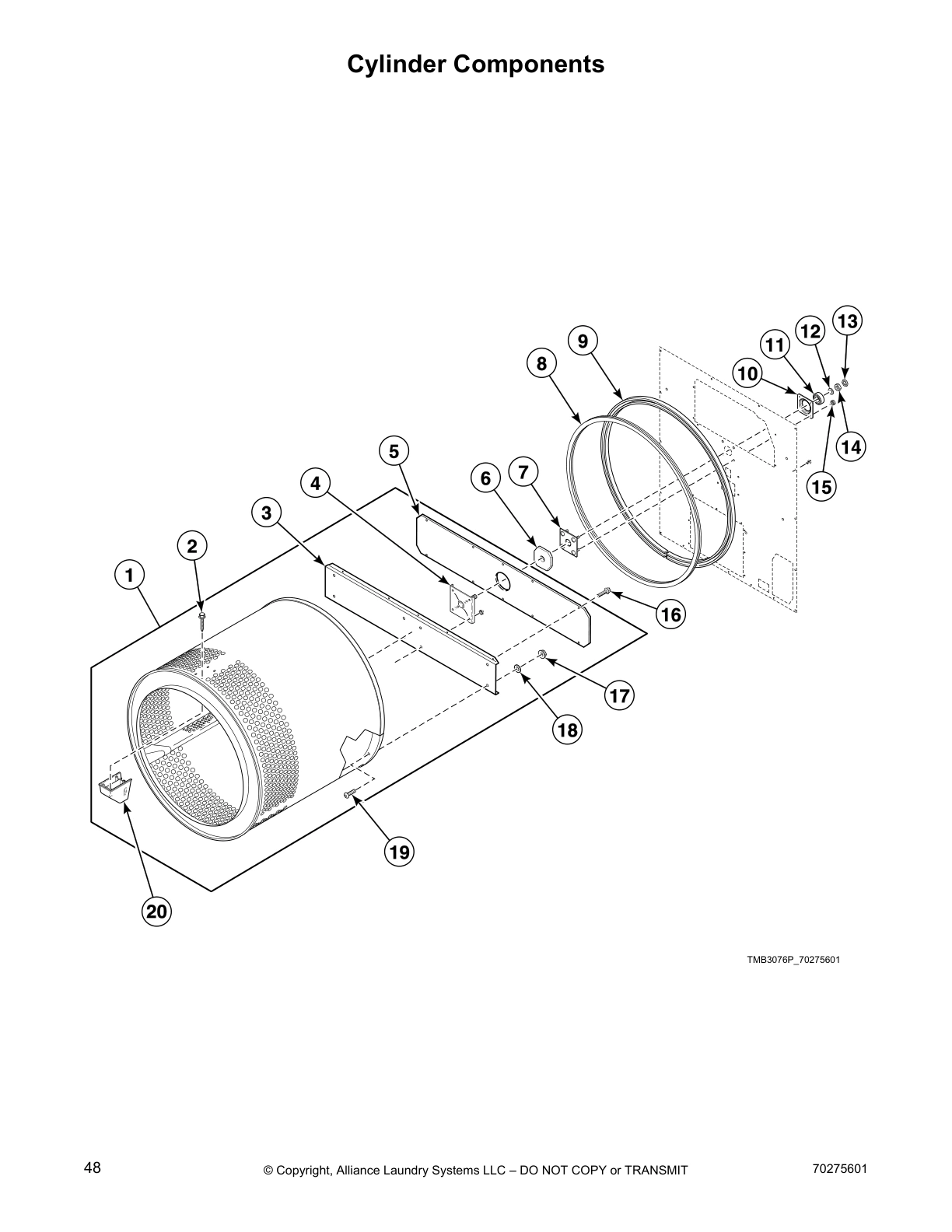

Cylinder Components

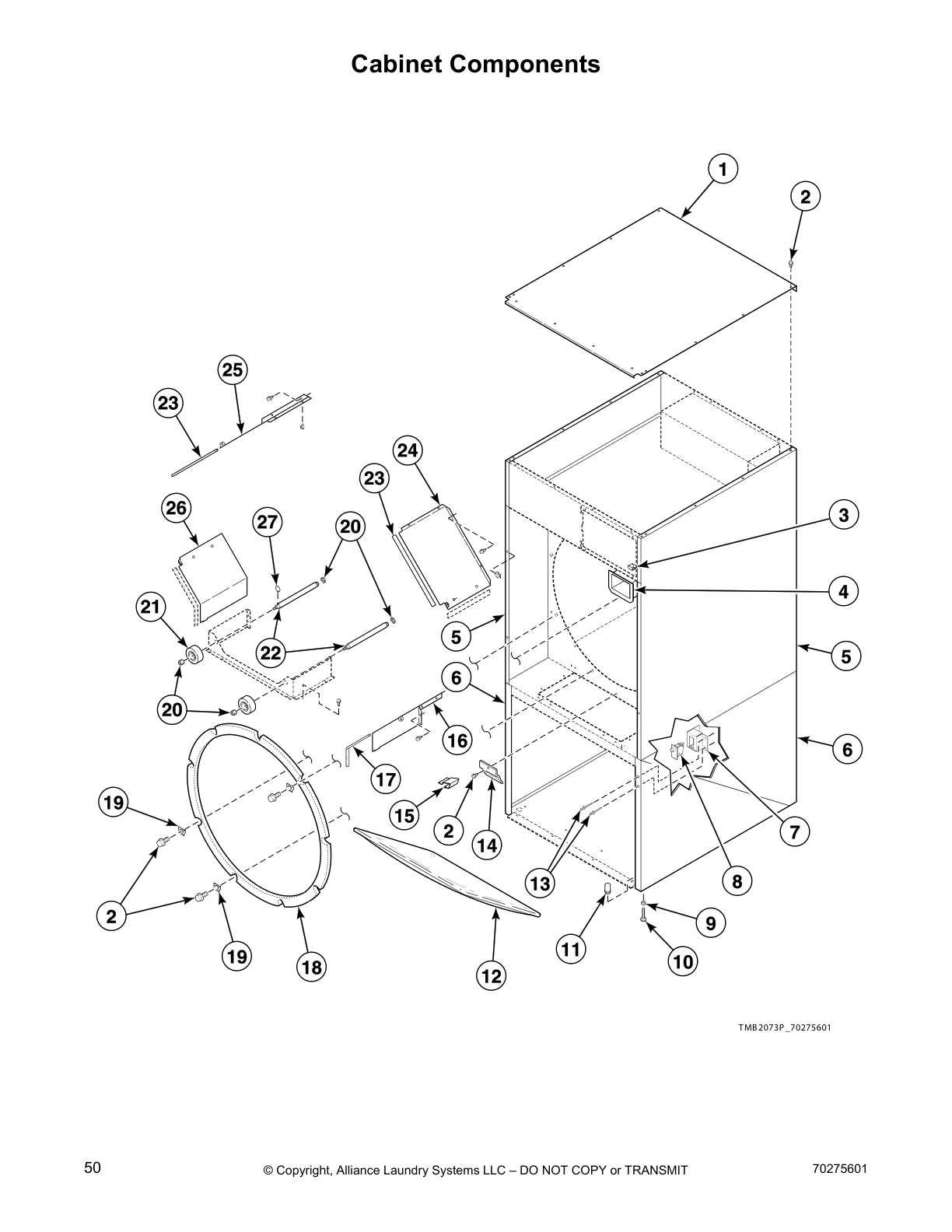

Cabinet Components

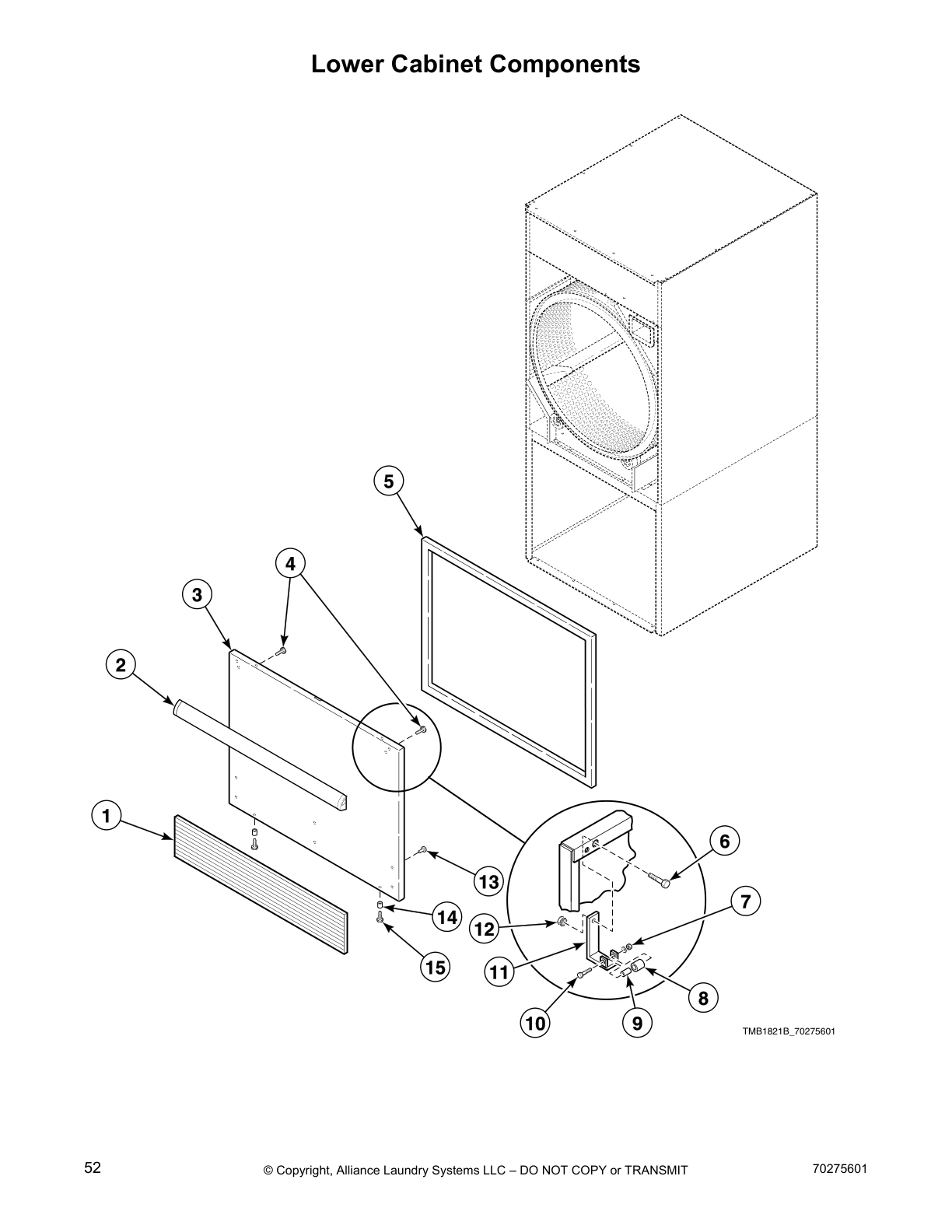

Lower Cabinet Components

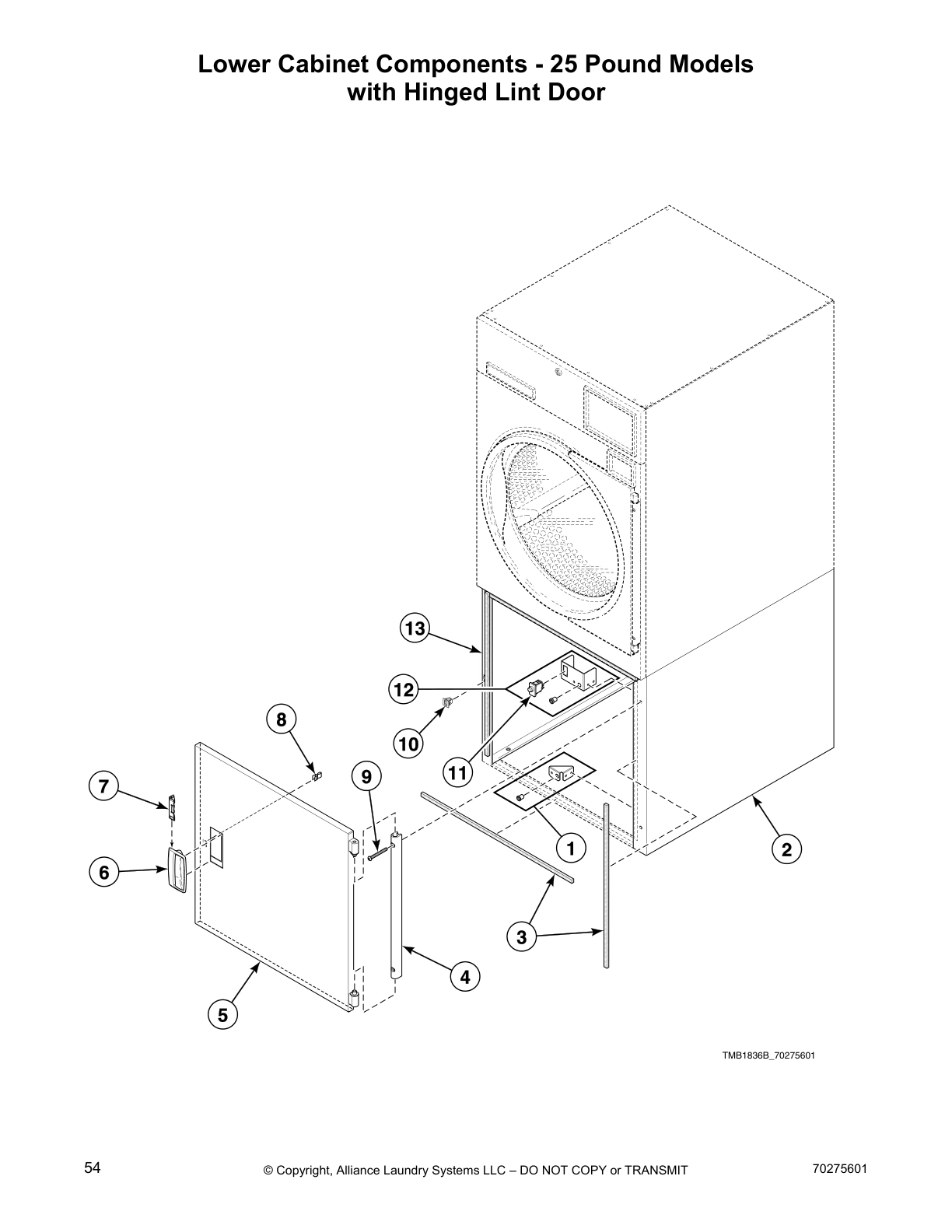

Lower Cabinet Components - 25 Pound Models
with Hinged Lint Door

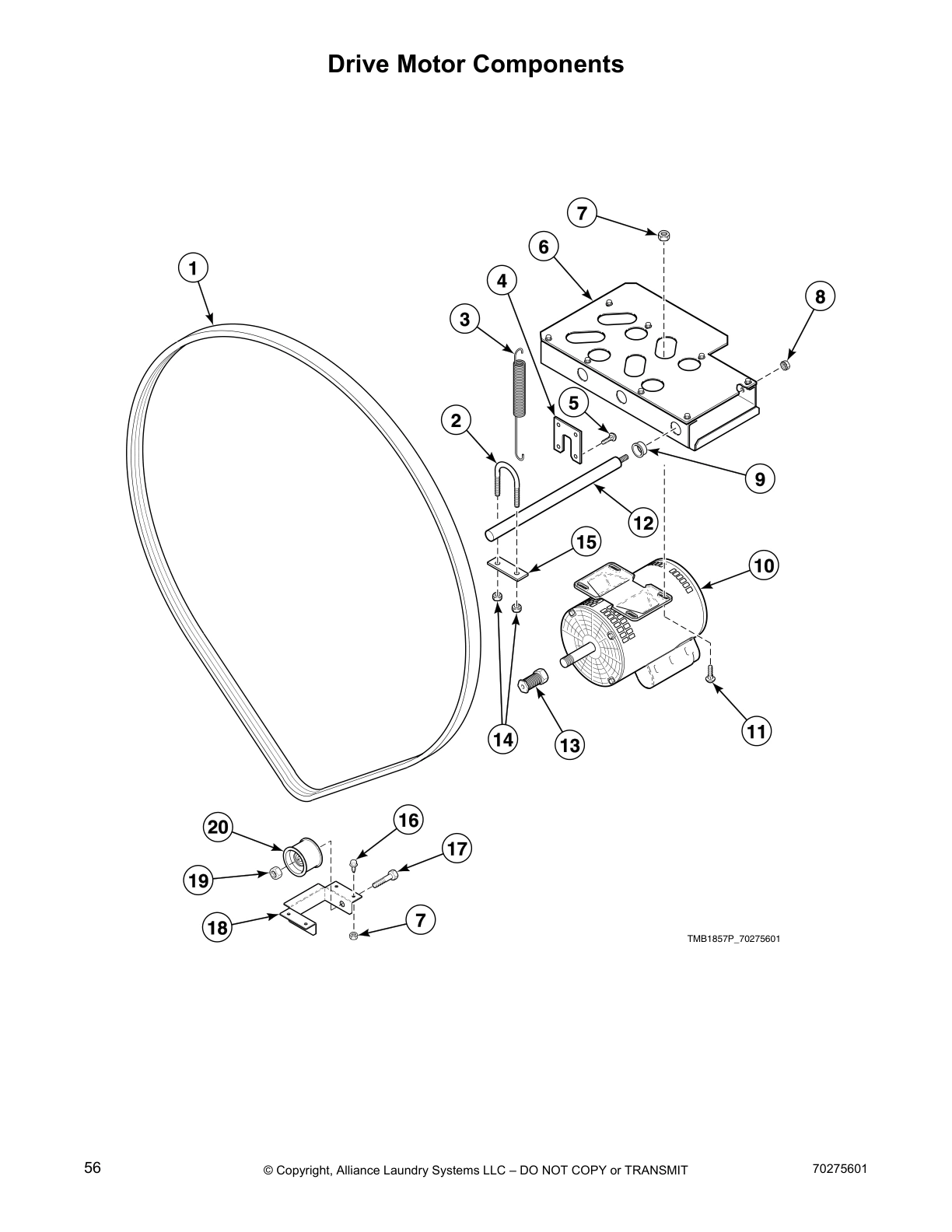

Drive Motor Components

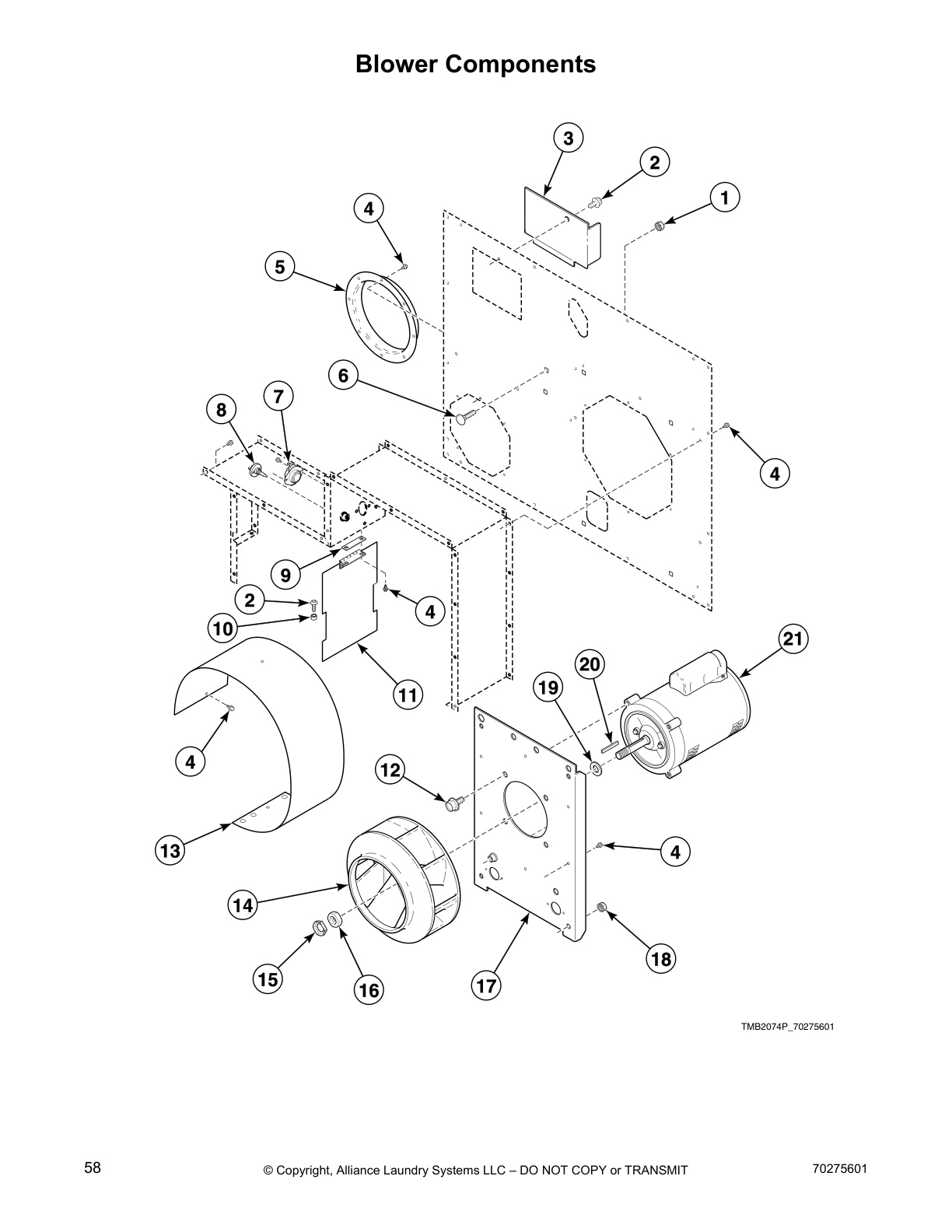

Blower Components

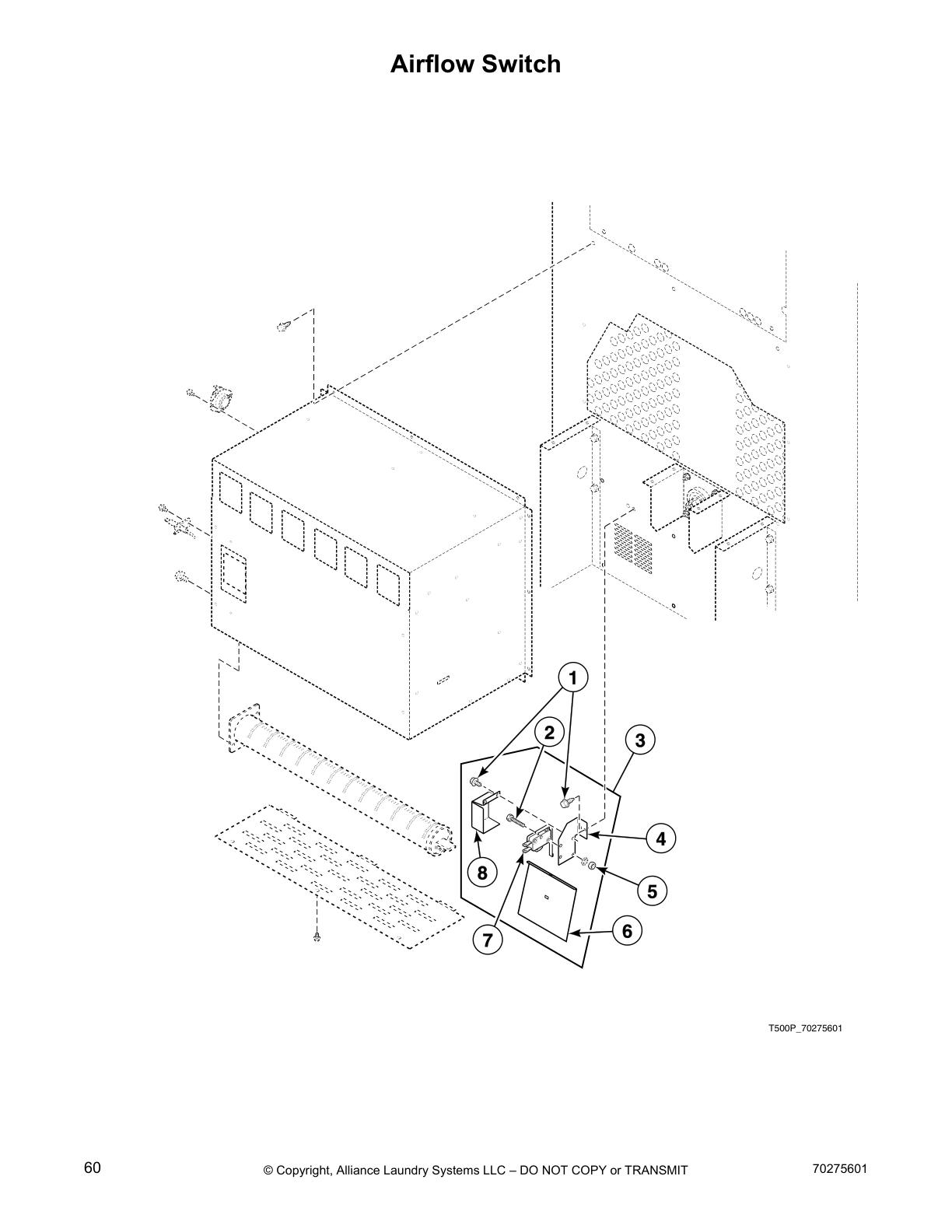

Airflow Switch

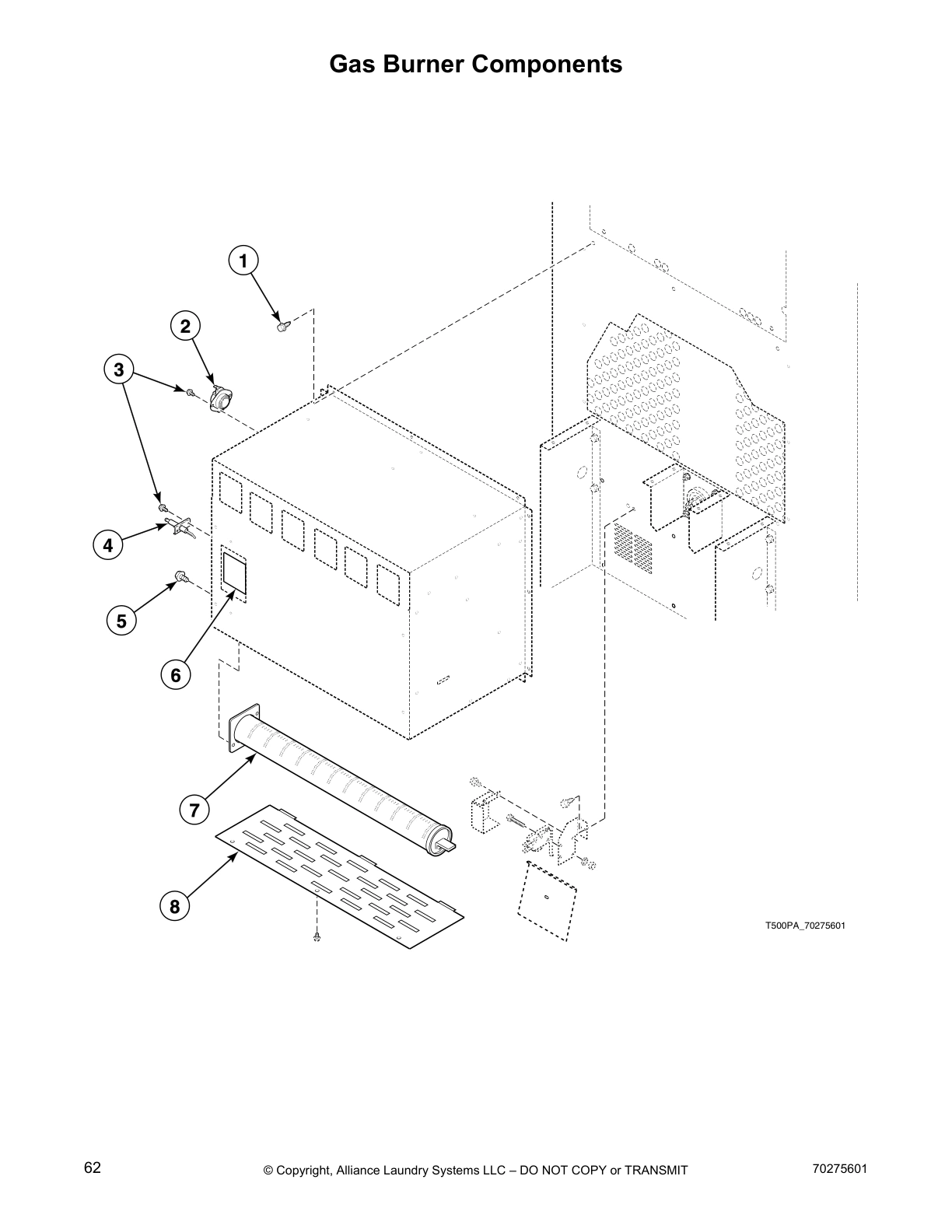

Gas Burner Components

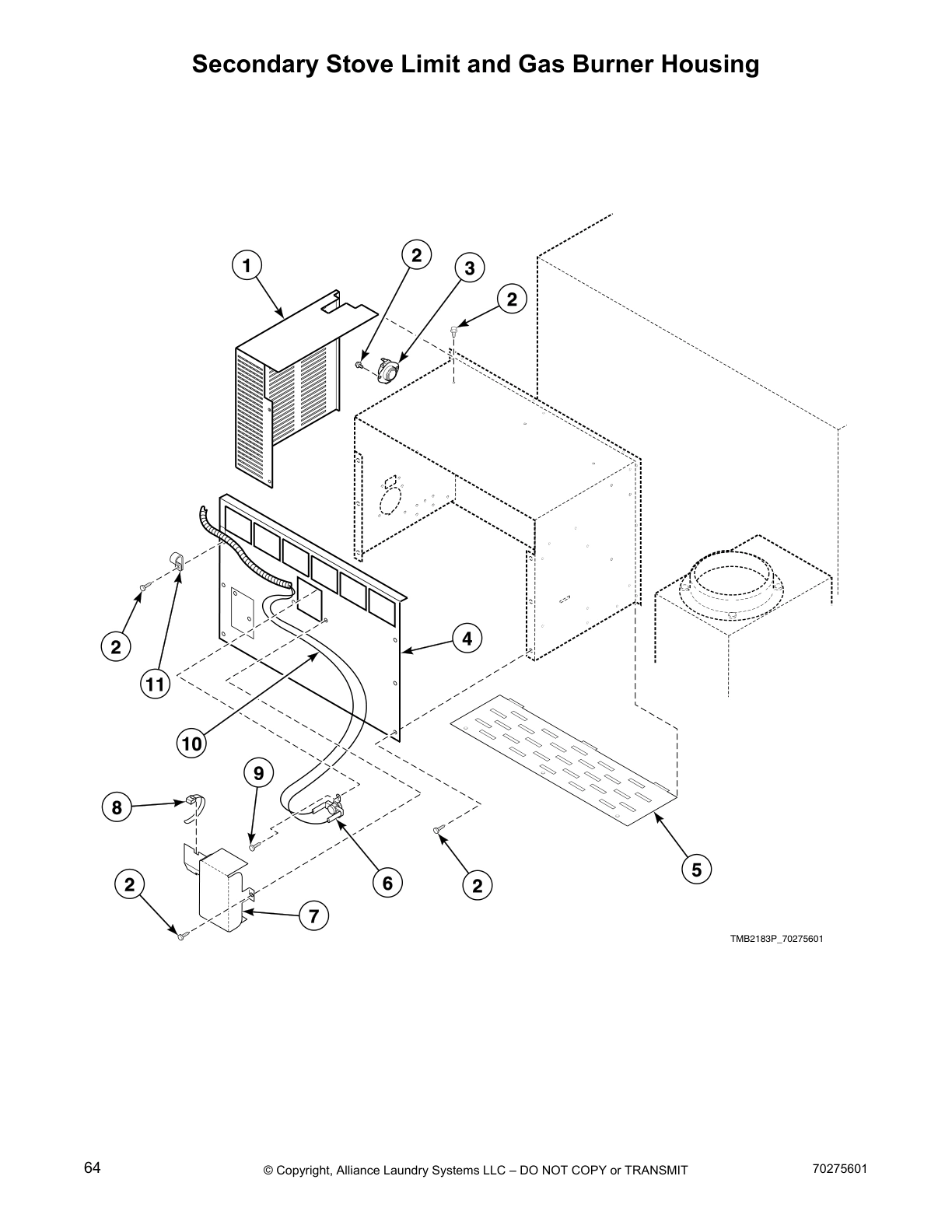

Secondary Stove Limit and Gas Burner Housing

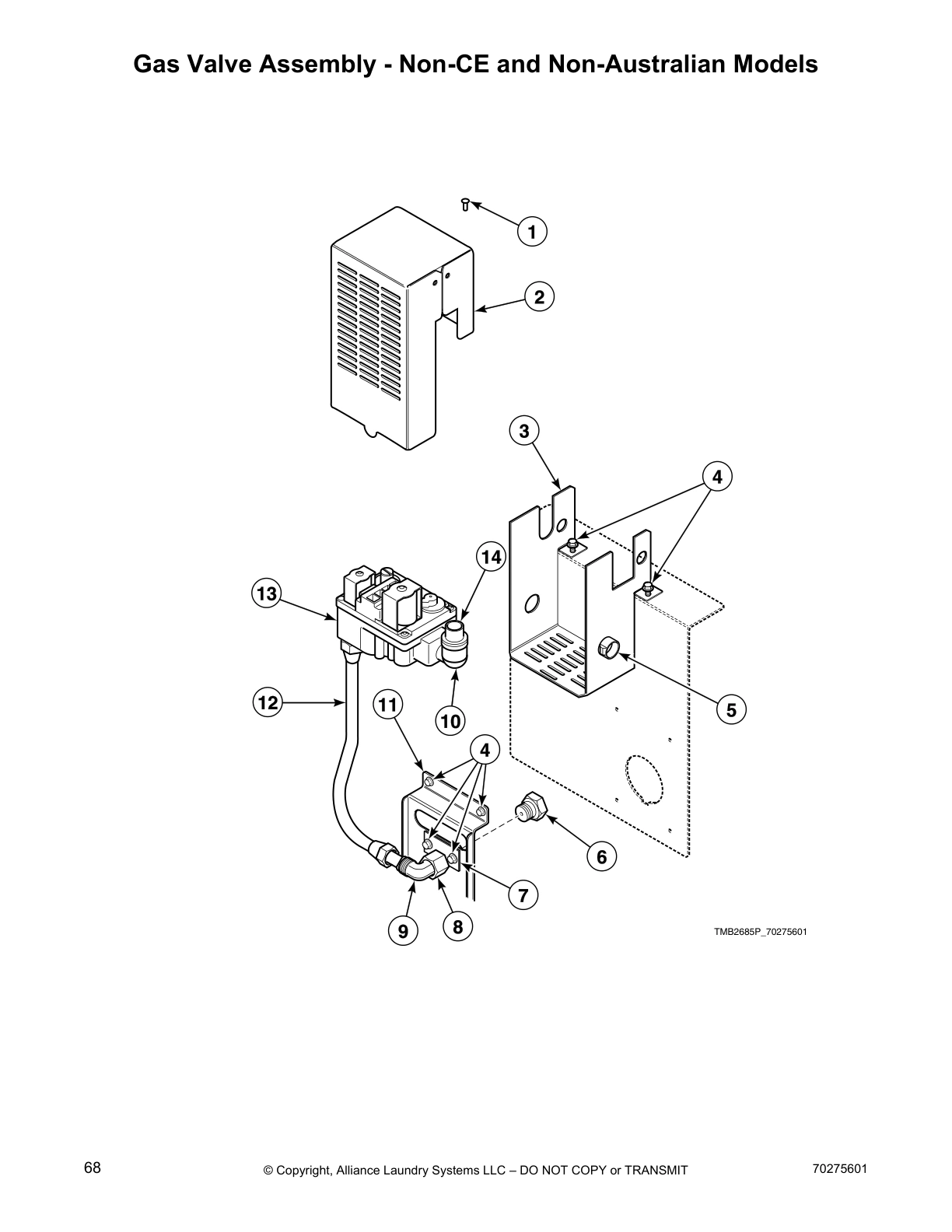

Gas Valve Assembly - Non-CE and Non-Australian Models

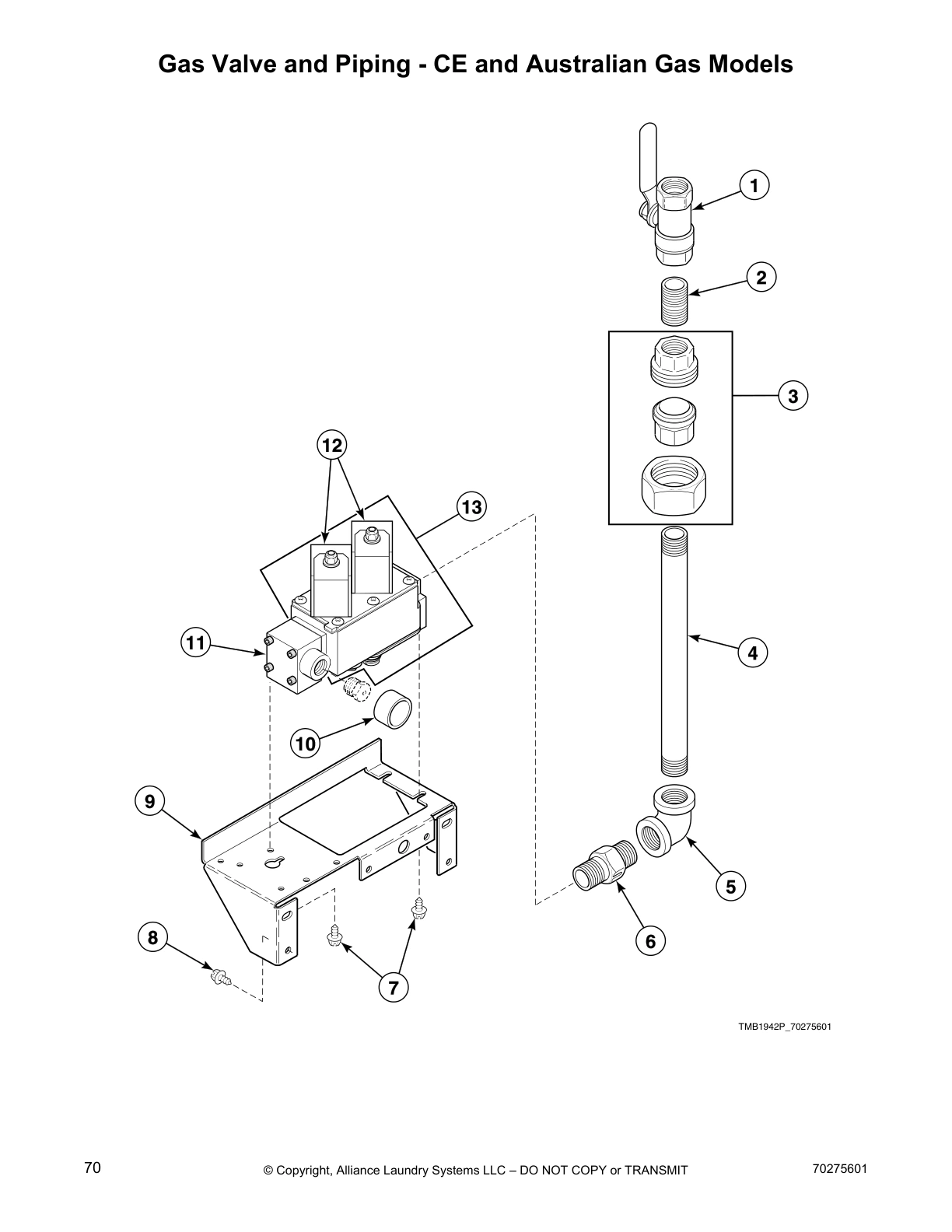

Gas Valve and Piping - CE and Australian Gas Models

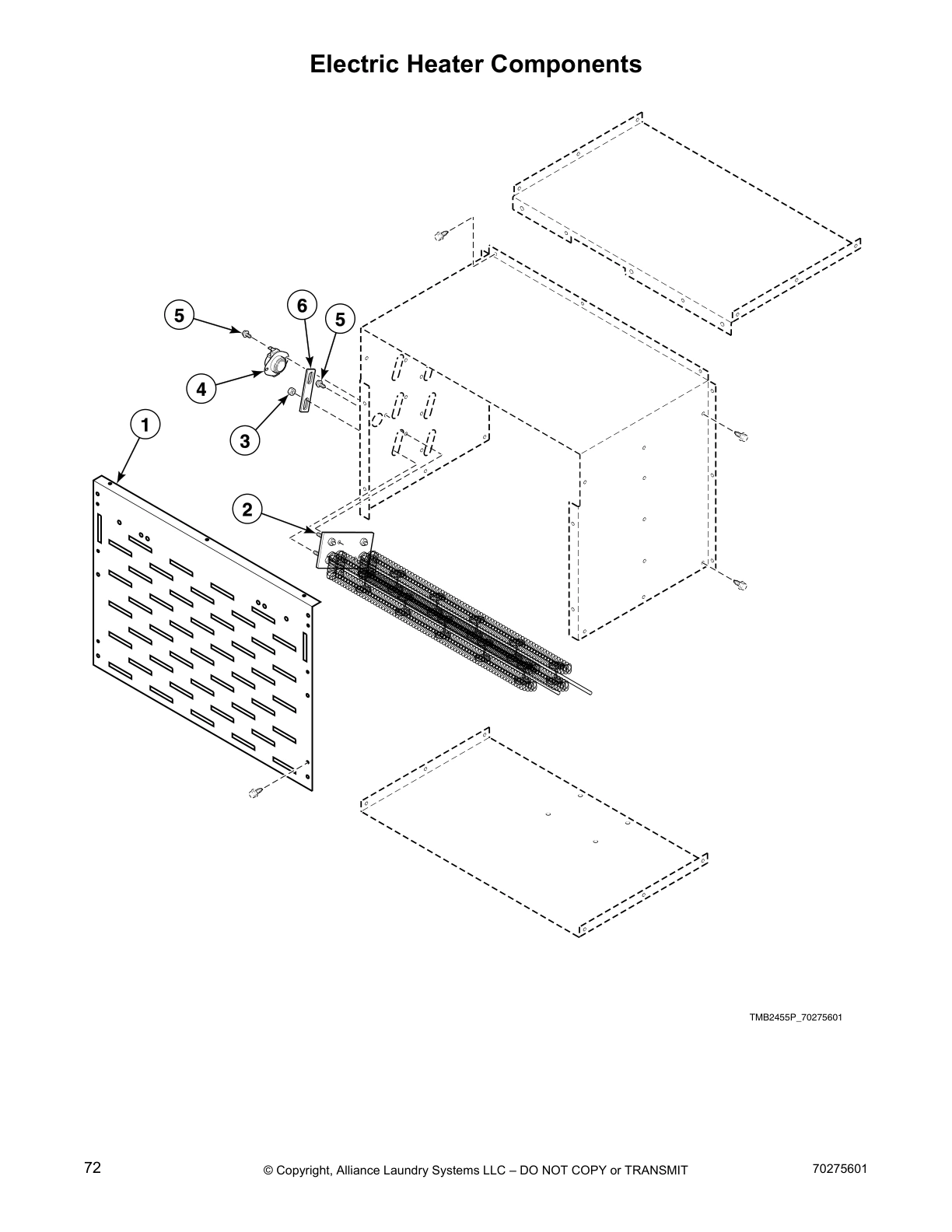

Electric Heater Components

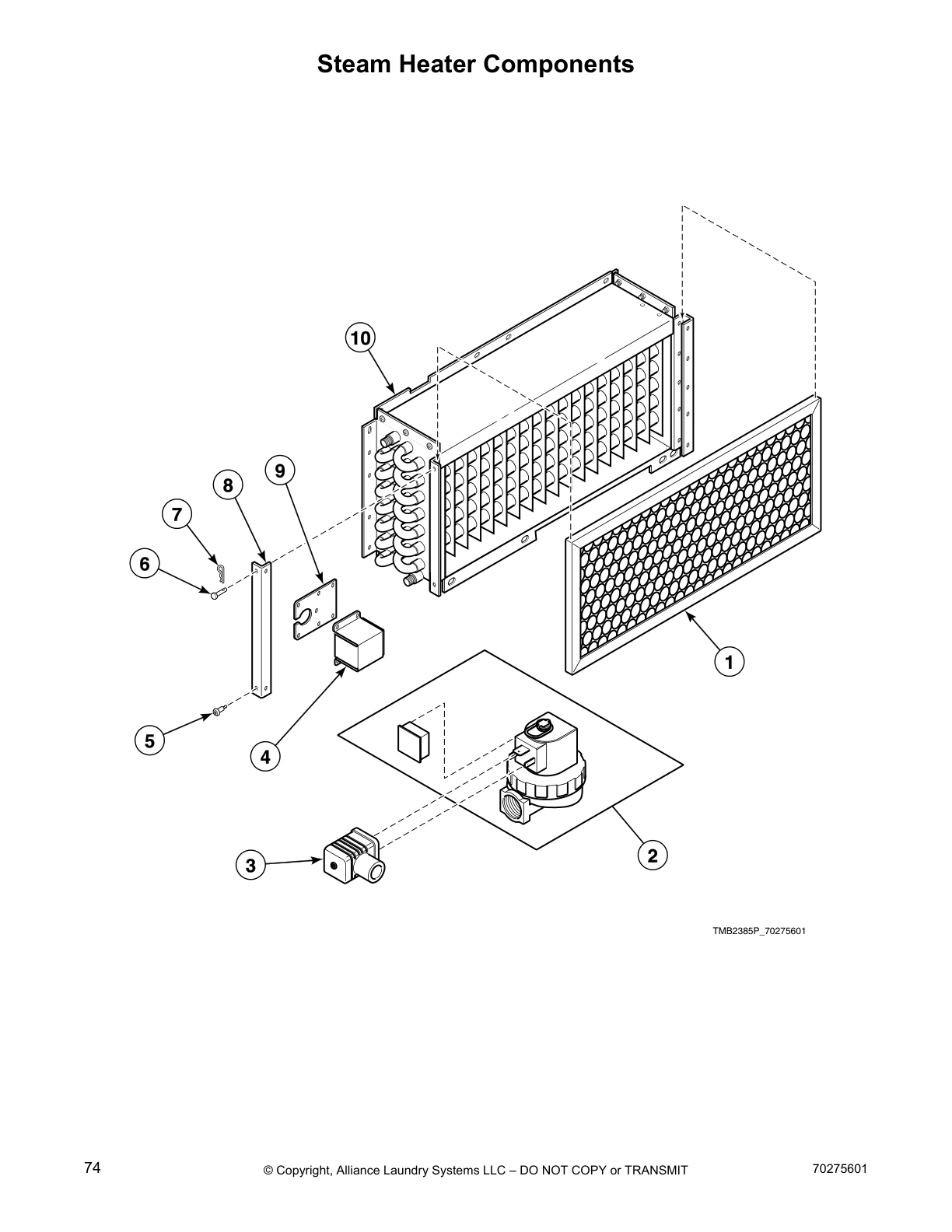

Steam Heater Components

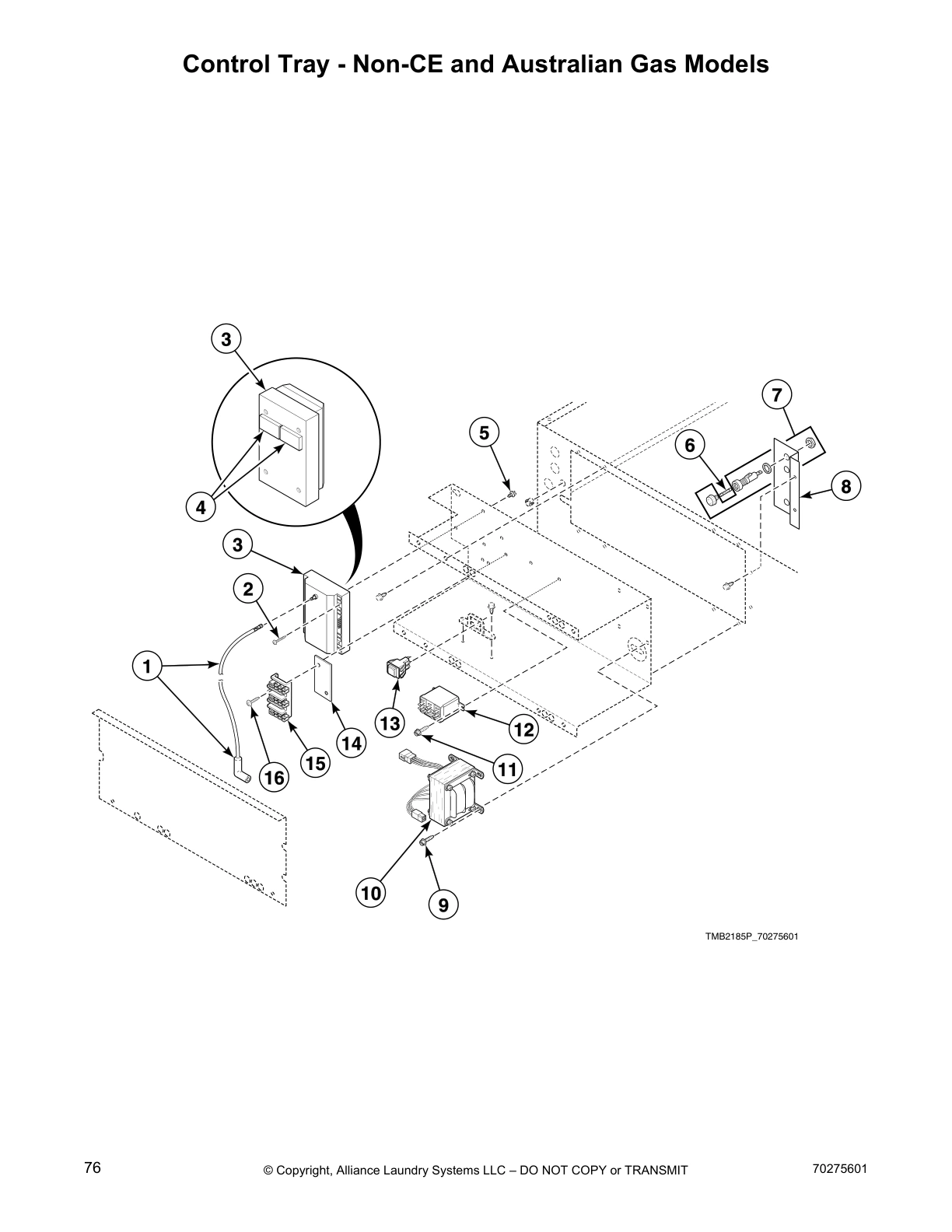

Control Tray - Non-CE and Australian Gas Models

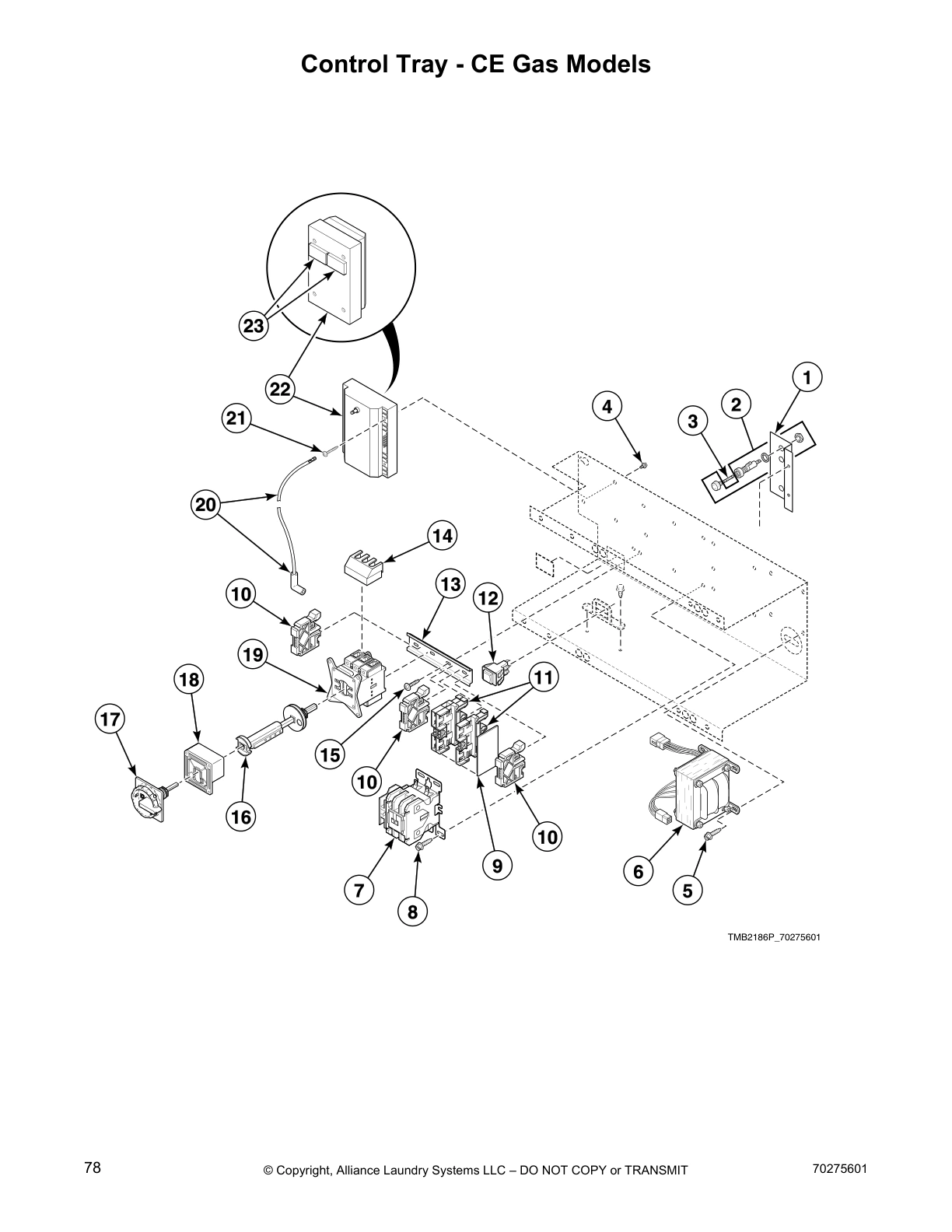

Control Tray - CE Gas Models

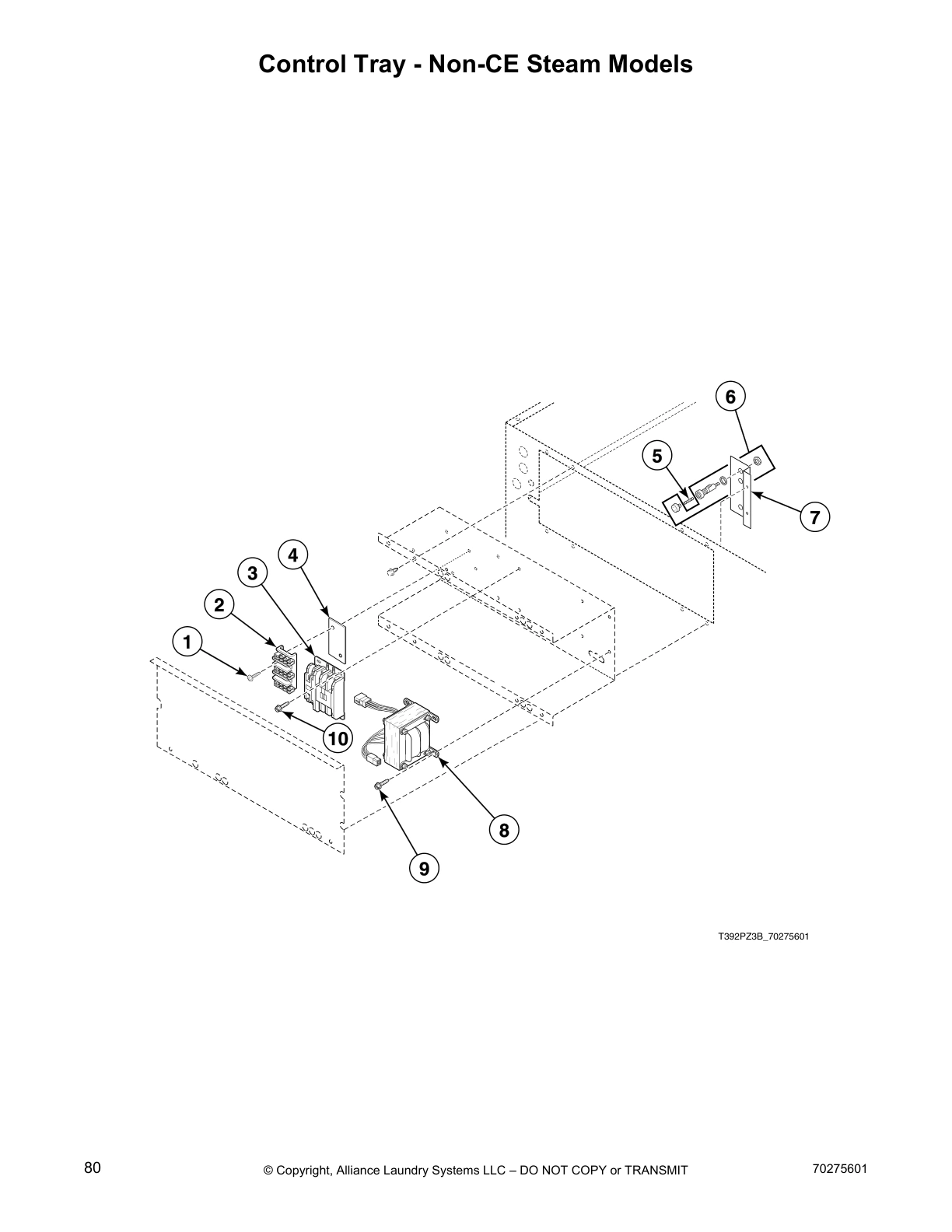

Control Tray - Non-CE Steam Models

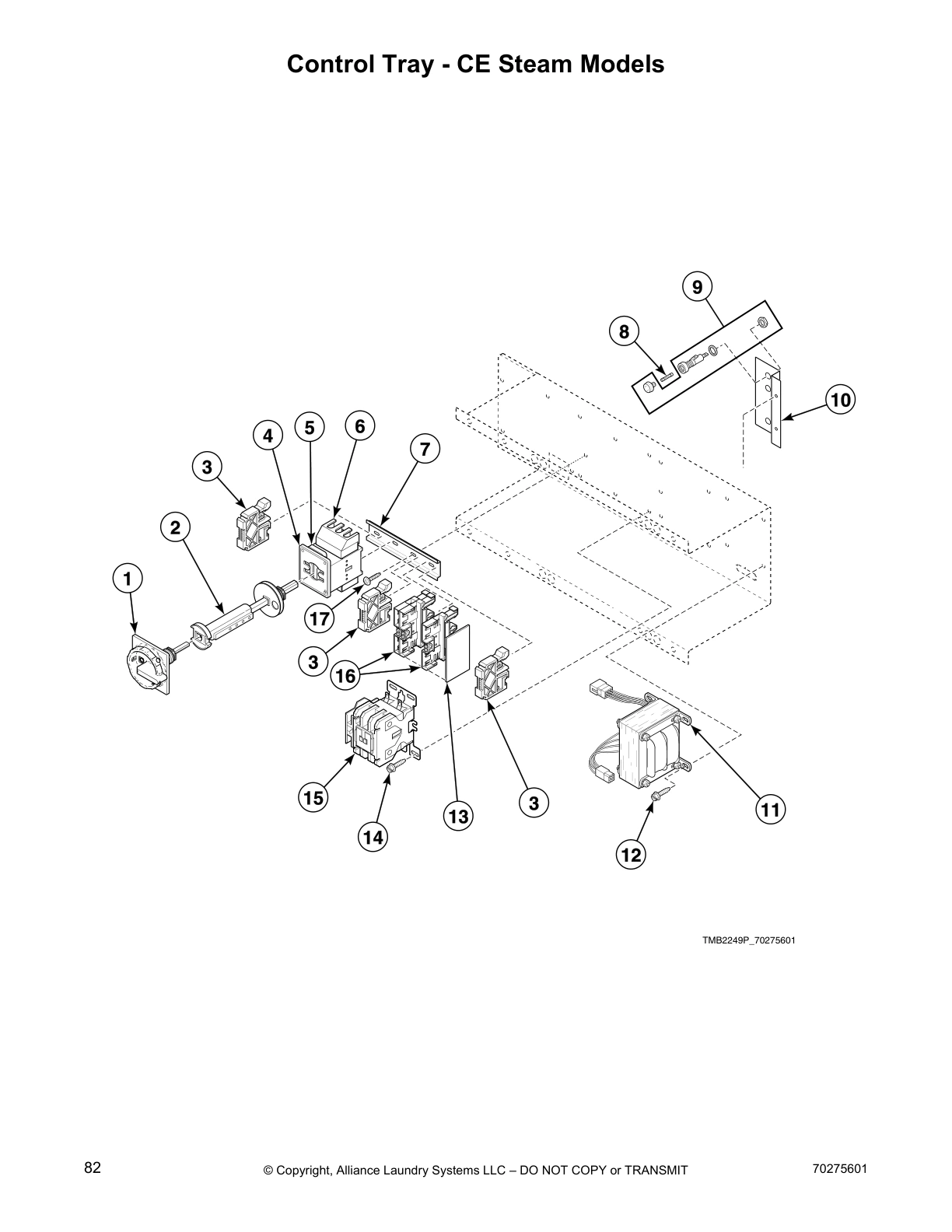

Control Tray - CE Steam Models

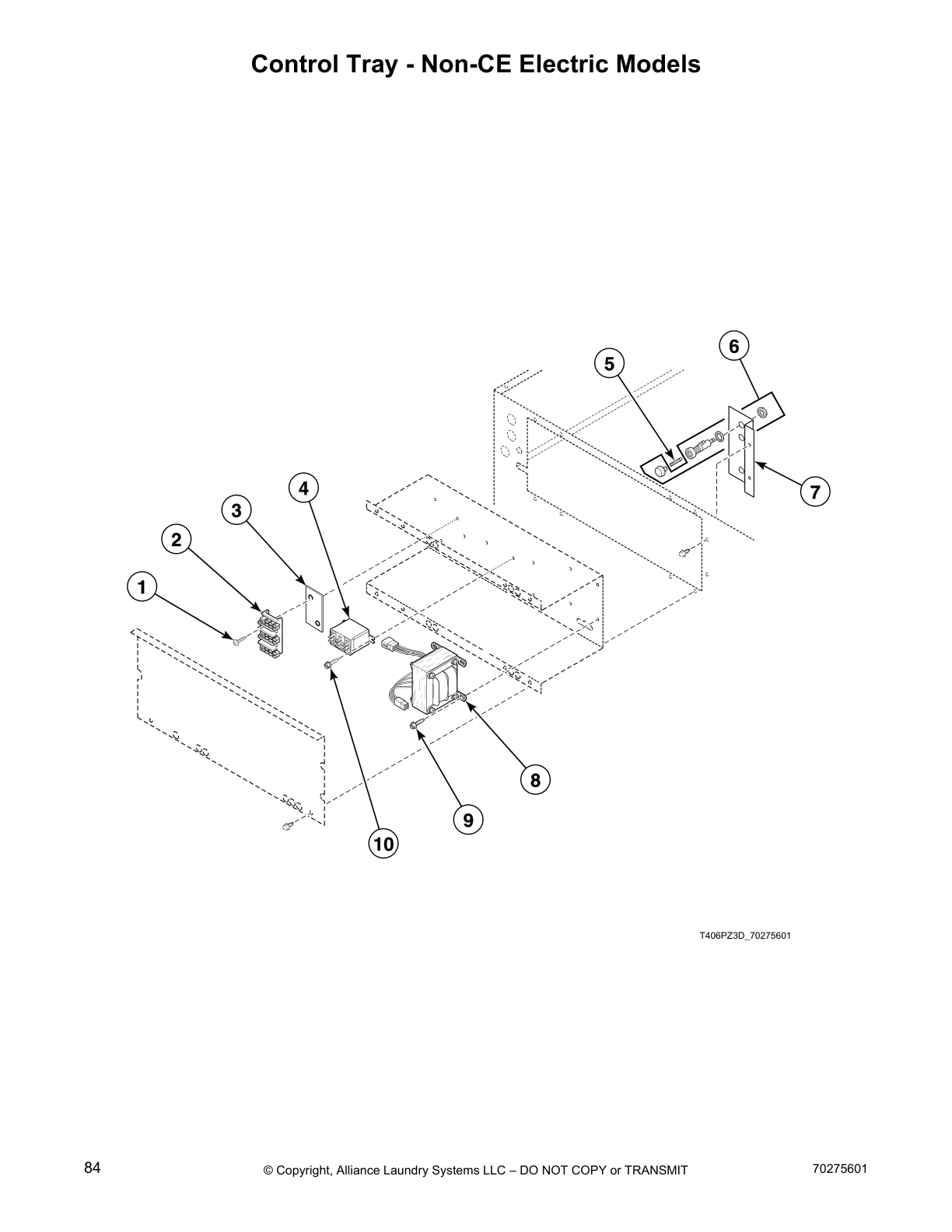

Control Tray - Non-CE Electric Models

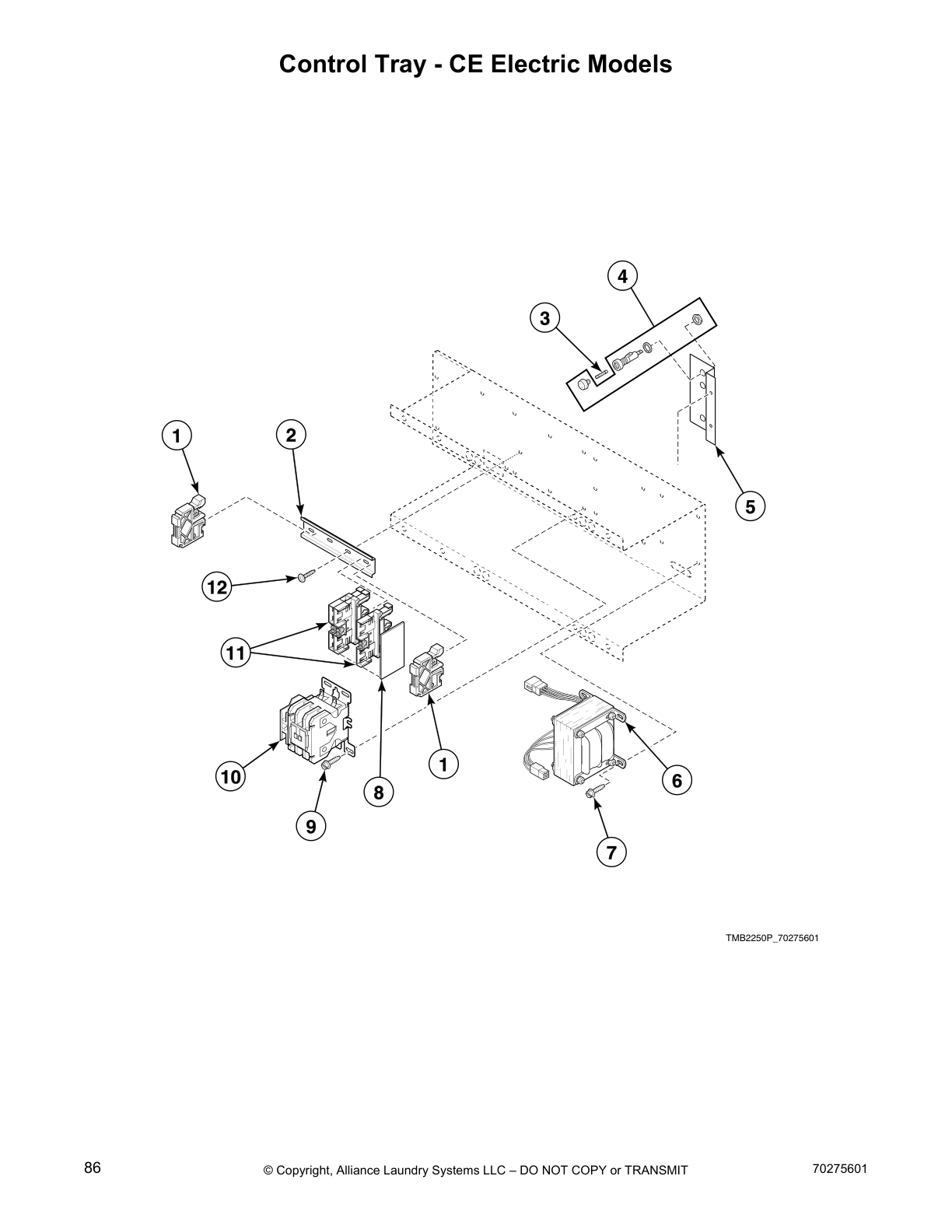

Control Tray - CE Electric Models

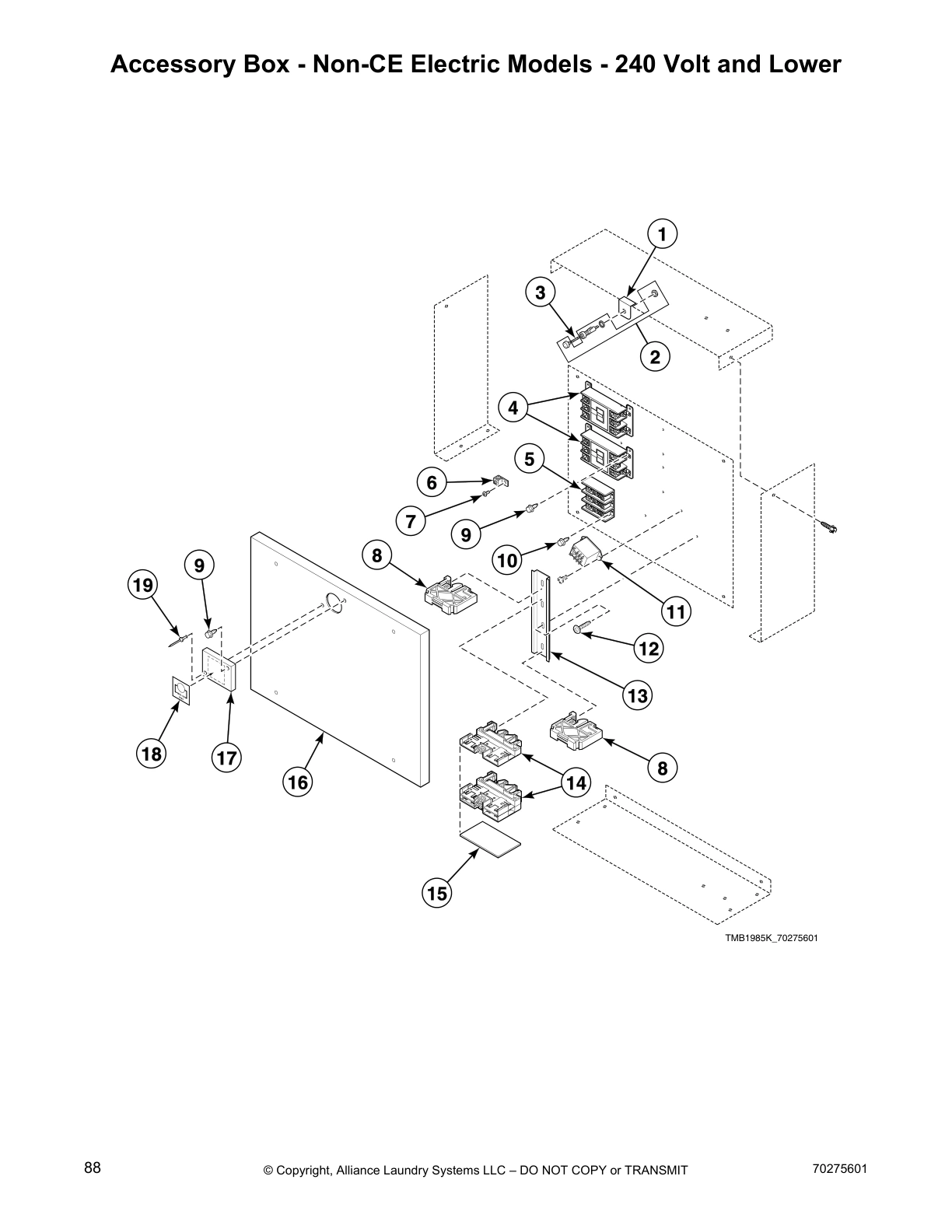

Accessory Box - Non-CE Electric Models - 240 Volt and Lower

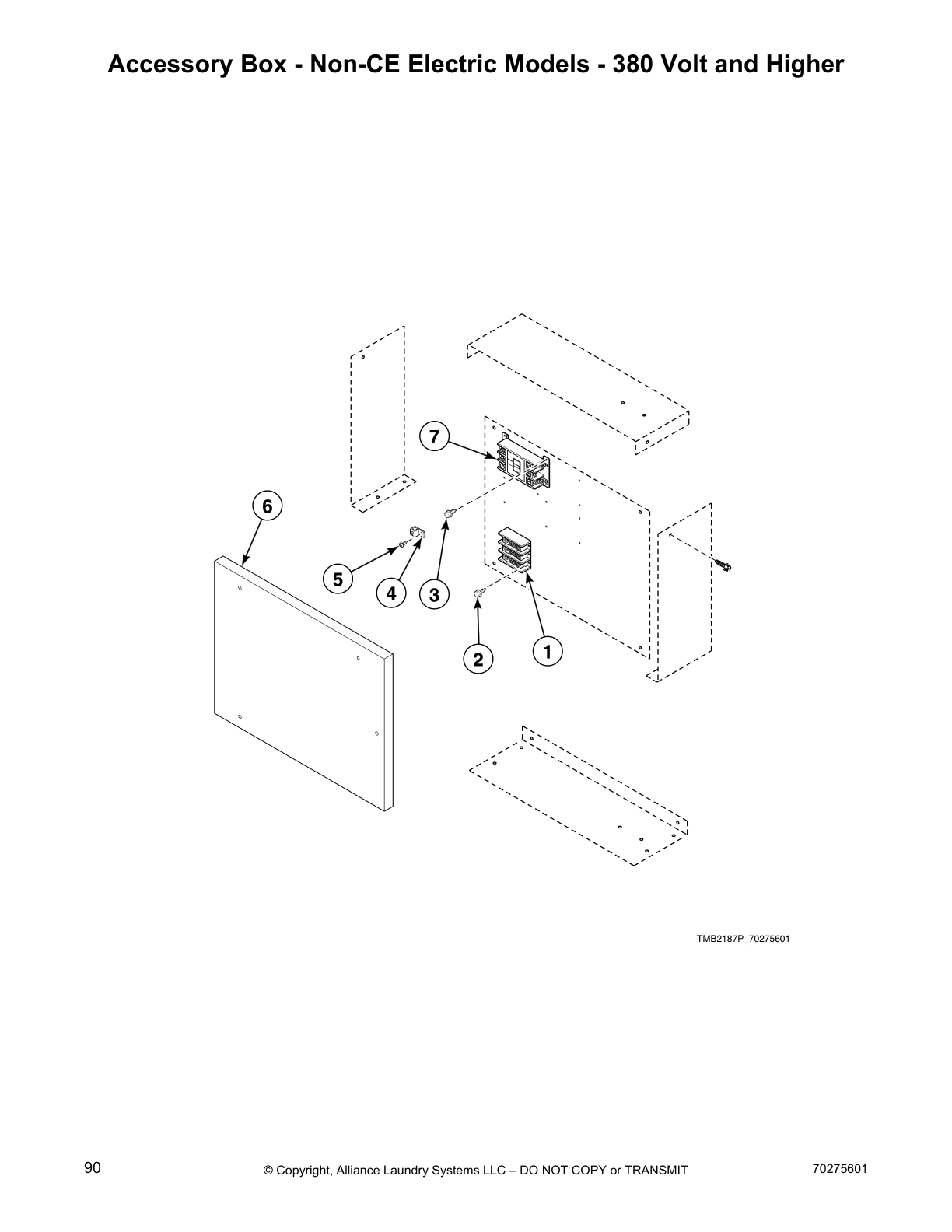

Accessory Box - Non-CE Electric Models - 380 Volt and Higher

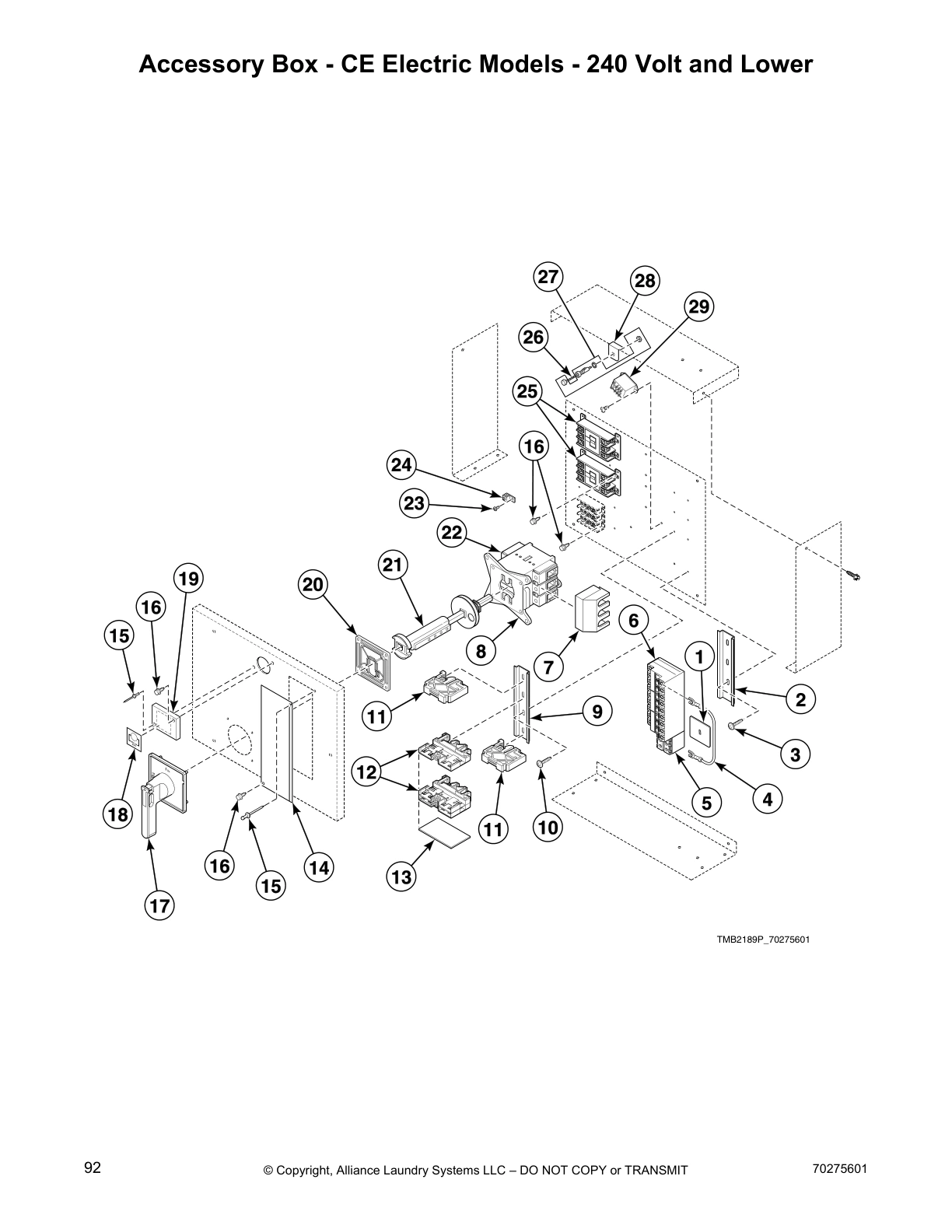

Accessory Box - CE Electric Models - 240 Volt and Lower

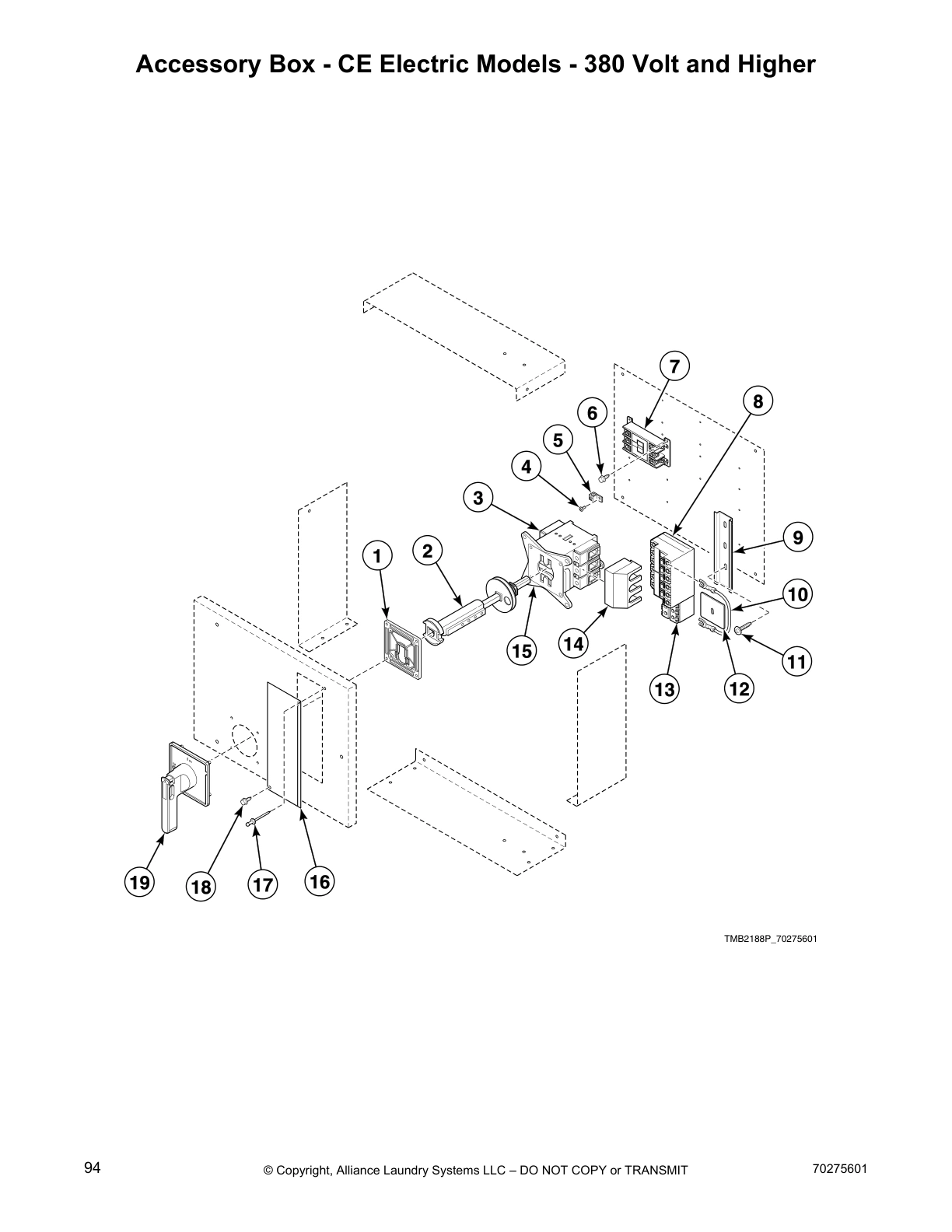

Accessory Box - CE Electric Models - 380 Volt and Higher
Common parts from model Alliance PT030E Dryer
SPQ 70321001 SPQ 70321001 Contact Us For Availability
Mounting Plate SPQ 70208801 Contact Us For Availability
SPQ 70084001 SPQ 70084001 Contact Us For Availability
Opto Coupler SPQ 70283102 Contact Us For Availability
Electronic Coin Drop Kit SPQ 39748 Contact Us For Availability
SPQ 38475 SPQ 38475 Contact Us For Availability
SPQ 38464P SPQ 38464P Contact Us For Availability
SPQ 210195 SPQ 210195 Contact Us For Availability
SPQ 38521 SPQ 38521 Contact Us For Availability
SPQ CK109 SPQ CK109 Contact Us For Availability
SPQ CK101 SPQ CK101 Contact Us For Availability
SPQ CK099 SPQ CK099 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ CK502 SPQ CK502 Contact Us For Availability
SPQ 70176202P SPQ 70176202P Contact Us For Availability
SPQ 70027701 SPQ 70027701 Contact Us For Availability
SPQ 70083701 SPQ 70083701 Contact Us For Availability
SPQ 70083501 SPQ 70083501 Contact Us For Availability
SPQ 70138701 SPQ 70138701 Contact Us For Availability
Jumper Configuration Assembly SPQ M413863 Contact Us For Availability
SPQ 70120201P SPQ 70120201P Contact Us For Availability
Jumper Configuration Assembly SPQ 70123801 Contact Us For Availability
Control Tray Harness Assembly SPQ M413510 Contact Us For Availability
Power Harness Assembly SPQ M413508 Contact Us For Availability
SPQ M413506 SPQ M413506 Contact Us For Availability
SPQ 70139101 SPQ 70139101 Contact Us For Availability
SPQ 70294501 SPQ 70294501 Contact Us For Availability
SPQ 70292901 SPQ 70292901 Contact Us For Availability
1
Overlay SPQ 70130101 Contact Us For Availability
1
Overlay SPQ 70259001 Contact Us For Availability
1
Door Assembly SPQ 70212200 Contact Us For Availability
1
False Front SPQ 70024202P Contact Us For Availability
1
Control Panel SPQ 70121502 Contact Us For Availability
1
Cylinder, Trunnion and Seal Kit SPQ 70222002P Contact Us For Availability
1
Flat Top SPQ 70000301 Contact Us For Availability
1
Kickplate SPQ 70117601 Contact Us For Availability
1
Belt SPQ 70276205P Contact Us For Availability
1
Stove Grill SPQ 70214901 Contact Us For Availability
1
Fuse Holder Bracket SPQ 70294001 Contact Us For Availability
2
Hinge Cam Kit SPQ 70296801 Contact Us For Availability
2
Screw SPQ 70066004 Contact Us For Availability
2
Pushbutton Switch SPQ 70334201 Contact Us For Availability
2
Electronic Coin Drop Harness SPQ 44065801 Contact Us For Availability
2
Front Panel Assembly SPQ 70000502 Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Idler Pivot Bracket SPQ 70186601 Contact Us For Availability
2
Heater Element SPQ 70034403P Contact Us For Availability
2
Fuse SPQ 91024P Contact Us For Availability
3
Airflow Switch Bracket SPQ 70270901P Contact Us For Availability
3
Relay SPQ 430642 Contact Us For Availability
3
Control Plate Assembly SPQ 70175802 Contact Us For Availability
3
Control Plate Assembly SPQ 70175807 Contact Us For Availability
3
Control Plate Assembly SPQ 70497201 Contact Us For Availability
3
Coin Drop Kit SPQ CK077 Contact Us For Availability
3
Front Panel Seal SPQ 70176204P Contact Us For Availability
3
Rear Cylinder Seal Support SPQ 70257301 Contact Us For Availability
3
Lint Panel Switch Bracket SPQ 70023601 Contact Us For Availability
3
Lint Panel Assembly SPQ 70154401 Contact Us For Availability
3
Idler Wheel Assembly SPQ 430648 Contact Us For Availability
3
Bolt SPQ 70337701P Contact Us For Availability
3
Heater Element SPQ 70034402P Contact Us For Availability
3
Electric Contactor SPQ M414240 Contact Us For Availability
3
Power Distribution Block SPQ M412534 Contact Us For Availability
4
Limit Thermostat SPQ 70337501P Contact Us For Availability
4
Control Plate Assembly SPQ 70175801 Contact Us For Availability
4
Control Plate Kit SPQ 70291001P Contact Us For Availability
4
SPQ 70155401 SPQ 70155401 Contact Us For Availability
4
Drywall Screw Magnet Kit SPQ 70564801 Contact Us For Availability
4
Pushbutton Switch SPQ 70296401 Contact Us For Availability
4
Gasket SPQ 70176604 Contact Us For Availability
4
Nut SPQ 70266301 Contact Us For Availability
4
Nut SPQ 70034401P Contact Us For Availability
4
Fan Contactor SPQ M413862 Contact Us For Availability
4
Fuse Holder SPQ M413544P Contact Us For Availability
4
Contactor SPQ M402917 Contact Us For Availability
5
Fuse SPQ 70210901P Contact Us For Availability
5
Door Switch Actuator Kit SPQ M4772P3 Contact Us For Availability
5
Center Cylinder Seal SPQ 70564803 Contact Us For Availability
5
Electronic Coin Drop Assembly SPQ 70294110 Contact Us For Availability
5
Control Trim SPQ 44016401 Contact Us For Availability
5
Roller Catch Wheel SPQ 70176602P Contact Us For Availability
5
Motor Bracket Spring SPQ 70200901 Contact Us For Availability
5
Thermistor SPQ 70144601 Contact Us For Availability
5
Electric Harness SPQ M413933 Contact Us For Availability
5
Power Harness Assembly SPQ M411283 Contact Us For Availability
6
Airflow Switch SPQ 70266201 Contact Us For Availability
6
Ground Lug Connector SPQ M413865 Contact Us For Availability
6
SPQ 70343301P SPQ 70343301P Contact Us For Availability
6
Jumper Wire Assembly SPQ M412645 Contact Us For Availability
6
Door Glass Installation Tool SPQ 70071401 Contact Us For Availability
6
Screw SPQ M409443 Contact Us For Availability
6
Transformer SPQ M414229P Contact Us For Availability
7
Airflow Switch Cover SPQ 70267301 Contact Us For Availability
7
SPQ 70215001P SPQ 70215001P Contact Us For Availability
7
Pop Rivet SPQ 70257401 Contact Us For Availability
7
Main Interlock Harness SPQ 70180101 Contact Us For Availability
7
Tumbler Dolly Kit SPQ 70289101P Contact Us For Availability
7
Fan Motor Harness Assembly SPQ 70017801 Contact Us For Availability
7
Screw SPQ 23222 Contact Us For Availability
7
Fuse Receptacle SPQ M414232 Contact Us For Availability
7
SPQ 70139401 SPQ 70139401 Contact Us For Availability
8
Key SPQ 70155601 Contact Us For Availability
8
SPQ 70132301 SPQ 70132301 Contact Us For Availability
8
Jumper Bypass Assembly SPQ 70277301 Contact Us For Availability
8
Belt Tension Tool Kit SPQ 70186101 Contact Us For Availability
8
Fan Motor Harness Assembly SPQ 70062401 Contact Us For Availability
8
SPQ 70281801 SPQ 70281801 Contact Us For Availability
8
Fuse Bracket SPQ M413118 Contact Us For Availability
9
Coin Vault Harness Assembly SPQ 70413301 Contact Us For Availability
9
Network Capacitor Assembly SPQ 70406501 Contact Us For Availability
9
SPQ 70033502 SPQ 70033502 Contact Us For Availability
9
SPQ 44088801 SPQ 44088801 Contact Us For Availability
9
Cylinder Guide Tool SPQ 70013702 Contact Us For Availability
9
Cylinder Motor Harness Assemb SPQ 70050401P Contact Us For Availability
9
Secondary Stove Limit Kit SPQ M411307 Contact Us For Availability
9
Ferrite Core Assembly SPQ M414228P Contact Us For Availability
10
Transformer SPQ M414312P Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Rear Cylinder Bearing Housing SPQ 70222001P Contact Us For Availability
10
Screw SPQ 70072801 Contact Us For Availability
10
Fan Contactor SPQ M413614P Contact Us For Availability
10
Terminal Block SPQ 51778 Contact Us For Availability
10
Jumper Cable Assembly SPQ M413934 Contact Us For Availability
11
Support Bearing SPQ 70013901 Contact Us For Availability
11
Card Reader Overlay SPQ 70334301 Contact Us For Availability
11
Hole Plug SPQ 70063201 Contact Us For Availability
11
Roller Catch Arm SPQ 70030301 Contact Us For Availability
11
Switch Assembly SPQ 70413401 Contact Us For Availability
11
Drive Motor Kit SPQ 70338101P Contact Us For Availability
11
Damper and Hinge Exhaust Assembly SPQ 70209501 Contact Us For Availability
11
End Stop SPQ 70121001 Contact Us For Availability
12
Washer SPQ 70448701 Contact Us For Availability
12
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
12
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
12
Lint Screen SPQ 70290401 Contact Us For Availability
12
Drive Motor Kit SPQ 70338001P Contact Us For Availability
12
Screw SPQ 70126101 Contact Us For Availability
12
Terminal Block SPQ M412632 Contact Us For Availability
12
Power Distribution Block Cover SPQ 44014901P Contact Us For Availability
13
Knob SPQ 70108501 Contact Us For Availability
13
Key SPQ 70155602 Contact Us For Availability
13
Door Glass SPQ M400784P Contact Us For Availability
13
Pop Rivet SPQ 70126401 Contact Us For Availability
13
Drive Motor SPQ 70337901P Contact Us For Availability
13
Blower Housing Scroll SPQ 70016301 Contact Us For Availability
13
End Barrier SPQ M412633 Contact Us For Availability
14
Bolt SPQ 70337801P Contact Us For Availability
14
Nut SPQ M414215 Contact Us For Availability
14
Panel Locator SPQ 70126301 Contact Us For Availability
15
Blower Motor Mounting Plate SPQ M400034 Contact Us For Availability
15
Door Handle SPQ M400133 Contact Us For Availability
16
Door Latch SPQ M400003 Contact Us For Availability
16
Washer SPQ M400022 Contact Us For Availability
16
Baffle SPQ 70022301 Contact Us For Availability
16
Motor Pulley SPQ 70187801 Contact Us For Availability
17
Screw SPQ M400661 Contact Us For Availability
17
Coin Vault Trim SPQ M401223 Contact Us For Availability
17
Baffle Gasket SPQ 70015702 Contact Us For Availability
17
Nut SPQ 70284204 Contact Us For Availability
17
Key SPQ 70012001 Contact Us For Availability
18
Nut SPQ M409385 Contact Us For Availability
18
Panel Locator SPQ 70117502 Contact Us For Availability
18
Center Cylinder Seal SPQ 70015701 Contact Us For Availability
18
U-Bolt Plate SPQ 70284202 Contact Us For Availability
19
Blower Motor Kit SPQ M400991 Contact Us For Availability
19
Rear Cylinder Channel Plate SPQ 70392801 Contact Us For Availability
19
Clip SPQ 70015703 Contact Us For Availability
19
Din Rail SPQ 70294601 Contact Us For Availability
20
Drive Access Cover SPQ 70144101 Contact Us For Availability
20
Rear Cylinder Seal SPQ 70070101 Contact Us For Availability
20
Nut SPQ 70226701 Contact Us For Availability
20
U-Bolt SPQ 70566401 Contact Us For Availability
21
Exhaust Thimble SPQ 70342601P Contact Us For Availability
23
Partition Baffle SPQ 70616701 Contact Us For Availability
24
Retaining Ring SPQ 70017701 Contact Us For Availability
25
Coin Chute Assembly SPQ 70022001 Contact Us For Availability
25
Relay SPQ 70293201P Contact Us For Availability
27
Coin Vault Assembly SPQ 70022101 Contact Us For Availability
29
Jumper Cable Assembly SPQ M4919P3 Contact Us For Availability
NI
SPQ 70173401P SPQ 70173401P Contact Us For Availability
NI
Drive Motor Harness SPQ 70051401 Contact Us For Availability
NI
Electronic OPL Control Kit SPQ 70084303 Contact Us For Availability
NI
SPQ M4689P3 SPQ M4689P3 Contact Us For Availability
NI
Jumper Calibration Assembly SPQ 70084201 Contact Us For Availability
NI
Control Harness Assembly SPQ 70055801P Contact Us For Availability
NI
Multiplier Harness Assembly SPQ 431611 Contact Us For Availability
NI
Card Reader Harness Assembly SPQ 431613 Contact Us For Availability
NI
Jumper Calibration Assembly SPQ 70211701 Contact Us For Availability
NI
Control Panel Harness Assembly SPQ 70206301P Contact Us For Availability
NI
Jumper Calibration Assembly SPQ 70286701 Contact Us For Availability
NI
SPQ 70129601 SPQ 70129601 Contact Us For Availability
NI
SPQ 70129501 SPQ 70129501 Contact Us For Availability
NI
Fuse SPQ 44089501 Contact Us For Availability
NI
Coin Drop SPQ 70294107 Contact Us For Availability
NI
Coin Drop SPQ 70294104 Contact Us For Availability
NI
Wire Guard SPQ 70256402P Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ 39157 Contact Us For Availability
NI
SPQ 38519 SPQ 38519 Contact Us For Availability
NI
SPQ 38467 SPQ 38467 Contact Us For Availability
NI
SPQ 210196 SPQ 210196 Contact Us For Availability
NI
SPQ 70513311 SPQ 70513311 Contact Us For Availability
NI
SPQ 70294103P SPQ 70294103P Contact Us For Availability
NI
SPQ 38472 SPQ 38472 Contact Us For Availability
NI
SPQ CK108 SPQ CK108 Contact Us For Availability
NI
SPQ CK100 SPQ CK100 Contact Us For Availability
NI
SPQ CK118 SPQ CK118 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ CK103 SPQ CK103 Contact Us For Availability
NI
SPQ M4221P4 SPQ M4221P4 Contact Us For Availability
NI
SPQ 70176205LP SPQ 70176205LP Contact Us For Availability
NI
SPQ 70506401 SPQ 70506401 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70277801 SPQ 70277801 Contact Us For Availability
NI
SPQ 70083801 SPQ 70083801 Contact Us For Availability
NI
SPQ 70297601 SPQ 70297601 Contact Us For Availability
NI
SPQ 70030201 SPQ 70030201 Contact Us For Availability
NI
SPQ M4379P4 SPQ M4379P4 Contact Us For Availability
NI
SPQ 70142 SPQ 70142 Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
SPQ 70053601P SPQ 70053601P Contact Us For Availability
NI
Network Capacitor Assembly SPQ M411072 Contact Us For Availability
NI
SPQ 70220901 SPQ 70220901 Contact Us For Availability
NI
SPQ 70083401 SPQ 70083401 Contact Us For Availability
NI
Secondary Stove Limit Kit SPQ 70299101 Contact Us For Availability
NI
Cable Heater Assembly SPQ 70066501 Contact Us For Availability
NI
SPQ 70138601P SPQ 70138601P Contact Us For Availability
NI
Jumper Adapter Harness Assembly SPQ M413509 Contact Us For Availability
NI
Power Harness Assembly SPQ M414230P Contact Us For Availability
NI
Jumper Assembly SPQ M405824 Contact Us For Availability
NI
SPQ M413930P SPQ M413930P Contact Us For Availability
NI
SPQ 70055901P SPQ 70055901P Contact Us For Availability
NI
SPQ 70083001P SPQ 70083001P Contact Us For Availability
NI
SPQ 70142501 SPQ 70142501 Contact Us For Availability
NI
SPQ 44129201P SPQ 44129201P Contact Us For Availability
NI
SPQ 70138901 SPQ 70138901 Contact Us For Availability
NI
Jumper Assembly SPQ M412694 Contact Us For Availability
NI
Coil Booster Kit SPQ M414121 Contact Us For Availability
NI
SPQ 70293101 SPQ 70293101 Contact Us For Availability
NI
SPQ 70139001 SPQ 70139001 Contact Us For Availability
NI
SPQ M4793P3 SPQ M4793P3 Contact Us For Availability
× ![]()
