Model Alliance PT0220SEL Dryer – Common Parts & Diagrams

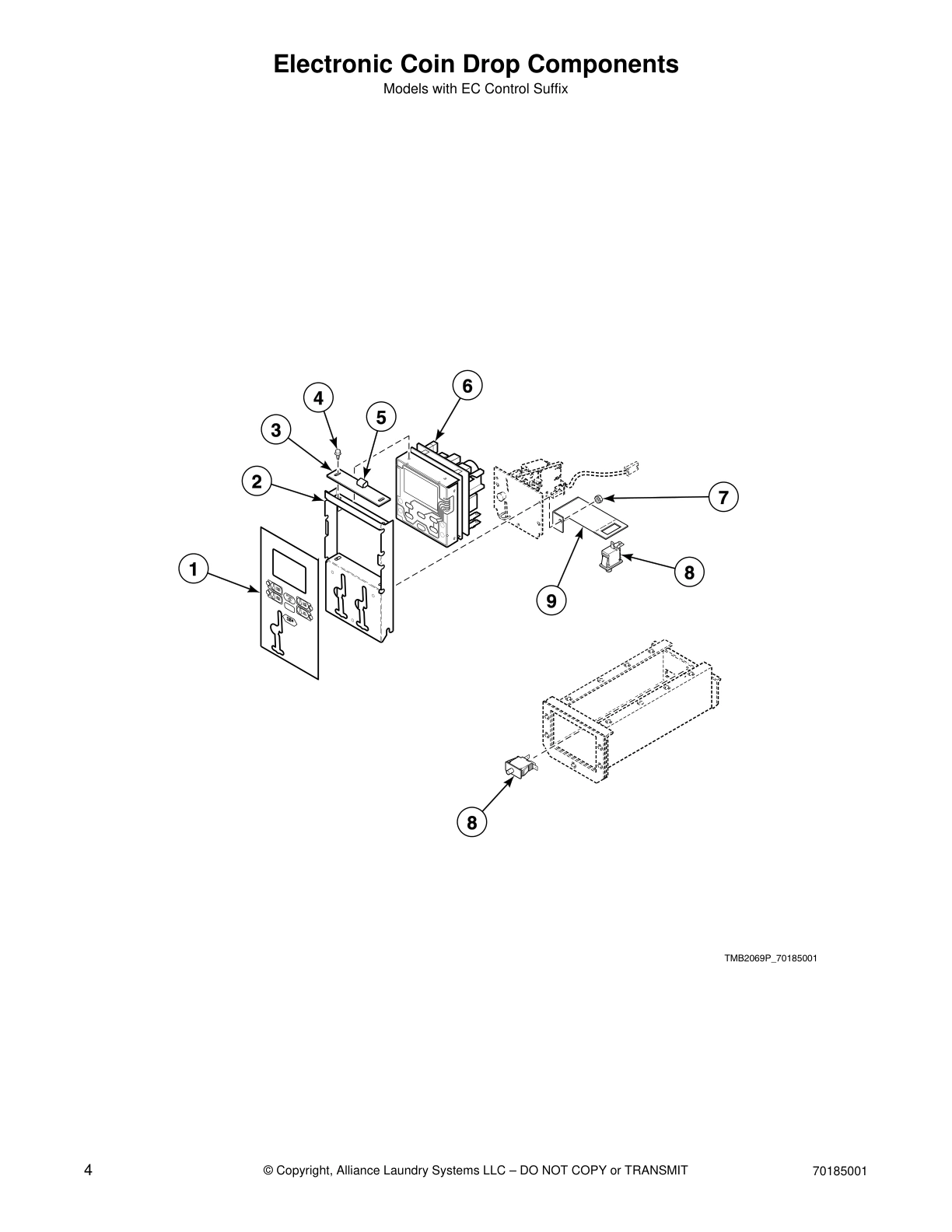

Electronic Coin Drop Components

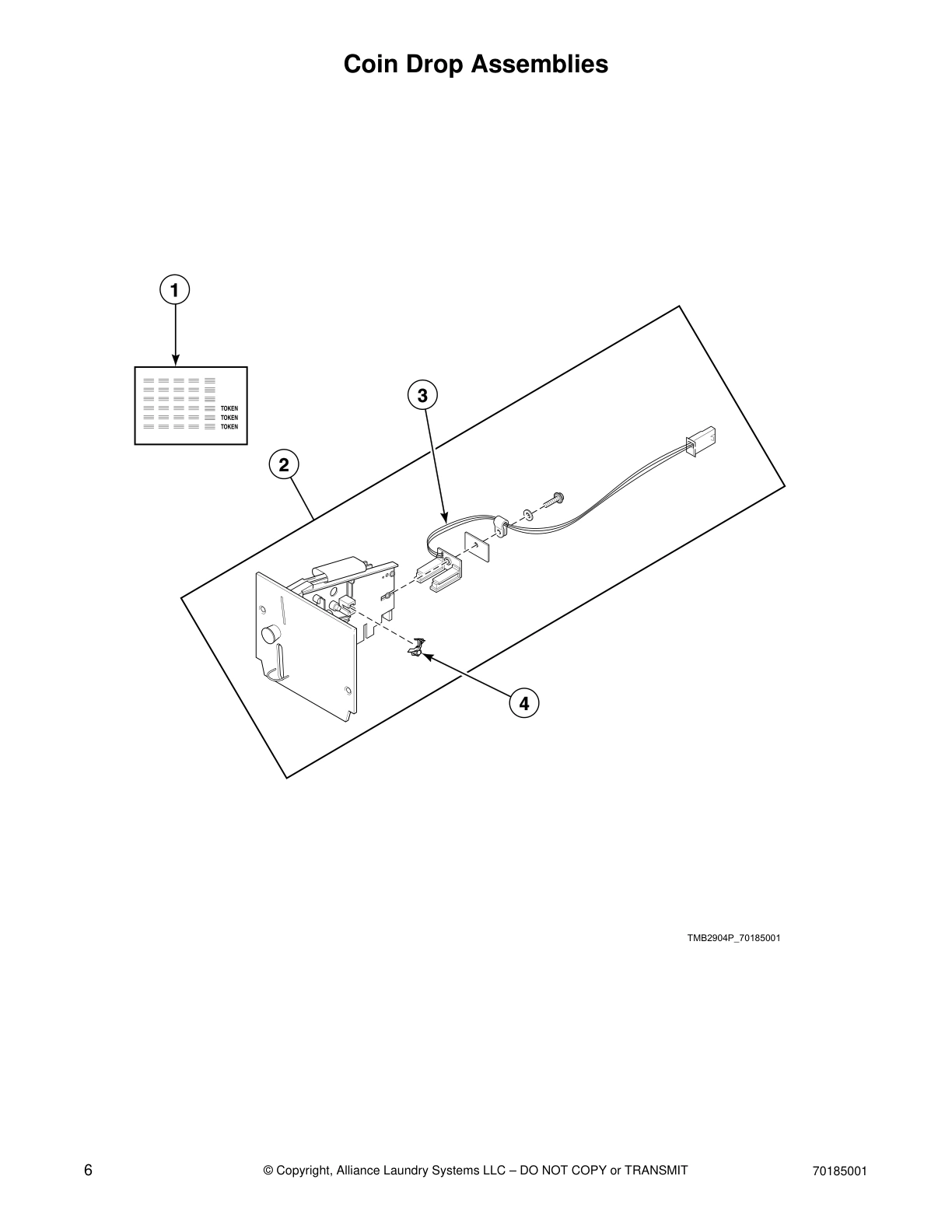

Coin Drop Assemblies

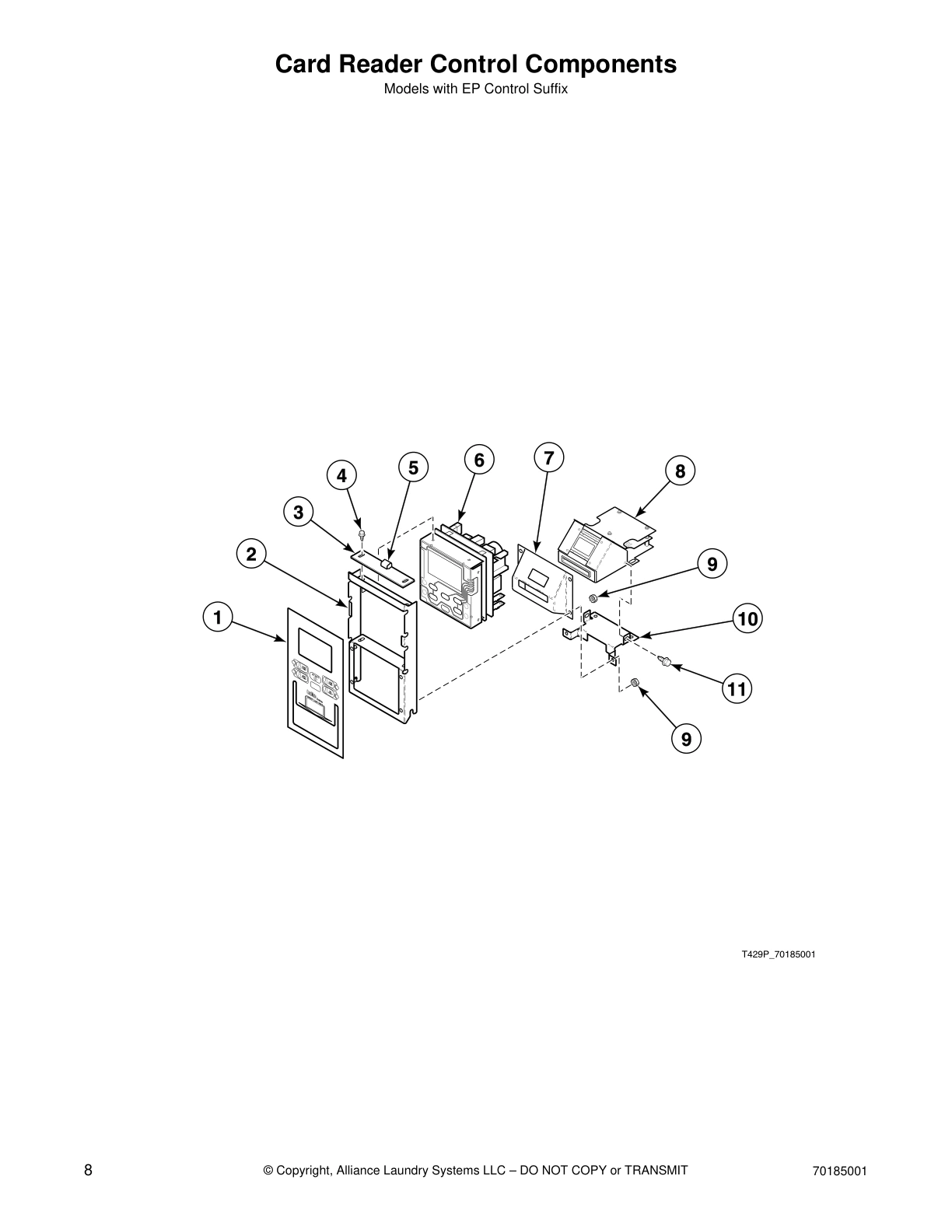

Card Reader Control Components

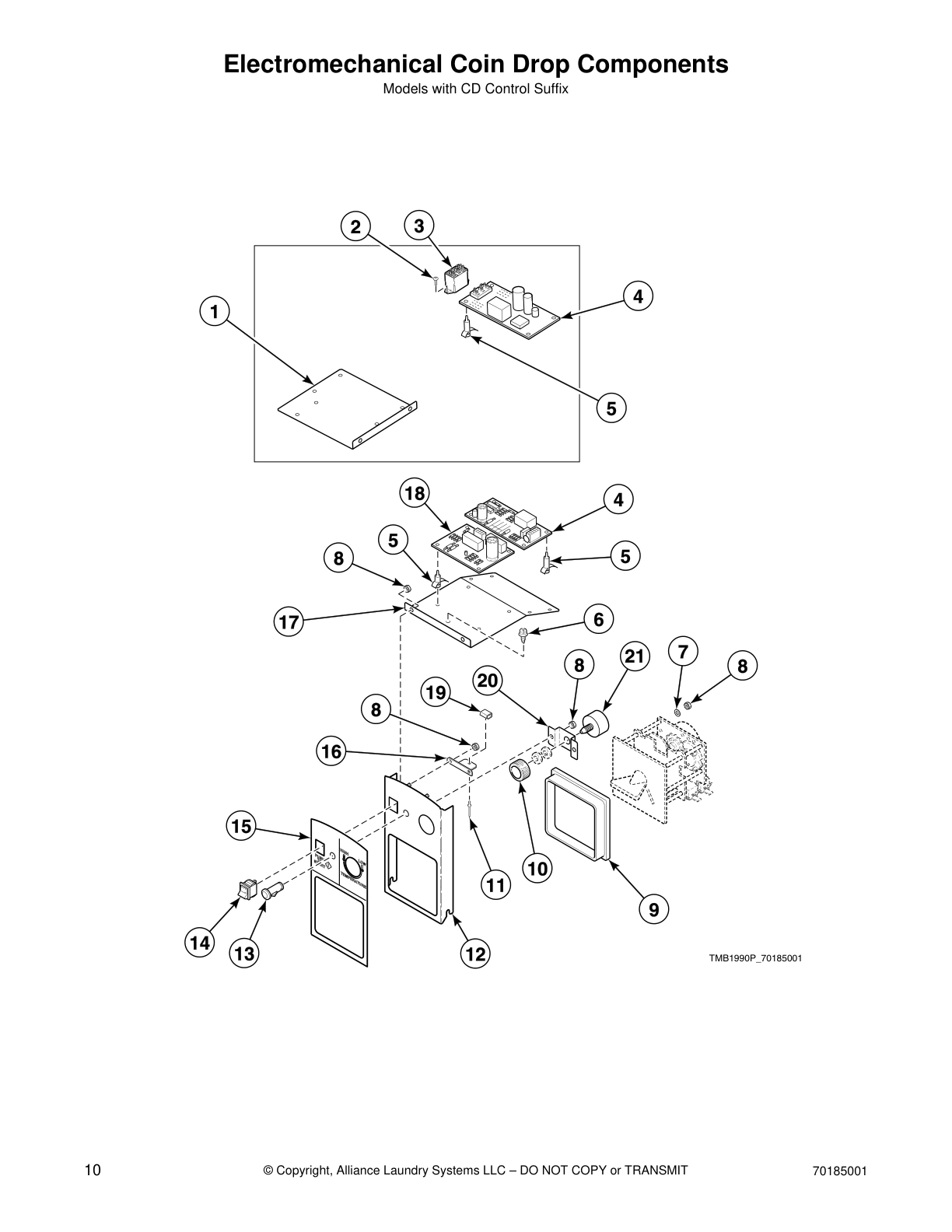

Electromechanical Coin Drop Components

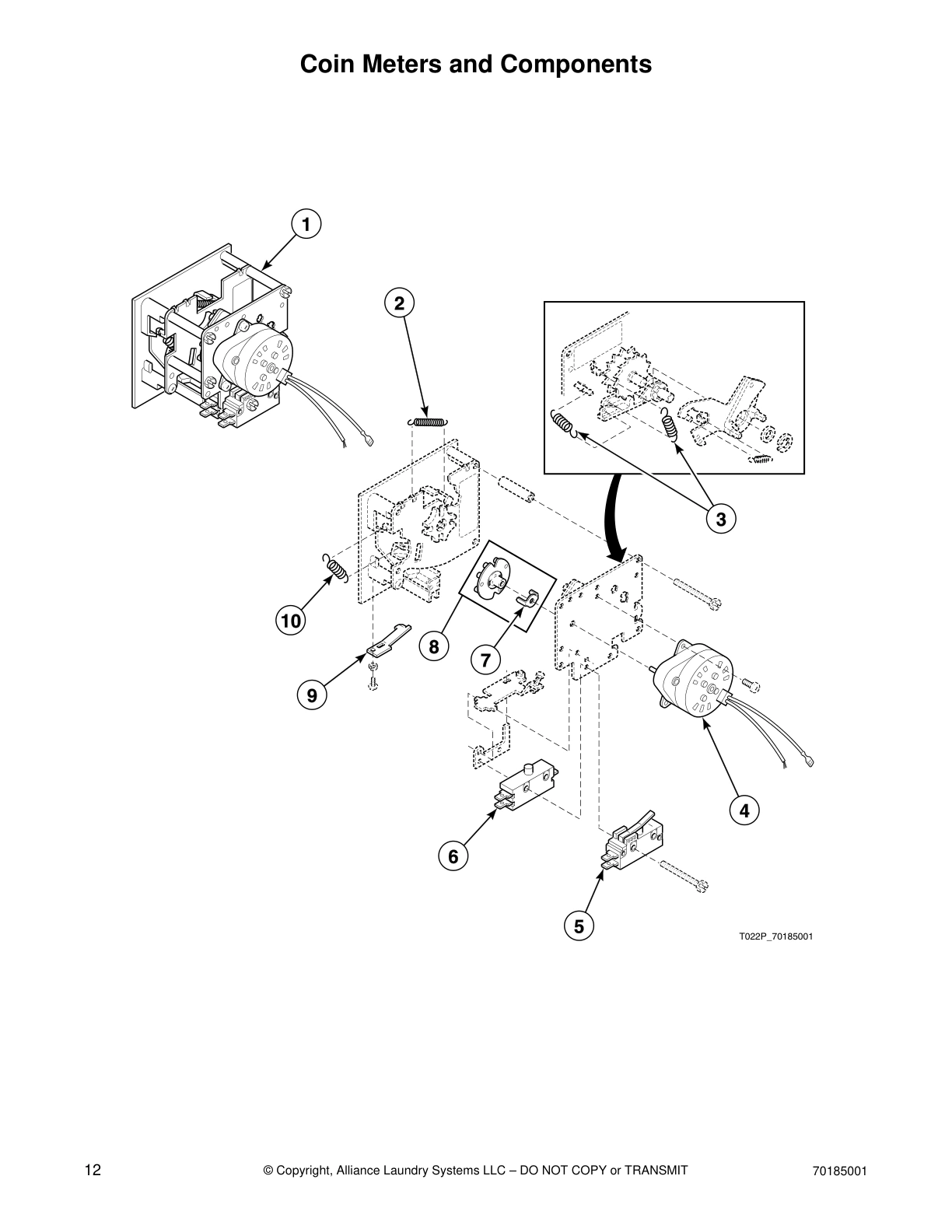

Coin Meters and Components

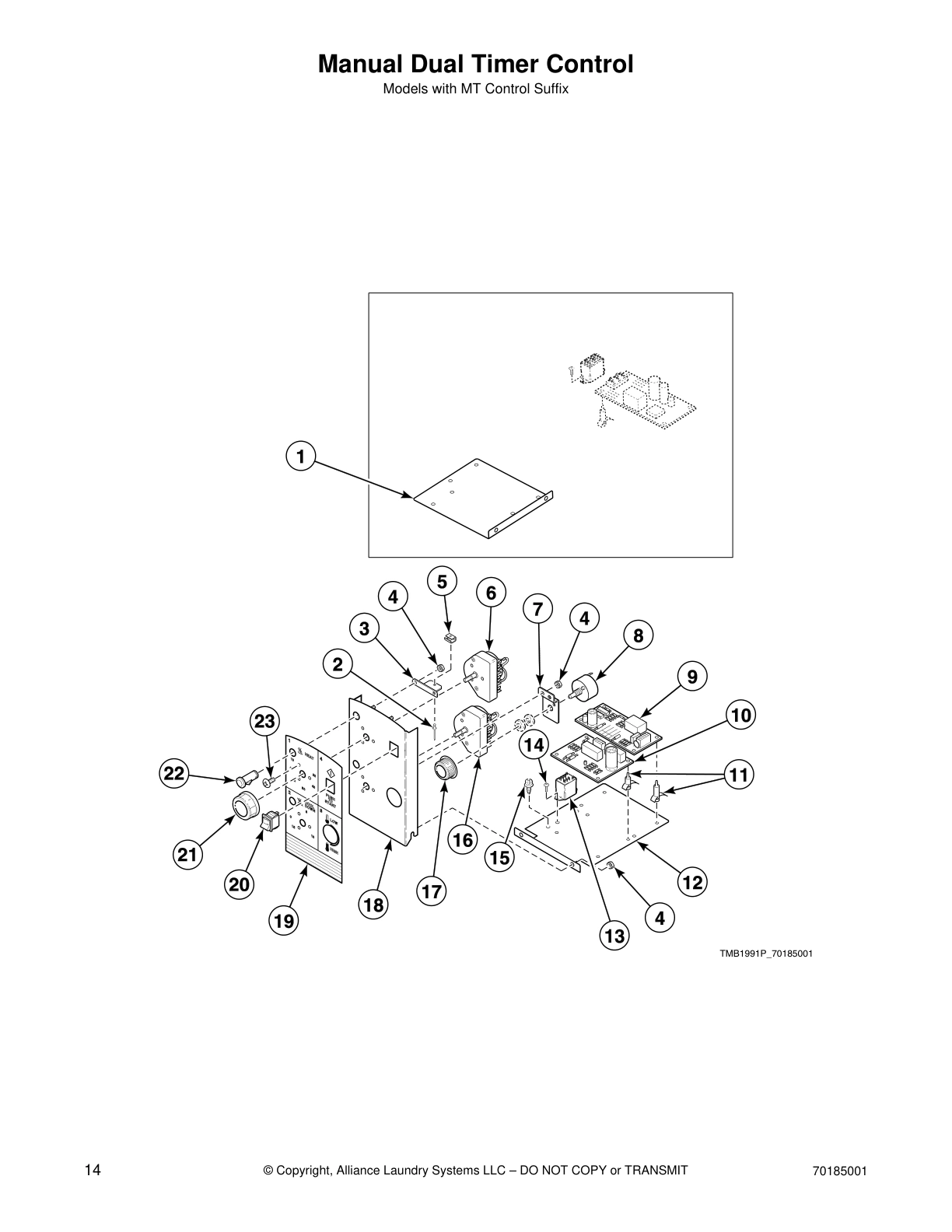

Manual Dual Timer Control

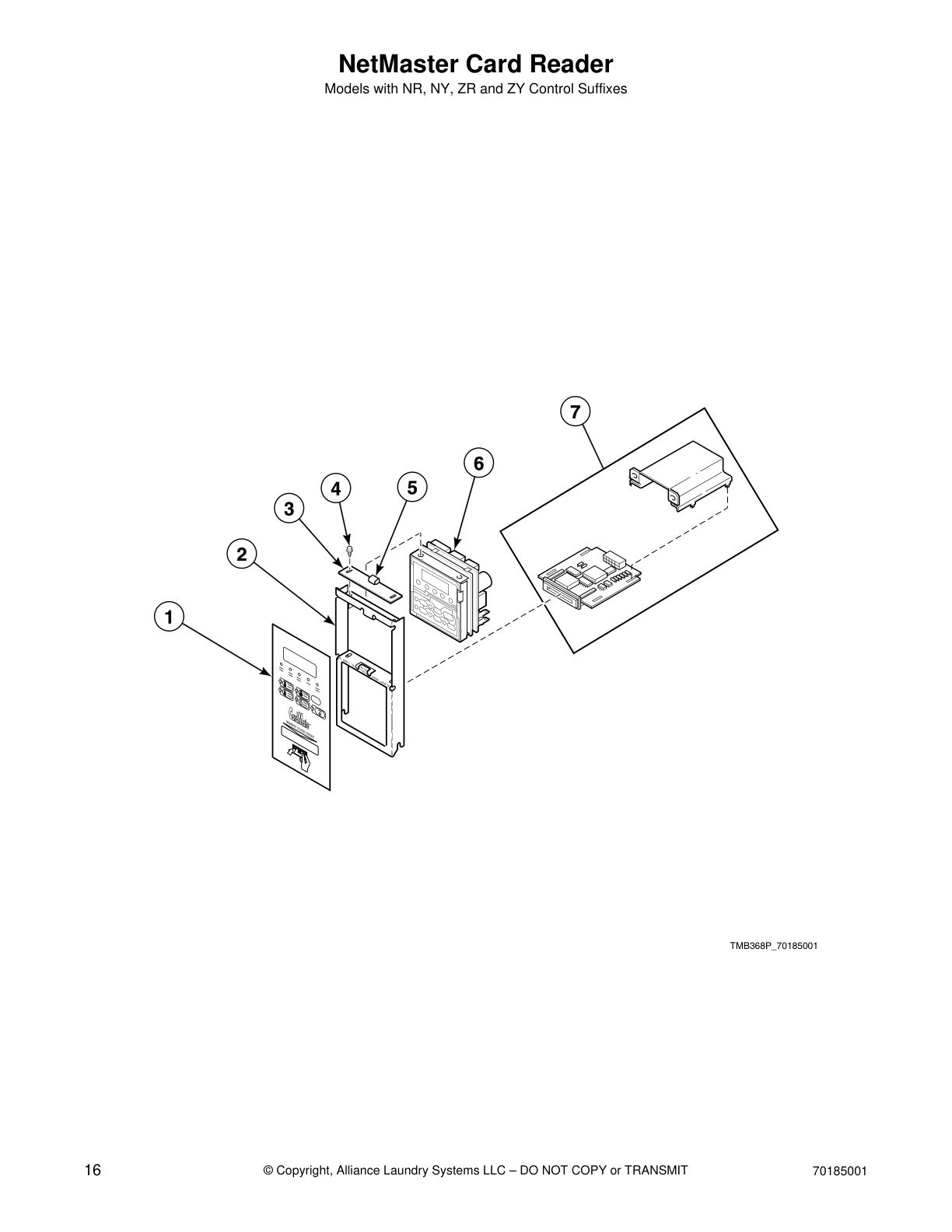

NetMaster Card Reader

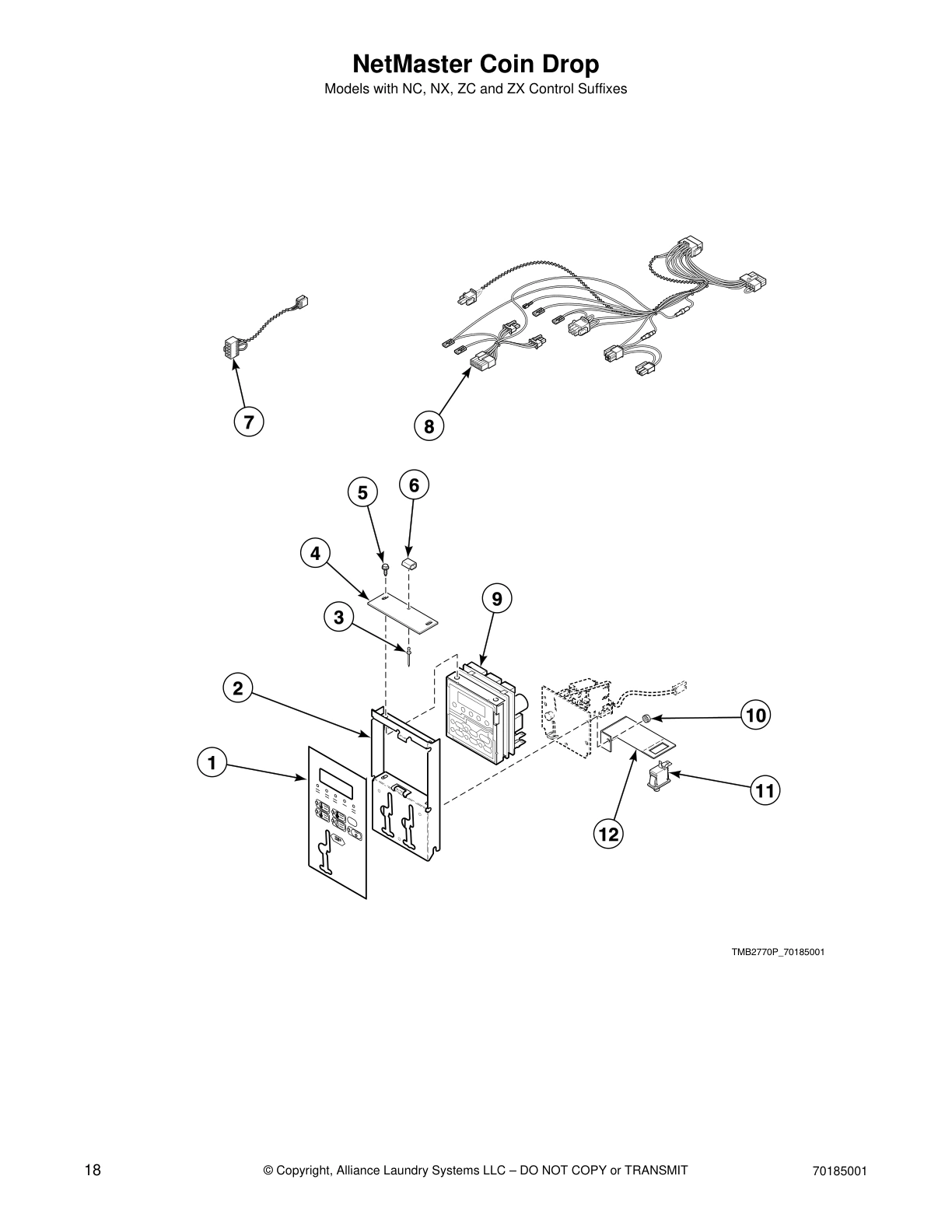

NetMaster Coin Drop

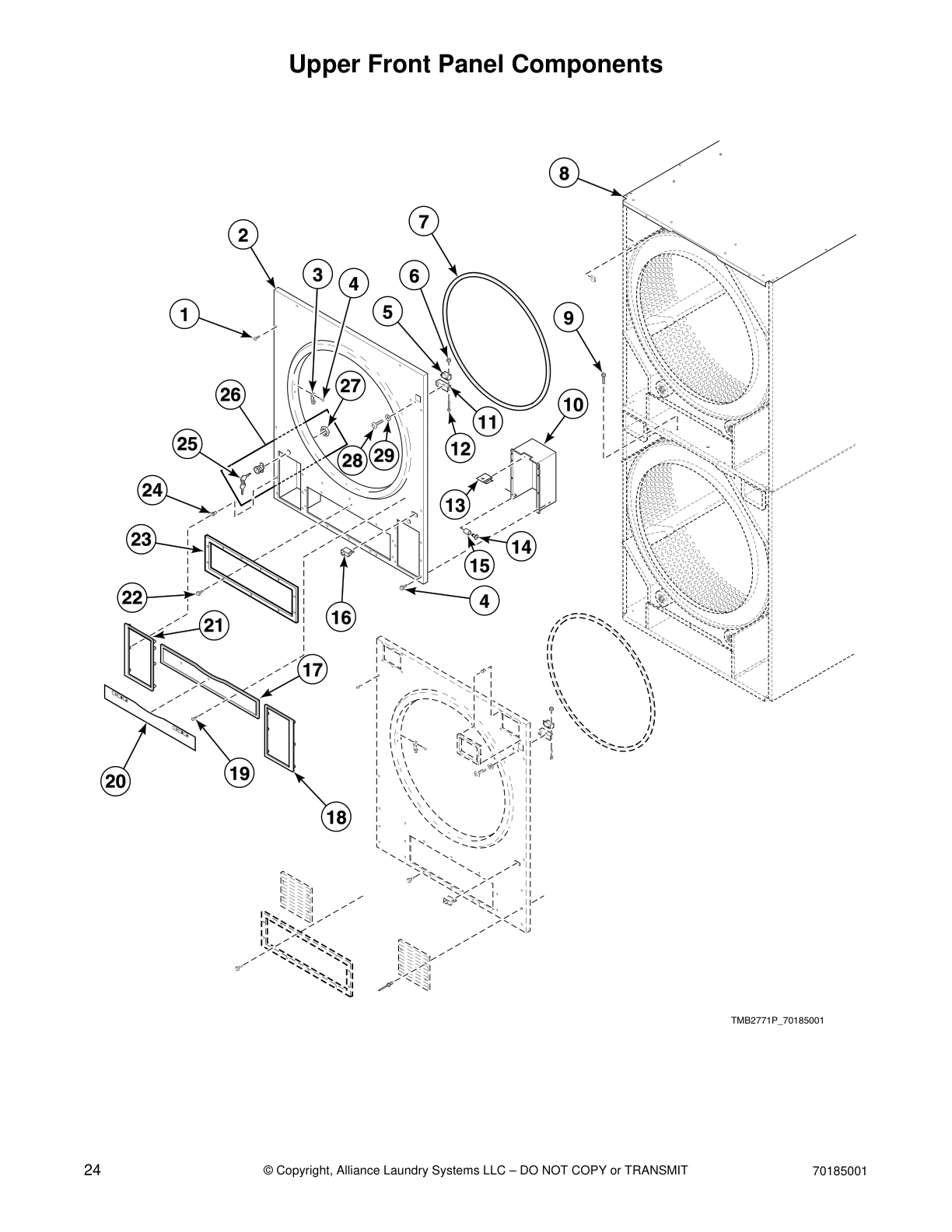

Upper Front Panel Components

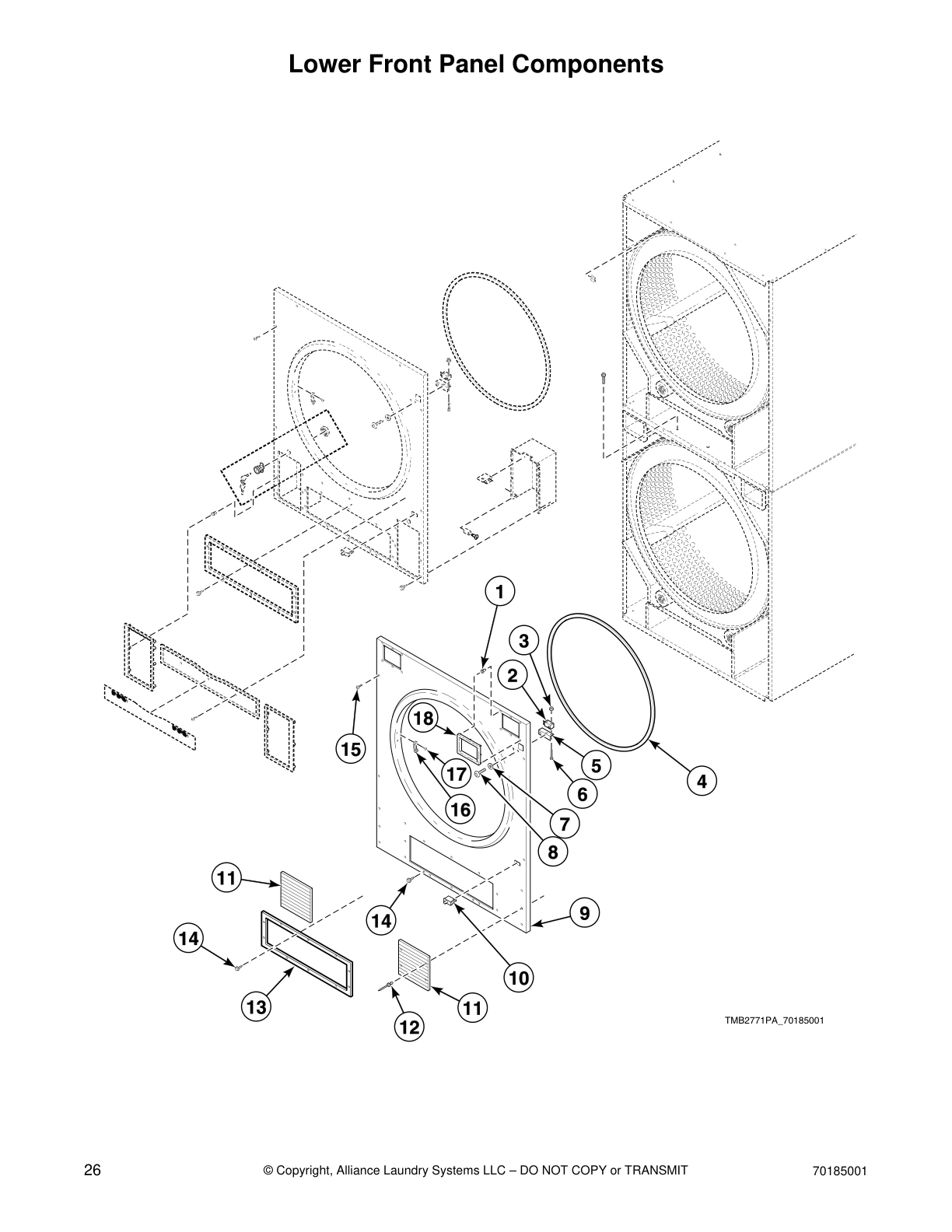

Lower Front Panel Components

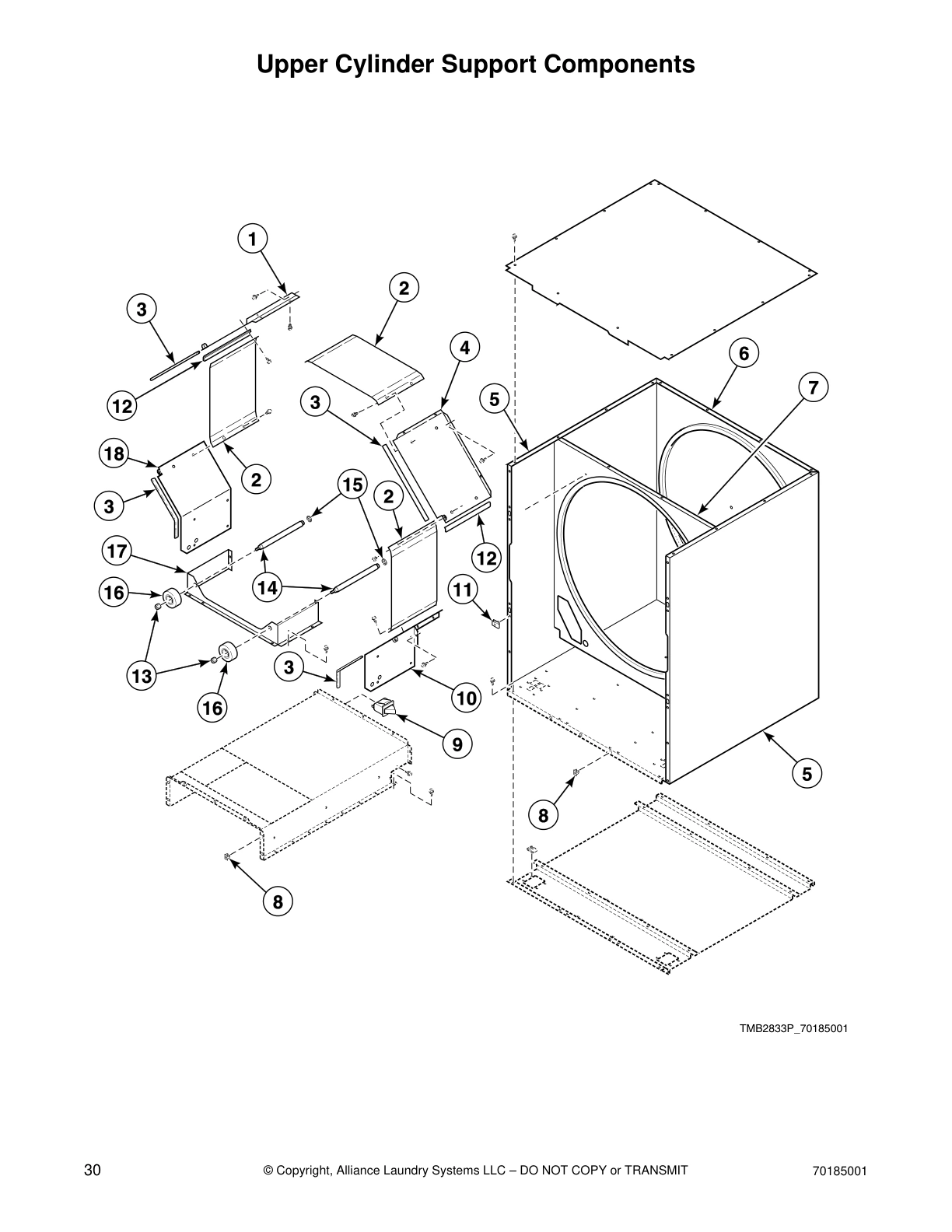

Upper Cylinder Support Components

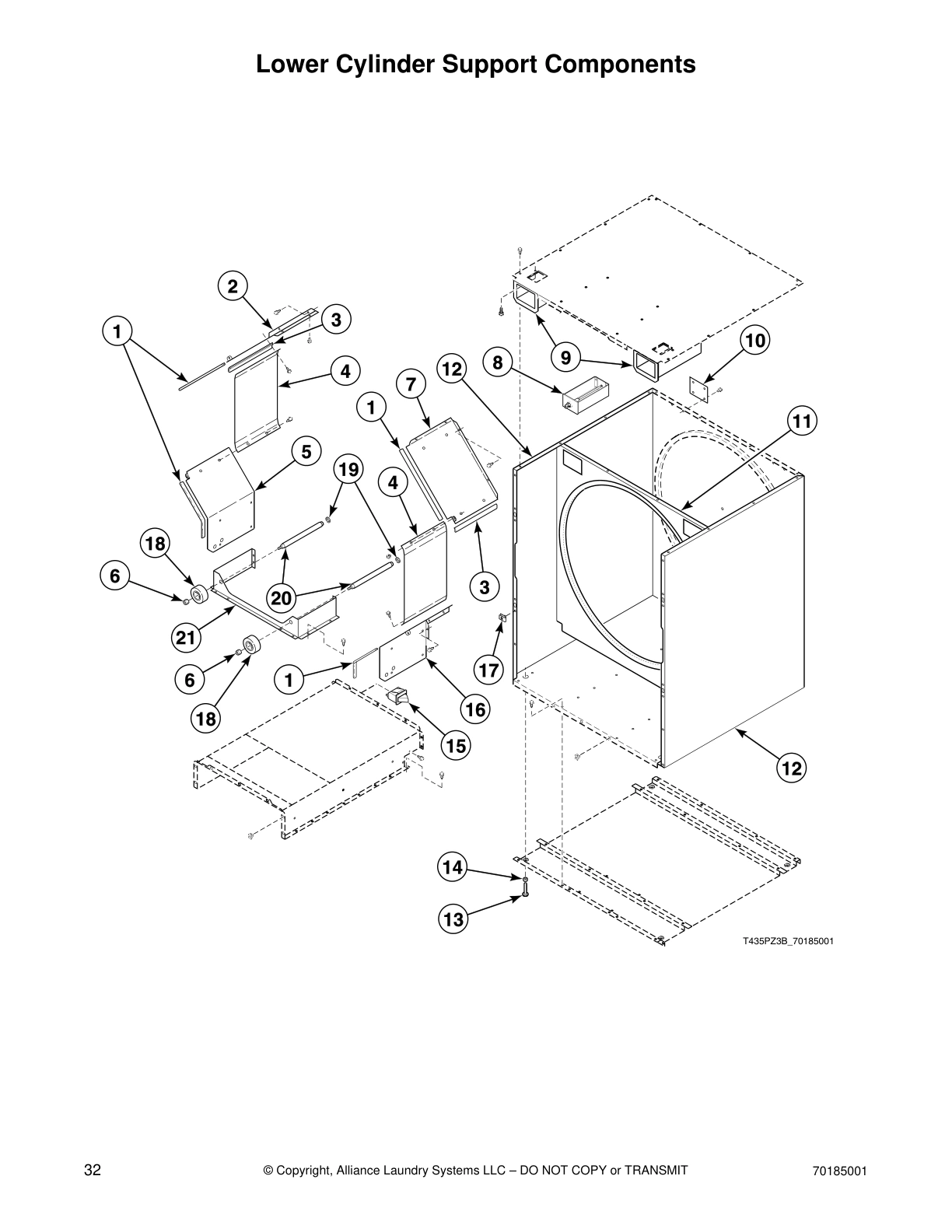

Lower Cylinder Support Components

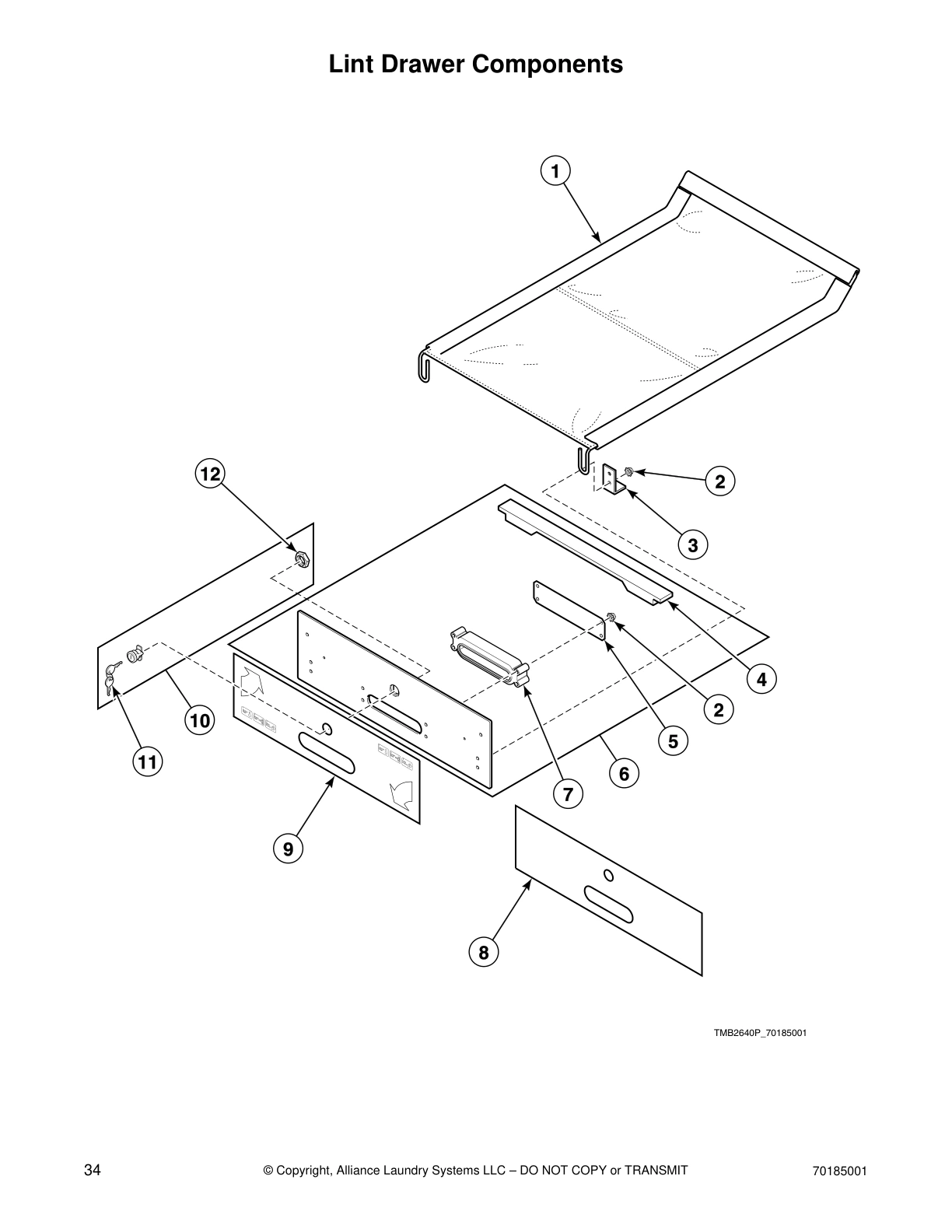

Lint Drawer Components

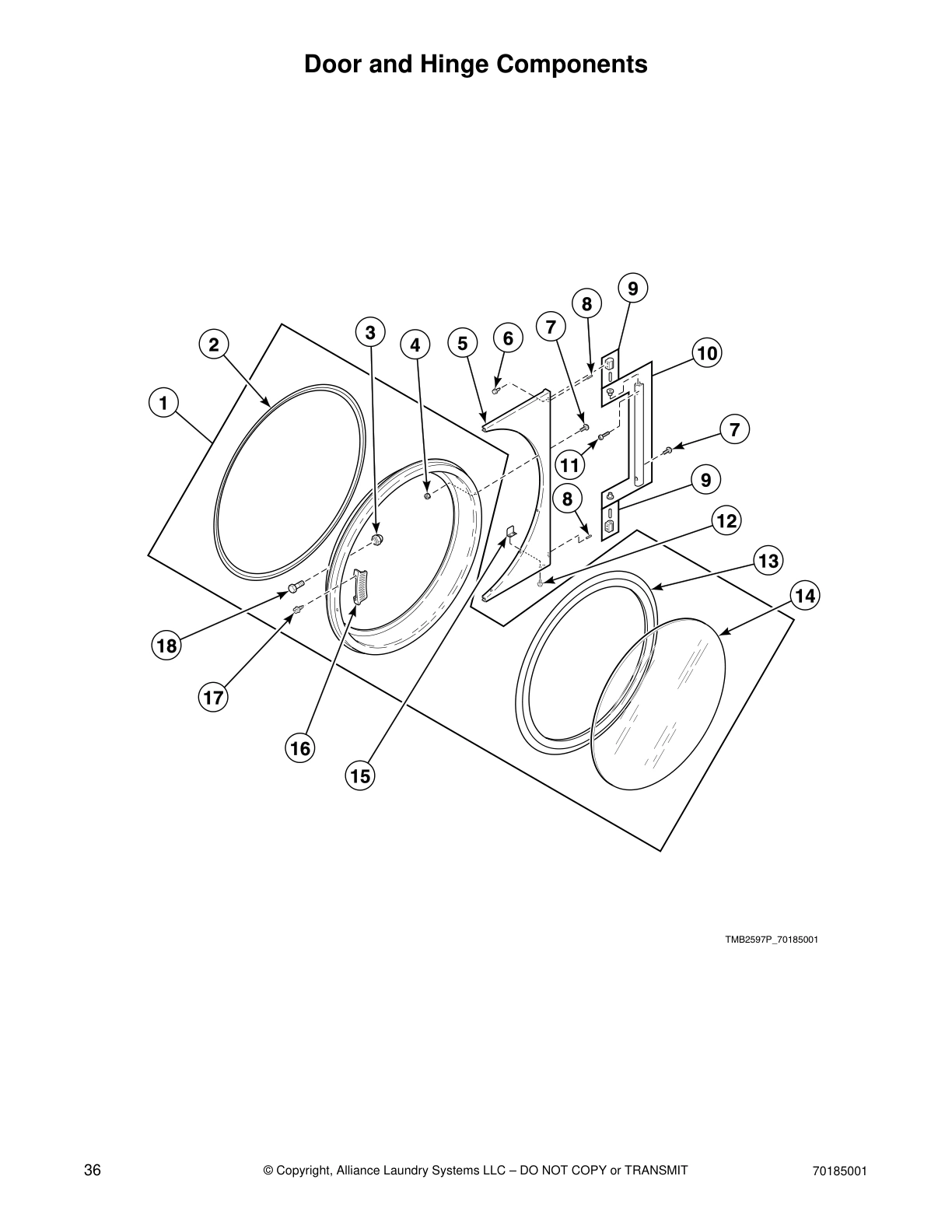

Door and Hinge Components

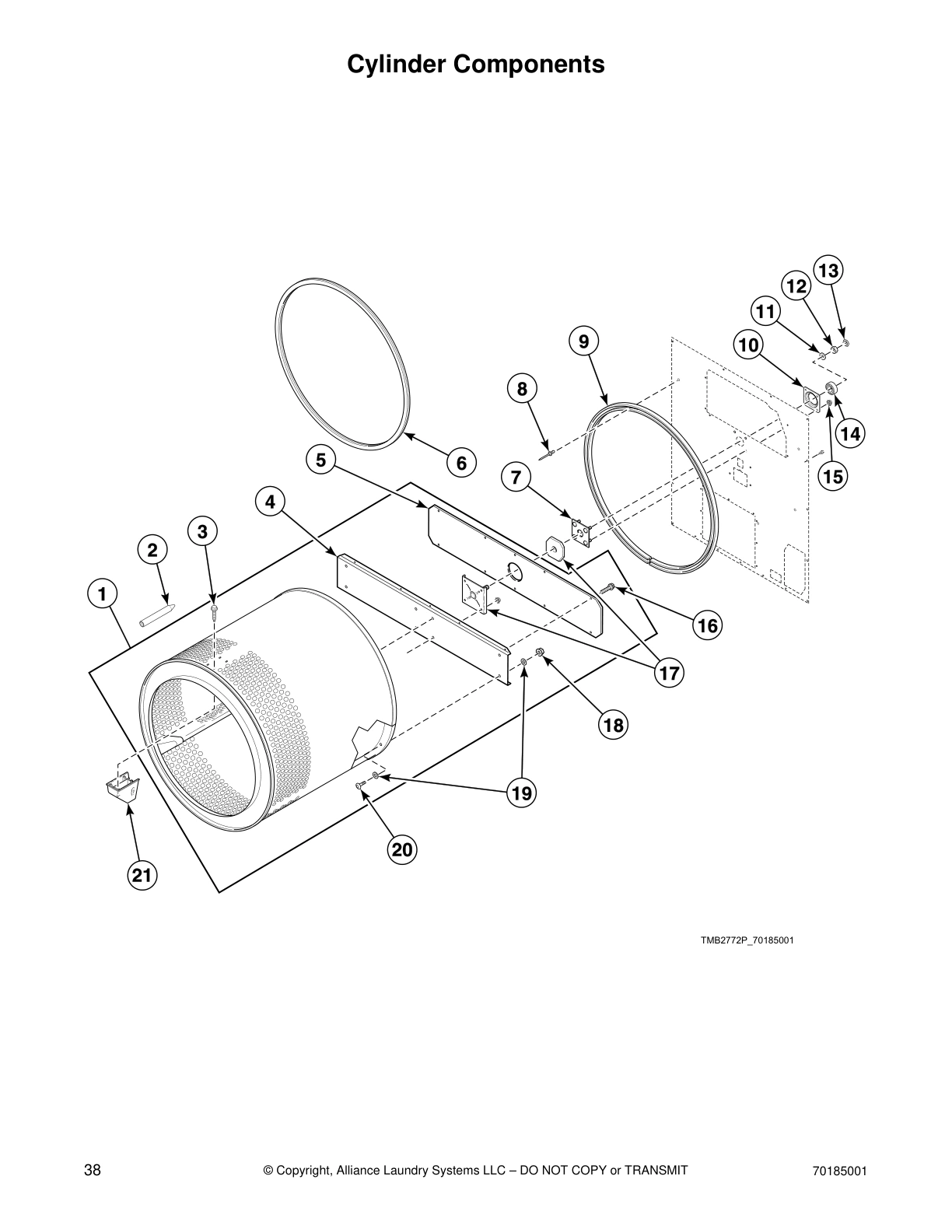

Cylinder Components

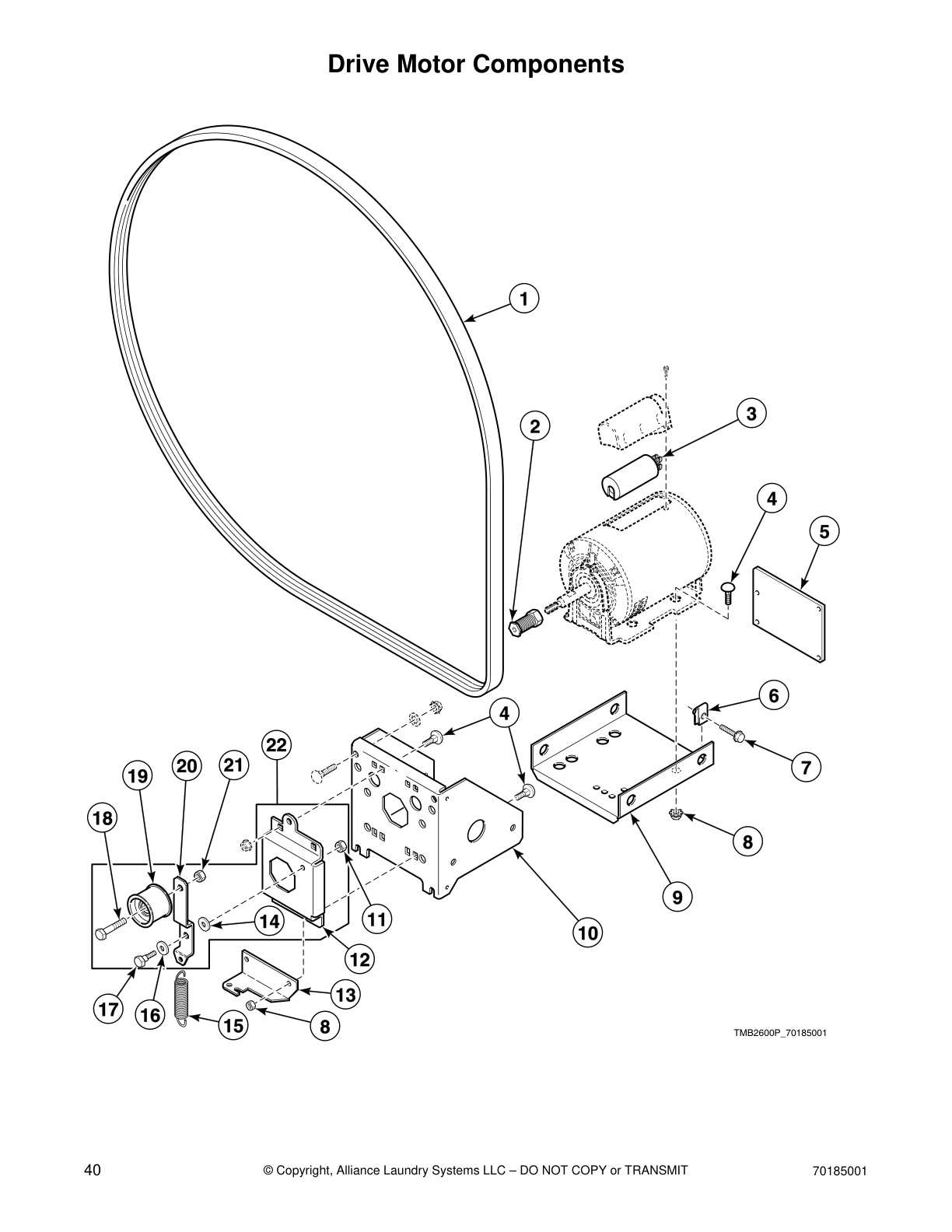

Drive Motor Components

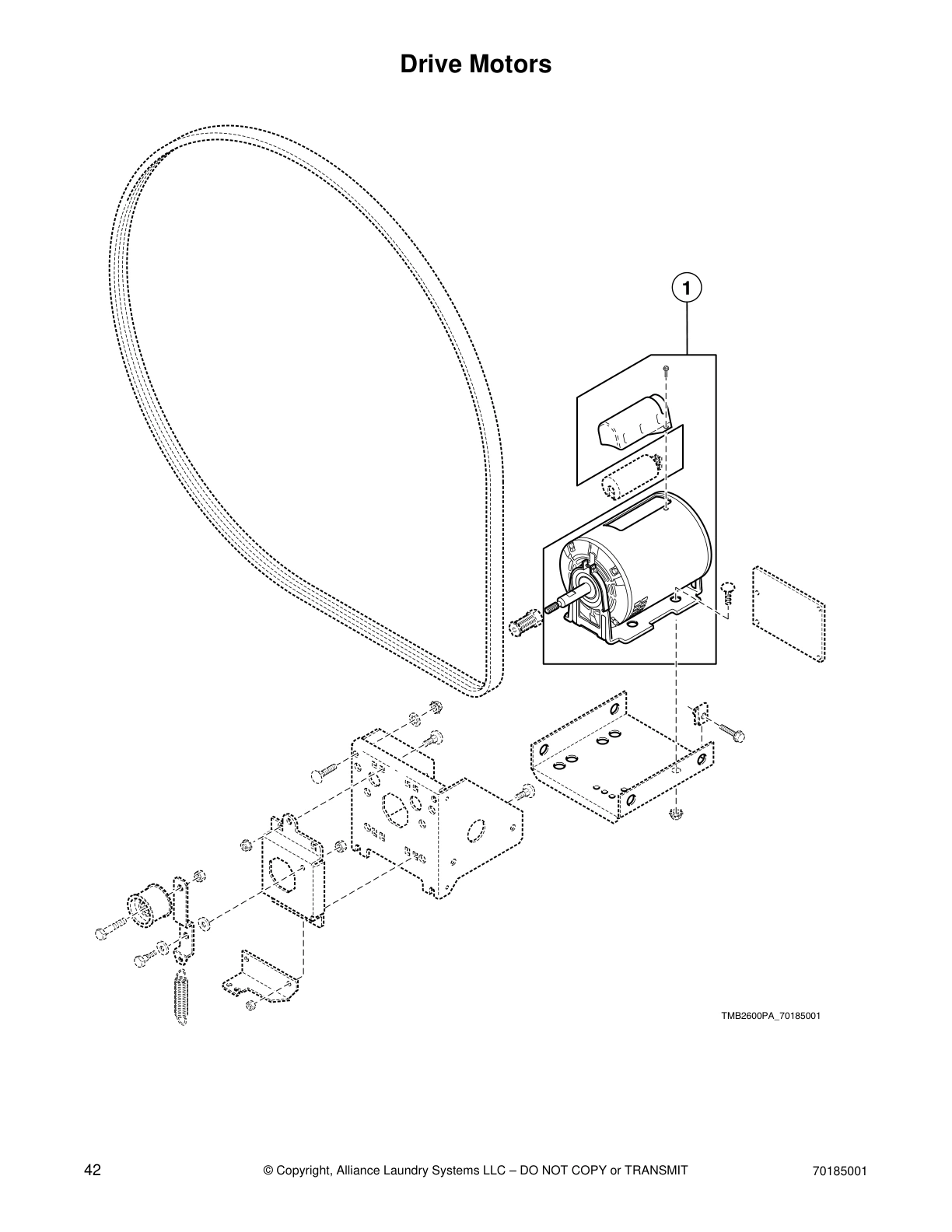

Drive Motors

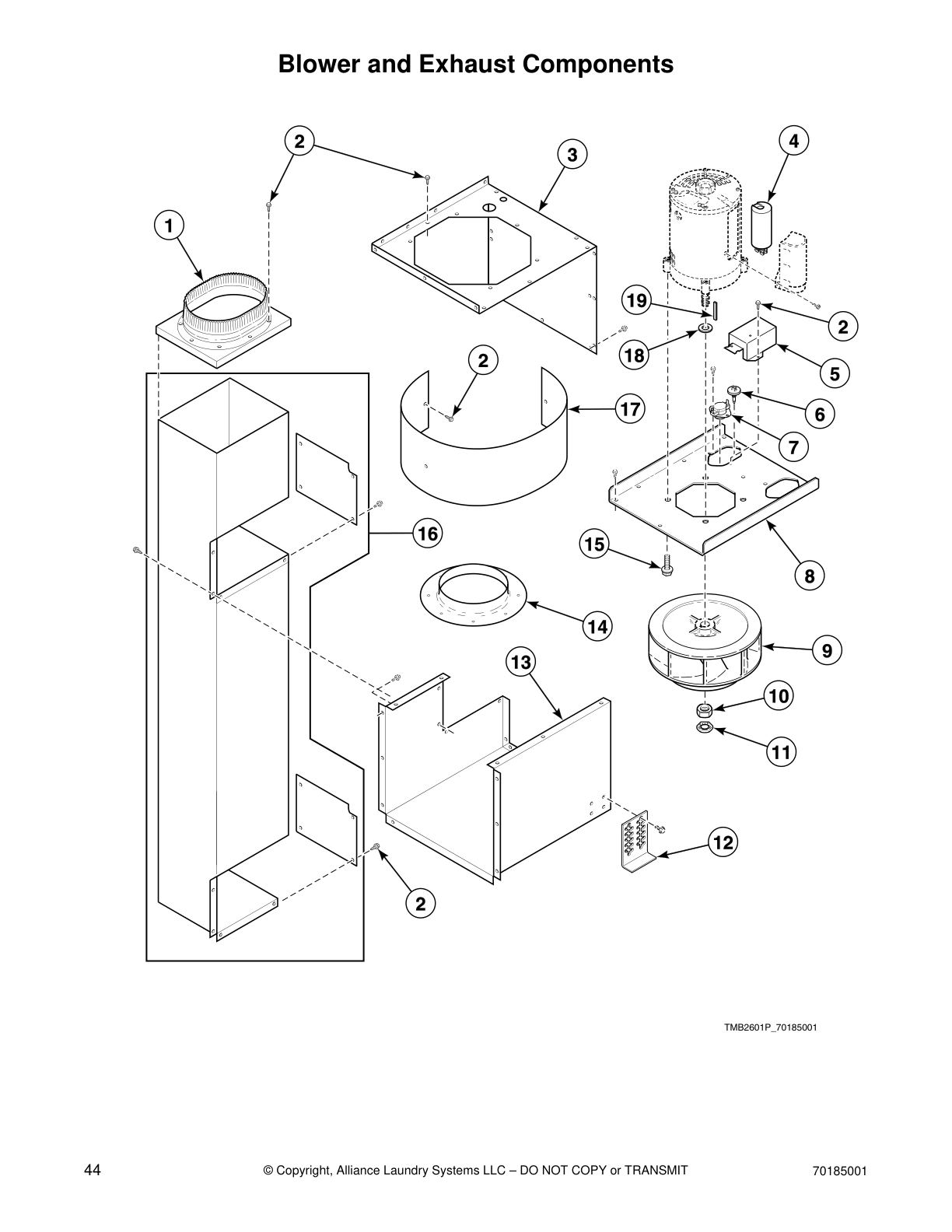

Blower and Exhaust Components

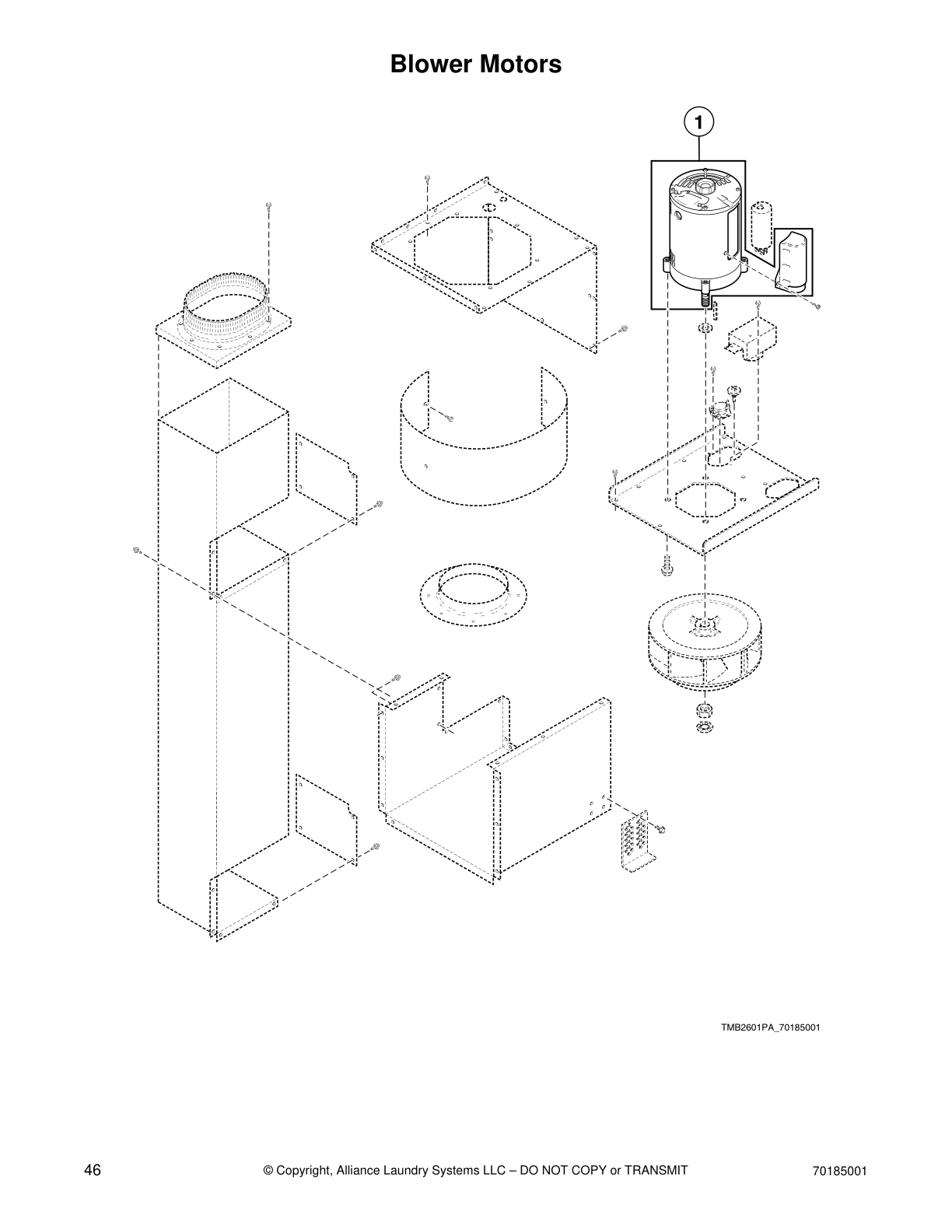

Blower Motors

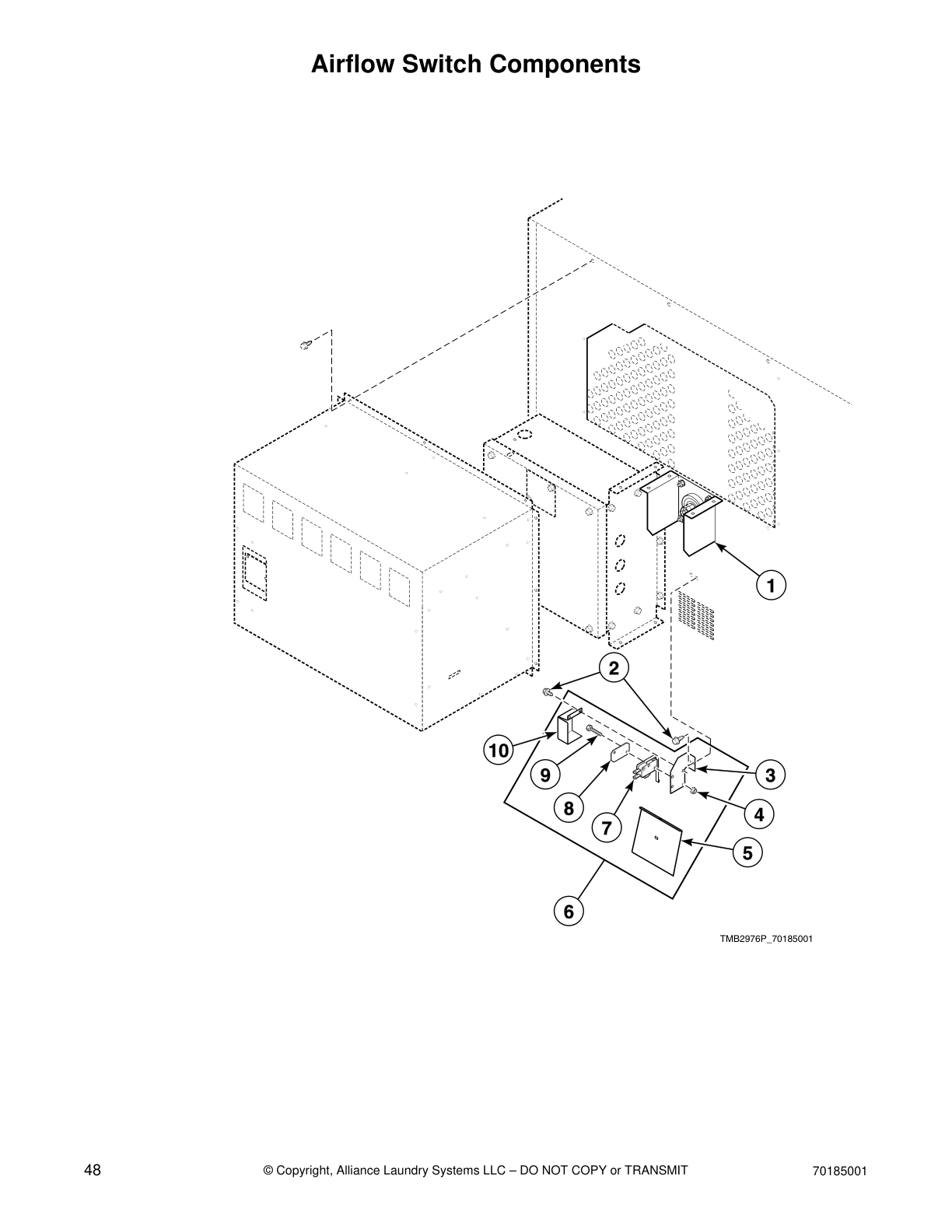

Airflow Switch Components

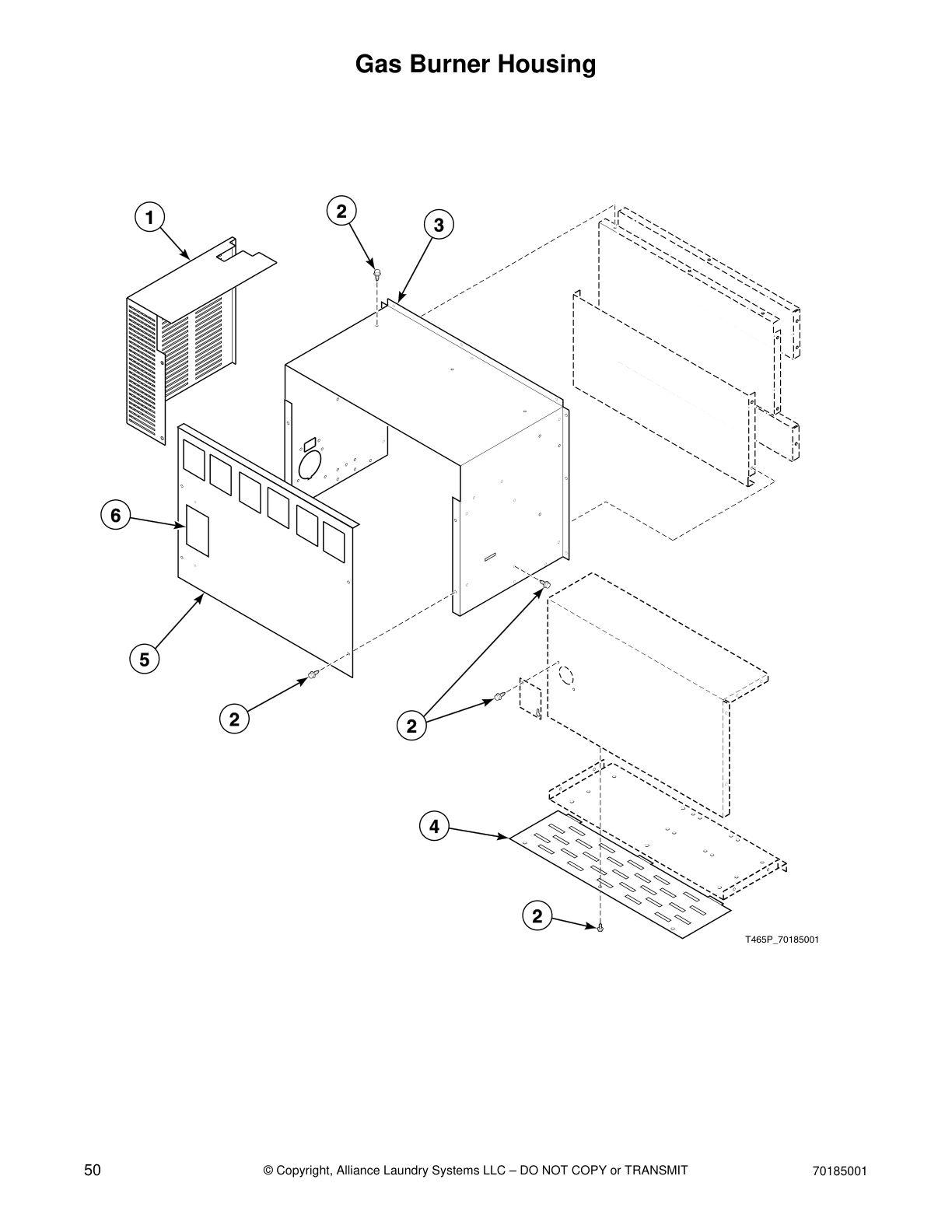

Gas Burner Housing

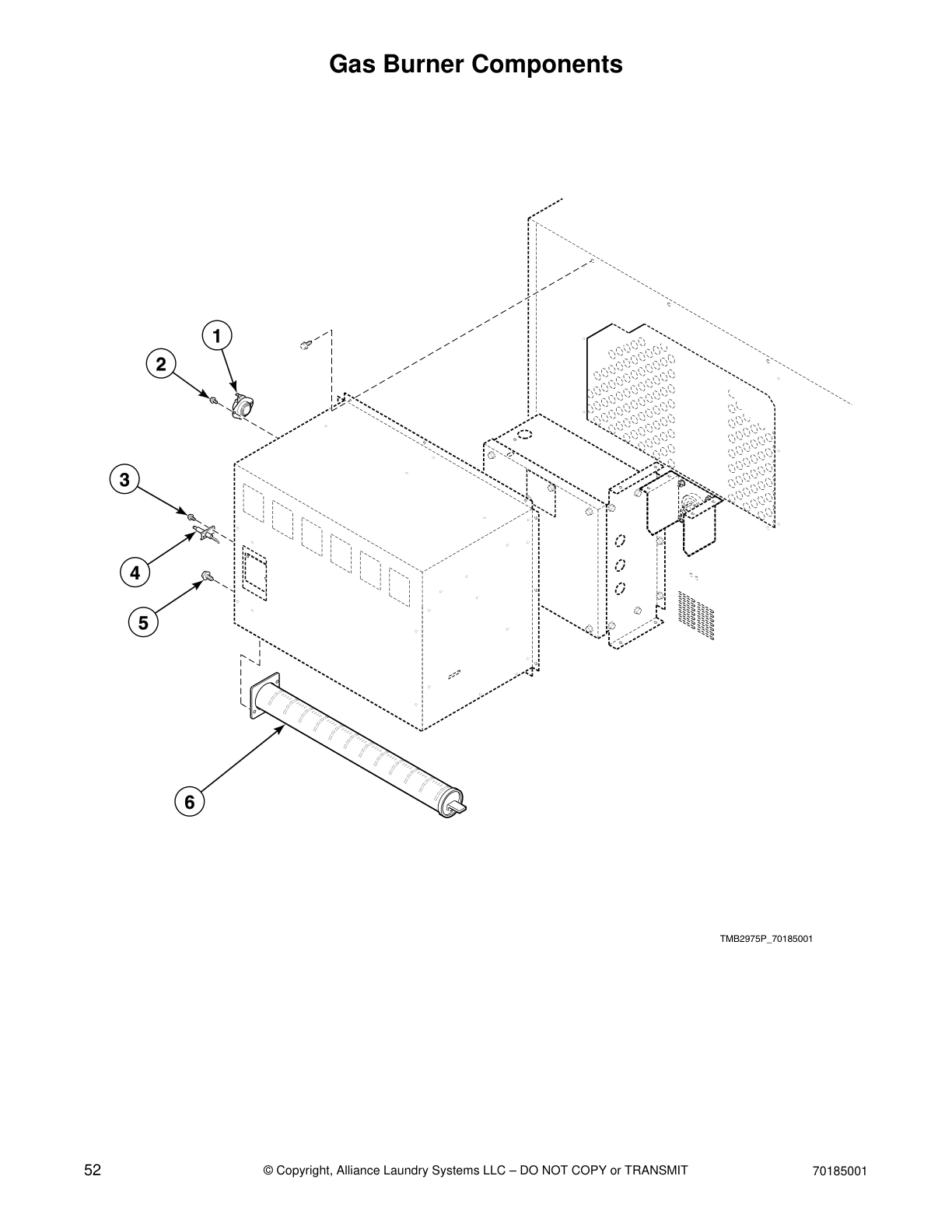

Gas Burner Components

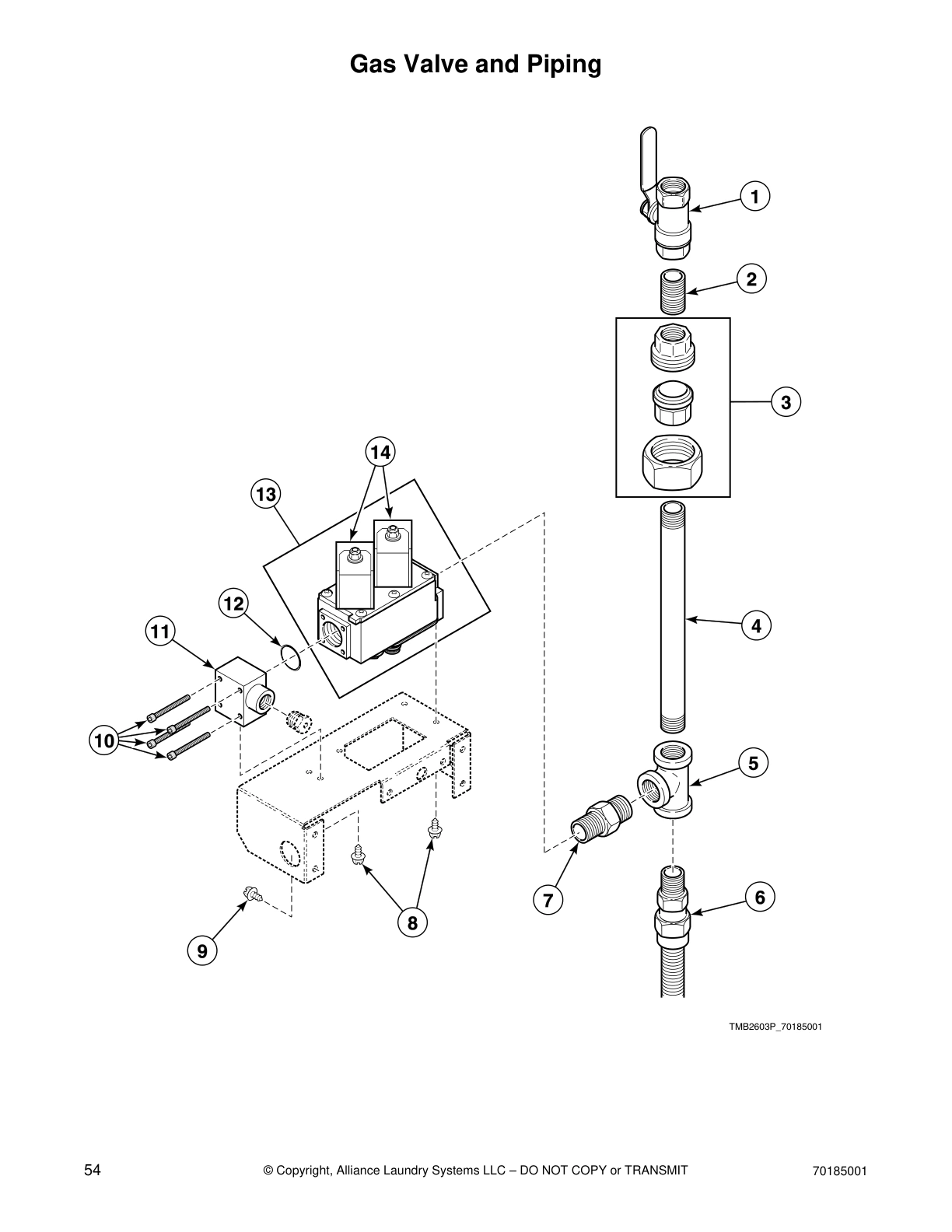

Gas Valve and Piping

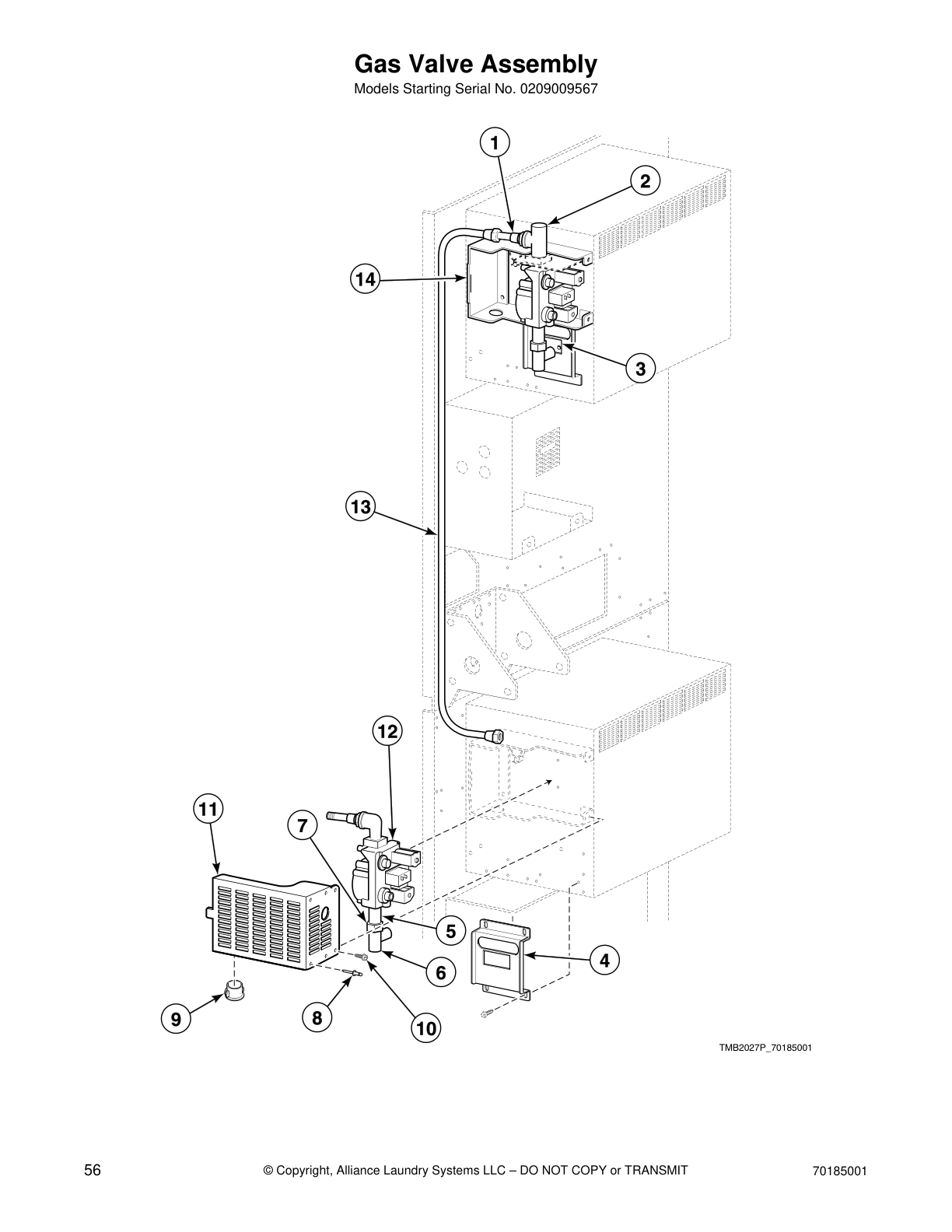

Gas Valve Assembly

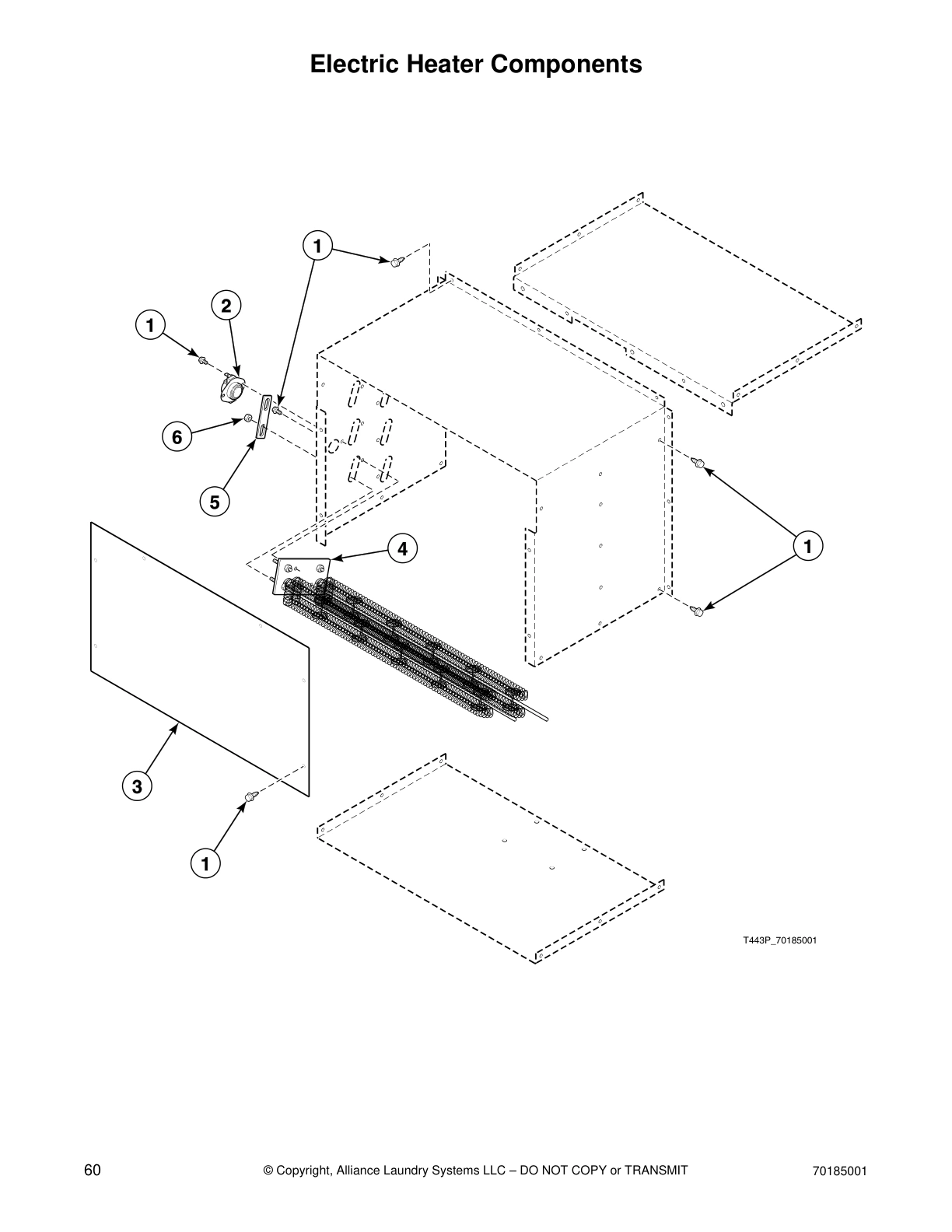

Electric Heater Components

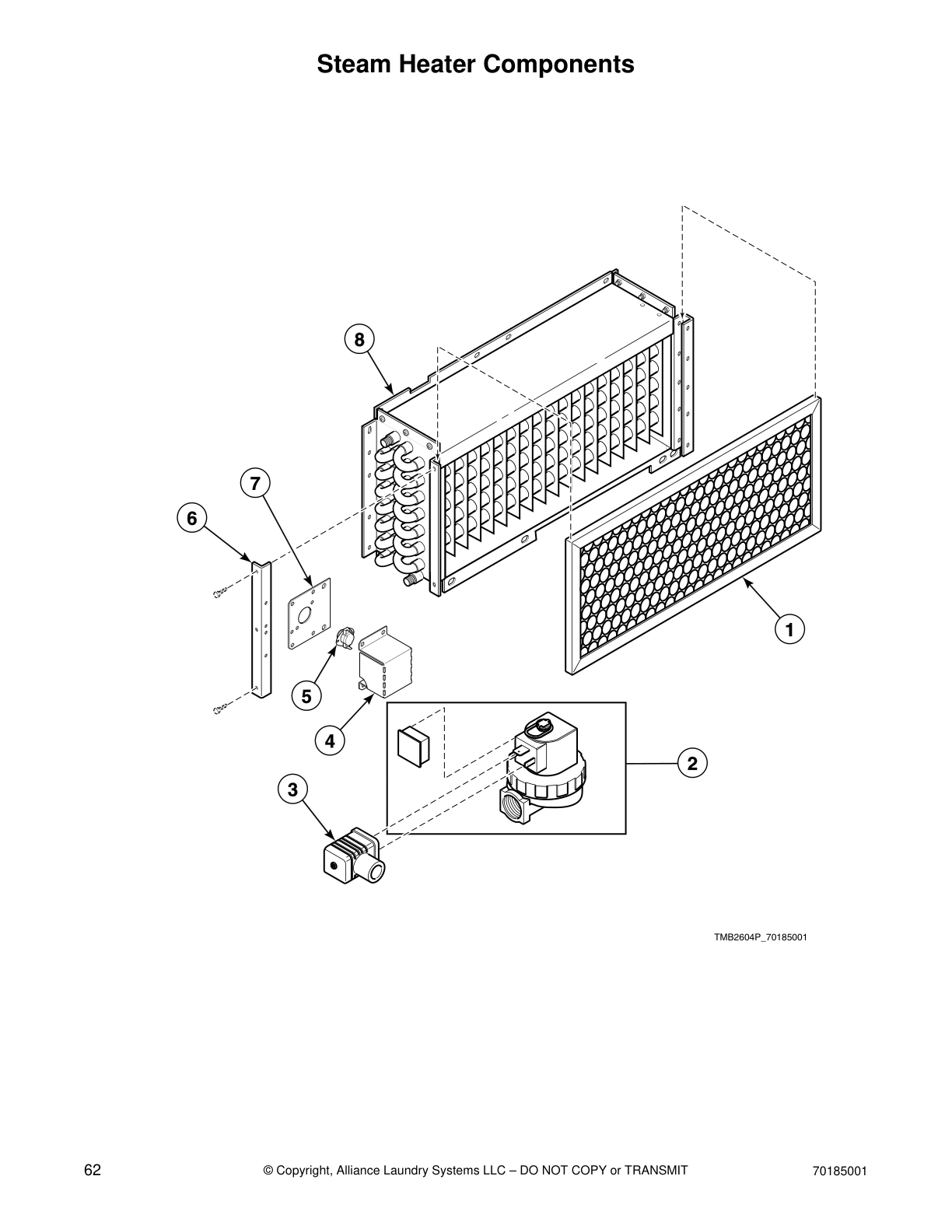

Steam Heater Components

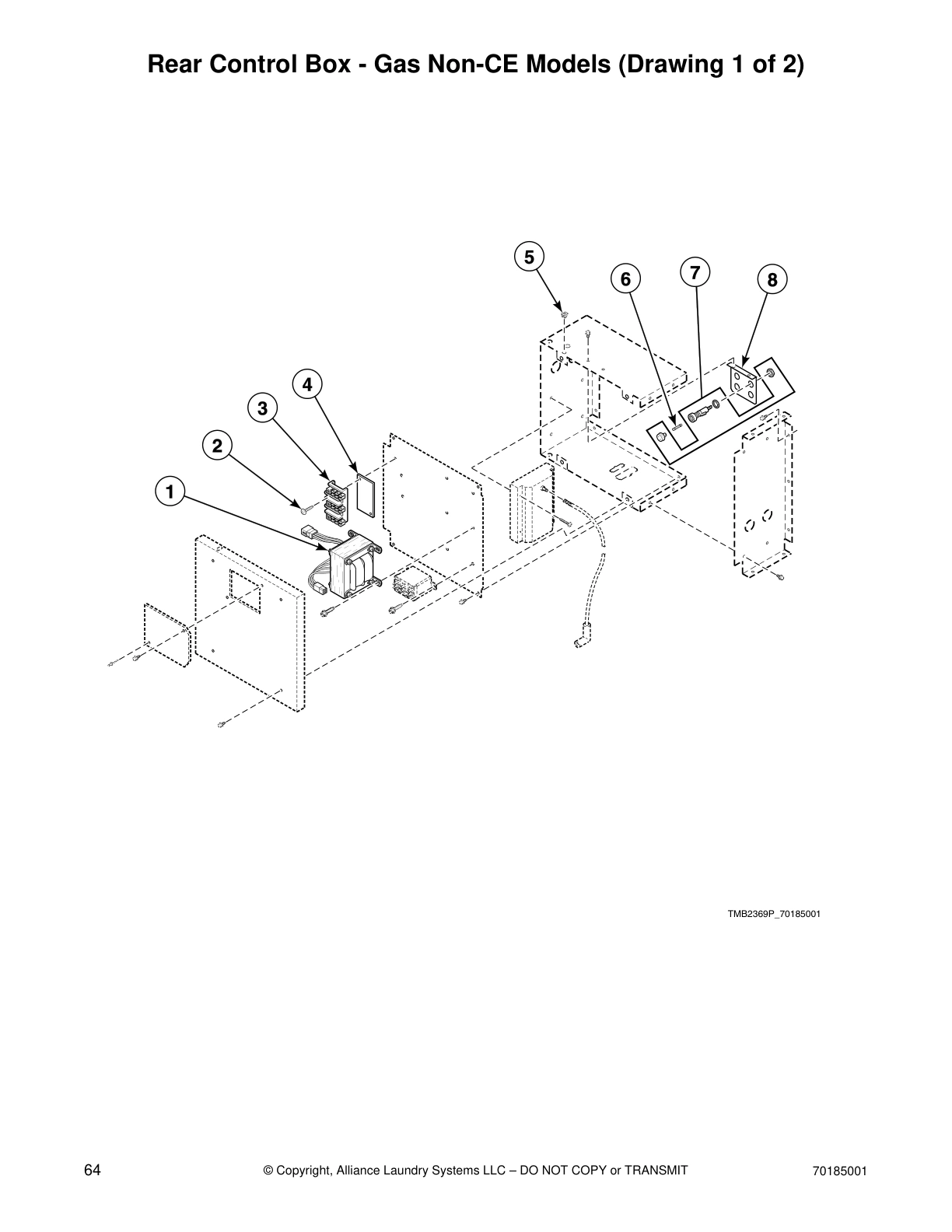

Rear Control Box - Gas Non-CE Models (Drawing 1 of 2)

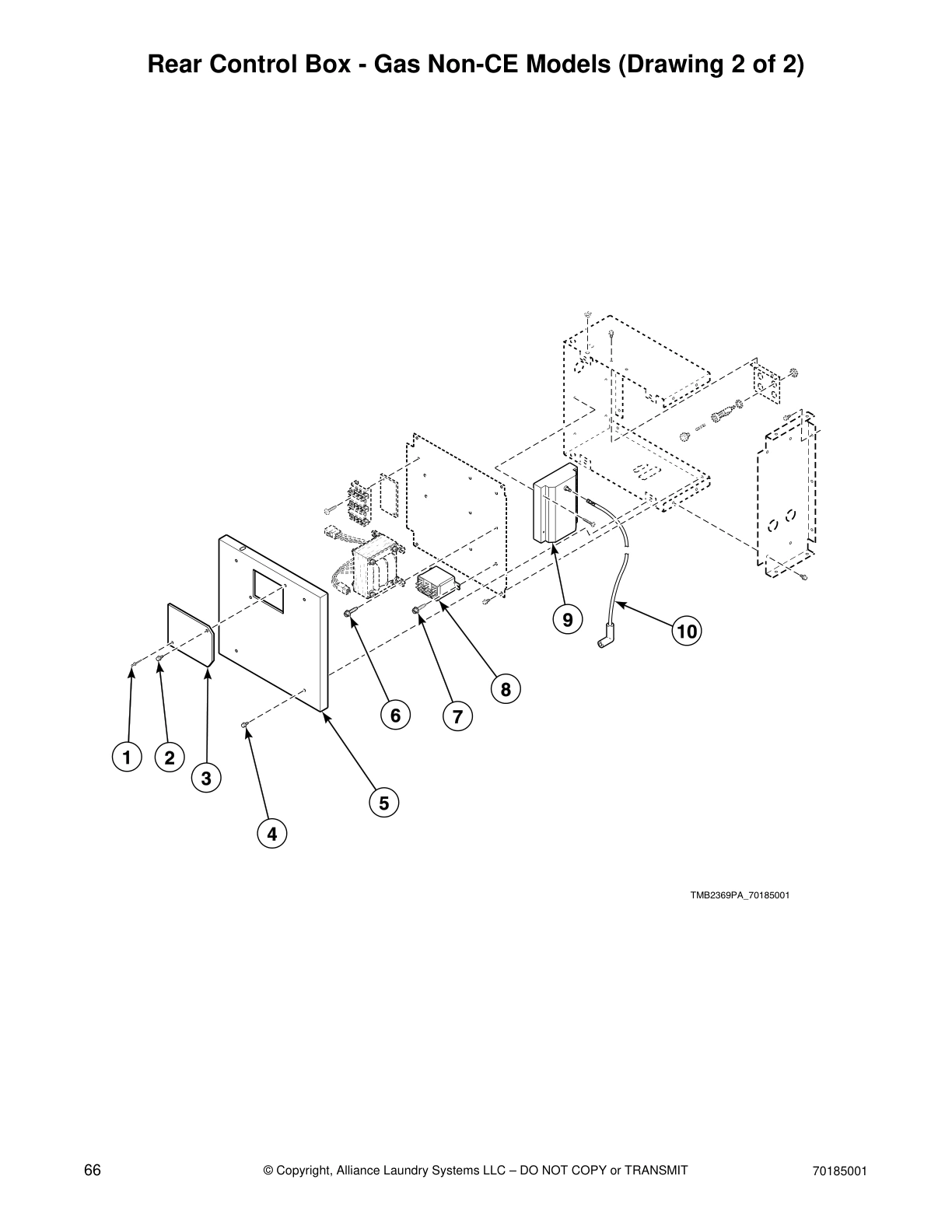

Rear Control Box - Gas Non-CE Models (Drawing 2 of 2)

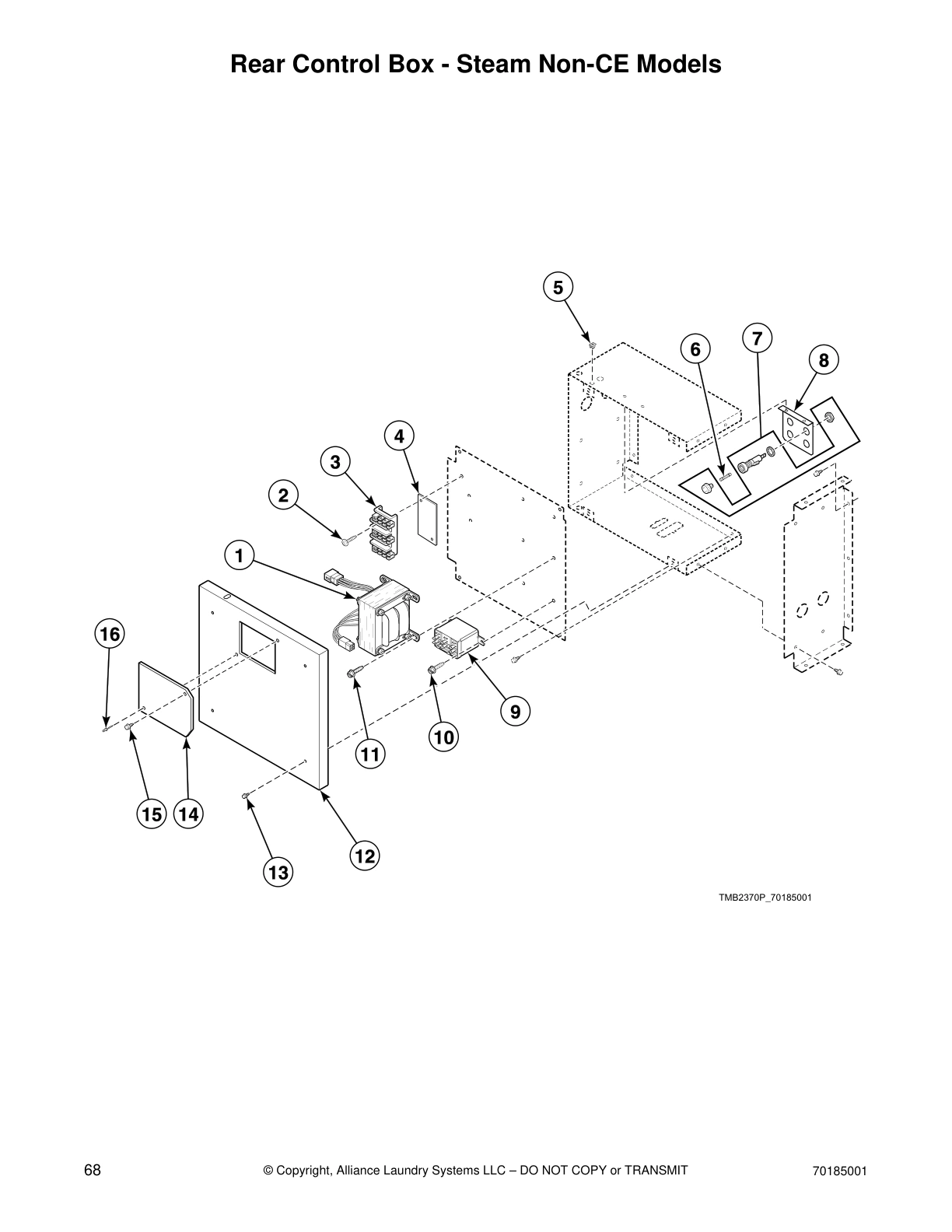

Rear Control Box - Steam Non-CE Models

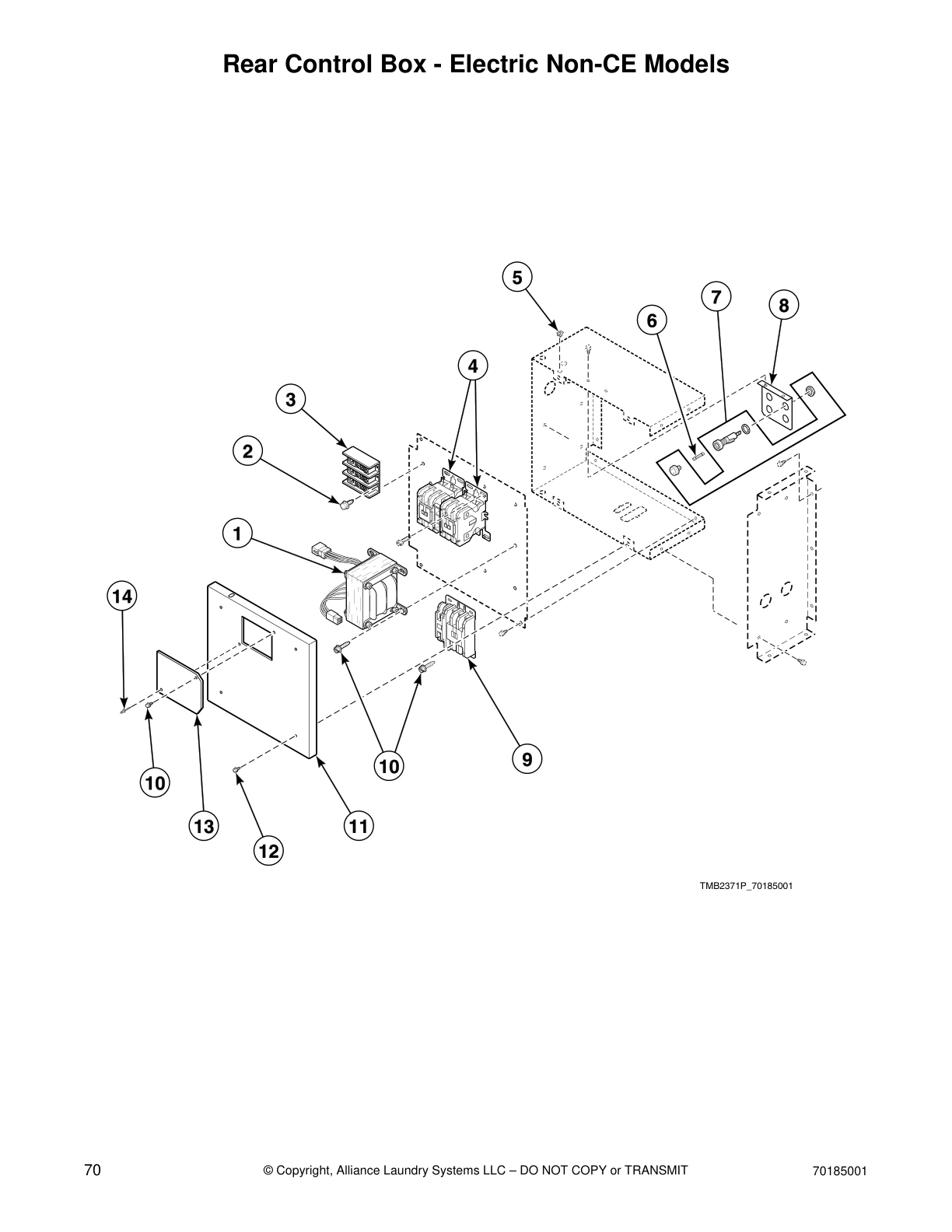

Rear Control Box - Electric Non-CE Models

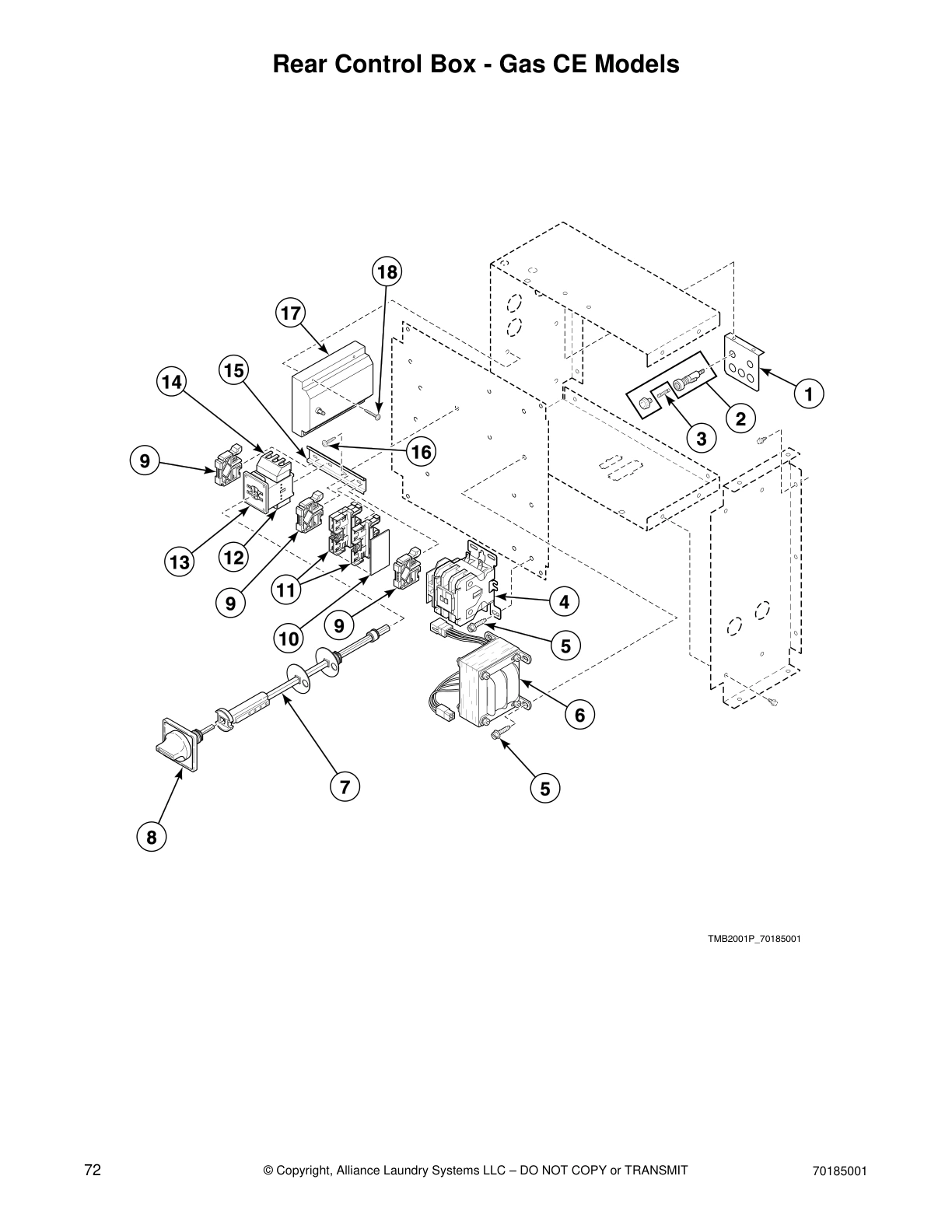

Rear Control Box - Gas CE Models

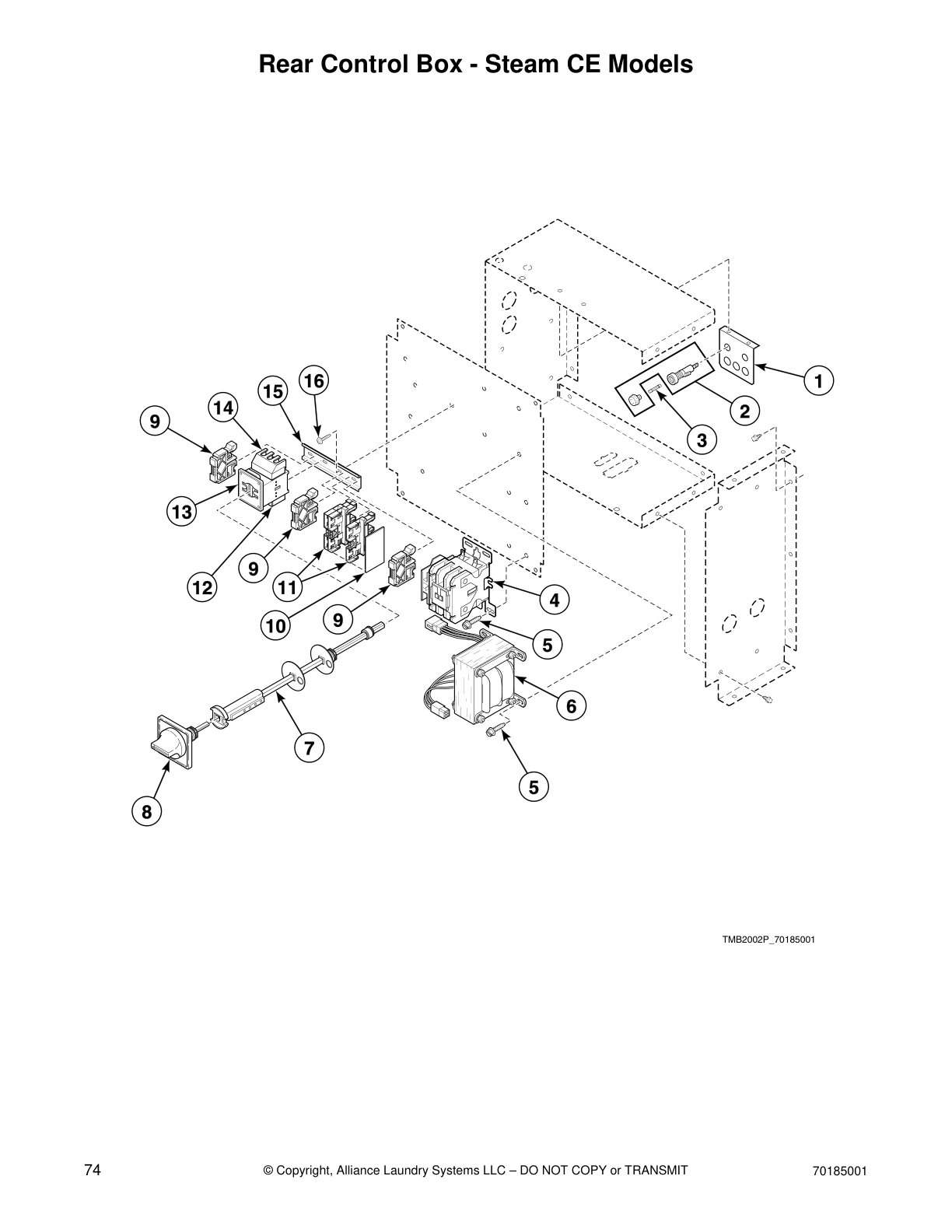

Rear Control Box - Steam CE Models
Rear Control Box - Electric CE Models
Through Serial No. 112006347

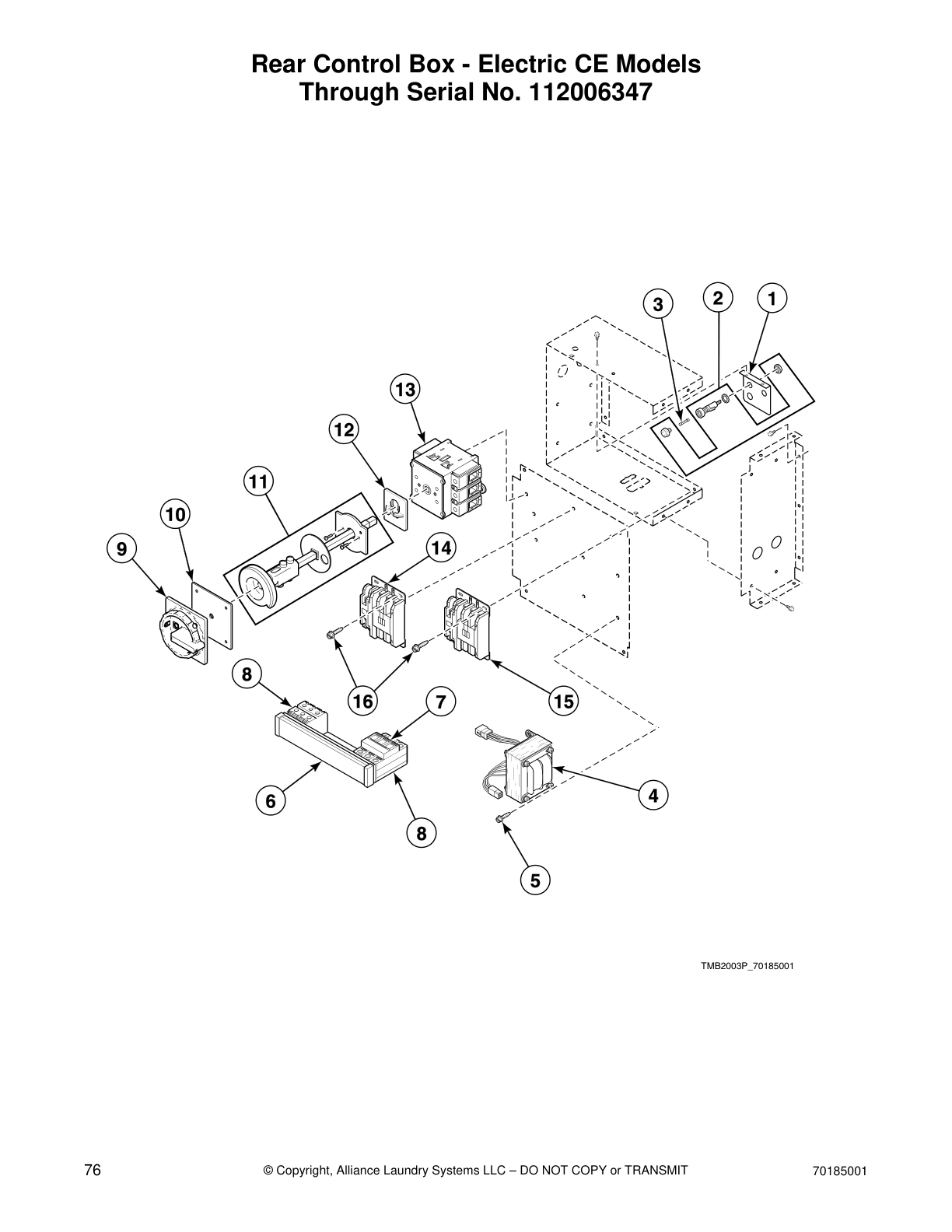

Rear Control Box - Electric CE Models

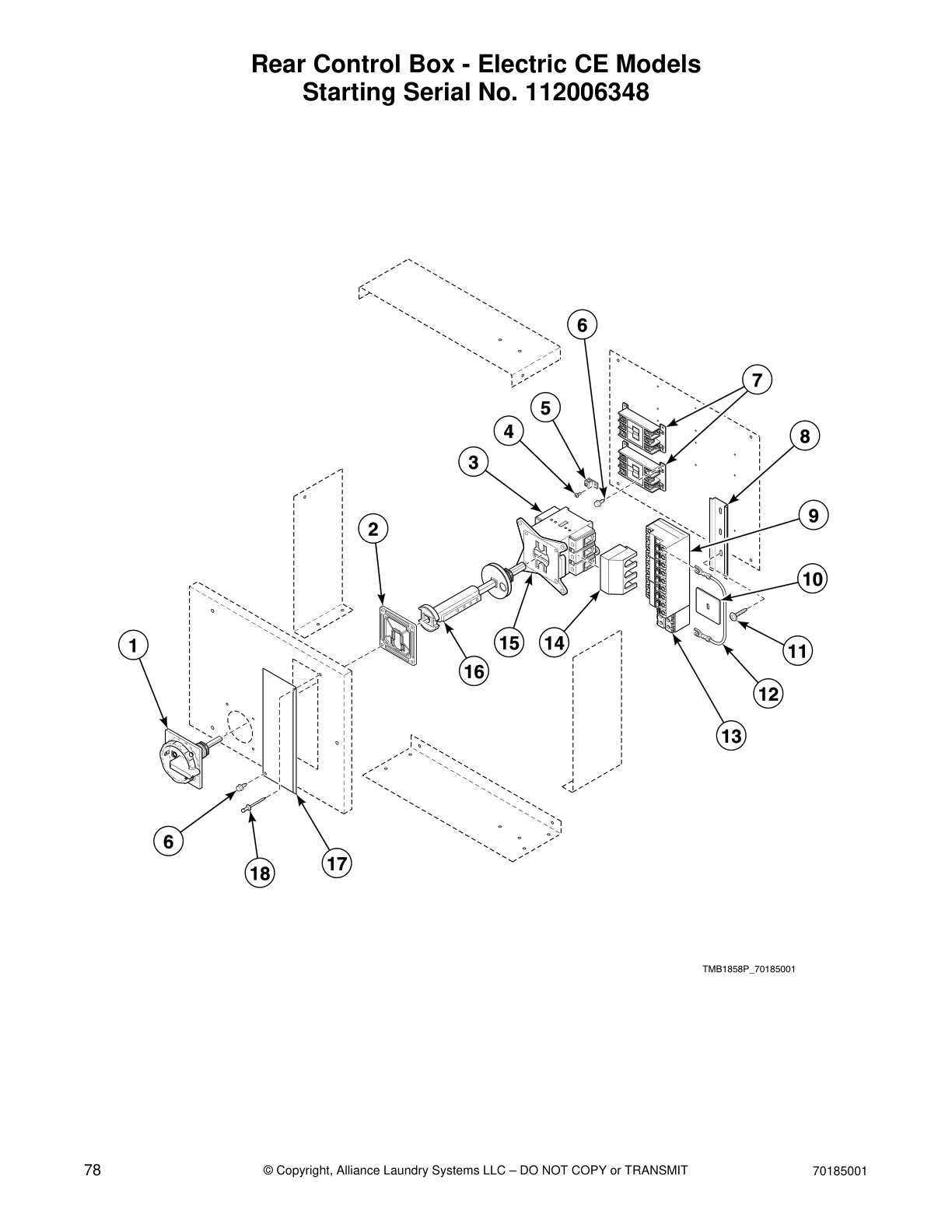

Starting Serial No. 112006348
Common parts from model Alliance PT0220SEL Dryer
Jumper Harness Assembly SPQ 91024P Contact Us For Availability
SPQ M413509 SPQ M413509 Contact Us For Availability
SPQ 70067001P SPQ 70067001P Contact Us For Availability
SPQ 70139001 SPQ 70139001 Contact Us For Availability
1
Partition Baffle SPQ 70022101 Contact Us For Availability
1
Baffle Gasket SPQ 70015701 Contact Us For Availability
1
Door Assembly SPQ 70212200 Contact Us For Availability
1
Drive Motor SPQ 70338101P Contact Us For Availability
1
Blower Motor SPQ 70342601P Contact Us For Availability
2
Key SPQ 70155602 Contact Us For Availability
2
Nut SPQ M400661 Contact Us For Availability
2
Screw SPQ M402797 Contact Us For Availability
2
Fuse Holder SPQ M413544P Contact Us For Availability
3
Cam and Hinge Kit SPQ 70296801 Contact Us For Availability
3
SPQ 70072901 SPQ 70072901 Contact Us For Availability
3
Thermal Shield SPQ 70015702 Contact Us For Availability
3
Airflow Switch Bracket SPQ 70266301 Contact Us For Availability
4
Ground Lug Connector SPQ M413865 Contact Us For Availability
4
Fuse Holder SPQ 430642 Contact Us For Availability
4
Coin Vault Assembly SPQ 70036601 Contact Us For Availability
4
Coin Vault Switch Harness Assembly SPQ 70022001 Contact Us For Availability
4
SPQ M414215 SPQ M414215 Contact Us For Availability
4
Belt Tension Tool Kit SPQ 70062401 Contact Us For Availability
4
Burner Grill SPQ 70188801 Contact Us For Availability
4
Gas Burner SPQ 70032801P Contact Us For Availability
4
Transformer SPQ M414229P Contact Us For Availability
5
Airflow Switch Vane SPQ 70266201 Contact Us For Availability
5
SPQ 05161 SPQ 05161 Contact Us For Availability
5
Limit Thermostat SPQ M409443 Contact Us For Availability
5
Fuse Receptacle SPQ M413862 Contact Us For Availability
5
Electric Heater Contactor Kit SPQ M402917 Contact Us For Availability
6
Airflow Switch Kit SPQ 70270901P Contact Us For Availability
6
Igniter Cover SPQ 70159601 Contact Us For Availability
6
SPQ 70229801P SPQ 70229801P Contact Us For Availability
6
Jumper Configuration Assembly SPQ M411283 Contact Us For Availability
7
Airflow Switch SPQ 70267301 Contact Us For Availability
7
SPQ 70173401P SPQ 70173401P Contact Us For Availability
7
SPQ M412985 SPQ M412985 Contact Us For Availability
7
Exhaust Thimble SPQ M411307 Contact Us For Availability
7
Fuse Receptacle SPQ M414232 Contact Us For Availability
9
Coin Vault Switch Harness Assembly SPQ 70180101 Contact Us For Availability
9
Fan Contactor SPQ M413118 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44089302P Contact Us For Availability
10
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
10
Door Hinge Lug Assembly SPQ 44035001 Contact Us For Availability
10
Pushbutton Switch SPQ 70413301 Contact Us For Availability
10
Nut SPQ M400022 Contact Us For Availability
10
Airflow Switch Cover SPQ 70281801 Contact Us For Availability
11
Screw SPQ M400034 Contact Us For Availability
11
Washer SPQ M400991 Contact Us For Availability
11
Screw SPQ 70033502 Contact Us For Availability
11
Key SPQ 44089301P Contact Us For Availability
12
Pop Rivet SPQ 70126401 Contact Us For Availability
12
Jumper Cable Assembly SPQ M414121 Contact Us For Availability
13
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
13
Terminal Block SPQ 51778 Contact Us For Availability
13
Terminal Block SPQ M413933 Contact Us For Availability
14
Screw SPQ 70448701 Contact Us For Availability
15
Insulator SPQ M411072 Contact Us For Availability
15
Door Switch Actuator Kit SPQ 70215001P Contact Us For Availability
15
Key SPQ 70126101 Contact Us For Availability
15
Fan Contactor SPQ M413614P Contact Us For Availability
16
Nut SPQ M401223 Contact Us For Availability
16
Door Handle SPQ M400133 Contact Us For Availability
17
Cylinder Guide Tool SPQ M4960P3 Contact Us For Availability
17
Front Panel Seal SPQ M400003 Contact Us For Availability
17
Door Ring Gasket SPQ M409385 Contact Us For Availability
18
Screw SPQ 430648 Contact Us For Availability
18
Fuse Holder SPQ M405824 Contact Us For Availability
19
Thermistor SPQ 70144101 Contact Us For Availability
19
Idler Wheel Assembly SPQ 70050401P Contact Us For Availability
20
Roller Shaft SPQ 70017701 Contact Us For Availability
21
Drywall Screw Magnet Kit SPQ 70070101 Contact Us For Availability
22
Nut SPQ 70108501 Contact Us For Availability
NI
High Limit Harness SPQ 70210901P Contact Us For Availability
NI
Blower Motor SPQ 70337501P Contact Us For Availability
NI
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
NI
Nut SPQ 70155601 Contact Us For Availability
NI
Drive Motor SPQ 70337801P Contact Us For Availability
NI
SPQ 70235201 SPQ 70235201 Contact Us For Availability
NI
Clip SPQ 70296401 Contact Us For Availability
NI
SPQ 70226701 SPQ 70226701 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ M4853P3 SPQ M4853P3 Contact Us For Availability
NI
Drive Motor Kit SPQ 70338001P Contact Us For Availability
NI
SPQ 70017801 SPQ 70017801 Contact Us For Availability
NI
Blower Motor Kit SPQ 70337701P Contact Us For Availability
NI
Jumper Harness SPQ M413510 Contact Us For Availability
NI
SPQ M413508 SPQ M413508 Contact Us For Availability
NI
Jumper Configuration Assembly SPQ M414228P Contact Us For Availability
NI
SPQ M413506 SPQ M413506 Contact Us For Availability
NI
SPQ 70084001 SPQ 70084001 Contact Us For Availability
NI
High Limit Harness SPQ M4919P3 Contact Us For Availability
NI
SPQ 70139101 SPQ 70139101 Contact Us For Availability
NI
SPQ 44129201P SPQ 44129201P Contact Us For Availability
× ![]()
