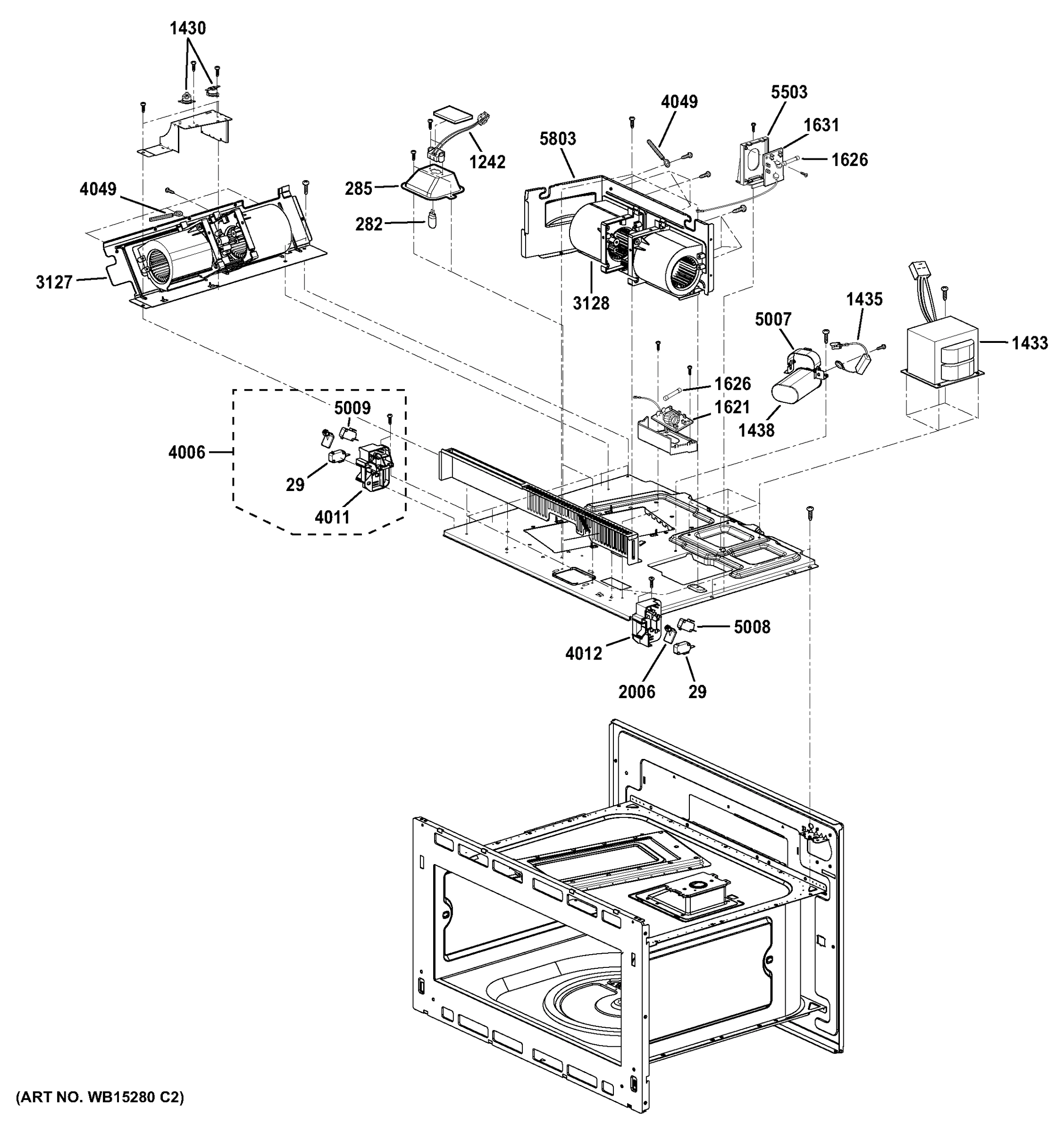

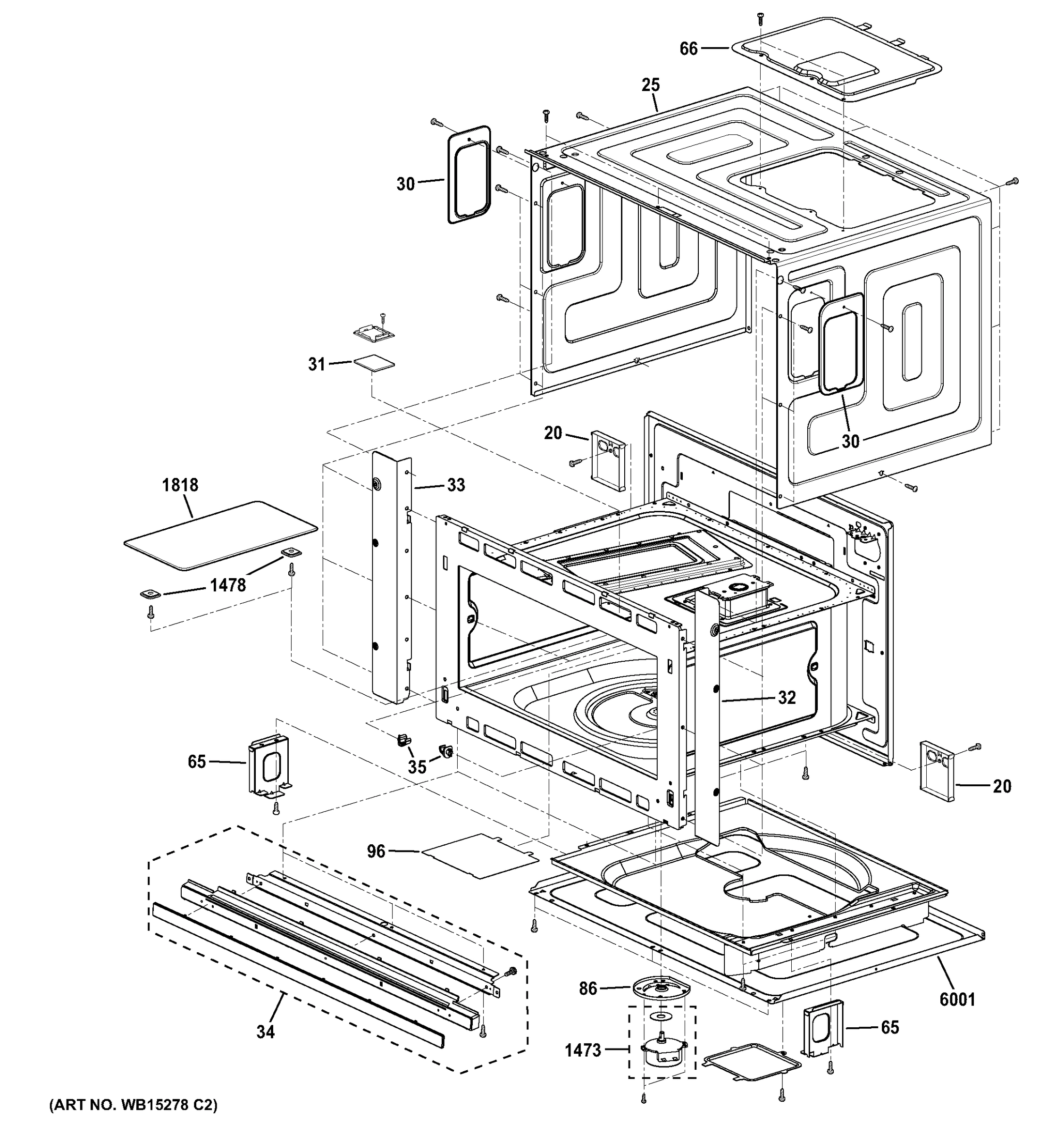

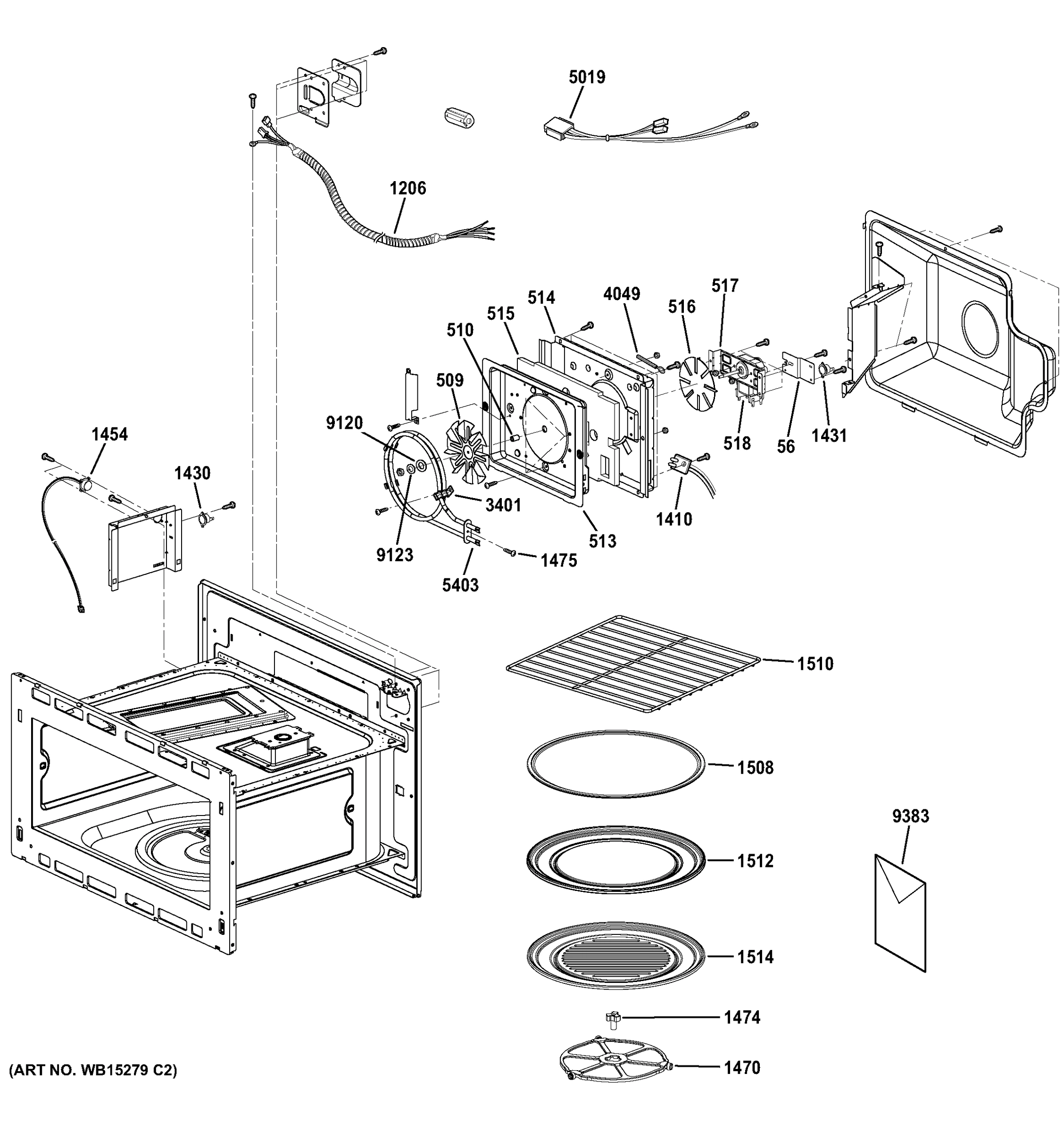

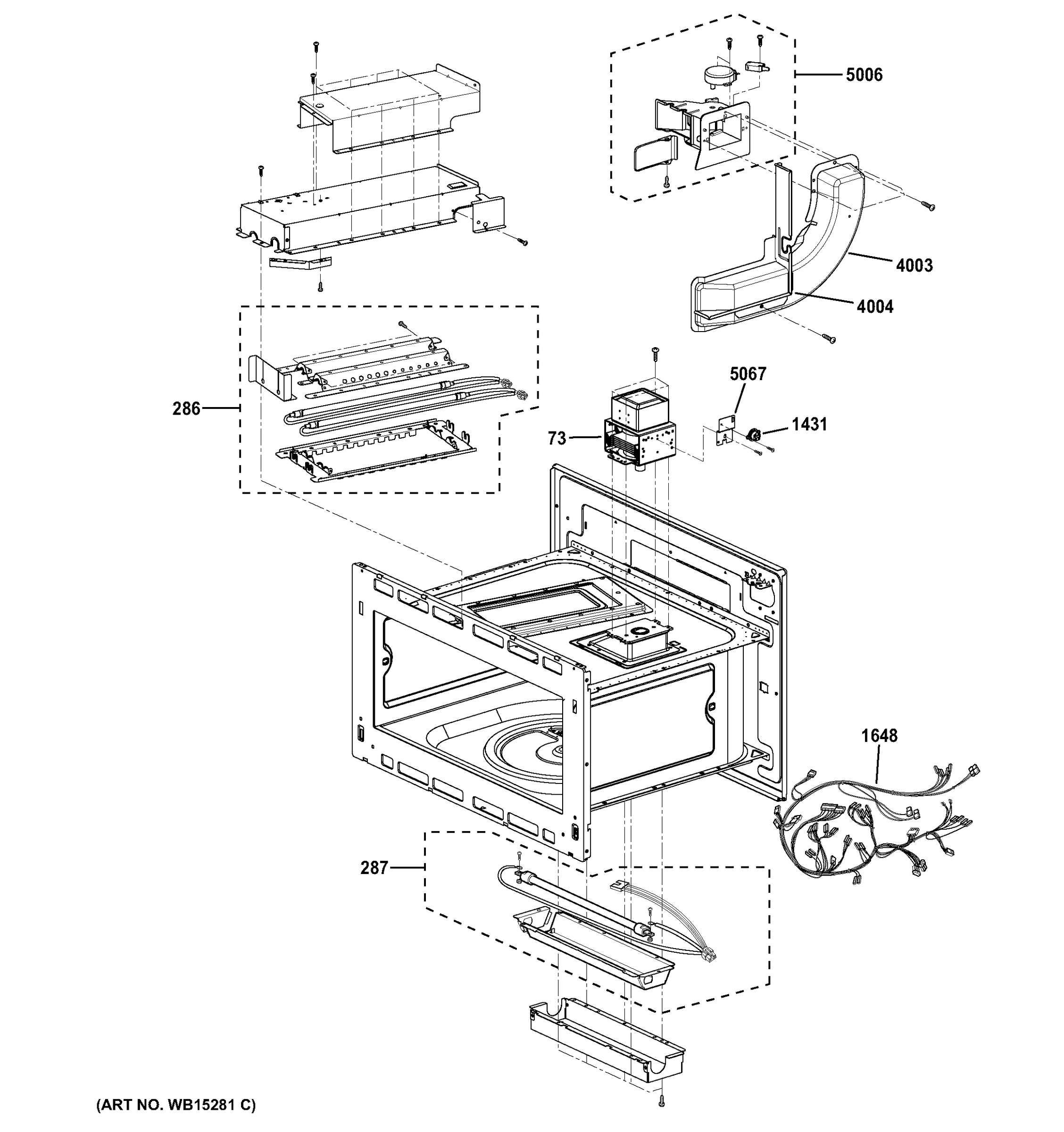

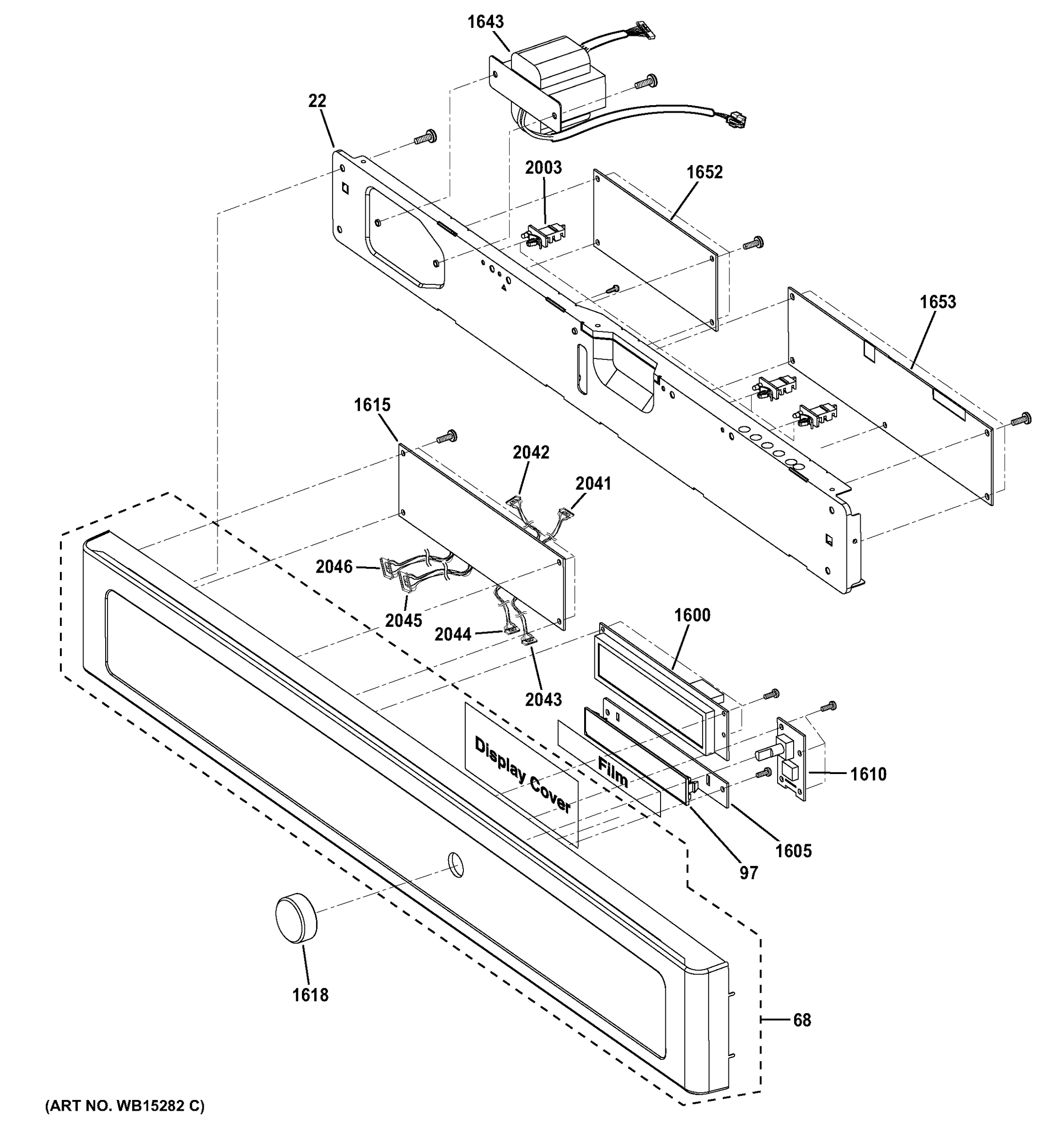

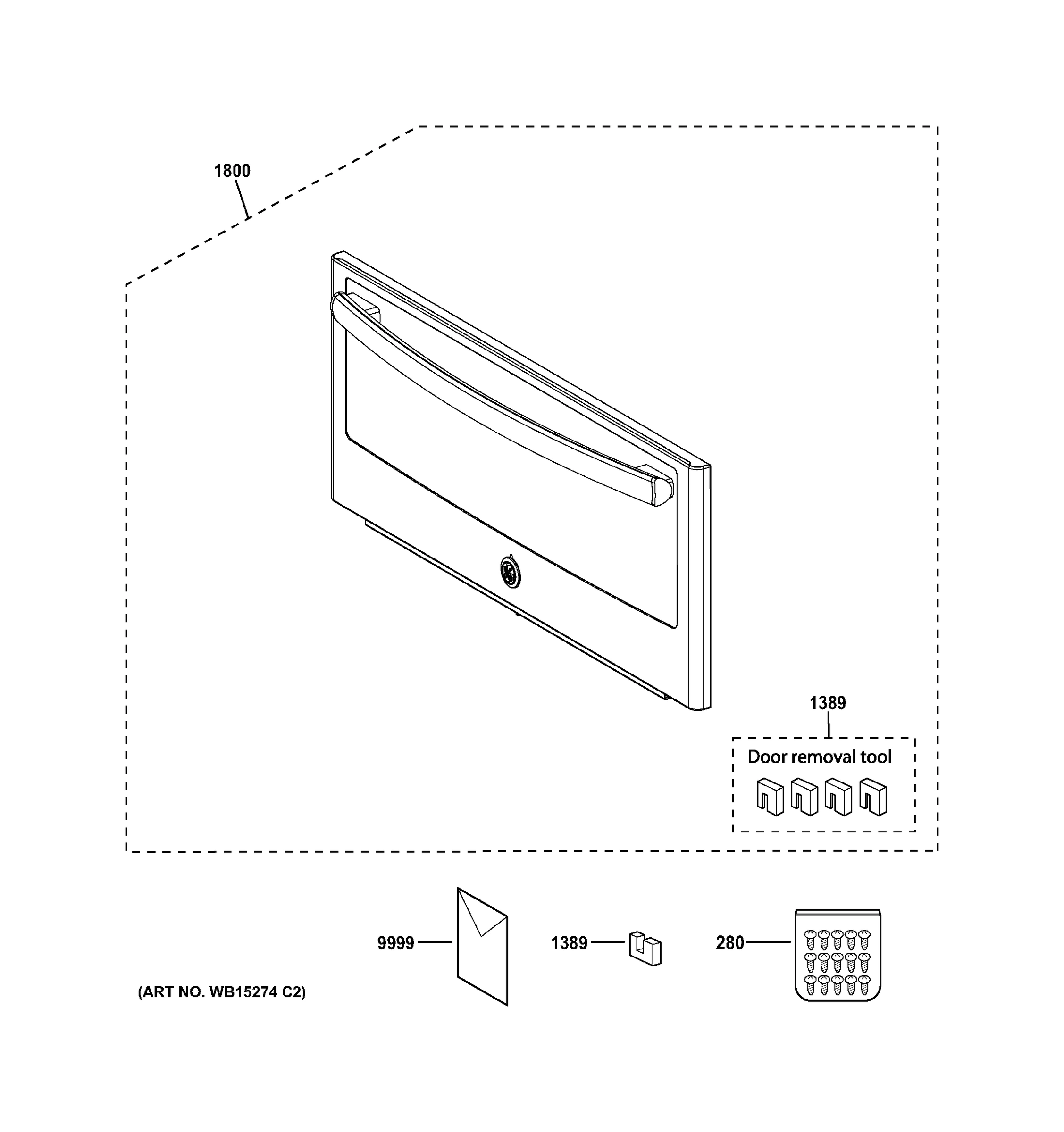

Model GE PSB9240SF1SS Microwave Or Advantium – Common Parts & Diagrams

34
TRIM, BOTTOM
TRIM, BOTTOM GEN WB07X11172 Contact Us For Availability
View on Model
35
HOLDER,COOK AUXILIARY
HOLDER,COOK AUXILIARY GEN WB06X10776 Contact Us For Availability
View on Model
96
MICA COVER
MICA COVER GEN WB06X10828 Contact Us For Availability
View on Model
282
LAMP, HALOGEN 120V/20W
LAMP, HALOGEN 120V/20W GEN WB25X10019 Contact Us For Availability
View on Model
518
MOTOR,AC FAN
MOTOR,AC FAN GEN WB26X10211 Contact Us For Availability
View on Model
1242
HOLDER ASM
HOLDER ASM GEN WB06X10646 Contact Us For Availability
View on Model
1410
THERMISTOR NTC
THERMISTOR NTC GEN WB18X10287 Contact Us For Availability
View on Model
1431
THERMOSTAT
THERMOSTAT GEN WB21X10148 Contact Us For Availability
View on Model
1433
TRANSFORMER,HIGH VOLTAGE
TRANSFORMER,HIGH VOLTAGE GEN WB17X10030 Contact Us For Availability
View on Model
1454
SENSOR ASM
SENSOR ASM GEN WB27X10857 Contact Us For Availability
View on Model
1470
RING ASSEMBLY
RING ASSEMBLY GEN WB06X10775 Contact Us For Availability
View on Model
1474
SHAFT,TURNTABLE
SHAFT,TURNTABLE GEN WB02X11360 Contact Us For Availability
View on Model
1510
RACK
RACK GEN WB49X10202 Contact Us For Availability
View on Model
1605
LED BOARD
LED BOARD GEN WB27X11020 Contact Us For Availability
View on Model
1615
SMART BOARD
SMART BOARD GEN WB27X11019 Contact Us For Availability
View on Model
1618
KNOB BLACK
KNOB BLACK GEN WB03X10131 Contact Us For Availability
View on Model
1643
TRANSFORMER,POWER
TRANSFORMER,POWER GEN WB27X11015 Contact Us For Availability
View on Model
1652
BOARD, POWER
BOARD, POWER GEN WB27X11018 Contact Us For Availability
View on Model
1818
CERAMIC-TOP
CERAMIC-TOP GEN WB36X10129 Contact Us For Availability
View on Model
2043
HARNESS,PCB TO DIAL PCB
HARNESS,PCB TO DIAL PCB GEN WB18X10411 Contact Us For Availability
View on Model
3127
MOTOR, VENTILATION FAN
MOTOR, VENTILATION FAN GEN WB27X11017 Contact Us For Availability
View on Model
3128
MOTOR(CIRC) CIRCULATION
MOTOR(CIRC) CIRCULATION GEN WB26X10182 Contact Us For Availability
View on Model
5009
MICRO SWITCH
MICRO SWITCH GEN WB24X10172 Contact Us For Availability
View on Model
5067
BRACKET,MISC
BRACKET,MISC GEN WB06X10570 Contact Us For Availability
View on Model
5403
HEATER SHEATH
HEATER SHEATH GEN WB44X10050 Contact Us For Availability
View on Model
