Model GE PSB42YSXASS Refrigerator – Common Parts & Diagrams

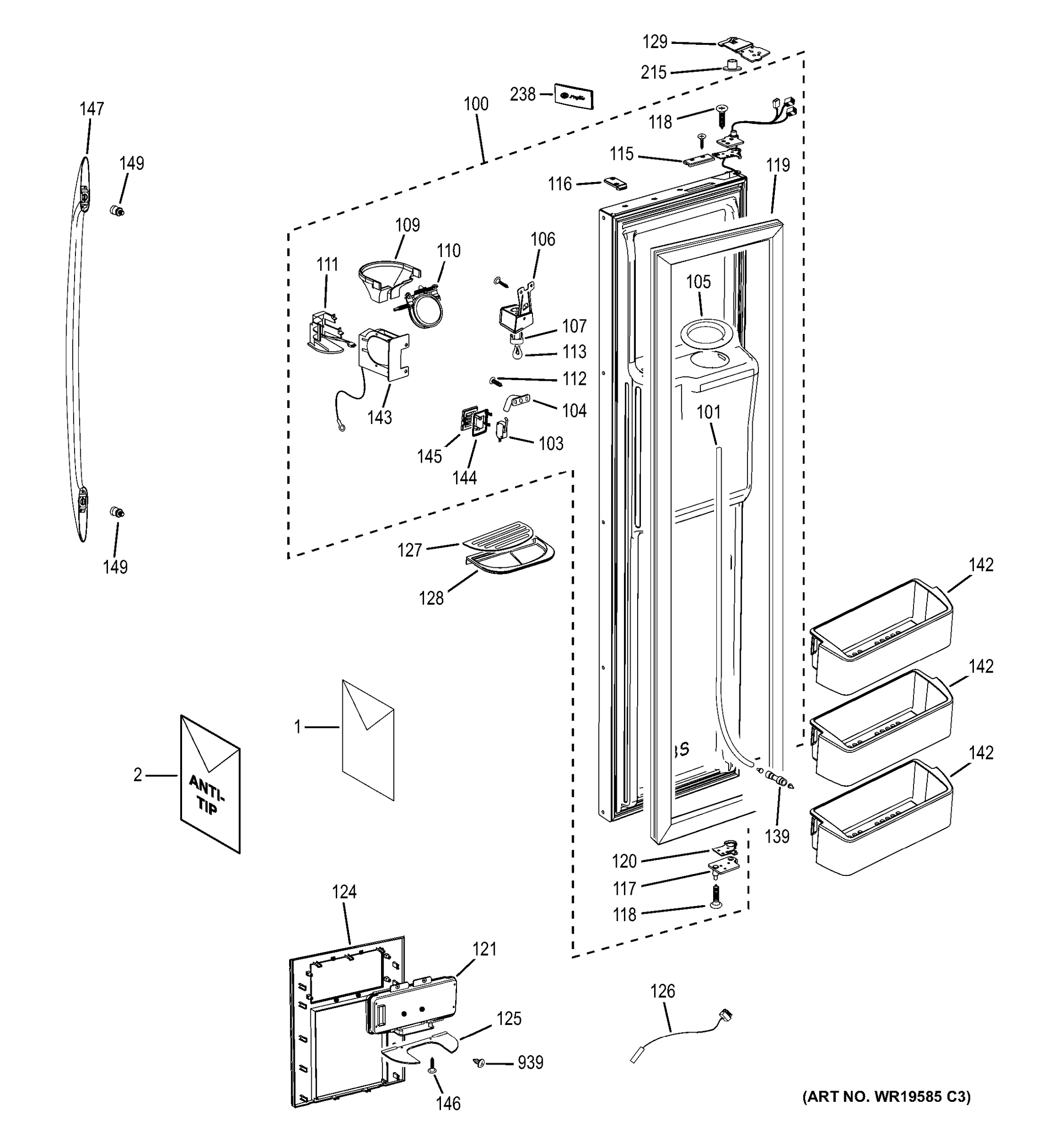

FREEZER DOOR

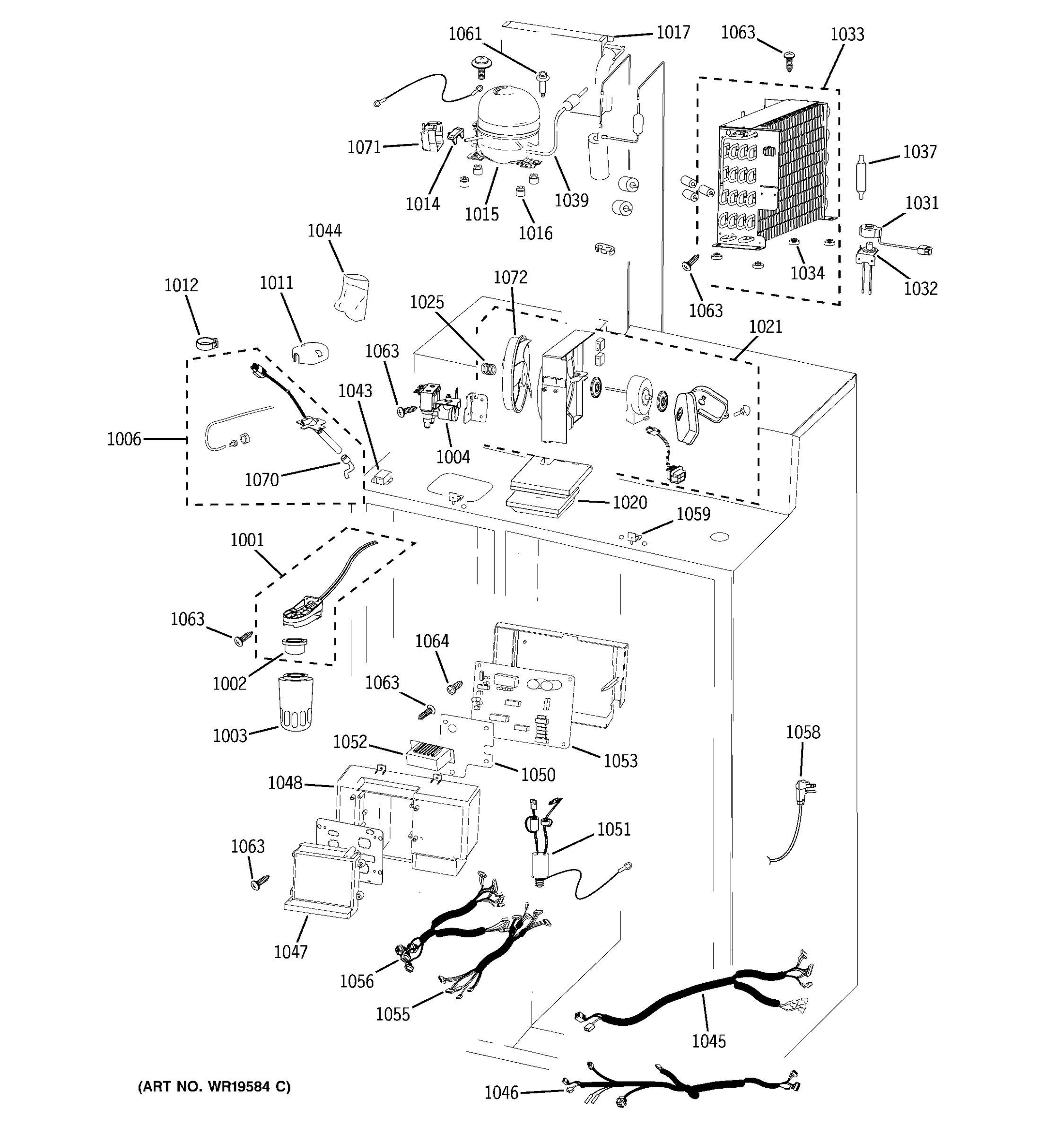

MACHINE COMPARTMENT

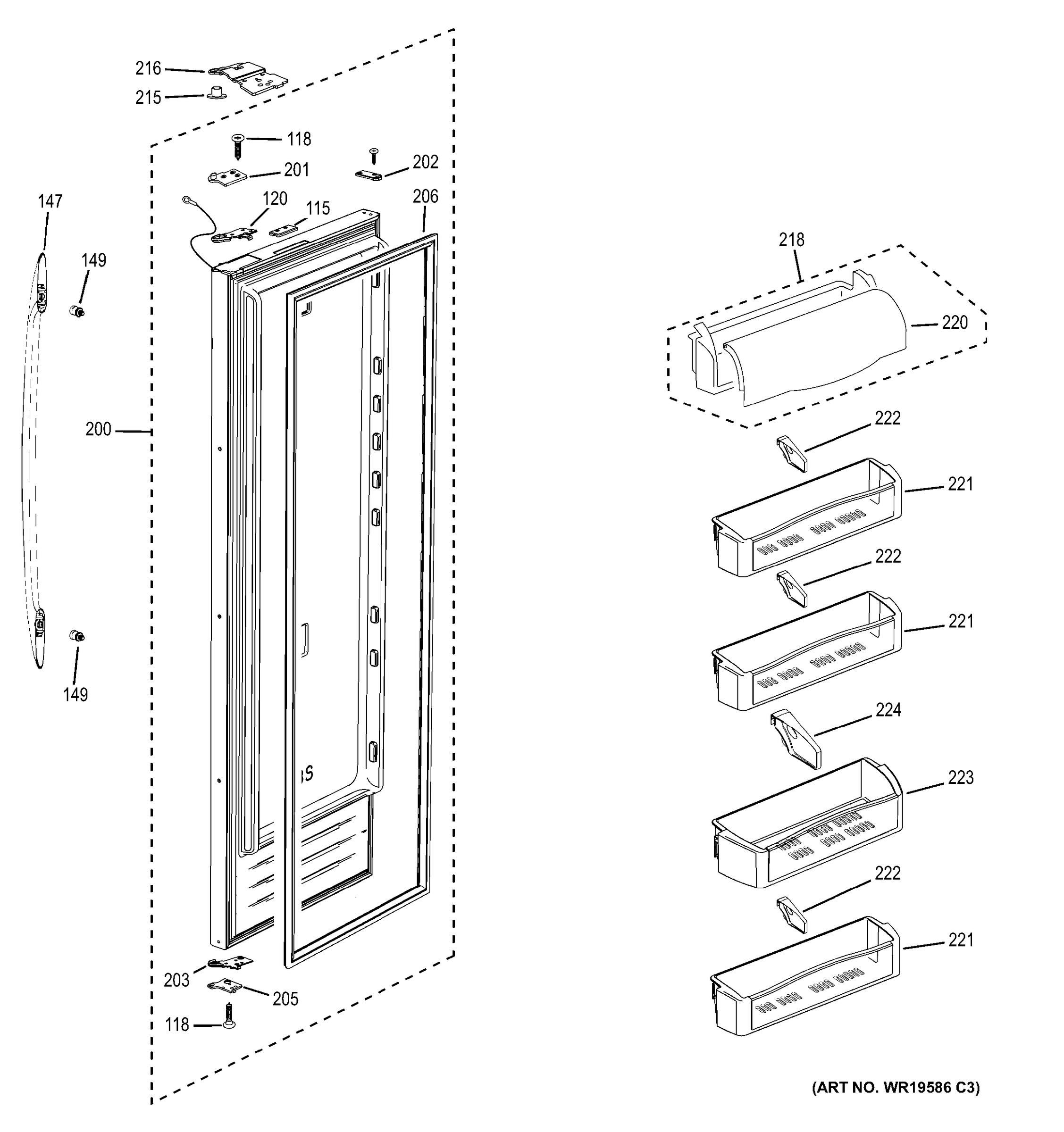

FRESH FOOD DOOR

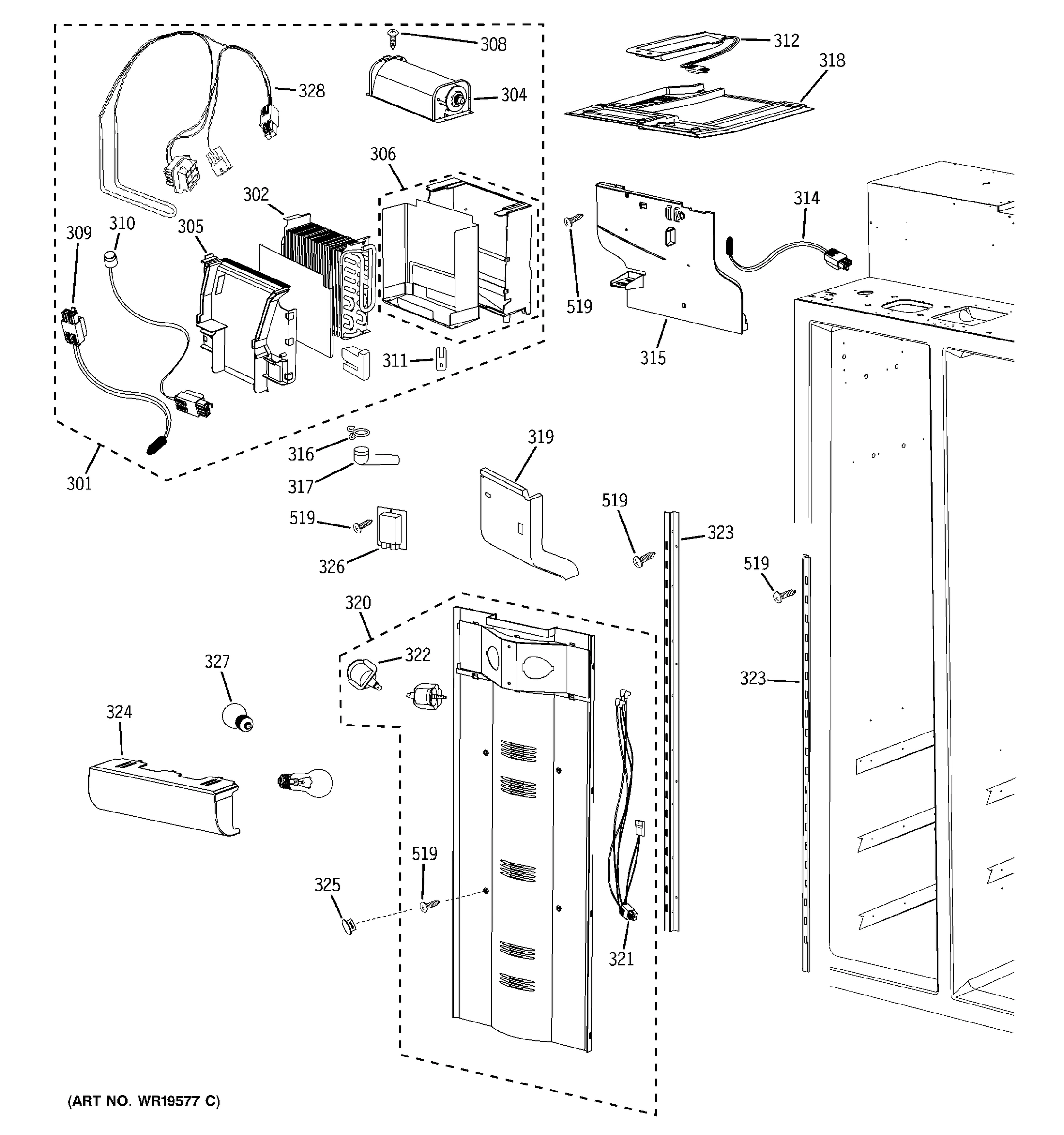

FREEZER SECTION

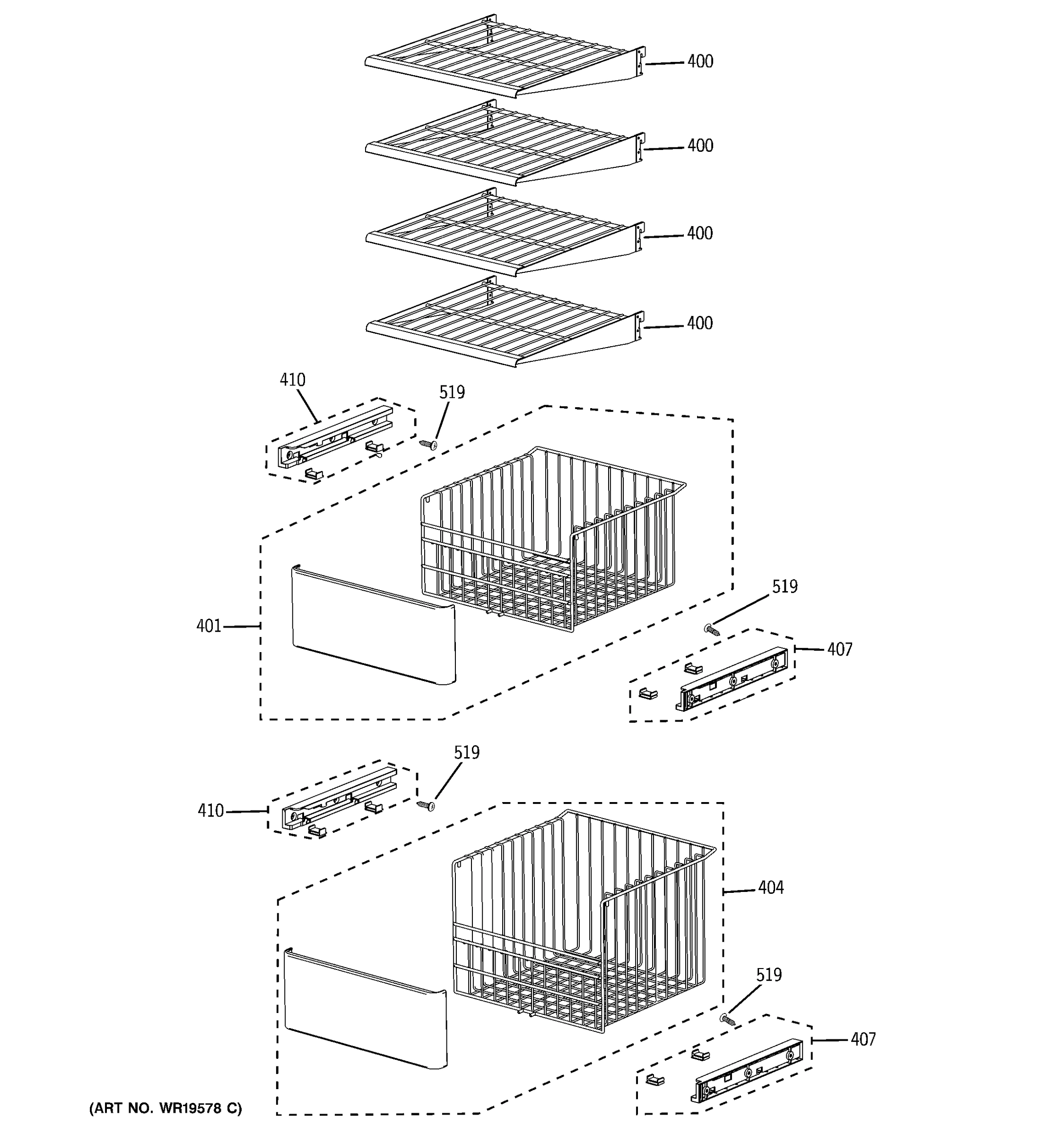

FREEZER SHELVES

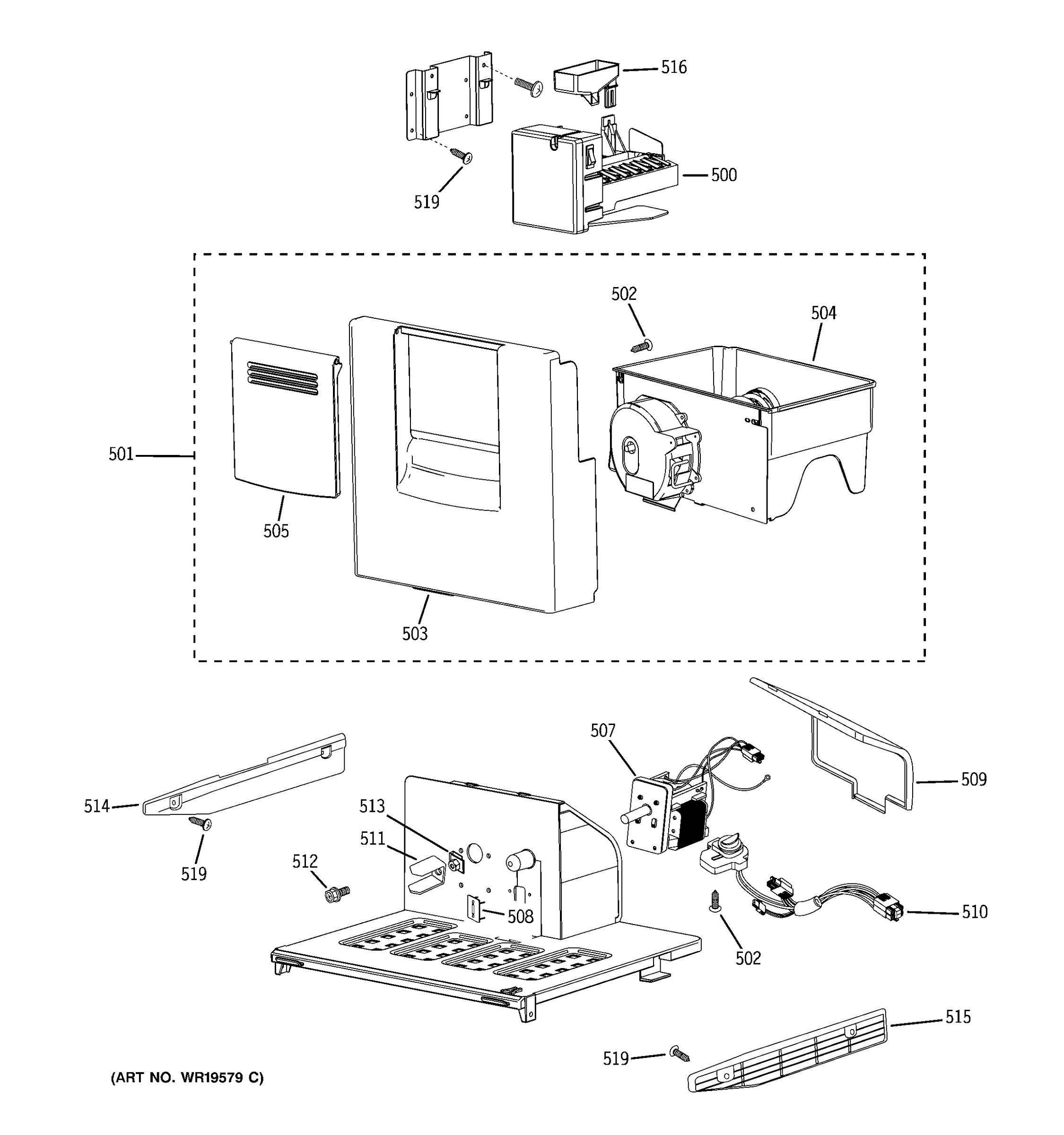

ICE MAKER & DISPENSER

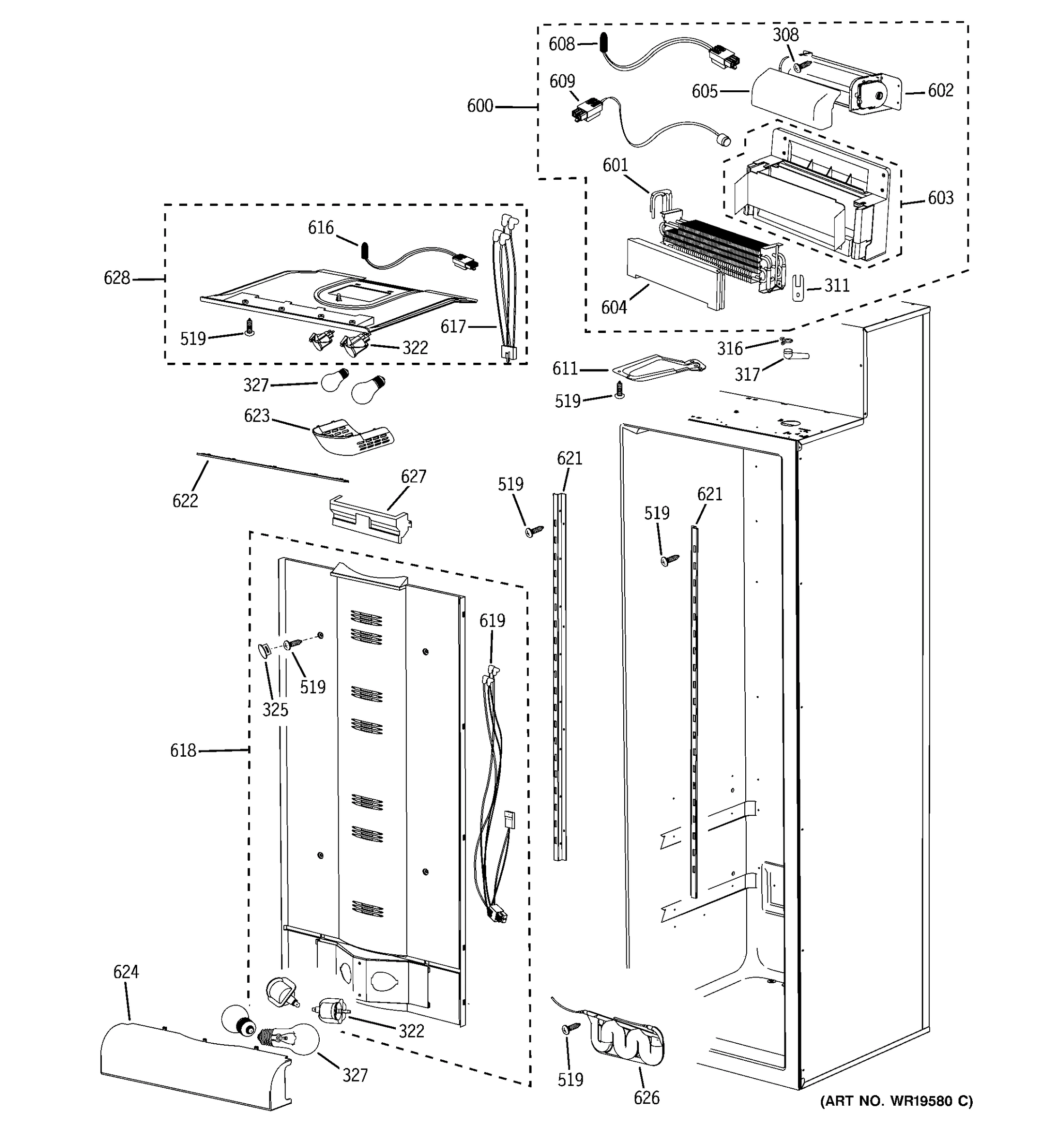

FRESH FOOD SECTION

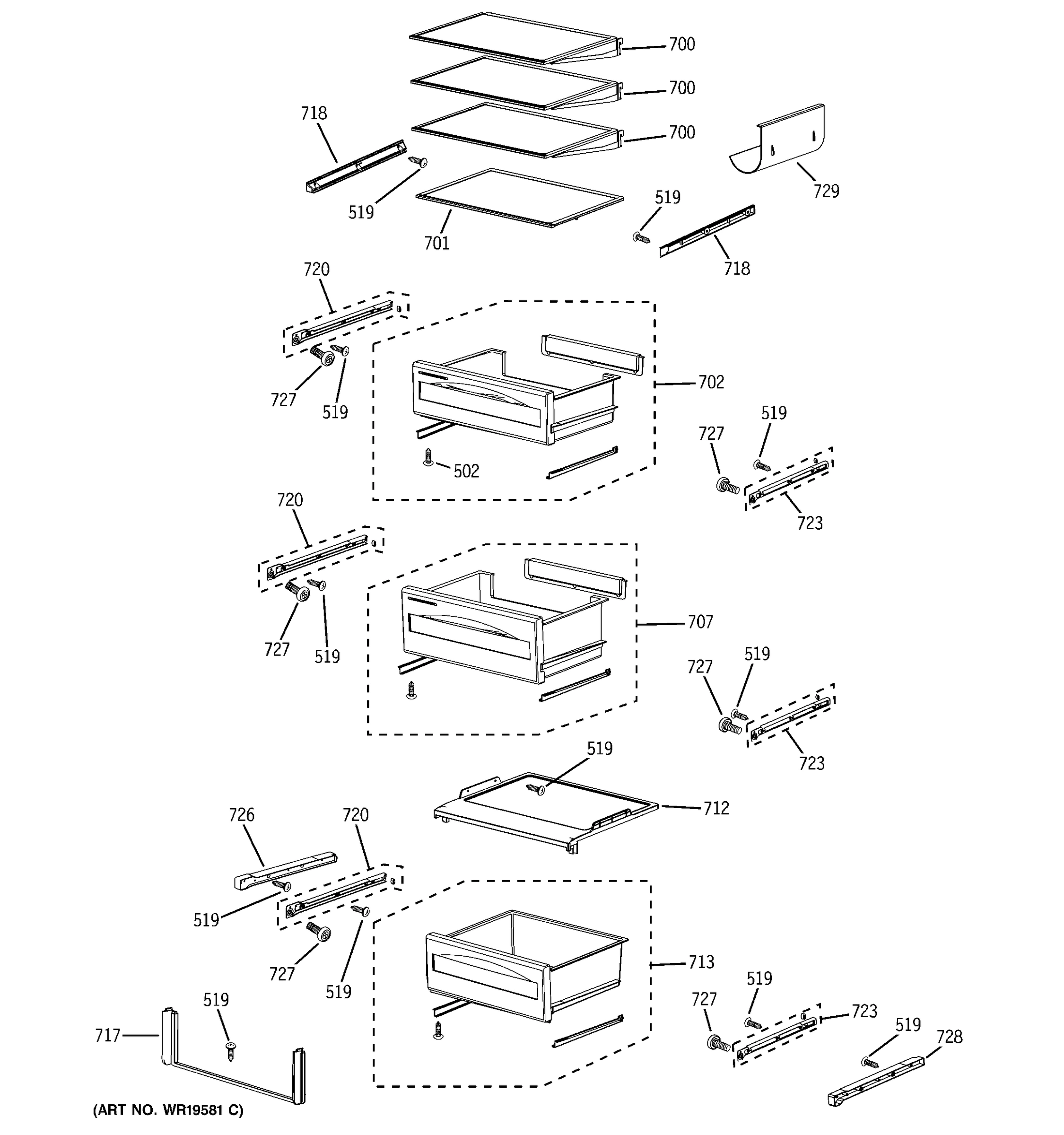

FRESH FOOD SHELVES

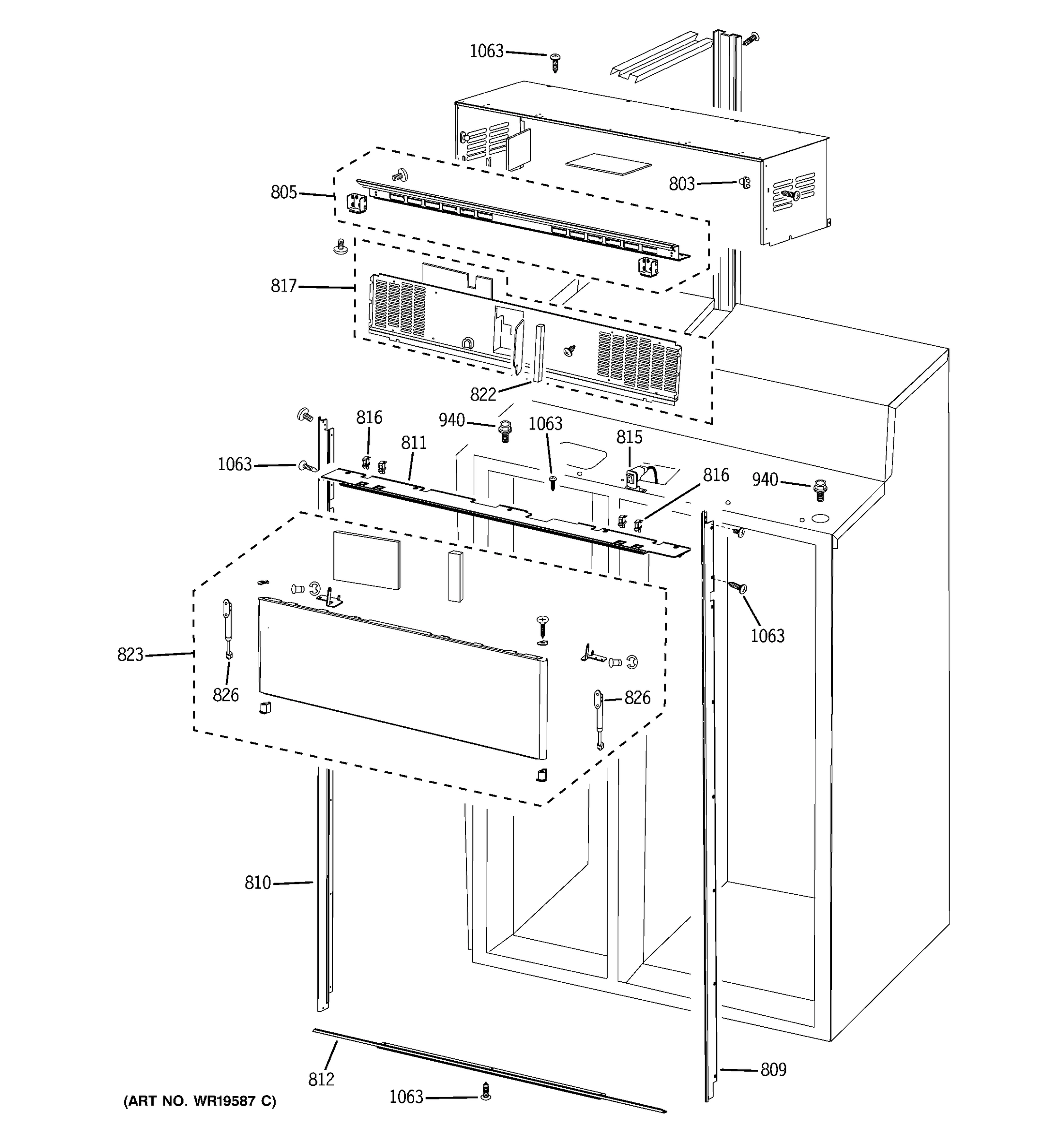

CABINET (1)

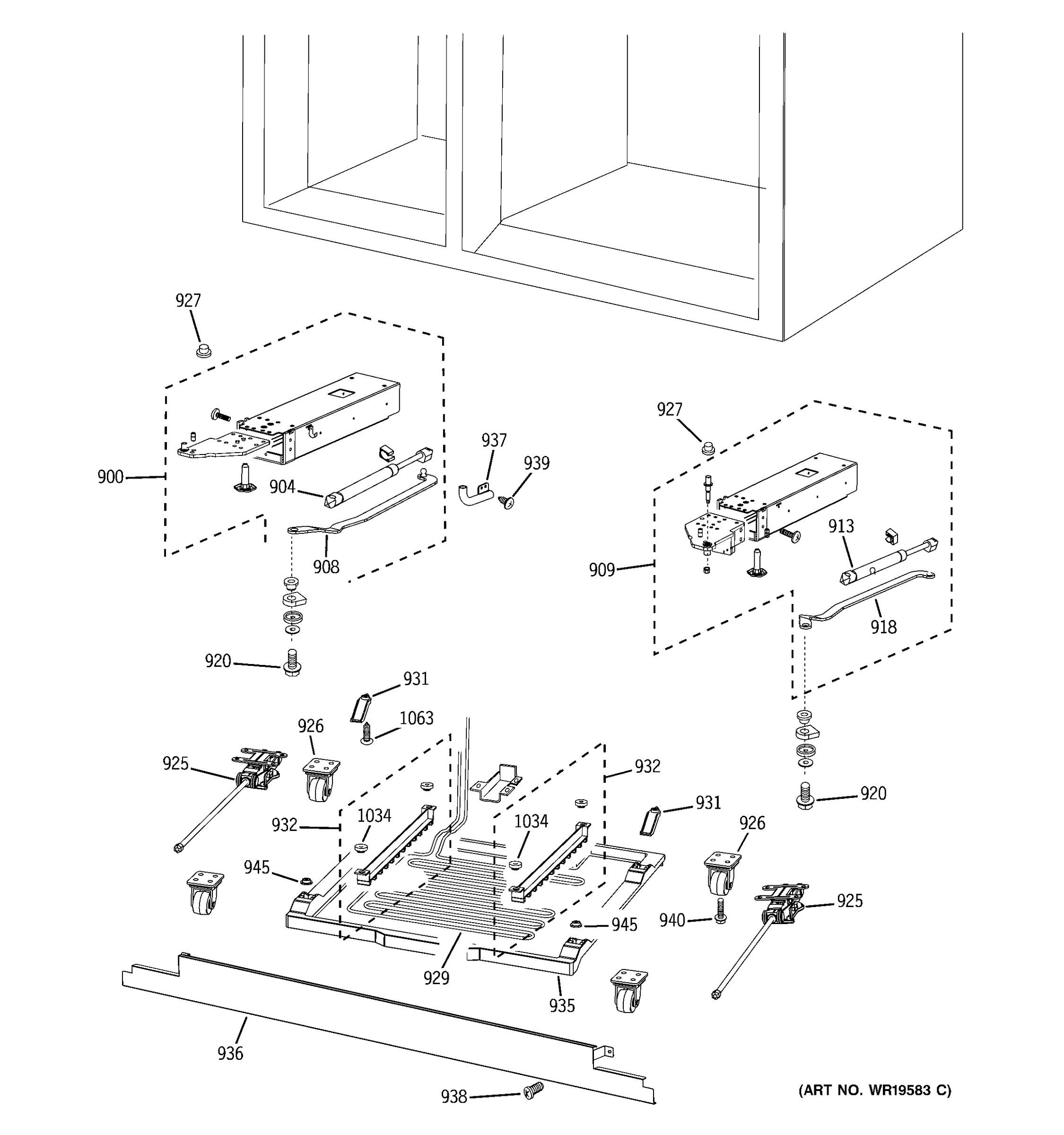

CABINET (2)
Common parts from model GE PSB42YSXASS Refrigerator
101
TUBE-WATER LINE A GEN WR02X11890 Contact Us For Availability
103
SWITCH-MICRO GEN WR23X10396 Contact Us For Availability
106
BRKT-SOCKET LAMP DISP GEN WR02X11894 Contact Us For Availability
109
FUNNEL BK GEN WR17X12602 Contact Us For Availability
111
MICROS/HRNS/SUPT ASM GEN WR17X11764 Contact Us For Availability
115
STRIKE SWITCH GEN WR02X11895 Contact Us For Availability
117
ASM BRACKET HINGE LOW GEN WR02X11897 Contact Us For Availability
118
SCREW-SPECIAL GEN WR02X11898 No Longer Available
120
SHIM HINGE-UPP,R GEN WR13X10350 Contact Us For Availability
121
CONTROL DISPENSER BK GEN WR17X12606 Contact Us For Availability
139
TUBE-FITTING, A GEN WR02X13192 Contact Us For Availability
143
MOTOR & CAM - DUCT DOOR GEN WR60X10180 Contact Us For Availability
200
DOOR ASM FF SS GEN WR78X12303 Contact Us For Availability
202
SHIM HINGE-UPP,L GEN WR13X10351 Contact Us For Availability
203
STOPPER DOOR FF GEN WR02X11900 Contact Us For Availability
205
BRACKET HINGE BOTTOM FF GEN WR02X11901 Contact Us For Availability
206
GASKET DOOR ASM FF GEN WR24X10180 Contact Us For Availability
221
ASSY GUARD REF GEN WR71X10600 Contact Us For Availability
223
ASSY GUARD-GALLON GEN WR71X10601 Contact Us For Availability
238
MASCOT GEN WR02X12636 Contact Us For Availability
305
CASE EVAP FZ FRONT GEN WR17X11730 Contact Us For Availability
306
EVAP CASE W/REAR HTR GEN WR17X11731 Contact Us For Availability
309
THERMISTOR - FZ EVAP GEN WR50X10056 Contact Us For Availability
310
THERMOSTAT DEFROST FZ GEN WR50X10057 Contact Us For Availability
312
DRAIN/HEATER ASM FZ GEN WR51X10082 Contact Us For Availability
317
DRAIN CONNECTOR FZ GEN WR02X11874 Contact Us For Availability
324
SHIELD LAMP FZ GEN WR02X11877 Contact Us For Availability
504
ICE BUCKET ASM GEN WR30X10057 Contact Us For Availability
510
MOTOR & SWITCH ASM CUBE GEN WR60X10178 Contact Us For Availability
513
J-NUT GEN WR02X11957 Contact Us For Availability
516
FILL CUP IM GEN WR29X10065 Contact Us For Availability
603
ASSY-CASE EVAP REF GEN WR17X11739 Contact Us For Availability
605
INSULATION EVAP MTR FF GEN WR82X10099 Contact Us For Availability
608
THERMISTOR FF EVAP GEN WR50X10059 Contact Us For Availability
609
THERMOSTAT DEFROST FF EV GEN WR50X10060 Contact Us For Availability
611
DRAIN TROUGH ASM FF GEN WR02X11885 Contact Us For Availability
616
THERMISTOR FF GEN WR50X10061 Contact Us For Availability
618
COVER DUCT ASM FF GEN WR17X11741 Contact Us For Availability
623
SHIELD LAMP UPPER FF GEN WR02X11887 Contact Us For Availability
624
SHIELD LAMP LOWER FF GEN WR02X11888 Contact Us For Availability
626
WATER TANK ASM GEN WR17X11743 Contact Us For Availability
712
COVER VEG PAN LOWER GEN WR32X10497 Contact Us For Availability
718
RAIL LOWER GLASS SHELF F GEN WR17X11735 Contact Us For Availability
720
RAIL VEG PANS LH GEN WR17X11736 Contact Us For Availability
723
RAIL VEG PANS RH GEN WR17X11737 Contact Us For Availability
729
SHELF-WINE GEN WR17X11738 Contact Us For Availability
803
SHOCK POST GEN WR02X11889 Contact Us For Availability
815
SWITCH ASM MAIN GEN WR23X10401 Contact Us For Availability
817
ACCESS COVER GEN WR82X10098 Contact Us For Availability
900
COMPLETE HINGE ASM LH GEN WR13X10346 Contact Us For Availability
904
SHOCK ABSORBER LH GEN WR02X11906 Contact Us For Availability
909
COMPLETE HINGE ASM RH GEN WR13X10348 Contact Us For Availability
913
SHOCK ABSORBER RH GEN WR02X11907 Contact Us For Availability
926
CASTER ASM GEN WR02X11909 Contact Us For Availability
929
CONDENSER DRAIN PAN GEN WR17X11762 Contact Us For Availability
931
SUPPORT DRAIN PAN REAR GEN WR02X11925 Contact Us For Availability
932
CONDENSER SUPPORT ASM GEN WR17X11753 Contact Us For Availability
936
PANEL TOE KICK GEN WR17X11755 Contact Us For Availability
937
COVER-WATER LINE GEN WR02X11911 Contact Us For Availability
939
SCREW-TAPPING GEN WR01X10461 Contact Us For Availability
940
BOLT 10MM GEN WR01X10462 Contact Us For Availability
945
FIXER-GROMMET DOOR GEN WR02X11947 Contact Us For Availability
1001
FILTER HEAD GEN WR17X11756 Contact Us For Availability
1006
FILL TUBE ASM GEN WR02X11913 Contact Us For Availability
1014
RELAY PROTECTOR O/L GEN WR07X10088 Contact Us For Availability
1020
FOAM INSULATION BLOCK GEN WR02X11916 Contact Us For Availability
1025
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
1031
3 WAY VALVE COIL GEN WR57X10059 Contact Us For Availability
1032
3-WAY VALVE GEN WR57X10054 Contact Us For Availability
1034
GROMMET-COND GEN WR02X11917 Contact Us For Availability
1045
HARNESS AC ASM GEN WR23X10397 Contact Us For Availability
1046
HARNESS DC ASM GEN WR23X10398 Contact Us For Availability
1051
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
1053
MAIN PCB ASM GEN WR55X10428 Contact Us For Availability
1070
GROMMET-PIPE WATER FILL GEN WR02X11948 Contact Us For Availability
1071
COVER RELAY GEN WR02X11949 Contact Us For Availability
× ![]()
