Model Electrolux PRT217MCH1 REFRIGERATOR – Common Parts & Diagrams

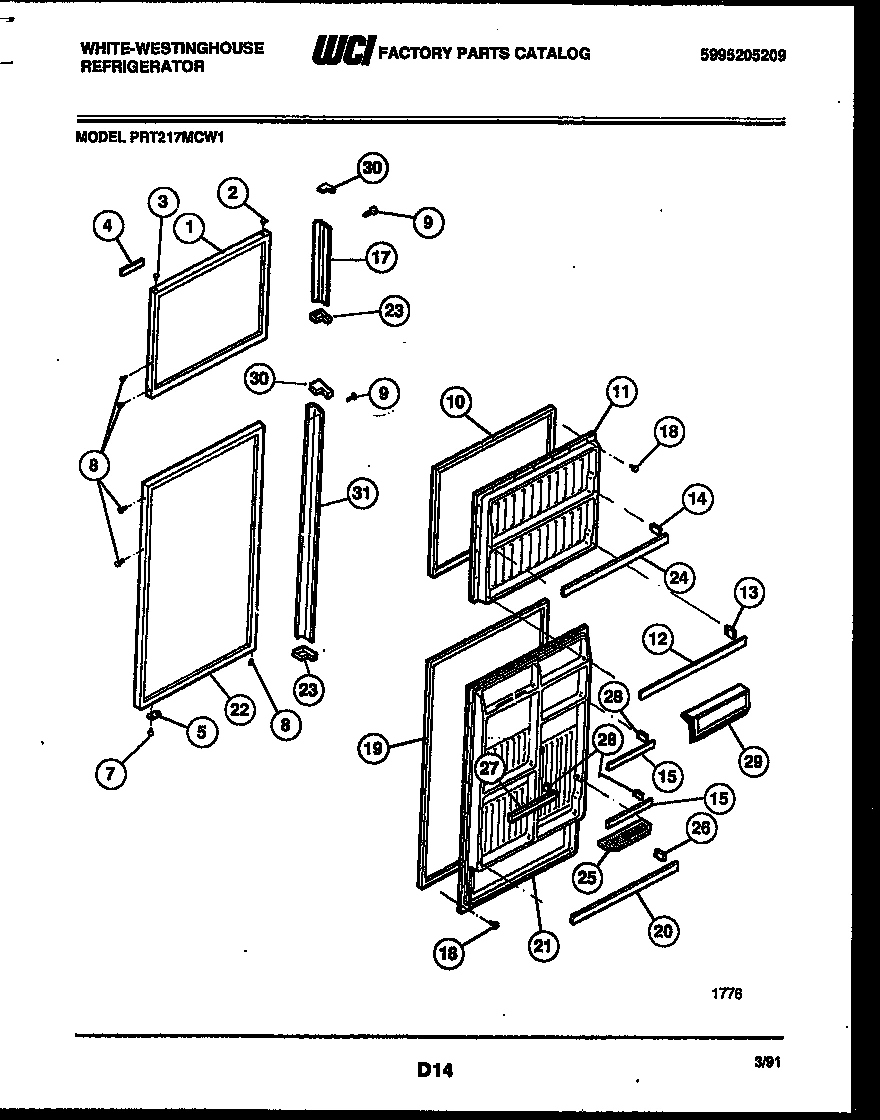

02 - DOOR PARTS

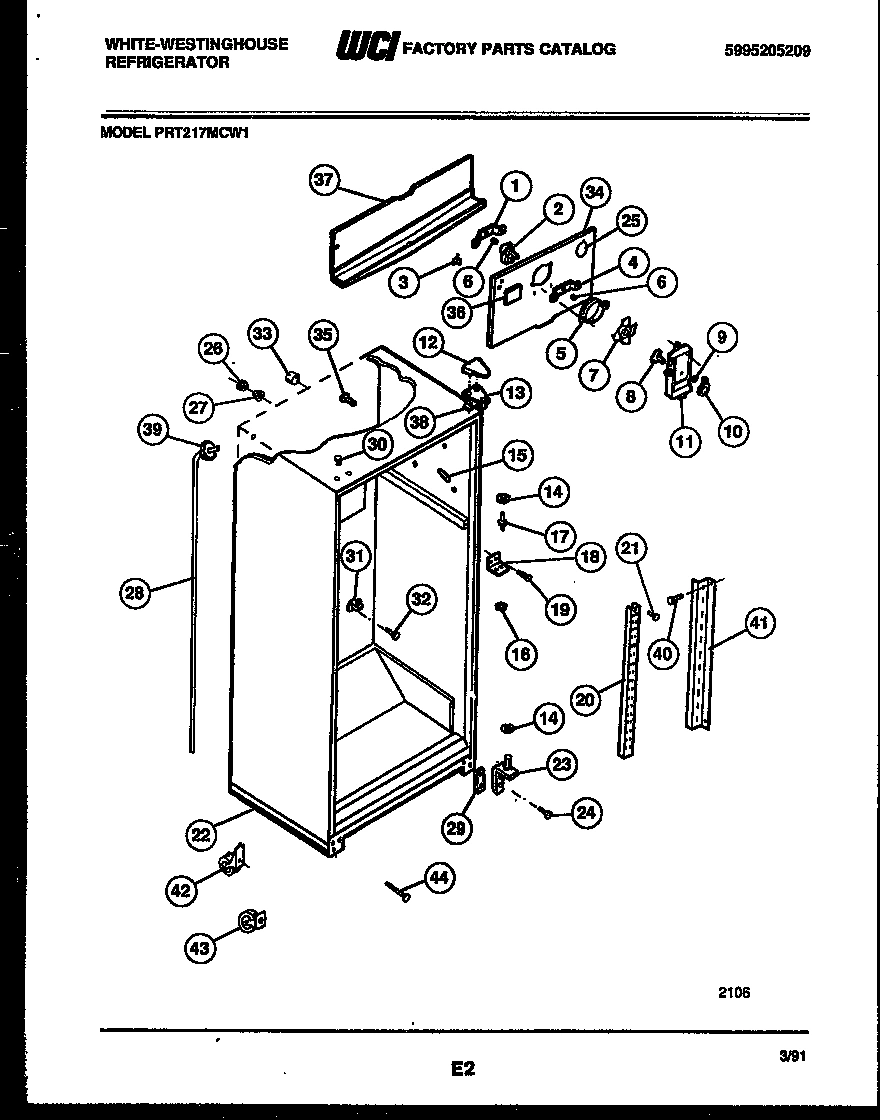

03 - CABINET PARTS

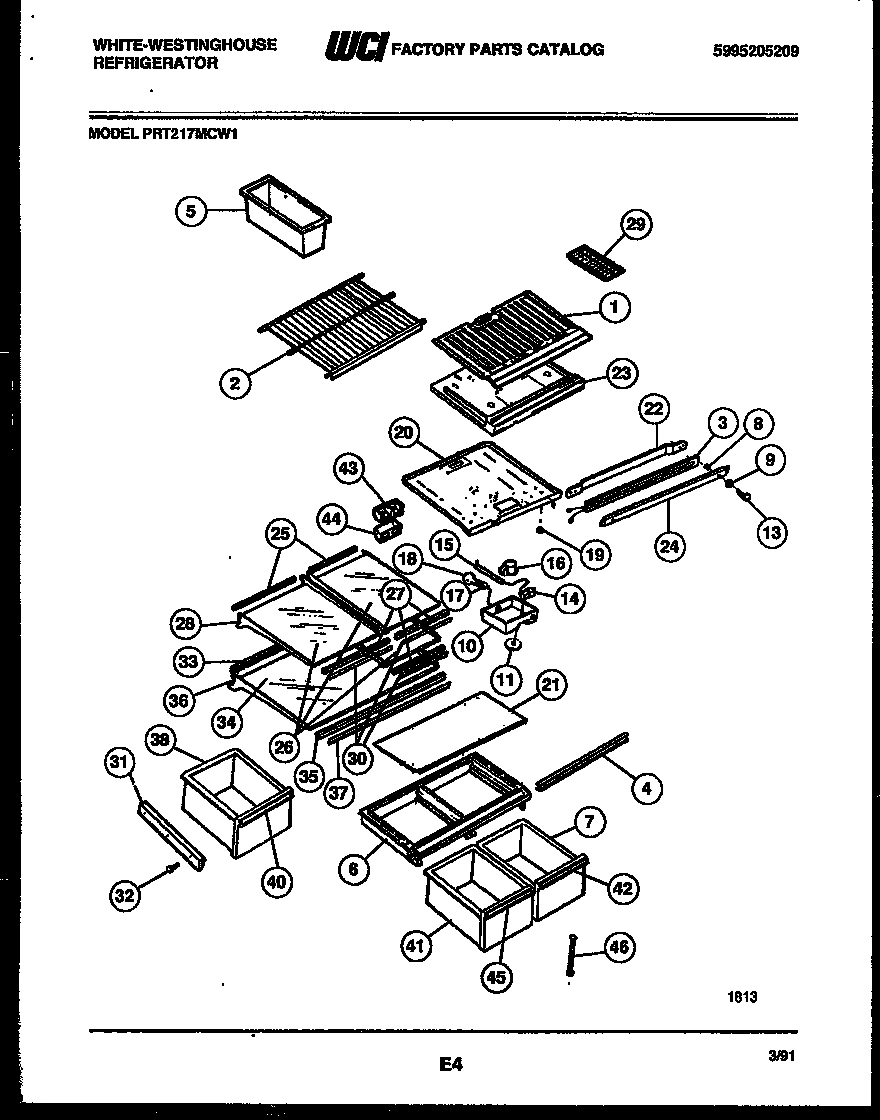

04 - SHELVES AND SUPPORTS

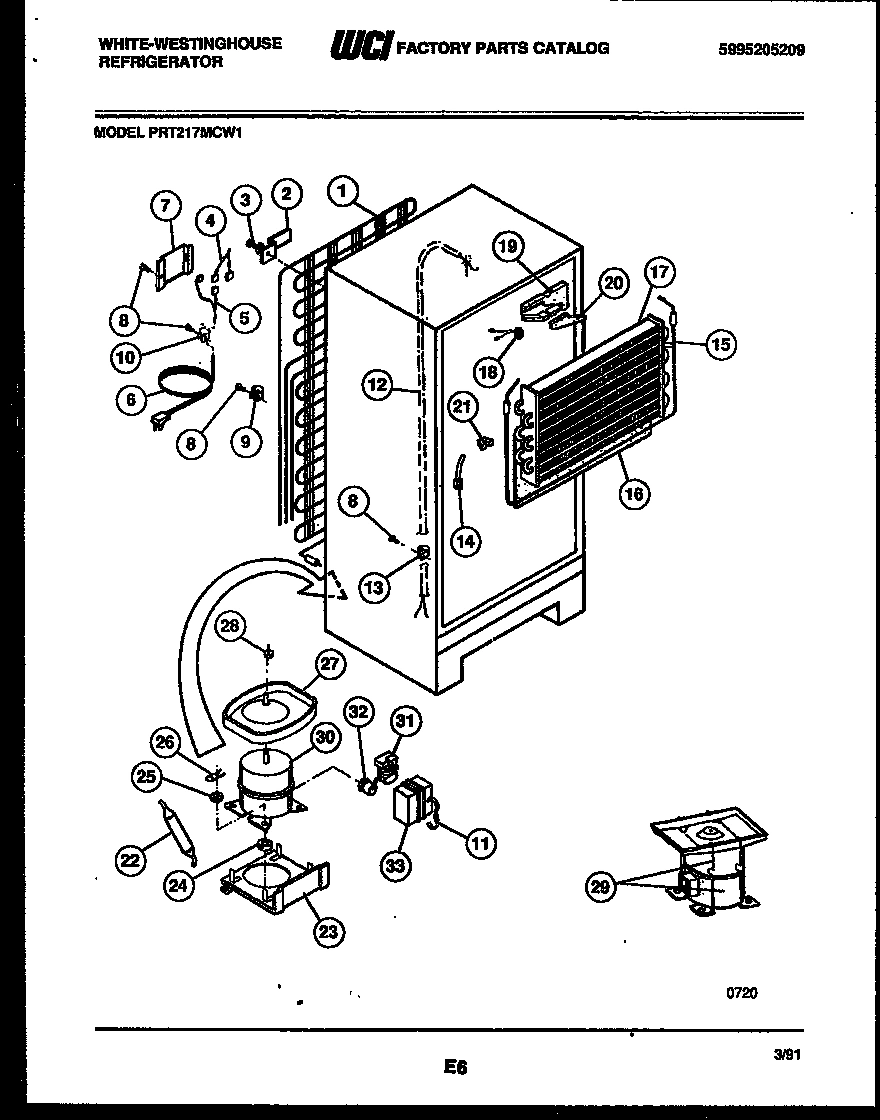

05 - SYSTEM AND AUTOMATIC DEFROST PARTS
Common parts from model Electrolux PRT217MCH1 REFRIGERATOR
*42926
PLUG-LINER (5) WCI 5308016571 Contact Us For Availability
*42926
TAPPING PLATE (4) WCI 5308012296 Contact Us For Availability
*42934
CLIP-CANTI SHELF (8)-SHIPPING WCI 5300170910 Contact Us For Availability
*42939
HOT TUBE REPAIR KIT-SVCE WCI 5300189383 Contact Us For Availability
1
WCI 5303205119 WCI 5303205119 Contact Us For Availability
1
BOTTOM, FREEZER WCI 5303210641 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 5303206769 WCI 5303206769 Contact Us For Availability
2
Bracket,condenser mtg ,(4) WCI 5308000296 Contact Us For Availability
2A
CAP-PROTECTOR (2) (NON-ILLUSTRATED) WCI 3201150 No Longer Available
2B
WCI 5303206523 WCI 5303206523 Contact Us For Availability
3
CONNECTOR BRACKET WCI 5308000107 Contact Us For Availability
3
WCI 5303210351 WCI 5303210351 Contact Us For Availability
3A
WASHER, NO. 10 EXT TOOTH LOCK (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
4
BRACKET - FRONT WCI 5303205118 Contact Us For Availability
4
TRIM-CRISPER COVER WCI 3205547 Contact Us For Availability
4
WIRING HARNESS-CONTROL WCI 5303207109 Contact Us For Availability
5
WCI 5308000124 WCI 5308000124 Contact Us For Availability
5
WCI 5303207065 WCI 5303207065 Contact Us For Availability
5
WCI 5303001347 WCI 5303001347 Contact Us For Availability
6
WCI 5300157666 WCI 5300157666 Contact Us For Availability
6
COVER-CRISPER WCI 5303206538 Contact Us For Availability
6
WCI 5316254901 WCI 5316254901 Contact Us For Availability
6A
GASKET-CRISPER COVER (NON-ILLUSTRATED) WCI 5303200329 Contact Us For Availability
7
WCI 5303206534 WCI 5303206534 Contact Us For Availability
7
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8
DAMPER WCI 5303001331 Contact Us For Availability
8
SPACER, MULLION (2) WCI 5303200464 Contact Us For Availability
9
PUSH NUT - DAMPER WCI 5303001028 Contact Us For Availability
9
WASHER-NO. 10 STEEL (2) WCI 5303206754 Contact Us For Availability
10
GASKET-FREEZER WCI 5318680314 Contact Us For Availability
10
WCI 3206381 WCI 3206381 Contact Us For Availability
10
CONTROL BOX WCI 3206320 Contact Us For Availability
11
WCI 5303206544 WCI 5303206544 Contact Us For Availability
11
WCI 5303201777 WCI 5303201777 Contact Us For Availability
11
STRAP-TERM COVER WCI 5303211232 Contact Us For Availability
11B
WCI 5303206545 WCI 5303206545 Contact Us For Availability
12
WCI 5303001665 WCI 5303001665 Contact Us For Availability
12
HEAT EXCHANGER WCI 5308000728 Contact Us For Availability
13
WCI 5308012843 WCI 5308012843 Contact Us For Availability
13
WCI 5308012258 WCI 5308012258 Contact Us For Availability
14
WASHER-HINGE (2) WCI 5308000007 Contact Us For Availability
14
WCI 5303018894 WCI 5303018894 Contact Us For Availability
14A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
15
CORNER TRIM, WHEAT WCI 5303202338 Contact Us For Availability
15
WCI 3018891 WCI 3018891 Contact Us For Availability
16
WASHER - HINGE WCI 5308000186 No Longer Available
16
WCI 5316651102 WCI 5316651102 Contact Us For Availability
17
WCI 5308000184 WCI 5308000184 Contact Us For Availability
17
WCI 5303271578 WCI 5303271578 Contact Us For Availability
18
WCI 5303001369 WCI 5303001369 Contact Us For Availability
19
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
20
CHANNEL-CTR WCI 5303015409 Contact Us For Availability
20
TOP, REFRIGERATOR WCI 3019038 Contact Us For Availability
20
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
21
SCREW-CTR CHANNEL MTG (3) WCI 5308016568 Contact Us For Availability
21
WCI 5303206539 WCI 5303206539 Contact Us For Availability
21
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
22
WCI 5303212487 WCI 5303212487 Contact Us For Availability
22
WCI 5308010008 WCI 5308010008 Contact Us For Availability
23
BRACKET, BOTTOM HINGE WCI 5303212489 Contact Us For Availability
23
WCI 5303019039 WCI 5303019039 Contact Us For Availability
23
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23A
GUSSET-TAPPING PLATE RH (NON-ILLUSTRATED) WCI 5303212597 Contact Us For Availability
23B
GUSSET-TAPPING PLATE (LH) (NON-ILLUSTRATED) WCI 5303212596 Contact Us For Availability
24
WCI 5303200368 WCI 5303200368 Contact Us For Availability
25
WCI 3204795 WCI 3204795 Contact Us For Availability
25
WASHER (4) WCI 5308003633 Contact Us For Availability
25A
WCI 3204799 WCI 3204799 Contact Us For Availability
26
SUPPORT-RACK-RH WCI 3206150 Contact Us For Availability
26
WCI 5303001287 WCI 5303001287 Contact Us For Availability
26
WCI 5303206532 WCI 5303206532 Contact Us For Availability
26
CLIP (4) WCI 5308003596 Contact Us For Availability
26A
WCI 5303206527 WCI 5303206527 Contact Us For Availability
27
WCI 5303001286 WCI 5303001286 Contact Us For Availability
27
RETAINER-GLASS-1/2 SHELF (2) WCI 3200610 Contact Us For Availability
27
PAN-DEFROST-ORIG COMPRESSOR WCI 5300171129 Contact Us For Availability
27A
RETAINER-GLASS-MK SHELF (NON-ILLUSTRATED) WCI 3200316 Contact Us For Availability
27A
PAN DEFROST - SERVICE COMP (NON-ILLUSTRATED) WCI 5300184715 Contact Us For Availability
28
DRAIN TUBE & RING SEAL WCI 5303210377 Contact Us For Availability
28
FRAME-HALF SHELF (2) WCI 5303200613 Contact Us For Availability
28
WCI 5303001348 WCI 5303001348 Contact Us For Availability
28A
FRAME-MEAT KEPPER SHELF WCI 3200617 Contact Us For Availability
29
PAN-RETAINER KIT-INCLUDED W/ SERVICE COMPR WCI 5303916001 Contact Us For Availability
29
SHIM, BOTTOM HINGE WCI 5303212488 Contact Us For Availability
30
WCI 5300177142 WCI 5300177142 Contact Us For Availability
30
PLUG - HINGE - WHEAT (2) WCI 5303001678 Contact Us For Availability
30
WCI 5303206529 WCI 5303206529 Contact Us For Availability
30
COMPRESSOR W/ELECTRICALS-SERVICE WCI 5303916012 Contact Us For Availability
30A
CLIP-DOOR HANDLE (2) (NON-ILLUSTRATED) WCI 5300177144 Contact Us For Availability
30A
WCI 5303272389 WCI 5303272389 Contact Us For Availability
30A
CAPACITOR-RUN (NON-ILLUSTRATED) WCI 5303916391 Contact Us For Availability
30B
WCI 5300179270 WCI 5300179270 Contact Us For Availability
31
WCI 5303007173 WCI 5303007173 Contact Us For Availability
31
WCI 5308000056 WCI 5308000056 Contact Us For Availability
31
WCI 3206418 WCI 3206418 Contact Us For Availability
31
HANGER, MEAT PAN, LH WCI 5303210016 Contact Us For Availability
31A
HANGER, MEAT PAN, RH (NON ILLUSTRATED) WCI 5303210017 Contact Us For Availability
32
PUSH PIN - DRAIN SPOUT WCI 5303001361 Contact Us For Availability
32
WCI 080145128 WCI 080145128 Contact Us For Availability
32
WCI 5303270294 WCI 5303270294 Contact Us For Availability
33
WCI 5303001198 WCI 5303001198 Contact Us For Availability
33
WCI 5303206576 WCI 5303206576 Contact Us For Availability
33
WCI 5303209254 WCI 5303209254 Contact Us For Availability
34
COVER, EVAPORATOR COIL WCI 5308013665 Contact Us For Availability
34
WCI 5303206536 WCI 5303206536 Contact Us For Availability
34A
NUT U, TYPE (2) (NON-ILLUSTRATED) WCI 5303209814 Contact Us For Availability
34A
RAIL - GLASS SUPPORT (2) (NON-ILLUSTRATED) WCI 3200901 Contact Us For Availability
35
SUPPORT, COVER (2) WCI 5308000097 Contact Us For Availability
35
RETAINER-GLASS-FULL SHELF WCI 3018724 Contact Us For Availability
36
WCI 5303018193 WCI 5303018193 Contact Us For Availability
36
WCI 3200616 WCI 3200616 Contact Us For Availability
37
DRAIN TROUGH WCI 5303001470 Contact Us For Availability
37
WCI 5303206537 WCI 5303206537 Contact Us For Availability
38
WCI 5303001037 WCI 5303001037 Contact Us For Availability
38
WCI 5303206542 WCI 5303206542 Contact Us For Availability
39
RING - SEAL WCI 5303207353 Contact Us For Availability
40
WCI 3201414 WCI 3201414 Contact Us For Availability
41
CHANNEL-SHELF MTG (2) WCI 5308000302 Contact Us For Availability
41
PAN - CRISPER - LH WCI 3206311 Contact Us For Availability
42
WCI 5308009773 WCI 5308009773 Contact Us For Availability
42
WCI 3201409 WCI 3201409 Contact Us For Availability
42B
SCREW-ROLLER MTG (2) (NON-ILLUSTRATED) WCI 5308009762 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
WCI 5308014667 WCI 5308014667 Contact Us For Availability
44
BOLT-ADJ (2) WCI 5303271412 Contact Us For Availability
44
WCI 5303001448 WCI 5303001448 Contact Us For Availability
44A
EXTENSION & INSULATION AIR DEFLECTOR (NON-ILL WCI 5303200590 Contact Us For Availability
45
WCI 3201411 WCI 3201411 Contact Us For Availability
46
SUPPORT-CRISPER COVER ADJ WCI 5303205987 Contact Us For Availability
× ![]()
