Model Electrolux PRT215MCD5 REFRIGERATOR – Common Parts & Diagrams

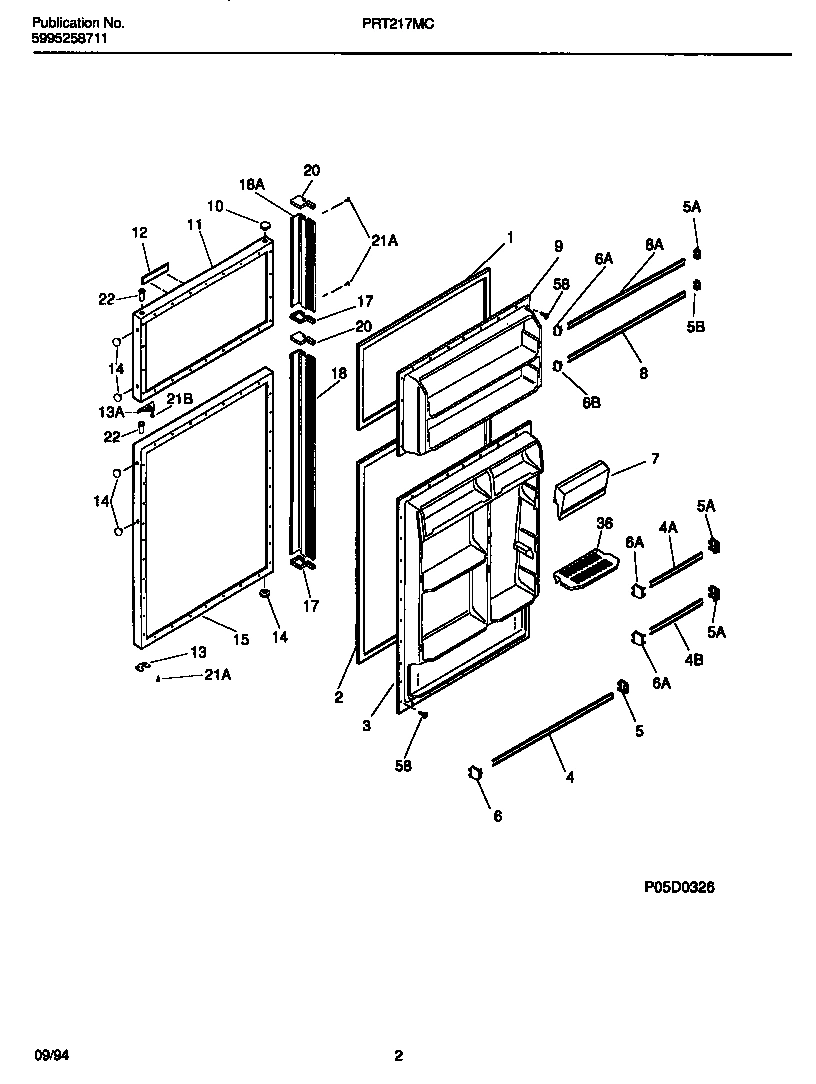

02 - DOOR SECTION

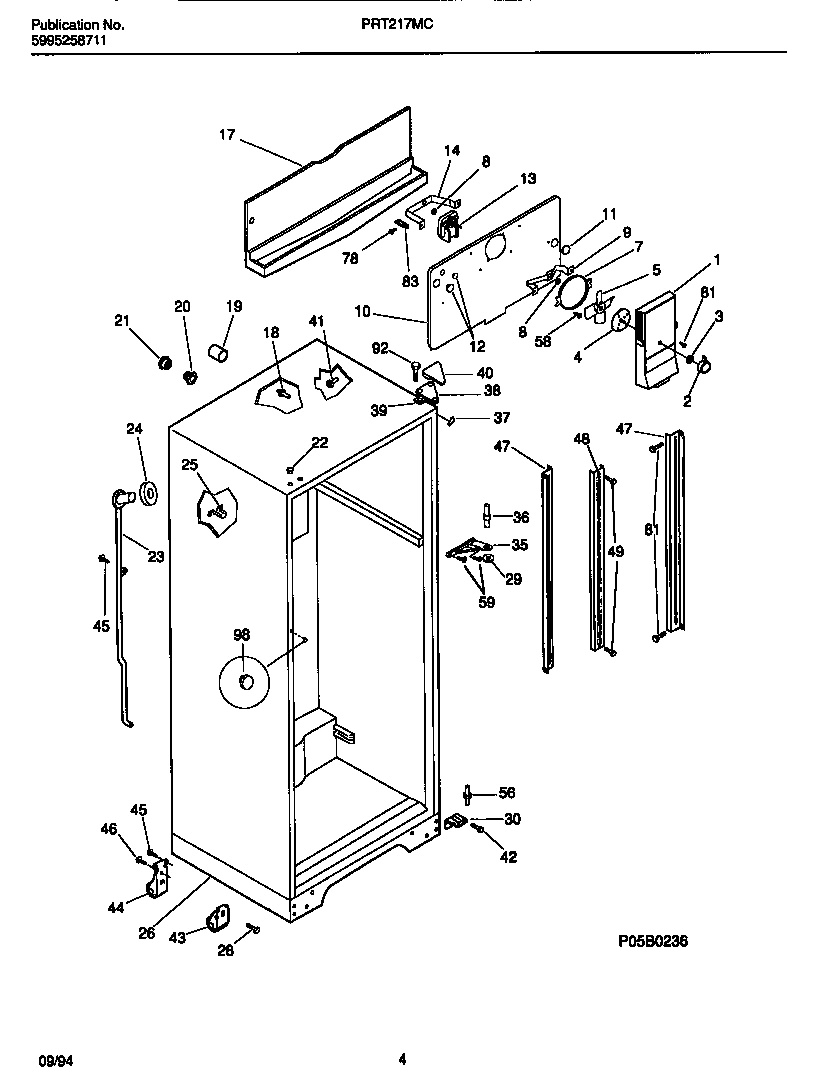

03 - CABINET W/FAN ASSEMBLY
04 - SHELVES, CONTROLS, DIVIDER, MULLION
05 - COOLING SYSTEM
06 - WIRING DIAGRAM
Common parts from model Electrolux PRT215MCD5 REFRIGERATOR
*96680
WCI 5303917276 WCI 5303917276 Contact Us For Availability
*96683
PLUG-BUTTON, CABINET LINER WCI 5308016571 Contact Us For Availability
1
WCI 218252504 WCI 218252504 Contact Us For Availability
1
WCI 5300163133 WCI 5300163133 Contact Us For Availability
2
WCI 3206381 WCI 3206381 Contact Us For Availability
2
BRACKET-MOUNTING, CONDENSER, (4) WCI 5308000296 Contact Us For Availability
2A
WASHER, EXT TOOTH LOCK, NO. 10 (NON-ILLUSTRAT WCI 5308009617 Contact Us For Availability
3
Nut,push-on WCI 5303001028 Contact Us For Availability
4
DAMPER-FAN COVER WCI 5303001331 Contact Us For Availability
5
SUPPORT-DOOR RACK, EXTENDS 1/81``, RH WCI 3206150 Contact Us For Availability
5
WCI 218271402 WCI 218271402 Contact Us For Availability
5
HARNESS-WIRING, CONTROL/DIVIDER WCI 3019040 Contact Us For Availability
6
WCI 218279800 WCI 218279800 Contact Us For Availability
6
WCI 215257001 WCI 215257001 Contact Us For Availability
7
RING-FAN ORIFICE WCI 5308000124 Contact Us For Availability
7
WCI 3019038 WCI 3019038 Contact Us For Availability
7
CORD-ELECTRIC POWER WCI 5316254901 Contact Us For Availability
7A
WCI 5303001380 WCI 5303001380 Contact Us For Availability
8
WCI 5303019039 WCI 5303019039 Contact Us For Availability
8
WCI 5303001197 WCI 5303001197 Contact Us For Availability
8A
WASHER, NO. 10 STEEL, 7/32 X 7/16 OD (NON-ILL WCI 5308003607 Contact Us For Availability
9
WCI 5303205118 WCI 5303205118 Contact Us For Availability
9
WCI 5303210641 WCI 5303210641 Contact Us For Availability
10
PLUG-BUTTON, ALMOND, HINGE BRG HOLE WCI 5303001308 Contact Us For Availability
10
WCI 5308013665 WCI 5308013665 Contact Us For Availability
10A
WCI 5303209636 WCI 5303209636 Contact Us For Availability
11
WCI 5303288243 WCI 5303288243 Contact Us For Availability
11A
WCI 218159700 WCI 218159700 Contact Us For Availability
12
WCI 215079000 WCI 215079000 Contact Us For Availability
12
DEFLECTOR-AIR, W/SEAL WCI 5308014667 Contact Us For Availability
12A
WCI 215079100 WCI 215079100 Contact Us For Availability
13
WCI 5303001448 WCI 5303001448 Contact Us For Availability
13
WCI 215076400 WCI 215076400 Contact Us For Availability
13A
EXTENSION,AIR DEFLECTOR,W/INSULATION WCI 5303200590 Contact Us For Availability
14
BRACKET-MOTOR MTG, REAR WCI 5303205119 Contact Us For Availability
15
EVAPORATOR WCI 5303271578 Contact Us For Availability
17
INSULATOR-EVAP, PLASTIC WCI 5316651102 Contact Us For Availability
17
WCI 5303001470 WCI 5303001470 Contact Us For Availability
17
WCI 3206130 WCI 3206130 Contact Us For Availability
17A
WCI 5308016567 WCI 5308016567 Contact Us For Availability
18
WCI 215245000 WCI 215245000 Contact Us For Availability
18
WCI 5303209251 WCI 5303209251 Contact Us For Availability
18
INSULATION BLOCK, RH WCI 5308013648 Contact Us For Availability
19
TUBE-RUBBER WCI 5303001198 Contact Us For Availability
19
WCI 3206129 WCI 3206129 Contact Us For Availability
19
INSULATION PLUG, RH WCI 5303007287 Contact Us For Availability
20
WCI 5303001286 WCI 5303001286 Contact Us For Availability
20
INSULATION BLOCK, LH WCI 5308017227 Contact Us For Availability
21
WCI 5303001287 WCI 5303001287 Contact Us For Availability
21
WCI 5303018894 WCI 5303018894 Contact Us For Availability
21A
WCI 5303001260 WCI 5303001260 Contact Us For Availability
22
PLUG-BUTTON, ALMOND, UPR HINGE HOLES WCI 5303001389 Contact Us For Availability
22
WCI 3018891 WCI 3018891 Contact Us For Availability
22
WCI 5308013663 WCI 5308013663 Contact Us For Availability
23
WCI 5303210377 WCI 5303210377 Contact Us For Availability
24
WCI 5303207353 WCI 5303207353 Contact Us For Availability
24
WCI 215919118 WCI 215919118 Contact Us For Availability
24
WASHER-COMPR MTG WCI 5308003633 Contact Us For Availability
25
WCI 5308000056 WCI 5308000056 Contact Us For Availability
25
WCI 5303206538 WCI 5303206538 Contact Us For Availability
25
CLIP - COMPRESSOR MTG WCI 5308003596 Contact Us For Availability
25A
PIN-PUSH, PLASTIC (NON-ILLUSTRATED) WCI 5303001361 Contact Us For Availability
25A
WCI 5303302753 WCI 5303302753 Contact Us For Availability
26
WCI 5303212487 WCI 5303212487 Contact Us For Availability
26
WCI 215791908 WCI 215791908 Contact Us For Availability
26
PAN-DEFROST DRAIN, ORIG/SVCE COMPR WCI 5300184715 Contact Us For Availability
26A
WCI 5303299775 WCI 5303299775 Contact Us For Availability
27
SUPPORT-CRISPER CVR, ADJUSTABLE WCI 5303205987 Contact Us For Availability
27
Nut,lock `1/4-20 ,drain pan mtg WCI 5303001348 Contact Us For Availability
28
WCI 3201150 No Longer Available
28
PAN RETAINER KIT, SERVICE WCI 5303916001 Contact Us For Availability
28
BOLT-ROLLER ADJ, HEX HD, 1/4-28 X 2.750 WCI 5303271412 Contact Us For Availability
29
WASHER, .34 X .62 X .05, NYLON WCI 5308000007 Contact Us For Availability
29
WCI 215919718 WCI 215919718 Contact Us For Availability
29
WCI 5303917192 WCI 5303917192 Contact Us For Availability
30
WCI 216008901 WCI 216008901 Contact Us For Availability
30
WCI 218220200 WCI 218220200 Contact Us For Availability
30A
WCI 5303212596 WCI 5303212596 Contact Us For Availability
30B
WCI 5303212597 WCI 5303212597 Contact Us For Availability
31
WCI 5303299809 WCI 5303299809 Contact Us For Availability
31
WCI 5303272819 WCI 5303272819 Contact Us For Availability
32
WCI 3201414 WCI 3201414 Contact Us For Availability
32
WCI 215012000 WCI 215012000 Contact Us For Availability
33
GASKET-PAN COVER, 12.25``, RH WCI 5303200329 Contact Us For Availability
34
WCI 5303207065 WCI 5303207065 Contact Us For Availability
35
WCI 218220102 WCI 218220102 Contact Us For Availability
35
TRIM-CRISPER PAN, 13.91``, RH WCI 3201409 Contact Us For Availability
35A
TRIM-CRISPER PAN, 10.91``, LH WCI 3201411 Contact Us For Availability
36
WCI 215919116 WCI 215919116 Contact Us For Availability
36A
WCI 215919114 WCI 215919114 Contact Us For Availability
37
TRIM-CABINET CORNER, ALMOND WCI 5303202340 Contact Us For Availability
37
WCI 215919717 WCI 215919717 Contact Us For Availability
37A
WCI 215919716 WCI 215919716 Contact Us For Availability
38
BRACKET-UPPER HINGE WCI 5308012843 Contact Us For Availability
38A
TAPPING PLATE, UPPER HINGE, (2) (NON-ILLUSTRA WCI 5308012296 Contact Us For Availability
39
SHIM - UPPER HINGE WCI 5303001037 Contact Us For Availability
40
COVER-UPPER HINGE, ALMOND WCI 5308012933 Contact Us For Availability
40
WCI 215723546 WCI 215723546 Contact Us For Availability
41
TRIM-SHELF, 26.80``, REAR WCI 215919805 Contact Us For Availability
42
HANGER-PAN/BASKET, LH WCI 5303209272 Contact Us For Availability
42A
HANGER-PAN/BASKET, RH WCI 5303209273 Contact Us For Availability
43
WCI 5303212490 WCI 5303212490 Contact Us For Availability
43
WCI 215723547 WCI 215723547 Contact Us For Availability
43A
WCI 215723544 WCI 215723544 Contact Us For Availability
44
WCI 5308009773 WCI 5308009773 Contact Us For Availability
44
WCI 215919811 WCI 215919811 Contact Us For Availability
44A
WCI 215919810 WCI 215919810 Contact Us For Availability
46
BOLT-ROLLER MTG, HEX WASHER HEAD, 1/4-28 X 1/ WCI 5308009762 Contact Us For Availability
47
WCI 215789000 WCI 215789000 Contact Us For Availability
47
WCI 5303209283 WCI 5303209283 Contact Us For Availability
48
CHANNEL-SHELF MTG, CENTER, REFR WCI 5303292395 Contact Us For Availability
49
WCI 215507300 WCI 215507300 Contact Us For Availability
63
CAPACITOR ASSY, START, W/BRACKET 66 WCI 215769201 Contact Us For Availability
69
WCI 215116300 WCI 215116300 Contact Us For Availability
83
WCI 5308000107 WCI 5308000107 Contact Us For Availability
98
PLUG-BUTTON, ALMOND, CTR HINGE HOLE WCI 215099711 Contact Us For Availability
× ![]()
