Model Electrolux PRSC2222AF2 REFRIGERATOR, SIDE-BY-SIDE – Common Parts & Diagrams
01 - COVER SHEET

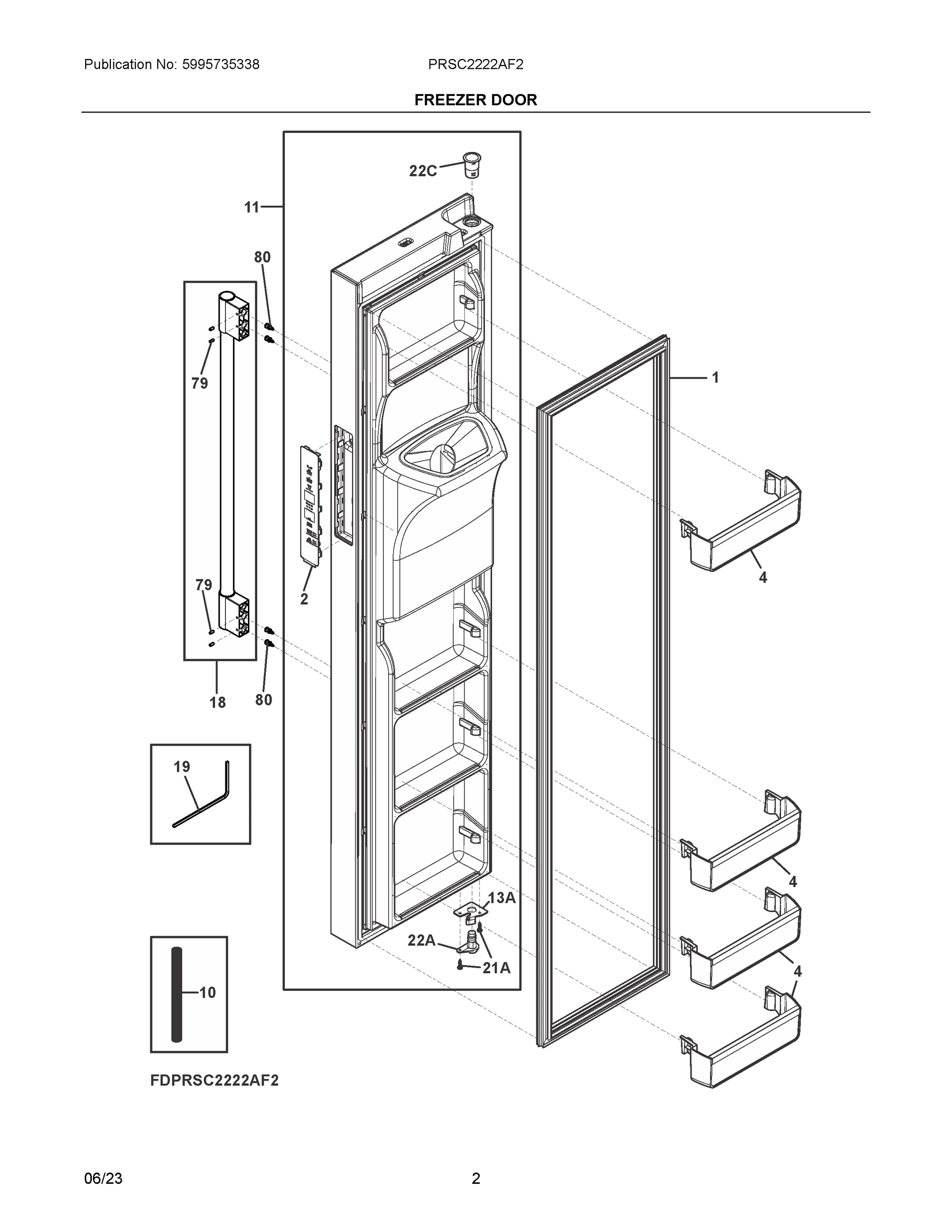

02 - FREEZER DOOR

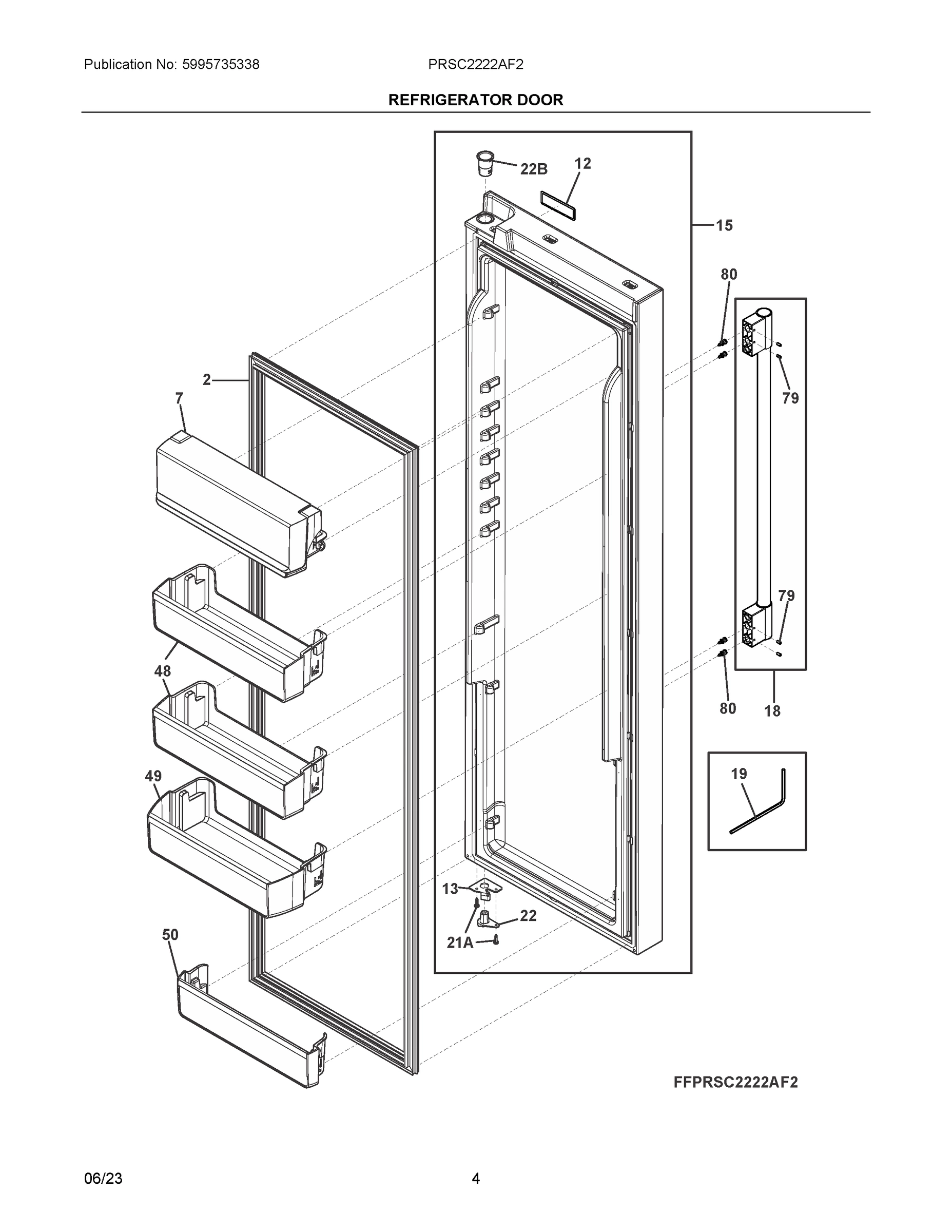

03 - REFRIGERATOR DOOR

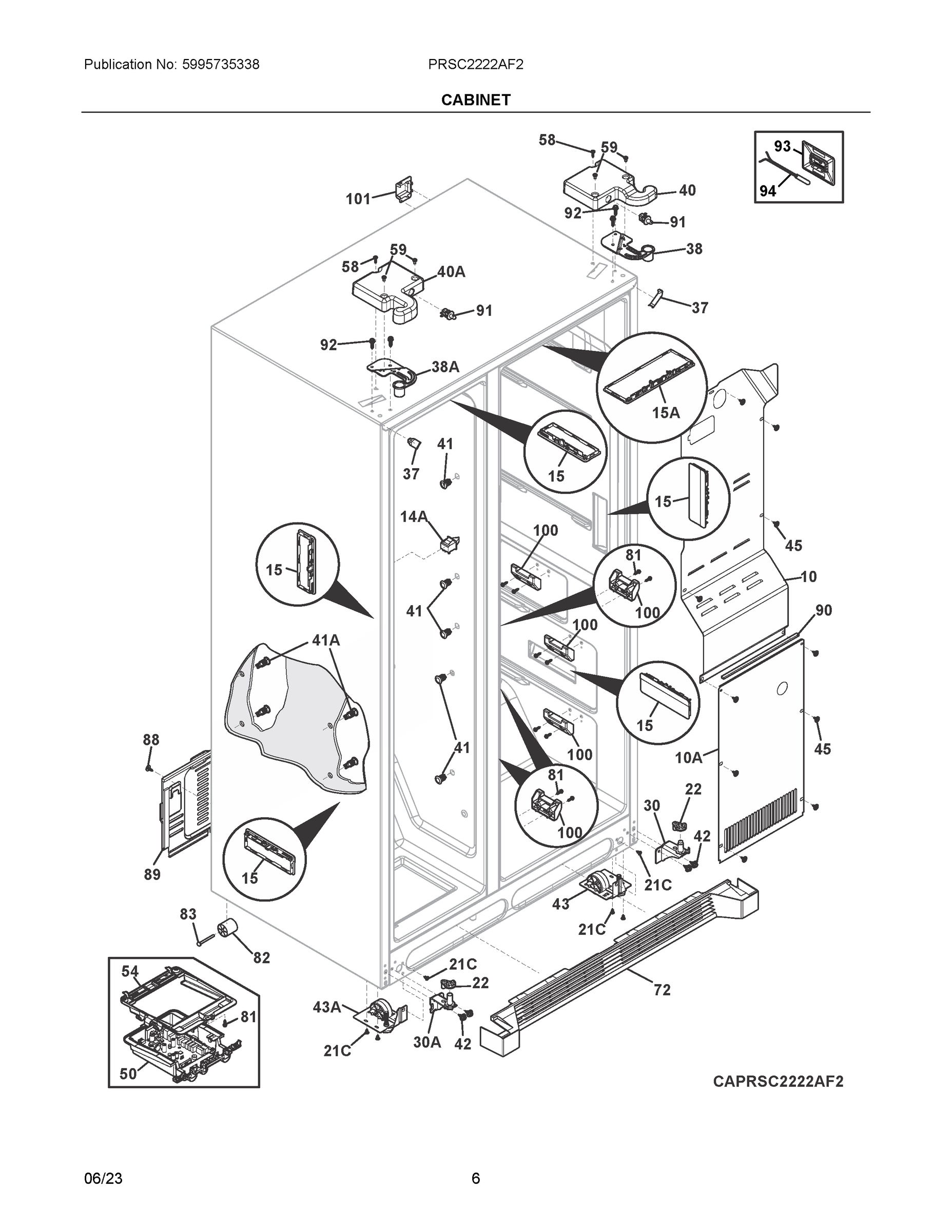

04 - CABINET

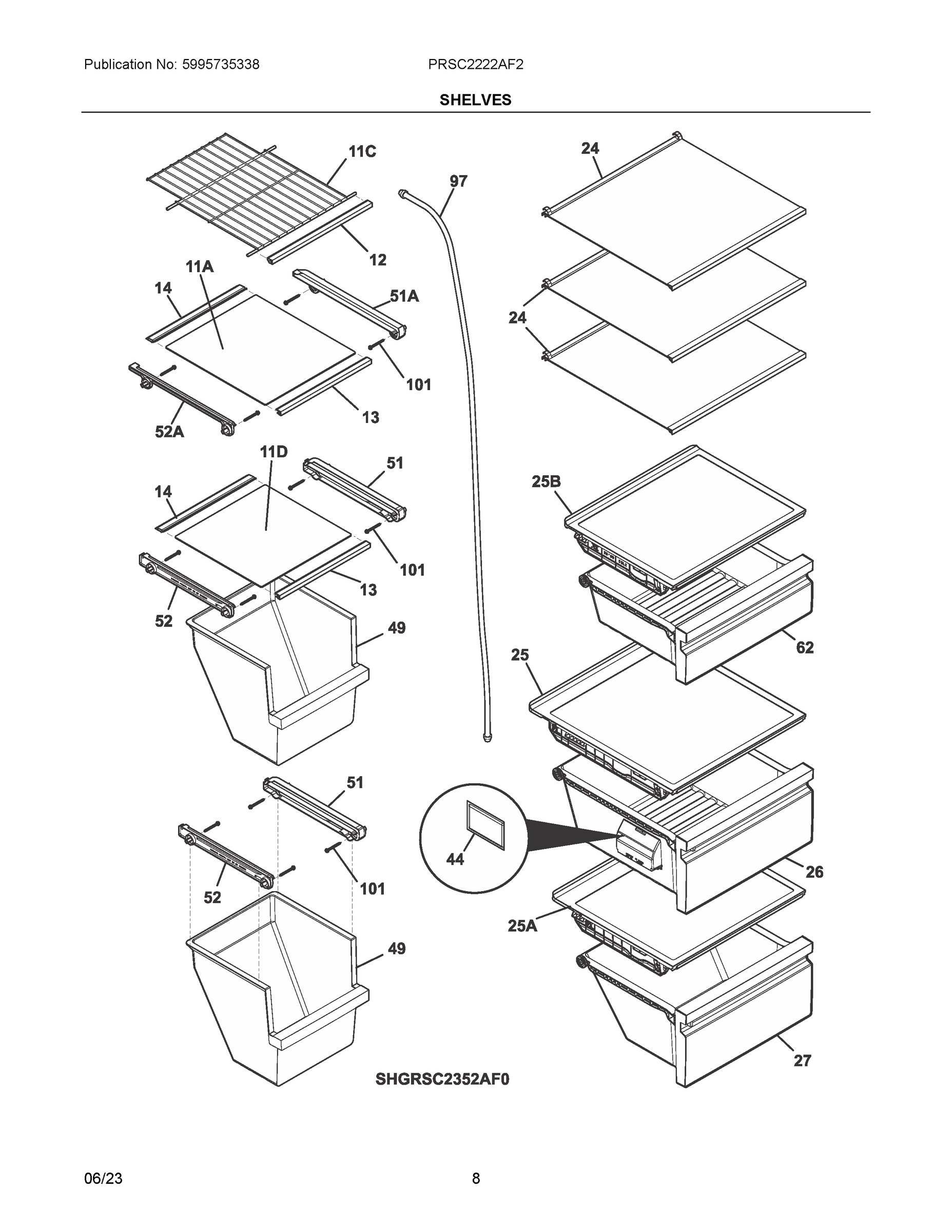

05 - SHELVES

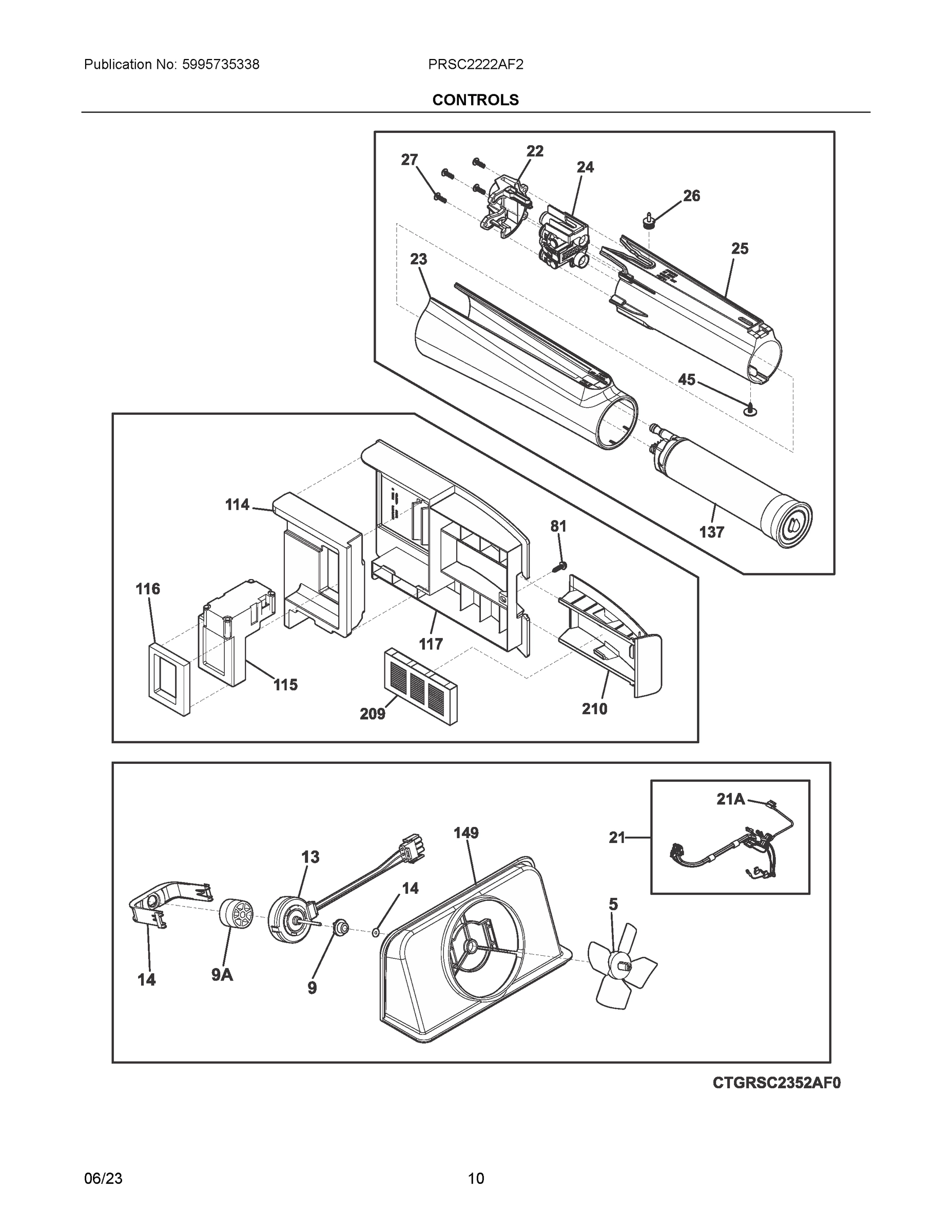

06 - CONTROLS

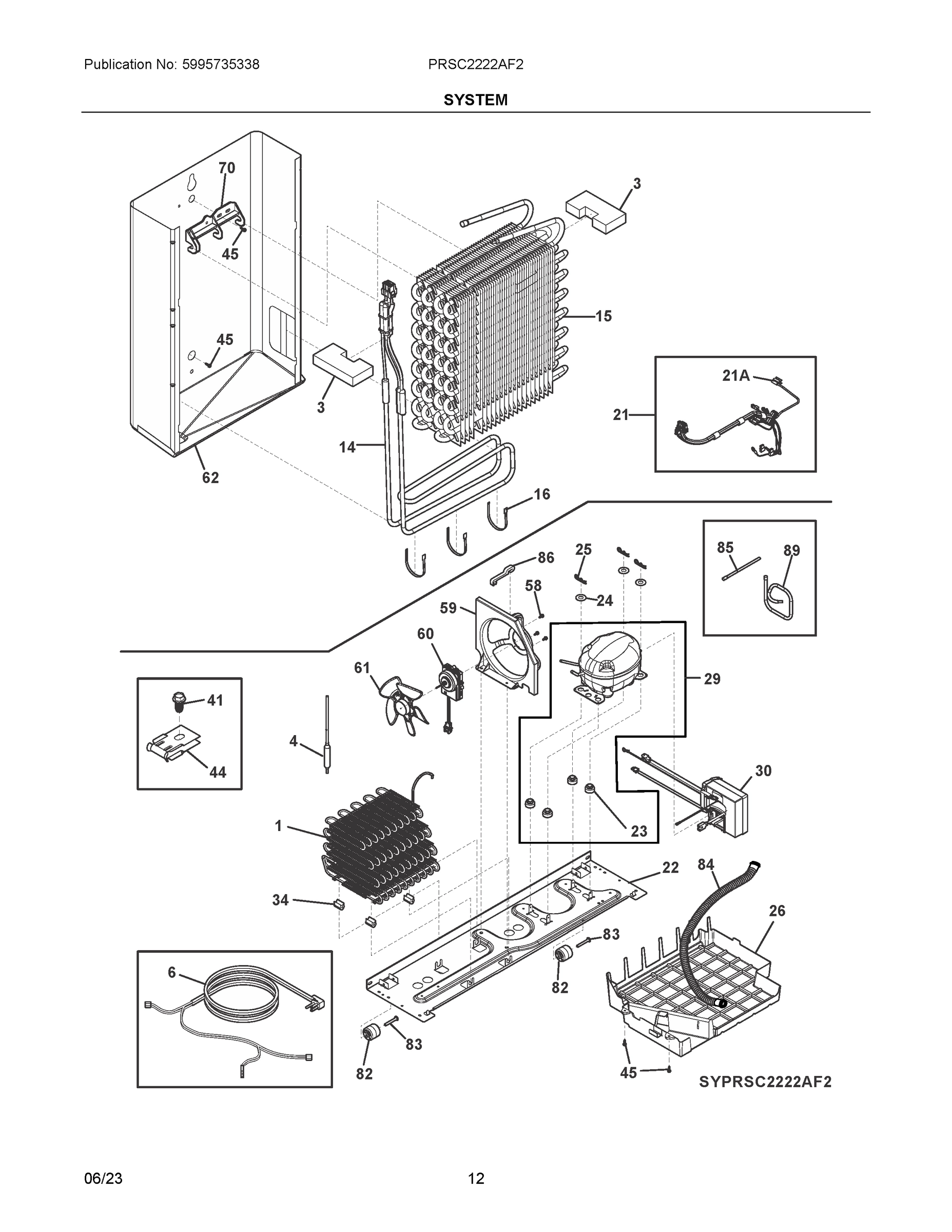

07 - SYSTEM

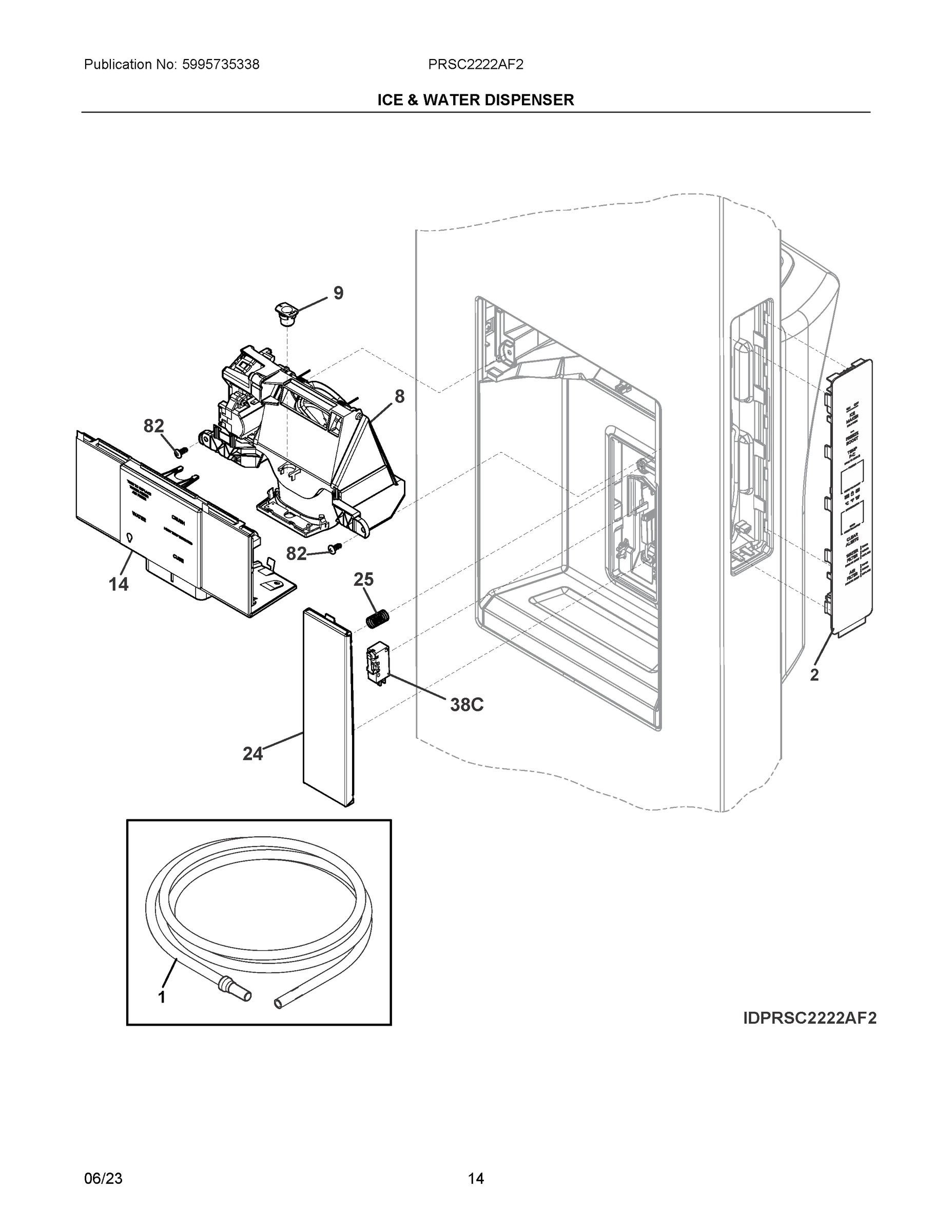

08 - ICE & WATER DISPENSER

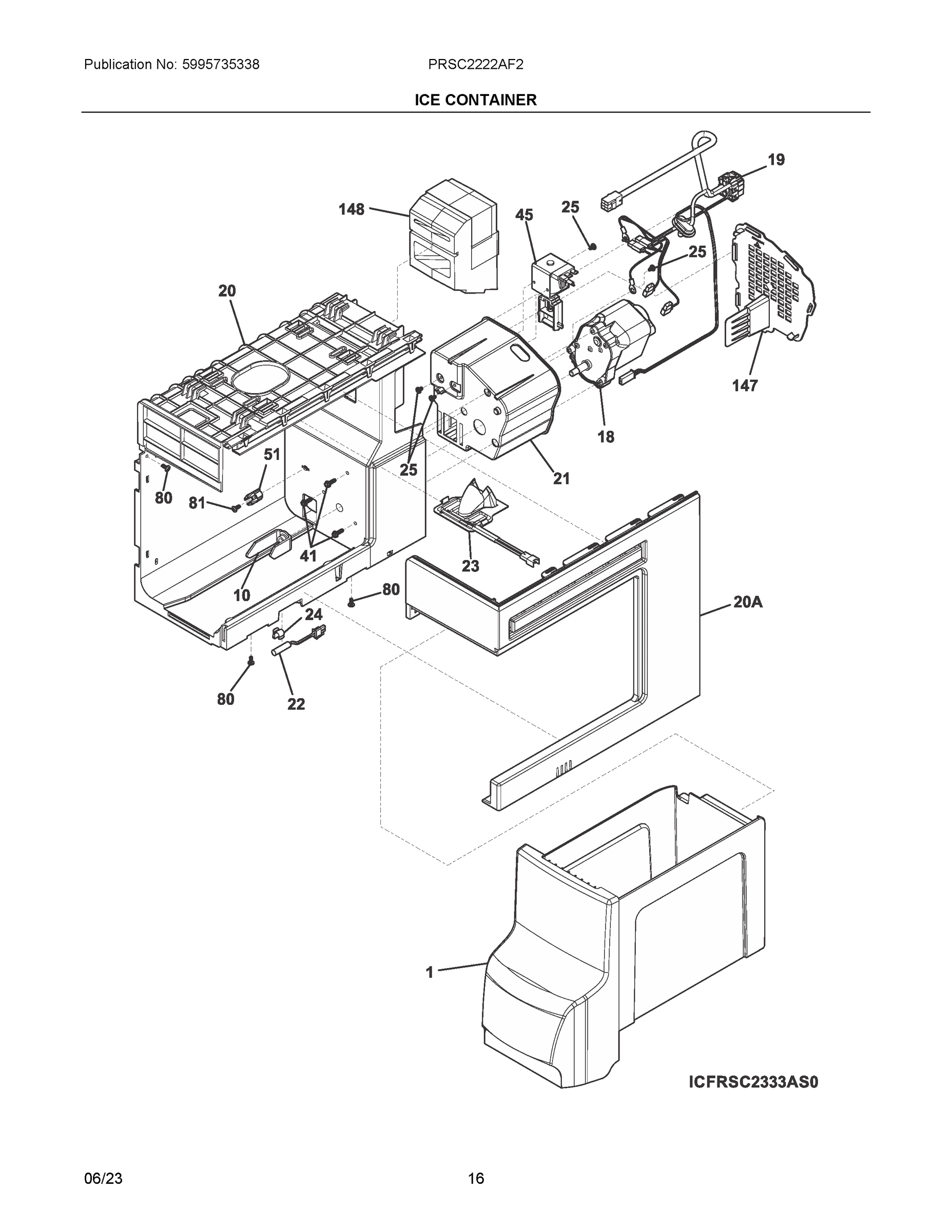

09 - ICE CONTAINER

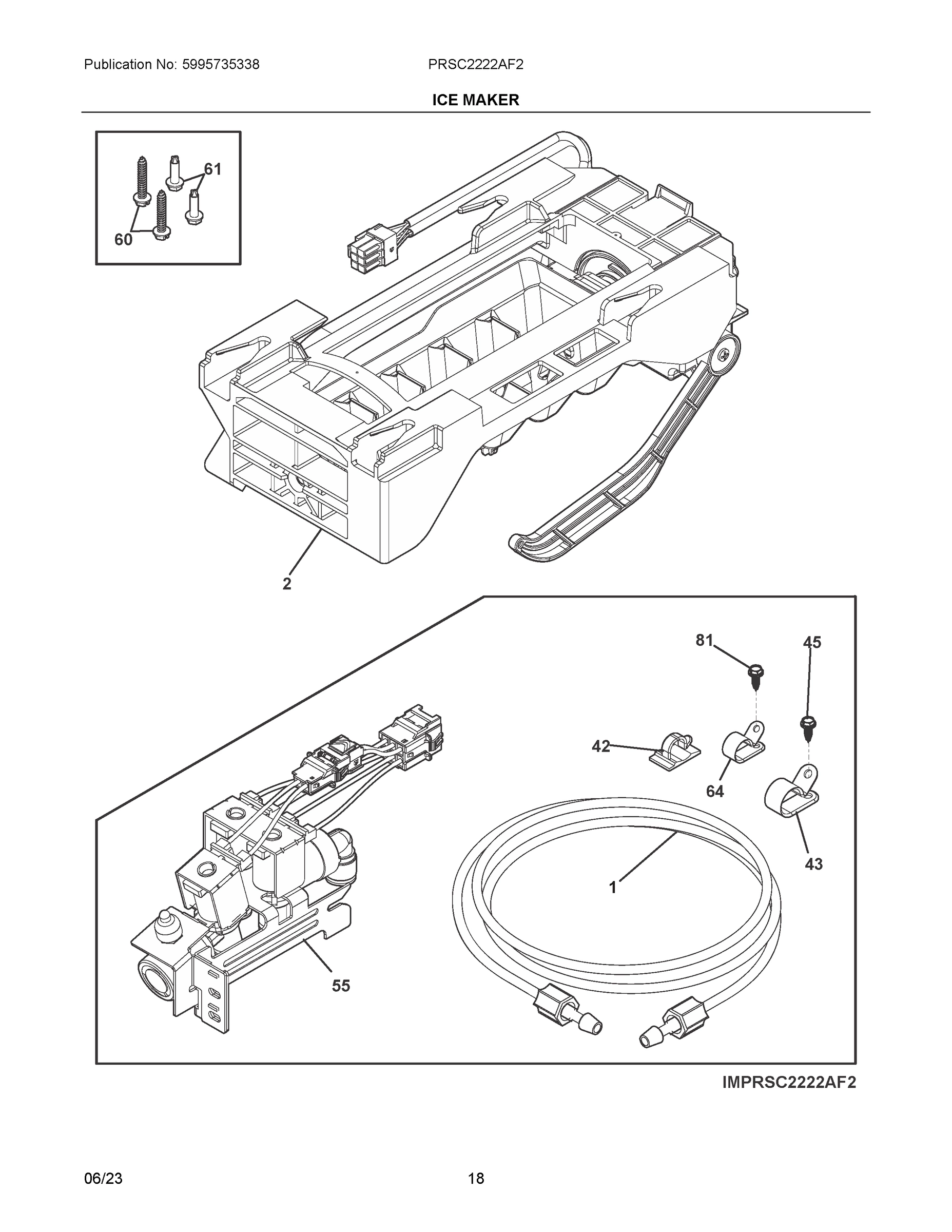

10 - ICE MAKER

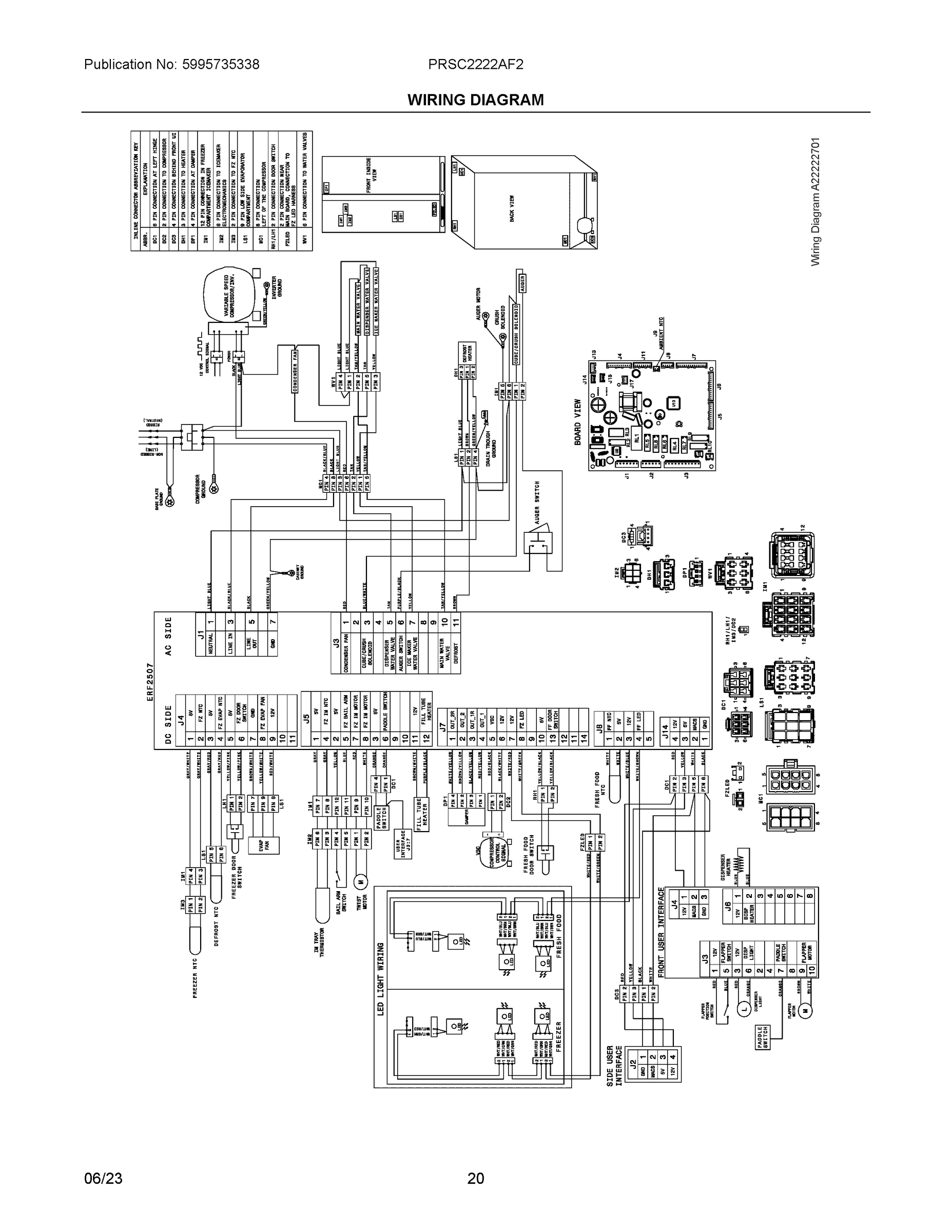

11 - WIRING DIAGRAM
Common parts from model Electrolux PRSC2222AF2 REFRIGERATOR, SIDE-BY-SIDE
1
TUBE, WATER, 62", NATURAL, DOOR, TO DISPENSER WCI 218976438 Contact Us For Availability
2
ICE MAKER, COMPLETE, 115 V, TWIST WCI 243297613 Contact Us For Availability
3
BLOCK-EVAP COIL, STYROFOAM, (2) WCI 218679614 Contact Us For Availability
5
FAN BLADE, EVAPORATOR WCI 242219302 Contact Us For Availability
9A
BUSHING-MOTOR MTG WCI 241845301 Contact Us For Availability
10
SPRING, WATER HOSE, FRZ DOOR WCI 807688301 Contact Us For Availability
10
DRIVE BAR' WCI 241829002 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
14A
SWITCH-LIGHT/LAMP WCI 241547902 Contact Us For Availability
15
EVAPORATOR KIT WCI 5303918284 Contact Us For Availability
15
CLIP, EVAP FAN MOTOR, EVAP FAN MOTOR WCI 242135301 Contact Us For Availability
16
STRAP-EVAP/HEATER, ALUMINUM, (2) WCI 5308000110 Contact Us For Availability
20
HOUSING, SLIM ICE MAKER WCI 242303501 Contact Us For Availability
20A
HOUSING, OUTER COVER, SLIM ICEMAKER WCI 242303701 Contact Us For Availability
21
HOUSING, COVER MOTOR, SOLENOID WCI 242305203 Contact Us For Availability
21A
THERMISTOR KIT, EVAPORATOR, W/CONNECTOR WCI 5303918645 Contact Us For Availability
22B
BEARING, HINGE, TOP, RH DOOR WCI 241760403 Contact Us For Availability
22C
BEARING, HINGE, TOP WCI 241760402 Contact Us For Availability
23
FILL CUP, W/HEATER WCI 5304504455 Contact Us For Availability
23
GROMMET, COMPRESSOR WCI 5304523829 Contact Us For Availability
24
WASHER-COMPR MTG WCI 241812301 Contact Us For Availability
24
CLIP, SENSOR WCI 241519401 Contact Us For Availability
24
SHELF ASSEMBLY, GLASS, METAL TRIM WCI 5304526916 Contact Us For Availability
25
CLIP-SPRING WCI 242037702 Contact Us For Availability
37
TRIM-CABINET CORNER, GRAY WCI 5304519618 Contact Us For Availability
38C
SWITCH, DISP PADDLE WCI 5304523072 Contact Us For Availability
41
SCREW-#8-32 X 3/8 WCI 240555002 Contact Us For Availability
41
SCREW, HEX WASHER HEAD, 8-32 X 3/8 WCI 240555005 Contact Us For Availability
42
CLIP, GRILLE/TUBE, & HINGE WCI 218515401 Contact Us For Availability
45
SOLENOID, ASSEMBLY WCI 241675705 Contact Us For Availability
51
PIN-ANTI TWIST BKT GEN II IM WCI 242095501 Contact Us For Availability
54
SUPPORT, HOUSING, MAIN BOARD WCI 807854301 Contact Us For Availability
58
SCREW, 8-18 X .500 WCI 240569202 Contact Us For Availability
59
SHROUD-COND FAN WCI 241946106 Contact Us For Availability
59
SCREW, 10-32 X 1/2 WCI 241732101 Contact Us For Availability
60
SCREW, HEX WASHER HEAD, 8-15A X 1.000 WCI 5304455852 Contact Us For Availability
61
BLADE, CONDENSER FAN WCI 241639502 Contact Us For Availability
61
SCREW, HEX HEAD, #8-18X5/8 WCI 241853202 Contact Us For Availability
81
SCREW, QUAD HILO, #8-18 WCI 241953908 Contact Us For Availability
82
ROLLER, COMPRESSOR BASE, REAR WCI 240335202 Contact Us For Availability
82
SCREW, QUAD HILO, #8-18 X 0.380 WCI 241953902 Contact Us For Availability
84
TUBE-DRAIN, LOWER WCI 241830905 Contact Us For Availability
86
SPACER-COND TUBE, BLACK WCI 240409302 Contact Us For Availability
93
WCI 5304508041 WCI 5304508041 Contact Us For Availability
94
WCI 5303918775 WCI 5303918775 Contact Us For Availability
101
SCREW, HEX WASHER HEAD, 8-18AB X 1-3/4 WCI 218493101 Contact Us For Availability
101
WCI 242157801 WCI 242157801 Contact Us For Availability
101A
SCREW, HEX SEMS HEAD, 8-18AB X 1-3/4 WCI 241637202 Contact Us For Availability
137
FILTER, WATER, WF-1, FRIG PUREPOUR WCI FPPWFU01 Contact Us For Availability
147
MOTOR, COVER WCI 5304504451 Contact Us For Availability
148
DUCT AIR, SLIM ICEMAKER, ASSEMBLY WCI 5304504447 Contact Us For Availability
149
SHROUD-EVAP FAN MTG, W/SEAL WCI 5304521275 Contact Us For Availability
209
PURE AIR ULTRA 2 AIR FILTER, 8 WCI PAULTRA2 Contact Us For Availability
NI
HARNESS, SLIM TWIST, ICE MAKER WCI 5304521770 Contact Us For Availability
NI
CLIP, TUBING, 90 DEG ELBOW WCI 242200102 Contact Us For Availability
NIA
WCI 808835601 WCI 808835601 Contact Us For Availability
NIA
TUBE, WATER, 27", YELLOW, VALVE, TO DOOR WCI 218976421 Contact Us For Availability
NIA
CLIP-TUBE, DRAIN WCI 242036801 Contact Us For Availability
NIB
TUBE, WATER, 97.5", NATURAL, FILTER BASE TO, WCI 242220119 Contact Us For Availability
NIB
SCREW- WCI 240359403 Contact Us For Availability
NIB
SCREW-SHOULDER WCI 240363602 Contact Us For Availability
× ![]()
