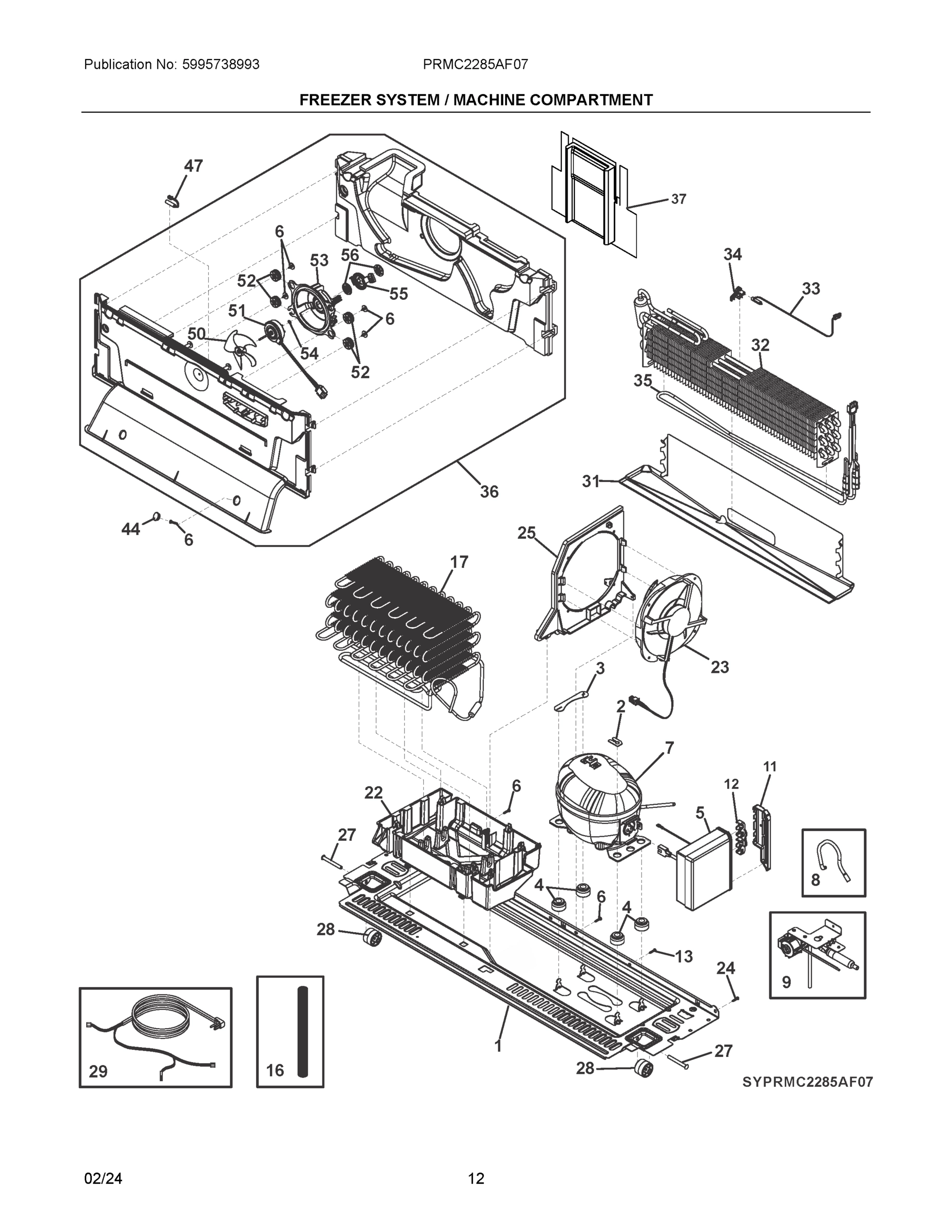

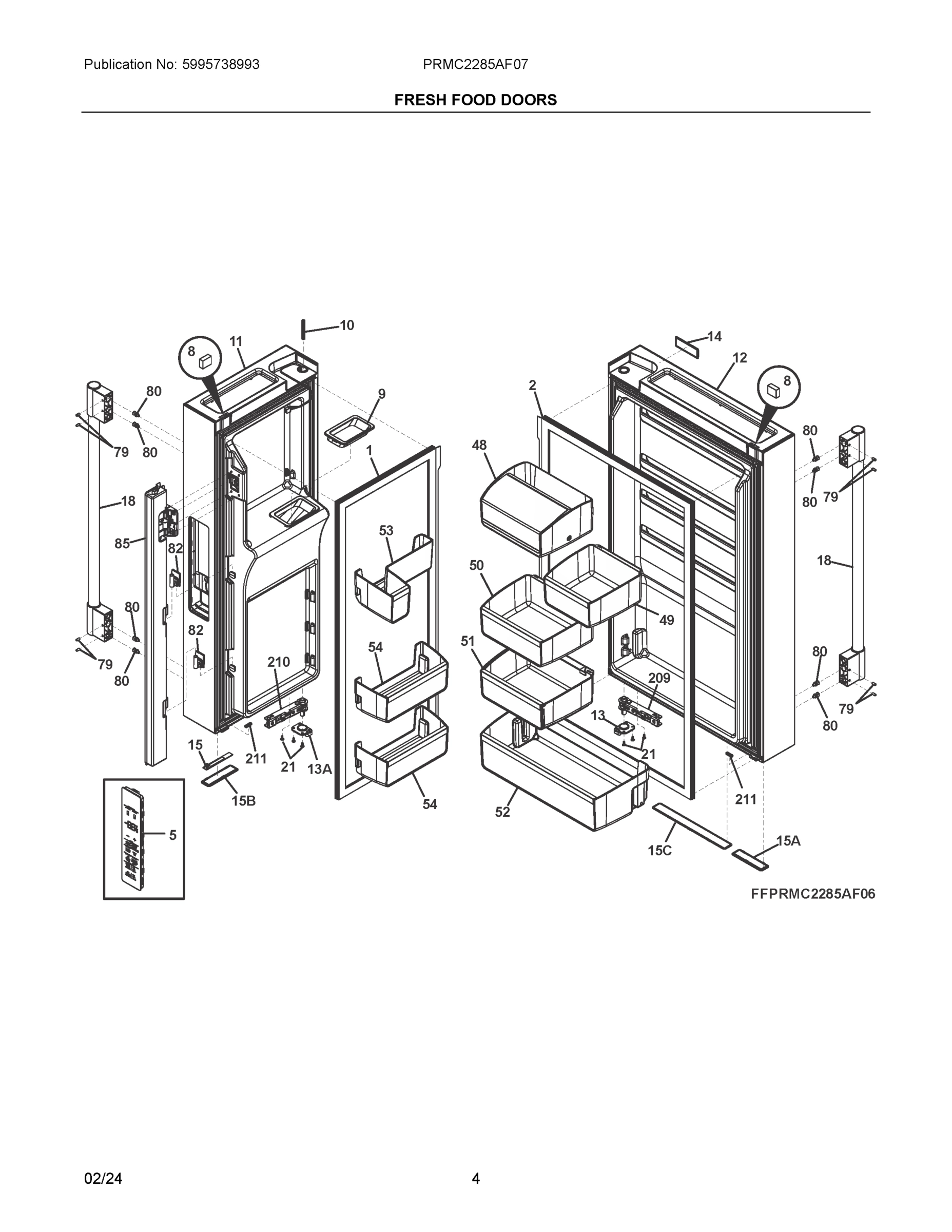

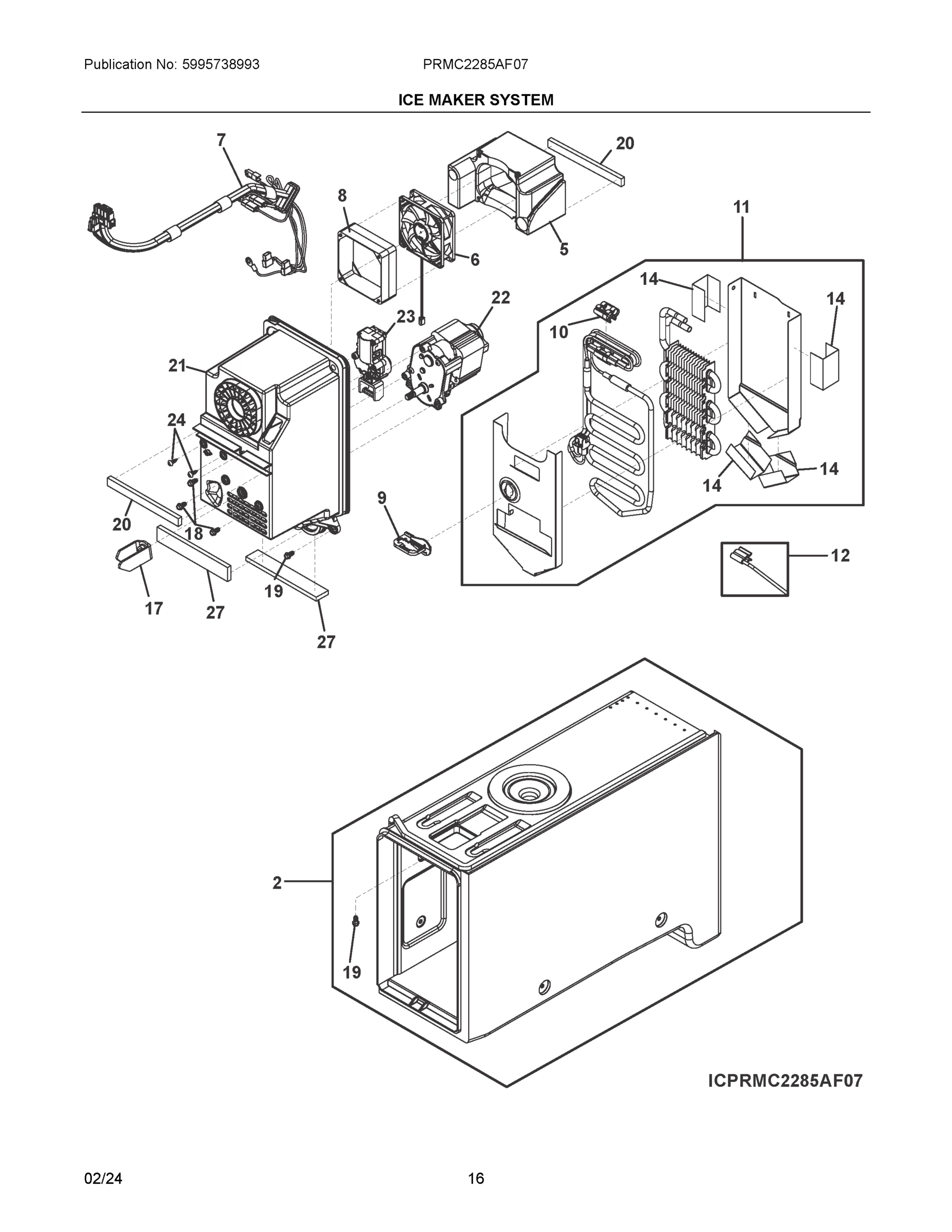

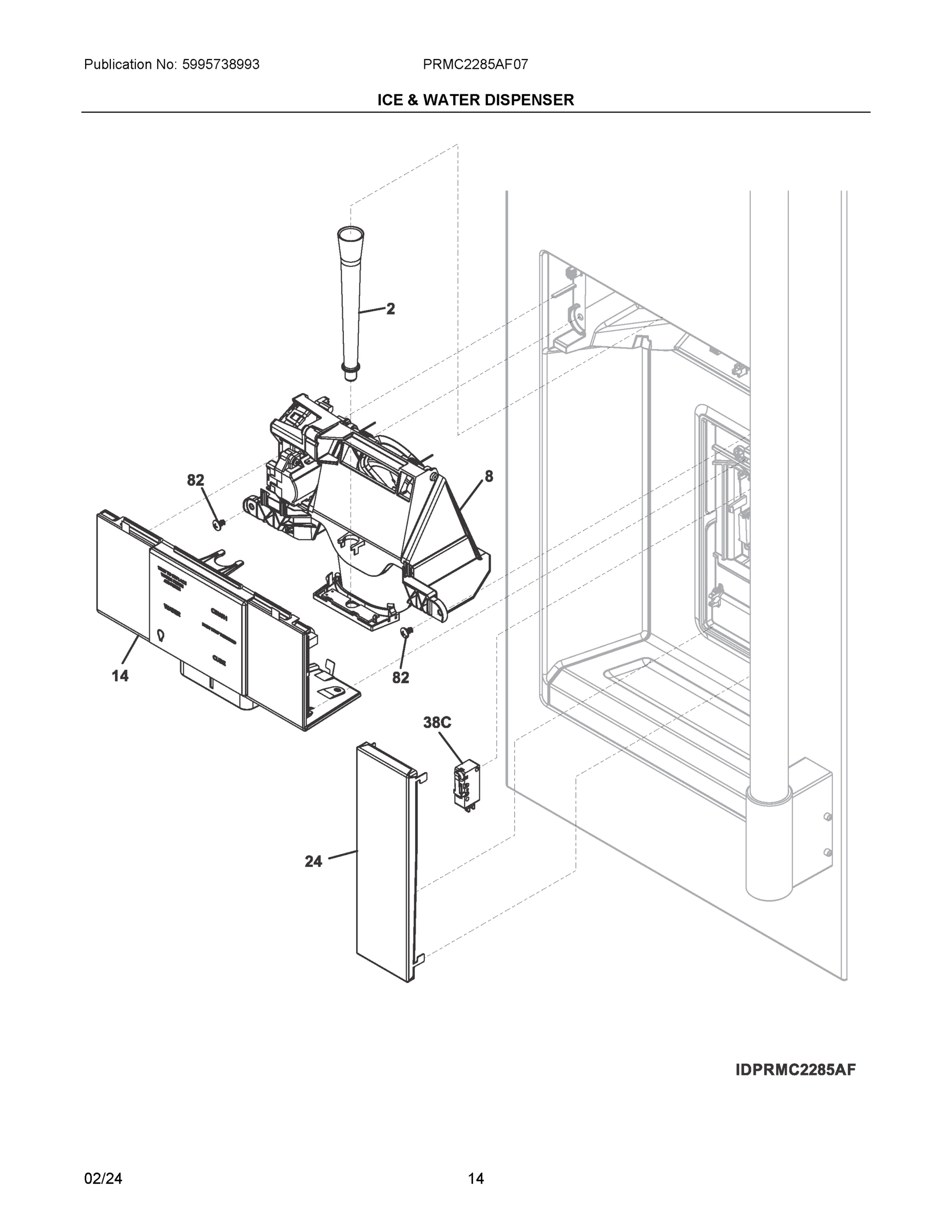

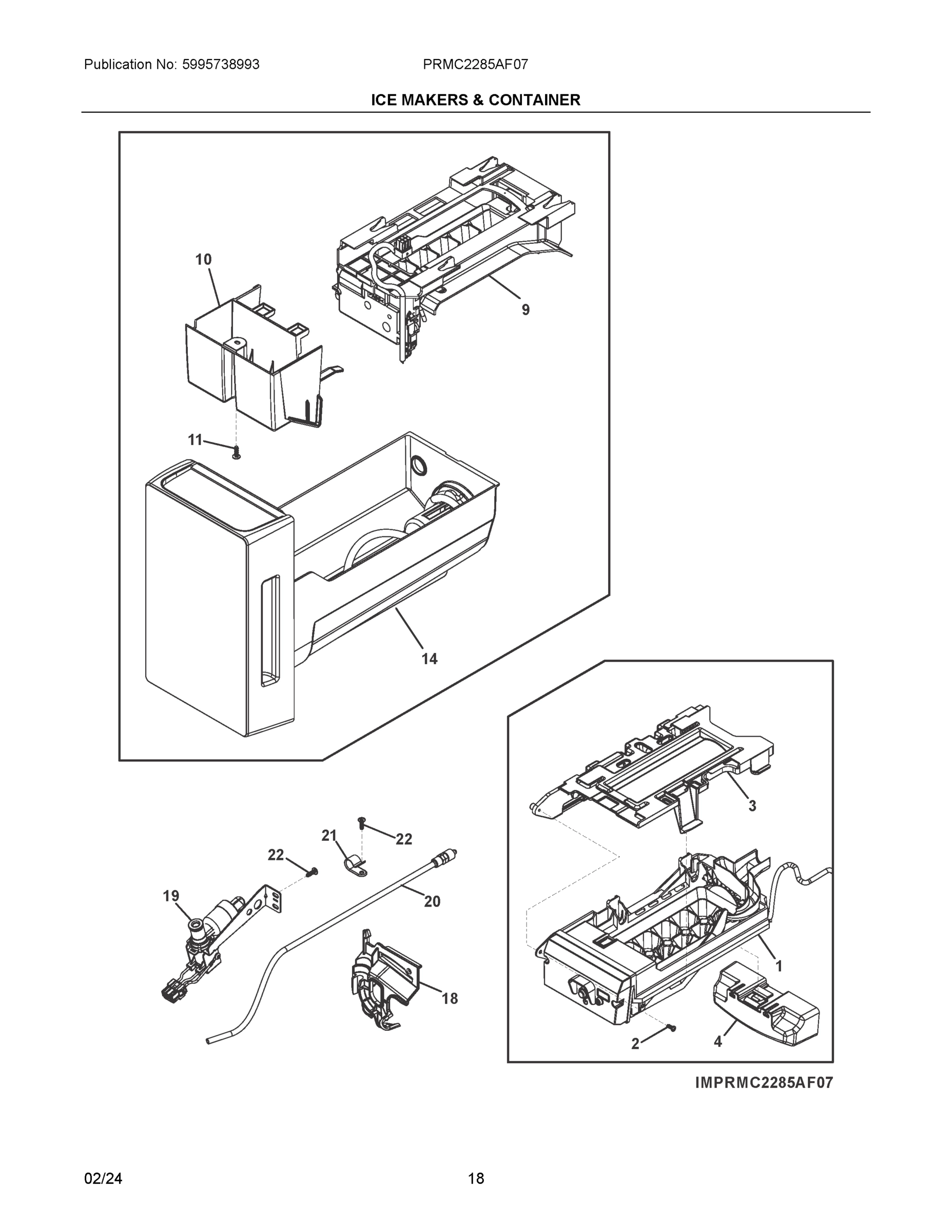

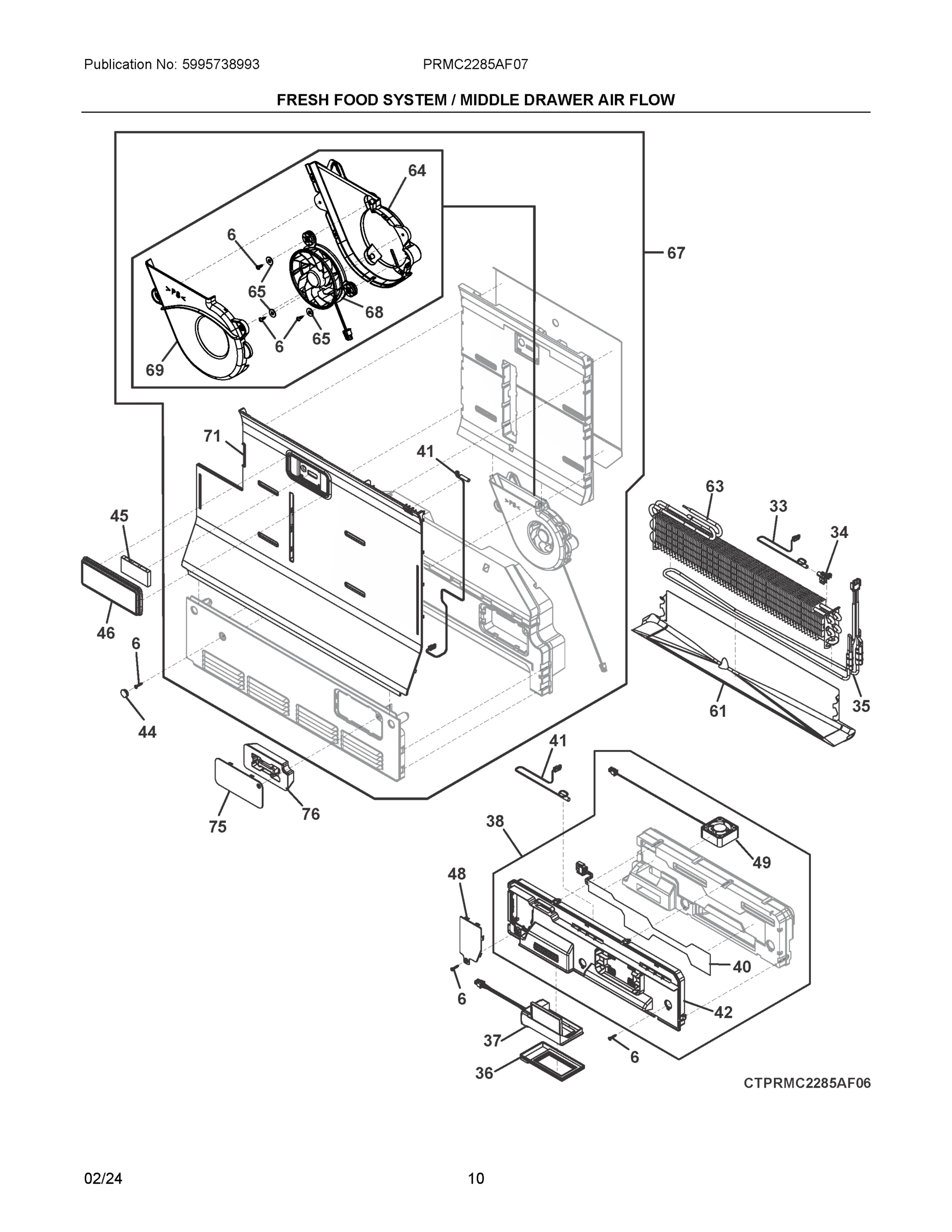

Model Electrolux PRMC2285AF07 REFRIGERATOR, FRENCH DOOR, MULTI-DRAWER – Common Parts &amp; Diagrams

1

5304532556 Frigidaire Refrigerator Ice Maker In Stock WCI 5304532556 $88.43

1

5304533262 Frigidaire Refrigerator Cover Backorder WCI 5304533262 $17.77

1

BASE, COMPRESSOR ASSY WCI 5304519151 Contact Us For Availability

2

241641502 Frigidaire Refrigerator Screw Backorder WCI 241641502 $5.40

2

5304519038 Frigidaire Refrigerator Gasket Backorder WCI 5304519038 $36.85

2

CLAMP Backorder WCI 5304519152 $5.45

2

5304519194 Frigidaire Refrigerator Guide Backorder WCI 5304519194 $6.88

2

5304529601 Frigidaire Support Bracket Backorder WCI 5304529601 $13.13

2

HOUSING ASSEMBLY, ICE MAKER, W/GASKETS WCI A20299501 Contact Us For Availability

3

5304519041 Frigidaire Refrigerator Gasket Backorder WCI 5304519041 $15.49

3

5304523035 Frigidaire Refrigerator Cover Backorder WCI 5304523035 $63.45

3

5304523075 Frigidaire Refrigerator Bracket Backorder WCI 5304523075 $22.63

3

CLAMP, COMPRESSOR, 2 HOLE WCI 5304533505 Contact Us For Availability

4

5304524340 Frigidaire Refrigerator Cover Backorder WCI 5304524340 $10.87

4

811978901 Frigidaire Refrigerator Grommet Backorder WCI 811978901 $4.97

5

5304523018 Frigidaire Refrigerator Control As Backorder WCI 5304523018 $190.61

5

5304523061 Frigidaire Refrigerator Control As Backorder WCI 5304523061 $219.95

5

5304523073 Frigidaire Refrigerator Duct Assem Backorder WCI 5304523073 $24.06

6

5304523037 Frigidaire Refrigerator Tank Backorder WCI 5304523037 $103.38

6

5304524796 Frigidaire Refrigerator Motor In Stock WCI 5304524796 $106.37

7

COVER Backorder WCI 5304523038 $63.43

7

5304523062 Frigidaire Refrigerator Compressor Backorder WCI 5304523062 $538.74

7

5304532656 Frigidaire Refrigerator Harness Backorder WCI 5304532656 $53.84

8

5304508063 Frigidaire Refrigerator Grommet In Stock WCI 5304508063 $9.50

8

5304519044 Frigidaire Magnet In Stock WCI 5304519044 $11.30

8

5304519124 Frigidaire Roller Assembly Backorder WCI 5304519124 $10.02

8

5304526794 Frigidaire Tube Backorder WCI 5304526794 $24.24

8

5304537115 Frigidaire Dispenser Assembly Backorder WCI 5304537115 $85.76

9

243297608 Frigidaire Refrigerator Ice Maker In Stock WCI 243297608 $98.54

9

5304508037 Frigidaire Refrigerator Connector Backorder WCI 5304508037 $8.60

9

5304519125 Frigidaire Refrigerator Rail Backorder WCI 5304519125 $12.67

9

5304529531 Frigidaire Refrigerator Valve In Stock WCI 5304529531 $112.51

10

5304519629 Frigidaire Refrigerator Clip Backorder WCI 5304519629 $4.99

10

5304523076 Frigidaire Cover Refrigerator Backorder WCI 5304523076 $12.67

10

5304527986 Frigidaire Refrigerator Drawer Ass Backorder WCI 5304527986 $55.76

11

5304531895 Frigidaire Cover Assembly Backorder WCI 5304531895 $60.28

11

COVER, FLEX DRIVE, SIDE, COMPRESSOR WCI 5304533517 Contact Us For Availability

12

5303918645 Frigidaire Refrigerator Thermistor Backorder WCI 5303918645 $52.27

12

5304523041 Frigidaire Shelf Assembly Backorder WCI 5304523041 $159.37

12

CLAMP Backorder WCI 5304526793 $5.44

13

5304519070 Frigidaire Refrigerator Stop Backorder WCI 5304519070 $8.60

13

BRACKET, CANTILEVER SHLF, GREY, LH WCI 5304523042 Contact Us For Availability

5304485759 Frigidaire Refrigerator Tape Backorder WCI 5304485759 $0.46

5304532649 Frigidaire UI Display Assembly In Stock WCI 5304532649 $319.45

5304536665 Frigidaire Bucket Assembly Backorder WCI 5304536665 $114.30

BRACKET, CANTILEVER SHLF, GREY, CENTER WCI 5304523043 Contact Us For Availability

15

5304519630 Frigidaire Refrigerator Evaporator Backorder WCI 5304519630 $103.06

15

5304523011 Frigidaire Refrigerator Light Boar Backorder WCI 5304523011 $22.91

15

5304523044 Frigidaire Shelf Assembly Backorder WCI 5304523044 $139.13

16

5304519156 Frigidaire Refrigerator Drain Tube Backorder WCI 5304519156 $3.59

16

5304523045 Frigidaire Shelf Assembly Backorder WCI 5304523045 $214.60

16A

5304523682 Frigidaire Pin Backorder WCI 5304523682 $4.07

17

241829001 Frigidaire Refrigerator Bar Drive In Stock WCI 241829001 $36.99

17

5304538286 Frigidaire Condenser Assembly Dyna Backorder WCI 5304538286 $82.25

BRACKET Backorder WCI 140250227018 $2.53

240555002 Frigidaire Refrigerator Screw #8-32 Backorder WCI 240555002 $8.58

5304519093 Frigidaire Refrigerator Switch Backorder WCI 5304519093 $19.03

5304519133 Frigidaire Refrigerator Cover Asse Backorder WCI 5304519133 $4.97

19

519088008 Frigidaire Refrigerator Screw Backorder WCI 519088008 $1.79

19

5304536607 Frigidaire Valve In Stock WCI 5304536607 $55.51

20

5303918784 Frigidaire Refrigerator Air Handle In Stock WCI 5303918784 $70.55

20

5304532655 Frigidaire Tube Assembly In Stock WCI 5304532655 $43.14

21

BRACKET Backorder WCI 5304523046 $28.38

21

5304534888 Frigidaire Housing Backorder WCI 5304534888 $106.11

21

811949401 Frigidaire Refrigerator Screw In Stock WCI 811949401 $3.14

22

5304529527 Frigidaire Refrigerator Pan Backorder WCI 5304529527 $18.56

22

5304534889 Frigidaire Motor Backorder WCI 5304534889 $103.85

22

811949503 Frigidaire Screw Backorder WCI 811949503 $1.78

5304520058 Frigidaire Refrigerator Guide Asse Backorder WCI 5304520058 $8.60

SHELF ASSEMBLY Backorder WCI 5304523047 $157.24

5304525730 Frigidaire Refrigerator Fan Assemb Backorder WCI 5304525730 $64.54

5304526819 Frigidaire Refrigerator Selector Backorder WCI 5304526819 $59.51

24

5304523071 Frigidaire Refrigerator Paddle Ass Backorder WCI 5304523071 $25.00

24

808199001 Frigidaire Screw Backorder WCI 808199001 $4.53

24

HOUSING ASSEMBLY, AUTO MEMBRANE, W/MEMBRANE WCI 5304536619 Contact Us For Availability

25

5304529530 Frigidaire Refrigerator Condenser Backorder WCI 5304529530 $10.00

26

5304519140 Frigidaire Refrigerator Gasket Backorder WCI 5304519140 $14.57

27

5304519211 Frigidaire Refrigerator Gasket Backorder WCI 5304519211 $5.90

27

5304527987 Frigidaire Refrigerator Drawer Ass Backorder WCI 5304527987 $60.46

28

RAIL Backorder WCI 5304519142 $11.76

28

811666601 Frigidaire Refrigerator Roller Backorder WCI 811666601 $5.40

29

5304523066 Frigidaire Refrigerator Power Cord Backorder WCI 5304523066 $35.37

30

5304523050 Frigidaire Refrigerator Cover Backorder WCI 5304523050 $68.11

31

5304519162 Frigidaire Drain Trough Backorder WCI 5304519162 $43.01

31

5304532661 Frigidaire Refrigerator Divider Backorder WCI 5304532661 $36.24

32

5304519104 Frigidaire Refrigerator Hinge Backorder WCI 5304519104 $33.95

32

5304529535 Frigidaire Refrigerator Evaporator In Stock WCI 5304529535 $91.69

33

5303918850 Frigidaire Refrigerator Thermistor In Stock WCI 5303918850 $20.88

33

5303918851 Frigidaire Refrigerator Thermostat In Stock WCI 5303918851 $21.93

34

811980406 Frigidaire Clamp Backorder WCI 811980406 $2.42

35

5304534878 Frigidaire Heater Backorder WCI 5304534878 $96.83

35

811998302 Frigidaire Refrigerator Shaft Backorder WCI 811998302 $6.32

36

5304519106 Frigidaire Refrigerator Foot Backorder WCI 5304519106 $10.39

36

5304523067 Frigidaire Refrigerator Cover In Stock WCI 5304523067 $82.86

36

5304523686 Frigidaire Seal Backorder WCI 5304523686 $19.65

37

5304519166 Frigidaire Refrigerator Baffle Ass Backorder WCI 5304519166 $76.27

37

DUCT, AIR RETURN WCI 5304529534 Contact Us For Availability

38

5304519167 Frigidaire Refrigerator Assembly C Backorder WCI 5304519167 $57.90

38

5304529536 Frigidaire Support Backorder WCI 5304529536 $13.04

38C

5304523072 Frigidaire Refrigerator Switch In Stock WCI 5304523072 $27.49

39

5304523900 Frigidaire Refrigerator Support Backorder WCI 5304523900 $22.65

40

5304519109 Frigidaire Refrigerator Bracket Backorder WCI 5304519109 $34.41

40

5304523056 Frigidaire Heater Assembly Backorder WCI 5304523056 $56.20

40

5304531743 Frigidaire Refrigerator Guide Backorder WCI 5304531743 $2.46

41

5304526847 Frigidaire Screw Assembly Backorder WCI 5304526847 $2.72

41

5304533202 Frigidaire Refrigerator Manifold In Stock WCI 5304533202 $28.51

42

5304519170 Frigidaire Cover Assembly Backorder WCI 5304519170 $8.99

42

Frigidaire EPTWFU01 PureSource Ultra II Refri In Stock WCI EPTWFU01 $55.29

43

5304519148 Frigidaire Refrigerator Holder Backorder WCI 5304519148 $6.79

44

5304523052 Frigidaire Refrigerator Water Valv In Stock WCI 5304523052 $132.15

44

COVER, SCREW HOLE, WHITE WCI 8588119716054 Contact Us For Availability

44A

5304523053 Frigidaire Refrigerator Connector Backorder WCI 5304523053 $15.49

45

5304519111 Frigidaire Refrigerator Clip Backorder WCI 5304519111 $4.97

45

5304524353 Frigidaire Refrigerator Tubing In Stock WCI 5304524353 $21.50

45

PAULTRA2 Frigidaire Pure Air Ultra 2 Filter In Stock WCI PAULTRA2 $16.12

46

5304519112 Frigidaire Refrigerator Cover Backorder WCI 5304519112 $40.01

46

5304523057 Frigidaire Refrigerator Cover Backorder WCI 5304523057 $30.32

46

5304527422 Frigidaire Refrigerator Tube Backorder WCI 5304527422 $9.67

47

5303918775 Frigidaire Refrigerator Thermistor In Stock WCI 5303918775 $11.89

47

5304523685 Frigidaire Refrigerator Tubing Backorder WCI 5304523685 $33.13

48

COVER Backorder WCI 5304519172 $6.77

48

5304523022 Frigidaire Refrigerator Bin Assemb Backorder WCI 5304523022 $52.80

5304519057 Frigidaire Refrigerator Assembly-B Backorder WCI 5304519057 $115.15

5304519173 Frigidaire Refrigerator Fan Assemb Backorder WCI 5304519173 $81.50

5304523023 Frigidaire Refrigerator Bin Backorder WCI 5304523023 $48.96

WCI 519092015 WCI 519092015 Contact Us For Availability

50

BLADE, EVAPORATOR FAN WCI 811699604 No Longer Available

51

5304519059 Frigidaire Refrigerator Slider In Stock WCI 5304519059 $136.67

51

5304534043 Frigidaire Refrigerator PC Board In Stock WCI 5304534043 $95.85

51

809069207 Frigidaire Refrigerator Motor In Stock WCI 809069207 $88.88

5304519061 Frigidaire Refrigerator Slider In Stock WCI 5304519061 $135.81

GROMMET Backorder WCI 5304519174 $5.44

5304523026 Frigidaire Refrigerator Bin Backorder WCI 5304523026 $71.11

5304526795 Frigidaire Refrigerator PC Board In Stock WCI 5304526795 $168.08

53

5304519175 Frigidaire Shroud Backorder WCI 5304519175 $8.14

54

5304519115 Frigidaire Refrigerator Power Cont In Stock WCI 5304519115 $138.33

54

WASHER Backorder WCI 5304519176 $1.79

55

5304519117 Frigidaire Cover Backorder WCI 5304519117 $30.34

55

5304519177 Frigidaire Refrigerator Clip Backorder WCI 5304519177 $4.99

56

5304519178 Frigidaire Refrigerator Grommet Backorder WCI 5304519178 $4.51

61

5304519180 Frigidaire Drain Trough Backorder WCI 5304519180 $38.99

63

5304526811 Frigidaire Refrigerator Evaporator Backorder WCI 5304526811 $96.60

64

PLATE, FAN MOUNTING, FRESH FOOD WCI 5304526813 Contact Us For Availability

65

5304519183 Frigidaire Washer Backorder WCI 5304519183 $4.05

67

5304524899 Frigidaire Refrigerator Cover Asse Backorder WCI 5304524899 $162.90

68

5304536608 Frigidaire Motor Backorder WCI 5304536608 $65.81

69

5304526812 Frigidaire Housing Backorder WCI 5304526812 $10.41

71

5304523059 Frigidaire Cover In Stock WCI 5304523059 $140.93

75

5304519189 Frigidaire Cover Assembly Backorder WCI 5304519189 $6.79

76

5304522062 Frigidaire Insulation Assembly Backorder WCI 5304522062 $8.17

80

5304519063 Frigidaire Refrigerator Screw Backorder WCI 5304519063 $6.86

82

241953902 Frigidaire Refrigerator Screw In Stock WCI 241953902 $10.93

85

5304519081 Frigidaire Refrigerator Mullion As Backorder WCI 5304519081 $91.35

240396801 Frigidaire Refrigerator Tube Clamp Backorder WCI 240396801 $12.24

240396803 Frigidaire Clamp Backorder WCI 240396803 $4.51

SCREW Backorder WCI 241641505 $4.97

5304519098 Frigidaire Screw Backorder WCI 5304519098 $1.79

5304519116 Frigidaire Refrigerator Harness Backorder WCI 5304519116 $11.52

5304529552 Frigidaire Seal Backorder WCI 5304529552 $5.88

5304529553 Frigidaire Seal Backorder WCI 5304529553 $5.01

CABLE TIE Backorder WCI 811948501 $3.62

811950601 Frigidaire Refrigerator Seal Backorder WCI 811950601 $4.55

WCI 5304526848 WCI 5304526848 Contact Us For Availability

CLAMP, WATER TUBE WCI 5304534887 Contact Us For Availability

218359202 Frigidaire Refrigerator Screw Backorder WCI 218359202 $6.79

5304519048 Frigidaire Refrigerator Harness Backorder WCI 5304519048 $91.74

5304519199 Frigidaire Refrigerator Spring Backorder WCI 5304519199 $3.61

5304523032 Frigidaire Refrigerator Screw Backorder WCI 5304523032 $3.18

GROMMET Backorder WCI 5304529529 $5.88

5304532654 Frigidaire Screw Backorder WCI 5304532654 $1.37

ELBOW Backorder WCI 5304533519 $3.72

WCI 5304523068 WCI 5304523068 Contact Us For Availability
