Model Whirlpool PRG4802P GAS RANGE – Common Parts & Diagrams

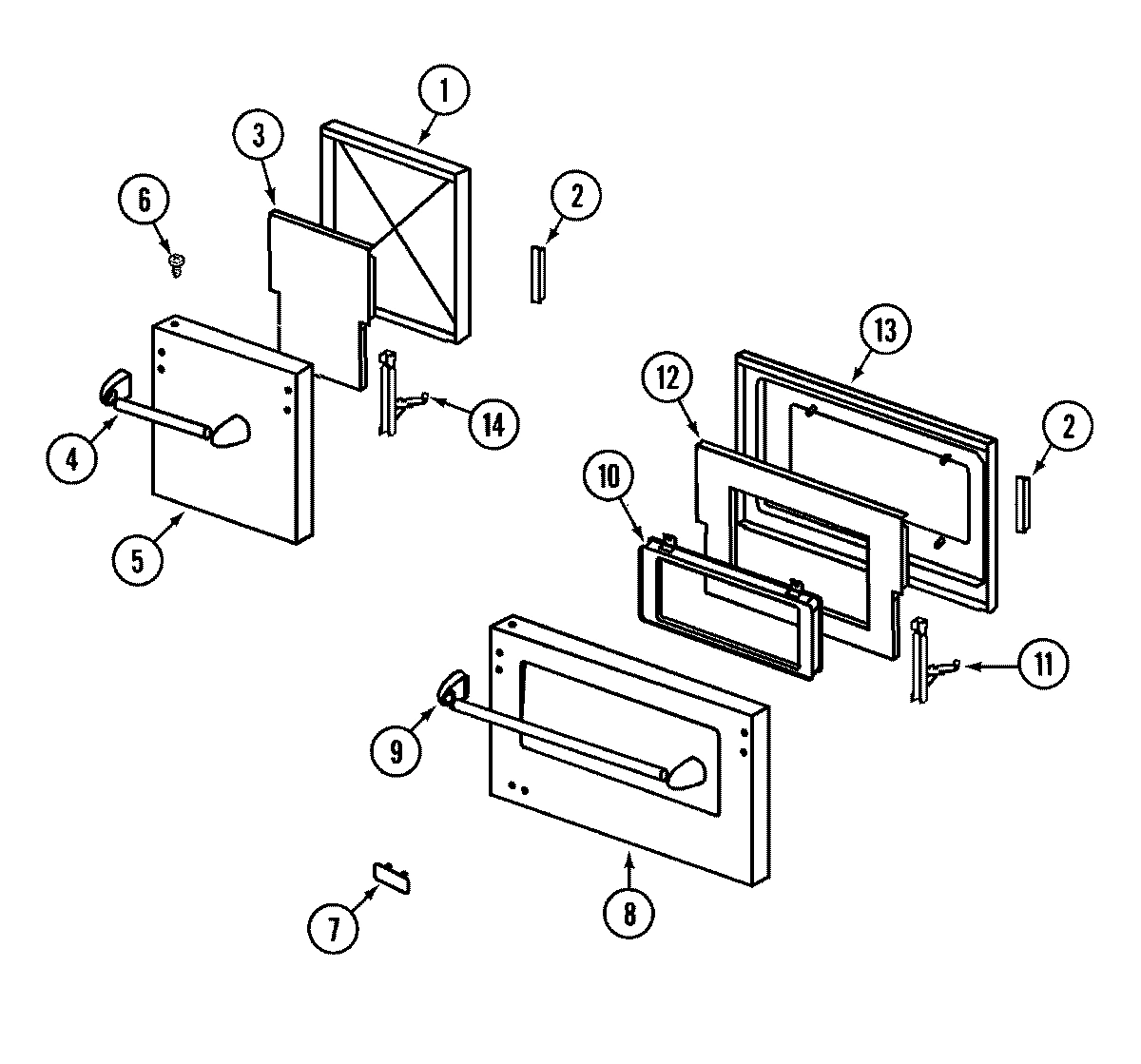

05 - DOOR

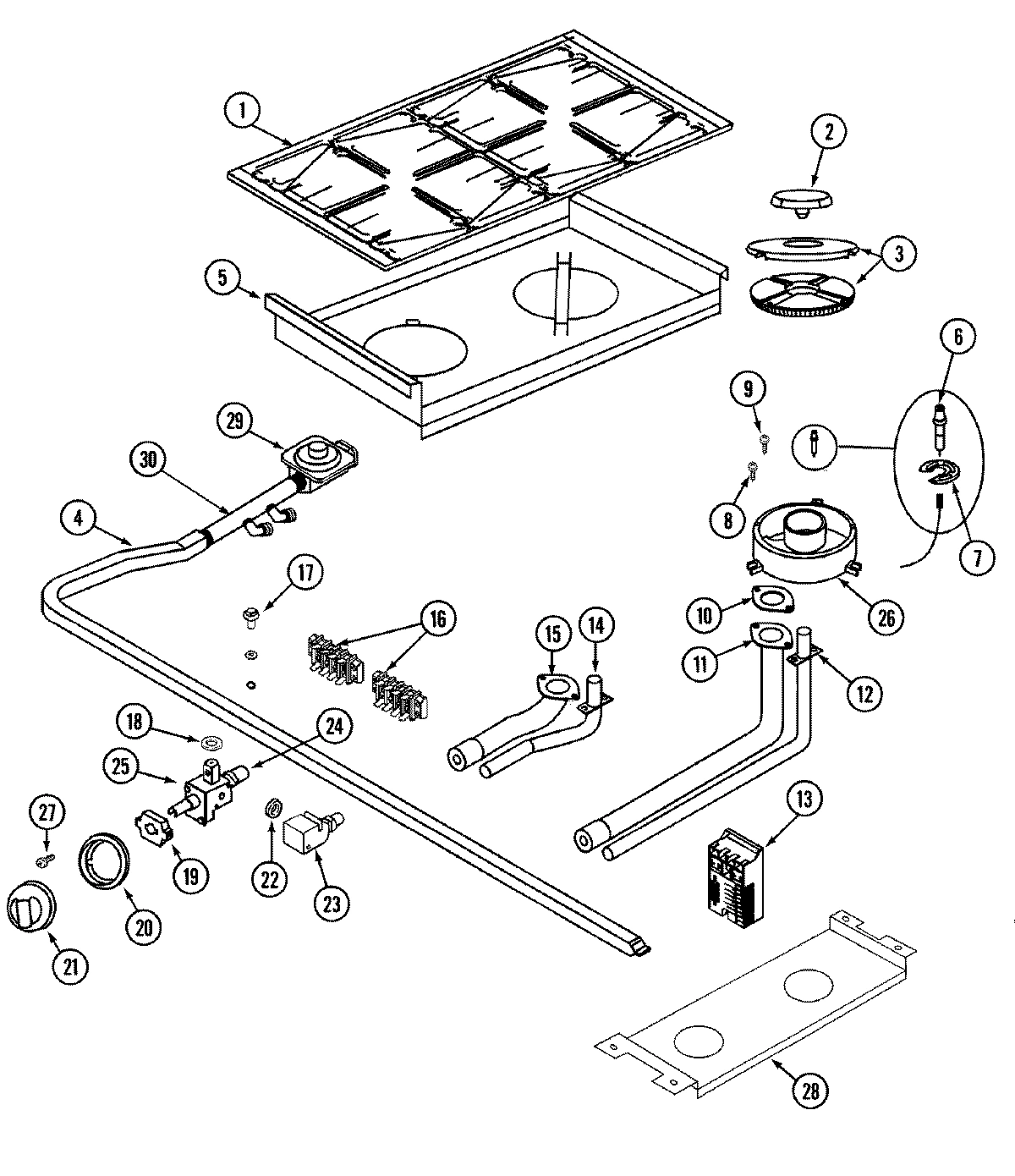

07 - TOP ASSEMBLY & CONTROLS
02 - 27`` OVEN CONTROLS

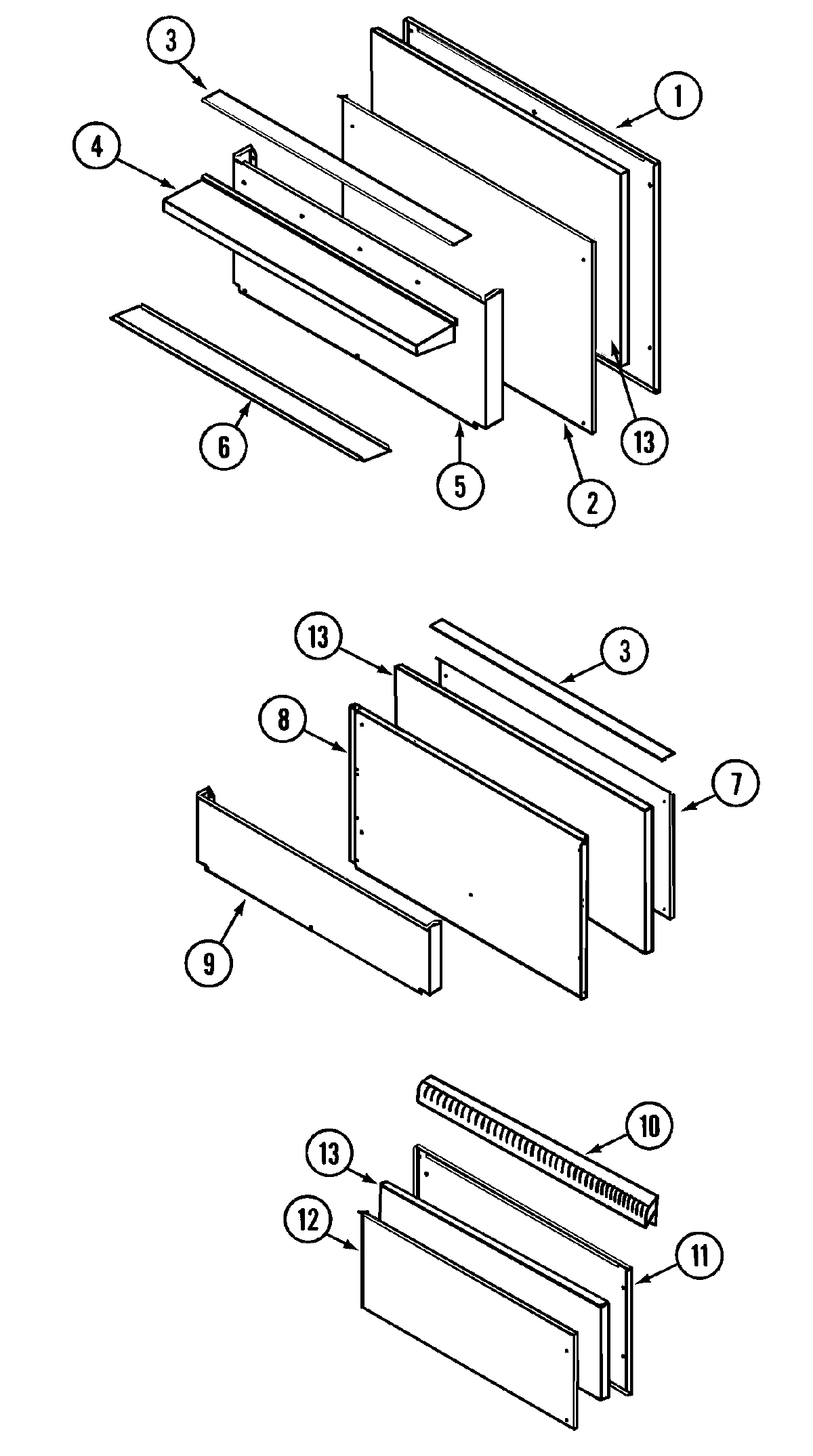

03 - BACKGUARD ASSEMBLY

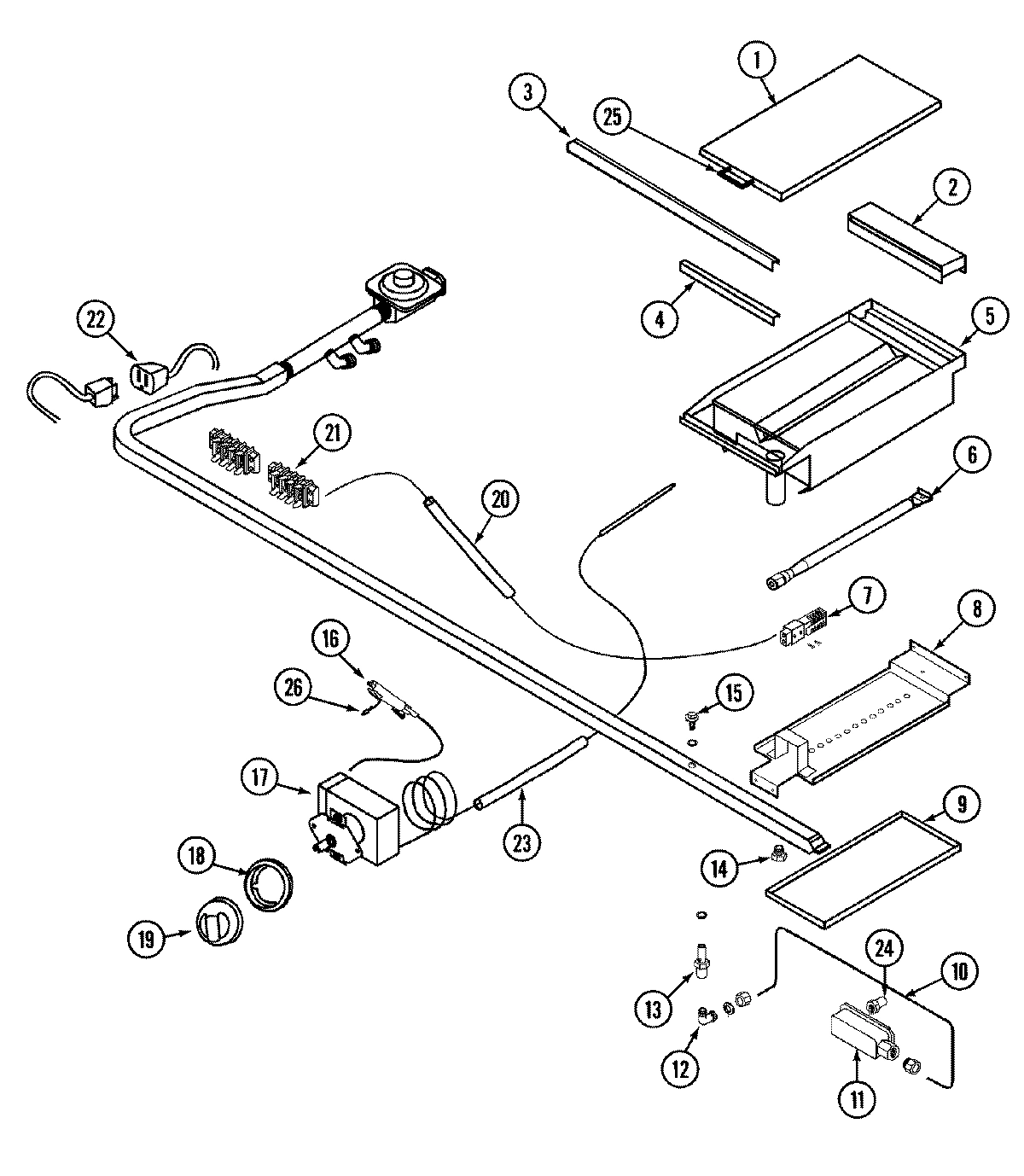

06 - GRIDDLE ASSEMBLY
01 - 12`` OVEN CONTROLS

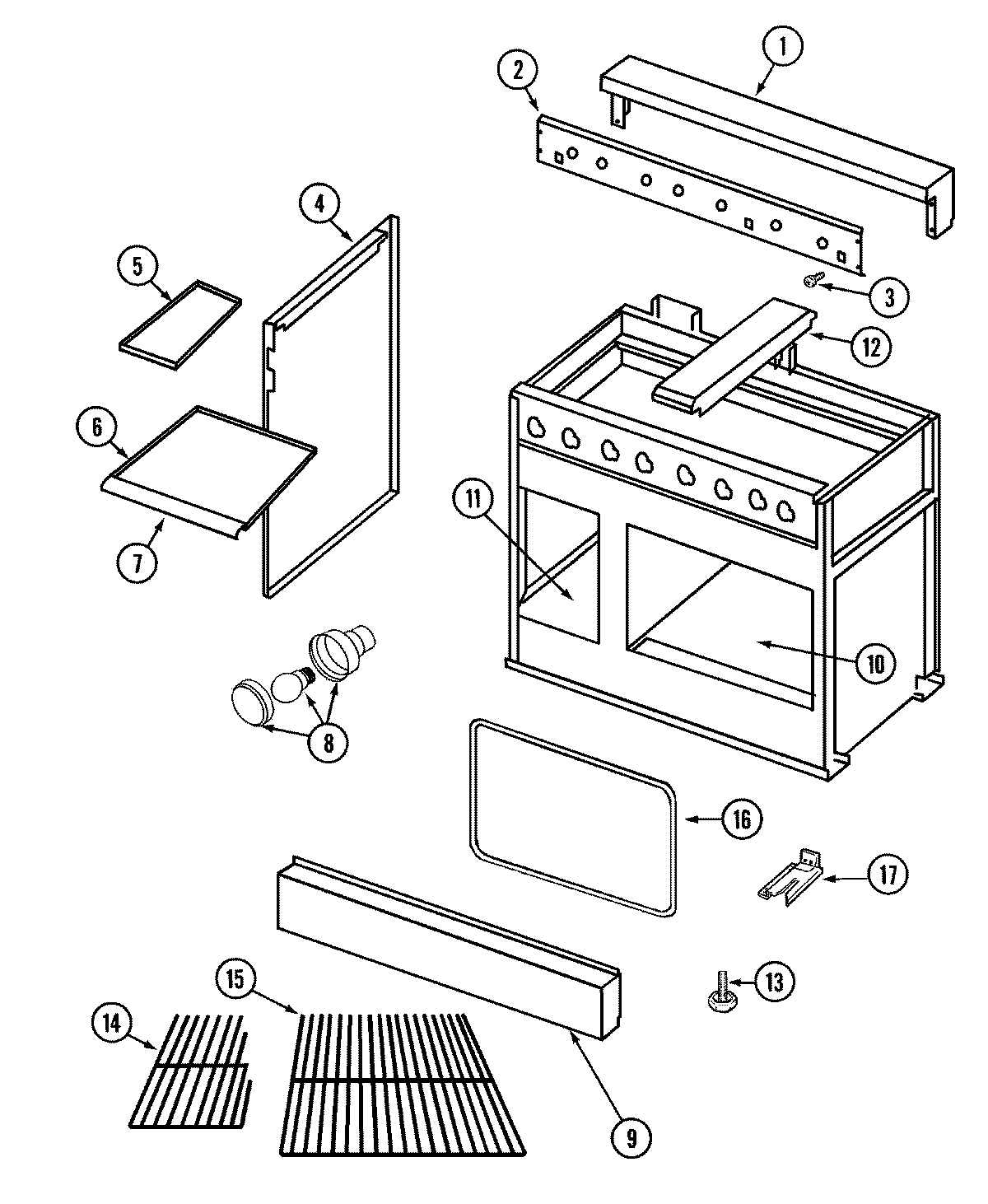

04 - BODY/OVEN
Common parts from model Whirlpool PRG4802P GAS RANGE
1
GRATE WPL 73001005 Contact Us For Availability
1
BACK SHEET, HIGH SHELF WPL 73001150 Contact Us For Availability
1
COVER, GRIDDLE WPL 73001146 Contact Us For Availability
1
LEDGE, LANDING (48) WPL 73001028 Contact Us For Availability
2
RECEPTACLE, HINGE WPL 73001063 Contact Us For Availability
2
CAP, SIMMER TUBE WPL 73001210 Contact Us For Availability
2
THERMOSTAT, OVEN BROIL WPL 73001048 Contact Us For Availability
2
HARNESS, OVEN-VALVE/T`STAT/IGN WPL 73001079 Contact Us For Availability
2
RETAINER, HIGH SHELF INSUL. WPL 73001151 Contact Us For Availability
2
COVER, GRIDDLE FLUE WPL 73001022 Contact Us For Availability
2
HARNESS, WIRE 12 OVEN WPL 73001077 Contact Us For Availability
2
THERMOSTAT, SMALL OVEN WPL 73001163 Contact Us For Availability
2
PANEL, MANIFOLD WPL 73001120 Contact Us For Availability
2
SHIELD, HEAT (LWR) WPL 73001219 Contact Us For Availability
3
RETAINER, INSULATION (12``) WPL 73001111 Contact Us For Availability
3
SCREW, DOOR PANEL WPL 73001112 Contact Us For Availability
3
RING, SIMMER BURNER WPL 73001211 Contact Us For Availability
3
KNOB, OVEN WPL 73001007 Contact Us For Availability
3
HIGH SHELF/LOW BACK TOP WPL 73001152 Contact Us For Availability
3
TRIM, GRIDDLE (FRT) WPL 73001147 Contact Us For Availability
3
KNOB, THERMOSTAT (12`` OVEN) WPL 73001164 Contact Us For Availability
4
PANEL, DOOR O/S (12) WPL 73001029 Contact Us For Availability
4
HIGH SHELF WELD ASSY. WPL 73001153 Contact Us For Availability
4
COVER, GRIDDLE FRONT TRIM WPL 73001106 Contact Us For Availability
4
IGNITER, 12`` OVEN (REAR) WPL 73001165 Contact Us For Availability
4
PANEL, SIDE (RT) WPL 73001099 Contact Us For Availability
4
PANEL, SIDE (LT) WPL 73001100 Contact Us For Availability
5
DOOR HANDLE ASSY. (12``) WPL 73001011 Contact Us For Availability
5
BOLT, DOOR HANDLE WPL 73001227 Contact Us For Availability
5
PAN, AERATION WPL 73001143 Contact Us For Availability
5
TUBING, DUAL VALVE TO OVEN WPL 73001094 Contact Us For Availability
5
FRONT SHEET, HIGH SHELF WPL 73001154 Contact Us For Availability
5
PLATE, GRIDDLE WPL 73001102 Contact Us For Availability
5
LINER, DRIP PAN WPL 73001119 Contact Us For Availability
5
VALVE, SINGLE THERMAL WPL 73001108 Contact Us For Availability
6
HARNESS, WIRE (TOP BURNER) WPL 73001076 Contact Us For Availability
6
HARNESS, WIRE (RT-TOP BURNER) WPL 73001080 Contact Us For Availability
6
IGNITER, TOP WPL 73001130 Contact Us For Availability
6
BURNER, OVEN 27`` RG WPL 73001036 Contact Us For Availability
6
BOTTOM ENCLOSURE, HIGH SHELF WPL 73001155 Contact Us For Availability
6
BURNER, BROIL & GRIDDLE WPL 73001035 Contact Us For Availability
6
PAN, DRIP (RT) WPL 73001098 Contact Us For Availability
6
PAN, DRIP (LT) WPL 73001118 Contact Us For Availability
7
NAMEPLATE (JENN-AIR) WPL 73001018 Contact Us For Availability
7
SPRING CLIP, ELECTRODE WPL 73001038 Contact Us For Availability
7
ORIFICE, OVEN BURNER (NAT) WPL 73001123 Contact Us For Availability
7
ORIFICE, OVEN BURNER (LP) WPL 73001124 Contact Us For Availability
7
IGNITER, REAR WPL 73001067 Contact Us For Availability
7
BACK SHEET, LOW BACK WPL 73001156 Contact Us For Availability
7
TUBING, MANIFOLD TO 12`` OVEN WPL 73001097 Contact Us For Availability
7
HANDLE, DRIP PAN (48) WPL 73001025 Contact Us For Availability
8
PANEL, DOOR ASSY. (W/GLASS) WPL 73001209 Contact Us For Availability
8
RETAINER, LOW BACK INSUL. WPL 73001157 Contact Us For Availability
8
BAFFLE, GRIDDLE WPL 73001103 Contact Us For Availability
8
SLEEVE, FIBERGLASS WPL 73001148 Contact Us For Availability
9
DOOR HANDLE ASSY. (27``) WPL 73001010 Contact Us For Availability
9
BOLT, VENTURI WPL 73001215 Contact Us For Availability
9
IGNITER, BROIL WPL 73001068 Contact Us For Availability
9
FRONT SHEET, LOW BACK WPL 73001158 Contact Us For Availability
9
ORIFICE No.47 WPL 73001046 Contact Us For Availability
9
KICKPLATE (48) WPL 73001021 Contact Us For Availability
9
STRIKE (MALE) WPL 73001061 Contact Us For Availability
9
CATCH (FEMALE) WPL 73001064 Contact Us For Availability
10
WINDOW ASSY. WPL 73001114 Contact Us For Availability
10
GASKET, BURNER HEAD WPL 73001054 Contact Us For Availability
10
REGULATOR, PRESSURE WPL 73001126 Contact Us For Availability
10
AIR SHUTTER WPL 73001039 Contact Us For Availability
10
BURNER ASSY., INFRA RED WPL 73001090 Contact Us For Availability
10
TOP ASSY., ISLAND TRIM WPL 73001159 Contact Us For Availability
10
TUBING, GRIDDLE FORMED WPL 73001093 Contact Us For Availability
10
LINER, OVEN BOTTOM WPL 73001107 Contact Us For Availability
11
HINGE, DOOR (27``) WPL 73001109 Contact Us For Availability
11
VENTURI, MAIN REAR WPL 73001040 Contact Us For Availability
11
BEZEL, PLATED WPL 73001055 Contact Us For Availability
11
BACK SHEET, ISLAND TRIM WPL 73001160 Contact Us For Availability
11
BOTTOM, OVEN LINER WPL 73001117 Contact Us For Availability
12
RETAINER, INSULATION (27``) WPL 73001115 Contact Us For Availability
12
VENTURI, REAR (SIMMER) WPL 73001133 Contact Us For Availability
12
NUT, VENTURI WPL 73001134 Contact Us For Availability
12
ELBOW, BRASS WPL 73001122 Contact Us For Availability
12
RETAINER, ISLAND TRIM INSUL. WPL 73001161 Contact Us For Availability
12
ELBOW, 3/8 TOD BY 1/8 NPT WPL 73001081 Contact Us For Availability
12
SPACER, CENTER WPL 73001116 Contact Us For Availability
13
DOOR ASSY. WPL 73001105 Contact Us For Availability
13
MODULE, SPARK WPL 73001053 Contact Us For Availability
13
TUBING, DUAL VALVE TO IR BURNR WPL 73001095 Contact Us For Availability
13
INSULATION WPL 73001162 Contact Us For Availability
13
ADAPTER, 1/8 NPT WPL 73001086 Contact Us For Availability
13
LEG, LEVELING WPL 73001083 Contact Us For Availability
13
RECEPTACLE, LEVELING LEG WPL 73001230 Contact Us For Availability
14
HINGE, DOOR 12`` WPL 73001062 Contact Us For Availability
14
VENTURI, FRONT (SIMMER) WPL 73001135 Contact Us For Availability
14
VALVE, DUAL THERMAL GAS WPL 73001049 Contact Us For Availability
14
PIPE PLUG, BRASS SQ MAN. WPL 73001085 Contact Us For Availability
14
RACK, OVEN (12``) WPL 73001089 Contact Us For Availability
15
VENTURI, MAIN FRONT WPL 73001041 Contact Us For Availability
15
SCREW, SIMMER VALVE WPL 73001065 Contact Us For Availability
15
TUBING, MANIFOLD TO DUAL VALVE WPL 73001096 Contact Us For Availability
15
NOT REQUIRED PART OR SEE NOTE PRA4822 ACCESSO WPL W10124350 Contact Us For Availability
15
SUPPORT, OVEN RACK WPL 73001017 Contact Us For Availability
15
RACK, OVEN (27``) WPL 73001110 Contact Us For Availability
15
CLIP, RACK SUPPORT (L-SHAPE) WPL 73001205 Contact Us For Availability
15
CLIP, RACK SUPPORT (U-SHAPE) WPL 73001206 Contact Us For Availability
15
SCREW WPL 73001220 Contact Us For Availability
16
LIGHT, INDICATOR (W/LENS) WPL 73001070 Contact Us For Availability
16
MOTOR, CONVECTION WPL 73001069 Contact Us For Availability
16
GASKET, DOOR (27``) WPL 73001056 Contact Us For Availability
16
GASKET, DOOR (12``) WPL 73001057 Contact Us For Availability
17
BLADE, COOLING WPL 73001072 Contact Us For Availability
17
THERMOSTAT WPL 73001047 Contact Us For Availability
17
HARNESS, WIRE GRIDDLE WPL 73001078 Contact Us For Availability
17
SCREW, CABINET MNTG WPL 7101E082 Contact Us For Availability
18
BLADE, CONVECTION WPL 73001125 Contact Us For Availability
18
COVER, CONVECTION WHEEL WPL 73001223 Contact Us For Availability
19
SWITCH, SPARK IGNITION WPL 73001052 Contact Us For Availability
19
KNOB, OVEN & GRIDDLE WPL 73001008 Contact Us For Availability
21
ORIFICE, BROILER (LP) WPL 73001127 Contact Us For Availability
21
BLOCK, TERMINAL WPL 73001066 Contact Us For Availability
21
KNOB, SIMMER WPL 73001006 Contact Us For Availability
21
ORIFICE No.47 WPL 73001045 Contact Us For Availability
22
PIPE, MANIFOLD 48 WPL 73001084 Contact Us For Availability
22
``O`` RING, SIMMER VALVE WPL 73001058 Contact Us For Availability
22
CORD, POWER WPL 73001073 Contact Us For Availability
23
SIMMER BLOCK WPL 73001051 Contact Us For Availability
23
HOOD, SIMMER (LP) WPL 73001136 Contact Us For Availability
23
HOOD, SIMMER ORIFICE (NAT) WPL 73001137 Contact Us For Availability
23
SWITCH, LIGHT WPL 73001074 Contact Us For Availability
24
HOOD, ORIFICE (LP) WPL 73001138 Contact Us For Availability
24
HOOD, ORIFICE (NAT-SIMMER) WPL 73001139 Contact Us For Availability
24
OVEN FEED ADAPTER WPL 73001087 Contact Us For Availability
25
SCREW (No.10 X 3/4) WPL 73001131 Contact Us For Availability
25
VALVE W/ HOOD WPL 73001050 Contact Us For Availability
25
HANDLE, GRIDDLE COVER WPL 73001149 Contact Us For Availability
26
BASE, BURNER II WPL 73001016 Contact Us For Availability
26
LENS, LIGHT WPL 73001121 Contact Us For Availability
27
SCREW, BEZEL (BLK) WPL 73001141 Contact Us For Availability
28
HANGER, BURNER WPL 73001142 Contact Us For Availability
× ![]()
