Model Whirlpool PRG3610LP GAS RANGE – Common Parts & Diagrams

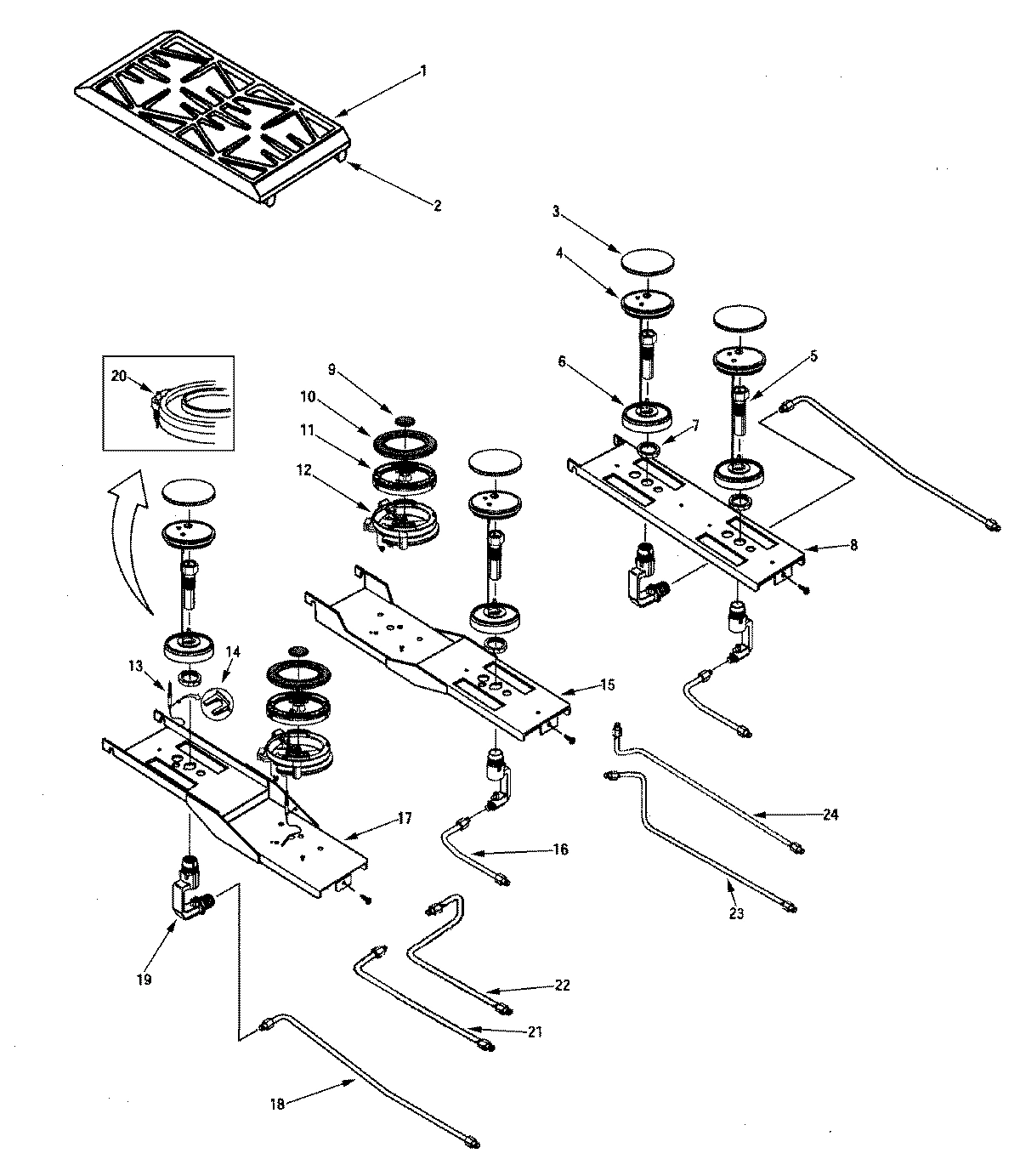

06 - SURFACE BURNER ASSEMBLY

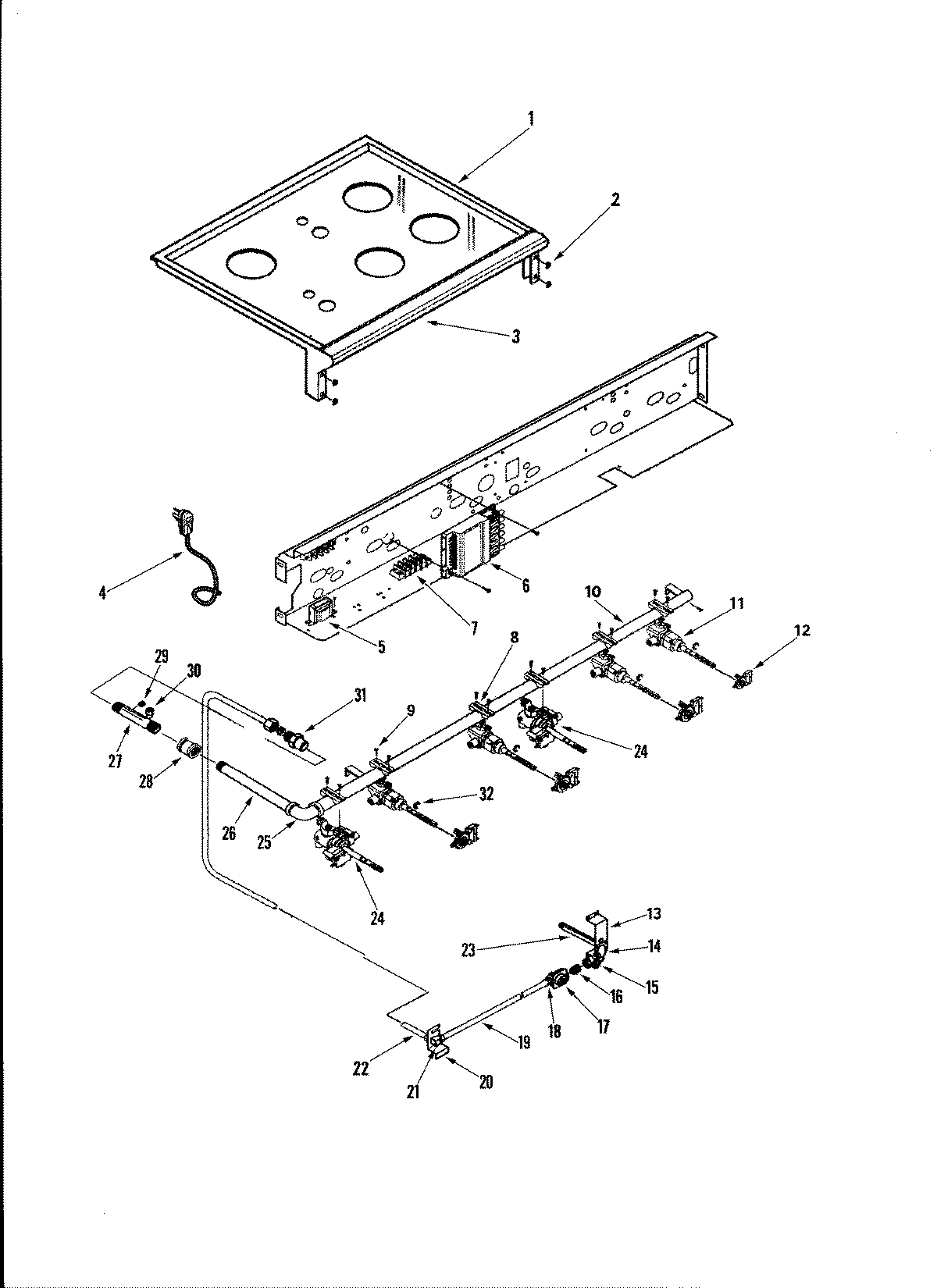

07 - TOP/BURNER VALVES

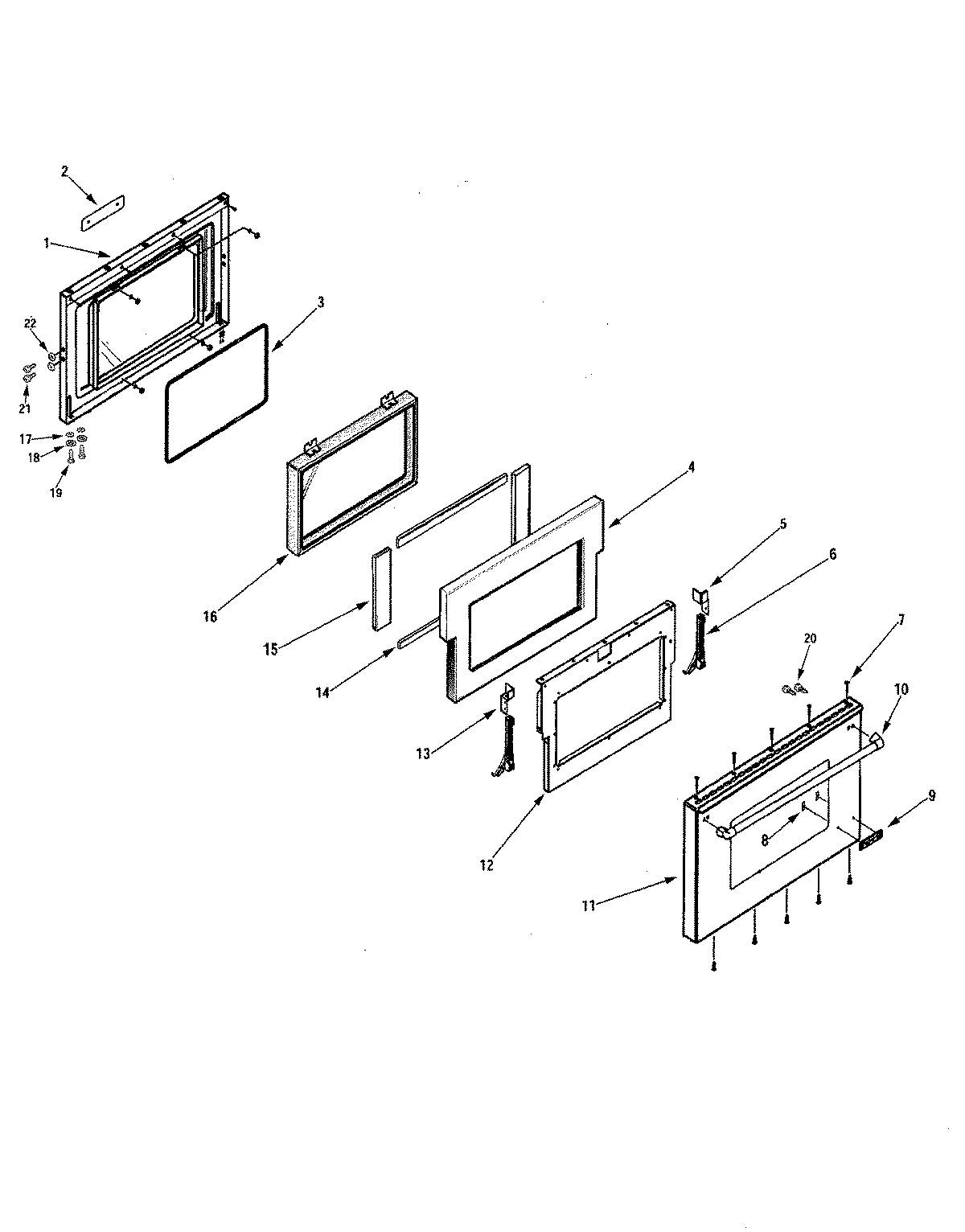

03 - DOOR ASSEMBLY
05 - SUPPLEMENTAL INFORMATION

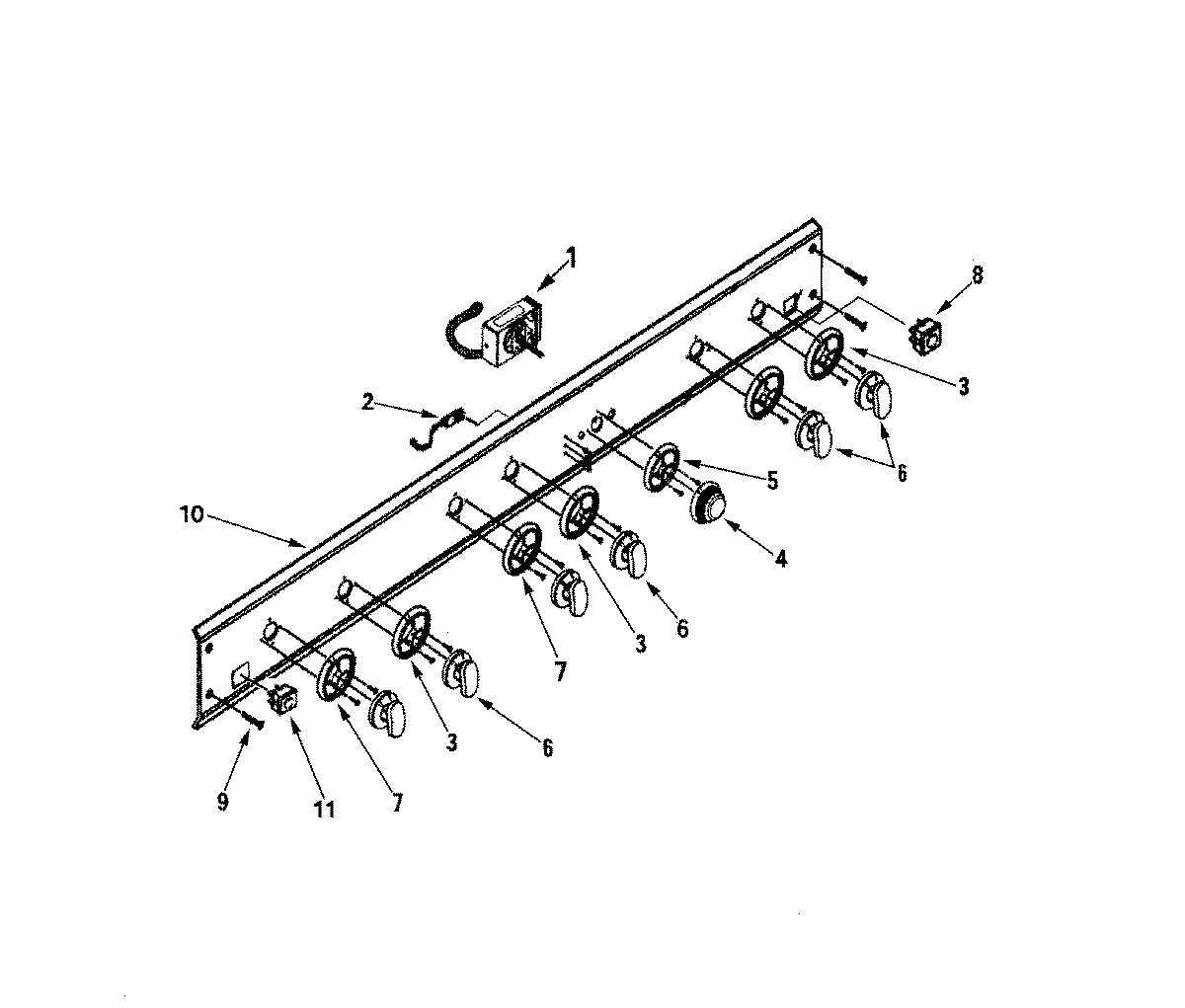

02 - CONTROL PANEL

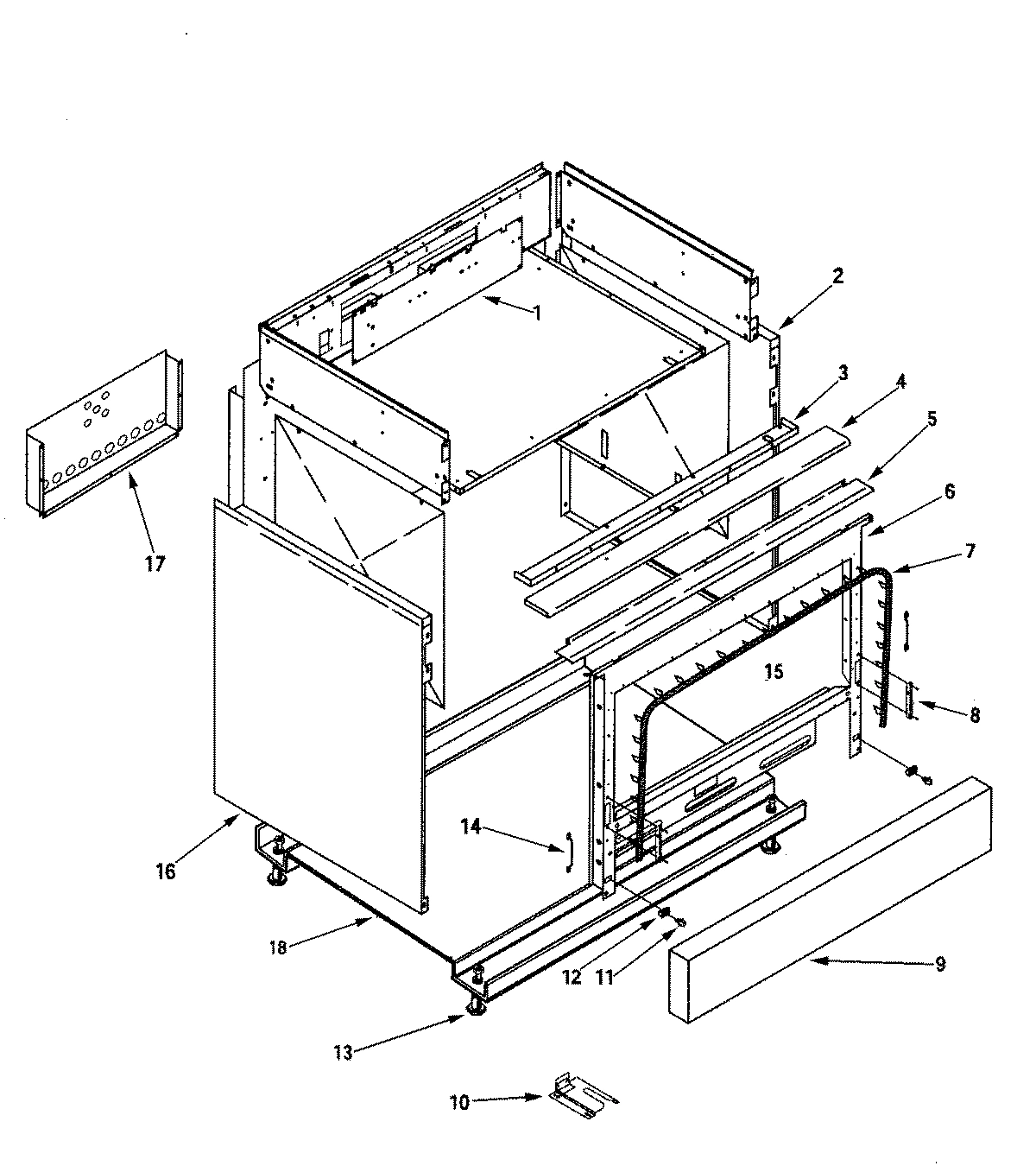

01 - BODY

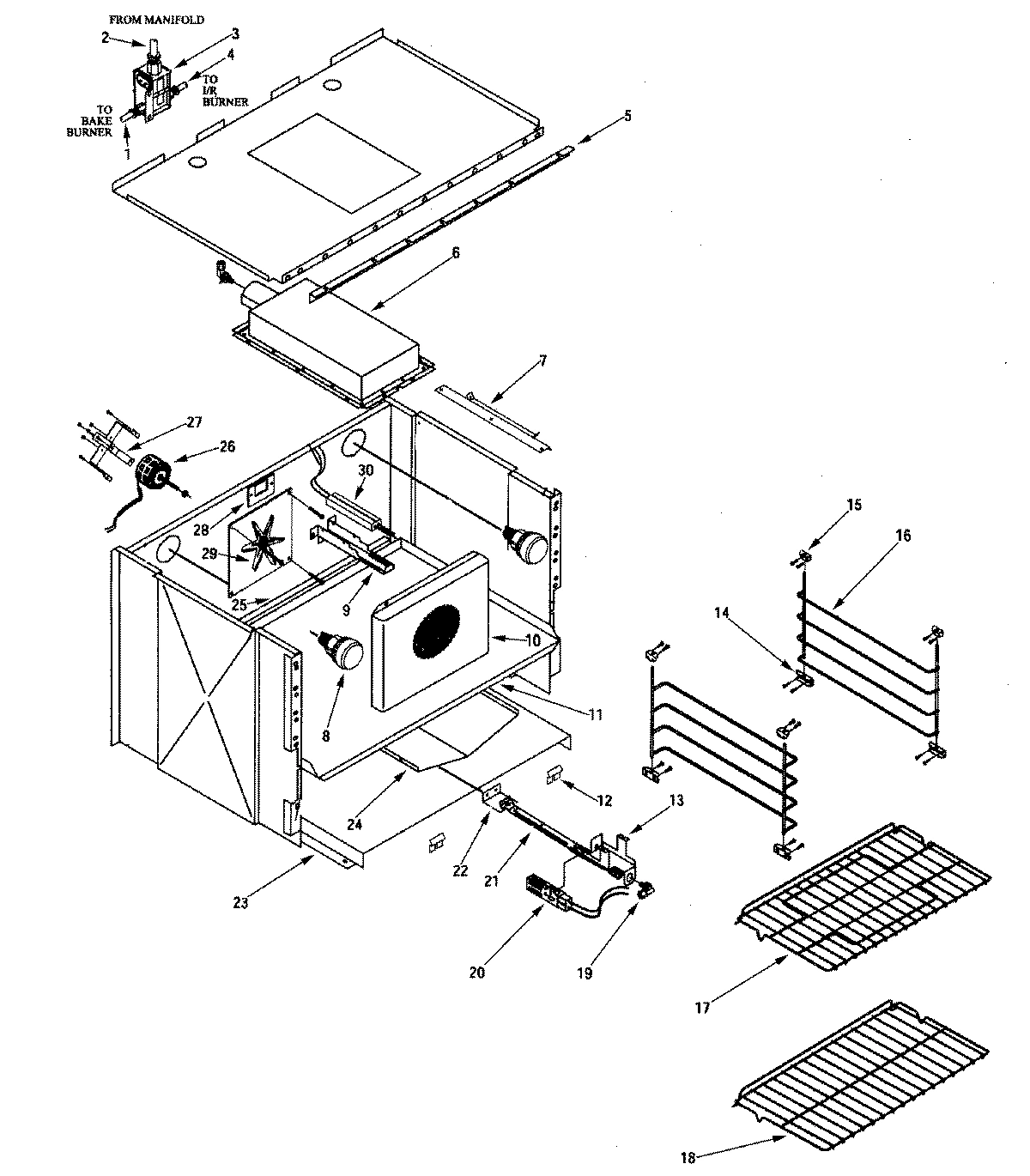

04 - OVEN ASSEMBLY
Common parts from model Whirlpool PRG3610LP GAS RANGE
1
TOP, MAIN WPL 73001579 Contact Us For Availability
1
LINER, DOOR (27``) WPL 73001481 Contact Us For Availability
1
Liner, Door (27`) Serial No. 10002897LP and a WPL W10281663 Contact Us For Availability
1
MANUAL, USE & CARE (PRG) WPL 17664 Contact Us For Availability
1
THERMOSTAT, OVEN BROIL WPL 73001048 Contact Us For Availability
1
PANEL, SERVICE WPL 73001406 Contact Us For Availability
1
TUBING, DUAL VALVE TO OVEN WPL 73001094 Contact Us For Availability
2
NUT (8-32) WPL 73001470 Contact Us For Availability
2
PLATE, LATCH WPL 73001469 Contact Us For Availability
2
HARNESS, WIRE WPL 73001606 Contact Us For Availability
2
LIGHT, INDICATOR WPL 73001308 Contact Us For Availability
2
PANEL, SIDE (RT) WPL 73001600 Contact Us For Availability
2
TUBING, MNFLD/DUAL VALVE WPL 73001599 Contact Us For Availability
3
LEDGE, LANDING WPL 73001580 Contact Us For Availability
3
GASKET, WINDOW WPL 73001256 Contact Us For Availability
3
RING, WOK WPL 73001441 Contact Us For Availability
3
BEZEL, KNOB (BURNER) WPL 73001304 Contact Us For Availability
3
VALVE, DUAL THERMAL GAS WPL 73001049 Contact Us For Availability
3
LOXIT NUT (3/8) WPL 73001615 Contact Us For Availability
4
CORD, POWER WPL 73001427 Contact Us For Availability
4
INSULATION, DOOR WPL 73001265 Contact Us For Availability
4
TRAY ASSY/BROILER PAN WPL 73001526 Contact Us For Availability
4
KNOB, THERMOSTAT WPL 73001424 Contact Us For Availability
4
HANDLE, DRIP PAN WPL 73001588 Contact Us For Availability
4
TUBING (13 1/8``) WPL 73001396 Contact Us For Availability
5
VENTURI WPL 73001286 Contact Us For Availability
5
TRANSFORMER WPL 73001322 Contact Us For Availability
5
BRACKET, HINGE (RT) WPL 73001517 Contact Us For Availability
5
BACKSPLASH ASY (1.5``) WPL PRAG3601 Contact Us For Availability
5
BACKSPLASH ASY (12``) WPL PRAG3612 Contact Us For Availability
5
BACKSPLASH ASY (22``) WPL PRAG3622 Contact Us For Availability
5
BEZEL, KNOB (T-STAT) WPL 73001303 Contact Us For Availability
5
SHEILD, HEAT (LWR) WPL 73001602 Contact Us For Availability
5
GUARD,FLUE WPL 73001437 Contact Us For Availability
6
BURNER WPL 73001285 Contact Us For Availability
6
HINGE, DOOR WPL 73001495 Contact Us For Availability
6
Hinge, Door Serial No. 10002897LP and after WPL W10298134 Contact Us For Availability
6
KNOB, BURNER WPL 73001301 Contact Us For Availability
6
FRAME, FRONT WPL 73001597 Contact Us For Availability
6
BURNER ASSY., INFRA RED WPL 73001090 Contact Us For Availability
7
NUT WPL 73001280 Contact Us For Availability
7
BLOCK, TERMINAL WPL 73001066 Contact Us For Availability
7
BEZEL, KNOB (SIMMER) WPL 73001305 Contact Us For Availability
7
GASKET, DOOR (27``) WPL 73001056 Contact Us For Availability
7
HOLDER, BULB WPL 73001506 Contact Us For Availability
8
HANGER, BURNER (RT) WPL 73001418 Contact Us For Availability
8
CLAMP, VALVE WPL 73001358 Contact Us For Availability
8
CLIP, NAMEPLATE WPL 73001259 Contact Us For Availability
8
SWITCH, LIGHT WPL 73001074 Contact Us For Availability
8
RECEPTACLE, HINGE WPL 73001063 Contact Us For Availability
9
CAP, BURNER (INNER) WPL 73001337 Contact Us For Availability
9
BOLT (10-32X1) WPL 73001361 Contact Us For Availability
9
SCREW (8-32 X 1``)-10 PACK WPL 73001258 Contact Us For Availability
9
NAMEPLATE WPL 73001260 Contact Us For Availability
9
KICKPLATE WPL 73001609 Contact Us For Availability
9
CLAMP, IGNITER (BROIL) WPL 73001460 Contact Us For Availability
10
PIPE, MANIFOLD WPL 73001581 Contact Us For Availability
10
HANDLE, DOOR WPL 73001496 Contact Us For Availability
10
PANEL, CONTROL WPL 73001607 Contact Us For Availability
10
SCREW, WOOD (10X2``FLT HD) WPL 73001277 Contact Us For Availability
10
COVER, CONVECTION WHEEL WPL 73001223 Contact Us For Availability
11
SPREADER, FLAME WPL 73001336 Contact Us For Availability
11
VALVE, BURNER (LP) WPL 73001450 Contact Us For Availability
11
DOOR PANEL/GLASS ASY (PRG3610) WPL 73001619 Contact Us For Availability
11
SWITCH, CONVECTION FAN WPL 73001426 Contact Us For Availability
11
CATCH (FEMALE) WPL 73001064 Contact Us For Availability
11
LINER, OVEN BOTTOM WPL 73001107 Contact Us For Availability
12
BURNER (DUAL FLOW/NAT) WPL 73001287 Contact Us For Availability
12
TUBE, MAIN FRONT (DUAL FLOW) WPL 73001296 Contact Us For Availability
12
TUBE, SIMMER FRONT (DUAL FLOW) WPL 73001297 Contact Us For Availability
12
TUBE, END (SMR) WPL 73001298 Contact Us For Availability
12
IGNITER/CLIP ASY (DUAL FLOW) WPL 73001551 Contact Us For Availability
12
ORIFICE, MAIN (No.57 LP) WPL 73001613 Contact Us For Availability
12
ORIFICE, MAIN (No.79 LP) WPL 73001614 Contact Us For Availability
12
RETAINER, INSULATION (27``) WPL 73001484 Contact Us For Availability
12
Retainer, Insulation (27`) Serial No 10002897 WPL W10323158 Contact Us For Availability
12
STRIKE (MALE) WPL 73001061 Contact Us For Availability
12
CLIP, AIR ADJUSTMENT WPL 73001092 Contact Us For Availability
13
BRACKET, HINGE (LT) WPL 73001262 Contact Us For Availability
13
BRACKET, ELBOW PLATE WPL 73001471 Contact Us For Availability
13
LEG, LEVELING WPL 73001083 Contact Us For Availability
13
BRACKET, IGNITER WPL 73001455 Contact Us For Availability
14
CLIP, IGNITER WPL 73001284 Contact Us For Availability
14
ELBOW/PLATE ASSEMBLY WPL 73001381 Contact Us For Availability
14
INSULATION, DOOR WPL 73001264 Contact Us For Availability
14
RETAINER, GASKET WPL 73001513 Contact Us For Availability
14
CLIP, RACK SUPPORT (L-SHAPE) WPL 73001205 Contact Us For Availability
15
HANGER, BURNER (CTR) WPL 73001422 Contact Us For Availability
15
VALVE, SHUT-OFF WPL 73001478 Contact Us For Availability
15
INSULATION, SIDE WPL 73001483 Contact Us For Availability
15
CLIP, RACK SUPPORT (U-SHAPE) WPL 73001206 Contact Us For Availability
16
TUBING, FRONT WPL 73001347 Contact Us For Availability
16
PIPE NIPPLE (1/2 NPT) WPL 73001379 Contact Us For Availability
16
WINDOW PAK WPL 73001257 Contact Us For Availability
16
Window Pack Serial No. 10002897LP and after WPL W10324641 Contact Us For Availability
16
PANEL, SIDE (LT) WPL 73001601 Contact Us For Availability
16
SUPPORT, OVEN RACK WPL 73001017 Contact Us For Availability
17
HANGER, BURNER (LT) WPL 73001421 Contact Us For Availability
17
REGULATOR, PRESSURE WPL 73001126 Contact Us For Availability
17
WASHER (TOOTH No.10) WPL 73001595 Contact Us For Availability
17
HOUSING, MOTOR WPL 73001408 Contact Us For Availability
17
RACK, OVEN BROIL WPL 73001504 Contact Us For Availability
18
TUBING, REAR WPL 73001442 Contact Us For Availability
18
FITTING WPL 73001472 Contact Us For Availability
18
WASHER (No.10 7/16``) WPL 73001542 Contact Us For Availability
18
BASE WPL 73001598 Contact Us For Availability
18
RACK, OVEN (27``) WPL 73001110 Contact Us For Availability
19
HOLDER, ORIFICE (NAT) WPL 73001281 Contact Us For Availability
19
TUBING, BOTTOM WPL 73001608 Contact Us For Availability
19
ELBOW, BRASS WPL 73001122 Contact Us For Availability
20
BRACKET, ELBOW SUPPORT WPL 73001474 Contact Us For Availability
20
IGNITER, 12`` OVEN (REAR) WPL 73001165 Contact Us For Availability
21
ELBOW, COMPRESSION WPL 73001475 Contact Us For Availability
21
SCREW (No.10 X 3/4) WPL 73001131 Contact Us For Availability
21
BURNER, OVEN 27`` RG WPL 73001036 Contact Us For Availability
22
TUBING, MANIFOLD FEED WPL 73001476 Contact Us For Availability
22
WASHER (FLAT 3/4``) WPL 73001596 Contact Us For Availability
22
BRACKET, BURNER SUPPORT WPL 73001456 Contact Us For Availability
23
PIPE, INTAKE WPL 73001477 Contact Us For Availability
23
CHANNEL, AIR WPL 73001459 Contact Us For Availability
24
VALVE, BURNER (DUAL FLOW-LP) WPL 73001451 Contact Us For Availability
24
FLAME SPREADER WPL 73001458 Contact Us For Availability
25
ELBOW (1/2-1/2 F) WPL 73001447 Contact Us For Availability
25
SUPPORT, OVEN BOTTOM WPL 73001507 Contact Us For Availability
26
PIPE (1/2) WPL 73001446 Contact Us For Availability
26
MOTOR, CONVECTION WPL 73001069 Contact Us For Availability
27
OVEN FEED ADAPTER WPL 73001087 Contact Us For Availability
27
BRACKET, MOTOR WPL 73001243 Contact Us For Availability
28
COUPLER, PIPE (1/2`` NPT) WPL 73001082 Contact Us For Availability
28
COVER WPL 73001508 Contact Us For Availability
29
PLUG, PIPE (1/8) WPL 73001444 Contact Us For Availability
29
BLADE ASSY., RG CONVECTION WPL 73001075 Contact Us For Availability
30
ELBOW, 3/8 TOD BY 1/8 NPT WPL 73001081 Contact Us For Availability
30
IGNITER, BROIL WPL 73001068 Contact Us For Availability
31
FITTING (1/2 F-5/8 TUBE) WPL 73001461 Contact Us For Availability
32
C-CLIP, VALVE STEM WPL 73001314 Contact Us For Availability
× ![]()
