Model Whirlpool PRG3000P GAS RANGE – Common Parts & Diagrams

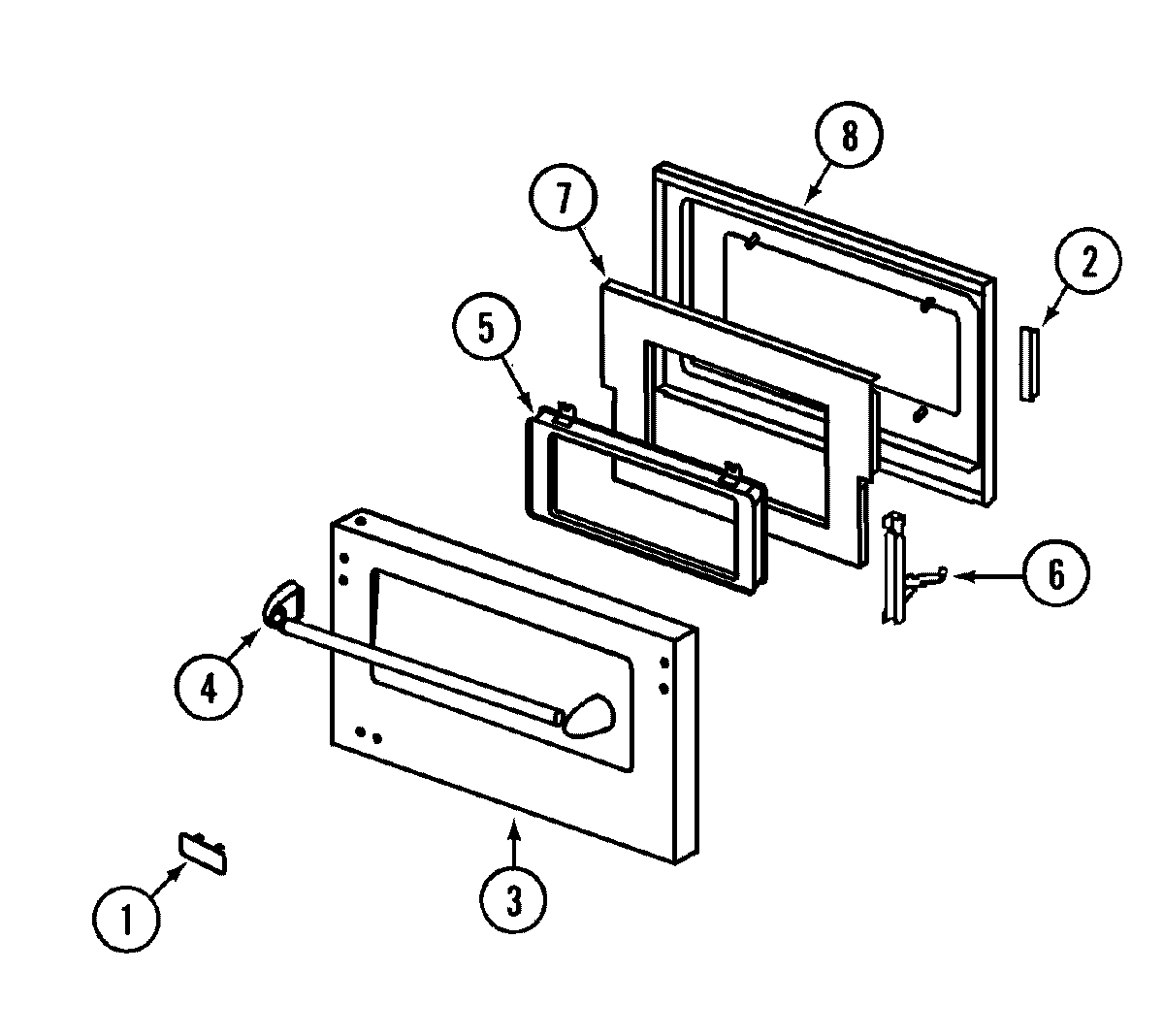

03 - DOOR

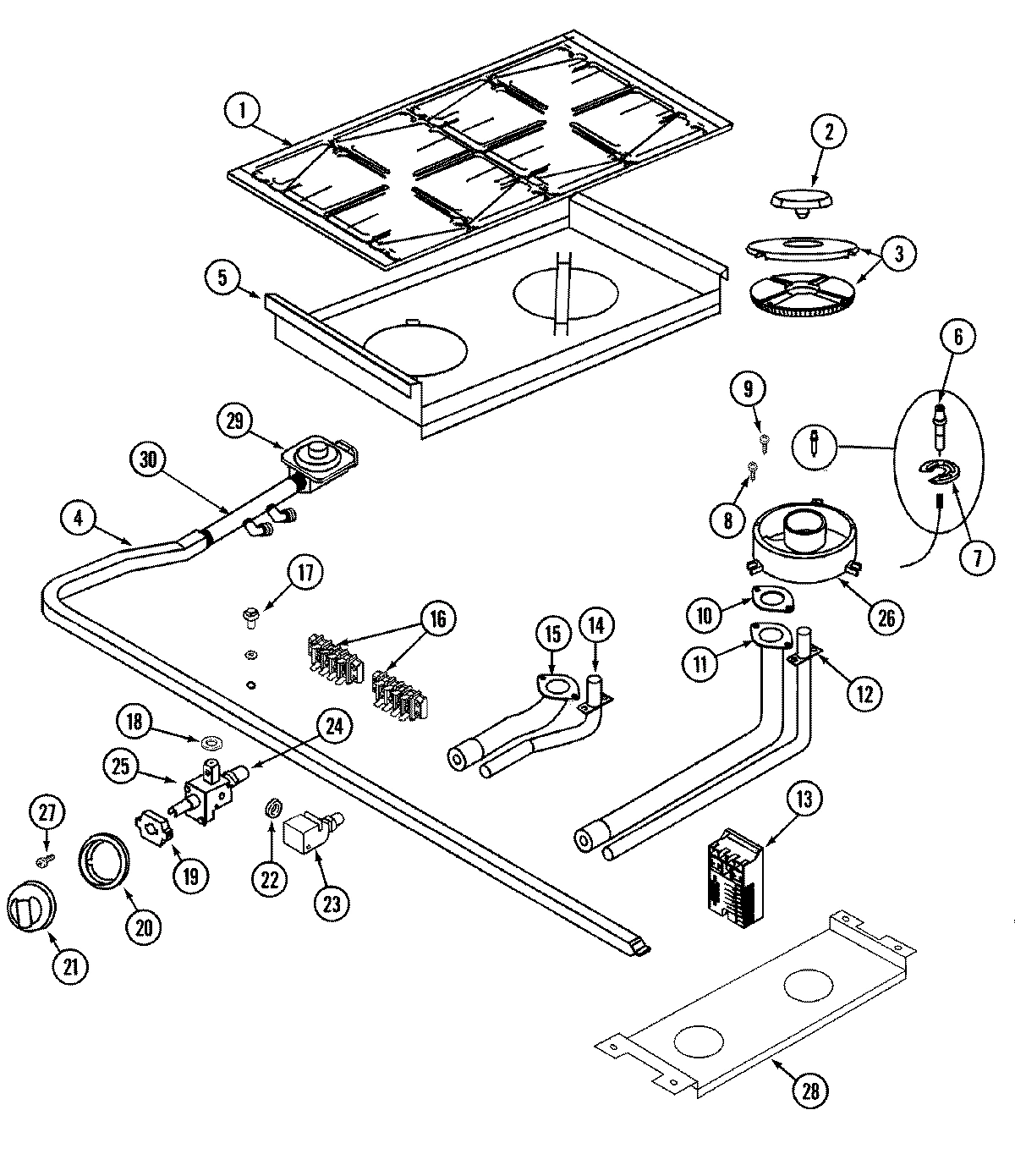

05 - TOP ASSEMBLY & CONTROLS

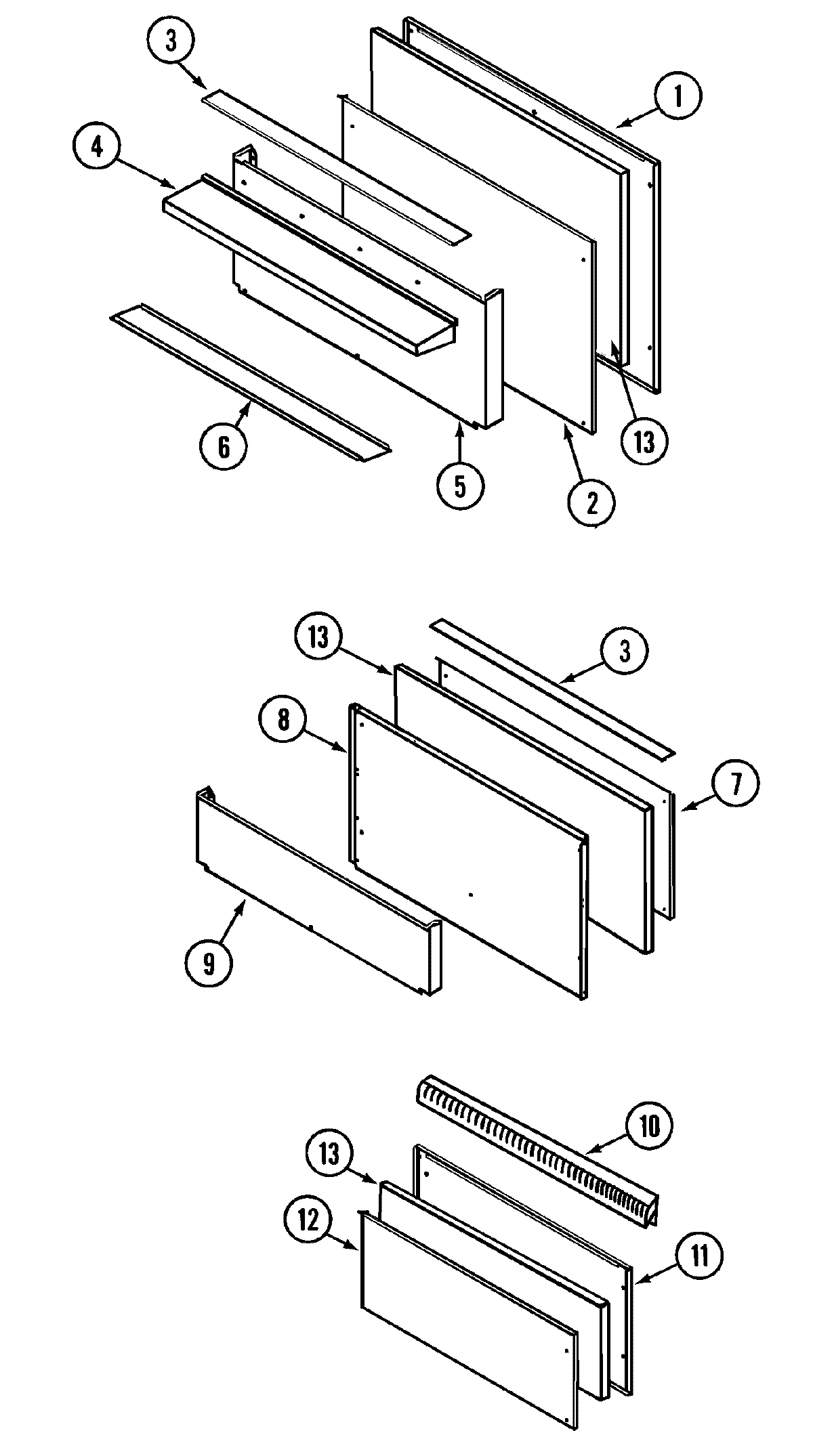

01 - BACKGUARD ASSEMBLY

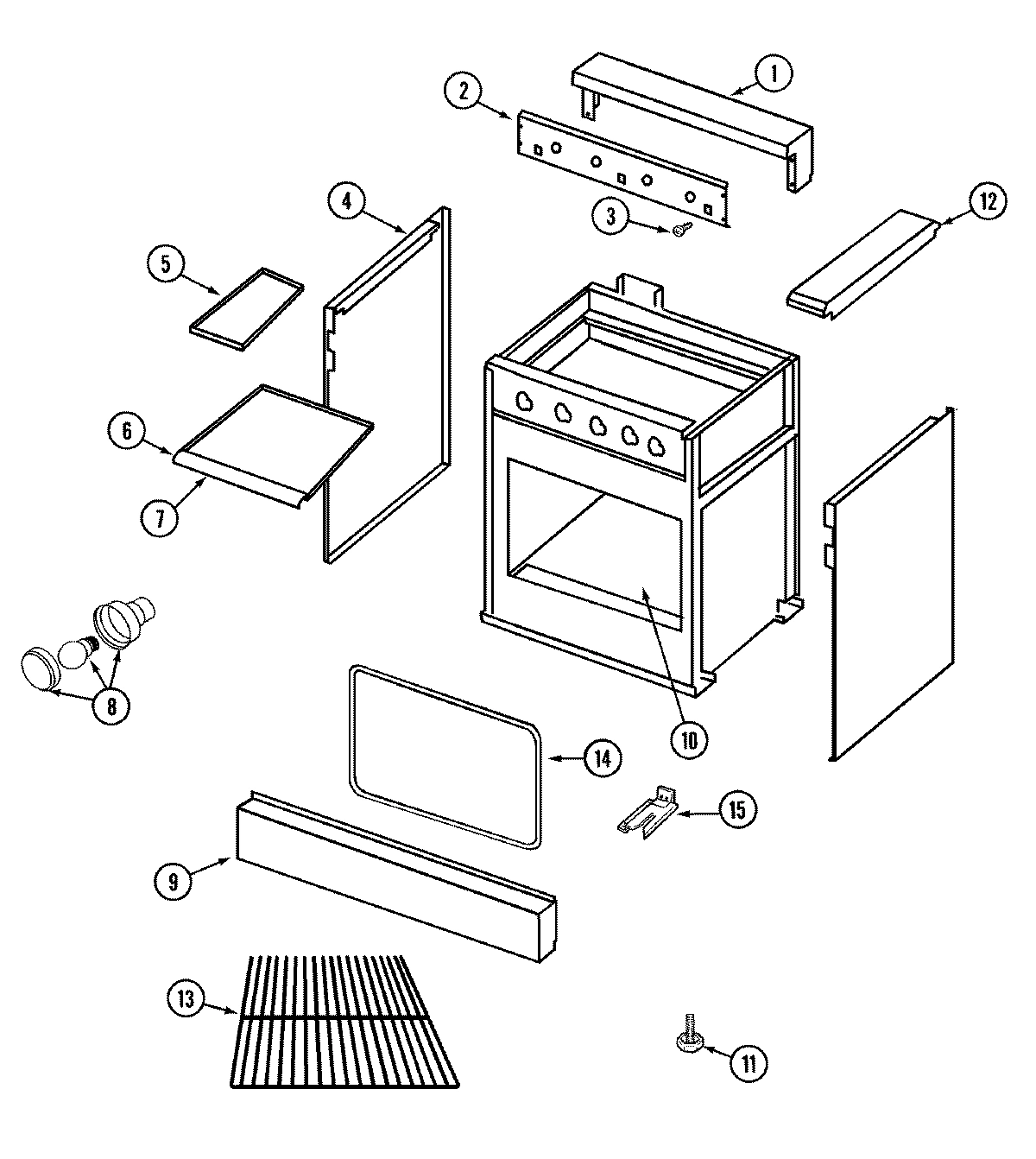

02 - BODY

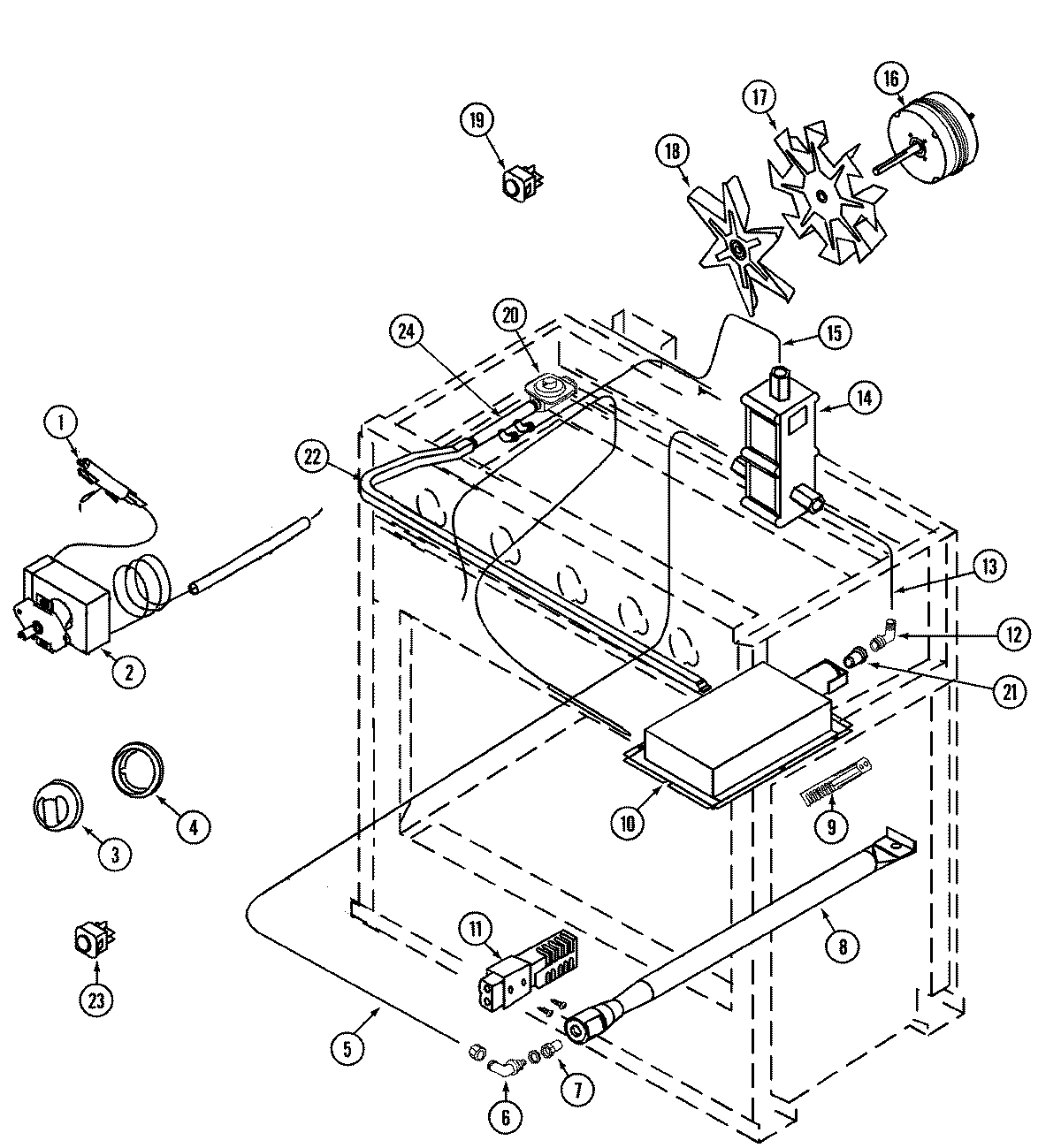

04 - OVEN CONTROLS
Common parts from model Whirlpool PRG3000P GAS RANGE
1
GRATE WPL 73001005 Contact Us For Availability
1
BACK SHEET, HIGH SHELF WPL 73001191 Contact Us For Availability
1
LEDGE, LANDING (304) WPL 73001026 Contact Us For Availability
1
LIGHT, INDICATOR (W/LENS) WPL 73001070 Contact Us For Availability
1
LENS, LIGHT WPL 73001121 Contact Us For Availability
2
RECEPTACLE, HINGE WPL 73001063 Contact Us For Availability
2
CAP, SIMMER TUBE WPL 73001210 Contact Us For Availability
2
RETAINER, HIGH SHELF INSUL. WPL 73001192 Contact Us For Availability
2
PANEL, MANIFOLD WPL 73001184 Contact Us For Availability
2
SHIELD, HEAT (LWR) WPL 73001217 Contact Us For Availability
2
THERMOSTAT, OVEN BROIL WPL 73001048 Contact Us For Availability
2
HARNESS, OVEN-VALVE/T`STAT/IGN WPL 73001079 Contact Us For Availability
3
SCREW, No.10 X .5 TYA WPL 7101P27460 Contact Us For Availability
3
PANEL, DOOR O/S (304) WPL 73001030 Contact Us For Availability
3
RING, SIMMER BURNER WPL 73001211 Contact Us For Availability
3
HIGH SHELF/LOW BACK TOP WPL 73001193 Contact Us For Availability
3
SCREW, DOOR PANEL WPL 73001112 Contact Us For Availability
3
KNOB, OVEN WPL 73001007 Contact Us For Availability
4
DOOR HANDLE ASSY. (24``) WPL 73001009 Contact Us For Availability
4
BOLT, DOOR HANDLE WPL 73001227 Contact Us For Availability
4
BEZEL, PLATED WPL 73001055 Contact Us For Availability
4
HIGH SHELF WELD ASSY. WPL 73001194 Contact Us For Availability
4
PANEL, SIDE (RT) WPL 73001185 Contact Us For Availability
4
PANEL, SIDE (LT) WPL 73001186 Contact Us For Availability
5
WINDOW ASSY. WPL 73001114 Contact Us For Availability
5
PAN, AERATION WPL 73001143 Contact Us For Availability
5
FRONT SHEET, HIGH SHELF WPL 73001195 Contact Us For Availability
5
LINER, DRIP PAN WPL 73001119 Contact Us For Availability
5
TUBING, DUAL VALVE TO OVEN WPL 73001094 Contact Us For Availability
6
HINGE, DOOR (27``) WPL 73001109 Contact Us For Availability
6
HARNESS, WIRE (TOP BURNER) WPL 73001076 Contact Us For Availability
6
IGNITER, TOP WPL 73001130 Contact Us For Availability
6
BOTTOM ENCLOSURE, HIGH SHELF WPL 73001196 Contact Us For Availability
6
DRIP PAN ASSY. WPL 73001170 Contact Us For Availability
7
RETAINER, INSULATION (27``) WPL 73001189 Contact Us For Availability
7
SPRING CLIP, ELECTRODE WPL 73001038 Contact Us For Availability
7
LOW BACK, BACK SHEET WPL 73001197 Contact Us For Availability
7
HANDLE, DRIP PAN (30) WPL 73001023 Contact Us For Availability
7
ORIFICE, OVEN BURNER (NAT) WPL 73001123 Contact Us For Availability
7
ORIFICE, OVEN BURNER (LP) WPL 73001124 Contact Us For Availability
8
LINING, DOOR (27``) WPL 73001190 Contact Us For Availability
8
SCREW (No.10 X 3/4) WPL 73001131 Contact Us For Availability
8
RETAINER, LOW BACK INSUL. WPL 73001198 Contact Us For Availability
8
BACKGUARD ASSY (9``) WPL 73001216 Contact Us For Availability
8
BURNER, OVEN 27`` RG WPL 73001036 Contact Us For Availability
9
BOLT, VENTURI WPL 73001215 Contact Us For Availability
9
SCREW, FRAME WPL 7101P12660 Contact Us For Availability
9
FRONT SHEET, LOW BACK WPL 73001199 Contact Us For Availability
9
KICKPLATE (304) WPL 73001019 Contact Us For Availability
9
STRIKE (MALE) WPL 73001061 Contact Us For Availability
9
CATCH (FEMALE) WPL 73001064 Contact Us For Availability
9
IGNITER, BROIL WPL 73001068 Contact Us For Availability
10
GASKET, BURNER HEAD WPL 73001054 Contact Us For Availability
10
TOP ASSY., ISLAND TRIM WPL 73001200 Contact Us For Availability
10
LINING, OVEN BOTTOM (30``) WPL 73001207 Contact Us For Availability
10
AIR SHUTTER WPL 73001039 Contact Us For Availability
10
BURNER ASSY., INFRA RED WPL 73001090 Contact Us For Availability
11
VENTURI, MAIN REAR WPL 73001040 Contact Us For Availability
11
BACK SHEET, ISLAND TRIM WPL 73001201 Contact Us For Availability
11
LEG, LEVELING WPL 73001083 Contact Us For Availability
11
IGNITER, REAR WPL 73001067 Contact Us For Availability
12
VENTURI, REAR (SIMMER) WPL 73001133 Contact Us For Availability
12
NUT, VENTURI WPL 73001134 Contact Us For Availability
12
RETAINER, ISLAND TRIM INSUL. WPL 73001202 Contact Us For Availability
12
SPACER, CENTER WPL 73001116 Contact Us For Availability
12
ELBOW, BRASS WPL 73001122 Contact Us For Availability
13
MODULE, SPARK WPL 73001053 Contact Us For Availability
13
INSULATION WPL 73001162 Contact Us For Availability
13
SUPPORT, OVEN RACK WPL 73001017 Contact Us For Availability
13
RACK, OVEN (27``) WPL 73001187 Contact Us For Availability
13
CLIP, RACK SUPPORT (L-SHAPE) WPL 73001205 Contact Us For Availability
13
CLIP, RACK SUPPORT (U-SHAPE) WPL 73001206 Contact Us For Availability
13
SCREW WPL 73001220 Contact Us For Availability
13
TUBING, DUAL VALVE TO IR BURNR WPL 73001095 Contact Us For Availability
14
VENTURI, FRONT (SIMMER) WPL 73001135 Contact Us For Availability
14
NOT REQUIRED PART OR SEE NOTE PRA3022 ACCESSO WPL W10124350 Contact Us For Availability
14
GASKET, DOOR (27``) WPL 73001056 Contact Us For Availability
14
VALVE, DUAL THERMAL GAS WPL 73001049 Contact Us For Availability
15
VENTURI, MAIN FRONT WPL 73001041 Contact Us For Availability
15
SCREW, CABINET MNTG WPL 7101E082 Contact Us For Availability
15
TUBING, MANIFOLD TO DUAL VALVE WPL 73001096 Contact Us For Availability
16
BLOCK, TERMINAL WPL 73001066 Contact Us For Availability
16
CORD, POWER WPL 73001073 Contact Us For Availability
16
MOTOR, CONVECTION WPL 73001069 Contact Us For Availability
17
SCREW, SIMMER VALVE WPL 73001065 Contact Us For Availability
17
BLADE, COOLING WPL 73001072 Contact Us For Availability
18
BLADE, CONVECTION WPL 73001125 Contact Us For Availability
18
COVER, CONVECTION WHEEL WPL 73001223 Contact Us For Availability
19
SWITCH, SPARK IGNITION WPL 73001052 Contact Us For Availability
20
REGULATOR, PRESSURE WPL 73001126 Contact Us For Availability
21
ORIFICE, BROILER (LP) WPL 73001127 Contact Us For Availability
21
KNOB, SIMMER WPL 73001006 Contact Us For Availability
21
ORIFICE No.47 WPL 73001045 Contact Us For Availability
22
PIPE, MANIFOLD WPL 73001203 Contact Us For Availability
22
``O`` RING, SIMMER VALVE WPL 73001058 Contact Us For Availability
23
SIMMER BLOCK WPL 73001051 Contact Us For Availability
23
HOOD, SIMMER (LP) WPL 73001136 Contact Us For Availability
23
HOOD, SIMMER ORIFICE (NAT) WPL 73001137 Contact Us For Availability
23
SWITCH, LIGHT WPL 73001074 Contact Us For Availability
24
HOOD, ORIFICE (LP) WPL 73001138 Contact Us For Availability
24
HOOD, ORIFICE (NAT-SIMMER) WPL 73001139 Contact Us For Availability
24
OVEN FEED ADAPTER WPL 73001087 Contact Us For Availability
25
VALVE W/ HOOD WPL 73001050 Contact Us For Availability
26
BASE, BURNER II WPL 73001016 Contact Us For Availability
27
SCREW, BEZEL (BLK) WPL 73001141 Contact Us For Availability
28
HANGER, BURNER WPL 73001142 Contact Us For Availability
× ![]()
