Model Whirlpool PNS24H9 REFRIGERATOR – Common Parts & Diagrams

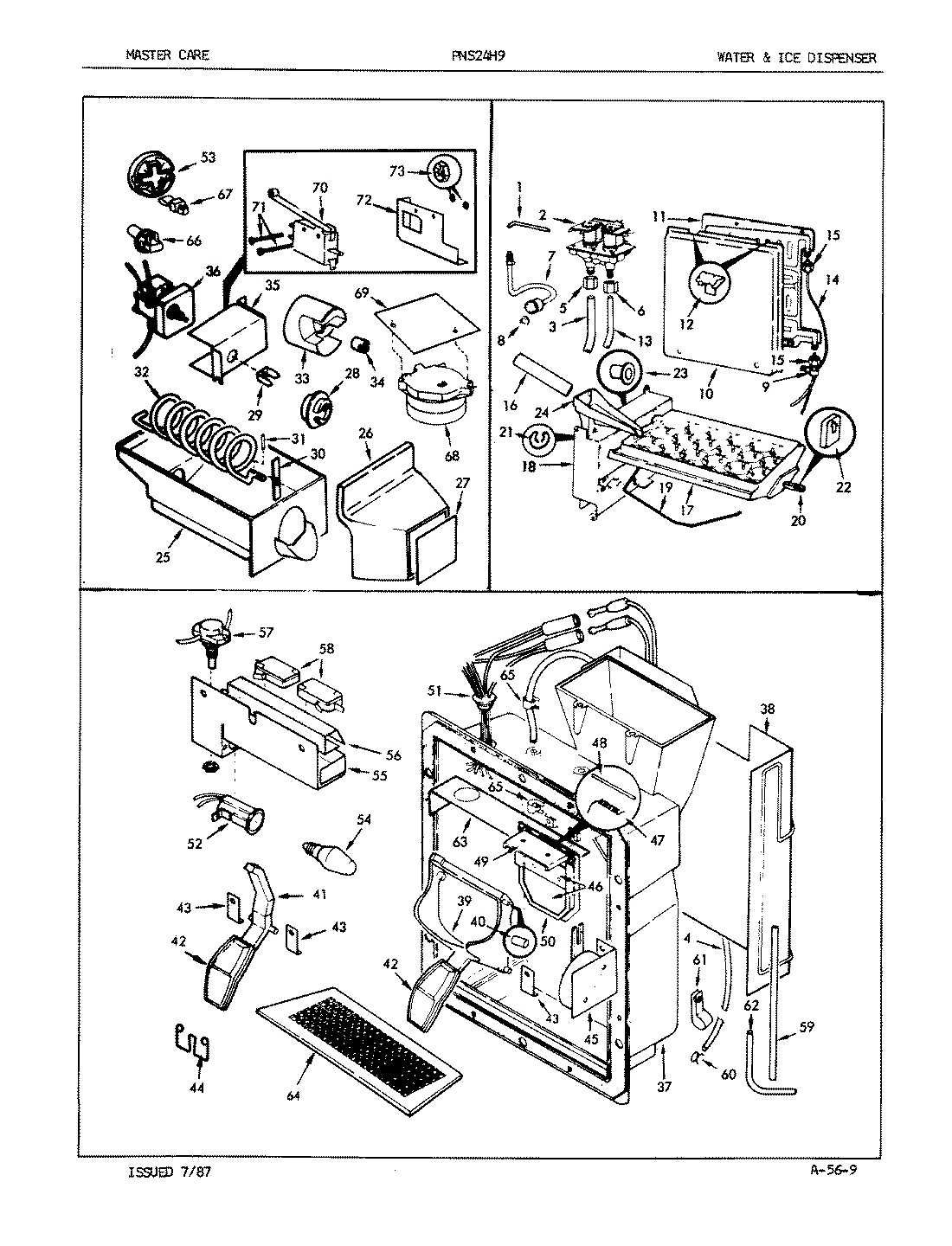

06 - WATER & ICE DISPENSER

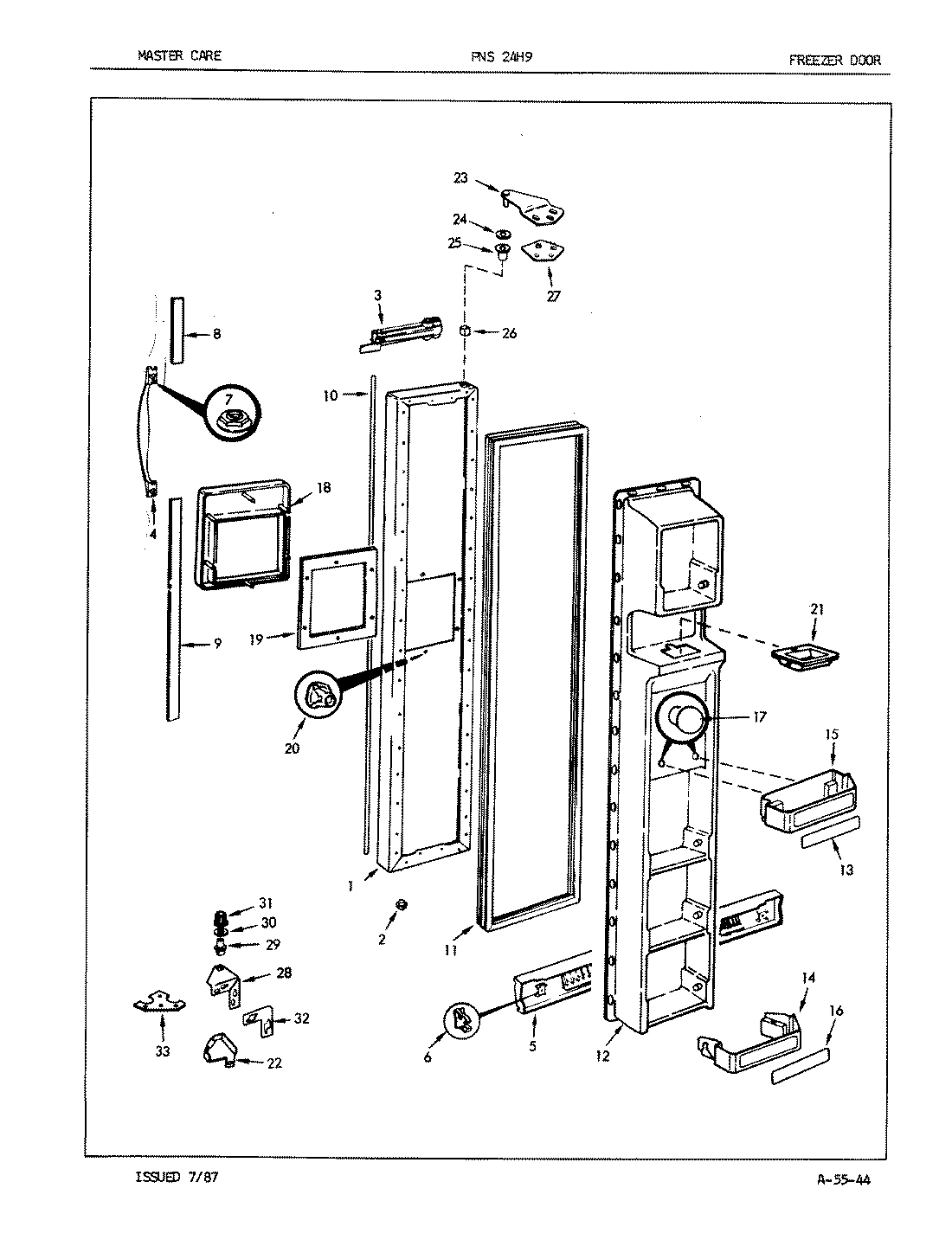

02 - FREEZER DOOR

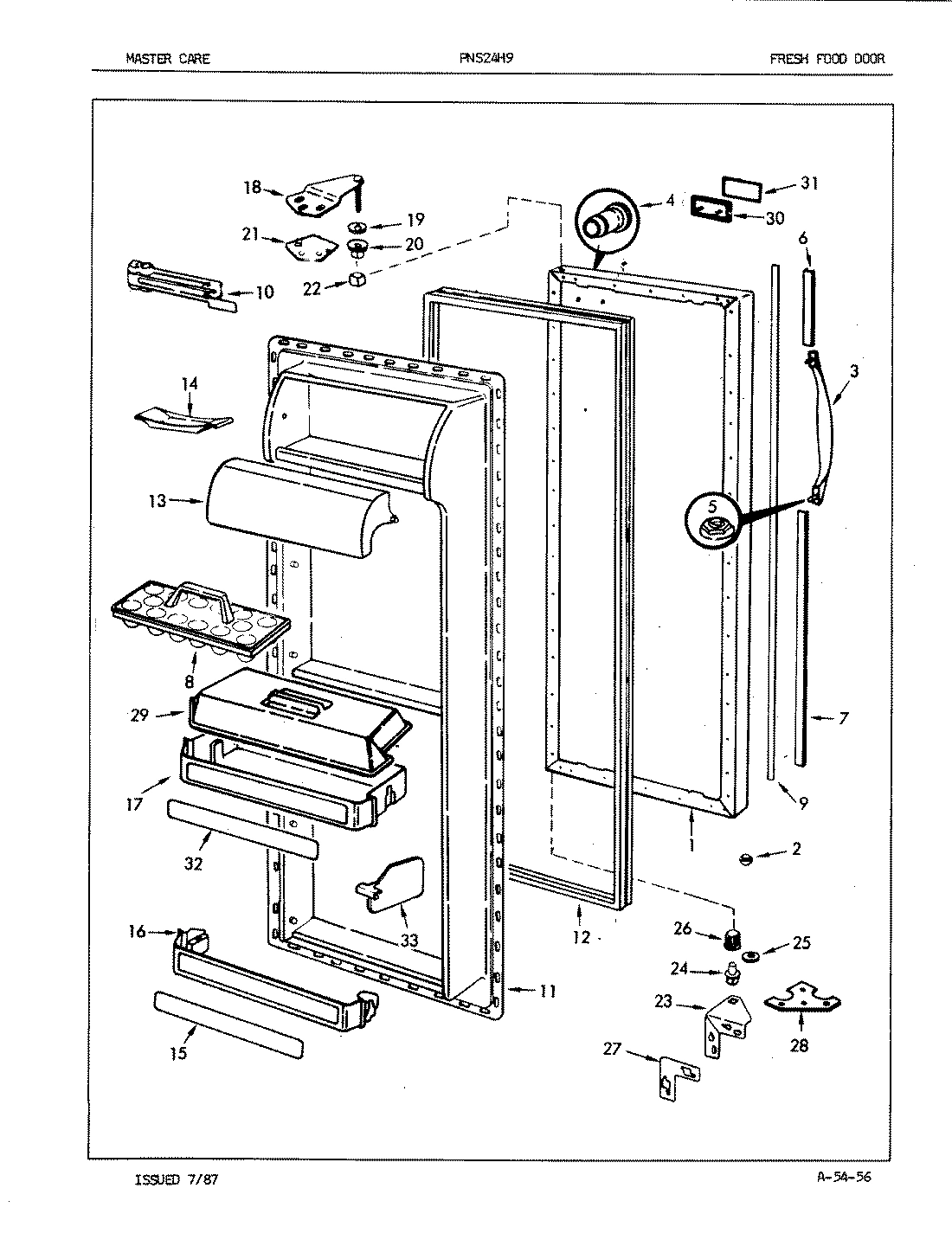

04 - FRESH FOOD DOOR

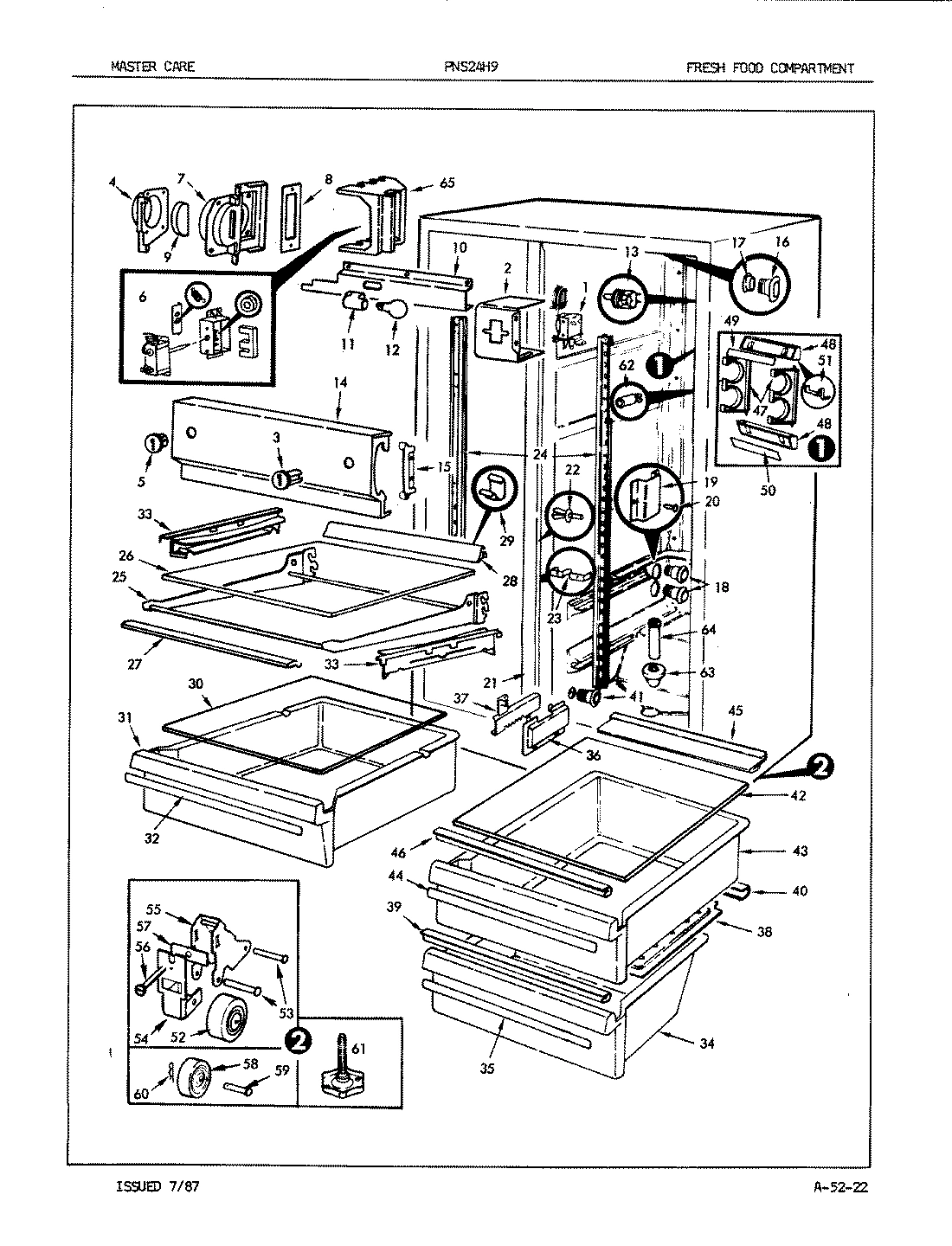

03 - FRESH FOOD COMPARTMENT

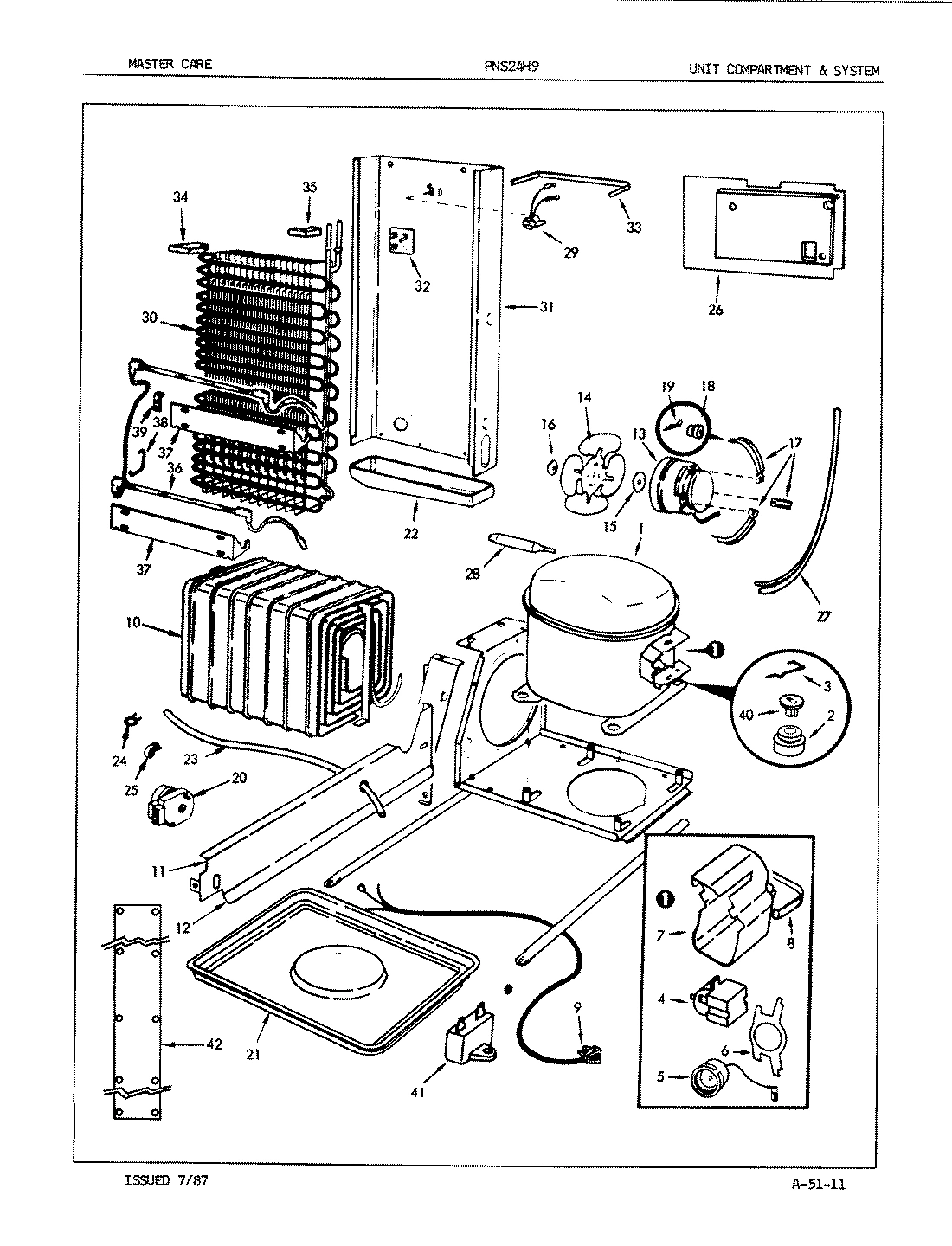

05 - UNIT COMPARTMENT & SYSTEM

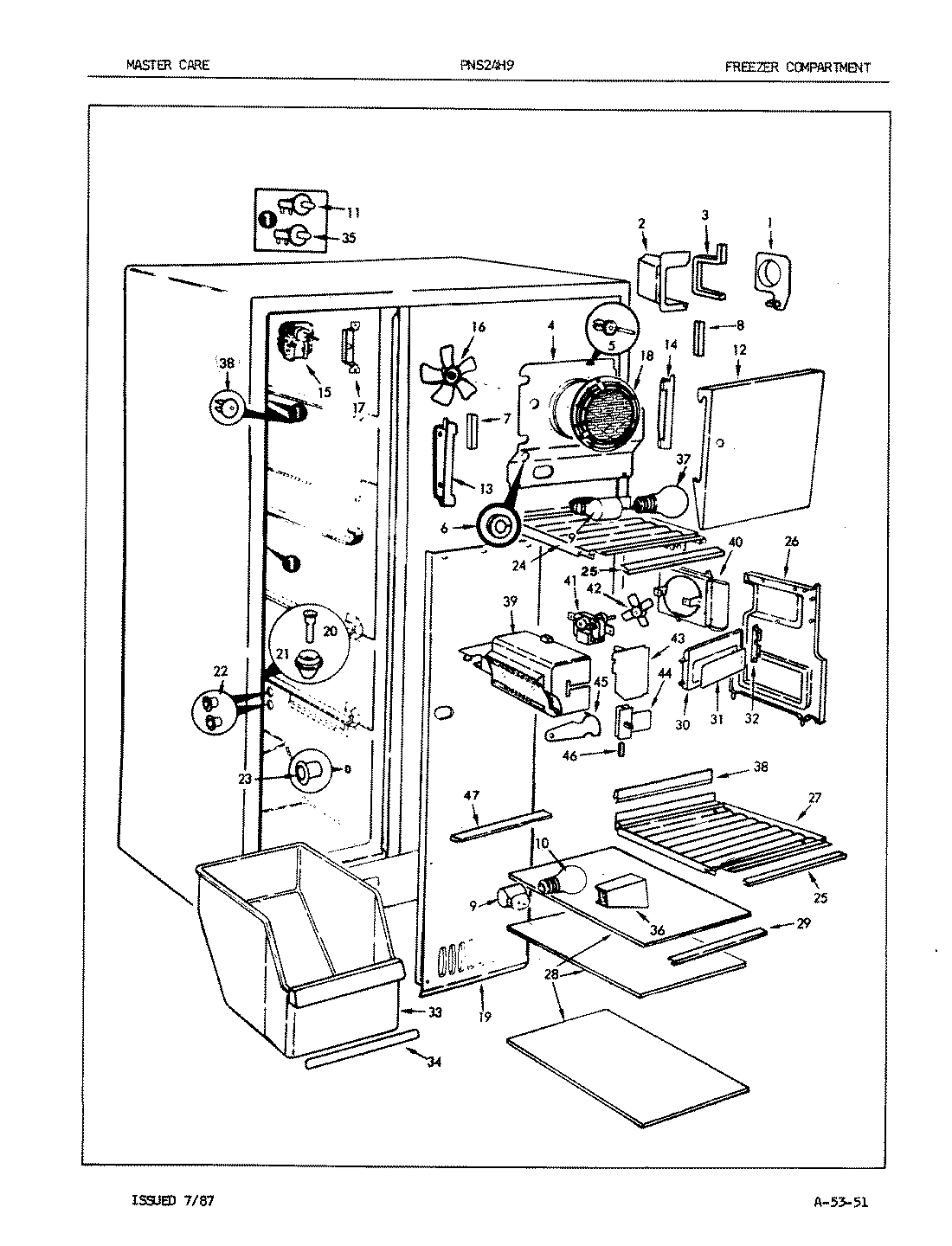

01 - FREEZER COMPARTMENT
Common parts from model Whirlpool PNS24H9 REFRIGERATOR
1
FEEDER TUBE WPL 667581 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 6306915WW Contact Us For Availability
1
INSULATION KIT WPL RA950601 Contact Us For Availability
1
PANEL, OUTER DOOR WPL 6239115WW Contact Us For Availability
1
CLAMP WPL 1095 Contact Us For Availability
1
PLATE, TEMPERATURE CONTROL WPL 120961 Contact Us For Availability
1
SCREW WPL 400015103 Contact Us For Availability
1
PLASTIC SLEEVE WPL 4008 Contact Us For Availability
1
SCREW, CONTROL MOUNTING WPL 4010121 Contact Us For Availability
1
CONTROL, TEMPERATURE WPL 5288151 Contact Us For Availability
1
COMPRESSOR (NET) WPL RA996 Contact Us For Availability
1
ORIFICE WPL 544231 Contact Us For Availability
2
VALVE, WATER WPL 565953 Contact Us For Availability
2
PLUG BUTTON, DOOR WPL 495034900 Contact Us For Availability
2
CONTROL HOUSING WPL 5368211 Contact Us For Availability
2
GROMMET, COMPRESSOR WPL 172454 Contact Us For Availability
2
SHIELD WPL 538371 Contact Us For Availability
3
TUBING WPL 5560310 Contact Us For Availability
3
HANDLE WPL 636865 Contact Us For Availability
3
KNOB WPL 656581 Contact Us For Availability
3
CLIP WPL 621651 Contact Us For Availability
3
SEAL WPL 5207710 Contact Us For Availability
4
TUBING, FOUNTAIN WPL 556027 Contact Us For Availability
4
SCREW WPL 40001512 Contact Us For Availability
4
RETAINER, NAMEPLATE WPL 652111 Contact Us For Availability
4
ORIFICE, FREEZER CONTROL WPL 538352 Contact Us For Availability
4
RELAY, START WPL 655291 Contact Us For Availability
4
COVER, COIL WPL 6269036 Contact Us For Availability
5
NUT, COMPRESSION (5/16``) WPL 556041 Contact Us For Availability
5
KICKPLATE WPL 5647827 Contact Us For Availability
5
FASTENER WPL 434003506 Contact Us For Availability
5
SCREW WPL 402005103 Contact Us For Availability
5
KNOB WPL 656582 Contact Us For Availability
5
OVERLOAD WPL 5306780 Contact Us For Availability
5
STUD, MOUNTING COIL COVER WPL 599201 Contact Us For Availability
6
CLIP, KICKPLATE WPL 528543 Contact Us For Availability
6
SCREW, KICKPLATE MTG. WPL 9986101 Contact Us For Availability
6
HANDLE EXT WPL 6577421 Contact Us For Availability
6
DAMPER WPL 656811 Contact Us For Availability
6
CLIP, OVERLOAD WPL 651901 Contact Us For Availability
6
BUSHING WPL 590901 Contact Us For Availability
7
INLET TUBING ASSY. WPL 537602 Contact Us For Availability
7
HANDLE EXT WPL 6577422 Contact Us For Availability
7
ADAPTER WPL 656611 Contact Us For Availability
7
COVER, TERMINAL WPL 651891 Contact Us For Availability
7
SEAL,UPPER COIL COVER TO LINER WPL 5207719 Contact Us For Availability
8
NUT, INLET TUBING WPL 246851 Contact Us For Availability
8
WASHER, INLET TUBING NUT WPL 246855 Contact Us For Availability
8
TRAY, EGG WPL 600668 Contact Us For Availability
8
SEAL WPL 656201 Contact Us For Availability
8
CLIP, TERMINAL COVER WPL 651911 Contact Us For Availability
8
COIL SEAL WPL 528246 Contact Us For Availability
9
TRIM WPL 6577224 Contact Us For Availability
9
SEAL WPL 656191 Contact Us For Availability
9
INSULATION WPL 656711 Contact Us For Availability
9
RECEPTACLE, LIGHT WPL 298142 Contact Us For Availability
9
CORD, POWER WPL 528902 Contact Us For Availability
10
TANK COVER WPL 598432 Contact Us For Availability
10
INSULATION, CLOSER WPL 526131 Contact Us For Availability
10
BRACKET, CLOSER WPL 526141 Contact Us For Availability
10
CLOSER, DOOR WPL 544851 Contact Us For Availability
10
HOUSING WPL 597405 Contact Us For Availability
10
U-NUT, CONDENSER WPL 604081 Contact Us For Availability
10
CONDENSER WPL RA436441 Contact Us For Availability
10
FLANGE HEATER WPL RA436841 Contact Us For Availability
10
LIGHT BULB (25W,125V) WPL 23861 Contact Us For Availability
11
TANK, WATER WPL 629201 Contact Us For Availability
11
GASKET, FREEZER DOOR WPL 669291 Contact Us For Availability
11
SCREW WPL 652755 Contact Us For Availability
11
SCREW WPL 652752 Contact Us For Availability
11
LINER, DOOR WPL 659438 Contact Us For Availability
11
SUPPORT WPL 659951 Contact Us For Availability
11
SWITCH WPL 564322 Contact Us For Availability
11
WIRE BAFFLE WPL 584551 Contact Us For Availability
12
CLIP, WATER TANK MOUNTING WPL 620821 Contact Us For Availability
12
LINER, DOOR WPL 659518 Contact Us For Availability
12
GASKET WPL 669292 Contact Us For Availability
12
BAFFLE, AIR DIVIDER WPL 664941 Contact Us For Availability
12
SCREW WPL 998645 Contact Us For Availability
12
SHIELD, LIGHT WPL 656542 Contact Us For Availability
13
TUBE WPL 556029 Contact Us For Availability
13
INSERT WPL 6557145 Contact Us For Availability
13
DOOR, DAIRY WPL 66184430 Contact Us For Availability
13
FAN MOTOR WPL 280569 Contact Us For Availability
13
SUPPORT WPL 536872 Contact Us For Availability
14
TUBE WPL 556025 Contact Us For Availability
14
SHELF FRONT WPL 6570112 Contact Us For Availability
14
TRAY, BUTTER WPL 299362 Contact Us For Availability
14
SHIELD, LIGHT WPL 656691 Contact Us For Availability
14
BLADE, CONDENSER FAN WPL 629342 Contact Us For Availability
14
SUPPORT WPL 544242 Contact Us For Availability
15
NUT, COMPRESSION (1/4``) WPL 554191 Contact Us For Availability
15
SHELF, FRZ. DOOR WPL 6570912 Contact Us For Availability
15
INSERT WPL 6557128 Contact Us For Availability
15
SUPPORT WPL 536862 Contact Us For Availability
15
WASHER, FAN BLADE WPL 199132 Contact Us For Availability
15
MOTOR WPL 564884 Contact Us For Availability
16
TUBE, FILL WPL 584614 Contact Us For Availability
16
INSERT WPL 6557132 Contact Us For Availability
16
SHELF FRONT WPL 657817 Contact Us For Availability
16
TUNNEL WPL 574101 Contact Us For Availability
16
BLADE, FAN FRZR. WPL 521201 Contact Us For Availability
17
TRAY, ICE WPL 596881 Contact Us For Availability
17
SCREW WPL 4000141 Contact Us For Availability
17
WASHER WPL 4200281 Contact Us For Availability
17
SHELF STUD WPL 656601 Contact Us For Availability
17
SHELF FRONT WPL 657827 Contact Us For Availability
17
RETAINER WPL 574111 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 569361 Contact Us For Availability
17
BRACKET, FAN MOTOR WPL 648562 Contact Us For Availability
18
SCREW WPL 4000211 Contact Us For Availability
18
PLATE WPL 620591 Contact Us For Availability
18
ICEMAKER MECH WPL RA4371410 Contact Us For Availability
18
SCREW WPL 4000221 Contact Us For Availability
18
ESCUTCHEON WPL 6048236 Contact Us For Availability
18
UPPER HINGE,(CHROME) WPL 5370916 Contact Us For Availability
18
COVER, UPPER HINGE (WHT) WPL 650036 Contact Us For Availability
18
SCREW WPL 998687 Contact Us For Availability
18
AIR TUNNEL WPL 537261 Contact Us For Availability
18
GROMMET, BRACKET WPL 569331 Contact Us For Availability
18
FAN GRID WPL 626891 Contact Us For Availability
19
ARM, SENSOR WPL 523072 Contact Us For Availability
19
WASHER WPL 521851 Contact Us For Availability
19
SEAL, ESCUTCHEON WPL 630571 Contact Us For Availability
19
AIR DEFLECTOR WPL 621281 Contact Us For Availability
19
CLIP, MOTOR BRACKET WPL 570511 Contact Us For Availability
19
COVER, COIL WPL 6522410 Contact Us For Availability
20
SHAFT WPL 653192 Contact Us For Availability
20
BUSHING, UPPER HINGE WPL 660362 Contact Us For Availability
20
BRACKET, MOUNTING TIMER WPL 292822 Contact Us For Availability
20
SCREW WPL 4050071 Contact Us For Availability
20
TIMER, DEFROST WPL 657021 Contact Us For Availability
20
DRAIN TUBE WPL 265279 Contact Us For Availability
21
RING, RETAINER WPL 587061 Contact Us For Availability
21
SCREW WPL 4020171 Contact Us For Availability
21
COLLAR WPL 667751 Contact Us For Availability
21
SHIM, UPPER HINGE WPL 650311 Contact Us For Availability
21
CHANNEL,MULLION DIVID.(WHITE) WPL 590261WW Contact Us For Availability
21
MOISTROL PAN WPL 298395 Contact Us For Availability
21
CUSHION PADDING, DRAIN PAN WPL 4500420 Contact Us For Availability
22
CLIP, DRIVE SHAFT WPL 653181 Contact Us For Availability
22
WIRE COVER WPL 651311 Contact Us For Availability
22
SEAL SLEEVE WPL 559901 Contact Us For Availability
22
STUD, (WHITE) WPL 5992013 Contact Us For Availability
22
TROUGH, DRAIN WPL 535232 Contact Us For Availability
23
SPACER WPL 653171 Contact Us For Availability
23
SCREW WPL 4000621 Contact Us For Availability
23
SCREW WPL 4030625 Contact Us For Availability
23
HINGE, LOWER WPL 6063012 Contact Us For Availability
23
CLIP WPL 530604 Contact Us For Availability
23
HOSE, DRAIN WPL 2691125 Contact Us For Availability
23
RETAINER, AIR TUNNEL WPL 537271 Contact Us For Availability
24
SCREW WPL 405009103 Contact Us For Availability
24
SPOUT, FILL WPL 537481 Contact Us For Availability
24
WASHER WPL 521852 Contact Us For Availability
24
PIN, LOWER HINGE WPL 536721 Contact Us For Availability
24
SCREW WPL 40003728 Contact Us For Availability
24
SUPPORT WPL 583811 Contact Us For Availability
24
CLAMP, DRAIN HOSE WPL 96023 Contact Us For Availability
24
SHELF, FRZ. WPL 656517 Contact Us For Availability
25
BIN, ICE WPL 664471 Contact Us For Availability
25
WASHER WPL 542331 Contact Us For Availability
25
FRAME, SHELF WPL 656182 Contact Us For Availability
25
CLAMP, DRAIN HOSE WPL 535165 Contact Us For Availability
25
CUP, SHELF WPL 603131 Contact Us For Availability
25
TRIM WPL 663162 Contact Us For Availability
26
SCREW WPL 405022103 Contact Us For Availability
26
ICE DISP FRONT WPL 662051 Contact Us For Availability
26
BUSHING, LOWER HINGE WPL 660341 Contact Us For Availability
26
SHELF, GLASS WPL 6660414 Contact Us For Availability
26
COVER WPL 663391 Contact Us For Availability
26
DIVIDER WPL 656231 Contact Us For Availability
27
INSERT WPL 6570711 Contact Us For Availability
27
SHIM, LOWER HINGE WPL 606261 Contact Us For Availability
27
TRIM WPL 656142 Contact Us For Availability
27
SLEEVE WPL 2608823 Contact Us For Availability
27
HEAT EXCHANGER WPL RA4364510 Contact Us For Availability
27
SHELF, FRZ. WPL 656518 Contact Us For Availability
28
RING, DRIVE WPL 630171 Contact Us For Availability
28
HINGE WPL 6063014 Contact Us For Availability
28
TAPPING PLATE, LOWER HINGE WPL 659641 Contact Us For Availability
28
TRIM WPL 6527614 Contact Us For Availability
28
SHELF, FRZ. WPL 666033 Contact Us For Availability
29
YOKE, ICE DISPENSER WPL 630521 Contact Us For Availability
29
PIN WPL 554791 Contact Us For Availability
29
PICKOFF COVER WPL 6663627 Contact Us For Availability
29
CLIP, SHELF TRIM WPL 663331 Contact Us For Availability
29
THERMOSTAT, DEFROST WPL 5208513 Contact Us For Availability
29
TRIM WPL 656144 Contact Us For Availability
30
HUB, REINFORCING WPL 630841 Contact Us For Availability
30
WASHER WPL 542332 Contact Us For Availability
30
NAMEPLATE WPL 666121 Contact Us For Availability
30
SHELF, GLASS WPL 6660416 Contact Us For Availability
30
EVAPORATOR WPL RA4364310 Contact Us For Availability
30
IM DOOR WPL 656292 Contact Us For Availability
31
PIN, AUGER WPL 630711 Contact Us For Availability
31
BUSHING WPL 660351 Contact Us For Availability
31
INSERT WPL 667241 Contact Us For Availability
31
TRAY WPL 6663630 Contact Us For Availability
31
HOUSING WPL 650332 Contact Us For Availability
31
INSERT WPL 657558 Contact Us For Availability
32
AUGER WPL 664351 Contact Us For Availability
32
INSERT WPL 6557129 Contact Us For Availability
32
BOARD, TERMINAL WPL 558781 Contact Us For Availability
32
LATCH WPL 661461 Contact Us For Availability
33
IMPELLER, AUGER WPL 664481 Contact Us For Availability
33
PKG ORGANIZER WPL 666451 Contact Us For Availability
33
SLIDE RAIL WPL 668121 Contact Us For Availability
33
SEAL WPL 5207714 Contact Us For Availability
33
DRAWER, FRZ. WPL 6663617 Contact Us For Availability
34
NUT, AUGER WPL 660981 Contact Us For Availability
34
PAN, STORAGE WPL 666364 Contact Us For Availability
34
SEAL, STYROFOAM-(LEFT) WPL 650631 Contact Us For Availability
34
INSERT WPL 6558378 Contact Us For Availability
35
NUT, MOTOR BOX WPL 561421 Contact Us For Availability
35
BOX,AUGER MOTOR WPL 652651 Contact Us For Availability
35
SPACER WPL 655121 Contact Us For Availability
35
SEAL, STYROFOAM-(RIGHT) WPL 650641 Contact Us For Availability
35
SWITCH WPL 564321 Contact Us For Availability
36
CONTROL HOUSING WPL 657371 Contact Us For Availability
36
HEATER, DEFROST WPL 5276415 Contact Us For Availability
36
GUARD WPL 521971 Contact Us For Availability
36
LEAD WPL 5465329 Contact Us For Availability
37
DISPENSER, WATER WPL 630003 Contact Us For Availability
37
INSULATION KIT WPL RA950591 Contact Us For Availability
37
CLIP WPL 566864 Contact Us For Availability
37
SLIDE CONTROL, (MEAT) WPL 657361 Contact Us For Availability
37
SHIELD, DEFROST HEATER WPL 2991513 Contact Us For Availability
38
HEATER, FOUNTAIN WPL 649371 Contact Us For Availability
38
COVER, MEAT PAN WPL 656084 Contact Us For Availability
38
CLIP, DEFROST HEATER WPL 520671 Contact Us For Availability
38
NUT WPL 538211 Contact Us For Availability
39
ACTUATOR ARM (ICE) WPL 666201 Contact Us For Availability
39
SEAL, MEAT PAN (FRONT) WPL 656482 Contact Us For Availability
39
BRACKET, HEATER SHIELD WPL 525611 Contact Us For Availability
39
SCREW WPL 4000161 Contact Us For Availability
39
SCREW WPL 4000151 Contact Us For Availability
39
PLENUM WPL 656211 Contact Us For Availability
40
TUBING, ARM PINS WPL 5560221 Contact Us For Availability
40
SEAL, MEAT PAN (REAR) WPL 656492 Contact Us For Availability
40
PLUG, COMPRESSOR WPL 526562 Contact Us For Availability
40
WIRE HARNESS WPL 659791 Contact Us For Availability
40
WIRE HARNESS WPL 661661 Contact Us For Availability
40
PLENUM BACK WPL 656391 Contact Us For Availability
41
COVER WPL 666161 Contact Us For Availability
41
ACTUATOR ARM (WATER) WPL 666181 Contact Us For Availability
41
TUNNEL, AIR (MEAT) WPL 537262 Contact Us For Availability
41
SCREW WPL 4140011 Contact Us For Availability
41
CAPACITOR, RUN WPL 661211 Contact Us For Availability
41
PARTY ICE MOTOR WPL 657541 Contact Us For Availability
42
SCREW WPL 4000171 Contact Us For Availability
42
PAD, ARM WPL 630661 Contact Us For Availability
42
SHELF, CRISPER WPL 656872 Contact Us For Availability
42
COVER WPL 663811 Contact Us For Availability
42
BLADE, FAN WPL 656882 Contact Us For Availability
43
CLIP WPL 630352 Contact Us For Availability
43
PAN, STORAGE WPL 666362 Contact Us For Availability
43
CONTROL BOARD WPL 656381 Contact Us For Availability
44
SCREW, ICE DOOR WPL 402015103 Contact Us For Availability
44
SPRING WPL 633061 Contact Us For Availability
44
INSERT WPL 6558377 Contact Us For Availability
44
SWITCH, PLENUM WPL 657161 Contact Us For Availability
45
MOTOR, INERTIA WPL 652121 Contact Us For Availability
45
SEAL WPL 655932 Contact Us For Availability
45
SCREW WPL 4050121 Contact Us For Availability
45
CLIP WPL 654441 Contact Us For Availability
45
PLENUM FRONT WPL 656311 Contact Us For Availability
45
WIRE HARNESS WPL 656761 Contact Us For Availability
46
DOOR ASSY., ICE WPL RA438251 Contact Us For Availability
46
CRISPER SEAL WPL 660922 Contact Us For Availability
46
MAGNET WPL 656621 Contact Us For Availability
47
SPRING, ICE DOOR WPL 634281 Contact Us For Availability
47
RACK, WINE WPL 565194 Contact Us For Availability
47
TRIM WPL 52014135 Contact Us For Availability
48
PIN, ICE DOOR WPL 630531 Contact Us For Availability
48
SUPPORT, WINE RACK WPL 656891 Contact Us For Availability
48
CLIP,FOOD LINER MOUNT.(SLIDES) WPL 574181 Contact Us For Availability
48
CODE J WPL 224641 Contact Us For Availability
48
WIRE HARNESS WPL 651362 Contact Us For Availability
49
BRACKET, ICE DOOR WPL 630141 Contact Us For Availability
49
INSERT WPL 657533 Contact Us For Availability
50
INSULATION WPL 630891 Contact Us For Availability
50
BOOT, ICE DOOR WPL 660071 Contact Us For Availability
50
INSERT WPL 6575317 Contact Us For Availability
51
WIRE HARNESS WPL 630591 Contact Us For Availability
51
WIRE HARNESS WPL 633723 Contact Us For Availability
51
WIRE HARNESS WPL 652901 Contact Us For Availability
51
WIRE HARNESS WPL 652911 Contact Us For Availability
51
SPRING, WINE RACK WPL 580571 Contact Us For Availability
52
SOCKET, LIGHT WPL 630391 Contact Us For Availability
53
BUSHING, PLUNGER GUIDE WPL 651761 Contact Us For Availability
53
PIN, WHEEL WPL 649651 Contact Us For Availability
54
BULB, LIGHT WPL 631791 Contact Us For Availability
54
FACEPLATE BRACKET WPL 627951 Contact Us For Availability
55
CLAMP WPL 231977 Contact Us For Availability
55
STUD WPL 539142 Contact Us For Availability
55
GROMMET, WATER ENTRY WPL 598081 Contact Us For Availability
55
BRACKET, SWITCH WPL 630132 Contact Us For Availability
55
INLET ASSEMBLY WPL 634591 Contact Us For Availability
55
BRACKET, WHEEL WPL 627941 Contact Us For Availability
56
INSULATOR WPL 653331 Contact Us For Availability
56
SCREW, WHEEL ADJUSTMENT WPL 564871 Contact Us For Availability
57
WPL 630401 WPL 630401 Contact Us For Availability
57
TAPPING PLATE, WHEEL WPL 591011 Contact Us For Availability
58
WPL 554402 WPL 554402 Contact Us For Availability
58
WHEEL WPL 298342 Contact Us For Availability
59
WPL 6500215 WPL 6500215 Contact Us For Availability
59
WPL 6539810 WPL 6539810 Contact Us For Availability
59
PIVOT PIN, WHEEL (REAR) WPL 625801 Contact Us For Availability
60
WPL 96029 WPL 96029 Contact Us For Availability
60
CLIP, RETAINING WHEEL (REAR) WPL 625811 Contact Us For Availability
61
WPL 535168 WPL 535168 Contact Us For Availability
61
LEG, LEVELING WPL 60128 Contact Us For Availability
62
WPL 630382 WPL 630382 Contact Us For Availability
62
NYLON NUT WPL 195302 Contact Us For Availability
63
WPL 630361 WPL 630361 Contact Us For Availability
63
GROMMET WPL 555121 Contact Us For Availability
64
WPL 630252 WPL 630252 Contact Us For Availability
64
TUBE WPL 555131 Contact Us For Availability
64
CLIP, FOOD LINER MOUNT.TOP&BOT WPL 564381 Contact Us For Availability
64
WIRE HARNESS WPL 661571 Contact Us For Availability
65
WPL 603331 WPL 603331 Contact Us For Availability
65
WPL 603332 WPL 603332 Contact Us For Availability
65
I WPL 657081 Contact Us For Availability
66
WPL 651771 WPL 651771 Contact Us For Availability
67
WPL 651851 WPL 651851 Contact Us For Availability
68
WPL 4050721 WPL 4050721 Contact Us For Availability
68
WPL 651321 WPL 651321 Contact Us For Availability
69
WPL 651431 WPL 651431 Contact Us For Availability
70
WPL 652851 WPL 652851 Contact Us For Availability
71
WPL 4050221 WPL 4050221 Contact Us For Availability
71
WPL 4060431 WPL 4060431 Contact Us For Availability
72
WPL 652862 WPL 652862 Contact Us For Availability
73
WPL 4300021 WPL 4300021 Contact Us For Availability
× ![]()
Login and Registration Form
