Model GE PLS624RT1SS Gas Range Or Dual Fuel – Common Parts & Diagrams

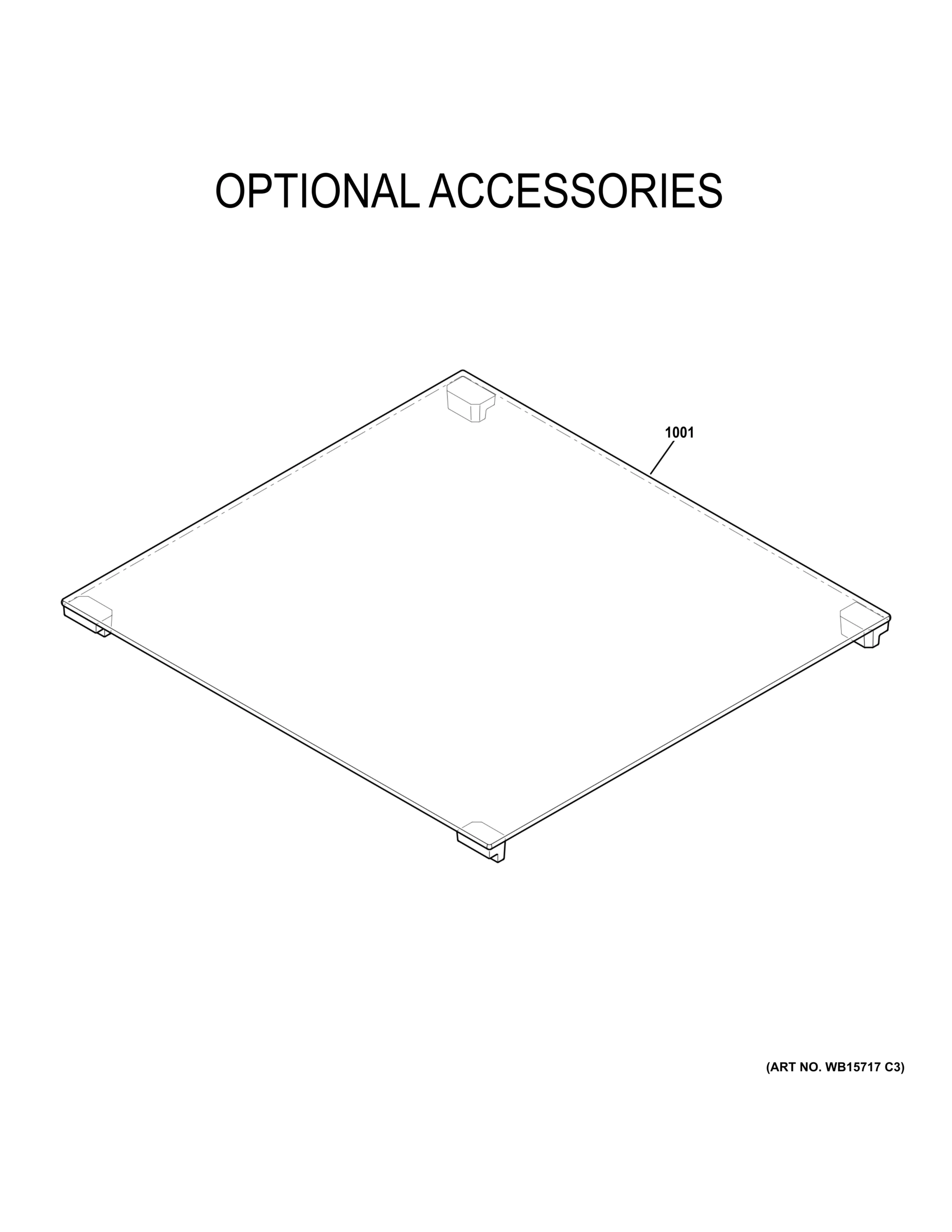

OPTIONAL ACCESSORIES

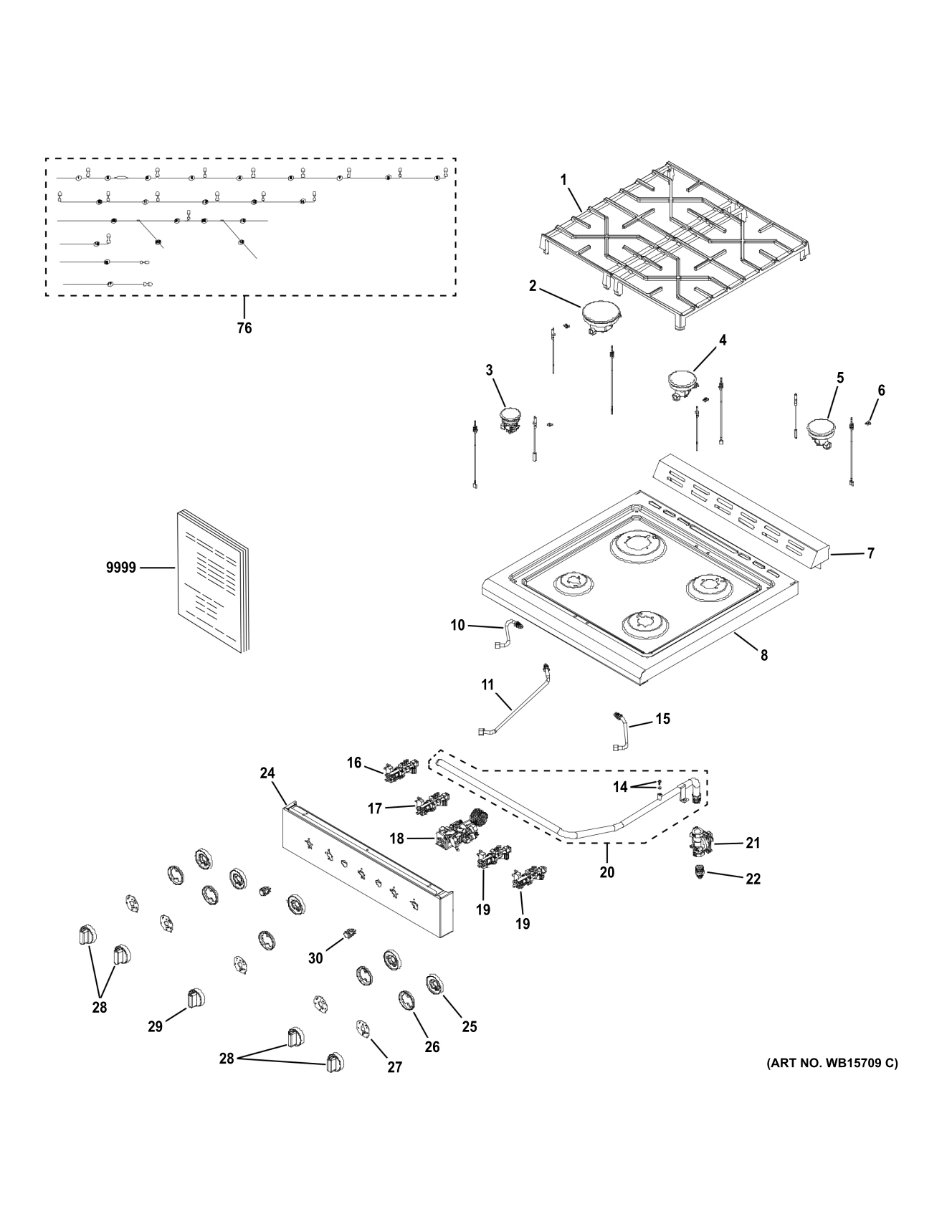

CONTROL PANEL & COOKTOP
BODY PARTS
DOOR & DRAWER PARTS
Common parts from model GE PLS624RT1SS Gas Range Or Dual Fuel
1
GRATE GEN WB21X43684 Contact Us For Availability
2
LEFT REAR BURNER ASM GEN WB21X43667 Contact Us For Availability
3
LEFT FRONT BURNER ASM GEN WB21X43668 Contact Us For Availability
4
RIGHT FRONT BURNER ASM GEN WB21X43669 Contact Us For Availability
5
RIGHT REAR BURNER ASM GEN WB21X43670 Contact Us For Availability
6
IGNITION PIN FIXING CLIP GEN WB21X43687 Contact Us For Availability
7
FLUE DECORATIVE PANEL ASM GEN WB21X43671 Contact Us For Availability
10
LEFT BURNER SUPPLY TUBE GEN WB21X43696 Contact Us For Availability
11
REAR BURNER SUPPLY TUBE GEN WB21X43698 Contact Us For Availability
15
RIGHT PRONT GAS IN PIPE GEN WB21X43705 Contact Us For Availability
16
LEFT FRONT BURNER SAFETY VALVE GEN WB21X44528 Contact Us For Availability
17
LEFT REAR BURNER SAFETY VALVE GEN WB21X44530 Contact Us For Availability
18
OVEN VALVE GEN WB21X43703 Contact Us For Availability
19
RIGHT BURNER SAFETY VALVE GEN WB21X44527 Contact Us For Availability
20
MAIN GAS PIPE ASM GEN WB21X44546 Contact Us For Availability
21
REGULATOR GEN WB21X43702 Contact Us For Availability
22
REGULATOR ADAPTER GEN WB21X43695 Contact Us For Availability
24
CONTROL PANEL GEN WB21X43677 Contact Us For Availability
25
KNOB BEZEL GEN WB21X43692 Contact Us For Availability
26
LIGHT GUIDES GEN WB21X43634 Contact Us For Availability
27
LED BOARD GEN WB21X43649 Contact Us For Availability
28
COOKTOP KNOB GEN WB21X43693 Contact Us For Availability
29
OVEN KNOB GEN WB21X43694 Contact Us For Availability
30
LIGHT SWITCH GEN WB21X43690 Contact Us For Availability
32
COOLING FAN GEN WB21X43689 Contact Us For Availability
34
PULSE IGNITOR GEN WB21X43688 Contact Us For Availability
35
THERMOSTAT(MOTOR) GEN WB21X43706 Contact Us For Availability
38
OVEN RACK GEN WB21X43683 Contact Us For Availability
39
OVEN SIDE RACK GEN WB21X43685 Contact Us For Availability
41
LEFT COVER GEN WB21X44267 Contact Us For Availability
45
SEALING STRIP GEN WB21X44269 Contact Us For Availability
46
OVEN DOOR ASM GEN WB21X43672 Contact Us For Availability
47
DRAWER SLIDEWAY PLATE(LEFT) GEN WB21X43680 Contact Us For Availability
48
DRAWER SLIDEWAY PLATE(RIGHT) GEN WB21X43681 Contact Us For Availability
50
LEG GEN WB21X43686 Contact Us For Availability
52
BAKE BURNER GEN WB21X43699 Contact Us For Availability
53
PILOT ASM GEN WB21X43701 Contact Us For Availability
54
IGNITION WIRE ASM GEN WB21X43691 Contact Us For Availability
55
BAKE BOTTOM PLATE GEN WB21X43674 Contact Us For Availability
56
RIGHT COVER GEN WB21X44268 Contact Us For Availability
61
OVEN LAMP HOLDER ASM GEN WB21X43630 Contact Us For Availability
62
OVEN LAMP 12V GEN WB21X43633 Contact Us For Availability
63
THERMOSTAT SUPPORT CLIP GEN WB21X43675 Contact Us For Availability
65
NOZZEL HOLDER GEN WB21X44270 Contact Us For Availability
66
BAKE BURNER NOZZLE GEN WB21X44529 Contact Us For Availability
71
ANTI-TIP BRACKET GEN WB21X43678 Contact Us For Availability
72
JUNCTION BOX GEN WB21X44272 Contact Us For Availability
73
DRAWER ASM GEN WB21X43673 Contact Us For Availability
74
DRAWER SLIDEWAY GEN WB21X43682 Contact Us For Availability
76
HARNESSES (24In.) GEN WB21X44531 Contact Us For Availability
1001
24" RV Cooktop Cover GEN JXCVR24T1 Contact Us For Availability
9999
PM OWNERS AND INSTALL GEN 49-2001048 Contact Us For Availability
× ![]()
