Model Electrolux PLHT189SSKB REFRIGERATOR – Common Parts & Diagrams

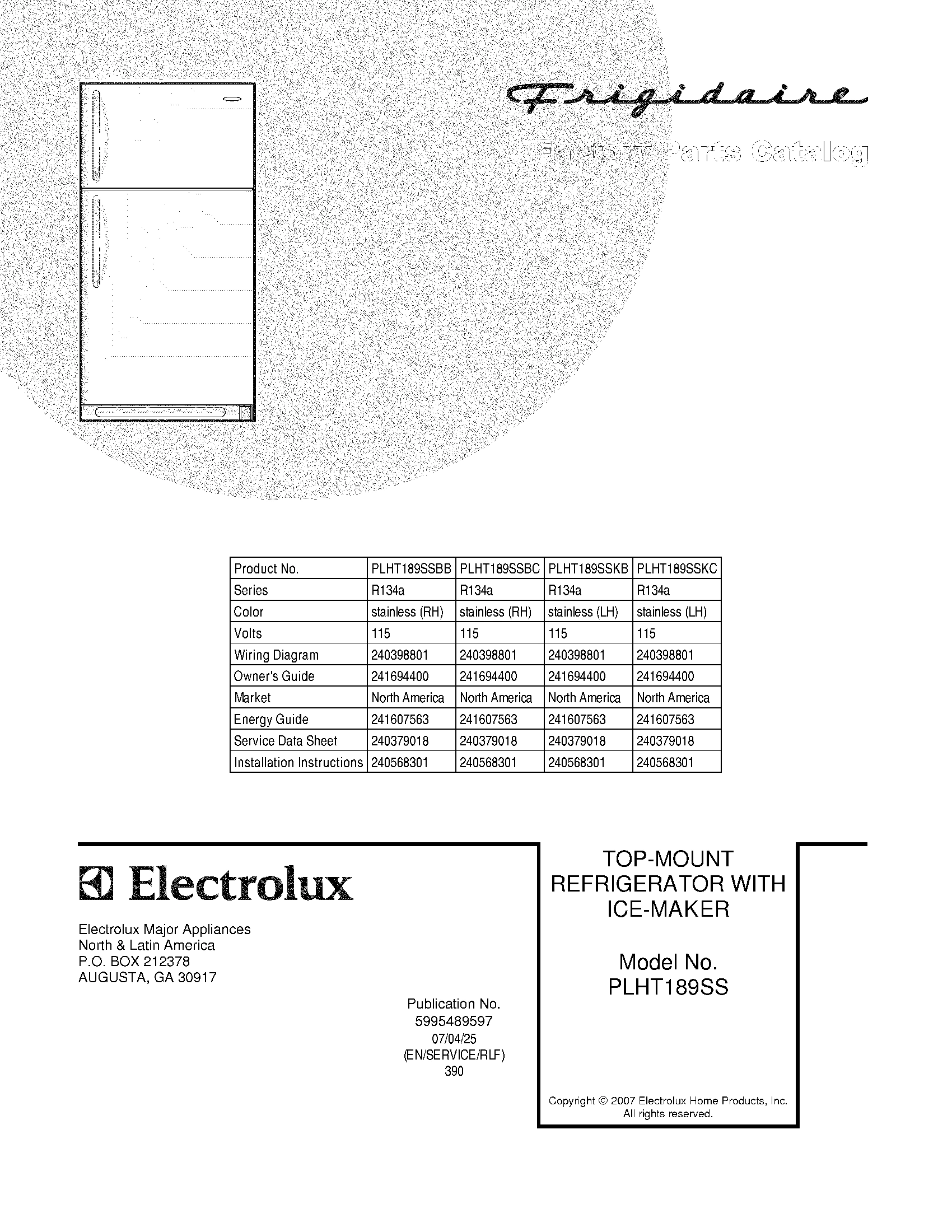

01 - COVER

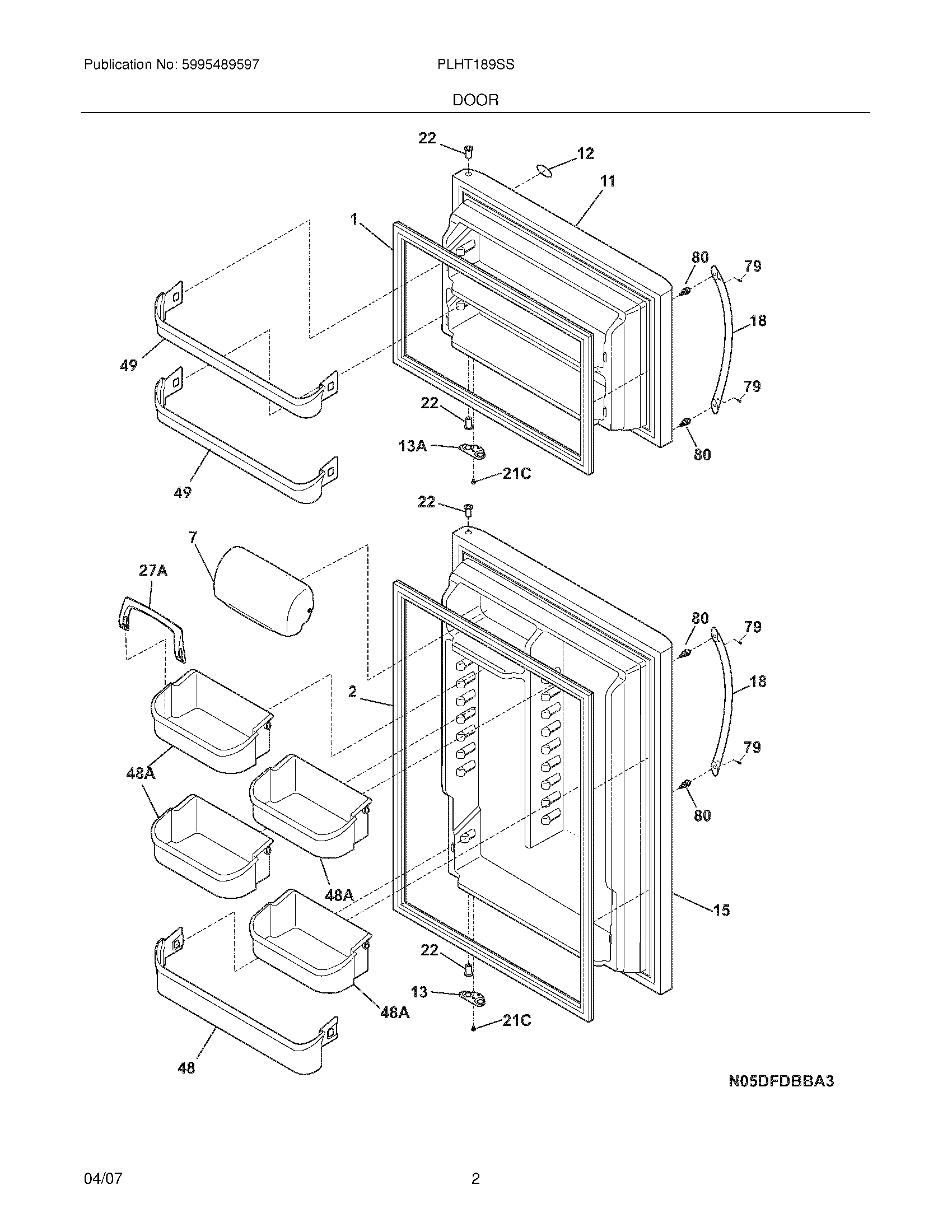

03 - DOOR

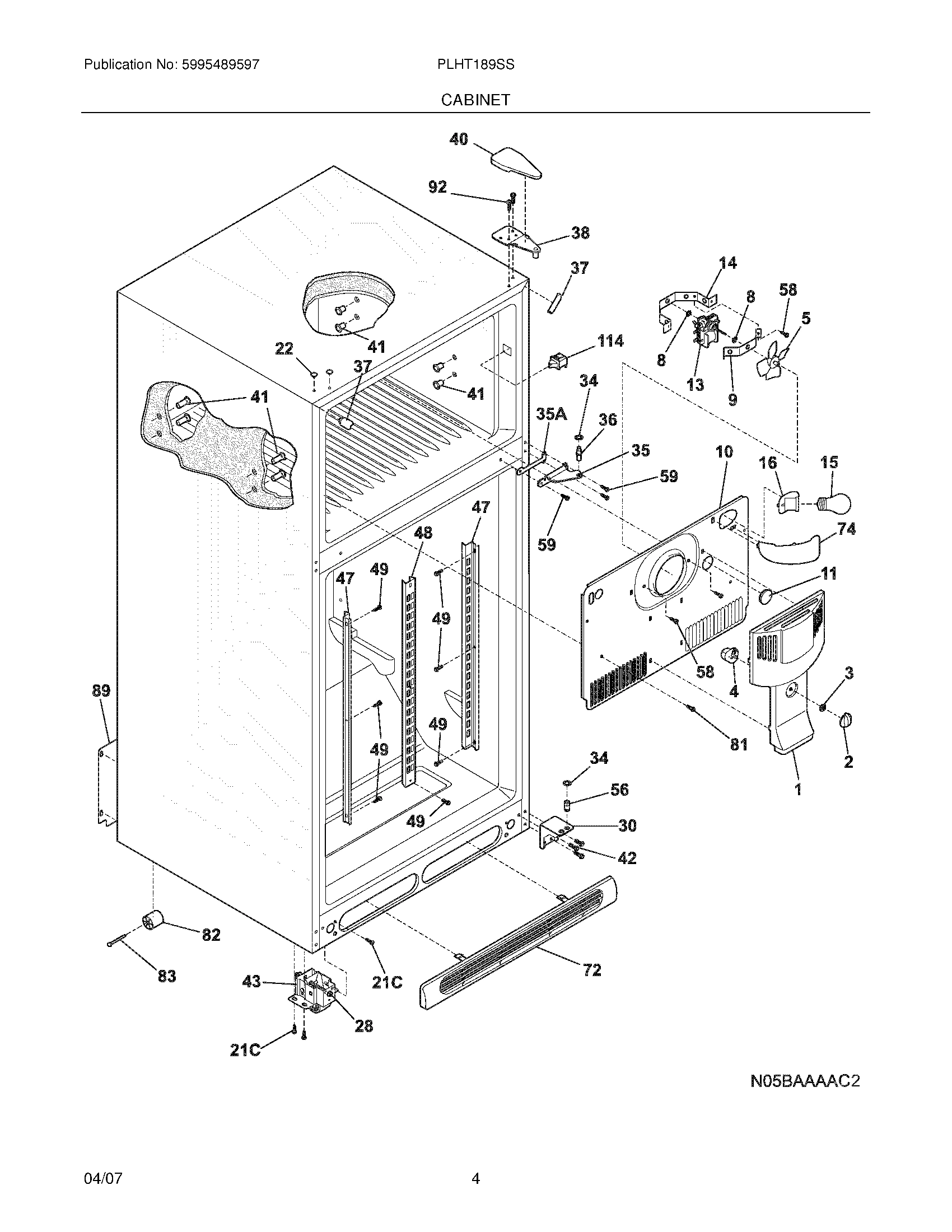

05 - CABINET

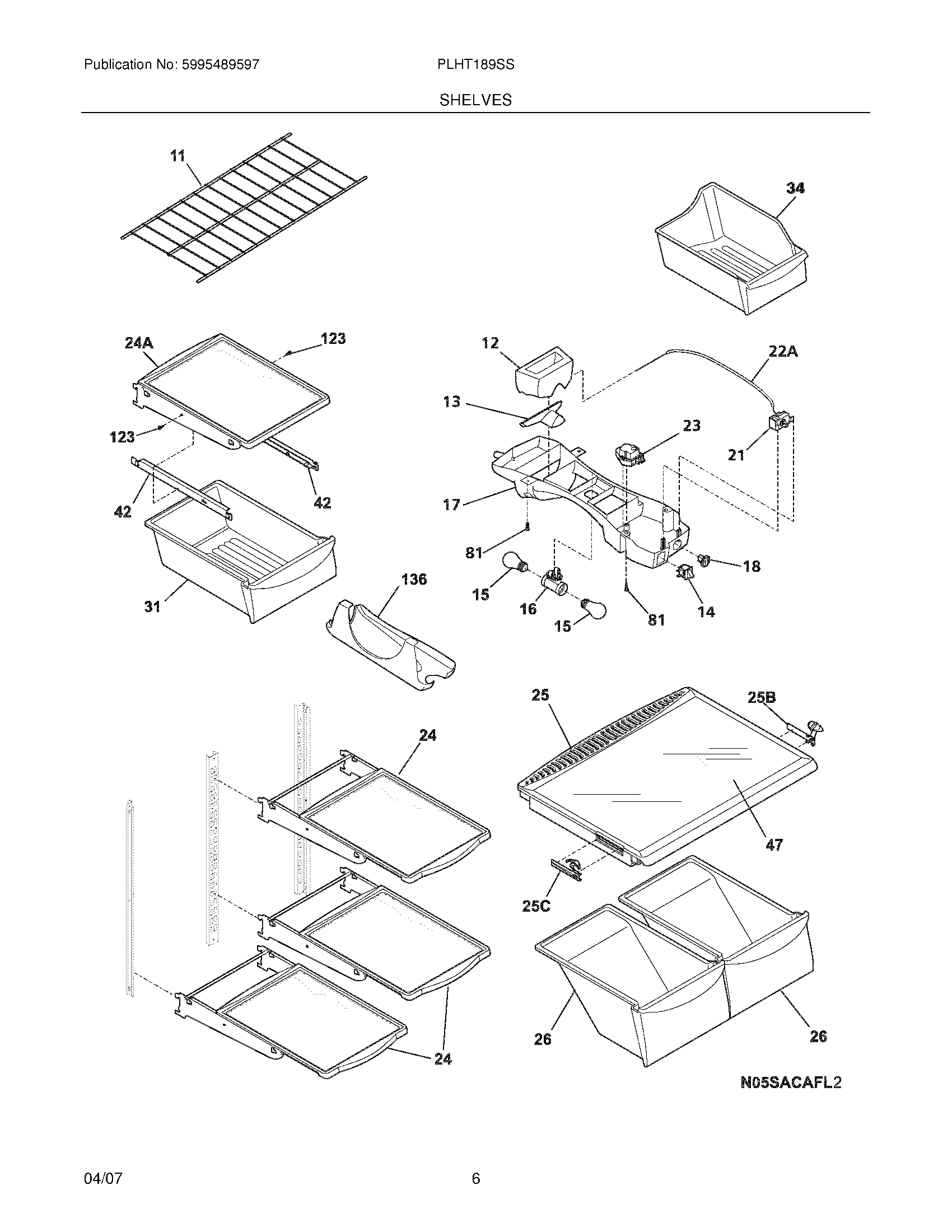

07 - SHELVES

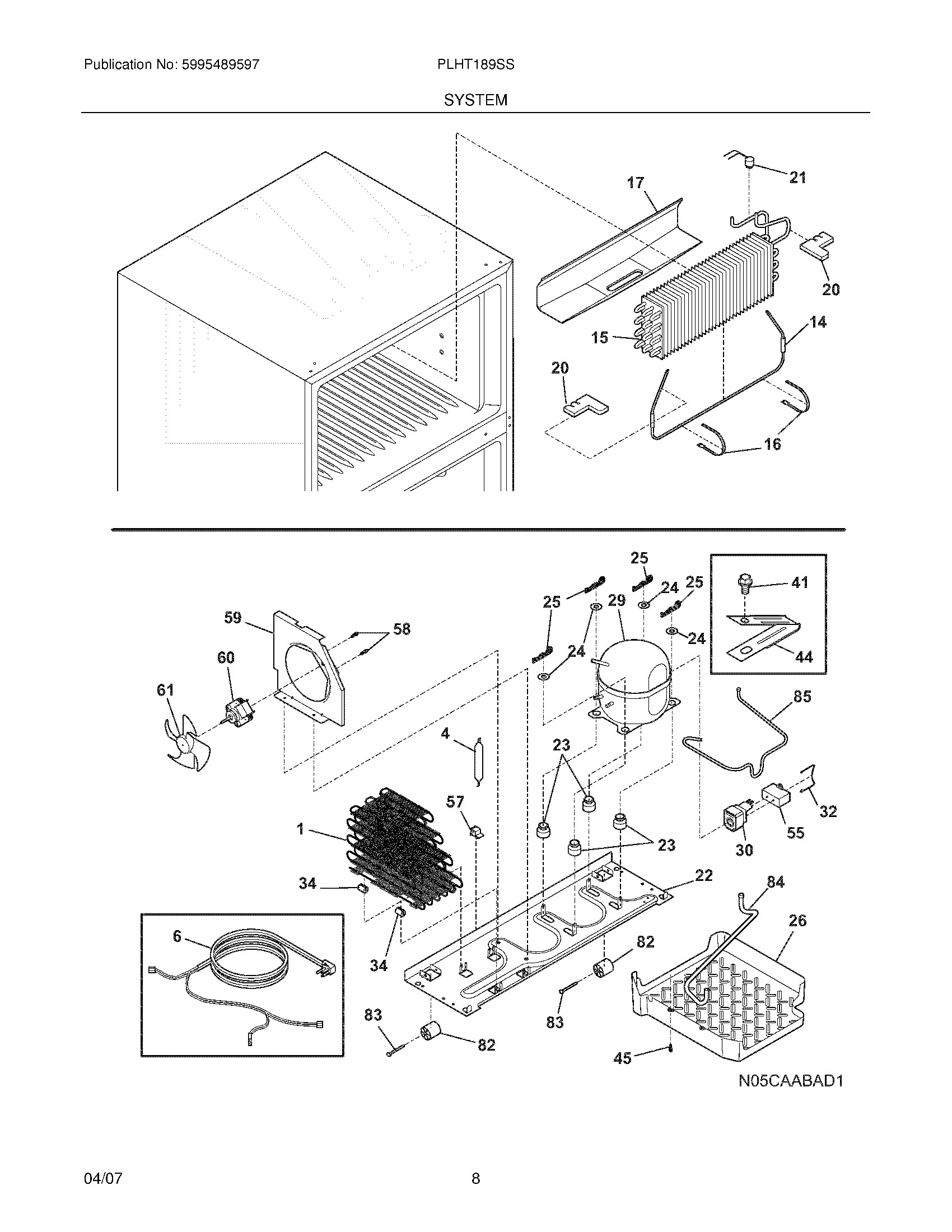

09 - SYSTEM

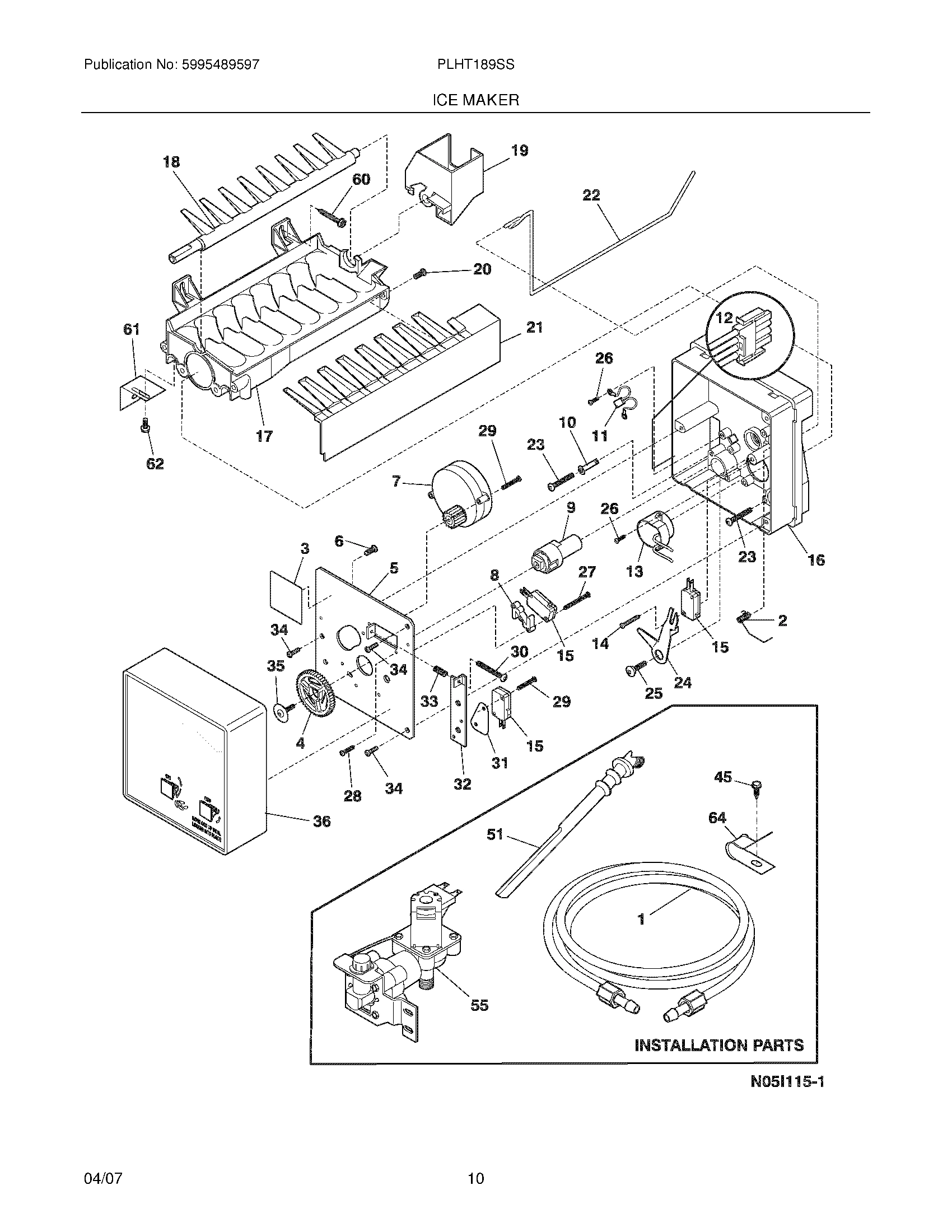

11 - ICE MAKER

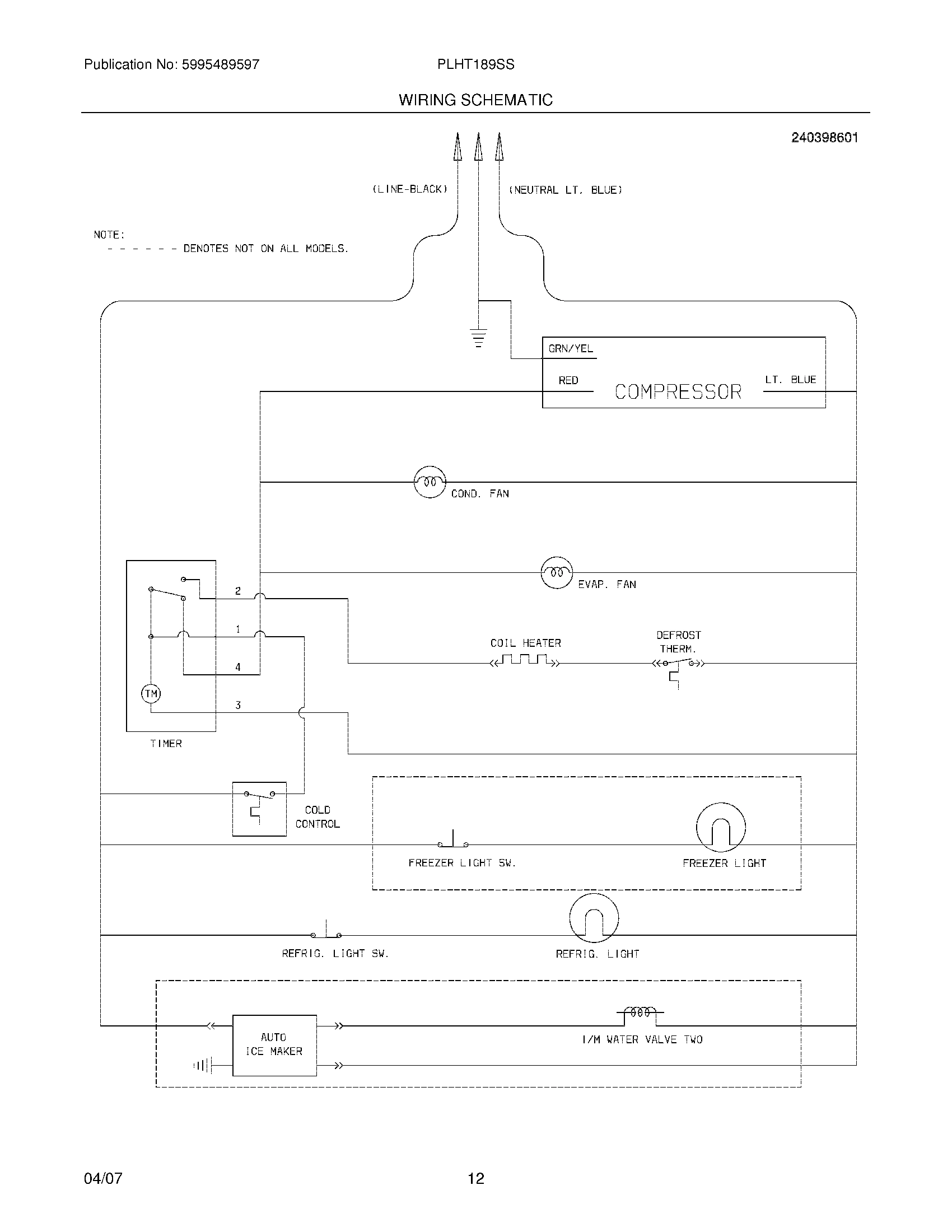

12 - WIRING SCHEMATIC

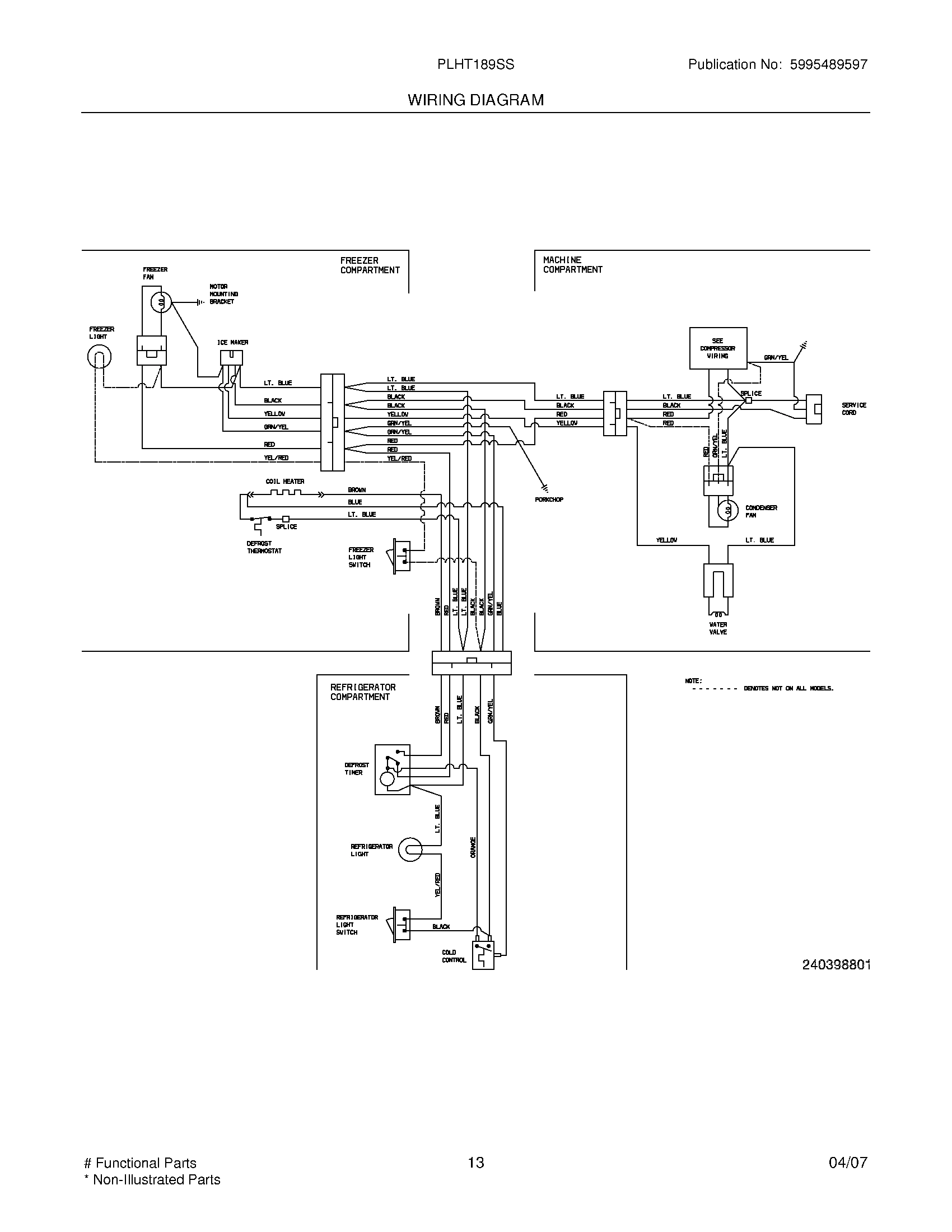

13 - WIRING DIAGRAM
Common parts from model Electrolux PLHT189SSKB REFRIGERATOR
1
WCI 241652301 WCI 241652301 Contact Us For Availability
2
WCI 240367001 WCI 240367001 Contact Us For Availability
4
WCI 240367401 WCI 240367401 Contact Us For Availability
5
Fan Blade,red ,evaporator fan WCI 5308000010 Contact Us For Availability
7
WCI 240338313 WCI 240338313 Contact Us For Availability
9
WCI 5303292396 WCI 5303292396 Contact Us For Availability
10
WCI 241652213 WCI 241652213 Contact Us For Availability
11
PLUG-HOLE, FACTORY TEST WCI 5303208309 Contact Us For Availability
12
WCI 241542001 WCI 241542001 Contact Us For Availability
12
Label-nameplate WCI 240558802 Contact Us For Availability
13
WCI 240362601 WCI 240362601 Contact Us For Availability
13
WCI 5304456665 WCI 5304456665 Contact Us For Availability
13A
WCI 240312406 WCI 240312406 Contact Us For Availability
14
WCI 241554901 WCI 241554901 Contact Us For Availability
15
WCI 5303918274 WCI 5303918274 Contact Us For Availability
15
WCI 5304456667 WCI 5304456667 Contact Us For Availability
15
WCI 215812200 WCI 215812200 Contact Us For Availability
16
STRAP-EVAP/HEATER,ALUMINUM ,(2) WCI 5308000110 Contact Us For Availability
18
WCI 240360801 WCI 240360801 Contact Us For Availability
21
WCI 5303918202 WCI 5303918202 Contact Us For Availability
22
WCI 215774918 WCI 215774918 Contact Us For Availability
22
WCI 241665606 WCI 241665606 Contact Us For Availability
23
WCI 218513300 WCI 218513300 Contact Us For Availability
24
WCI 241812301 WCI 241812301 Contact Us For Availability
24
WCI 5304456675 WCI 5304456675 Contact Us For Availability
25B
WCI 241613501 WCI 241613501 Contact Us For Availability
25C
WCI 241613502 WCI 241613502 Contact Us For Availability
27A
WCI 240396102 WCI 240396102 Contact Us For Availability
30
WCI 241527805 WCI 241527805 Contact Us For Availability
31
WCI 240530811 WCI 240530811 Contact Us For Availability
34
WCI 240311303 WCI 240311303 Contact Us For Availability
34
WCI 240385201 WCI 240385201 Contact Us For Availability
34
WCI 240405201 WCI 240405201 Contact Us For Availability
35
WCI 240313803 WCI 240313803 Contact Us For Availability
35A
WCI 240336803 WCI 240336803 Contact Us For Availability
40
WCI 240354404 WCI 240354404 Contact Us For Availability
42
WCI 240356501 WCI 240356501 Contact Us For Availability
42
WCI 240365401 WCI 240365401 Contact Us For Availability
42
Screw-hinge mtg,hex head ,1/4-20 x 5/8 WCI 240578902 Contact Us For Availability
48
WCI 240338101 WCI 240338101 Contact Us For Availability
48
WCI 5303292395 WCI 5303292395 Contact Us For Availability
49
Bin-door,pseudo ,frzr WCI 240495805 Contact Us For Availability
56
WCI 240516502 WCI 240516502 Contact Us For Availability
59
WCI 240442707 WCI 240442707 Contact Us For Availability
60
WCI 218362501 WCI 218362501 Contact Us For Availability
64
WCI 5304455846 WCI 5304455846 Contact Us For Availability
79
WCI 218755402 WCI 218755402 Contact Us For Availability
80
WCI 218755504 WCI 218755504 Contact Us For Availability
81
WCI 5304455650 WCI 5304455650 Contact Us For Availability
82
WCI 5304418225 WCI 5304418225 Contact Us For Availability
83
WCI 5304455655 WCI 5304455655 Contact Us For Availability
84
WCI 240500801 WCI 240500801 Contact Us For Availability
92
WCI 241710601 WCI 241710601 Contact Us For Availability
123
WCI 215005101 WCI 215005101 Contact Us For Availability
136
WCI 241657701 WCI 241657701 Contact Us For Availability
NI
WCI 5303918263 WCI 5303918263 Contact Us For Availability
NI
WCI 5303918222 WCI 5303918222 Contact Us For Availability
NI
WCI 5303321321 WCI 5303321321 Contact Us For Availability
NI
WCI 218252201 WCI 218252201 Contact Us For Availability
NI
WCI 240346701 WCI 240346701 Contact Us For Availability
NI
WCI 215474201 WCI 215474201 Contact Us For Availability
NI
WCI 240561701 WCI 240561701 Contact Us For Availability
NI
WCI 240388701 WCI 240388701 Contact Us For Availability
NI
WCI 240359403 WCI 240359403 Contact Us For Availability
NI
Adapter,water line ,w/fittings WCI 218888001 Contact Us For Availability
× ![]()
