Model GE PLD617RW1SS Gas Range Or Dual Fuel – Common Parts & Diagrams

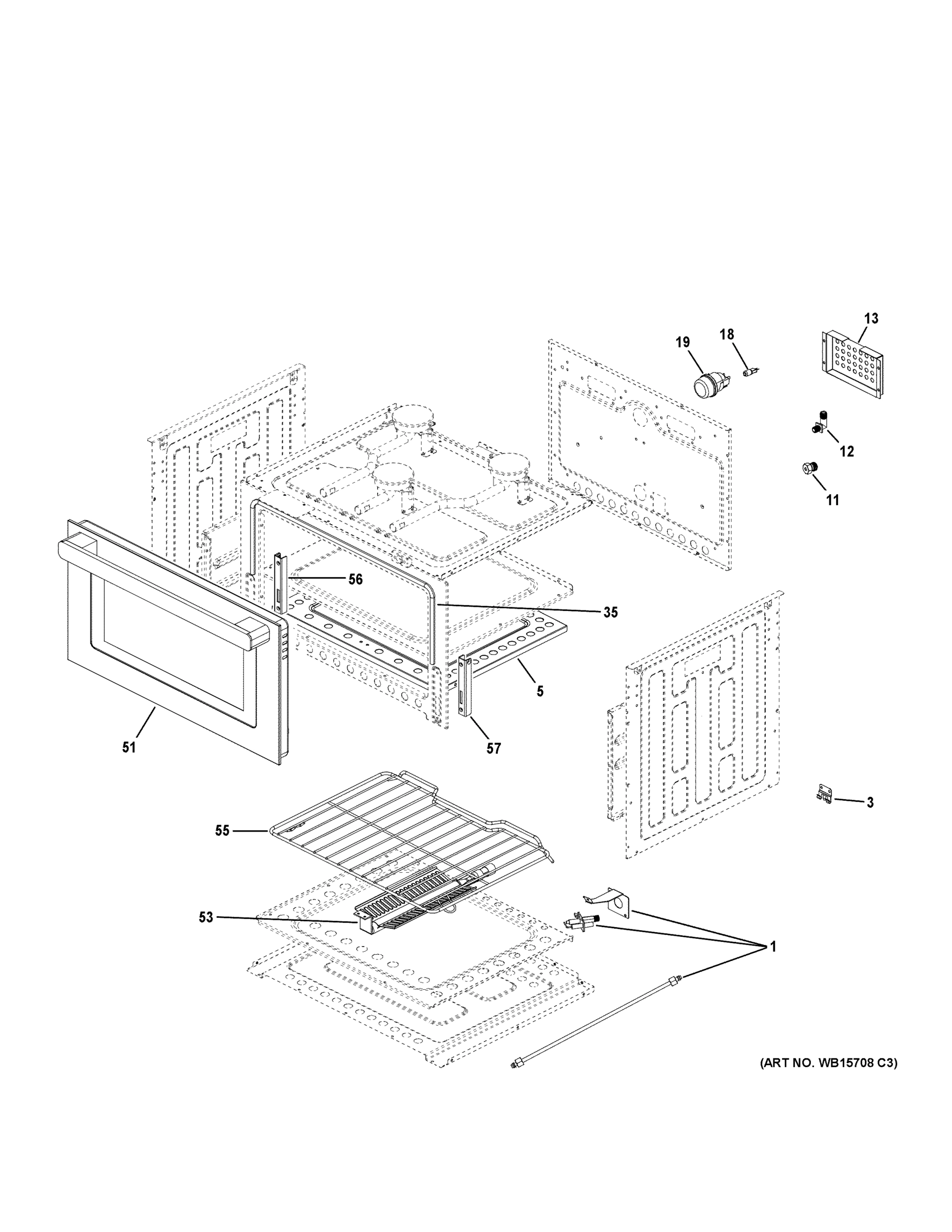

3
THERMOSTAT HOLDER
THERMOSTAT HOLDER GEN WB21X43607 Contact Us For Availability
View on Model
9
GRATE BUMPERS
GRATE BUMPERS GEN WB21X43610 Contact Us For Availability
View on Model
11
OVEN NOZZLE
OVEN NOZZLE GEN WB21X43646 Contact Us For Availability
View on Model
12
ELBOW 90
ELBOW 90 GEN WB21X43647 Contact Us For Availability
View on Model
13
GAS TUBE PROTECTION PANEL
GAS TUBE PROTECTION PANEL GEN WB21X43627 Contact Us For Availability
View on Model
14
FRONT AND REAR BURNER ASM
FRONT AND REAR BURNER ASM GEN WB21X48707 Contact Us For Availability
View on Model
16
PULSE IGNITER
PULSE IGNITER GEN WB21X48708 Contact Us For Availability
View on Model
18
OVEN LAMP 12V
OVEN LAMP 12V GEN WB21X43633 Contact Us For Availability
View on Model
19
OVEN LAMP HOLDER ASM
OVEN LAMP HOLDER ASM GEN WB21X43630 Contact Us For Availability
View on Model

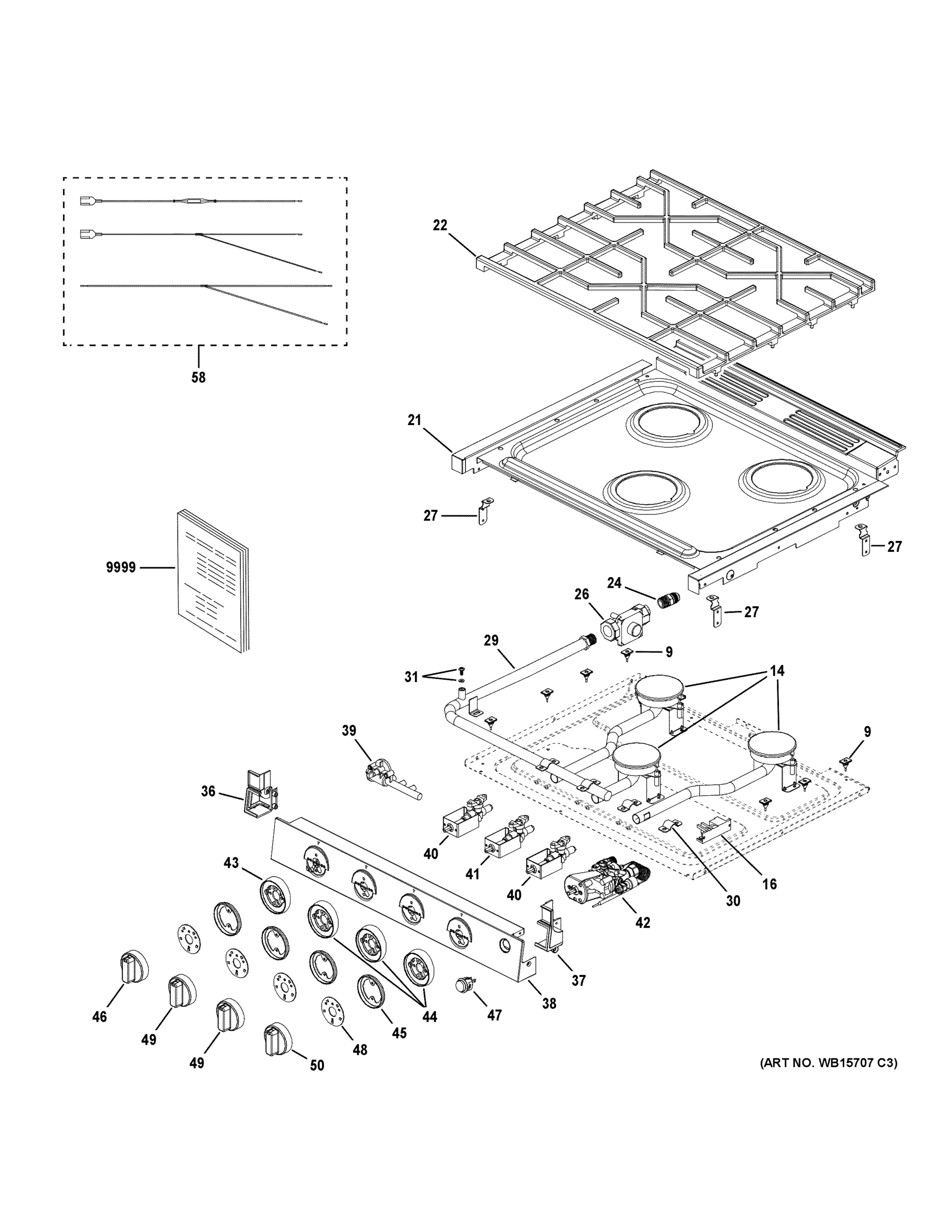

21
COOKTOP ASM 3 BURNERS
COOKTOP ASM 3 BURNERS GEN WB21X46186 Contact Us For Availability
View on Model
22
GRATE
GRATE GEN WB21X43628 Contact Us For Availability
View on Model
24
GAS ADAPTER
GAS ADAPTER GEN WB21X43643 Contact Us For Availability
View on Model
26
REGULATOR
REGULATOR GEN WB21X44333 Contact Us For Availability
View on Model
27
COOKTOP SUPPORT BRACKET
COOKTOP SUPPORT BRACKET GEN WB21X44332 Contact Us For Availability
View on Model
29
MANIFOLD PIPE
MANIFOLD PIPE GEN WB21X43644 Contact Us For Availability
View on Model
30
VALVE CLAMP
VALVE CLAMP GEN WB21X44326 Contact Us For Availability
View on Model
35
SEALING STRIP
SEALING STRIP GEN WB21X43648 Contact Us For Availability
View on Model
36
PLASTIC ENDCAP (LEFT)
PLASTIC ENDCAP (LEFT) GEN WB21X43638 Contact Us For Availability
View on Model
37
PLASTIC ENDCAP (RIGHT)
PLASTIC ENDCAP (RIGHT) GEN WB21X43639 Contact Us For Availability
View on Model
38
MANIFOLD
MANIFOLD GEN WB21X48706 Contact Us For Availability
View on Model
39
SPARK MODULE
SPARK MODULE GEN WB21X43631 Contact Us For Availability
View on Model
40
REAR BURNER KNOB VALVE
REAR BURNER KNOB VALVE GEN WB21X48710 Contact Us For Availability
View on Model
41
FRONT BURNER KNOB VALVE
FRONT BURNER KNOB VALVE GEN WB21X48709 Contact Us For Availability
View on Model
43
IGNITION KNOB BEZEL
IGNITION KNOB BEZEL GEN WB21X44330 Contact Us For Availability
View on Model
44
KNOB BEZEL
KNOB BEZEL GEN WB21X44328 Contact Us For Availability
View on Model
45
LIGHT GUIDES
LIGHT GUIDES GEN WB21X43634 Contact Us For Availability
View on Model
46
KNOB IGNITOR
KNOB IGNITOR GEN WB21X43636 Contact Us For Availability
View on Model
47
LIGHT SWITCH
LIGHT SWITCH GEN WB21X43632 Contact Us For Availability
View on Model
48
BACKLIGHT LED 12V
BACKLIGHT LED 12V GEN WB21X43649 Contact Us For Availability
View on Model
49
COOKTOP KNOB
COOKTOP KNOB GEN WB21X43637 Contact Us For Availability
View on Model
50
OVEN KNOB
OVEN KNOB GEN WB21X44329 Contact Us For Availability
View on Model
51
OVEN DOOR ASM
OVEN DOOR ASM GEN WB21X43612 Contact Us For Availability
View on Model
53
BAKE BURNER TUBE
BAKE BURNER TUBE GEN WB21X43626 Contact Us For Availability
View on Model
55
OVEN RACK
OVEN RACK GEN WB21X43629 Contact Us For Availability
View on Model
56
BRACKET HINGE (LEFT)
BRACKET HINGE (LEFT) GEN WB21X43620 Contact Us For Availability
View on Model
57
BRACKET HINGE (RIGHT)
BRACKET HINGE (RIGHT) GEN WB21X43621 Contact Us For Availability
View on Model
58
HARNESS
HARNESS GEN WB21X44266 Contact Us For Availability
View on Model

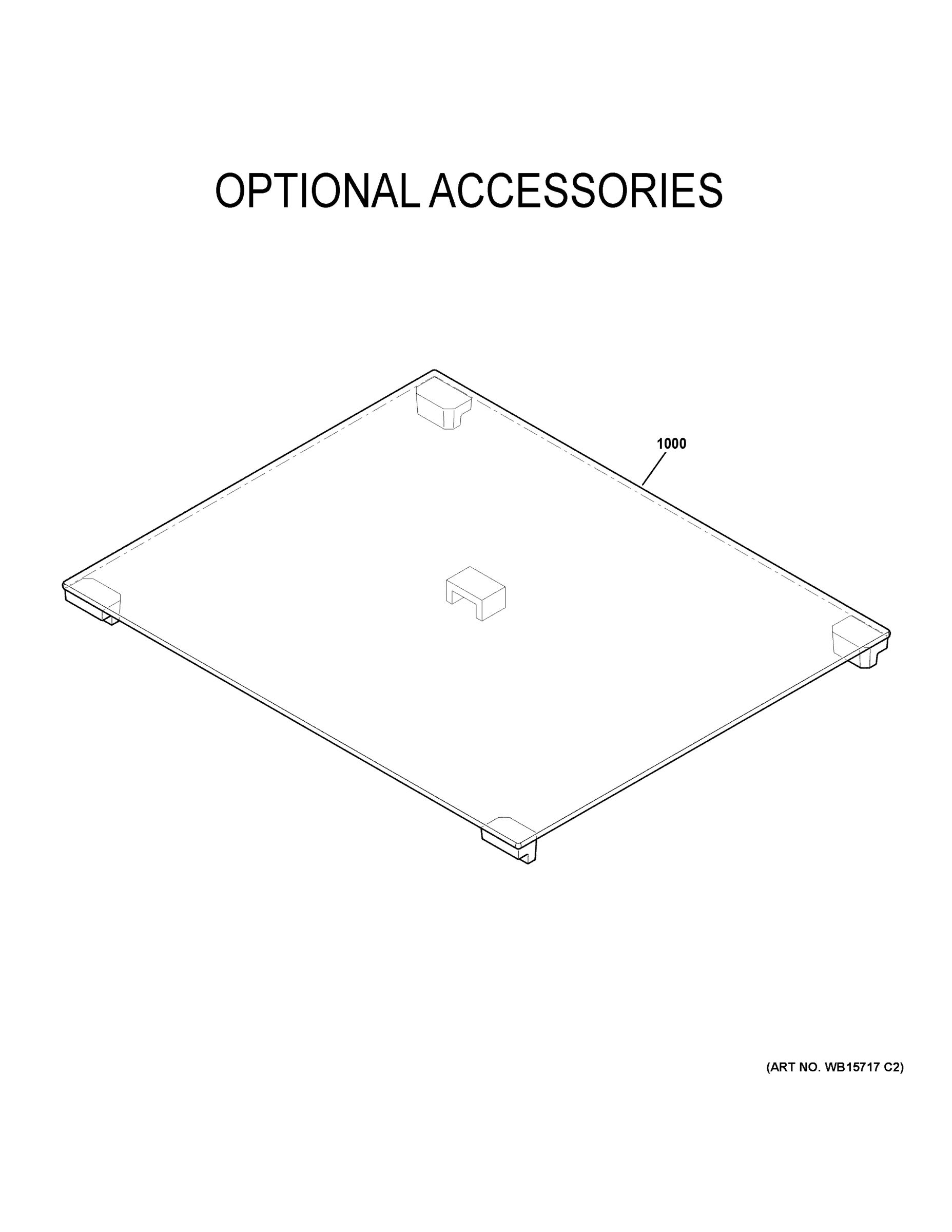

1000
21" RV Cooktop Cover
21" RV Cooktop Cover GEN JXCVR21T1 Contact Us For Availability
View on Model
9999
PM OWNERS AND INSTALL
PM OWNERS AND INSTALL GEN 492001047 Contact Us For Availability
View on Model
9999
PRINTED AND ONLINEOWNERS AND INSTALL
PRINTED AND ONLINEOWNERS AND INSTALL GEN 492001566 Contact Us For Availability
View on Model
