Model Electrolux PL36DD50EC RANGE HOOD – Common Parts & Diagrams

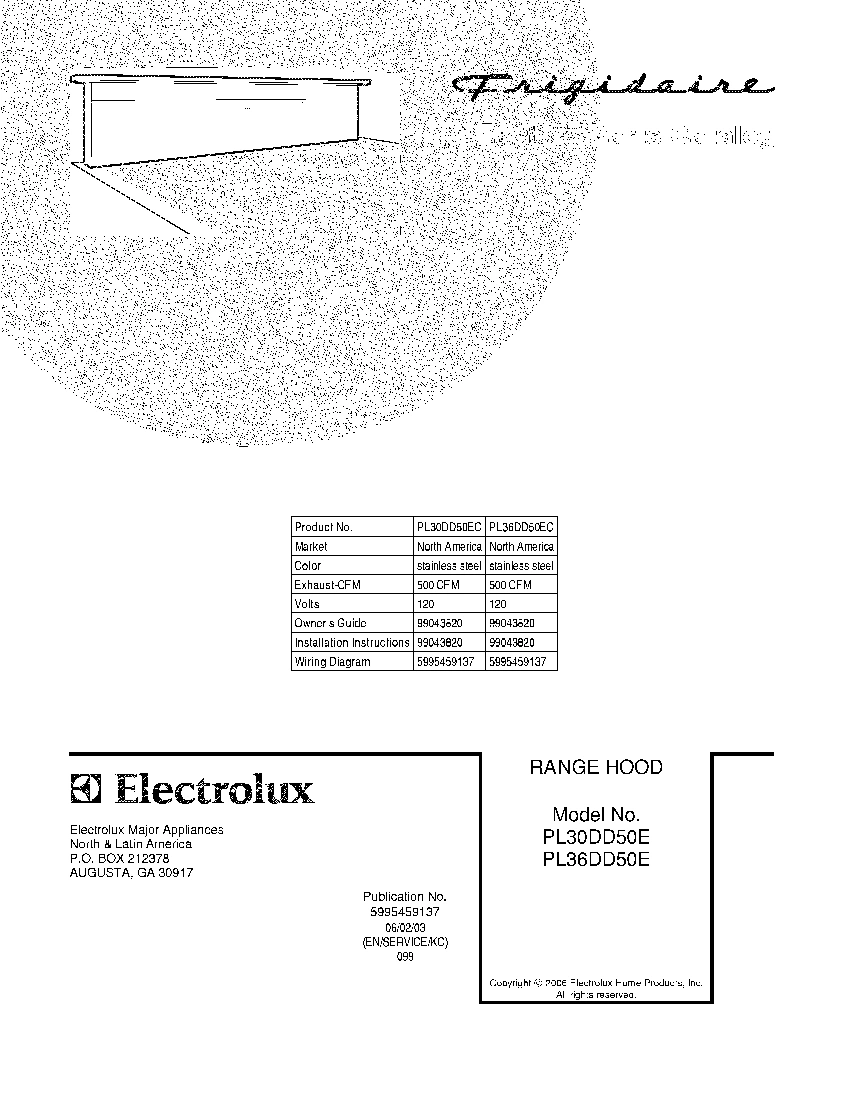

01 - COVER

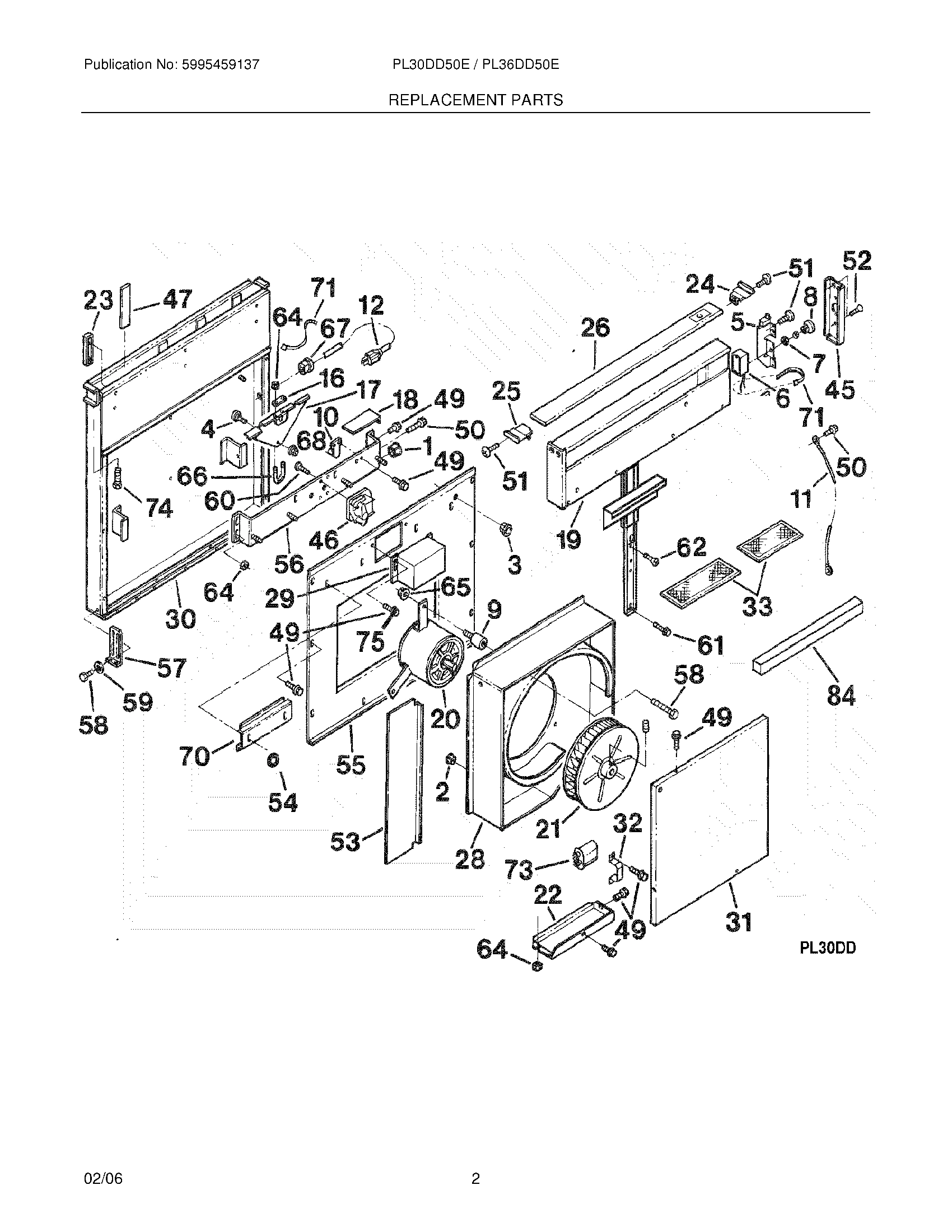

03 - REPLACEMENT PARTS

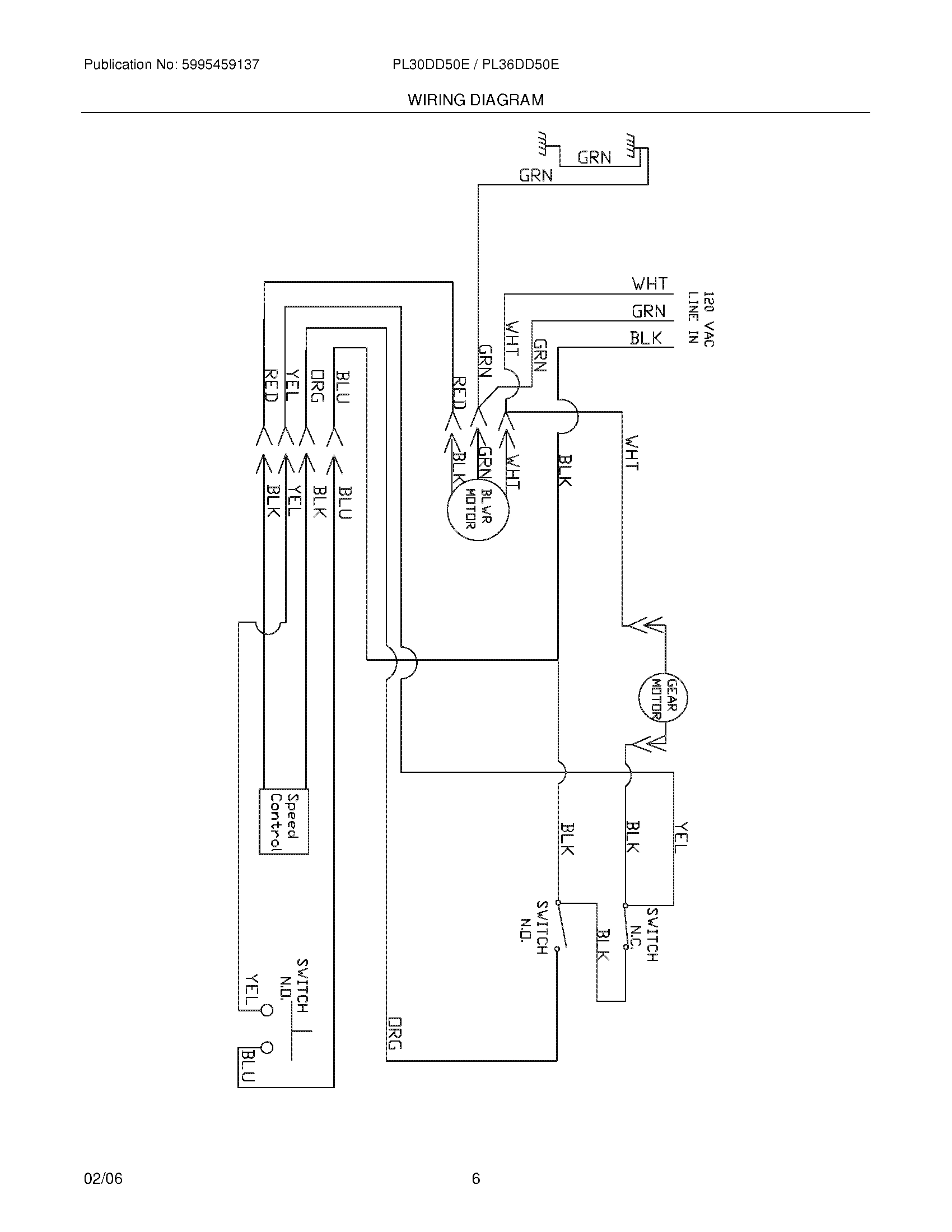

04 - WIRING DIAGRAM
Common parts from model Electrolux PL36DD50EC RANGE HOOD
5
Switch Assembly,vent up/down WCI 5303304159 Contact Us For Availability
6
Wiring Harness,speed control WCI 5303304160 Contact Us For Availability
7
WCI 5303303680 WCI 5303303680 Contact Us For Availability
8
Knob,control ,on/off/speed WCI 5303282102 Contact Us For Availability
9
Isolator,motor mount WCI 5303304055 Contact Us For Availability
10
Bracket,switch assembly ,lower WCI 5303282119 Contact Us For Availability
11
WCI 5304452621 WCI 5304452621 Contact Us For Availability
12
Wiring Harness,main WCI 5303304161 Contact Us For Availability
16
Plate,back-up WCI 5303282118 Contact Us For Availability
17
WCI 5303282116 WCI 5303282116 Contact Us For Availability
18
Cover,switch WCI 5303304164 Contact Us For Availability
19
Chimney Assy,36 inch ,w/slide WCI 5303304166 Contact Us For Availability
20
Motor,with capacitor WCI 5303304167 Contact Us For Availability
21
Blower Wheel,fan WCI 5303304168 Contact Us For Availability
22
Extension,scroll box WCI 5303304169 Contact Us For Availability
23
Spacer,air box WCI 5303282128 Contact Us For Availability
24
Bracket,top cover ,right side WCI 5303304170 Contact Us For Availability
25
Bracket,top cover ,left side WCI 5303304171 Contact Us For Availability
26
WCI 5304452717 WCI 5304452717 Contact Us For Availability
26
WCI 5304452719 WCI 5304452719 Contact Us For Availability
26
WCI 5304454056 WCI 5304454056 Contact Us For Availability
28
Scroll Box,blower housing WCI 5303304173 Contact Us For Availability
29
Cover,gear motor WCI 5303303934 Contact Us For Availability
30
Air Box,36 inch model WCI 5303304175 Contact Us For Availability
31
Cover,scroll box WCI 5303304176 Contact Us For Availability
32
Strap,capacitor mount WCI 5303304177 Contact Us For Availability
33
Filter,kit ,with 2 filters WCI 5303282109 Contact Us For Availability
45
WCI 5304454057 WCI 5304454057 Contact Us For Availability
46
WCI 5303282122 WCI 5303282122 Contact Us For Availability
47
Slide Strip,air box WCI 5303282129 Contact Us For Availability
49
WCI 5303281950 WCI 5303281950 Contact Us For Availability
50
WCI 5303282015 WCI 5303282015 Contact Us For Availability
52
Screw,8-18 x 0.500 WCI 5303282099 Contact Us For Availability
53
Cover,air box opening ,36`` unit WCI 5303304179 Contact Us For Availability
54
Nut,10-24 WCI 5303282107 Contact Us For Availability
55
Cover,air box ,36`` unit WCI 5303304180 Contact Us For Availability
56
Bracket,gearmotor mount WCI 5303304181 Contact Us For Availability
57
Bracket,leveling leg WCI 5303304182 Contact Us For Availability
58
Screw,1/4-20 x 0.312 WCI 5303282089 Contact Us For Availability
61
Screw,locking ,10-24 x 0.375 WCI 5303282097 Contact Us For Availability
62
Screw,10-24 x 0.375 WCI 5303282096 Contact Us For Availability
65
Nut,locking ,1/4-20 WCI 5303282085 Contact Us For Availability
66
Bolt,U type ,10-24 WCI 5303282115 Contact Us For Availability
67
WCI 5303282134 WCI 5303282134 Contact Us For Availability
68
Nut,hex flange ,5/16-18 WCI 5303282131 Contact Us For Availability
70
WCI 5304452650 WCI 5304452650 Contact Us For Availability
71
WIRE TIE WCI 5303282098 Contact Us For Availability
73
Capacitor,motor WCI 5303304184 Contact Us For Availability
74
WCI 5304452651 WCI 5304452651 Contact Us For Availability
75
WCI 5303282121 WCI 5303282121 Contact Us For Availability
84
WCI 5304450341 WCI 5304450341 Contact Us For Availability
× ![]()
