Model Whirlpool PKO191 GAS COOK-TOP – Common Parts &amp; Diagrams

1

SIDE TRIM RIGHT (BLACK) KO791 WPL 0042574 Contact Us For Availability

1

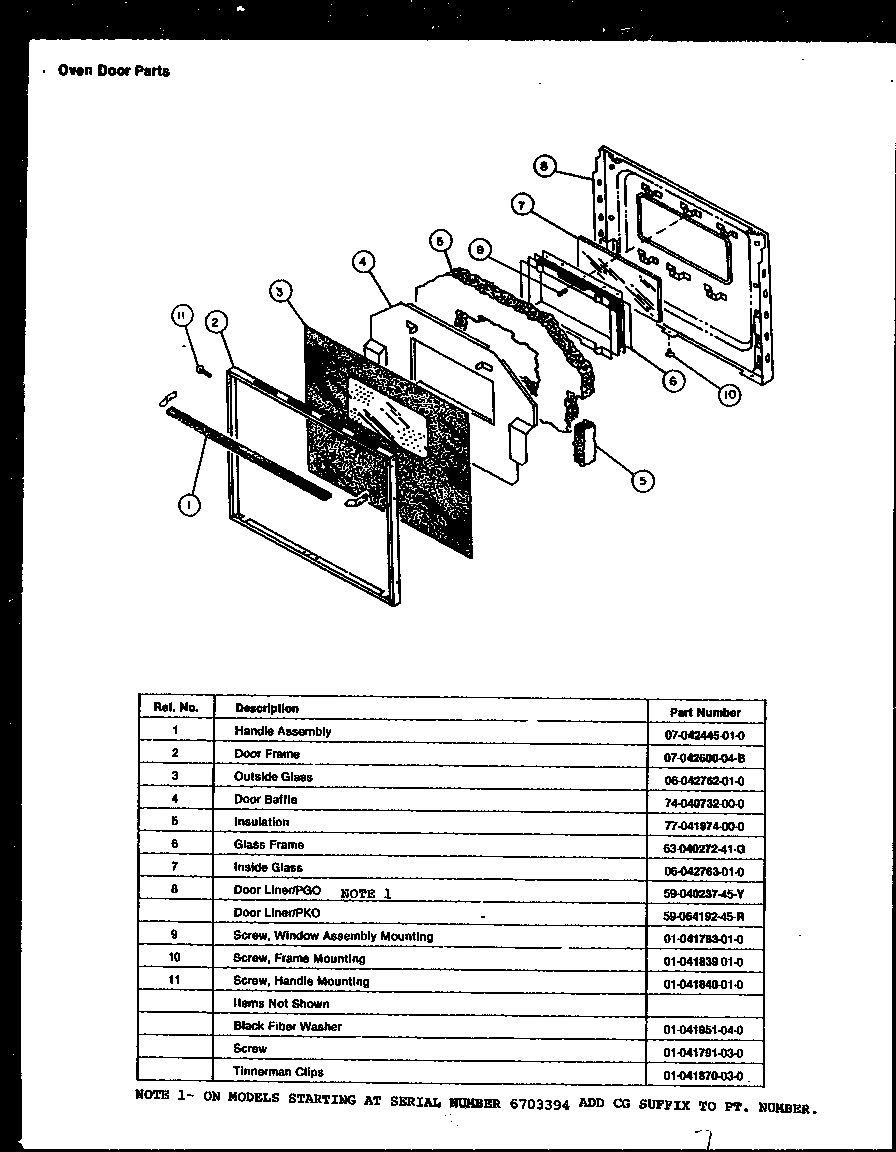

OVEN DOOR HANDLE WPL 0042445 Contact Us For Availability

1

REGULATOR WPL 0042303 Contact Us For Availability

1

BRACKET, CLOCK MTG. WPL Y0053153 Contact Us For Availability

2

SIDE TRIM LEFT (BLACK) KO791 WPL Y0042587 Contact Us For Availability

2

DOOR FRAME WPL Y0042600 Contact Us For Availability

2

BRACKET, REG. MTG. WPL 0053180 Contact Us For Availability

2

SUB 11161CG, BROILER PAN WPL Y0011161 Contact Us For Availability

2

MTG. BRACKET WPL 0053158 Contact Us For Availability

3

DARK OVEN DR GLASS 30`` TH&MH WPL Y0042762 Contact Us For Availability

3

PIPE BUSHING WPL 0053181 Contact Us For Availability

3

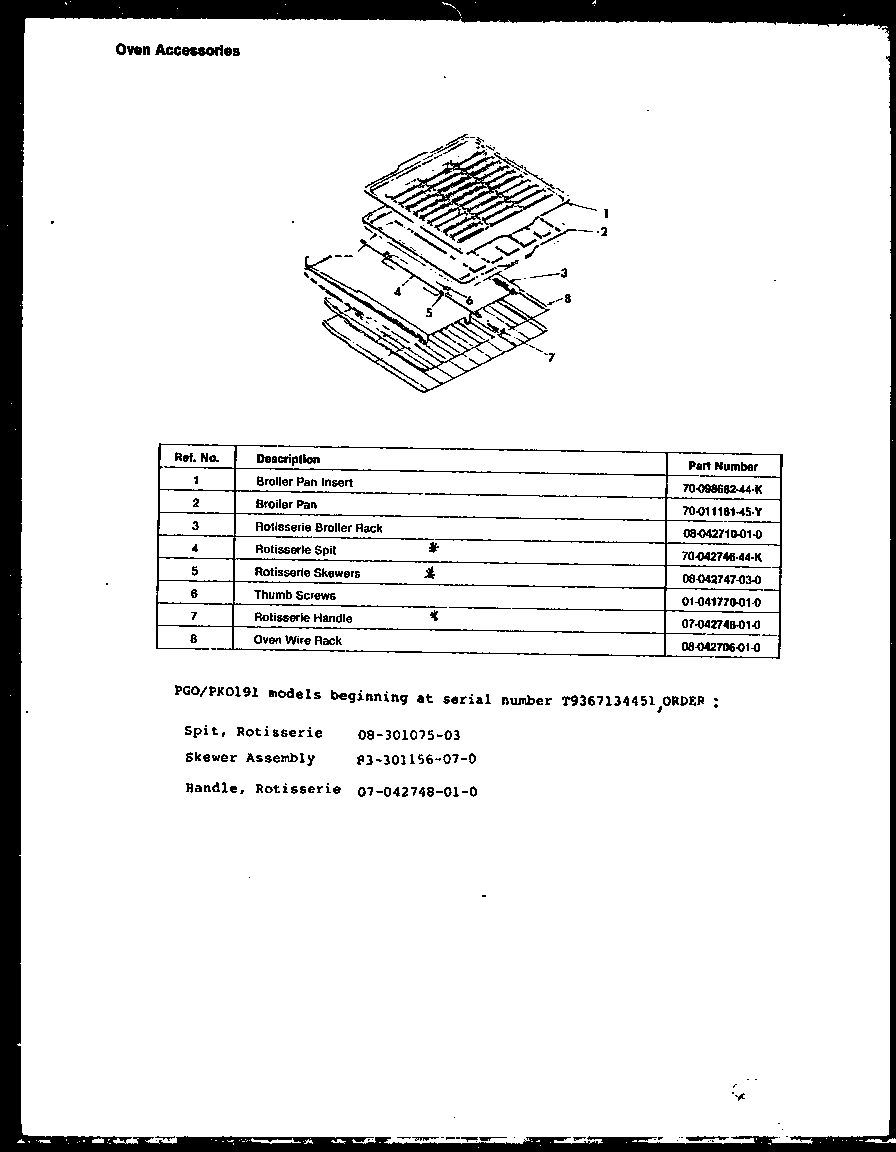

RACK WPL 0042710 Contact Us For Availability

3

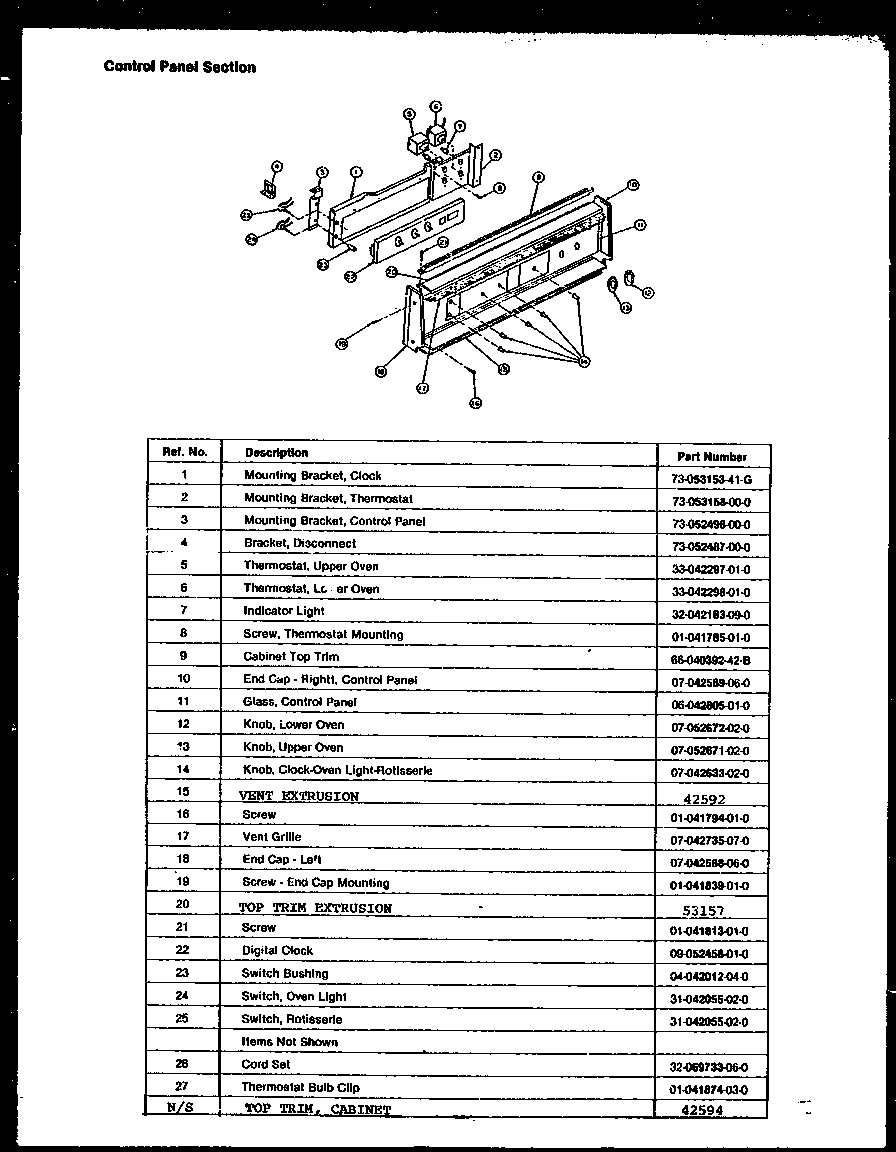

BRACKET, CONTROL PANEL MTG. WPL Y0052496 Contact Us For Availability

4

MAIN FRONT HEAT SHIELD WPL Y0040713 Contact Us For Availability

4

DOOR BAFFLE WALL OVEN WPL Y0040732 Contact Us For Availability

4

VALVE, SHUT-OFF WPL Y0062749 Contact Us For Availability

4

ROTISSERIE SPIT WPL 0042746 Contact Us For Availability

4

BRACKET, DISCONNECT WPL W10125014 Contact Us For Availability

5

HINGE SHIELD LT GO&EO DOUBLE WPL 0040685 Contact Us For Availability

5

SUB 41966 INSULATION 2X20X65 WPL Y0041974 Contact Us For Availability

5

VALVE, ELECTRIC GAS WPL 0053012 Contact Us For Availability

5

SKEWER WPL 0042747 Contact Us For Availability

5

THERMOSTAT WPL 0042297 Contact Us For Availability

6

HINGE SHIELD RT GO&EO DOUBLE WPL 0040678 Contact Us For Availability

6

WINDOW FRAME 30`` TH DK GL. WPL Y0040272 Contact Us For Availability

6

LOXIT 3/8`` WPL Y0045840 Contact Us For Availability

6

SCREW 1/4 20X1/2 THUMB WPL 0041770 Contact Us For Availability

6

T-STAT 5C-1M-2.5M WPL 0042298 Contact Us For Availability

7

BULB, LIGHT WPL Y0042175 Contact Us For Availability

7

GLASS, DOOR INSIDE WO TH MH WPL 0042763 Contact Us For Availability

7

TUBING, VALVE CONNECTOR WPL 0053183 Contact Us For Availability

7

ROTISSERIE HANDLE WPL 0042748 Contact Us For Availability

7

INDICATOR LIGHT WPL Y0042183 Contact Us For Availability

8

SUB 90264,KIT LIGHT SOCKET WPL 0073028 Contact Us For Availability

8

SUB 40237CG, DOOR BACKER WPL Y0064192 Contact Us For Availability

8

VALVE, GAS WPL Y0063143 Contact Us For Availability

8

OVEN WIRE RACK EO&GO WPL 0042706 Contact Us For Availability

8

SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability

9

HEAT SHIELD, BOTTOM AIR CHANNE WPL W10125640 Contact Us For Availability

9

SCREW, No.10 X 3/8`` WPL Y0041783 Contact Us For Availability

9

BRACKET, GAS VALVE WPL 0053182 Contact Us For Availability

9

CABINET TRIM CO-450, 480, 490 WPL Y0040392 Contact Us For Availability

10

WP488130 Whirlpool Air Conditioner Nut Backorder WPL WP488130 $3.14

10

OVEN DOOR SEAL EO & GO WPL 0042398 Contact Us For Availability

10

CONTROL PANEL END CAP LT. BL. WPL 0042589 Contact Us For Availability

DOOR SEAL CLIPS WPL 0041876 Contact Us For Availability

SCREW 8-32X.375 DK GL DR HDL WPL 0041840 Contact Us For Availability

HOOD & TUBE, LOWER BAKE WPL 0053185 Contact Us For Availability

CONTROL PANEL GLASS KO791 WPL 0042805 Contact Us For Availability

12

MITCHELL DOOR HINGE WPL Y0041911 Contact Us For Availability

12

HOOD & TUBE, UPPER BAKE WPL 0053186 Contact Us For Availability

12

KNOB, T-STAT, LOWER WPL 0052672 Contact Us For Availability

13

SCREW HEX HD 10-32X5/16 WPL 0041805 Contact Us For Availability

13

TUBING, BROIL WPL 0053184 Contact Us For Availability

13

KNOB, T-STAT, UPPER WPL 0052671 Contact Us For Availability

14

COVER, INSULATION WPL 0053166 Contact Us For Availability

14

BROIL ORIFICE WPL 0053187 Contact Us For Availability

14

KNOB, CLOCK W/O SPRING WPL Y0042633 Contact Us For Availability

15

BASE, CABINET WPL Y0052515 Contact Us For Availability

15

PAL NUT ORIFICE FITTINGS WPL Y0041852 Contact Us For Availability

15

VENT EXTRUSION BOTTOM KO851 WPL 0042592 Contact Us For Availability

16

WPY706189 Whirlpool Stove Screw In Stock WPL WPY706189 $2.51

16

LOWER DOOR TRIM KO491 WPL 0040388 Contact Us For Availability

16

IGNITOR BRACKET WPL 0052469 Contact Us For Availability

17

CABINET BASE EXTENSION GO491 WPL Y0040283 Contact Us For Availability

17

VENT GRILL QKO-491 WPL 0042735 Contact Us For Availability

18

SUB 64197, OVEN BOTTOM WPL 0053171 Contact Us For Availability

18

CONTROL PANEL END CAP RT. BL. WPL 0042588 Contact Us For Availability

19

786324 Whirlpool Flat Igniter In Stock WPL 786324 $36.07

19

BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability

20

CABINET SIDE GO&EO DOUBLE-JAP WPL 0040301 Contact Us For Availability

20

BRACKET, IGNITER MOUNTING WPL Y0063757 Contact Us For Availability

20

TOP TRIM EXTRUSION WPL 53157 Contact Us For Availability

21

INSULATION WRAP 2X20X98 WPL Y0041117 Contact Us For Availability

21

BURNER, OVEN WPL Y0052493 Contact Us For Availability

21

SCREW CABINET TRIM WPL Y0041813 Contact Us For Availability

22

LOW FLUE INSUL COVER BOTT 491 WPL Y0040694 Contact Us For Availability

22

SHIELD, BROILER IGNITOR WPL Y0053169 Contact Us For Availability

22

DIGITAL CLOCK WPL 0052458 Contact Us For Availability

LOW DUCT, TOP WPL 0053147 Contact Us For Availability

LOW DUCT BOTTOM WPL Y0053148 Contact Us For Availability

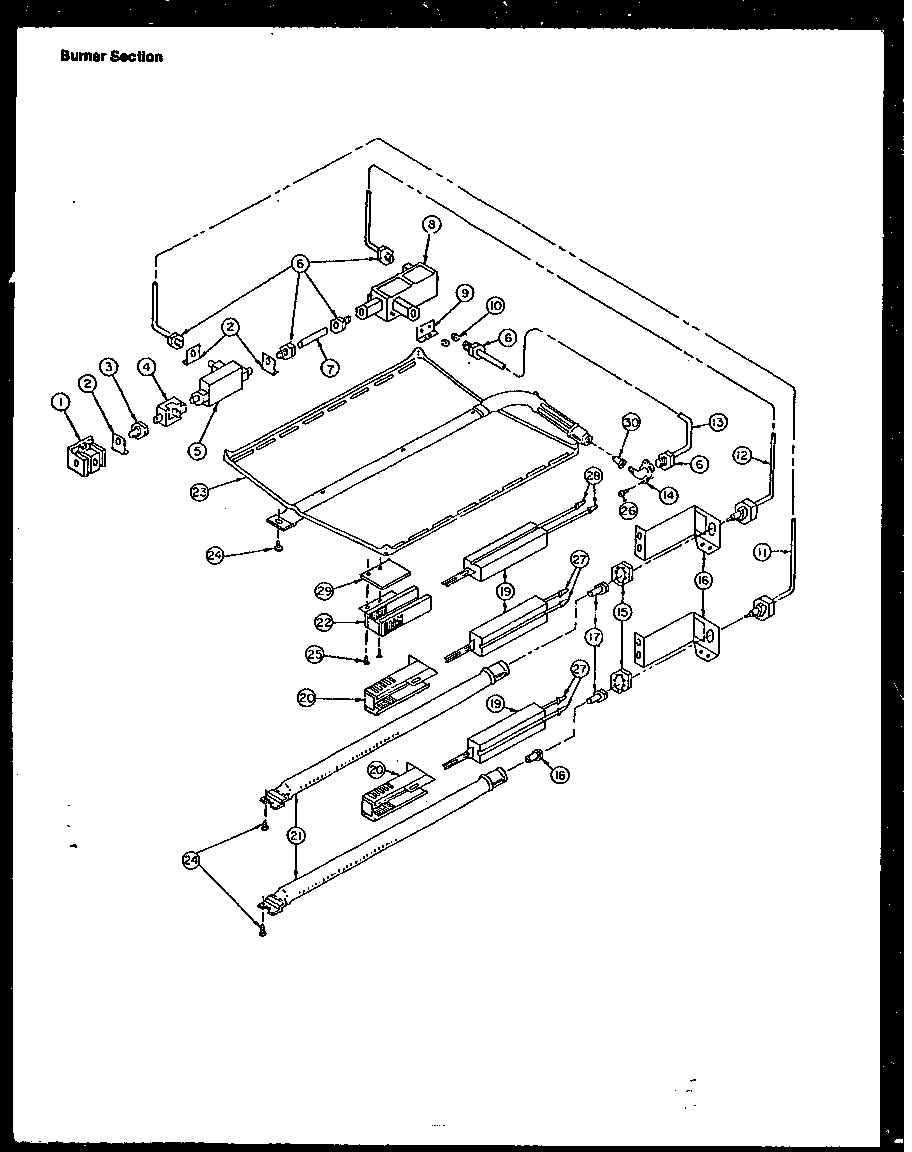

BROIL BURNER ASSY. WPL 0053162 Contact Us For Availability

SWITCH BUSHING ,METAL WPL Y0042012 Contact Us For Availability

24

WP90767 Whirlpool Screw In Stock WPL WP90767 $2.51

24

LOW FLUE INSUL COVER TOP 491 WPL 0040695 Contact Us For Availability

25

FLUE BOX WPL Y0040576 Contact Us For Availability

25

SWITCH, OVEN LIGHT WPL Y0042055 Contact Us For Availability

26

FLUE BOX COVER BOTTOM DKO493 WPL 0040718 Contact Us For Availability

27

COVER FLUE BOX TOP WPL 0053150 Contact Us For Availability

27

CONNECTOR, WIRE WPL Y0072808 Contact Us For Availability

28

TOP HEAT SHIELD SUFFIX V WPL Y0095751 Contact Us For Availability

28

WIRE CONNECTOR WPL Y0065084 Contact Us For Availability

29

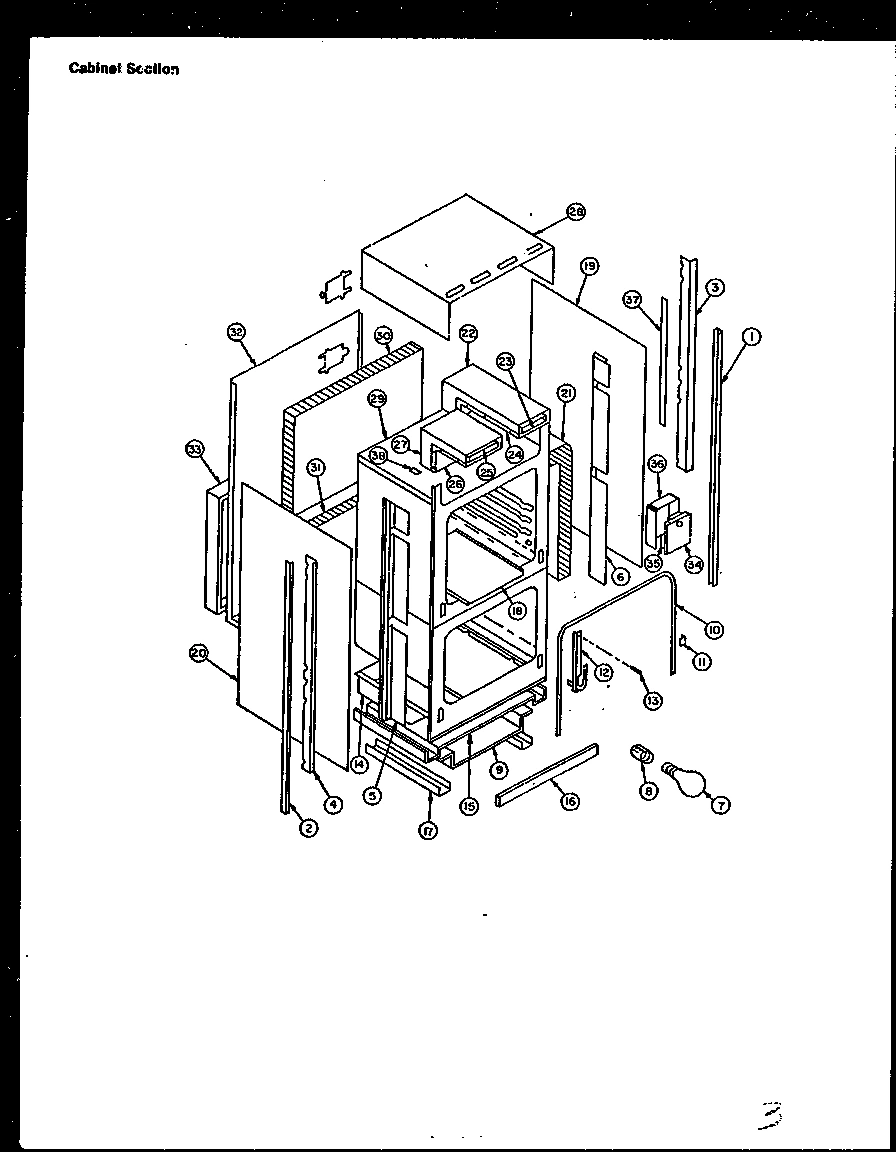

CABINET TOP EO & GO WPL Y0040284 Contact Us For Availability

29

SHIELD, BROIL DEFLECTOR WPL Y0053220 Contact Us For Availability

30

SEE NOTE HOOD WPL Y00000000 Contact Us For Availability

31

SUB 41966, INSULATION WPL Y0041099 Contact Us For Availability

32

CABINET BACK QKO491 WPL Y0040347 Contact Us For Availability

33

BACK AIR CHANNEL GO491 WPL 0040680 Contact Us For Availability

34

WP3400882 Whirlpool Screw In Stock WPL WP3400882 $2.64

34

PLATE, COVER WPL Y0040627 Contact Us For Availability

35

KIT, ROTISSERIE MOTOR WPL Y0042227 Contact Us For Availability

36

ROTISSERIE MOTOR COVER JAPAN WPL Y0040631 Contact Us For Availability

37

CAPILLARY COVER WPL W10125642 Contact Us For Availability

38

STRAIN RELIEF WPL Y1041877030 Contact Us For Availability

LIGHT BULB SHIELD W.O. WPL 0042715 Contact Us For Availability

INSULATION SHIELD WPL 0052468 Contact Us For Availability

FLAME SWITCH COVER WPL 75052454000 Contact Us For Availability

LOWER OVEN WPL W10124605 Contact Us For Availability

WPL Y0040873 WPL Y0040873 Contact Us For Availability

WPL Y0040880 WPL Y0040880 Contact Us For Availability

WPL Y0040886 WPL Y0040886 Contact Us For Availability

WPL Y0040887 WPL Y0040887 Contact Us For Availability

WPL Y0040900 WPL Y0040900 Contact Us For Availability

CABINET TOP TRIM WPL Y0042594 Contact Us For Availability

WPL Y0053145 WPL Y0053145 Contact Us For Availability

WPL Y0053146 WPL Y0053146 Contact Us For Availability

WPL Y0053149 WPL Y0053149 Contact Us For Availability

METL SCRW 10AX3/4 PH PAN HD BK WPL 0041791 Contact Us For Availability

BLACK FIBER WASHER WPL 0041951 Contact Us For Availability

TINNERMAN WPL Y0041870 Contact Us For Availability

THERM BULB CLIP WPL 0041874 Contact Us For Availability

CORD SUPPLY SET WPL 0069733 Contact Us For Availability
