Model Primus PJT30N Dryer – Common Parts & Diagrams

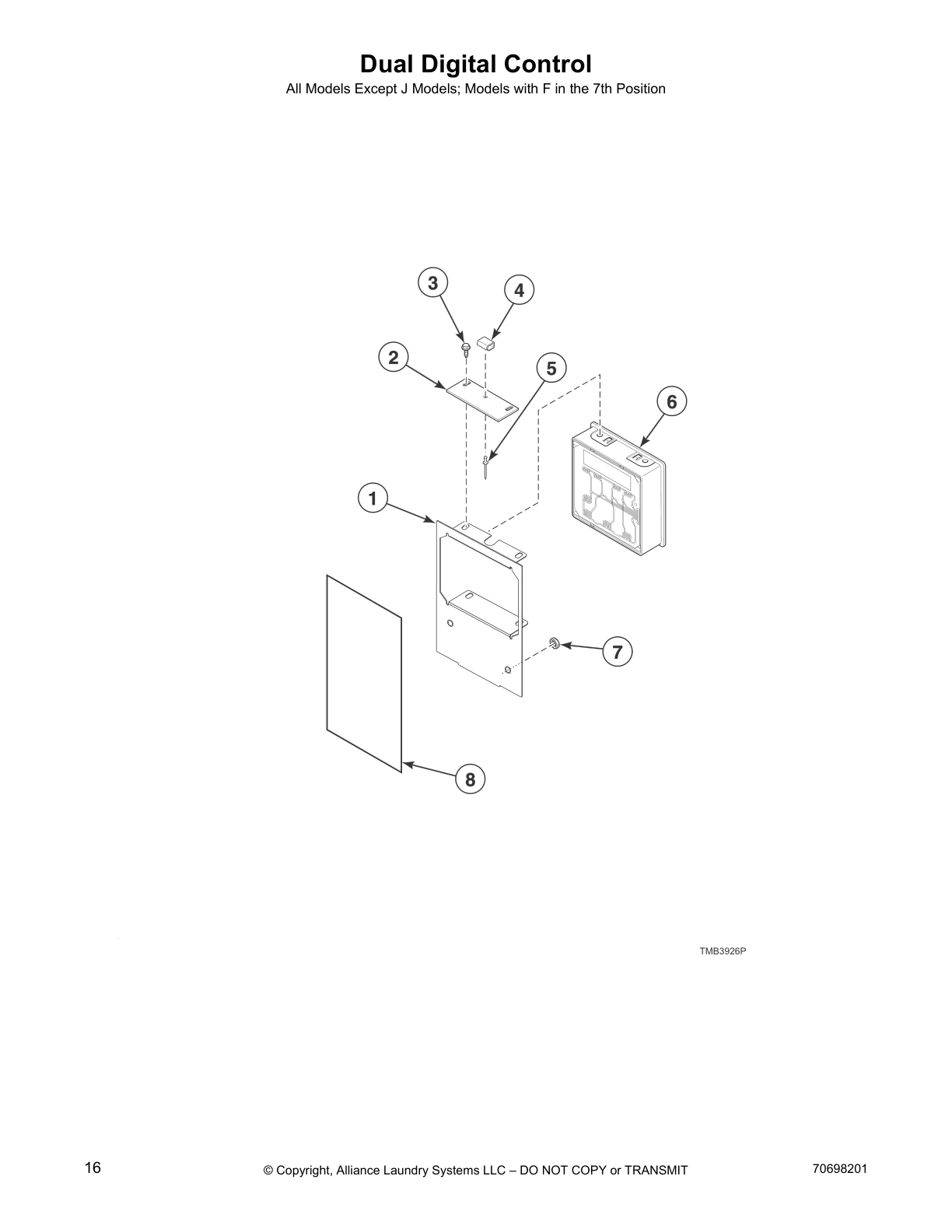

Dual Digital Control
Electronic Display Control -

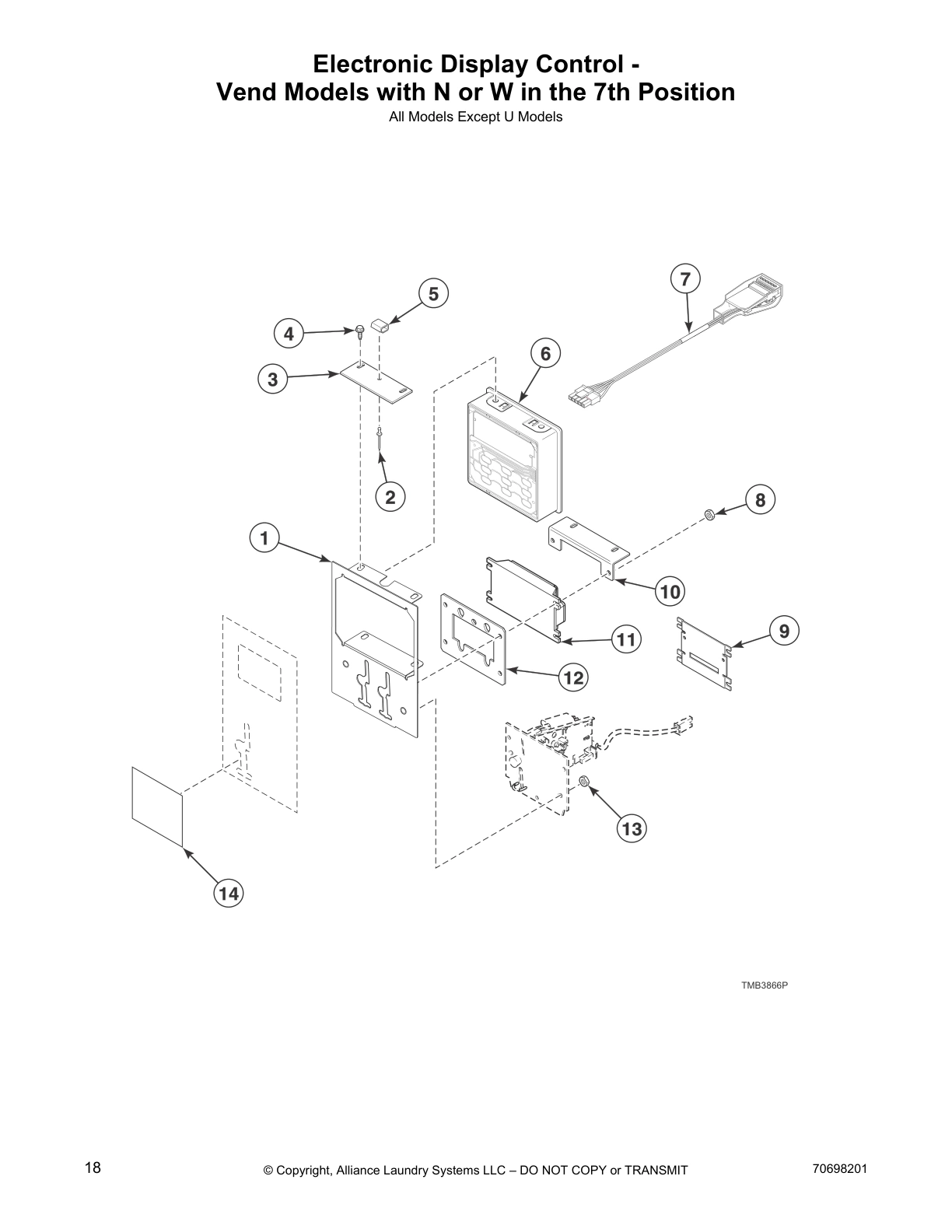

Vend Models with N or W in the 7th Position
Electronic Display Control - OPL Models with N in the 7th Position
3.5 Inch Graphical Control
Touch Control - Vend Models with V in the 7th Position
Touch Control - OPL Models with V in the 7th Position
Coin Drops
Coin Drop Kits
Network Board Components
Door Assemblies
Door Components
Hinge Components
Front Panel Assemblies
Cabinet Front Components
Emergency Stop Button - IEC OPL Models
Lint Drawer Components
Cylinder and Trunnion Components
Moisture Sensing Components
Bearing Components
Cabinet Components
Rear Panels
Drive Motor Components
Exhaust Components
Blower Components
Airflow Switch
Gas Burner Housing and Secondary Stove Limit
Gas Valve and Piping
Burner Orifices
Electric Heater Components
Control Tray - Gas Models
Control Tray - Electric Models (Drawing 1 of 2)
Control Tray - Electric Models (Drawing 2 of 2)
Common parts from model Primus PJT30N Dryer
Coin Drop SPQ 70513313 Contact Us For Availability
Wire Guard SPQ 70513311 Contact Us For Availability
SPQ 70513309 SPQ 70513309 Contact Us For Availability
SPQ 70513303 SPQ 70513303 Contact Us For Availability
SPQ 70482401 SPQ 70482401 Contact Us For Availability
SPQ 70447301 SPQ 70447301 Contact Us For Availability
SPQ 70294107 SPQ 70294107 Contact Us For Availability
SPQ 70281102 SPQ 70281102 Contact Us For Availability
SPQ 38475 SPQ 38475 Contact Us For Availability
SPQ 38464P SPQ 38464P Contact Us For Availability
SPQ 210195 SPQ 210195 Contact Us For Availability
Electronic Coin Drop Kit SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ CK108 SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
Wireless Control Label SPQ 204692 Contact Us For Availability
SPQ 44035002 SPQ 44035002 Contact Us For Availability
SPQ 70704103DG SPQ 70704103DG Contact Us For Availability
SPQ 70704102W SPQ 70704102W Contact Us For Availability
SPQ 70704102 SPQ 70704102 Contact Us For Availability
SPQ 70704101DG SPQ 70704101DG Contact Us For Availability
SPQ 70257201 SPQ 70257201 Contact Us For Availability
High Voltage Suppression Cable SPQ 70239801 Contact Us For Availability
SPQ 70684137 SPQ 70684137 Contact Us For Availability
1
Door Ring Gasket SPQ 70296801 Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Door Assembly SPQ 70597710LG Contact Us For Availability
1
Upper Front Panel Assembly SPQ 70704104W Contact Us For Availability
1
Cylinder and Trunnion Assembly SPQ 70443902 Contact Us For Availability
1
Nut SPQ M400035 Contact Us For Availability
1
Exhaust Pipe SPQ 44154301 Contact Us For Availability
1
Fan Motor SPQ 44354903 Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Igniter Cover SPQ 70159601 Contact Us For Availability
1
Tee SPQ F422208 Contact Us For Availability
1
Burner Orifice SPQ 70684142 Contact Us For Availability
1
Insulator SPQ M413862 Contact Us For Availability
2
Rear Cylinder Seal SPQ 70013701P Contact Us For Availability
2
Coin Drop Kit SPQ CK077 Contact Us For Availability
2
Wireless Network Control Assembly SPQ 807211 Contact Us For Availability
2
Front Panel Seal SPQ 70704104DG Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Screw SPQ 70070102 Contact Us For Availability
2
Slip Ring Holder SPQ 70455401 Contact Us For Availability
2
Sheet Metal Edge Gasket SPQ 70339601 Contact Us For Availability
2
Rear Guard SPQ 70616001 Contact Us For Availability
2
Duct Cover SPQ 70207501 Contact Us For Availability
2
Nut SPQ 70341001 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
3
Rear Cylinder Seal Support SPQ 70506402 Contact Us For Availability
3
Electronic Coin Drop Assembly SPQ 70513316 Contact Us For Availability
3
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Cylinder Guide Tool SPQ 70070101 Contact Us For Availability
3
Slip Ring Assembly SPQ 44222702 Contact Us For Availability
3
Bottom Guard SPQ 70633601 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
Plug SPQ 70167601 Contact Us For Availability
3
SPQ 70603001 SPQ 70603001 Contact Us For Availability
3
Nut SPQ 70333001 Contact Us For Availability
4
Door Glass SPQ M400784P Contact Us For Availability
4
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
4
Electronic Coin Drop Assembly SPQ 70513315 Contact Us For Availability
4
Hinge Cam Kit SPQ 70576101 Contact Us For Availability
4
Door Latch SPQ M401223 Contact Us For Availability
4
Lint Screen Assembly SPQ 70596102 Contact Us For Availability
4
Rear Cylinder Channel SPQ 70433002 Contact Us For Availability
4
Guard Bracket SPQ 70661701 Contact Us For Availability
4
Anti-Rattle Burner Assembly SPQ 70546701 Contact Us For Availability
4
Pipe SPQ 70262601 Contact Us For Availability
4
Ground Lug Connector SPQ 51783 Contact Us For Availability
5
Support Bearing SPQ 70448701 Contact Us For Availability
5
Pop Rivet SPQ 44088001 Contact Us For Availability
5
Door Glass Installation Tool SPQ M4221P4 Contact Us For Availability
5
Pin SPQ 44349101 Contact Us For Availability
5
Lower Front Panel Assembly SPQ 70704104 Contact Us For Availability
5
Pop Rivet SPQ 44166601 Contact Us For Availability
5
Blind Rivet SPQ F8245101 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Trunnion and Seal Kit SPQ 70391101 Contact Us For Availability
5
Rear Guard Bracket SPQ 70226701 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Gas Burner SPQ 70229801P Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
6
Nut SPQ M414215 Contact Us For Availability
6
Door Hinge Lug Assembly SPQ M4773P3 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Magnet SPQ 70343101 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
6
SPQ M411283 SPQ M411283 Contact Us For Availability
7
SPQ M4772P3 SPQ M4772P3 Contact Us For Availability
7
Door Handle SPQ 44007902P Contact Us For Availability
7
Control Bezel SPQ 70642001 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272402 Contact Us For Availability
7
Porcelain Touch-Up Paint SPQ 70066003 Contact Us For Availability
7
SPQ 70508301 SPQ 70508301 Contact Us For Availability
7
Expansion Clip SPQ 70633401 Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
SPQ M400985 SPQ M400985 Contact Us For Availability
7
SPQ F8449501 SPQ F8449501 Contact Us For Availability
8
SPQ M400003 SPQ M400003 Contact Us For Availability
8
SPQ 70071401 SPQ 70071401 Contact Us For Availability
8
Nut SPQ 70257102 Contact Us For Availability
8
SPQ 70663301W SPQ 70663301W Contact Us For Availability
8
O-Ring SPQ 44154508 Contact Us For Availability
9
SPQ M400661 SPQ M400661 Contact Us For Availability
9
SPQ 70407301 SPQ 70407301 Contact Us For Availability
9
Foam Gasket SPQ 44088801 Contact Us For Availability
9
Washer SPQ 70257101 Contact Us For Availability
9
SPQ M400022 SPQ M400022 Contact Us For Availability
9
SPQ F430144 SPQ F430144 Contact Us For Availability
9
Gasket SPQ 70340301 Contact Us For Availability
9
Spark Electrode SPQ 70654201 Contact Us For Availability
9
L.P. Conversion Kit SPQ 44154507 Contact Us For Availability
10
Screw SPQ 70442101 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44390902P Contact Us For Availability
10
Cylinder Assembly SPQ 70443901P Contact Us For Availability
10
Lever Arm and Belt Kit SPQ 70655102 Contact Us For Availability
10
Exhaust Duct Gaskets Assembly SPQ 70340401 Contact Us For Availability
10
Blower Inlet Cone SPQ 44354901 Contact Us For Availability
10
Screw SPQ 685837 Contact Us For Availability
11
Key SPQ 70155602 Contact Us For Availability
11
Screw SPQ 70436301 Contact Us For Availability
11
Pushbutton Switch SPQ 70413301 Contact Us For Availability
11
End Cap SPQ 70372502P Contact Us For Availability
11
Drive Motor SPQ 44355002 Contact Us For Availability
11
Screw SPQ M411072 Contact Us For Availability
11
Stove Back SPQ 70371501 Contact Us For Availability
11
Gas Valve Manifold SPQ 70659201 Contact Us For Availability
12
Cylinder Rib Assembly SPQ 70372501P Contact Us For Availability
12
Channel Base Assembly SPQ 70288201 Contact Us For Availability
12
Motor Pulley SPQ 44355001 Contact Us For Availability
12
Rear Stabilizer Bracket SPQ 70014101 Contact Us For Availability
12
Snap Bushing SPQ M411826 Contact Us For Availability
12
Screw SPQ 05161 Contact Us For Availability
13
Idler Wheel Assembly SPQ 70559101 Contact Us For Availability
13
Blower Inlet Plate SPQ 70200301 Contact Us For Availability
13
Thermostat Cover SPQ M414477 Contact Us For Availability
15
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
15
Washer SPQ 70340701 Contact Us For Availability
15
I/O Control Assembly SPQ 70671701 Contact Us For Availability
16
Roller Seal SPQ 70443601 Contact Us For Availability
17
Blower Assembly SPQ M400991 Contact Us For Availability
17
Screw SPQ F8206901 Contact Us For Availability
17
Nameplate SPQ 567887 Contact Us For Availability
17
Roller Shaft SPQ 70249501 Contact Us For Availability
17
Lever Arm and Bushing Assembly SPQ 44333202 Contact Us For Availability
18
Washer SPQ 70261401 Contact Us For Availability
19
Top Panel SPQ 70288801 Contact Us For Availability
20
SPQ 70050401P SPQ 70050401P Contact Us For Availability
21
SPQ 70653801 SPQ 70653801 Contact Us For Availability
21
Wire Clip SPQ 70603201 Contact Us For Availability
23
Expansion Clip SPQ 430642 Contact Us For Availability
23
Cylinder Shroud SPQ 70015711 Contact Us For Availability
24
Rear Cylinder Seal Support SPQ 70015712 Contact Us For Availability
27
Rear Cylinder Seal SPQ 70030401 Contact Us For Availability
28
Center Cylinder Seal SPQ 70339301 Contact Us For Availability
29
Side Panel SPQ 70339302 Contact Us For Availability
NI
Lower Front Panel Assembly SPQ 70173401P Contact Us For Availability
NI
SPQ 44239701 SPQ 44239701 Contact Us For Availability
NI
SPQ 70564803 SPQ 70564803 Contact Us For Availability
NI
SPQ 44035001 SPQ 44035001 Contact Us For Availability
NI
SPQ 44374701 SPQ 44374701 Contact Us For Availability
NI
Coin Drop Assembly SPQ 70513314 Contact Us For Availability
NI
Opto Coupler SPQ 70513312 Contact Us For Availability
NI
SPQ 70513310 SPQ 70513310 Contact Us For Availability
NI
SPQ 70513308 SPQ 70513308 Contact Us For Availability
NI
SPQ 70513304 SPQ 70513304 Contact Us For Availability
NI
SPQ 70513302 SPQ 70513302 Contact Us For Availability
NI
SPQ 70471601 SPQ 70471601 Contact Us For Availability
NI
SPQ 70283102 SPQ 70283102 Contact Us For Availability
NI
SPQ 39748 SPQ 39748 Contact Us For Availability
NI
SPQ 38519 SPQ 38519 Contact Us For Availability
NI
SPQ 38467 SPQ 38467 Contact Us For Availability
NI
SPQ 210196 SPQ 210196 Contact Us For Availability
NI
SPQ 201141 SPQ 201141 Contact Us For Availability
NI
Coin Drop Kit SPQ CK122 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ CK109 SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
Wireless Network Harness SPQ F8674007 Contact Us For Availability
NI
Wireless Network Kit SPQ 70609801 Contact Us For Availability
NI
USB IR Interface Kit SPQ 203346 Contact Us For Availability
NI
SPQ 70033502 SPQ 70033502 Contact Us For Availability
NI
Gasket SPQ 70704103W Contact Us For Availability
NI
SPQ 70704103 SPQ 70704103 Contact Us For Availability
NI
SPQ 70704102DG SPQ 70704102DG Contact Us For Availability
NI
SPQ 70704101W SPQ 70704101W Contact Us For Availability
NI
SPQ 70704101 SPQ 70704101 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ 44272401 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
Screw SPQ 70598101 Contact Us For Availability
NI
Drywall Screw Magnet Kit SPQ 70564804 Contact Us For Availability
NI
SPQ 70411301 SPQ 70411301 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
Expansion Clip SPQ 70633501 Contact Us For Availability
NI
Screw SPQ 70626201 Contact Us For Availability
NI
Gasket SPQ 70340801 Contact Us For Availability
NI
SPQ 70661201 SPQ 70661201 Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
Burner Grill SPQ 70188801 Contact Us For Availability
NI
Primary Air Adjustment Sleeve SPQ 431482 Contact Us For Availability
NI
Adapter SPQ 70551905 Contact Us For Availability
NI
SPQ 70131901 SPQ 70131901 Contact Us For Availability
NI
SPQ 70684139 SPQ 70684139 Contact Us For Availability
NI
SPQ 70684133 SPQ 70684133 Contact Us For Availability
NI
SPQ F8449502 SPQ F8449502 Contact Us For Availability
NI
SPQ 70696808 SPQ 70696808 Contact Us For Availability
NI
SPQ 70696804 SPQ 70696804 Contact Us For Availability
× ![]()
