Model Whirlpool PHO303UWW GAS COOK-TOP – Common Parts & Diagrams

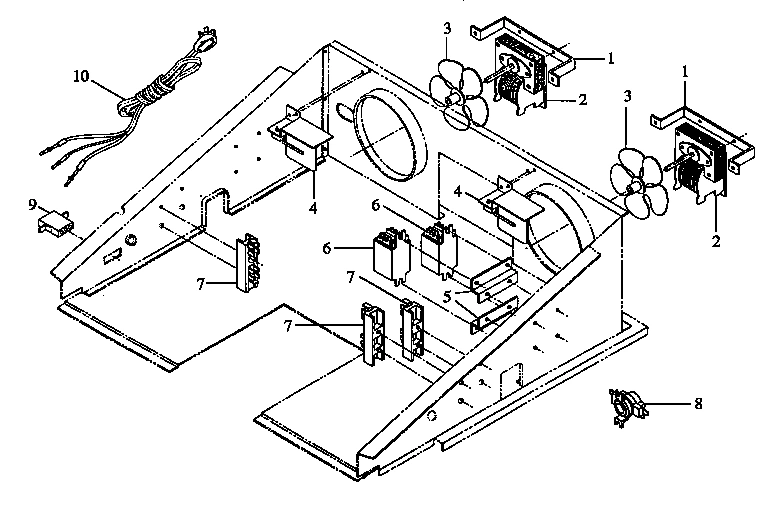

01 - CONTROL COMPARTMENT

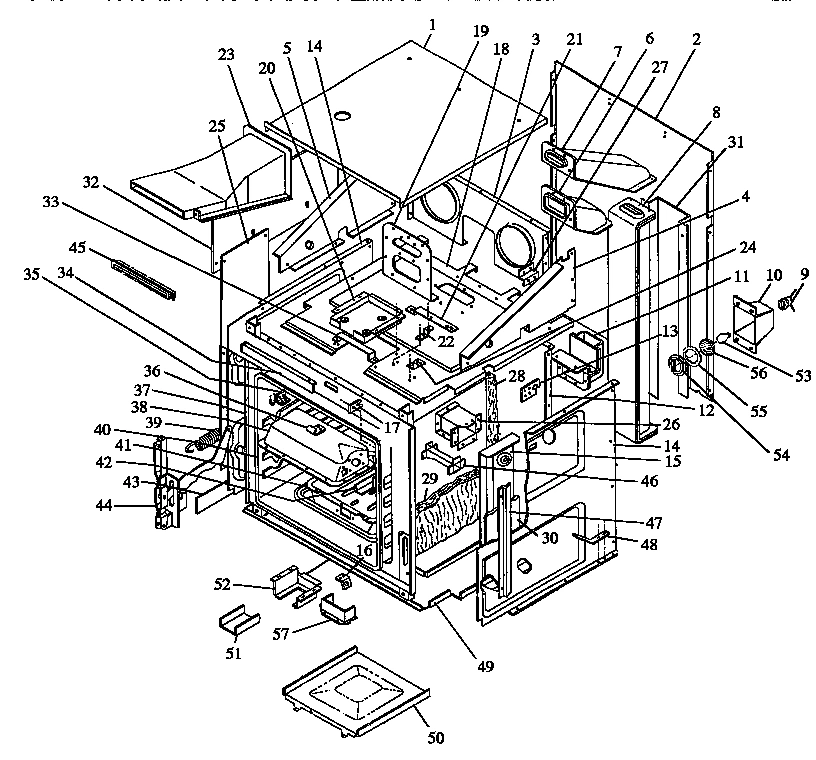

08 - UPPER CABINET

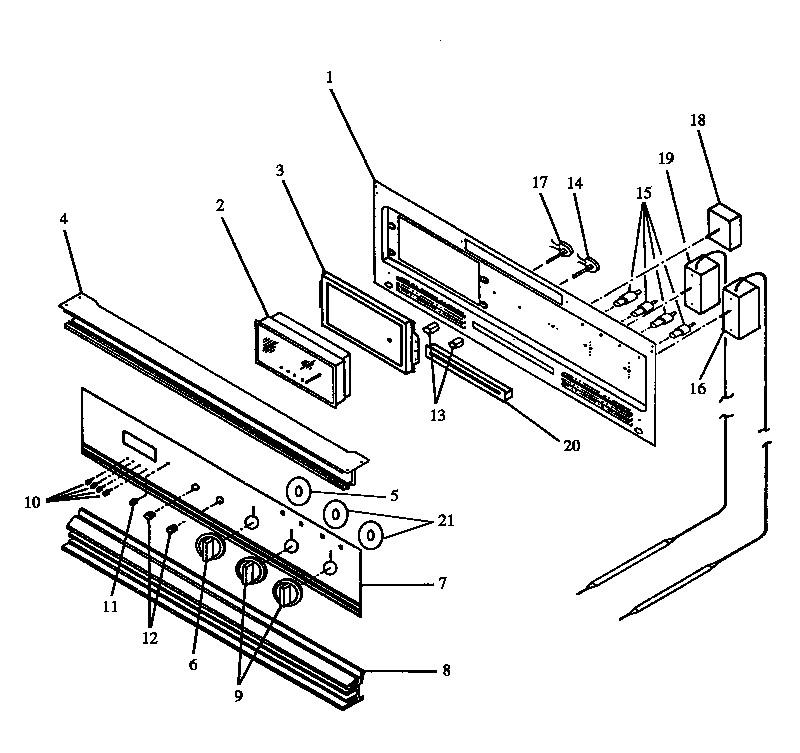

02 - CONTROL PANEL

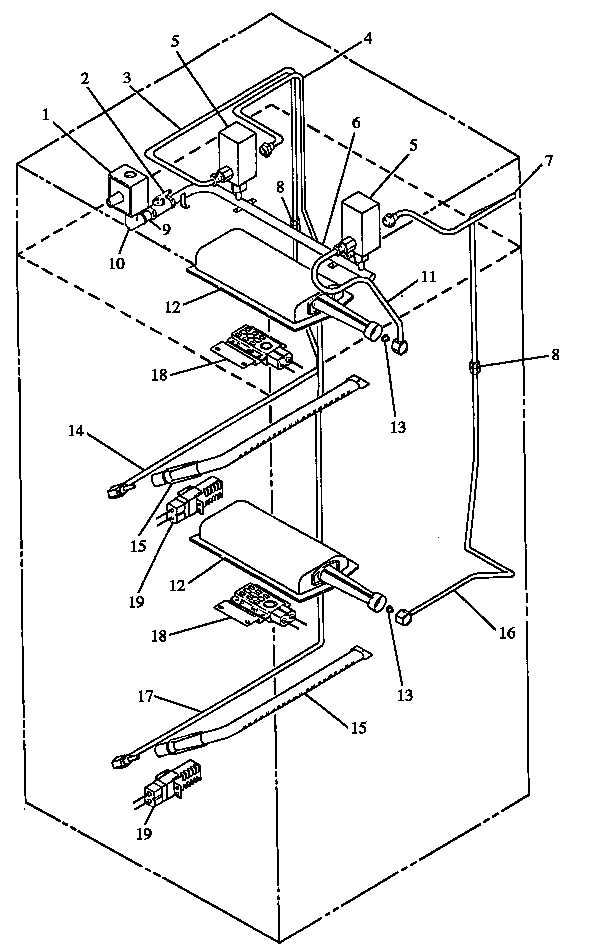

04 - GAS COMPONENTS

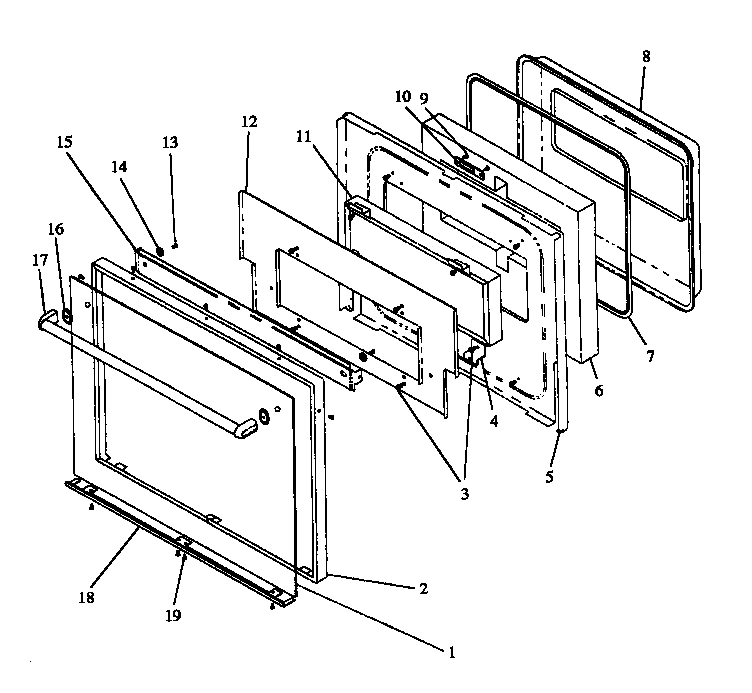

06 - OVEN DOOR

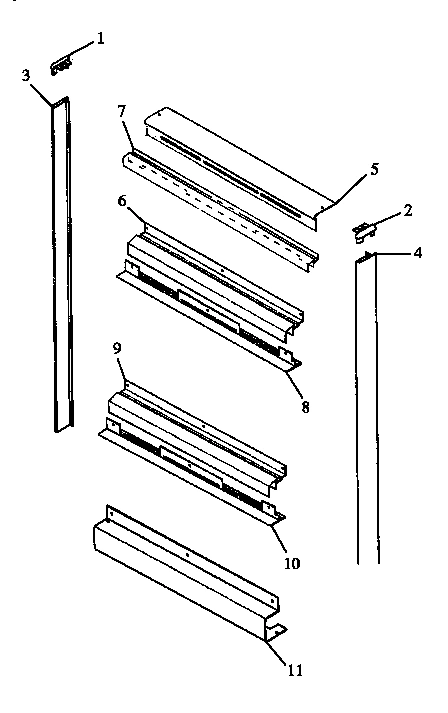

07 - TRIM

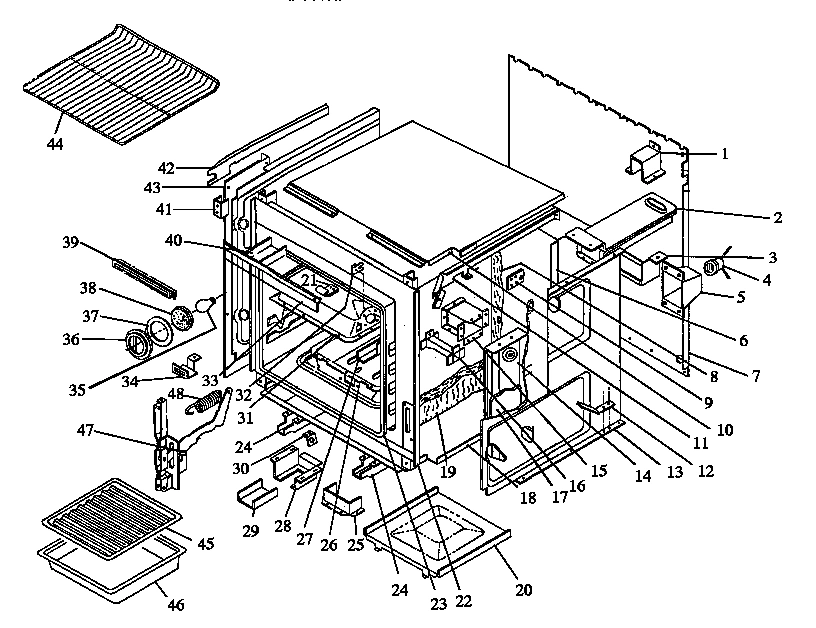

05 - LOWER CABINET

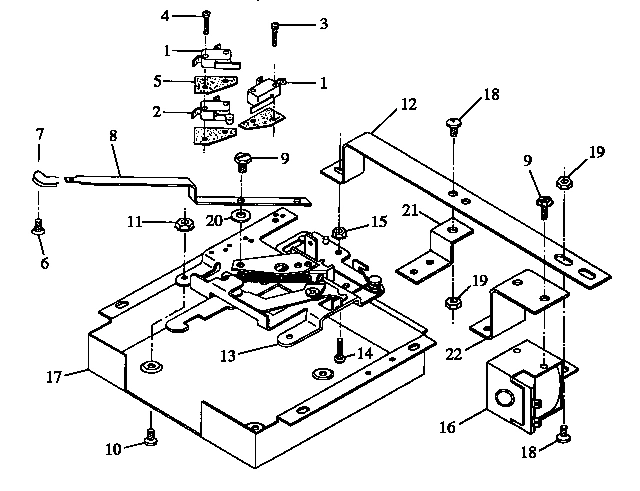

03 - DOOR LATCH ASSY
Common parts from model Whirlpool PHO303UWW GAS COOK-TOP
1
BRACKET-MOTOR MOUNT WPL Y0305242 Contact Us For Availability
1
PANEL, CABINET TOP WPL Y0060843 Contact Us For Availability
1
BRKT, CONT. PNL WPL 0309109 Contact Us For Availability
1
REGULATOR-5``/10`` SIDE INLET WPL Y0063684 Contact Us For Availability
1
GLASS, DOOR (WHT) WPL 307885W Contact Us For Availability
1
TRIM, CORNER-LT (K) WPL 307888K Contact Us For Availability
1
SUPPORT, REAR OVEN WPL Y0305717 Contact Us For Availability
1
SWITCH, CLEAN, PRIMARY INTERL WPL Y0042052 Contact Us For Availability
2
FAN MOTOR WPL Y0042226 Contact Us For Availability
2
CABINET BACK, UPPER WPL Y0059744 Contact Us For Availability
2
CLOCK, ELECTRONIC WPL Y0302106 Contact Us For Availability
2
VALVE, SHUT-OFF WPL Y0054809 Contact Us For Availability
2
FRAME, OVEN DOOR (WHT) WPL 307886W Contact Us For Availability
2
TRIM, CORNER-RT (WHT) WPL 307887W Contact Us For Availability
2
HORIZONTAL FLUE WPL 0060811 Contact Us For Availability
2
MAIN CONTACT SWITCH WPL 0042051 Contact Us For Availability
3
BLADE, FAN WPL Y0042754 Contact Us For Availability
3
PANEL, BACK CONTROL WPL Y0060841 Contact Us For Availability
3
BRACKET, CLOCK MOUNTING WPL 0302133 Contact Us For Availability
3
SCREW No.8-18X3/8 HEX HD. WPL 0305423 Contact Us For Availability
3
TUBING, GAS VALVE WPL 0304099 Contact Us For Availability
3
TRIM, SIDE LT (WHT) WPL 308980W Contact Us For Availability
3
RETAINER, INSUL. FLUE WPL 0060784 Contact Us For Availability
3
SCREW 4 X 40X.500 DYRO T (BLK) WPL Y0041826 Contact Us For Availability
4
SAIL SWITCH WPL 0066207 Contact Us For Availability
4
CONTROL COMPARTMENT R.H. WPL Y0305629 Contact Us For Availability
4
SUB 90264,KIT LIGHT SOCKET WPL 0073028 Contact Us For Availability
4
TUBING-LOWER UNION TO VALVE WPL 0304098 Contact Us For Availability
4
WINDOW MTG. BRKT. PK411 WPL Y0040955 Contact Us For Availability
4
TRIM, SIDE RT (WHT) WPL 308981W Contact Us For Availability
4
SCREW 4-40X15/16`` WPL Y0041821 Contact Us For Availability
5
CONTROL COMPARTMENT. L.H. WPL Y0305630 Contact Us For Availability
5
LAMP, CUP WPL 0060778 Contact Us For Availability
5
DISK, SELECTOR WPL 309189W Contact Us For Availability
5
VALVE, DUAL THERMAL-GAS WPL Y0060750 Contact Us For Availability
5
DOOR LINER, CHARCOAL GRAY WPL 303067CG Contact Us For Availability
5
TRIM, UPPER TOP (WHT) WPL 308982W Contact Us For Availability
5
INSULATION, ESM WPL Y0091523 Contact Us For Availability
6
RELAY WPL Y0054074 Contact Us For Availability
6
FLUE, UPPER OVEN WPL Y0060799 Contact Us For Availability
6
RETAINER, INSUL-REAR WPL Y0054079 Contact Us For Availability
6
KNOB, 1200 CONTROL (WHITE) WPL 307372W Contact Us For Availability
6
MANIFOLD ASSY. WPL Y0060751 Contact Us For Availability
6
INSULATION 2X20X72 WPL Y0041975 Contact Us For Availability
6
TRIM, LOWER TOP (WHT) WPL 308983W Contact Us For Availability
6
SCREW, No.6-32 X .250 PAN HD PH WPL Y0041785 Contact Us For Availability
7
TERM BLK EO&GO 1M-2.5M-5M-10M WPL Y0042191 Contact Us For Availability
7
FLUE, LOWER OVEN WPL Y0060805 Contact Us For Availability
7
TRIM, CONTROL PANEL-TOP (WHT) WPL 308159W Contact Us For Availability
7
GLASS, CONTROL PANEL WPL 309558W Contact Us For Availability
7
TUBING-LOWER UNION TO VALVE WPL Y0304097 Contact Us For Availability
7
GASKET, OVEN DR 82`` WPL Y0300432 Contact Us For Availability
7
BACK CABINET WPL Y0059743 Contact Us For Availability
7
KNOB, DOOR LATCH LT GRAY WPL Y0300044 Contact Us For Availability
8
SWITCH FAN SPDT WPL Y0042056 Contact Us For Availability
8
VERTICAL FLUE WPL Y0060808 Contact Us For Availability
8
SUB 41966, INSULATION WPL Y0041113 Contact Us For Availability
8
TRIM, CONTROL PANEL-BOT (WHT) WPL 308160W Contact Us For Availability
8
UNION 3/8 CC X 3/8 CC WPL 0062738 Contact Us For Availability
8
BACKER, OVEN DOOR (CG) WPL 40223CG Contact Us For Availability
8
LATCH ARM WPL 303039W Contact Us For Availability
9
MOLEX RECEPT WPL Y0042111 Contact Us For Availability
9
BRACKET, OVEN MOUNTING-PYRO WPL Y0041017 Contact Us For Availability
9
KNOB, CONTROL WPL 309340W Contact Us For Availability
9
NIPPLE-1/2``-PRESSURE REGULATOR WPL Y0097320 Contact Us For Availability
9
TRIM, UPPER CENTER (WHT) WPL 308979W Contact Us For Availability
9
SCREW 10-32 X.250 HEX WPL 0041774 Contact Us For Availability
10
SUPPLY CORD WPL Y0054865 Contact Us For Availability
10
BUTTON, SET W/CUSHION (WHT) WPL 307821W Contact Us For Availability
10
ELBOW, PIPE-1/2`` X 90 DEGREE WPL Y0097408 Contact Us For Availability
10
LATCH PLATE WPL Y0052039 Contact Us For Availability
10
TRIM, CENTER LOWER (WHT) WPL 308155W Contact Us For Availability
10
OVEN TOP, LOWER OVEN WPL Y0060837 Contact Us For Availability
11
VERTICAL FLUE, UPPER OVEN WPL Y0060802 Contact Us For Availability
11
TUBING-UPPER BROIL TO VALVE WPL Y0054839 Contact Us For Availability
11
WINDOW ASSY WPL 0041491 Contact Us For Availability
11
TRIM, BOTTOM WPL 308978W Contact Us For Availability
11
AIR CHANNEL, RT WPL 0060835 Contact Us For Availability
12
LEVER, SOLENOID WPL Y0060832 Contact Us For Availability
12
RETAINER, SPRING WPL Y0060759 Contact Us For Availability
12
KNOB, CLOCK-WHITE WPL 308225W Contact Us For Availability
12
BROIL BURNER ASSY WPL Y0054070 Contact Us For Availability
12
BAFFLE, INNER WPL Y0309286 Contact Us For Availability
13
RETAINER, SIDE INSUL WPL Y0060774 Contact Us For Availability
13
SWITCH BUSHING ,METAL WPL Y0042012 Contact Us For Availability
13
ORIFICE, No.59 LP WPL Y0060042 Contact Us For Availability
13
ORIFICE, No.52 NAT WPL Y0060043 Contact Us For Availability
13
SCREW, OVEN DOOR WPL 0098190 Contact Us For Availability
13
DOOR LATCH ASSY WO WPL Y0041909 Contact Us For Availability
14
VERTICAL, AIR DUCT WPL 0060819 Contact Us For Availability
14
BUSHING, HANDLE WPL Y0307893 Contact Us For Availability
14
SCREW 6 32X1 SLOTTED RN BRASS WPL 0041773 Contact Us For Availability
15
AIR DUCT WPL 0060822 Contact Us For Availability
15
LIGHT, INDICATOR WPL Y0308311 Contact Us For Availability
15
BURNER, BAKE (WALL OVEN) WPL Y0060775 Contact Us For Availability
15
BRACKET, HANDLE MTG. WPL 0307891 Contact Us For Availability
16
WIRE PROTECTOR WPL Y0060787 Contact Us For Availability
16
TUBING-LOWER BURNER TO UNION WPL Y0054837 Contact Us For Availability
16
SPACER, HANDLE (WHT) WPL 307892W Contact Us For Availability
16
SOLENOID EATON PYRO TH WO WPL Y0042049 Contact Us For Availability
17
BRACKET, DOOR LATCH WPL 0060840 Contact Us For Availability
17
INSULATION, VERTICAL FLUE WPL Y0054700 Contact Us For Availability
17
SWITCH, OVEN LIGHT WPL Y0308168 Contact Us For Availability
17
HOOD & TUBING UPPER BAKE WPL Y0054834 Contact Us For Availability
17
HANDLE, OVEN DOOR (WHT) WPL 307884W Contact Us For Availability
18
OVEN TOP, UPPER OVEN WPL Y0060829 Contact Us For Availability
18
SWITCH, SELECTOR WPL Y0309432 Contact Us For Availability
18
IGNITOR, BROIL WPL Y0309156 Contact Us For Availability
18
ANGLE, GLASS SUPPORT (WHT) WPL 305586W Contact Us For Availability
18
OVEN BOTTOM-LOWER WPL Y0059594 Contact Us For Availability
18
SHOULDER SCREW WPL Y0060923 Contact Us For Availability
19
BRACKET, FLUE SUPPORT WPL 0060824 Contact Us For Availability
19
INSULATION, 4``X20X80`` WPL Y0054296 Contact Us For Availability
19
THERMOSTAT WPL Y0304805 Contact Us For Availability
19
IGNITOR, BAKE WPL Y0309155 Contact Us For Availability
20
OVEN BOTTOM WPL Y0058626 Contact Us For Availability
20
WASHER, 9/16`` X 1/4`` WPL Y0041934 Contact Us For Availability
21
BRACKET, SOLENOID LEVER WPL Y0060831 Contact Us For Availability
21
DISC, THERMOSTAT WPL 309190T Contact Us For Availability
22
BRACKET, SOLENOID WPL Y0060830 Contact Us For Availability
22
SEE NOTE FRONT FRAME -- (NOT FIELD REPLACEABL WPL Y00000000 Contact Us For Availability
23
FLUEWAY, CONT PNL TOP WPL Y0060773 Contact Us For Availability
23
OVEN SHELL WPL Y0060796 Contact Us For Availability
24
RUNNER, BASE WPL Y0060849 Contact Us For Availability
25
RETAINER, INSULATION-ORIFICE WPL 0060823 Contact Us For Availability
26
KIT, LWR BURNER BOX WPL 0060847 Contact Us For Availability
27
MTG. BRACKET, RELAY WPL 0054085 Contact Us For Availability
27
SHIELD, THERMOSTAT BULB WPL Y0060752 Contact Us For Availability
28
SHIELD, BAKE ORIFICE WPL Y0060814 Contact Us For Availability
29
AIR CHANNEL, LOWER BAKE WPL Y0054275 Contact Us For Availability
30
BRACKET, BAKE ORIFICE WPL Y0060846 Contact Us For Availability
31
RETAINER, INSULATION WPL Y0054295 Contact Us For Availability
31
CHAMBER BROIL BURNER WPL Y0059415 Contact Us For Availability
32
CAPILLARY HOLE COVER WPL Y0063351 Contact Us For Availability
32
PANEL, CABINET SIDE WPL Y0060770 Contact Us For Availability
33
SHIELD, TERMINAL WPL 0060827 Contact Us For Availability
33
CHIP COVER PYRO WO WPL 0040405 Contact Us For Availability
34
MTG. BRACKET, OVEN BURNER WPL Y0060766 Contact Us For Availability
35
BRACKET, BROIL CHAMB. WPL 0060783 Contact Us For Availability
35
CONDUIT ASSY XRK324 WPL 0041275 Contact Us For Availability
36
COVER, CHIP WPL Y0307380 Contact Us For Availability
36
LENS RETAINER STAINLESS STEEL WPL 0040995 Contact Us For Availability
37
GASKET,OVEN LIGHT WPL Y0041987 Contact Us For Availability
38
LENS, OVEN LIGHT WPL 0052276 Contact Us For Availability
39
GUIDE, LATCH HANDLE WPL 0307826 Contact Us For Availability
40
OVEN SHELL WPL 60796CG Contact Us For Availability
40
AIR CHANNEL, UPPER BAKE WPL 0054274 Contact Us For Availability
41
SUPPORT, OVEN FRONT WPL Y0060838 Contact Us For Availability
42
AIR CHANNEL, LT WPL Y0060834 Contact Us For Availability
43
PANEL, SIDE WPL Y0052366 Contact Us For Availability
43
FRONT FRAME WPL Y0054779 Contact Us For Availability
44
RACK, OVEN WPL Y0042711 Contact Us For Availability
47
HINGE ASSY WPL Y0052095 Contact Us For Availability
47
COVER, CAPILLARY WPL 0053137 Contact Us For Availability
48
SPRING, OVEN DOOR-PYRO W/O WPL Y0042740 Contact Us For Availability
49
OVEN BOTTOM-UPPER WPL Y0059593 Contact Us For Availability
50
OVEN BOTTOM WPL 58626CG Contact Us For Availability
53
WPL Y0042175 WPL Y0042175 Contact Us For Availability
NI
GROMMET-FAN WPL Y0305243 Contact Us For Availability
NI
BLACK SCREW 8-18X.500 WPL 0041839 Contact Us For Availability
NI
CHANNEL, GLASS WPL 0302733 Contact Us For Availability
NI
SCREW 6-32X3/16 SLO COOK SW WPL Y0041778 Contact Us For Availability
NI
SCREW No.8X3/8 SQ. DRIVE WPL Y0041832 Contact Us For Availability
NI
TAPE, FOAM WPL 0043184 Contact Us For Availability
NI
LABEL,CLEANING INSTR. WPL 0300584 Contact Us For Availability
NI
INTERNAL LOCK WASHER No.10 WPL Y0041947 Contact Us For Availability
NI
INSULATION, VERTICAL FLUE WPL Y0054299 Contact Us For Availability
NI
INSULATION, HORIZON. FLUE WPL Y0054705 Contact Us For Availability
× ![]()
Login and Registration Form
