Model Primus PGT30E Dryer – Common Parts & Diagrams
Touch Control - Vend Models with V in the 7th Position
Touch Control - OPL Models with V in the 7th Position

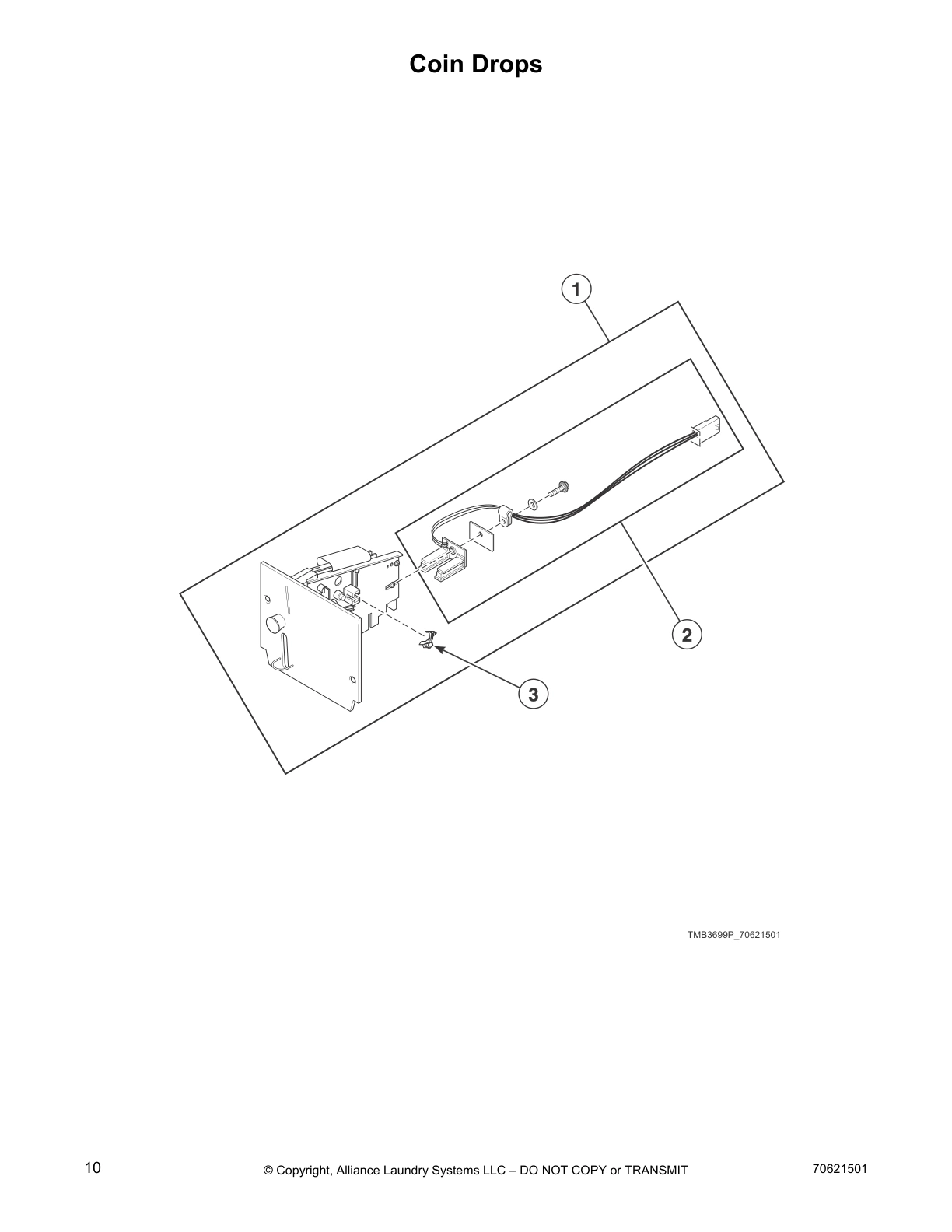

Coin Drops

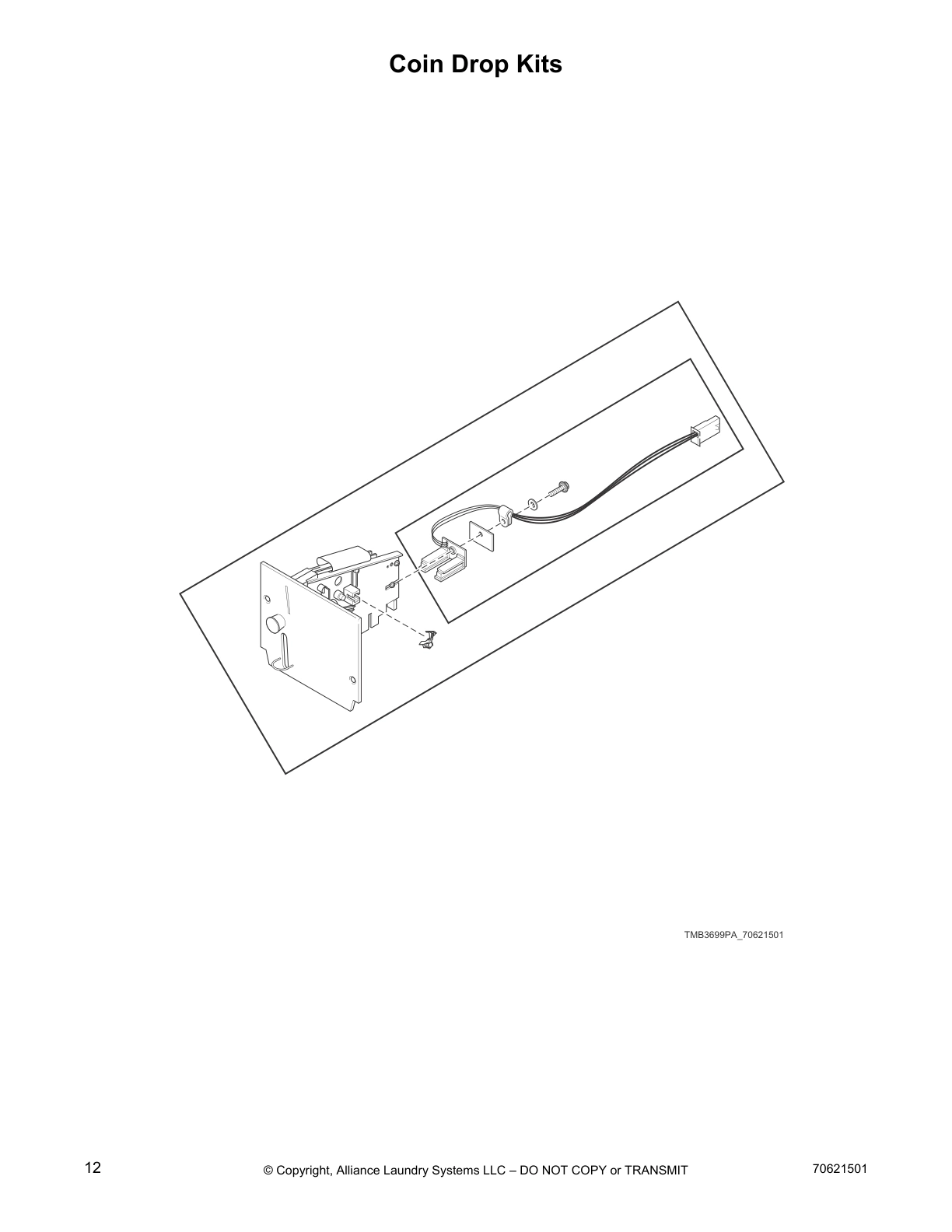

Coin Drop Kits

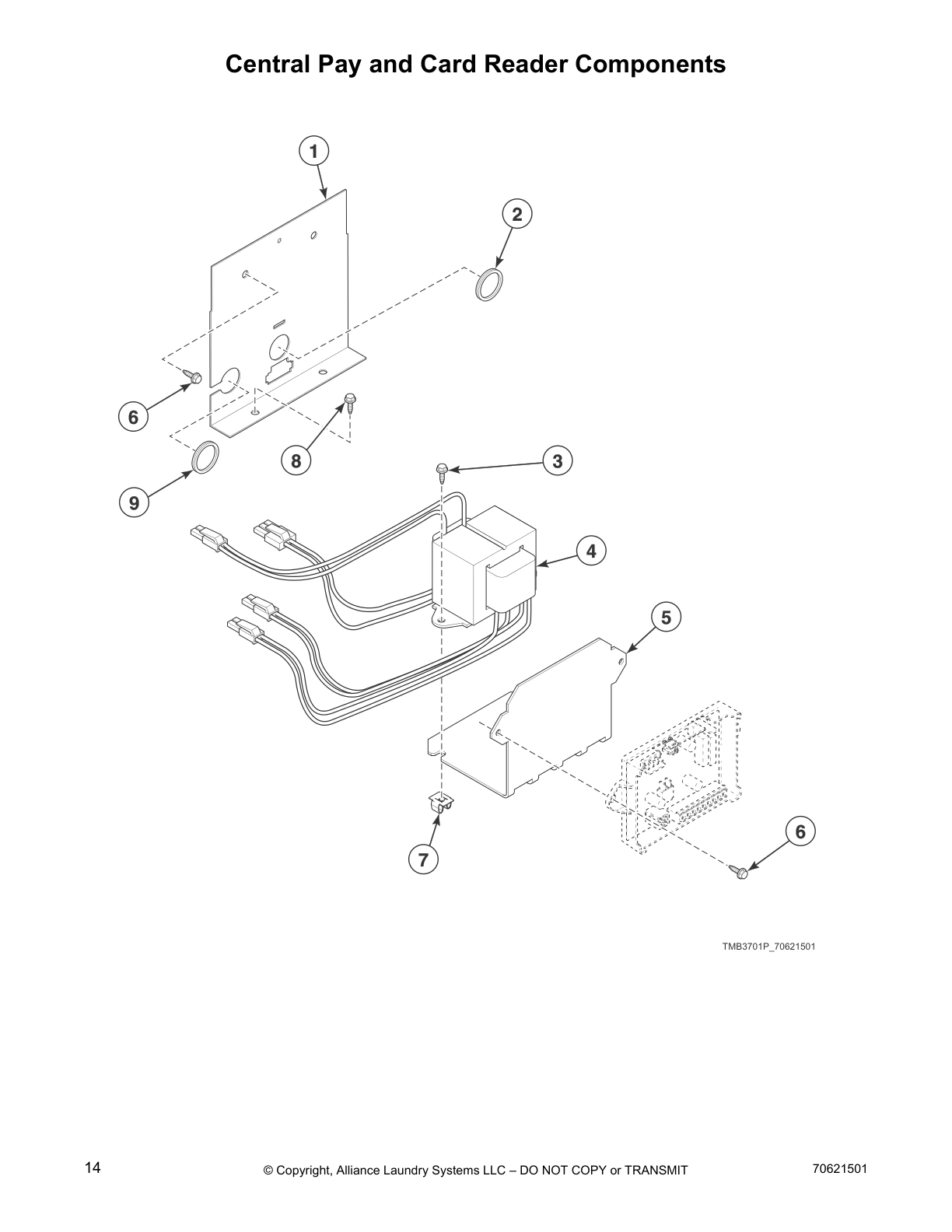

Central Pay and Card Reader Components

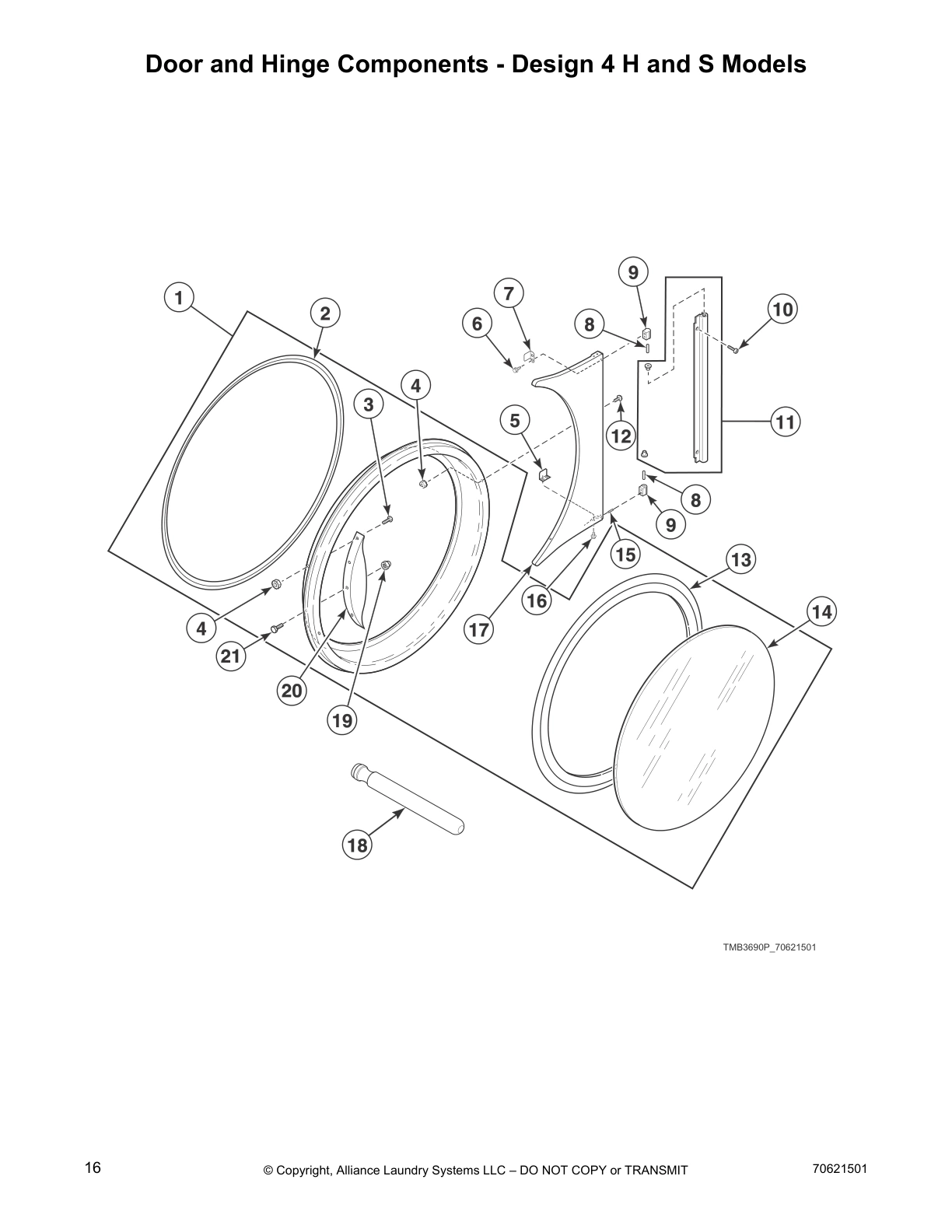

Door and Hinge Components - Design 4 H and S Models

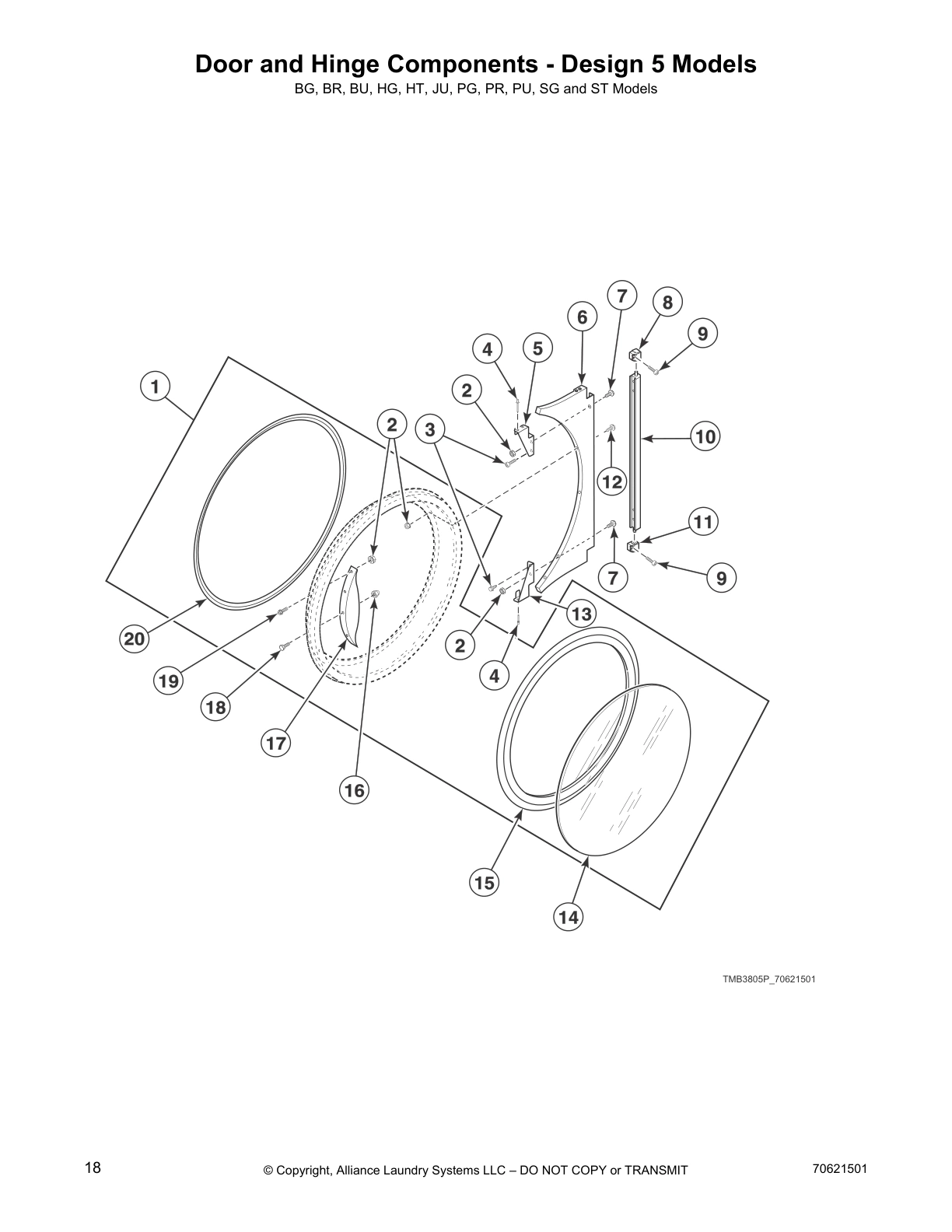

Door and Hinge Components - Design 5 Models

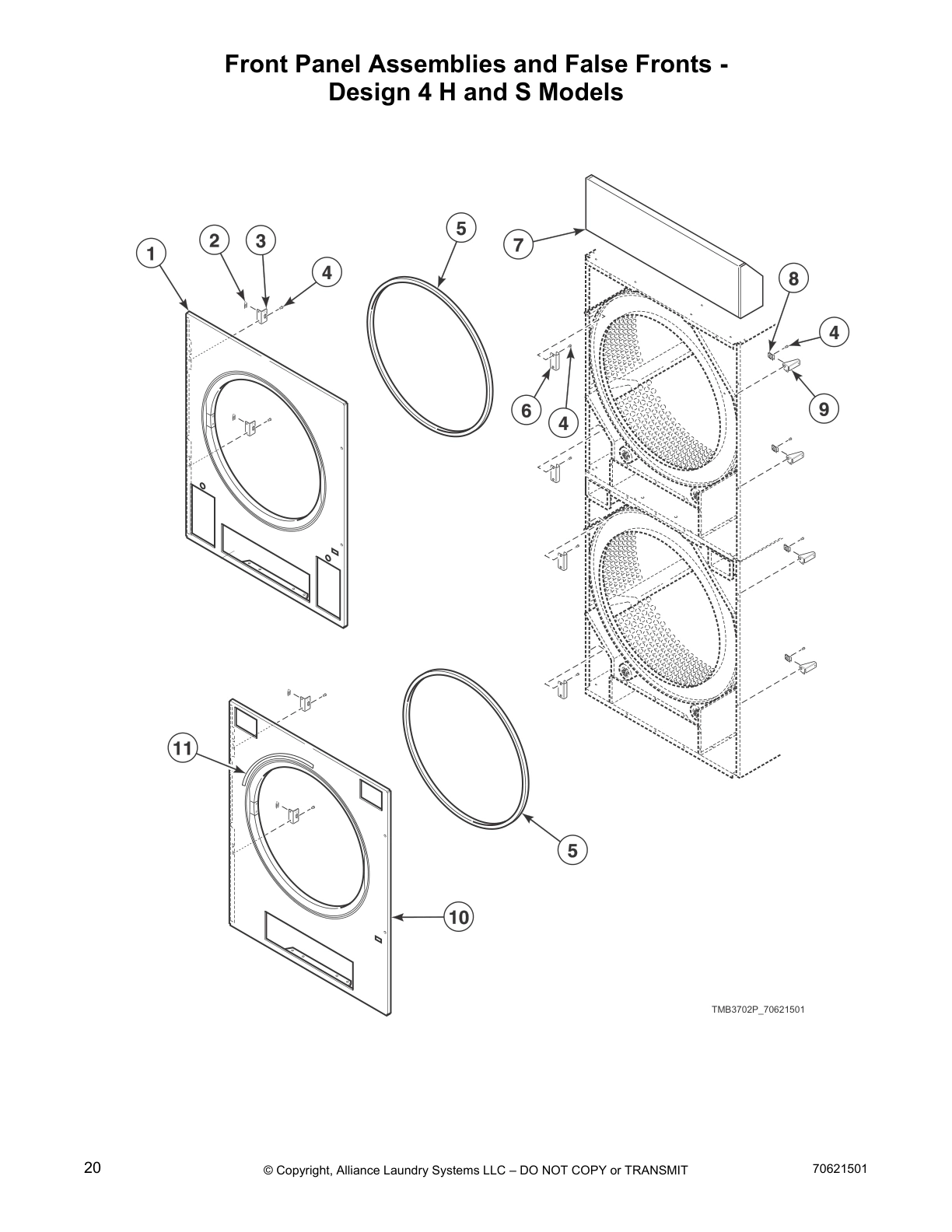

Front Panel Assemblies and False Fronts -
Design 4 H and S Models

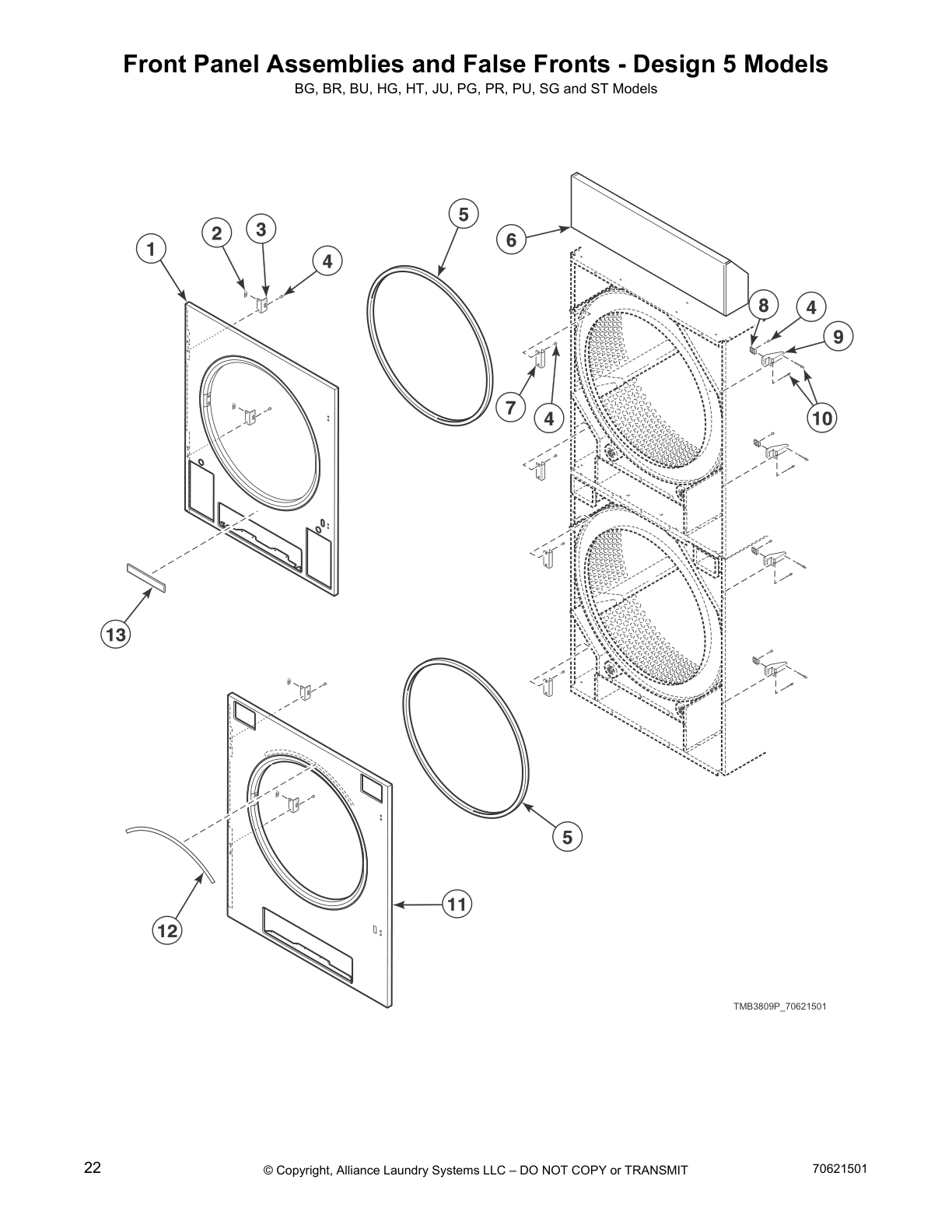

Front Panel Assemblies and False Fronts - Design 5 Models

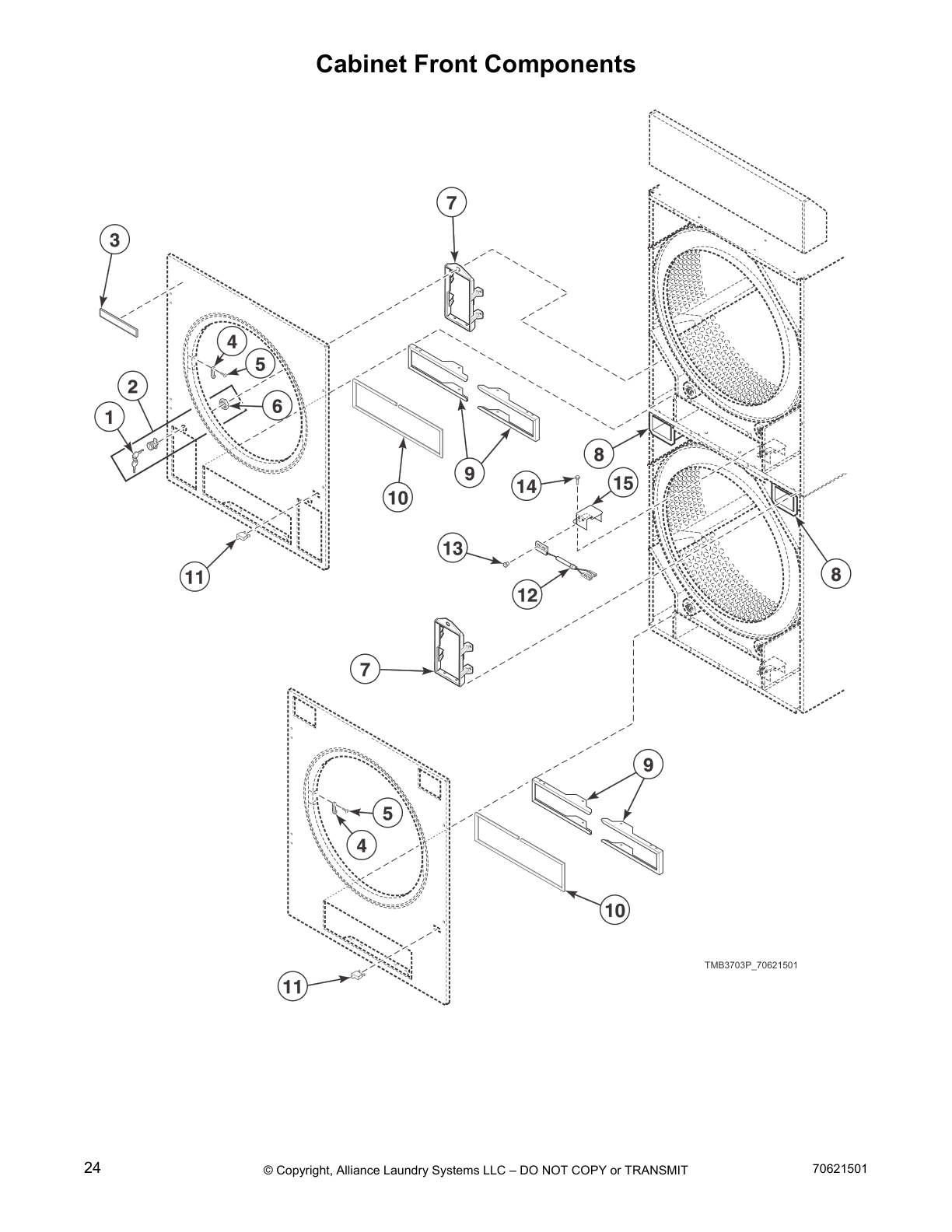

Cabinet Front Components

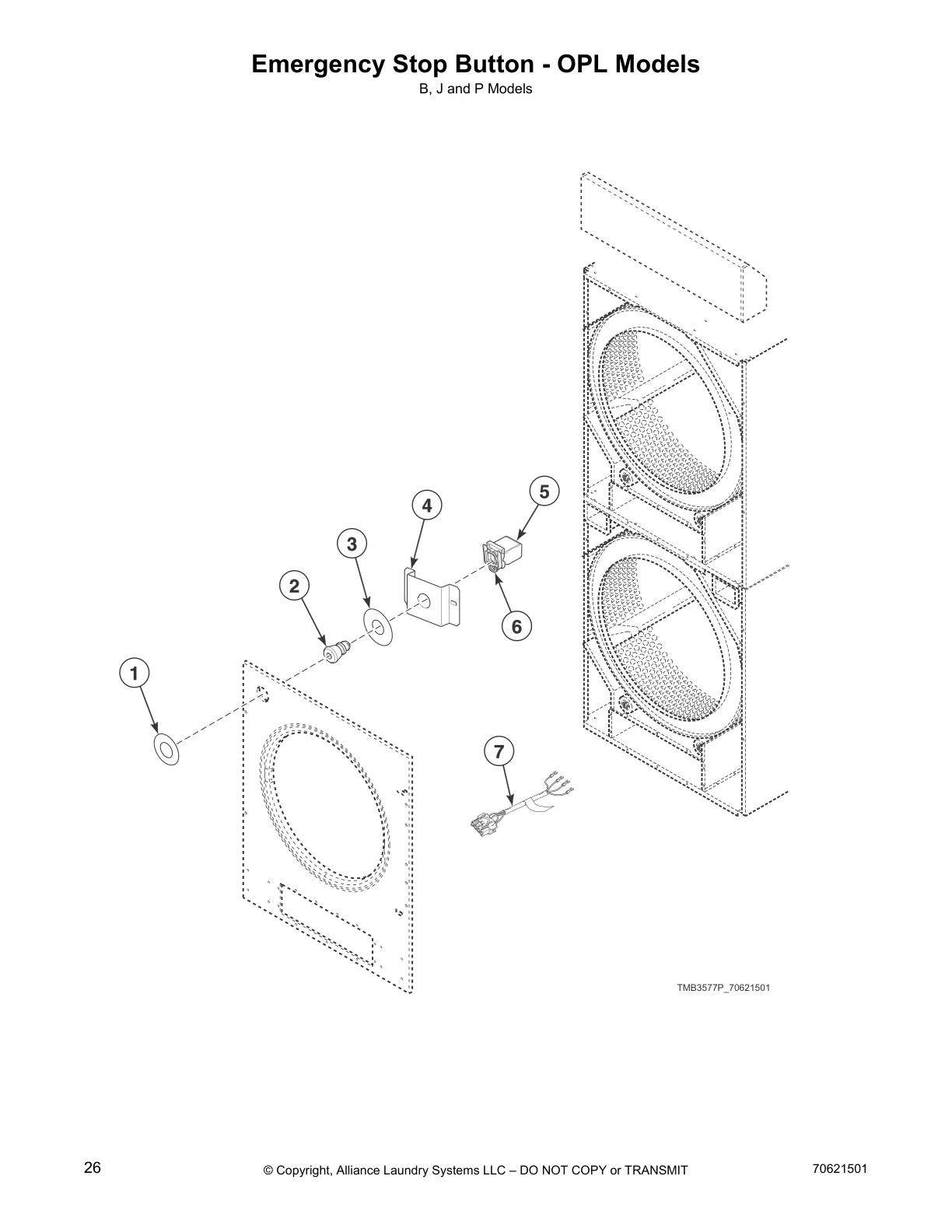

Emergency Stop Button - OPL Models

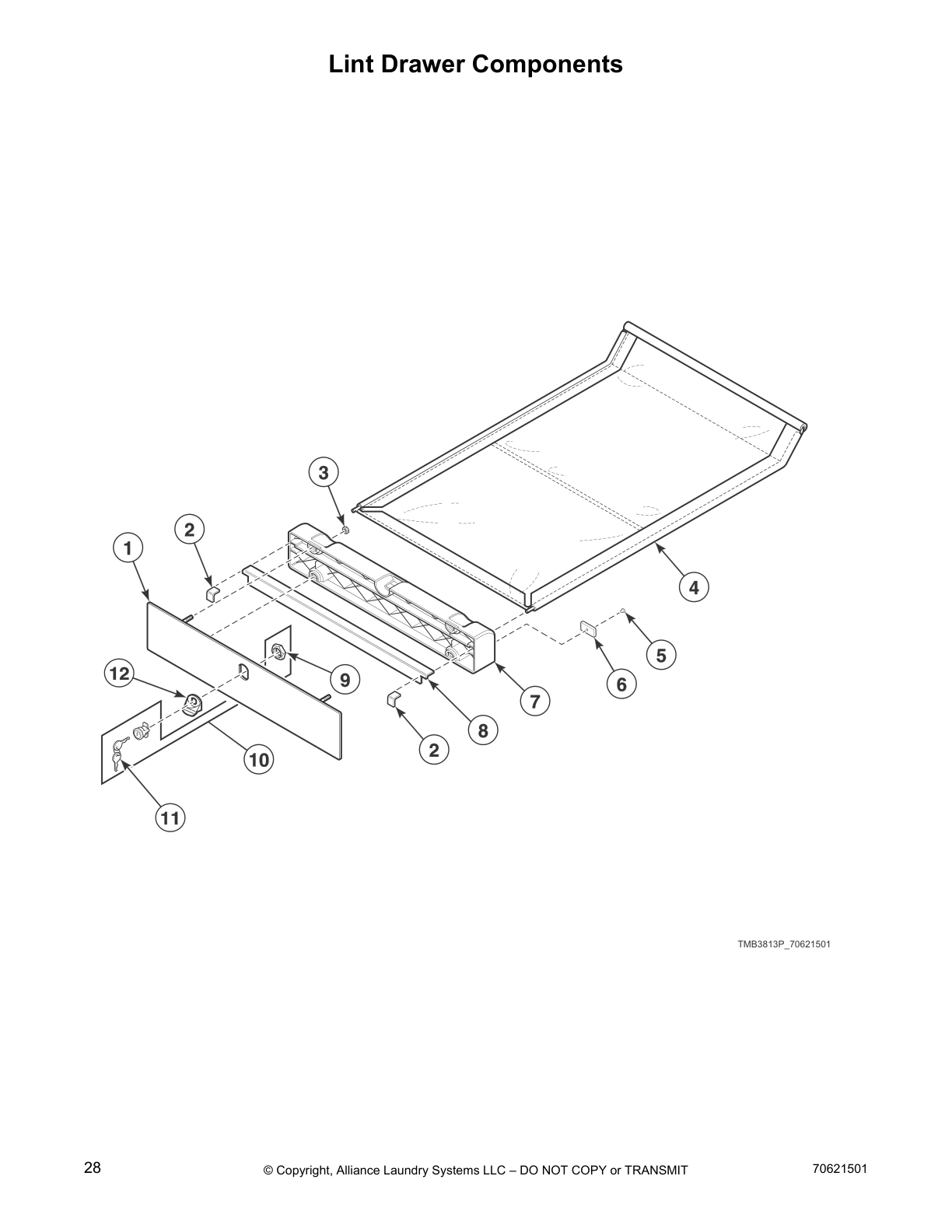

Lint Drawer Components

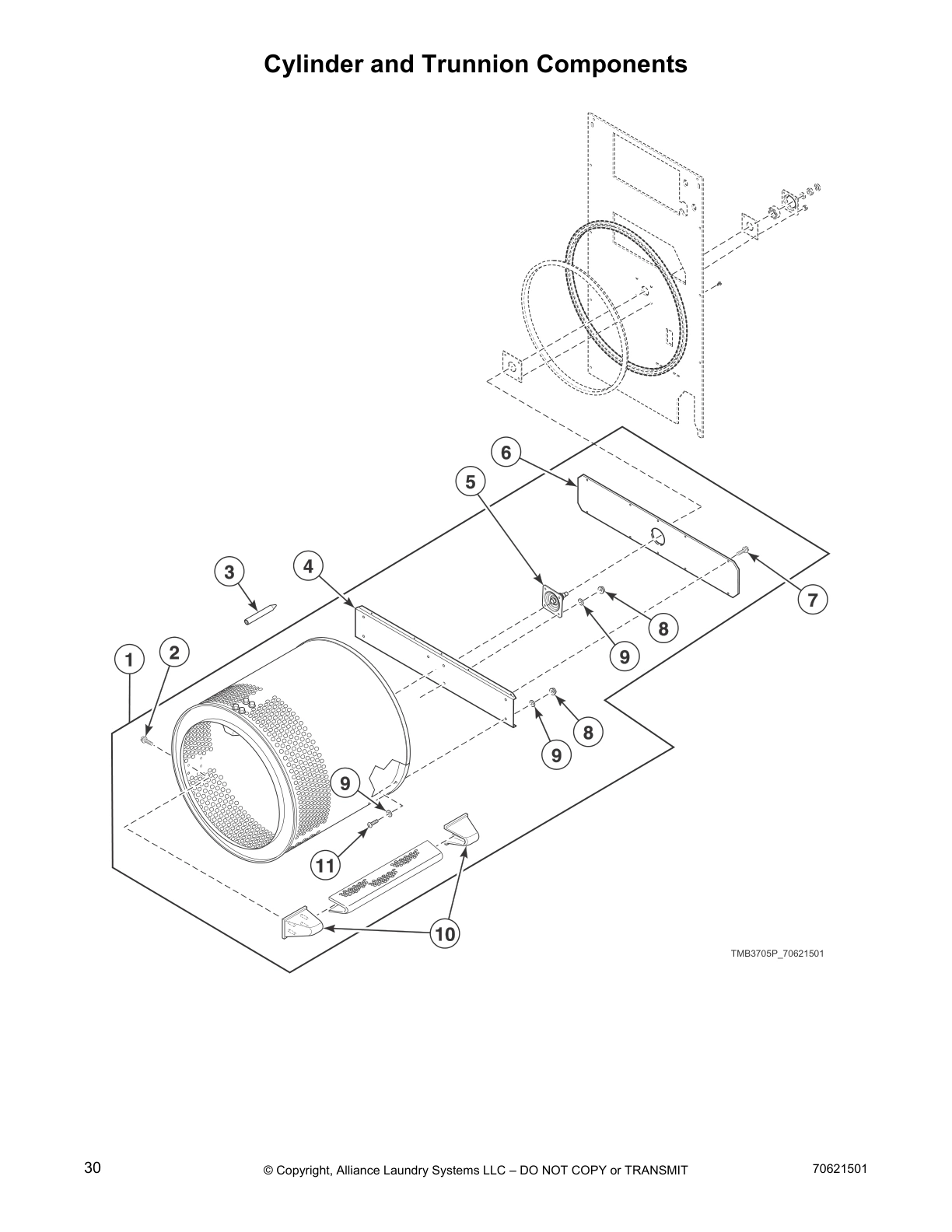

Cylinder and Trunnion Components

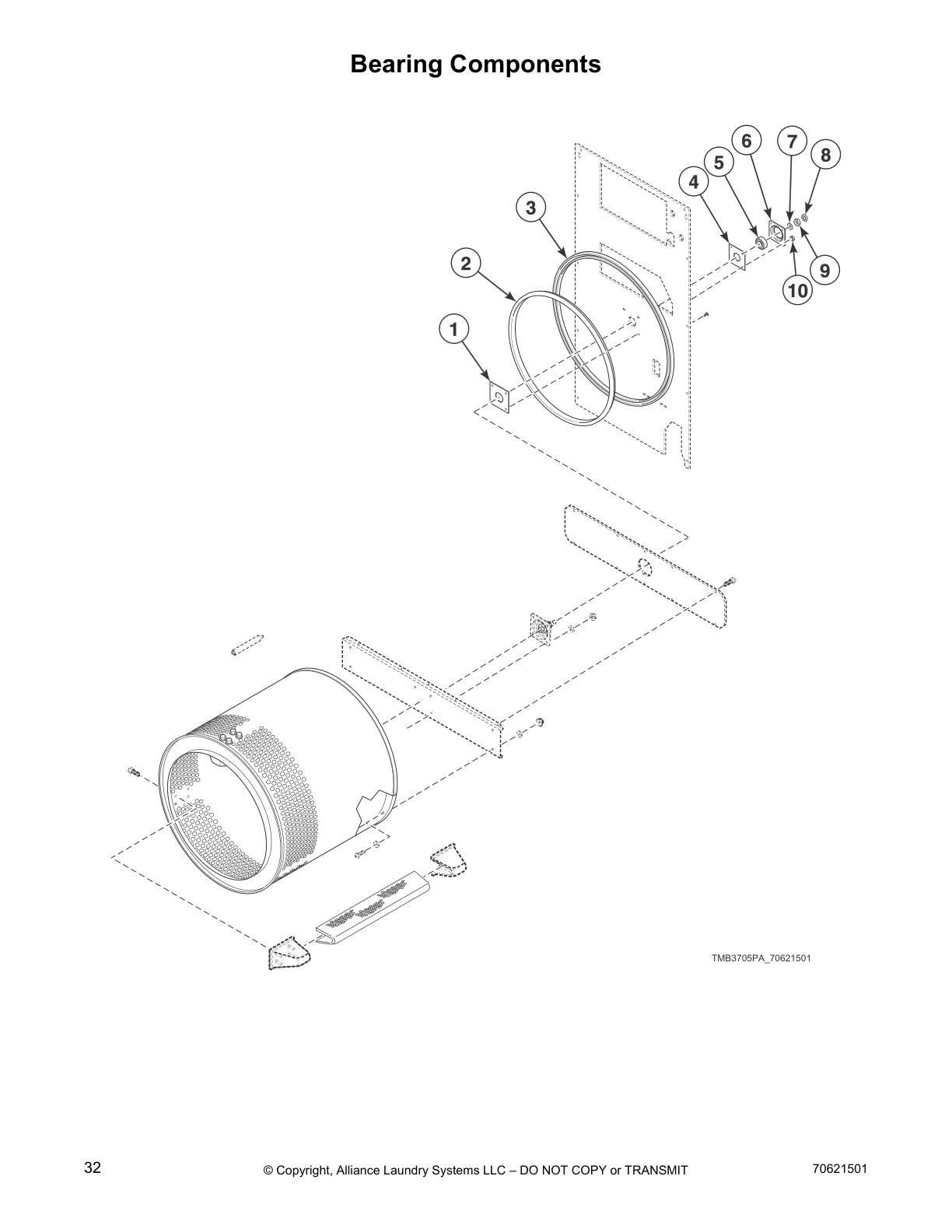

Bearing Components

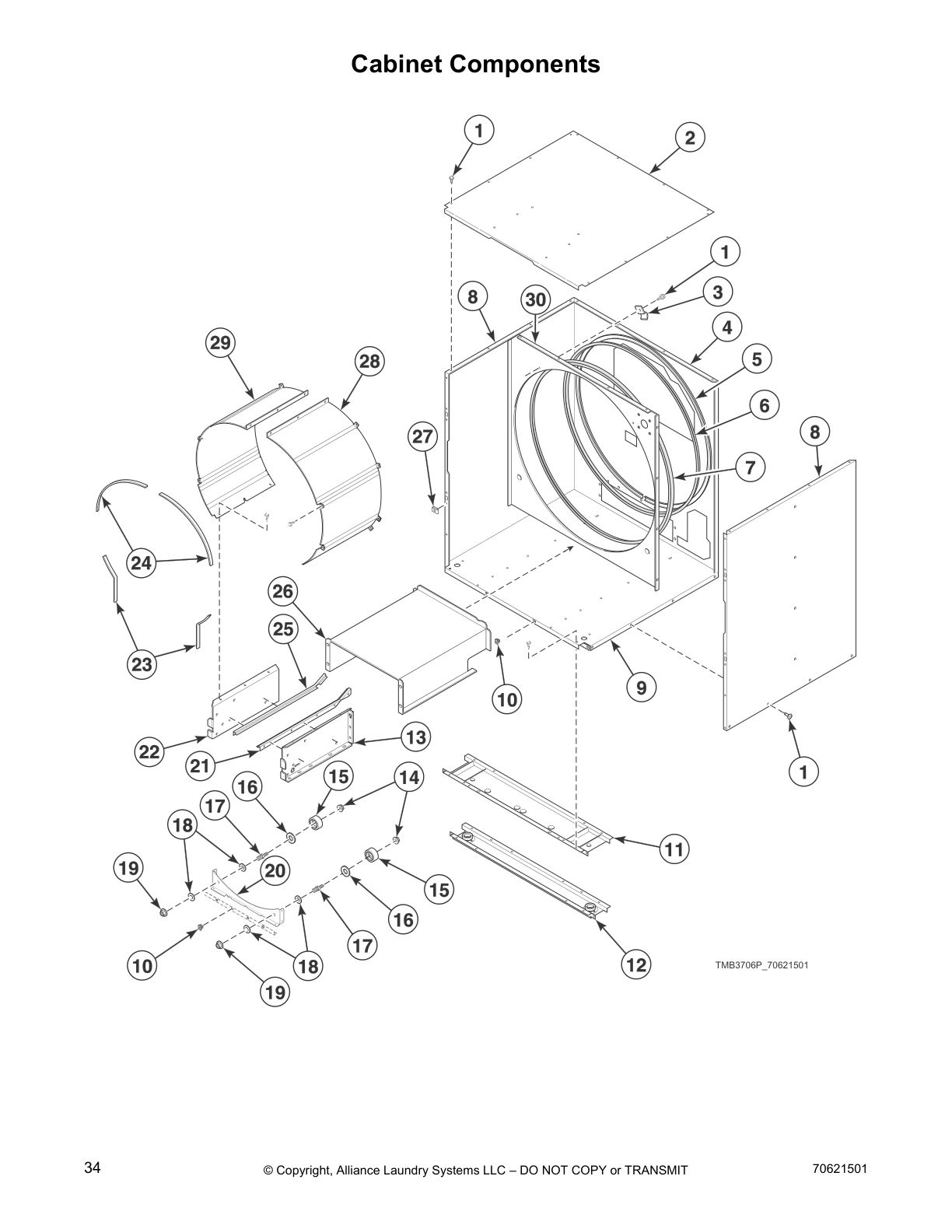

Cabinet Components

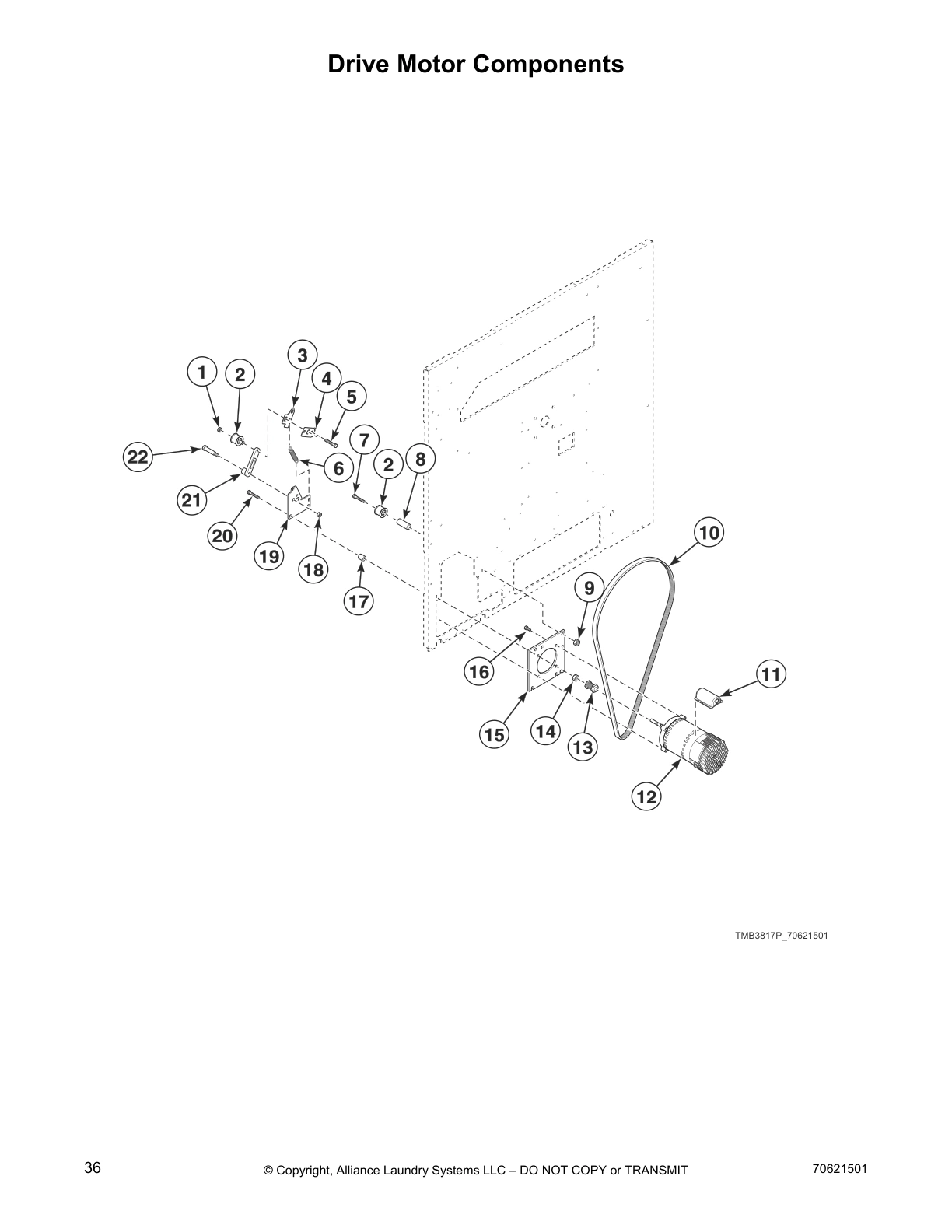

Drive Motor Components

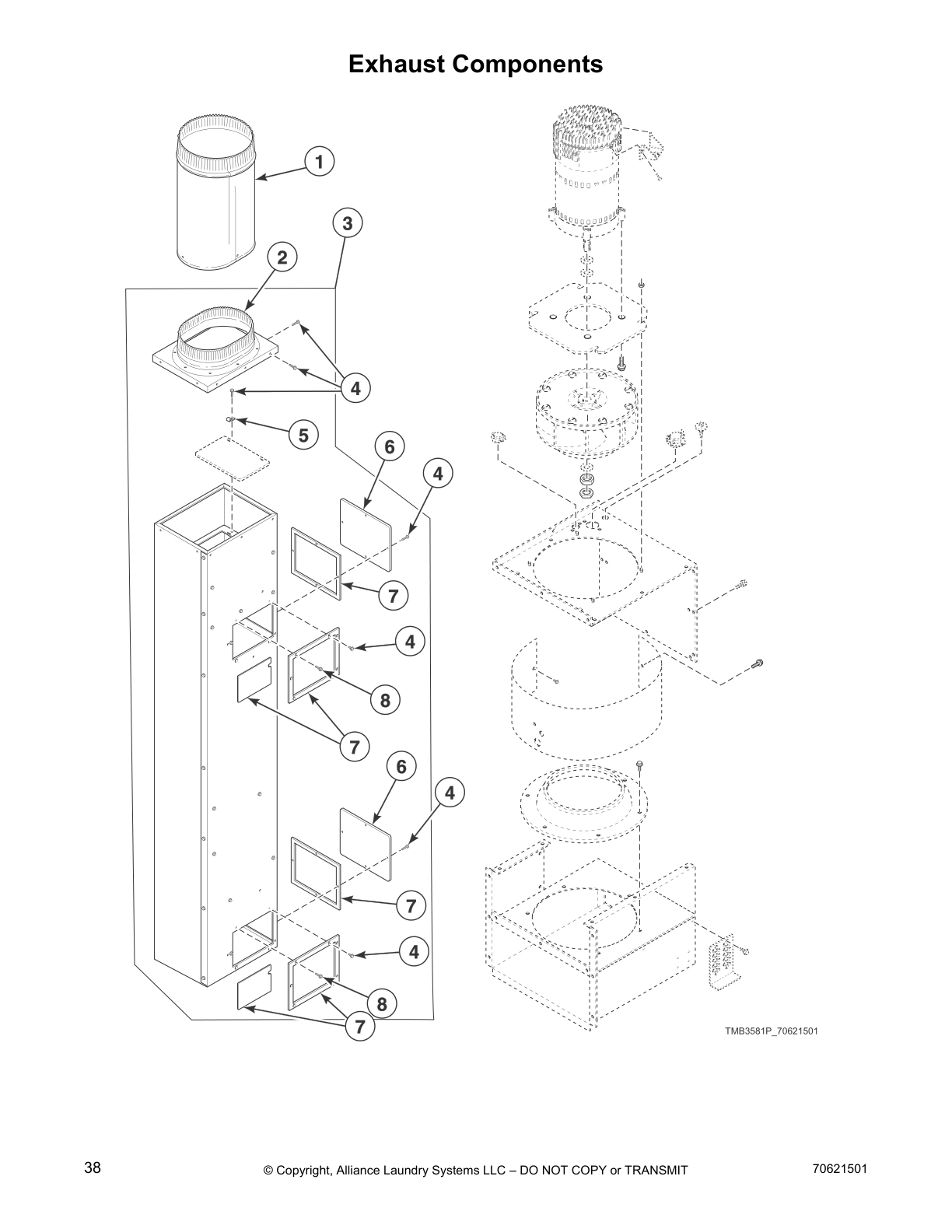

Exhaust Components

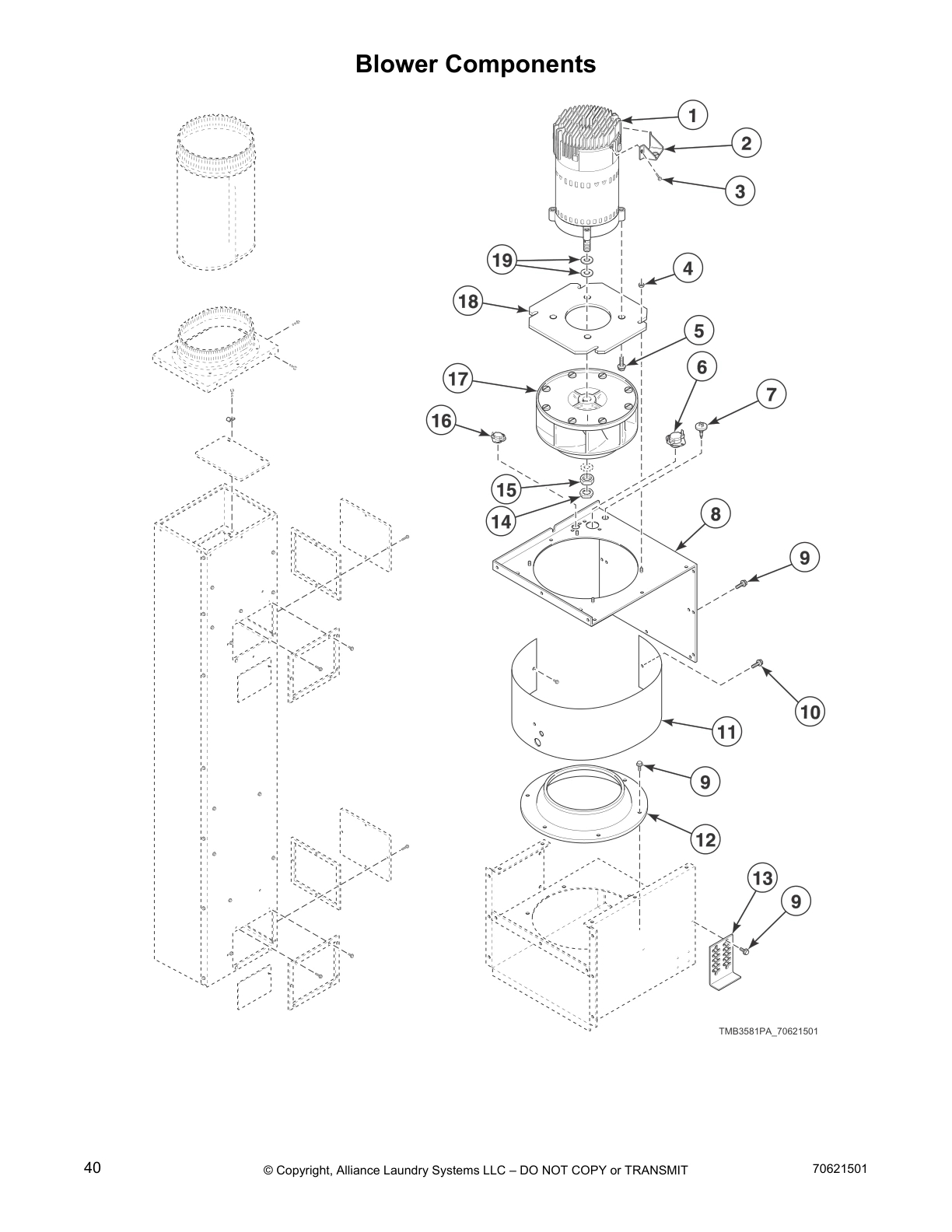

Blower Components

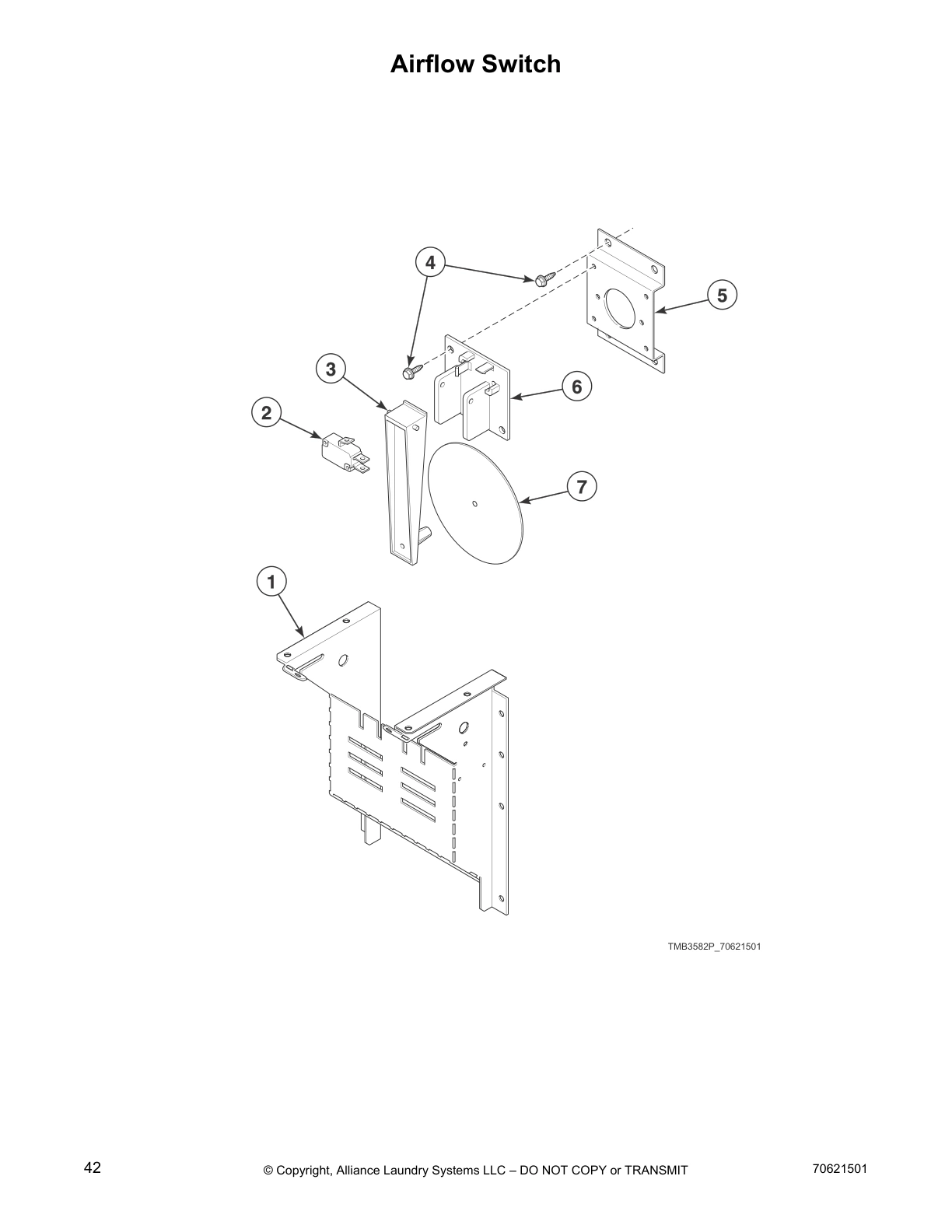

Airflow Switch

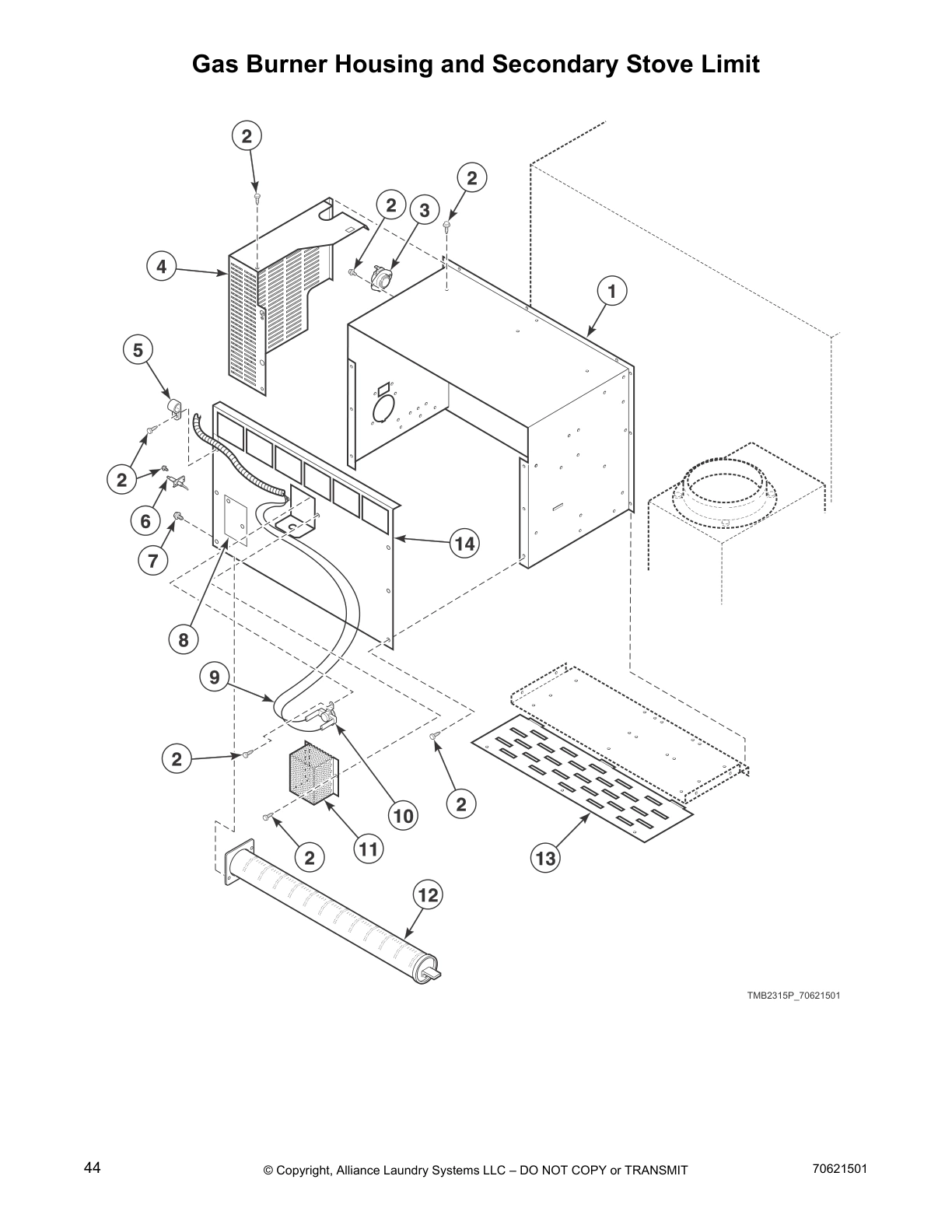

Gas Burner Housing and Secondary Stove Limit

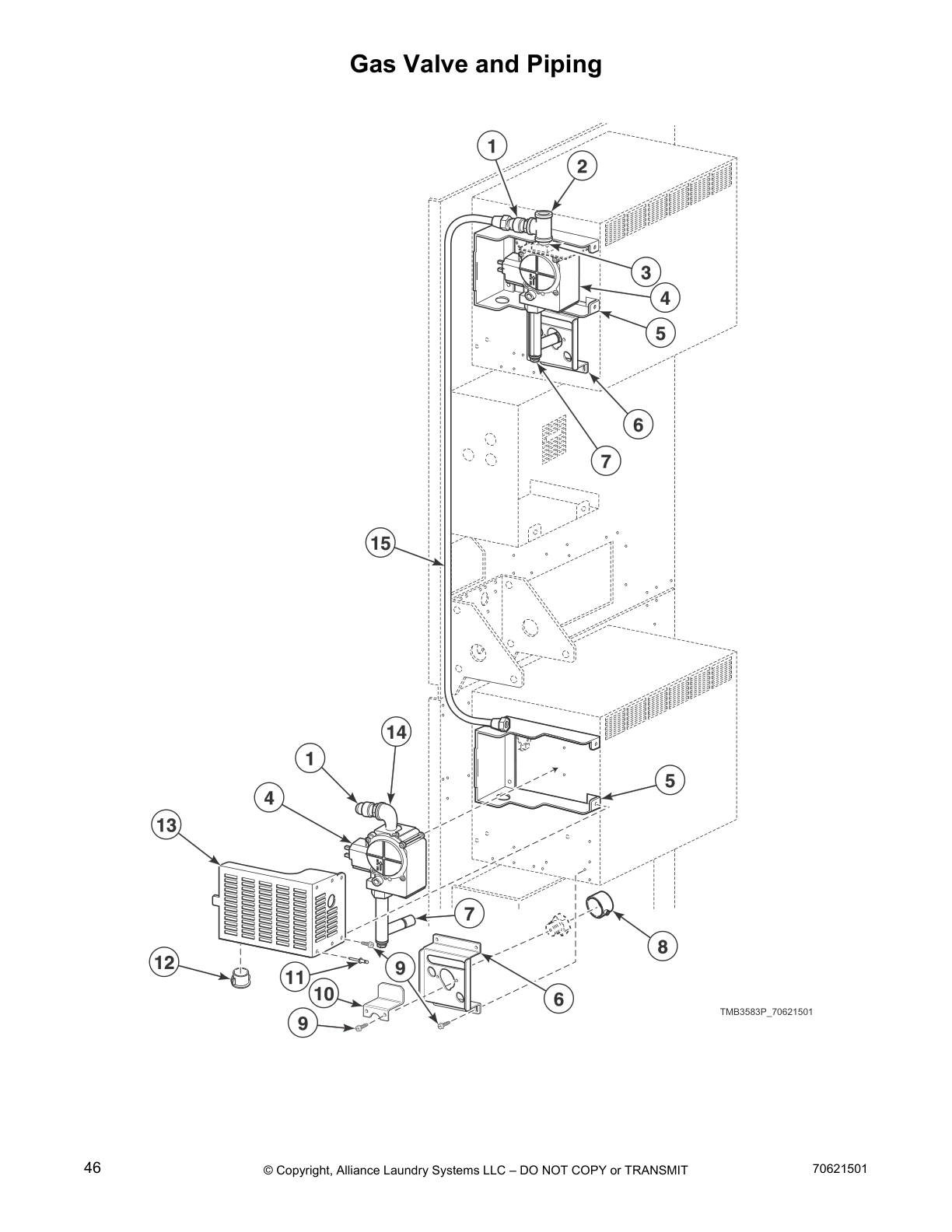

Gas Valve and Piping

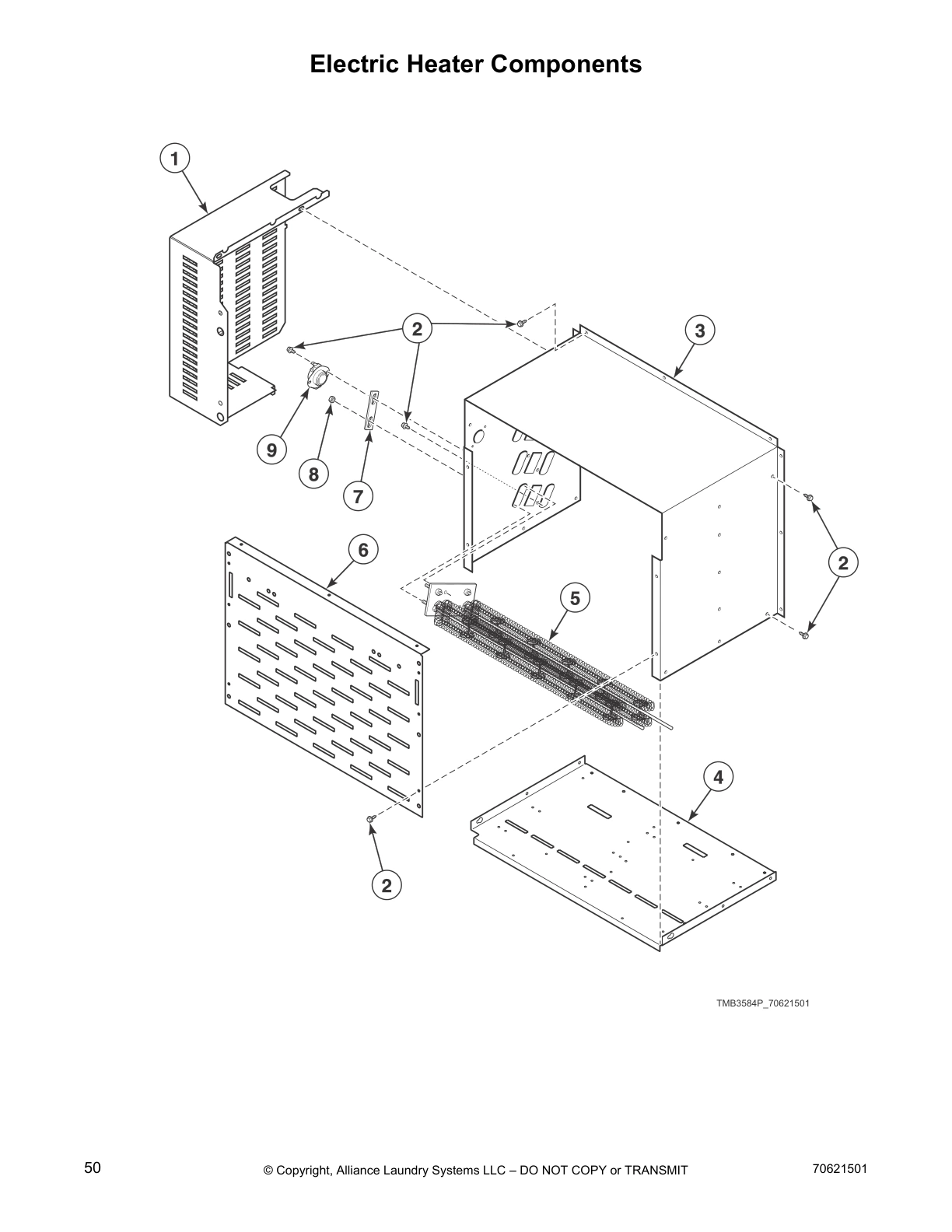

Electric Heater Components

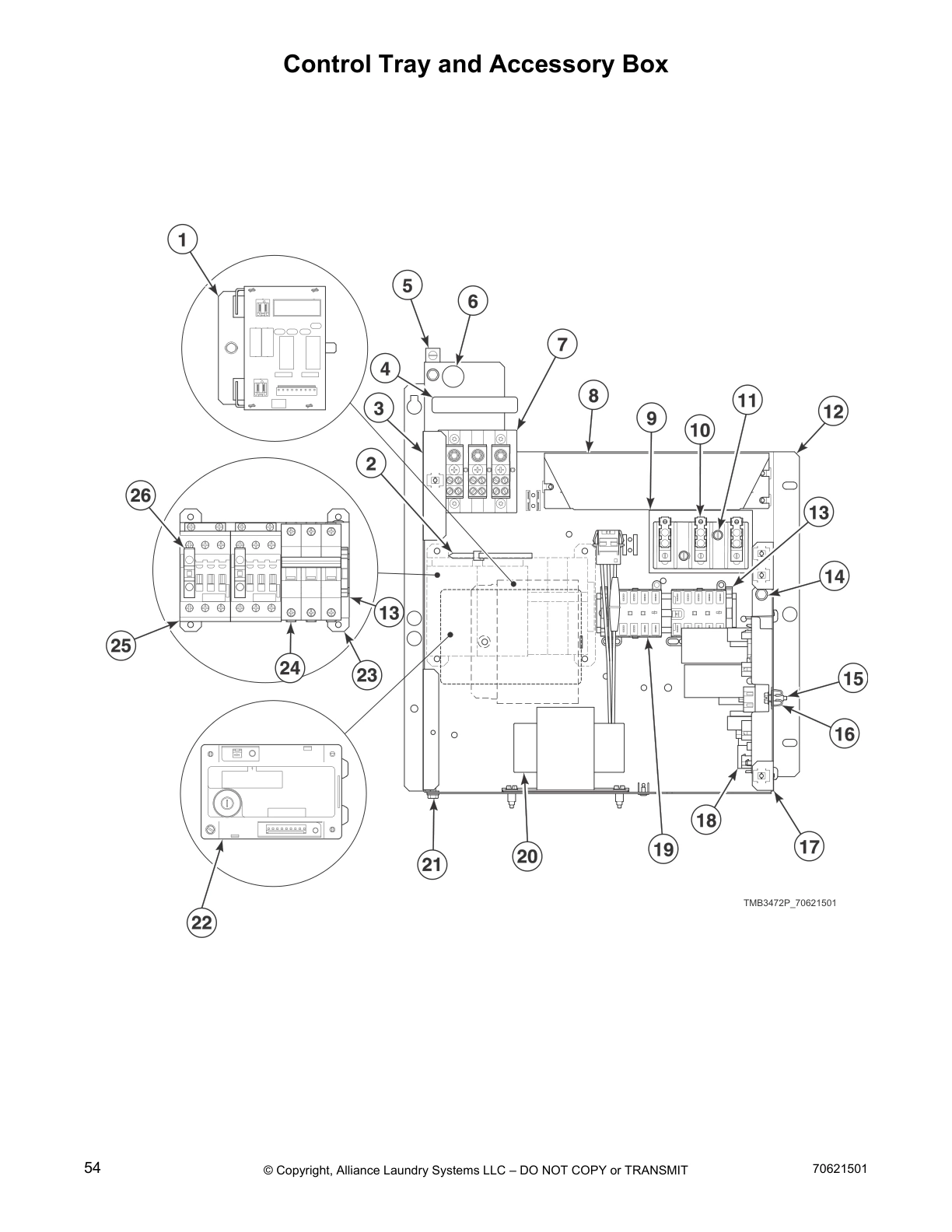

Control Tray and Accessory Box
Common parts from model Primus PGT30E Dryer
Kickplate SPQ 70173401P Contact Us For Availability
Electronic Coin Drop Kit SPQ CK120 Contact Us For Availability
SPQ CK117 SPQ CK117 Contact Us For Availability
SPQ CK108 SPQ CK108 Contact Us For Availability
SPQ CK100 SPQ CK100 Contact Us For Availability
Power Supply Transformer Harne SPQ 44355603 Contact Us For Availability
SPQ 44272305 SPQ 44272305 Contact Us For Availability
SPQ 44272303 SPQ 44272303 Contact Us For Availability
SPQ M413862 SPQ M413862 Contact Us For Availability
SPQ 70610103 SPQ 70610103 Contact Us For Availability
1
Key SPQ 70155601 Contact Us For Availability
1
Upper Front Panel Assembly SPQ 70703504W Contact Us For Availability
1
Cylinder Assembly SPQ 70372502P Contact Us For Availability
1
Fan Motor SPQ 70484901P Contact Us For Availability
1
Airflow Switch Wrapper SPQ 70356101 Contact Us For Availability
1
Connector Cover SPQ 70525701 Contact Us For Availability
2
Rear Cylinder Seal SPQ 70013701P Contact Us For Availability
2
Pop Rivet SPQ 44088001 Contact Us For Availability
2
Nameplate SPQ 70703502 Contact Us For Availability
2
Lock, Key and Nut Kit SPQ 44089301P Contact Us For Availability
2
Emergency Stop Pushbutton SPQ F200233500 Contact Us For Availability
2
Duct Cover SPQ 70207501 Contact Us For Availability
2
Switch SPQ 70411901 Contact Us For Availability
2
Auxiliary Contact Block SPQ 70335601 Contact Us For Availability
3
Key SPQ 70155602 Contact Us For Availability
3
Rear Cylinder Seal Support SPQ 70506402 Contact Us For Availability
3
Thermistor SPQ M400991 Contact Us For Availability
3
SPQ 802822 SPQ 802822 Contact Us For Availability
3
Emergency Stop Label SPQ 44012901 Contact Us For Availability
3
Airflow Switch Arm SPQ 70319401 Contact Us For Availability
3
Stove Top and Sides SPQ 70525601 Contact Us For Availability
4
Rear Bearing Shim SPQ 70355001 Contact Us For Availability
4
Hold-Down Clip SPQ 70703501W Contact Us For Availability
4
Door Latch SPQ M401223 Contact Us For Availability
4
Nut SPQ 44087101 Contact Us For Availability
4
Trunnion and Seal Kit SPQ 70257101 Contact Us For Availability
4
Gasket SPQ 23222 Contact Us For Availability
4
Stove Partition SPQ 70357201 Contact Us For Availability
5
Support Bearing SPQ 70448701 Contact Us For Availability
5
Rear Cylinder Channel Plate SPQ 70564803 Contact Us For Availability
5
Pop Rivet SPQ 70703501 Contact Us For Availability
5
Pop Rivet SPQ 44166601 Contact Us For Availability
5
Contact Switch SPQ F8069501 Contact Us For Availability
5
Lint Screen Assembly SPQ 70596102 Contact Us For Availability
5
Clip SPQ 70226701 Contact Us For Availability
5
SPQ 70501301 SPQ 70501301 Contact Us For Availability
5
Switch Bracket SPQ 70356301 Contact Us For Availability
5
Heater Element SPQ 70034403P Contact Us For Availability
5
Insulator SPQ 44313201 Contact Us For Availability
6
Rear Cylinder Bearing Housing SPQ 70013901 Contact Us For Availability
6
SPQ 70576101 SPQ 70576101 Contact Us For Availability
6
Blind Rivet SPQ F8245101 Contact Us For Availability
6
Contact Base SPQ F8538101 Contact Us For Availability
6
Nut SPQ 70257201 Contact Us For Availability
6
Exhaust Duct Gaskets Assembly SPQ 70340201 Contact Us For Availability
6
Airflow Switch and Arm Bracket SPQ 70319602 Contact Us For Availability
6
Heater Element SPQ 70034402P Contact Us For Availability
7
Control Bezel SPQ 70642001 Contact Us For Availability
7
Emergency Stop Harness SPQ 44272402 Contact Us For Availability
7
SPQ 70066003 SPQ 70066003 Contact Us For Availability
7
SPQ 70508301 SPQ 70508301 Contact Us For Availability
7
Gasket SPQ 70340401 Contact Us For Availability
7
SPQ 70126101 SPQ 70126101 Contact Us For Availability
7
Airflow Switch Vane SPQ 70319201 Contact Us For Availability
7
Stove Grill SPQ 70034401P Contact Us For Availability
7
EMI Filter Kit SPQ M411283 Contact Us For Availability
8
SPQ M411072 SPQ M411072 Contact Us For Availability
8
SPQ 70071401 SPQ 70071401 Contact Us For Availability
8
Front Panel Seal SPQ 567887 Contact Us For Availability
8
Jumper Strip SPQ 70214901 Contact Us For Availability
9
Power Harness SPQ M413865 Contact Us For Availability
9
SPQ F8458801 SPQ F8458801 Contact Us For Availability
9
Magnet SPQ 70343101 Contact Us For Availability
9
SPQ 70411301 SPQ 70411301 Contact Us For Availability
9
SPQ F430144 SPQ F430144 Contact Us For Availability
10
Terminal Block SPQ 430642 Contact Us For Availability
10
Rivet SPQ 70703504 Contact Us For Availability
10
Lock, Key and Nut Kit SPQ 44390902P Contact Us For Availability
10
End Cap SPQ 70070101 Contact Us For Availability
10
Clip SPQ M400984 Contact Us For Availability
10
Lever Arm and Belt Kit SPQ 70655102 Contact Us For Availability
10
Screw SPQ 70478701P Contact Us For Availability
11
Lower Front Panel Assembly SPQ 70614201 Contact Us For Availability
11
Pushbutton Switch SPQ 70413301 Contact Us For Availability
11
Panel Lock SPQ 44390902 Contact Us For Availability
11
Screw SPQ 70391101 Contact Us For Availability
11
Screw SPQ 51783 Contact Us For Availability
12
Screw SPQ 44349101 Contact Us For Availability
12
Channel Base Assembly SPQ 70288201 Contact Us For Availability
12
Drive Motor SPQ 70485001P Contact Us For Availability
12
Blower Inlet Cone SPQ 70340801 Contact Us For Availability
13
Lower Front Panel Assembly SPQ 70703502W Contact Us For Availability
13
Motor Pulley SPQ 70478601P Contact Us For Availability
13
Rear Stabilizer Bracket SPQ 70014101 Contact Us For Availability
13
End Stop SPQ F8449801 Contact Us For Availability
14
Door Glass SPQ M400784P Contact Us For Availability
14
Screw SPQ 70559101 Contact Us For Availability
15
Door Glass Seal Kit SPQ 70211901P Contact Us For Availability
15
Pop Rivet SPQ 70436301 Contact Us For Availability
15
Roller and Seal Kit SPQ 70616701 Contact Us For Availability
15
Nut SPQ 70200301 Contact Us For Availability
15
Contactor SPQ F8206901 Contact Us For Availability
16
Nut SPQ M414215 Contact Us For Availability
16
Roller Seal SPQ 70443601 Contact Us For Availability
16
Idler Wheel Assembly SPQ 44333202 Contact Us For Availability
17
Door Handle SPQ 44007902P Contact Us For Availability
17
Blower Assembly SPQ M400022 Contact Us For Availability
17
Roller Shaft SPQ 70249501 Contact Us For Availability
18
Washer SPQ 70261401 Contact Us For Availability
18
Nut SPQ M4221P4 Contact Us For Availability
18
Nut SPQ M400661 Contact Us For Availability
18
Lever Arm and Bushing Assembly SPQ 70126104 Contact Us For Availability
19
Door Ring Gasket SPQ 70442101 Contact Us For Availability
19
Sheet Metal Edge Gasket SPQ 70288801 Contact Us For Availability
19
Washer SPQ 70341001 Contact Us For Availability
19
Circuit Breaker SPQ 70482601 Contact Us For Availability
20
SPQ 70296801 SPQ 70296801 Contact Us For Availability
21
SPQ 70050401P SPQ 70050401P Contact Us For Availability
22
SPQ 70653801 SPQ 70653801 Contact Us For Availability
23
Cylinder Shroud SPQ 70015711 Contact Us For Availability
24
Rear Cylinder Seal Support SPQ 70015712 Contact Us For Availability
24
Power Distribution Block SPQ 70488102 Contact Us For Availability
25
Terminal Block Shield SPQ 70488101 Contact Us For Availability
26
Power Distribution Block Cover SPQ 70482701 Contact Us For Availability
27
Rear Cylinder Seal SPQ 70030401 Contact Us For Availability
28
Center Cylinder Seal SPQ 70339301 Contact Us For Availability
29
Pop Rivet SPQ 70339302 Contact Us For Availability
NI
Door Catch Kit SPQ 70482901 Contact Us For Availability
NI
SPQ 39748 SPQ 39748 Contact Us For Availability
NI
SPQ 38519 SPQ 38519 Contact Us For Availability
NI
SPQ 38467 SPQ 38467 Contact Us For Availability
NI
SPQ 210196 SPQ 210196 Contact Us For Availability
NI
SPQ 201141 SPQ 201141 Contact Us For Availability
NI
Coin Drop Kit SPQ CK122 Contact Us For Availability
NI
Electronic Coin Drop Kit SPQ CK121 Contact Us For Availability
NI
SPQ CK119 SPQ CK119 Contact Us For Availability
NI
SPQ CK116 SPQ CK116 Contact Us For Availability
NI
SPQ CK109 SPQ CK109 Contact Us For Availability
NI
SPQ CK101 SPQ CK101 Contact Us For Availability
NI
SPQ CK099 SPQ CK099 Contact Us For Availability
NI
SPQ 44071501 SPQ 44071501 Contact Us For Availability
NI
Transformer Harness SPQ 70366201 Contact Us For Availability
NI
USB IR Interface Kit SPQ 44272306 Contact Us For Availability
NI
SPQ 44272304 SPQ 44272304 Contact Us For Availability
NI
SPQ 203346 SPQ 203346 Contact Us For Availability
NI
SPQ 70289101P SPQ 70289101P Contact Us For Availability
NI
SPQ 70126301 SPQ 70126301 Contact Us For Availability
NI
SPQ 70117605 SPQ 70117605 Contact Us For Availability
NI
Foam Gasket SPQ 44088801 Contact Us For Availability
NI
Emergency Stop Bypass Harness SPQ 44272401 Contact Us For Availability
NI
SPQ F8519403 SPQ F8519403 Contact Us For Availability
NI
Screw SPQ 70598101 Contact Us For Availability
NI
SPQ 70343101P SPQ 70343101P Contact Us For Availability
NI
SPQ 70247701 SPQ 70247701 Contact Us For Availability
NI
SPQ 298P4P SPQ 298P4P Contact Us For Availability
NI
SPQ 70392701P SPQ 70392701P Contact Us For Availability
NI
SPQ 70500601 SPQ 70500601 Contact Us For Availability
NI
Jumper Bar SPQ M400869 Contact Us For Availability
NI
Nut SPQ 70066501 Contact Us For Availability
NI
Jumper Harness SPQ 70564303 Contact Us For Availability
NI
SPQ 70500505 SPQ 70500505 Contact Us For Availability
NI
Snap Bushing SPQ 70333001 Contact Us For Availability
NI
SPQ 44014901P SPQ 44014901P Contact Us For Availability
NI
SPQ 70610104 SPQ 70610104 Contact Us For Availability
× ![]()
