Model Electrolux PGF716HXW4 RANGE – Common Parts & Diagrams

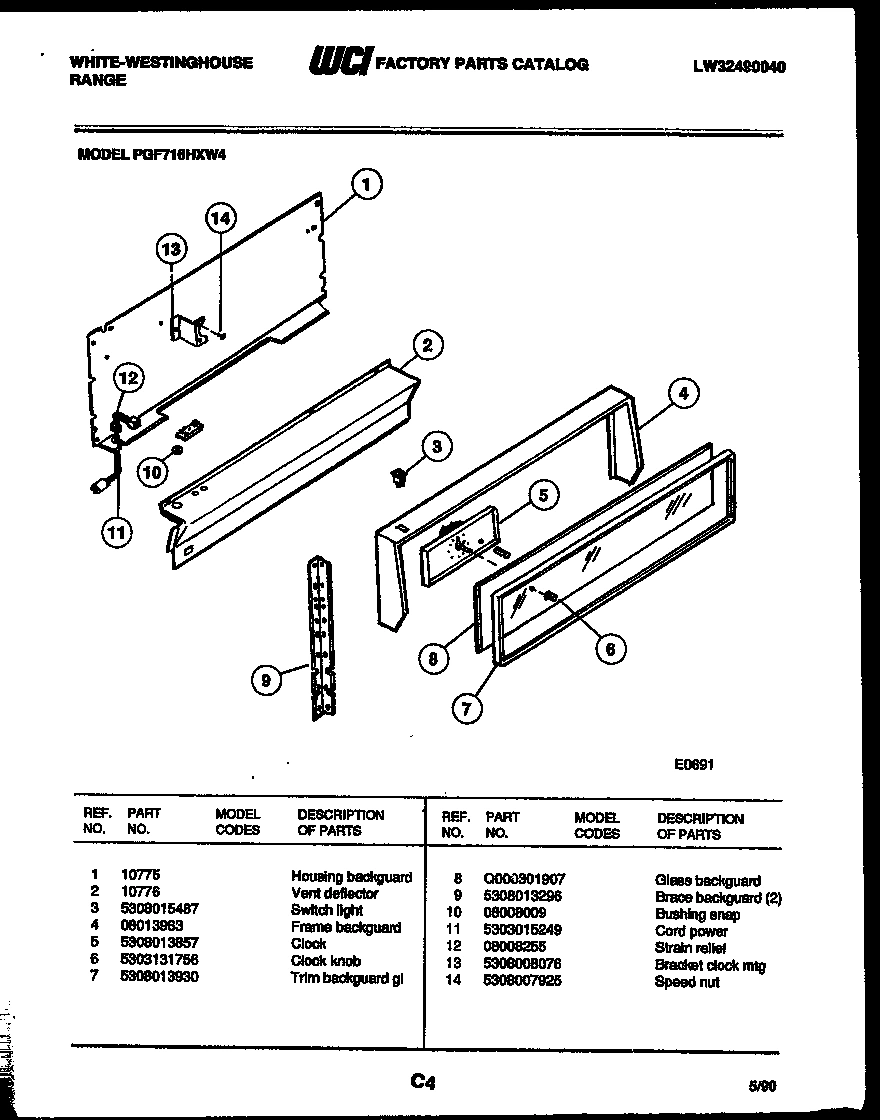

02 - BACKGUARD

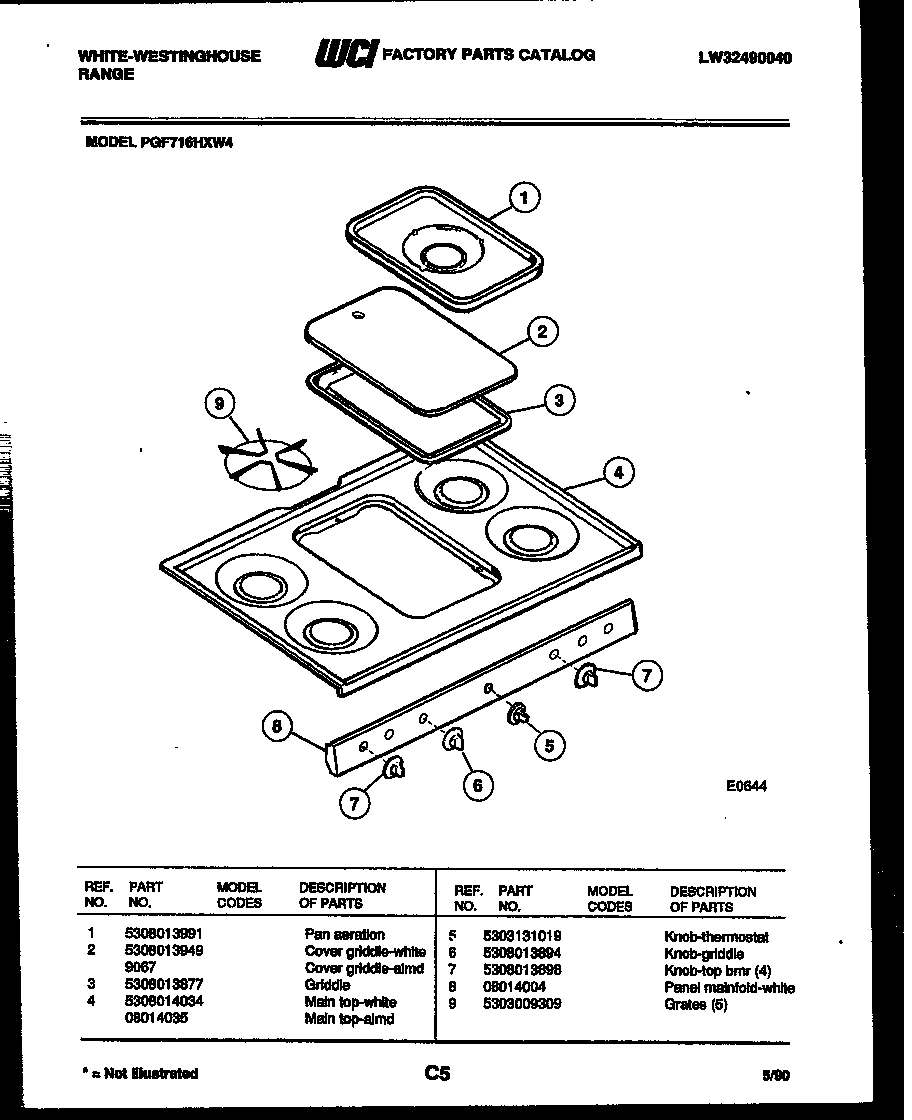

03 - COOKTOP PARTS

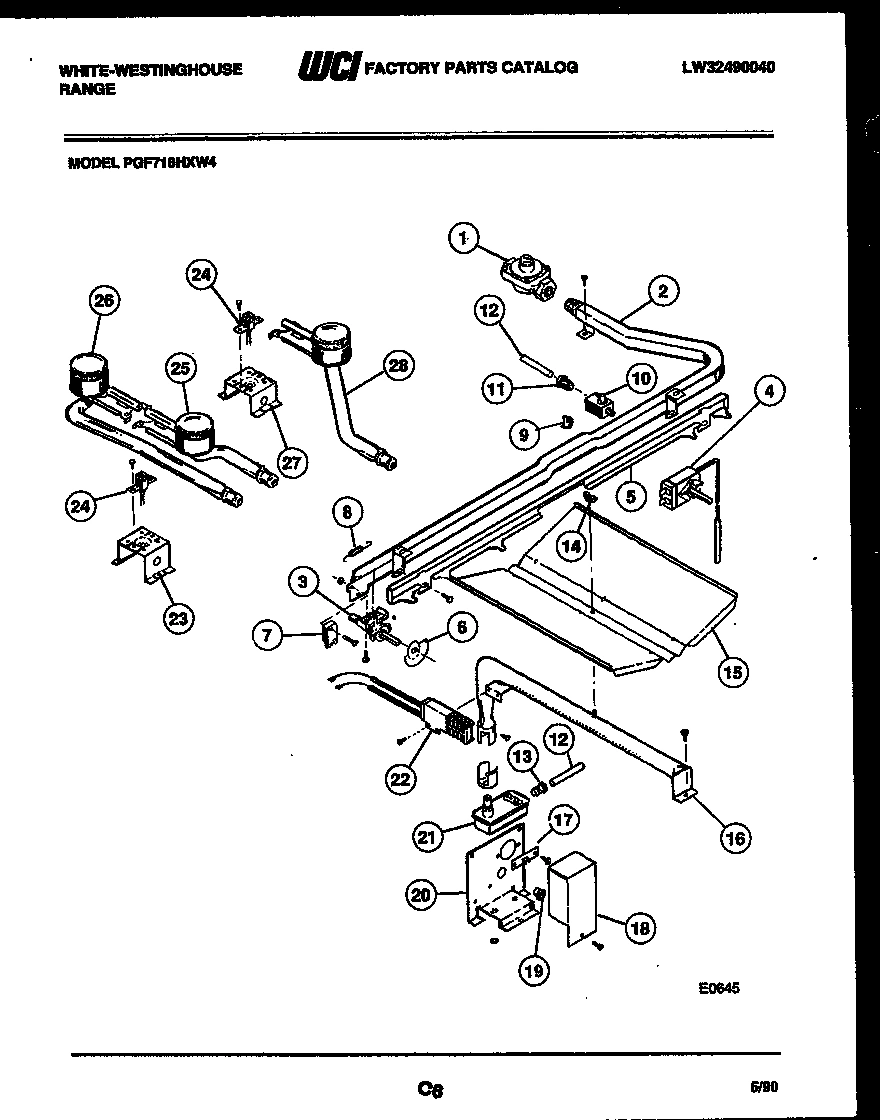

04 - BURNER, MANIFOLD AND GAS CONTROL

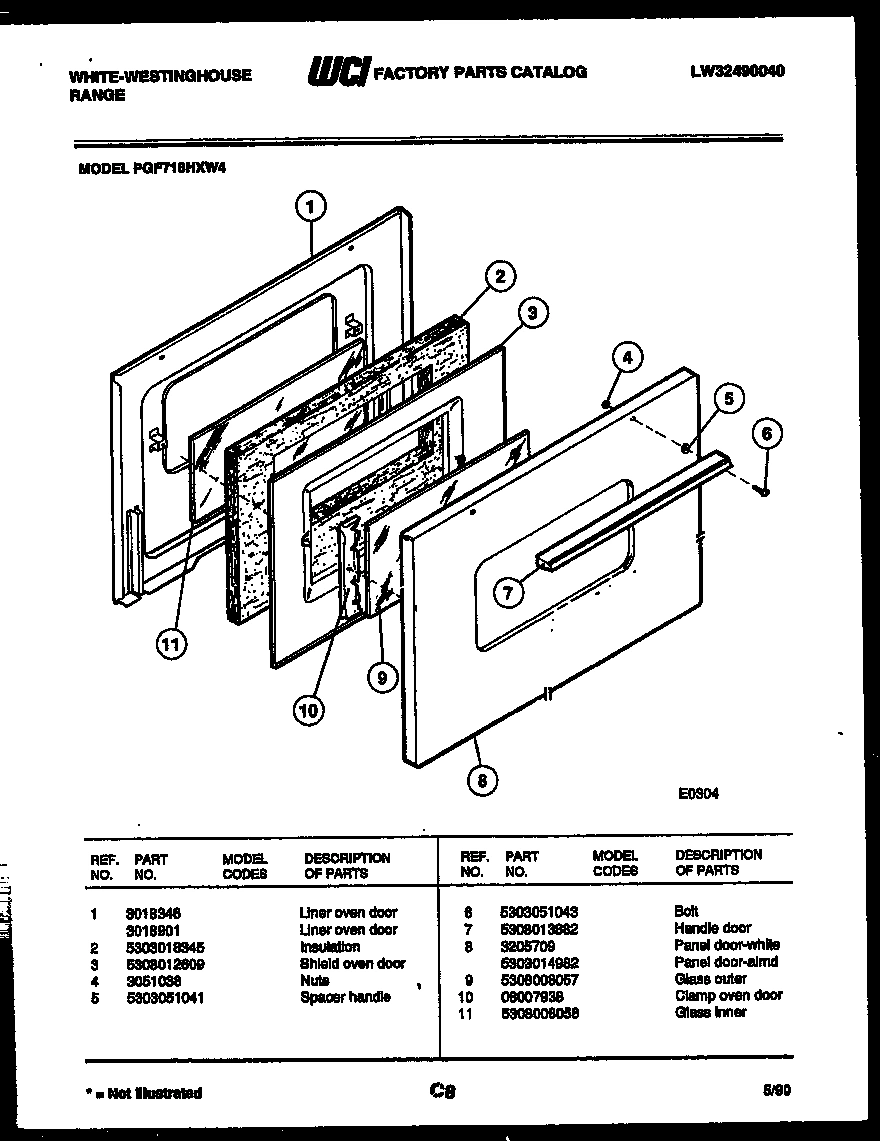

05 - DOOR PARTS

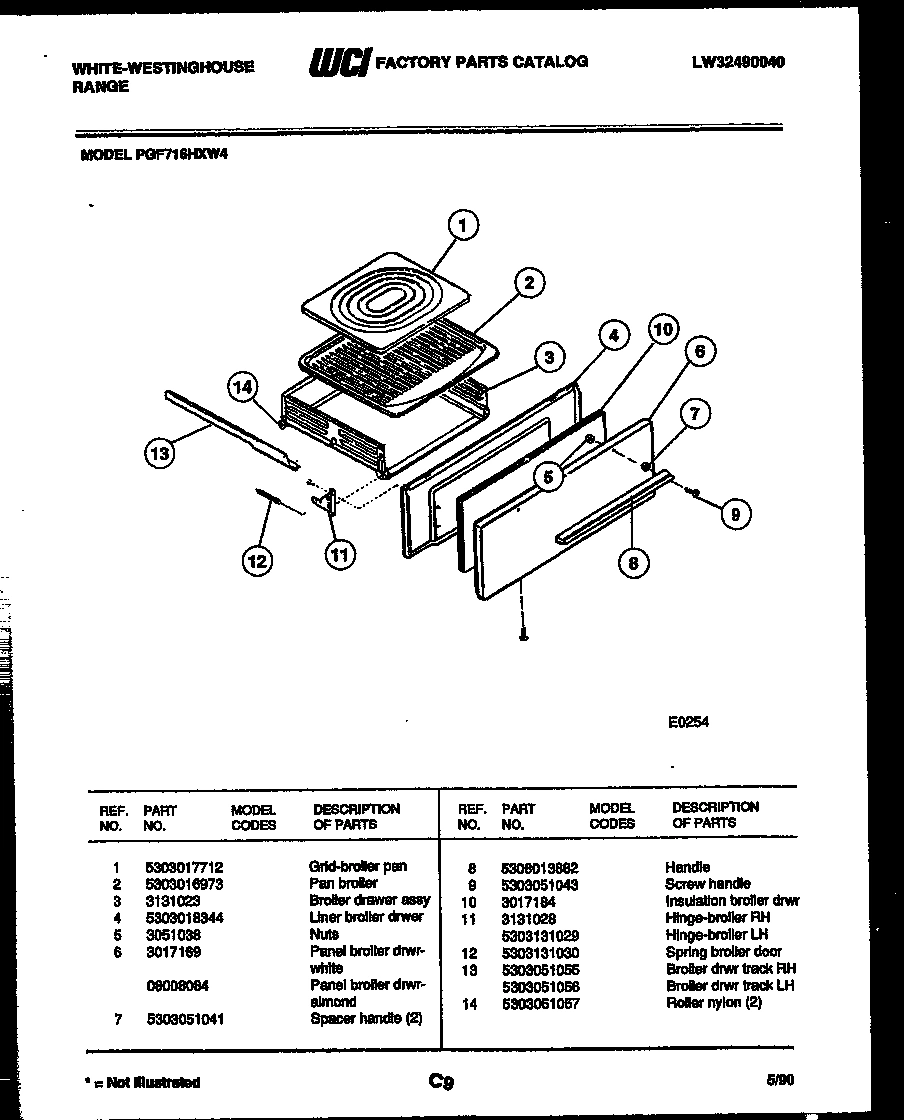

06 - BROILER DRAWER PARTS

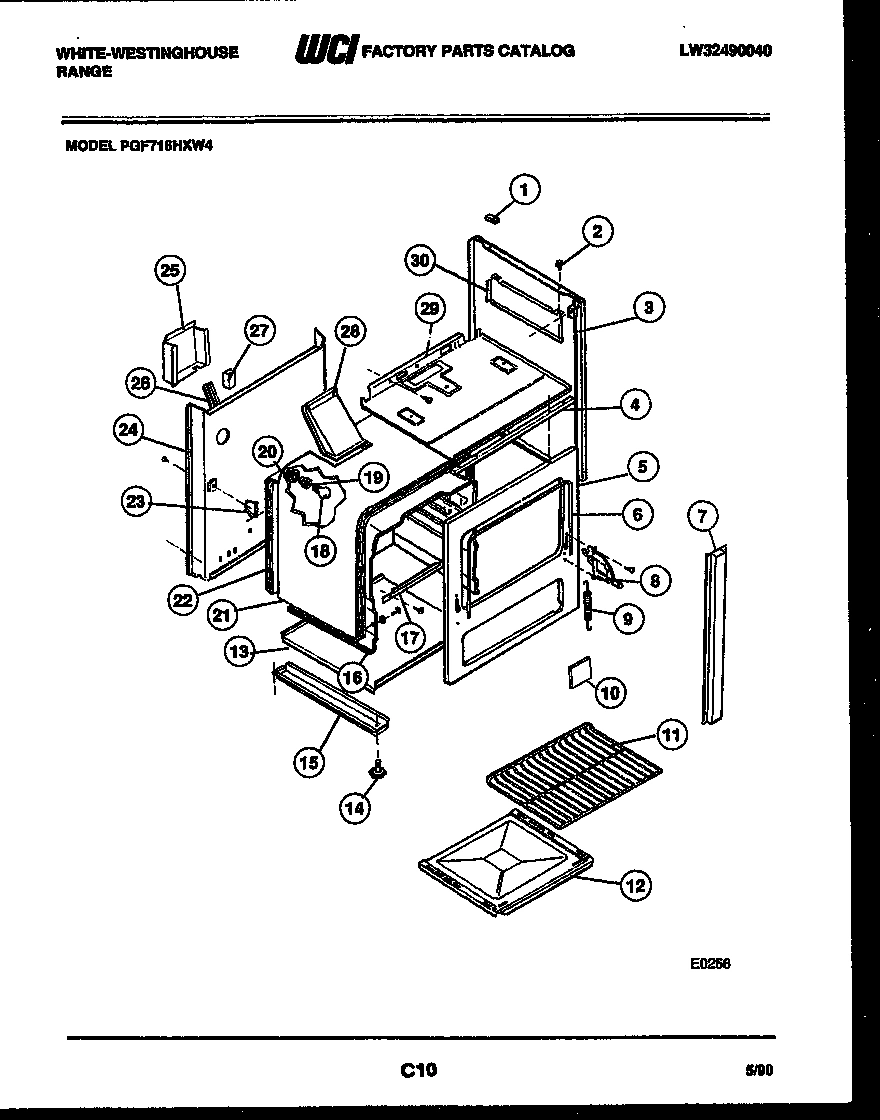

07 - BODY PARTS
Common parts from model Electrolux PGF716HXW4 RANGE
*30080
WCI 3018339 WCI 3018339 Contact Us For Availability
*30080
CLIP,BODYSIDE WCI 3131791 Contact Us For Availability
*30080
ANTI-TIP KIT WCI 3934059 Contact Us For Availability
1
PAN AERATION WCI 5308013991 Contact Us For Availability
1
LINER-OVEN DOOR WCI 3018346 Contact Us For Availability
1
WCI 3018901 WCI 3018901 Contact Us For Availability
1
GRID-BROILER PAN WCI 5303017712 Contact Us For Availability
1
GROMMET-MAINTOP WCI 3205587 Contact Us For Availability
2
COVER-GRIDDLE, WHITE WCI 5308013949 Contact Us For Availability
2
WCI 08013907 WCI 08013907 Contact Us For Availability
2
WCI 5303018345 WCI 5303018345 Contact Us For Availability
2
WCI 5303016973 WCI 5303016973 Contact Us For Availability
2
GROMMET WCI 3051063 Contact Us For Availability
3
WCI 5308013877 WCI 5308013877 Contact Us For Availability
3
TOP BURNER VALVE WCI 5303131057 Contact Us For Availability
3
SHIELD OVEN DOOR WCI 5308012609 Contact Us For Availability
3
BROILER DRAWER ASSY WCI 3131023 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
3A
GRIDDLE VALVE WCI 3205761 Contact Us For Availability
4
WCI 5308014034 WCI 5308014034 Contact Us For Availability
4
WCI 5308013926 WCI 5308013926 Contact Us For Availability
4
LINER BROILER DRWER WCI 5303018344 Contact Us For Availability
4
WCI 3205765 WCI 3205765 Contact Us For Availability
5
WCI 5303131019 WCI 5303131019 Contact Us For Availability
5
WCI 5303018341 WCI 5303018341 Contact Us For Availability
5
WCI 3205578 WCI 3205578 Contact Us For Availability
6
Seal,oven door WCI 5308008022 Contact Us For Availability
6
KNOB-GRIDDLE WCI 5308013894 Contact Us For Availability
6
WCI 5308008002 WCI 5308008002 Contact Us For Availability
6
PANEL-BROILER DRWR (WHITE) WCI 3017169 Contact Us For Availability
6A
CAM GRIDDLE WCI 5303131859 Contact Us For Availability
7
KNOB-TOP BRNR (4) WCI 5308013898 Contact Us For Availability
7
WCI 5303131094 WCI 5303131094 Contact Us For Availability
7
WCI 5303051041 WCI 5303051041 Contact Us For Availability
7
FILLER PNL BODYSIDE-WHITE WCI 08013994 Contact Us For Availability
8
PANEL MAINFOLD-WHITE WCI 08014004 Contact Us For Availability
8
SPRING SLIDE VAR WCI 5303131096 Contact Us For Availability
8
WCI 5308013882 WCI 5308013882 Contact Us For Availability
8
PANEL DOOR-WHITE WCI 3205709 Contact Us For Availability
8
OVEN DOOR HINGE-RH WCI 5303204670 Contact Us For Availability
9
GRATES (5) WCI 5303009309 Contact Us For Availability
9
CLIP CAPILLARY WCI 530009126 Contact Us For Availability
9
WCI 5308008057 WCI 5308008057 Contact Us For Availability
9
SPRING-OVEN DOOR WCI 5308008028 Contact Us For Availability
10
WCI 5303131099 WCI 5303131099 Contact Us For Availability
10
CLAMP OVEN DOOR WCI 08007938 Contact Us For Availability
10
INSULATION-BROILER DRWR WCI 3017184 Contact Us For Availability
10
WCI 08014023 WCI 08014023 Contact Us For Availability
11
RACK OVEN (2) WCI 5303015714 Contact Us For Availability
11
LOCK NUT WCI 5303131064 Contact Us For Availability
11
WCI 5308008058 WCI 5308008058 Contact Us For Availability
11
HINGE-BROILER (RH) WCI 3131028 Contact Us For Availability
11A
HINGE-BROILER (LH) WCI 5303131029 Contact Us For Availability
12
TUBE-OVEN FEED WCI 5303009495 Contact Us For Availability
12
SPRING BROILER DOOR WCI 5303131030 Contact Us For Availability
12
BOTTOM OVEN LINER WCI 3018282 Contact Us For Availability
13
WCI 538007983 WCI 538007983 Contact Us For Availability
13
BROILER DRWR-TRACK RH WCI 5303051055 Contact Us For Availability
13
BOTTOM - MAIN WCI 3011645 Contact Us For Availability
13A
BROILER DRWR-TRACK LH WCI 5303051056 Contact Us For Availability
14
WCI 5308007925 WCI 5308007925 Contact Us For Availability
14
WCI 08007979 WCI 08007979 Contact Us For Availability
14
ROLLER-NYLON (2) WCI 5303051057 Contact Us For Availability
14
LEG LEVELLER WCI 5303051080 Contact Us For Availability
15
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
15
BASE RAIL WCI 5308068047 Contact Us For Availability
16
WCI 5303202752 WCI 5303202752 Contact Us For Availability
16
WCI 3018284 WCI 3018284 Contact Us For Availability
16A
WCI 3018285 WCI 3018285 Contact Us For Availability
16B
WCI 3018347 WCI 3018347 Contact Us For Availability
16C
WCI 3018286 WCI 3018286 Contact Us For Availability
17
WCI 5308007985 WCI 5308007985 Contact Us For Availability
17
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
18
WCI 3131088 WCI 3131088 Contact Us For Availability
19
WCI 08008051 WCI 08008051 Contact Us For Availability
20
WCI 3051511 WCI 3051511 Contact Us For Availability
20
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
21
WCI 5308009419 WCI 5308009419 Contact Us For Availability
21
WCI 3017171 WCI 3017171 Contact Us For Availability
22
WCI 3017172 WCI 3017172 Contact Us For Availability
23
WCI 323964 WCI 323964 Contact Us For Availability
23
Support,oven rear WCI 3051096 Contact Us For Availability
24
IGNITOR (3) WCI 3203971 Contact Us For Availability
24
WCI 08013945 WCI 08013945 Contact Us For Availability
25
BURNER-TOP FRONT WCI 5303131080 Contact Us For Availability
25
WCI 3018340 WCI 3018340 Contact Us For Availability
26
Burner,top ,rear WCI 5303131079 Contact Us For Availability
26
CHANNEL - WIRE WCI 3131046 Contact Us For Availability
27
SUPPORT - GRID BURNER WCI 3203966 Contact Us For Availability
27
WCI 5303018338 WCI 5303018338 Contact Us For Availability
28
WCI 5303131882 WCI 5303131882 Contact Us For Availability
28
VENT BOX WCI 3017173 Contact Us For Availability
29
WCI 3017993 WCI 3017993 Contact Us For Availability
30
SHIELD-BURNER BOX RH WCI 5303131053 Contact Us For Availability
30A
SHIELD-BURNER BOX LH WCI 5303131054 Contact Us For Availability
× ![]()
