Model Electrolux PGF300HXW3 RANGE – Common Parts & Diagrams

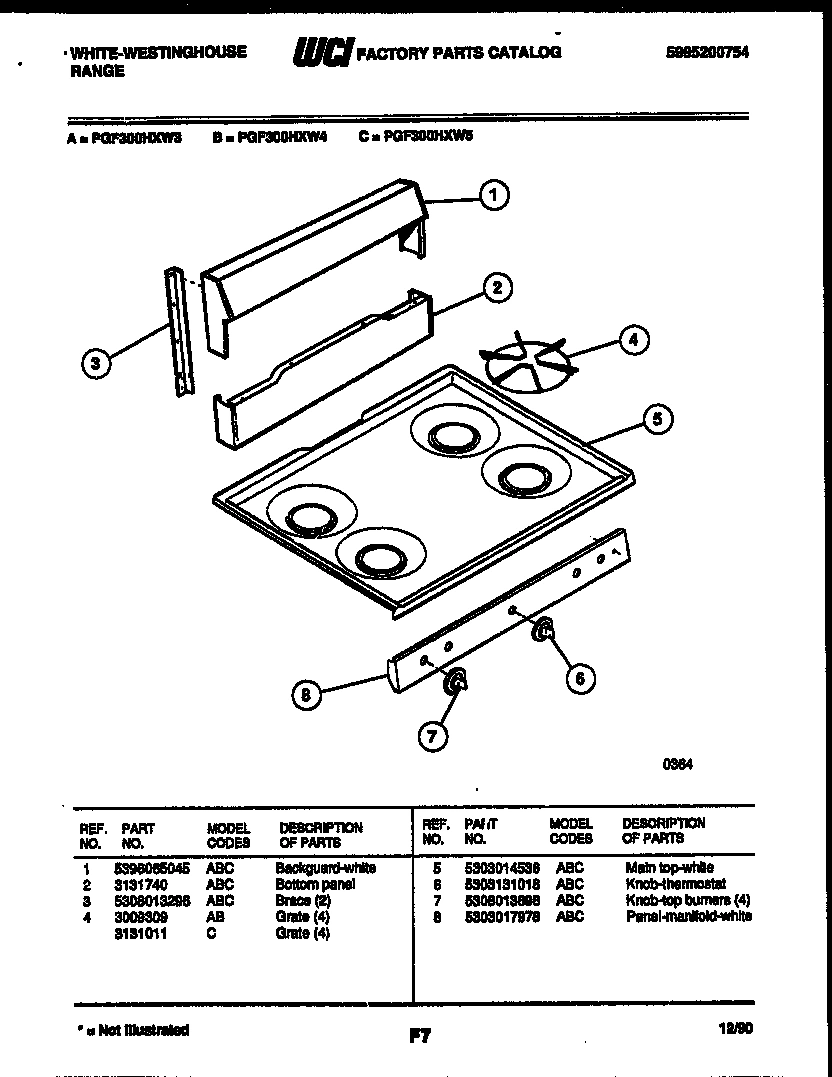

02 - BACKGUARD AND COOKTOP PARTS

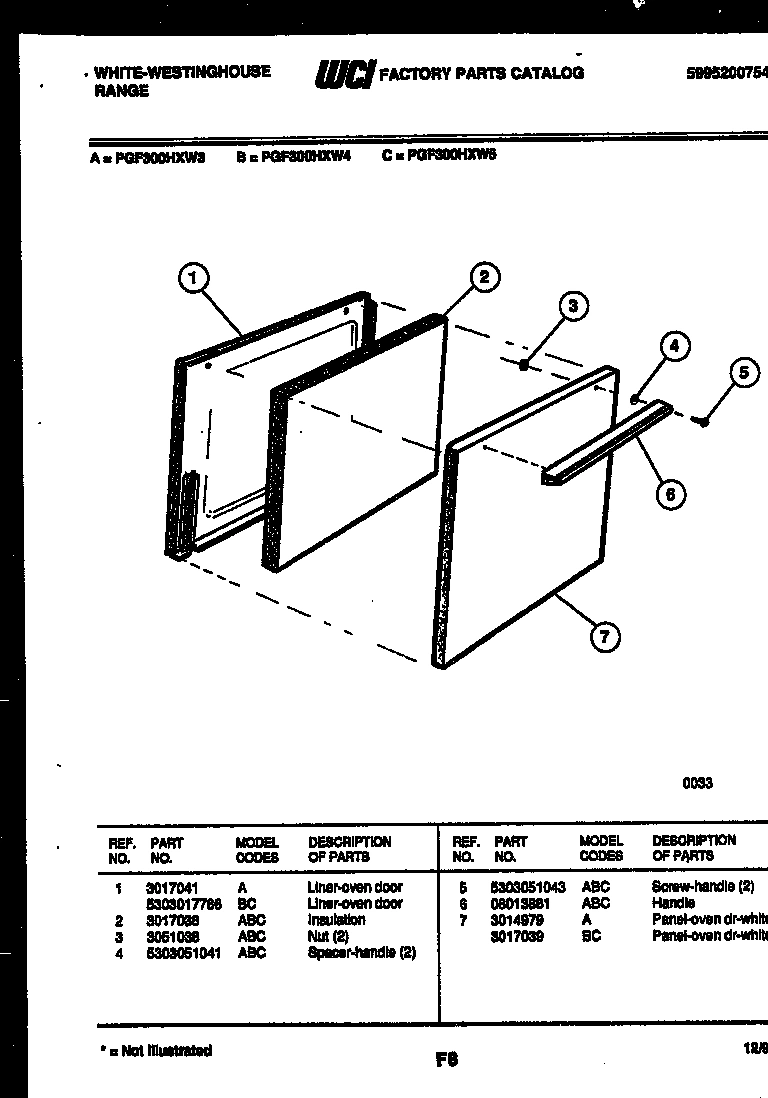

03 - DOOR PARTS

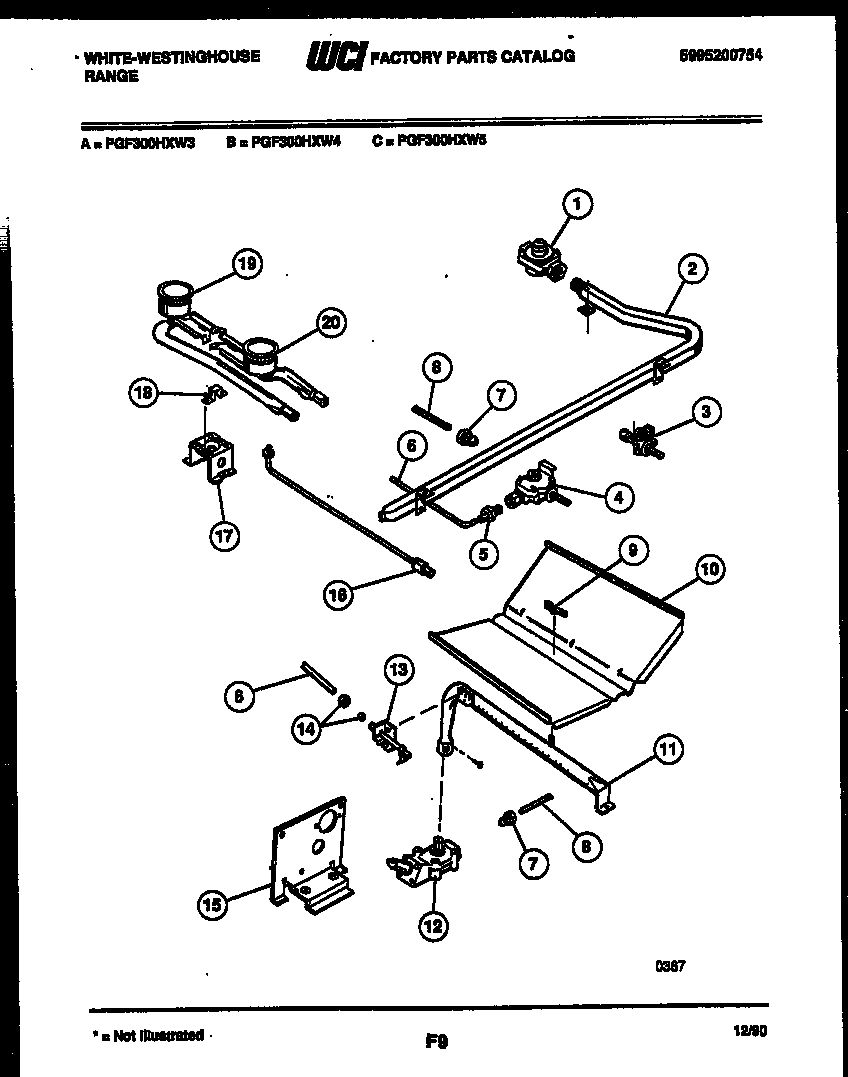

04 - BURNER, MANIFOLD AND GAS CONTROL

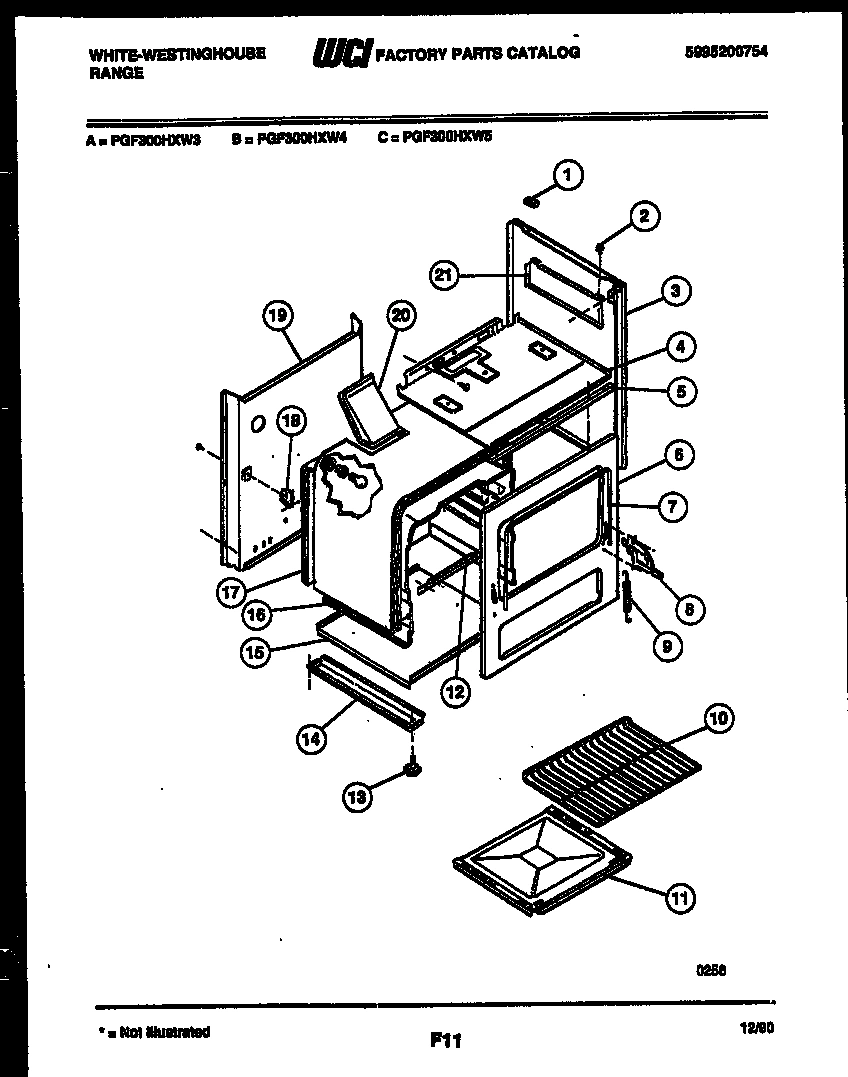

05 - BODY PARTS

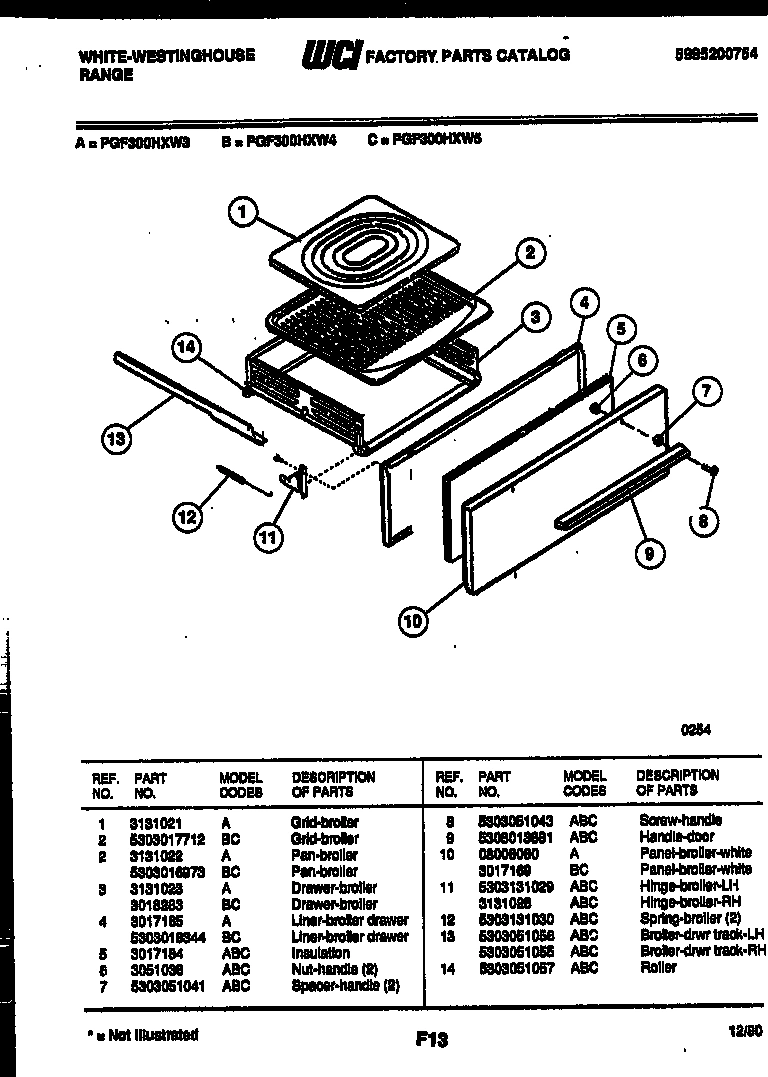

06 - BROILER DRAWER PARTS
Common parts from model Electrolux PGF300HXW3 RANGE
*25528
WCI 5300009126 WCI 5300009126 Contact Us For Availability
*25536
ANTI-TIP BRKT WCI 3934059 Contact Us For Availability
1
GROMMET WCI 3016129 Contact Us For Availability
1
GRID BROILER WCI 3131021 Contact Us For Availability
2
INSULATION WCI 3017038 Contact Us For Availability
2
WCI 5303017164 WCI 5303017164 Contact Us For Availability
2
GROMMET-MAIN TOP WCI 3051063 Contact Us For Availability
3
VALVE-TOP WCI 5303131057 Contact Us For Availability
3
PANEL-BODY SIDE (WHITE) WCI 5303051061 Contact Us For Availability
3
DRAWER-BROILER WCI 3131023 Contact Us For Availability
4
WCI 5308013927 WCI 5308013927 Contact Us For Availability
4
BURNER BOX BOTTOM WCI 3017174 Contact Us For Availability
4
LINER-BROILER DRAWER WCI 3017165 Contact Us For Availability
5
FITTING WCI 3131074 Contact Us For Availability
5
SUPPORT CONTROL PNL WCI 3131811 Contact Us For Availability
5
WCI 3017184 WCI 3017184 Contact Us For Availability
6
WCI 5303131018 WCI 5303131018 Contact Us For Availability
6
WCI 08013881 WCI 08013881 Contact Us For Availability
6
TUBE-OVEN PILOT WCI 5303009490 Contact Us For Availability
6
WCI 3017048 WCI 3017048 Contact Us For Availability
7
KNOB-TOP BURNERS (4) WCI 5308013898 Contact Us For Availability
7
Seal,oven door WCI 5308008022 Contact Us For Availability
7
WCI 5303051041 WCI 5303051041 Contact Us For Availability
7
PANEL-OVEN DR WHITE WCI 3014979 Contact Us For Availability
7
FITTING WCI 3131064 Contact Us For Availability
8
TUBE - OVEN FEED WCI 5303131063 Contact Us For Availability
8
HINGE-OVEN DR-RH WCI 3051078 Contact Us For Availability
9
NUT - WING WCI 08007979 Contact Us For Availability
9
SPRING OVEN DOOR (2) WCI 5303009435 Contact Us For Availability
9
HANDLE-DOOR WCI 5308013881 Contact Us For Availability
10
RACK-OVEN WCI 5303015714 Contact Us For Availability
10
BAFFLE-OVEN BURNER WCI 5303131061 Contact Us For Availability
10
WCI 08008080 WCI 08008080 Contact Us For Availability
11
WCI 5308013855 WCI 5308013855 Contact Us For Availability
11
LINER-BOTTOM WCI 3017168 Contact Us For Availability
11
HINGE-BROILER (RH) WCI 3131028 Contact Us For Availability
11
HINGE-BROILER (LH) WCI 5303131029 Contact Us For Availability
12
WCI 5308013942 WCI 5308013942 Contact Us For Availability
12
SUPPORT-OVEN BTM WCI 3131038 Contact Us For Availability
12
WCI 5303131030 WCI 5303131030 Contact Us For Availability
13
PILOT - OVEN WCI 3131071 Contact Us For Availability
13
LEG LEVELER (4) WCI 3051080 Contact Us For Availability
13
BROILER DRWR-TRACK RH WCI 5303051055 Contact Us For Availability
13
BROILER DRWR-TRACK LH WCI 5303051056 Contact Us For Availability
14
NUT & SLEEVE WCI 3131072 Contact Us For Availability
14
BASE-RAIL (2) WCI 3051081 Contact Us For Availability
14
ROLLER WCI 5303051057 Contact Us For Availability
15
SUPPORT - OVEN VALVE WCI 3131069 Contact Us For Availability
15
MAIN BOTTOM WCI 3011645 Contact Us For Availability
16
PILOT - TOP BURNER WCI 5303131075 Contact Us For Availability
16
LINER (TOP) WCI 3017166 Contact Us For Availability
16
LINER (BACK) WCI 3017167 Contact Us For Availability
16
LINER-RIGHT SIDE WCI 3131032 Contact Us For Availability
16
LINER-LEFT SIDE WCI 3131033 Contact Us For Availability
17
SUPPORT-TOP BURNER WCI 5303016870 Contact Us For Availability
17
WCI 3017171 WCI 3017171 Contact Us For Availability
17
WCI 3017172 WCI 3017172 Contact Us For Availability
18
STRAP - PILOT SHIELD WCI 3131078 Contact Us For Availability
18
Support,oven rear WCI 3051096 Contact Us For Availability
19
BURNER-TOP REAR (2) WCI 5303131079 Contact Us For Availability
19
MAIN BACK WCI 5303013340 Contact Us For Availability
20
BURNER-TOP FRONT (2) WCI 5303131080 Contact Us For Availability
20
FLUE BOX WCI 3017173 Contact Us For Availability
21
SHIELD-BRNR BOX-RH WCI 5303131053 Contact Us For Availability
21
SHIELD-BRNR BOX-LH WCI 5303131054 Contact Us For Availability
× ![]()
