Model Electrolux PGF201HXW2 RANGE – Common Parts & Diagrams
02 - COOKTOP PARTS
03 - DOOR PARTS

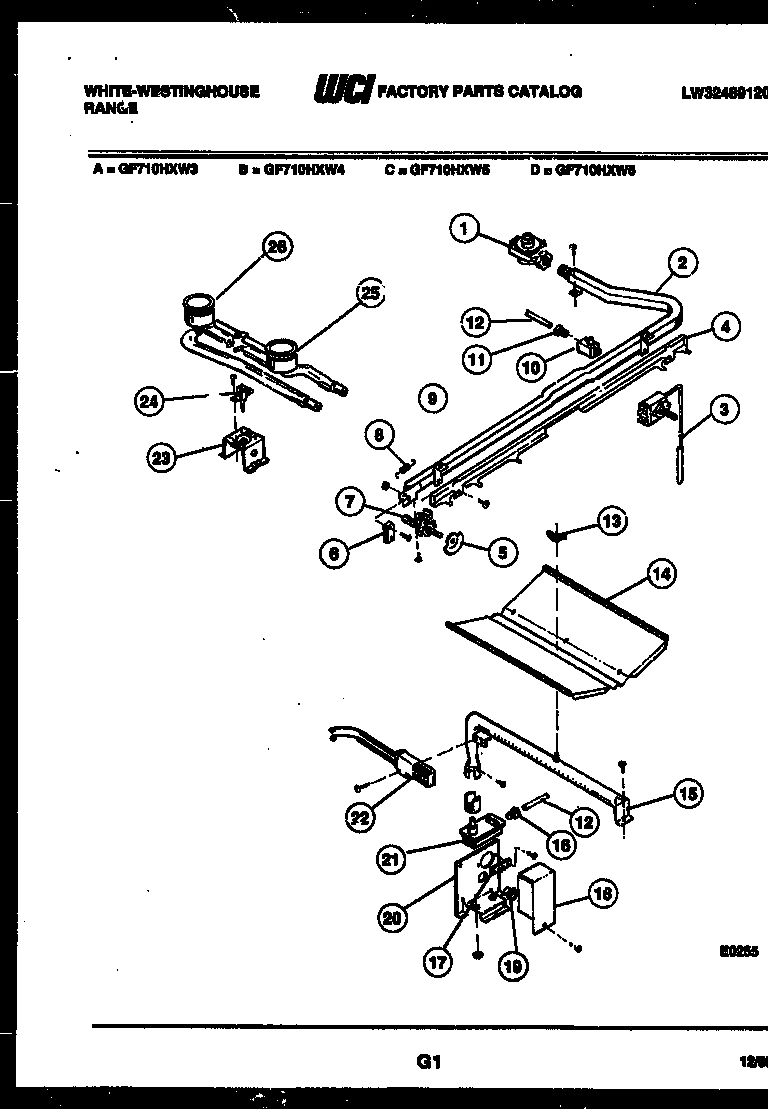

04 - BURNER, MANIFOLD AND GAS CONTROL

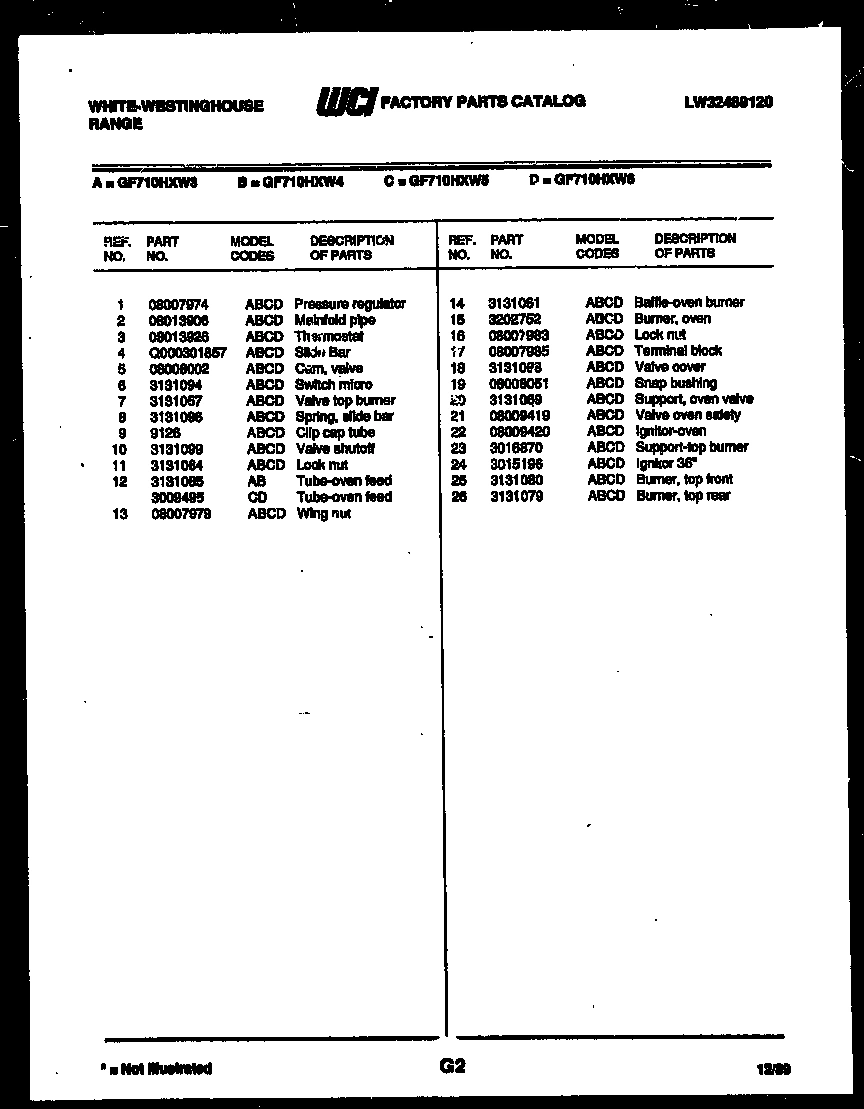

05 - BROILER DRAWER PARTS

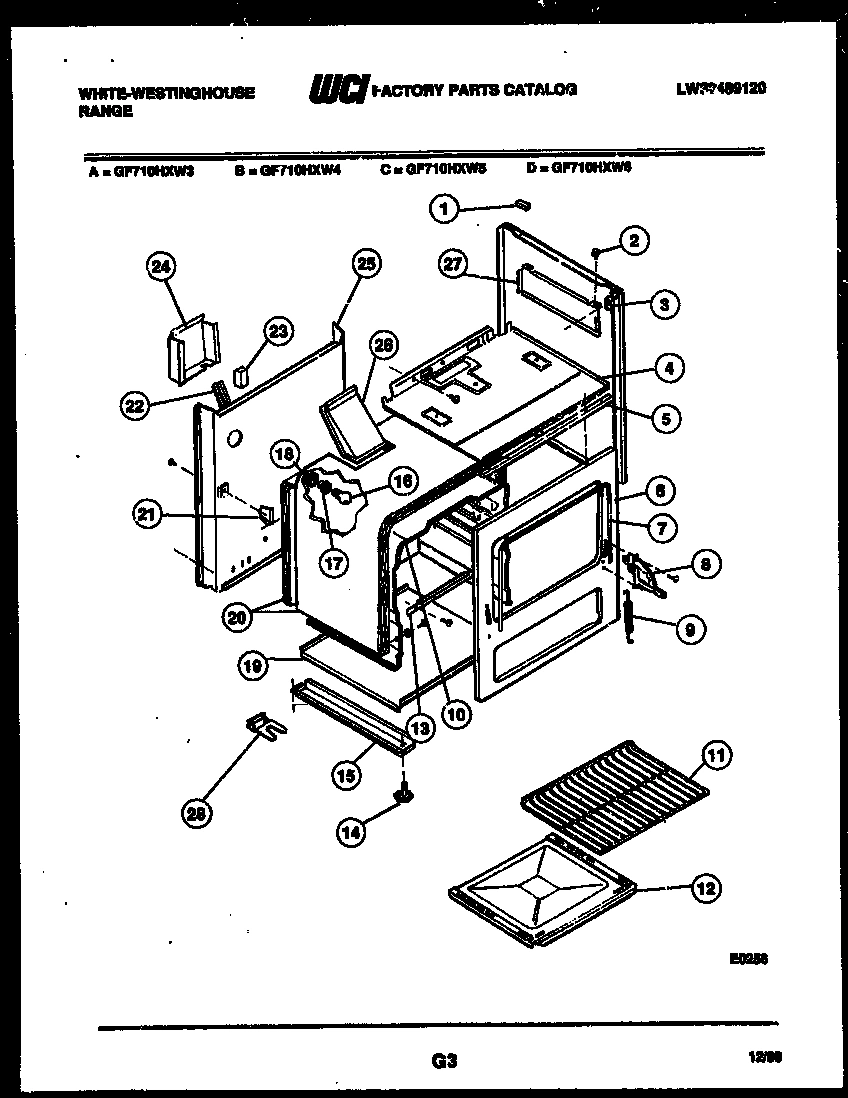

06 - BODY PARTS
Common parts from model Electrolux PGF201HXW2 RANGE
1
GRATE WCI Q000310102 Contact Us For Availability
1
LINER-OVEN WCI 3016160 Contact Us For Availability
1
INSERT - BROILER PAN WCI 08008077 Contact Us For Availability
1
WCI Q000301831 WCI Q000301831 Contact Us For Availability
2
WCI Q000310042 WCI Q000310042 Contact Us For Availability
2
INSULATION-WOOL WCI AP00207039 Contact Us For Availability
2
WCI 3131056 WCI 3131056 Contact Us For Availability
2
WCI 08008078 WCI 08008078 Contact Us For Availability
2
GROMMET WCI AP00172002 Contact Us For Availability
3
PANEL MANIFOLD (WHITE) WCI Q000310049 Contact Us For Availability
3
WCI Q000301873 WCI Q000301873 Contact Us For Availability
3
BODY SIDE (WHITE) L&R WCI Q000301942 Contact Us For Availability
4
WCI Q000280098 WCI Q000280098 Contact Us For Availability
4
PANEL WHITE WCI Q000301996 Contact Us For Availability
4
WCI Q000301859 WCI Q000301859 Contact Us For Availability
4
WCI Q000301883 WCI Q000301883 Contact Us For Availability
4
SUPPORT, CONTROL PANEL WCI A074062000 Contact Us For Availability
5
KNOB-TOP VALVE WCI Q000280097 Contact Us For Availability
5
WCI A009010000 WCI A009010000 Contact Us For Availability
5
WCI 3131025 WCI 3131025 Contact Us For Availability
5
WCI Q000301971 WCI Q000301971 Contact Us For Availability
5A
WCI Q000301972 WCI Q000301972 Contact Us For Availability
5B
WCI Q000301984 WCI Q000301984 Contact Us For Availability
5C
WCI Q000301985 WCI Q000301985 Contact Us For Availability
6
BACK GUARD PANEL (WHITE) WCI Q000301922 Contact Us For Availability
6
BURNER-OVEN PILOT WCI Q000301880 Contact Us For Availability
6
WCI Q000301834 WCI Q000301834 Contact Us For Availability
7
TUBE-OVEN FEED WCI AP00377125 Contact Us For Availability
7
PANEL BROILER DRAWER (WHITE) WCI A098350000 Contact Us For Availability
7A
WCI A096068000 WCI A096068000 Contact Us For Availability
8
WCI Q000061664 WCI Q000061664 Contact Us For Availability
8
LOXIT NUT (3/8) WCI AP00269017 Contact Us For Availability
8
WCI AP00326050 WCI AP00326050 Contact Us For Availability
9
HANDLE WCI Q000301812 Contact Us For Availability
9
WCI Q000301872 WCI Q000301872 Contact Us For Availability
9
SPRING OVEN DOOR (LR) WCI AP00339053 Contact Us For Availability
10
SUPPORT OVEN VALVE WCI A074054000 Contact Us For Availability
10
WCI AP00301042 WCI AP00301042 Contact Us For Availability
11
PILOT WCI Q000301876 Contact Us For Availability
11
SCREW PANEL MTG. WCI AP00051056 Contact Us For Availability
11
WCI Q000301970 WCI Q000301970 Contact Us For Availability
12
NUT-COMPRESSION/SLEEVE WCI Q000301878 Contact Us For Availability
12
HINGE BROILER (LH) WCI A046011000 Contact Us For Availability
12
SUPPORT OVEN BOTTOM WCI AP74055000 Contact Us For Availability
12A
HINGE BROILER (RH) WCI A046010000 Contact Us For Availability
13
TUBE, OVEN PILOT WCI AP00377082 Contact Us For Availability
13
WCI AP00339050 WCI AP00339050 Contact Us For Availability
13
LEVELING LEG WCI Q000310108 Contact Us For Availability
14
LOXIT NUT (3/16``) WCI AP00269018 Contact Us For Availability
14
BROILER DRAWER TRACK (RT) WCI A096069000 Contact Us For Availability
14
RAIL-BASE L&R WCI A098373000 Contact Us For Availability
14A
BROILER DRAWER TRACK (LT) WCI A096070000 Contact Us For Availability
15
PILOT TUBE WCI Q000310058 Contact Us For Availability
15
WCI AP00031004 WCI AP00031004 Contact Us For Availability
15
BRKT. INSULATION WCI 3131041 Contact Us For Availability
16
WCI Q000301866 WCI Q000301866 Contact Us For Availability
16
MAIN BOTTOM WCI A011049000 Contact Us For Availability
17
SHIELD-PILOT WCI Q000301966 Contact Us For Availability
17
WCI Q000134234 WCI Q000134234 Contact Us For Availability
18
BURNER TOP REAR (2) WCI Q002500102 Contact Us For Availability
18
INSULATION WCI 3131044 Contact Us For Availability
18A
CLIP-CAPILLARY T&B (NON-ILLUSTRATED) WCI AP00091011 Contact Us For Availability
19
BURNER TOP FRONT (2) WCI Q002500101 Contact Us For Availability
19
WCI A00508000 WCI A00508000 Contact Us For Availability
20
WCI A074060000 WCI A074060000 Contact Us For Availability
21
WCI A092049000 WCI A092049000 Contact Us For Availability
22
WCI Q000310067 WCI Q000310067 Contact Us For Availability
23
SHIELD HEAT (RH) WCI A061044000 Contact Us For Availability
23A
SHIELD HEAT (LH) WCI A061074000 Contact Us For Availability
× ![]()
