Model GE PFSS9PKYBSS Refrigerator – Common Parts & Diagrams

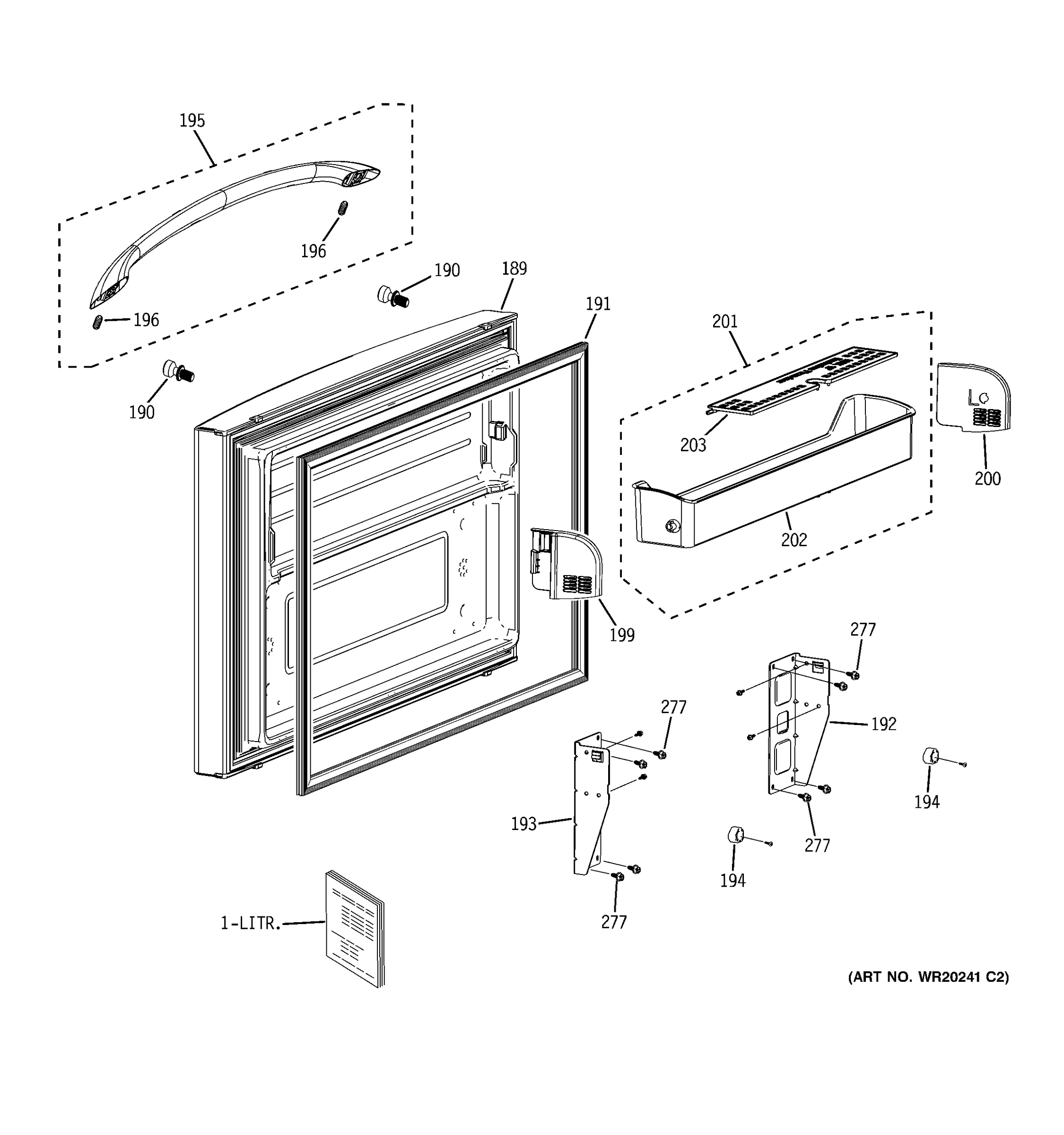

FREEZER DOOR

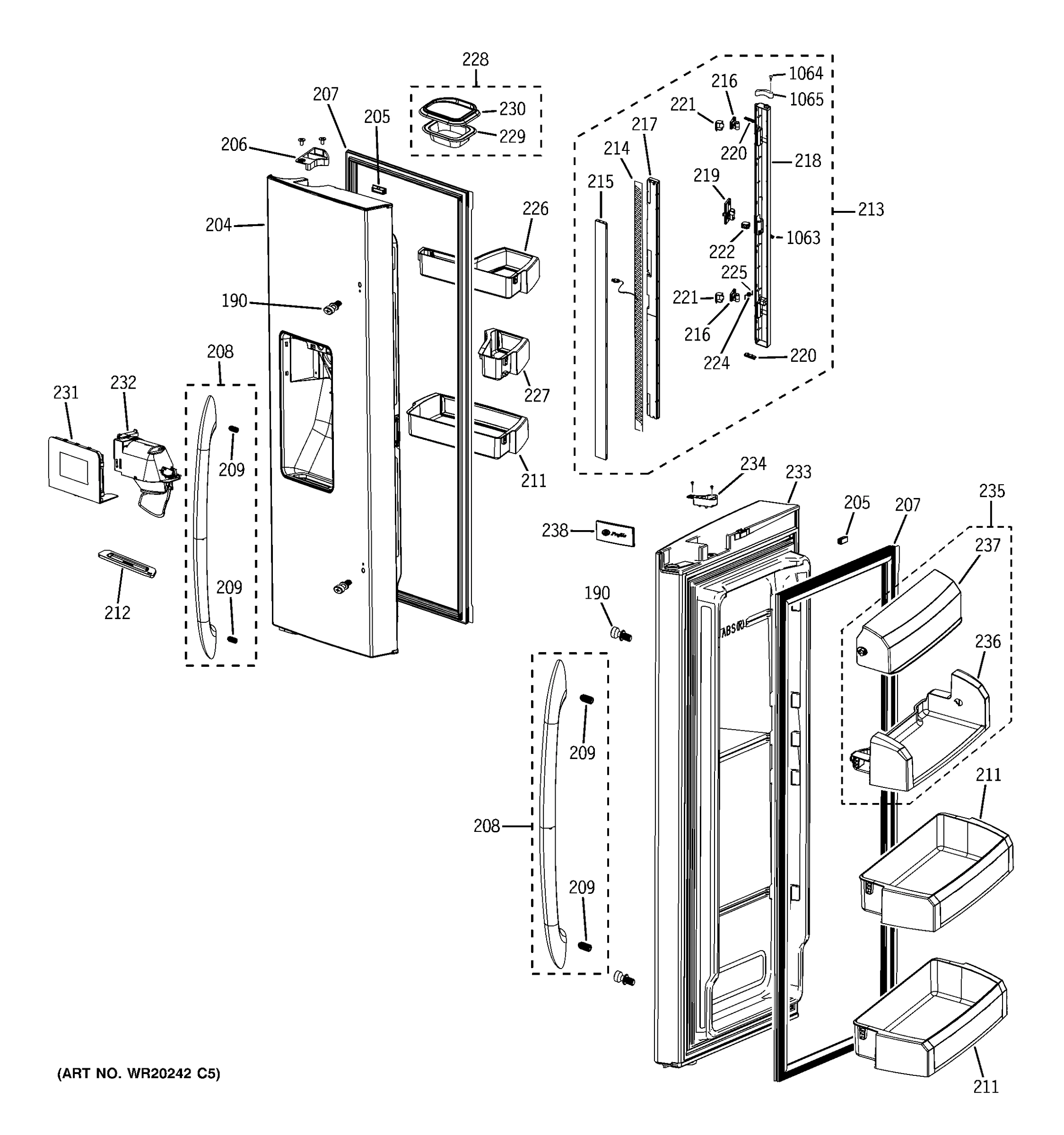

FRESH FOOD DOORS
FREEZER SECTION
FREEZER SHELVES
ICE MAKER & DISPENSER
FRESH FOOD SECTION
FRESH FOOD SHELVES
CASE PARTS
MACHINE COMPARTMENT
Common parts from model GE PFSS9PKYBSS Refrigerator
16
ASM GEAR L GEN WR02X12742 Contact Us For Availability
20
ASM GEAR R GEN WR02X12743 Contact Us For Availability
22
ASM TRAY-DRAWER BOX GEN WR14X10308 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10128 Contact Us For Availability
27
EVAP FZ GEN WR85X10096 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
32
COVER-LAMP FZ GEN WR13X10756 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
39
EVAP FAN BLADE GEN WR60X10249 Contact Us For Availability
42
EVAP BLADE BACKWARD GEN WR60X10264 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
44
EVAP MOTOR FZ LEFT GEN WR60X10255 No Longer Available
45
ASM MOTOR FRE GEN WR60X10301 Contact Us For Availability
46
ASM HEATER DUCT FZ GEN WR51X10106 Contact Us For Availability
47
EVAP COVER FZ GEN WR17X12388 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
54
ASM SHELF QUICK SPACE GEN WR71X10887 Contact Us For Availability
64
VEG PAN ROLLER GEN WR02X12640 Contact Us For Availability
65
ASM RAIL VEG LEFT GEN WR72X10267 Contact Us For Availability
66
RAIL VEG LEFT GEN WR72X10268 Contact Us For Availability
67
ASM RAIL VEG RIGHT GEN WR72X10269 Contact Us For Availability
68
RAIL VEG RIGHT GEN WR72X10270 Contact Us For Availability
73
ASM SHELF-PANTRY GEN WR71X10885 Contact Us For Availability
74
ASM COVER-SLIDE PANTRY GEN WR32X10763 Contact Us For Availability
81
ASM COVER-RAIL PANTRY R GEN WR72X10345 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10761 Contact Us For Availability
93
BIMETAL GEN WR02X12592 Contact Us For Availability
95
SENSOR CLAMP GEN WR02X12620 Contact Us For Availability
96
DRAIN TRAY EVAP GEN WR13X10601 Contact Us For Availability
98
ASM COVER-EAVP REF SUB GEN WR17X12764 Contact Us For Availability
108
ASM-COVER WATER TANK GEN WR17X12767 Contact Us For Availability
111
HEATER WATER TANK GEN WR51X10117 Contact Us For Availability
116
COVER WATER FILTER GEN WR13X10495 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
121
DAMPER COVER FF GEN WR13X10611 Contact Us For Availability
124
IM HARNESS COVER GEN WR13X10574 Contact Us For Availability
125
ASM-CASE AUGER MOTOR GEN WR60X10304 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
129
AUGUER MOTOR SOLENOID GEN WR29X10077 Contact Us For Availability
130
MOTOR GEARED-AUGER GEN WR60X10299 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
140
ASM HINGE UPPER RIGHT SS GEN WR13X10547 Contact Us For Availability
141
GROMMET HINGLE MIDDLE GEN WR02X12747 Contact Us For Availability
142
ASM HINGE MID-L GEN WR13X10764 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
150
TUBE-FITTING, A GEN WR02X13192 Contact Us For Availability
151
ASM WATER LINE GEN WR02X12750 Contact Us For Availability
152
WATER LINE HOLDER GEN WR02X12607 Contact Us For Availability
153
WATER LINE COVER GEN WR13X10520 Contact Us For Availability
155
PBA INVERTER GEN WR55X10960 Contact Us For Availability
157
ASM-COVER PCB PANEL GEN WR13X10763 Contact Us For Availability
158
SENSOR TEMP GEN WR23X10579 Contact Us For Availability
159
WRENCH GEN WR02X12649 Contact Us For Availability
163
ASM TRAY-DRAIN WATER GEN WR13X10771 Contact Us For Availability
164
SCREW SPECIAL GEN WR01X10773 Contact Us For Availability
165
TRAY-DRAIN WATER GEN WR30X10129 Contact Us For Availability
166
GROMMET CONDENSER GEN WR02X12635 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR13X10770 Contact Us For Availability
169
CONDENSER GEN WR84X10085 Contact Us For Availability
170
CONDENSER FAN BLADE GEN WR60X10266 Contact Us For Availability
171
GROMMET-COMP GEN WR02X11915 Contact Us For Availability
172
COMPRESSOR GEN WR87X10208 Contact Us For Availability
175
WIRE HARNESS-COMP GEN WR23X10672 Contact Us For Availability
179
ASM PIPE CONNECT-SUCTION GEN WR86X10060 Contact Us For Availability
180
FIXER-HOSE(VALVE) GEN WR02X13191 Contact Us For Availability
181
ASM CAP-DRAIN GEN WR02X13198 Contact Us For Availability
182
WIRE HARNESS GROUND GEN WR23X10583 Contact Us For Availability
183
COVER-NOISE FILTER GEN WR13X10754 Contact Us For Availability
184
COIL FILTER-EMI GEN WR62X10088 Contact Us For Availability
185
CBF-POWER CORD GEN WR23X10670 Contact Us For Availability
186
ASM CHASSIS-COMP GEN WR17X12768 Contact Us For Availability
188
BOLT COMPRESSOR GEN WR01X10437 Contact Us For Availability
189
ASM DOOR FOAM FZ GEN WR78X12479 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
192
HANGER RAIL FRONT L GEN WR13X10502 Contact Us For Availability
193
HANGER RAIL FRONT R GEN WR13X10503 Contact Us For Availability
196
SCREW SET GEN WR01X10775 Contact Us For Availability
204
ASM DOOR FOAM REF SS-L GEN WR78X12482 Contact Us For Availability
206
CAM AUTO CLOSE L SS GEN WR02X12666 Contact Us For Availability
207
ASM-GASKET DOOR REF SS GEN WR87X10209 Contact Us For Availability
209
SCREW SET GEN WR01X10774 Contact Us For Availability
211
ASM GUARD REF R GEN WR21X10211 Contact Us For Availability
211
ASM GUARD REF L GEN WR21X10212 Contact Us For Availability
212
TRAY DISPENSER SS GEN WR13X10545 Contact Us For Availability
213
ASM-FRENCH GEN WR02X13199 Contact Us For Availability
218
HINGE FRENCH GEN WR13X10516 Contact Us For Availability
219
COVER HEATER FRENCH GEN WR13X10491 Contact Us For Availability
220
GASKET FRENCH SS GEN WR24X10196 Contact Us For Availability
221
CAP CASE FRENCH GEN WR02X12643 Contact Us For Availability
222
CAP CASE FRENCH MID GEN WR02X12645 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
225
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
228
ASM CAP CHUTE ICE GEN WR02X12661 Contact Us For Availability
229
CAP CHUTE ICE GEN WR02X12646 Contact Us For Availability
231
ASM-COVER DISPENSER GEN WR32X10764 Contact Us For Availability
233
ASM DOOR FOAM REF SS-R GEN WR78X12481 Contact Us For Availability
238
MASCOT GEN WR02X12636 Contact Us For Availability
243
GROMMET-SUCT PIPE A GEN WR02X12675 Contact Us For Availability
247
ASM MOTOR-STEP VALVE GEN WR86X10061 Contact Us For Availability
729
SHELF-WINE GEN WR17X11738 Contact Us For Availability
1065
CAP-GUIDE FRENCH UPP GEN WR01X10903 Contact Us For Availability
1103
PLATE-TOP TABLE GEN WR13X10751 Contact Us For Availability
1104
SWITCH DOOR-INTERLOCK GEN WR23X10671 Contact Us For Availability
1105
PLATE-DOOR SWITCH GEN WR23X10673 Contact Us For Availability
1106
ASM-WIRE HARNESS SUB GEN WR23X10675 Contact Us For Availability
1107
GROMMET-DOOR SWITCH GEN WR02X13210 Contact Us For Availability
1109
RELAY PROTECTOR O/L GEN WR07X10088 Contact Us For Availability
1110
COVER RELAY GEN WR02X11949 Contact Us For Availability
× ![]()
