Model GE PFSS6PKXGSS Refrigerator – Common Parts & Diagrams
FREEZER DOOR
FRESH FOOD DOORS

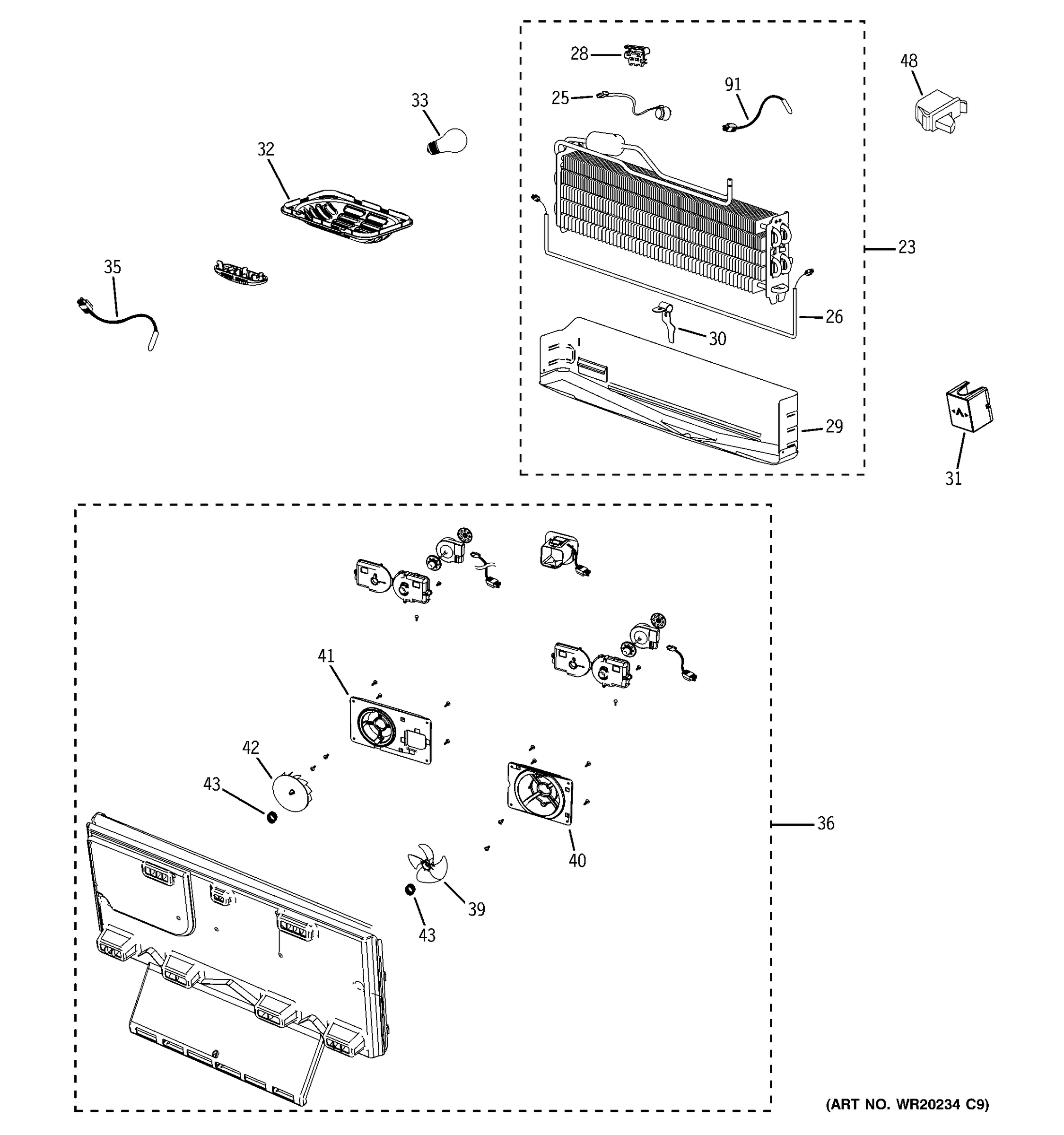

FREEZER SECTION

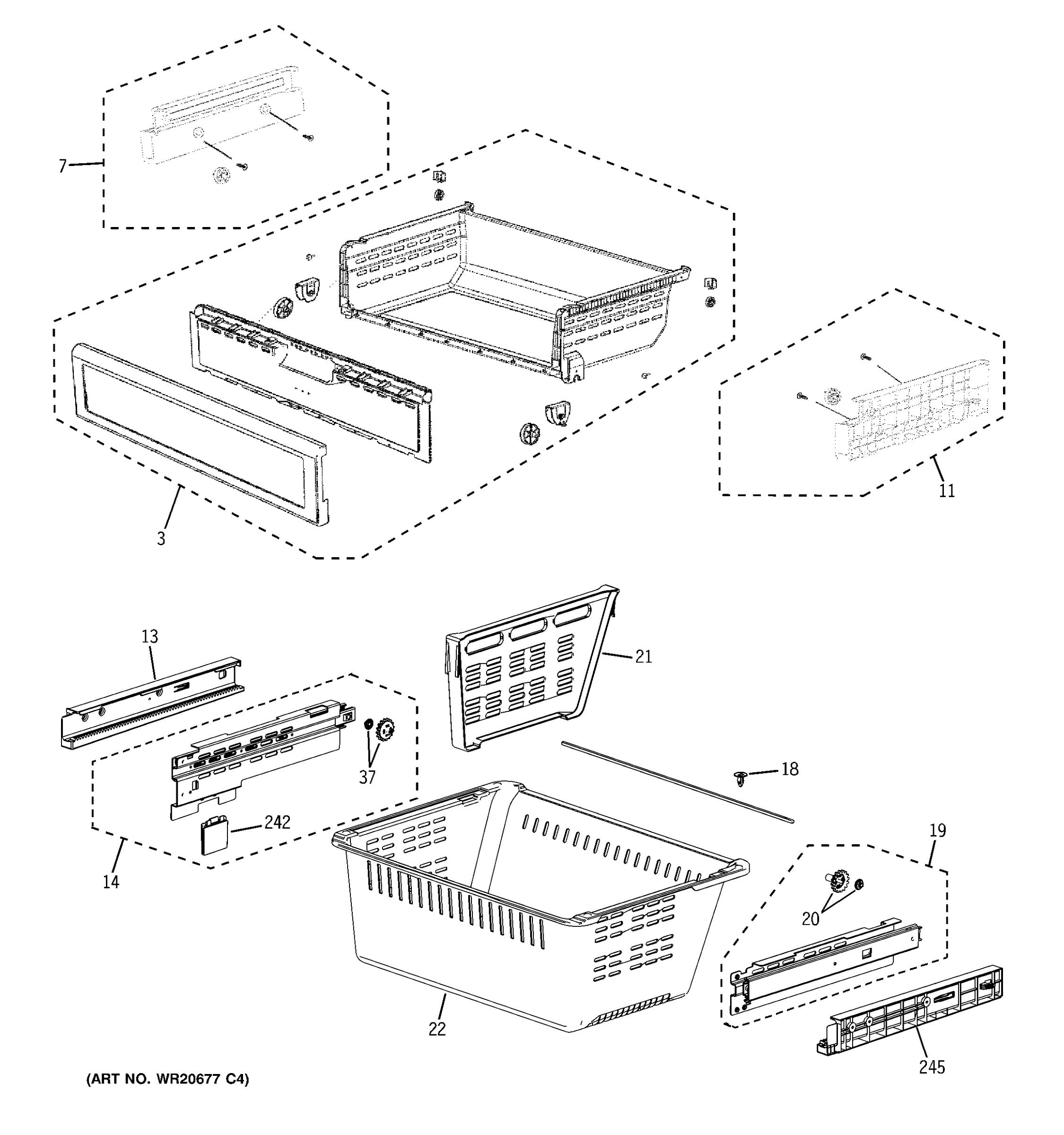

FREEZER SHELVES

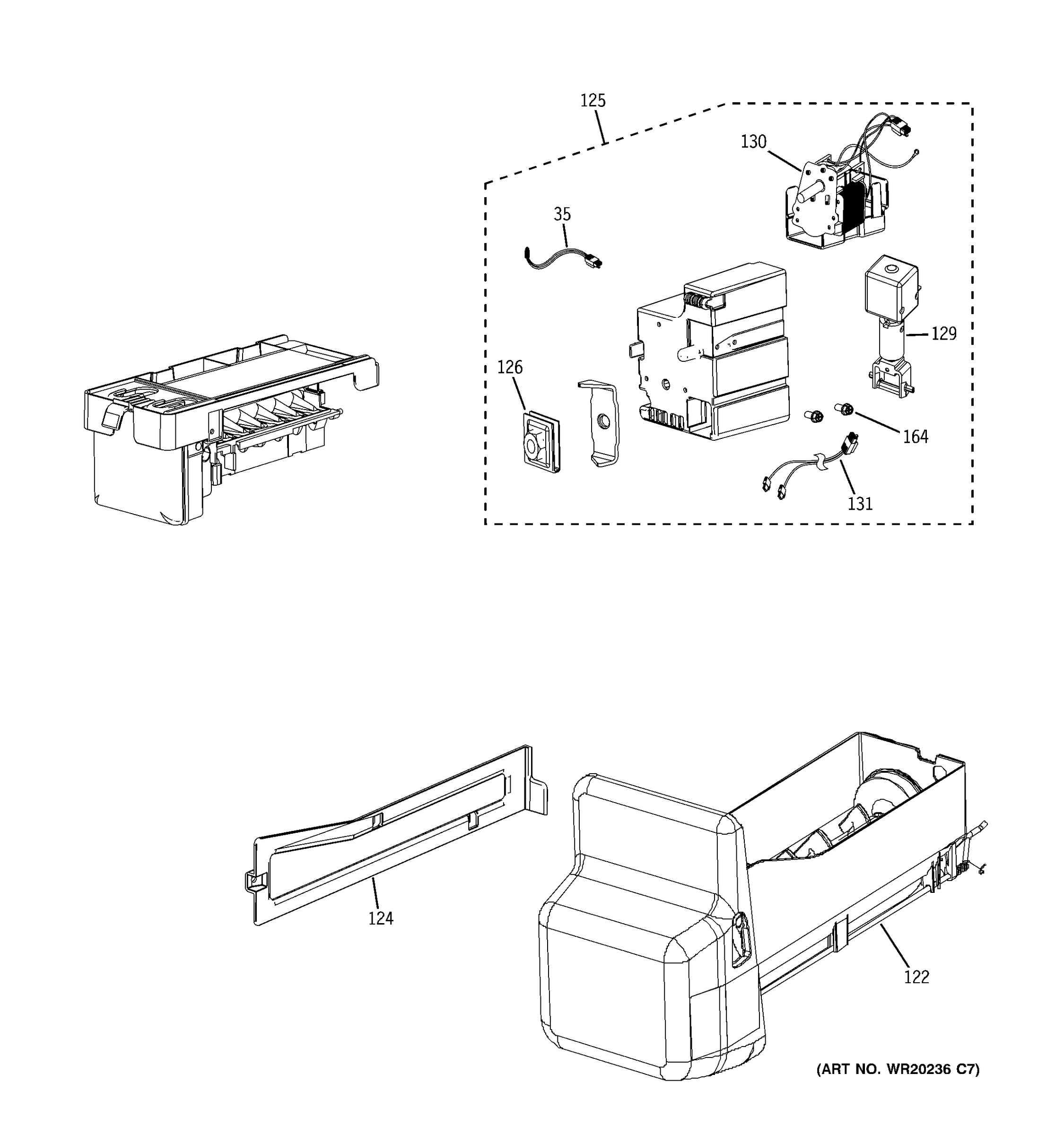

ICE MAKER & DISPENSER

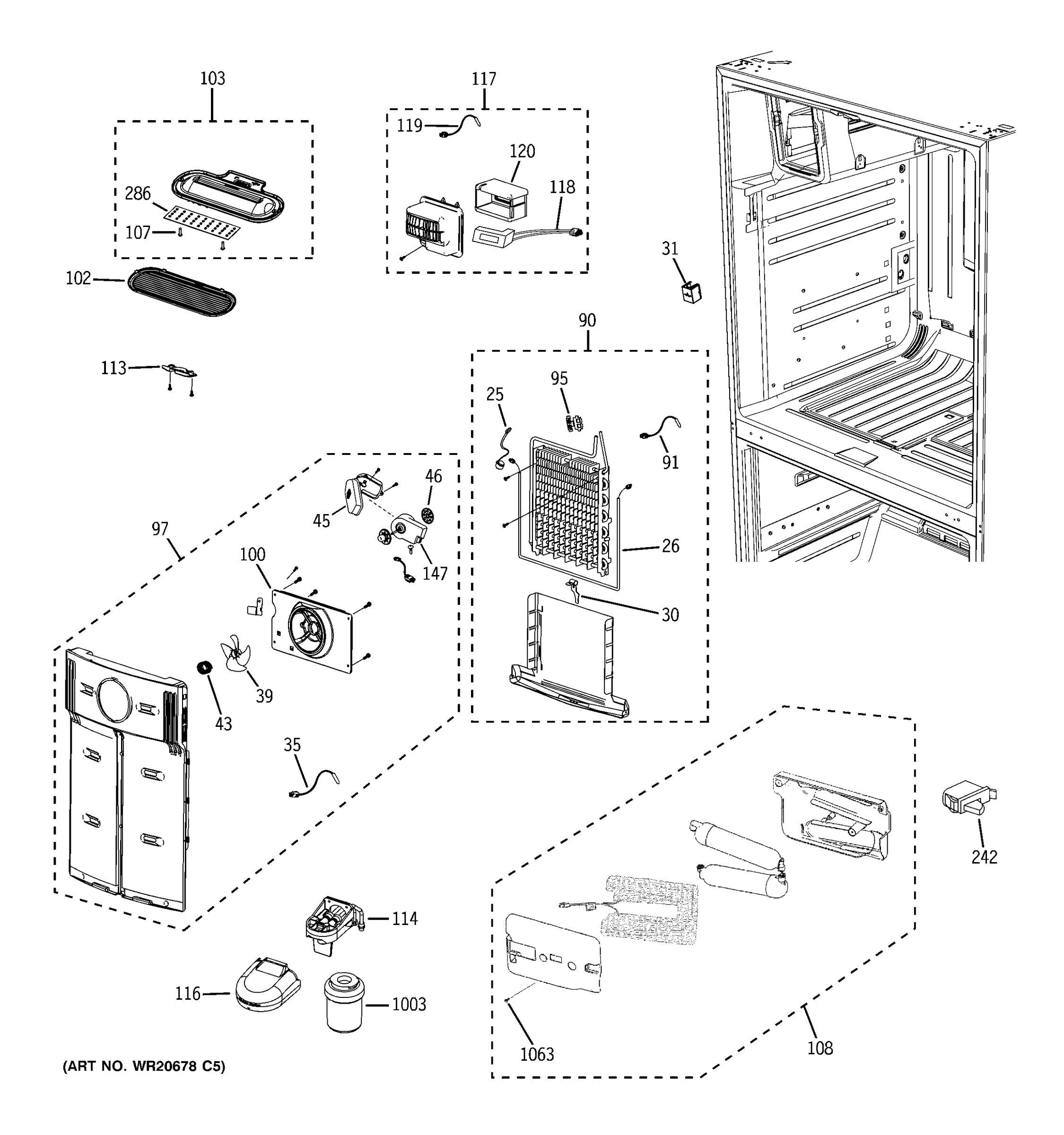

FRESH FOOD SECTION

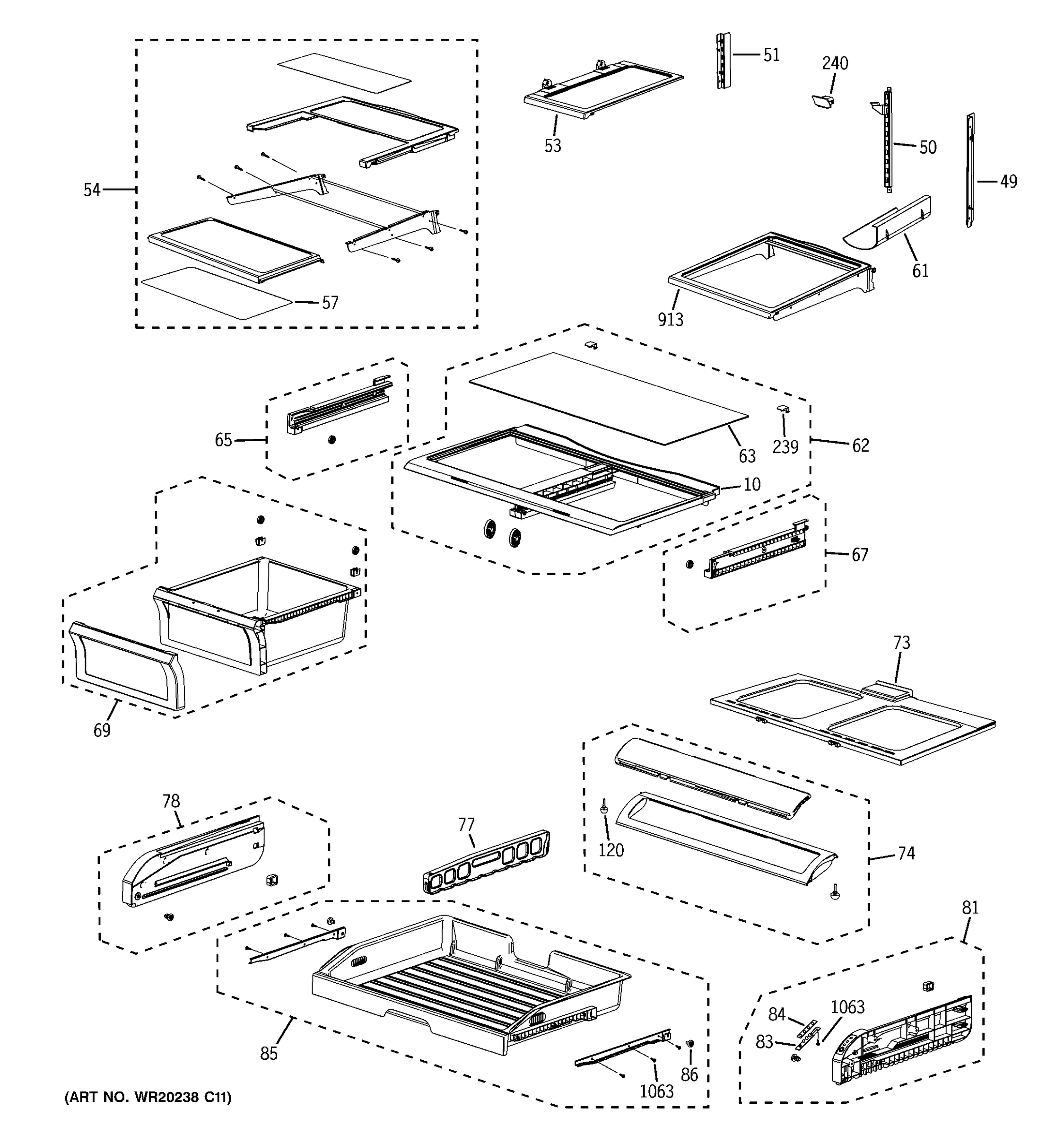

FRESH FOOD SHELVES

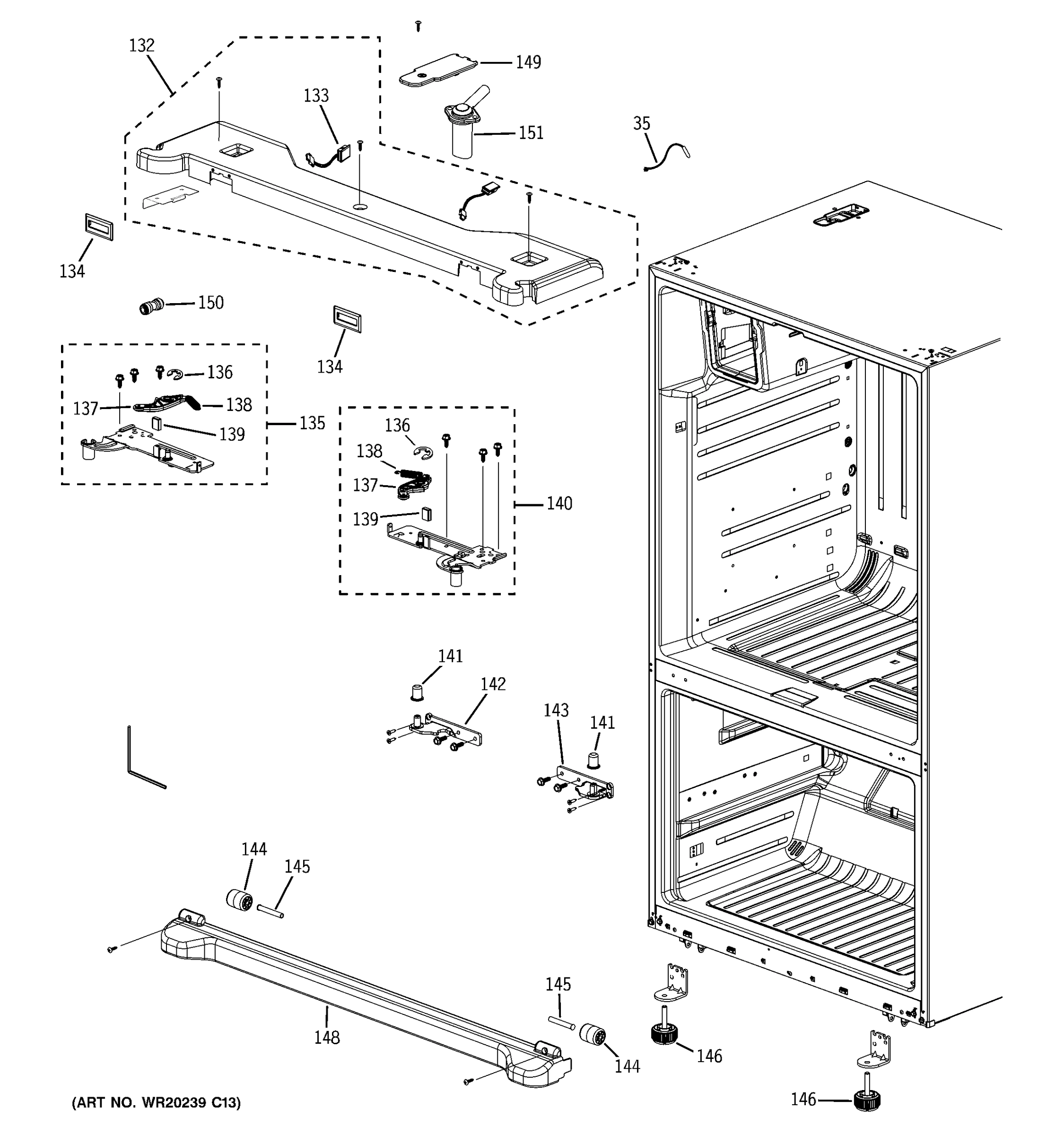

CASE PARTS

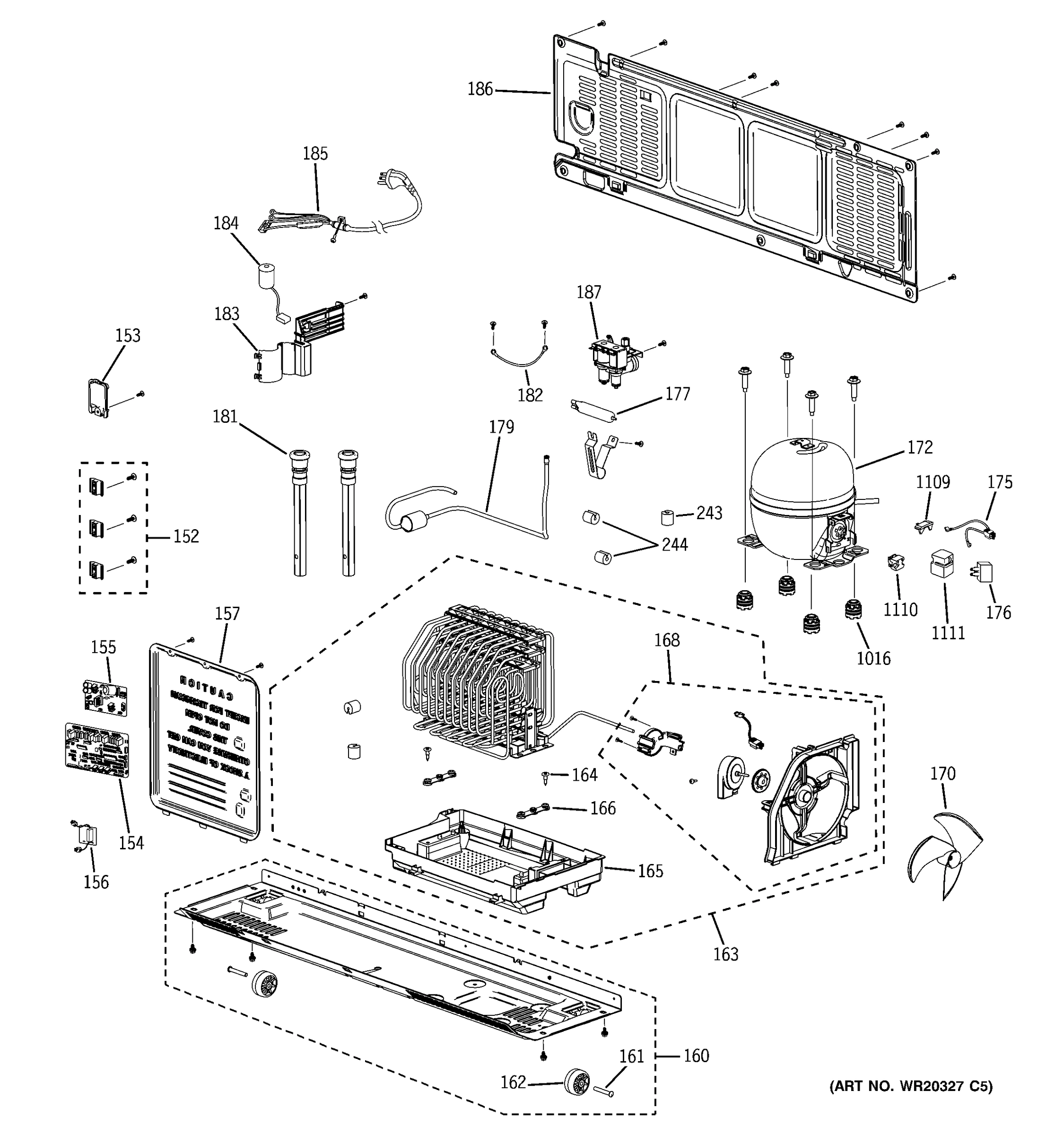

MACHINE COMPARTMENT
Common parts from model GE PFSS6PKXGSS Refrigerator
14
ASM RAIL-SLIDE LOW L GEN WR72X10417 Contact Us For Availability
19
ASM RAIL-SLIDE LOW R GEN WR72X10418 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10104 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
31
COVER-FIXER HOUSING,V GEN WR02X13268 Contact Us For Availability
39
FAN AX100W4CC T1 GEN WR60X10309 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
45
COVER MOTOR-BLDC GEN WR60X10337 Contact Us For Availability
46
GROMMET-MOTOR GEN WR02X13581 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
49
ANGLE-SHELF REF SIDE GEN WR72X10348 Contact Us For Availability
50
ANGLE-SHELF REF SIDE L GEN WR72X10347 Contact Us For Availability
53
ASM SHELF FOLDING GEN WR71X10838 Contact Us For Availability
54
ASM SHELF QUICK SPACE GEN WR71X10917 Contact Us For Availability
57
GLASS SHELF QUICK SPACE GEN WR32X10648 Contact Us For Availability
61
SHELF-WINE GEN WR71X10913 Contact Us For Availability
65
ASM RAIL-VEG L GEN WR72X10356 Contact Us For Availability
67
ASM RAIL-VEG R GEN WR72X10357 Contact Us For Availability
69
ASM CASE-VEG REF GEN WR32X10800 Contact Us For Availability
73
ASM SHELF-PANTRY GEN WR71X10899 Contact Us For Availability
77
GUIDE-PANTRY GEN WR32X10774 Contact Us For Availability
78
ASM COVER-RAIL PANTRY L GEN WR72X10360 Contact Us For Availability
81
ASM COVER-RAIL PANTRY R GEN WR72X10368 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
84
INLAY-CONTROL PANEL GEN WR55X11000 Contact Us For Availability
85
ASM CASE-PANTRY GEN WR32X10793 Contact Us For Availability
86
ASM-ROLLER B GEN WR02X13280 Contact Us For Availability
90
ASM EVAP REF GEN WR72X10416 Contact Us For Availability
95
FIXER-SENSOR GEN WR02X13254 Contact Us For Availability
97
ASM COVER EVAP REF GEN WR13X10959 Contact Us For Availability
100
CASE-MOTOR REF GEN WR13X10784 Contact Us For Availability
102
LIGHT COVER GEN WR13X10960 Contact Us For Availability
103
ASM CASE LAMP-REF GEN WR13X10855 Contact Us For Availability
107
HINGE MID SCREW GEN WR01X10941 Contact Us For Availability
108
ASM-COVER WATER TANK GEN WR17X12739 Contact Us For Availability
113
GUIDE-FRENCH GEN WR02X13253 Contact Us For Availability
116
COVER-WATER FILTER GEN WR13X10846 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
120
GROMMET-COVER CHIL GEN WR02X13582 Contact Us For Availability
122
ASM TRAY ICE-BUCKET GEN WR29X10105 Contact Us For Availability
125
ASM-CASE AUGER MOTOR GEN WR60X10313 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
130
MOTOR GEARED-AUGER GEN WR60X10299 Contact Us For Availability
131
ASM-WIRE HARNESS SUB(EM) GEN WR23X10674 Contact Us For Availability
132
ASM-TOP TABLE GEN WR13X10863 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
134
CAP-TOP TABLE GEN WR13X10800 Contact Us For Availability
135
ASM HINGE UPP-L GEN WR13X10864 Contact Us For Availability
136
FASTENER-RING GEN WR02X13574 Contact Us For Availability
137
ASM LEVER-AUTO CLOSE GEN WR02X13286 Contact Us For Availability
138
SPRING ETC-AUTO CLOSE GEN WR02X13188 Contact Us For Availability
139
GROMMET LEVER GEN WR02X12632 Contact Us For Availability
140
ASM HINGE UPP-R GEN WR13X10804 Contact Us For Availability
141
GROMMET HINGE-MID,R GEN WR02X13265 Contact Us For Availability
142
ASM HINGE MID-L GEN WR13X10764 Contact Us For Availability
143
ASM HINGE MID-R GEN WR13X10958 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT-FRONT GEN WR02X13252 Contact Us For Availability
147
MOTOR BLDC GEN WR60X10334 Contact Us For Availability
148
COVER-LEG FRONT GEN WR79X10057 Contact Us For Availability
149
ASM-COVER PIPE WATER GEN WR02X13282 Contact Us For Availability
151
ASM PIPE-WATER GEN WR02X13340 Contact Us For Availability
152
FIXER-HOSE GEN WR02X13575 Contact Us For Availability
153
COVER-TUBE FILTER GEN WR13X10790 Contact Us For Availability
154
PBA MAIN GEN WR55X10998 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
156
LED LIGHT BOARD GEN WR55X10765 Contact Us For Availability
157
ASM-COVER PCB PANEL GEN WR13X10801 Contact Us For Availability
160
ASM CHASSIS-COMP GEN WR17X12802 Contact Us For Availability
161
WHEEL AXLE GEN WR02X13154 Contact Us For Availability
162
REAR WHEEL GEN WR02X13137 Contact Us For Availability
163
ASM TRAY DRAIN WATER GEN WR87X10233 Contact Us For Availability
164
SCREW SPECIAL GEN WR01X10773 Contact Us For Availability
165
TRAY-DRAIN WATER GEN WR30X10136 Contact Us For Availability
166
GROMMET CONDENSER GEN WR02X12635 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR60X10315 Contact Us For Availability
170
FAN-TURBO GEN WR60X10336 Contact Us For Availability
175
ASM-HARNESS COMP GEN WR23X10685 Contact Us For Availability
176
OVERLOAD GEN WR08X10096 Contact Us For Availability
177
DRYER GEN WR86X10082 Contact Us For Availability
179
ASM PIPE CONNECT-SUCTION GEN WR02X13579 Contact Us For Availability
182
WIRE HARNESS GEN WR23X10718 Contact Us For Availability
183
COVER-NOISE FILTER GEN WR13X10789 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
185
POWER CORD GEN WR23X10613 Contact Us For Availability
186
ASM COVER COMP GEN WR17X13020 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
207
ASM GASKET DOOR REF GEN WR87X10236 Contact Us For Availability
213
ASM-FRENCH GEN WR02X13292 Contact Us For Availability
220
GASKET FRENCH SS GEN WR24X10196 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
231
ASM-COVER DISPENSER GEN WR13X10841 Contact Us For Availability
238
MASCOT GEN WR02X12636 Contact Us For Availability
239
FIXER-COVER VEG GEN WR02X13257 Contact Us For Availability
240
CAP-ANGLE GEN WR02X13273 Contact Us For Availability
242
SWITCH PRESSURE GEN WR23X10677 Contact Us For Availability
243
GROMMET-SUCT PIPE A GEN WR02X12675 Contact Us For Availability
244
GROMMET-SUCT PIPE B GEN WR02X12676 Contact Us For Availability
286
LAMP LED GEN WR02X13197 Contact Us For Availability
913
ASM SHELF-SLIDE GEN WR71X11024 Contact Us For Availability
1003
WATER FILTER REF CYST GEN GWF Contact Us For Availability
1016
GROMMET-COMP GEN WR02X11915 Contact Us For Availability
1063
SCREW,TAPPING GEN WR01X10598 Contact Us For Availability
1110
OLP GEN WR07X10111 Contact Us For Availability
× ![]()
