Model GE PFSS6PKXFSS – Common Parts & Diagrams

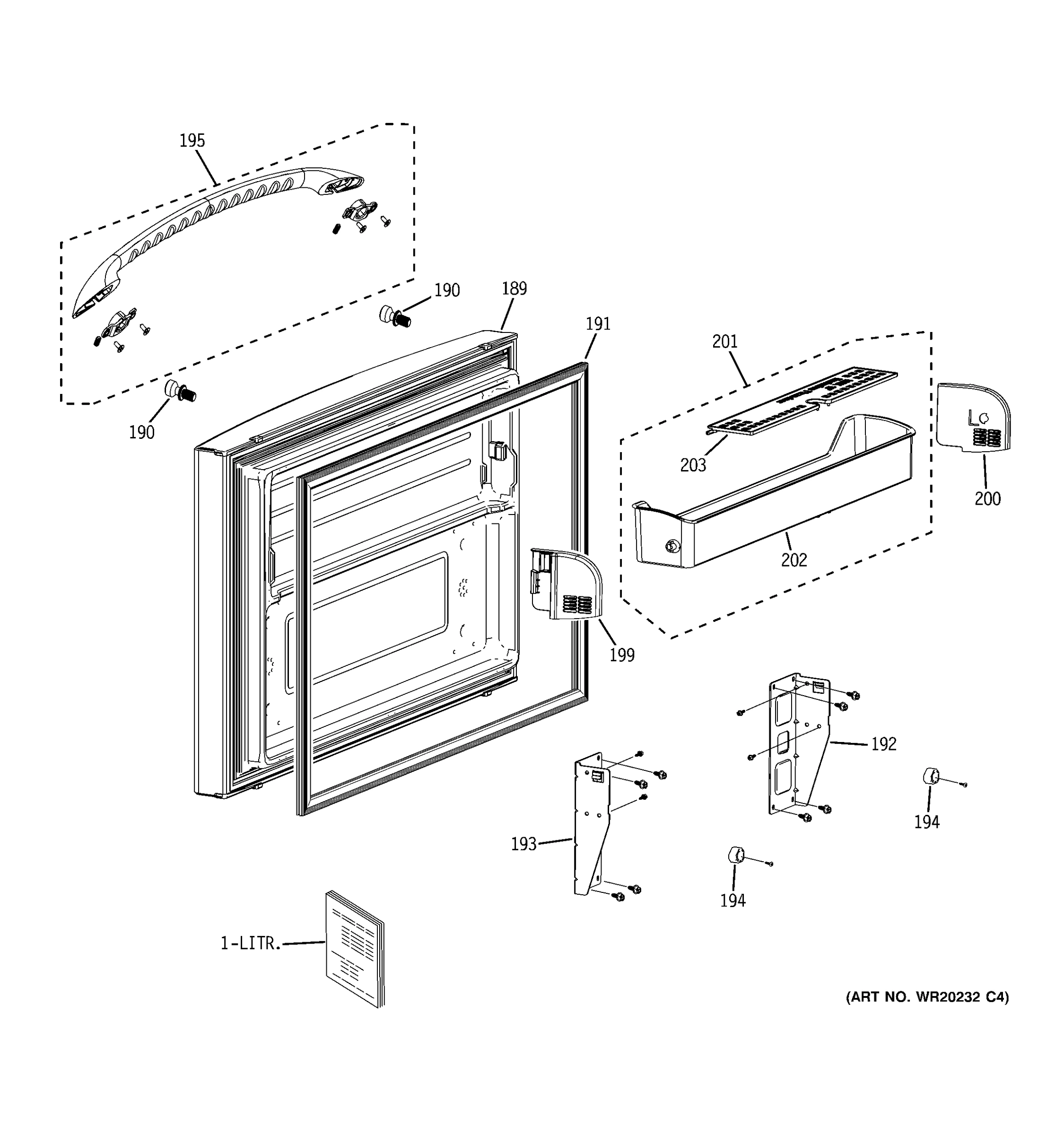

FREEZER DOOR

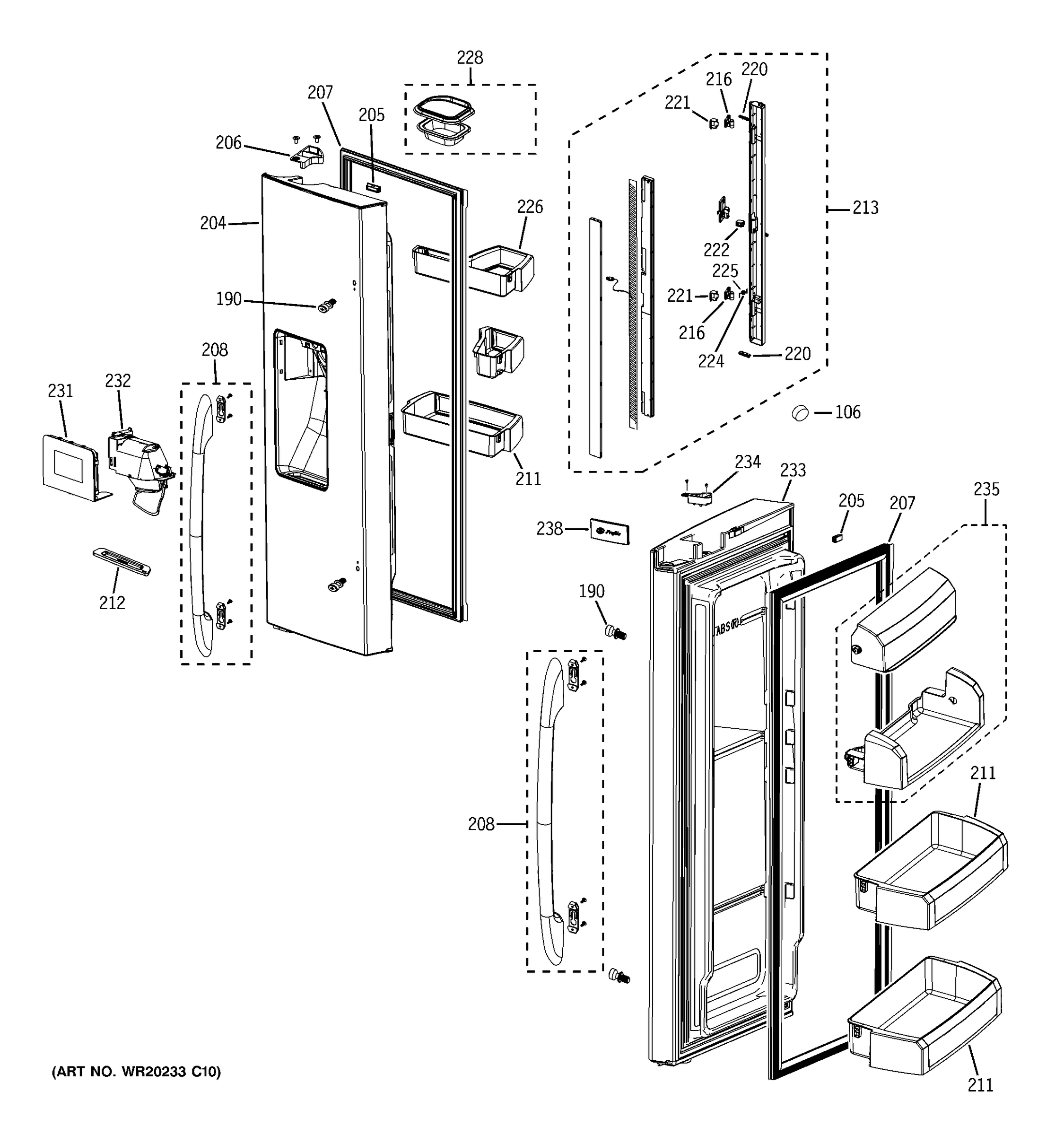

FRESH FOOD DOORS

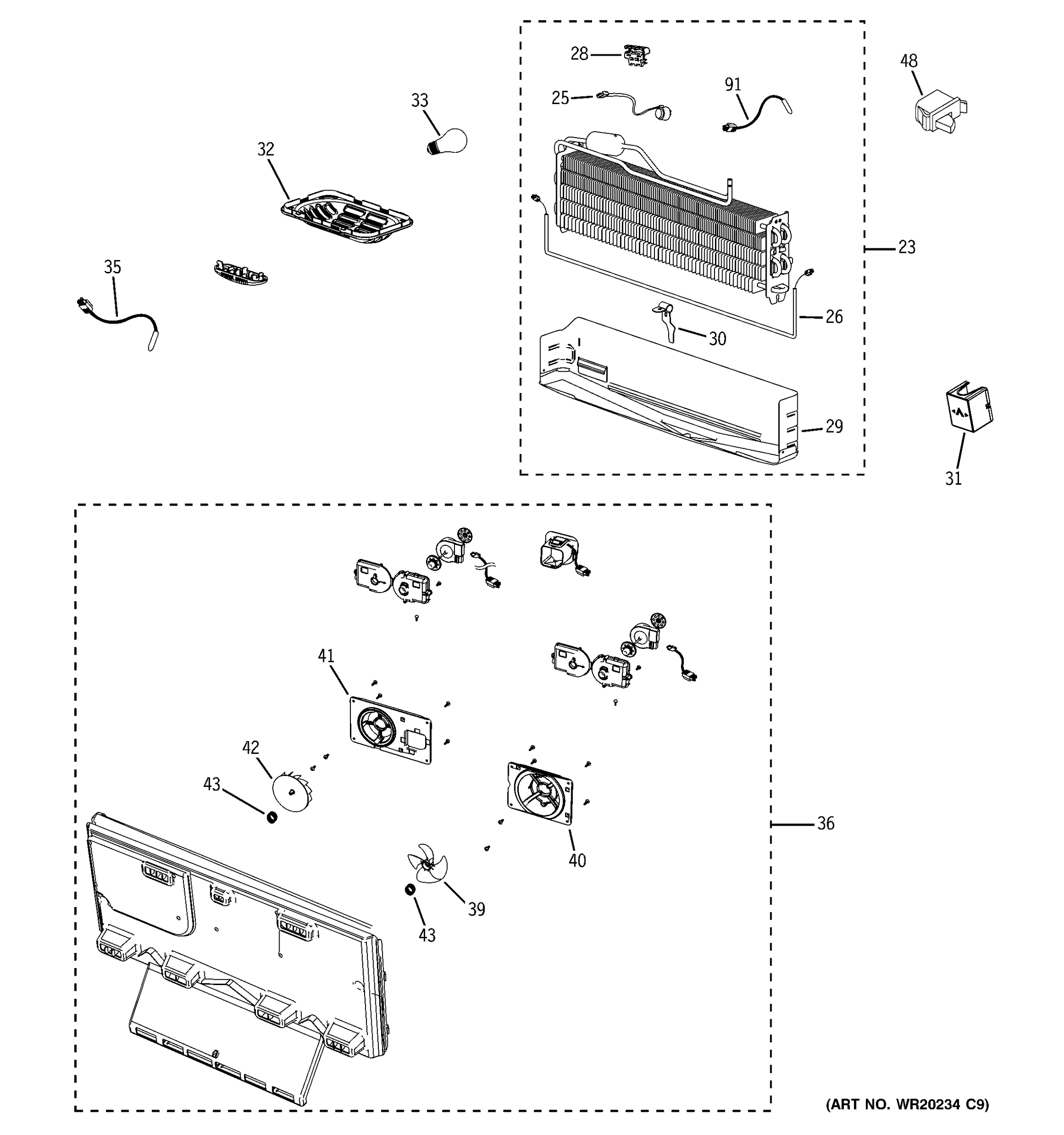

FREEZER SECTION

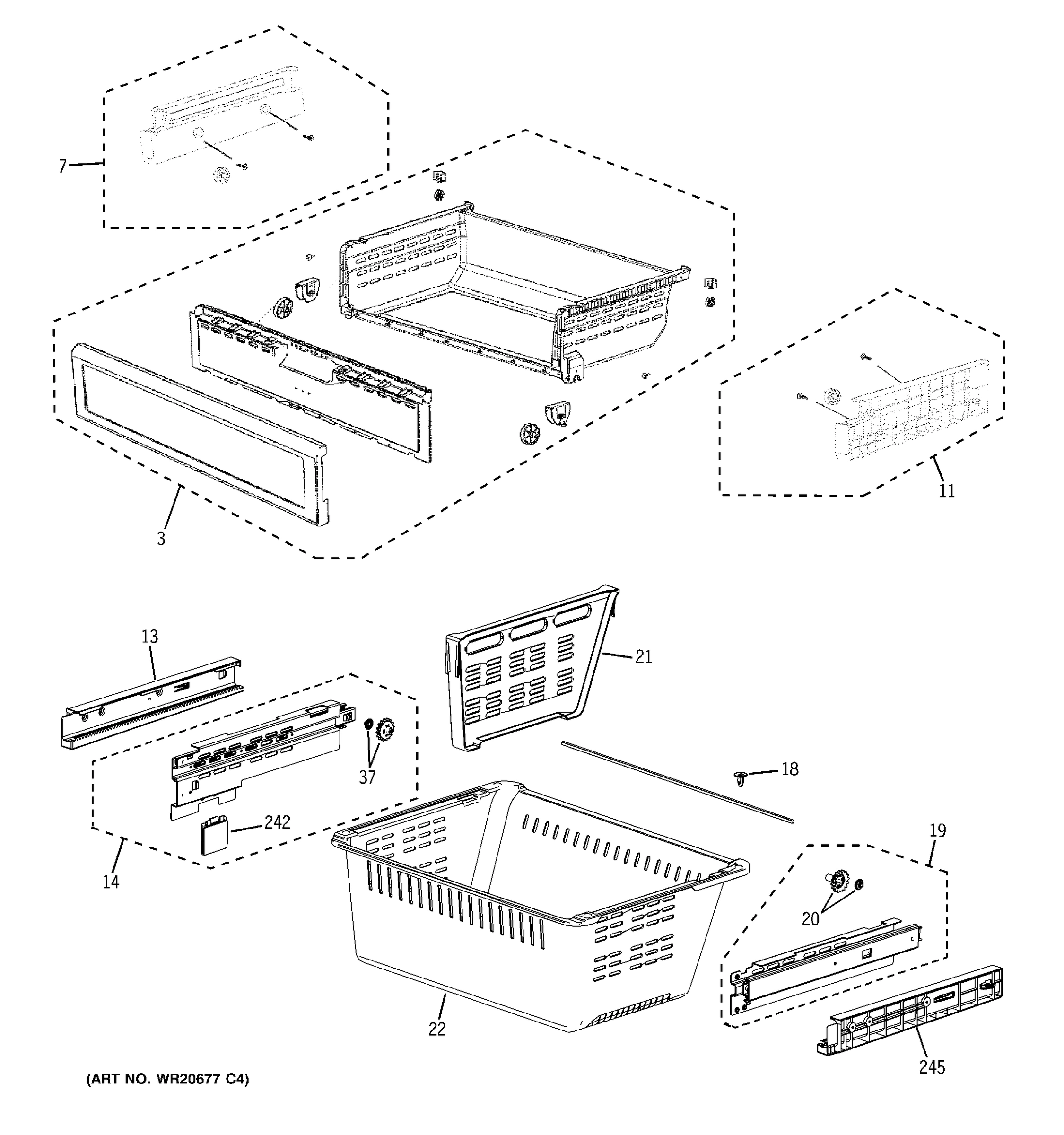

FREEZER SHELVES

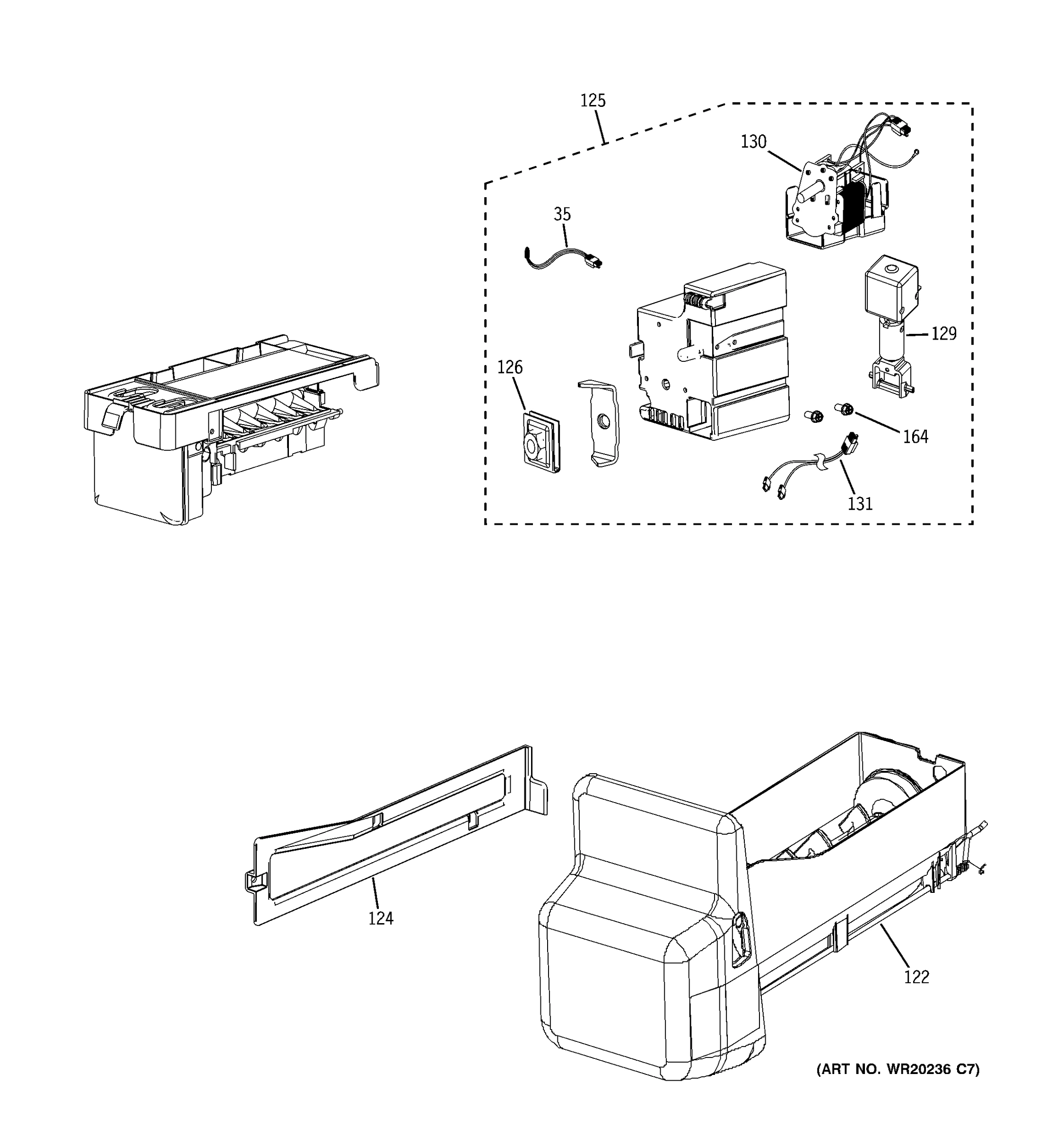

ICE MAKER & DISPENSER

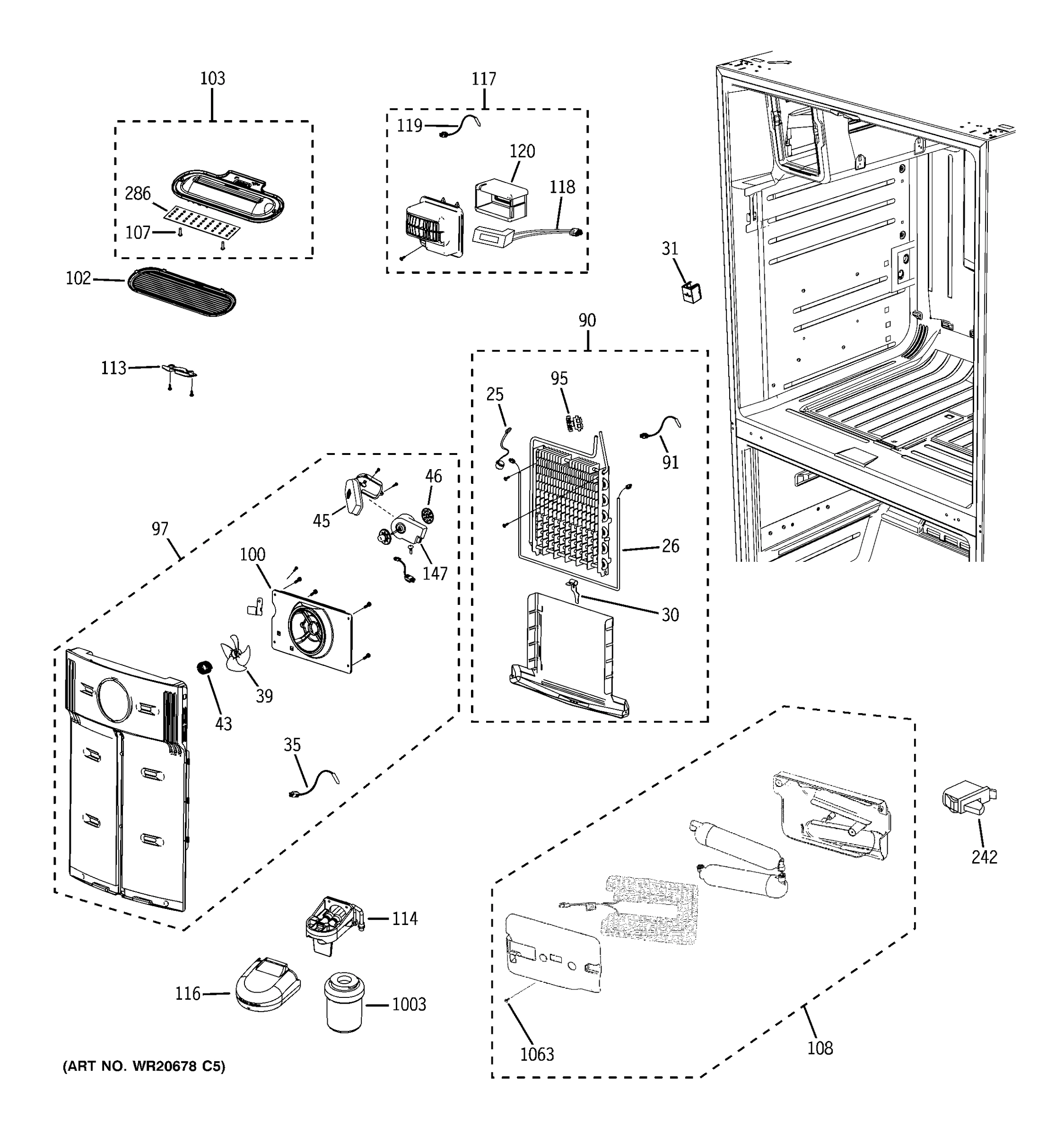

FRESH FOOD SECTION

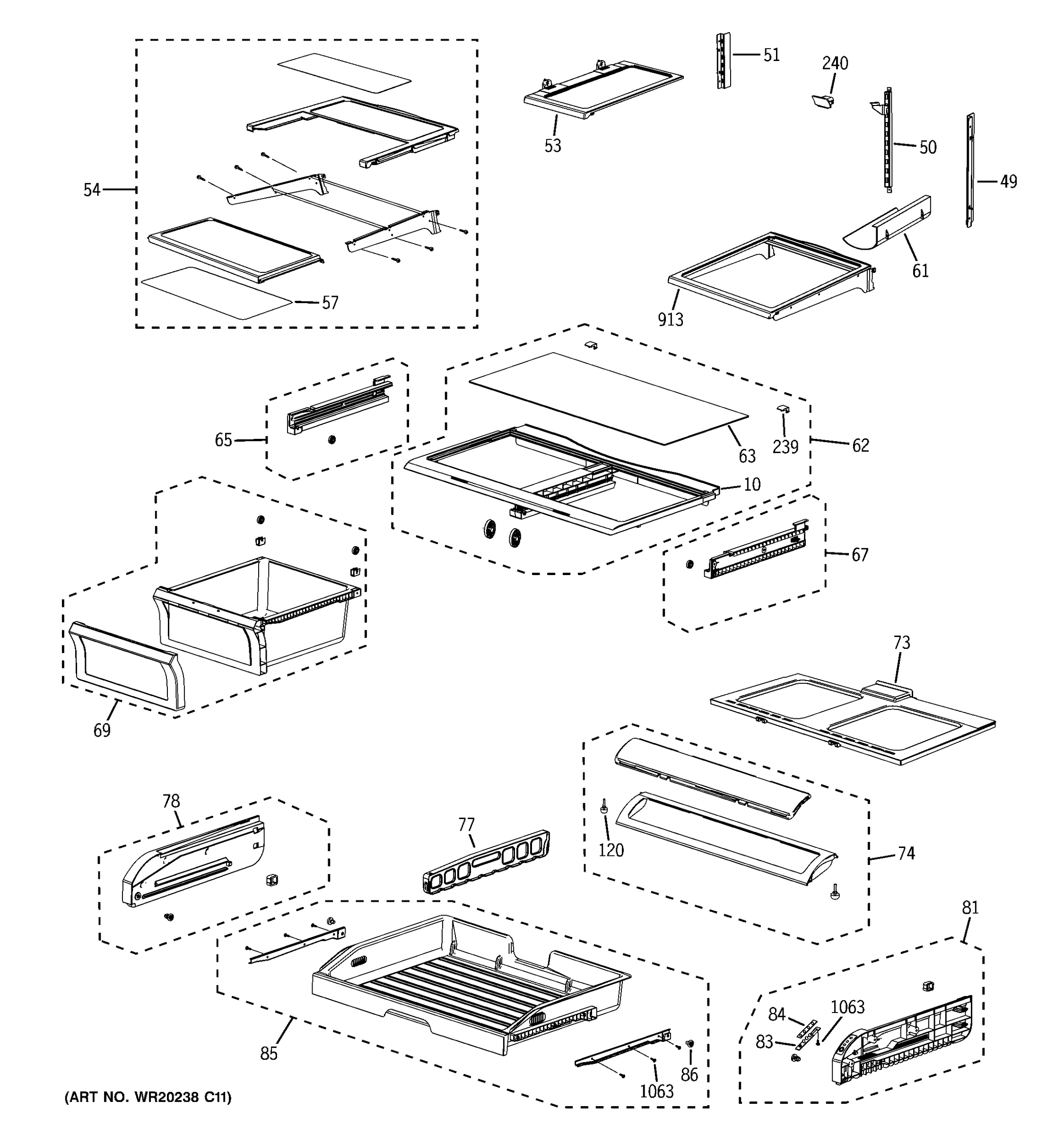

FRESH FOOD SHELVES

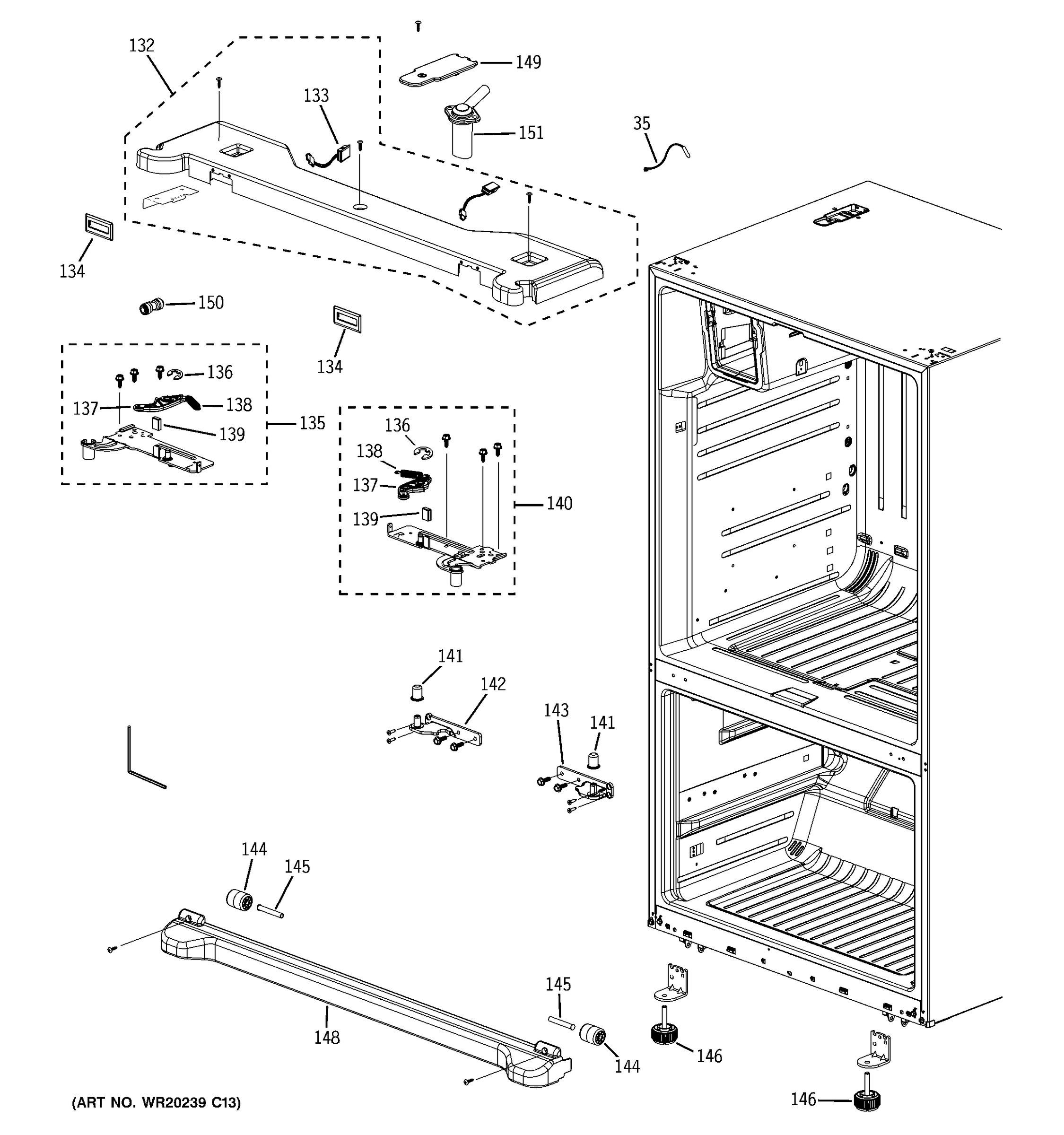

CASE PARTS

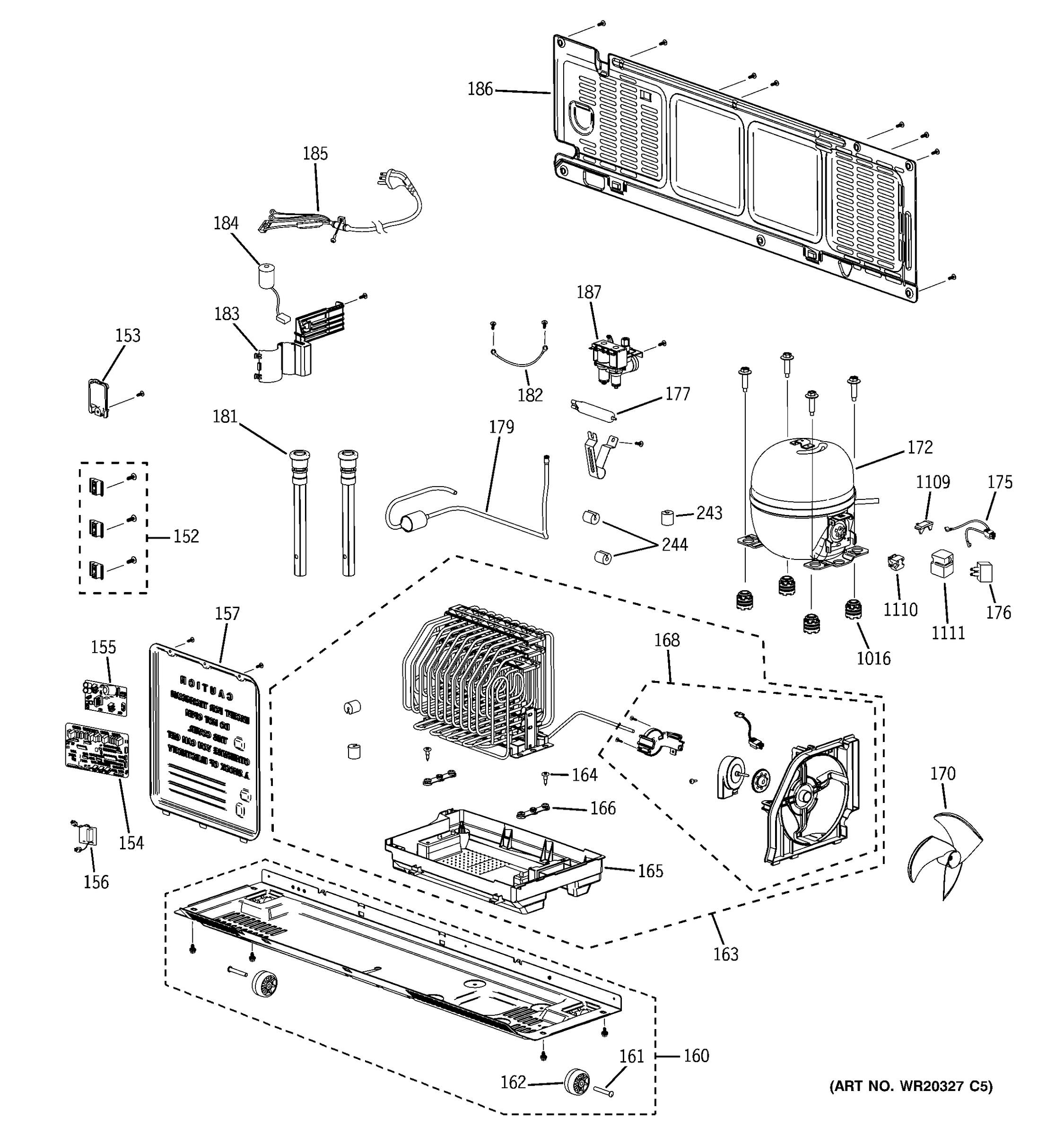

MACHINE COMPARTMENT
Common parts from model GE PFSS6PKXFSS
14
ASM RAIL SLIDE LOW L GEN WR72X10385 Contact Us For Availability
19
ASM RAIL SLIDE LOW R GEN WR72X10386 Contact Us For Availability
20
ASM GEAR R GEN WR02X12743 Contact Us For Availability
23
ASM EVAPORATOR FZ GEN WR85X10142 Contact Us For Availability
25
BIMETAL GEN WR02X12591 Contact Us For Availability
26
DEFROST HEATER FZ GEN WR51X10128 Contact Us For Availability
30
HEATER METAL SHEATH GEN WR51X10105 Contact Us For Availability
32
COVER-LAMP FZ GEN WR13X10756 Contact Us For Availability
35
SENSOR TEMP GEN WR23X10580 Contact Us For Availability
39
EVAP FAN BLADE GEN WR60X10249 Contact Us For Availability
42
EVAP BLADE BACKWARD GEN WR60X10264 Contact Us For Availability
43
RETAINING SPRING FAN GEN WR01X10436 Contact Us For Availability
46
ASM HEATER DUCT FZ GEN WR51X10106 Contact Us For Availability
48
SWITCH DOOR FZ GEN WR23X10589 Contact Us For Availability
53
ASM SHELF FOLDING GEN WR71X10838 Contact Us For Availability
54
ASM SHELF QUICK SPACE GEN WR71X10839 Contact Us For Availability
62
ASM COVER VEG PAN GEN WR32X10662 Contact Us For Availability
65
ASM RAIL VEG LEFT GEN WR72X10267 Contact Us For Availability
67
ASM RAIL VEG RIGHT GEN WR72X10269 Contact Us For Availability
69
ASM CASE VEG PAN GEN WR32X10663 Contact Us For Availability
73
ASM SHELF PANTRY GEN WR71X10786 Contact Us For Availability
74
ASM FLIP PANNTRY COVER GEN WR32X10666 Contact Us For Availability
78
ASM COVER PANTRY LEFT GEN WR72X10271 Contact Us For Availability
81
ASM COVER PANTRY RIGHT GEN WR72X10272 Contact Us For Availability
83
PRINTED BOARD PANTRY GEN WR55X10761 Contact Us For Availability
85
ASM PANTRY PAN GEN WR32X10670 Contact Us For Availability
86
ASM-ROLLER B GEN WR02X13280 Contact Us For Availability
90
ASM EVAP REF GEN WR85X10141 Contact Us For Availability
91
ASM TEMP SENSOR GEN WR23X10582 Contact Us For Availability
95
SENSOR CLAMP GEN WR02X12620 Contact Us For Availability
97
ASM COVER-EVAP REF GEN WR13X10879 Contact Us For Availability
108
ASM-COVER WATER TANK GEN WR17X12739 Contact Us For Availability
113
DOOR GUIDE GEN WR02X12746 Contact Us For Availability
114
WATER FILER HEAD GEN WR17X12512 Contact Us For Availability
116
COVER WATER FILTER GEN WR13X10495 Contact Us For Availability
117
ASSY COVER-MOTOR DAMPER GEN WR09X10173 Contact Us For Availability
118
ASM DAMPER MOTOR GEN WR60X10253 Contact Us For Availability
119
SENSOR TEMP PANTRY GEN WR23X10612 Contact Us For Availability
122
ICE BUCKET ASM PROFILE GEN WR29X10097 Contact Us For Availability
124
IM HARNESS COVER GEN WR13X10574 Contact Us For Availability
125
ASM-CASE AUGER MOTOR GEN WR60X10304 Contact Us For Availability
126
J-NUT GEN WR02X11957 Contact Us For Availability
129
AUGUER MOTOR SOLENOID GEN WR29X10077 Contact Us For Availability
130
MOTOR GEARED-AUGER GEN WR60X10299 Contact Us For Availability
132
ASM CONTROL PANEL COVER GEN WR13X10549 Contact Us For Availability
133
SWITCH REED ASM GEN WR23X10587 Contact Us For Availability
136
C - CLIP GEN WR02X12604 Contact Us For Availability
138
SPRING AUTO CLOASE GEN WR02X12619 Contact Us For Availability
140
ASM HINGE UPPER RIGHT SS GEN WR13X10547 Contact Us For Availability
141
GROMMET HINGLE MIDDLE GEN WR02X12747 Contact Us For Availability
142
ASM HINGE MID-L GEN WR13X10764 Contact Us For Availability
144
FRONT WHEEL GEN WR02X13136 Contact Us For Availability
145
WHEEL AXLE GEN WR02X12608 Contact Us For Availability
146
FOOT FRONT GEN WR02X12606 Contact Us For Availability
152
WATER LINE HOLDER GEN WR02X12607 Contact Us For Availability
154
PBA MAIN GEN WR55X11055 Contact Us For Availability
155
POWER SUPPLY BOARD GEN WR55X10764 Contact Us For Availability
156
LED LIGHT BOARD GEN WR55X10765 Contact Us For Availability
162
REAR WHEEL GEN WR02X13137 Contact Us For Availability
168
ASM SUPPORT-CIRCUIT MOTO GEN WR60X10320 Contact Us For Availability
170
CONDENSER FAN BLADE GEN WR60X10266 Contact Us For Availability
172
COMPRESSOR GEN WR87X10185 Contact Us For Availability
176
OVERLOAD GEN WR08X10096 Contact Us For Availability
181
ASM DRAIN LINE GEN WR02X12751 Contact Us For Availability
184
EMI NOISE FILTER GEN WR62X10067 Contact Us For Availability
187
VALVE-WATER FITTING GEN WR57X10091 Contact Us For Availability
190
FIXER HANDLE GEN WR02X12621 Contact Us For Availability
192
HANGER RAIL FRONT L GEN WR13X10502 Contact Us For Availability
193
HANGER RAIL FRONT R GEN WR13X10503 Contact Us For Availability
199
SUPPORT-GUARD FRE L GEN WR02X12811 Contact Us For Availability
200
SUPPORT-GUARD FRE R GEN WR02X12812 Contact Us For Availability
202
GUARD FRE GEN WR02X12630 Contact Us For Availability
206
CAM AUTO CLOSE L SS GEN WR02X12666 Contact Us For Availability
207
ASM GASKET DOOR REF GEN WR24X10201 Contact Us For Availability
211
ASM GUARD REF GEN WR02X12664 Contact Us For Availability
212
TRAY DISPENSER SS GEN WR13X10545 Contact Us For Availability
213
ASM FRENCH GEN WR02X12863 Contact Us For Availability
216
HINGE FRENCH GEN WR13X10516 Contact Us For Availability
220
GASKET FRENCH SS GEN WR24X10196 Contact Us For Availability
221
CAP CASE FRENCH GEN WR02X12643 Contact Us For Availability
222
CAP CASE FRENCH MID GEN WR02X12645 Contact Us For Availability
224
PIN FRENCH SPRING GEN WR02X12651 Contact Us For Availability
225
SPRING ETC FRENCH GEN WR02X12650 Contact Us For Availability
226
ASM GUARD REF DISP GEN WR02X12662 Contact Us For Availability
228
ASM CAP CHUTE ICE GEN WR02X12661 Contact Us For Availability
231
ASM COVER DISPENSER GEN WR13X10880 Contact Us For Availability
232
ASM CASE-ICE ROUTE GEN WR13X10737 Contact Us For Availability
233
ASM DOOR FOAM REF R GEN WR78X12323 Contact Us For Availability
235
ASM GUARD DAIRY GEN WR02X12663 Contact Us For Availability
238
MASCOT GEN WR02X12636 Contact Us For Availability
242
SWITCH DOOR GEN WR23X10593 Contact Us For Availability
913
ASM SHELF-SLIDE GEN WR71X10842 Contact Us For Availability
1109
ASSY-RELAY PTC GEN WR07X10112 Contact Us For Availability
1110
OLP GEN WR07X10111 Contact Us For Availability
1110
COVER RELAY GEN WR02X11949 Contact Us For Availability
× ![]()
