Model GE PFH18HSPV0MC Dryer Electric – Common Parts & Diagrams
DOOR ASSEMBLY
OUTER CABINET

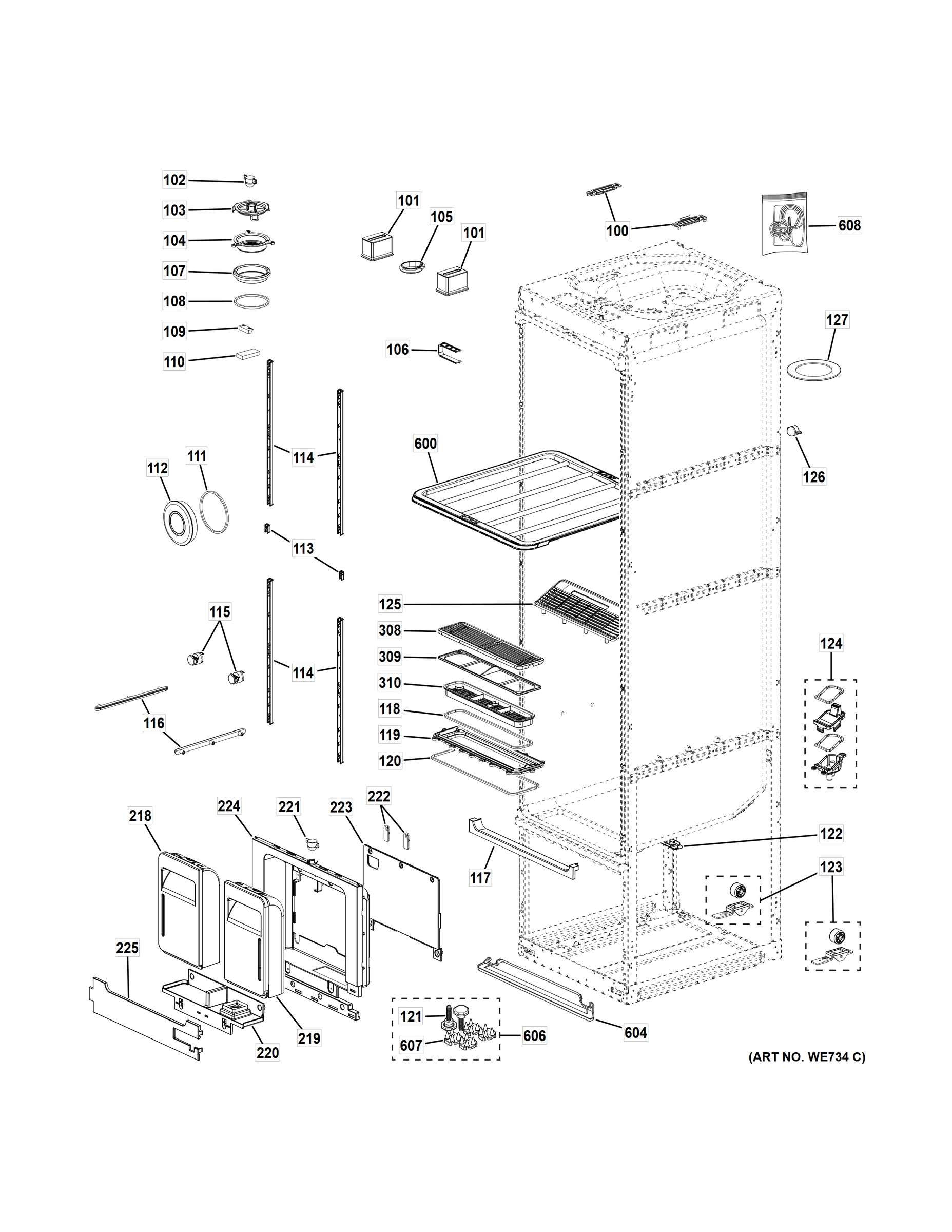

CABINET

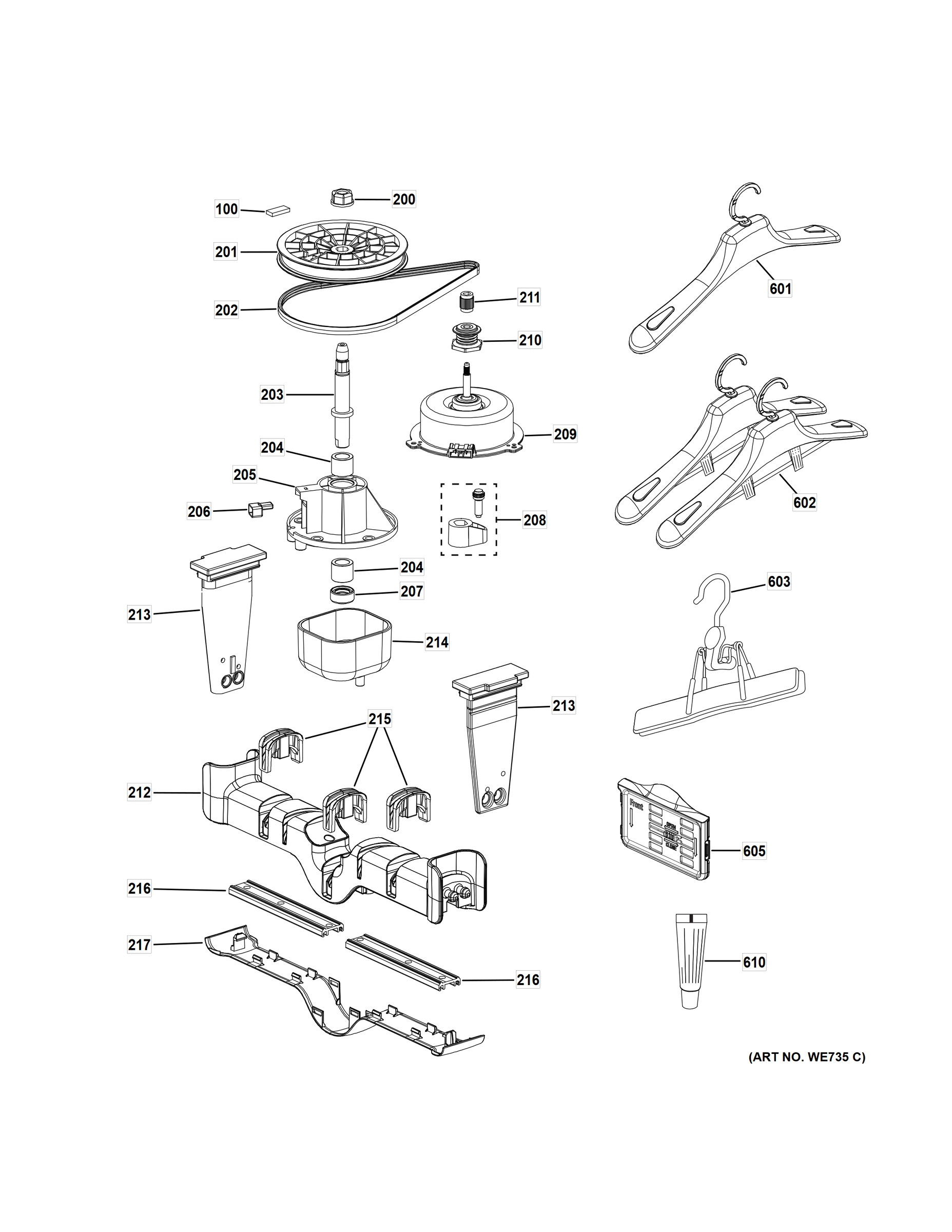

MOTOR & HANGER MOUNT

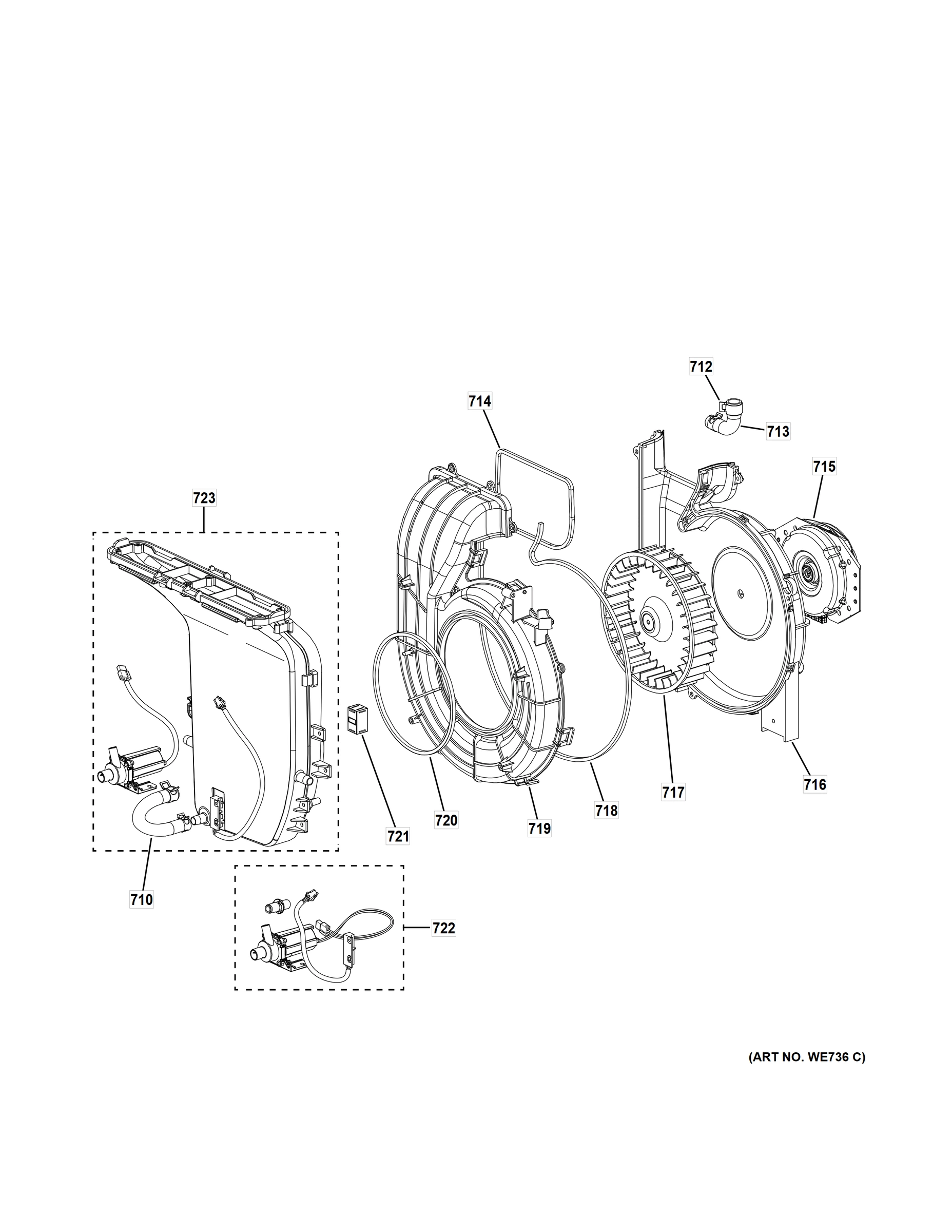

BLOWER & MOTOR ASSEMBLY

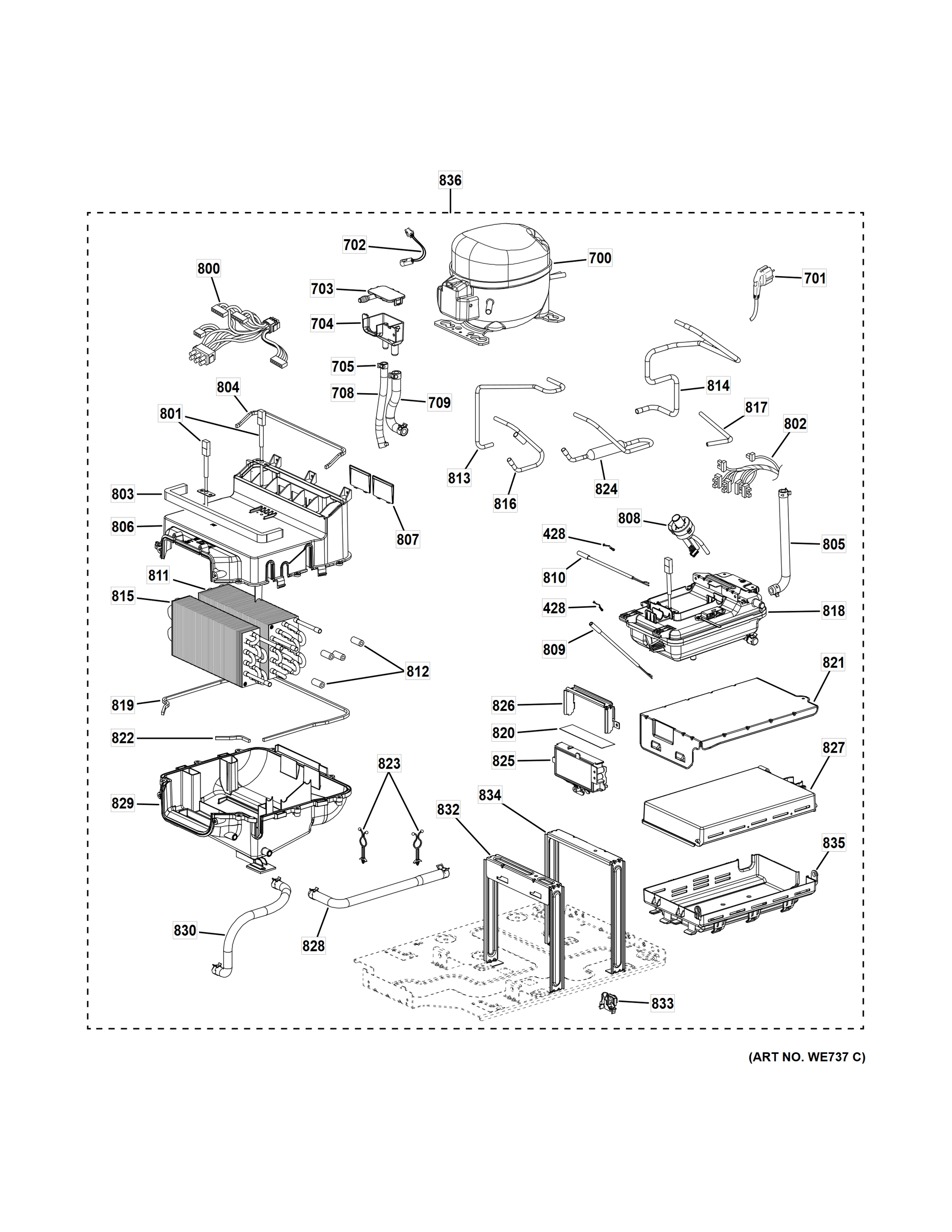

MACHINE COMPARTMENT
Common parts from model GE PFH18HSPV0MC Dryer Electric
104
COVER LAMP GEN WE01X38139 Contact Us For Availability
108
GASKET GEN WE05X38204 Contact Us For Availability
109
COVER SWITCH GEN WE04X39005 Contact Us For Availability
111
GASKET GEN WE05X38198 Contact Us For Availability
112
INTERIOR LIGHT LOWER GEN WE01X39000 Contact Us For Availability
113
HOLDER ASSEMBLY GEN WE01X38155 Contact Us For Availability
114
HOLDER GEN WE01X38160 Contact Us For Availability
120
GASKET GEN WE05X38205 Contact Us For Availability
121
LEG ASSEMBLY GEN WE01X38118 Contact Us For Availability
125
GRILLE GEN WE16X38238 Contact Us For Availability
201
PULLEY IDLE GEN WE03X38192 Contact Us For Availability
202
BELT POLY V GEN WE03X38189 Contact Us For Availability
203
SHAFT SPIN GEN WE03X38184 Contact Us For Availability
204
RING C GEN WE02X38180 Contact Us For Availability
206
SENSOR ASSEMBLY GEN WE04X38196 Contact Us For Availability
208
SHAFT ASSY PARTS ASSEMBLY SVC GEN WE03X38191 Contact Us For Availability
209
MOVING HANGER DRIVE MOTOR GEN WE03X39014 Contact Us For Availability
210
PULLEY MOTOR GEN WE03X38185 Contact Us For Availability
211
NUT COMMON GEN WE02X38176 Contact Us For Availability
212
HANGER UPPER GEN WE01X38114 Contact Us For Availability
213
HOLDER ASSEMBLY GEN WE01X38111 Contact Us For Availability
214
GUIDE ROLLER SUPPORTER GEN WE01X38143 Contact Us For Availability
215
HOLDER GEN WE01X38108 Contact Us For Availability
216
FRAME BODY GEN WE01X38138 Contact Us For Availability
217
DECOR FRAME GEN WE01X38156 Contact Us For Availability
218
TANK ASSEMBLY WATER GEN WE23X38243 Contact Us For Availability
220
COVER LOWER GEN WE01X38158 Contact Us For Availability
221
LAMP INCANDESCENT GEN WE01X38166 Contact Us For Availability
222
COVER SWITCH GEN WE04X39008 Contact Us For Availability
223
COVER ASSEMBLY REAR GEN WE13X38230 Contact Us For Availability
224
DECOR FRAME GEN WE01X38152 Contact Us For Availability
300
CABINET ASSEMBLY GEN WE13X38221 Contact Us For Availability
301
CABINET ASSEMBLY GEN WE13X38234 Contact Us For Availability
302
COVER TOP GEN WE13X38226 Contact Us For Availability
304
REAR COVER LOWER GEN WE13X39011 Contact Us For Availability
305
CAP COVER GEN WE01X38123 Contact Us For Availability
306
BRACKET ASSEMBLY GEN WE13X38231 Contact Us For Availability
307
CAP COVER GEN WE01X38167 Contact Us For Availability
309
FILTER ASSEMBLY GEN WE16X38236 Contact Us For Availability
310
DUCT CONNECTOR GEN WE01X38117 Contact Us For Availability
312
CAP COVER GEN WE01X38153 Contact Us For Availability
400
CAP COVER GEN WE01X38110 Contact Us For Availability
401
COVER PROTECT GEN WE01X38171 Contact Us For Availability
403
CAP COVER GEN WE01X38169 Contact Us For Availability
404
HINGE GEN WE01X38135 Contact Us For Availability
405
CAP COVER GEN WE01X38113 Contact Us For Availability
406
DOOR COVER PLATE GEN WE01X39001 Contact Us For Availability
409
DOOR ASSEMBLY GEN WE10X38219 Contact Us For Availability
410
LOCKER HOOK GEN WE01X38099 Contact Us For Availability
411
HOLDER LOCK GEN WE01X38104 Contact Us For Availability
413
HINGE GEN WE01X38136 Contact Us For Availability
415
CAP SCREW GEN WE02X38179 Contact Us For Availability
416
LOCKER ASSEMBLY GEN WE01X38147 Contact Us For Availability
417
BRACKET HINGE GEN WE01X38134 Contact Us For Availability
420
PCB ASSEMBLY DISPLAY GEN WE22X38240 Contact Us For Availability
421
GASKET GEN WE05X38206 Contact Us For Availability
422
USER INTERFACE BOARD COVER GEN WE13X39010 Contact Us For Availability
424
DAMPER GEN WE01X38129 Contact Us For Availability
425
GASKET GEN WE05X38208 Contact Us For Availability
426
PLATE SIDE GEN WE13X38232 Contact Us For Availability
427
CAP COVER GEN WE01X38125 Contact Us For Availability
429
CAP COVER GEN WE01X38131 Contact Us For Availability
430
HINGE GEN WE01X38098 Contact Us For Availability
431
SLIDER GEN WE01X38162 Contact Us For Availability
432
HARNESS - MAIN PCB TO DISPLAY GEN WE08X38213 Contact Us For Availability
433
MAGNET NDFEB GEN WE01X38122 Contact Us For Availability
434
COVER GUIDE GEN WE01X38137 Contact Us For Availability
435
THERMOSTAT & THERMISTOR KIT GEN WE02X38999 Contact Us For Availability
436
DAMPER GEN WE01X38116 Contact Us For Availability
437
DAMPER GEN WE01X38146 Contact Us For Availability
438
WIFI BOARD & HARNESS W/LABEL & INSTRUCTI GEN WE22X39177 Contact Us For Availability
600
SHELF ASSEMBLY GEN WE13X38225 Contact Us For Availability
604
COVER LOWER GEN WE01X38100 Contact Us For Availability
605
HOLDER ASSEMBLY GEN WE01X38140 Contact Us For Availability
606
ACCESSORY ASSEMBLY GEN WE01X38124 Contact Us For Availability
607
LEG GEN WE01X38148 Contact Us For Availability
608
ACCESSORY ASSEMBLY GEN WE04X38197 Contact Us For Availability
610
GREASE, PARTS ASSEMBLY, SVC GEN WE01X38127 Contact Us For Availability
700
COMPRESSOR SET ASSEMBLY GEN WE03X38193 Contact Us For Availability
701
POWER CORD ASSEMBLY GEN WE08X38215 Contact Us For Availability
703
CONNECTOR NOZZLE GEN WE23X38253 Contact Us For Availability
705
CLAMP GEN WE02X38172 Contact Us For Availability
708
HOSE PUMP GEN WE23X38247 Contact Us For Availability
710
CLAMP GEN WE02X38182 Contact Us For Availability
716
HOUSING BLOWER GEN WE13X38233 Contact Us For Availability
717
IMPELLER BLOWER GEN WE03X38187 Contact Us For Availability
718
GASKET GEN WE05X38199 Contact Us For Availability
722
PUMP PARTS ASSEMBLY SVC GEN WE23X38241 Contact Us For Availability
723
DUCT ASSY PARTS ASSEMBLY SVC GEN WE23X38249 Contact Us For Availability
800
HARNESS - MAIN PCB TO DC PARTS GEN WE08X38216 Contact Us For Availability
801
THERMISTOR ASSEMBLY GEN WE04X39009 Contact Us For Availability
802
HARNESS - MAIN PCB TO AC PARTS GEN WE08X38214 Contact Us For Availability
805
HOSE CONNECTOR GEN WE23X38250 Contact Us For Availability
806
COVER TOP GEN WE13X38228 Contact Us For Availability
807
LID INNER GEN WE01X38149 Contact Us For Availability
808
VALVE ASSEMBLY GAS GEN WE11X38220 Contact Us For Availability
809
THERMISTOR ASSEMBLY GEN WE04X38195 Contact Us For Availability
811
CONDENSER GEN WE03X39003 Contact Us For Availability
812
DAMPER GEN WE02X38173 Contact Us For Availability
813
PIPE GEN WE03X39013 Contact Us For Availability
814
PIPE GEN WE03X39004 Contact Us For Availability
815
EVAPORATOR GEN WE03X39012 Contact Us For Availability
816
PIPE GEN WE03X38998 Contact Us For Availability
817
PIPE GEN WE03X39007 Contact Us For Availability
818
GENERATOR ASSEMBLY GEN WE03X38186 Contact Us For Availability
820
COVER SAFETY GEN WE01X38109 Contact Us For Availability
821
COVER PROTECT GEN WE13X38222 Contact Us For Availability
822
GASKET GEN WE05X38200 Contact Us For Availability
824
PIPE GEN WE03X39006 Contact Us For Availability
825
FILTER ASSEMBLY GEN WE03X38190 Contact Us For Availability
827
PCB ASSEMBLY MAIN GEN WE22X38239 Contact Us For Availability
828
HOSE OVERFLOW GEN WE23X38248 Contact Us For Availability
833
HOLDER GEN WE01X38102 Contact Us For Availability
836
MACHINE COMPARTMENT ASSEMBLY GEN WE03X38377 Contact Us For Availability
999
PRINTED AND ONLINEMINI MANUAL AND WIRING GEN 31-3000409 Contact Us For Availability
999
PRINTED AND ONLINEOWNERS AND INSTALL GEN 49-3000408 Contact Us For Availability
× ![]()
