Model Whirlpool PES3759BCW ELECTRIC RANGE – Common Parts &amp; Diagrams

1

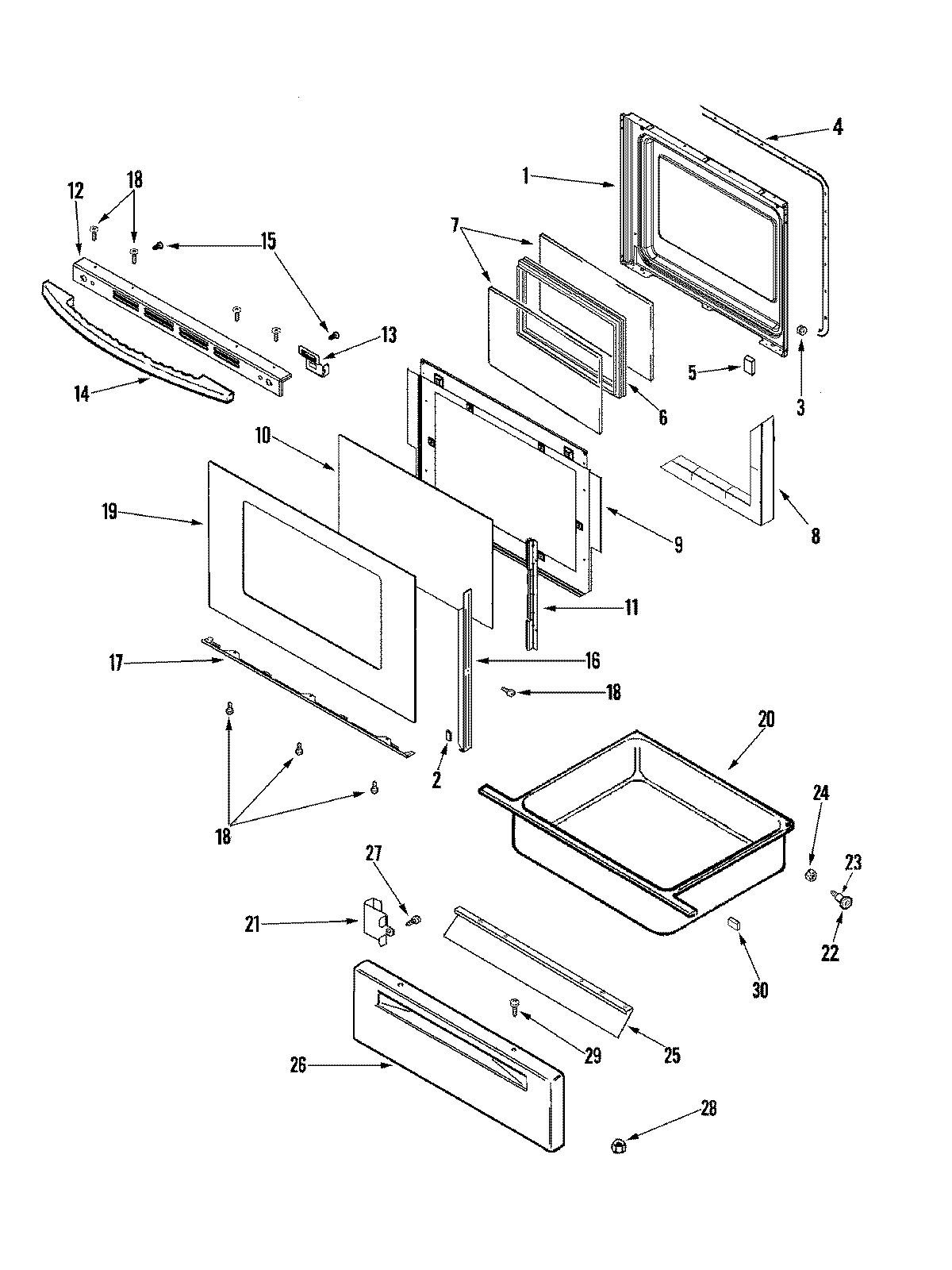

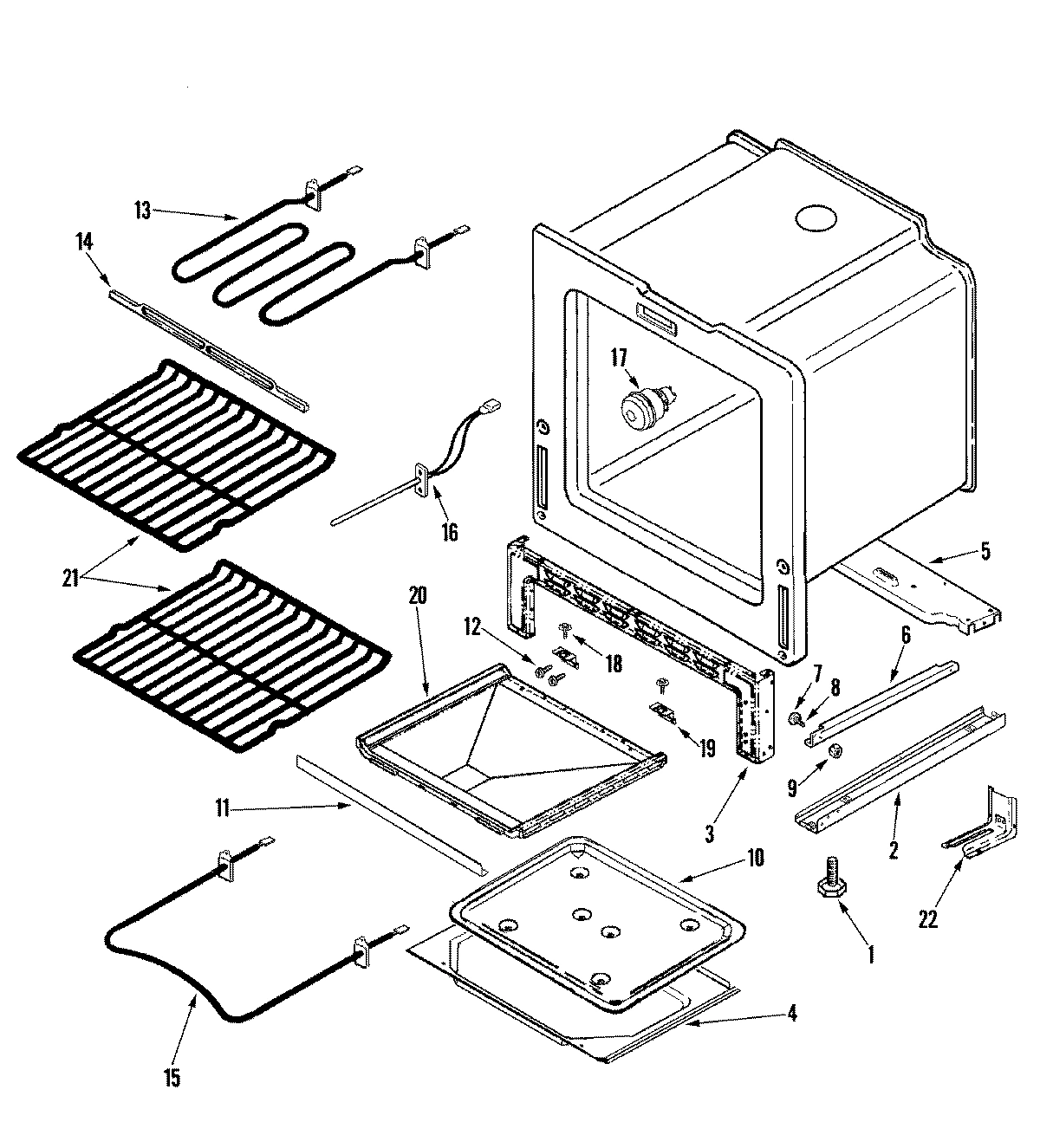

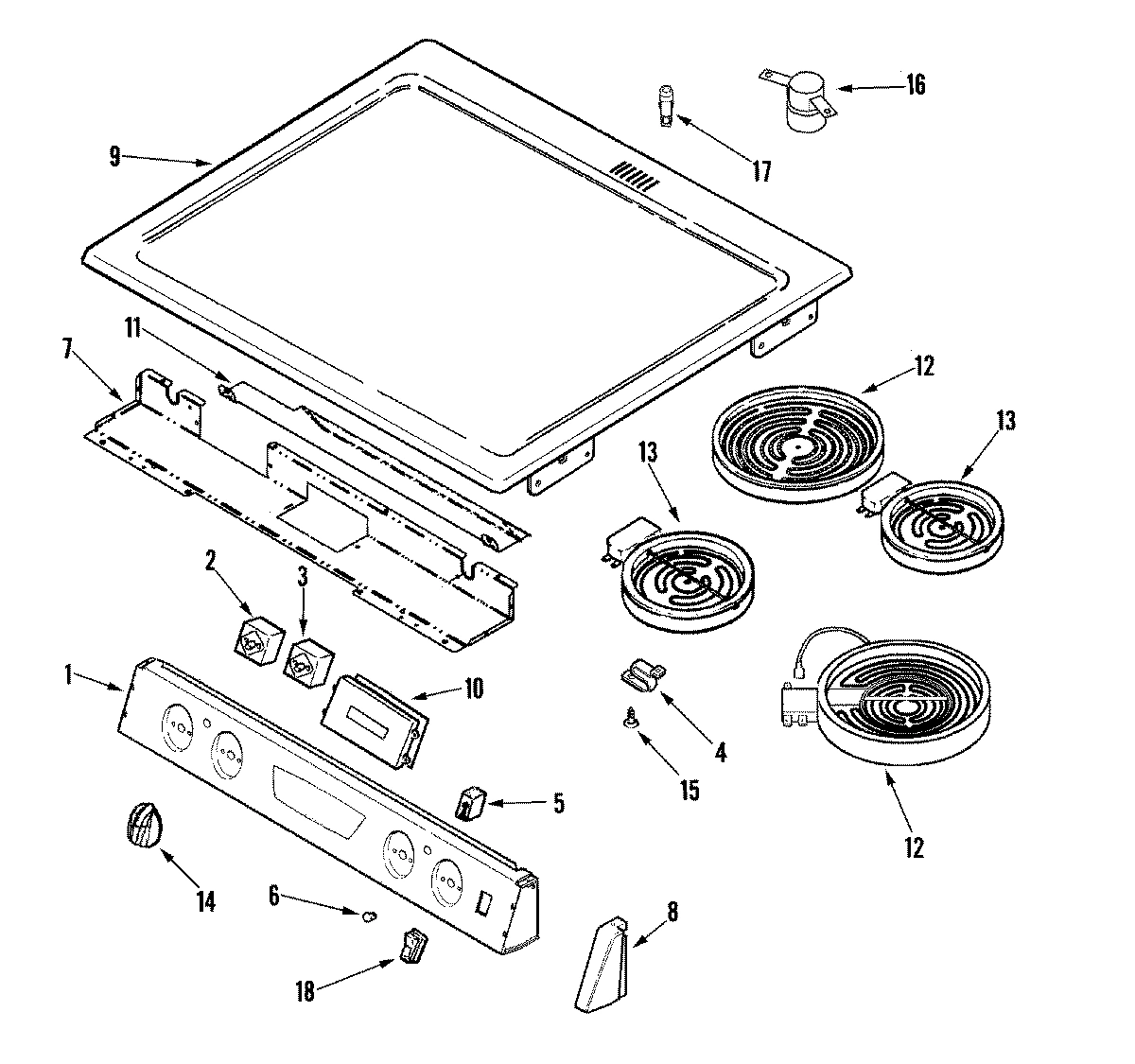

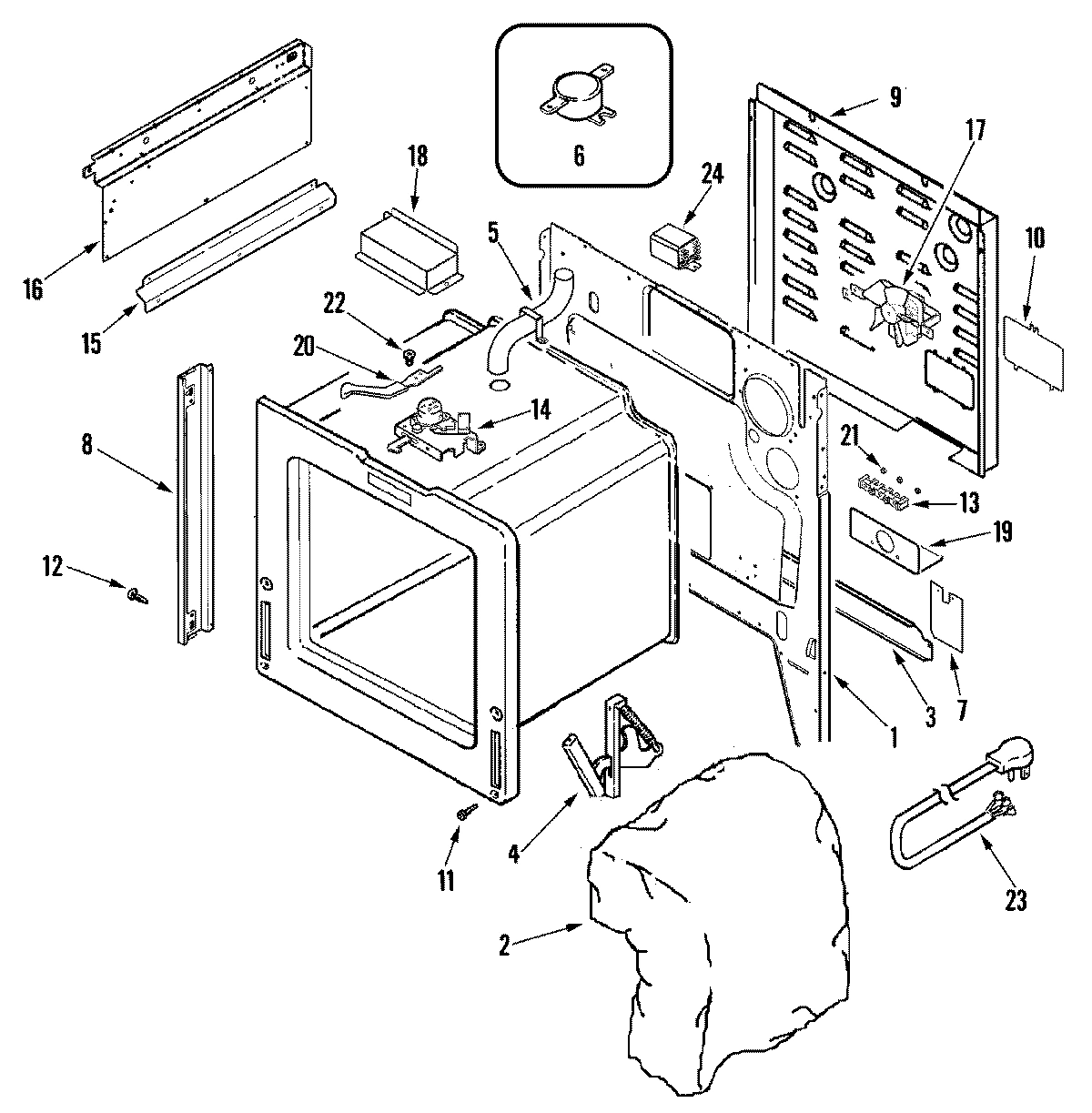

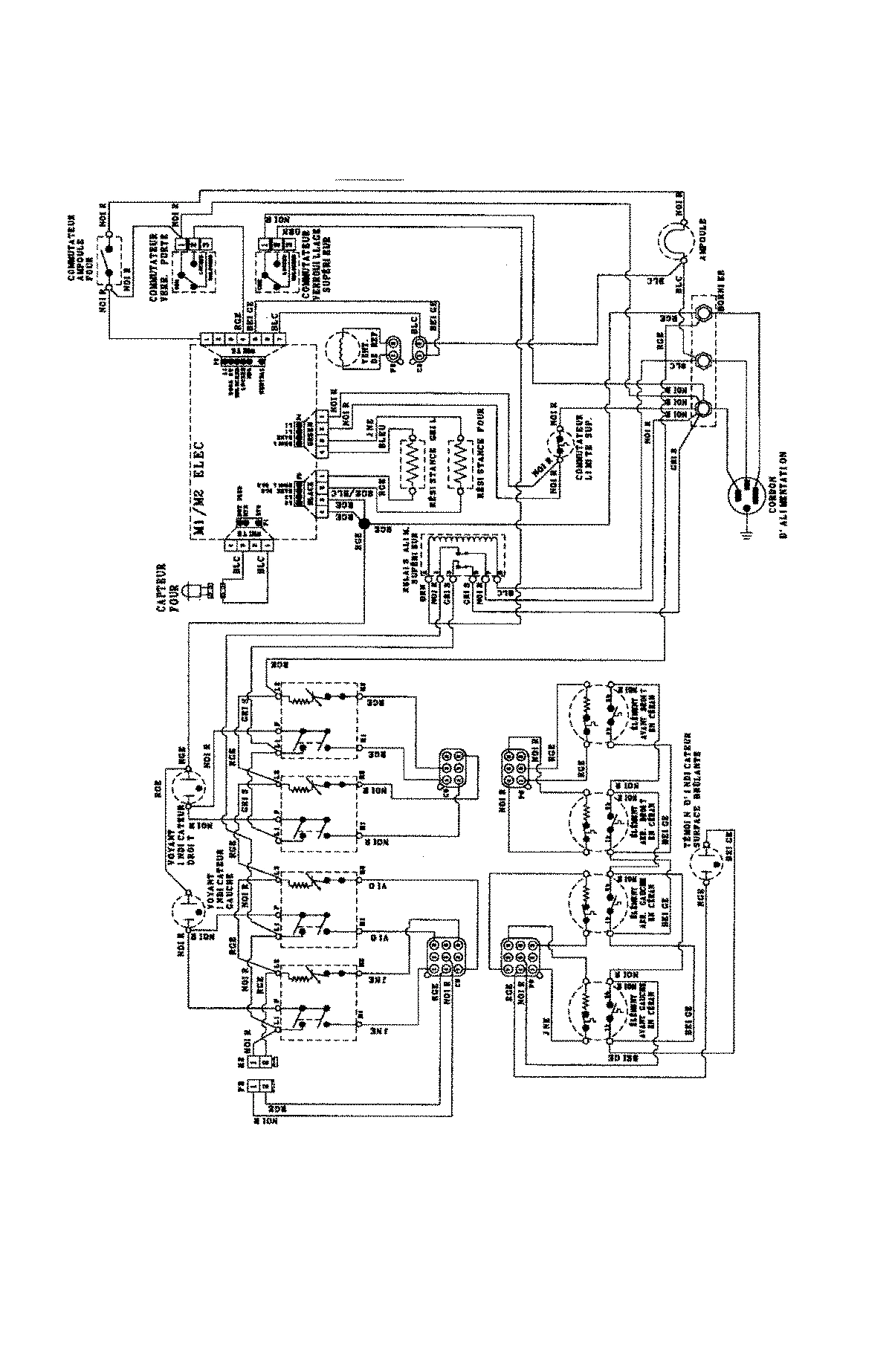

WIRING INFORMATION (FRENCH) WPL 15003755 Contact Us For Availability

1

CONTROL PANEL (WHT) WPL 74011759 Contact Us For Availability

1

BACK, MAIN WPL 74010949 Contact Us For Availability

1

LINING, DOOR WPL 74003642 Contact Us For Availability

2

4020W035-80 Whirlpool Bottom PE Backorder WPL 4020W035-80 $45.94

2

SWITCH, INFINITE (SML ELEMENT) WPL 7403P23860 Contact Us For Availability

2

INSULATION, WRAPPER WPL 74010813 Contact Us For Availability

2

TAPE, SINGLE SIDED (WHT) WPL 74004224 Contact Us For Availability

3

WP74001574 Whirlpool Snap Nut Backorder WPL WP74001574 $4.65

3

SCREW WPL 7101P30960 Contact Us For Availability

3

SWITCH, INFINITE (LRG ELEMENT) WPL 7403P23960 Contact Us For Availability

3

PEDESTAL, FRONT WPL 74010882 Contact Us For Availability

3

EXTENSION, MAIN BACK WPL 74010815 Contact Us For Availability

4

74011142 Whirlpool Stove Range Oven Door Hing In Stock WPL 74011142 $69.75

4

SUPPORT, ELEMENT WPL 74007845 Contact Us For Availability

4

RETAINER, INSULATION (BOTTOM) WPL 74006522 Contact Us For Availability

4

GASKET, DOOR WPL 7201P04660 Contact Us For Availability

5

WP74004153 Whirlpool Indicator Light Backorder WPL WP74004153 $3.76

5

SUPPORT, VALVE REGULATOR WPL 74007129 Contact Us For Availability

5

TUBE, VENT WPL 74010816 Contact Us For Availability

5

HOLDER, VENT TUBE WPL 74010817 Contact Us For Availability

6

WP7450P034-60 Whirlpool Limit Switch Backorder WPL WP7450P034-60 $82.19

6

LENS, INDICATOR LIGHT WPL 7730P01160 Contact Us For Availability

6

RUNNER, DRAWER WPL 74003565 Contact Us For Availability

6

FRAME, GLASS WPL 74003644 Contact Us For Availability

7

74003645 Whirlpool Range Oven Door Inner Glas In Stock WPL 74003645 $96.11

7

SUPPORT, MANIFOLD PANEL WPL 74004785 Contact Us For Availability

7

INSULATOR, POWER CORD WPL 74006364 Contact Us For Availability

8

KIT, SIDE PANEL (WHT) WPL UXA1100AAW Contact Us For Availability

8

CAP, END (WHT-RT) WPL 74004821 Contact Us For Availability

8

CAP, END (WHT-LT) WPL 74004822 Contact Us For Availability

8

INSULATION, OVEN DOOR WPL 74003647 Contact Us For Availability

9

NOT REQUIRED PART OR SEE NOTE ACCESSORY SIDE WPL W10124350 Contact Us For Availability

9

PLUG, SIDE TRIM (WHT) WPL 74011435 Contact Us For Availability

9

Top Assembly (Wht) WPL 5706M55081 Contact Us For Availability

9

TOP ASSEMBLY (WHT) WPL 74010655 Contact Us For Availability

9

BAFFLE, OVEN DOOR WPL 74009502 Contact Us For Availability

GLASS W/TAPE ASSY WPL 74004857 Contact Us For Availability

CLOCK/OVERLAY (WHT) WPL 74011753 Contact Us For Availability

PAN, BAKE WPL 74010806 Contact Us For Availability

COVER, TERMINAL BLOCK WPL 74005264 Contact Us For Availability

SHIELD, CONTROL WPL 74010846 Contact Us For Availability

COVER, FRONT WPL 74010807 Contact Us For Availability

SCREW WPL 7101P11260 Contact Us For Availability

RETAINER, GLASS WPL 74003650 Contact Us For Availability

W10823696 Whirlpool Radiant Surface Element In Stock WPL W10823696 $96.26

WP74003976 Whirlpool Screw Backorder WPL WP74003976 $2.55

SCREW W/WASHER WPL 7101P12460 Contact Us For Availability

TRIM, DOOR TOP (WHT) WPL 74010238 Contact Us For Availability

3801F831-45 Whirlpool Bracket Assembly Backorder WPL 3801F831-45 $10.94

3801F832-45 Whirlpool Bracket Backorder WPL 3801F832-45 $10.94

W10823711 Whirlpool Surface Element Left Fron In Stock WPL W10823711 $102.83

WP7406P218-60 Whirlpool Broil Element Backorder WPL WP7406P218-60 $77.37

BLOCK, TERMINAL WPL 7401P03960 Contact Us For Availability

74011268 Whirlpool Latch Assembly Backorder WPL 74011268 $121.61

KNOB (WHT) WPL 74009188 Contact Us For Availability

SUPPORT, BROIL ELEMENT WPL 74003386 Contact Us For Availability

HANDLE, DOOR (WHT) WPL 74010337 Contact Us For Availability

WP7101P498-60 Whirlpool Screw Backorder WPL WP7101P498-60 $2.55

WP74006515 Whirlpool Washer Screw Backorder WPL WP74006515 $2.51

WPW10310274 Whirlpool Bake Element In Stock WPL WPW10310274 $60.06

EXTENSION, HEAT SHEILD WPL 74010820 Contact Us For Availability

12001656 Whirlpool Range Oven Temperature Sen In Stock WPL 12001656 $24.43

KIT, DOOR TRIM (WHT) WPL 12002358 Contact Us For Availability

TUBE, VENT (UPR) WPL 74005759 Contact Us For Availability

PANEL, SHIELD (LT) WPL 74010821 Contact Us For Availability

WP3807F708-71 Whirlpool Support In Stock WPL WP3807F708-71 $74.89

WP7407P182-60 Whirlpool Lamp Backorder WPL WP7407P182-60 $41.91

WPW10586440 Whirlpool Blower Fan Backorder WPL WPW10586440 $138.66

LIGHT, INDICATOR WPL Y706125 Contact Us For Availability

BULB-OVEN WPL 7407P10360 Contact Us For Availability

18

74008717 Whirlpool White Rocker Switch Backorder WPL 74008717 $34.89

18

COVER, DOOR LATCH WPL 74010845 Contact Us For Availability

19

W10190166 Whirlpool Service Bracket Backorder WPL W10190166 $5.80

19

SUPPORT, OVEN BOTTOM WPL 74010812 Contact Us For Availability

19

KIT, DOOR GLASS (WHT) WPL 12002396 Contact Us For Availability

20

WP2205F060-19 Whirlpool Range Bottom Backorder WPL WP2205F060-19 $212.76

20

LEVER, LATCH (GRY) WPL 74002974 Contact Us For Availability

20

DRAWER, STORAGE WPL 74008333 Contact Us For Availability

21

WPW10282492 Whirlpool Range Rack In Stock WPL WPW10282492 $46.57

21

NUT, TERMINAL BLOCK WPL 7103P02760 Contact Us For Availability

21

BRACKET, DRAWER WPL 74010896 Contact Us For Availability

74003975 Whirlpool Screw P1 (8ABX3/8-BLK) Backorder WPL 74003975 $9.75

WP3801F656-51 Whirlpool Range Anti-Tip Bracke In Stock WPL WP3801F656-51 $3.20

WP74004078 Whirlpool Door Roller In Stock WPL WP74004078 $5.00

SCREW WPL 7101P35260 Contact Us For Availability

23

SHAFT, STORAGE DRAWER ROLLER WPL 74005231 Contact Us For Availability

23

CORD, POWER WPL 74006398 Contact Us For Availability

24

RELAY, AUXILIARY (DPDT) WPL 74009845 Contact Us For Availability

24

NUT WPL 7103P08260 Contact Us For Availability

25

LINING, DRAWER PANEL WPL 2404F03051 Contact Us For Availability

26

PANEL, DRAWER (WHT) WPL 74003407 Contact Us For Availability

27

WP7101P072-60 Whirlpool Screw Backorder WPL WP7101P072-60 $2.55

28

NUT, LOCK (8-32) WPL 74005230 Contact Us For Availability

29

WP98008544 Whirlpool Screw Assembly In Stock WPL WP98008544 $2.68

30

WP74005546 Whirlpool RU Spacer Backorder WPL WP74005546 $4.28

NI

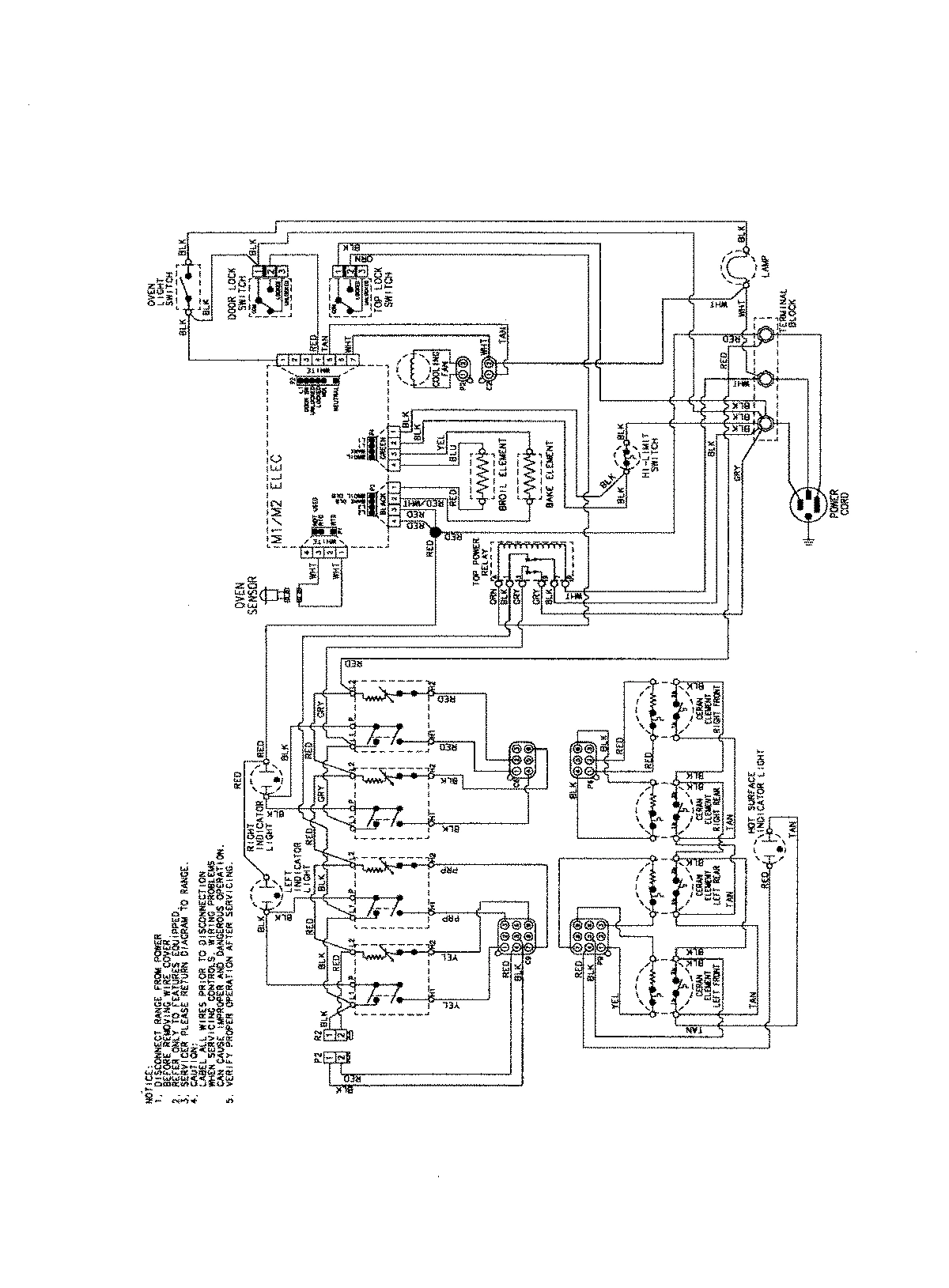

WIRING INFORMATION WPL 15003754 Contact Us For Availability
