Model GE PDS22MCRACC – Common Parts & Diagrams

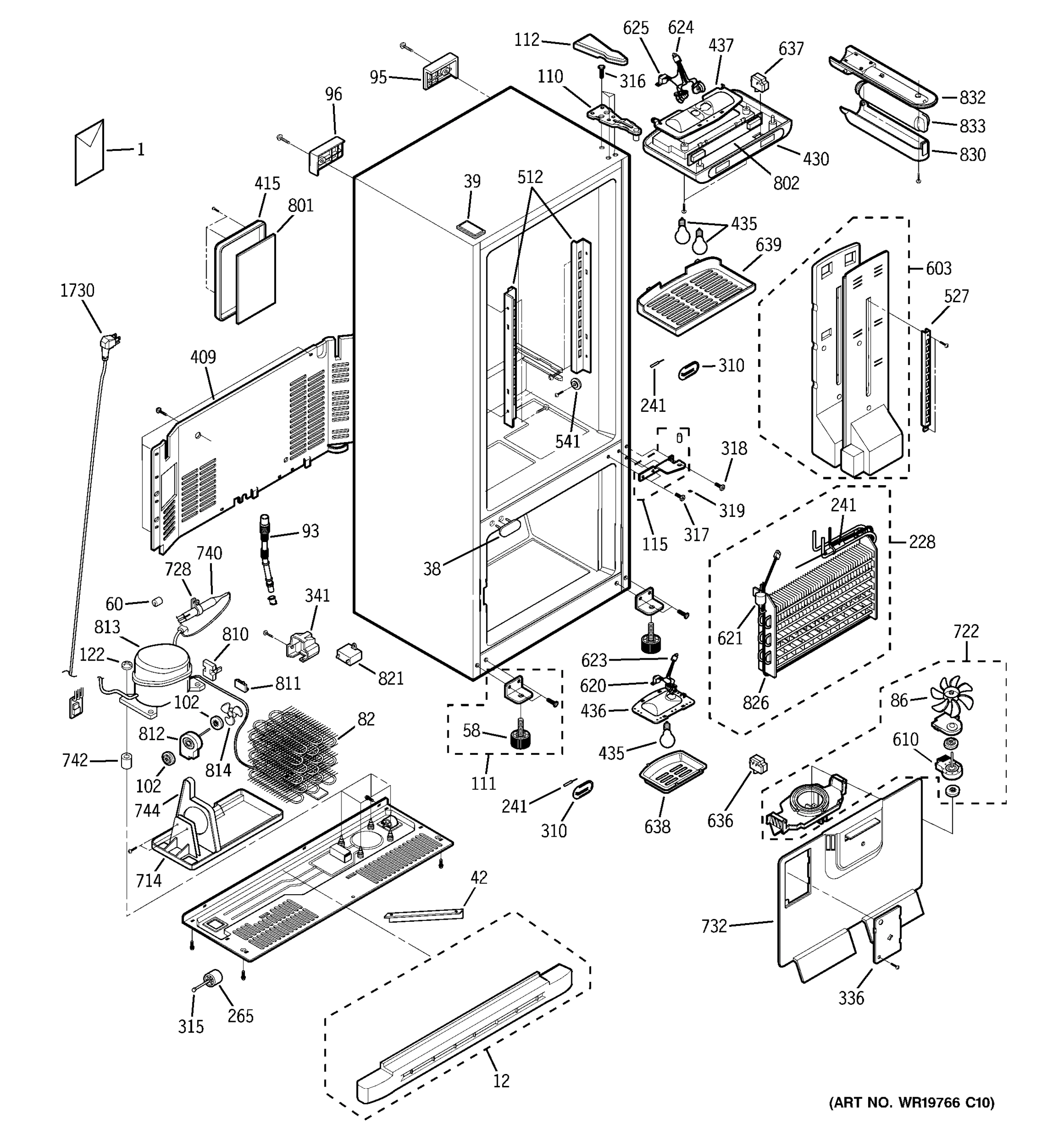

CABINET

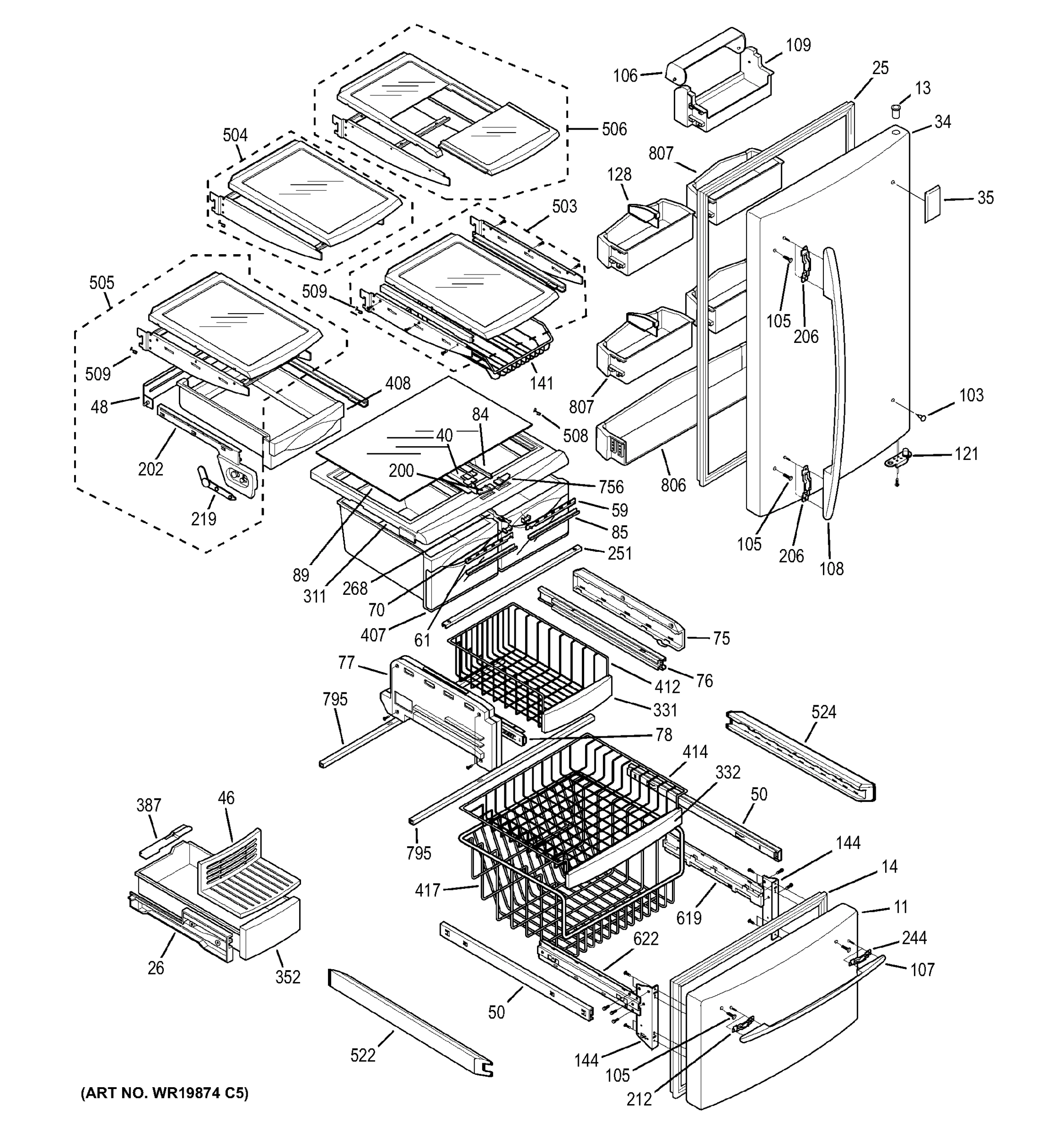

DOORS & SHELVES

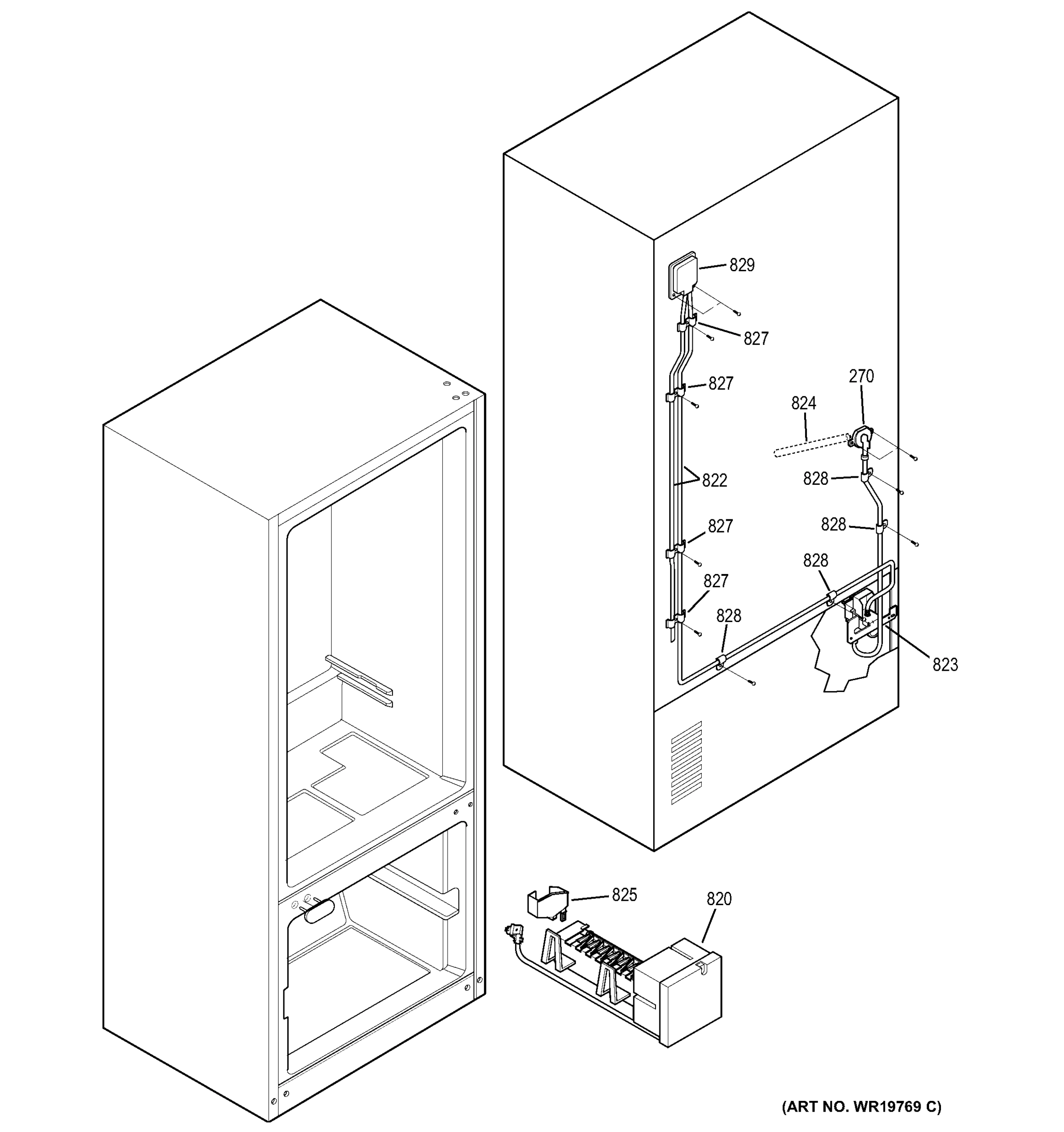

WATER SYSTEM
Common parts from model GE PDS22MCRACC
13
BUSHING GEN WR01X10493 Contact Us For Availability
14
GASKET ASSEMBLY,F GEN WR14X10184 Contact Us For Availability
25
GASKET ASSEMBLY,R GEN WR14X10185 Contact Us For Availability
35
GEN WR04X10138 GEN WR04X10138 Contact Us For Availability
40
GEN WR02X11684 GEN WR02X11684 Contact Us For Availability
46
GEN WR30X10050 GEN WR30X10050 Contact Us For Availability
70
GEN WR02X11701 GEN WR02X11701 Contact Us For Availability
84
GEN WR14X10176 GEN WR14X10176 Contact Us For Availability
85
GEN WR14X10175 GEN WR14X10175 Contact Us For Availability
86
FAN ASS'Y BLADE GEN WR60X10147 Contact Us For Availability
89
GEN WR32X10465 GEN WR32X10465 Contact Us For Availability
93
GEN WR02X11697 GEN WR02X11697 Contact Us For Availability
102
GEN WR02X11694 GEN WR02X11694 Contact Us For Availability
105
GEN WR01X10446 GEN WR01X10446 Contact Us For Availability
106
GEN WR02X11665 GEN WR02X11665 Contact Us For Availability
121
GEN WR02X11718 GEN WR02X11718 Contact Us For Availability
128
GEN WR02X11680 GEN WR02X11680 Contact Us For Availability
141
GEN WR21X10081 GEN WR21X10081 Contact Us For Availability
144
CONNECTOR,DOOR GEN WR02X11687 Contact Us For Availability
200
GEN WR02X11689 GEN WR02X11689 Contact Us For Availability
202
GUIDE ASSY, RAIL GEN WR72X10148 Contact Us For Availability
206
BRACKET,HANDLE FF GEN WR02X11679 Contact Us For Availability
212
BRACKET,HANDLE FZR(L) GEN WR02X11678 Contact Us For Availability
219
LEVER,SHUTTER GEN WR02X11672 Contact Us For Availability
228
EVAPORATOR ASS'Y GEN WR85X10057 Contact Us For Availability
244
BRACKET,HANDLE FZR GEN WR02X11677 Contact Us For Availability
251
GEN WR02X11703 GEN WR02X11703 Contact Us For Availability
268
GEN WR02X11671 GEN WR02X11671 Contact Us For Availability
270
GEN WR02X11690 GEN WR02X11690 Contact Us For Availability
310
GEN WR02X11664 GEN WR02X11664 Contact Us For Availability
311
GEN WR02X11666 GEN WR02X11666 Contact Us For Availability
319
GEN WR01X10471 GEN WR01X10471 Contact Us For Availability
331
FZR BASKET UPPER HANDLE GEN WR12X10657 Contact Us For Availability
332
FZR BASKET CTR HANDLE GEN WR12X10658 Contact Us For Availability
336
COVER,GRILLE FAN GEN WR02X11669 Contact Us For Availability
341
GEN WR02X11786 GEN WR02X11786 Contact Us For Availability
352
GEN WR30X10052 GEN WR30X10052 Contact Us For Availability
387
GEN WR02X11662 GEN WR02X11662 Contact Us For Availability
407
GEN WR32X10463 GEN WR32X10463 Contact Us For Availability
408
MEAT PAN GEN WR32X10464 Contact Us For Availability
412
GEN WR21X10080 GEN WR21X10080 Contact Us For Availability
414
GEN WR21X10079 GEN WR21X10079 Contact Us For Availability
417
FZR BASKET GEN WR21X10078 Contact Us For Availability
503
SHELF ASM SLIDE OUT GEN WR32X10501 Contact Us For Availability
504
SHELF ASSEMBLY,R GEN WR71X10563 Contact Us For Availability
505
SHELF ASSEMBLY,R GEN WR71X10564 Contact Us For Availability
506
GEN WR71X10565 GEN WR71X10565 Contact Us For Availability
508
GEN WR02X12053 GEN WR02X12053 Contact Us For Availability
509
GEN WR02X12054 GEN WR02X12054 Contact Us For Availability
522
GEN WR02X12035 GEN WR02X12035 Contact Us For Availability
524
GEN WR02X12036 GEN WR02X12036 Contact Us For Availability
541
VEG PAN FRT SUPPORT GEN WR02X11683 Contact Us For Availability
603
DAMPER ASS'Y GEN WR09X10114 Contact Us For Availability
619
CONNECTOR ASSEMBLY(R) GEN WR17X11587 Contact Us For Availability
620
GEN WR50X10050 GEN WR50X10050 Contact Us For Availability
621
GEN WR50X10047 GEN WR50X10047 Contact Us For Availability
622
CONNECTOR ASSEMBLY(L) GEN WR17X11588 Contact Us For Availability
625
GEN WR50X10044 GEN WR50X10044 Contact Us For Availability
637
COVER LAMP FF GEN WR02X11661 Contact Us For Availability
714
GEN WR30X10048 GEN WR30X10048 Contact Us For Availability
722
EVAP FAN MOTOR ASS'Y GEN WR60X10146 Contact Us For Availability
732
EVAP FAN CVR ASS'Y GEN WR17X11594 Contact Us For Availability
756
GEN WR02X11688 GEN WR02X11688 Contact Us For Availability
795
GEN WR30X10051 GEN WR30X10051 Contact Us For Availability
802
BRD ASM TEMP GEN WR55X10340 Contact Us For Availability
806
GEN WR17X11586 GEN WR17X11586 Contact Us For Availability
807
GEN WR71X10532 GEN WR71X10532 Contact Us For Availability
811
GEN WR08X10061 GEN WR08X10061 Contact Us For Availability
814
FAN CONDENSER ASS'Y GEN WR60X10148 Contact Us For Availability
822
WATER TUBE & FILTER HEAD GEN WR17X11981 Contact Us For Availability
824
TUBE,INJECT GEN WR02X11712 Contact Us For Availability
826
GEN WR50X10042 GEN WR50X10042 Contact Us For Availability
827
GEN WR02X11710 GEN WR02X11710 Contact Us For Availability
828
BAND(MECH) GEN WR02X11709 Contact Us For Availability
829
COVER TUBE GEN WR02X11984 Contact Us For Availability
832
COVER,FILTER(UPPER) GEN WR02X11714 Contact Us For Availability
× ![]()
