Model GE PDS22MBWBBB – Common Parts & Diagrams

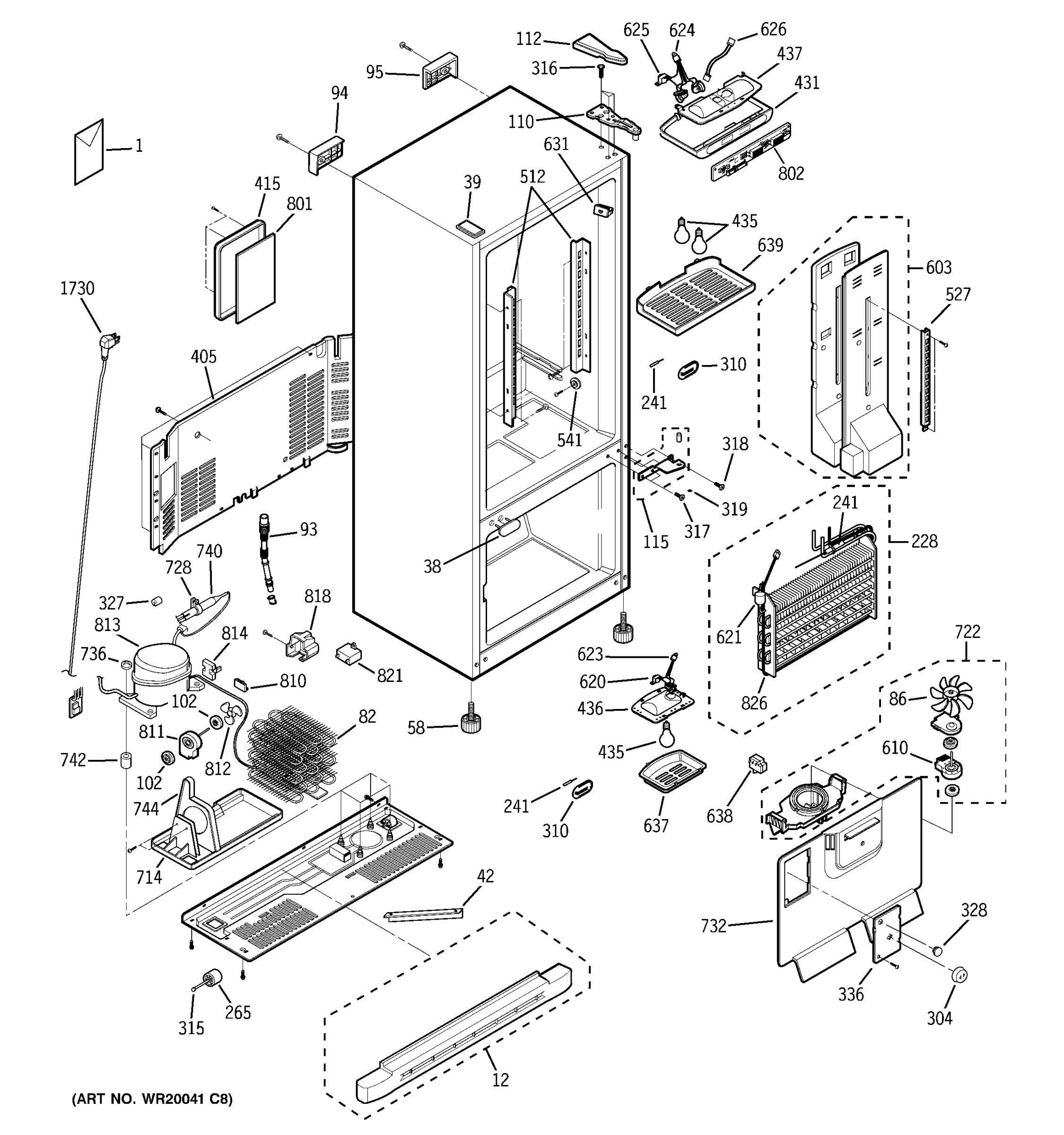

CABINET

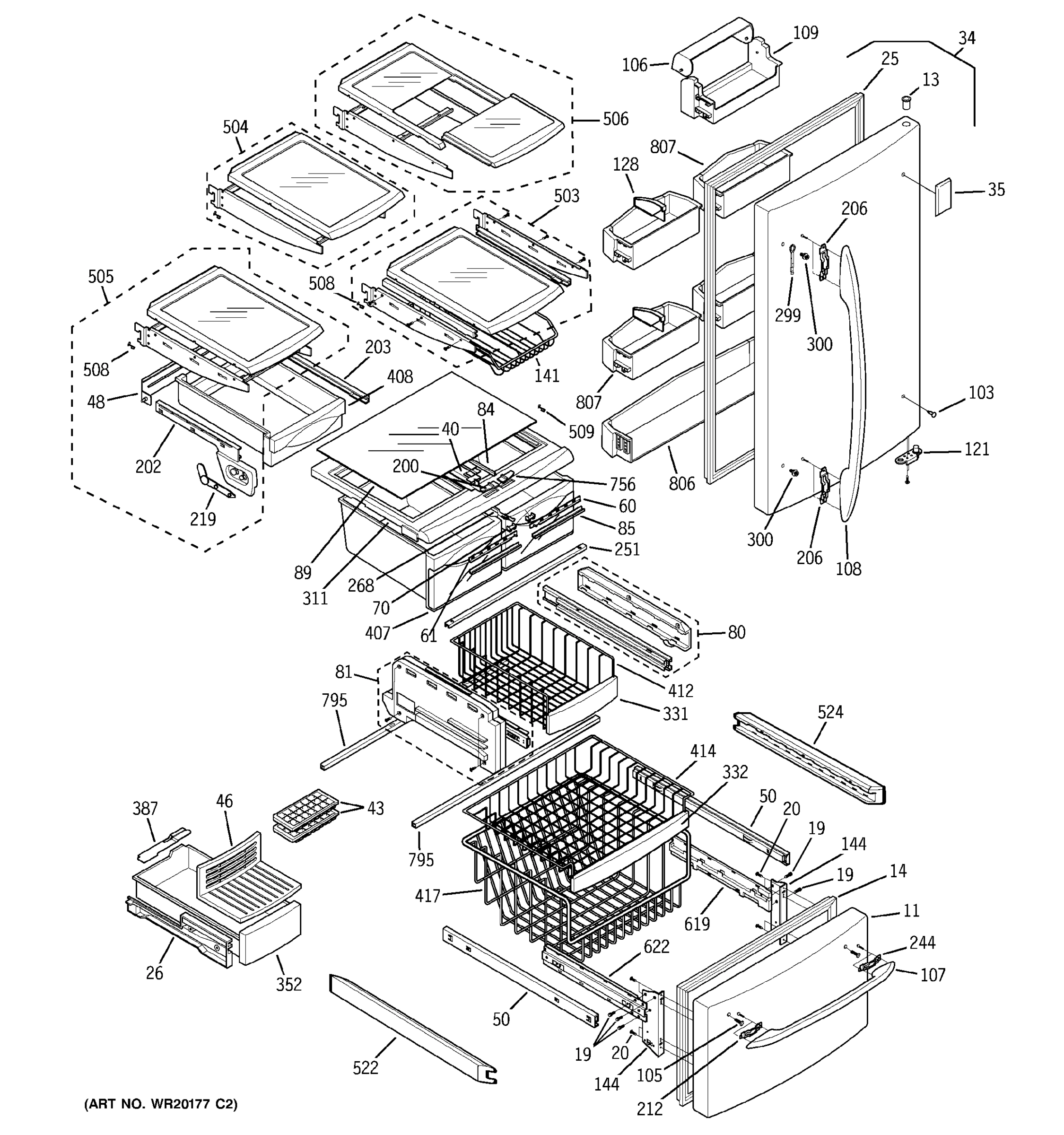

DOORS & SHELVES
WATER SYSTEM
Common parts from model GE PDS22MBWBBB
12
COVER ASM LOWER GEN WR74X10206 Contact Us For Availability
12
COVER ASM LOWER GEN WR74X10203 Contact Us For Availability
13
BUSH GEN WR01X10493 Contact Us For Availability
14
GASKET ASM FZ BK GEN WR14X10177 Contact Us For Availability
14
GASKET ASM FZ GEN WR14X10184 Contact Us For Availability
25
GASKET ASM,FF GEN WR14X10185 Contact Us For Availability
35
GEN WR04X10138 GEN WR04X10138 Contact Us For Availability
40
GEN WR02X11684 GEN WR02X11684 Contact Us For Availability
43
TRAY ICE GEN WR30X10049 Contact Us For Availability
46
GEN WR30X10050 GEN WR30X10050 Contact Us For Availability
70
RAIL SLIDE CENTER GEN WR02X11701 Contact Us For Availability
80
RAIL SLIDE ASM (RH-FZ) GEN WR17X12421 Contact Us For Availability
81
RAIL SLIDE ASM (LH-FZ) GEN WR17X12422 Contact Us For Availability
84
GEN WR14X10176 GEN WR14X10176 Contact Us For Availability
85
GEN WR14X10175 GEN WR14X10175 Contact Us For Availability
86
EVAP FAN BLADE GEN WR60X10147 Contact Us For Availability
89
GEN WR32X10465 GEN WR32X10465 Contact Us For Availability
93
GEN WR02X11697 GEN WR02X11697 Contact Us For Availability
94
GEN WR02X12074 GEN WR02X12074 Contact Us For Availability
102
GEN WR02X11694 GEN WR02X11694 Contact Us For Availability
105
GEN WR01X10485 GEN WR01X10485 Contact Us For Availability
106
GEN WR02X11665 GEN WR02X11665 Contact Us For Availability
107
GEN WR12X10851 GEN WR12X10851 Contact Us For Availability
107
GEN WR12X10853 GEN WR12X10853 Contact Us For Availability
107
GEN WR12X10856 GEN WR12X10856 Contact Us For Availability
108
GEN WR12X10852 GEN WR12X10852 Contact Us For Availability
108
GEN WR12X10854 GEN WR12X10854 Contact Us For Availability
108
GEN WR12X10857 GEN WR12X10857 Contact Us For Availability
109
GEN WR71X10536 GEN WR71X10536 Contact Us For Availability
112
COVER HINGE(U) WH GEN WR02X11719 Contact Us For Availability
121
STOPPER DOOR BK GEN WR02X11675 Contact Us For Availability
121
STOPPER,DOOR BQ GEN WR02X11718 Contact Us For Availability
121
STOPPER DOOR WH GEN WR02X11720 Contact Us For Availability
128
GEN WR02X11680 GEN WR02X11680 Contact Us For Availability
141
GEN WR21X10081 GEN WR21X10081 Contact Us For Availability
144
GEN WR02X11687 GEN WR02X11687 Contact Us For Availability
200
GEN WR02X11689 GEN WR02X11689 Contact Us For Availability
202
GEN WR72X10148 GEN WR72X10148 Contact Us For Availability
203
GEN WR02X11685 GEN WR02X11685 Contact Us For Availability
203
GEN WR17X12423 GEN WR17X12423 Contact Us For Availability
206
GEN WR02X12393 GEN WR02X12393 Contact Us For Availability
212
GEN WR02X12392 GEN WR02X12392 Contact Us For Availability
219
GEN WR02X11672 GEN WR02X11672 Contact Us For Availability
228
GEN WR85X10057 GEN WR85X10057 Contact Us For Availability
244
GEN WR02X12391 GEN WR02X12391 Contact Us For Availability
251
GEN WR02X11703 GEN WR02X11703 Contact Us For Availability
265
GEN WR02X11698 GEN WR02X11698 Contact Us For Availability
268
GEN WR02X11671 GEN WR02X11671 Contact Us For Availability
270
GEN WR02X11690 GEN WR02X11690 Contact Us For Availability
299
GEN WR02X12384 GEN WR02X12384 Contact Us For Availability
300
GEN WR02X12423 GEN WR02X12423 Contact Us For Availability
310
COVER THERMISTOR GEN WR02X11664 Contact Us For Availability
311
GEN WR02X11666 GEN WR02X11666 Contact Us For Availability
319
GEN WR01X10471 GEN WR01X10471 Contact Us For Availability
331
GEN WR12X10657 GEN WR12X10657 Contact Us For Availability
332
GEN WR12X10658 GEN WR12X10658 Contact Us For Availability
336
GEN WR02X11669 GEN WR02X11669 Contact Us For Availability
352
GEN WR30X10052 GEN WR30X10052 Contact Us For Availability
387
GEN WR02X11662 GEN WR02X11662 Contact Us For Availability
407
GEN WR32X10463 GEN WR32X10463 Contact Us For Availability
408
SNACK PAN GEN WR32X10464 Contact Us For Availability
412
GEN WR21X10080 GEN WR21X10080 Contact Us For Availability
414
GEN WR21X10079 GEN WR21X10079 Contact Us For Availability
417
FZR BSKT LOWER GEN WR21X10078 Contact Us For Availability
503
SHELF ASM GEN WR32X10501 Contact Us For Availability
504
SHELF ASM GEN WR71X10563 Contact Us For Availability
505
SHELF ASM GEN WR71X10564 Contact Us For Availability
506
SHELF ASM FOLDING GEN WR71X10565 Contact Us For Availability
508
GEN WR02X12053 GEN WR02X12053 Contact Us For Availability
509
GEN WR02X12054 GEN WR02X12054 Contact Us For Availability
522
GEN WR02X11682 GEN WR02X11682 Contact Us For Availability
524
GEN WR02X11681 GEN WR02X11681 Contact Us For Availability
541
GEN WR02X11683 GEN WR02X11683 Contact Us For Availability
603
GEN WR09X10114 GEN WR09X10114 Contact Us For Availability
619
GEN WR17X12411 GEN WR17X12411 Contact Us For Availability
620
GEN WR50X10044 GEN WR50X10044 Contact Us For Availability
621
GEN WR50X10047 GEN WR50X10047 Contact Us For Availability
622
GEN WR17X12412 GEN WR17X12412 Contact Us For Availability
625
GEN WR50X10050 GEN WR50X10050 Contact Us For Availability
631
GEN WR23X10429 GEN WR23X10429 Contact Us For Availability
714
GEN WR30X10048 GEN WR30X10048 Contact Us For Availability
722
GEN WR60X10146 GEN WR60X10146 Contact Us For Availability
732
GEN WR17X11594 GEN WR17X11594 Contact Us For Availability
756
GEN WR02X11688 GEN WR02X11688 Contact Us For Availability
795
SUPPORTOR DIVIDER GEN WR30X10051 Contact Us For Availability
806
GEN WR17X11586 GEN WR17X11586 Contact Us For Availability
807
DOOR BIN FZ GEN WR71X10532 Contact Us For Availability
810
OVERLOAD GEN WR08X10061 Contact Us For Availability
812
CONDENSER FAN BLADE GEN WR60X10148 Contact Us For Availability
818
GEN WR02X11786 GEN WR02X11786 Contact Us For Availability
824
GEN WR02X11712 GEN WR02X11712 Contact Us For Availability
826
GEN WR50X10042 GEN WR50X10042 Contact Us For Availability
901
COVER TUBE GEN WR02X11667 Contact Us For Availability
× ![]()
