Model GE PDS20SCRBLSS Refrigerator – Common Parts & Diagrams

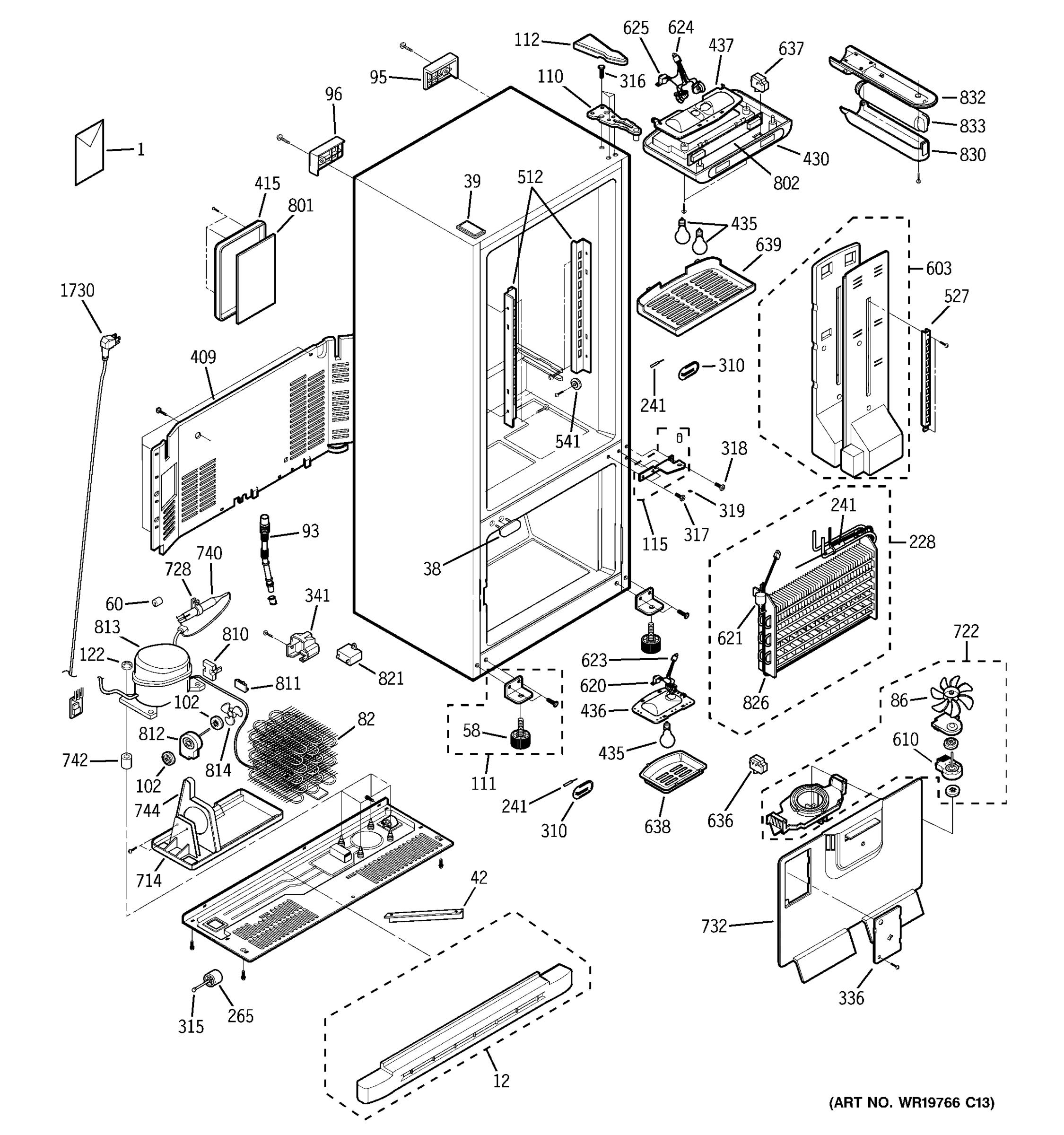

CABINET

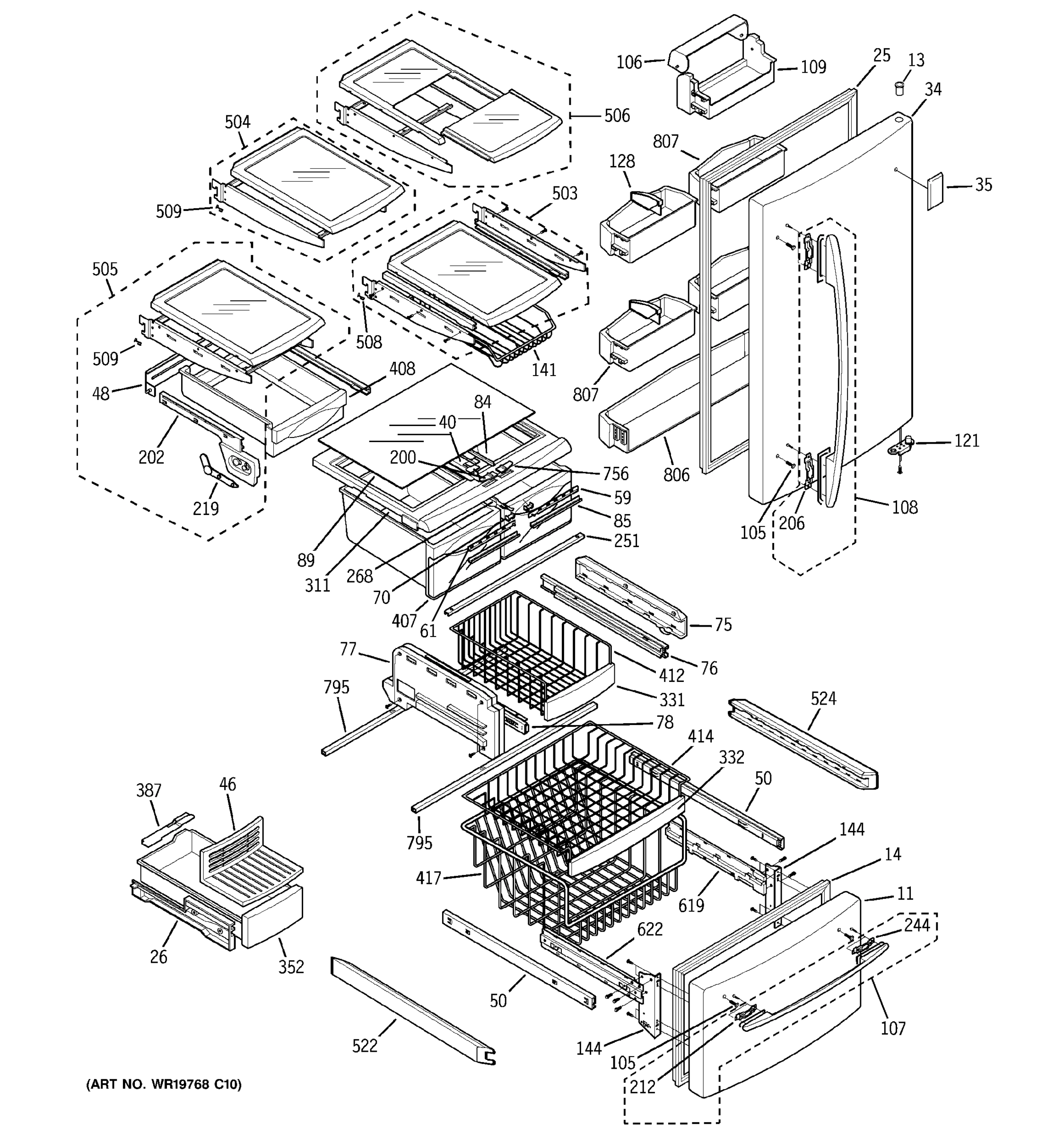

DOORS & SHELVES
WATER SYSTEM
Common parts from model GE PDS20SCRBLSS Refrigerator
12
GEN WR74X10200 GEN WR74X10200 Contact Us For Availability
13
BUSH GEN WR01X10493 Contact Us For Availability
14
GASKET ASSEMBLY,FZ GEN WR14X10179 Contact Us For Availability
25
GASKET ASSEMBLY,FF GEN WR14X10180 Contact Us For Availability
35
GEN WR04X10138 GEN WR04X10138 Contact Us For Availability
40
GEN WR02X11684 GEN WR02X11684 Contact Us For Availability
46
GEN WR30X10050 GEN WR30X10050 Contact Us For Availability
70
GEN WR02X11701 GEN WR02X11701 Contact Us For Availability
77
GEN WR02X12038 GEN WR02X12038 Contact Us For Availability
78
GEN WR17X11933 GEN WR17X11933 Contact Us For Availability
79
GEN WR02X11753 GEN WR02X11753 Contact Us For Availability
80
GEN WR23X10347 GEN WR23X10347 Contact Us For Availability
84
GEN WR14X10176 GEN WR14X10176 Contact Us For Availability
85
GEN WR14X10178 GEN WR14X10178 Contact Us For Availability
86
GEN WR60X10147 GEN WR60X10147 Contact Us For Availability
89
GEN WR32X10468 GEN WR32X10468 Contact Us For Availability
93
GEN WR02X11697 GEN WR02X11697 Contact Us For Availability
102
GEN WR02X11694 GEN WR02X11694 Contact Us For Availability
105
GEN WR01X10446 GEN WR01X10446 Contact Us For Availability
106
GEN WR02X11706 GEN WR02X11706 Contact Us For Availability
107
HANDLE ASM FZ DOOR GEN WR12X10656 Contact Us For Availability
108
HANDLE ASM FF DOOR GEN WR12X10655 Contact Us For Availability
109
GEN WR71X10549 GEN WR71X10549 Contact Us For Availability
121
STOPPER,DOOR BK GEN WR02X11675 Contact Us For Availability
128
GEN WR02X11680 GEN WR02X11680 Contact Us For Availability
141
GEN WR21X10085 GEN WR21X10085 Contact Us For Availability
144
GEN WR02X11687 GEN WR02X11687 Contact Us For Availability
200
GEN WR02X11689 GEN WR02X11689 Contact Us For Availability
202
GUIDE, RAIL GEN WR72X10148 Contact Us For Availability
206
GEN WR02X11679 GEN WR02X11679 Contact Us For Availability
212
GEN WR02X11678 GEN WR02X11678 Contact Us For Availability
219
GEN WR02X11672 GEN WR02X11672 Contact Us For Availability
244
GEN WR02X11677 GEN WR02X11677 Contact Us For Availability
251
GEN WR02X11707 GEN WR02X11707 Contact Us For Availability
268
GEN WR02X11671 GEN WR02X11671 Contact Us For Availability
270
GEN WR02X11690 GEN WR02X11690 Contact Us For Availability
310
GEN WR02X11664 GEN WR02X11664 Contact Us For Availability
311
GEN WR72X10152 GEN WR72X10152 Contact Us For Availability
319
GEN WR01X10471 GEN WR01X10471 Contact Us For Availability
331
GEN WR12X10659 GEN WR12X10659 Contact Us For Availability
332
GEN WR12X10660 GEN WR12X10660 Contact Us For Availability
336
GEN WR02X11669 GEN WR02X11669 Contact Us For Availability
341
GEN WR02X11786 GEN WR02X11786 Contact Us For Availability
352
GEN WR30X10052 GEN WR30X10052 Contact Us For Availability
387
GEN WR02X11662 GEN WR02X11662 Contact Us For Availability
407
GEN WR32X10466 GEN WR32X10466 Contact Us For Availability
408
GEN WR32X10467 GEN WR32X10467 Contact Us For Availability
412
GEN WR21X10084 GEN WR21X10084 Contact Us For Availability
414
GEN WR21X10083 GEN WR21X10083 Contact Us For Availability
417
GEN WR21X10082 GEN WR21X10082 Contact Us For Availability
503
SHELF ASM GEN WR71X10567 Contact Us For Availability
504
SHELF ASM GEN WR71X10568 Contact Us For Availability
505
GEN WR71X10569 GEN WR71X10569 Contact Us For Availability
506
GEN WR71X10566 GEN WR71X10566 Contact Us For Availability
508
GEN WR02X12053 GEN WR02X12053 Contact Us For Availability
509
GEN WR02X12054 GEN WR02X12054 Contact Us For Availability
522
GEN WR02X12035 GEN WR02X12035 Contact Us For Availability
524
GEN WR02X12036 GEN WR02X12036 Contact Us For Availability
541
GEN WR02X11683 GEN WR02X11683 Contact Us For Availability
603
GEN WR09X10114 GEN WR09X10114 Contact Us For Availability
619
CONNECTOR ASSEMBLY(R) GEN WR17X11587 Contact Us For Availability
620
THERMO DISC FF GEN WR50X10050 Contact Us For Availability
621
GEN WR50X10047 GEN WR50X10047 Contact Us For Availability
622
CONNECTOR ASSEMBLY(L) GEN WR17X11588 Contact Us For Availability
625
GEN WR50X10044 GEN WR50X10044 Contact Us For Availability
639
GEN WR02X11661 GEN WR02X11661 Contact Us For Availability
714
GEN WR30X10048 GEN WR30X10048 Contact Us For Availability
722
GEN WR60X10146 GEN WR60X10146 Contact Us For Availability
756
GEN WR02X11688 GEN WR02X11688 Contact Us For Availability
795
SUPPORTOR DIVIDER GEN WR30X10053 Contact Us For Availability
802
GEN WR55X10340 GEN WR55X10340 Contact Us For Availability
806
GEN WR17X11605 GEN WR17X11605 Contact Us For Availability
807
GEN WR17X11606 GEN WR17X11606 Contact Us For Availability
811
GEN WR08X10061 GEN WR08X10061 Contact Us For Availability
814
CONDENSER FAN BLADE GEN WR60X10148 Contact Us For Availability
822
GEN WR17X11982 GEN WR17X11982 Contact Us For Availability
824
GEN WR02X11712 GEN WR02X11712 Contact Us For Availability
826
GEN WR50X10043 GEN WR50X10043 Contact Us For Availability
827
GEN WR02X11710 GEN WR02X11710 Contact Us For Availability
828
GEN WR02X11709 GEN WR02X11709 Contact Us For Availability
829
COVER TUBE GEN WR02X11984 Contact Us For Availability
832
GEN WR02X11714 GEN WR02X11714 Contact Us For Availability
× ![]()
