Model GE PDS18LBMABB – Common Parts & Diagrams

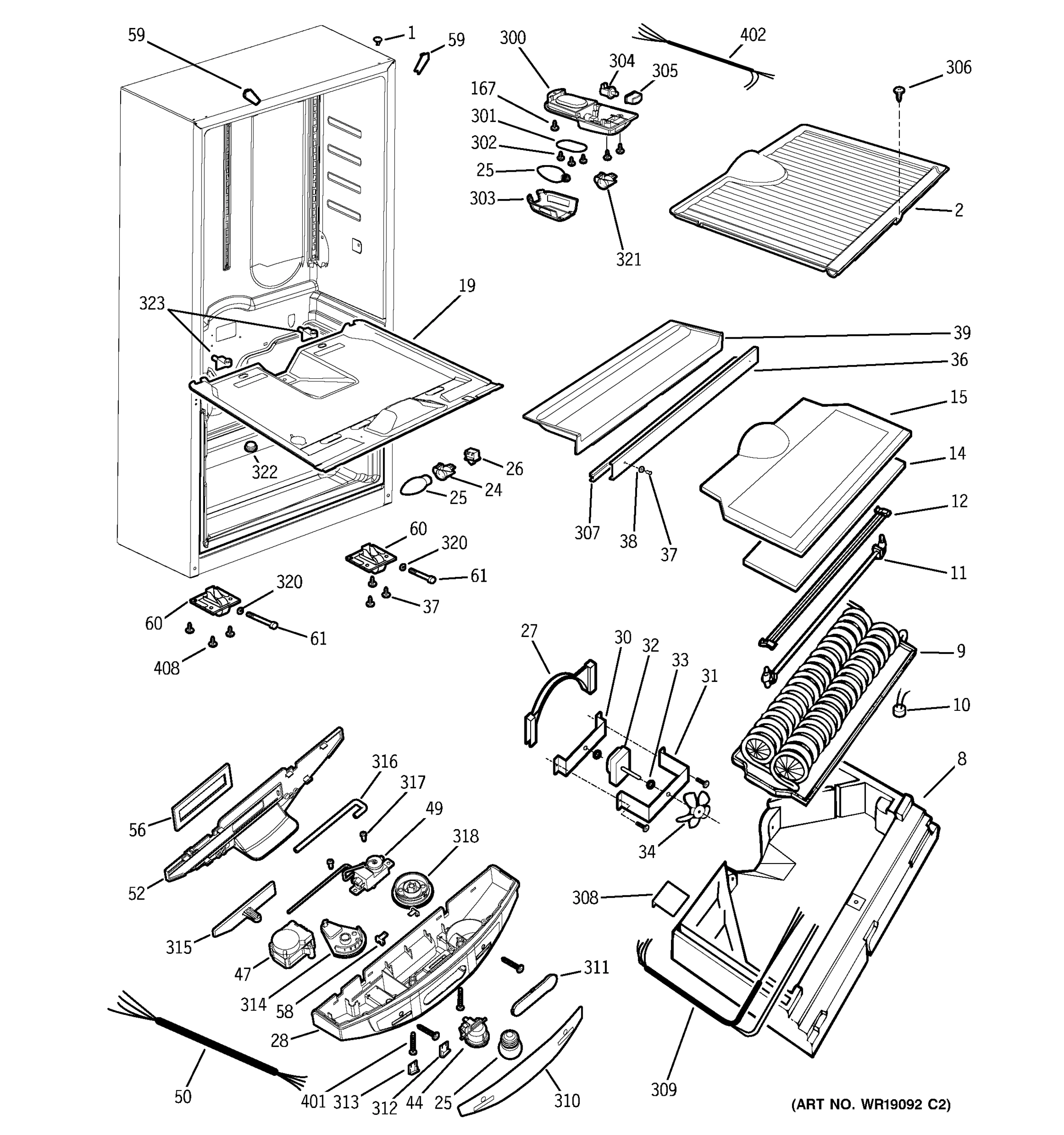

CABINET

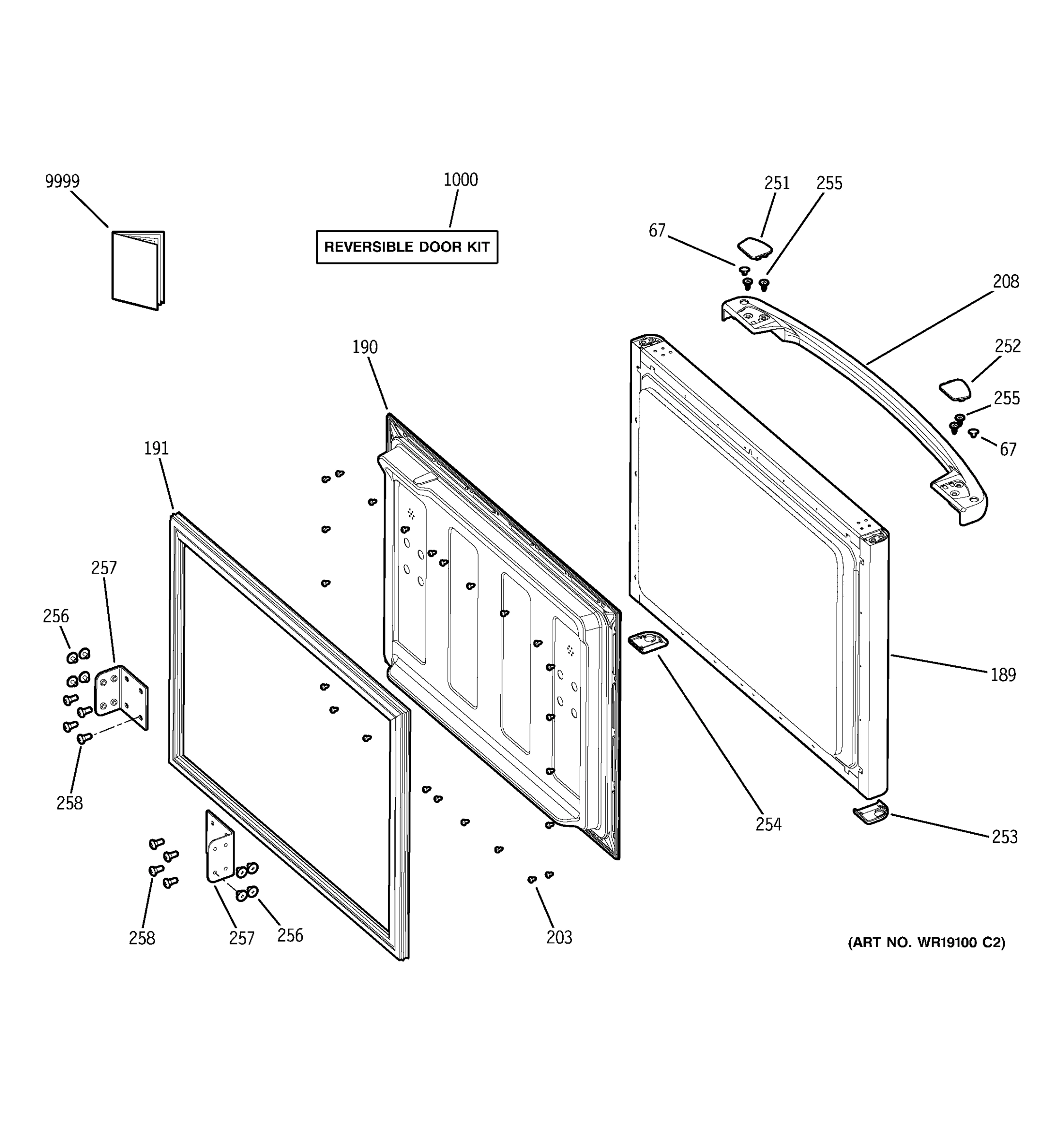

FREEZER DOOR

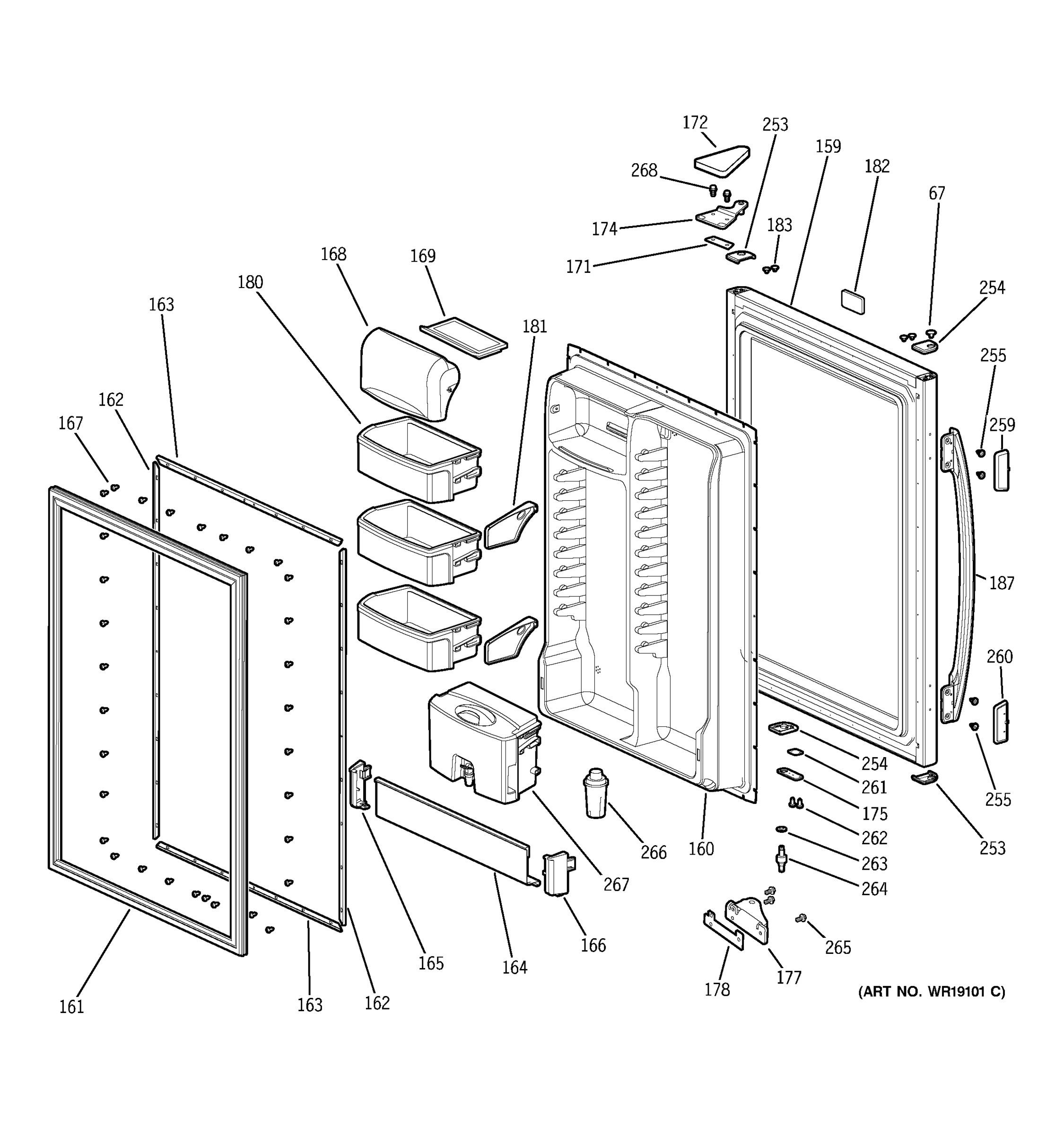

FRESH FOOD DOOR

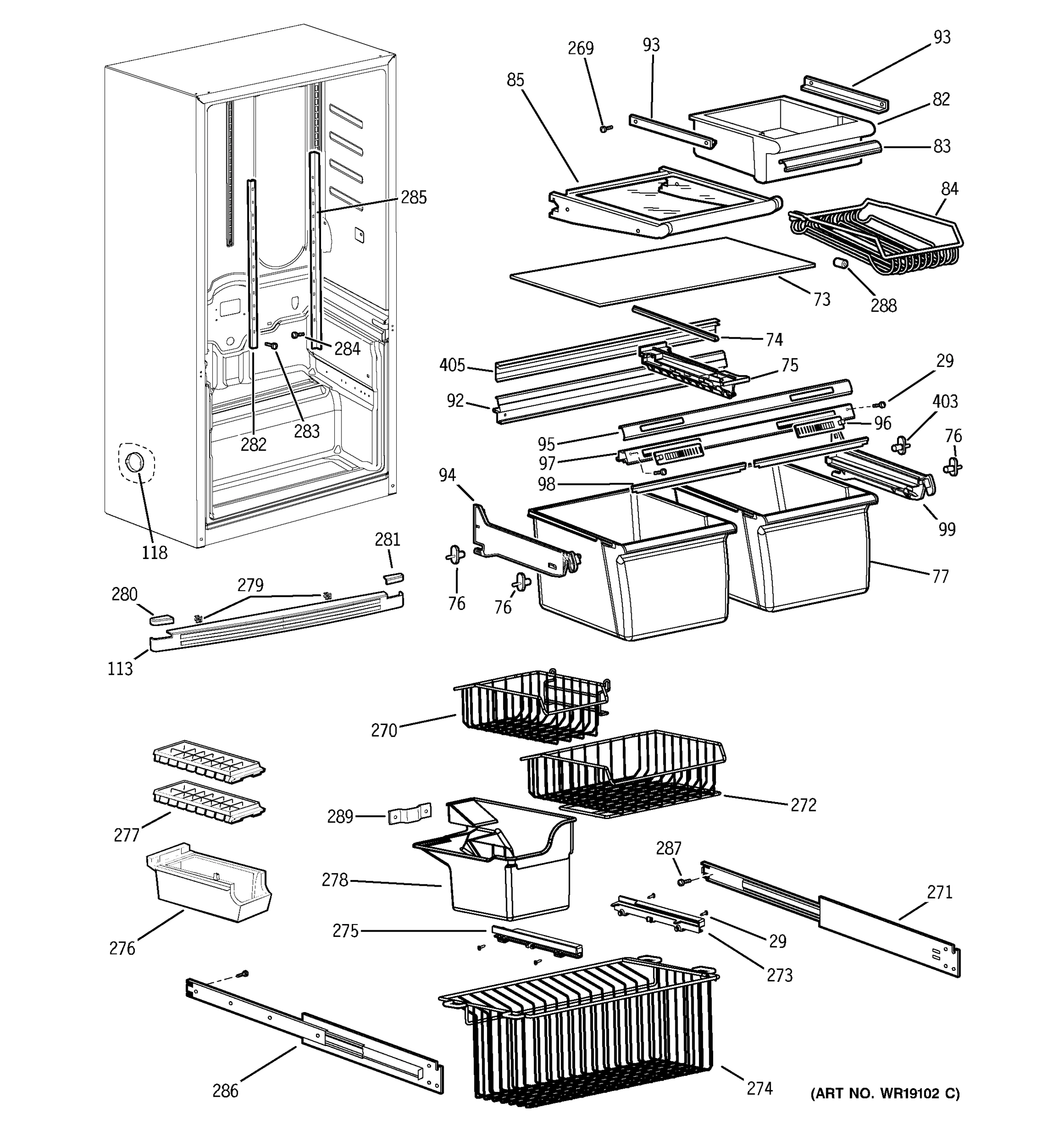

SHELVES

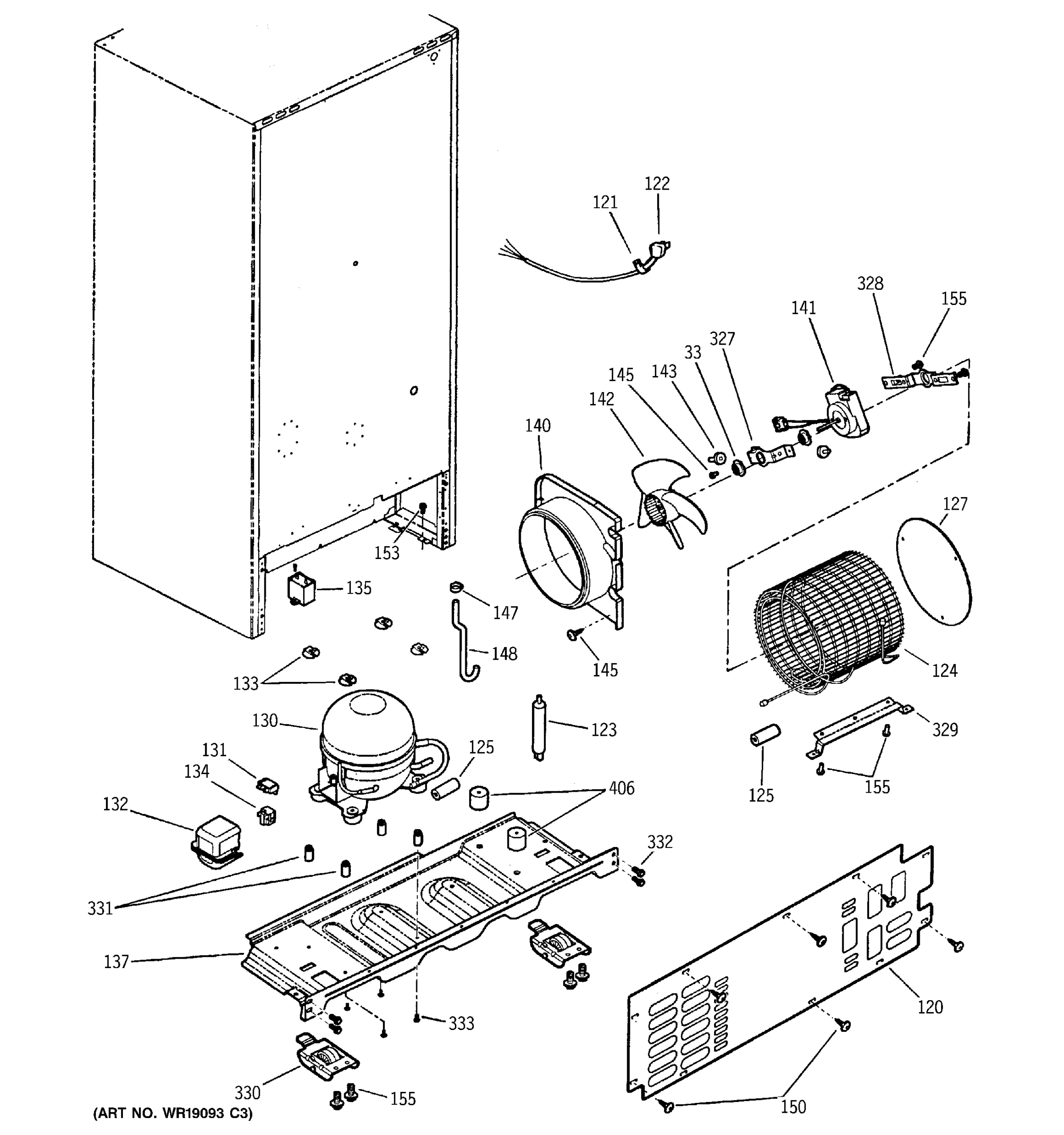

UNIT PARTS
Common parts from model GE PDS18LBMABB
25
GEN WR02X11274 GEN WR02X11274 Contact Us For Availability
29
SCREW-FRONT GEN WZ04X0244 Contact Us For Availability
34
GEN WR2M3557 GEN WR2M3557 Contact Us For Availability
37
GEN WR01X10280 GEN WR01X10280 Contact Us For Availability
38
GEN WR01X10269 GEN WR01X10269 Contact Us For Availability
39
GEN WR02X11035 GEN WR02X11035 Contact Us For Availability
44
GEN WR02X10200 GEN WR02X10200 Contact Us For Availability
49
CONTROL, TEMPERATURE GEN WR02X11036 Contact Us For Availability
50
GEN WR23X10240 GEN WR23X10240 Contact Us For Availability
52
COVER, HOUSING GEN WR02X11037 Contact Us For Availability
56
GEN WR14X10122 GEN WR14X10122 Contact Us For Availability
58
GEN WR02X11014 GEN WR02X11014 Contact Us For Availability
59
GEN WR02X11038 GEN WR02X11038 Contact Us For Availability
60
GEN WR02X11039 GEN WR02X11039 Contact Us For Availability
61
GEN WR01X10270 GEN WR01X10270 Contact Us For Availability
67
GEN WR02X11040 GEN WR02X11040 Contact Us For Availability
73
GLASS, CRISPER COVER GEN WR32X10276 Contact Us For Availability
74
GASKET, CENTER GEN WR14X10020 Contact Us For Availability
75
SLIDE, CENTER GEN WR72X10017 Contact Us For Availability
76
SUPPORT, PAN COVER (FRON GEN WR02X11041 Contact Us For Availability
77
GEN WR32X10277 GEN WR32X10277 Contact Us For Availability
82
GEN WR32X10084 GEN WR32X10084 Contact Us For Availability
83
GEN WR38X10256 GEN WR38X10256 Contact Us For Availability
84
GEN WR30X10005 GEN WR30X10005 Contact Us For Availability
85
GEN WR71X10361 GEN WR71X10361 Contact Us For Availability
85
GEN WR71X10362 GEN WR71X10362 Contact Us For Availability
92
GEN WR02X10215 GEN WR02X10215 Contact Us For Availability
93
GEN WR72X10018 GEN WR72X10018 Contact Us For Availability
94
GEN WR72X10019 GEN WR72X10019 Contact Us For Availability
95
GEN WR38X10257 GEN WR38X10257 Contact Us For Availability
96
GEN WR02X11042 GEN WR02X11042 Contact Us For Availability
97
GEN WR02X10216 GEN WR02X10216 Contact Us For Availability
98
GASKET, FRONT GEN WR14X10023 Contact Us For Availability
99
GEN WR72X10020 GEN WR72X10020 Contact Us For Availability
113
GEN WR79X10017 GEN WR79X10017 Contact Us For Availability
118
GEN WR02X11012 GEN WR02X11012 Contact Us For Availability
120
GEN WR02X11043 GEN WR02X11043 Contact Us For Availability
121
GEN WR02X10076 GEN WR02X10076 Contact Us For Availability
123
GEN WR86X10018 GEN WR86X10018 Contact Us For Availability
124
GEN WR84X10032 GEN WR84X10032 Contact Us For Availability
125
GEN WR02X11044 GEN WR02X11044 Contact Us For Availability
127
GEN WR17X11298 GEN WR17X11298 Contact Us For Availability
131
GEN WR07X10043 GEN WR07X10043 Contact Us For Availability
132
GEN WR02X11018 GEN WR02X11018 Contact Us For Availability
135
GEN WR62X10012 GEN WR62X10012 Contact Us For Availability
137
BASEPLATE, COMPRESSOR GEN WR17X11104 Contact Us For Availability
140
SHROUD, CONDENSER GEN WR17X11105 Contact Us For Availability
141
GEN WR60M133 GEN WR60M133 Contact Us For Availability
143
GEN WR02X11045 GEN WR02X11045 Contact Us For Availability
145
GEN WR01X10271 GEN WR01X10271 Contact Us For Availability
147
GEN WR02X11046 GEN WR02X11046 Contact Us For Availability
148
GEN WR02X11047 GEN WR02X11047 Contact Us For Availability
153
GEN WR01X10272 GEN WR01X10272 Contact Us For Availability
155
GEN WR01X10273 GEN WR01X10273 Contact Us For Availability
159
DOOR, FF BLK GEN WR78X10559 Contact Us For Availability
160
GEN WR78X10560 GEN WR78X10560 Contact Us For Availability
161
GASKET, DOOR (BLACK) GEN WR24X10100 Contact Us For Availability
162
GEN WR02X11048 GEN WR02X11048 Contact Us For Availability
163
GEN WR02X11049 GEN WR02X11049 Contact Us For Availability
164
SHELF FRONT, DOOR (FF) GEN WR17X11106 Contact Us For Availability
165
GEN WR02X9296 GEN WR02X9296 Contact Us For Availability
166
GEN WR02X9295 GEN WR02X9295 Contact Us For Availability
168
DOOR, DAIRY (CLEAR) GEN WR38X10258 Contact Us For Availability
169
GEN WR19X10003 GEN WR19X10003 Contact Us For Availability
171
GEN WR02X11050 GEN WR02X11050 Contact Us For Availability
172
HINGE COVER - BLK GEN WR2S72 Contact Us For Availability
174
GEN WR13X10218 GEN WR13X10218 Contact Us For Availability
175
GEN WR13X10252 GEN WR13X10252 Contact Us For Availability
175
GEN WR13X10219 GEN WR13X10219 Contact Us For Availability
177
HINGE, MID (BLACK) GEN WR13X10220 Contact Us For Availability
178
SHIM, MID HINGE (BLACK) GEN WR13X10221 Contact Us For Availability
180
GEN WR71X10363 GEN WR71X10363 Contact Us For Availability
181
GEN WR02X11051 GEN WR02X11051 Contact Us For Availability
182
GEN WR04X10058 GEN WR04X10058 Contact Us For Availability
183
PLUG BUTTON (BLACK) GEN WR02X11052 Contact Us For Availability
187
HANDLE ASM. (FF)(BLACK) GEN WR12X10512 Contact Us For Availability
189
GEN WR78X10561 GEN WR78X10561 Contact Us For Availability
190
GEN WR78X10562 GEN WR78X10562 Contact Us For Availability
191
GASKET, DOOR (BLACK) GEN WR24X10101 Contact Us For Availability
203
GEN WR01X10265 GEN WR01X10265 Contact Us For Availability
208
HANDLE ASM. (FZ)(BLACK) GEN WR12X10513 Contact Us For Availability
251
COVER, HANDLE- RH( FZ)BK GEN WR02X11053 Contact Us For Availability
252
COVER, HANDLE-LEFT(FZ)BK GEN WR02X11054 Contact Us For Availability
253
GEN WR02X11055 GEN WR02X11055 Contact Us For Availability
254
EPAULET, DOOR CORNER - L GEN WR02X11056 Contact Us For Availability
255
GEN WR01X10275 GEN WR01X10275 Contact Us For Availability
256
GEN WR1M722 GEN WR1M722 Contact Us For Availability
257
GEN WR2M3540 GEN WR2M3540 Contact Us For Availability
258
GEN WR1M723 GEN WR1M723 Contact Us For Availability
259
COVER, HANDLE-RH (FF)BK GEN WR02X11057 Contact Us For Availability
260
COVER, HANDLE-LEFT(FF)BK GEN WR02X11058 Contact Us For Availability
261
GEN WR13X10222 GEN WR13X10222 Contact Us For Availability
262
SCREW HANDLE STOP GEN WR1M712 Contact Us For Availability
263
GEN WR01X10276 GEN WR01X10276 Contact Us For Availability
264
GEN WR02X11059 GEN WR02X11059 Contact Us For Availability
265
GEN WR01X2061 GEN WR01X2061 Contact Us For Availability
266
GEN WR02X11060 GEN WR02X11060 Contact Us For Availability
267
GEN WR71X10364 GEN WR71X10364 Contact Us For Availability
268
GEN WR01X10277 GEN WR01X10277 Contact Us For Availability
269
GEN WR01X10077 GEN WR01X10077 Contact Us For Availability
270
GEN WR71X10365 GEN WR71X10365 Contact Us For Availability
271
GEN WR02X11061 GEN WR02X11061 Contact Us For Availability
272
GEN WR71X10366 GEN WR71X10366 Contact Us For Availability
273
GEN WR02X11062 GEN WR02X11062 Contact Us For Availability
274
GEN WR71X10367 GEN WR71X10367 Contact Us For Availability
275
GEN WR72X10023 GEN WR72X10023 Contact Us For Availability
276
GEN WR30X10003 GEN WR30X10003 Contact Us For Availability
278
GEN WR30S1 GEN WR30S1 Contact Us For Availability
279
GEN WR02X11063 GEN WR02X11063 Contact Us For Availability
280
GEN WR02X11064 GEN WR02X11064 Contact Us For Availability
281
GEN WR02X11065 GEN WR02X11065 Contact Us For Availability
282
GEN WR72X10025 GEN WR72X10025 Contact Us For Availability
283
GEN WR01X10103 GEN WR01X10103 Contact Us For Availability
284
GEN WR01X10102 GEN WR01X10102 Contact Us For Availability
285
GEN WR02X11066 GEN WR02X11066 Contact Us For Availability
286
GEN WR02X11067 GEN WR02X11067 Contact Us For Availability
287
GEN WR01X10278 GEN WR01X10278 Contact Us For Availability
288
GEN WR2M3543 GEN WR2M3543 Contact Us For Availability
300
HOUSING, CONTROL LIGHT GEN WR02X11068 Contact Us For Availability
301
SHIELD, FRONT LIGHT GEN WR02X11069 Contact Us For Availability
302
GEN WR01X10279 GEN WR01X10279 Contact Us For Availability
303
COVER, LAMP GEN WR02X11070 Contact Us For Availability
304
GEN WR23X10089 GEN WR23X10089 Contact Us For Availability
305
COVER, SWITCH GEN WR02X11071 Contact Us For Availability
306
GEN WR01X10076 GEN WR01X10076 Contact Us For Availability
307
GEN WR02X11072 GEN WR02X11072 Contact Us For Availability
308
COVER, ELECTRICAL GEN WR02X11073 Contact Us For Availability
309
GEN WR23X10243 GEN WR23X10243 Contact Us For Availability
310
OVERLAY, CONTROL HOUSING GEN WR02X11074 Contact Us For Availability
311
LENS, CONTROL HOUSING GEN WR02X11075 Contact Us For Availability
312
PLUG, CNTRL HOUSING -RH GEN WR02X11076 Contact Us For Availability
313
PLUG, CNTRL HOUSING -LH GEN WR02X11077 Contact Us For Availability
314
WHEEL, AIR CNTRL HOUSING GEN WR02X11078 Contact Us For Availability
315
GEN WR02X11079 GEN WR02X11079 Contact Us For Availability
316
GEN WR02X11080 GEN WR02X11080 Contact Us For Availability
317
SCREW-MOUNTING/TIMER GEN WR01X2068 Contact Us For Availability
318
WHEEL,TEMP CNTRL HOUSING GEN WR02X11081 Contact Us For Availability
320
GEN WR02X11082 GEN WR02X11082 Contact Us For Availability
321
GEN WR02X11033 GEN WR02X11033 Contact Us For Availability
322
GEN WR02X11083 GEN WR02X11083 Contact Us For Availability
323
GEN WR02X9255 GEN WR02X9255 Contact Us For Availability
328
GEN WR02X11084 GEN WR02X11084 Contact Us For Availability
329
BRACKET, CONDENSER GEN WR02X11085 Contact Us For Availability
332
GEN WR01X10281 GEN WR01X10281 Contact Us For Availability
333
GEN WR01X10282 GEN WR01X10282 Contact Us For Availability
401
GEN WR01X10267 GEN WR01X10267 Contact Us For Availability
402
GEN WR23X10241 GEN WR23X10241 Contact Us For Availability
403
GEN WR02X10214 GEN WR02X10214 Contact Us For Availability
405
GEN WR14X10022 GEN WR14X10022 Contact Us For Availability
406
SUPPORT, CONDENSER GEN WR02X11087 Contact Us For Availability
408
GEN WR01X10268 GEN WR01X10268 Contact Us For Availability
1000
GEN WR13M236 GEN WR13M236 Contact Us For Availability
9999
GEN 31-47016 GEN 31-47016 Contact Us For Availability
9999
BOOK, USE & CARE GEN 49-60135 Contact Us For Availability
× ![]()
