Model Electrolux PCCG3080ASA – Common Parts & Diagrams

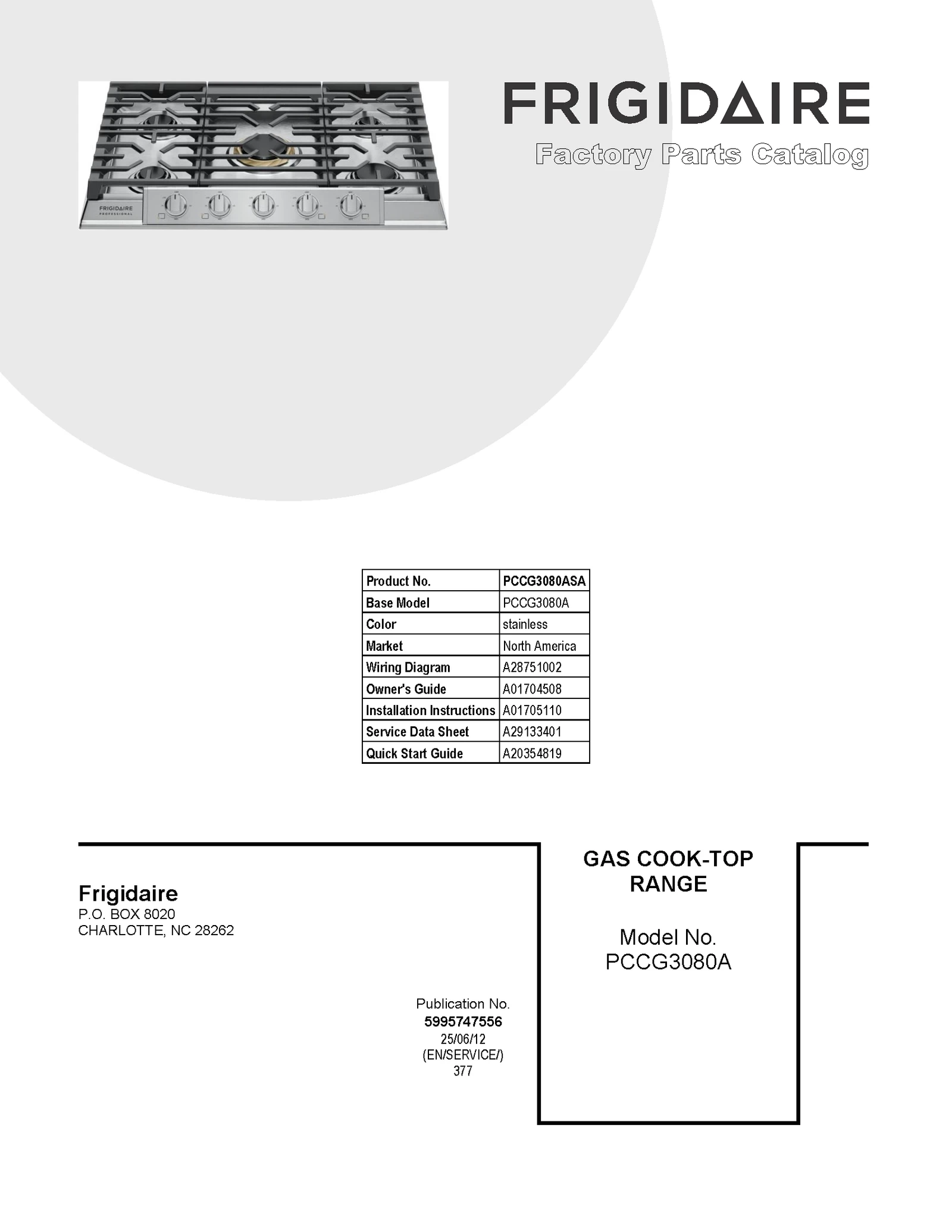

COVER

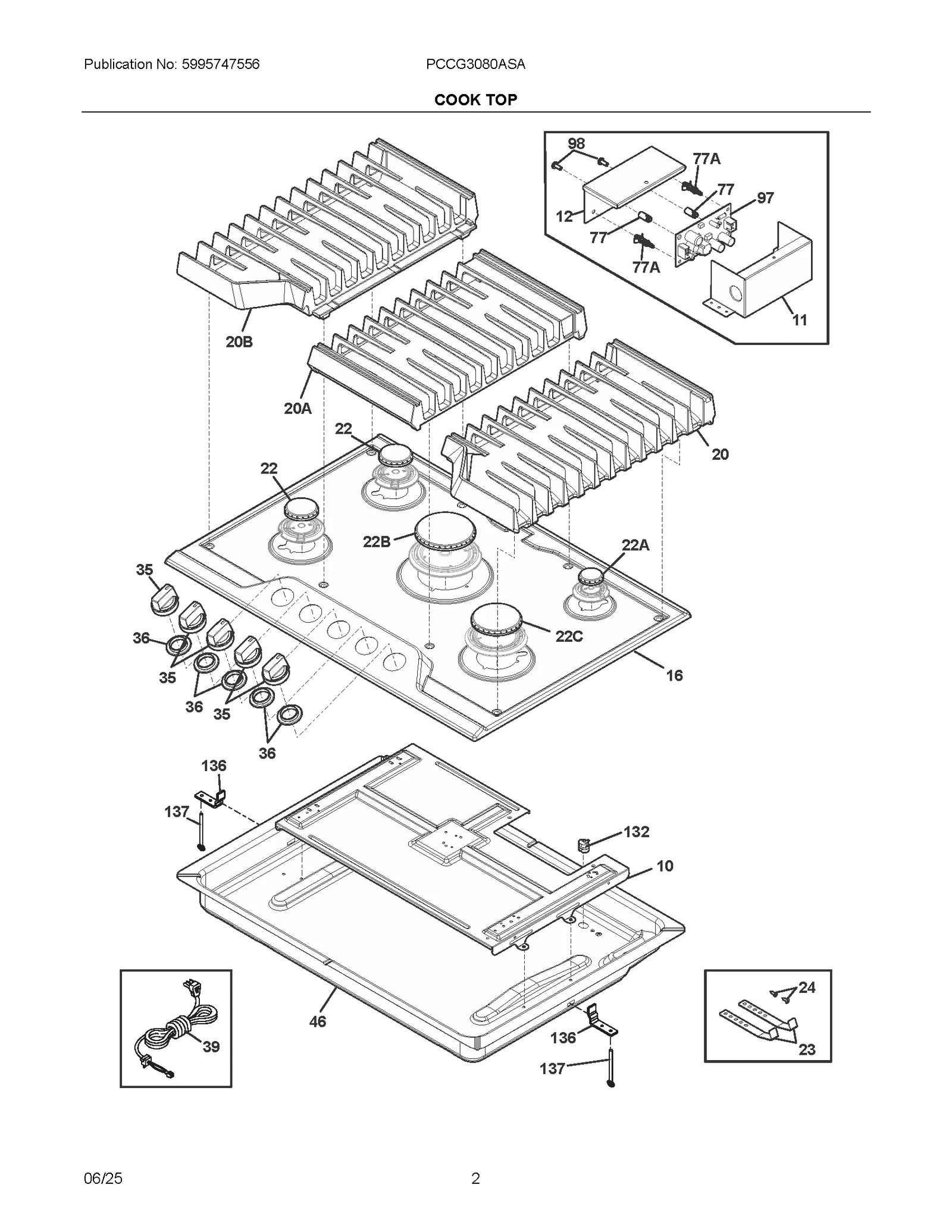

COOK TOP
BURNER
WIRING DIAGRAM
Common parts from model Electrolux PCCG3080ASA
*
Gasket, valve stem WCI A21779501 Contact Us For Availability
*
Screw, T20, Trilobe, Burner WCI 5304537501 Contact Us For Availability
1
Manifold, pipe WCI 5304537496 Contact Us For Availability
2B
Valve, saddle, 1500BTU WCI 5304537497 Contact Us For Availability
5
Bracket, valve fixing WCI 357733403 Contact Us For Availability
7
Screw, burner, stainless WCI 354324503 Contact Us For Availability
11B
Orifice/ignitor, 11K, holder WCI 5304537499 Contact Us For Availability
12
Tube, front left WCI 5304537504 Contact Us For Availability
12A
Tube, rear left WCI 5304537506 Contact Us For Availability
12C
Tube, front right WCI 5304537505 Contact Us For Availability
12D
Tube, rear right WCI 5304537507 Contact Us For Availability
12E
Tube, center left WCI 5304537502 Contact Us For Availability
12F
Tube, center right WCI 5304537503 Contact Us For Availability
13
Cover, spark module WCI 5304527658 Contact Us For Availability
14
Cap, regulator, red WCI 5304519944 Contact Us For Availability
15
Bracket, heat shield WCI 5304537498 Contact Us For Availability
20
Grate, top burner, LH WCI 5304537512 Contact Us For Availability
20A
Grate, top burner, center WCI 5304537514 Contact Us For Availability
20B
Grate, top burner, RH WCI 5304537513 Contact Us For Availability
39
Power Cord, electrical, supply WCI 5304535446 Contact Us For Availability
46
Burner Box WCI 5304537495 Contact Us For Availability
× ![]()
