Model Primus PC195HE Dryer – Common Parts & Diagrams
Front Panel Assembly - Electric Models
Filter Panel Assembly - Heat Pump Models

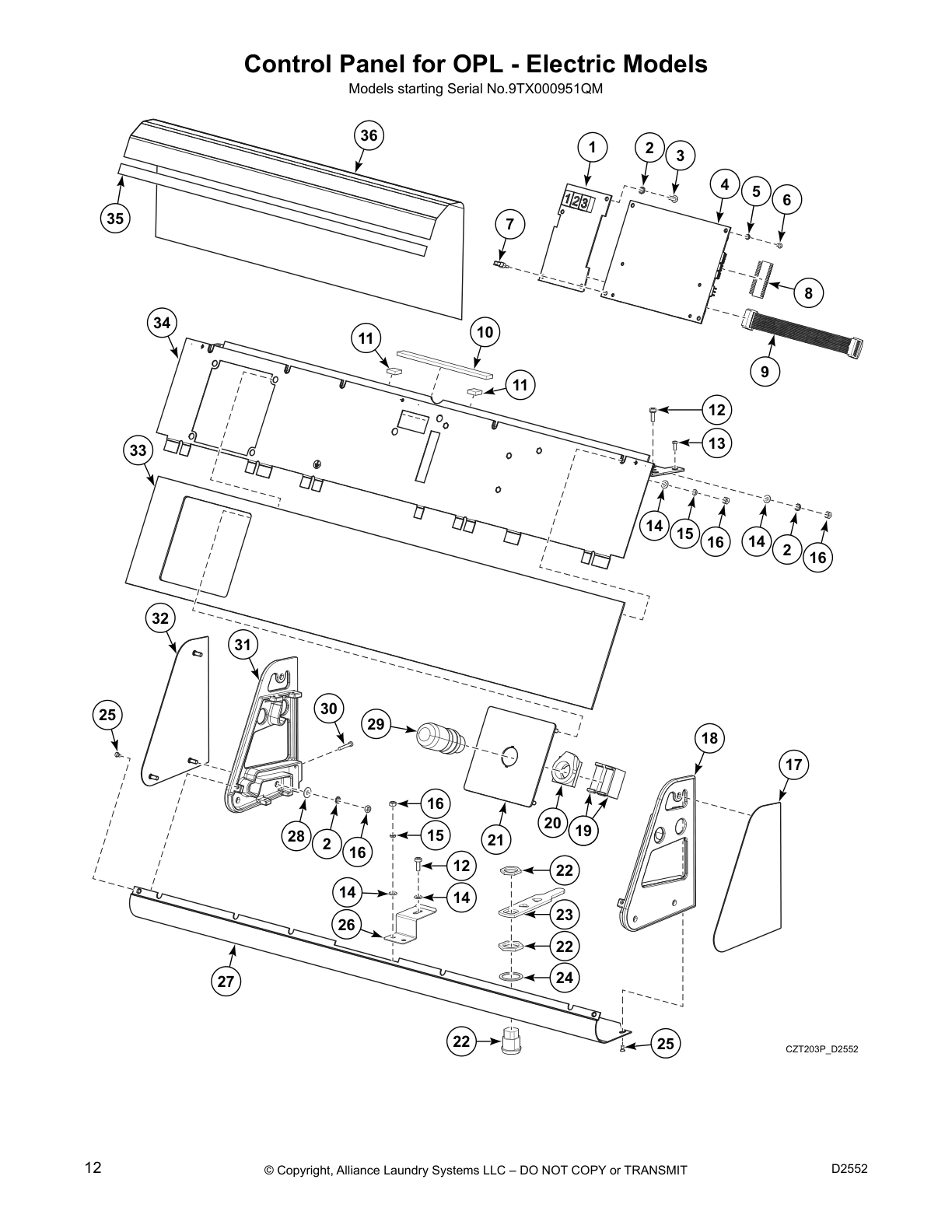

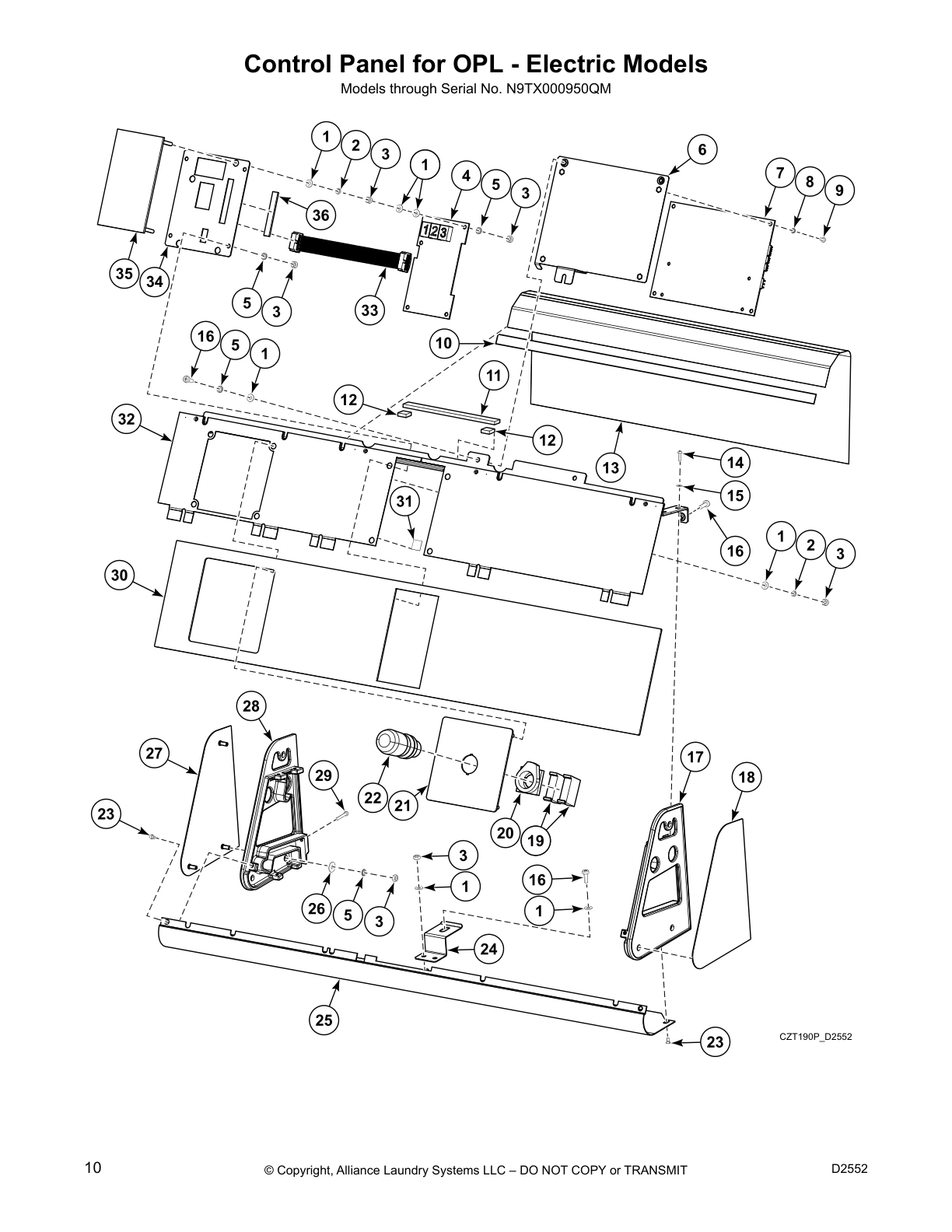

Control Panel for OPL - Electric Models
Control Panel for OPL - Electric Models

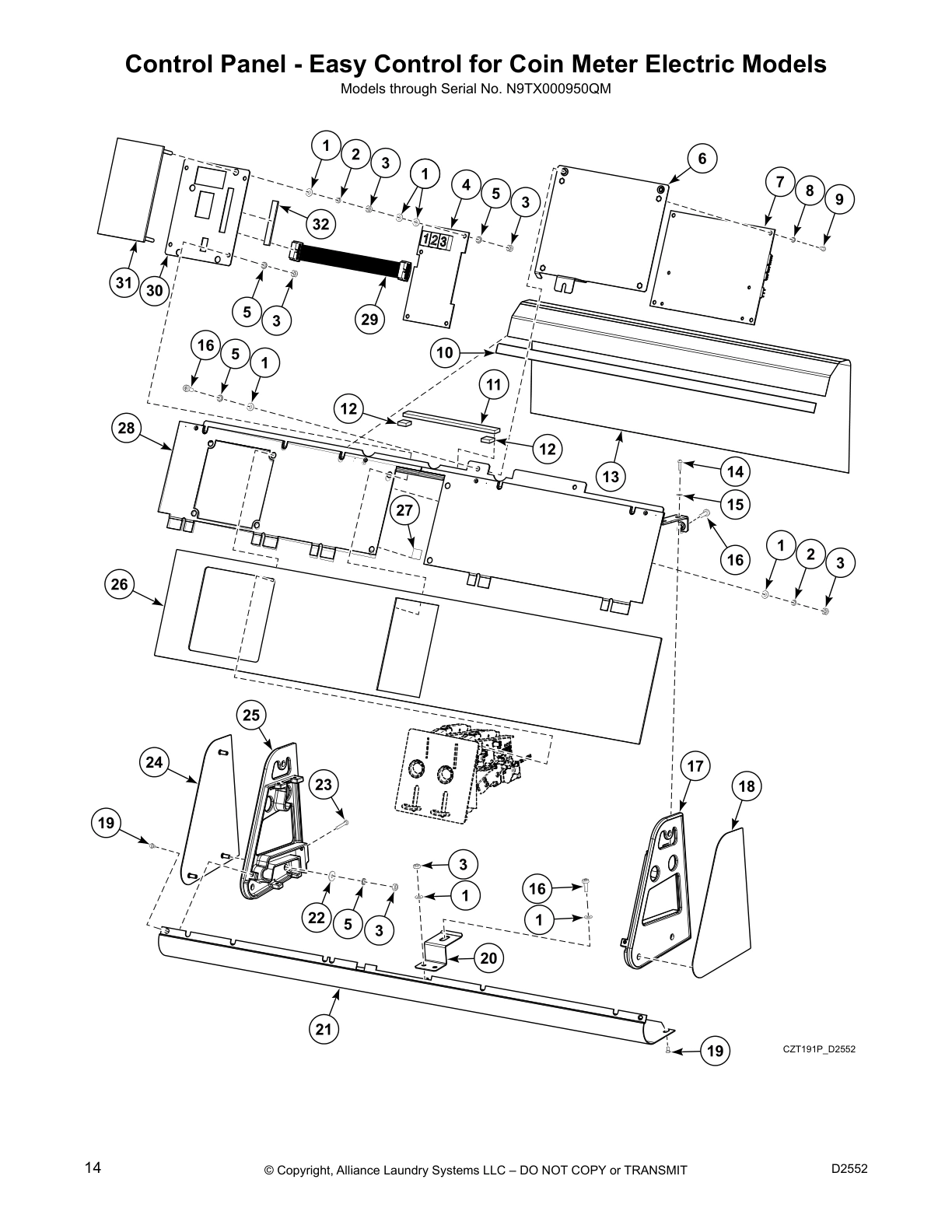

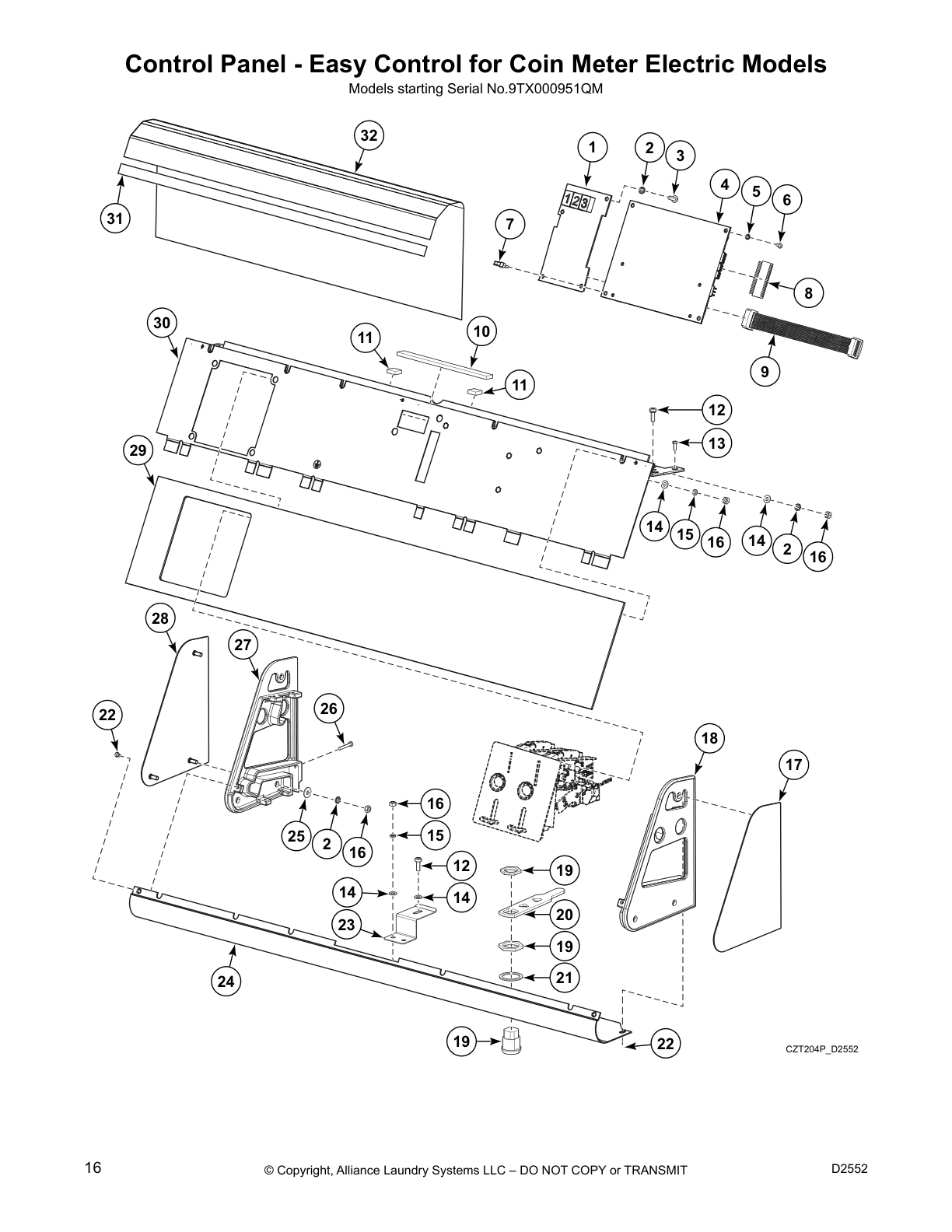

Control Panel - Easy Control for Coin Meter Electric Models
Control Panel - Easy Control for Coin Meter Electric Models

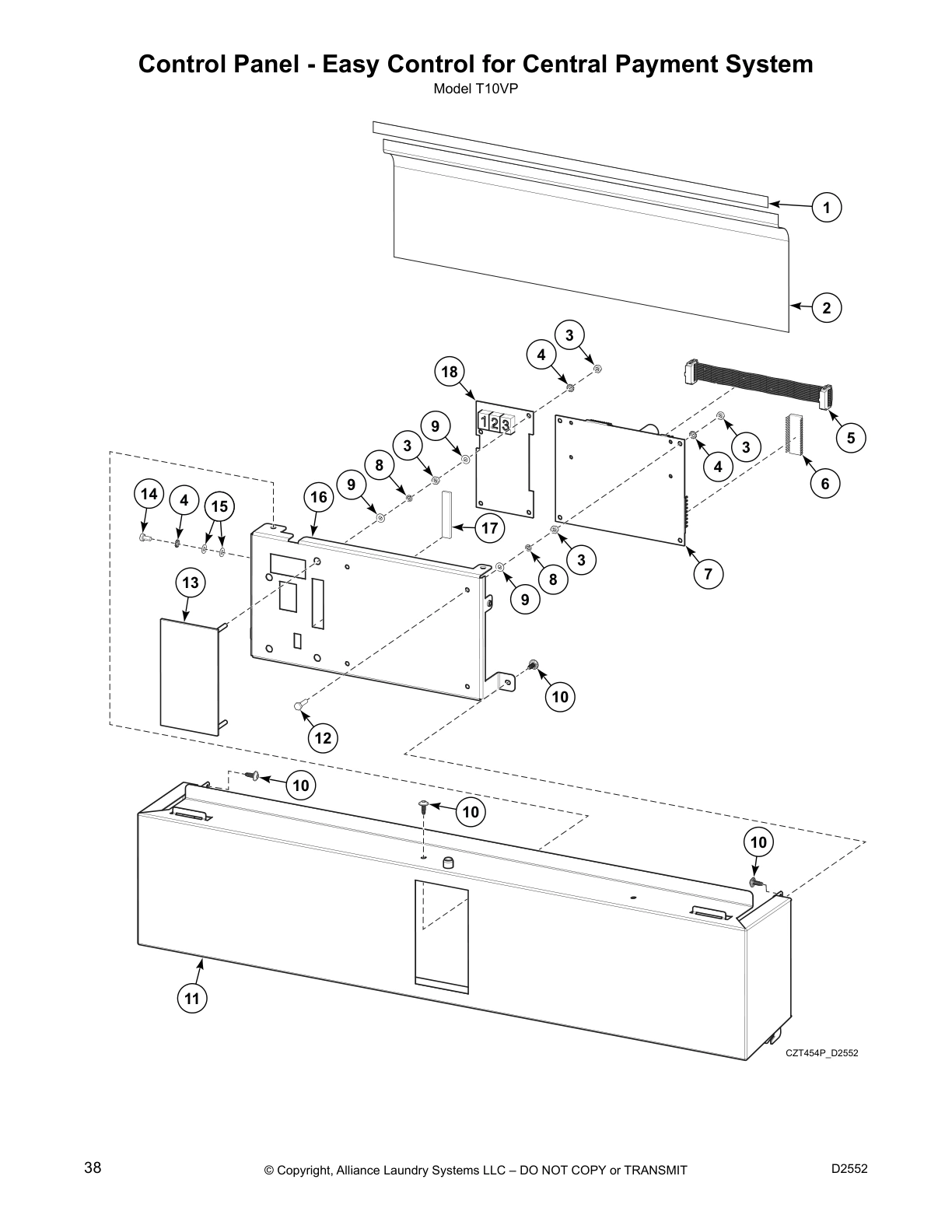

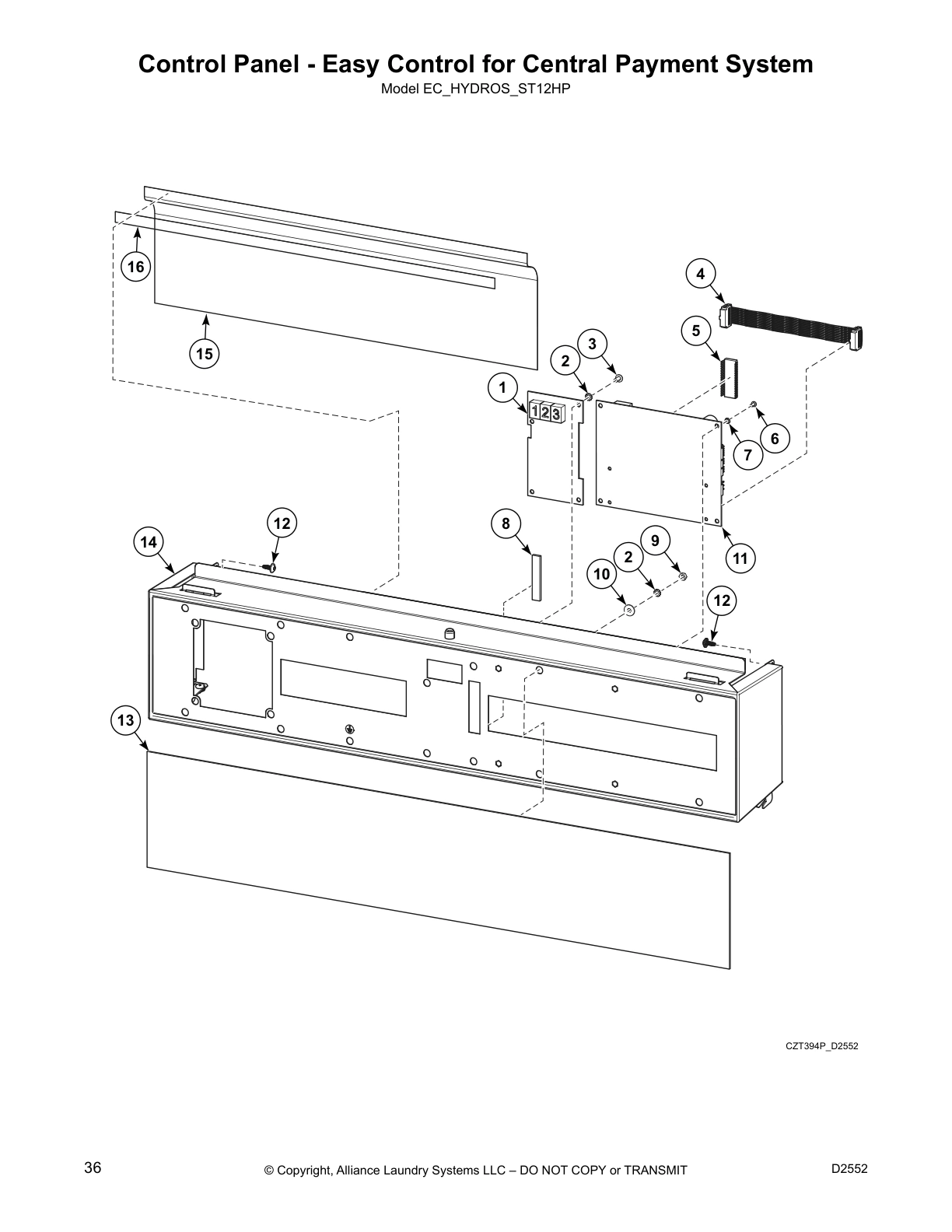

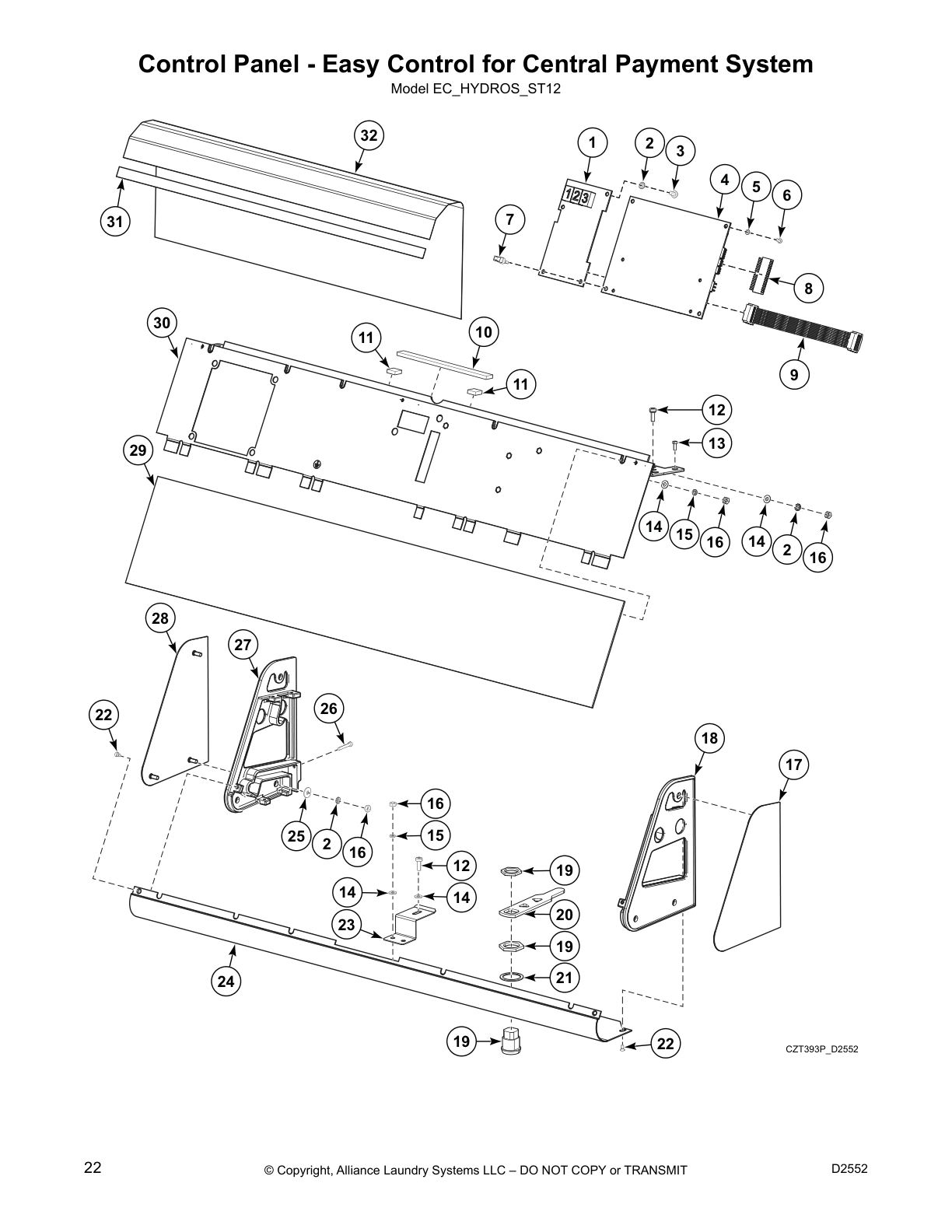

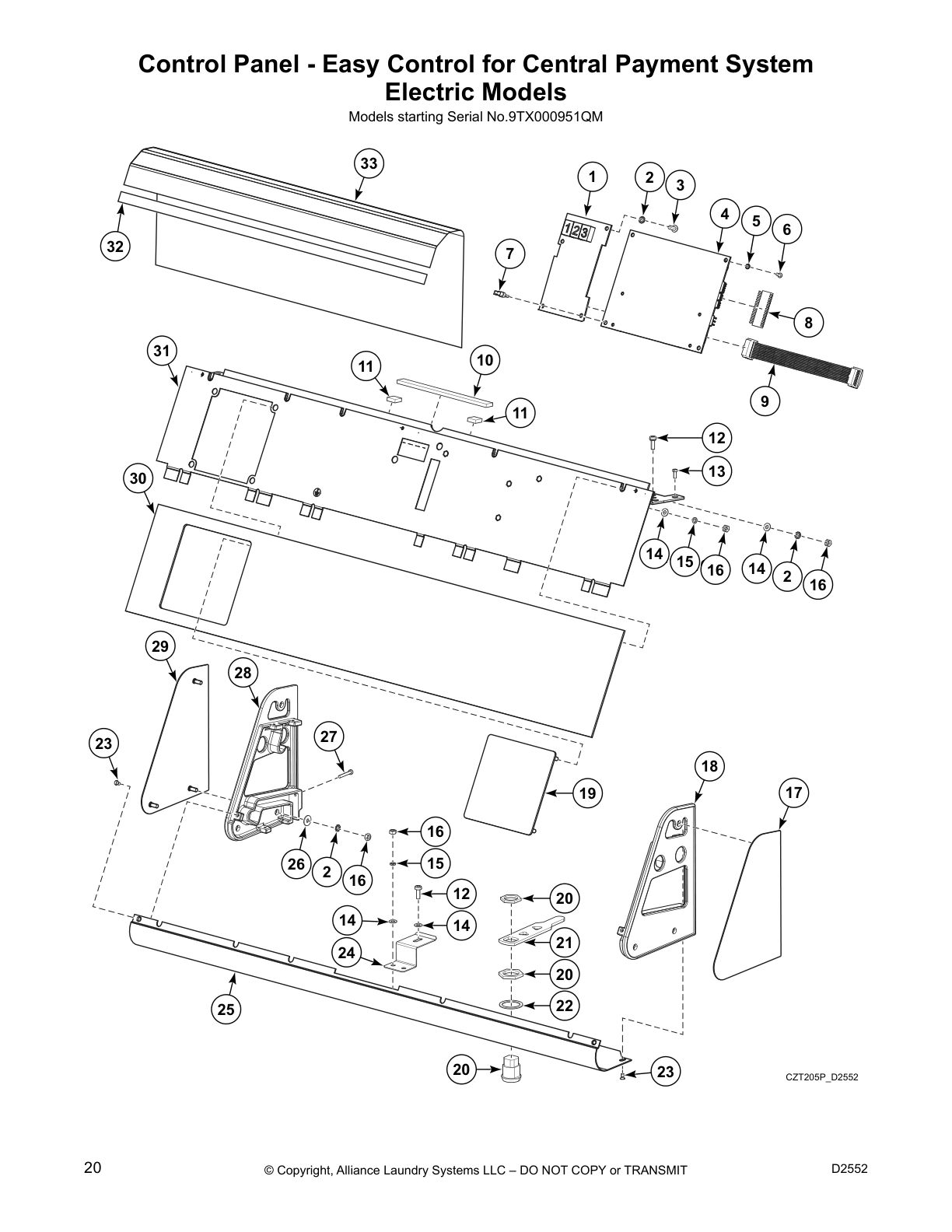

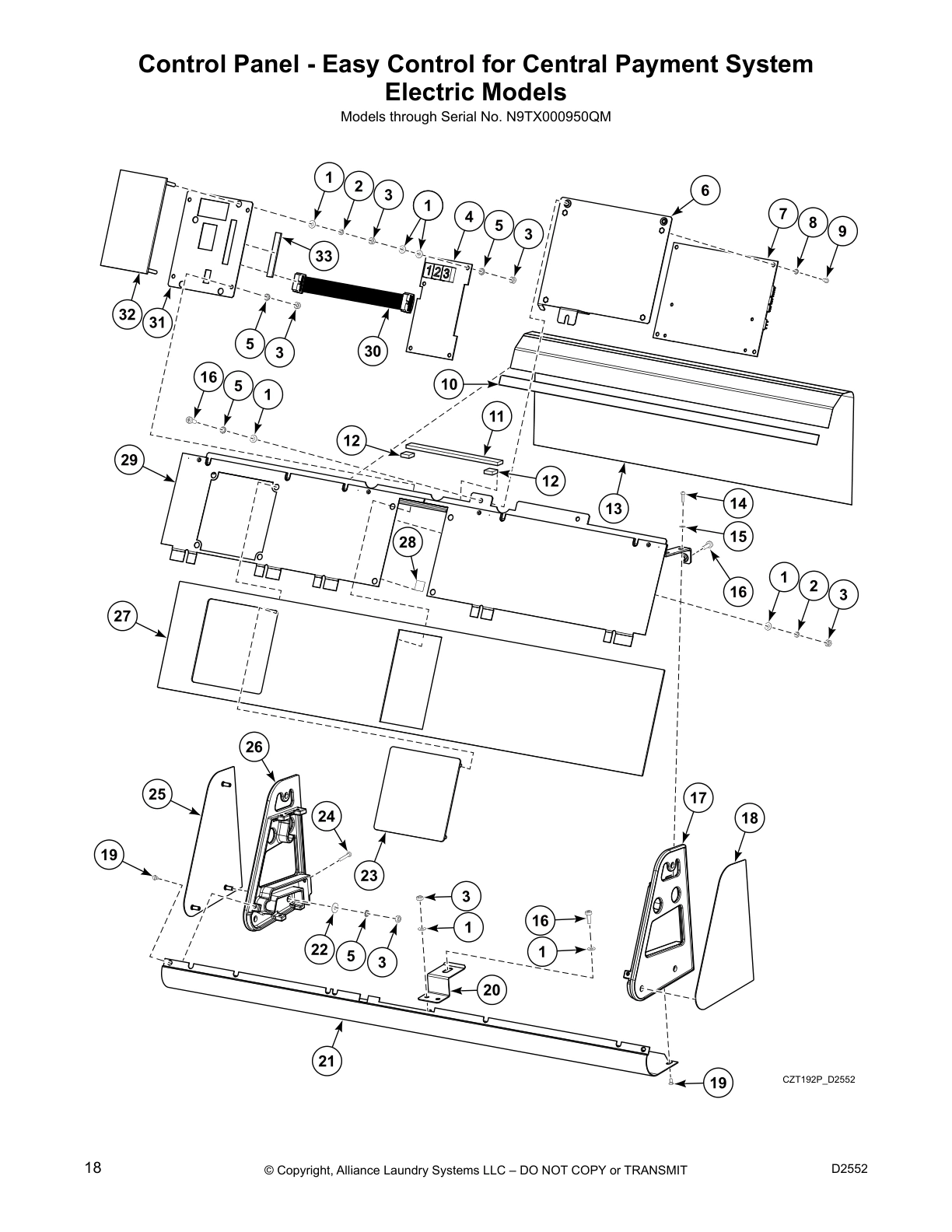

Control Panel - Easy Control for Central Payment System
Electric Models
Control Panel - Easy Control for Central Payment System
Electric Models
Control Panel - Easy Control for Central Payment System

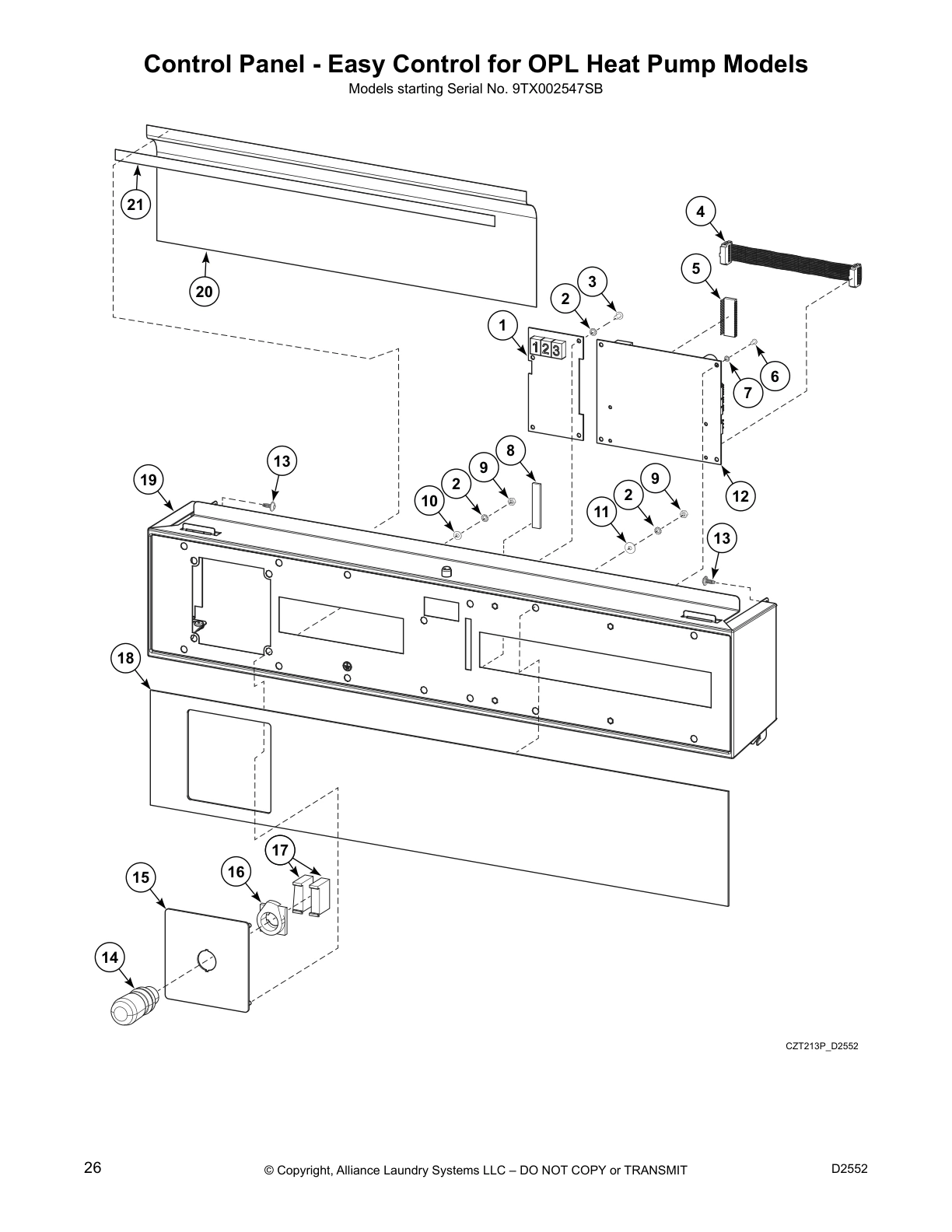

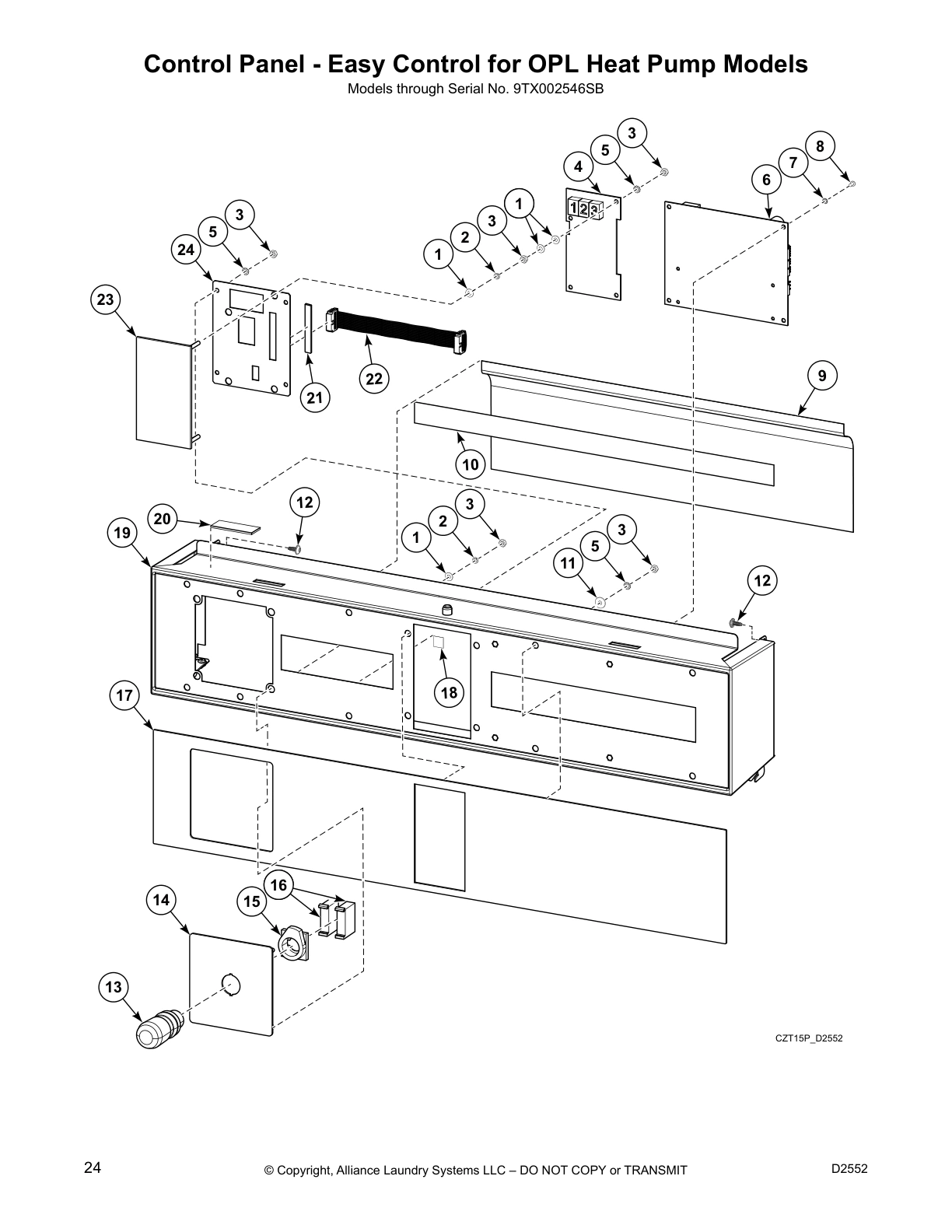

Control Panel - Easy Control for OPL Heat Pump Models
Control Panel - Easy Control for OPL Heat Pump Models

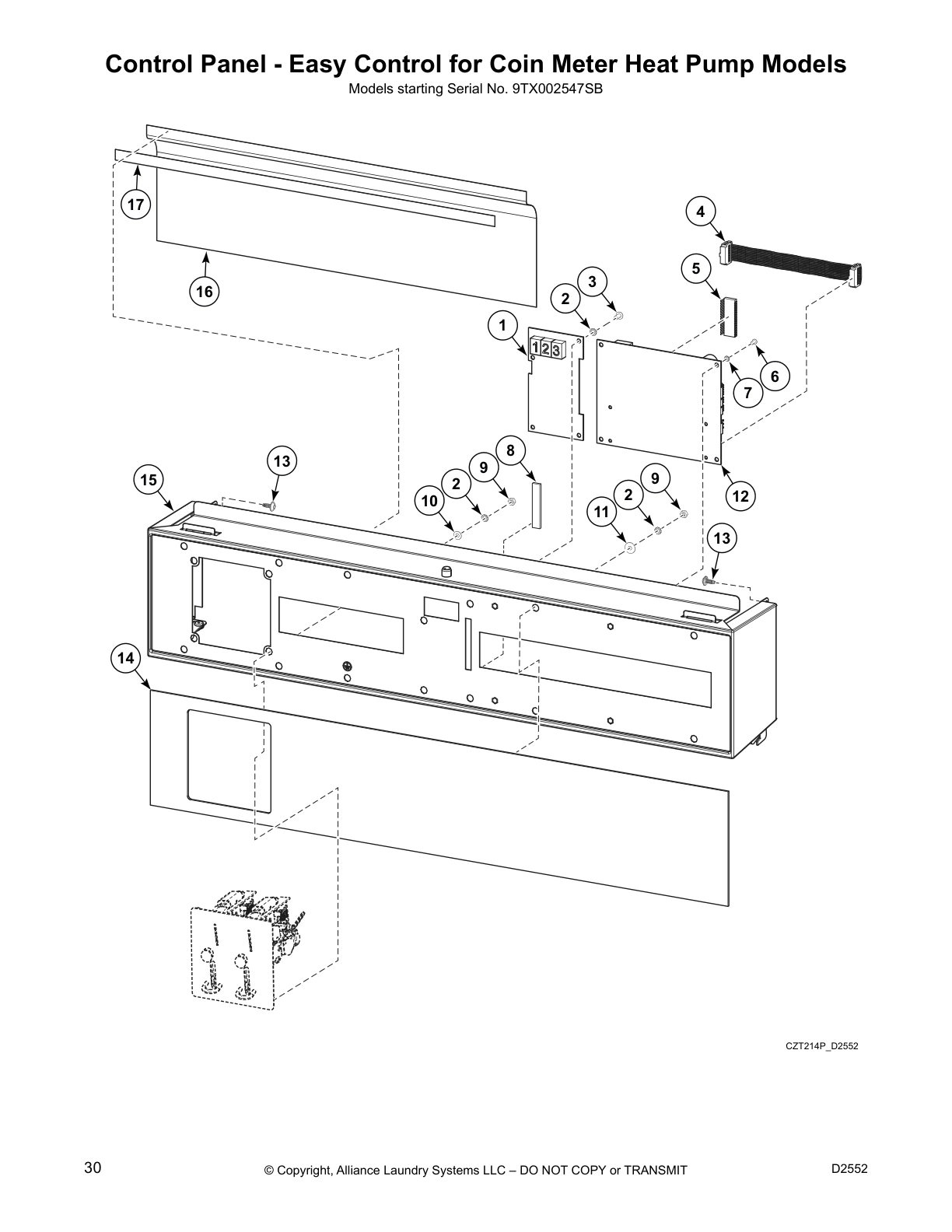

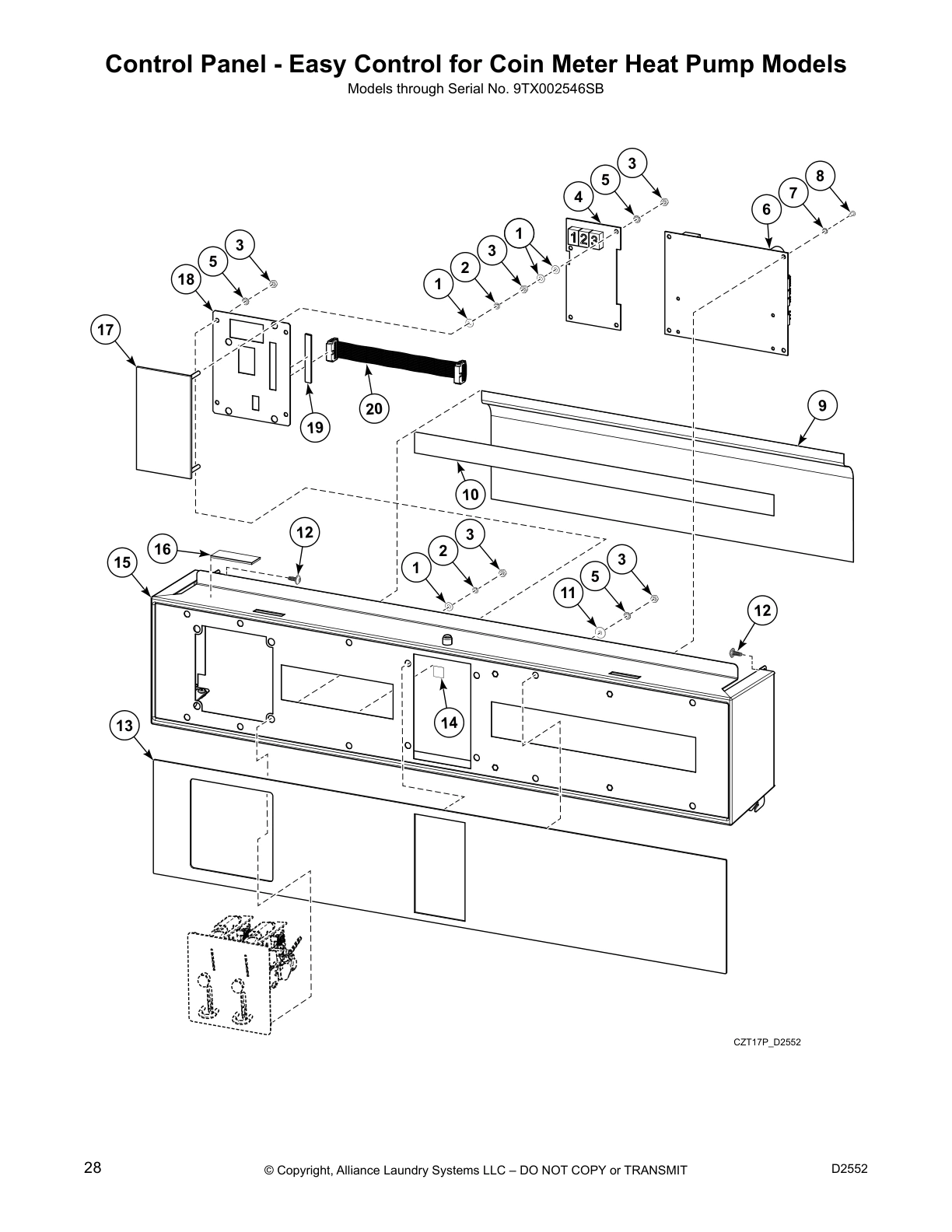

Control Panel - Easy Control for Coin Meter Heat Pump Models
Control Panel - Easy Control for Coin Meter Heat Pump Models

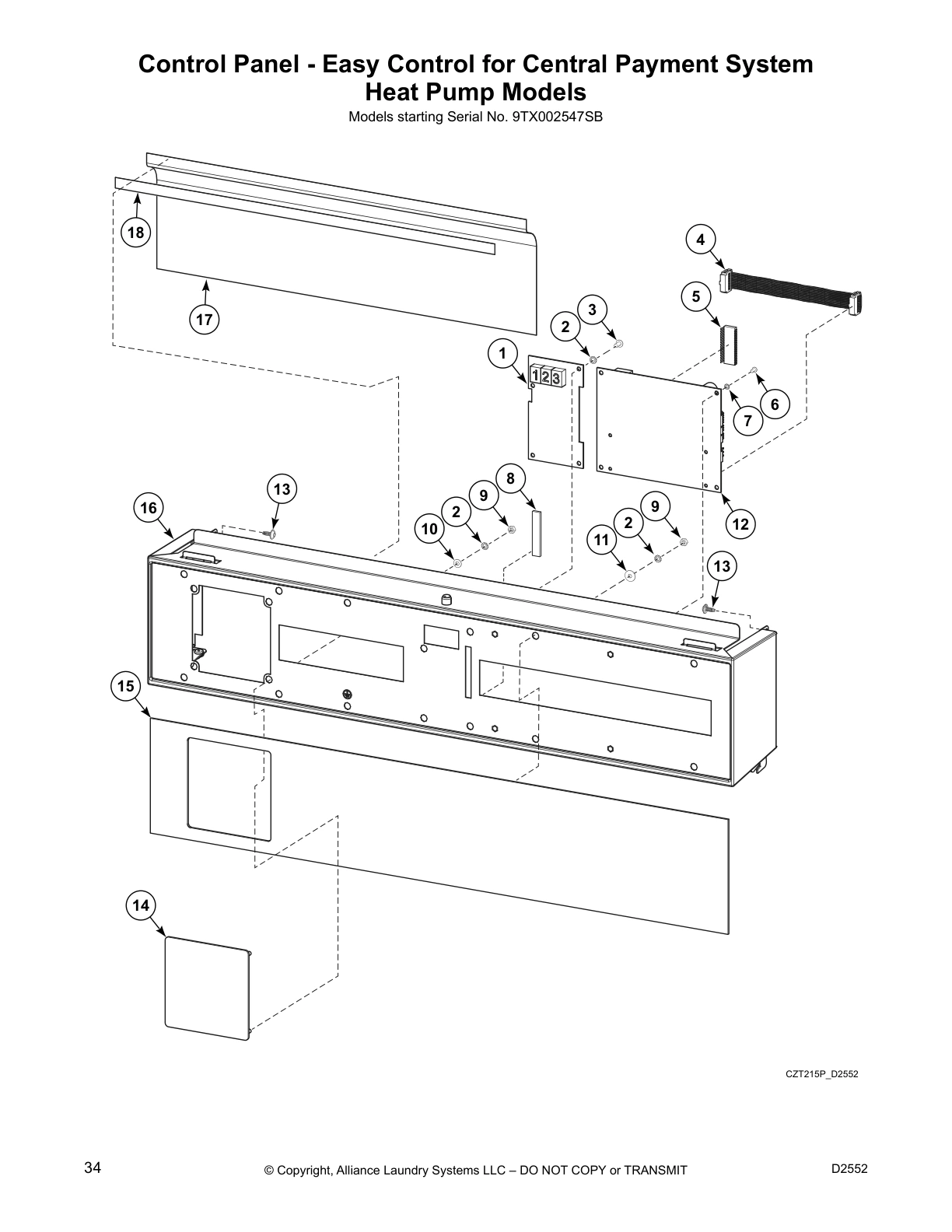

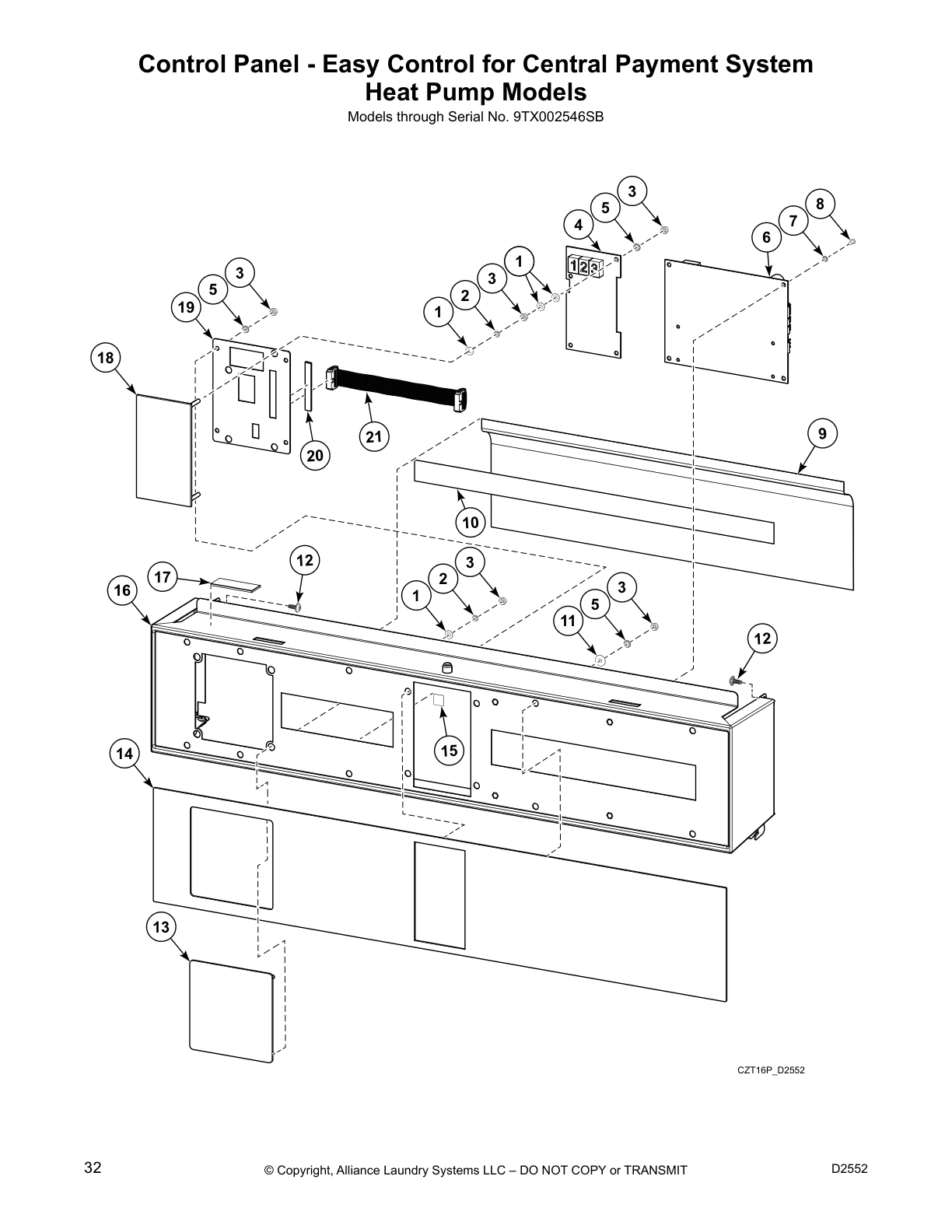

Control Panel - Easy Control for Central Payment System
Heat Pump Models
Control Panel - Easy Control for Central Payment System
Heat Pump Models
Control Panel - Easy Control for Central Payment System
Control Panel - Easy Control for Central Payment System

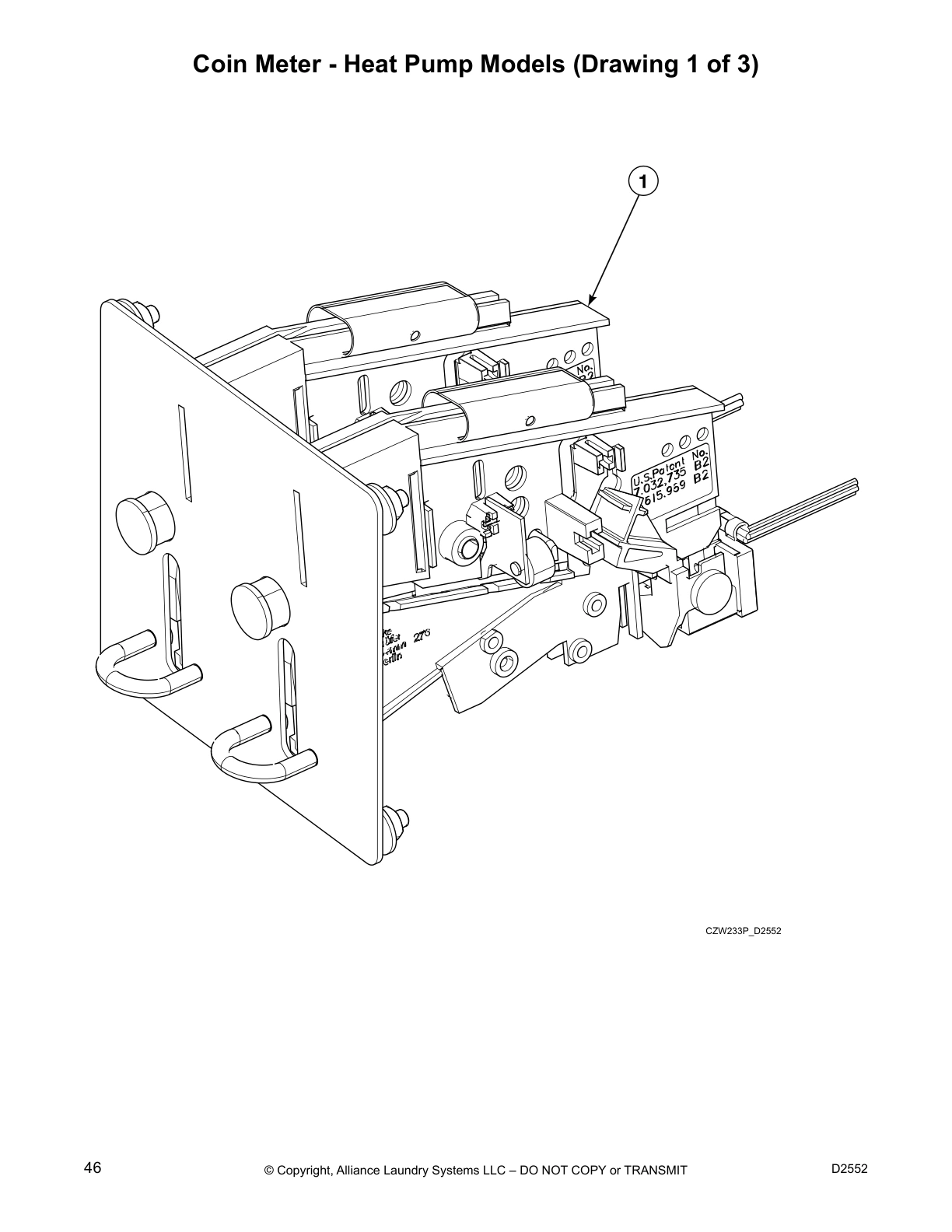

Coin Meter - Heat Pump Models (Drawing 1 of 3)
Coin Meter - Heat Pump Models (Drawing 3 of 3)
Coin Meter Box

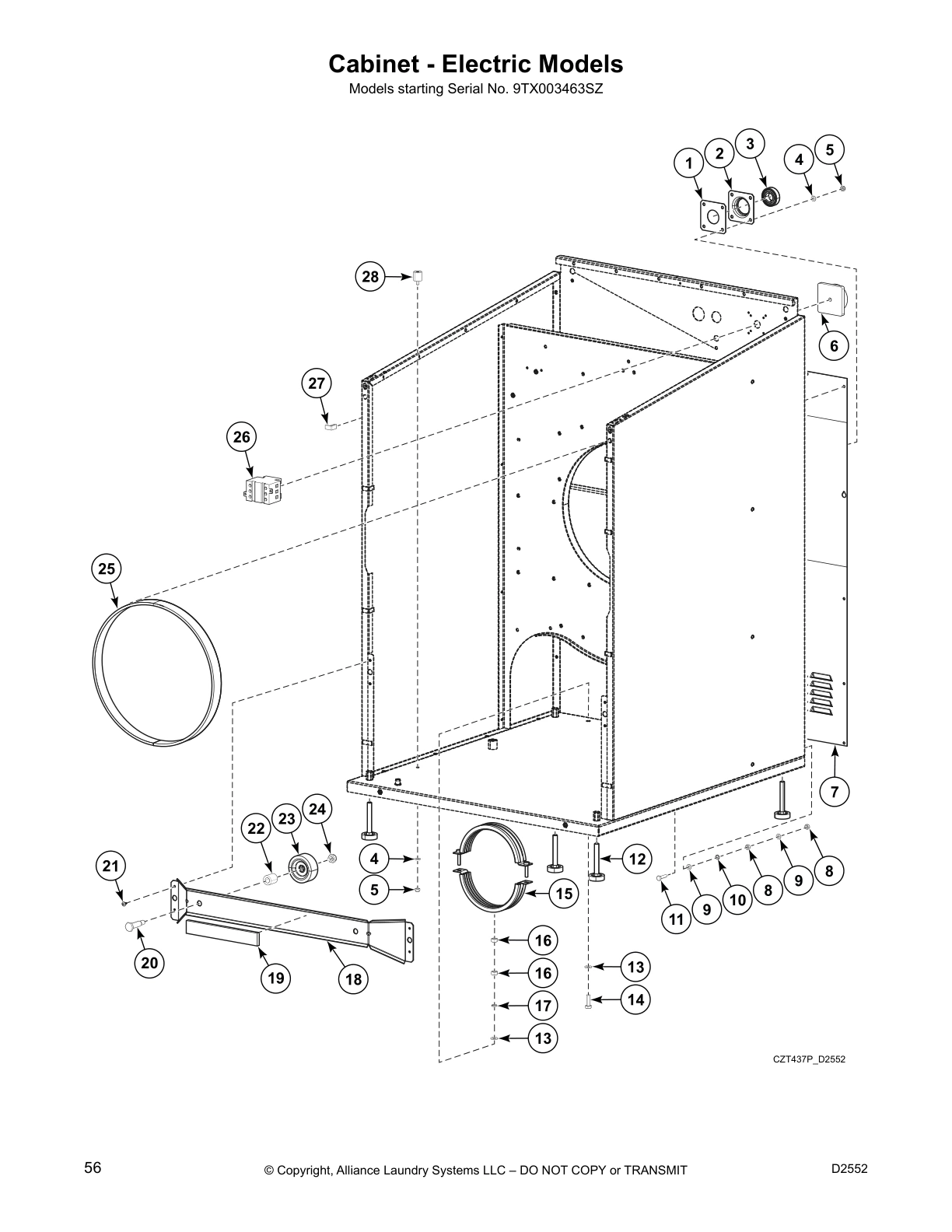

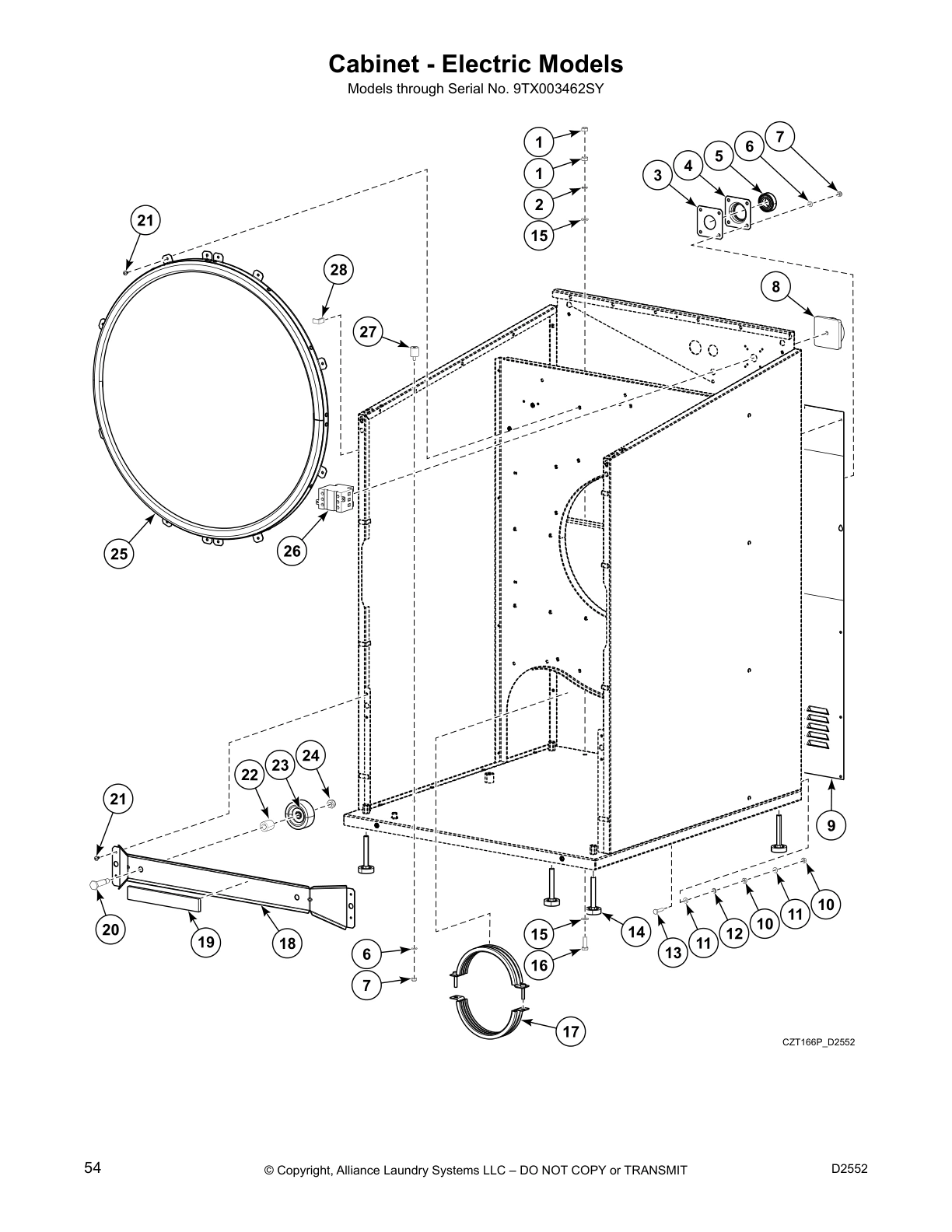

Cabinet - Electric Models
Cabinet - Electric Models

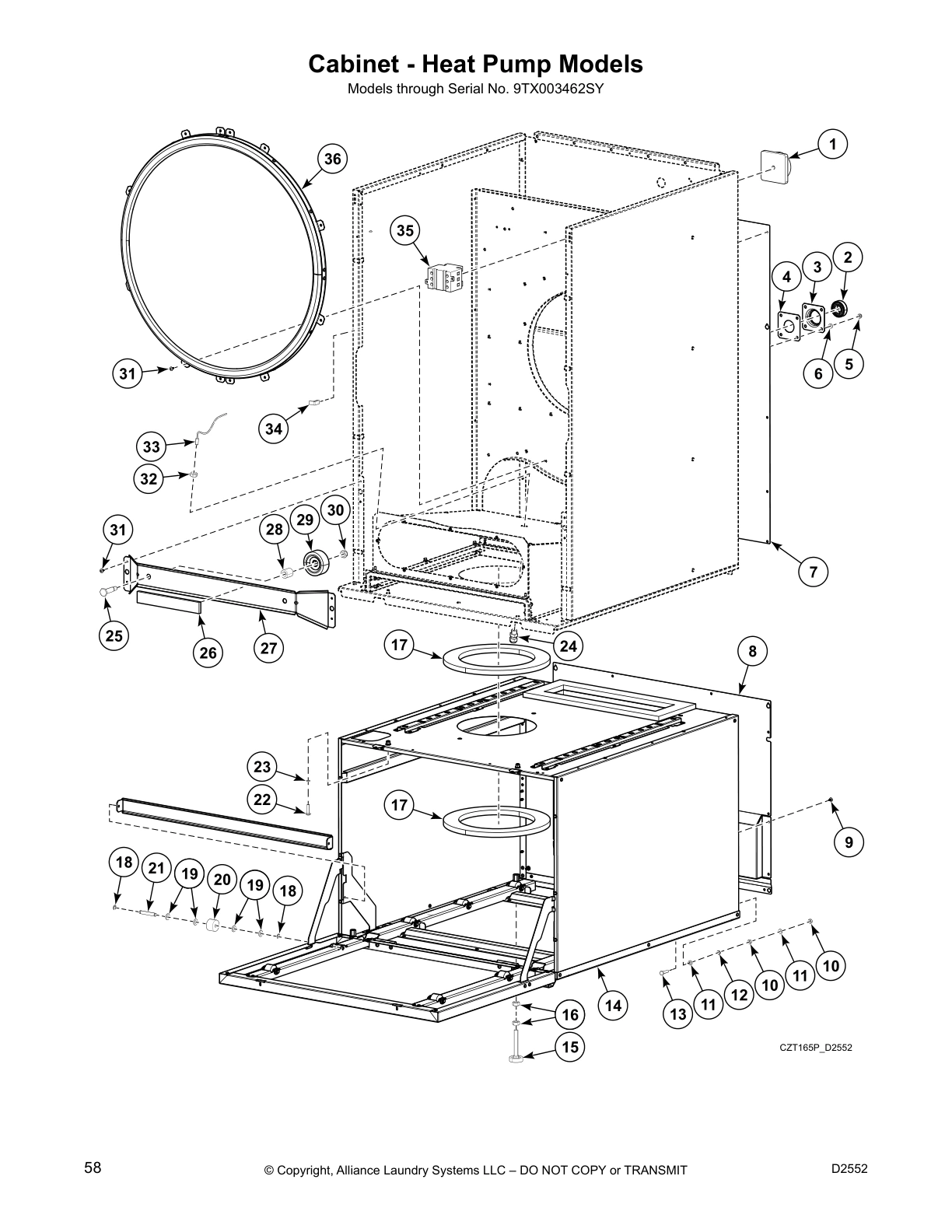

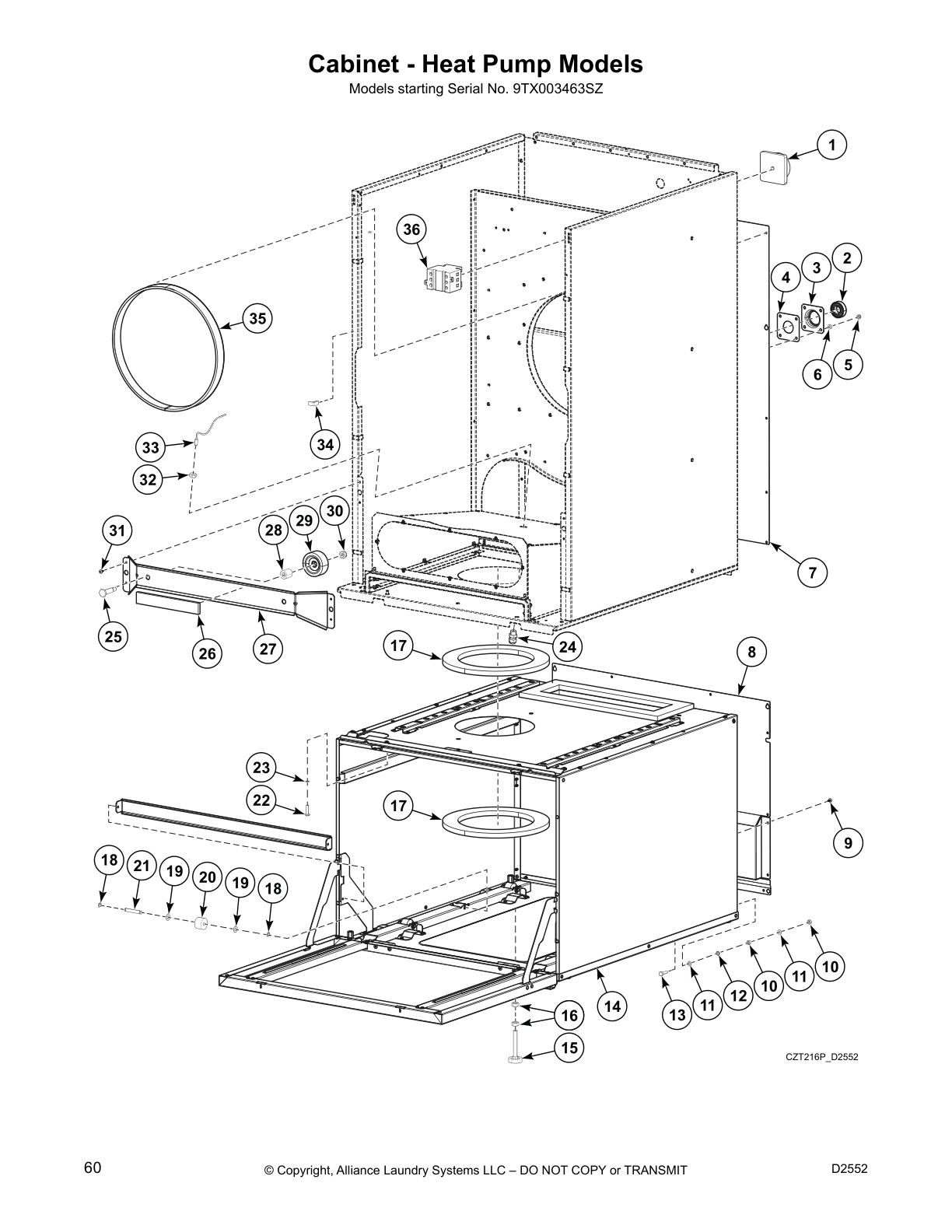

Cabinet - Heat Pump Models
Cabinet - Heat Pump Models

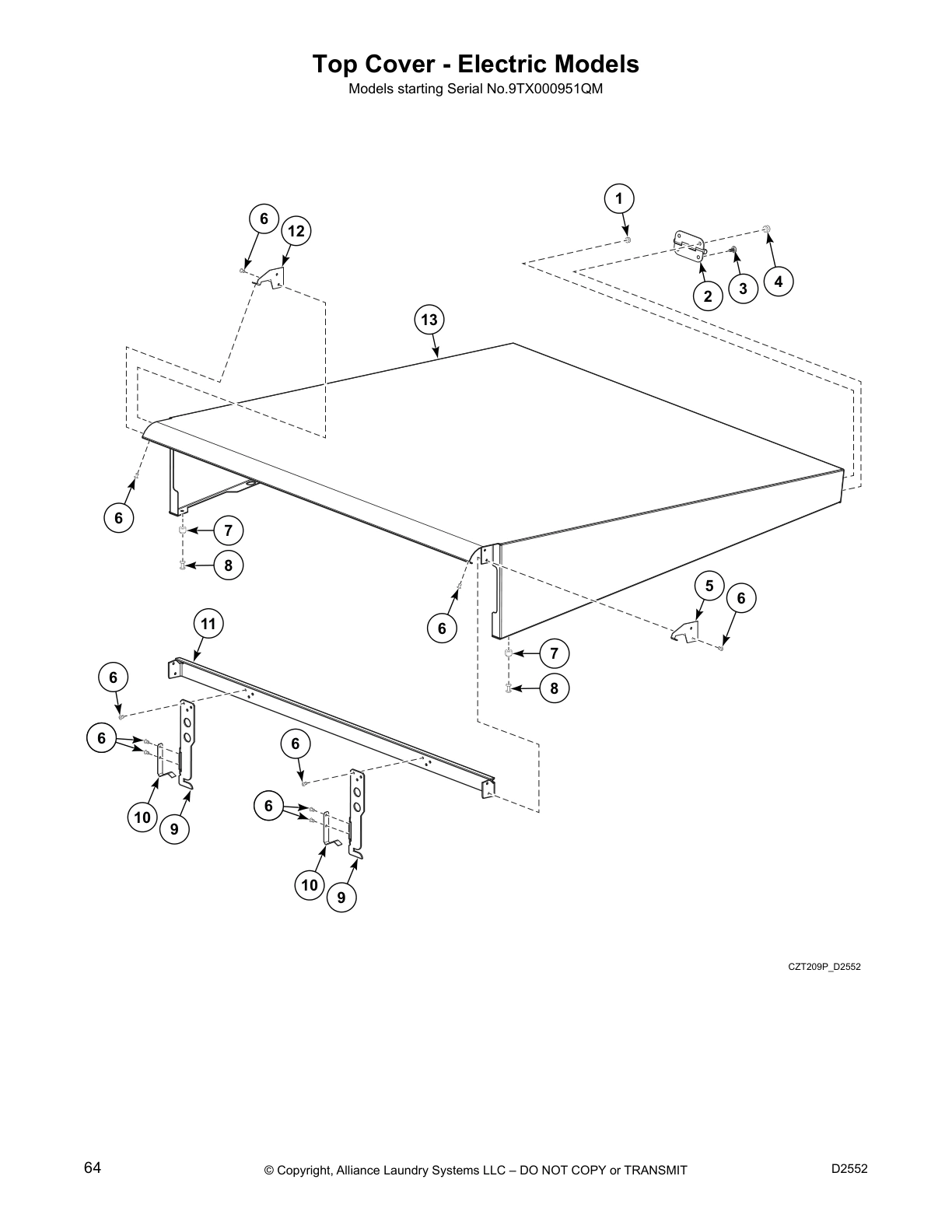

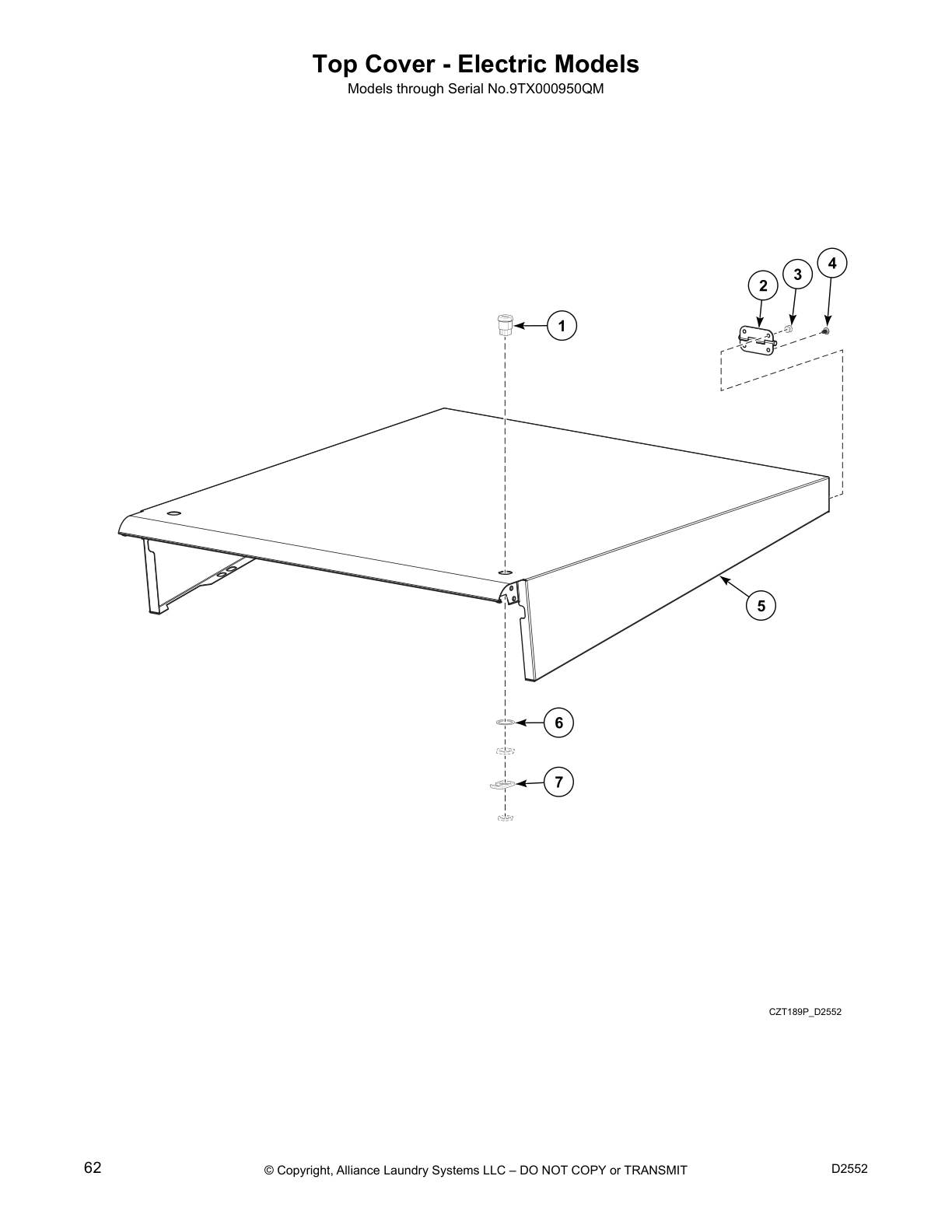

Top Cover - Electric Models
Top Cover - Electric Models

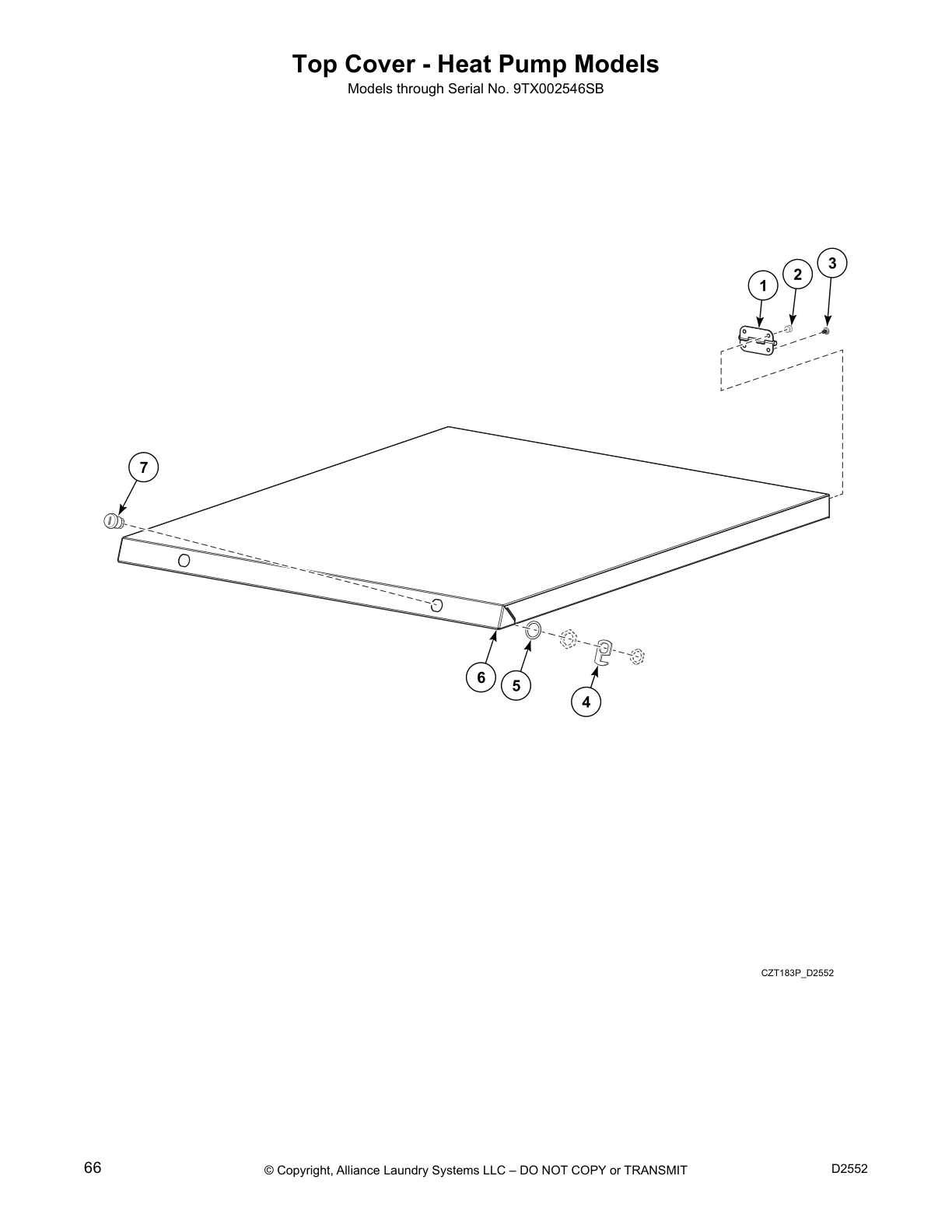

Top Cover - Heat Pump Models

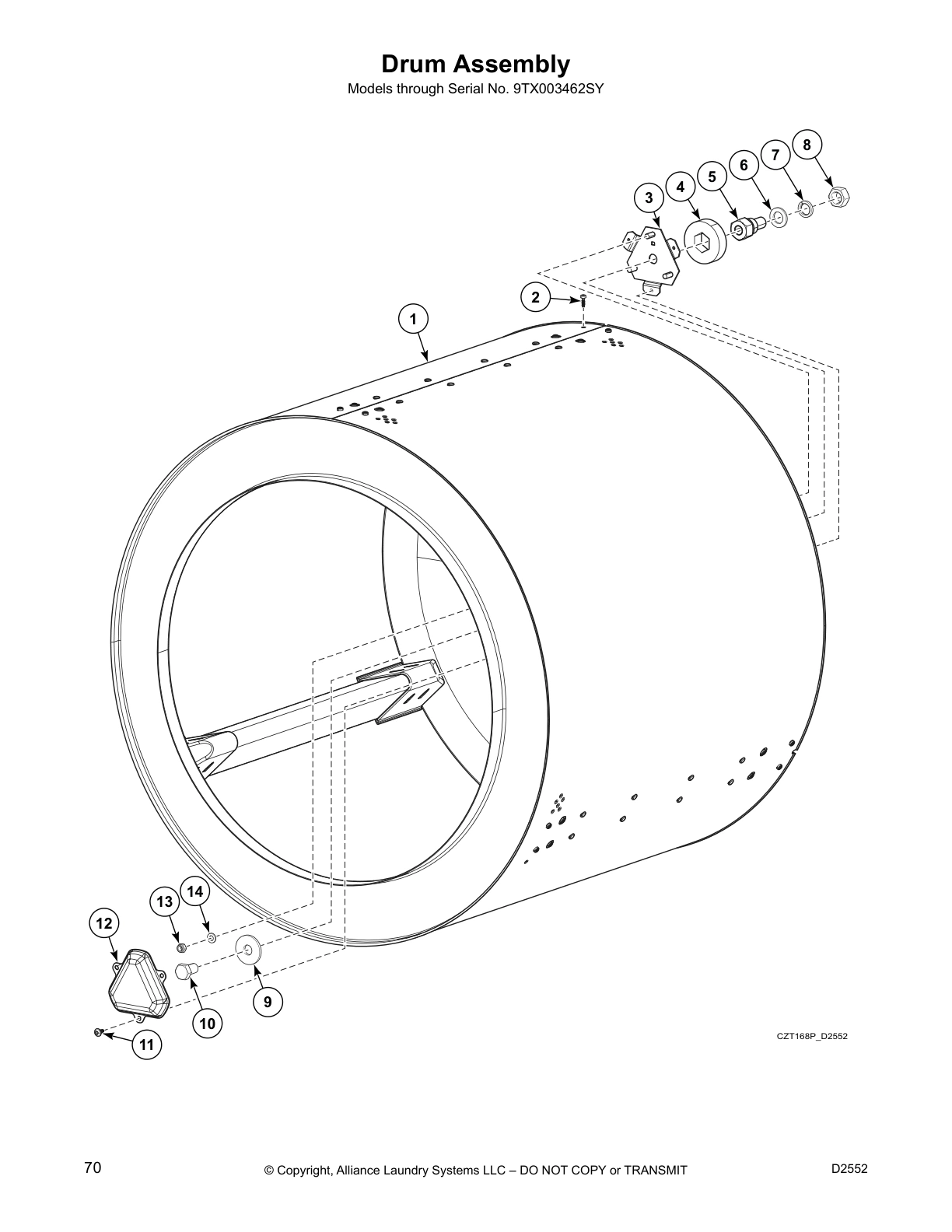

Drum Assembly

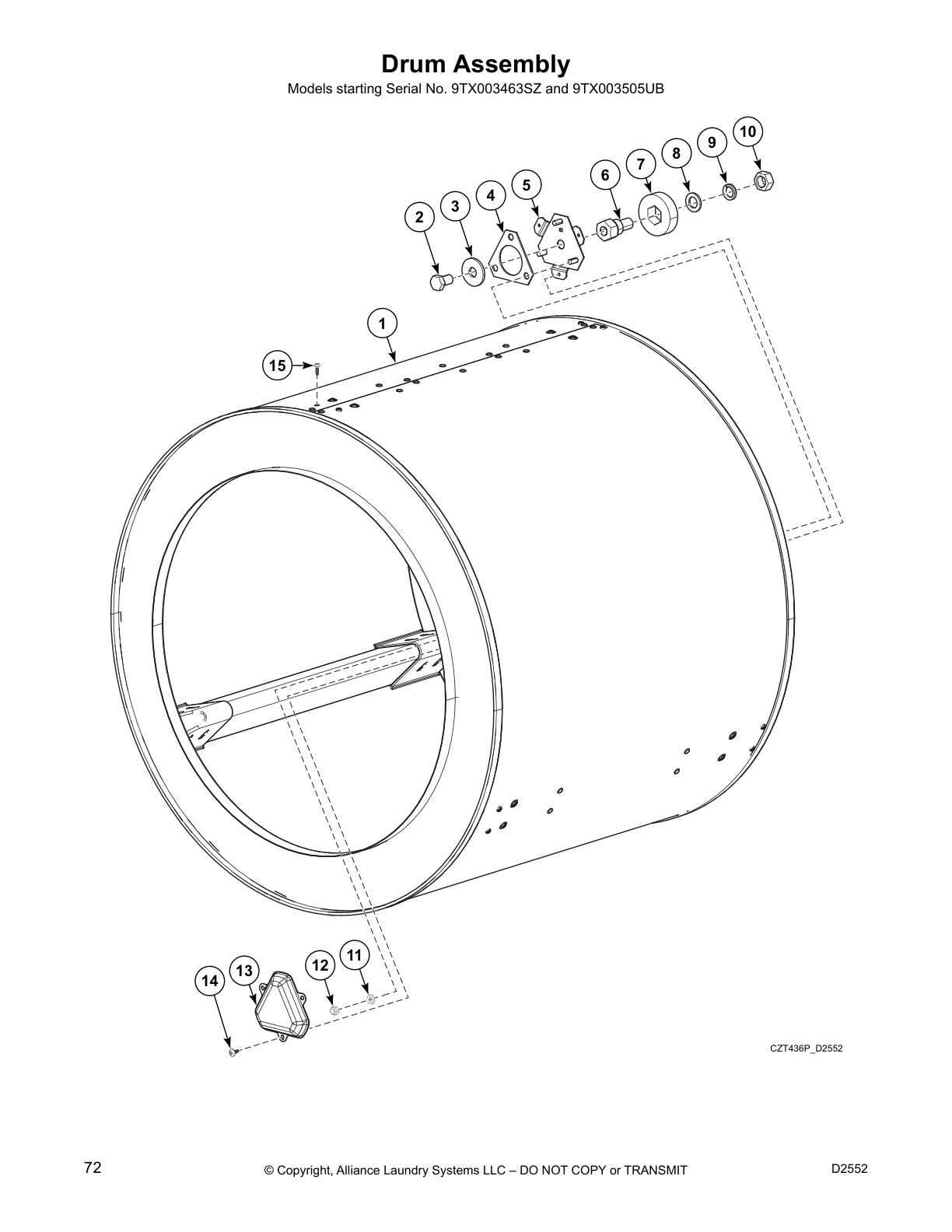

Drum Assembly

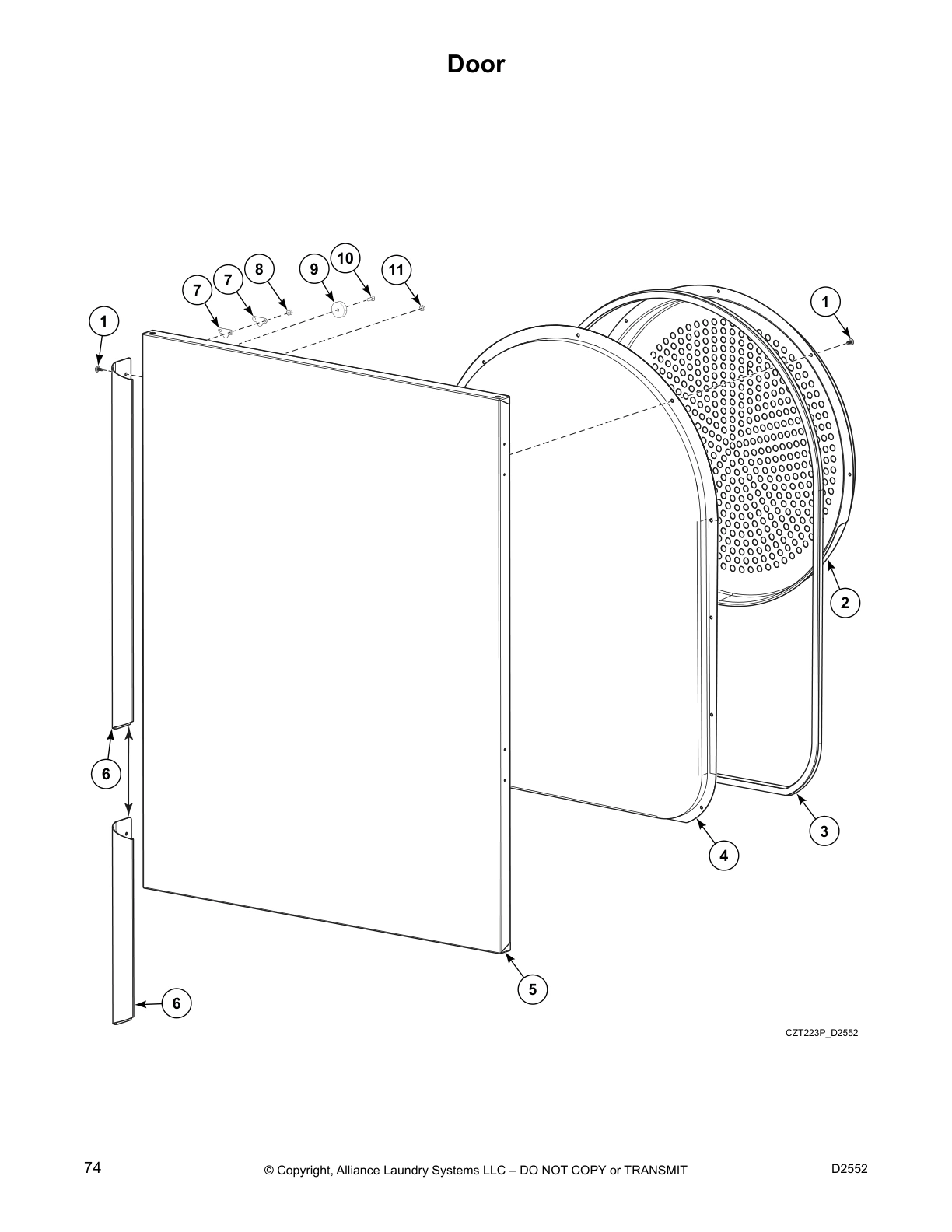

Door

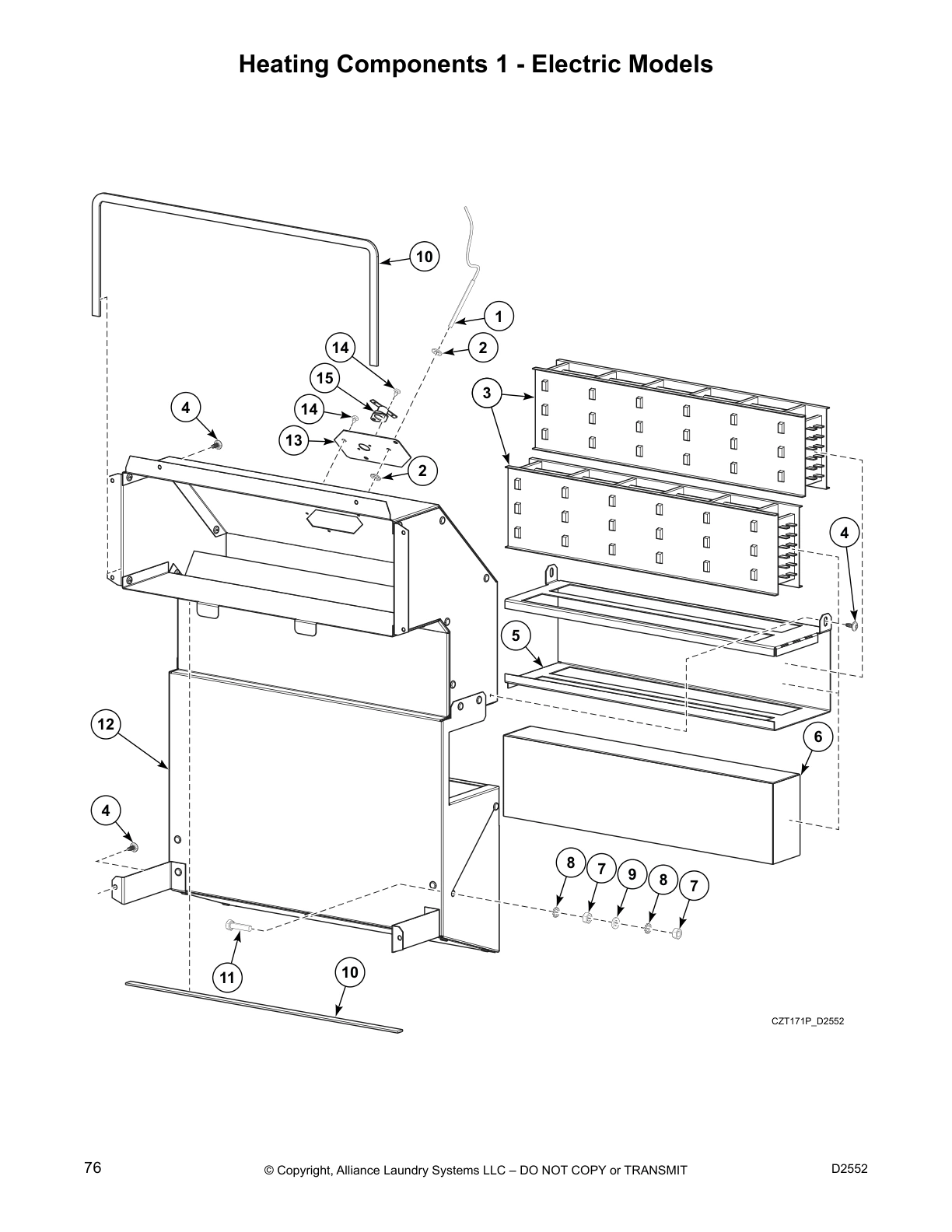

Heating Components 1 - Electric Models

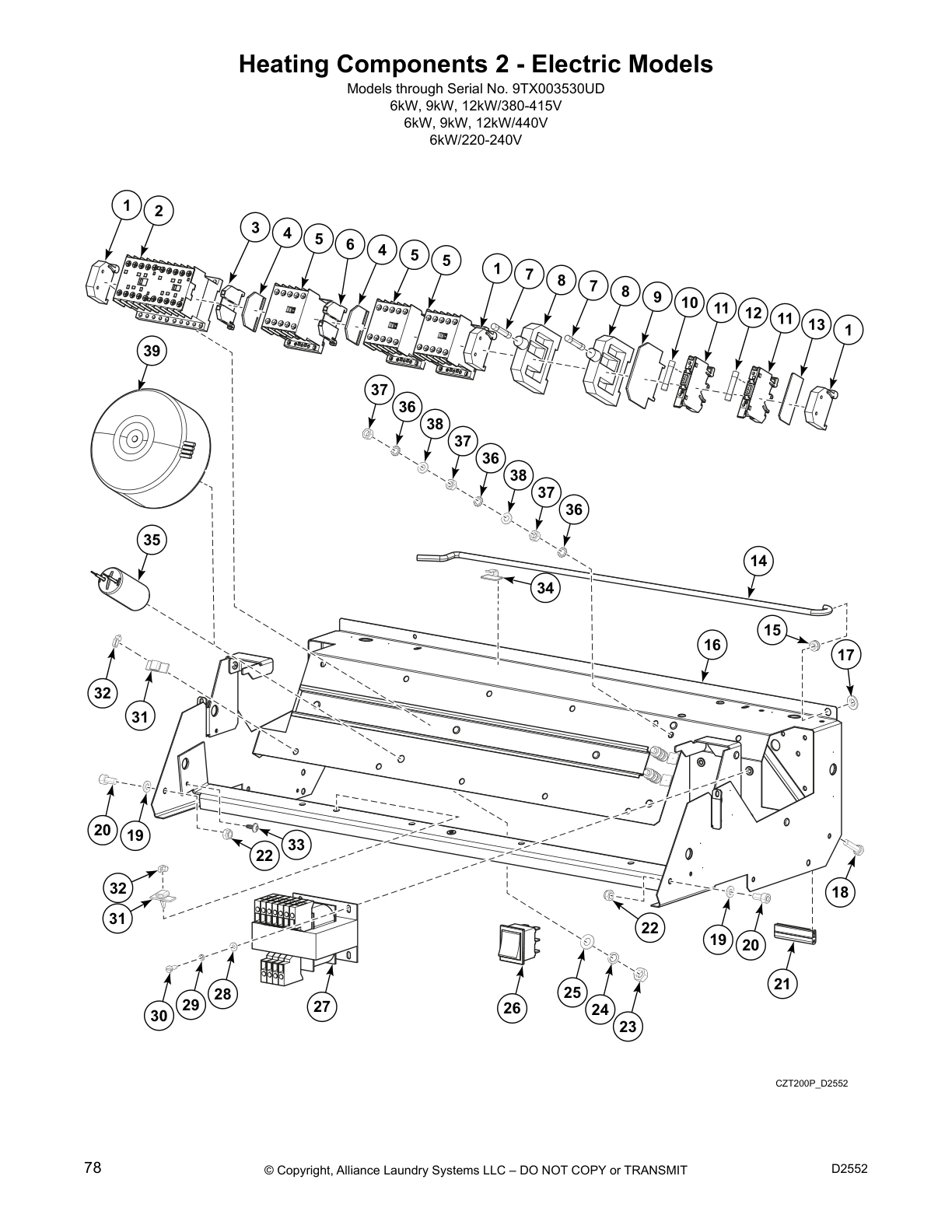

Heating Components 2 - Electric Models

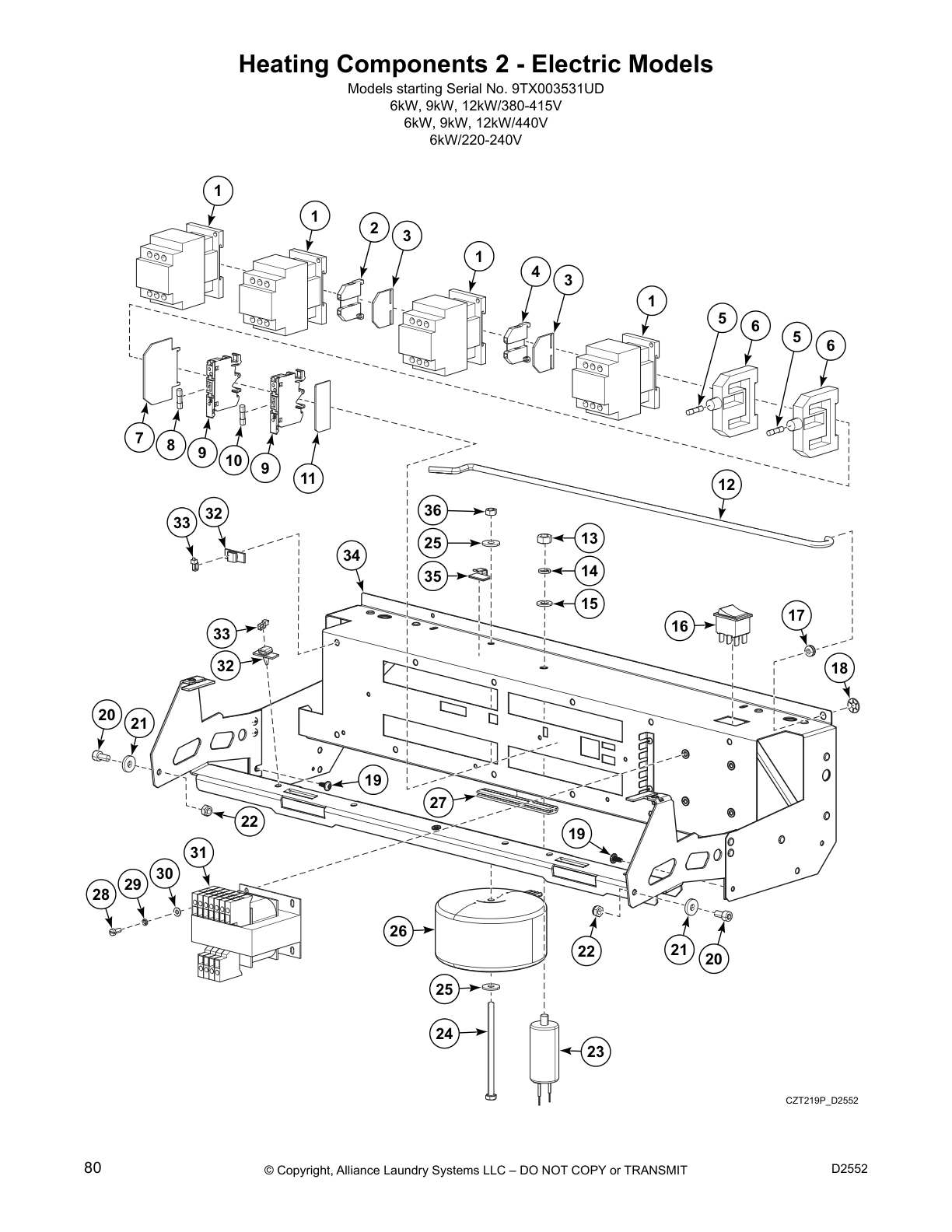

Heating Components 2 - Electric Models

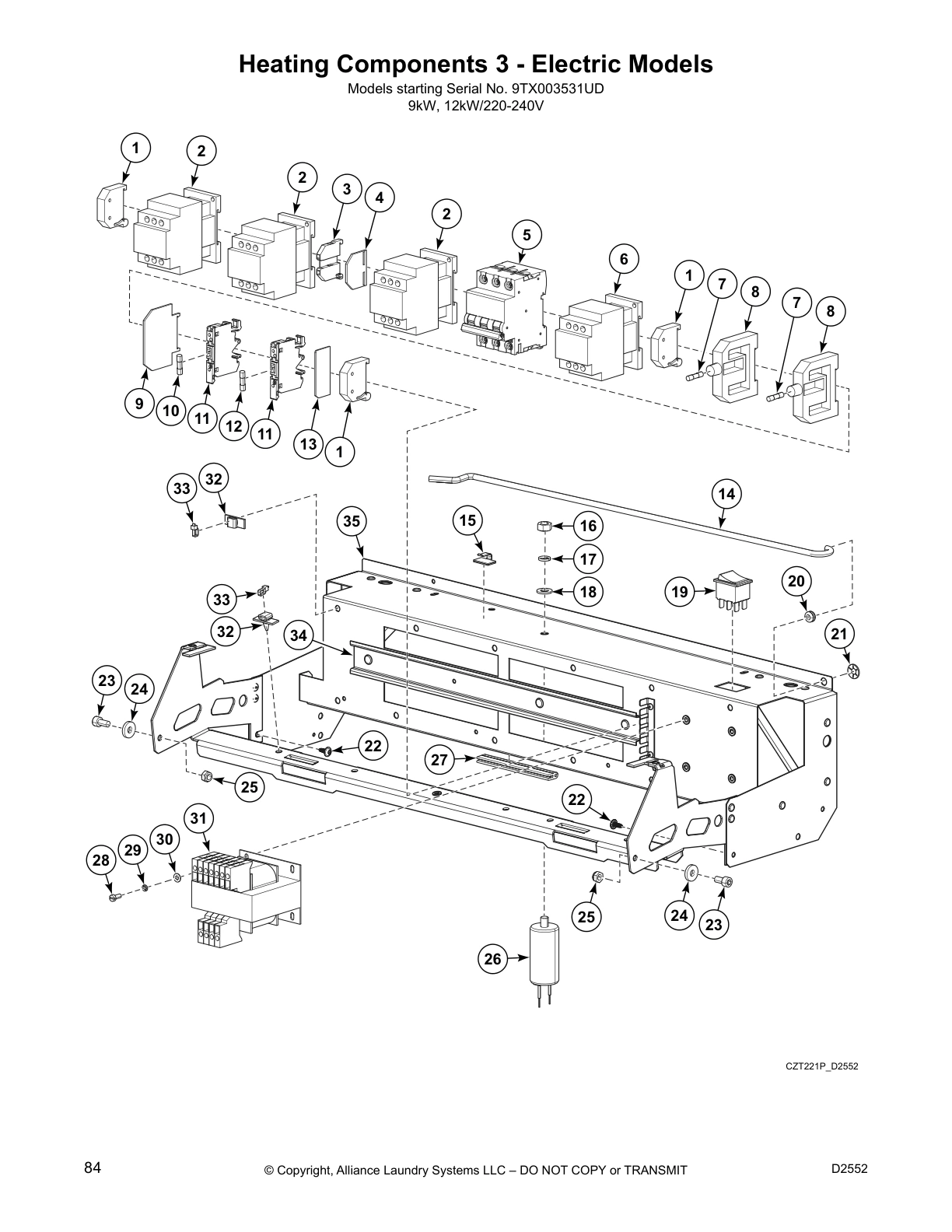

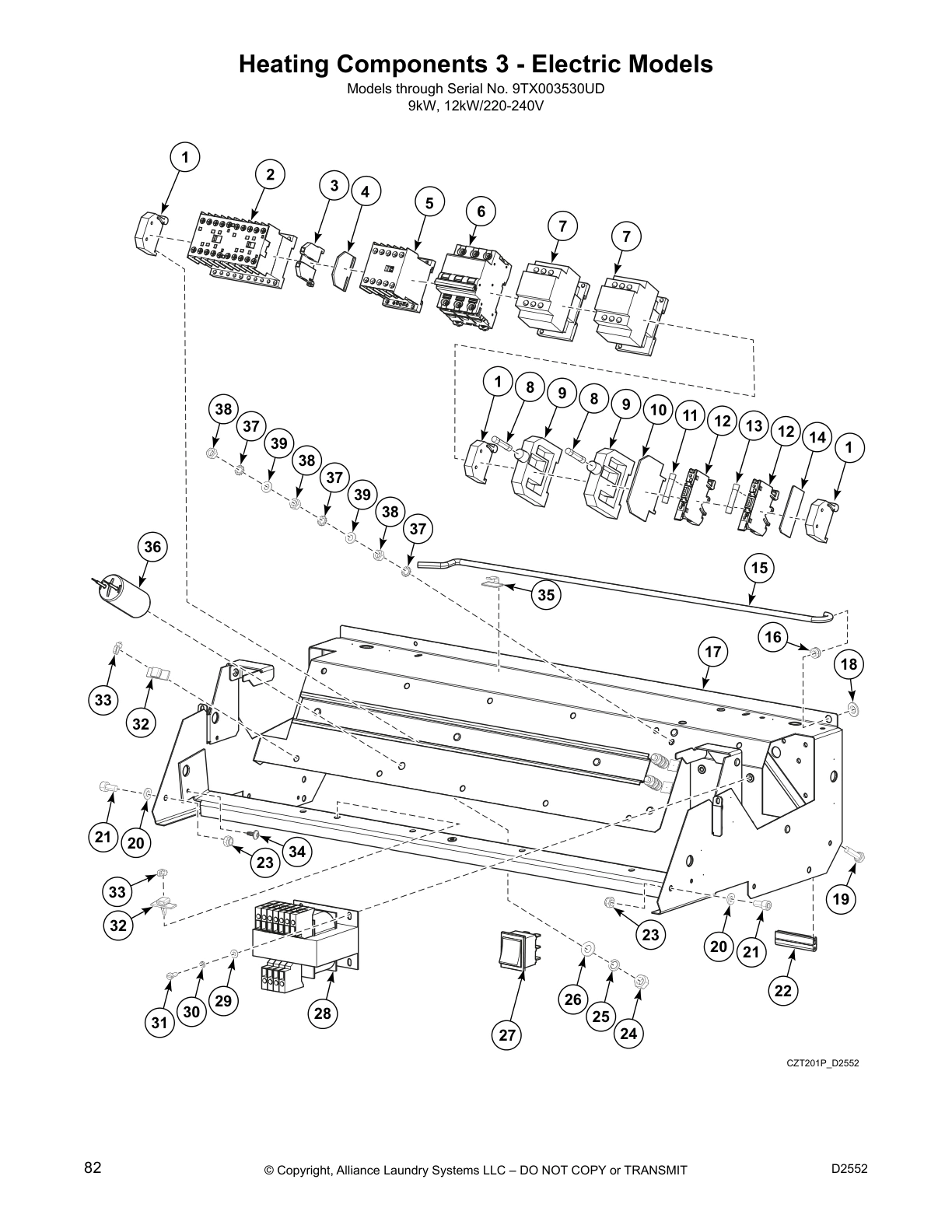

Heating Components 3 - Electric Models
Heating Components 3 - Electric Models

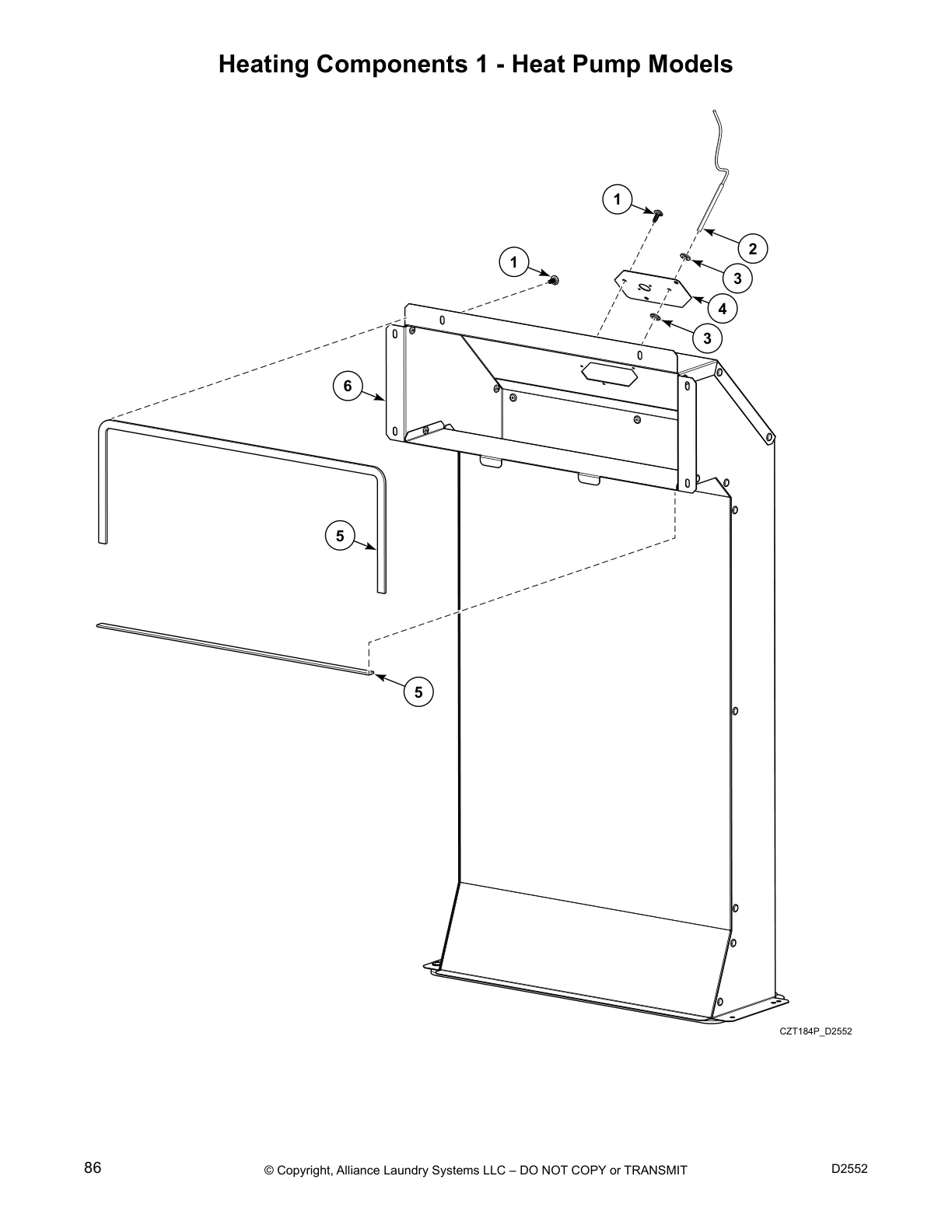

Heating Components 1 - Heat Pump Models

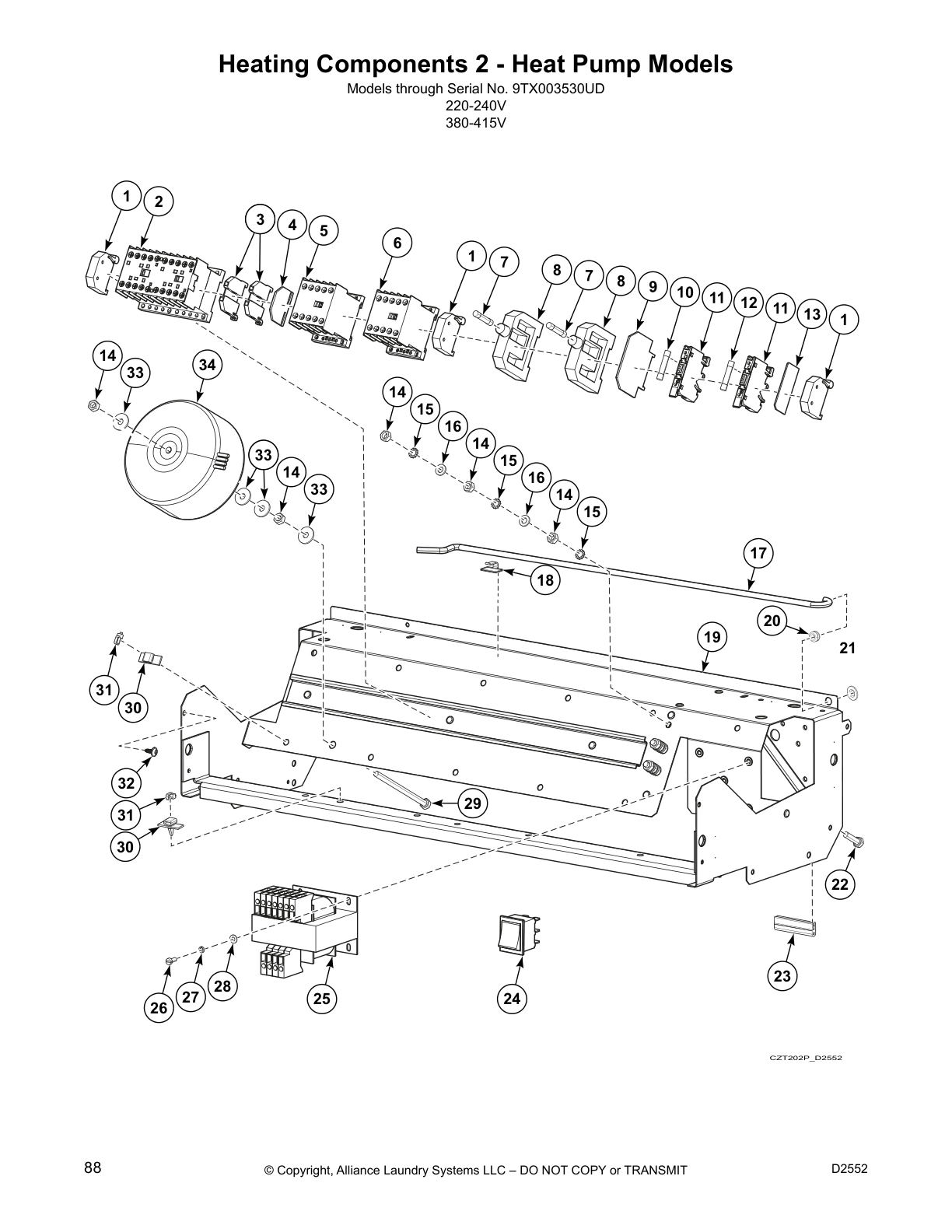

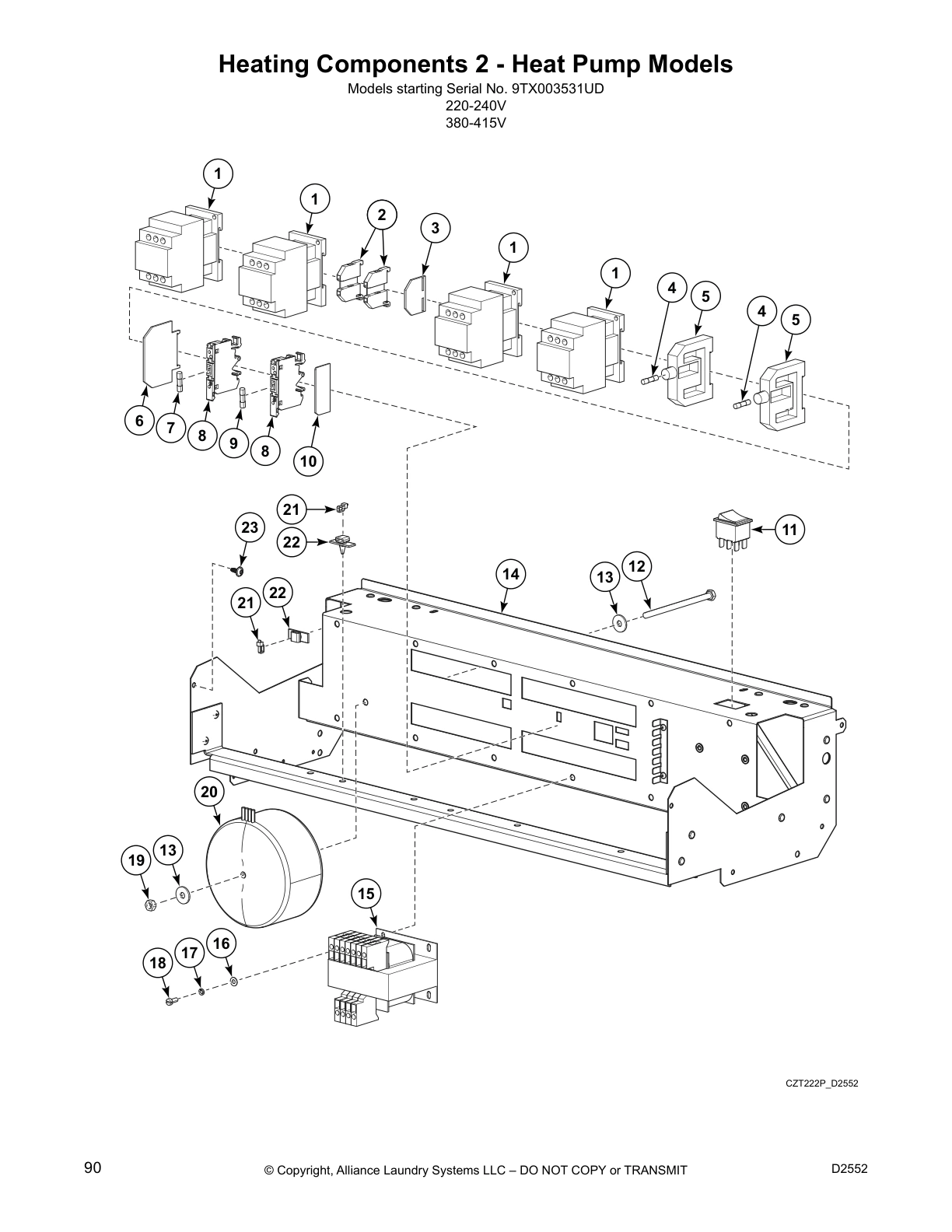

Heating Components 2 - Heat Pump Models
Heating Components 2 - Heat Pump Models

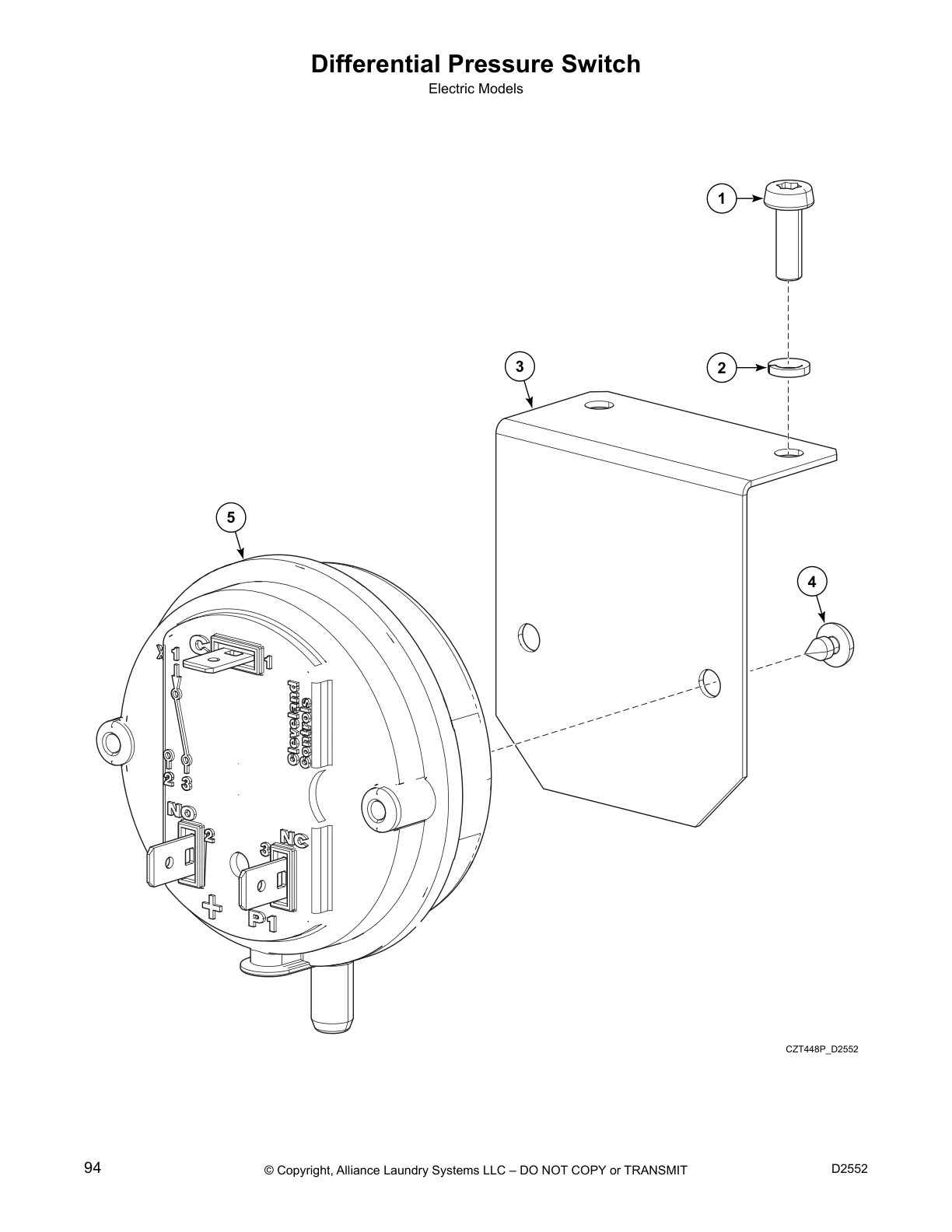

Differential Pressure Switch

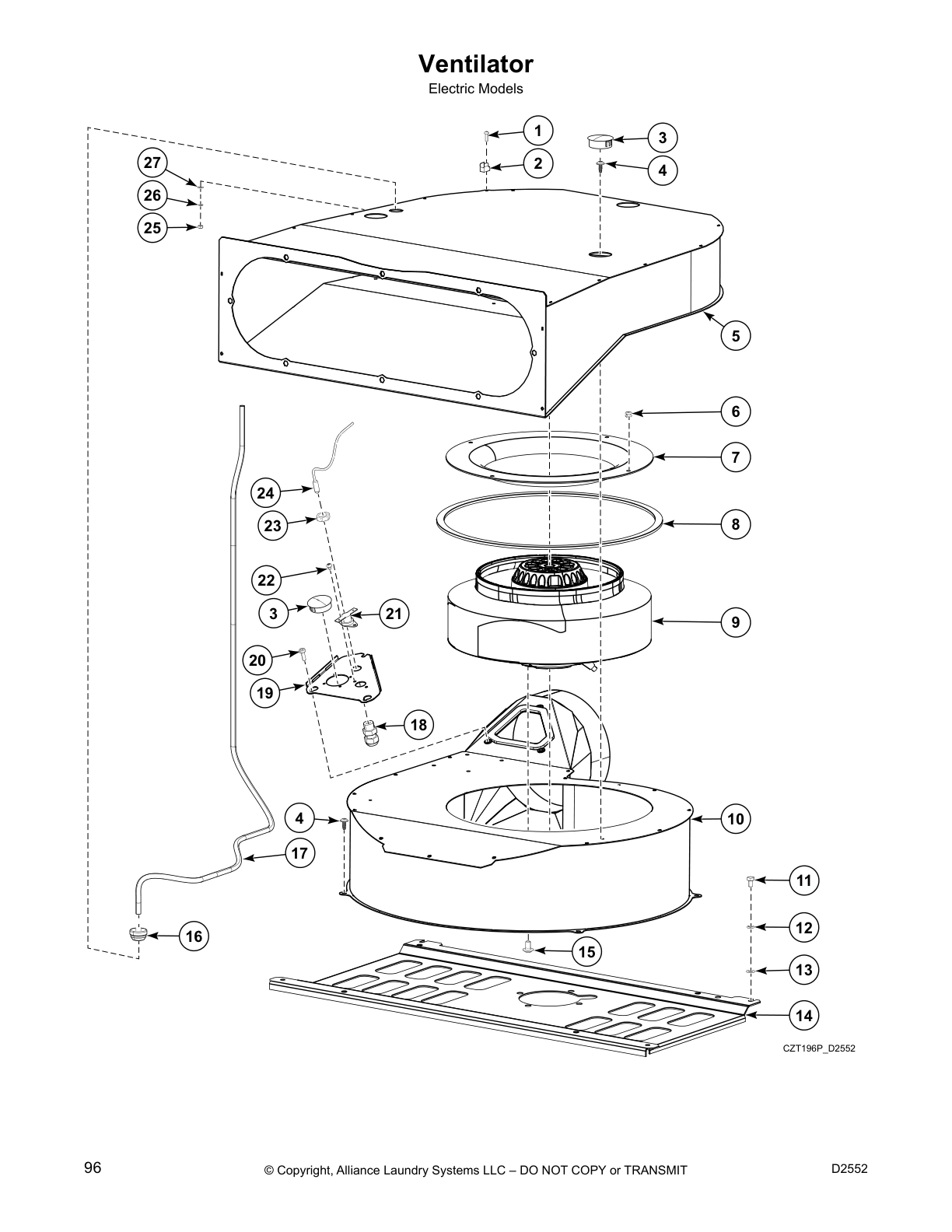

Ventilator

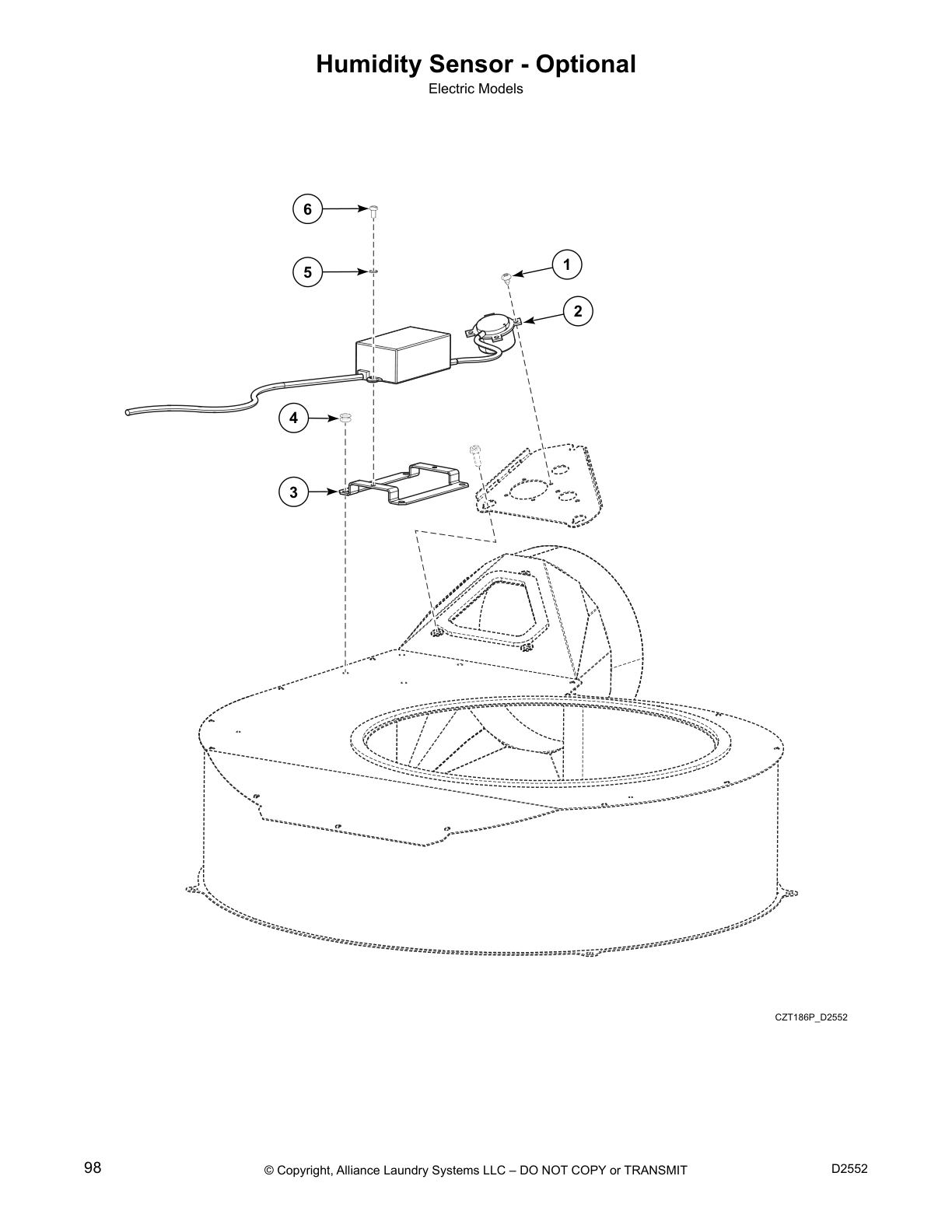

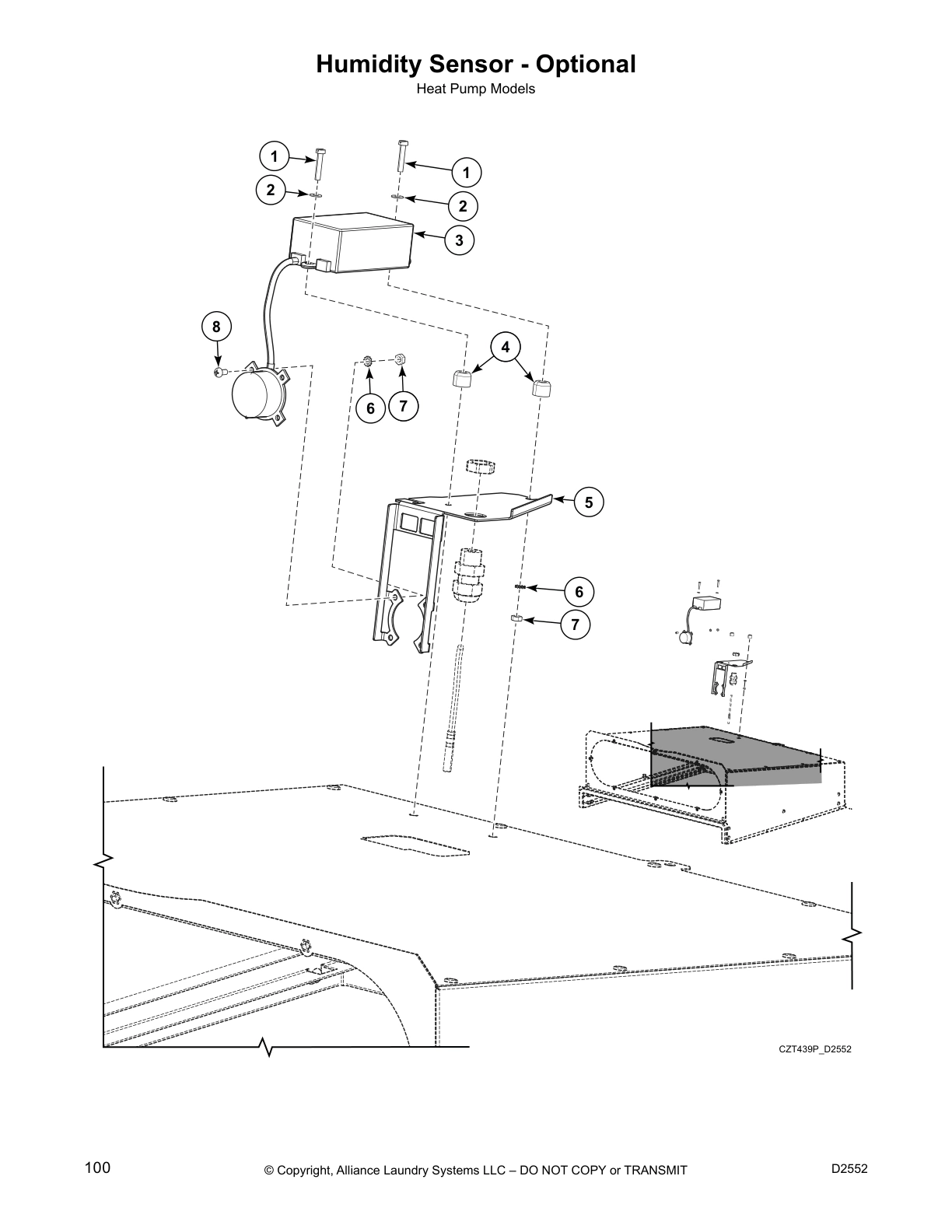

Humidity Sensor - Optional
Humidity Sensor - Optional

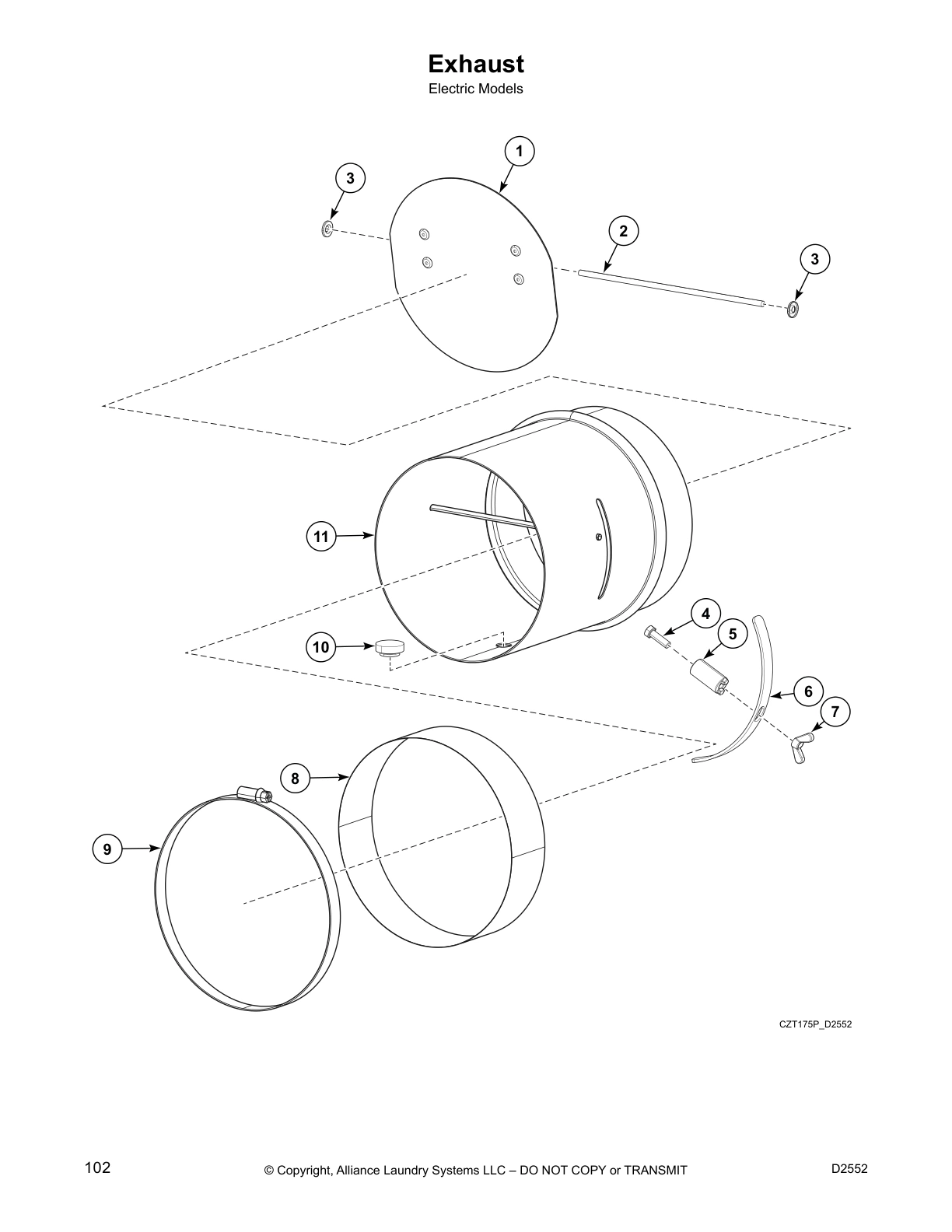

Exhaust

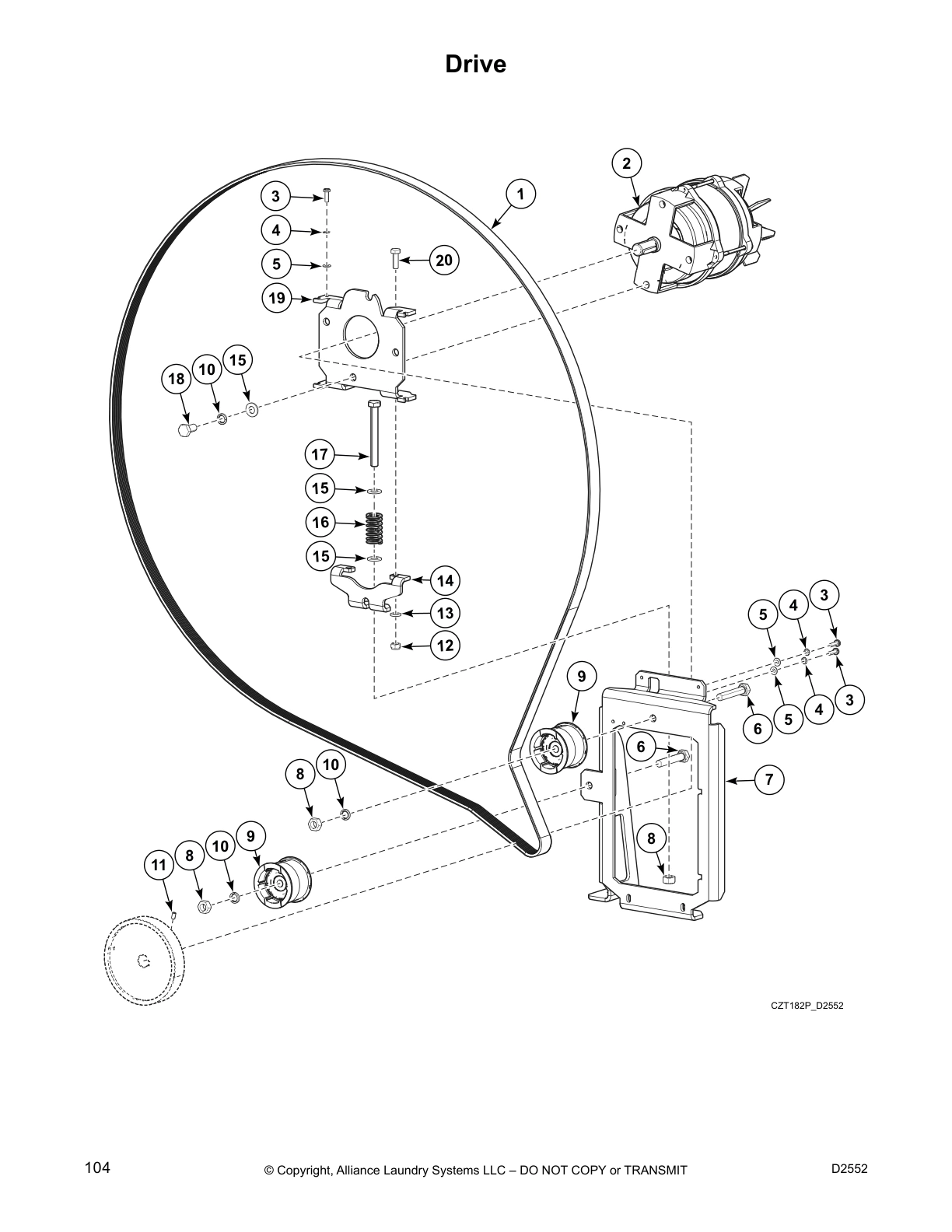

Drive
Common parts from model Primus PC195HE Dryer
SPQ SP560432 SPQ SP560432 Contact Us For Availability
SPQ SP560428 SPQ SP560428 Contact Us For Availability
SPQ SP560426 SPQ SP560426 Contact Us For Availability
SPQ SP560424 SPQ SP560424 Contact Us For Availability
SPQ SP560422 SPQ SP560422 Contact Us For Availability
SPQ SP560420 SPQ SP560420 Contact Us For Availability
SPQ SP560418 SPQ SP560418 Contact Us For Availability
SPQ SP560416 SPQ SP560416 Contact Us For Availability
SPQ SP560414 SPQ SP560414 Contact Us For Availability
SPQ SP560412 SPQ SP560412 Contact Us For Availability
SPQ SP560410 SPQ SP560410 Contact Us For Availability
SPQ SP560408 SPQ SP560408 Contact Us For Availability
SPQ SP560406 SPQ SP560406 Contact Us For Availability
SPQ SP560312 SPQ SP560312 Contact Us For Availability
SPQ SP560310 SPQ SP560310 Contact Us For Availability
SPQ SP560100 SPQ SP560100 Contact Us For Availability
SPQ SP560093 SPQ SP560093 Contact Us For Availability
SPQ SP560091 SPQ SP560091 Contact Us For Availability
SPQ SP559949 SPQ SP559949 Contact Us For Availability
SPQ SP559934 SPQ SP559934 Contact Us For Availability
SPQ SP558959 SPQ SP558959 Contact Us For Availability
SPQ 572327 SPQ 572327 Contact Us For Availability
SPQ 572321 SPQ 572321 Contact Us For Availability
SPQ 572314 SPQ 572314 Contact Us For Availability
SPQ 572308 SPQ 572308 Contact Us For Availability
SPQ 572302 SPQ 572302 Contact Us For Availability
1
Adhesive SPQ SP537896 Contact Us For Availability
1
Coin Meter SPQ SP560751 Contact Us For Availability
1
Coin Meter SPQ 575277 Contact Us For Availability
1
Main Switch Knob SPQ SPPRI404000095 Contact Us For Availability
1
Hinge SPQ SP516832 Contact Us For Availability
1
End Stop SPQ SP346000209101 Contact Us For Availability
1
Bolt SPQ SP309084000316 Contact Us For Availability
2
Temperature Sensor SPQ 70448701 Contact Us For Availability
2
Nut SPQ SP514193 Contact Us For Availability
2
Cover SPQ SPPRI543000004 Contact Us For Availability
2
Washer SPQ SP311125000003 Contact Us For Availability
2
SPQ SP309933241220 SPQ SP309933241220 Contact Us For Availability
2
Binding Strip SPQ SP346000280101 Contact Us For Availability
3
SPQ SP555504 SPQ SP555504 Contact Us For Availability
3
Tape SPQ SP309798524408 Contact Us For Availability
3
SPQ SP311902100012 SPQ SP311902100012 Contact Us For Availability
3
Washer SPQ SP516669 Contact Us For Availability
3
Fuse Case SPQ SP346000280301 Contact Us For Availability
4
SPQ 564511 SPQ 564511 Contact Us For Availability
4
Screw SPQ SP529206 Contact Us For Availability
4
SPQ SP311679800004 SPQ SP311679800004 Contact Us For Availability
4
Coin Meter Box SPQ SP102532 Contact Us For Availability
4
Hook Lock SPQ SPPRI610002007 Contact Us For Availability
4
Pin Insertion SPQ SP520408 Contact Us For Availability
5
Washer SPQ SP311679800003 Contact Us For Availability
5
Washer SPQ SPPRI522000012 Contact Us For Availability
5
Fuse SPQ SP346000004010 Contact Us For Availability
5
SPQ SP311125100004 SPQ SP311125100004 Contact Us For Availability
6
Washer SPQ SP530884 Contact Us For Availability
6
SPQ SP346000014010 SPQ SP346000014010 Contact Us For Availability
6
Nut SPQ SP311679824003 Contact Us For Availability
6
SPQ SP309933000845 SPQ SP309933000845 Contact Us For Availability
7
SPQ SPPRI401001021 SPQ SPPRI401001021 Contact Us For Availability
7
SPQ SP310934000003 SPQ SP310934000003 Contact Us For Availability
8
SPQ SP309798500306 SPQ SP309798500306 Contact Us For Availability
8
SPQ SP310934000008 SPQ SP310934000008 Contact Us For Availability
8
Seal SPQ SP517232 Contact Us For Availability
8
Rivet SPQ 505479 Contact Us For Availability
9
SPQ SP311125100006 SPQ SP311125100006 Contact Us For Availability
9
SPQ SP311127000014 SPQ SP311127000014 Contact Us For Availability
9
SPQ SP345805005020 SPQ SP345805005020 Contact Us For Availability
10
Washer SPQ SP311127000006 Contact Us For Availability
10
Washer SPQ SP311902100004 Contact Us For Availability
10
Washer SPQ SP311127000008 Contact Us For Availability
10
Nut SPQ SP310936000014 Contact Us For Availability
10
Bolt SPQ SP309963240412 Contact Us For Availability
11
Switch SPQ SP100388 Contact Us For Availability
11
Bolt SPQ SP309916000408 Contact Us For Availability
12
Bolt SPQ SP550482 Contact Us For Availability
12
Nut SPQ SP310985000006 Contact Us For Availability
13
SPQ SP311125000006 SPQ SP311125000006 Contact Us For Availability
13
Washer SPQ SP311902100006 Contact Us For Availability
14
Coin Meter Cover SPQ SP528310 Contact Us For Availability
14
Cover SPQ SP550149 Contact Us For Availability
15
Emergency Stop Connecto SPQ SP547565 Contact Us For Availability
15
Self-Adhesive Pad SPQ SPPRI551000001 Contact Us For Availability
15
Upper Lid Prop SPQ SP311679824006 Contact Us For Availability
15
SPQ SP311125000008 SPQ SP311125000008 Contact Us For Availability
15
SPQ SP526497 SPQ SP526497 Contact Us For Availability
16
Bolt SPQ SP311125000004 Contact Us For Availability
16
Switching Unit SPQ SP528311 Contact Us For Availability
16
Support Bearing SPQ SP310934000010 Contact Us For Availability
16
Hook SPQ SP311125240006 Contact Us For Availability
17
Cover SPQ SP528312 Contact Us For Availability
17
Tape SPQ SP284000012003 Contact Us For Availability
17
Tape SPQ SPMEC001410 Contact Us For Availability
17
Cable Passage SPQ SP533341 Contact Us For Availability
17
SPQ SP309933000870 SPQ SP309933000870 Contact Us For Availability
18
Profiled Sealing SPQ SPPRI505000058 Contact Us For Availability
18
Roller Bearing SPQ SPPRI242000006 Contact Us For Availability
18
Nut SPQ SP309084000410 Contact Us For Availability
18
Bolt SPQ SPPRI551016250 Contact Us For Availability
19
Clamp SPQ SP310934100006 Contact Us For Availability
20
Edge Protection SPQ SP273121005052 Contact Us For Availability
20
SPQ SP309933000618 SPQ SP309933000618 Contact Us For Availability
21
Cable Holder SPQ SP345000626088 Contact Us For Availability
22
Seal SPQ SP535479 Contact Us For Availability
22
Switch SPQ SP309933100625 Contact Us For Availability
22
Screw SPQ SP528313 Contact Us For Availability
23
Main Switch SPQ SP311127240006 Contact Us For Availability
23
Clamp SPQ SP529068 Contact Us For Availability
24
Temperature Sen SPQ SP534930 Contact Us For Availability
29
SPQ 70610901 SPQ 70610901 Contact Us For Availability
30
SPQ SP310985000010 SPQ SP310985000010 Contact Us For Availability
36
SPQ SPPRI404000097 SPQ SPPRI404000097 Contact Us For Availability
NI
SPQ SP560745 SPQ SP560745 Contact Us For Availability
NI
SPQ SP560429 SPQ SP560429 Contact Us For Availability
NI
SPQ SP560427 SPQ SP560427 Contact Us For Availability
NI
SPQ SP560425 SPQ SP560425 Contact Us For Availability
NI
SPQ SP560423 SPQ SP560423 Contact Us For Availability
NI
SPQ SP560421 SPQ SP560421 Contact Us For Availability
NI
SPQ SP560419 SPQ SP560419 Contact Us For Availability
NI
SPQ SP560417 SPQ SP560417 Contact Us For Availability
NI
SPQ SP560415 SPQ SP560415 Contact Us For Availability
NI
SPQ SP560413 SPQ SP560413 Contact Us For Availability
NI
SPQ SP560411 SPQ SP560411 Contact Us For Availability
NI
SPQ SP560409 SPQ SP560409 Contact Us For Availability
NI
SPQ SP560407 SPQ SP560407 Contact Us For Availability
NI
SPQ SP560405 SPQ SP560405 Contact Us For Availability
NI
SPQ SP560311 SPQ SP560311 Contact Us For Availability
NI
SPQ SP560309 SPQ SP560309 Contact Us For Availability
NI
SPQ SP560094 SPQ SP560094 Contact Us For Availability
NI
SPQ SP560092 SPQ SP560092 Contact Us For Availability
NI
SPQ SP560090 SPQ SP560090 Contact Us For Availability
NI
SPQ SP559938 SPQ SP559938 Contact Us For Availability
NI
SPQ SP559933 SPQ SP559933 Contact Us For Availability
NI
SPQ SP558958 SPQ SP558958 Contact Us For Availability
NI
SPQ 572324 SPQ 572324 Contact Us For Availability
NI
SPQ 572318 SPQ 572318 Contact Us For Availability
NI
SPQ 572311 SPQ 572311 Contact Us For Availability
NI
SPQ 572305 SPQ 572305 Contact Us For Availability
NI
SPQ 570000 SPQ 570000 Contact Us For Availability
NI
SPQ 569999 SPQ 569999 Contact Us For Availability
× ![]()
