Model GE PBV10R5VBBB Refrigerator – Common Parts & Diagrams
DOORS
CABINET

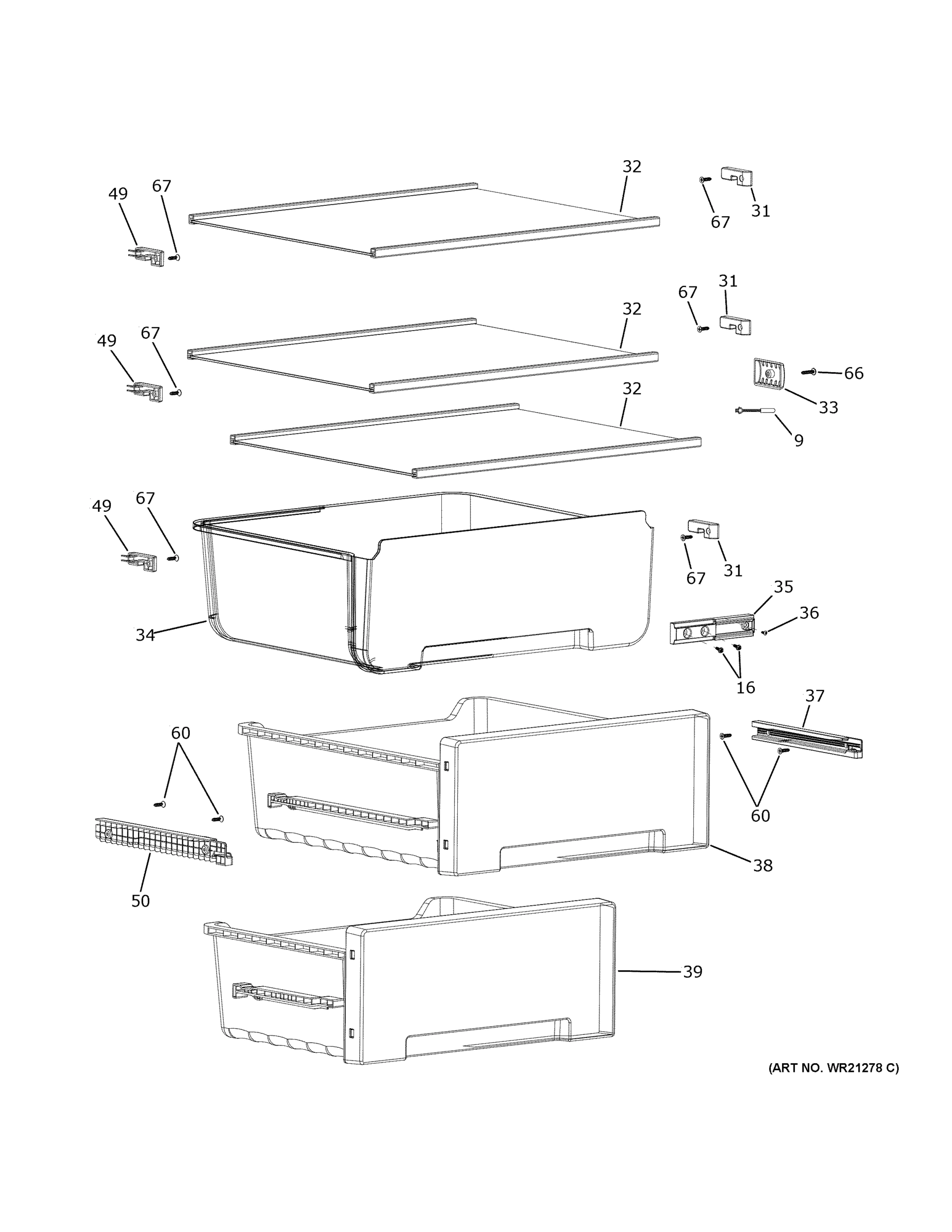

SHELVES & DRAWERS

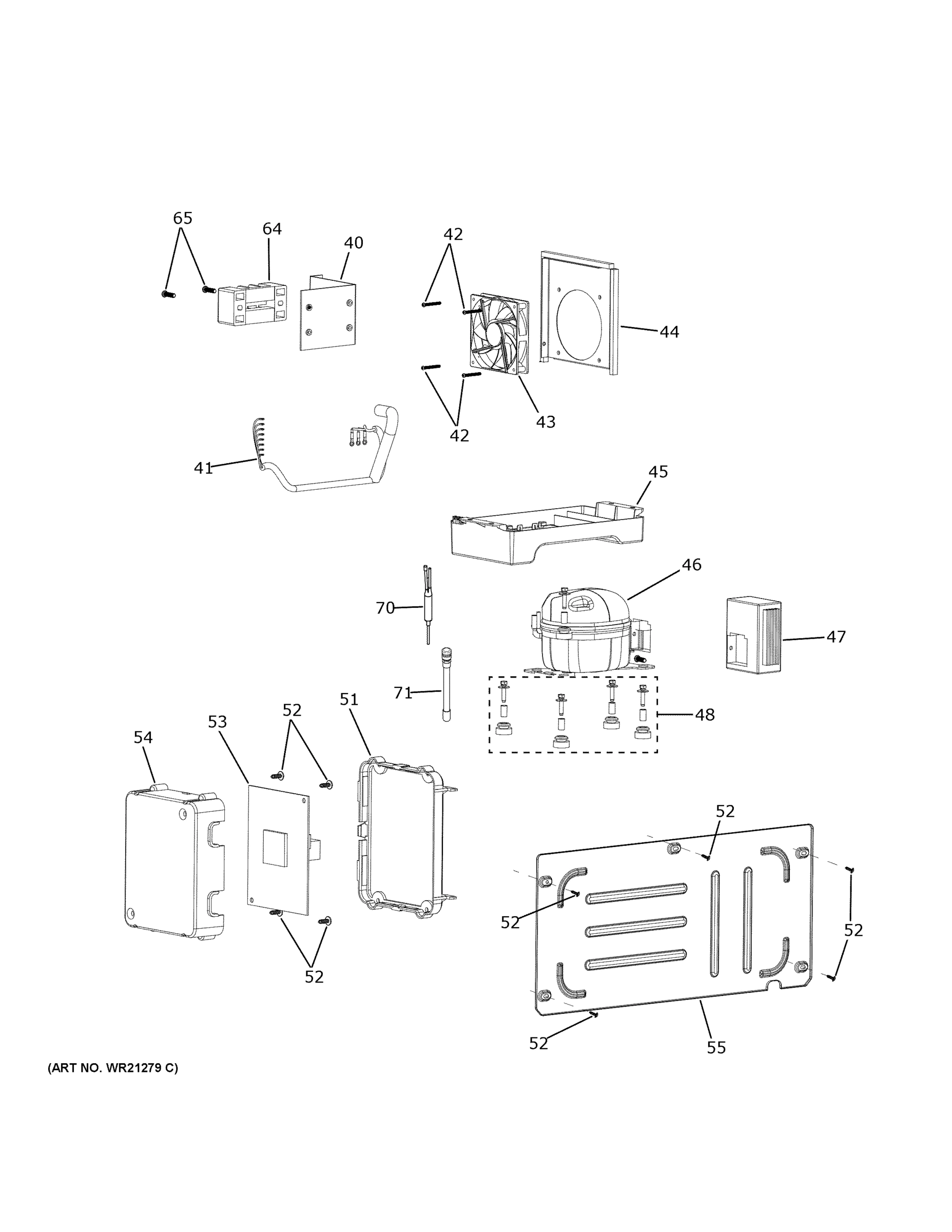

MACHINE COMPARTMENT

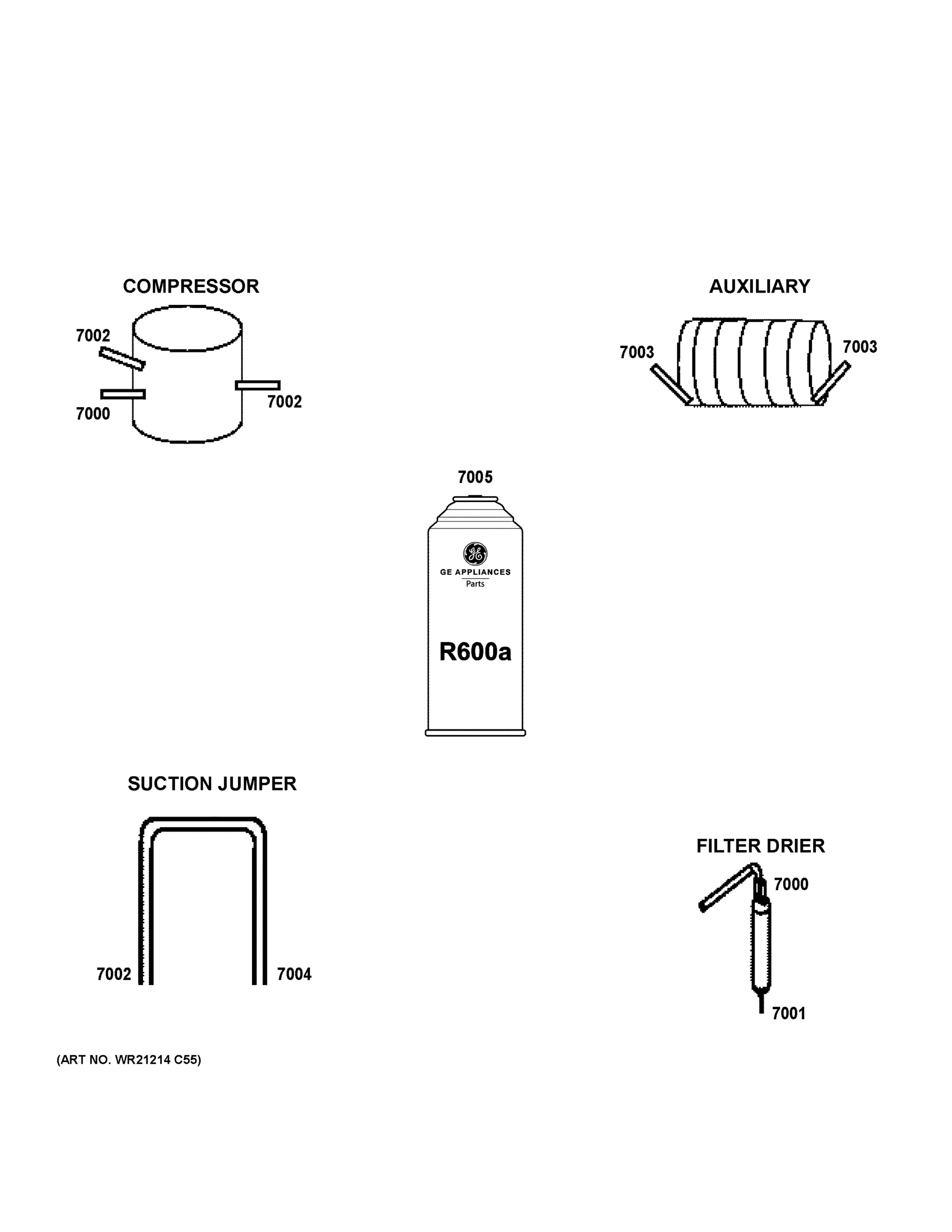

LOKRING CONNECTORS
Common parts from model GE PBV10R5VBBB Refrigerator
5
FREEZER GLASS DOOR - BLACK GEN WR78X45582 Contact Us For Availability
6
FREEZER DOOR GASKET GEN WR14X43730 Contact Us For Availability
7
FREEZER DOOR STOP - RIGHT GEN WR01X43731 Contact Us For Availability
8
TOP HINGE COVER - RIGHT GEN WR13X43733 Contact Us For Availability
11
TOP HINGE - RIGHT GEN WR13X43734 Contact Us For Availability
12
DOOR BIN GEN WR71X43735 Contact Us For Availability
14
DOOR LATCH GEN WR13X43736 Contact Us For Availability
15
MIDDLE HINGE GEN WR13X43737 Contact Us For Availability
16
SCREW GEN WR01X43738 Contact Us For Availability
17
TOE KICK SCREW - BLACK GEN WR01X43777 Contact Us For Availability
18
LEVELING LEG GEN WR01X35438 Contact Us For Availability
19
TOE KICK - BLACK GEN WR74X43778 Contact Us For Availability
20
CONDENSER GEN WR87X43741 Contact Us For Availability
21
TOE KICK BRACKET GEN WR01X43742 Contact Us For Availability
22
LED COVER GEN WR13X39882 Contact Us For Availability
23
LED BOARD GEN WR55X39881 Contact Us For Availability
24
REFRIGERATOR FAN HOUSING GEN WR02X43743 Contact Us For Availability
25
REFRIGERATOR FAN GEN WR60X43744 Contact Us For Availability
26
REFRIGERATOR FAN HOUSING COVER GEN WR02X43745 Contact Us For Availability
27
SCREW GEN WR01X43746 Contact Us For Availability
28
TOP HINGE COVER - LEFT GEN WR13X43747 Contact Us For Availability
29
TOP HINGE - LEFT GEN WR13X43748 Contact Us For Availability
30
DISPLAY BOARD GEN WR55X43749 Contact Us For Availability
31
GLASS SHELF HOLDER - RIGHT GEN WR02X43750 Contact Us For Availability
32
REFRIGERATOR GLASS SHELF GEN WR71X43751 Contact Us For Availability
33
THERMISTOR COVER GEN WR13X43752 Contact Us For Availability
34
REFRIGERATOR VEGETABLE DRAWER GEN WR71X43753 Contact Us For Availability
35
DOOR LATCH BRACKET GEN WR01X43754 Contact Us For Availability
36
SCREW GEN WR01X43755 Contact Us For Availability
37
SIDE SLIDE RAIL - RIGHT GEN WR72X43756 Contact Us For Availability
38
TOP FREEZER DRAWER GEN WR71X43757 Contact Us For Availability
39
BOTTOM FREEZER DRAWER GEN WR71X43758 Contact Us For Availability
40
TERMINAL BLOCK MOUNTING PLATE GEN WR02X32534 Contact Us For Availability
41
MAIN HARNESS GEN WR55X43759 Contact Us For Availability
42
CONDENSER FAN SCREW GEN WR01X35435 Contact Us For Availability
43
CONDENSER FAN GEN WR60X43785 Contact Us For Availability
44
CONDENSER FAN BRACKET GEN WR02X43760 Contact Us For Availability
45
DRAIN PAN GEN WR02X43761 Contact Us For Availability
46
COMPRESSOR GEN WR87X43762 Contact Us For Availability
47
INVERTER GEN WR87X43763 Contact Us For Availability
48
COMPRESSOR MOUNTING HARDWARE GEN WR02X43764 Contact Us For Availability
49
GLASS SHELF HOLDER - LEFT GEN WR02X43765 Contact Us For Availability
50
SIDE SLIDE RAIL - LEFT GEN WR72X43766 Contact Us For Availability
51
MAIN BOARD COVER GEN WR13X35445 Contact Us For Availability
53
MAIN CONTROL BOARD GEN WR55X43767 Contact Us For Availability
54
MAIN BOARD HOUSING GEN WR13X35442 Contact Us For Availability
55
MACHINE COVER GEN WR13X43768 Contact Us For Availability
56
EVAPORATOR CLIP - RIGHT GEN WR02X43769 Contact Us For Availability
57
EVAPORATOR CLIP - LEFT GEN WR02X43770 Contact Us For Availability
58
EVAPORATOR TRIM GEN WR02X43771 Contact Us For Availability
60
FLAT HEAD TAPPING SCREW GEN WR01X29258 Contact Us For Availability
61
BOTTOM HINGE SHIM GEN WR01X35433 Contact Us For Availability
62
SCREW GEN WR01X43786 Contact Us For Availability
65
SCREW GEN WR01X36845 Contact Us For Availability
66
SCREW GEN WR01X40485 Contact Us For Availability
67
SCREW GEN WR01X43773 Contact Us For Availability
68
BOTTOM HINGE GEN WR13X43774 Contact Us For Availability
69
FREEZER DOOR STOP - LEFT GEN WR01X43732 Contact Us For Availability
70
FILTER DRIER GEN WR87X41085 Contact Us For Availability
999
PM MINI MANUAL AND WIRING GEN 311000706 Contact Us For Availability
999
PM OWNERS AND INSTALL GEN 491000702 Contact Us For Availability
× ![]()
