Model LG PA77U – Common Parts & Diagrams

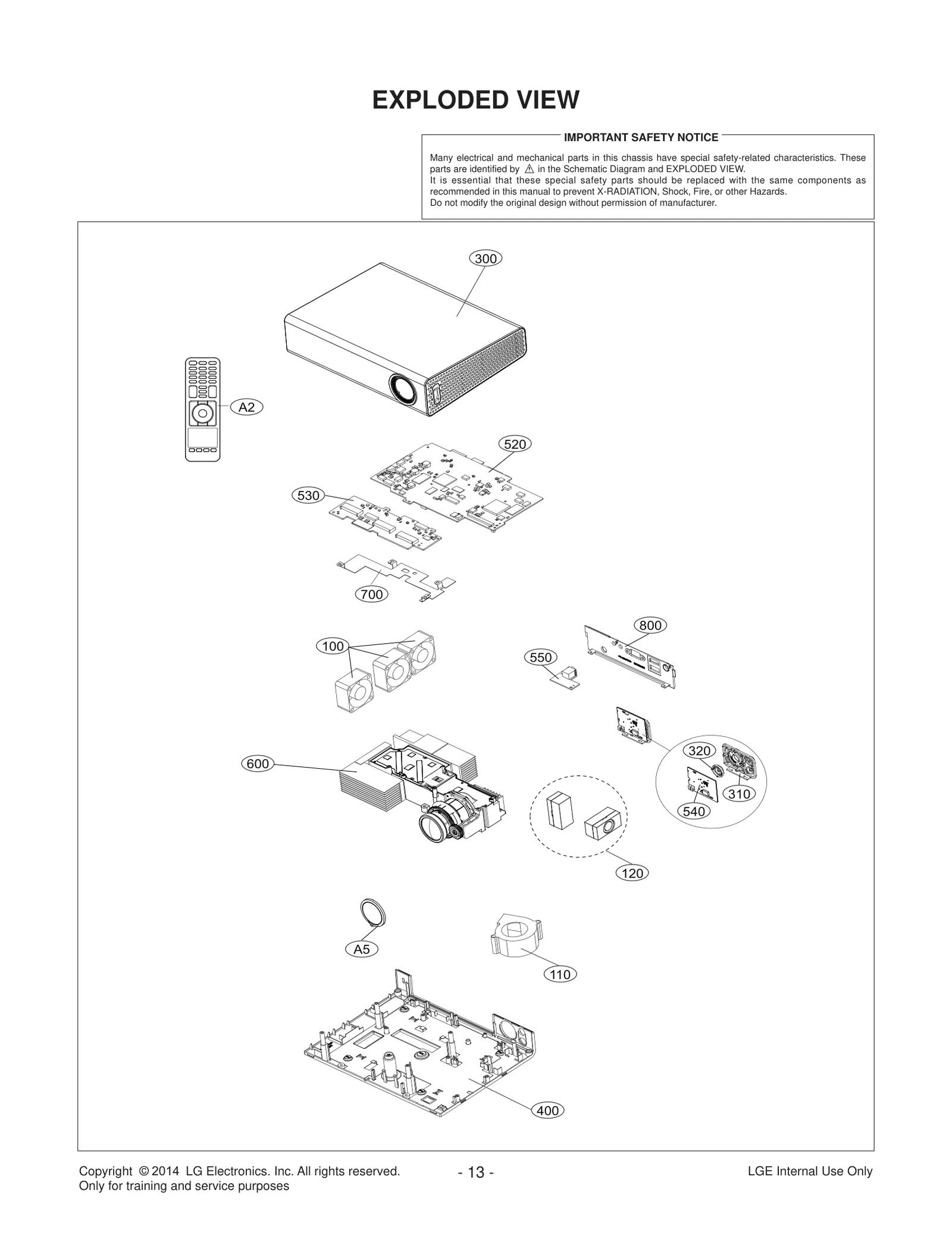

Diagram 0
Diagram 1
Common parts from model LG PA77U
110
Bracket Assembly LGE ABA74349401 Contact Us For Availability
300
Cover Assembly LGE ACQ85839406 Contact Us For Availability
310
Button LGE MBG64526905 Contact Us For Availability
320
Button LGE MBG64526801 Contact Us For Availability
400
Case Assembly LGE ABQ73901605 Contact Us For Availability
520
Chassis Assembly LGE EBT62940201 Contact Us For Availability
530
Chassis Assembly LGE EBT62945201 Contact Us For Availability
540
Chassis Assembly LGE EBT62086102 Contact Us For Availability
550
Chassis Assembly LGE EBT62976901 Contact Us For Availability
600
Chassis Assembly LGE EBT62123405 Contact Us For Availability
700
Plate LGE MGJ63442602 Contact Us For Availability
800
Bracket Assembly LGE ABA74789201 Contact Us For Availability
A1
Title LGE SAC30666071 Contact Us For Availability
A2
Remote Controller Assembly LGE AKB73616418 Contact Us For Availability
A3
Power Cord,Detach LGE EAD62149101 Contact Us For Availability
A4
Adapters LGE EAY62791201 Contact Us For Availability
A5
Cap LGE MBL65220301 Contact Us For Availability
A22
Remote Controller Assembly LGE AKB73856202 Contact Us For Availability
AR1103
Resistor,Array LGE 0RR0822B621 Contact Us For Availability
AR4100
Resistor,Array LGE EBC32260601 Contact Us For Availability
AR8100
Resistor,Chip LGE 0RJ0222C692 Contact Us For Availability
C1
Capacitor,AL,Chip LGE EAE60171702 Contact Us For Availability
C5
CAPACITOR,FIXED CERA LGE 0CK475EF56A Contact Us For Availability
C10
Capacitor,Ceramic,Chip LGE EAE62281601 Contact Us For Availability
C202
Capacitor,Ceramic,Ch LGE EAE33970001 Contact Us For Availability
C210
Capacitor,Ceramic,Chip LGE 0CK822BH56A Contact Us For Availability
C217
Capacitor,Ceramic,Chip LGE 0CK222BKG6A Contact Us For Availability
C313
Capacitor,Ceramic,Chip LGE EAE62303301 Contact Us For Availability
C321
Capacitor,Ceramic,Ch LGE 0CC475CD5DA Contact Us For Availability
C355
Capacitor,Ceramic,Ch LGE EAE32166101 Contact Us For Availability
C375
Capacitor,Ceramic,Chip LGE 0CK152BKG6A Contact Us For Availability
C377
Capacitor,Ceramic,Chip LGE 0CK122BK56A Contact Us For Availability
C384
Capacitor,Ceramic,Ch LGE 0CC100BKF1A Contact Us For Availability
C401
Capacitor,Ceramic,Chip LGE 0CC271BK4AA Contact Us For Availability
C525
Capacitor,Ceramic,Chip LGE EAE58044701 Contact Us For Availability
C538
Capacitor,Ceramic,Chip LGE EAE61081701 Contact Us For Availability
C553
Capacitor,Ceramic,Ch LGE 0CK104BH56A Contact Us For Availability
C573
Capacitor,Ceramic,Ch LGE 0CC151BK41A Contact Us For Availability
C583
Capacitor,Ceramic,Chip LGE EAE33831901 Contact Us For Availability
C607
Capacitor,Ceramic,Ch LGE 0CZZB00058A Contact Us For Availability
C612
Capacitor,Ceramic,Ch LGE 0CK101BK4EA Contact Us For Availability
C614
Capacitor,Ceramic,Chip LGE EAE52158501 Contact Us For Availability
C655
Capacitor,Ceramic,Chip LGE EAE39487601 Contact Us For Availability
C744
Capacitor,Ceramic,Chip LGE EAE62764101 Contact Us For Availability
C746
Capacitor,Ceramic,Ch LGE 0CK104BF56A Contact Us For Availability
C1105
CAPACITOR,FIXED CERA LGE 0CK475DD56A Contact Us For Availability
C1112
Capacitor,Ceramic,Chip LGE 0CC130BKF1A Contact Us For Availability
C1118
Capacitor,Ceramic,Chip LGE EAE50191801 Contact Us For Availability
C1124
Capacitor,Ceramic,Chip LGE EAE58746801 Contact Us For Availability
C2128
CAPACITOR,FIXED CERA LGE 0CK224CF56A Contact Us For Availability
C2141
Capacitor,Ceramic,Ch LGE 0CH5470K618 Contact Us For Availability
C3001
Capacitor,Ceramic,Chip LGE 0CH1474K562 Contact Us For Availability
C5002
CAPACITOR,FIXED CERA LGE 0CK105CK56A Contact Us For Availability
C5406
Capacitor,Ceramic,Ch LGE 0CZZB00035A Contact Us For Availability
C5431
Capacitor,Ceramic,Ch LGE EAE32166601 Contact Us For Availability
C5433
CAPACITOR,FIXED CERA LGE 0CK105CD56A Contact Us For Availability
C5434
Capacitor,Ceramic,Ch LGE 0CK474DK56A Contact Us For Availability
C5436
CAPACITOR,FIXED CERA LGE 0CK104CK56A Contact Us For Availability
C6104
Capacitor,Ceramic,Chip LGE 0CC181CK41A Contact Us For Availability
D1
Diode,TVS LGE EAH61253501 Contact Us For Availability
D11
Diode,TVS LGE EAH39491701 Contact Us For Availability
D100
Diode,Switching LGE 0DSGD00038A Contact Us For Availability
D302
Diode,Schottky LGE 0DRDI00028B Contact Us For Availability
D504
Diode,TVS LGE EAH62134701 Contact Us For Availability
D507
Diode,Schottky LGE 0DSKE00048A Contact Us For Availability
D3300
Diode,Schottky LGE EAH40478101 Contact Us For Availability
D3301
Diode,Switching LGE EAH61714301 Contact Us For Availability
D3303
Diode,TVS LGE EAH61515001 Contact Us For Availability
D3313
Diode,Schottky LGE EAH61433701 Contact Us For Availability
D3803
Varistor LGE EAF61530101 Contact Us For Availability
D4302
Diode,TVS LGE EAH61515101 Contact Us For Availability
D5002
Varistor LGE EAF61530201 Contact Us For Availability
FIXREDHEAT
Screw,Taptite LGE FAB30005001 Contact Us For Availability
IC100
IC,EEPROM LGE EAN61548301 Contact Us For Availability
IC105
Display SOC,Digital TV LGE EAN62651401 Contact Us For Availability
IC107
IC,LDO Voltage Regulator LGE EAN62406501 Contact Us For Availability
IC201
IC,Analog Switch LGE EAN38256201 Contact Us For Availability
IC205
IC,Voltage Reference LGE EAN42695601 Contact Us For Availability
IC206
IC,LED Driver LGE EAN62344901 Contact Us For Availability
IC301
IC,CMOS LGE EAN61846601 Contact Us For Availability
IC303
IC,OP Amplifier LGE 0IPRPKE009A Contact Us For Availability
IC402
IC,Acceleration Sensor LGE EAN62527101 Contact Us For Availability
IC502
IC,DC,DC Converter LGE EAN62653501 Contact Us For Availability
IC503
IC,DC,DC Converter LGE EAN62731201 Contact Us For Availability
IC505
IC,LDO Voltage Regulator LGE EAN41406705 Contact Us For Availability
IC506
IC,DC,DC Converter LGE EAN57771001 Contact Us For Availability
IC507
IC,Voltage Regulator LGE EAN61507501 Contact Us For Availability
IC508
IC,DC,DC Converter LGE EAN61849301 Contact Us For Availability
IC511
IC,Voltage Detector LGE EAN61829901 Contact Us For Availability
IC702
IC,DDR3 SDRAM LGE EAN61829204 Contact Us For Availability
IC703
IC,DDR3 SDRAM LGE EAN62571101 Contact Us For Availability
IC800
IC,Tx/Rx LGE EAN60390201 Contact Us For Availability
IC1101
Display SOC,Projector LGE EAN62110401 Contact Us For Availability
IC1102
S/W,Firmware LGE SAA37064105 Contact Us For Availability
IC1104
IC,EEPROM LGE EAN61961901 Contact Us For Availability
IC1105
IC,CMOS LGE 0ISTL00021A Contact Us For Availability
IC1107
IC,Gate LGE 0ILNRON009B Contact Us For Availability
IC1209
IC,LINEAR LGE 0ILNR00038A Contact Us For Availability
IC1402
IC,USB LGE EAN62237301 Contact Us For Availability
IC3000
S/W,Firmware LGE SAA37064003 Contact Us For Availability
IC3301
IC,Analog Switch LGE EAN62573101 Contact Us For Availability
IC3302
IC,MEMORIES LGE 0IMMR00014A Contact Us For Availability
IC3304
IC,Receiver LGE EAN62458601 Contact Us For Availability
IC4500
IC,Analog Switch LGE EAN62786701 Contact Us For Availability
IC5400
IC,Audio Amplifier LGE EAN62653101 Contact Us For Availability
IC6100
IC,Audio Amplifier LGE EAN62668301 Contact Us For Availability
IC6400
IC,Voltage Regulator LGE EAN60910801 Contact Us For Availability
IC6503
IC,Voltage Regulator LGE EAN61829801 Contact Us For Availability
IC8100
S/W,Firmware LGE SAA37064206 Contact Us For Availability
JK1
Jack,DC Power LGE EAG63254501 Contact Us For Availability
JK1405
Jack,Modular LGE EAG38015702 Contact Us For Availability
JK3602
Jack,Fiber Optic LGE EAG37842007 Contact Us For Availability
JK3700
Jack,Phone LGE EAG61030009 Contact Us For Availability
JK3800
Jack,Phone LGE EAG61030012 Contact Us For Availability
L300
Inductor,Wire Wound,Chip LGE EAP62186001 Contact Us For Availability
L508
Filter,Bead LGE EAM38769505 Contact Us For Availability
L511
Inductor,Wire Wound,Chip LGE EAP38274503 Contact Us For Availability
L551
Inductor,Wire Wound,Chip LGE EAP32842803 Contact Us For Availability
L571
Inductor,Wire Wound,Chip LGE EAP62026301 Contact Us For Availability
L1107
COIL,ENERGY RECOVERY LGE 6140VR0007A Contact Us For Availability
L5402
Inductor,Wire Wound,Chip LGE EAP62326601 Contact Us For Availability
LD10
LED,Chip LGE EAV59915401 Contact Us For Availability
M503
Gasket LGE MDS62110213 Contact Us For Availability
P102
Socket,IC LGE EAG63011201 Contact Us For Availability
P303
CONNECTOR (CIRC),WAFER LGE 6630VK19608 Contact Us For Availability
P1102
Connector,FFC/FPC/PI LGE 6630X60128A Contact Us For Availability
P1103
Connector,FFC/FPC/PIC LGE 6630XA02430 Contact Us For Availability
P1212
Connector,FFC/FPC/PIC LGE EAG60669201 Contact Us For Availability
P3100
Connector,FFC/FPC/PIC LGE EAG61090202 Contact Us For Availability
P4100
Connector,Wafer LGE 6630V90141C Contact Us For Availability
Q2
FET LGE EBK61313101 Contact Us For Availability
Q303
FET LGE EBK52732001 Contact Us For Availability
Q501
FET LGE EBK61913601 Contact Us For Availability
Q1204
FET LGE EBK60752601 Contact Us For Availability
Q1209
TR,Bipolar LGE EBK42831501 Contact Us For Availability
Q1212
TR,Bipolar LGE 0TRAU80028A Contact Us For Availability
Q3001
FET LGE EBK61731301 Contact Us For Availability
Q3302
TR,Bipolar LGE EBK61012701 Contact Us For Availability
Q3314
FET LGE EBK62091801 Contact Us For Availability
R4
Resistor,Chip LGE 0RJ1003C678 Contact Us For Availability
R13
Resistor,Chip LGE 0RJ2001C678 Contact Us For Availability
R16
Resistor,Chip LGE 0RJ5601C678 Contact Us For Availability
R18
Resistor,Chip LGE 0RJ1302C478 Contact Us For Availability
R19
Resistor,Chip LGE EBC32176501 Contact Us For Availability
R108
Resistor,Chip LGE 0RJ1002C478 Contact Us For Availability
R133
Resistor,Chip LGE 0RH0331D622 Contact Us For Availability
R138
RESISTOR,METAL GLAZE LGE 0RJ5101C478 Contact Us For Availability
R150
RESISTOR,METAL GLAZE LGE 0RJ2701C678 Contact Us For Availability
R153
Resistor,Chip LGE 0RJ1501C678 Contact Us For Availability
R208
Resistor,Chip LGE 0RJ1800C678 Contact Us For Availability
R209
Resistor,Chip LGE 0RJ1202C478 Contact Us For Availability
R213
Resistor,Chip LGE 0RJ8200C478 Contact Us For Availability
R225
Resistor,Chip LGE 0RJ2003C478 Contact Us For Availability
R233
Resistor,Chip LGE 0RJ0221D677 Contact Us For Availability
R235
Resistor,Chip LGE EBC37118601 Contact Us For Availability
R301
Resistor,Chip LGE EBC42830501 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ0221C678 Contact Us For Availability
R308
Resistor,Chip LGE 0RJ1201C478 Contact Us For Availability
R315
Resistor,Chip LGE 0RJ2402C478 Contact Us For Availability
R323
Resistor,Chip LGE 0RJ1803C478 Contact Us For Availability
R325
Resistor,Chip LGE 0RJ0101C678 Contact Us For Availability
R329
Resistor,Chip LGE 0RJ4703C678 Contact Us For Availability
R330
RESISTOR,METAL GLAZE LGE 0RJ0331D677 Contact Us For Availability
R355
Resistor,Chip LGE 0RJ0822C478 Contact Us For Availability
R364
Resistor,Chip LGE 0RJ0512C678 Contact Us For Availability
R369
Resistor,Chip LGE 0RJ1201C678 Contact Us For Availability
R375
Resistor,Chip LGE 0RJ1000D477 Contact Us For Availability
R380
Resistor,Chip LGE 0RJ1001E478 Contact Us For Availability
R501
Resistor,Chip LGE 0RJ1801C678 Contact Us For Availability
R503
Resistor,Chip LGE 0RJ0101D677 Contact Us For Availability
R506
Resistor,Chip LGE 0RJ3000C478 Contact Us For Availability
R507
Resistor,Chip LGE ERHZ0000242 Contact Us For Availability
R509
Resistor,Chip LGE 0RJ3303C678 Contact Us For Availability
R513
Resistor,Chip LGE 0RJ4702C478 Contact Us For Availability
R514
Resistor,Chip LGE 0RJ2702C478 Contact Us For Availability
R517
Resistor,Chip LGE EBC34656201 Contact Us For Availability
R520
Resistor,Chip LGE 0RJ5102C478 Contact Us For Availability
R521
Resistor,Chip LGE 0RJ1003C478 Contact Us For Availability
R522
Resistor,Chip LGE 0RJ1802C478 Contact Us For Availability
R528
Resistor,Chip LGE 0RJ5102C678 Contact Us For Availability
R532
Resistor,Chip LGE EBC41607701 Contact Us For Availability
R533
Resistor,Chip LGE 0RJ1102C478 Contact Us For Availability
R534
Resistor,Chip LGE 0RJ1001C678 Contact Us For Availability
R538
Resistor,Chip LGE 0RJ5601C478 Contact Us For Availability
R539
Resistor,Chip LGE 0RJ1052C478 Contact Us For Availability
R550
Resistor,Chip LGE 0RJ0000C678 Contact Us For Availability
R711
Resistor,Chip LGE 0RJ2400C478 Contact Us For Availability
R1115
Resistor,Chip LGE 0RJ0222C678 Contact Us For Availability
R1117
Resistor,Chip LGE 0RJ1002C678 Contact Us For Availability
R1134
Resistor,Chip LGE 0RJ0332C478 Contact Us For Availability
R1157
Resistor,Chip LGE 0RJ1000C478 Contact Us For Availability
R1160
Resistor,Chip LGE EBC30996801 Contact Us For Availability
R1164
Resistor,Chip LGE 0RJ0272C678 Contact Us For Availability
R1179
Resistor,Chip LGE 0RJ3301C678 Contact Us For Availability
R1258
Resistor,Chip LGE 0RJ3001C678 Contact Us For Availability
R2101
Resistor,Chip LGE 0RJ4701C678 Contact Us For Availability
R2108
Resistor,Chip LGE 0RJ3300C678 Contact Us For Availability
R2109
Resistor,Chip LGE 0RJ1004C478 Contact Us For Availability
R2112
Resistor,Chip LGE 0RJ0332C678 Contact Us For Availability
R2115
Resistor,Chip LGE 0RJ5602C478 Contact Us For Availability
R2116
Resistor,Chip LGE 0RJ3603E472 Contact Us For Availability
R2117
Resistor,Chip LGE 0RJ6803D677 Contact Us For Availability
R2119
Resistor,Chip LGE 0RJ1502C478 Contact Us For Availability
R2130
Resistor,Chip LGE 0RJ3002C678 Contact Us For Availability
R2144
Resistor,Chip LGE EBC32174501 Contact Us For Availability
R3049
RESISTOR,METAL GLAZE LGE 0RJ2002C478 Contact Us For Availability
R3057
Resistor,Chip LGE 0RJ0472C678 Contact Us For Availability
R3059
Resistor,Chip LGE 0RJ2702C678 Contact Us For Availability
R3371
RESISTOR,METAL GLAZE LGE 0RJ8200C678 Contact Us For Availability
R3381
Resistor,Chip LGE 0RJ2202C478 Contact Us For Availability
R3387
Resistor,Chip LGE 0RJ1203C678 Contact Us For Availability
R3388
Resistor,Chip LGE 0RJ0511C478 Contact Us For Availability
R3700
RESISTOR,METAL GLAZE LGE 0RJ1002D477 Contact Us For Availability
R5411
Resistor,Chip LGE 0RJ0122D677 Contact Us For Availability
R5416
Resistor,Chip LGE 0RJ5101C678 Contact Us For Availability
R6105
Resistor,Chip LGE 0RJ4701D477 Contact Us For Availability
S1
Harness,Single LGE EAD61210005 Contact Us For Availability
S2
Harness,Single LGE EAD61210006 Contact Us For Availability
S3
Wire,Flat LGE EAD62206701 Contact Us For Availability
S5
Harness,Single LGE EAD62496804 Contact Us For Availability
S7
Harness,Single LGE EAD58345815 Contact Us For Availability
S8
Harness,Single LGE EAD60678822 Contact Us For Availability
S9
Cable,Assembly LGE EAD61273123 Contact Us For Availability
SW14
Switch,Tact LGE 6600R00004D Contact Us For Availability
TH100
Thermistor,NTC LGE 6322A00028A Contact Us For Availability
TU6400
Tuner,Digital LGE EBL61240004 Contact Us For Availability
VA1405
Varistor LGE EAF61530301 Contact Us For Availability
VA3302
Varistor LGE EAF61630101 Contact Us For Availability
X1101
Crystal LGE EAW61703901 Contact Us For Availability
X3000
Crystal LGE EAW58239602 Contact Us For Availability
ZD1101
Diode,Zener LGE 0DZDI00078A Contact Us For Availability
× ![]()
Login and Registration Form
