Model Fisher & Paykel OS30NDTDB1-83099-A Built In Oven – Common Parts & Diagrams

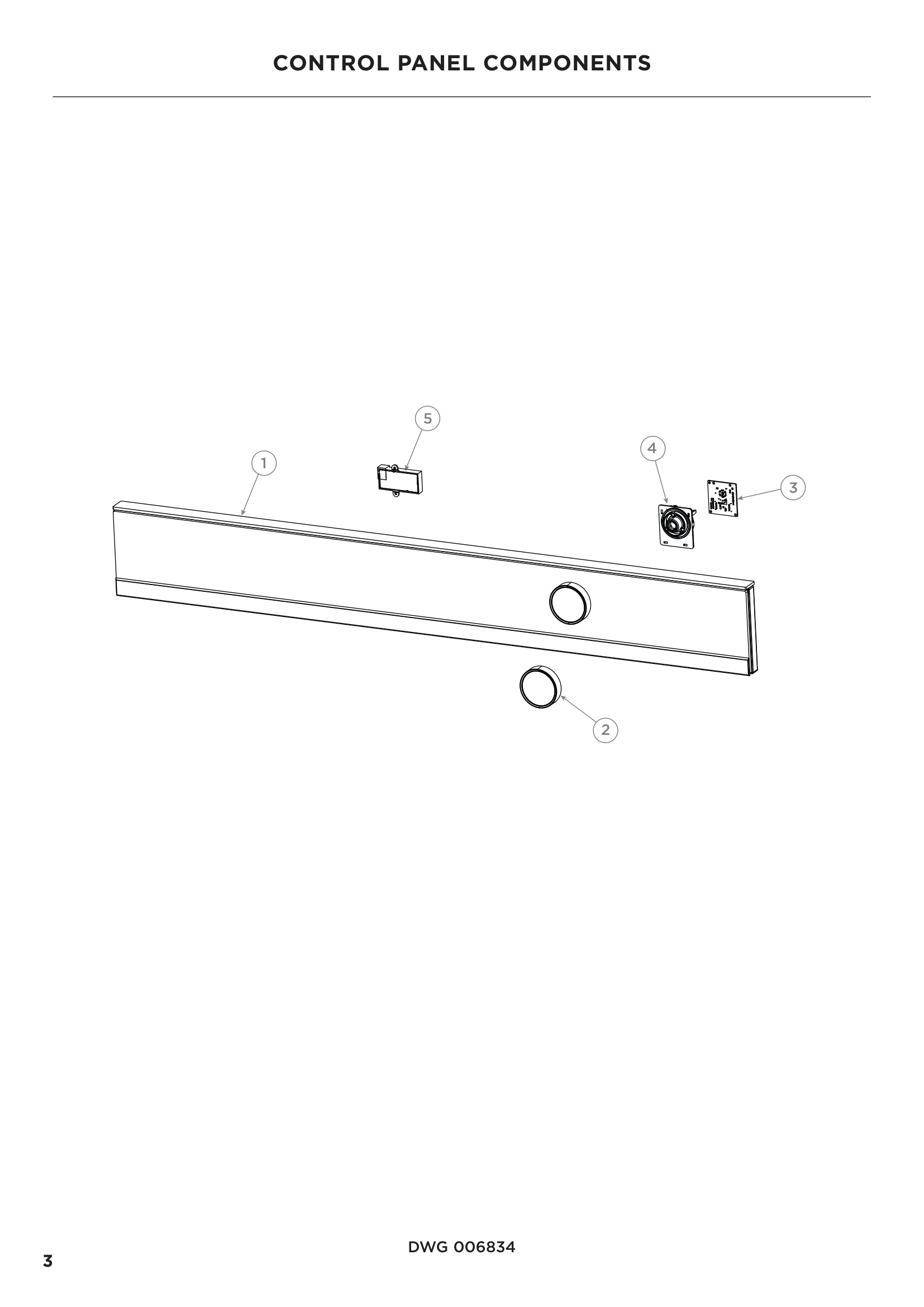

CONTROL PANEL COMPONENTS
CHASSIS COMPONENTS

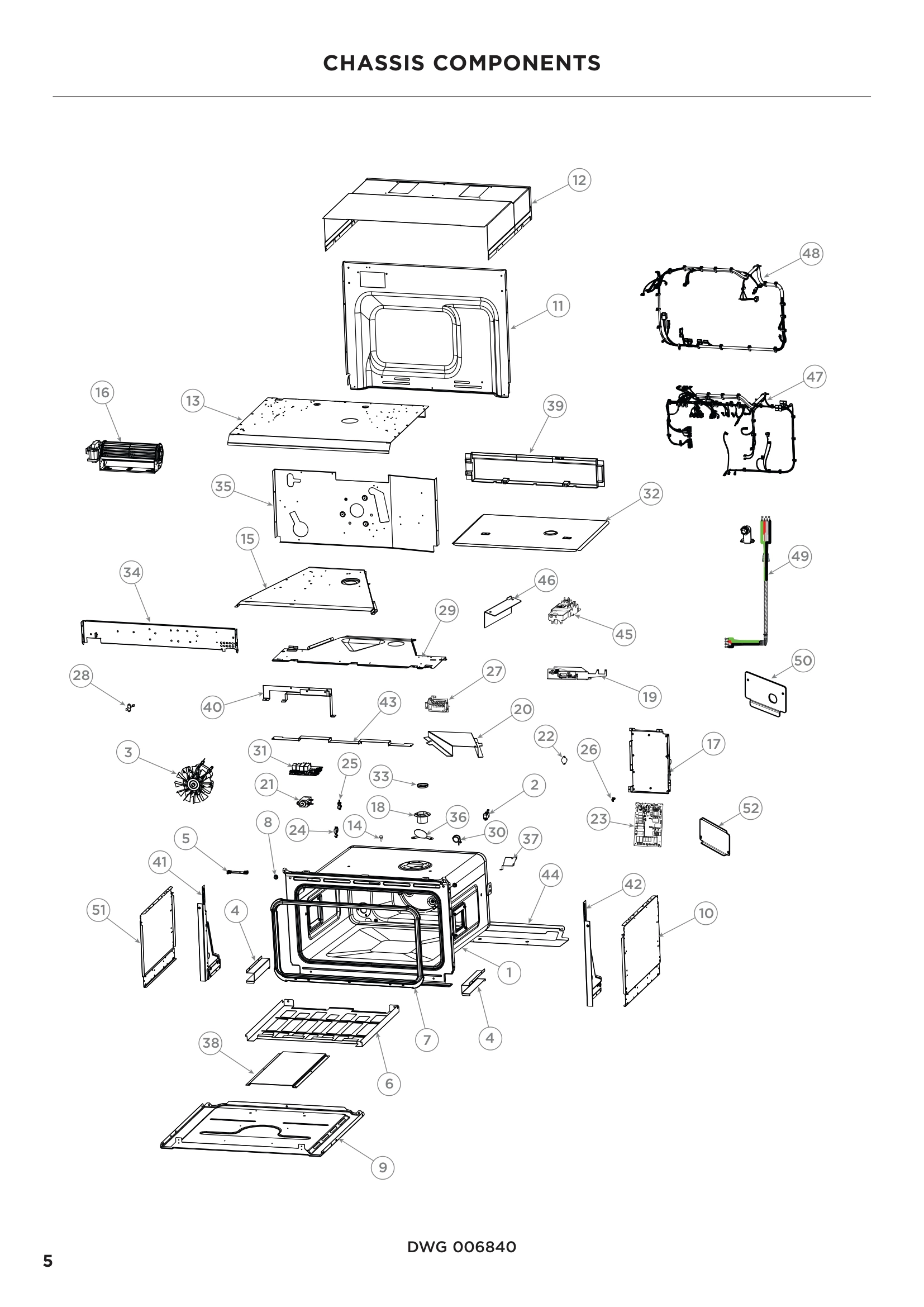

CHASSIS COMPONENTS
CHASSIS COMPONENTS
STEAM COMPONENTS
DOOR COMPONENTS
ELEMENTS & ACCESSORIES
Common parts from model Fisher & Paykel OS30NDTDB1-83099-A Built In Oven
1
GASKET CATALYST OBC STEAM FPA 516980 Contact Us For Availability
1
KIT OUTER DOOR ASSY OB30ND FPA 552468P Contact Us For Availability
1
LADDER CHROME 2 TAB LH FPA 551725 Contact Us For Availability
2
SLEEVE INSULATION FPA 580918 Contact Us For Availability
2
GLASS INNER MIDPANE OB60ND SP FPA 565458P Contact Us For Availability
2
LADDER CHROME 2 TAB RH FPA 551726 Contact Us For Availability
3
SEAL SLEEVE FPA 551513 Contact Us For Availability
3
GLASS OUTER MIDPANE OB60ND SP FPA 565705P Contact Us For Availability
3
DISH DEEP COATED OB2 FPA 550933 Contact Us For Availability
4
PUMP STEAM ASSY SP FPA 563603P Contact Us For Availability
4
GLASS DOOR INNER OB60N SP FPA 563490P Contact Us For Availability
4
RACK GRILL OB2 FPA 550572 Contact Us For Availability
5
HOSE PUMP UPPER OSN SP FPA 552799P Contact Us For Availability
5
BULB SPARE KIT OB60C STEAM 120 FPA 551631P Contact Us For Availability
6
HOSE PUMP LOWER OS60N FPA 551993 Contact Us For Availability
6
BUFFER DOOR UPPER LH OB60M FPA 565736 Contact Us For Availability
6
GLASS SPARE KIT STEAM LIGHT FPA 551534P Contact Us For Availability
7
STEAM GENERATOR ASSY OS60N SP FPA 551962P Contact Us For Availability
7
BUFFER DOOR UPPER RH OB60M FPA 565737 Contact Us For Availability
7
SHROUD FAN COMPACT ENAMEL FPA 561964 Contact Us For Availability
8
BUMPER DOOR OBS (PKT 2) FPA 544953P Contact Us For Availability
8
HOSE STEAM INLET OS FPA 551982 Contact Us For Availability
8
BRACKET G2 HINGE OB22 LH FPA 565443 Contact Us For Availability
8
ELEMENT FIXED GRILL INCOLOY SP FPA 551526P Contact Us For Availability
9
PANEL BASE FPA 561321 Contact Us For Availability
9
KIT CAPACITOR LEVEL SENSOR FPA 551805 Contact Us For Availability
9
BRACKET G2 HINGE FG DOOR RH FPA 565442 Contact Us For Availability
9
CLIP ELEMENT SH FPA 562869 Contact Us For Availability
10
PANEL SIDE OS60N FPA 564833 Contact Us For Availability
10
KIT WATER CONNECTION FPA 551902 Contact Us For Availability
10
ELEMENT FAN OS60N INCOLOY SP FPA 551528P Contact Us For Availability
11
GASKET INNER DOOR OB60M FPA 565738 Contact Us For Availability
11
ELEMENT BAKE FPA 561914 Contact Us For Availability
12
PANEL TOP STEAM ASSIST SP FPA 580654P Contact Us For Availability
12
HANDLE D5 727 REAR MNT BLK FPA 565972 Contact Us For Availability
13
RETAINER PC 30”FRONT STEAM TOP FPA 552926 Contact Us For Availability
13
SCREW MC M5X20 PAN TX BLK PKT2 FPA 552869P Contact Us For Availability
14
GROMMET TRIM FRONT FPA 574597 Contact Us For Availability
14
SPACER HANDLE D5 30 (PKT2) FPA 552685P Contact Us For Availability
14
SHELF FLAT FPA 561147 Contact Us For Availability
15
DUCT COOLING OUTLET STEAM PC FPA 552151 Contact Us For Availability
15
NUT M4 HEX FS MS ZNPL (PK10) FPA 550943P Contact Us For Availability
15
TRAY STEAM GN1/3 FPA 580811 Contact Us For Availability
16
FAN 180MM 60MM 120V 20W CPT FPA 566636 Contact Us For Availability
16
TRAY STEAM GN2/3 FPA 580812 Contact Us For Availability
17
BRACKET PCBS MOUNT OS60N FPA 580894 Contact Us For Availability
17
GLASS SUPPORT DOOR CLIP FPA 566294 Contact Us For Availability
17
TRAY 20MM GN2-3 FPA 580746 Contact Us For Availability
18
TUBE VENT CAVITY OUTLET SHORT FPA 552112 Contact Us For Availability
18
HINGE G2 UNDPD 55N OS30ND FPA 553056 Contact Us For Availability
19
DUCT CAV VALVE OUT ASSY OS60N FPA 552160 Contact Us For Availability
19
HINGE G2 DAMPED 55N OS30ND FPA 553054 Contact Us For Availability
20
DUCT CAVITY OUTLET LOW FPA 580421 Contact Us For Availability
20
SPACER DOOR LWR RH OB60M FPA 565450 Contact Us For Availability
21
ACTUATOR ELTEK 10033136 FPA 550547 Contact Us For Availability
21
SPACER DOOR LWR LH OB60M FPA 565449 Contact Us For Availability
25
SPACER SUPPORT PCB 14MM FPA 551595 Contact Us For Availability
29
DUCT COOLING INLET STEAM FPA 552350 Contact Us For Availability
30
WIRE SADDLE FPA 551153 Contact Us For Availability
32
PLATE REFLECTOR STEAM FPA 516583 Contact Us For Availability
33
SEAL FLAP FPA 551514 Contact Us For Availability
34
BARRIER METAL OB60 FPA 564664 Contact Us For Availability
35
REAR RETAINER OS60N FPA 580887 Contact Us For Availability
36
BAFFLE VENT SLEEVE FPA 552110 Contact Us For Availability
37
BRKT DOOR LOCK OS6 FPA 564714 Contact Us For Availability
38
BRACE BASE FPA 565364 Contact Us For Availability
39
PANEL BACK COMPACT FPA 561971 Contact Us For Availability
40
BRKT VENTING HARNESS FPA 580536 Contact Us For Availability
41
BRKT SIDE OS60N LH FPA 564629 Contact Us For Availability
42
BRKT SIDE OS60N RH FPA 564633 Contact Us For Availability
43
SPACER AIR OUTLET DUCT PC FPA 580753 Contact Us For Availability
44
PANEL COVER BASE SLOTS FPA 565039 Contact Us For Availability
45
DOOR SWITCH FPA 565057 Contact Us For Availability
46
MOUNT BRKT DOOR SWITCH OB24S FPA 564776 Contact Us For Availability
47
HARNESS MAINS OS24N FPA 551863 Contact Us For Availability
48
HARNESS OS30N LV FPA 552701 Contact Us For Availability
49
CONDUIT OB24C 10_12AWG UL FPA 565865 Contact Us For Availability
50
PANEL CONDUIT MOUNTING FPA 565063 Contact Us For Availability
51
PANEL SIDE OS24N LH FPA 564800 Contact Us For Availability
52
COVER DOOR SENSOR FPA 565213 Contact Us For Availability
NI
INSUL WRAP COMP STEAM FPA 551991 Contact Us For Availability
NI
INSUL REAR COMP STEAM FPA 551992 Contact Us For Availability
NI
SCREW M4 X 25 TC (10PK) FPA 550925P Contact Us For Availability
NI
SCREW M4X9 TAPT WAFER PH (PKT10) FPA 570116P Contact Us For Availability
NI
SCREW SD 3.9X13 PAN PN NP PK10 FPA 562839P Contact Us For Availability
NI
SCREW ST 8X10 TAB MTS BK PKT10 FPA 556620P Contact Us For Availability
NI
MS 6-32 X 5/8 PH PAN (PKT10) FPA 211271P Contact Us For Availability
NI
WASHER LOCK 6MM INT SERR PKT10 FPA 556510P Contact Us For Availability
NI
HARNESS OS30N LV LHS FPA 552703 Contact Us For Availability
NI
KIT CAVITY FAN SEAL FPA 551812 Contact Us For Availability
NI
CABLE TIE HIGH TEMP FPA 563720 Contact Us For Availability
NI
KIT TEMP STEAM FASTENERS FPA 552218 Contact Us For Availability
NI
RING COMP SLEEVE INSUL SP FPA 551683P Contact Us For Availability
NI
TRIM KIT TK7630NDX1 FP US/AA FPA 82760 Contact Us For Availability
NI
KIT MEAT PROBE SOCKET/HARNESS FPA 255527 Contact Us For Availability
NI
KIT SCREWS INSTALL (2PK) FPA 562192 Contact Us For Availability
NI
BK UG OS30N 5 TFT (DIGITAL ONLY) FPA 432073 Contact Us For Availability
NI
BK UG OS30N 5 TFT (FR) (DIGITAL ONLY) FPA 432074 Contact Us For Availability
NI
BK UG OS30N 5 TFT (SP) (DIGITAL ONLY) FPA 432075 Contact Us For Availability
NI
BK IG OS30N (DIGITAL ONLY) FPA 432083 Contact Us For Availability
NI
BK IG OS30N (FR) (DIGITAL ONLY) FPA 432084 Contact Us For Availability
NI
BK IG OS30N EN (SP) (DIGITAL ONLY) FPA 432085 Contact Us For Availability
NI
SCREW SPARE KIT STEAM LIGHT FPA 551607P Contact Us For Availability
NI
TRIM CABINETRY ASSY OB30 SP FPA 553062P Contact Us For Availability
× ![]()
