Model Fisher & Paykel OS24NMTNB1-82607-A Built In Oven – Common Parts & Diagrams

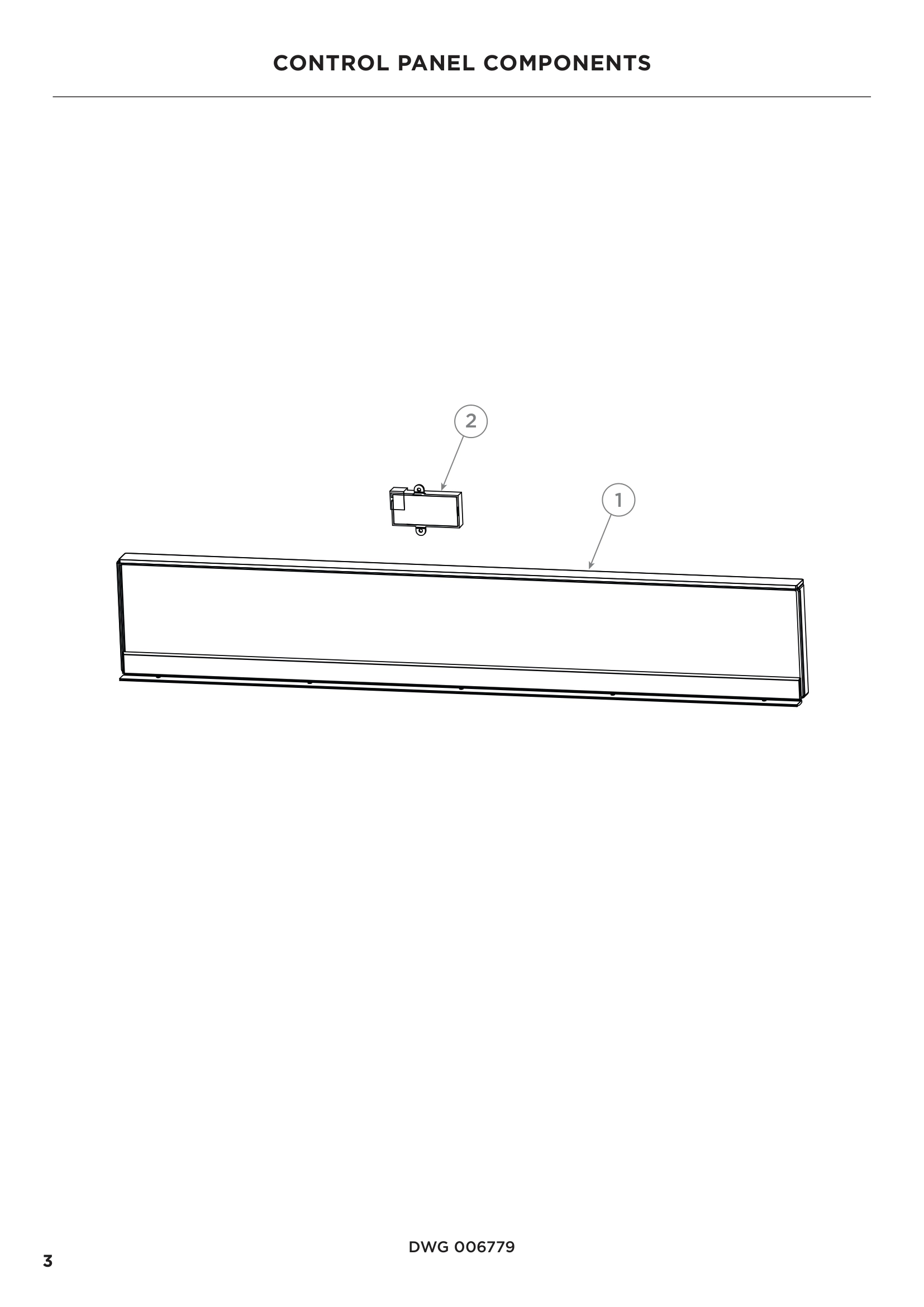

CONTROL PANEL COMPONENTS

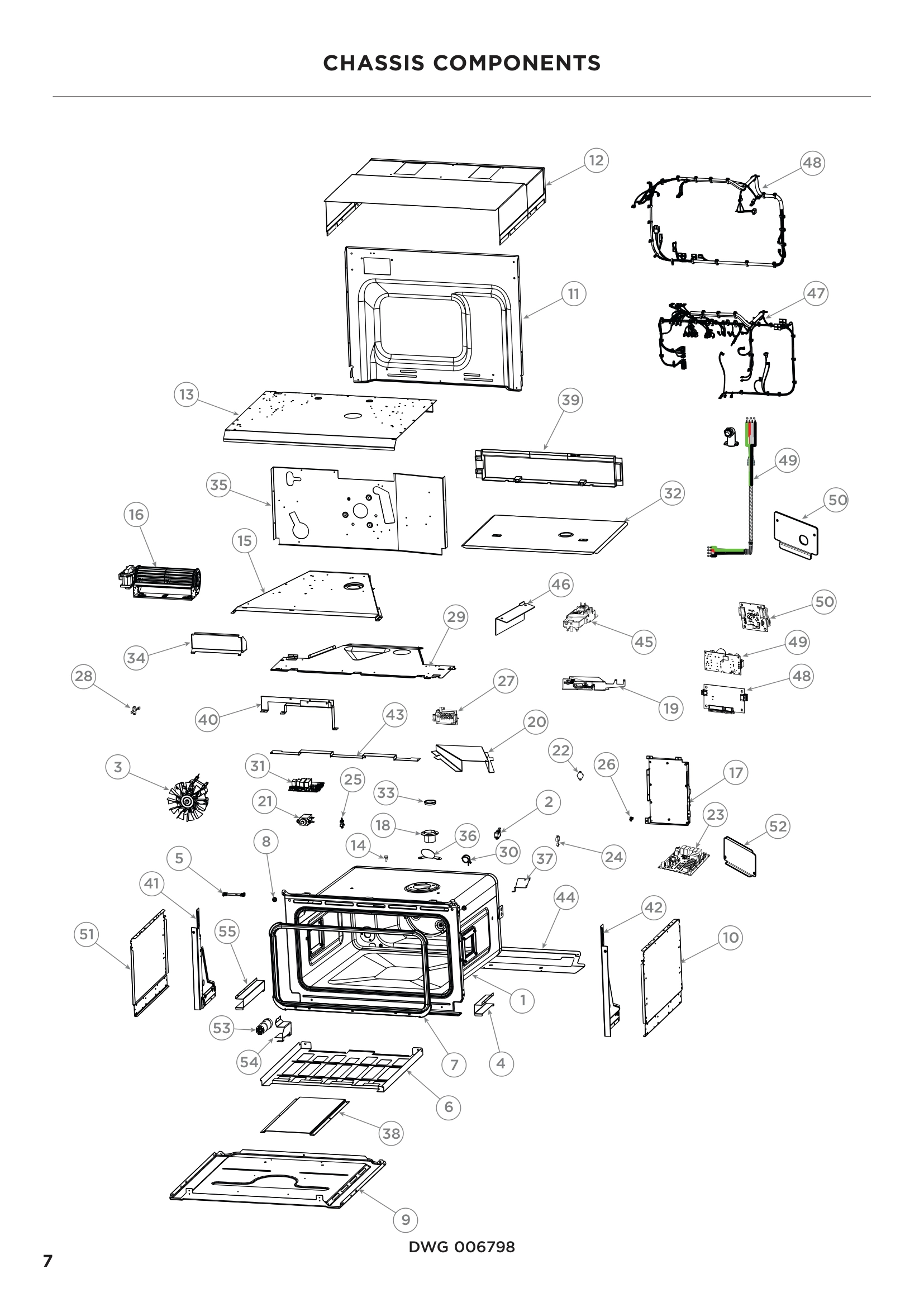

CHASSIS COMPONENTS

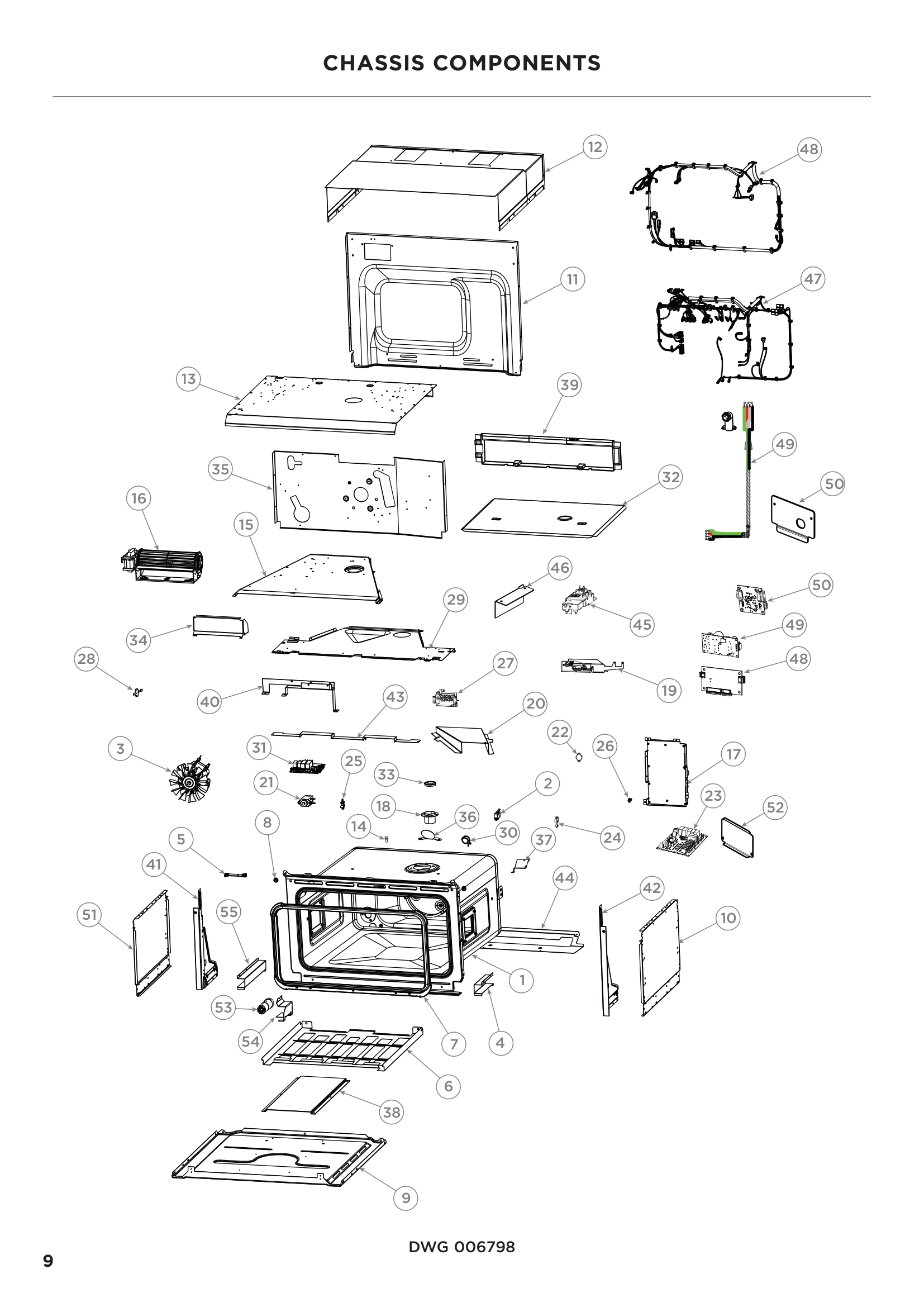

CHASSIS COMPONENTS

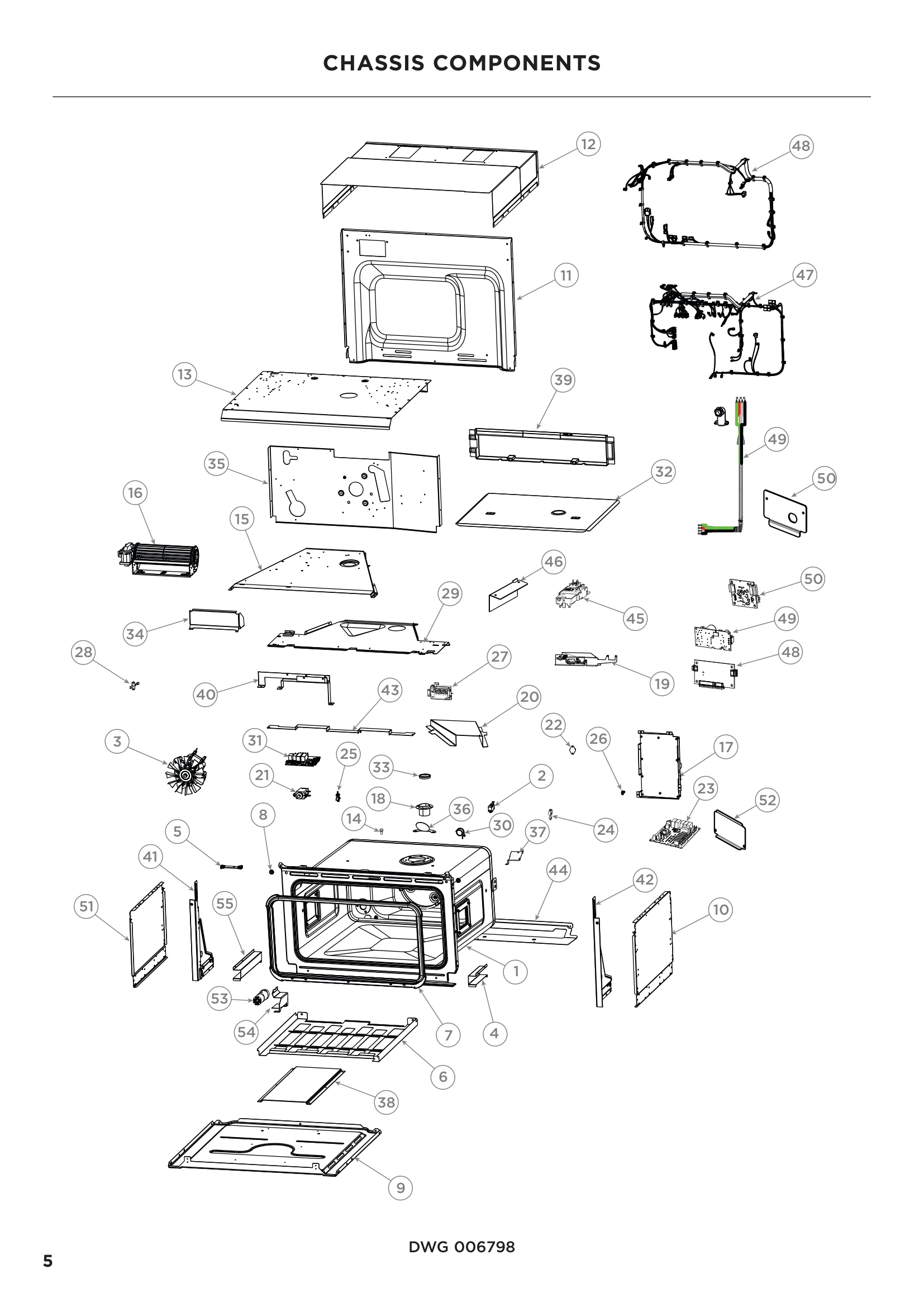

CHASSIS COMPONENTS

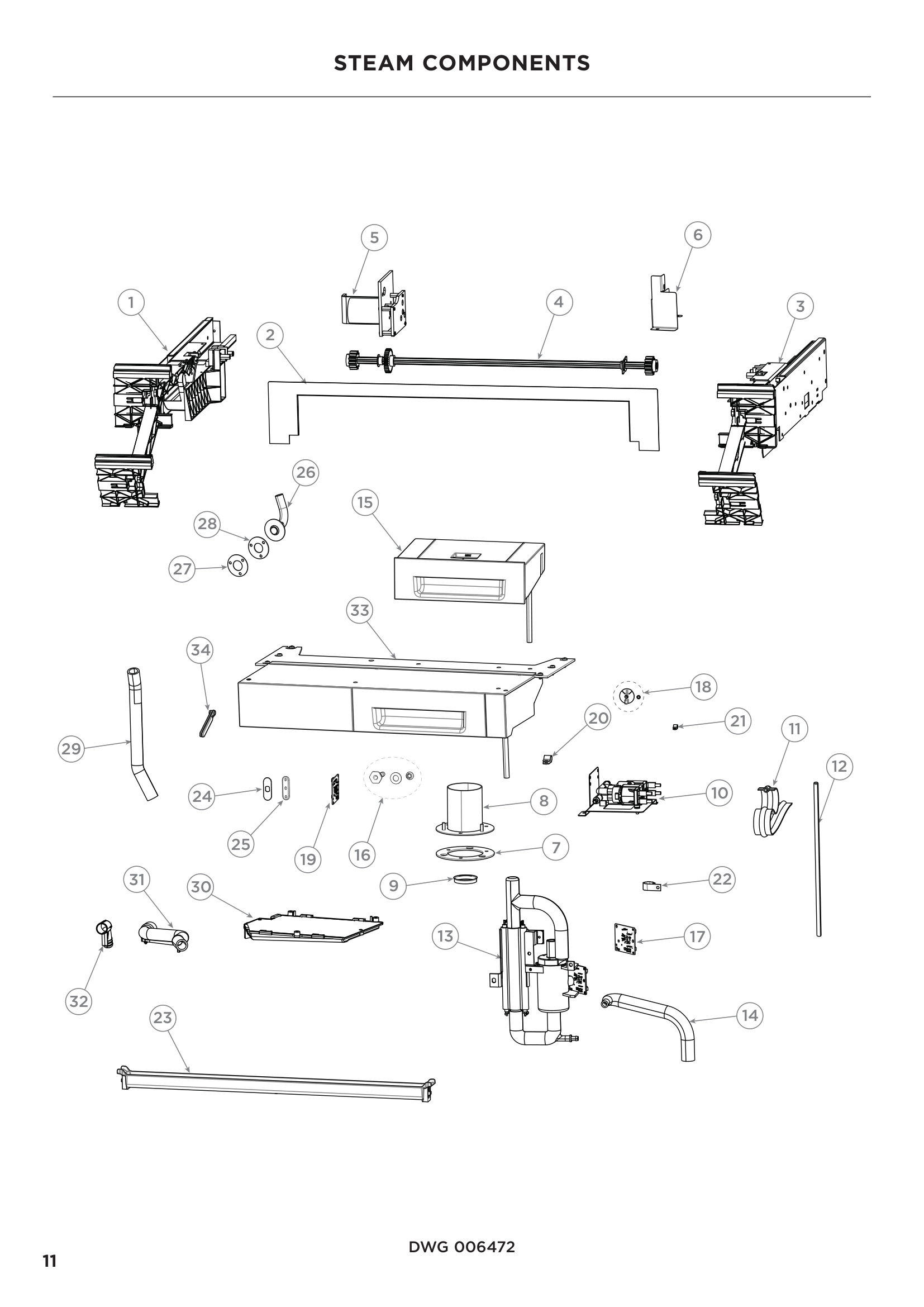

STEAM COMPONENTS

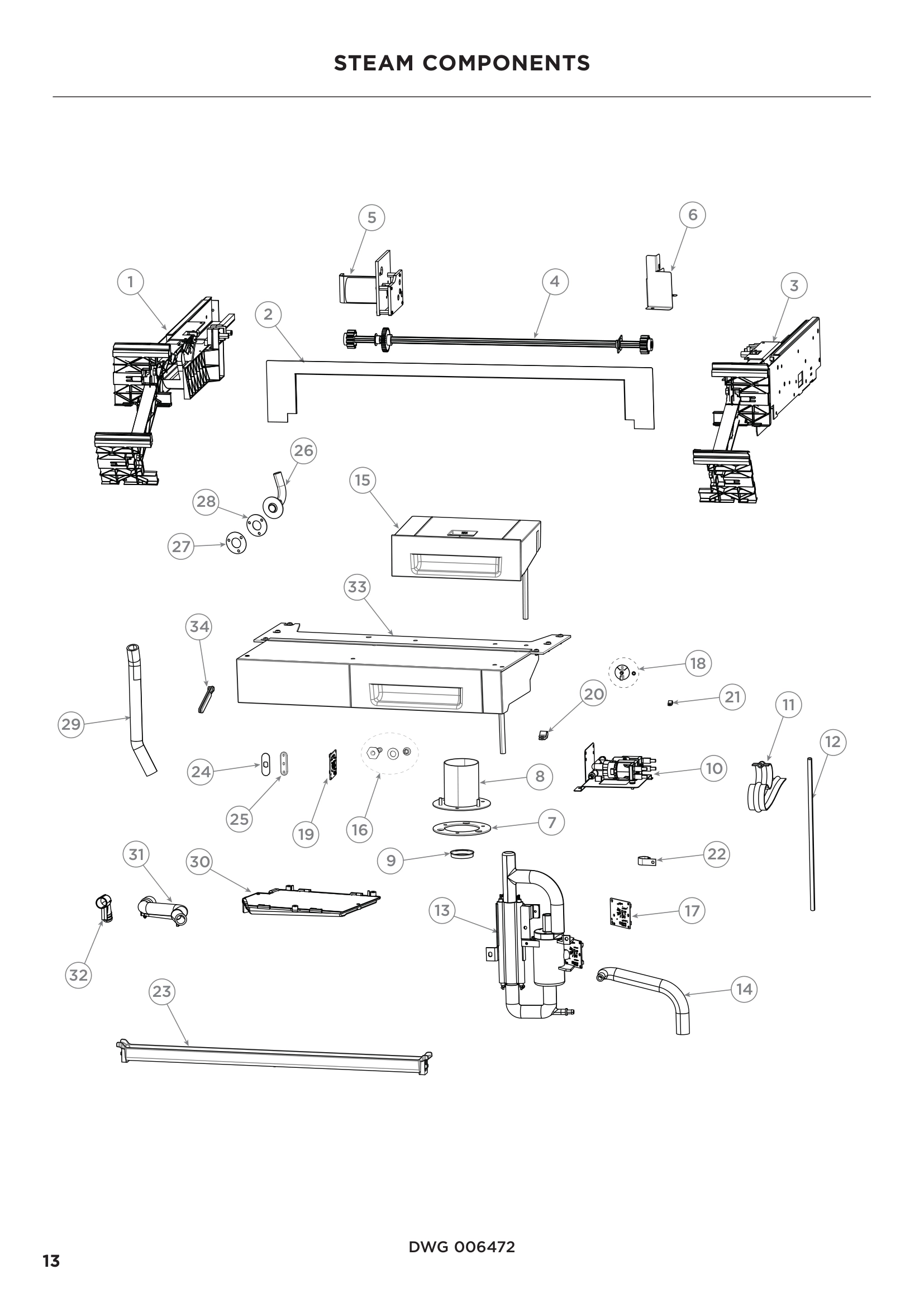

STEAM COMPONENTS

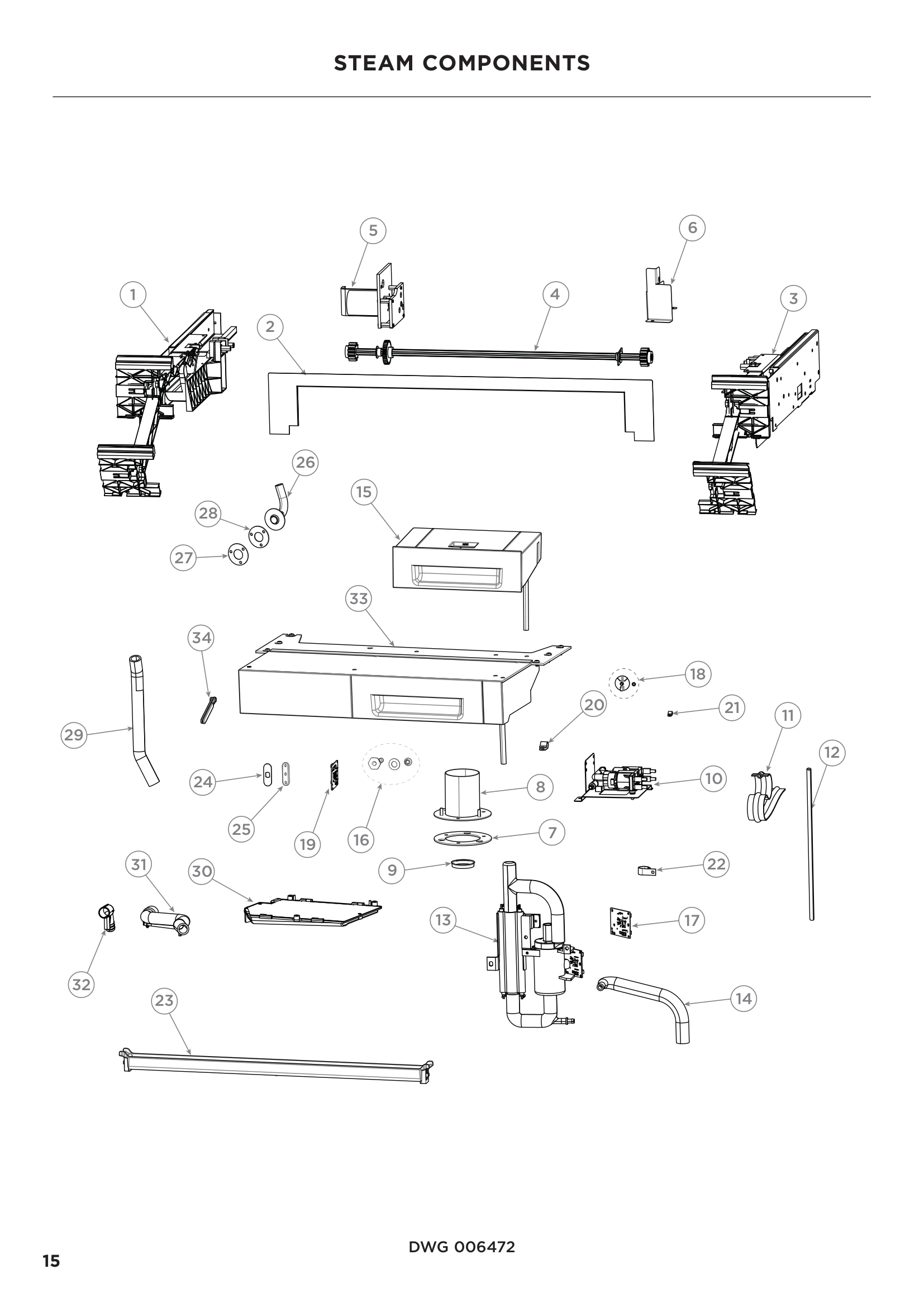

STEAM COMPONENTS

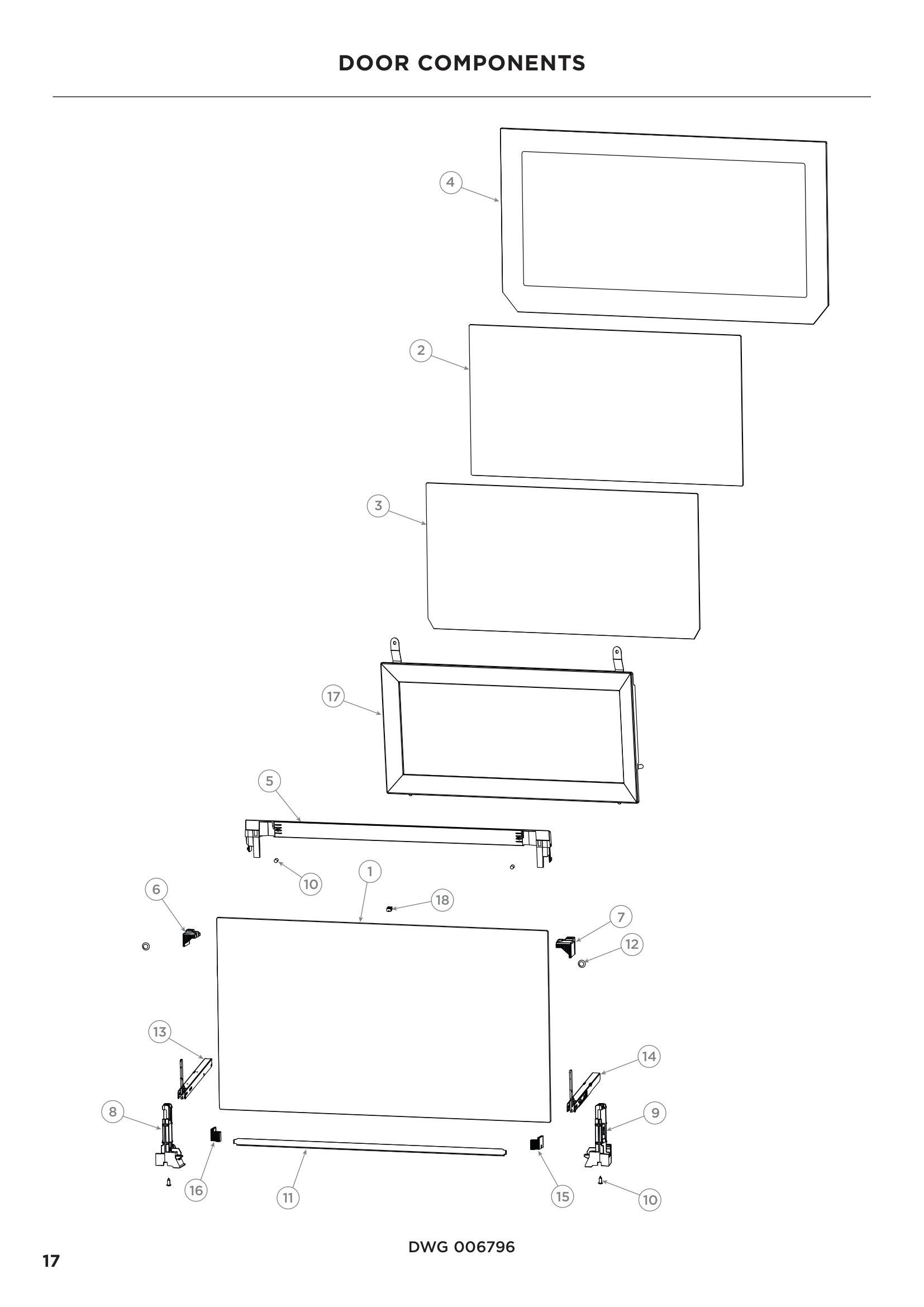

DOOR COMPONENTS

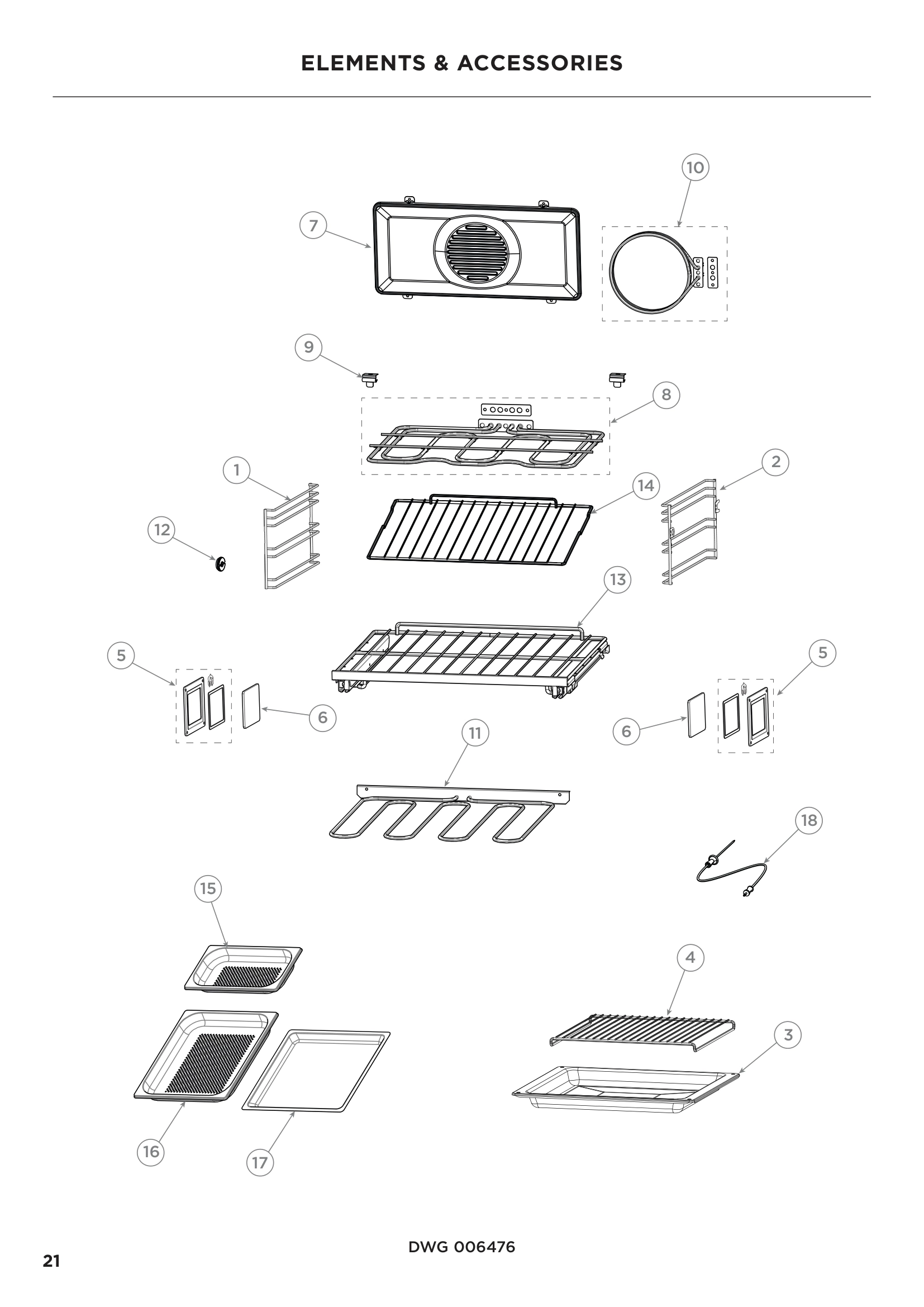

ELEMENTS & ACCESSORIES
ELEMENTS & ACCESSORIES
Common parts from model Fisher & Paykel OS24NMTNB1-82607-A Built In Oven
1
ARM ASSY MCP LH OS60N (SP) FPA 551744P Contact Us For Availability
1
OUTER DOOR ASSY COMP HLULB1 SP FPA 566644P Contact Us For Availability
1
LADDER CHROME 2 TAB LH FPA 551725 Contact Us For Availability
2
TRIM MOVING SYSTEM STEAM (SP) FPA 580682P Contact Us For Availability
2
GLASS INNER MIDPANE OB60ND SP FPA 565458P Contact Us For Availability
2
LADDER CHROME 2 TAB RH FPA 551726 Contact Us For Availability
3
ARM ASSY MCP RH OS60N (SP) FPA 551745P Contact Us For Availability
3
GLASS OUTER MIDPANE OB60NM SP FPA 565457P Contact Us For Availability
3
DISH DEEP COATED OB2 FPA 550933 Contact Us For Availability
4
DRIVE BAR ASSY SP FPA 551743P Contact Us For Availability
4
GLASS DOOR INNER OB60N SP FPA 563490P Contact Us For Availability
4
RACK GRILL OB2 FPA 550572 Contact Us For Availability
5
MOTOR ASSY LHS SP FPA 551621P Contact Us For Availability
5
BULB SPARE KIT OB24C STEAM 120 FPA 551631P Contact Us For Availability
6
SHIELD GEARS OS60N FPA 552416 Contact Us For Availability
6
BUFFER DOOR UPPER LH OB60M FPA 565736 Contact Us For Availability
6
GLASS SPARE KIT STEAM LIGHT FPA 551534P Contact Us For Availability
7
GASKET CATALYST OBC STEAM FPA 516980 Contact Us For Availability
7
BUFFER DOOR UPPER RH OB60M FPA 565737 Contact Us For Availability
7
SHROUD FAN COMPACT ENAMEL FPA 561964 Contact Us For Availability
8
SLEEVE INSULATION FPA 580918 Contact Us For Availability
8
BRACKET G2 HINGE OB22 LH FPA 565443 Contact Us For Availability
8
ELEMENT FIXED GRILL INCOLOY SP FPA 551526P Contact Us For Availability
9
PANEL BASE FPA 561321 Contact Us For Availability
9
SEAL SLEEVE FPA 551513 Contact Us For Availability
9
BRACKET G2 HINGE FG DOOR RH FPA 565442 Contact Us For Availability
9
CLIP ELEMENT SH FPA 562869 Contact Us For Availability
10
PANEL SIDE OS60N FPA 564833 Contact Us For Availability
10
PUMP STEAM ASSY SP FPA 563603P Contact Us For Availability
10
ELEMENT FAN OS60N INCOLOY SP FPA 551528P Contact Us For Availability
11
PANEL BACK COMPACT FPA 561971 Contact Us For Availability
11
HOSE PUMP UPPER WINGED OS60N FPA 551692 Contact Us For Availability
11
GASKET INNER DOOR OB60M FPA 565738 Contact Us For Availability
11
ELEMENT BAKE FPA 561914 Contact Us For Availability
12
PANEL TOP STEAM ASSIST SP FPA 580654P Contact Us For Availability
12
HOSE PUMP LOWER OS60N FPA 551993 Contact Us For Availability
13
RETAINER TOP STEAM PC FPA 516596 Contact Us For Availability
13
STEAM GENERATOR ASSY OS60N SP FPA 551962P Contact Us For Availability
13
HINGE OB60SM EHINGE MOTOR FPA 566432 Contact Us For Availability
14
GROMMET TRIM FRONT FPA 574597 Contact Us For Availability
14
HOSE STEAM INLET OS FPA 551982 Contact Us For Availability
14
HINGE OB60SM EHINGE DAMPED FPA 566435 Contact Us For Availability
14
SHELF FLAT FPA 561147 Contact Us For Availability
15
DUCT COOLING OUTLET STEAM PC FPA 552151 Contact Us For Availability
15
TANK WATER ASSY SP FPA 580427P Contact Us For Availability
15
SPACER DOOR LWR RH OB60M FPA 565450 Contact Us For Availability
15
TRAY STEAM GN1/3 FPA 580811 Contact Us For Availability
16
FAN 180MM 60MM 120V 20W CPT FPA 566636 Contact Us For Availability
16
FITTING STEAM INLET ASSY SP FPA 551592P Contact Us For Availability
16
SPACER DOOR LWR LH OB60M FPA 565449 Contact Us For Availability
16
TRAY STEAM GN2/3 FPA 580812 Contact Us For Availability
17
BRACKET PCBS MOUNT OS60N FPA 580894 Contact Us For Availability
17
KIT CAPACITOR LEVEL SENSOR FPA 551805 Contact Us For Availability
17
PICTURE FRAME COATED OB60NMB FPA 565668 Contact Us For Availability
17
TRAY 20MM GN2-3 FPA 580746 Contact Us For Availability
18
TUBE VENT CAVITY OUTLET SHORT FPA 552112 Contact Us For Availability
18
KIT WATER CONNECTION FPA 551902 Contact Us For Availability
18
GLASS SUPPORT DOOR CLIP FPA 566294 Contact Us For Availability
19
DUCT CAV VALVE OUT ASSY OS60N FPA 552160 Contact Us For Availability
19
MOD MAGNETIC ENCODER OBC TFT FPA 580384 Contact Us For Availability
20
DUCT CAVITY OUTLET LOW FPA 580421 Contact Us For Availability
21
ACTUATOR ELTEK 10033136 FPA 550547 Contact Us For Availability
21
P-CLIP 7.9MM PKT 10 FPA 580856P Contact Us For Availability
22
P-CLIP CLAMP 12.7MM PKT 10 FPA 516688P Contact Us For Availability
23
TRAP DRIP DOOR FPA 580840 Contact Us For Availability
24
ASSY THERMISTOR BRKT FPA 551555 Contact Us For Availability
25
SPACER SUPPORT PCB 14MM FPA 551595 Contact Us For Availability
25
THERMISTER SEALING FPA 551557 Contact Us For Availability
26
FITTING EXHAUST CAVITY FPA 551543 Contact Us For Availability
27
PLATE CAVITY EXHAUST SPREADER FPA 551565 Contact Us For Availability
28
GASKET EXHAUST OBC STEAM FPA 516978 Contact Us For Availability
29
DUCT COOLING INLET STEAM FPA 552350 Contact Us For Availability
29
HOSE EXHAUST REAR OS60N_1 FPA 552010 Contact Us For Availability
30
PIGTAIL SHORT FPA 551022 Contact Us For Availability
30
EXHAUST CONDENSER ASY OS60_1 FPA 552167 Contact Us For Availability
31
HOSE EXHAUST TOP OS60_2 FPA 552148 Contact Us For Availability
32
PLATE REFLECTOR STEAM FPA 516583 Contact Us For Availability
32
ELBOW CONNECTOR EXHAUST OS60_2 FPA 552149 Contact Us For Availability
33
SEAL FLAP FPA 551514 Contact Us For Availability
33
CARRIAGE ASSEMBLY SP FPA 580579P Contact Us For Availability
34
BRACKET ACCESS UL STEAM FPA 580839 Contact Us For Availability
34
FLOAT PIVOT MAGNET ASSY FPA 580482 Contact Us For Availability
35
REAR RETAINER OS60N FPA 580887 Contact Us For Availability
36
BAFFLE VENT SLEEVE FPA 552110 Contact Us For Availability
37
BRKT DOOR LOCK OS6 FPA 564714 Contact Us For Availability
38
BRACE BASE FPA 565364 Contact Us For Availability
39
PANEL BACK MCP FPA 580394 Contact Us For Availability
40
BRKT VENTING HARNESS FPA 580536 Contact Us For Availability
41
BRKT SIDE OS60N LH FPA 564629 Contact Us For Availability
42
BRKT SIDE OS60N RH FPA 564633 Contact Us For Availability
43
SPACER AIR OUTLET DUCT PC FPA 580753 Contact Us For Availability
44
PANEL COVER BASE SLOTS FPA 565039 Contact Us For Availability
45
DOOR SWITCH FPA 565057 Contact Us For Availability
46
MOUNT BRKT DOOR SWITCH OB24S FPA 564776 Contact Us For Availability
47
HARNESS MAINS OS24N FPA 551863 Contact Us For Availability
48
HARNESS LV OS24N FPA 551865 Contact Us For Availability
49
CONDUIT OB24C 10_12AWG UL FPA 565865 Contact Us For Availability
50
PANEL CONDUIT MOUNTING FPA 565063 Contact Us For Availability
51
ASSY PANEL SIDE OB24N EHINGE FPA 566687 Contact Us For Availability
52
COVER DOOR SENSOR FPA 565213 Contact Us For Availability
53
MOTOR EHINGE OB60 SP FPA 566433P Contact Us For Availability
54
PSU 24V 40W 85C RACM40-24 SP FPA 566460P Contact Us For Availability
55
MOD BRIDGE I2C UART SP FPA 566491P Contact Us For Availability
56
BRACKET MOTOR OB60 EHINGE FPA 566587 Contact Us For Availability
57
COVER HINGE OB60 EHINGE. FPA 566574 Contact Us For Availability
NI
INSUL WRAP COMP STEAM FPA 551991 Contact Us For Availability
NI
INSUL REAR COMP STEAM FPA 551992 Contact Us For Availability
NI
SCREW M4 X 25 TC (10PK) FPA 550925P Contact Us For Availability
NI
SCREW M4X9 TAPT WAFER PH (PKT10) FPA 570116P Contact Us For Availability
NI
SCREW SD 3.9X13 PAN PN NP PK10 FPA 562839P Contact Us For Availability
NI
SCREW ST 8X10 TAB MTS BK PKT10 FPA 556620P Contact Us For Availability
NI
WASHER LOCK 6MM INT SERR PKT10 FPA 556510P Contact Us For Availability
NI
HARNESS OS24N LV LHS FPA 552273 Contact Us For Availability
NI
KIT CAVITY FAN SEAL FPA 551812 Contact Us For Availability
NI
PCBA EHINGE GRONBACH OB60N SP FPA 566461P Contact Us For Availability
NI
SCREW (PKT 10) FPA 575873P Contact Us For Availability
NI
RING COMP SLEEVE INSUL SP FPA 551683P Contact Us For Availability
NI
CABLE TIE HIGH TEMP FPA 563720 Contact Us For Availability
NI
KIT TEMP STEAM FASTENERS FPA 552218 Contact Us For Availability
NI
HARNESS 12C H20 SENSE CARRIAGE FPA 580940 Contact Us For Availability
NI
NUT KEPS M4 SS PKT10 FPA 551724P Contact Us For Availability
NI
NUT M4 HEX FS MS ZNPL (PK10) FPA 550943P Contact Us For Availability
NI
TRIM KIT TK7630NMB1 FP US/AA FPA 82733 Contact Us For Availability
NI
KIT MEAT PROBE SOCKET/HARNESS FPA 255527 Contact Us For Availability
NI
KIT SCREWS INSTALL (2PK) FPA 562192 Contact Us For Availability
NI
BK UG OS24N HANDLELESS (DIGITAL ONLY) FPA 432163 Contact Us For Availability
NI
BK UG OS24N HANDLELESS FR (DIGITAL ONLY) FPA 432164 Contact Us For Availability
NI
SCREW SPARE KIT STEAM LIGHT FPA 551607P Contact Us For Availability
NI
TRIM CABINET ASSY OB60M SPARE FPA 565881P Contact Us For Availability
NI
DOOR KEY HL COATED SP FPA 566864P Contact Us For Availability
NI
BK UG OS24N HANDLELESS SP (DIGITAL ONLY) FPA 431679 Contact Us For Availability
NI
BK IG OS24N EN FR (DIGITAL ONLY) FPA 431696 Contact Us For Availability
NI
BK IG OS24N EN SP (DIGITAL ONLY) FPA 431697 Contact Us For Availability
NI
BK IG OS24N EN (DIGITAL ONLY) FPA 90002693 Contact Us For Availability
× ![]()
